Product Type	Microwave Oven with Grill
Brand	Electrolux
Model	MQ817GXE
Microwave Power	800 W
Grill Power	1000 W
Combined Power (Microwave + Grill)	2200 W
Oven Capacity	17 litres
Turntable Diameter	272 mm (glass)
Outside Dimensions (W x H x D)	594 x 371 x 316 mm
Cavity Dimensions (W x H x D)	285 x 202 x 298 mm
Weight	Approx. 16.2 kg
Power Supply	230 V, 50 Hz, single phase, min 16 A fuse
Microwave Frequency	2450 MHz (Group 2 Class B)
Control Type	Digital display with knob and buttons
Number of Power Levels	6
Auto Cook Programmes	6 menus
Auto Defrost Programmes	2 menus
Clock Display	12 or 24 hour
Child Safety Lock	Yes
Econ Mode (Energy Saving)	Yes
Dishwasher Safe Parts	Turntable, turntable support, rack
Oven Lamp	25 W / 240-250 V
Installation Type	Built-in
Accessories Included	Turntable, turntable support, rack

Frequently Asked Questions - MQ817GXE ELECTROLUX

How do I set the clock on my Electrolux MQ817GXE microwave?

Open the door, press and hold the Start/+30 button for 5 seconds. Use the Timer/Weight knob to adjust the hour, press Start/+30 again, then adjust minutes. Press Start/+30 to confirm. The clock can be set to 12H or 24H mode.

How do I activate the child safety lock?

Press and hold the Stop button for 5 seconds. The display will show 'LOC'. To cancel, press and hold Stop again for 5 seconds. Note: The clock must be set before activating the lock.

How do I defrost food using the microwave?

For automatic defrost, press the Auto Defrost button (once for meat/fish/poultry, twice for bread), then use the Timer/Weight knob to select weight and press Start/+30. For manual defrost, select 240 W (defrost) or 80 W for gentle defrosting, set time, and start.

Can I use metal utensils in the microwave?

No, metal utensils should not be used as they can cause arcing and fire. Only use microwave-safe containers. Small pieces of aluminium foil can be used to shield food, but keep at least 2 cm from oven walls.

How do I clean the microwave oven?

Wipe the exterior with mild soap and water. Clean the interior with a soft damp cloth or sponge. Do not use abrasive cleaners, steam cleaners, or those containing sodium hydroxide. The turntable, turntable support, and rack are dishwasher safe.

What should I do if the microwave does not start?

Check that the door is properly closed, the door seals are clean, and the Start/+30 button has been pressed. Also verify the power supply (fuse and circuit breaker) and that the clock is set if required. If the problem persists, contact an authorized Electrolux service agent.

How do I use the grill function?

Press the Grill button: once for grill only (1000 W), twice for dual grill with microwave at 240 W, three times for dual grill at 400 W. Use the Timer/Weight knob to set time and press Start/+30. The rack is recommended for grilling.

What is Econ mode?

Econ mode is an energy-saving feature. When the oven is plugged in, it enters Econ mode after 3 minutes if no clock is set. The display goes blank. To cancel, set the clock. To reactivate Econ mode, press and hold Start/+30 for 5 seconds, then press Stop.

Can I adjust the cooking time while the microwave is running?

Yes, simply rotate the Timer/Weight knob clockwise to increase or counterclockwise to decrease the cooking time during operation. You can also change the power level by pressing the Power Level button and then adjusting.

How do I program multiple cooking stages?

You can program up to 3 stages using microwave, grill, or dual grill. After setting the first stage (power level and time), press the desired function button for the next stage (e.g., grill) and set time. Press Start/+30 to begin. The oven will automatically proceed through all stages.

USER MANUAL MQ817GXE ELECTROLUX

Abstract geometric composition with two overlapping white circles on a gray background (no text or symbols)

INDICE

www.electrolux.com/productregistration

Line drawing of a cabinet or enclosure with mounting brackets and internal compartments (no text or symbols)

Line drawing of a mechanical bracket or bracket with a handle and mounting holes (no text or symbols)

Line drawing of a microwave oven with control panel and two wall-mounted outlets (no text or symbols)

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time. Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning/Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

IMPORTANT!

IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

If food being heated begins to smoke, DO NOT OPEN THE DOOR. Turn off and unplug the oven and wait until the food has stopped smoking. Opening the door while food is smoking may cause a fire. Only use microwave-safe containers and utensils. Do not leave the oven unattended when using disposable plastic, paper or other combustible food containers. Clean the waveguide cover, the oven cavity, the turntable and turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

1.1 To avoid the possibility of injury

WARNING!

Do not operate the oven if it is damaged or malfunctioning.

Check the following before use:

a) The door; make sure the door closes properly and ensure it is not misaligned or warped.
b) The hinges and door safety latches; check to make sure they are not broken or loose.

c) The door seals and sealing surfaces; ensure that they have not been damaged.
d) Inside the oven cavity or on the door; make sure there are no dents.
e) The power supply cord and plug; ensure that they are not damaged.

Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy. Do not allow grease or dirt to build up on the door seals and adjacent parts. Follow the instructions for “Care and cleaning”. Clean the oven at regular intervals and remove any food deposits. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Do not attempt to replace the oven lamp yourself or allow anyone who is not authorised by ELECTROLUX to do so. If the oven lamp fails, please consult your dealer or call an authorised ELECTROLUX service agent.

1.2 To avoid the possibility of explosion and sudden boiling

WARNING!

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

ENGLISH 35

Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.

Do not cook eggs in their shells and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs before reheating them in the microwave oven.

To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly.

Keep children away from the door and accessible parts that may become hot when the grill is in use. Children should be kept away to prevent them burning themselves. Do not touch the oven door, outer cabinet, rear cabinet, oven cavity, ventilation openings, accessories and dishes during GRILL mode, DUALGRILL mode and AUTO COOK operation as they will become hot. Before cleaning make sure they are not hot.

1.3 To avoid the misuse by children

! WARNING!

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential environments; bed and breakfast type environments.

This appliance is not intended for use at altitudes above 2000m.

1.4 To avoid the danger of fire

The microwave oven should not be left unattended during operation. Power levels that are too high or cooking times that are too long may overheat foods resulting in a fire. The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency. The AC power supply must be 230 V, 50 Hz, with a minimum 16 A distribution line fuse, or a minimum 16 A distribution circuit breaker. It is recommended that a separate circuit serving only this appliance be provided. Do not store or use the oven outdoors.

Do not place flammable materials near the oven or ventilation openings. Do not block the ventilation openings. Remove all metallic seals, wire twists, etc., from

food and food packages. Arcing on metallic surfaces may cause a fire. Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire. To make popcorn, only use special microwave popcorn makers. Do not store food or any other items inside the oven. Check the settings after you start the oven to ensure the oven is operating as desired. Do not operate the oven with the door open or alter the door safety latches in any way. Do not operate the oven if there is an object between the door seals and sealing surfaces.

Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.

ENGLISH 37

1.5 To avoid the possibility of electric shock

Under no circumstances should you remove the outer cabinet. Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately and call an authorised ELECTROLUX service agent. Do not immerse the power supply cord or plug in water or any other liquid. Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven.

If the power supply cord of this appliance is damaged, it must be replaced with a special cord. The exchange must be made by an authorised ELECTROLUX service agent.

1.6 To avoid the possibility of explosion and sudden boiling

Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build up of pressure even after the oven has been turned off. Take care when microwaving liquids. Use a wide-mouthed container to allow bubbles to escape.

To prevent sudden eruption of boiling liquid and possible scalding:

• Stir liquid prior to heating/reheating.
• It is advisable to insert a glass rod or similar utensil into the liquid whilst reheating.
• Let liquid stand for at least 20 seconds in the oven at the end of cooking time to prevent delayed eruptive boiling.

Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode.

1.7 To avoid the possibility of burns

Use pot holders or oven gloves when removing food from the oven to prevent burns. Always open containers, popcorn

makers, oven cooking bags, etc., away from the face and hands to avoid steam burns.

Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature. Always stand back from the oven door when opening to avoid burns from escaping steam and heat. Slice stuffed baked foods after heating to release steam and avoid burns.

Do not lean or swing on the oven door. Do not play with the oven or use it as a toy. Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying special attention to packaging (e.g. self-heating materials) designed to make food crisp, as they may be extra hot.

1.8 Other warnings

Never modify the oven in any way. This oven is for home food preparation only and may only be used for cooking food. It is not suitable for commercial or laboratory use.

1.9 To promote trouble-free use of your oven and avoid damage

Never operate the oven when it is empty except where recommended in the operation manual. Doing so may damage the oven. When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and turntable support due to heat stress. The preheating time specified in the dish's instructions must not be exceeded. Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans in the oven. Only use the turntable and the turntable support designed for this oven. Do not operate the oven without the turntable.

To prevent the turntable from breaking:

• Before cleaning the turntable with water, leave the turntable to cool.
• Do not put hot foods or hot utensils on a cold turntable.
• Do not put cold foods or cold utensils on a hot turntable.

Do not place anything on the outer cabinet during operation. Do not use plastic containers for microwaving if the oven is still hot from using the GRILL mode, DUAL GRILL mode and AUTO COOK operation because they may melt. Plastic containers must not be used during above modes unless the container manufacturer says they are suitable.

IMPORTANT!

If you are unsure how to connect your oven, please consult an authorised, qualified electrician.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure. Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction.

2. PRODUCT DESCRIPTION

2.1 Microwave Oven

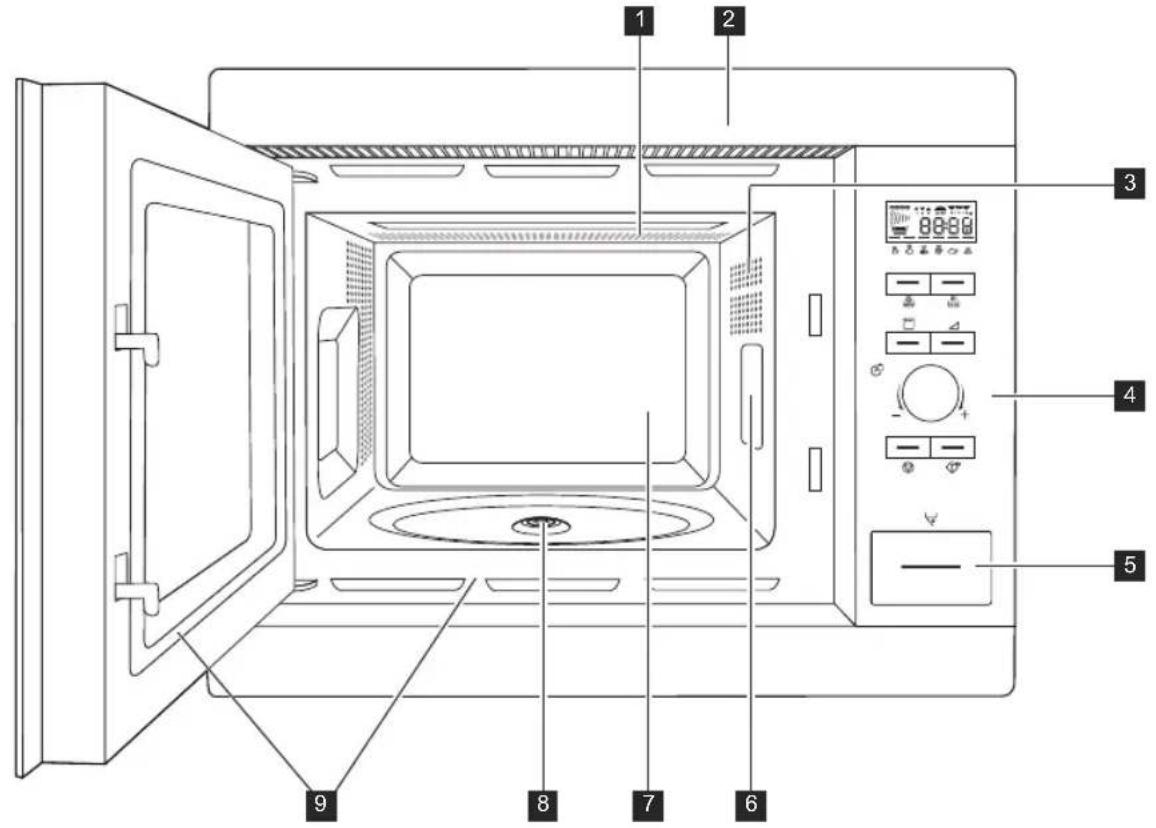

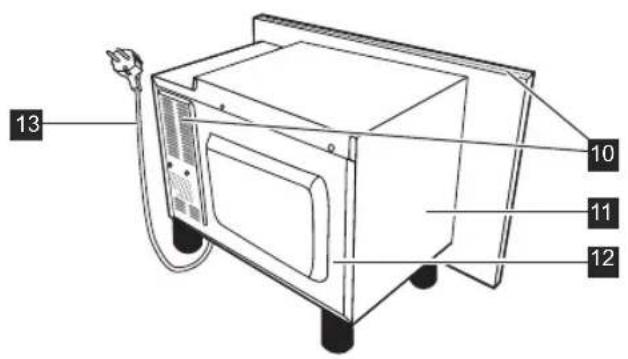

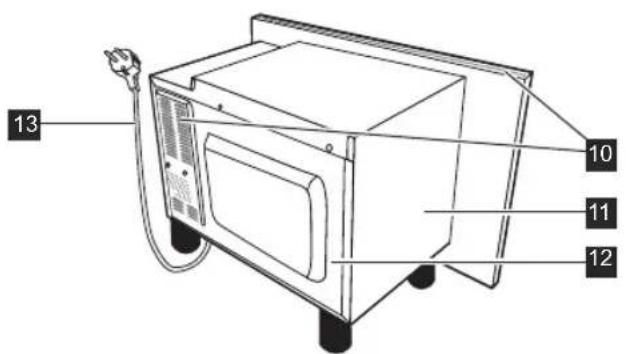

1 Grill heating element
2 Front trim
3 Oven lamp
4 Control panel
5 Door opening button
6 Waveguide cover
7 Oven cavity
8 Seal packing
9 Door seals and sealing surfaces
10 Ventilation openings
11 Outer cover
12 Rear cabinet
13 Power supply cord

2.2 Accessories

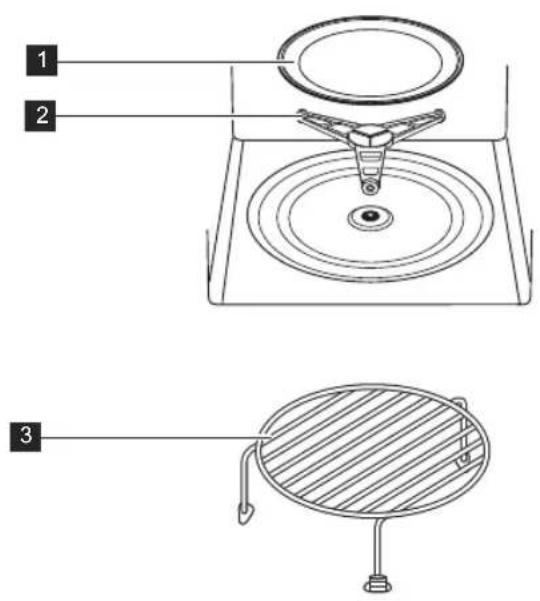

Check to make sure the following accessories are provided:

1 Turntable
2 Turntable support
3 Rack

• Place the turntable support in the seal packing on the floor of the cavity.
• Then place the turntable on the turntable support.
• To avoid turntable damage, ensure dishes or containers are lifted clear of the turntable rim when removing them from the oven.

When you order accessories, please mention two items: part name and model name to your dealer or an authorised ELECTROLUX service agent.

3. CONTROL PANEL

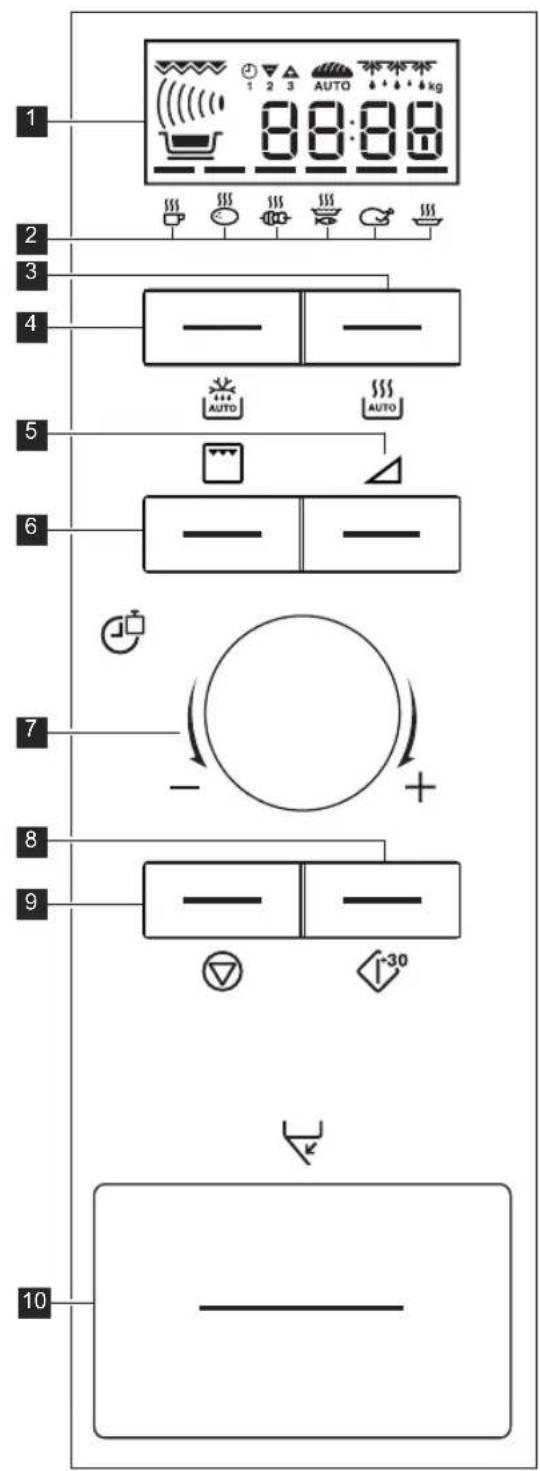

1 Digital display indicators

Grill

Microwave

Dual

Clock

Cooking stages

Plus/Minus

Auto defrost bread

Auto defrost

Weight

2 Auto cook indicators
3 Auto cook button
4 Auto defrost button
5 Power level button
6 Grill button
7 Timer/Weight knob
8 Start/+30 button
9 Stop button
10 Door open button

42 www.electrolux.com

4. BEFORE FIRST USE

4.1 Econ mode

The oven is set in energy save mode (Econ).

1. Plug in the oven.
2. The display will show: Econ.
3. The display will count down from 3:00 to zero.
4. When zero is reached, the oven goes into Econ mode and the display goes blank.

To cancel Econ mode, set the clock.

4.2 Setting the clock

The oven has a 12 and 24 hour clock. Example: To set the clock to 11:30 (12 hour clock).

1. Open the door.
2. The display will show: Econ.

3. Press and hold the START/+30 button for 5 seconds. The oven will beep. The display will show: 124

4. Rotate the TIMER/WEIGHT knob to adjust the hour.

5. Press the START/+30 button once then rotate the TIMER/WEIGHT knob to adjust the minutes.

6. Press the START/+30 button.

7. Check the display: 1130

8. Close the door.

You can rotate the TIMER/WEIGHT knob clockwise or anti-clockwise. If you press the STOP button the clock will not be set. The display will show: Econ.

Example: To set the clock to 23:30 (24 hour clock).

1. Open the door.
2. The display will show: Econ.

3. Press and hold the START/+30 button for 5 seconds. The oven will beep. The display will show:

4. Press the START/+30 button. The display will show: 24H

5. Rotate the TIMER/WEIGHT knob to adjust the hour.
6. Press the START/+30 button once then rotate the TIMER/WEIGHT knob to adjust the minutes.
7. Press the START/+30 button.
8. Check the display:°23:30
9. Close the door

You can rotate the TIMER/WEIGHT knob clockwise or anti-clockwise. If you press the STOP button the clock will not be set. The display will show: Econ.

4.3 Adjusting the time when the clock is set

Example: To set the clock to 11:45.

1. Open the door.

2. Press and hold the START/+30 button for 5 seconds. The oven will beep. The display will show: 12H (If you want to change the clock to 24 H, press the START/+30 button again.)

3. Rotate the TIMER/WEIGHT knob to adjust the hour.

4. Press the START/+30 button once then rotate the TIMER/WEIGHT knob to adjust the minutes.

5. Press the START/+30 button.

6. Check the display: 1145

4.4 To cancel the clock and set Econ mode

1. Open the door.
2. Press and hold the START/+30 button for 5 seconds. The oven will beep. The display will show:
   (If you want to change the clock to 24 H, press the START/+30 button again.)

1. Press the STOP button.
2. The display will show: Econ.
3. Close the door.
4. The oven will count down from 3:00 to zero.
5. When zero is reached, the oven goes into Econ mode and the display goes blank.

4.5 Using the STOP button

Use the STOP button to:

1. Erase a mistake during programming.
2. Stop the oven temporarily during cooking, press once.
3. Cancel a programme during cooking, press twice.

4.6 Child safety lock

The oven has a safety feature which prevents the accidental running of the oven by a child. When the lock has been set, no part of the microwave will operate until the lock feature has been cancelled.

Example: To set the child safety lock.

1. Press and hold the STOP button for 5 seconds.
2. The oven will beep twice and 'LOC' will be displayed: LOC

To cancel the child safety lock, press and hold the STOP button for 5 seconds, the oven will beep twice and the time of day will be displayed. Child safety lock cannot be set if the clock is not set.

44 www.electrolux.com

5. OPERATION

5.1 Microwave safe cookware

Cookware	Microwave safe	Comments
Aluminium foil/containers	√/✗	Small pieces of aluminium foil can be used to shield food from overheating. Keep foil at least 2 cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer. Follow instructions carefully.
Browning dishes	√	Always follow the manufacturer's instructions. Do not exceed heating times given. Be very careful as these dishes become very hot.
China and ceramics	√/✗	Porcelain, pottery, glazed earthenware and bone china are usually suitable, except for those with metallic decoration.
Glassware e.g. Pyrex ®	√	Care should be taken if using fine glassware as it can break or crack if heated suddenly.
Metal	✗	It is not recommended to use metal cookware when using microwave power as it will arc, which can lead to fire.
Plastic/polystyrene e.g. fast food containers	√	Care must be taken as some containers warp, melt or discolour at high temperatures.
Cling film	√	Should not touch the food and must be pierced to let the steam escape.
Freezer/roasting bags	√	Must be pierced to let steam escape. Ensure bags are suitable for microwave use. Do not use plastic or metal ties, as they may melt or catch fire due to the metal arcing.
Paper - plates, cups and kitchen paper	√	Only use for warming or to absorb moisture. Care must be taken as overheating may cause fire.
Straw and wooden containers	√	Always attend the oven when using these materials as overheating may cause fire.
Recycled paper and newspaper	✗	May contain extracts of metal which will cause arcing and may lead to fire.

5.2 Microwave cooking advice

Microwave cooking advice
Composition	Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care should be taken as overheating can lead to fire.
Size For even cooking make all the pieces the same size.
Temperature of food	The initial temperature of food affects the amount of cooking time needed. Cut into foods with fillings (e.g. jam doughnuts) to release heat or steam.
Arrange Place	the thickest parts of food towards the outside of the dish (e.g. chicken drumsticks).
Cover Use vented microwave cling film or a suitable lid.
Pierce Foods	with a shell, skin or membrane must be pierced in several places before cooking or reheating as steam will build up and may cause food to explode (e.g. potatoes, fish, chicken, sausages).IMPORTANT!Eggs should not be heated using microwave power as they may explode, even after cooking has ended (e.g. poached, hard boiled).
Stir, turn and rearrange	For even cooking it is essential to stir, turn and rearrange food during cooking. Always stir and rearrange from the outside towards the centre.
Stand Standing time is necessary after cooking to enable the heat to disperse equally throughout the food.
Shield Warm areas can be shielded with small pieces of foil, which reflect microwaves (e.g. legs and wings on a chicken).

5.3 Microwave cooking

Your oven has 6 power levels.

Power setting	Suggested use
800 W/ HIGH	Used for fast cooking or reheating (e.g. soup, casseroles, canned food, hot beverages, vegetables, fish).
560 W Used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as cheese sauce and sponge cakes. At this reduced setting, the sauce will not boil over and food will cook evenly without over cooking at the sides.
400 W For dense foods which require a long cooking time when cooked conventionally (e.g. beef dishes) it is advisable to use this power setting to ensure the meat will be tender.
240 W/ DEFROST	To defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard.
80 W For gentle defrosting (e.g. cream gateaux or pastry).
0 W For standing/kitchen timer.

W = WATT

Your oven can be programmed for up to 90 minutes. The input unit of cooking time varies from 15 seconds to five minutes. It depends on the total length of the cooking time as shown in the table.

Cooking time Increasing unit

0-5 minutes 15 seconds

5-10 minutes 30 seconds

10-30 minutes 1 minute

30-90 minutes 5 minutes

Example: To heat soup for 2 minutes and 30 seconds on 560 W microwave power.

1. Press the POWER LEVEL button twice.

1. Enter the time by rotating the TIMER/WEIGHT knob clockwise/anti-clockwise until 2.30 is displayed.

1. Press the START/+30 button.

1. Check the display:

5.4 Reduced power level

IMPORTANT!

If you cook the food over the standard time with only the same cooking mode, the power of the oven will lower automatically to

IMPORTANT!

If the power level is not selected, 800 W/HIGH is automatically set.

• When the door is opened during the cooking process, the cooking time on the digital display stops automatically. The cooking time starts to count down again when the door is closed and the START/+30 button is pressed.
• If you wish to know the power level during cooking, press the POWER LEVEL button once.
• You can increase or decrease the cooking time during cooking by rotating the TIMER/WEIGHT knob.
• You can change the power level during cooking by pressing the POWER LEVEL button.
• To cancel a programme during cooking, press the STOP button twice.

avoid overheating (the microwave power level will be reduced or the grill heating element will begin to light on and off). After pausing for 90 seconds, full power can be reset.

Cooking mode Standard time Reduced power level

Microwave 800 W 20 minutes Microwave 560 W

Grill 10 minutes Grill-50 %

Dual Grill Grill-10 minutes

Grill-50 %

5.5 Kitchen timer

Example: To set the kitchen timer for 7 minutes.

1. Press the POWER LEVEL button 7 times.

1. Enter the time by rotating the TIMER/WEIGHT knob clockwise/anti-clockwise until 7.00 is displayed.

1. Press the START/+30 button.

1. Check the display:

To pause the timer, press the STOP button. To resume the timer press START/+30, to exit press STOP again.

5.6 Add 30 seconds

The START/+30 button allows you to operate the two following functions:

Direct Start

You can directly start cooking on 800 W/ HIGH microwave power level for 30 seconds by pressing the START/+30 button.

Extend the cooking time

You can extend the cooking time for multiples of 30 seconds if the button is pressed while the oven is in operation.

You can also use +30 seconds during grill mode. You cannot use this function during auto cook or auto defrost.

5.7 Plus and minus

The PLUS ⚠ and MINUS ∇ function enables you to decrease or increase the cooking time when using the automatic programmes.

If you prefer boiled potatoes which are cooked but still firm, use MINUS▼ Alternatively, if you prefer boiled potatoes softer, use PLUS▲

Example: To cook 0.3 kg of boiled potatoes, well done.

1. Select the menu required by pressing the AUTO COOK button twice.

1. Turn the TIMER/WEIGHT knob until 0.3 is displayed.

1. Press the POWER LEVEL button once to select the PLUS adjustment.

1. Press the START/+30 button.

1. Check the display:

To cancel PLUS/MINUS, press the POWER LEVEL button 3 times. If you select PLUS, the display will show ⚠. If you select MINUS, the display will show ∇.

5.8 Grill and dual grill cooking

This microwave oven has two grill cooking modes:

Grill only

Dual grill (grill with microwave)

IMPORTANT!

The rack is recommended for grilling.

You may detect smoke or a burning smell when using the grill for the first time, this is normal and does not indicate a fault with the oven. To avoid this problem, when using the grill for the first time, operate the grill without food for 20 minutes.

Grill only cooking

Example: To make toast for 4 minutes.

1. Press the GRILL button once.

1. Enter the time by rotating the TIMER/WEIGHT knob

clockwise/anti-clockwise until 4.00 is displayed.

1. Press the START/+30 button.

1. Check the display:

Dual grill cooking

This mode uses a combination of grill power and microwave power. The microwave power level is preset to 240 W.

Button Power setting

Grill x 1 0 W

Grill x 2 240 W

Grill x 3 400 W

Grill x 4 0 W

Example: To cook grill skewers for 7 minutes on DUAL GRILL (400 W).

1. Press the GRILL button 3 times.

1. Enter the time by rotating the TIMER/WEIGHT knob clockwise/anti-clockwise until 7.00 is displayed.

1. Press the START/+30 button.

1. Check the display:

5.9 Multiple sequence cooking

A sequence of 3 stages (maximum) can be programmed using microwave, grill or dual grill.

Example: To cook:

Stage 1: 2 minutes 30 seconds 560 W

Stage 2: 5 minutes grill only

1. Press the POWER LEVEL button twice.

ENGLISH

1. Enter the desired time by rotating the TIMER/WEIGHT knob clockwise until 2.30 is displayed.

1. Check the display:

1. Press the GRILL button once.

1. Enter the desired time by rotating the TIMER/WEIGHT knob clockwise until 5.00 is displayed.

1. Press the START/+30 button.

1. Check the display:

The oven will begin to cook for 2 minutes and 30 seconds at 560 W and then for 5 minutes on grill only.

5.10 Auto cook and auto defrost

Auto cook and auto defrost automatically works out the correct cooking mode and cooking time. You can choose from 6 auto cook and 2 auto defrost menus.

Food Symbol Setting
Beverage Microwave
Boiled potatoes/Jacket potatoes	Microwave
Grilled skewers Microwave	+ grill
Gratinated fish fillet Microwave	+ grill
Grilled chicken Microwave	+ grill
Gratin Microwave	+ grill
Meat/fish/poultry Microwave
Bread Microwave

Example: To cook 0.3 kg of boiled potatoes.

1. Select the menu required by pressing the AUTO COOK button twice.

1. Turn the TIMER/WEIGHT knob until 0.3 is displayed.

1. Press the START/+30 button.

1. Check the display: 7:02

When action is required (e.g. to turn food over) the oven stops and the audible bell sounds, remaining cooking time and the indicator will flash on the display. To continue cooking, press the START/+30 button. At the end of the auto cook/auto defrost time, the programme will automatically stop. The audible bell sounds and the cooking symbol will flash. After 1 minute and a reminder beep, the time of day will be displayed.

6. PROGRAMME CHARTS

6.1 Auto cook chart

Auto cook	Weight(increasing unit)/Ute nsils	Button	Procedure
Beverage(Tea/Coffee)[24K]	1-4 cups1 cup = 200 ml		Place cup towards edge of turntable.
Boiled andjacketpotatoes[24K6]	0.1-0.8 kg (100 g) Bowl and lid		Boiled potatoes: Peel the potatoes and cut them into similar sized pieces.Jacket potatoes: Choose potatoes of similar size and wash them.Put the boiled or jacket potatoes into a bowl.Add therequired amount of water, approx 2 tbsp per 100g and alittle salt.Cover with lidWhenthe audible bell sounds, stir and re-cover.After cooking, stand for approx . 2 min.
Grilled skewers	0.2-0.6 kg (100 g) Rack		See recipe for 'Grilled skewers'.Place on the rack and cook.Whenthe audible bell sounds, turn over.
Gratinated fish fillet[IMAGE]	0.6-1.2 kg ^1) (100 g) Gratin dish		See recipe for 'Gratinated fish fillet'Total weight of all ingredient s.
Grilled chicken[2632]	0.9-1.4 kg (100 g) Flan dish		Mix together 2 tbsp oil, 1 tsp paprika, salt and pepper and spread on the chicken.Pierce the skin of the chicken.Put the chicken breast side down in a flan dish.Place directly on the turntable and cook.Whenaudible bell sounds ,turn over.After cooking, leave for approx . 3 min in the oven, remove and put on a plate for serving.
Gratin	0.5-1.5 kg ^1) (100 g) Gratin dish		See recipes for 'Gratin'.Total weight of all ingredient s.

6.2 Auto defrost chart

Auto defrost	Weight(increasing unit)/Utensils	Button Procedure
Meat/fish/poultry	0.2-0.8 kg (100 g)Flan dish		Place the food in a flan dish in the centre of the turntable.When the audible bell sounds, turn the food over, rearrange and separate. Shield thin parts and warm spots with aluminium foil.After defrosting, wrap in aluminium foil for 15-45 min, until thoroughly defrosted.Minced meat: When the audible bell sounds, turn the food over. Remove the defrosted parts if possible. Not suitable for whole poultry.
(Whole fish, fish steaks, fish fillets, chicken legs, chicken breast, minced meat, steak, chops, burgers, sausages)
Bread 0.1-1.0 kg (100 g) [IMAGE]	Flan dish	x2	Distribute in a flan dish in the centre of the turntable. For 1.0 kg, distribute directly on the turntable.When the audible bell sounds, turn over, rearrange and remove defrosted slices.After defrosting cover in aluminium foil and stand for 5-15 min until thoroughly defrosted.

• Chilled foods are cooked from 5 °C, frozen foods are cooked from -18 °C.
• Enter the weight of the food only. Do not include the weight of the container.
• For food weighing more or less than weights/quantities given in the Auto cook and defrost charts, use manual operation.
• The final temperature will vary according to the initial temperature. Check food is piping hot after cooking.
  • After Microwave/Grill/Dual Grill modes the cooling fan may come on.
  • Steaks and chops should be frozen in one layer.
• Minced meat should be frozen in a thin shape.

• After turning over, shield the defrosted portions with small, flat pieces of aluminium foil.
- The poultry should be processed immediately after defrosting.

6.3 Recipes for auto cook

Grilled skewers
3 pieces
300 g	pork cutlets, cubed
60 g	streaky bacon
75 g	onions, quartered
105 g	tomatoes, quartered
100 g	green pepper, cubed
3 tbsp	oil
2 tsp	paprika
	salt
1 tsp	cayenne pepper
1 tsp	Worcester sauce

Gratinated fish fillet ‘Italian’
0.6 kg 0.9 kg 1.2 kg
260 g 390 g 520 g fish fillet
12 tbsp	1 tbsp 1 12 tbsp	lemon juice
12 tbsp	1 tbsp 1 12 tbsp	anchovy butter
30 g 45 g 60 g Gouda, grated
salt and pepper
180 g 270 g 360 g fresh tomatoes
1 tbsp 1 12 tbsp	2 tbsp chopped mixed herbs
110 g 165 g 220 g Mozzarella
12 tbsp	34 tbsp	1 tbsp basil, chopped

1. Thread meat and vegetables alternately on 3 wooden skewers.
2. Mix the oil with the spices and brush over the kebabs.

3. Place the kebabs on the rack and cook on auto cook "Grilled skewers".

4. Wash and dry the fish and sprinkle with lemon juice, salt and anchovy butter.

5. Place in a gratin dish.
6. Sprinkle the Gouda over the fish.
7. Place the tomatoes on top of the cheese.
8. Season with salt, pepper and the mixed herbs.
9. Drain the Mozzarella, cut into slices and place on the tomatoes. Sprinkle the basil over the cheese.
10. Place the gratin dish on the turntable and cook on auto cook "Gratinated fish fillet".
11. After cooking, stand for approx. 5 min.

ENGLISH 53

Spinach gratin

0.5 kg 1.0 kg 1.5 kg

150 g 300 g 450 g leaf spinach, defrosted, drained

15 g 30 g 45 g onion, finely chopped

salt, pepper and nutmeg

5 g 10 g 15 g butter or margarine to grease the dish

150 g 300 g 450 g boiled potatoes, sliced

35 g 75 g 110 g cooked ham, diced

50 g 100 g 150 g crème fraîche

1 2 3 eggs

40 g 75 g 115 g grated cheese

Potato and courgette gratin
0.5 kg 1.0 kg 1.5 kg
5 g 10 g 15 g butter or margarine to grease the dish
200 g 400 g 600 g boiled potatoes, sliced
115 g 230 g 345 g courgette, finely sliced
75 g	150 g	225 g crème fraîche
1	2	3 eggs
12	1 2	clove of garlic, crushed
		salt and pepper
40 g 80 g	120 g	Gouda, grated
10 g 20 g 30 g sunflower kernels

1. Mix together the leaf spinach with the onion and season with salt, pepper and nutmeg.
2. Grease the gratin dish. Place alternate layers of potato slices, diced ham and spinach in the dish. The top layer should be spinach.
3. Mix the eggs with crème fraîche, add salt and pepper and pour over the gratin.
4. Cover the gratin with the grated cheese.
5. Place on the turntable and cook on auto cook "Gratin".

6. After cooking, stand for 5-10 min.

7. Grease the gratin dish and place alternate layers of potato slices and courgette in the dish.

8. Mix the eggs with crème fraîche, season with salt, pepper and garlic and pour over the gratin.
9. Sprinkle the Gouda cheese over the gratin.
10. Finally sprinkle the gratin with sunflower kernels.
11. Place on the turntable and cook on auto cook "Gratin".
12. After cooking, stand for 5-10 min.

6.4 Cooking charts

Heating food and drink

Food/drink	Quantity-g/ml-	Setting	Power Level	Time-Min-	Method
Milk, 1 cup 150 Micro 800 W 1 do not cover
Water, 1 cup	150	Micro	800 W	1-2	do not cover
6 cups	900	Micro	800 W	10-12	do not cover
1 bowl	1000	Micro	800 W	11-13	do not cover
One plate meal (vegetables, meat and trimmings)	400 Micro 800 W 3-6 cover, stir halfway through cooking
Soup/stew 200 Micro 800 W 1-2 cover, stir after heating
Vegetables 500 Micro 800 W 4-5 cover, stir halfway through cooking
Meat, 1 slice1)	200 Micro 800 W 3-4 thinly spread sauce over the top, cover
Fish fillet1)	200 Micro 800 W 2-3 cover
Cake, 1 slice 150 Micro 400 W 1⁄2 place in a flan dish
Baby food, 1 jar 190 Micro 400 W 1 transfer into a suitable microwaveable container, after heating stir well and test the temperature
Melting margarine or butter1)	50 Micro	800 W	1⁄2	cover
Melting chocolate	100 Micro 400 W 2-3 stir occasionally

1) from chilled

Defrosting

Food	Quantity -g-	Setting	Power Level	Time -Min-	Method	Standing time -Min-
Goulash	500	Micro	240 W	8-12	stir halfway through defrosting	10-15
Cake, 1 slice	150	Micro	80 W	2-5	place in a flan dish	5
Fruit (e.g. cherries, strawberries, raspberries, plums)	250	Micro	240 W	4-5	spread out evenly, turn over halfway through defrosting	5

ENGLISH

Defrosting and cooking

Food	Quantity -g-	Setting	Power Level	Time -Min-	Method	Standing time -Min-
Fish fillet 300 Micro 800 W 10-12 cover 2
One plate meal	400 Micro 800 W 9-11 cover, stir after 6 minutes 2

Cooking, grilling and browning

Food	Quantity-g-	Setting	Power Level	Time-Min-	Method	Standing time-Min-
Broccoli/ Peas	500	Micro 800 W	9-11	add 4-5	tbsps water, cover, stir halfway through cooking	-
Carrots 500	Micro 800 W	10-12	cut into rings, add 4-5			-
						tbsps water, cover, stir halfway through cooking
Roasts (pork, veal, lamb)	1000	Micro Dual Grill Micro Dual Grill	800 W 400 W 560 W 400 W	13-16 6-8 ^1) 10-12 3-5	season to taste, place ina flan dish, turn over after ^2)	10
Roast beef (medium)	1000	Micro Dual Grill Micro Dual Grill	560 W 400 W 560 W 400 W	7-10 7-8 ^1) 4-5 5-7	season to taste, place ina flan dish, turn over after ^2)	10
Chicken legs	200	Dual Grill Grill	400 W	5-6 ^1) 6-8	season to taste, place skin side down on the rack, turn over after ^1)	3
Rump steaks 2 pieces, medium	400	Grill Grill		13-15 ^1) 6-8	place on the rack, turn over after ^1) , season after grilling
Browning of gratin dishes		Grill		5-7	place dish on the rack
Cheese toastie	1 piece	Grill		6-9	toast the bread and spread with butter, top with a slice of cooked ham, a slice of pineapple and a slice of cheese
Frozen pizza	400	Micro Dual Grill	400 W 400 W	83	remove packaging, place on rack, suitable for repeat cooking up to 4 pizzas, to maintain good results, rest the oven for 1 min 30 sec before cooking 5th pizza

The times shown in the table are guidelines which may vary according to freezing temperature, quality and weight of the foodstuffs.

7. CARE AND CLEANING

CAUTION!

DO NOT USE COMMERCIAL OVEN CLEANERS, STEAM CLEANERS, ABRASIVE, HARSH CLEANERS, ANY THAT CONTAIN SODIUM HYDROXIDE OR SCOURING PADS ON ANY PART OF YOUR MICROWAVE OVEN.

CLEAN THE OVEN AT REGULAR INTERVALS AND REMOVE ANY FOOD DEPOSITS. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Oven exterior

The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel.

Control panel

Open the door before cleaning to de-activate the control panel. Care should be taken when cleaning the control panel. Using a cloth dampened with water only, gently wipe the panel until it becomes clean. Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner.

Oven interior

For cleaning, wipe any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not remove the waveguide cover.

Make sure that mild soap or water does not penetrate the small vents in the walls which may cause damage to the oven.

Do not use spray type cleaners on the oven interior.

Heat up your oven regularly by using the grill. Remaining food or fat splashed can cause smoke or a bad smell.

Turntable and turntable support

Remove the turntable and turntable support from the oven. Wash the turntable and turntable support in mild soapy water. Dry with a soft cloth. Both the turntable and the turntable support are dishwasher safe.

Door

To remove all trace of dirt, regularly clean both sides of the door, the door seals and sealing surfaces with a soft, damp cloth. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Rack

This should be washed in a mild washing up liquid solution and dried. The rack is dishwasher safe.

IMPORTANT!

A steam cleaner should not be used.

8. TROUBLESHOOTING

Problem Check if . . .
The microwave appliance is not working properly?	The fuses in the fuse box are working.There has not been a power outage.If the fuses continue to blow, please contact a qualified electrician.
The microwave mode is not working?	The door is properly closed.The door seals and their surfaces are clean.The START/+30 button has been pressed.
The turntable is not turning?	The turntable support is correctly connected to the drive.The ovenware does not extend beyond the turntable.Food does not extend beyond the edge of the turntable preventing it from rotating.There is nothing in the well beneath the turntable.
The microwave will not switch off?	Isolate the appliance from the fuse box.Call an authorised ELECTROLUX service agent.
The interior light is not working?	Call your local ELECTROLUX service agent. The interior light bulb can be exchanged only by a trained ELECTROLUX service agent.
The food is taking longer to heat through and cook than before?	Set a longer cooking time (double quantity = nearly double time) orIf the food is colder than usual, rotate or turn from time to time orSet a higher power setting.

9. INSTALLATION

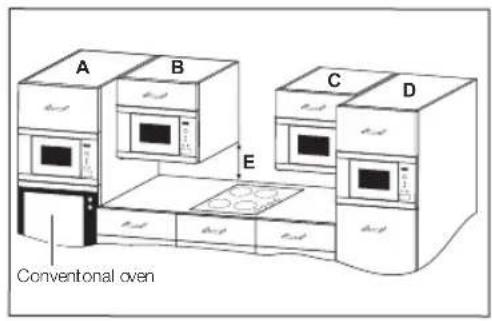

The microwave can be fitted in position A, B, C or D:

Position	Niche size
	W	D	H
A 560 x 550 x 360
B+C 560 x 300 x 350
	560 x 300 x 360
D 560 x 500 x 350
	560 x 500 x 360

Measurements in (mm)

9.1 Installing the appliance

1. Remove all packaging and check carefully for any signs of damage.
2. This oven is designed to fit into a 360 mm high cupboard as standard. When fitting into a 350 mm high cupboard: - Unscrew and remove the 4 feet from the bottom of the oven. There are 3 tall feet and 1 short foot. Replace the 3 tall feet with those provided in the accessory pack. Do not replace the short foot.

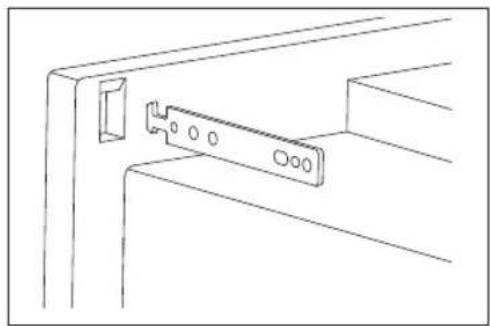

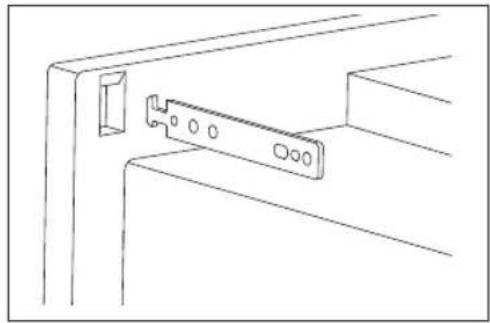

3. Fit the fixing hooks to the kitchen cupboard using the instruction sheet and template supplied.

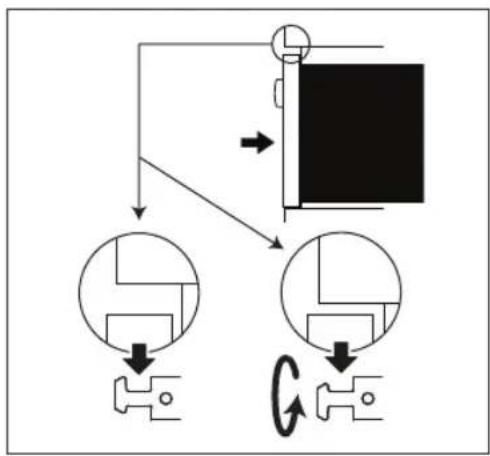

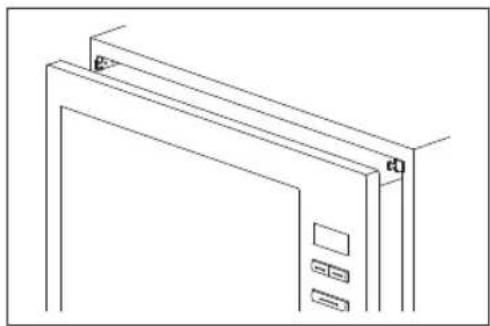

4. Fit the appliance into the kitchen cupboard slowly, and without force. The appliance should be lifted onto the fixing hooks and then lowered into place. In the case of interference during fitting, this hook is reversible. The front frame of the oven should seal against the front opening of the cupboard.

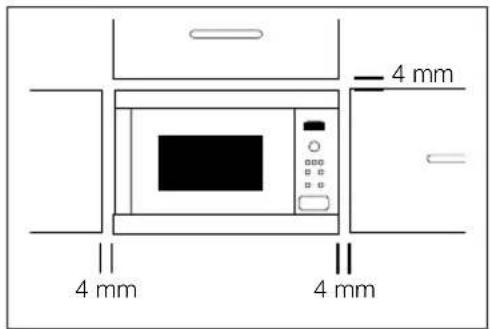

5. Ensure the appliance is stable and not leaning. Ensure that a 4 mm gap is kept between the cupboard door above and the top of the frame (see diagram).

Line drawing of a cabinet or enclosure with three windows and a door (no text or symbols)

Technical line drawing of a bracket with mounting holes and a handle (no text or symbols)

ENGLISH 59

9.2 Safe use of the appliance

If fitting the microwave in position B or C:

• The cupboard must be a minimum of 500 mm (E) above the worktop and must not be installed directly above a hob.

• This appliance has been tested and approved for use near domestic gas, electric and induction hobs only.

• Sufficient space between hob and microwave should be allowed to prevent overheating of microwave oven, surrounding cupboard and accessories.

• Do not operate the hob without pans when the microwave oven is operating.
• Care should be taken when attending to the microwave oven while the hob is on.

IMPORTANT!

Ensure the bottom of the oven is 85 cm or more above the floor. It is important to ensure that the installation of this product conforms

to the instructions in this operation manual and the conventional oven manufacturer's installation instructions.

9.3 Connecting the appliance to the power supply

Line drawing of a microwave oven with control panel and two wall-mounted outlets (no text or symbols)

• The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency. Or it should be possible to isolate the oven from the supply by incorporating a switch in the fixed wiring in accordance with the wiring rules.
• The socket should not be positioned behind the cupboard.

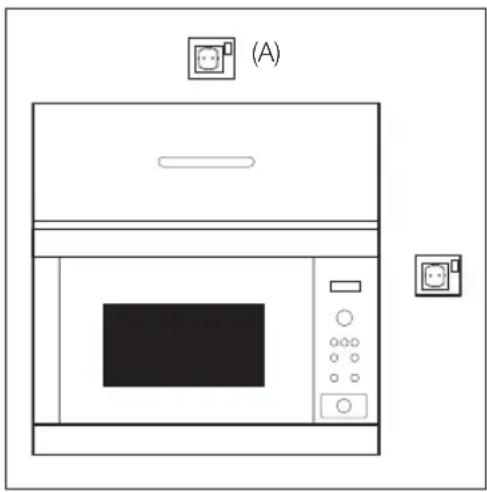

• The best position is above the cupboard, see (A).
• Connect the appliance to a single phase 230 V/50 Hz alternating current via a correctly installed earth socket. The socket must be fused with a 16 A fuse.
• The power supply cord may only be replaced by an electrician.
• Before installing, tie a piece of string to the power supply cord to facilitate connection to point (A) when the appliance is being installed.
• When inserting the appliance into the high-sided cupboard, DO NOT crush the power supply cord.
• Do not immerse the power supply cord or plug in water or any other liquid.

9.4 Electrical connections

WARNING!

THIS APPLIANCE MUST BE EARTHED

The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, you must call your local ELECTROLUX service agent.

10. TECHNICAL INFORMATION

AC Line Voltage 230 V, 50 Hz, single phase

Distribution line fuse/circuit breaker Minimum 16 A

AC Power required: Microwave 1.25 kWGrill 1.00 kWMicrowave/Grill 2.2 kW

Output power: Microwave 800 W (IEC 60705)Grill 1000 W

Microwave Frequency 2450 MHz 1) (Group 2/Class B)

Outside Dimensions: MQ817G 594 mm (W) x 371 mm (H) x 316 mm (D)

Cavity Dimensions 285 mm (W) x 202 mm (H) x 298 mm (D) 2)

Oven Capacity 17 litres 2)

Turntable ø 272 mm, glass

Weight approx. 16.2 kg

Oven lamp 25 W/240-250 V

1) This Product fulfils the requirement of the European standard EN55011.

In conformity with this standard, this product is classified as group 2 class B equipment.

Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food.

Class B equipment means that the equipment is suitable to be used in domestic establishments.

2) Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less.

This oven complies with the requirements of Directives 2004/108/EC, 2006/95/EC, 2009/125/EC and 2011/65/EU.

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AS PART OF CONTINUOUS IMPROVEMENT

11. ENVIRONMENT CONCERNS

Recycle materials with thesymbol ♣. Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and recycle waste electrical and electronic appliances.

Do not dispose of appliances marked with the symbol ☒ with household waste. Return the product to your local recycling facility or contact your municipal office.

ENGLISH 61

ENGLISH 63

www.electrolux.com/shop

TINS-B094U R1

CE

Abstract geometric composition with two overlapping white circles on a gray background (no text or symbols)
