USER MANUAL HRV160 Nordic Fire

Hand holding a pile of small cylindrical pellets (no text or symbols visible)

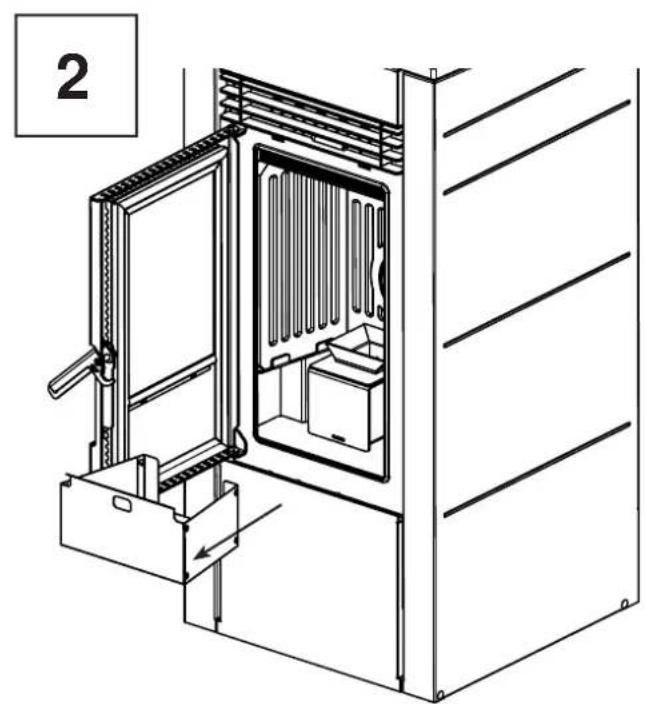

Zomer/winter instelling

"Set vermogen" met "OK"

CV hard op seen buffer DIG FIRE OVERDAVERTEL OUT-REFULING Vent/Refuling A A A Voler differtal of T-EXT anislting Voler temperature voler of boiler voler (Extra adapter nodig) Aansturing 3-weg lep (Extra adapter nodig) Runtime temperature voler of boiler voler

Close-up of a square electronic component with a grid of white dots, labeled 'eclock' at the bottom (no other text or symbols visible)

Technical line drawing of an open refrigerator with a door opening, showing internal compartments and ventilation slots (no text or symbols)

Technical line drawing of an open industrial storage unit with internal compartments and a door, showing no text or symbols.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

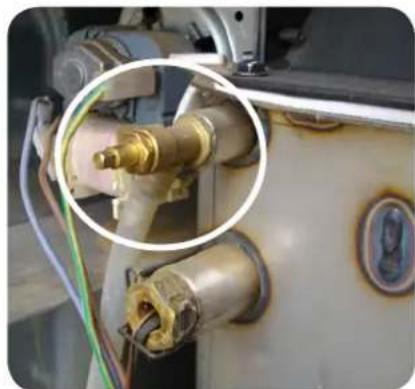

6.3.3. Installationstipps

Close-up of a mechanical component with a metallic dial and adjustment knob (no visible text or symbols)

Abb.10-B

Close-up of industrial piping and valves with a magnified inset showing a brass component (no visible text or symbols)

! WICHTIG

Close-up of a black industrial control panel with labeled ports and a magnified inset showing a blue valve component (no text or symbols visible)

GROUP	TF	EN	EN	u	HR100
IGNITION	TF01	AUGER AT LIGHTING UP	TON time of the gear motor during the “WAITING FLAME” phase	sec	3,4
	TF02	AUGER MAX CHARGE	maximal interval time for the pellet pre-loading	min	4
	TF31	IGNITIONSMOKE SPEED	inflow in the firepot during the “WAITING FLAME” phase	g/min	1450
	TF04	PRE-HEAT RESISTANCE	pre-heating time of the resistance	sec	180
	TF05	DELTA FLAME	flame increasing value to go to next phase	°C	7
	TF06	FAN THRESHOLD	smoke temperature threshold for starting exchange	°C	51
	TF07	RE-START THRESHOLD	reference threshold for restart	°C	80
	TF59	FAN THRESHOLD	reference threshold for fan activator	°C	60
FLAME LIGHT	TF08	AUGER AT STATR UP	ON time of the gear motor during the “FLAME LIGHT” phase	sec	1,8
	TF09	MINUTES START	Time for the stabilization of the flame during the “FLAME LIGHT” phase	min	8
	TF32	START SMOKE SPEED	inflow in the firepot during the “FLAME LIGHT” phase	g/min	1700
CLEANING BRAZIER	TF11	ACTIVATION CLEANER	ON time of the gear motor during the “FIRE POT CLEANING” phase	str	OFF
	TF12	CLEANING FREQUENCY	Duration of the firepot cleaning operator	min	30
	TF13	CLEANING DURATION	Interval of time between two fire pot cleaning operations	sec	20
	TF14	SUCTSMOKE CLEANING	Smoke suction speed during the “FIRE POT CLEANING PHASE”	g/min	2500
	TF18	AUGER CLEANING	Working time of the pellet motor during the automatic cleaning	sec	1,4
	TF21	SEC. AUTOM. CLEANING	WORKING TIME OF AUTOM. CLEANING DEVICE	sec	30
	TF27	AUTOM. CLEANING STROKES	Number of stokes of the automatic cleaning during each cleaning cycle	num	5
SWITCH OFF	TF15	OFF THRESHOLD	threshold for START (tsmoke<=pr13) or RESTART (tsmoke>pr13)	°C	50
MODULATION POWER	TF16	AUGER AT MODULATION	ON time of the gear motor during the work phase at power MOD	sec	1,8
	TF17	FLOW POWER mod	inflow in the firepot during the work phase at power MOD	m/s	2,05
MINIMUM POWER	TF19	AUGER MIN POWER	primary exchanger voltage during the work phase at power MIN	sec	1,8
	TF20	FLOW POWER min	ON time of the gear motor during the work phase at power MIN	m/s	2,05
MAXIMUM POWER	TF22	AUGER MAX POWER	inflow in the firepot during the work phase at power MA	sec	5
	TF23	FLOW POWER max	primary exchanger voltage during the work phase at power MA	m/s	2,2
SANITARY POWER	TF25	AUGER POWER AT SANI	ON time of the gear motor during the work phase at power SAN	sec	5
	TF26	FLOW POWER sani	inflow in the firepot during the work phase at power SAN	m/s	2,2
SMOKE SPEED	TF33	SMOKE SPEED I mod	Smoke suction speed during work phase at MOE	g/min	1400
	TF34	SMOKE SPEED min	Smoke suction speed during work phase at MIN	g/min	1400
	TF35	SMOKE SPEED max	Smoke suction speed during work phase at MAX	g/min	1700
	TF36	SMOKE SPEED sani	Smoke suction speed during work phase at SAN	g/min	1700
ALTITUDE	TF38	ALTITUDE	Value of the altitude from the sea leve	metri	0
ON/OFF RDS	TF39	ON/OFF FLOW METER	disable “OFF” or enable “ON” the RDS function	val	S.Aut
RECIPE	TF40	RECIPE ACTIVE	OFF/scarce/low/medium/high draught	str	OFF
DELTA BOILER/PUFFER	TF54	DELTA BOILER	Delta temp. to activate heating of the sanitay water (available from vers. 04	°C	5
	TF55	DELTA PUFFER	Delta temperat. to activate heating on water tank (available from vers. 04	°C	5
ALARMS	TF41	THRESHOLD NO PELLET	Reference threshold for “NO PELLET” alarm	°C	45
	TF42	MAXIMUM THRESHOLD	Maximum temperature threshold during working phase	°C	270
	TF43	DELAY ALARMS	delay alarms activator	sec	60
	TF44	BLACK OUT	limit seconds for the activation of the “BLACK OUT” alarm	sec	10
	TF45	REIGNITION BLOCK	START or RESTART (VENTILATION) waiting time	min	3
	TF46	T-OFF MINIMUM	Reference threshold for “NO PELLET” alarm	min	4
	TF47	MINIMUM INFLOW	Minimum inflow	m\s	0,7
	TF48	MAX DURATION IGNITION	Maximum time for an ignition cycle	min	18
	TF37	MAX. WATER TEMPERATURE	Water temperature for starting circolator	°C	90
EXTRA PARAMETERS	TF49	CANCELL PRESSURE	CANCELL PRESSURE READING WITH PRESS. TRASDUCER	on/off	OFF
	TF50	FREQUENCY XHZ	NET FREQUENCY	Hz	50
	TF51	DEGREES	measuring unit for the temperature	°C/°F	°C
	TF52	DRAUGHT USER	Option to activate to allow the user ti set darft and pelle	on/off	ON
	TF53	SERVICE HOURS	enable/disable resistance	h	2500
	TF30	ACTIVATION FAN	PARAMETER RELATED TO ACTIVATION OF AIR AXCHANGE HEATER	str	OFF
	TF28	FAN SPEED MOD	EXCHANGER VOLTAGE DURING WORKING PHASE AT POWER mod	v	-
	TF29	FAN SPEED SANI	XCHANGER VOLTAGE DURING WORKING PHASE AT POWER SANI	v	-
	TF56	VOLT MAX	Volt mx	v	230
	TF57	MAXIMUM POWER		str	P MAX
GROUP	TF	EN	EN	u	HRV120
IGNITION	TF01	AUGER AT LIGHTING UP	TON time of the gear motor during the “WAITING FLAME” phase	sec	3,4
	TF02	AUGER MAX CHARGE	maximal interval time for the pellet pre-loading	min	4
	TF31	IGNITIONSMOKE SPEED	inflow in the firepot during the “WAITING FLAME” phase	g/min	1450
	TF04	PRE-HEAT RESISTANCE	pre-heating time of the resistance	sec	180
	TF05	DELTA FLAME	flame increasing value to go to next phase	°C	7
	TF06	FAN THRESHOLD	smoke temperature threshold for starting exchange	°C	51
	TF07	RE-START THRESHOLD	reference threshold for restart	°C	80
	TF59	FAN THRESHOLD	reference threshold for fan activator	°C	60
FLAME LIGHT	TF08	AUGER AT STATR UP	ON time of the gear motor during the “FLAME LIGHT” phase	sec	1,8
	TF09	MINUTES START	Time for the stabilization of the flame during the “FLAME LIGHT” phase	min	8
	TF32	START SMOKE SPEED	inflow in the firepot during the “FLAME LIGHT” phase	g/min	1700
CLEANING BRAZIER	TF11	ACTIVATION CLEANER	ON time of the gear motor during the “FIRE POT CLEANING” phase	str	OFF
	TF12	CLEANING FREQUENCY	Duration of the firepot cleaning operator	min	30
	TF13	CLEANING DURATION	Interval of time between two fire pot cleaning operations	sec	20
	TF14	SUCTSMOKE CLEANING	Smoke suction speed during the “FIRE POT CLEANING PHASE”	g/min	2500
	TF18	AUGER CLEANING	Working time of the pellet motor during the automatic cleaning	sec	1,4
	TF21	SEC. AUTOM. CLEANING	WORKING TIME OF AUTOM. CLEANING DEVICE	sec	30
	TF27	AUTOM. CLEANING STROKES	Number of stokes of the automatic cleaning during each cleaning cycle	num	5
SWITCH OFF	TF15	OFF THRESHOLD	threshold for START (tsmoke<=pr13) or RESTART (tsmoke>pr13)	°C	50
MODULATION POWER	TF16	AUGER AT MODULATION	ON time of the gear motor during the work phase at power MOD	sec	1,8
	TF17	FLOW POWER mod	inflow in the firepot during the work phase at power MOD	m/s	2,05
MINIMUM POWER	TF19	AUGER MIN POWER	primary exchanger voltage during the work phase at power MIN	sec	1,8
	TF20	FLOW POWER min	ON time of the gear motor during the work phase at power MIN	m/s	2,05
MAXIMUM POWER	TF22	AUGER MAX POWER	inflow in the firepot during the work phase at power MA	sec	5,2
	TF23	FLOW POWER max	primary exchanger voltage during the work phase at power MA	m/s	2,25
SANITARY POWER	TF25	AUGER POWER AT SANI	ON time of the gear motor during the work phase at power SAN	sec	5,2
	TF26	FLOW POWER sani	inflow in the firepot during the work phase at power SAN	m/s	2,25
SMOKE SPEED	TF33	SMOKE SPEED I mod	Smoke suction speed during work phase at MOE	g/min	1400
	TF34	SMOKE SPEED min	Smoke suction speed during work phase at MIN	g/min	1400
	TF35	SMOKE SPEED max	Smoke suction speed during work phase at MAX	g/min	1800
	TF36	SMOKE SPEED sani	Smoke suction speed during work phase at SAN	g/min	1800
ALTITUDE	TF38	ALTITUDE	Value of the altitude from the sea leve	metri	0
ON/OFF RDS	TF39	ON/OFF FLOW METER	disable “OFF” or enable “ON” the RDS function	val	S.Aut
RECIPE	TF40	RECIPE ACTIVE	OFF/scarce/low/medium/high draught	str	OFF
DELTA BOILER/PUFFER	TF54	DELTA BOILER	Delta temp. to activate heating of the sanitay water (available from vers. 04	°C	5
	TF55	DELTA PUFFER	Delta temperat. to activate heating on water tank (available from vers. 04	°C	5
ALARMS	TF41	THRESHOLD NO PELLET	Reference threshold for “NO PELLET” alarm	°C	45
	TF42	MAXIMUM THRESHOLD	Maximum temperature threshold during working phase	°C	270
	TF43	DELAY ALARMS	delay alarms activator	sec	60
	TF44	BLACK OUT	limit seconds for the activation of the “BLACK OUT” alarm	sec	10
	TF45	REIGNITION BLOCK	START or RESTART (VENTILATION) waiting time	min	3
	TF46	T-OFF MINIMUM	Reference threshold for “NO PELLET” alarm	min	4
	TF47	MINIMUM INFLOW	Minimum inflow	m\s	0,7
	TF48	MAX DURATION IGNITION	Maximum time for an ignition cycle	min	18
	TF37	MAX. WATER TEMPERATURE	Water temperature for starting circolator	°C	90
EXTRA PARAMETERS	TF49	CANCELL PRESSURE	CANCELL PRESSURE READING WITH PRESS. TRASDUCER	on/off	OFF
	TF50	FREQUENCY XHZ	NET FREQUENCY	Hz	50
	TF51	DEGREES	measuring unit for the temperature	°C/°F	°C
	TF52	DRAUGHT USER	Option to activate to allow the user ti set darft and pelle	on/off	ON
	TF53	SERVICE HOURS	enable/disable resistance	h	2500
	TF30	ACTIVATION FAN	PARAMETER RELATED TO ACTIVATION OF AIR AXCHANGE HEATER	str	ON
	TF28	FAN SPEED MOD	EXCHANGER VOLTAGE DURING WORKING PHASE AT POWER mod	v	175
	TF29	FAN SPEED SANI	XCHANGER VOLTAGE DURING WORKING PHASE AT POWER SANI	v	220
	TF56	VOLT MAX	Volt mx	v	230
	TF57	MAXIMUM POWER		str	P MAX
GROUP TF EN			EN	u	HRV160 vers.2
IGNITION	TF01	AUGER AT LIGHING UP	TON time of the gear motor during the "WAITING FLAME" phase	sec	3,2
	TF02	AUGER MAX CHARGE	maximal interval time for the pellet pre-loading	min	5
	TF31	IGNITIONSMOKE SPEED	inflow in the firepot during the "WAITING FLAME" phase	g/min	1800
	TF04	PRE-HEAT RESISTANCE	pre-heating time of the resistance	sec	200
	TF05	DELTA FLAME	flame increasing value to go to next phase	°C	7
	TF06	FAN THRESHOLD	smoke temperature threshold for starting exchanger	°C	45
	TF07	RE-START THRESHOLD	reference threshold for restart	°C	80
	TF59	FAN THRESHOLD	reference threshold for fan activation	°C	60
FLAME LIGHT	TF08	AUGER AT STATR UP	ON time of the gear motor during the "FLAME LIGHT" phase	sec	1,4
	TF09	MINUTES START	Time for the stabilization of the flame during the "FLAME LIGHT" phase	min	8
	TF32	START SMOKE SPEED	inflow in the firepot during the "FLAME LIGHT" phase	g/min	2000
CLEANING BRAZIER	TF11	ACTIVATION CLEANER	ON time of the gear motor during the "FIRE POT CLEANING" phase	str	OFF
	TF12	CLEANING FREQUENCY	Duration of the firepot cleaning operation	min	30
	TF13	CLEANING DURATION	Interval of time between two fire pot cleaning operations	sec	20
	TF14	SUCTSMOKE CLEANING	Smoke suction speed during the "FIRE POT CLEANING PHASE"	g/min	2500
	TF18	AUGER CLEANING	Working time of the pellet motor during the automatic cleaning	sec	1,3
	TF21	SEC. AUTOM. CLEANING	WORKING TIME OF AUTOM. CLEANING DEVICE	sec	120
	TF27	AUTOM. CLEANING STROKES	Number of stokes of the automatic cleaning during each cleaning cycle	num	3
SWITCH OFF	TF15	OFF THRESHOLD	threshold for START (tsmoke<=pr13) or RESTART (tsmoke>pr13)	°C	50
MODULATION POWER	TF16	AUGER AT MODULATION	ON time of the gear motor during the work phase at power MOD.	sec	1,7
	TF17	FLOW POWER mod	inflow in the firepot during the work phase at power MOD.	m/s	3,8
MINIMUM POWER	TF19	AUGER MIN POWER	primary exchanger voltage during the work phase at power MIN	sec	1,7
	TF20	FLOW POWER min	ON time of the gear motor during the work phase at power MIN	m/s	3,8
MAXIMUM POWER	TF22	AUGER MAX POWER	inflow in the firepot during the work phase at power MAX	sec	5,3
	TF23	FLOW POWER max	primary exchanger voltage during the work phase at power MAX	m/s	4
SANITARY POWER	TF25	AUGER POWER AT SANI	ON time of the gear motor during the work phase at power SANI	sec	5,6
	TF26	FLOW POWER sani	inflow in the firepot during the work phase at power SANI	m/s	4,05
SMOKE SPEED	TF33	SMOKE SPEED I mod	Smoke suction speed during work phase at MOD	g/min	1400
	TF34	SMOKE SPEED min	Smoke suction speed during work phase at MIN	g/min	1400
	TF35	SMOKE SPEED max	Smoke suction speed during work phase at MAX	g/min	2000
	TF36	SMOKE SPEED sani	Smoke suction speed during work phase at SANI	g/min	2100
ALTITUDE	TF38	ALTITUDE	Value of the altitude from the sea level	metri	0
ON/OFF RDS	TF39	ON/OFF FLOW METER	disable "OFF" or enable "ON" the RDS function	val	S.Aut
RECIPE	TF40	RECIPE ACTIVE	OFF/scarce/low/medium/high draught	str	OFF
DELTA BOILER/PUFFER	TF54	DELTA BOILER	Delta temp. to activate heating of the sanitay water (available from vers. 04)	°C	5
	TF55	DELTA PUFFER	Delta temperat. to activate heating on water tank (available from vers. 04)	°C	5
ALARMS	TF41	THRESHOLD NO PELLET	Reference threshold for "NO PELLET" alarm	°C	45
	TF42	MAXIMUM THRESHOLD	Maximum temperature threshold during working phase	°C	270
	TF43	DELAY ALARMS	delay alarms activation	sec	60
	TF44	BLACK OUT	limit seconds for the activation of the "BLACK OUT" alarm	sec	10
	TF45	REIGNITION BLOCK	START or RESTART (VENTILATION) waiting time	min	3
	TF46	T-OFF MINIMUM	Reference threshold for "NO PELLET" alarm	min	4
	TF47	MINIMUM INFLOW	Minimum inflow	m\s	0,7
	TF48	MAX DURATION IGNITION	Maximum time for an ignition cycle	min	18
	TF37	MAX. WATER TEMPERATURE	Water temperature for starting circolator	°C	90
EXTRA PARAMETERS	TF49	CANCELL PRESSURE	CANCELL PRESSURE READING WITH PRESS. TRASDUCER	on/off	OFF
	TF50	FREQUENCY XHZ	NET FREQUENCY	Hz	50
	TF51	DEGREES	measuring unit for the temperature	°C/°F	°C
	TF52	DRAUGHT USER	Option to activate to allow the user ti set darft and pellet	on/off	ON
	TF53	SERVICE HOURS	enable/disable resistance	h	3000
	TF30	ACTIVATION FAN	PARAMETER RELATED TO ACTIVATION OF AIR AXCHANGE HEATER	str	ON
	TF28	FAN SPEED MOD	EXCHANGER VOLTAGE DURING WORKING PHASE AT POWER mod	v	160
	TF29	FAN SPEED SANI	XCHANGER VOLTAGE DURING WORKING PHASE AT POWER SANI	v	210
	TF56	VOLT MAX	Volt max	v	230
	TF57	MAXIMUM POWER		str	P MAX
GROUP	TF	EN	EN	u	HR100
IGNITION	TF01	AUGER AT LIGHTING UP	TON time of the gear motor during the “WAITING FLAME” phase	sec	3
	TF02	AUGER MAX CHARGE	maximal interval time for the pellet pre-loading	min	6
	TF31	IGNITIONSMOKE SPEED	inflow in the firepot during the “WAITING FLAME” phase	g/min	2150
	TF04	PRE-HEAT RESISTANCE	pre-heating time of the resistance	sec	200
	TF05	DELTA FLAME	flame increasing value to go to next phase	°C	7
	TF06	FAN THRESHOLD	smoke temperature threshold for starting exchange	°C	51
	TF07	RE-START THRESHOLD	reference threshold for restart	°C	80
	TF59	FAN THRESHOLD	reference threshold for fan activator	°C	60
FLAME LIGHT	TF08	AUGER AT STATR UP	ON time of the gear motor during the “FLAME LIGHT” phase	sec	1,5
	TF09	MINUTES START	Time for the stabilization of the flame during the “FLAME LIGHT” phase	min	8
	TF32	START SMOKE SPEED	inflow in the firepot during the “FLAME LIGHT” phase	g/min	2300
CLEANING BRAZIER	TF11	ACTIVATION CLEANER	ON time of the gear motor during the “FIRE POT CLEANING” phase	str	OFF
	TF12	CLEANING FREQUENCY	Duration of the firepot cleaning operator	min	30
	TF13	CLEANING DURATION	Interval of time between two fire pot cleaning operations	sec	20
	TF14	SUCTSMOKE CLEANING	Smoke suction speed during the “FIRE POT CLEANING PHASE”	g/min	2500
	TF18	AUGER CLEANING	Working time of the pellet motor during the automatic cleaning	sec	1,3
	TF21	SEC. AUTOM. CLEANING	WORKING TIME OF AUTOM. CLEANING DEVICE	sec	120
	TF27	AUTOM. CLEANING STROKES	Number of stokes of the automatic cleaning during each cleaning cycle	num	3
SWITCH OFF	TF15	OFF THRESHOLD	threshold for START (tsmoke<=pr13) or RESTART (tsmoke>pr13)	°C	50
MODULATION POWER	TF16	AUGER AT MODULATION	ON time of the gear motor during the work phase at power MOD	sec	1,4
	TF17	FLOW POWER mod	inflow in the firepot during the work phase at power MOD	m/s	1,3
MINIMUM POWER	TF19	AUGER MIN POWER	primary exchanger voltage during the work phase at power MIN	sec	1,4
	TF20	FLOW POWER min	ON time of the gear motor during the work phase at power MIN	m/s	1,3
MAXIMUM POWER	TF22	AUGER MAX POWER	inflow in the firepot during the work phase at power MA	sec	3,8
	TF23	FLOW POWER max	primary exchanger voltage during the work phase at power MA	m/s	1,45
SANITARY POWER	TF25	AUGER POWER AT SANI	ON time of the gear motor during the work phase at power SAN	sec	4,4
	TF26	FLOW POWER sani	inflow in the firepot during the work phase at power SAN	m/s	1,5
SMOKE SPEED	TF33	SMOKE SPEED I mod	Smoke suction speed during work phase at MOE	g/min	1500
	TF34	SMOKE SPEED min	Smoke suction speed during work phase at MIN	g/min	1500
	TF35	SMOKE SPEED max	Smoke suction speed during work phase at MAX	g/min	1800
	TF36	SMOKE SPEED sani	Smoke suction speed during work phase at SAN	g/min	1900
ALTITUDE	TF38	ALTITUDE	Value of the altitude from the sea leve	metri	0
ON/OFF RDS	TF39	ON/OFF FLOW METER	disable “OFF” or enable “ON” the RDS function	val	S.Aut
RECIPE	TF40	RECIPE ACTIVE	OFF/scarce/low/medium/high draught	str	OFF
DELTA BOILER/PUFFER	TF54	DELTA BOILER	Delta temp. to activate heating of the sanitay water (available from vers. 04	°C	5
	TF55	DELTA PUFFER	Delta temperat. to activate heating on water tank (available from vers. 04	°C	5
ALARMS	TF41	THRESHOLD NO PELLET	Reference threshold for “NO PELLET” alarm	°C	45
	TF42	MAXIMUM THRESHOLD	Maximum temperature threshold during working phase	°C	270
	TF43	DELAY ALARMS	delay alarms activator	sec	60
	TF44	BLACK OUT	limit seconds for the activation of the “BLACK OUT” alarm	sec	10
	TF45	REIGNITION BLOCK	START or RESTART (VENTILATION) waiting time	min	3
	TF46	T-OFF MINIMUM	Reference threshold for “NO PELLET” alarm	min	4
	TF47	MINIMUM INFLOW	Minimum inflow	m\s	1
	TF48	MAX DURATION IGNITION	Maximum time for an ignition cycle	min	18
	TF37	MAX. WATER TEMPERATURE	Water temperature for starting circolator	°C	90
EXTRA PARAMETERS	TF49	CANCELL PRESSURE	CANCELL PRESSURE READING WITH PRESS. TRASDUCER	on/off	OFF
	TF50	FREQUENCY XHZ	NET FREQUENCY	Hz	50
	TF51	DEGREES	measuring unit for the temperature	°C/°F	°C
	TF52	DRAUGHT USER	Option to activate to allow the user ti set darft and pelle	on/off	ON
	TF53	SERVICE HOURS	enable/disable resistance	h	3000
	TF30	ACTIVATION FAN	PARAMETER RELATED TO ACTIVATION OF AIR AXCHANGE HEATER	str	OFF
	TF28	FAN SPEED MOD	EXCHANGER VOLTAGE DURING WORKING PHASE AT POWER mod	v	160
	TF29	FAN SPEED SANI	XCHANGER VOLTAGE DURING WORKING PHASE AT POWER SANI	v	210
	TF56	VOLT MAX	Volt mx	v	230
	TF57	MAXIMUM POWER		str	P MAX
GROUP	TF	EN	EN	u	HR EVO14
IGNITION	TF01	AUGER AT LIGHING UP	TON time of the gear motor during the “WAITING FLAME” phase	sec	3,6
	TF02	AUGER MAX CHARGE	maximal interval time for the pellet pre-loading	min	4
	TF31	IGNITIONSMOKE SPEED	inflow in the firepot during the “WAITING FLAME” phase	g/min	1350
	TF04	PRE-HEAT RESISTANCE	pre-heating time of the resistance	sec	180
	TF05	DELTA FLAME	flame increasing value to go to next phase	°C	7
	TF06	PUMP THRESHOLD	smoke temperature threshold for starting exchanger	°C	51
	TF07	RE-START THRESHOLD	reference threshold for restart	°C	80
	TF59	FAN THRESHOLD	reference threshold for fan activator	°C	60
FLAME LIGHT	TF08	AUGER AT STATR UP	ON time of the gear motor during the “FLAME LIGHT” phase	sec	2,6
	TF09	MINUTES START	Time for the stabilization of the flame during the “FLAME LIGHT” phase	min	8
	TF32	START SMOKE SPEED	inflow in the firepot during the “FLAME LIGHT” phase	g/min	1500
CLEANING BRAZIER	TF11	ACTIVATION CLEANER	ON time of the gear motor during the “FIRE POT CLEANING” phase	str	OFF
	TF12	CLEANING FREQUENCY	Duration of the firepot cleaning operation	min	30
	TF13	CLEANING DURATION	Interval of time between two fire pot cleaning operation:	sec	20
	TF14	SUCTSMOKE CLEANING	Smoke suction speed during the “FIRE POT CLEANING PHASE”	g/min	2500
	TF18	AUGER CLEANING	Working time of the pellet motor during the automatic cleaning	sec	1,4
	TF21	SEC. AUTOM. CLEANING	WORKING TIME OF AUTOM. CLEANING DEVICE	sec	30
	TF27	AUTOM. CLEANING STROKES	Number of stokes of the automatic cleaning during each cleaning cycle	num	5
SWITCH OFF	TF15	OFF THRESHOLD	threshold for START (tsmoke<=pr13) or RESTART (tsmoke>pr13)	°C	50
MODULATION POWER	TF16	AUGER AT MODULATION	ON time of the gear motor during the work phase at power MOD	sec	2
	TF17	FLOW POWER mod	inflow in the firepot during the work phase at power MOD	m/s	1,45
MINIMUM POWER	TF19	AUGER MIN POWER	primary exchanger voltage during the work phase at power MIN	sec	2
	TF20	FLOW POWER min	ON time of the gear motor during the work phase at power MIN	m/s	1,45
MAXIMUM POWER	TF22	AUGER MAX POWER	inflow in the firepot during the work phase at power MA	sec	5,3
	TF23	FLOW POWER max	primary exchanger voltage during the work phase at power MA	m/s	1,65
SANITARY POWER	TF25	AUGER POWER AT SANI	ON time of the gear motor during the work phase at power SAN	sec	5,3
	TF26	FLOW POWER sani	inflow in the firepot during the work phase at power SAN	m/s	1,65
SMOKE SPEED	TF33	SMOKE SPEED I mod	Smoke suction speed during work phase at MOD	g/min	1300
	TF34	SMOKE SPEED min	Smoke suction speed during work phase at MIN	g/min	1300
	TF35	SMOKE SPEED max	Smoke suction speed during work phase at MA	g/min	1600
	TF36	SMOKE SPEED sani	Smoke suction speed during work phase at SAN	g/min	1700
ALTITUDE	TF38	ALTITUDE	Value of the altitude from the sea leve	metri	0
ON/OFF RDS	TF39	ON/OFF FLOW METER	disable “OFF” or enable “ON” the RDS function	val	S.Aut
RECIPE	TF40	RECIPE ACTIVE	OFF/scarce/low/medium/high draught	str	OFF
DELTA BOILER/PUFFER	TF54	DELTA BOILER	Delta temp. to activate heating of the sanitay water (available from vers. 04	°C	5
	TF55	DELTA PUFFER	Delta temperat. to activate heating on water tank (available from vers. 04	°C	5
ALARMS	TF41	THRESHOLD NO PELLET	Reference threshold for “NO PELLET” alarm	°C	45
	TF42	MAXIMUM THRESHOLD	Maximum temperature threshold during working phase	°C	270
	TF43	DELAY ALARMS	delay alarms activation	sec	60
	TF44	BLACK OUT	limit seconds for the activation of the “BLACK OUT” alarm	sec	10
	TF45	REIGNITION BLOCK	START or RESTART (VENTILATION) waiting time	min	3
	TF46	T-OFF MINIMUM	Reference threshold for “NO PELLET” alarm	min	4
	TF47	MINIMUM INFLOW	Minimum inflow	m\s	0,5
	TF48	MAX DURATION IGNITION	Maximum time for an ignition cycle	min	18
	TF37	MAX. WATER TEMPERATURE	Water temperature for starting circolatoi	°C	90
EXTRA PARAMETERS	TF49	CANCELL PRESSURE	CANCELL PRESSURE READING WITH PRESS. TRASDUCER	on/off	OFF
	TF50	FREQUENCY XHZ	NET FREQUENCY	Hz	50
	TF51	DEGREES	measuring unit for the temperature	°C/°F	°C
	TF52	DRAUGHT USER	Option to activate to allow the user ti set darft and pelle	on/off	ON
	TF53	SERVICE HOURS	enable/disable resistance	h	2500
	TF30	ACTIVATION FAN	PARAMETER RELATED TO ACTIVATION OF AIR AXCHANGE HEATER	str	OFF
	TF28	FAN SPEED MOD	EXCHANGER VOLTAGE DURING WORKING PHASE AT POWER mod	v	160
	TF29	FAN SPEED SANI	XCHANGER VOLTAGE DURING WORKING PHASE AT POWER SANI	v	210
	TF56	VOLT MAX	Volt mx	v	230
	TF57	MAXIMUM POWER	Maximum power setting (MIN MED MAX)	str	P MAX
GROUP	TF	EN	EN	u	HR EVO18
IGNITION	TF01	AUGER AT LIGHING UP	TON time of the gear motor during the “WAITING FLAME” phase	sec	3,2
	TF02	AUGER MAX CHARGE	maximal interval time for the pellet pre-loading	min	5
	TF31	IGNITIONSMOKE SPEED	inflow in the firepot during the “WAITING FLAME” phase	g/min	1600
	TF04	PRE-HEAT RESISTANCE	pre-heating time of the resistance	sec	200
	TF05	DELTA FLAME	flame increasing value to go to next phase	°C	7
	TF06	PUMP THRESHOLD	smoke temperature threshold for starting exchanger	°C	45
	TF07	RE-START THRESHOLD	reference threshold for restart	°C	80
	TF59	FAN THRESHOLD	reference threshold for fan activator	°C	60
FLAME LIGHT	TF08	AUGER AT STATR UP	ON time of the gear motor during the “FLAME LIGHT” phase	sec	2
	TF09	MINUTES START	Time for the stabilization of the flame during the “FLAME LIGHT” phase	min	8
	TF32	START SMOKE SPEED	inflow in the firepot during the “FLAME LIGHT” phase	g/min	1700
CLEANING BRAZIER	TF11	ACTIVATION CLEANER	ON time of the gear motor during the “FIRE POT CLEANING” phase	str	ON
	TF12	CLEANING FREQUENCY	Duration of the firepot cleaning operation	min	30
	TF13	CLEANING DURATION	Interval of time between two fire pot cleaning operation:	sec	20
	TF14	SUCTSMOKE CLEANING	Smoke suction speed during the “FIRE POT CLEANING PHASE”	g/min	2500
	TF18	AUGER CLEANING	Working time of the pellet motor during the automatic cleaning	sec	2
	TF21	SEC. AUTOM. CLEANING	WORKING TIME OF AUTOM. CLEANING DEVICE	sec	120
	TF27	AUTOM. CLEANING STROKES	Number of stokes of the automatic cleaning during each cleaning cycle	num	3
SWITCH OFF	TF15	OFF THRESHOLD	threshold for START (tsmoke<=pr13) or RESTART (tsmoke>pr13)	°C	50
MODULATION POWER	TF16	AUGER AT MODULATION	ON time of the gear motor during the work phase at power MOD	sec	1,7
	TF17	FLOW POWER mod	inflow in the firepot during the work phase at power MOD	m/s	4,4
MINIMUM POWER	TF19	AUGER MIN POWER	primary exchanger voltage during the work phase at power MIN	sec	1,7
	TF20	FLOW POWER min	ON time of the gear motor during the work phase at power MIN	m/s	4,4
MAXIMUM POWER	TF22	AUGER MAX POWER	inflow in the firepot during the work phase at power MA	sec	4,3
	TF23	FLOW POWER max	primary exchanger voltage during the work phase at power MA	m/s	4,6
SANITARY POWER	TF25	AUGER POWER AT SANI	ON time of the gear motor during the work phase at power SAN	sec	4,6
	TF26	FLOW POWER sani	inflow in the firepot during the work phase at power SAN	m/s	4,65
SMOKE SPEED	TF33	SMOKE SPEED I mod	Smoke suction speed during work phase at MOD	g/min	1500
	TF34	SMOKE SPEED min	Smoke suction speed during work phase at MIN	g/min	1500
	TF35	SMOKE SPEED max	Smoke suction speed during work phase at MA	g/min	1800
	TF36	SMOKE SPEED sani	Smoke suction speed during work phase at SAN	g/min	1900
ALTITUDE	TF38	ALTITUDE	Value of the altitude from the sea leve	metri	0
ON/OFF RDS	TF39	ON/OFF FLOW METER	disable “OFF” or enable “ON” the RDS function	val	S.Aut
RECIPE	TF40	RECIPE ACTIVE	OFF/scarce/low/medium/high draught	str	OFF
DELTA BOILER/PUFFER	TF54	DELTA BOILER	Delta temp. to activate heating of the sanitay water (available from vers. 04	°C	5
	TF55	DELTA PUFFER	Delta temperat. to activate heating on water tank (available from vers. 04	°C	5
ALARMS	TF41	THRESHOLD NO PELLET	Reference threshold for “NO PELLET” alarm	°C	45
	TF42	MAXIMUM THRESHOLD	Maximum temperature threshold during working phase	°C	270
	TF43	DELAY ALARMS	delay alarms activation	sec	60
	TF44	BLACK OUT	limit seconds for the activation of the “BLACK OUT” alarm	sec	10
	TF45	REIGNITION BLOCK	START or RESTART (VENTILATION) waiting time	min	3
	TF46	T-OFF MINIMUM	Reference threshold for “NO PELLET” alarm	min	4
	TF47	MINIMUM INFLOW	Minimum inflow	m\s	0,7
	TF48	MAX DURATION IGNITION	Maximum time for an ignition cycle	min	18
	TF37	MAX. WATER TEMPERATURE	Water temperature for starting circolatoi	°C	90
EXTRA PARAMETERS	TF49	CANCELL PRESSURE	CANCELL PRESSURE READING WITH PRESS. TRASDUCER	on/off	OFF
	TF50	FREQUENCY XHZ	NET FREQUENCY	Hz	50
	TF51	DEGREES	measuring unit for the temperature	°C/°F	°C
	TF52	DRAUGHT USER	Option to activate to allow the user ti set darft and pelle	on/off	ON
	TF53	SERVICE HOURS	enable/disable resistance	h	3000
	TF30	ACTIVATION FAN	PARAMETER RELATED TO ACTIVATION OF AIR AXCHANGE HEATER	str	OFF
	TF28	FAN SPEED MOD	EXCHANGER VOLTAGE DURING WORKING PHASE AT POWER mod	v	160
	TF29	FAN SPEED SANI	XCHANGER VOLTAGE DURING WORKING PHASE AT POWER SANI	v	210
	TF56	VOLT MAX	Volt mx	v	230
	TF57	MAXIMUM POWER	Maximum power setting (MIN MED MAX)	str	P MAX
GROUP	TF	EN	EN	u	HR EVO24
IGNITION	TF01	AUGER AT LIGHING UP	TON time of the gear motor during the “WAITING FLAME” phase	sec	2,5
	TF02	AUGER MAX CHARGE	maximal interval time for the pellet pre-loading	min	4
	TF31	IGNITIONSMOKE SPEED	inflow in the firepot during the “WAITING FLAME” phase	g/min	2100
	TF04	PRE-HEAT RESISTANCE	pre-heating time of the resistance	sec	180
	TF05	DELTA FLAME	flame increasing value to go to next phase	°C	7
	TF06	FAN THRESHOLD	smoke temperature threshold for starting exchanger	°C	45
	TF07	RE-START THRESHOLD	reference threshold for restart	°C	80
	TF59	FAN THRESHOLD	reference threshold for fan activator	°C	60
FLAME LIGHT	TF08	AUGER AT STATR UP	ON time of the gear motor during the “FLAME LIGHT” phase	sec	1,3
	TF09	MINUTES START	Time for the stabilization of the flame during the “FLAME LIGHT” phase	min	8
	TF32	START SMOKE SPEED	inflow in the firepot during the “FLAME LIGHT” phase	g/min	2200
CLEANING BRAZIER	TF11	ACTIVATION CLEANER	ON time of the gear motor during the “FIRE POT CLEANING” phase	str	ON
	TF12	CLEANING FREQUENCY	Duration of the firepot cleaning operation	min	30
	TF13	CLEANING DURATION	Interval of time between two fire pot cleaning operations	sec	20
	TF14	SUCTSMOKE CLEANING	Smoke suction speed during the “FIRE POT CLEANING PHASE”	g/min	2500
	TF18	AUGER CLEANING	Working time of the pellet motor during the automatic cleaning	sec	1,3
	TF21	SEC. AUTOM. CLEANING	WORKING TIME OF AUTOM. CLEANING DEVICE	sec	120
	TF27	AUTOM. CLEANING STROKES	Number of stokes of the automatic cleaning during each cleaning cycle	num	3
SWITCH OFF	TF15	OFF THRESHOLD	threshold for START (tsmoke<=pr13) or RESTART (tsmoke>pr13	°C	50
MODULATION POWER	TF16	AUGER AT MODULATION	ON time of the gear motor during the work phase at power MOD	sec	1,2
	TF17	FLOW POWER mod	inflow in the firepot during the work phase at power MOD	m/s	3
MINIMUM POWER	TF19	AUGER MIN POWER	primary exchanger voltage during the work phase at power MIN	sec	1,2
	TF20	FLOW POWER min	ON time of the gear motor during the work phase at power MIN	m/s	3
MAXIMUM POWER	TF22	AUGER MAX POWER	inflow in the firepot during the work phase at power MA>	sec	4
	TF23	FLOW POWER max	primary exchanger voltage during the work phase at power MA>	m/s	3,2
SANITARY POWER	TF25	AUGER POWER AT SANI	ON time of the gear motor during the work phase at power SAN	sec	4,7
	TF26	FLOW POWER sani	inflow in the firepot during the work phase at power SAN	m/s	3,25
SMOKE SPEED	TF33	SMOKE SPEED I mod	Smoke suction speed during work phase at MOD	g/min	1800
	TF34	SMOKE SPEED min	Smoke suction speed during work phase at MIN	g/min	1800
	TF35	SMOKE SPEED max	Smoke suction speed during work phase at MA>	g/min	2300
	TF36	SMOKE SPEED sani	Smoke suction speed during work phase at SAN	g/min	2400
ALTITUDE	TF38	ALTITUDE	Value of the altitude from the sea leve	metri	0
ON/OFF RDS	TF39	ON/OFF FLOW METER	disable “OFF” or enable “ON” the RDS function	val	S.Aut
RECIPE	TF40	RECIPE ACTIVE	OFF/scarce/low/medium/high draught	str	OFF
DELTA BOILER/PUFFER	TF54	DELTA BOILER	Delta temp. to activate heating of the sanitay water (available from vers. 04	°C	5
	TF55	DELTA PUFFER	Delta temperat. to activate heating on water tank (available from vers. 04	°C	5
ALARMS	TF41	THRESHOLD NO PELLET	Reference threshold for “NO PELLET” alarm	°C	45
	TF42	MAXIMUM THRESHOLD	Maximum temperature threshold during working phase	°C	270
	TF43	DELAY ALARMS	delay alarms activation	sec	60
	TF44	BLACK OUT	limit seconds for the activation of the “BLACK OUT” alarm	sec	10
	TF45	REIGNITION BLOCK	START or RESTART (VENTILATION) waiting time	min	3
	TF46	T-OFF MINIMUM	Reference threshold for “NO PELLET” alarm	min	4
	TF47	MINIMUM INFLOW	Minimum inflow	m\s	0,9
	TF48	MAX DURATION IGNITION	Maximum time for an ignition cycle	min	18
	TF37	MAX. WATER TEMPERATURE	Water temperature for starting circolator	°C	90
EXTRA PARAMETERS	TF49	CANCELL PRESSURE	CANCELL PRESSURE READING WITH PRESS. TRASDUCER	on/off	OFF
	TF50	FREQUENCY XHZ	NET FREQUENCY	Hz	50
	TF51	DEGREES	measuring unit for the temperature	°C/°F	°C
	TF52	DRAUGHT USER	Option to activate to allow the user ti set darft and pelle	on/off	ON
	TF53	SERVICE HOURS	enable/disable resistance	h	3000
	TF30	ACTIVATION FAN	PARAMETER RELATED TO ACTIVATION OF AIR AXCHANGE HEATER	str	OFF
	TF28	FAN SPEED MOD	EXCHANGER VOLTAGE DURING WORKING PHASE AT POWER mod	v	160
	TF29	FAN SPEED SANI	XCHANGER VOLTAGE DURING WORKING PHASE AT POWER SANI	v	210
	TF56	VOLT MAX	Volt mx	v	230
	TF57	MAXIMUM POWER	Maximum power setting (MIN MED MAX)	str	P MAX

NORDIC FIRE

Nordic Fire bv

Vinkwijkseweg 34

7038 EP ZEDDAM NEDERLAND

Tel. [phone]

Fax. [phone]

www.nordicfire.nl [e-mail]
