Product Type	Document Camera (Visual Presenter)
Model	PC193
Brand	Lumens
Resolution	Up to 1080p (Full HD)
Image Sensor	High-definition CMOS
Optical Zoom	Digital zoom (on/off setting)
Auto Focus	Yes, with one-touch auto focus button
Lamp	LED with multiple modes: Off, Arm Lamp, Both Lamps, Head Lamp
Connectivity	VGA In/Out, HDMI In/Out, USB (Type A and B), Audio Out, RS232, Microscope Adapter
Storage	Internal memory (capacity not specified) and USB disk (up to 64 GB)
Image Capture	Still image capture (single, continuous, time-lapse) and video recording
Built-in Microphone	Yes, on control panel
Power Supply	AC 100-240V, 50/60 Hz (via included power cord)
Weight	Approximately 2.5 kg (5.5 lbs)
Dimensions (approx.)	400 x 300 x 500 mm (folded arm), base 250 x 200 mm
Accessories Included	Remote control, VGA cable, 2x HDMI cables, USB cable, power cord, microscope adapter, accessory pouch, quick start guide
Software	Ladibug™ (Windows) for remote control and annotation
Safety Certifications	CE, FCC Class A

Frequently Asked Questions - PC193 Lumens

How do I turn on the PC193 document camera?

Press the power button on the control panel or remote control. The LED will flash and then stay lit. If the LED does not light, check the power connection.

Why is there no image output?

Check power and cable connections. Ensure the source is set to 'Live' (press SOURCE). Verify the display input matches the connected cable. Also check DIP switch settings (Chapter 9).

How do I capture a still image?

Press the CAPTURE button on the control panel or remote control. Images are saved to USB disk (priority) or internal memory. To set capture mode, go to Settings > Capture Settings.

Can I record video?

Yes. Insert a USB disk, then press RECORD on the remote control or hold CAPTURE on the control panel for 2 seconds. Press again to stop. The built-in microphone records audio.

How do I zoom in/out?

Use ZOOM+ and ZOOM- buttons on the remote control or control panel. Digital zoom can be enabled in Settings > Control > Digital Zoom.

What should I do if the image is blurry?

Press the FOCUS button on the lens for auto focus. If still blurry, increase distance to the document or press ZOOM- to reduce magnification.

How do I connect the PC193 to a computer?

Connect the USB cable from PC193 to the computer. Install the Ladibug software from the Lumens website. The camera will be recognized as a video device.

Can I use the camera with a microscope?

Yes. Use the included microscope adapter (fits eyepieces of 28mm, 31mm, 34mm). Mount the adapter to the microscope and attach the PC193 lens. Adjust focus as needed.

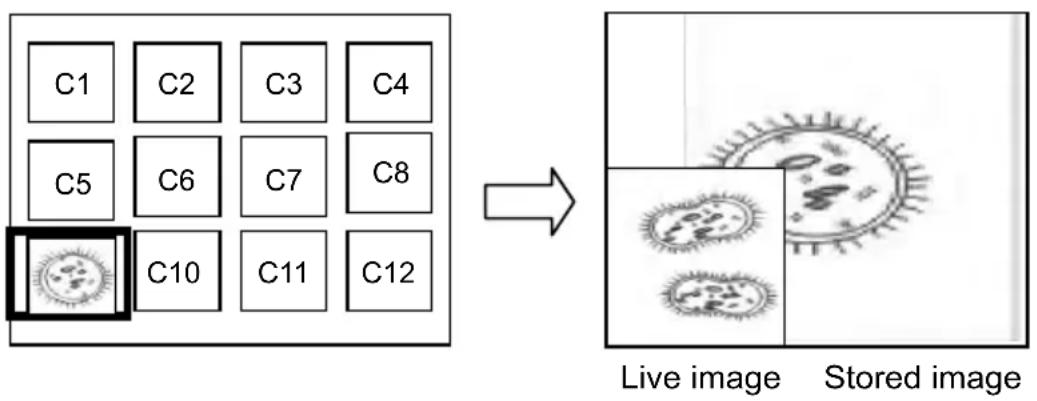

How do I compare two images side by side?

Press PLAYBACK, select a stored image, then press PIP. The live image appears alongside the stored image. Use arrow keys to move the live image.

How do I reset to factory settings?

Go to Settings > Advanced > Factory Reset, select Yes, then press ENTER. This erases all custom settings and stored images.

USER MANUAL PC193 Lumens

User Manual - English

Line drawing of a desk lamp with two adjustable arms and a base (no text or symbols)

[Important]

To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens

http://www.MyLumens.com/goto.htm

Table of Contents

Copyright Information ....3

Chapter 1 Safety Instructions ....4

Precautions ....5

EN55022 (CE Radiation) Warning....5

Chapter 2 Package Contents ....6

Chapter 3 Product Overview....7

3.1 Relative position of the presenter and document....8

Chapter 4 Installation and Connections ......9

4.1 System diagram 9

4.2 Installation and setup....10

4.3 Connecting to a projector or monitor....10

4.4 Connecting to an HDTV 11

4.5 Connecting to a computer and use Lumens™ software 11

4.6 Connecting to a computer and projector or monitor simultaneously .....12

4.7 Connecting to a computer and USB disk simultaneously .....12

4.8 Connecting to an Interactive Whiteboard (IWB)....13

4.9 Connecting to a speaker ....13

4.10 Connecting to a computer with RS232....14

4.11 Connecting to a TV....14

4.12 Full connectivity including USB 15

4.13 Installing application software ....15

Chapter 5 Start Using ....16

Chapter 6 Control Panel/Remote Control and Setting Menu ....17

6.1 Functions of control panel and remote control .....17

6.2 Setting menu....19

Chapter 7 Descriptions of Major Functions ....25

7.1 I would like to automatically adjust the image to have the best brightness and focusing performance....25

7.2 I would like to switch image sources 25

7.3 I would like to switch the image mode....25

7.4 I would like to make text clearer and photos more colorful ....25

7.5 I would like to zoom in/out images 26

7.6 I would like to use the auto focus 26

7.7 I would like to adjust the brightness .....26
7.8 I would like to turn on/off the lamp....26
7.9 I would like to freeze images....26
7.10 I would like to rotate the image....27
7.11 I would like to capture images....27
7.12 I would like to record images....28
7.13 I would like to view captured/recorded images .....29
7.14 I would like to delete the captured/recorded images....30
7.15 I would like to automatically delete the stored images whenever it is turned off (Auto Erase)....30
7.16 I would like to enlarge a part of the image (PAN)....30
7.17 I would like to use the MASK and Spotlight function 31
7.18 I would like to play the slides (Slide Show) 32
7.19 I would like to compare images (compare live images with stored image files (PIP)) 32
7.20 I would like to reduce the image noise (Projector Type)....33
7.21 I would like to resume the factory default setting (Factory Reset) .....34
7.22 I would like to change the power on image 34
7.23 Computer-related functions....34

Chapter 8 Connecting to Microscope ....36

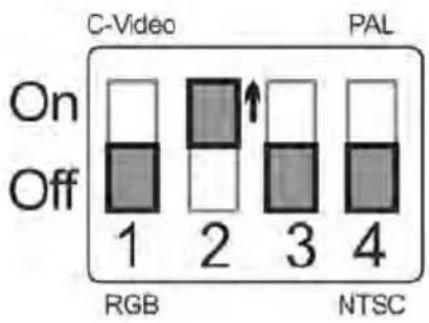

Chapter 9 DIP switch setting ....37

9.1 Connecting to a projector or monitor 37
9.2 Connecting to a TV....38

Chapter 10 Troubleshooting ....39

Copyrights © Lumens Digital Optics Inc. all rights reserved.

Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc.

Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product.

In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. The information in this file is subject to change without prior notice.

To fully explain or describe how this product should be used, this manual may refer to names of other products or companies without any intention of infringement.

Disclaimer of warranties: Lumens Digital Optics Inc. is neither responsible for any possible technological, editorial errors or omissions, nor responsible for any incidental or related damages arising from providing this file, using, or operating this product.

Always follow these safety instructions when setting up and using the Document Camera:

1. Do not place Document Camera in tilted position.
2. Do not place the Document Camera on an unstable trolley, stand or table.
3. Do not use the Document Camera near water or source of heat.
4. Use attachments only as recommended.
5. Use the type of power source indicated on the Document Camera. If you are not sure of the type of power available, consult your dealer or local electricity company for advice.

6. Place the Document Camera on a place that it can be unplugged easily.

7. Always take the following precautions when handling the plug. Failure to do so may result in sparks or fire.

■ Ensure the plug is free of dust before inserting it into a socket.
■ Ensure that the plug is inserted into the socket securely.

1. Do not overload wall sockets, extension cords or multi-way plug boards as this may cause fire or electric shock.

2. Do not place the Document Camera where the cord can be stepped on as this may result in fraying or damage to the lead or the plug.

3. Unplug the Document Camera from the wall socket before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners.

4. Do not block the slots and openings in the Document Camera case. They provide ventilation and prevent the Document Camera from overheating. Do not place the Document Camera on a sofa, rug or other soft surface or in a built-in installation unless proper ventilation is provided.

5. Never push objects of any kind through cabinet slots. Never allow liquid of any kind to spill into the Document Camera.

6. Except as specifically instructed in this User Manual, do not attempt to operate this product by yourself. Opening or removing covers may expose you to dangerous voltages and other hazards. Refer all servicing to licensed service personnel.

7. Unplug the Document Camera during thunderstorms or if it is not going to be used for an extended period. Do not place the Document Camera or remote control on top of vibrating equipment or heated objects such as a car, etc.

8. Unplug the Document Camera from the wall outlet and refer serving to licensed service personnel when the following situations happen:

■ If the power cord or plug becomes damaged or frayed.
■ If liquid is spilled into it or the Document Camera has been exposed to rain or water.

Using an incorrect battery type in the remote control may result in breakdown. Follow local instructions on how to dispose of used batteries.

■ Precautions

Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

This Document Camera has a 3-wire AC line Plug. This is a safety feature to ensure that the plug will fit into the power outlet. Do not try to disable this safety feature.

If the Document Camera will not be used for an extended time, unplug it from the power socket.

Note

Risk of Electric Shock Please do not open it by yourself

Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to licensed service personnel.

This symbol indicates that this equipment may contain dangerous voltage which could cause electric shock.

This symbol indicates that there are important operating and maintenance instructions in this User Manual with this unit.

■ EN55022 (CE Radiation) Warning

This product is intended for use in a commercial, industrial, or educational environment. It is not intended for residential use.

This is a Class A product. In a residential environment it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, reception room or hall.

Chapter 2 Package Contents

PC193

Line drawing of a desk lamp with adjustable arm and base (no text or symbols)

VGA cable

Coiled cable with two connectors (no text or symbols visible)

HDMI Cable * 2

Line drawing of a USB cable with two connectors (no text or symbols)

Accessory Pouch

Quick Start Guide
(For download of other language versions, please visit Lumens website)

USB cable

Line drawing of a coiled cable with two connectors (no text or symbols)

Remote control

Microscope Adapter

Three technical line drawings of mechanical bearings (no text or symbols)

4-Steps Card

Power cord

Illustration of a coiled electrical plug with two terminal connectors (no text or symbols)

Appearance may vary depending on country/region

Remote Control Holder

3.1 Relative position of the presenter and document

Illustration of a person reading a book with a desk lamp illuminating them (no text or symbols present)

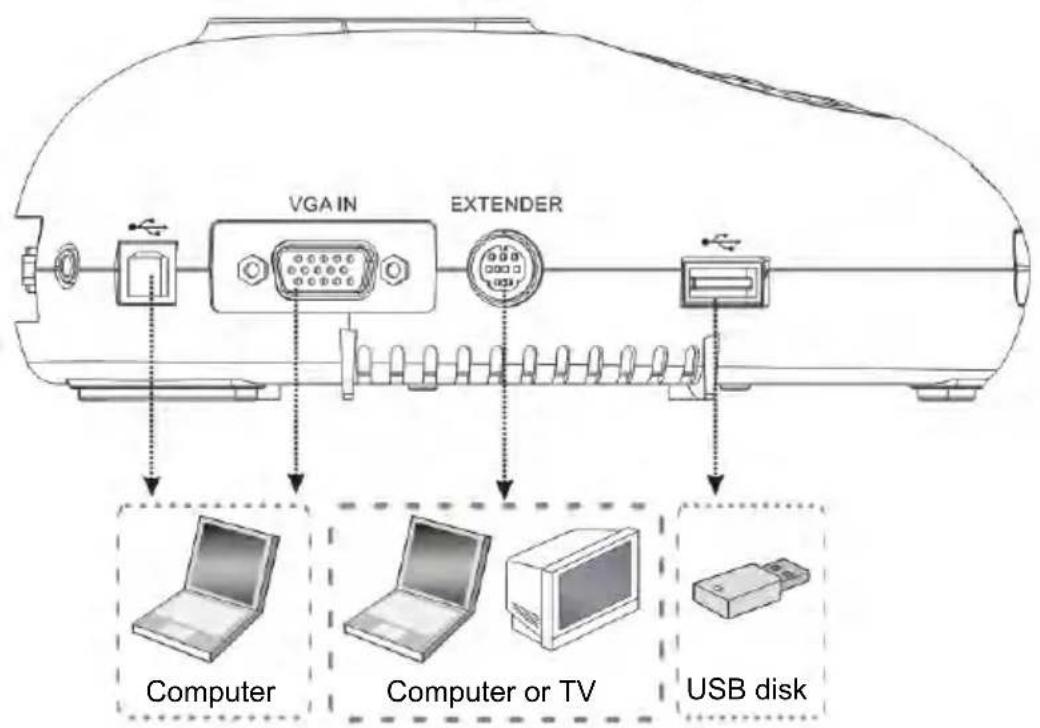

4.1 System diagram

4.2 Installation and setup

1. Please set up the DIP switch setting first. Refer to Chapter 9 DIP Switch Setting.

4.3 Connecting to a projector or monitor

4.4 Connecting to an HDTV

4.5 Connecting to a computer and use Lumens™ software

The software can be downloaded from Lumens website

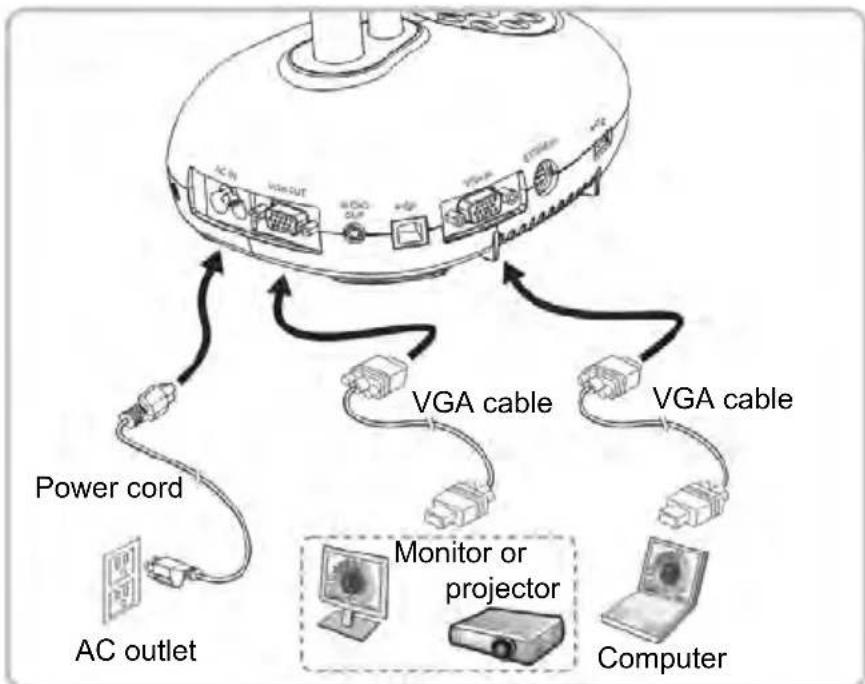

4.6 Connecting to a computer and projector or monitor simultaneously

➢ Press [SOURCE] button to switch the image source.

4.7 Connecting to a computer and USB disk simultaneously

Connected to a computer and turned off, the Document Camera is just regarded as an external storage device.

4.8 Connecting to an Interactive Whiteboard (IWB)

4.9 Connecting to a speaker

4.10 Connecting to a computer with RS232

➢ After connecting to the RS232 cable, you can use RS232 commands to control PC193.

4.11 Connecting to a TV

NTSC: USA, Canada, Mexico, Panama, Chile, Japan, Taiwan, Korea, and Philippines.

PAL: Countries/regions not listed above

You should unplug and reconnect the power cord, and then restart the machine for DIP switch setting to take effect. Once C-VIDEO is enabled, VGA OUT is not supported.

Only the live image can be displayed in C-Video output mode.

4.12 Full connectivity including USB

4.13 Installing application software

The application software installed on the computer enables you to:

▶ Control the PC193.
▶ Capture and record images.
➢ Annotate the image, highlight important details and save it.
▶ Support the full screen function.

Please refer to Ladibug™ software user manual for installation steps and software operation.

1. Place an object to be displayed under the camera.

2. Turn on Power

1. Adjust the gooseneck and lens to the appropriate positions.

2. Press [AUTO TUNE] button to optimize the image. You are ready to teach/present.

Each time the camera head is moved, please locate it and then press [FOCUS] to refocus the lens.

• When using the remote control, aim at the remote sensor on the PC193, and press the power button.
• Once PC193 is turned on, the LED on the control panel will flash a few times and stay lit. Please contact your distributor if the LED does not light up.

Chapter 6 Control Panel/Remote Control and Setting Menu

6.1 Functions of control panel and remote control

The below functions are listed alphabetically

Name	Function Descriptions	Operation
	Turn on and off the Document Camera.*Press and hold for 5 ~ 10 seconds to turn off	Remote control/Control panel
	Move up, down, left or right to select the needed function.	Remote control/Control panel
FOCUS	Auto focus.	Either sides of the lens
AUTO TUNE AUTO	Automatically adjust the image to have the best brightness and focusing performance.	Remote control/Control panel
BRT+/-	Adjust the brightness of the image.	Remote control
CAPTURE	Capture images to USB disk (priority) or internal memory.	Control panel
CAPTURE /DEL	Capture and save images to USB disk (priority) or internal memory while displaying live images.Delete files from the USB disk (priority) or internal memory while reading the stored files (in Playback mode).	Remote control
ENTER	Activate/Enter functions.	Remote control
ENTER / FREEZE	Live image: Freeze the image OSD mode: Activate/Enter functions	Control panel
FREEZE	Freeze the current image to remain temporarily on the screen. Press again to defreeze.	Remote control
LAMP	Lamp mode toggle switch.	Remote control/Control panel
MASK	Activate Mask/Spotlight mode.	Remote control
MENU	Activate the setting menu/exit the menu.	Remote control/Control panel
PAN	Enable/Disable the partial enlarged mode.	Remote control
PIP	Image comparison (to compare live images with stored image files).	Remote control
PLAYBACK	Read files stored in the USB disk (priority) or internal memory.	Remote control/Control panel
RECORD	Record motion images. Press [Record] to record images to USB disk and press [Record] again to stop recording.	Remote control
ROTATE	Screen rotation 0°/180°/Flip/Mirror	Remote control
SOURCE	Switch between different sources of signals:1. Live images (default).2. VGA and HDMI input (corresponding output).	Remote control/Control panel
ZOOM +/-	Increase or decrease the image size.	Remote control/Control panel

6.2 Setting menu

6.2.1 Main menu

Press [MENU] on the remote control or control panel to display the setting menu.

	Auto TuneAutomatically adjust the image to have the best brightness and focusing performance.		Slide ShowShow the photos or videos stored in the USB disk (priority) or internal memory in slide mode.
	PANEnable/Disable the partial enlarged mode.		Manual FocusManual Focus.
	LAMPLamp mode toggle switch.		RotateScreen rotation 0°/180°/Flip/Mirror
	PIPImage comparison (to compare live images with stored image files).		SettingsSet up various functions.
	BrightnessAdjust the brightness of the image.		Photo/TextSelect Photo/Text/Gray Mode.
	MaskActivate the mask mode.		ZoomIncrease or decrease the image size.
	ModeSelect image mode.		SpotlightActivate the spotlight mode.

6.2.2 Setting menu

1^st Level Major Items	2^nd Level Minor Items	3^rd Level Adjustment Values	Function Descriptions
Capture Settings	Capture Mode	Single Capture/ Time Lapse/ Record/Disable	Use the left and right arrow keys to select capture mode.
	Capture Time	1. 1 hr2. 2 hr3. 4 hr4. 8 hr5. 24 hr6. 48 hr7. 72 hr	Use the left and right arrow keys to select the capture time.This will be active only when capture mode is set to time lapse
	Capture Interval	1. 3 sec2. 5 sec3. 10 sec4. 30 sec5. 1 min6. 2 min7. 5 min	Use the left and right arrow keys to select the capture interval.This will be active only when capture mode is set to time lapse
	Image Quality	1. High2. Medium3. Low	Use the left and right arrow keys to select the image quality for the captured images and recorded videos
Storage	Slide Show	ENTER	Show the photos or videos stored in the USB disk (priority) or internal memory in slide mode.
	Delay	1. 0.5 sec2. 1 sec3. 3 sec4. 5 sec5. 10 sec6. Manual	Use the left and right arrow keys to select the delay time.Select manual mode to switch images manually.
	Copy To USB Disk	ENTER	Use the left and right arrow keys to select, and then press [ENTER] to confirm to copy files from internal memory to USB disk.
	Delete All	Yes/No	Use the left and right arrow keys to select, press [ENTER] to confirm the deletion of all images from the USB disk (priority) or internal memory.
	Format	Yes/No	Use the left and right arrow keys to select, and then press [ENTER] to format the USB disk (priority) or internal memory.
Control	Auto Exposure	On/Off	Regardless of outside environment, the machine will adjust the brightness to the optimal condition. Use the left and right arrow keys to select.
	Auto White Balance	ENTER	Regardless of outside light or color, the machine will adjust the color to the optimal condition; Press [ENTER] to execute.
	Audio Out Volume	0~A~Max	Use the left and right arrow keys to adjust the volume.
	Microphone Levels	0~A~Max	Use the left and right arrow keys to adjust the volume.
	Projector Type	DLP/LCD	Use the left and right arrow keys to select the projector type and reduce image noise.
	Digital Zoom	On/Off	Use the left and right arrow keys to turn on/off digital zoom.
Advanced	LanguageLock Down	1. English2. 繁體中文3. 簡体中文4. Deutsch5. Français6. Español7. Русский8. Nederlands9. Suomi10. Polski11. Italiano12. Português13. Svenska14. dansk15. ČESKY16. लेखीये17. 日本語18. 한국의19. ελληνικά20. LatvijasOn/Off	EnglishTraditional ChineseSimplified ChineseGermanFrenchSpanishRussianDutchFinnishPolishItalianPortugueseSwedishDanishCzechArabicJapaneseKoreanGreekLatvianUse the left and right arrow keys in the Language option to select the preferred language.Use the left and right arrow keys to turn on/off the lock down function. You can set the password when [On] is selected.
	Auto Erase	On/Off	Use the left and right arrow keys to turn on/off the auto erase function. When [On] is selected, the stored images will automatically be deleted when the system is turned off.
	Preset Load	Yes/No	Read the value of the current image mode. Use the left and right arrow keys to select, and then confirm by pressing [ENTER].
	Preset Save	Yes/No	Store the value of the current image mode. Use the left and right arrow keys to select, and then confirm by pressing [ENTER].
	Splash Screen Settings	ENTER	Open Splash Screen Setting window
	Factory Reset	Yes/No	Use the left and right arrow keys to select, and then confirm by pressing [ENTER] to restore the factory defaults.
	Firmware Version	NA	Display FW version

6.2.3 Mask mode setting menu

2^nd Level Major Items	3^rd Level Minor Items	4^th Level Adjustment Values	Function Descriptions
MASK Mode	Live	ENTER	Press [ENTER] to return to live image.
	Transparency	0~2~3	Use the left and right arrow keys to adjust the transparency of the mask.
	Step	Large/Medium/ Small	Use the left and right arrow keys to select the step of the mask.
	V Size	0~A~Max	Use the left and right arrow keys to select the vertical height of the mask.
	H Size	0~A~Max	Use the left and right arrow keys to select the horizontal length of the mask.
	Exit	ENTER	Press [ENTER] to confirm your selection and exit the mask mode setting menu.

6.2.4 Spotlight mode setting menu

2^nd Level Major Items	3^rd Level Minor Items	4^th Level Adjustment Values	Function Descriptions
Spotlight Mode	Live	ENTER	Press [ENTER] to return to live image.
	Shape	Ellipse/Rectangle	Use the left and right arrow keys to select the shape of the spotlight zone.
	Transparency	0~2~3	Use the left and right arrow keys to adjust the transparency of the border in the spotlight mode.
	Step	Large/Medium/ Small	Use the left and right arrow keys to select the step of the spotlight zone.
	V Size	0~A~Max	Use the left and right arrow keys to adjust the height of the spotlight zone.
	H Size	0~A~Max	Use the left and right arrow keys to adjust the width of the spotlight zone.
	Exit	ENTER	Press [ENTER] to confirm your selection and exit the spotlight mode setting menu.

6.2.5 Splash Setting Windows

2^nd Level Major Items	3^rd Level Minor Items	4^th Level Adjustment Values	Function Descriptions
Splash Screen Setting	Power On Image Setting	Default/ Customer	Select to use Default/Customer power on image
	Power On Logo Show Time	4~30 sec	Set up power on logo show time
	Power On Image Select	ENTER	Select power on image. Only pictures in JPEG format are supported
	Exit	ENTER	Press [ENTER] to confirm your selection and exit splash screen setting window.

6.2.6 Annotation

After the mouse is connected, right click or left click and hold the mouse to start the tools.

When the setting menu is activated, the tools cannot be used.

Icon	Description
	Custom tool 1
	Custom tool 2
	Eraser
	Clear all
	Open setting menu of the annotation tool
	Exit the annotation tool

6.2.7 Setting menu of the annotation tool

2^nd Level Major Items		3^rd Level Minor Items	4^th Level Adjustment Values	Function Descriptions
		Tools Select	Pen/Line/Ellipse/ Rectangle	Select an annotation tool
		Color Select	Red/blue/black/green/pink/white/cyan/yellow	Select the pen color
		Line Width	1~3~10	Select the line width
		Tools Select	Pen/Line/Ellipse/ Rectangle	Select an annotation tool
		Color Select	Red/blue/black/green/pink/white/cyan/yellow	Select the pen color
		Line Width	1~3~10	Select the line width
		Line Width	1~3~10	Select the line width

7.1 I would like to automatically adjust the image to have the best brightness and focusing performance

Use the remote control or control panel:

1. Press [AUTO TUNE] for the best brightness and focusing performance.

7.2 I would like to switch image sources

Live image is the default image source. Press [SOURCE] on the remote control or control panel to have PC193 switch among the following images sources:

1. Live images (default).
2. VGA IN / HDMI IN.

This image switch applies to VGA OUT/HDMI OUT simultaneously.

7.3 I would like to switch the image mode

Use the remote control or control panel:

1 Press [MENU] to activate the setting menu.
2 Press [▲], [▼], [▶], or [◀] to select [Image mode].
3 Press [▶] or [◀] to the [Normal/Film/Slide/Microscope].

7.4 I would like to make text clearer and photos more colorful

7.4.1 Photo/Text mode descriptions

The default [Photo/Text] mode is in Photo (Photo mode). To change this setting, please use the remote control or the control panel to activate the options of the setting menu.

• [Photo] (default): for viewing photos or text with photos, making photos more colorful.
• [Text]: for viewing text files, making the text clearer.
• [Gray]: for viewing black & white photos which will make the grayscale differentiation distinct.

7.4.2 Set up Photo/Text mode

To change the settings, please use the remote control or the control panel:

1. Press [MENU] to activate the setting menu.
2. Press [▲], [▼], [▶] or [◀] to select [Photo/Text]. (Please refer to 7.4.1 Photo/Text mode descriptions to make the best choice.)
3. Press [ENTER] to activate.
4. Press [▶] or [◀] to select the [Photo/Text/Gray].

7.5 I would like to zoom in/out images

1. Press [ZOOM+] on the remote control or control panel to zoom in images.
2. Press [ZOOM-] on the remote control or control panel to zoom out images.
   When the magnification is too high to enable focus, it will return to normal range automatically.

7.6 I would like to use the auto focus

1. Press the [FOCUS] AF button on the right side of the lens.

7.7 I would like to adjust the brightness

Remote control:

1. Press [BRT +] to make it brighter.
2. Press [BRT -] to make it darker.

Control panel:

1. Press [MENU] to activate the setting menu.
2. Press [▲], [▼], [▶] or [◀] to select [Brightness].
3. Press [ENTER] to activate.
4. Press [▶] or [◀] to adjust the brightness.

7.8 I would like to turn on/off the lamp

The default of the lamp is OFF. When using the remote control or control panel:

1. Press [LAMP] to switch On/Off. (The sequence of switching is: Off/Arm Lamp/Both Lamps/Head Lamp)

7.9 I would like to freeze images

1. Press [FREEZE] on the remote control or control panel to freeze the current image on the screen. Press again to defreeze.

7.10 I would like to rotate the image

Remote control:

1. Press [ROTATE] key to rotate the screen. (The sequence of switching is: 0^/180^/Flip/Mirror )

Control panel:

1. Press [MENU] to activate the setting menu.
2. Press [▲], [▼], [▶], or [◀] to select [Rotate].
3. Press [ENTER] to activate.
4. Press [▶] or [◀] to switch the rotation method. (The sequence of switching is: 0^/180^/Flip/Mirror )
5. Press [MENU] to exit.

7.11 I would like to capture images

7.11.1 Capture and save images

1. Press [CAPTURE] on the remote control or control panel to capture and save images.
2. You cannot capture images when the capture mode is set to [Disable]. If it is set to [Continuous], you can capture images continuously. Press [Capture] to start capturing continuously, or press [Capture] again to exit.
3. To change the quality of captured images, please refer to 7.11.2 Setting the quality of captured images.
4. To change the setting of captured images, please refer to 7.11.3 Setting continuous capture.

7.11.2 Setting the quality of captured images

1. Press [MENU] on the remote control or control panel to activate the setting menu.
2. Press [▲], [▼], [▶], or [◀] to select [Setting].
3. Press [ENTER] to activate.
4. Press [▶] or [◀] to the [Capture] menu.
5. Press [▼] to find [Image Quality].
6. Press [▶] or [◀] to select among [High/Medium/Low].
7. Press [MENU] to exit.

7.11.3 Setting continuous capture

1. Press [MENU] on the remote control or control panel to activate the setting menu.
2. Press [▲], [▼], [▶], or [◀] to select [Setting].
3. Press [ENTER] to activate.
4. Press [▶] or [◀] to the [Capture] menu.
5. Press [▼] to the [Capture Mode].
6. Press [▶] or [◀] to select [Time Lapse].
7. Press [▼] to find [Capture Time]; Press [▶] or [◀] to set capture time.
8. Press [▼] to find [Capture Interval]; Press [▶] or [◀] to set interval time.
9. Press [MENU] to exit.

7.12 I would like to record images

Connect USB disk to PC193 to start recording images.

7.12.1 Recording motion images

You may not be able to capture or record images when [Capture Image] mode is set to [Disable].

Remote control:

1. Press [RECORD] on the remote control to start recording images.
2. Record sounds with the built-in microphone of the control panel.
3. Press [RECORD] again to stop recording.

Control panel:

1. Press and hold [Capture] button for about 2 seconds to start recording images
2. Press [Capture] again to stop recording.

7.12.2 Setting the quality of captured images

1. Press [MENU] on the remote control or control panel to activate the setting menu.
2. Press [▲], [▼], [▶], or [◀] to select [Setting].
3. Press [ENTER] to activate.
4. Press [▶] or [◀] to the [Capture] menu.

5. Press [▼] to find [Image Quality].

6. Press [▶] or [◀] to select among [High/Medium/Low].

7. Press [MENU] to exit.

7.12.3 Recording setup

1. Press [MENU] on the remote control or control panel to activate the setting menu.
2. Press [▲], [▼], [▶], or [◀] to select [Setting].
3. Press [ENTER] to activate.
4. Press [▶] or [◀] to the [Capture] menu.
5. Press [▼] to the [Capture Mode].
6. Press [▶] or [◀] to select [Record].
7. Press [MENU] to exit.

When the [Capture Image] mode is set to [Record], the function of [Capture] on the control panel is changed to image recording.

7.12.4 Adjust the volume of microphone

1. Press [MENU] on the remote control or control panel to activate the setting menu.
2. Press [▲], [▼], [▶], or [◀] to select [Setting].
3. Press [ENTER] to activate.
4. Press [▶] or [◀] to the [Control] menu.
5. Press [▼] to the [MIC Vol.].
6. Press [▶] or [◀] to adjust the volume.
7. Press [MENU] to exit.

7.12.5 Playing images

- To play images, please refer to 7.13 I would like to view captured/recorded images.

7.13 I would like to view captured/recorded images

1. Press [PLAYBACK] on the remote control or control panel to display thumbnails of all stored files.
2. Press [▶], [◀], [▲], or [▼] to select the thumbnail you want to play.
3. Press [ENTER] for full-screen play.

4. When the video is played, it can be paused/played by pressing [Freeze].

5. Press [▶] or [◀] to select the next or previous audio/video file.

6. Press [▲] or [▼] to adjust the volume of the video.
7. Press [MENU] to exit.

An external speaker must be connected to AUDIO OUT to play sound when you use VGA OUT.

7.14 I would like to delete the captured/recorded images

Remote control:

1. Press [PLAYBACK] to show the thumbnails of all stored files.
2. Press [▲], [▼], [◀], or [▶] to select the file you want to delete.
3. Press [DELETE] to display a [Delete File] window.
4. Press [▶] or [◀] to select [Yes].
5. Press [ENTER] to delete the selected file.
6. Select [No] and press [ENTER] to exit [Delete File] window.
7. Press [MENU] to exit.

7.15 I would like to automatically delete the stored images whenever it is turned off (Auto Erase)

Use the remote control or control panel:

1. Press [MENU] to activate the setting menu.
2. Press [▲], [▼], [▶], or [◀] to select [Setting].
3. Press [ENTER] to activate.
4. Press [▶] or [◀] to the [Advanced] menu.
5. Press [▲] or [▼] to [Auto Erase].
6. Press [▶] or [◀] to select [On].
7. Press [MENU] to exit.

7.16 I would like to enlarge a part of the image (PAN)

Use remote control:

1. Press [PAN] to activate the partial enlarged mode.
2. Press [▲], [▼], [◀], or [▶] to move and view the partial enlarged images.
3. Press [PAN] to exit the partial enlarged mode.

Use control panel:

1. Press [MENU] to activate the setting menu.

2. Press [▲], [▼], [▶], or [◀] to select [PAN].

3. Press [ENTER] to execute.

4. Press [▲], [▼], [◀], or [▶] to move and view the partial enlarged images.
5. Press [MENU] to exit the partial enlarged mode.

7.17 I would like to use the MASK and Spotlight function

7.17.1 I would like to use the mask or spotlight mode

Use remote control:

1. Press [MASK] to activate the mask/spotlight mode menu.
2. Press [◀] or [▶] to select the mode and press [ENTER] to activate.
3. Press [▲], [▼], [◀], or [▶] to move the zone position.
4. Press [MASK] again to exit and return to the live image screen.

Use control panel:

1. Press [MENU] to activate the setting menu.
2. Press [▲], [▼], [▶], or [◀] to select [Mask], Press [ENTER] to activate mask mode or select [Spotlight] and press [ENTER] to activate spotlight mode.
3. Press [MENU] to activate the image OSD menu.
4. Press [▲] or [▼] to select [Live Image].
5. Press [ENTER] to return to live image.

7.17.2 I would like to set the size of mask

I would like to use the remote control under the mask mode:

1. Press [MENU] to activate the image OSD menu.
2. Press [▲] or [▼] to select the item to be modified [Transparency/Step/V Size/H Size]. (For details, please refer to 6.2 Setting menu.)
3. Press [◀] or [▶] to perform the modification.
4. Press [MENU] to exit the image OSD menu and return to the mask mode.

7.17.3 I would like to set spotlight function

Use the Remote Control under spotlight mode:

1. Press [MENU] to activate the image OSD menu.

2. Press [▲] or [▼] to select the item to be modified [Shape/Transparency/Step/V Size/H Size]. (For details, please refer to 6.2 Setting menu.)

3. Press [◀] or [▶] to perform the modification.

4. Press [MENU] to exit the image OSD menu and return to spotlight mode.

7.18 I would like to play the slides (Slide Show)

7.18.1 Setting delay time

1. Press [MENU] on the remote control or control panel to activate the setting menu.
2. Press [▲], [▼], [▶], or [◀] to select [Setting].
3. Press [ENTER] to activate.
4. Press [▶] or [◀] to the [Storage] menu.
5. Press [▼] to find [Delay].
6. Press [▶] or [◀] to select the delay time between [0.5 sec/1 sec/3 sec/5 sec/10 sec/Manual].
7. Press [MENU] to exit.

7.18.2 Playing/Pausing/Stopping the slide show

Upper limit: The maximum size of single photo is 7 MB. If you use the remote control or the control panel

1. Press [MENU] to activate the setting menu.
2. Press [▲], [▼], [▶], or [◀] to select [Slide Show].
3. Press [ENTER] to play.
4. Press [ENTER] again to pause/play.
5. Press [MENU] to exit.

7.19 I would like to compare images (compare live images with stored image files (PIP))

This function will compare and contrast a live image with a stored image.

Remote control:

1. Press [Playback] to activate the Playback image thumbnails.
2. Press [▲], [▼], [◀], or [▶] to select the file to be compared.
3. Press [PIP] to execute image comparison.
4. Press [▲], [▼], [◀], or [▶] to move the live image.
5. Repeat Steps 1 - 3 to change other image files.
6. Press [MENU] to exit.

7.20 I would like to reduce the image noise (Projector Type)

1. This function enables Document Camera to automatically clear image noise. The noise is especially obvious when Document Camera is connected to a DLP projector. You can set the DLP projector to improve the image quality.
2. If there is special noise when VGA out is connected, please set DLP option to improve the image quality.

2.1. Press [MENU] on the remote control or control panel to activate the setting menu.

2.2. Press [▲], [▼], [▶], or [◀] to select [Setting].

2.3. Press [ENTER] to activate.

2.4. Press [▶] or [◀] to select [Control].

2.5. Press [▼] to [Projector Type].

2.6. Press [▶] or [◀] to select [LCD/DLP].

2.7. Press [MENU] to exit.

7.21 I would like to resume the factory default setting (Factory Reset)

1. Press [MENU] on the remote control or control panel to activate the setting menu.
2. Press [▲], [▼], [▶], or [◀] to select [Setting].
3. Press [ENTER] to activate.
4. Press [▶] or [◀] to select [Advanced] menu.
5. Press [▼] to select [Factory Reset].
6. Press [▶] or [◀] to select [Yes].
7. Press [ENTER] Execute。

7.22 I would like to change the power on image

The power on image file must be less than 5 MB and in JPEG format.

To save the file, please follow the instruction below:

File path: \DCIM\100MEDIA, for example: J: \DCIM\100MEDIA File name: four English letters+ four numbers, for example: LUMN0001.JPG

1. Press [▲], [▼], [▶], or [◀] to select [Setting].
2. Press [ENTER] to activate.
3. Press [▶] or [◀] to select [Advanced] menu.
4. Press [▼] to select [Splash Screen Settings].

5. Press [ENTER] to activate.

6. Press [MENU] on the remote control or control panel to activate the setting menu.

7. Press [▲] or [▼] to select [Power On Image Setting] and press [▶] or [◀] to select [Default/Custom].

8. Press [▲] or [▼] to select [Power On Logo Show time] and press [▶] or [◀] to set up the time.

9. Skip to Step 11 if your select [Default] in Step 7

10. Press [▲] or [▼] to [Power On Image Select] and press [ENTER] to read selected file.

11. 按[▼] to [Exit] and press [ENTER] to exit.

7.23 Computer-related functions

Ensure that the USB cable is connected and the drivers are installed before using the computer-related functions. Refer to Chapter 4

7.23.1 I would like to insert a photo in MS-Paint

1. Click [File/From Scanner or Camera] in MS-Paint as shown in the bottom left figure.

1. Complete by clicking [Get Picture] as shown in the top right figure.

Support Windows XP Operation System only.

7.23.2 I would like to insert photos in Photoshop

1. Click [File/Import/WIA-USB Video Device] in Photoshop as shown in the bottom left figure.

1. Complete by clicking [Capture] and then clicking [Get Picture] as shown in the top right figure.

1 Mount the microscope adapter accessories onto the microscope Please choose an appropriate microscope adapter. Microscope adapter accessories are applicable to eyepieces of ∅28 mm, ∅31 mm and ∅34 mm.
2 Connect the lens of PC193 with the microscope adapter

For eyepieces of ∅34 mm, only fit one microscope adapter (with the greatest diameter).

For eyepieces of ∅28 mm or ∅31 mm, fit one microscope adapter with the greatest diameter along with another appropriate one.

Line drawings of a desktop desk lamp with adjustable arm and base (no text or symbols)

3 If the image is not clear

3.1. Please adjust the focus of microscope.
3.2. Please press the [FOCUS] button on either side of the PC193 lens to execute the auto focus.

You should unplug and reconnect the power cord, and then restart the PC193 for all DIP switch settings to take effect.

9.1 Connecting to a projector or monitor

9.1.1 XGA output (default values):

9.1.2 SXGA output

9.1.3 WXGA output

9.1.4 1080P output

9.2 Connecting to a TV

9.2.1 NTSC: USA, Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea, and Mexico

9.2.2 PAL: Countries/regions not listed above

Once C-VIDEO is enabled, VGA OUT is not supported.

This chapter describes problems you may encounter while using PC193. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center.

No.	Problems	Solutions
1	Boot without power signal	Make sure you have plugged in the power cord.
2	There is no image output from PC193	1. Check the power.2. Check all cable connections. Refer to Chapter 4 Installation and Connections in this manual.3. Check the [Source], refer to 7.2 I would like to switch image sources of Chapter 7 Descriptions of Major Functions.4. Check the settings for the source of the projector. Please refer to the user manual of the projector.5. Check if DIP switch is properly set. Please refer to Chapter 9 DIP Switch Setting for related settings.
3	Unable to focus	Probably the document is too close. Press [ZOOM -] on the remote control or control panel. Or pull away the lens from the document to increase the distance, and then press the [FOCUS] button on the right side of the lens for auto focus.
4	The image is incomplete	Check the Auto Image setting of your projector. Please refer to the user manual of the projector or check for the DIP switch setting.
5	Lumens Document Camera, LadibugTM and other applications cannot be used simultaneously	Lumens Document Camera, LadibugTM and other applications cannot be used simultaneously. Only one application can be executed at a time. Please close the currently running applications and then execute the application to be used.
6	When PC193 is turned on, the auxiliary floodlight do not light	Please make sure the arm lamp is set to [Off]. For the switch-on or -off of arm lamp, please refer to 7.8 I would like to turn on/off the lamp of Chapter 7 Descriptions of Major Functions.
7	PC193 fails to store images or react	1. Check to see if the stored data have reached the maximum size of the USB disk (priority) or internal memory.2. Please make sure if the capture function is set tocontinuous mode or the time for capture is set to be long. For the related setting, please refer to 7.11 I would like to capture images of Chapter 7 Descriptions of Major Functions.
8	The images output from PC193 are too bright, dark or vague	Press [AUTO TUNE] button to automatically adjust the image to have the best brightness and focusing performance.
9	Unable to record images	1. Check to see if the stored data have reached the maximum size of the USB disk.2. The recording function is not supported in the internal memory. Please make sure that USB disk is inserted for image recording.
10	The operating steps in the manual are not applicable to the machine	The operating steps in the manual may be not applicable to the machine due to improvement in functions. Check to see if the Firmware version of your machine is up-to-date.1 Please go to Lumens official website to check whether the latest version is available for update.www.MyLumens.com/goto.htm2 The steps to check the FW version are as below:2.1 Press [MENU] on the remote control or control panel to activate the setting menu.2.2 Press [▲], [▼], [▶], or [◀] to select [Setting].2.3 Press [ENTER] to activate.2.4 Press [▶] or [◀] to select [Advanced] menu.2.5 View [Firmware Version].If you are not sure whether it is the latest version, please consult your distributor for advice.http://www.MyLumens.com/en/Request_form.php
11	How to unlock the locked device	1. Press [MENU] on the remote control or control panel to activate the setting menu.2. Press [▲], [▼], [▶], or [◀] to select [Setting].3. Press [ENTER] to activate.4. Press [▶] or [◀] to select [Advanced] menu.5. Press [▼] to [Lock Down].6. Press [▶] or [◀] to select [Off] and cancel the password setting function.
12	The data in the USB flash drive cannot be read.	1. The USB flash drive with the capacity of 4 G and above is recommended (up to 64 G supported)2. Please make sure the file was saved at the specified path: \DCIM\100MEDIA. (E.g.: J: \DCIM\100MEDIA)3. Please make sure the file is named appropriately, e.g. four English letters + four numbers. (E.g.: LUMN0001.JPG)
