USER MANUAL 41002 KORONA

Close-up of a plate with sliced lotus root and a textured top (no text or symbols visible)

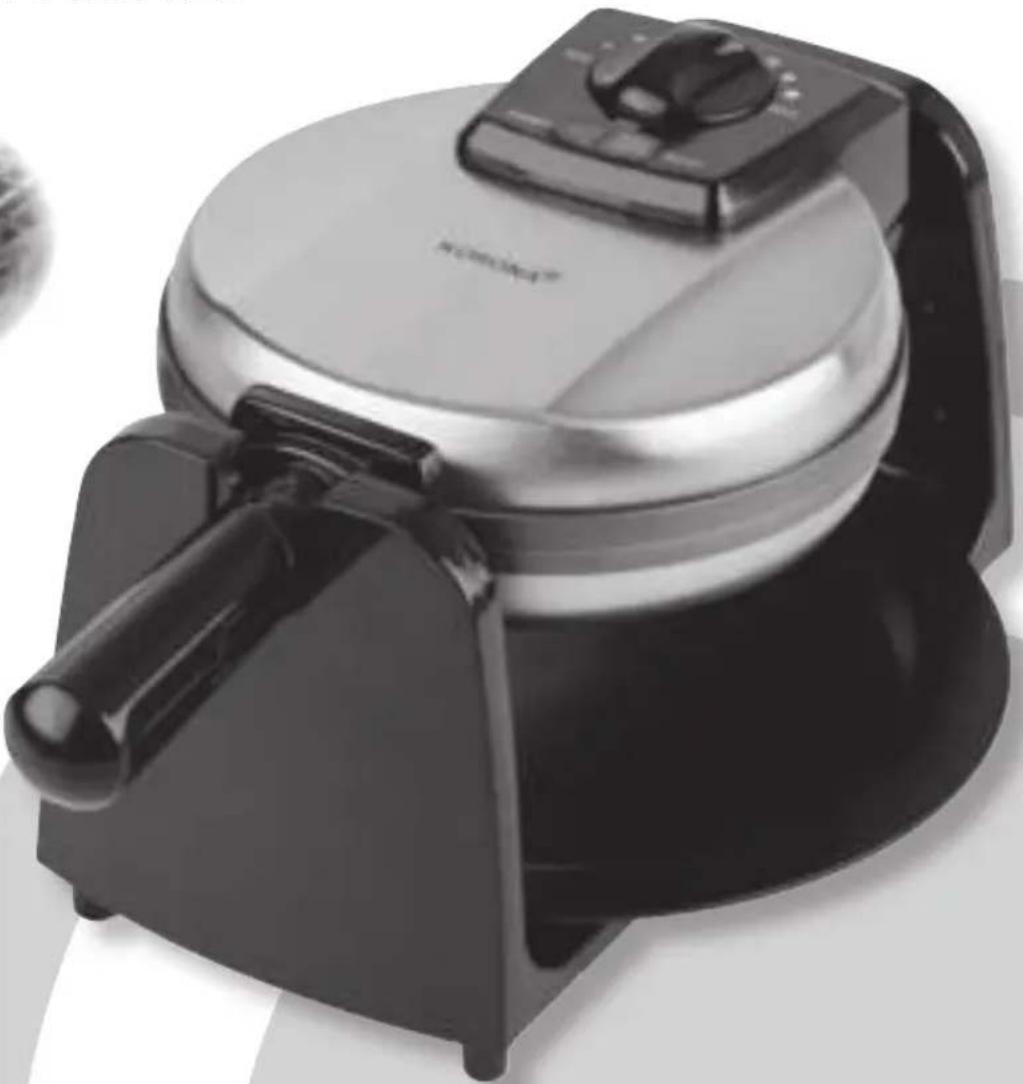

Black and white photo of a Waffle grater with a black handle and metal casing (no visible text or symbols)

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Labeled diagram of a waffle oven showing internal components and interior views

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is intended and suitable for making waffles. All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is not intended for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

- Never put the appliance, cord or plug into water or any other liquid.

• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Always unplug your appliance when it is not in use, and before cleaning.

- Always pull the plug – not the cord.

- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.

- Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
• if the appliance was dropped or is damaged otherwise.
  Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

- Only use accessories evaluated for use with this appliance.

- Never attempt to drive any objects into the appliance.

• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

• Only use the appliance for its intended purpose and as described in this manual.
• Place the appliance on an even and heat-resistant surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle. Danger of serious burns!
• Position the device that it can be opened to the full extent.
• Except for the heating up process, the device must not be operated empty. Be careful to ensure that the device does not become overheated.
• Do not move the appliance during operation.
• Always use a flat wooden or plastic spatula to remove the waffles. Never use any sharp or metal objects (e.g. knife, metal spatula, etc.) as they would damage the non-stick coating of the plates.
• Adhere to a safety distance around the appliance.
• Do not use the appliance close to or under inflammable objects, e.g. curtains, wall cabinets
• Always unplug the appliance after use and let it completely cool down before cleaning.

Labeled diagram of a microwave oven with numbered parts for identification

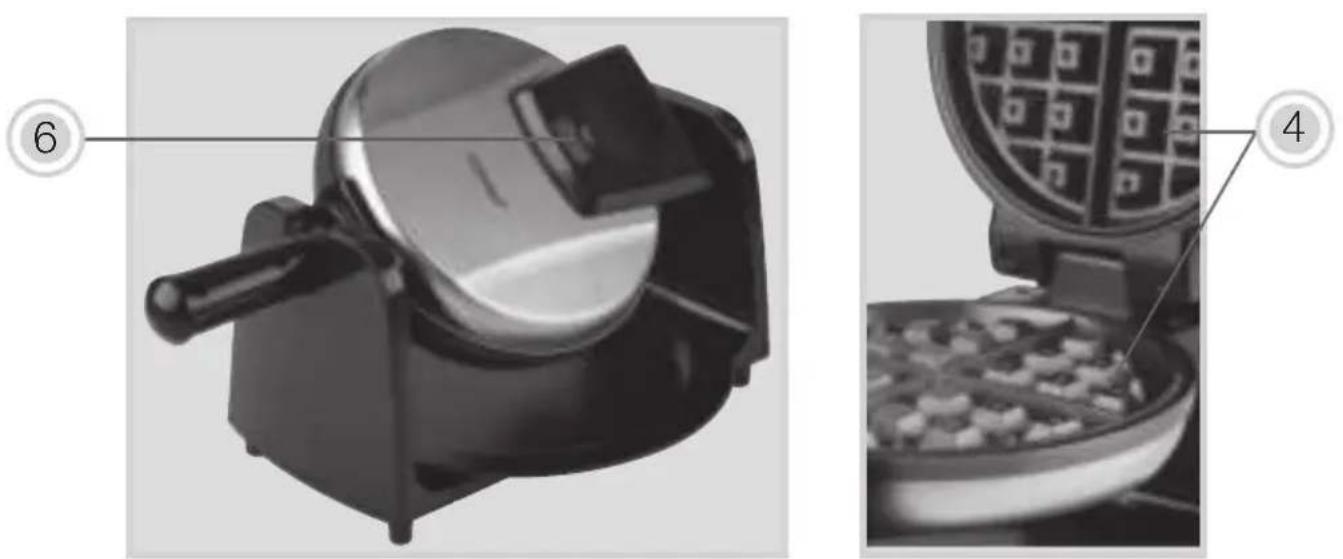

Technical diagram showing a waffle oven with labeled parts, including a magnified view of the dish and a numbered inset.

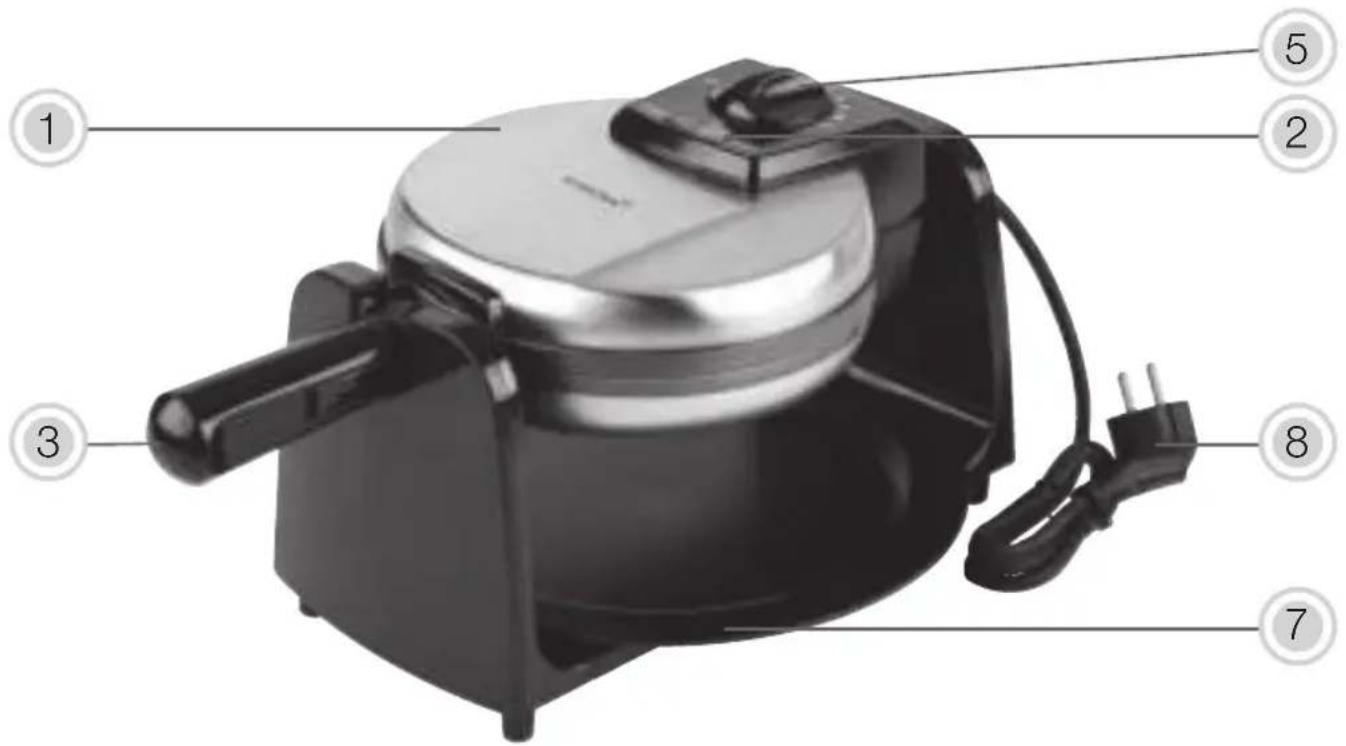

Product Description

1. Lid
2. Indicator lights (red/green)
3. Handle (foldable)
4. Waffle plates
5. Temperature control
6. Indicator light green (rear side)
7. Drip tray
8. Power cord and plug

Before First Use

• Remove all packaging material and check whether the appliance is complete.
• Place the appliance on an even, non-slippery and heat resistant surface.
• Fully unwind the power cord (8) and connect the appliance to a properly installed wall socket.

The waffle plates (4) have a protective coating. To remove the protective layers on the heating elements, heat up the appliance on its highest setting (without food) for approx. 10 minutes. Slightly grease the waffle plates with some cooking oil before using the device for the first time. This helps to seal the heating plates and must only be carried out once.

This could cause a slight build-up of smoke and odour. This doesn't cause any harm nor does it mean that your appliance does not work properly. Make sure that the room is well ventilated!

After this preheating process, your waffle maker is ready for operation. Let it completely cool down and clean it as described under Cleaning and Care.

Warning: Plastic bags are a danger to toddlers and s, therefore keep them away to avoid suffocation.

Operation

This appliance allows you to create perfect and evenly cooked waffles, by simply rotating your waffle maker at 180^ during the baking process.

The temperature of accessible surfaces may be high g operation. Therefore, do not touch the appliance g and/or immediately after operation.

Prepare your the waffle batter in advance before switching on the appliance.

1. Place the appliance on an even, non-slippery and heat resistant surface.
2. Place the drip tray (7) underneath the appliance.
3. Connect the appliance to a properly installed wall socket and set the temperature control (5) to its highest setting.
4. The red indicator light (2) lights up and the heating process starts.

The waffle maker requires approx. 4-5 minutes to warm up.

1. As soon as the necessary temperature is reached the green indicator light (2)/(6) lights up. Your waffle maker is now ready for operation.
2. Open the lid (1) by using the handle (3) and pour approx. a ladle of batter onto the lower plate.
3. Close the lid (1) carefully and fold the handle to the side.
4. After approx. 10 seconds rotate the appliance by 180^ , in order to distribute the batter evenly.

The desired browning level of the waffles can be controlled by the temperature control switch (5).

Tip: To guarantee an even browning process grease both waffle plates with some oil / butter.

1. Depending on the thickness and content of the waffle batter, the waffle will take between 4 - 6 minutes until ready. Open the waffle maker a bit to see whether your waffle is brown enough. If not, let the waffle bake some more.

2. To remove your waffle use a wooden or plastic spatula to avoid damage to the non-stick coating of the plates.

The appliance can only be opened when in original tion.

1. If you wish to prepare a series of waffles repeat a. m. steps.
2. To switch off the appliance, switch the temperature control (5) to the Off-position and disconnect it from the mains (8).
3. Let it completely cool down while opened to full extend.

Note: During operation, an integrated thermostat switches the appliance on and off to ensure a constant temperature. This is indicated by the green indicator light (2 / 6) cycling on and off.

Recipes

For a better result!

• fill batter into waffle maker quickly to produce evenly brown waffles.
• place waffles on a cake rack to keep them crispy. Stacked waffles get soggy easily.

Belgian Waffles (Gaufres de Liège)

Ingredients:

• 400g wheat flour
• 160ml lukewarm milk
• 2 eggs
• 150g coarse sugar
• 50g sugar

• 1 pinch of salt

• 12 packet dry yeast

• 100g butter, room temperature
• 1 vanilla bean, core

Preparation:

Combine the wheat flour, dry yeast, salt and sugar, properly. Add the eggs, butter and core of the vanilla bean. Stir in the lukewarm milk until the batter is smooth.

In order for the dough to rise, leave it to rest for approx.. 45 minutes.

Before starting the baking process knead in the coarse sugar. Preheat the appliance and bake small amounts of the batter for approx. 5 – 10 minutes.

Delicious!

If you prefer them with a chocolate icing, just dip half of the waffle into melted chocolate. Yum!

Basic recipe

Ingredients:

80 g butter

60 g sugar

3 eggs

3/8 | milk

300 g flour

2 teaspoons of baking powder

Rum to your taste

lcing sugar

Preparation:

Mix butter with sugar, vanilla sugar and eggs until smooth.

Alternatively, add flour/baking powder mix and milk.

Add less milk and some rum instead, according to taste.

However, be careful when adding liquid, as batter should not be too thin.

Bake waffles following the above instructions.

Dust with icing sugar before serving.

Vanilla Waffles

Ingredients:

150 g butter or margarine

200 g sugar

4 eggs

extract of one vanilla bean

table salt

250 g flour

1 level teaspoon of baking powder

1 – 2 tablespoons of condensed milk

Icing sugar

Preparation:

Thoroughly mix butter, sugar, eggs, salt, vanilla extract, flour and baking powder for approx. 2 minutes with your hand mixer.

Finally, add condensed milk.

Apple Waffles

Ingredients:

150 g butter or margarine

200 g sugar

4 eggs

12 evel teaspoon of table salt

250 g cornstarch

1 level teaspoon of baking powder

1 level teaspoon of cinnamon

1 pinch of ground cloves

2 minced apples

Icing sugar

Preparation:

Mix all ingredients except the apples with a hand mixer for approx. 2 minutes. Then add the minced apples.

Cleaning and Care

Before cleaning, always switch off the appliance, it from the mains and let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the appliance and the waffle plates (4) with a moistened soft cloth.

Dry the entire appliance and all parts well after cleaning.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

Do not allow stains to dry. To remove food residues apply some cooking oil on the waffles plates (4) and leave it on for some time. Afterwards, wipe the waffle plates (4) with a moistened soft cloth.

The drip tray (7) can be cleaned in warm water using some dishwashing detergent. The drip tray (7) is not dishwasher safe.

Storage

Disconnect the appliance from the mains after each use and let it completely cool down.

For proper storage fold the handle (3).

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Rotating Waffle Maker 41002 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50 / 60 Hz

Rated Power: 1000 W

Protection Class: I

Subject to change without notice.

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service

Am Steinbach 8

59872 Meschede-Enste

Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
