Brand	Korona
Model	41005
Product type	Bubble waffle maker
Usage	Domestic only, waffle making
Voltage	220 - 240 V ~ 50/60 Hz
Rated power	800 - 1000 W
Protection class	I
Coating of plates	Non-stick
Handle	With unlocking button
Indicator lights	Green and red (heating/ready)
Temperature	Regulated by built-in thermostat
Preheat time	Approximately 4 to 5 minutes
Cooking time	4 to 6 minutes depending on batter
Cable storage	Yes, built-in under the appliance
Cleaning	Damp soft cloth, do not immerse
Child safety	Use under supervision for children aged 8 and above
Warranty	2 years
Customer service	KORONA Service, Germany
Weight	Approx. 1.5 kg (estimated)
Dimensions (L x W x H)	Approx. 25 x 20 x 10 cm (estimated)
Included accessories	Instruction manual

Frequently Asked Questions - 41005 KORONA

How to use the waffle maker for the first time?

Remove packaging, place device on a flat and heat-resistant surface. Fully unwind the cord and plug it in. Heat empty for about 10 minutes at maximum power to eliminate the protective coating. Lightly grease the plates with cooking oil. Allow to cool and clean before first use.

What is the power of the Korona 41005 waffle maker?

The rated power is 800 to 1000 W, with a voltage of 220-240 V ~ 50/60 Hz.

How long does it take to preheat the waffle maker?

Preheating takes about 4 to 5 minutes. The green light stays on and the red light turns on when the cooking temperature is reached.

What is the cooking time for waffles?

Cooking time varies between 4 to 6 minutes depending on the thickness and composition of the batter. Open the lid slightly to check cooking.

How to clean the waffle maker?

Unplug the device and let it cool completely. Clean the plates with a damp soft cloth. Never immerse the appliance in water. For food residues, apply cooking oil, let it sit, then wipe off.

Can you use metal utensils on the plates?

No, only use wooden or plastic spatulas to avoid damaging the non-stick coating.

What if the waffle sticks or browns too much?

Make sure to lightly grease the plates before use. Adjust the cooking time. If the batter is too thick, thin it with milk.

Is the appliance guaranteed?

Yes, the waffle maker has a 2-year warranty against defects in materials and workmanship, subject to use in accordance with the instructions.

How to store the waffle maker after use?

Unplug it, let it cool completely open, then store in a clean, dry place out of reach of children.

Can I use the waffle maker outdoors?

No, the appliance is designed for indoor use only. Do not use outdoors or near water.

USER MANUAL 41005 KORONA

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

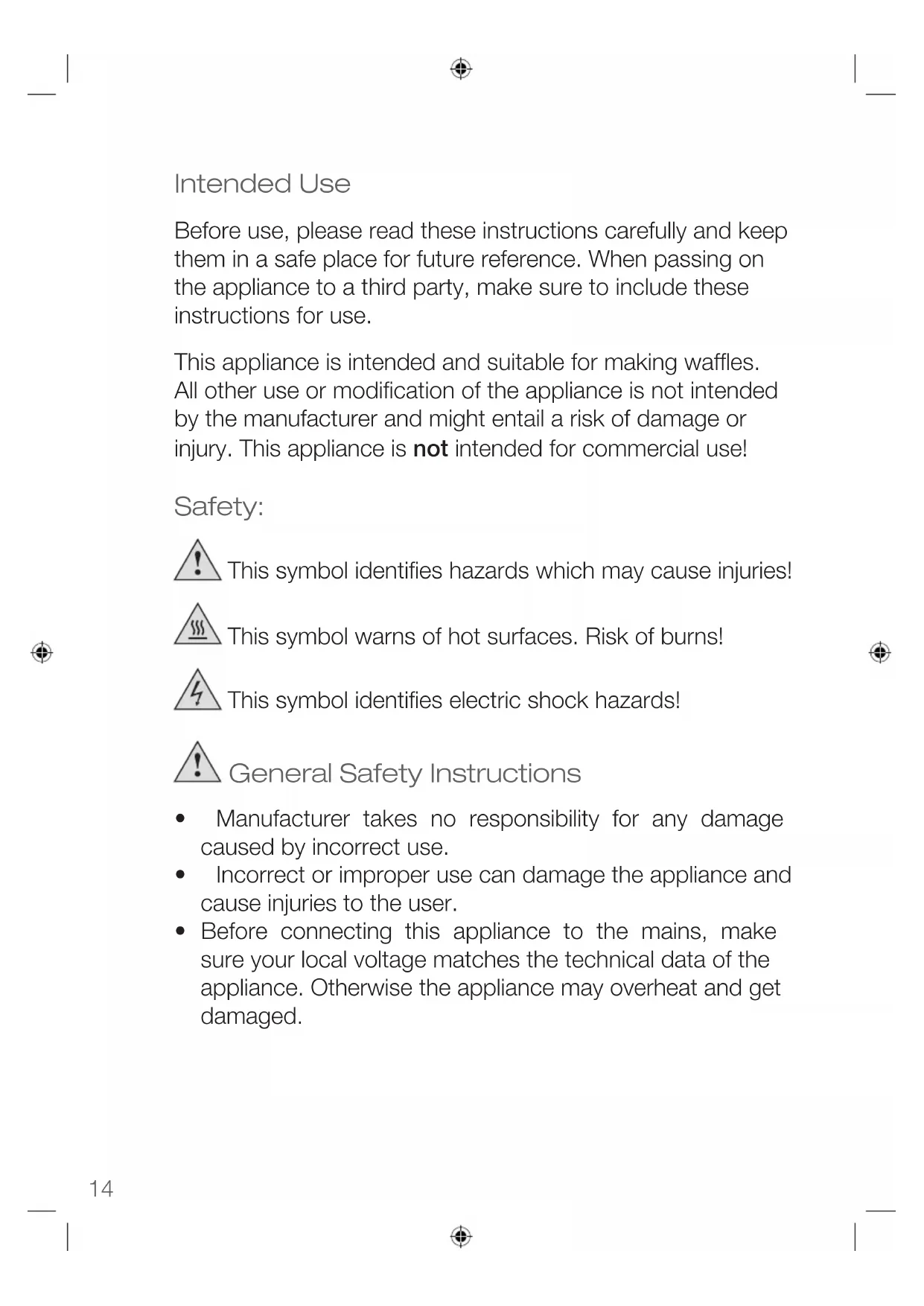

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is intended and suitable for making waffles. All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is not intended for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Always unplug your appliance when it is not in use, and before cleaning.

• Always pull the plug – not the cord.

- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.

- Make sure the cord may not inadvertently be pulled cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
- Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

• Only use the appliance for its intended purpose and as described in this manual.
• Place the appliance on an even and heat-resistant surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle. Danger of serious burns!

- Position the device that it can be opened to the full extent.

- Except for the heating up process, the device must not be operated empty. Be careful to ensure that the device does not become overheated.

- Do not move the appliance during operation.

- Always use a flat wooden or plastic spatula to remove the waffles. Never use any sharp or metal objects (e.g. knife,

metal spatula, etc.) as they would damage the non-stick coating of the plates.

• Adhere to a safety distance around the appliance.
• Do not use the appliance close to or under inflammable objects, e.g. curtains, wall cabinets
• Always unplug the appliance after use and let it completely cool down before cleaning.

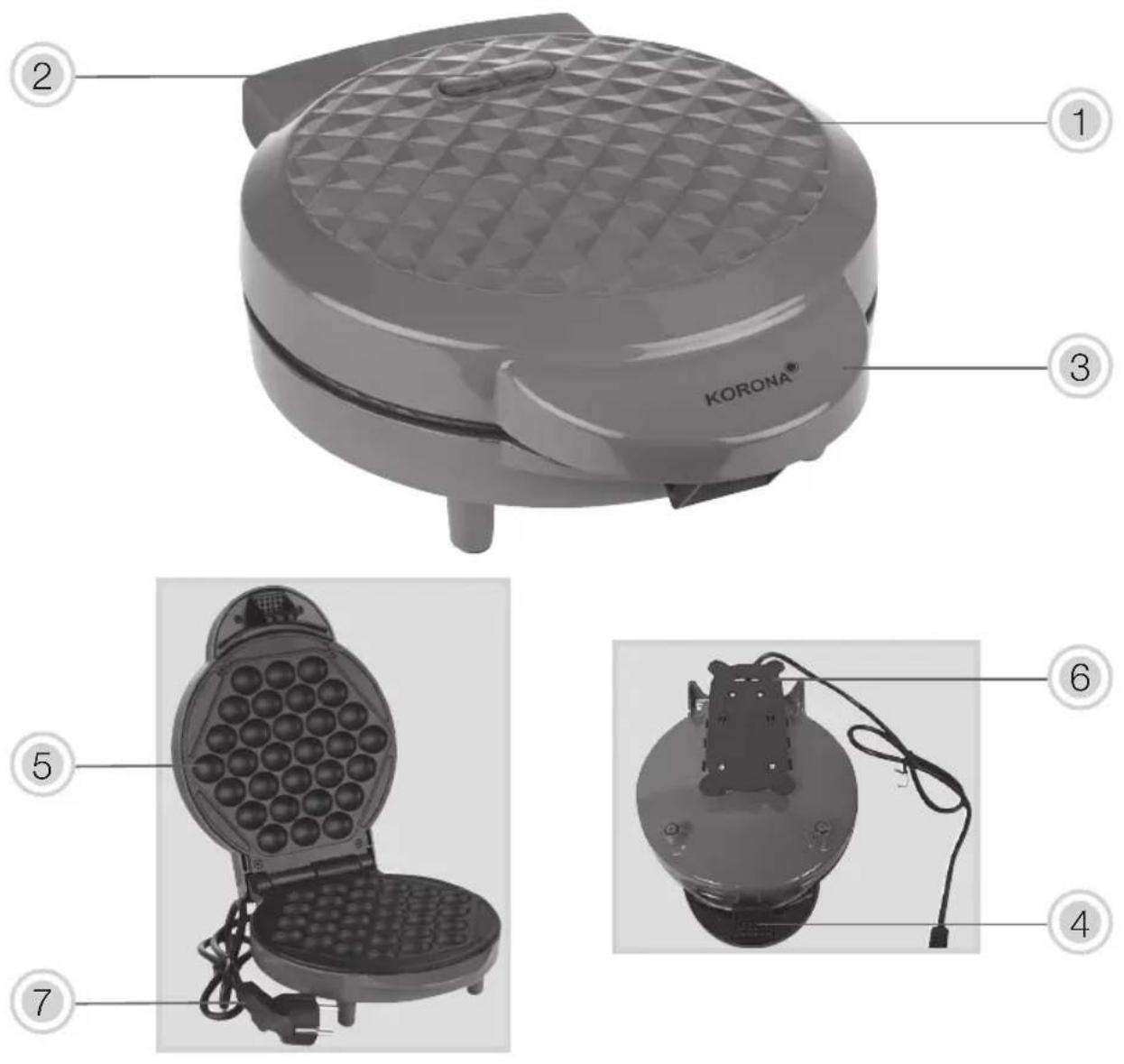

Product Description

1. Lid
2. Indicator lights (red/green)
3. Handle
4. Release button
5. Bubble waffle plates
6. Cord Storage
7. Power cord and plug

Before First Use

• Remove all packaging material and check whether the appliance is complete.
• Place the appliance on an even, non-slippery and h resistant surface.
• Fully unwind the power cord (7) and connect the appliance to a properly installed wall socket.

The bubble waffle plates (5) have a protective coating. To remove the protective layers on the heating elements, heat up the toasting plates on its highest setting (without food) for approx. 10 minutes.

Slightly grease the heating plates with some cooking oil before using the device for the first time. This helps to seal the heating plates and must only be carried out once.

This could cause a slight build-up of smoke and odou. This doesn't cause any harm nor does it mean that your appliance does not work properly. Make sure that the room is well ventilated!

After this preheating process, your waffle maker is ready for operation. Let it completely cool down and clean it as described under Cleaning and Care.

Warning: Plastic bags are a danger to toddlers and es, therefore keep them away to avoid suffocation.

Operation

The temperature of accessible surfaces may be high, ing operation. Therefore, do not touch the appliance ing and/or immediately after operation.

Tip: Prepare the waffle batter in advance before hing on the appliance.

1. Connect the appliance to a properly installed wall socket.
2. The green indicator light (2) lights up and the heating process starts.

The waffle maker requires approx. 4-5 minutes to warm

1. As soon as the necessary temperature is reached the green indicator light (2) stays ON and the red indicator light (2) lights up as well. Your bubble waffle maker is now ready for operation.

Note: During operation, an integrated thermostat switches the appliance on and off to ensure a constant temperature. This is indicated by the red indicator light (2) cycling on and off.

1. Pull the release button (4) and open the lid (1) by the handle (3).

2. Fill in the batter into each individual bubble of the lower plate.

3. Close the lid (1) carefully.

Tip: To guarantee an even browning process grease both waffle plates with some oil / butter.

1. Depending on the thickness and content of the waffle batter, the waffles will take between 4 - 6 minutes until ready.
   Open the waffle maker a bit to see whether your waffle is brown enough. If not, let the waffle bake some more.
2. To remove your waffle use a wooden or plastic spatula to avoid damage to the non-stick coating of the plates.
3. If you wish to prepare a series of waffles repeat a. m. steps.
4. To switch off the appliance, disconnect it from the mains (7).
5. Let it completely cool down while opened to full extend.

Always disconnect the appliance from the mains after and to switch it off.

Recipe Suggestion

For a better result!

• Fill batter into waffle maker quickly to produce ev brown waffles.
• Place waffles on a cake rack to keep them crispy. Stacked waffles get soggy easily.

Master recipe

Ingredients:

• 3 eggs
• 1 vanilla bean
• 100 g sugar
• 120 g butter
• pinch of salt
• 250 g flour (wheat flour, type 550)
• 1 teaspoon baking powder
• 1 teaspoon corn starch

• 220 ml milk

• Separate the eggs. Split and remove the seed from the vanilla bean.

• Mix egg yolks, sugar, butter and seed of vanilla bean with a handmixer until smooth.
• Mix flour, baking powder, corn starch and sift thoroughly into a very fine powder into a bowl.
• Alternatively, add flour/baking powder/corn starch mix and milk to the batter and mix until smooth.
• Whisk the egg whites with a pinch of salt until firm and gradually add it to the waffle batter.

Bake waffles following above instructions.

Cleaning and Care

Before cleaning, always switch off the appliance, disconnect it from the mains and let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the appliance and the waffle plates (5) with a moistened soft cloth.

Dry the entire appliance and all parts well after cleaning.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

Do not allow stains to dry. To remove food residues apply some cooking oil on the waffles plates (5) and leave it on for some time. Afterwards, wipe the waffle plates (5) with a moistened soft cloth.

Storage

Disconnect the appliance from the mains after each use and let it completely cool down.

keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special on points for disposal or your local dealer.

Your Bubble Waffle Maker 41005 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50 / 60 Hz

Rated Power: 800 - 1000 W

Protection Class: I

Subject to change without notice.

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Beoogd gebruik

Abstract geometric shape with curved and angular lines, no text or symbols present

Ref: 41005/2020.02
