Contents

Getting Started....2

Parts List.... 3

Assembly Instructions.... 4

Warranty Information.... 11

Children's Wheelbarrow

USA

Getting Started

Identify all the parts packaged in the carton against the parts list. Remove all protective materials and place parts on a non-abrasive surface to avoid scratching. If any parts are missing or damaged, DO NOT attempt to assemble. Please contact our customer service center (Monday-Friday 9:00AM-4:00PM ET) at 1855 965 5310.

Caution (ADULT ASSEMBLY REQUIRED)

Read all the instructions before assembly. Failure to do so may result in faulty assembly and potential injury! Assemble product on a soft, non-abrasive surface such as a carpet or cardboard to avoid damaging the item.

Small parts like bolt caps and bolts, may pose a choking hazard to young children. Keep out of reach of small children.

ALL bolts should be fully tightened.

Do not place unit near stairways, wall heaters, fireplace, or any source of extreme heat.

AFTER SALES SUPPORT

USA 1855 965 5310

[e-mail]

Parts List

Note: Do not tighten all the bolts till you finish all the assembly.

PARTS LIST:

Part A - 1 Piece	Part B - 2 Pcs Part	C - 2 Pcs Part D - 1 Piece
Tray	Handle	Leg Leg Brade
Part E - 2 Pcs	Part F - 2 Pcs Part	G - 1 Piece Part H - 1 Piece
Tray Brace Axle	Tube Axle Wheel

Part E - 2 Pcs	Part F - 2 Pcs Part	G - 1 Piece Part H - 1	Piece
Tray Brace Axle	Tube Axle Wheel

HARDWARE BAG:

Part I - 4 Pcs	Part J - 4 Pcs Part	K - 2 Pcs Part L - 10 Pcs
Bolt (15mm)	Bolt (45mm)	Bolt (60mm) Nut

Part M - 10 Pcs	Part N - 10 Pcs	Part O - 10 Pcs
Lock-Washer Washer Plastic Cap

Tools Required (not included)

1.Slotted screwdriver
1.10mm Wrench

Assembly Instructions

Fig.1

Technical diagram of a mechanical assembly with labeled components A, B, and C

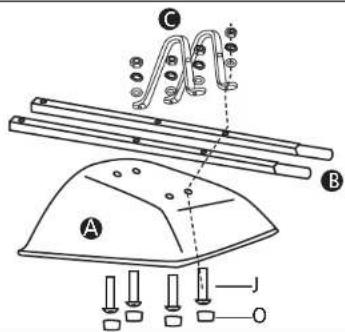

Step 1: Insert the Bolts (J) through the tray and tape the heads to the inside of the tray. Turn the tray upside down and place a handle over the two bolts as shown. Then place a Leg (C) with the hole towards the end of the handle, over the bolts. Add a Washer (N), Lock-Washer (M) and Nut (L) then hand tighten. Repeat this procedure with the other handle and leg.

Fig.2

Technical diagram of a mechanical device with labeled components A, D, and I

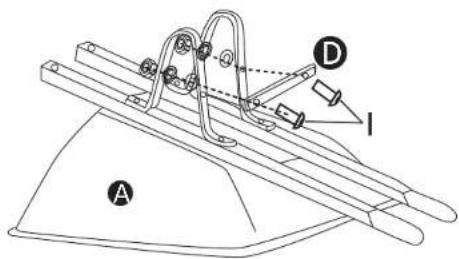

Step 2: Attach the Leg Brace (D) to the Leg (C) as shown using Bolts (I). Add Washers (N), Lock-Washers (M) and Nuts (L) then hand tighten.

Fig.3 A B E

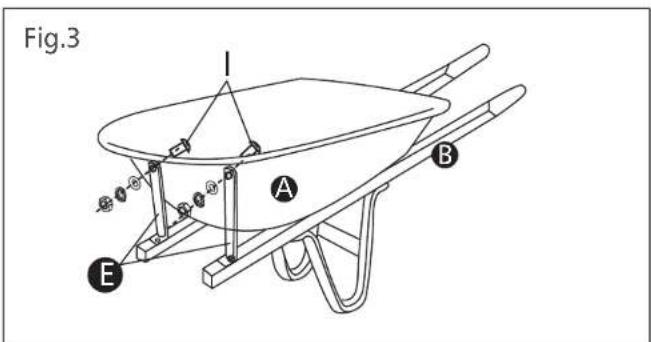

Step 3: Turn the wheelbarrow over and attach the Tray Braces (E) to the Tray (A) with bolt (I). Add Washers (N), Lock-Washers (M) and Nuts (L) then hand tighten.

Fig.4 K E F

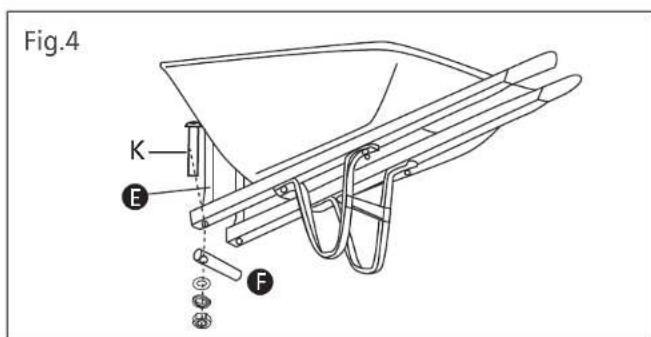

Step 4: Place Bolt (K) through the Tray Brace (E), handle and Axle Tube (F). Add Washers (N), Lock-Washers (M) and Nuts (L) then hand tighten.

Fig.5 K

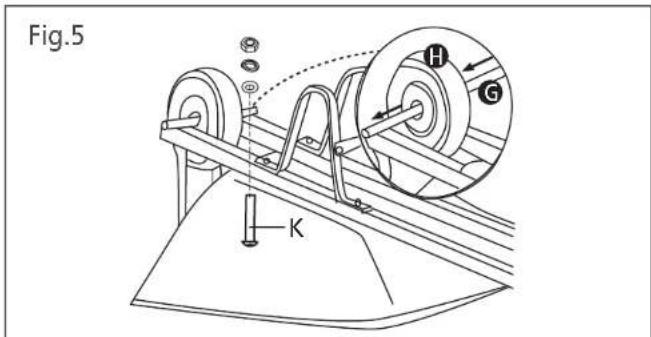

Step 5: Place the Axle (G) through the Axle Tube (F) and the Wheel (H) use the other Bolt (K) to secure the remaining tray brace, handle and axle tube. Add Washers (N), Lock-Washers (M) and Nuts (L) then hand tighten.

Technical line drawing of a mechanical assembly with levers and gears (no text or symbols)

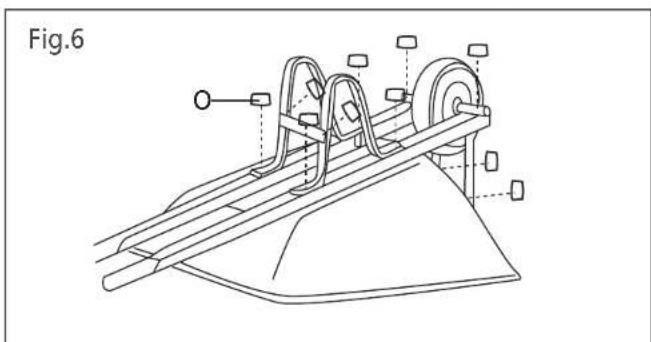

Step 6: Using a flat head screwdriver and a 10mm wrench, tighten all nuts. Place the red Plastic Caps (O) over the ends of the bolts.
