Product Type	Passive Coaxial Network Component
Brand	TechniSat
Model	TechniLAN 8/8 Passive
Article Number	0000/3638
Number of HF Inputs	8
Number of HF Outputs	8
Frequency Range	2 – 2150 MHz
Network Standard	HomePlug AV
Maximum Data Rate	200 Mbit/s
Reflection Dampening	10 dB
Satellite Range Dampening	2 – 3 dB
Terrestrial Dampening	1 – 2 dB
Power Supply	13 V DC, 3 A (wall adapter included)
Power Consumption (device only)	0 mA
Dimensions (L x W x H)	217 x 117 x 33 mm
Weight	500 g
Shielding Compliance	EN 50083-2 (TechniSelect S)
Certification	CE
Application	Upgrades existing coaxial cable network to home network
Maximum Participant Sockets	8 (Art. No. 0000/3639)
Network Type	Peer-to-peer
Compatible Multi-switches	TechniSwitch, TechniSystem, GigaSwitch, GigaSystem, GigaSet

Frequently Asked Questions - TechniLAN 8/8 Passive TECHNISAT

How do I install the TechniLAN 8/8 Passive?

Connect it to the signal output of a compatible multi-switch using coaxial cables. Replace existing antenna wall outlets with TechniLAN participant sockets. Connect the provided wall power supply. Check that the green power LEDs on the sockets light up.

What is the maximum data rate and standard used?

The device supports up to 200 Mbit/s based on the HomePlug AV standard, suitable for HD video streams and internet applications.

Why is the green power LED on a participant socket not lighting up?

A possible short circuit between the socket and the TechniLAN 8/8 Passive. Check all coaxial cabling for proper connections and insulation.

Can I use this device with any multi-switch?

It is designed for use with TechniSat multi-switches from the latest series, including TechniSwitch, TechniSystem, GigaSwitch, GigaSystem, and GigaSet.

Does the TechniLAN 8/8 Passive require a separate power supply for participant sockets?

Yes, the wall power supply provides 13 V DC, 3 A to power all connected participant sockets. If a connected receiver supplies higher voltage (e.g., 18 V), that receiver takes over power delivery.

How many TV outlets can I connect?

Up to 8 participant sockets can be connected, each providing an Ethernet port for devices like TVs, computers, or game consoles.

Is the device safe and does it comply with standards?

Yes, it is CE approved and meets EU standards. Follow safety instructions: do not open the housing, install in a dry fire-resistant place, and earth the antenna system.

What should I do if the yellow traffic LED does not light up?

This indicates no successful LAN connection via coaxial cable yet. Wait a few minutes for the connection to establish; if it persists, check cabling and ensure all devices are powered.

Can I use the TechniLAN system with broadband building distribution?

Yes, it can be applied to broadband building distribution systems with star-formed distribution structures, as mentioned in the manual.

Does the TechniLAN 8/8 Passive support HD video streaming?

Yes, the 200 Mbit/s data rate is sufficient for HD video streams, internet radio, music, and other common internet uses, without the interference of WLAN.

USER MANUAL TechniLAN 8/8 Passive TECHNISAT

White appliance with three circular buttons and a small switch, no visible text or symbols

1 Functionality and Application....10
2 Safety Instructions....11
3 TechniLAN Network....12
3.1 General....12
3.2 Installation Example....12
4 TechniLAN 8/8 passiv....13
4.1 The Device 13
4.2 Power Supply 13
5 Installation and Startup 14
6 Technical Data....14
7 Error Search Assistance....15

1 Functionality and Application

By using the TechniLAN components, it is possible to quickly and easily upgrade an existing coaxial cable network to a home network which electronic devices with Ethernet connections can use to communicate with each other and all of this without drilling, laying cable or using wireless options.

In order to upgrade an existing satellite distribution system, all that is needed is a TechniLAN signal combiner, i.e. the TechniLAN 8/8 passiv which is to be installed upstream from an existing multi-switch into the integrated participant sockets. Then, the existing antenna outlets need to be replaced with the TechniLAN participant sockets.

Together with the TechniLAN participant sockets, the TechniLAN 8/8 passiv is capable of making network functionality possible within existing star-formed distribution systems.

The TechniLAN system can be used in combination with all TechniSat multi-switches from the latest series, whether cascaded or just installed within the basic unit. This means that each satellite distribution with TechniSwitch, TechniSystem, GigaSwitch, GigaSystem and GigaSet multi-switches can also be used as a home network for up to four TV outlets per installed Techni 8/8 passiv.

It is even possible to apply this technology to broadband building distribution systems with star-formed distribution structures.

Internet capable TV devices and network components such as PCs, NAS servers, printers or DSL routers, can easily be connected with each other using TechniLAN.

With a data rate of approx. 200 Mbit/s, the resulting network connections are best equipped, even for HD video streams ^3 . In this manner, there is of course also enough broadband for internet radio and music, pictures as well as all other common internet usages.

By using the shielded TV cable, which is usually installed behind plaster, there is no additional electromagnetic radiation or risk of eavesdropping as in the case of wireless networks (WLAN). Contrary to WLAN, there are also no network connection interferences in the 2.4 GHz range such as with cordless telephones, Bluetooth, wireless networks or RC technology.

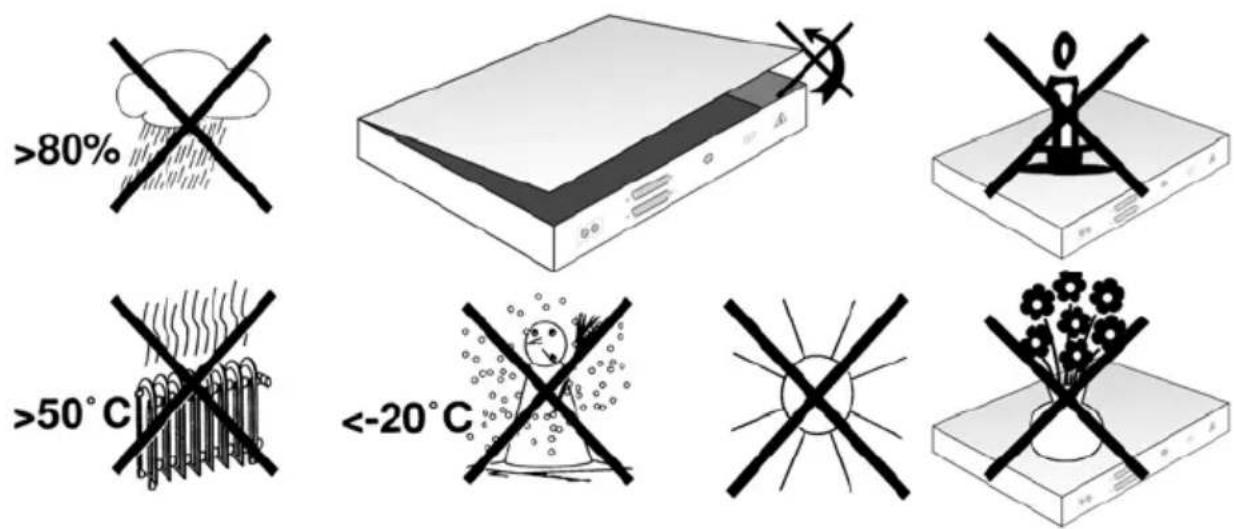

2 Safety Instructions

For your own protection, you should read through the safety precautions carefully prior to installation. The manufacturer accepts no responsibility for damage caused by inappropriate operation, or by non-compliance with safety precautions.

• The components must be assembled in a dry place, on a level and fire-resistant surface.
- Do not install the device into any roof insulation. Take care that the power supply has sufficient air circulation.
• Install the device with the power switched off.
• The antenna system must be earthed.
- The antenna unit must be protected against lightning strikes in accordance with relevant requirements.
- The relevant European standards and VDE (Association of German Electrical Engineers) guidelines to guarantee electrical safety must be adhered.
- National legally required regulations governing broadcast receiving systems must be adhered.
• Never open the unit housing.

Any intervention necessary should only be carried out by trained service personnel. In the following cases, you should disconnect the unit from the mains power supply, and consult a qualified technician:

• the unit was exposed to humidity, or liquid has run into the unit,
• in the event of malfunctions.
• in case of severe external damage.

3 TechniLAN Network

3.1 General

EN

Network communication via coaxial cable is based on the HomePlug-AV standard with which a data rate of up to 200 Mbit/s can be reached. Such a network consists of the TechniLAN 8/8 passiv and up to eight TechniLAN participant sockets (Art. No. 0000/3639).

At the Ethernet sockets of the TechniLAN participant sockets, terminal devices such as computers, printers, DSL modems and also smart TVs and digital receivers from the ISIO family can be connected.

This is called a peer-to-peer network in which all Ethernet connections, even the one from the TechniLAN8/8 passiv itself, are equal.

Exterior view of a white appliance with three circular components and a vertical panel (no visible text or symbols)

Illustration 3: TechniLAN socket

3.2 Installation Example

The following examples are meant to show how networks can be set up including the TechniLAN 8/8 passiv. Receivers for satellite TV are seldomly depicted due to this fact.

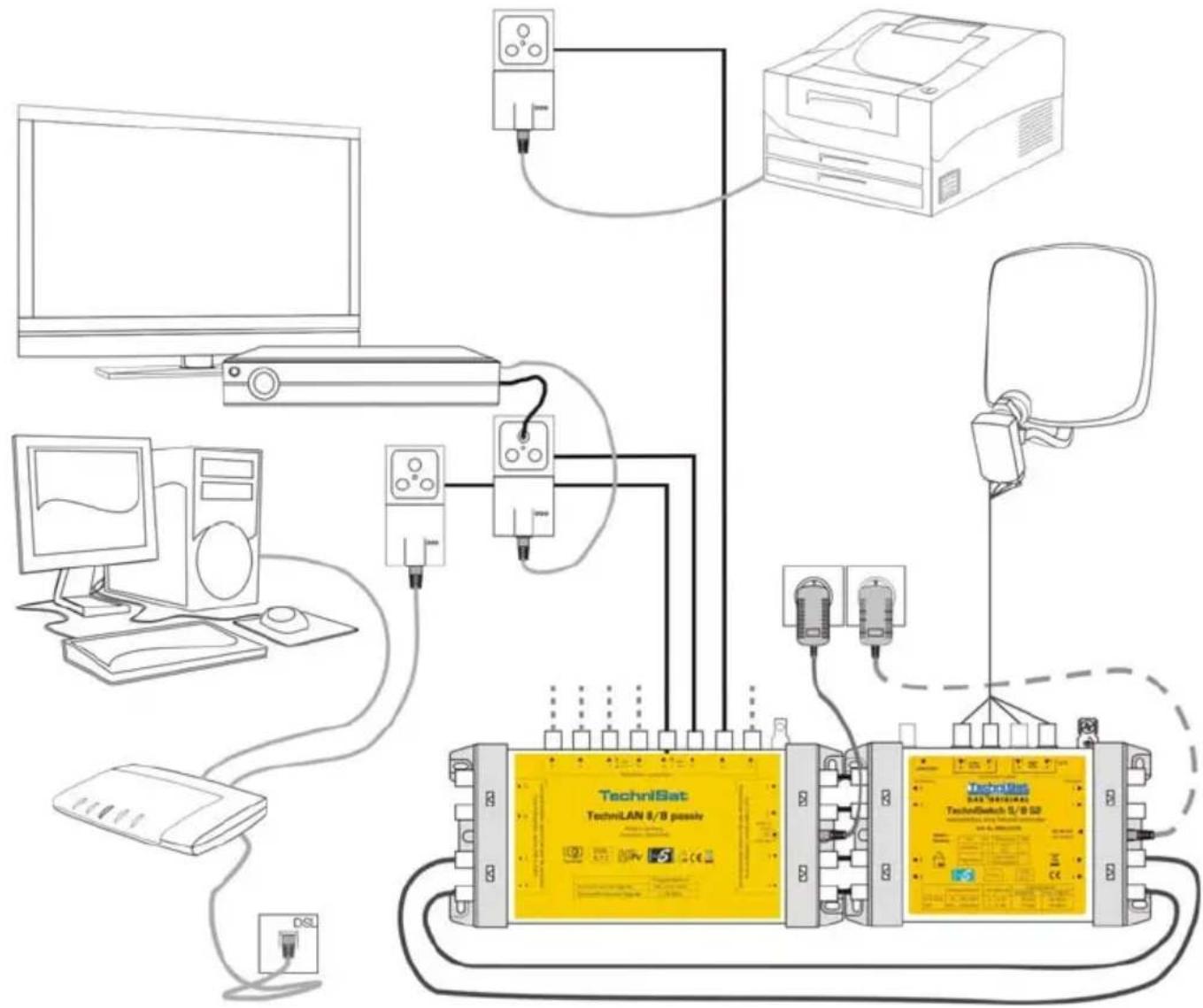

Illustration 4: Installation example, DSL modem (internet connection) connected to a TechniLAN socket.

4 TechniLAN 8/8 passiv

4.1 The Device

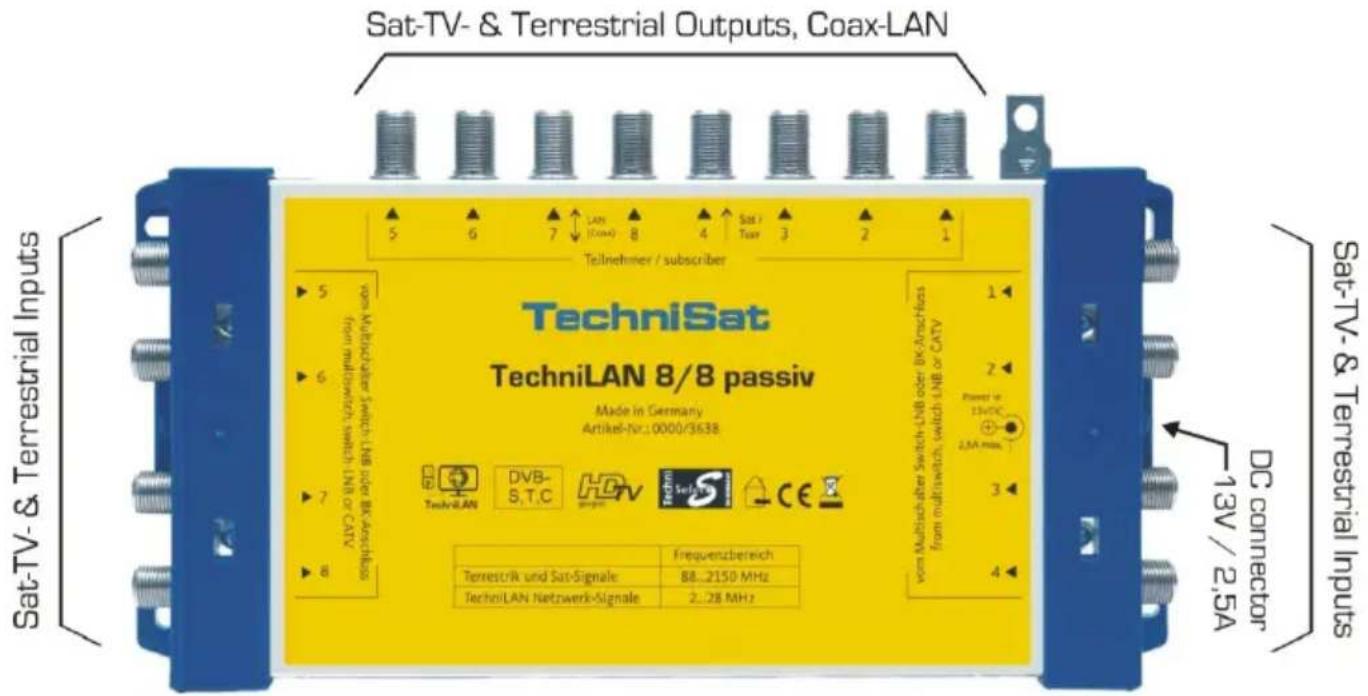

Illustration 5: TechniLAN 8/8 passiv

4.2 Power Supply

Via the TechniLAN 8/8 passiv 13V wall power supply, all TechniLAN participant sockets are supplied with power. If a receiver, connected at the socket, has a higher voltage, for example 18 V for the horizontal polarization, then this receiver takes over with supplying the participant sockets with power with which it is connected. The receiver voltage is fed through to the multi-switch and/or the LNB so that the reception level desired by the receiver can be reached.

The TechniLAN 8/8 passiv is designed so that it can take over supplying power to the multi-switches and the LNBs. Care should be taken that the maximum power allowed by the wall power supply is not exceeded, especially in the case of systems without power supplies, which is for example possible with the TechniSwitch 5/8.

The maximum power consumption can be estimated by using the following formula:

$$ = \cdot \quad \mathrm{mA} 3 5 0 _ {\text { V e r t i n a x }} I n I $$

Here n is the number of connected TechniLAN sockets. In this manner, it is assumed that the power consumption for the sockets is at 350 mA for conditions that are not ideal, for example lengthy coaxial cables.

I_Verl is the power which is fed into the distribution system (multi-switch and LNB). This is normally a maximum of 400 mA.

When necessary, a wall power supply is to be connected to the multi-switch which then supplies the distribution system with power. This is also true when a receiver is not capable of supplying the required power for the distribution system and the TechniLAN socket.

5 Installation and Startup

• Connect the TechniLAN 8/8 passiv to the signal output of the multi-switch. F-to-F quick connectors (Art. No. 0001/3312) can be used for multi-switches from the series TechniSwitch 5/8, TechniSystem 5/8 and/or GigaSwitch 9/8 due to the similar grid system.
• The signal outputs of the TechniLAN 8/8passiv are to be connected to the participant sockets using coaxial cabling.
• Replaced the old antenna wall outlets against the TechniLAN participant sockets.
• Connect the provided wall power supply. Take care not to exceed the maximum amount of power allowed by the wall power supply (see section 4.2).
• Check, using the LEDs on the TechniLAN participant sockets, as to whether or not the operating power is being supplied at the socket. The green LEDs must be lit at every socket (see section 0).
• Several seconds later, the Coax-Link LED and the yellow traffic LEDs of the TechniLAN participant sockets should light up and signal that the coaxial cable network is ready for operation (see section 0). Network capable terminal devices can now be operated via the Ethernet sockets of the participant sockets and the TechniLAN 8/8 passiv.

6 Technical Data

	TechniLAN 8/8 passiv, Article Number 0000/3638
Number of HF Inputs	8x for satellite, terrestrial and TechniLAN [2...2.150 MHz]
Number of HF Outputs	8x for satellite, terrestrial and TechniLAN [2...2.150 MHz]
Reflexion Dampening	10 dB
Shielding Measurements	According to EN 50083-2 (TechniSelect S)
Network	Coaxial cable network according to HomePlug-AV standard
Max. Data Rate	200 Mbit/s
Satellite Range Dampening^4	2...3 dB
Terrestrial Dampening^4	1...2 dB
Power Supply	Device, participant sockets and distribution technology without power supply are supplied via the wall power supply.Wall power supply 230 V / 13 V, 3 A DC, short-circuit and overload protected.
Power Consumption (without sockets and distribution technology)	0 mA
Dimensions: L x B x H (mm), Weight	217 x 117 x 33, 500 g

7 Error Search Assistance

Error	Possible Causes
The data rate is too low.	Inputs and outputs of the TechniLAN 8/8 passiv have been switched.The dampening between the TechniLAN 8/8 passiv and the socket is too effective	Check whether or not the device is correctly connected with the multi-switch and/or the LNB.Check the cabling.
The green power LED of a participant socket does not light up.	A short circuit has occurred between the participant socket and the TechniLAN 8/8 passiv.	Check the cabling.
The power LED of the TechniLAN does not light up	The wall power supply switched off due to overloading	Check the cabling for short circuits.Connect a separate wall power supply with the multi-switch.
The yellow traffic LED of the participant socket does not light up.	Up to now, no successful LAN connection could be established via the coaxial cable	Wait a few seconds, establishing a connection might take a few minutes.Check the cabling.
Connected receivers signal short circuits within the LNB cable for specific programs	The receiver is not capable of supplying the TechniLAN socket as well as the distribution system with enough power, especially when selecting programs from the horizontal polarization (18 V).	Connect a separate wall power supply with the multi-switch.

Help

EN

Your device is CE approved and meets all necessary EU standards.

Subject to changes and printing errors. Status 8/12
