InLine 23117 - Wall mount

23117 - Wall mount InLine - Free user manual and instructions

Find the device manual for free 23117 InLine in PDF.

📄 12 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice InLine 23117 - page 9
View the manual : Deutsch DE English EN
Pick your language and provide your email: we'll send you a specifically translated version.
Brand InLine
Model 23117
Product Type Wall Mount for Flat Panel TV
Compatible TV Size 37" - 60"
Max Load Capacity 75 kg (165 lbs)
Tilt Angle -5° to 15°
Mounting Type Double deck wall mount with brackets
Material Steel
Color Black
Installation Easy hang and lock with lock plate
Safety Feature Lock plate ensures secure locking
Included Hardware Bolts (M4, M5, M6, M8), washers, spacers, wall anchors (8x50)
TV Bolt Sizes M4, M5, M6, M8 with various lengths
Wall Anchor Size 8x50 mm (for concrete, brick, stone)
Drill Bit Size (Wood) 5 mm, minimum 50 mm depth
Drill Bit Size (Concrete) 10 mm, minimum 50 mm depth
Recommended Viewing Height At eye level of seated person with 15° angle
Wall Compatibility Wood stud, brick, concrete, stone (not steel stud or cold cinder block)
Maintenance Wipe with dry cloth; avoid harsh chemicals
Spare Parts Contact local hardware store or manufacturer for missing hardware
Reparability Not user repairable; consult professional if damaged

Frequently Asked Questions - 23117 InLine

What TV sizes is this wall mount compatible with?
The InLine 23117 wall mount is compatible with TVs from 37 to 60 inches.
What is the maximum weight capacity?
The maximum load capacity is 75 kg (165 lbs).
What types of walls can this mount be installed on?
It can be installed on wood stud, brick, concrete, and stone walls. It is not recommended for steel stud or cold cinder block walls.
Can I adjust the tilt after installation?
Yes, the mount offers a tilt adjustment from -5° to 15° for optimal viewing angle.
Is installation difficult?
The mount is designed for easy installation with a simple hang and lock mechanism. Follow the step-by-step guide in the manual.
How do I ensure the TV is level?
Use a spirit level to align the brackets during installation. The brackets can be adjusted to equal heights before tightening.
Does the mount come with all necessary hardware?
Yes, the package includes a variety of bolts, washers, spacers, and wall anchors. Check the hardware list to select the correct ones for your TV.
What if I am missing a part?
If a part is missing, contact your local hardware store or the manufacturer for replacements.
How do I clean the wall mount?
Clean with a dry cloth. Avoid using harsh chemicals or abrasive cleaners.
Is it safe to install alone?
For larger TVs (over 50 inches), it is recommended to have two people to lift and install the TV to avoid injury or damage.

User questions about 23117 InLine

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Wall mount in PDF format for free! Find your manual 23117 - InLine and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 23117 by InLine.

USER MANUAL 23117 InLine

natural_image Technical line drawing of a mechanical frame assembly with two vertical supports and a central oval component (no text or symbols)

Fig 4

Beispielsweise

natural_image Technical diagram of a mechanical assembly with labeled parts (4 and 5), no readable text or symbols beyond labels

Fig 13

InLine 23117 - Beispielsweise - 1

natural_image Technical line drawing of a rectangular frame with vertical supports and internal compartments (no text or symbols)

Fig 14

Tilt Flat Panel TV Bracket

Multifunctional double deck wall mount

INSTALLATION GUIDE

ITEM NO.: 23117

InLine 23117 - Beispielsweise - 2

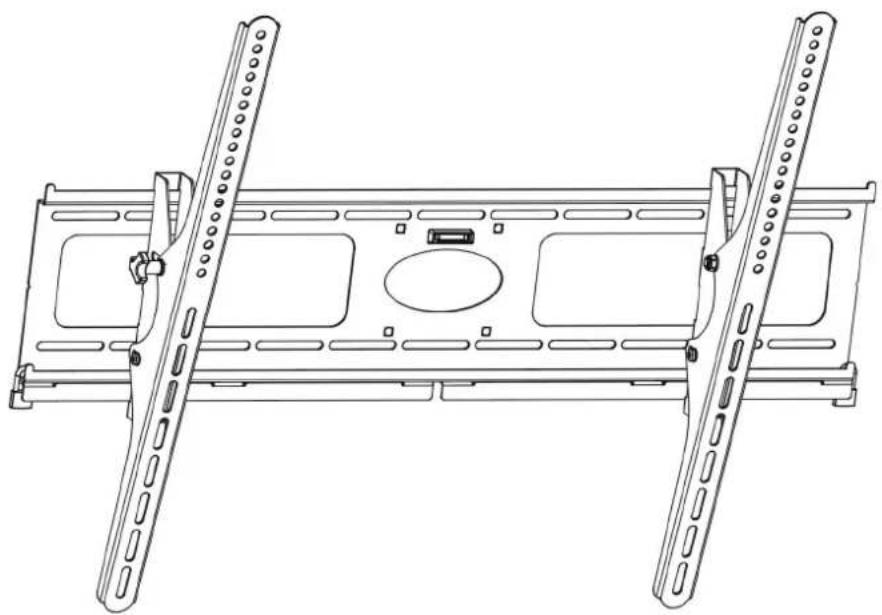

natural_image Technical line drawing of a mechanical frame assembly with two vertical supports and a central oval component (no text or symbols)

Easy installing: Just hang up the display

Safety: Just pull the lock plate to finish locking

Max load capacity: 75KG/165LBS

TV size range: 37"-60"

Adjustable angle:-5-15

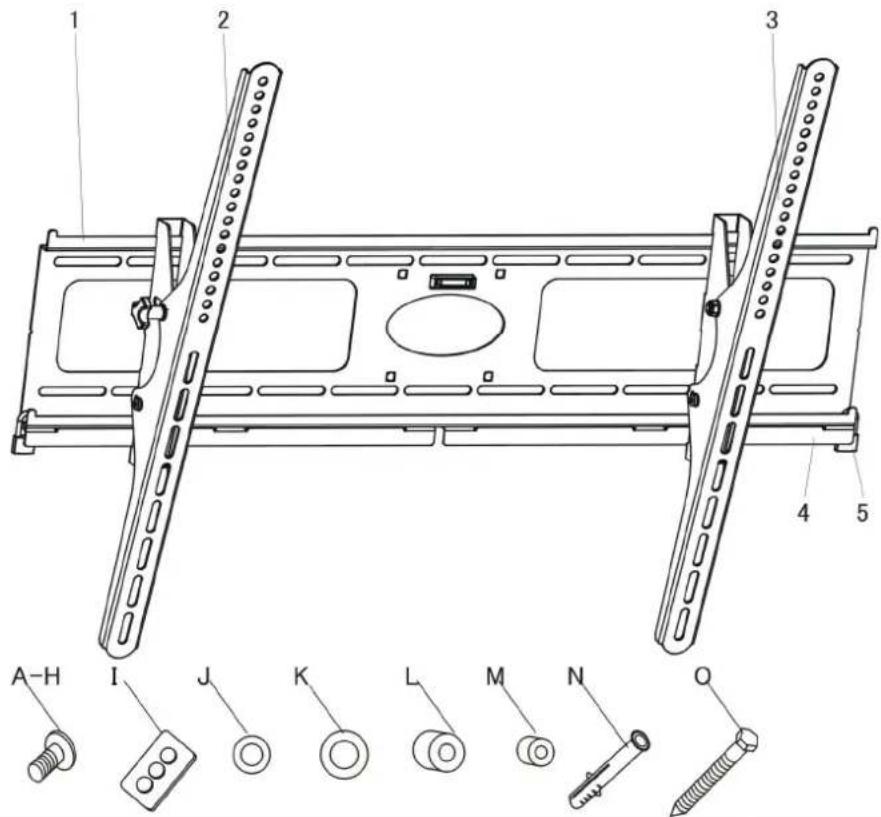

Hardware List:
1 2 3 4 5 A-H I J K L M N O

IDQtyDescription
1 1Wall mount
2 1Left bracket
3 1 Right bracket
4 2Lock plate
5 2Lock
A 4M4*12mm bolt
B 4M5*12mm bolt
C 4M6*12mm bolt
D 4M8*16mm bolt
E 4M4*30mm bolt
F 4M5*30mm bolt
G 4M6*35mm bolt
H 4M8*40mm bolt
I 4Square washer
J 6M& washer
K 6M8 washer
L 4 ∅18x∅8.5x22 Spacer
M 4∅12.5x∅5.5x16 Spacer
N 68x50 Wall anchor
O 68x65 bolt

WARNING

We are not responsible for any personal injury or product damage due to mishandling incorrect mounting, incorrect assembly or incorrect use of this product.

Note: The supplier wall mounting hardware is not for use on steel stud walls or cold cinder block walls. If you are uncertain about the nature of your wall, please consult a qualified contractor. If the hardware you required is not included please contact your local hardware store.

Caution: This product is intended for use only with the maximum weights indicated. See apparatus instructions. Use with products heavier than the maximum weights indicated may result in instability causing possible injury.

Step 1: Attached bracket to TV

Check your TV manual to confirm the diameter of bolt to be used or choose an appropriate bolt according to size, height and position of the holes on your TV. See pages for examples.

For a correct installing, make sure that hook of every bracket must facing down. Use selected bolts, spacers and washers for installing bracket at the back of display. Adjust two brackets to equal heights and level. Once aligned, tightly secure the bolts.

IMPORTANT: Don't force the bolt into the hole, which will cause a damage of equipments and injure of person. Don't use electric drill to fasten any bolts

Following examples shows how to use bolts, spacers and square washers.

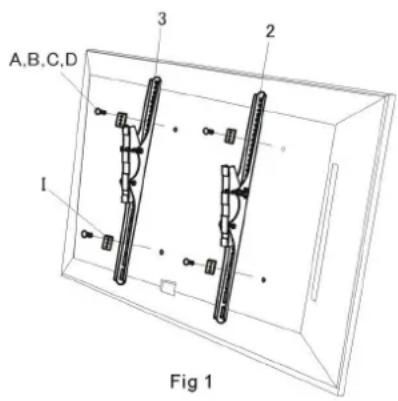

1 Some displays have vertical backs. No spacer is required. Install the bracket directly to the back of display by using bolts and square washers provided. As shown in Fig1.

A,B,C,D 3 2 1 Fig 1

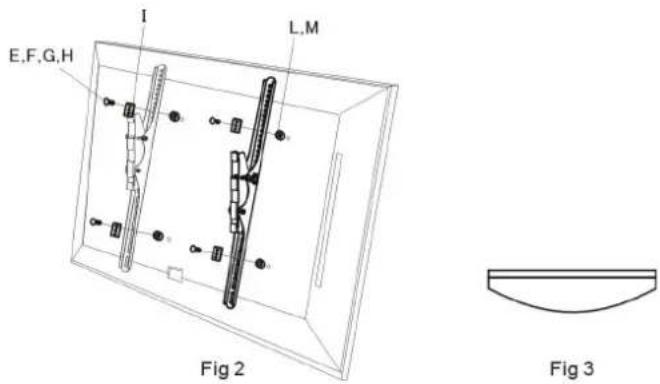

2 Some displays have curved back with recessed mounting lands, it will require the use of spacer. For this display, install a 9/16 spacer or 1/12 spacer between display and the bracket. As shown in Fig2,3

InLine 23117 - Step 1: Attached bracket to TV - 2
Step 2: Attach mount to wall

First, determine the height of stand

The best height of stand is parallel to eyelevel of a person who sitting on a couch.

Normally, the horizontal distance of eyelevel is about 4" from ground level.

The following two conditions are for determining the perfect height of stand:

1) the distance between wall and couch
2) the distance of eyelevel from ground level plus the distance measured from eyelevel of a person sitting on couch with viewing angle of 15^

Viewing angle 15° b eyelevel a

Fig 4

For example

1) the distance of a 'is 5 -7,"the distance of b' is about 1 "
2) the distance of a 'is 8 -13,"the distance of b' is about 3 "
3) the distance of “a” is 14 -17, “the distance of b” is about 4

The perfect height of stand centre will be anywhere within b, where you feel comfortable for viewing.

After determining the height of stand, follow the installation instructions in below to install wall mount to different kinds of wall-wooden, brick, concrete and stone.

Wooden wall:

Using a awl or nail to make where the nails are located, as shown as F ig.5,6,7. Distance between two nails for fixing wall mount must not less than 12", Pre-drill these holes with a 5mm drill bit to at least 50mm in deep hole. Please make sure these holes are level and located at center. Use wall mount as a template to mark the location of six holes and drill

the same holes. Fix the wall mount to the wall with 6 bolts and washers.

Fig 5 Wood stud

InLine 23117 - Wooden wall: - 2
Fig 6

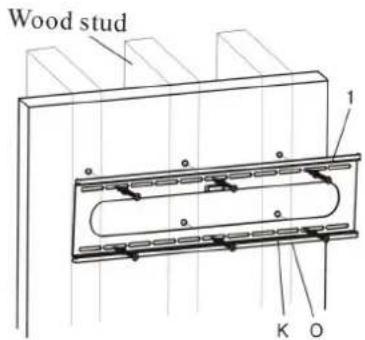

Wood stud 1 K O

Fig 7

Brick, Concrete and Stone wall:

Using the wall mount as template to mark 6 holes location on the wall. Three holes are located at the top row of the slots and three more are located at the bottom row. The outer holes must be fall to the left and right of the two holes as Fig8,9,10 .Please make sure these holes are level and at least 6 between any two lines. Pre-drill these holes with a 10mm drill bit to at least 50mm deep hole. Insert wall anchors into each of these holes. Attach the wall mount to the wall using 6 bolts and washers.

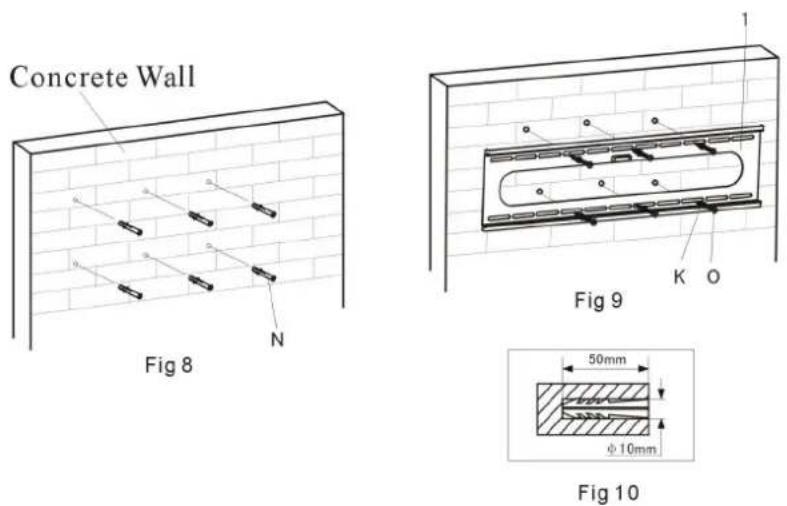

Concrete Wall Fig 8 N Fig 9 K O 50mm Φ10mm Fig 10

Step 3: Hanging display

Firstly lift the bracket mounted display over the wall mount. And then hook the brackets over the top of the wall mount. Rotate the display let the bottom of the brackets hook over the bottom of wall mount, as shown in Fig.13. Then put lock plate into the bottom of the brackets and lock it, as shown in Fig.14.

InLine 23117 - Step 3: Hanging display - 1

natural_image Technical line drawing of a mechanical assembly with labeled components (no text or symbols present)

Fig 13

InLine 23117 - Step 3: Hanging display - 2

natural_image Technical line drawing of a rectangular frame with internal compartments and supports (no text or symbols)

Fig 14

Warning: Some TV require two people to lift, as we are not responsible for any personal injury or product damage due to mishandling.
