USER MANUAL GS40 Cocraft

KOMPOSTKVARN OKSASILPPURI

KOMPOSTKVERN HÄCKSLER

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services (see address on reverse).

Safety Instructions

• Note: Before cleaning or performing service on the machine make sure that the power switch is set to 0. Make sure that the power lead has been removed from the machine. The motor will continue to rotate a short while after being turned off before coming to a complete stop.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• The user is responsible for proper use of the machine and is responsible for any possible injuries occurring to third parties through improper use.
• The garden shredder must be placed on a flat stable surface.
• Use gloves, hearing protection and eye protection/visor when using the machine.
• Before going away from the garden shredder make sure that you have turned off the motor and have removed the power lead from the machine.

• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The machine can only be adjusted and cleaned once the motor has completely stopped and the power lead has been removed from the machine.
  Note: When adjusting the cutting plate however, the motor must be in operation (see section Adjusting the cutting plate).

• Make sure that the machine is completely and correctly assembled before turning on the motor.
• Do not hold your hands near the intake opening or the output chute.
• Make sure to wear proper fitting clothing; no hanging or oversized clothes, no jewellery or similar items which may get caught in the rotating blades.

General safety guidelines

• Make sure to inspect the machine visually before using it. Do not use the machine if the safety devices are damaged or worn. The safety devices must not be compromised or deactivated.
• The machine must never be used if the housing is broken or if any of the parts are missing.
• The machine may only be used for the purposes outlined in this instruction manual.
• Check the appropriateness of the material being shredded before using the machine. Remove any foreign objects. Be aware of any foreign objects during the time of use. If you still manage to accidentally insert a foreign object, make sure that you turn off the machine immediately. Then carefully remove the foreign object.
  • Work only when there is adequate daylight or lighting.
• Make sure that you are standing steady and well balanced when using the machine.

• Always keep an eye on the machine. If you need to stop working, turn off the machine, unplug it, and store it in a safe place. If you need to stop work and change locations you must turn off the machine before moving it.

• Never use the machine in rain or in a moist or damp environment. Protect the machine from rain or moisture.

• Turn off the motor and remove the power lead when: not using the machine, when the machine is not being attended, when the machine is being checked, if the lead or the blades are damaged, or if the machine needs to be moved to another location.
• Make sure that there is adequate distance between the machine and bystanders. Keep a close eye on children and pets within the machine's danger zone.
• Make sure that the ventilation openings are unobstructed from leaves and debris.
• Unplug the machine after each use and check for any possible damage before storing.
• When not using the machine for an extended period ensure that the machine is stored in a dry location out of the reach of children.
• Only use the machine as described in this instruction manual.
• Regularly check that all screws are adequately tightened.
• Voltage from the mains must correspond to the machine's rating plate.
• The power point used must be protected with at least a 10 A slow blow fuse.
• Any extension cables used must be suitable for outdoor use and have at least a H07RN-F rating and a minimal conductor cross sectional area of 3G1.5 mm². Plugs must be earthed and the sockets must be splash-proof. Check the power lead regularly for damage and wear. The machine can only be use if the power lead is suitable for use.

• If the extension lead has a reduced conductor cross sectional area the machines performance will be reduced considerably. For leads under 25 m in length a 3G1.5 mm ^2 minimum conductor cross sectional area is required, if over 25 m a 3G2.5 mm ^2 area is required.

• Never move the machine by pulling on the lead.

• If the shredder vibrates extremely abnormal, turn off the machine immediately, pull out the plug and find the cause of the problem. Strong vibrations are often an indication of a problem.
• Repairs should only be carried out by a qualified service technician.
• Before operating the machine and every time it has been exposed to shocks or impact it should also be checked for damage or wear. Leave it in for repairs when necessary.
• Use only spare parts and accessories that are intended for the machine or have been recommended by the manufacturer.
• Note: The rotary blades continue to rotate a few seconds after turning off the machine.
• The garden shredder should only be connected to an earthed wall socket. Connect it via a RCD for personal safety.

Safety symbol guide

Caution: Read through the entire instruction manual and follow all warnings and safety guidelines.

Caution: It is a necessity to use eye protection, hearing protection, protective gloves and sturdy work wear when using the machine. Use preferably a helmet with a visor.

Caution: Protect the machine against moisture an do not expose it to rain.

Caution: Rotating blades. Keep hands and feet away from the intake opening and output chute.

Note: The blades continue to rotate a short while after the machine has been turned off.

Caution: Immediately pull out the plug if the power outlet or lead has been damaged or cut.

Caution: Set the power switch to 0 and remove the cable from the machine. Ensure that the blades have stopped completely before servicing, transporting, etc.

Caution: Ensure that the safety area is of adequate size.

Caution: There is a risk of material being thrown forcefully from the machine during use. Make sure that bystanders and pets are removed from the work area.

Note: Cutting plate adjustment screw.

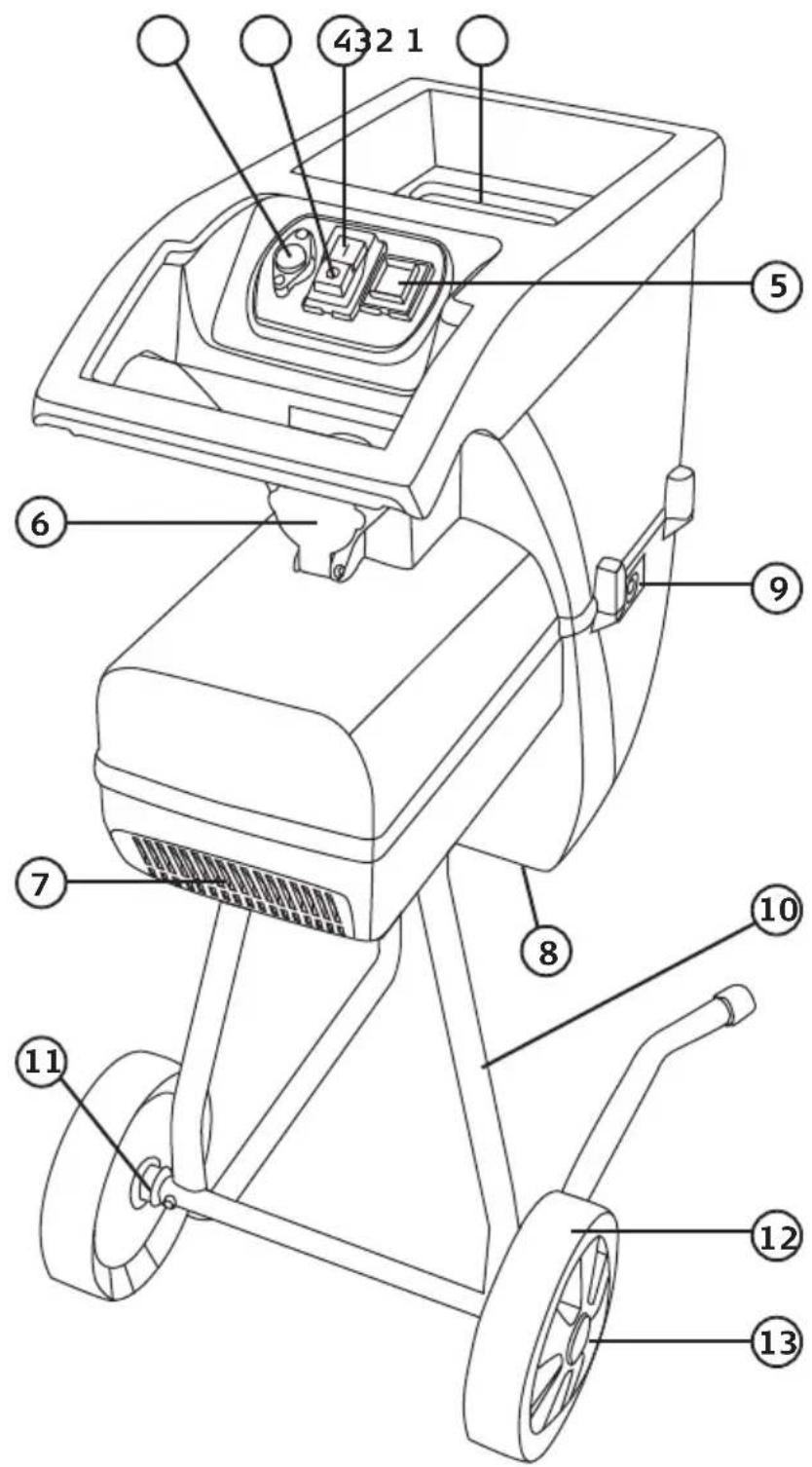

Product description

1. Intake opening
2. Reset button/overload protection
3. Power switch [0 - STOP]
4. Power switch [1 - START]
5. Rotational direction switch
6. Power socket
7. Ventilation ports
8. Output chute
9. Cutting plate adjustment screw
10. Robust tubular stand with wheel axle
11. Plastic spacer
12. Wheel
13. Wheel cover

Operating range

The garden shredder is only intended for shredding bio-degradable garden waste like branches and twigs from bushes, hedges and smaller trees, etc in smaller gardens. It is not intended for professional use.

The shredder cannot be used for shredding earth coated roots, stones, metal, glass, fabric, paper or plastic. Non-solid waste such as kitchen waste is also not suitable.

Assembly

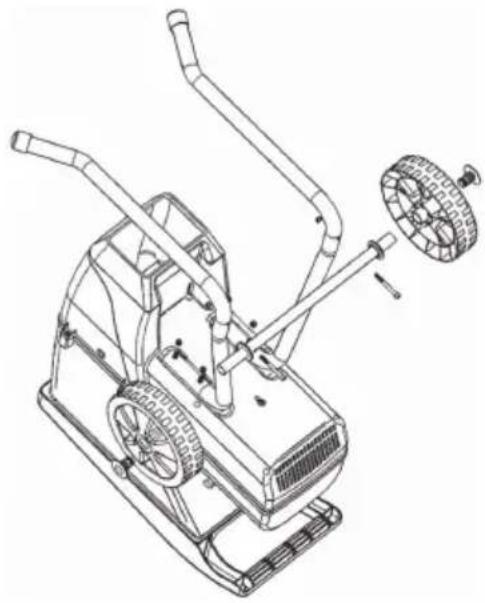

1. Place the motor housing upside down on a flat surface and fasten the stand on the four screws found under the motor housing.

Technical line drawing of a grass lawn mower with attached tire and wheel components (no text or labels)

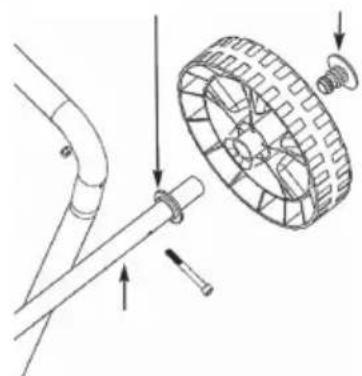

1. Mount the wheel axle onto the stand with the included screws, washers and locking nuts.

Line drawing of a tool with a curved handle and a cylindrical rod, no text or symbols present

1. Fasten the stand on the four screws found under the motor housing using the included washers and locking nuts.

Technical line drawing of a mechanical assembly with two bolts and a curved pipe (no text or symbols)

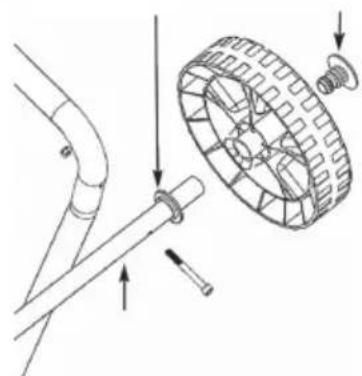

1. Place the plastic spacers on both sides of the wheel axle. Make sure that the flat surface is facing outwards. Mount the wheels onto the wheel axle.

2. Press in the wheel covers onto the wheels to lock the wheels.

Technical line drawing of a mechanical assembly with pipe, wheel, and screw (no text or symbols)

Operation

Connecting to the mains

Connect the machine to a mains socket using an extension lead. Connect the extension lead to the power socket on the machine. Fold out the spring loaded fastener from the socket, insert the extension lead and release the fastener.

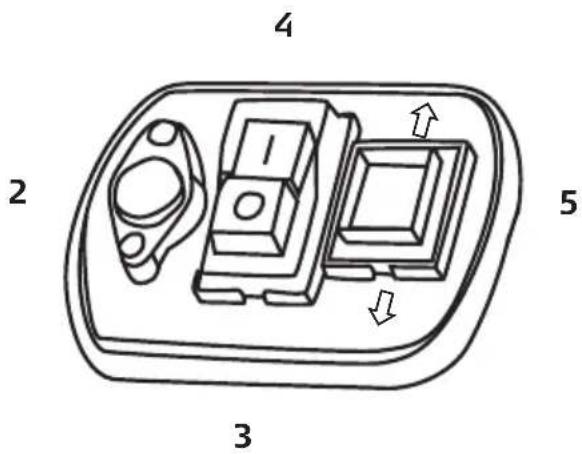

Power switch

• Push the green button (4) to start the shredder.
• Push the red button (3) to turn the shredder off.

Note: The machine is equipped with a zero voltage breaker. This is to prevent the machine from starting accidentally after a power cut.

Rotational direction switch

The direction switch (5) can be used to back out twigs or other debris which has been caught in the shredder.

Note: This function must only be used when the shredder is turned off and is standing still.

1. Set the switch (5) to the ↓ position for normal use.
2. Set the switch (5) to the position to change rotational direction. The knives will rotate backwards which mean that the material that has been caught can be released and pulled backwards. In this setting the power button (4) has a return spring which stops the motor once the green start button is released.

Note: Always wait until the shredder comes to a complete stop before restarting it.

Overload protection

1. If the shredder is overloaded i.e. if the blades are caught, the motor will stop within a few seconds. The overload protection will automatically cut off power. Wait at least 1 minute so that the motor has time to cool before pressing the reset button (2).
2. Push the green button (4) to start the motor.

Adjusting the cutting plate

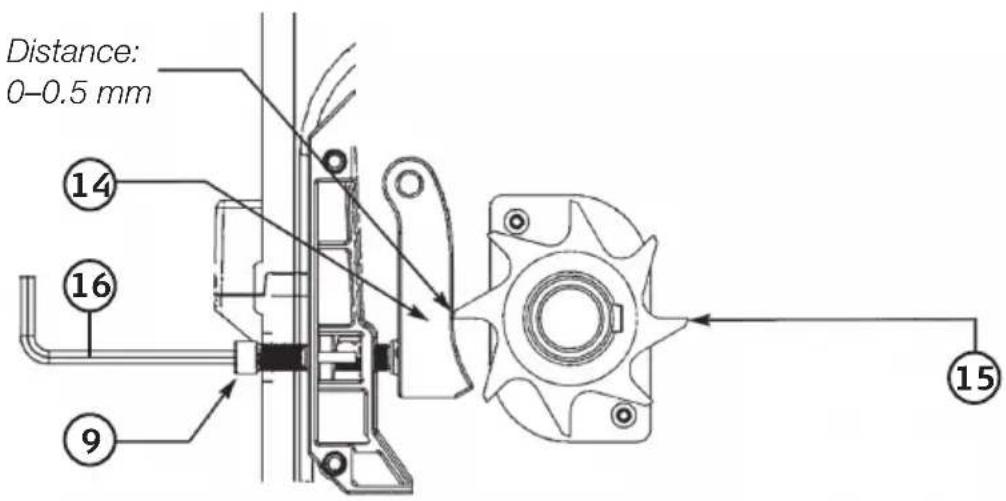

1. Cutting plate adjustment screw

2. Cutting plate

3. Rotating blades
4. Allen key (accessory)

The cutting mechanism consists of rotating blades and the cutting plate. For optimal results the distance between the blades and cutting plate should be 0–0.5 mm.

A half turn of the adjustment screw moves the cutting plate approx. 0.5 mm.

The distance is pre-adjusted by the manufacturer and does not need to be adjusted before using it for the first time.

After some time the results may become compromised, the cutting blade may then be adjusted in this way.

• The motor should always be on when adjusting the cutting plate.
• The machine should be set for normal feed when adjusting the cutting plate.

Adjusting the cutting plate

1. Start the machine.
2. Use the included allen key and turn the adjustment screw (9) slowly clockwise.
3. Turn carefully until a scraping noise is heard and a minimal amount of aluminium shavings fall through the output chute.
4. The space between the blades and cutting plate is now at 0 and is set for optimal shredding.

General use guidelines

• Read and the follow safety instructions.
• Use protective eyewear, hearing protection, protective gloves and sturdy work wear. Use preferably a helmet with a visor.
• Material that you feed in will automatically be drawn in by the cutting blades. Warning! If overly long objects are placed into the machine there is a risk that the material will begin to whip. Keep a safe distance.
• Feed in material from the rights side of the intake opening feeding in just the right amount of material so as not to clog the intake opening.
• Wilted or damp garden waste which has lain for several days must be processed in alternating turns with branches. This will prevent clogging the intake opening.
• Kitchen waste and other soft waste cannot be processed in the shredder but should be placed directly on the compost heap.
• Branches with numerous twigs and leaves should be fed in entirely before attempting to feed in any more material.
• Make sure to empty the catcher bag before the shredded material plugs the output chute.
• The ventilation ports must be kept free of debris.
• Avoid continuous feeding of bulky materials. This can lead to clogging of the blades.
• If the blades become clogged: Use the direction switch to reverse the motor and consequently loosen the clogged material from the blades.

Storage and maintenance

• Clean the machine at regular intervals. This will ensure many years of good operation.
• Keep the ventilation ports clean while using the machine.
• The plastic housing and other plastic parts can be cleaned by using a mild washing-up liquid and a moist cloth. Do not use strong detergents or solvents to clean the machine.
• Never spray the shredder with water.
  • Water may under no circumstances get into the machine.
• Check every now and then that the stand's assembly screws are tight.
• If you plan not using the shredder for an extended period of time, lubricate the machine with a corrosion protective eco friendly lubricant.
• Store the machine in a dry place.
• Keep the machine out of children’s reach.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangle below (no readable text or symbols)

Troubleshooting

Problem Possible Cause Remedy
The motor does not start.	1. Power cut.2. The motor's overload protection has triggered.3. The direction button is in the neutral setting.
The material being inserted is no longer being pulled in.	1. The blades are rotating backwards.2. The intake opening is clogged. / The blades are clogged.3. The catcher bag is too full and is blocking the output chute.
The material is not shredded adequately.	The cutting plate has been set incorrectly.

Technical data

Mains supply 230 V, 50 Hz

Output power 2500 W

No load speed 40 RPM

Branch diameter Max. 40 mm (depending on the branch's hardness)

Sound pressure level (LpA) 88 dB(A)

Sound power level (LwA) 93 dB(A)

Weight 26 kg

The S6 operation mode is for continuous use with intermittent load. 40 % stands for a load profile with 4 minutes of load and 6 minutes idle.

Kompostkvarn

Art.nr 18-3120 Modell LSG2503-UK

40-6000

LSG2503

Användningsområde

Technical line drawing of a lawn mower with attached gear and wheel components (no text or labels)

Line drawing of a tool with a curved pipe and a straight rod, no text or symbols present

Technical line drawing of a mechanical assembly with bolts and a curved pipe (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and pipe connection (no text or symbols)

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Felsökning

Bruksområde

Technical line drawing of a grass lawn mower with attached tire and wheel components (no text or labels)

Line drawing of a tool with a curved handle and a cylindrical rod, no text or symbols present

1. Fest stativer på de fire skruene som er under motoren. Bruk medfølgende skiver og låsemutre.

Technical line drawing of a mechanical assembly with bolts and a curved pipe (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and pipe (no text or symbols)

Bruk

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Feilsøking

Käyttöalueet

Technical line drawing of a mechanical assembly with bolts and a curved pipe (no text or symbols)

Technical line drawing of a mechanical assembly with pipe, nut, and screw (no text or symbols)

Käyttö

Verkkoliitäntä

Einsatzbereich

Technical line drawing of a lawn mower with attached gear and wheel (no text or symbols)

Line drawing of a manual tool with a curved handle and a cylindrical rod (no text or symbols)

Technical line drawing of a mechanical assembly with bolts and a curved pipe (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and pipe (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Fehlersuche

Declaration of Conformity

Machinery Directive 2006/42/EC

EN 13683:2003

+A2:2011

EMC directive 2004/108/EC

EN 55014-1:2006+A1+A2

EN 55014-2:1997+A1+A2

EN 61000-3-2:2006+A1+A2

EN 61000-3-11:2000

Low Voltage Directive 2006/95/EC

EN60335-1:2012

EN 62233:2008

President

Insjön, Sweden, 2015-11-16

Sverige

Postal 10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice
