Product Type	Switch Filter Coffee Maker (Dual Function)
Brand	Lakeland
Model	19686
Brewing Options	Carafe (12 cups) or Single Cup (up to 410ml)
Carafe Capacity	12 cups (approx. 1.5L)
Single Cup Capacity	Up to 410ml (max fill)
Brew Strength	Normal and Strong (selectable via Brew button)
Timer	Programmable 24-hour timer for delayed brewing
Keep Warm	Automatic 40-minute keep warm function
Carafe Material	Glass with plastic lid
Travel Cup Material	Plastic with lid (included)
Filter System	Permanent gold-tone filters for carafe and single cup, plus coffee bag basket
Water Tanks	Dual water tanks (carafe and single cup) with MAX fill marks
Drip Tray	Adjustable height (flippable base for shorter cups)
Safety Features	Auto shut-off after brewing or 40 minutes of inactivity
Cleaning	Removable parts washable in warm soapy water; carafe dishwasher safe; descale with vinegar monthly
Power Supply	230V, 50Hz (UK plug)
Plug Type	UK 3-pin plug with 13A fuse (BS1363)
Cord Storage	Yes, under the base
Included Accessories	Carafe, travel cup with lid, permanent filters (2), filter baskets (2), coffee bag basket

Frequently Asked Questions - 19686 Lakeland

How do I set the timer for delayed brewing?

Press and hold the TIMER button until the clock flashes. Continue holding and press the HOUR and MINUTE buttons to set the desired start time, then release. Press TIMER again; the LED light on the side will illuminate to confirm the timer is set. To deselect, press TIMER again.

How do I use the coffee bag basket?

Insert the notches on the sides of the coffee bag basket into the slots in the permanent filter until it clicks into place. Place a coffee bag (or pod) inside. For 250ml coffee use 1 pod; for 410ml or stronger coffee use 2 pods. Follow the 'Using the Single Cup' instructions.

What should I do if my coffee tastes too weak?

Add more ground coffee to the permanent filter. Use approximately 1 level tablespoon (15ml) per cup. If using coffee bags, ensure they are centred in the coffee bag basket. You can also select the Strong brew setting by pressing the Brew button.

How should I clean the coffee maker?

Unplug and allow to cool. Wipe the exterior with a damp cloth. Wash removable parts (filter baskets, permanent filters, carafe, coffee bag basket) in warm soapy water. The carafe is dishwasher safe. Descale monthly: mix equal parts water and white vinegar (250ml each for carafe tank, 125ml each for cup tank), run through, then rinse with fresh water three times.

Can I use my own mug instead of the travel cup?

Yes, place your own cup on the drip tray. For shorter cups, lift out the drip tray and base, flip the base over, and rest the drip tray on top to raise it higher. Ensure the cup is no taller than the drip tray area.

Why is my coffee overflowing from the filter?

Possible causes: too much water in the water tank (use your cup or carafe to measure water), too much ground coffee (reduce amount), or the coffee is ground too finely. Also ensure the filter basket is correctly inserted with the notch in the groove.

How do I descale the water tank?

For the carafe tank: mix 250ml cold water and 250ml white wine vinegar, pour into carafe water tank, set switch to 'Carafe', place carafe on hot plate. Press On/Off to start, after 30 seconds press again to stop and leave for 30 minutes. Then switch on and let the mixture filter through. Repeat with clean water three times. For the single cup tank: use 125ml water + 125ml vinegar, follow same steps with switch set to 'Single Cup'.

Can I brew a carafe and a single cup at the same time?

No, the coffee maker only brews either a carafe or a single cup at one time. Use the switch on the side to choose between 'Carafe' and 'Single Cup'.

How does the brew strength function work?

Press the Brew button to select Strong; the display will show 'Strong'. This setting brews your coffee slower for a fuller flavour. Press the Brew button again to return to normal strength.

What if the coffee maker won't turn on?

Check that the appliance is plugged in and switched on at the socket. Ensure the water tank is filled (not empty) and, if using the carafe, that the carafe is correctly placed on the hot plate. If the issue persists, contact Lakeland customer care at 015394 88100.

USER MANUAL 19686 Lakeland

Exterior view of a modern kitchen blender with digital display and control buttons (no visible text or symbols)

Model: 19686

LAKELAND SWITCH FILTER COFFEE MAKER

Thank you for choosing the Lakeland Switch Filter Coffee Maker.

Please take a little time to read this booklet before you use your machine and keep it in a safe place for future reference.

The Switch Filter Coffee Maker allows you to make one carafe of freshly brewed filter coffee, or flip the switch to brew a single size travel cup to drink on the move. Permanent filters are included for easy cleaning and less waste, and the programmable timer means you can wake up to freshly brewed coffee.

An award winning family-owned business, here at Lakeland we still have the same values of excellent quality, value for money and exceptional customer care as we did when we first set up the company in the 1960s.

Our products are carefully selected and rigorously tested to meet our high standards, so you can be assured that any product you purchase will be easy-to-use and highly durable.

CONTENTS

Product features....4-5

Safety cautions....6-7

Using the Switch Filter Coffee Maker for the first time 8-9

Instructions for use 8,9,10

Using the carafe....8

Using the single cup....9

Setting the timer....10

Hints and tips....11

Troubleshooting 11

Care and cleaning 12

Recycling your electricals 13

Electrical connections....13

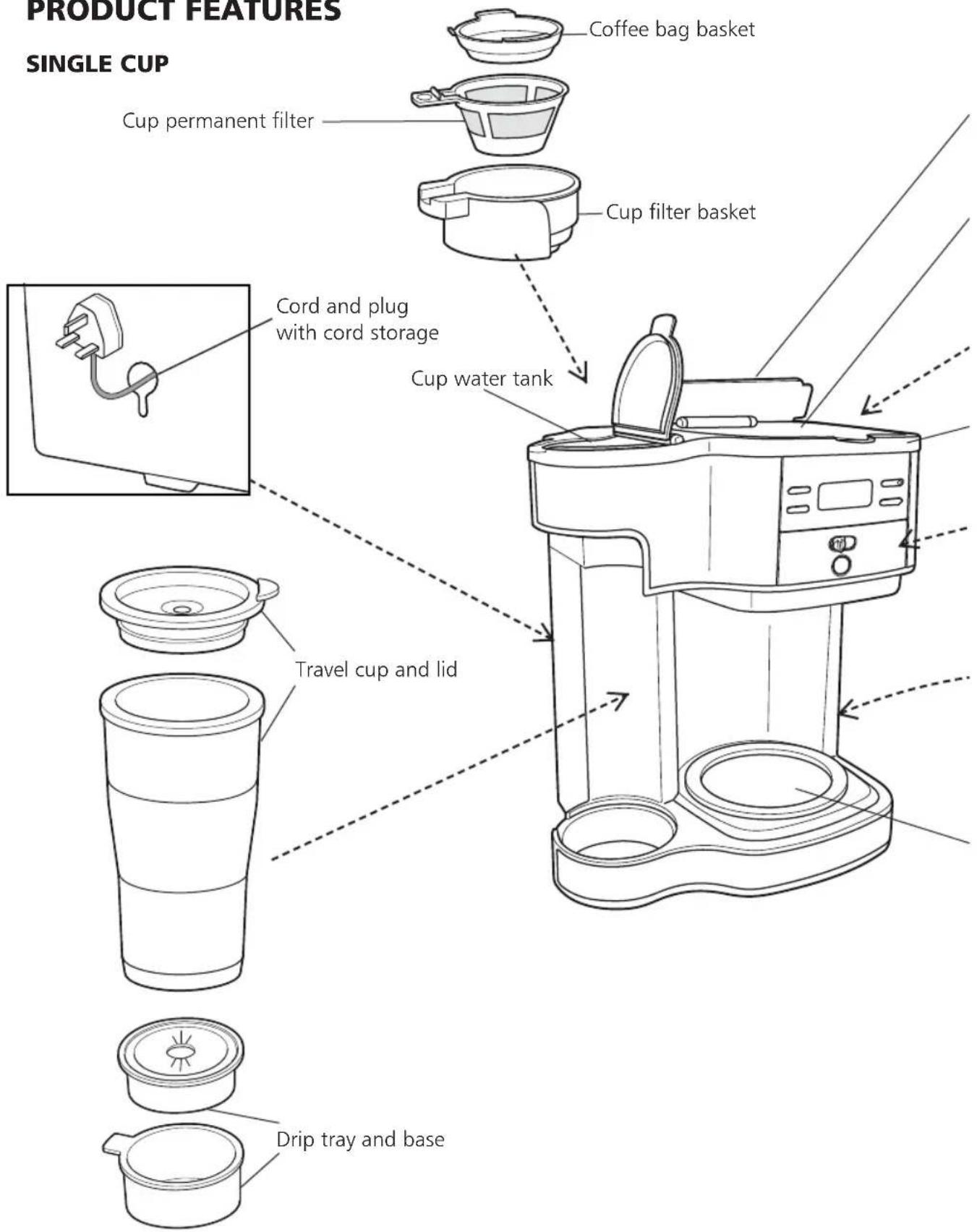

PRODUCT FEATURES

SINGLE CUP

PRODUCT FEATURES SINGLE CUP Coffee bag basket Cup permanent filter Cup filter basket Cord and plug with cord storage Cup water tank Travel cup and lid Drip tray and base

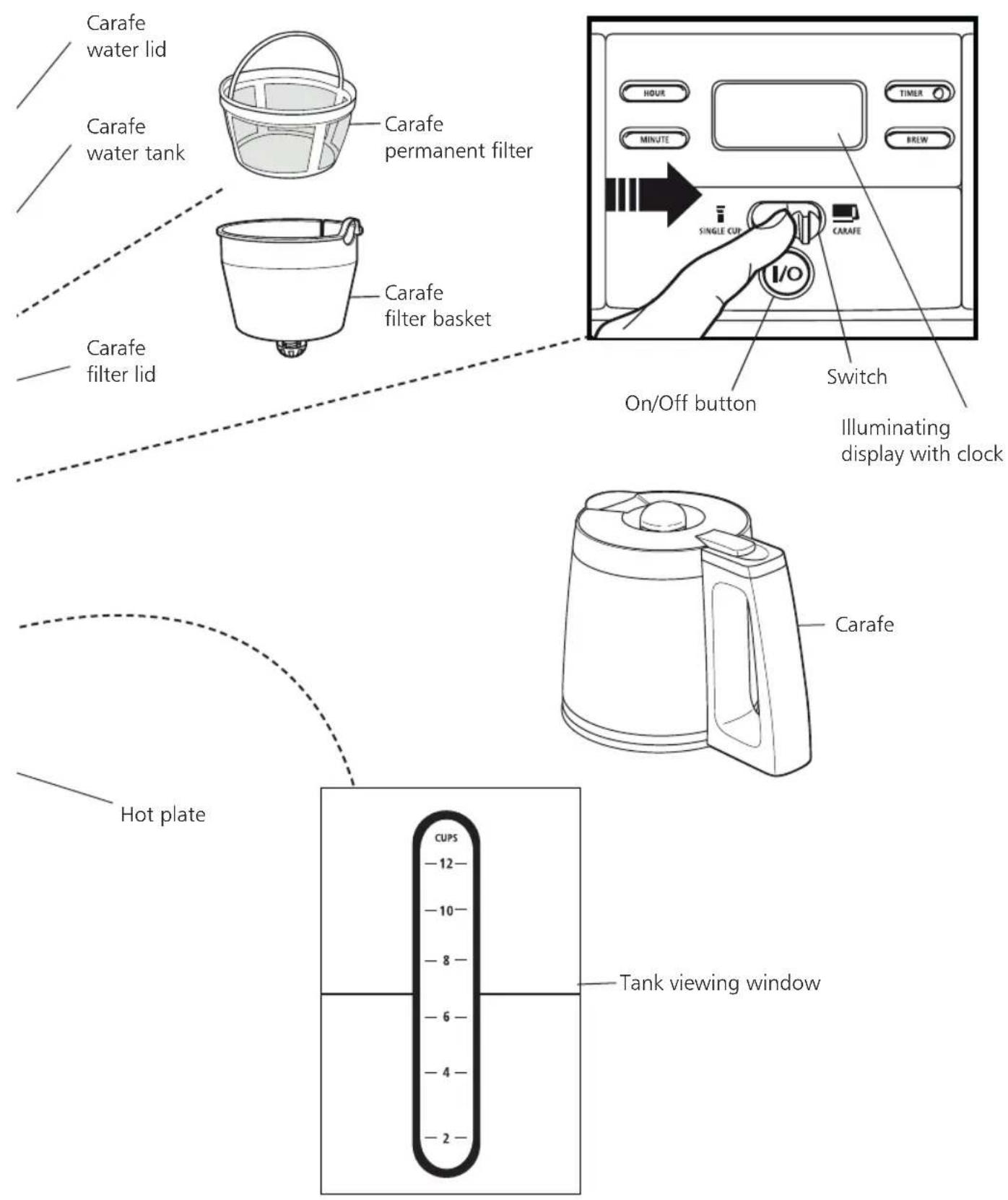

CARAFE

Carafe water lid Carafe water tank Carafe filter lid Carafe permanent filter Carafe filter basket On/Off button Switch I/O Illuminating display with clock Hot plate CUPS -12- -10- -8- -6- -4- -2- Tank viewing window HOUR TIMER MINUTE BREW CARAFE CARafe

SAFETY CAUTIONS

Carefully read all the instructions before using the appliance and keep in a safe place for future reference. Always follow these safety cautions when using the appliance to avoid personal injury or damage to the appliance. This appliance should be used only as described in this instruction book.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

- Make sure your electricity supply matches the voltage shown on the appliance.

- Ensure all packaging materials and any promotional labels or stickers are removed from the appliance before the first use.

- Always inspect the appliance before use for noticeable signs of damage. Do not use if damaged or has been dropped. In the event of damage, or if the appliance develops a fault contact the Lakeland customer care team on 015394 88100.

- Do not use this appliance if the lead is damaged. If the lead is damaged it must be replaced with a special lead contact the Lakeland customer care team on 015394 88100.

• Always use the appliance on a dry, level, heat resistant surface.

- Unplug from the mains when not in use and before cleaning. Allow to cool before cleaning the appliance. To disconnect, turn the socket to "off" and remove the plug from the mains socket.

- Do not use any accessories or attachments with this appliance other than those recommended by Lakeland.

- To protect against fire, electric shock or personal injury, do not immerse cord, plug or unit in water or other liquids. Do not use near the sink.

- Do not leave the lead hanging over the edge of a kitchen table or worktop. Avoid contact between the lead and hot surfaces.

- For indoor use only.

- For domestic use only.

- This appliance should be used for preparation of drinks as described within the instructions for use that accompany it.

• Always ensure that your hands are dry before removing the plug from the mains socket. Never pull the plug out of the mains socket by its lead.
• To avoid injury or possible fire, do not cover the appliance when in use.
• Do not connect this appliance to an external timer or remote control system.
• An extension cable may be used with care. The electrical rating of the cable should be at least as great as the appliance. Do not allow the cable to hang over the edge of the worktop or touch any hot surfaces.
• This appliance complies with the basic requirements of Directives 04/108/EC (Electromagnetic Compatibility) and 06/95/EC (Safety of Domestic Electrical Appliances).
• WARNING: A cut off plug inserted into a 13amp socket is a serious safety (shock) hazard. Ensure the cut off plug is disposed of safely.

- CAUTION: The plastic bags used to wrap this appliance or the packaging may be dangerous. To avoid risk of suffocation, keep these bags out of reach of babies and children. These bags are not toys.

- Do not place on or near a gas or electric oven, or any hot surfaces.

- Only use the carafe with this appliance. It must never be used on a hob or in a microwave.

- Do not put a hot carafe down onto a wet or cold surface.

- Do not use the carafe if it is damaged.

- This filter coffee maker does not include any user-serviceable parts. To reduce the risk of fire or electric shock do not remove any covers. Repairs must be done by a qualified electrician. In the event of damage, or if the appliance develops a fault contact the Lakeland customer care team on 015394 88100.

- Ensure the carafe lid is securely in place when using the appliance and when pouring coffee. Do not use force when putting the lid on the carafe.

USING THE SWITCH FILTER COFFEE MAKER FOR THE FIRST TIME

• The Switch Filter Coffee Maker allows you to make one carafe of coffee, or a single cup of coffee using the travel cup included or your own cup. It will only brew either a carafe or a cup at one time.
• Unpack the coffee maker. Remove all the packaging materials.
• Wash the carafe, travel cup and lid, coffee bag basket, filter baskets and permanent filters in warm soapy water, dry thoroughly.
• Before first use, fill the carafe water tank with water to the '12 cup' level, and run this through the coffee maker following the directions below to thoroughly clean.
• Flip the switch to 'SINGLE CUP' and repeat, filling the cup water tank with a travel cup full of water. Run this through the coffee maker following the directions below to thoroughly clean.

INSTRUCTIONS FOR USE

• Plug in the coffee maker and switch it on at the socket, the display will illuminate and the clock will read 0.00.
• Press the 'HOUR' and 'MINUTE' buttons to set the time.

USING THE CARAFE

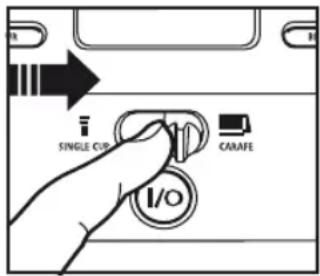

1. Ensure the switch is flipped to the right, to 'Carafe'.
2. Fill the carafe with cold tap water, to the amount you require using the cup measurements on the side.

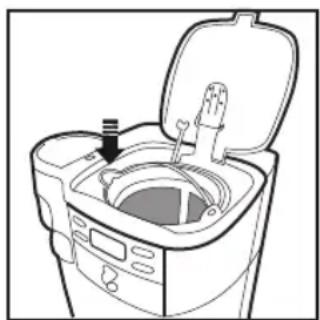

3. Lift the carafe water tank lid and pour in the water. Do not fill past the 12 cup mark on the tank viewing window, or the MAX FILL guide inside the tank.
4. Place the empty carafe onto the hot plate.
5. Lift the carafe filter lid and remove the carafe filter basket and permanent filter.
6. For each cup of coffee, put 1 level tablespoon (15ml) of ground coffee into the filter.
7. Place the permanent filter into the filter basket and place them inside the coffee maker. Ensure the notch on the side of the filter basket is slotted into the groove inside the coffee maker.

SINGLE CUP I/O CARAFE

Line drawing of a washing machine with lid, vent, and handle (no text or symbols)

BREW BUTTON

1. For fuller, stronger flavoured coffee press the 'Brew' button, 'Strong' will be displayed on the screen. This setting brews your coffee slower, and will take longer. Press the 'Brew' button again to deselect and brew on the normal setting.

2. Press the On/Off button to start brewing. The button will illuminate.

3. The water will filter through and fill the carafe. When your coffee has brewed, press the On/Off button to turn the coffee maker off. If the coffee maker is not turned off manually the hot plate will keep your coffee warm for 40 minutes, then the coffee maker will switch off automatically. If you need to stop the coffee brewing mid cycle press the On/Off button.

USING THE SINGLE CUP

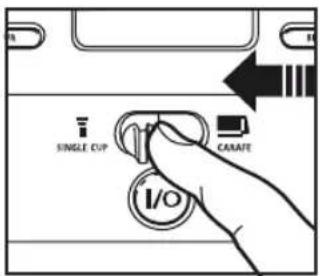

1. Ensure the switch is flipped to the left, to 'Single Cup'.
2. Fill the travel cup or your own cup with cold tap water.
3. Lift the cup water tank lid and fill it with the water from your cup. Do not fill past the 'MAX FILL' mark inside the tank.

WARNING: To avoid the risk of burning or scalding from hot coffee or water do not use more than 410ml of water, or exceed the 'MAX FILL' mark.

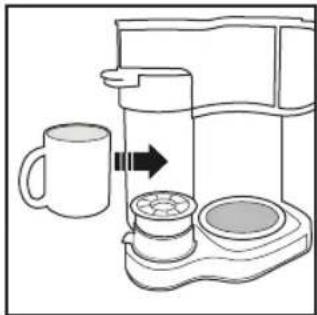

1. Place your empty cup onto the drip tray.

If using the travel cup, add the lid first, the coffee will drip through the lid and stay hotter.

If you are using a shorter cup, you can lift out the drip tray and base using the tab, flip the base over, and rest the drip tray on top to raise it higher.

1. Pull out the cup filter basket and the permanent filter.
2. Note: The coffee bag basket is not used for brewing ground coffee, and should not be attached to the permanent filter.
3. Inside the permanent filter there are two notches, the smaller one is a MIN fill line and the larger one a MAX fill line. Fill filter to the MIN line if you are making 250ml of coffee and to the MAX line if you are making 410ml of coffee. Do not fill beyond the MAX line as this will cause the coffee maker to overflow.
4. Place the permanent filter into the filter basket and insert them back into the side of the coffee maker.
5. Press the On/Off button to start brewing, the button will illuminate. The coffee maker will automatically switch off when your cup of coffee has brewed. If you need to stop the coffee brewing mid cycle press the On/Off button.

SINGLE CUP CANAFE I/O

Line drawing of a coffee maker with a mug and side bowl, showing a directional arrow (no text or symbols)

Flip the drip tray and base to raise it higher

Line drawing of a hand inserting a plug into a device (no text or symbols)

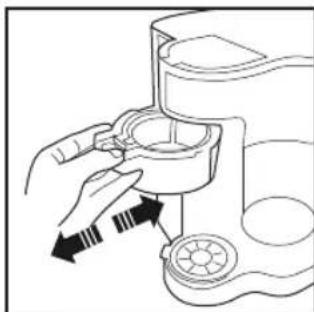

Pull out the cup filter basket and the permanent filter

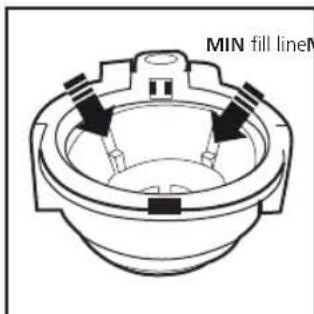

MIN fill lineM

The MAX fill line and the MIN fill line

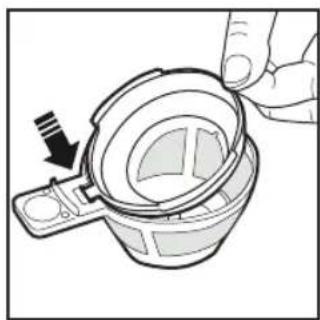

USING COFFEE BAGS

1. Take the coffee bag basket and insert the notches on the side into the slots in the side of the permanent filter. It will click into place.
2. Place the coffee bag into the coffee bag basket and follow the instructions in 'Using the Single Cup'. If you are making 250ml of coffee use 1 pod, if you are making 410ml of coffee or would like stronger coffee use 2 pods.

Diagram of a hand holding a magnifying glass over a mechanical component, with an arrow indicating the process (no text or symbols present)

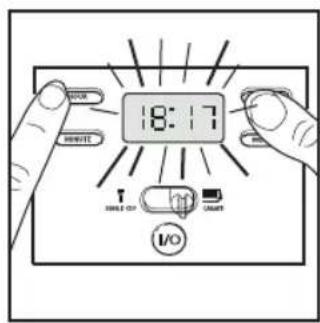

SETTING THE TIMER

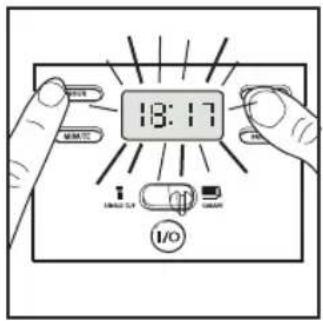

1. Press and hold the 'TIMER' button until the clock flashes.
2. Continue to hold the 'TIMER' button and press the 'HOUR' and 'MINUTE' buttons until you have selected the time you would like to start brewing. Then release the 'TIMER' button.

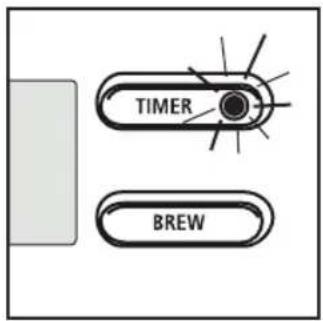

3. Press 'TIMER' once again, the LED light on the side of the button will illuminate to show the timer is set.

If you need to check when you have set the timer for, just press and hold the 'TIMER' button.

Press the 'TIMER' button again to deselect.

18:17 I BANANA I/O

TIMER BREW

HINTS AND TIPS

• To avoid the coffee maker overflowing, use less ground coffee when brewing decaf or flavoured coffee.
• For hotter coffee when using a cup, rinse your cup with warm water before brewing.
• Ground coffee does not stay fresh for as long as coffee beans. If you are using ground coffee, watch expiry dates and buy in small amounts.
• If you are grinding coffee beans, set your grinder to a fine/medium grind, and try to use the ground coffee within a week of grinding.
• Use approximately 1 level tablespoon (15ml) of ground coffee for each cup.
  • Very finely ground coffee may cause the filter basket to overflow.
• Ensure you regularly clean the coffee maker, see 'Care and Cleaning'.

TROUBLESHOOTING

The following are some common problems that can occur when using the Switch Filter Coffee Maker. Please review the problems, their possible cause and any corrective action that should be taken to ensure successful coffee making.

Problem	Possible cause	Solution
The coffee tastes too weak. Not enough	g ground coffee is being used.	Add more coffee to the permanent filter. Ensure coffee bags are in the centre of the coffee bag basket.
Coffee is overflowing from the permanent filter, filter basket, or cup.	There is too much water in the water tank.	Use your cup or the carafe to measure the amount of water you are putting into the cup or carafe water tank.
The filter basket is overflowing or the coffee is brewing too slowly.	There is too much coffee in the filter.	Use less ground coffee in the filter. The coffee may be ground too finely. The appliance may need cleaning.
The coffee is not brewing or the appliance will not turn on.	The carafe is not on the hot plate. The water tank is empty. The maker is not plugged in.	Check the water tank is filled and the appliance is plugged in.
The appliance is taking a long time to brew.	The appliance may need cleaning. See ‘Care and cleaning’.

CARE AND CLEANING

• Before the first use and after every use, clean each part thoroughly.
• Check all parts before reassembly.
• Switch off and unplug the appliance from the socket before cleaning and when not in use. Always allow the appliance to cool down completely before cleaning.
• To clean the outer parts of the appliance, wipe with a clean damp cloth and dry before storing.
• The filter baskets, permanent filters, carafe and coffee bag basket can be washed in warm soapy water. The carafe is dishwasher safe.
• Do not use steel wool, or abrasive cleaners or materials on any parts.
• Never immerse the appliance in water or any other liquid.
• Store the appliance with the power cable loosely coiled. Never wrap it tightly around the base unit.

CLEANING THE CARAFE WATER TANK

• We recommend cleaning the water tank once a month, or more frequently in hard water areas.
• Mix 250ml of cold water and 250ml of white wine vinegar, and pour into the carafe water tank.
• Ensure the switch is flipped to the right, to 'Carafe'. Place the carafe onto the hot plate.
• Press the On/Off button to switch on. After 30 seconds press the On/Off button again and leave the coffee maker off for 30 minutes.
• After 30 minutes switch on the machine and then switch it off when the water and vinegar has filtered through.
• Then fill the water tank with clean cold tap water to the 'MAX FILL' mark inside the carafe water tank. Press the On/Off button to start brewing, and allow the water to filter through and fill the carafe. Do this three times.

CLEANING THE SINGLE CUP WATER TANK

• Follow the instructions in ‘Cleaning the Carafe Water Tank’, mixing 125ml of water and 125ml of white wine vinegar.
• Ensure the Single cup/carafe switch is flipped to the left, to 'Single Cup'. Place the travel cup onto the drip tray, and pour into the single cup water tank.

RECYCLING YOUR ELECTRICALS

Along with many other high street retailers, Lakeland has joined a scheme whereby customers can take their unwanted electricals to recycling points set up around the country.

Visit www.recycle-more.co.uk to find your nearest recycling point.

ELECTRICAL CONNECTIONS

THIS APPLIANCE MUST BE EARTHED.

This appliance is fitted with a fused three-pin plug to BS1363 which is suitable for use in all homes fitted with sockets to current specifications. If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully disposed of. To avoid an electric shock, do not insert the discarded plug into a socket.

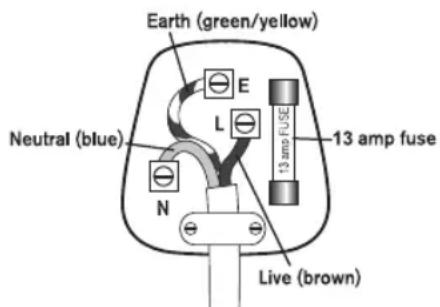

Fitting a new plug

If for any reason you need to fit a new plug, the flexible mains lead must be connected as shown here. The wires in the mains lead fitted to this appliance are coloured in accordance with the following code:

Earth (green/yellow) Neutral (blue) N E L 13 amp fuse 13 amp FUSE Live (brown)

Connect BLUE to Neutral (N)

Connect GREEN & YELLOW to Earth (E)

Connect BROWN to Live (L)

13 amp fuse to be used

If the colours of the wires in the mains lead of this appliance do not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured green and yellow MUST be connected to the terminal which is marked with the letter E (Earth). The wire which is coloured blue MUST be connected to the terminal which is marked with the letter N (Neutral). The wire which is coloured brown MUST be connected to the terminal which is marked with the letter L (Live).

Before refitting the plug cover, check that there are no cut or stray strands of wire inside the plug. Use a 13 amp BS1362 fuse. Only BSI or ASTA approved fuses should be used. If you are at all unsure which plug or fuse to use, always refer to a qualified electrician.

Note: After replacing or changing a fuse on a moulded plug which has a fuse cover, the cover must be refitted to the plug; the appliance must not be used without a fuse cover. If lost, replacement fuse covers can be obtained from an electrical shop. This appliance complies with the following EU Directives: 2006/95/EC (Low Voltage Directive) and 2004/108/EC (EMC Directive).

GEBRAUCHSANWEISUNG

FILTERKAFFEEMASCHINE MIT UMSCHALTFUNKTION

Exterior view of a modern kitchen blender with digital display and control buttons (no visible text or symbols)

Modell: 70148

LAKELAND FILTERKAFFEEMASCHINE MIT UMSCHALTFUNKTION

Line drawing of a kitchen appliance with open lid and internal compartments (no text or symbols)

TASTE „BREW“

Line drawing of a coffee maker with a mug and side bowl, showing a directional arrow (no text or symbols)

Line drawing of a hand using a blender to press a small object, with arrows indicating the process (no text or symbols present)

Diagram of a hand holding a mechanical component with a magnifying glass, showing internal structure (no text or symbols)

13:17 I I/O

TIMER BREW

TIPPS UND TRICKS

Alexandra Buildings, Windermere, Cumbria, UK LA23 1BQ

Tel: [phone] www.lakeland.co.uk

D Tel: [phone] www.lakeland.de
