USER MANUAL 19700 Lakeland

Modern glass coffee maker with a black lid and clear glass base, no visible text or symbols

Model: 19700

LAKELAND GRAVITY COFFEE MAKER

Thank you for choosing the Lakeland Gravity Filter Coffee Maker.

Please take a little time to read this booklet before you use your machine and keep it in a safe place for future reference.

The Gravity Filter Coffee Maker heats water to the best temperature to brew perfectly tasting, fully flavoured filter coffee. The non-stick warming plate keeps your coffee warm for around 40 minutes after brewing starts, then automatically shuts off. A permanent filter is included for easy cleaning and less waste.

An award winning family-owned business, here at Lakeland we still have the same values of excellent quality, value for money and exceptional customer care as we did when we first set up the company in the 1960s.

Our products are carefully selected and rigorously tested to meet our high standards, so you can be assured that any product you purchase will be easy-to-use and highly durable.

CONTENTS

Product features....4

Safety cautions....5-6

Using the Gravity Filter Coffee Maker for the first time ....7

Instructions for use 7-9

Hints and tips....10

Troubleshooting....10

Care and cleaning 11

Recycling your electricals 12

Electrical connections....12

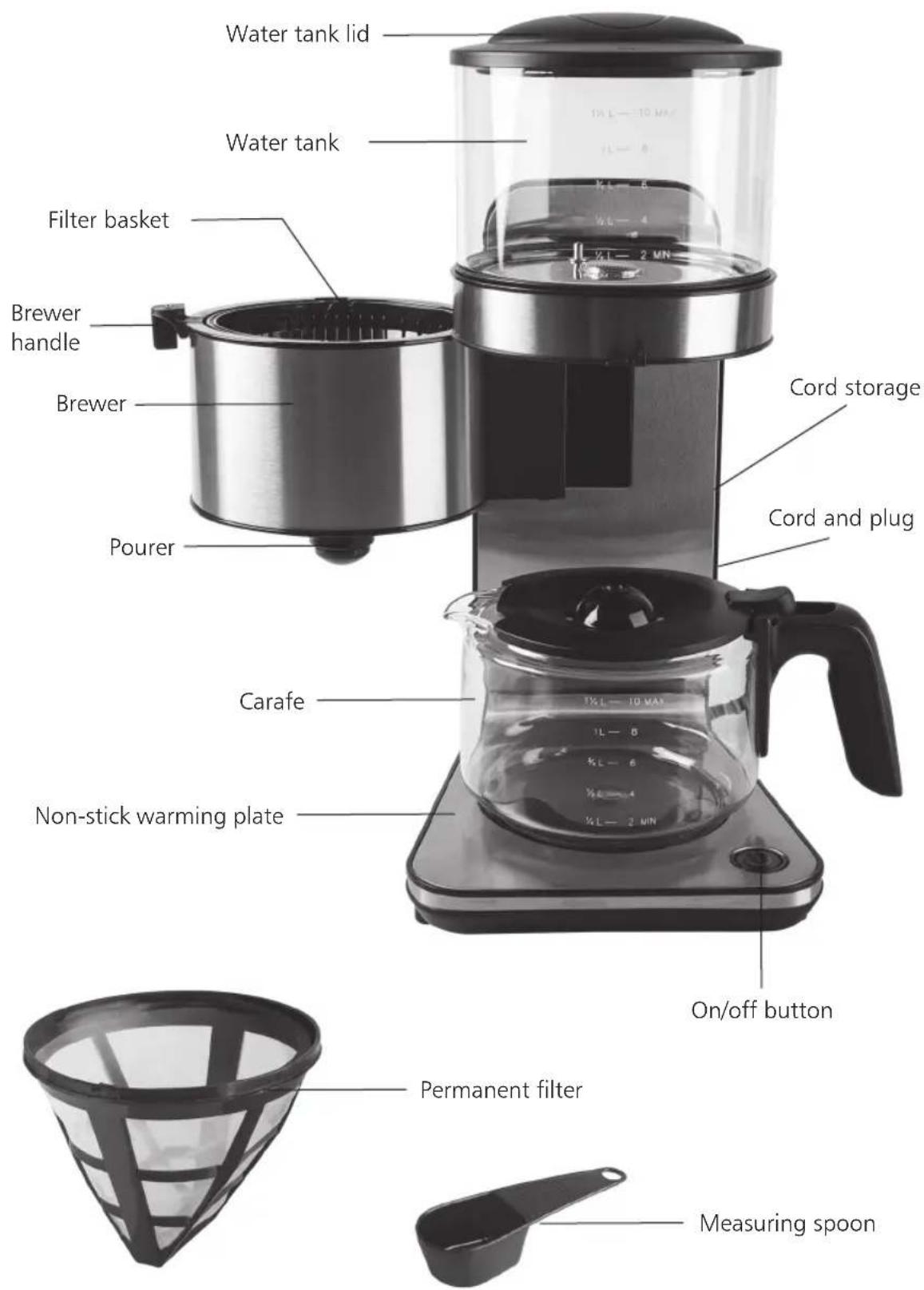

PRODUCT FEATURES

Water tank lid Water tank Filter basket Brewer handle Brewer Pourer Cord storage Cord and plug Carafe Non-stick warming plate On/off button Permanent filter Measuring spoon

SAFETY CAUTIONS

Carefully read all the instructions before using the appliance and keep in a safe place for future reference. Always follow these safety cautions when using the appliance to avoid personal injury or damage to the appliance. This appliance should be used only as described in this instruction book.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

• Make sure your electricity supply matches the voltage shown on the appliance.
• Ensure all packaging materials and any promotional labels or stickers are removed from the appliance before the first use.
• Always inspect the appliance before use for noticeable signs of damage. Do not use if damaged or has been dropped. In the event of damage, or if the appliance develops a fault contact the Lakeland customer care team on 015394 88100.
• Do not use this appliance if the lead is damaged. If the lead is damaged it must be replaced with a special lead contact the Lakeland customer care team on 015394 88100.
  • Always use the appliance on a dry, level, heat resistant surface.
• Unplug from the mains when not in use and before cleaning. Allow to cool before cleaning the appliance. To disconnect, turn the socket to "off" and remove the plug from the mains socket.
• Do not use any accessories or attachments with this appliance other than those recommended by Lakeland.
• To protect against fire, electric shock or personal injury, do not immerse cord, plug or unit in water or other liquids. Do not use near the sink.
• Do not leave the lead hanging over the edge of a kitchen table or worktop. Avoid contact between the lead and hot surfaces.
• For indoor use only.
• For domestic use only.

• This appliance should be used for preparation of drinks as described within the instructions for use that accompany it.

• Always ensure that your hands are dry before removing the plug from the mains socket. Never pull the plug out of the mains socket by its lead.

• To avoid injury or possible fire, do not cover the appliance when in use.
• Do not connect this appliance to an external timer or remote control system.
• An extension cable may be used with care. The electrical rating of the cable should be at least as great as the appliance. Do not allow the cable to hang over the edge of the worktop or touch any hot surfaces.
• This appliance complies with the basic requirements of Directives 04/108/EC (Electromagnetic Compatibility) and 06/95/EC (Safety of Domestic Electrical Appliances).
• WARNING: A cut off plug inserted into a 13amp socket is a serious safety (shock) hazard. Ensure the cut off plug is disposed of safely.
• CAUTION: The plastic bags used to wrap this appliance or the packaging may be dangerous. To avoid risk of suffocation, keep these bags out of reach of babies and children. These bags are not toys.
• Do not place the appliance on or near a gas or electric oven, or any hot surfaces.
• Do not move the appliance while it is switched on.
• Only use the carafe with this appliance, it must never be used on a hob or in a microwave. Do not put the hot carafe down onto a wet or cold surface. Do not use the carafe if it is damaged. Ensure the carafe is securely on the base before switching on the appliance.
• Ensure the carafe lid is securely in place when using the Gravity Filter Coffee Maker and when pouring coffee. Do not use force when putting the lid on the carafe.
• The water tank must be filled with water to at least the 1 14 litre/2 cup MIN' mark, before it is switched on. Do not fill beyond the 1 14 litre/10 cup MAX' mark, or the appliance may spit boiling water.

WARNING:

Do not open the water tank lid or reach into the water tank when the appliance is switched on. Ensure the tank lid is fully closed. Keep hands away from the appliance when water is heating, steam is hot. The appliance surfaces may be hot when in use or just used. Water will remain hot for a considerable time after brewing and is a scalding hazard.

USING THE GRAVITY FILTER COFFEE MAKER FOR THE FIRST TIME

- Unpack the Gravity Filter Coffee Maker. Remove all the packaging materials.

- Wash the carafe, filter basket, permanent filter, water tank lid and measuring spoon in hot soapy water, rinse and dry thoroughly.

- Before first use, fill the water tank with clean cold water to the '1¼ litre/10 cup MAX' mark. Following the instructions below, press the on/off button to start brewing, and allow the water to filter through and fill the carafe, to thoroughly clean it before brewing coffee. Do this twice.

INSTRUCTIONS FOR USE

- Fill the carafe with clean cold water, to the amount you require using the cup measurements on the side.

- Always fill beyond the '1/4 litre/2 cup MIN' mark, but do not exceed the '1 1/4 litre/10 cup MAX' mark on the carafe and the water tank, or the appliance may spit boiling water.

Note: The Gravity Filter Coffee Maker will make slightly less than the amounts on the carafe and water tank because the ground coffee will absorb somewhat.

Technical diagram showing a mechanical device with labeled parts and a piping or valve assembly

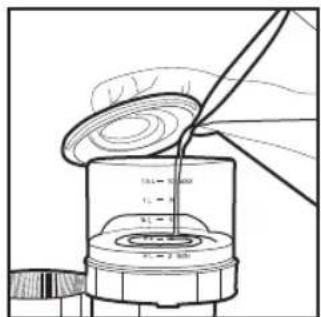

- Lift the water tank lid and pour in the water from the carafe.

Vents Front 10.5 - 15.0 MΩ 10.5 - 8

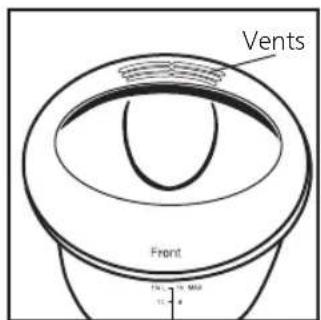

- Put the water tank lid back onto the water tank with the 'front' mark facing you and the vents towards the back of the machine. Ensure the water tank lid is fully closed.

Diagram showing a kitchen mixer with water being poured into a pot, labeled with speed and time indicators.

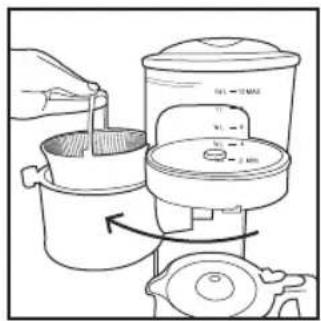

- Slide the brewer handle to the left in the direction of the arrow to open the brewer, and remove the filter basket and permanent filter.

- Add your coffee to the permanent filter, or alternatively use a paper filter. For each cup of coffee (125ml), add 7.5 grams of ground coffee into the filter, or one level measuring spoon. Do not fill beyond the 'MAX' mark inside the permanent filter.

Line drawing of a container with lid and lid removed, showing internal structure (no text or symbols)

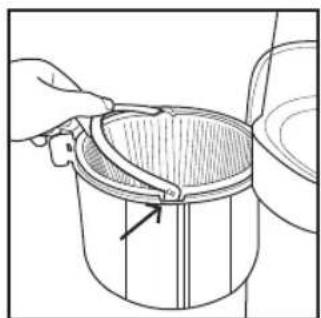

- Place the filter into the filter basket.

- Place the filter basket back inside the filter holder, it will only fit one way, with the handle folded forwards so it lies flat.

51 - 4 51 - 6 51 - 2.5km

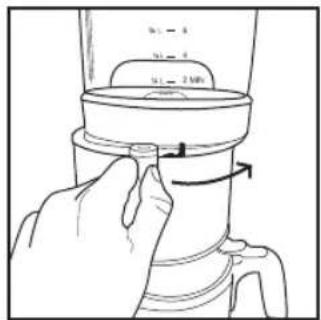

- Close the brewer by sliding it to the right until the handle clicks into place at the front of the coffee maker.

- Plug in the coffee maker and switch it on at the socket.

F: L = 10000 L: 0 K: L = 5 N: L = 4 R: L = 3000

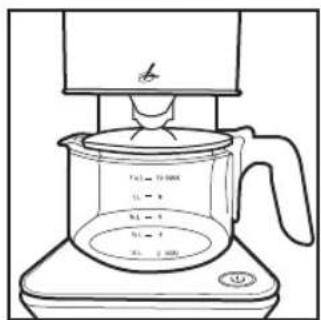

- Slot the empty carafe onto the hot plate.

- The pourer is on a spring, which will move upwards when the jug is put onto the hot plate. The hole in the carafe lid will line up with the pourer when the carafe is in position on the hot plate, so the coffee can filter straight into the carafe. Ensure the carafe is securely on the base.

- Press the on/off button, it will illuminate and the water in the tank will start to heat up.

- Once boiled, the water will automatically start to filter through the brewer into the carafe.

- Do not remove the carafe from the hot plate during brewing.

- The hot plate will keep your coffee warm for around 40 minutes after brewing has started, then automatically switch off.

- Press the ON/OFF button to turn the coffee maker off to stop the coffee brewing mid cycle; when the carafe has been emptied; or when you no longer want to keep the coffee warm. Always remove the used coffee filter from the appliance immediately after brewing.

- During brewing, condensation will form underneath the water tank lid. When brewing has finished, take off the lid to help the condensation evaporate and stop it running back into the water tank. Take care, steam/water could be hot when you take of the lid.

WARNING:

Do not open the water tank lid or reach into the water tank when the appliance is switched on. Ensure the tank lid is fully closed. Keep hands away from the appliance when water is heating, steam is hot. The appliance surfaces may be hot when in use or just used. Water will remain hot for a considerable time after brewing and is a scalding hazard.

HINTS AND TIPS

• To avoid the coffee maker overflowing, use less ground coffee when brewing decaf or flavoured coffee.
• Ground coffee does not stay fresh for as long as coffee beans. If you are using ground coffee, watch expiry dates and buy in small amounts.
• If you are grinding coffee beans, set your grinder to a fine/medium grind, and try to use the ground coffee within a week of grinding.
• Use approximately 7.5 grams of ground coffee for each cup (125ml); or one level measuring spoon.
  • Very finely ground coffee may cause the filter basket to overflow.
• Ensure you regularly clean the Gravity Filter Coffee Maker, see 'Care and Cleaning'.
  • If using paper filters, we recommend using size 4.

TROUBLESHOOTING

The following are some common problems that can occur when using the Lakeland Gravity Filter Coffee Maker. Please review the problems, their possible cause and any corrective action that should be taken.

Problem Possible cause Solution
The coffee tastes too weak. Not enough	gough ground coffee is being used.	Add more coffee to the permanent or paper filter.
Coffee is overflowing from the paper filter or filter basket.	There is too much water in the water tank.	Use the carafe to measure the amount of water you are putting into the water tank.Do not exceed the '1 14 L/10 cup MAX' mark.
The filter basket is overflowing or the coffee is brewing too slowly.	There is too much coffee in the filter.	Use less ground coffee in the filter.The coffee may be ground too finely. The coffee maker may need cleaning. The paper filter may not be in the correct position.
The coffee is not brewing or the coffee maker will not turn on.	The carafe is not on the hot plate.The water tank is empty. The coffee maker is not plugged in.	Check the carafe is on the hot plate, and the pourer is lined up with the hole in the carafe lid.Check the water tank is filled and the coffee maker is plugged in.
The coffee maker is taking a long time to brew.	The coffee maker may need cleaning.	See 'Care and cleaning', the coffee maker may need descaling.

CARE AND CLEANING

• Switch off and unplug the coffee maker from the socket before cleaning and when not in use. Always allow the coffee maker to cool down completely before cleaning.
• Before the first use and after every use, clean each part thoroughly.
• Check all parts before reassembly.
• Never immerse the coffee maker in water or any other liquid.
• To clean the outer parts of the coffee maker, wipe with a clean damp cloth and dry before storing. Do not immerse in water.
• Wash the carafe, filter basket, permanent filter, water tank lid and measuring spoon in hot soapy water, rinse and dry thoroughly. These parts are also dishwasher safe.
  • Always remove the used coffee filter from the appliance straight away after brewing.
• Store the coffee maker with the power cable loosely coiled. Never wrap it tightly around the base unit. Use the cord storage to tidy excess cord.
• Do not use steel wool, or abrasive cleaners or materials.
• If the coffee maker is not going to be used for a period of time, empty the water tank completely, by turning it upside down.

DESCALING THE COFFEE MAKER

• Bitter tasting coffee, a 'sizzling' noise during brewing, or a prolonged brewing time compared to normal indicate that the coffee maker may need descaling.
• We recommend descaling the Coffee Maker once a month or when the appliance has made 25 brews. It may need descaling more frequently in hard water areas.
• Fill the water tank with clean cold water to the '3/4 litre/6 cup' mark, then add white wine vinegar to halfway between the '1 litre/8 cup' and '1¼" litre/10 cup' marks.
• Ensure there is no coffee in the brewer.
• Place the carafe onto the hot plate.
• Press the on/off button to start brewing, allow the mixture to boil and start to filter through the coffee maker. When two thirds of the mixture has filtered through, press the on/off button again and leave the coffee maker off for 15 minutes.
• Press the on/off button again, to allow the rest of the solution to filter through.
• Run two or three more carafes of clean cold water (without vinegar) through the coffee maker, as above, allowing it to cool between cycles.

RECYCLING YOUR ELECTRICALS

Along with many other high street retailers, Lakeland has joined a scheme whereby customers can take their unwanted electricals to recycling points set up around the country.

Visit www.recycle-more.co.uk to find your nearest recycling point.

ELECTRICAL CONNECTIONS

THIS APPLIANCE MUST BE EARTHED.

This appliance is fitted with a fused three-pin plug to BS1363 which is suitable for use in all homes fitted with sockets to current specifications. If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully disposed of. To avoid an electric shock, do not insert the discarded plug into a socket.

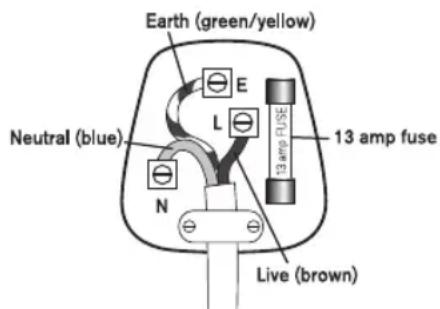

Fitting a new plug

If for any reason you need to fit a new plug, the flexible mains lead must be connected as shown here. The wires in the mains lead fitted to this appliance are coloured in accordance with the following code:

Earth (green/yellow) Neutral (blue) N E L 13 amp FUSE 13 amp fuse Live (brown)

Connect BLUE to Neutral (N)

Connect GREEN & YELLOW to Earth (E)

Connect BROWN to Live (L)

13 amp fuse to be used

If the colours of the wires in the mains lead of this appliance do not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured green and yellow MUST be connected to the terminal which is marked with the letter E (Earth) or coloured green. The wire which is coloured blue MUST be connected to the terminal which is marked with the letter N (Neutral) or coloured black. The wire which is coloured brown MUST be connected to the terminal which is marked with the letter L (Live) or coloured red.

Before refitting the plug cover, check that there are no cut or stray strands of wire inside the plug. Use a 13 amp BS1362 fuse. Only BSI or ASTA approved fuses should be used. If you are at all unsure which plug or fuse to use, always refer to a qualified electrician.

Note: after replacing or changing a fuse on a moulded plug which has a fuse cover, the cover must be refitted to the plug; the appliance must not be used without a fuse cover. If lost, replacement fuse covers can be obtained from an electrical shop. This appliance complies with the following EEC Directives: 73/23 EEC (Low Voltage Directive) and 89/336 EEC (EMC Directive).

GEBRAUCHSANWEISUNG

GRAVITY FILTERKAFFEEMASCHINE

Modern sputtering machine with clear glass and black handle, no visible text or symbols

Modell: 19700

GRAVITY KAFFEEMASCHINE VON LAKELAND

Diagram showing a kitchen mixer with water being poured into a pot, labeled with speed and distance measurements.

Line drawing of a container with lid and lid removed, showing internal structure (no text or symbols)

Alexandra Buildings, Windermere, Cumbria, UK LA23 1BQ

Tel: [phone] www.lakeland.co.uk

D Tel: [phone] www.lakeland.de
