TL-26LC740 - TV TechLine - Free user manual and instructions

Brand	TechLine
Model	TL-26LC740
Product Type	LCD TV
Screen Size	26 inches (diagonal)
Resolution	1366 x 768 pixels (HD Ready)
Aspect Ratio	16:9
Display Technology	LCD with CCFL backlight
Brightness	450 cd/m² (typical)
Contrast Ratio	1000:1 (typical)
Response Time	8 ms (typical)
Viewing Angle	178° horizontal / 178° vertical
Refresh Rate	60 Hz
Audio Output Power	2 x 6 W RMS
Connectivity	2 x HDMI, 1 x SCART, 1 x VGA (PC), 1 x YPbPr, 1 x Composite Video, 1 x S/PDIF Coaxial, 1 x Headphone
Other Features	Teletext (Fastext/TOP), Sleep Timer, Child Lock, Game Mode, AVL, 200 channel memory, Auto Power Off
Power Supply	220-240 V AC, 50 Hz
Power Consumption	80 W (typical), <1 W (standby)
Weight (approx.)	6.5 kg (without stand)
Dimensions (W x H x D) approx.	640 x 480 x 200 mm (with stand)
VESA Mount	200 x 100 mm
Accessories Included	Remote control, AAA batteries, power cord, user manual
Color	Black
Energy Class	B (estimated)

Frequently Asked Questions - TL-26LC740 TechLine

How do I connect my DVD player to the TV?

You can connect via HDMI, SCART, or component (YPbPr). For HDMI, simply plug the cable into HDMI 1 or HDMI 2. For SCART, use a SCART cable and the TV will automatically switch to AV mode. For component, connect the Y, Pb, Pr cables to the side inputs and use an audio cable for sound.

How can I reset the TV to factory settings?

In the Picture menu, select 'Reset' and press OK. This will restore picture settings to default. For a full reset, you can re-run the first time installation via the Install menu.

The remote control is not working. What should I do?

First, check if the batteries are exhausted (replace with new AAA batteries). If still not working, try pointing directly at the TV sensor. You can also use the buttons on the TV itself for basic functions until you replace the remote.

How do I use the teletext function?

Press the 'Teletext/Mix/PAT' button on the remote to enter teletext. Use numeric buttons to select pages, colored buttons for fast text, and 'INFO' to reveal hidden information. Press the Teletext button again to mix with the TV picture or exit.

Can I mount this TV on a wall?

Yes, the TV is VESA compatible (200 x 100 mm). Use a wall mount kit designed for 26-inch LCD TVs. Ensure all cables are connected before mounting. The TV should be securely attached following the installation instructions.

What should I do if there is no picture but sound is working?

Check if the correct input source is selected. Press the 'SOURCE' button to cycle through inputs. Also ensure the aerial or cable is properly connected. If using an external device, check its cables and power.

How do I set the sleep timer?

Press the 'Sleep' button on the remote repeatedly to set the timer from Off to 120 minutes in 10-minute steps. The TV will automatically go to standby when the timer expires.

Why is the picture distorted or zoomed incorrectly?

Press the 'SCREEN' button to cycle through zoom modes (Auto, 16:9, 4:3, etc.). For a correct aspect ratio, use 'Auto' which reads WSS signals. If that fails, manually select the appropriate mode for your content.

The TV turns off after 5 minutes with no signal. Is this normal?

Yes, this is a power-saving feature. When no valid signal is detected for 5 minutes, the TV automatically switches to standby. This is normal and can be disabled if desired (not recommended for safety).

How do I clean the LCD screen?

Unplug the TV. Use a soft, dry cloth to gently wipe the screen. Do not use liquid or aerosol cleaners, as they may damage the coating. For stubborn dirt, slightly dampen the cloth with water (not wet).

USER MANUAL TL-26LC740 TechLine

Illustration of a computer monitor with bidirectional arrows indicating orientation (no text or symbols)

Sicherheitshinweise

Two identical line-drawn trash can symbols with crossed x-marks, no text or labels present

Weather and household climate symbol diagram showing solar, rain, and household items with crossed lines indicating no heating or cooling conditions.

Diagram of a device's internal structure with numbered components and directional arrows indicating movement or flow.

Deutsch - 5 -

Illustration of a flat-screen computer monitor with blank screen (no text or symbols)

Diagram of an electronic device rear panel with labeled components and status indicators

MENU - + PCH + TV/AV ① ② ③ ④

Standby-Taste1.

TV/AV-Taste2.

Tasten "—" / "", in das

Technical diagram of a device rear panel with numbered components and a close-up view of the front panel.

Diagram of an electronic device rear panel showing ports and connectors (no text or symbols visible)

Illustration of a desktop computer setup with two cables and a laptop, no text or symbols present.

Illustration of three connected cable connectors and a device unit (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram showing three-step assembly of a remote control panel with labeled components and an arrow indicating the process.

AUDIO German+Nicam Stereo

AUDIO-AUSGANGSLEISTUNG (W _RMS. ) (10% THD) 2 x 6

Safety Precautions 24

Power Source 24

Power Cord 24

Moisture and Water 24

Cleaning....25

Heat and Flames 25

Lightning 25

Replacement Parts 25

Servicing 25

Waste Disposal 25

Information for Users on Disposal of old

Equipment and Batteries 25

For more information, please contact the local authority or the dealer where you purchased

the product. 25

Disconnecting the Device 25

Headphone Volume 25

Installation....25

LCD Screen 25

Warning 26

Safety Instructions for the Operation of the Appliance 26

Overview of the Remote Control 27

LCD TV and Operating Buttons 28

Viewing the Connections- Back Connectors ..... 28

Viewing the Connections - Side Connectors ..... 29

Power Connection 29

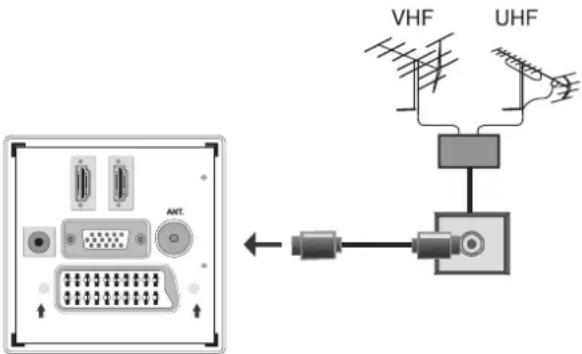

Aerial Connection 29

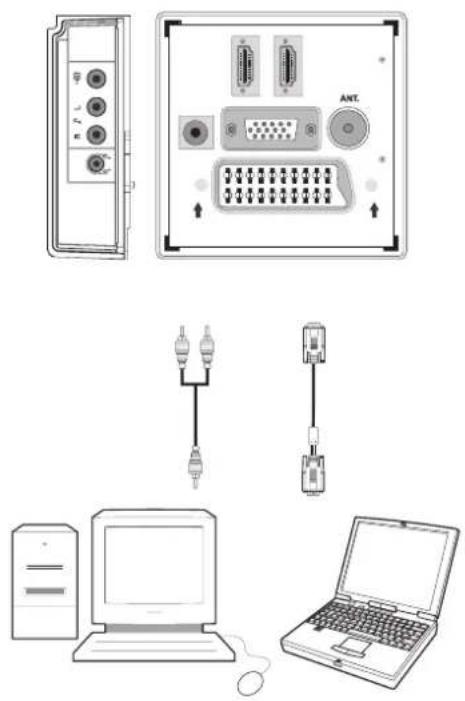

Connecting the LCD TV to a PC 30

Connecting to a DVD Player.... 30

Using Side AV Connectors 31

Connecting Other Equipment via Scart 31

Inserting Batteries into the Remote Control

Handset 31

Switching the TV On/Off 31

To Switch the TV On 31

To Switch the TV Off 31

First Time Installation.... 32

Input Selection 32

Basic Operations 32

Operation with the Buttons on the TV 32

Analogue TV Menu System 33

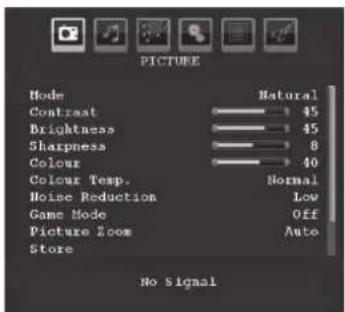

Picture Menu.... 33

Sound Menu 33

Feature Menu 34

Install Menu 35

Source Menu 37

PC Mode Menu System.... 37

PC Position Menu 37

Displaying TV Information 37

Mute Function 37

Picture Mode Selection.... 38

Freezing Picture 38

Zoom Modes 38

Auto 38

16:9 38

4:3 38

Panoramic....38

14:9 38

Cinema 38

Subtitle 38

Zoom....38

Teletext 39

Tips 39

Image Persistence 39

No Power 39

Poor Picture 39

No Picture 39

Sound 39

Remote Control.... 39

Input Sources.... 39

Appendix A: PC Input Typical Display Modes ..... 40

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) 4

Specifications 42

English -23-

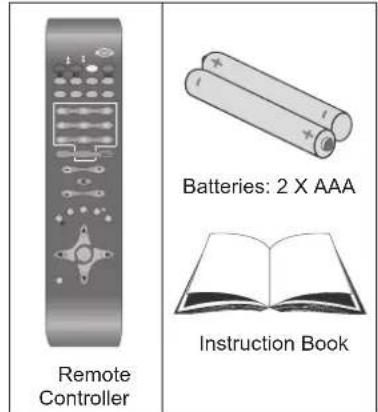

Accessories

Features

• Remote controlled colour LCD TV.
• HDMI connectors for digital video and audio. This connection is also designed to accept high definition signals.
  • 200 programmes from VHF, UHF.
• OSD menu system.
• Scart socket for external devices (such as video video games, audio set, etc.).
• Stereo sound system.
• Teletext, fastext, TOP text.
  • Headphone connection.
  • Automatic programming system.
• Forward or backward manual tuning.
• Sleep timer.
• Child lock.
  • Automatic sound mute when no transmission.
• NTSC playback.
  • AVL (Automatic Volume Limiting).
• When no valid signal is detected, after 5 minutes the TV switches automatically to standby mode.
• PLL (Frequency Search).
• PC input.
• Plug&Play for Windows 98,ME,2000,XP, Vista, Windows 7.
• Game Mode

Introduction

Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this manual thoroughly.

Please do keep this manual in a safe place for future references.

This set is intended for private use only.

Preparation

For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.

Use this device in moderate climates.

Illustration of a computer monitor with bidirectional arrows indicating sound or motion (no text or symbols)

Safety Precautions

Please read the following recommended safety precautions carefully for your safety.

Power Source

The TV set should be operated only from a 220-240 V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause fire or give you an electric shock. When it is damaged and needs to be replaced, it should be done by qualified personnel.

Moisture and Water

Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with liquids.

such as flower vases, on top. Avoid from dripping or splashing.

If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Cleaning

Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.

Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

Heat and Flames

The set should not be placed near to open fl ames and sources of intense heat such as an electric heater. Ensure that no open flame sources, such as lighted candles, are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine, fire or the like.

Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that the service technician has used replacement parts, which are specified by the manufacturer or have the specifications as the original one. Unauthorized substitutions may result in fire, electrical shock or other hazards.

Servicing

Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock.

Waste Disposal

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.
• Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environment friendly manner. Find out about the legal regulations which apply in your area.
• Cold cathode fluorescent lamp in LCD PANEL contains a small amount of mercury; please follow the local laws or regulations for disposal.

Information for Users on Disposal of old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product

Two identical diagrams of a trash bin with diagonal lines crossing each other, no text or symbols present.

or battery, please consider the collection systems or facilities for appropriate recycling.

For more information, please contact the local authority or the dealer where you purchased the product.

Disconnecting the Device

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

Headphone Volume

Excessive sound pressure from earphones and headphones can cause hearing loss.

Installation

To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).

LCD Screen

The LCD panel is a very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.

English - 25 -

Warning

Do not leave your TV in standby or operating mode when you leave your house.

Weather warning diagram showing a computer screen with raindrops, sun, and household items below, crossed out by a diagonal line.

Safety Instructions for the Operation of the Appliance

If fixed images are displayed for a period of more than 2 hours continuously, it may result in the outline of the images that were displayed too long to stay visible on the screen, i.e. permanent 'afterimages' remain on the screen.

The same applies, if for a period of more than 2 hours

• an unchanged background
  • Logos, video games, computer pictures, Teletext
• a non screen fi lling format (e.g. a 4:3-format), is displayed.

Note:

This appliance is not built for the long-term rendering or replay offixed images, including Logos, video games, computer pictures, Teletext and non screen filling formats.

Through rendering or replay of fixed images, Logos, video games, computer pictures, Teletext and non screen filling formats, the created permanent 'afterimages' cannot be undone. They do not represent an operating error and are not covered by the manufacturers warranty.

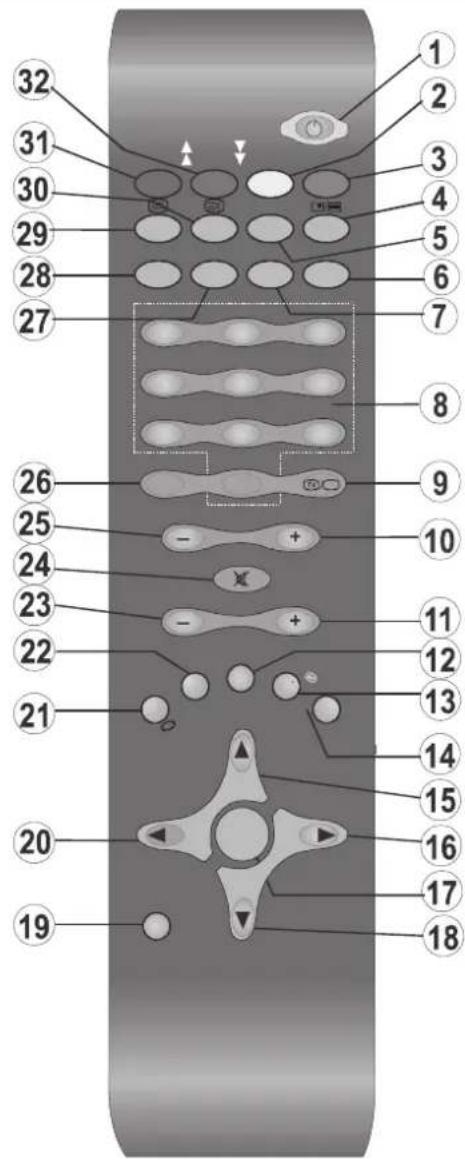

Overview of the Remote Control

Standby1.

Yellow / Feature menu 2.

Blue / Install menu3.

No function4.

No function5.

Sleep timer6.

TXT subtitle7.

Numeric buttons8.

TV button9.

1. Volume up

2. Programme up

3. AV / Source selection

4. Info / Reveal (in TXT mode)

5. Return / Index page (in TXT mode)

6. Cursor up

7. Cursor right /Subpage (in TXT mode)

8. OK / Freeze picture / Hold (in TXT mode)

9. Cursor down

Menu on-off19.

1. Cursor left

2. Previous Programme

3. Picture mode selection

4. Programme down

5. Mute

6. Volume down

No function26.

1. Mono-Stereo / Dual I-II

2. Image size / Expand (in TXT mode)

29.Teletext / Mix / PAT

1. Update (in TXT mode)

2. Red / Sound menu

3. Green / Picture menu

Diagram of a device's internal components with numbered labels pointing to various functions or states.

English - 27 -

LCD TV and Operating Buttons

FRONT and REAR VIEW SIDE VIEW Control Buttons

Line drawing of a flat-screen computer monitor (no text or symbols)

Diagram of a computer monitor layout with labeled ports and connectors

MENU + - + + - PICH + TV/AV ④ ③ ② ①

Standby button1.

TV/AV button2.

Programme Up/Down 3.

buttons

Volume Up/Down buttons4.

Note: Press “▲+” /“-” buttons at the same time to view main menu.

Viewing the Connections- Back Connectors

SCART socket inputs or outputs for external devices.1.

Connect the SCART cable between SCART socket on TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).

Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.

PC Input is for connecting a personal computer to the TV set. 2. Connect the PC cable between the PC INPUT on the TV and the PC output on your PC. Please do not connect a device to YPbPr socket while using PC input..

Diagram of a computer ventilation panel with labeled ports and connectors

1. S/PDIF Coaxial Out outputs digital audio signals of the currently watched source.
2. RF Input connects to an antenna or a cable.

Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages.

1. HDMI 2: HDMI input
2. HDMI 1: HDMI input

HDMI Input is for connecting a device that has an HDMI socket.

Your LCD Television is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 480i, 480p, 576p, 576i, 720p, 1080i, 1080p signals. No sound connection is needed for an HDMI to HDMI connection.

When you use the wall mount kit (optional) with the LCD TV, we would definitely recommend to plug all your cables into the back of the LCD before mounting to the wall.

English - 28 -

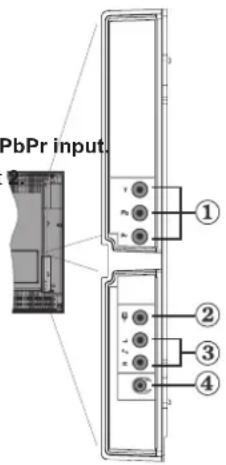

Viewing the Connections - Side Connectors

1. Component Video Inputs (YPbPr) are used for connecting component video. You can connect the component video and audio sockets with a device that has component output. Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and the component video outputs of your device. While connecting, be sure that the letters on your TV, "Y", "Pb", "Pr" correspond with your device's connectors.

IMPORTANT: Please do not connect a device to PC socket while using YPbPr input

Video Input is used for connecting video signals of external devices. Connect the video cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on your device.

Audio Inputs are used for connecting audio signals of external devices. 3. Connect the audio cable between the AUDIO INPUTS on the TV and the AUDIO OUTPUT jacks on your device.

Also to enable PC/YPbPr sound connection in such a case, use an appropriate audio cable between the connected device's audio outputs and the TV's audio inputs

Note: If you connect a device to the TV via the VIDEO or PC/YPbPr cable you should also connect your device with an audio cable to the AUDIO INPUTS of the TV to enable audio.

Headphone jack is used for connecting an external headphone to the 4. system. Connect to the HEADPHONE jack to listen to the TV from headphones.

PbPr input. ① ② ③ ④

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.

• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.
• Plug the power cable to the mains socket outlet.

Aerial Connection

- Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.

VHF UHF ANT

English - 29 -

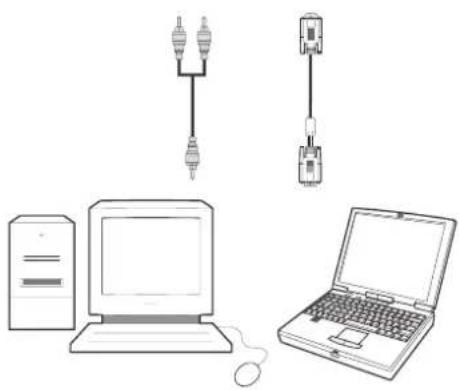

Connecting the LCD TV to a PC

For displaying your computer's screen image on your LCD TV, you can connect your computer to the TV set.

• Power off both computer and display before making any connections.
• Use 15-pin D-sub display cable to connect a P to the LCD TV. Use an audio cable between audio inputs of the TV (side) and audio output of your PC to enable sound connection.
• When the connection is made, switch to PC source. See "Input selection" section.
• Set the resolution that suits your viewing requirement. Resolution information can be found in the appendix parts.

Diagram showing connected devices including a server, network interface, and laptop with labeled ports and cables.

Connecting to a DVD Player

If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections.

Note: Cables shown in the illustration are not supplied.

• If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD player as illustrated below, switch to HDMI source. See, "Input Selection" section.
- Most DVD players are connected through COMPONENT SOCKETS. Use a component video cable to connect video input. To enable sound connection, use AUDIO IN located side of the TV (YPbPr cable is not supplied).
- When the connection is made, switch to YPbPr source. See, "Input selection" section.
- You may also connect through the SCART socket. Use a SCART cable as shown below.

Diagram showing three electronic devices connected to a central device, with no visible text or symbols.

Note: These methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.

Using Side AV Connectors

You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.

- For connecting a camcorder, connect to the VIDEO IN socket and the AUDIO SOCKETS. For selecting the related source, see the section "Input selection" in the following parts.

• To listen the TV sound from headphones, connect to the HEADPHONE jack of the TV

Diagram showing audio signal transmission via headphones and a video camera, with four input lines labeled in Chinese.

Connecting Other Equipment via Scart

Most devices support SCART connection. You can connect a; DVD recorder, a VCR or a decoder to your LCD TV by using the SCART socket. Note that cables shown in the illustration are not supplied. Power off both the TV and the devices before making any connections.

For more information, refer to your device's own instruction book.

Inserting Batteries into the Remote Control Handset

- Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.

- Insert two AAA/R3 or equivalent type batteries inside. Place the batteries in the right directions and replace the battery cover.

Diagram showing three steps of a remote control device with labeled components and an arrow indicating the process.

Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries.

Switching the TV On/Off

To Switch the TV On

• Connect the power cord to the 220-240V AC 50 Hz.
• Press STANDBY switch. Then the standby LED lights up.
  • To switch on the TV from standby mode either:
• Press the ⏻ button, P+ / P- or a numeric button on the remote control.
• Press the -P/CH or P/CH+ button on the TV. The TV will then switch on.

Note: If you switch on your TV via standby button on the remote control, the programme/source that you were watching last will be reselected.

By either method the TV will switch on.

To Switch the TV Off

• Press the ⏻" button on the remote control or press the STANDBY switch, so the TV will switch to standby mode.
  • To power down the TV completely, unplug the power cord from the mains socket.

English - 31 -

First Time Installation

When the TV set is operated for the first time, the following menu screen will be displayed:

PROGRAM TABLE Language English Country OK TXT Language Most PLEASE CHECK ANTERNA CABLE AUTO. PROGRAMMING SYSTEM - OK Cancel

Select your Country, Language and Text language by using "◀" or "▶" and "▼" or "▼" buttons. Press OK or RED button to continue. To cancel, press the BLUE button.

The following menu will be displayed during the automatic tuning:

After APS is finalized, the programme table will apply on the screen. In the programme table you will see the programme numbers and names assigned to the programmes.

If you do not accept the locations and/or the program names, you can change them via the program table.

Do not turn off the TV while initializing time installation.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources.

- Press "SOURCE" button on your remote control for directly changing sources.

or

- Select "Source" option from the main menu by using "◀" or "▶" button. Use then "▼" or "▲" button to highlight an input and press▶" button to select.

Note: You can mark desired source options by pressing the OK button. Therefore, when "SOURCE" button is pressed, only the marked source options will be available (except for the TV source).

SOURCE : TV TV EXT-1 FAV HDMI-1 HDMI-2 YF/DPs PC-VGA

Basic Operations

You can operate your TV using both the remote control and onset buttons.

Operation with the Buttons on the TV Volume Setting

- Press - ▲ button to decrease volume or + button to increase volume, so a volume level scale (slider) will be displayed on the screen.

Programme Selection

- Press "P/CH+" button to select the next programme or "P/CH-" button to select the previous programme.

Viewing Main Menu

-Press = △" / "▲ + " buttons at the same time to view main menu. In the Main menu select sub-menu using "P/CH -" or "P/CH +" buttons and enter the sub-menu using "—▲" or "▲ + " buttons. To learn the usage of the menus, refer to the menu system sections.

AV Mode

- Press the "TV/AV" button in the control panel on the TV to switch between AV modes.

Operation with the Remote Control

- The remote control of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.

English -32-

- Functions of the menu system are described in the following sections.

Volume Setting

- Press "V+" button to increase the volume. Press "V-" button to decrease the volume. A volume level scale (slider) will be displayed on the screen.

Programme Selection (Previous or Next Programme)

• Press "P - " button to select the previous programme
• Press "P+" button to select the next programme.

Programme Selection (Direct Access)

• Press numeric buttons on the remote control to select programmes between 0 and 9. The TV will switch to selected programme. To select programmes between 10-199, press the numeric buttons consecutively
• Press directly the programme number to reselect sing digit programmes

Menu System

Picture Menu

PICTURE Mode Natural Contrast 45 Brightness 45 Sharpness 8 Colour 40 Colour Temp. Noise Reduction Normal Game Mode Low Picture Zoom Off Store Auto No signal

Mode

For your viewing requirements, you can set the related mode option.

Press “▼” or “▲” button to select Mode. Press

" or "button to choose from one of these options: Cinema, Dynamic and Natural.

Brightness/Contrast/Colour/Sharpness/Hue

Press “▼” or “▲” button to select the desired option. Press “◀” or “▶” button to set the level.

Note: Hue option can only be visible when the TV receives an NTSC signal.

Colour Temp

Press "▼" or "▲" button to select Colour Temp. Press "◀" or "▼" to choose from one of these options: Cool, Normal and Warm.

Note :

- Setting Cool option gives white colours a slight blue stress.

• Setting Warm option gives white colours a slight red stress.
• For normal colours, select Normal option.

Noise Reduction

If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount.

Press "▼" or "▲button to select Noise Reduction. Press "◀" or "▶" to choose from one of these options:

Low, Medium, High or Off.

Game Mode (optional)

Select Game Mode by pressing ▼" or "▲button. Use "◀" or "▶button to set Game Mode as On or Off. When Game Mode is set to On, specific game mode settings, which are optimized for better video quality, will be loaded.

Also; Picture Mode, Contrast, Brightness, Sharpness, Colour and Colour Temp settings will be invisible and disabled while Game Mode is on.

Note :

Picture mode selection button on the remote control will have no function while Game Mode is on.

Picture Zoom

Select Picture Zoom by pressing "or "▲ button.

Use "◀" or "▶" buttons, to change picture zoom to Auto, 16:9, 4:3, Panoramic, 14:9, Cinema, Subtitle or Zoom.

Store

Press "▼" or "▲button to select Store. Press "► or OK button to store the settings. "Stored..." will be displayed on the screen.

Reset

Press "▼" or "▲" button to select Reset. Press "◀" or "▶" or OK button to reset the picture modes to factory default settings.

Sound Menu

SOUND Volume 20 Equalizer Balance 0 Headphone Sound Node Mono AVL On Store

English - 33 -

Volume

Press ▼" or "▲button to select Volume . Press "◀ or "▶" button to change the level of the Volume.

Equalizer

Press "▼" or "▲button to select Equalizer. Press "►" button to view equalizer menu.

SOUND Equalizer Preset 120 Hz 500 Hz 1.5 kHz 5 kHz 10 kHz Store User 0 0 0 0 0 0 0

Press ◀ or ▶ button to change the preset. In equalizer menu, the preset can be changed to Music Movie, Speech, Flat, Classic and User.

Select the desired frequency by pressing ▼ or "▲ button and increase or decrease the frequency gain by pressing "◀" or "▶" button.

Press the "M" button to return to the previous menu.

Note : Equalizer menu settings can be changed only when the Equalizer Mode is in User.

Balance

This setting is used for emphasizing left or right speaker balance.

Press "▼" or "▲" button to select Balance. Press "◀" or "▶" button to change the level of the balance. Balance level can be adjusted between -32 and 32.

Headphone

Press ▼" or "▲button to select Headphone . Press "▶" button to view the headphone menu.

Headphone sub-menu options are described below:

Volume

Press ▼ or "▲button to select Volume . Press ▶" button to increase headphone volume level. Press "◀" button to decrease headphone volume level. Headphone volume level can be adjusted between 0 and 63.

Sound Mode

Press ▼" or "▲" button to select Sound Mode. Using "◀" or "▼" button, you can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.

AVL

Automatic Volume Limiting (AVL) function adjusts the sound to obtain fi xed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).

Press "▼" or "▲button to select AVL. Press "◀or "▶" button to set the AVL as On or Off.

Store

Press "▼" or "▲" button to select Store. Press " " ▶ or OK button to store the settings. "Stored..." will be displayed on the screen.

Feature Menu

FEATURE Sleep Timer Off Child Lock Off Language English Default Zoom 16:9 Blue Background On Menu Background 0 Backlight Auto Menu Timeout 60 sec TXT Language Rest Ext Out On

Sleep Timer

Press "▼" or "▲button to select Sleep Timer. Use "◀" or "▶button to set the Sleep Timer.

The timer can be programmed between Off and 120 minutes in steps of 10 minutes.

If Sleep Timer is activated, at the end of the selected time, the TV goes automatically to standby mode.

Child Lock

Press "▼" or "▲button to select Child Lock.

Use "◀" or "▶" button to set the Child Lock On or Off. When On is selected, the TV can only be controlled by the remote control handset. In this case the control panel buttons will not work.

Hence, if one of those buttons is pressed, Child Lock On will be displayed on the screen when the menu screen is not visible.

Language

Press "▼" or "▲button to select Language. Use "◀" or "▶button to select the Language."

Default Zoom

While zoom mode is set as AUTO, the TV will set the zoom mode in accordance with the signal of the broadcast. If there is no WSS or aspect ratio information, the TV will then use this setting to adopt. Press "▼" or "▲button to select Default Zoom. You

can set Default Zoom to Panoramic, 16:9, 4:3 or 14:9 by pressing◄" or ►button.

Blue Background

If the signal is weak or absent, the TV will automatically change to a blue screen. To enable this, set Blue Background to On.

By pressing "▼" or "▲button, select Blue Background. Press◄" or ►button to set Blue Background as On or Off.

Menu Background

Press ▼" or "▲button to select Menu Background . You can set menu background level by pressing "◀" or "▶button.

Backlight

This setting controls the backlight level. Select Backlight by pressing▼" or "▲" button. Press◀" or "▶" button to set Backlight to Auto, Medium, Maximum or Minimum.

Menu Timeout

To set a specific display timeout for menu screens, set a value for this option.

Press "▼" or "▲" button to select Menu Timeout. Use "◀" or "▶" button to change menu timeout to 15 sec, 30 sec or 60 sec.

Teletext Language

Press ▼" or "▲button to select Teletext Language . Use◀" or ►" button to change Teletext Language to West, East, Turk/Gre, Cyrillic, Arabic or Persian.

HDMI PC Full Mode (optional)

If you want to view PC screen in HDMI mode by using external connection, HDMI PC FULL MODE option should be On to adjust the screen ratio correctly. This item might be inactive in some resolutions.

Note: If you connect an HDMI device and switch the TV to HDMI mode, this feature will be visible (except for 1080i/1080P resolution).

Full Mode (optional)

If you connect a device via HDMI or YPbPr connectors and set 1080i/1080P resolutions, Full Mode item will be visible. You can set Full Mode as 1:1 or Normal by using “◀” or “▶”. If you select 1:1, screen ratio will be adjusted correctly. If you set Normal, screen ratio may expand.

Ext Out

Press "▼" or "▲button to select Ext Out. Use " "or "►" button to set the Ext Out as On or Off.

Note :

For copying from a DVD or VCR device, you should choose desired source from source menu and turn "On" to EXT Out from feature menu.

Install Menu

INSTALL Program 1 Band C Channel 5 Colour System Auto Sound System BG Fine Tune 0 Search 175.25 MHz Store

Program

Press "▼" or "▲button to select Program. Use "◀" or "▶" button to select the program number. You can also enter a number using the numeric buttons on the remote control. There are 200 programme storage between 0 and 199.

Band

Band can be selected either C or S. Press "◀" or "▶" button to set Band.

Channel

Channel can be changed by ◀" or ▶" button or numeric buttons.

Colour System

Press ▼" or ▲" button to select Colour System. Use "◀" or ▶" button to change the colour system to PAL, PAL 60, SECAM or AUTO.

Sound System

Press ▼" or "▲" button to select Sound System. Press "◀" or "▼" button to change the sound system to BG, DK, I, L or L'.

Fine Tune

Press "▼" or "▲button to select Fine Tune. Press "◀" or "▼" button to adjust the tuning.

Search

Press "▼" or "▲" button to select Search. Use " "◀ or "▼" button to start programme searching. You can also enter the desired frequency using the numeric buttons while Search item is highlighted.

Store

Press "▼" or "▲button to select Store. Press "► or OK button to store the settings. "Stored..." will be displayed on the screen.

Install Menu in AV Modes

The following screen appears in the install menu when the TV is in AV modes. Note that limited options will

English - 35 -

be available. Switch to TV mode for viewing complete version of the Install menu.

INSTALL Colour System Store Auto

Colour System

Press ▼" or "▲ button to select Colour System . Use "◀" or "▼" button to change the colour system to PAL, SECAM, PAL60, AUTO, NTSC 4,43 or NTSC 3,58.

Store

Press ▼" or "▲" button to select Store Program. Press "▶" or "OK" button to store the settings. "Stored..." will be displayed on the screen.

Program Table

Select Program Table by pressing▼ or "▲" button. Press "▶" to display Program Table:

PROGRAM TABLE P001 ---- P011 ---- P002 ---- P012 ---- P003 ---- P013 ---- P004 ---- P014 ---- P005 ---- P015 ---- P006 ---- P016 ---- P007 ---- P017 ---- P008 ---- P018 ---- P009 ---- P019 ---- P010 ---- P020 ---- ■ Name ■ Move ■ Delete ■ APS

By moving the cursor in four directions you can reach 20 programmes in the same page. You can scroll the pages up or down by pressing the navigation buttons to see all the programmes in TV mode (except for the AV modes). By cursor action, programme selection is done automatically.

Name

To change the name of a programme, select the programme and press the RED button.

The first letter of the selected name will be highlighted. Press "▼" or "▲button to change that letter and "◀" or "▶" button to select the other letters. By pressing the RED button, you can store the name.

Move

Select the programme which you want to move by navigation buttons. Press the GREEN button. By navigation buttons move the selected programme to the decided programme space and press the GREEN button again.

Delete

To delete a programme, press the YELLOW button. Pressing the YELLOW button again erases the selected programme from the programme list, and the following programmes shift one line up.

APS (Auto Programming System)

When you press the BLUE button for starting automatic tuning, Auto Programming System menu will appear on the screen:

PROGRAM TABLE Country OK WARNING! All Prestored Programs will be deleted - Ok - Cancel

Press" or "button to select your country. If you want to exit from A.P.S. function, press the BLUE button. When you press OK or RED button for starting automatic tuning, all stored programmes will be erased and the TV will search for available channels. During the search, the following OSD will be displayed:

Whenever you press the BLUE button, APS function stops and Program Table appears on the screen. If you wait until the end of APS, Program Table will be displayed with the programmes found and located.

Source Menu

Press ▼” or “▲” button and select the sixth icon. Then press ▶” or “OK” button. Source menu appears on the screen:

SOURCE : TV TV EXT-1 FAV HDMI - 1 HDMI - 2 YPbP+ PC - VGA

In source menu, highlight a source by pressing▼ or "▲" button and switch to that mode by pressing ▶ button. Source options are: TV, EXT-1, FAV, HDMI-2, YPbPr and PC-VGA.

Note: Once you have connected optional equipment systems to your TV, you should select the required input to view pictures from that source.

PC Mode Menu System

See "Connecting the LCD TV to a PC" section for connecting a PC to the TV set.

For switching to PC source, press "SOURCE" button on your remote control and select PC input. You can also use "Source" menu to switch to PC mode.

Note that PC mode menu settings are available only while the TV is in PC source.

PC Position Menu

Select the first icon by pressing "◀" or "▶" button. PC Position menu appears on the screen.

PC POSITION Autoposition H Position 50 V Position 33 Phase 31 Dot Clock 50 No Signal

Autoposition

If you shift the picture horizontally or vertically to an unwanted position, use this item to put the picture into correct place automatically. This setting therefore automatically optimizes the display.

Select Autoposition item by using ▼ or “▲buttons. Press “OK” or “◀”, “▶” button.

Warning : Please ensure auto adjustment is performed with a full screen image to ensure best results.

H (Horizontal) Position

This item shifts the image horizontally to right hand side or left hand side of the screen.

Select H Position item by using "▼" or "▲button. Use "◀" or "▶" button to adjust the value.

V (Vertical) Position

This item shifts the image vertically towards the top or bottom of the screen.

Select V Position item by using “▼” or “▲button. Use “◀” or “▶” button to adjust the value.

Phase

Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.

Select Phase item by using ▼" or "▲buttons. Use "◀" or "▶button to adjust the value.

Dot Clock

Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Select Dot Clock item by using ▼ or “▲buttons. Use “◀” or “▶” button to adjust the value.

PC Picture Menu

For adjusting PC picture items, do the following: Press "◀" or "▶" button to select the second icon. Picture menu appears on the screen.

Brightness, Contrast, Colour and Colour Temperature settings in this menu are identical to settings defined in TV picture menu under "Analogue TV Menu System".

Note: If you set Colour Temp as User, you can define R, G, B settings manually.

Sound,Feature and Source settings are identical to the settings explained in Analog Tv menu system.

Displaying TV Information

Programme Number, Programme Name, Sound Indicator and Zoom Mode information is displayed on the screen when a new programme is entered or "INFO" button is pressed.

Mute Function

Press "X" button to disable sound. Mute indicator will be displayed in the upper side of the screen.

English - 37 -

To cancel mute, there are two alternatives; the first one is pressing the "×" button and the second one is increasing the volume level.

Picture Mode Selection

By pressing PRESETS button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic, Natural and Cinema.

Note: This feature cannot be set while in PC mode.

Freezing Picture

You can freeze the picture on the screen by pressing the "OK" button on the remote control. Press the "OK" button to freeze picture. Press again to quick freeze mode.

Note: This feature will not be available while in PC mode or watched movie from DVI source.

Zoom Modes

You can change the aspect ratio (image size) of the for viewing the picture in different zoom modes.

Press "SCREEN" button to directly change the zoom mode.

Available zoom modes are listed below.

Note:

In YPbPr and HDMI modes, while in 720p-1080i resolutions, only 16:9 mode is available.

Zoom mode cannot be changed while in PC mode.

Auto

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode according to the WSS signal.

- When the AUTO mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, change to another ZOOM mode manually.

16:9

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen

- For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape.

4:3

Use to view a normal picture (4:3 aspect ratio) as this is its original size

Panoramic

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural. The top and bottom of the picture are slightly cut off.

14:9

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Cinema

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

Subtitle

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

Zoom

This option zooms to the picture. Note: You can shift to screen up or down by pressing “▼” / “▲buttons while picture zoom is selected as panaromic, 14:9, Cinema or Subtitle.

Teletext

Teletext system is available if your broadcaster supports

Teletext function buttons are listed below:

“=” Teletext / Mix / PAT Mode

Activates teletext mode when pressed once.

Press again to place the teletext screen over the programme (mix). Pressing this button again will split the screen into two windows, one displaying the teletext and the other displaying the current channel. Pressing again will quit the teletext mode.

"RETURN" - Index

Selects the teletext index page.

“▶” Subcode Pages

Selects subcode pages if available when the teletext is activated.

"INFO" - Reveal

Shows hidden information (e.g. solutions of games).

"SCREEN" - Expand

Press once to enlarge top half of the page, press again to enlarge the bottom half of the page. Press again to revert back to normal size.

P+ / P- and numbers (0-9)

Press to select a page.

Note: Most TV stations use code 100 for their index pages.

Coloured Buttons

You can use coloured buttons in accordance with the displayed functions. When TOP text system available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when FASTEXT transmission is present.

Teletext Subtitle

If you press "SUBTITLE" button, teletext subtitle information will be displayed on the bottom right part of the screen (if available). You can set the desired option by highlighting it using "▼" or "▲button and then by pressing OK button.

Tips

Image Persistence

Please note that ghosting may occur while displaying a persistent image. LCD TVs' image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture for extended periods.

No Power

If your TV system has no power, please check the main power cable and connection to the mains socket outlet.

Poor Picture

Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.?

Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please retune the channels. The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

No Picture

Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer.

No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.

Sound

You can not hear any sound. Did you perhaps interrupt the sound, pressing the "×" button?

Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound Menu .

Remote Control

Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons at the bottom of the TV.

Input Sources

If you cannot select an input source, it is possible that no device is connected.

Check the AV cables and connections if you have tried to connect a device.

English - 39 -

Appendix A: PC Input Typical Display Modes

The display has a maximum resolution of 1600 X 1200. The following table is an illustration of some of the typical video display modes.

Your TV may not support different resolutions. Supported resolution modes are listed below.

If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.

Index	Resolution Frequency				Standard
	Hor Ver	Ver (Hz)		Hor (KHz)
1 640	480 60 31.5	VESA
2 640	480 72 37.9	VESA
3 640	480 75 37.5	VESA
4 800	600 56 35.2	VESA
5 800	600 60 37.9	VESA
6 800	600 70 43.8
7 800	600 72 48.1	VESA
8 800	600 75 46.9	VESA
9 832	624 75 49.7	MAC
10 1024	768 60 48.4	VESA
11 1024	768 70 56.5	VESA
12 1024	768 72 57.7
13 1024	768 75 60.0
14 1152	864 70 64.2	VESA
15 1152	864 75 67.5	VESA
16 1152	870 75 68.9	MAC
17 1280	768 60 47.7	VESA
18 1360	768 60 47.7
19 1280	960 60 60.0	VESA
20 1280	1024 60 64.0	VESA
21 1280	1024 75 80.0	VESA
22 1600	1200 60 75.0	VESA

English - 40 -

Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)

Source Supported Signals Available
EXT-1(SCART)	PAL 50/60 O
	NTSC 60 O
	RGB 50 O
	RGB 60 O
FAV	PAL 50/60 O
	NTSC 60 O
YPbPr	480I 60Hz O
	480P 60Hz O
	576I 50Hz O
	576P 50Hz O
	720P 50Hz O
	720P 60Hz O
	1080I 50Hz O
	1080I 60Hz O
	1080P 50Hz O
	1080P 60Hz O
HDMI1HDMI2	480I 60Hz O
	480P 60Hz O
	576I 50Hz O
	576P 50Hz O
	720P 50Hz O
	720P 60Hz O
	1080I 50 Hz O
	1080I 60Hz O
	1080P 24Hz O
	1080P 25Hz O
	1080P 30HZ O
	1080P 50HZ O
	1080P 60HZ O

(X: Not Available, O: Available)
Note: In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

English - 41 -
