USER MANUAL TL-32LC716 TechLine

High Definition....20

Über Scart ......20

Illustration of a flat-screen computer monitor with blank screen (no text or symbols)

RÜCKSEITE

Top-down schematic of a computer motherboard showing key components like CPU, RAM, and ventilation ducts (no text or labels)

Diagram showing a computer monitor front panel connected to an LCD panel with labeled pins A through E

VOLUME P/CH MENU TV/AV J I H G F K L 225V-240V AC-2316 POWER T S R P O N M

Vorbereitung

Diagram illustrating the prohibition of weather and heating conditions on a TV, with symbols for sun, cloud, rain, heater, and pot.

Diagram of a remote control panel with labeled components and directional arrows indicating movement or operation.

Diagram showing transformation of a square with four circles to a larger square with four circles (no text or symbols)

Diagram showing transformation of a square with a circle inside, resulting in a square with circles and dots (no text or symbols)

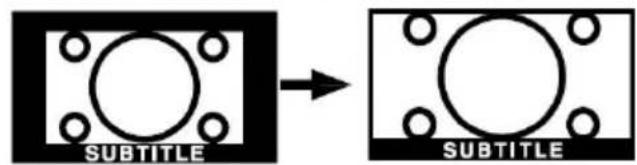

16:9 Untertitel:

SUBTITLE SUBTITLE

Diagram showing transformation of a square with four circles to a square with four circles, both without any text or symbols.

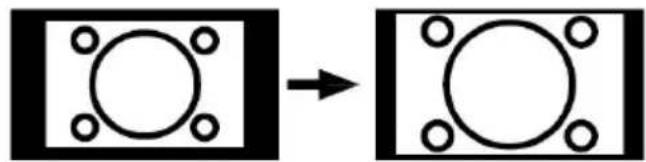

14:9 Zoom:

Diagram showing transformation of a square with four circles to a square with four circles, no text or symbols present

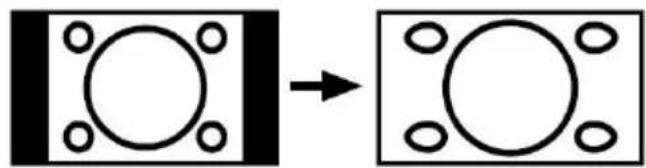

Panorama:

Diagram showing transformation of a square with circular holes into a larger square with circles (no text or symbols)

SOUND PICTURE FEATURE INSTALL WIDE PC GUIDE

PAL/SECAM B/G D/K K' I/I' L/L'

EMPFANGSKANÄLE

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

KABELFERNSEHEN (S1-S20/ S21-S41)

German + Nicam Stereo

AUDIO OUTPUT POWER ( W_RMS. ) (%10 THD)

2 × 10

Panel Features ......29

Safety Precautions ......29

Before Switching On Your TV 31

Power Connection....31

Connections To The

Aerial Input Socket.... 31

How To Connect Other Devices .....31

Inserting Batteries In The

Remote Control Handset ....31

Switching The TV ON/OFF 31

To switch the TV on: 31

To switch the TV off: 31

Initial Settings ....32

Initial APS (Automatic

Programming System) ......32

Operating The TV 32

Operating with the buttons on the

TV set ....32

Operating With Remote Control .....32

Menu System 33

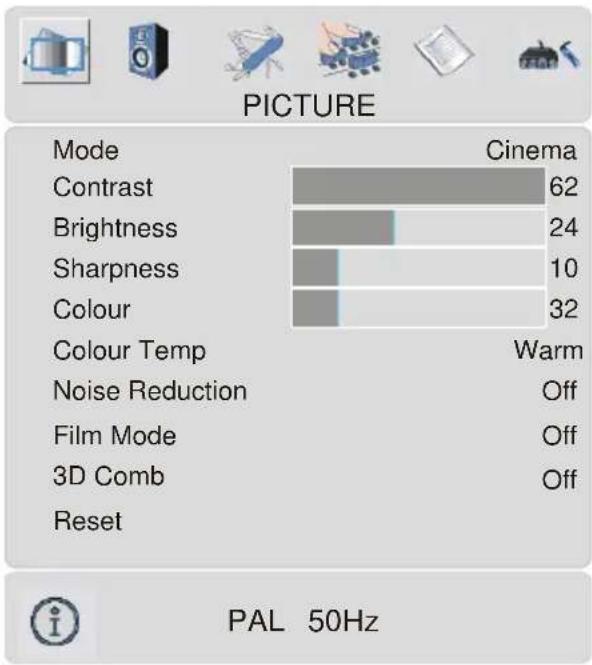

Picture menu ....33

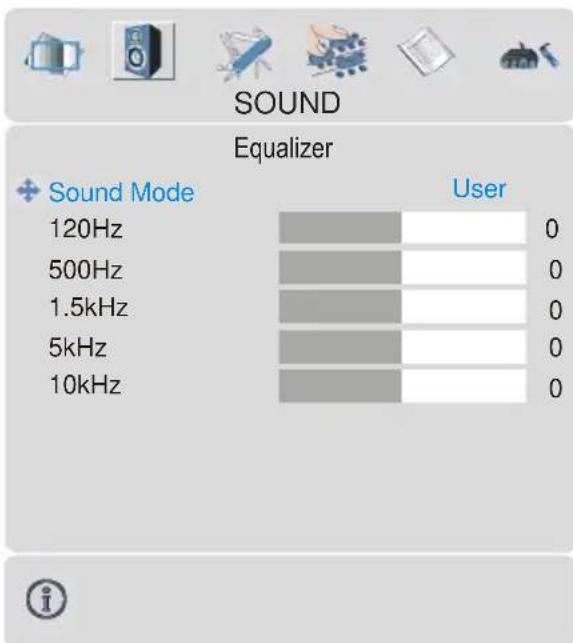

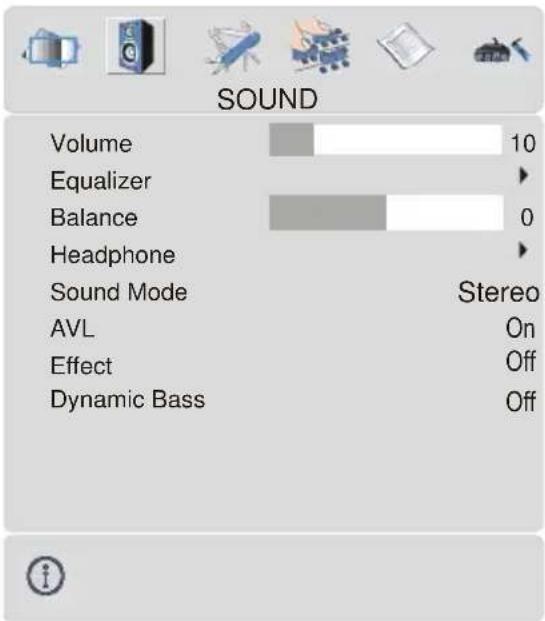

Sound menu 34

Feature menu ....36

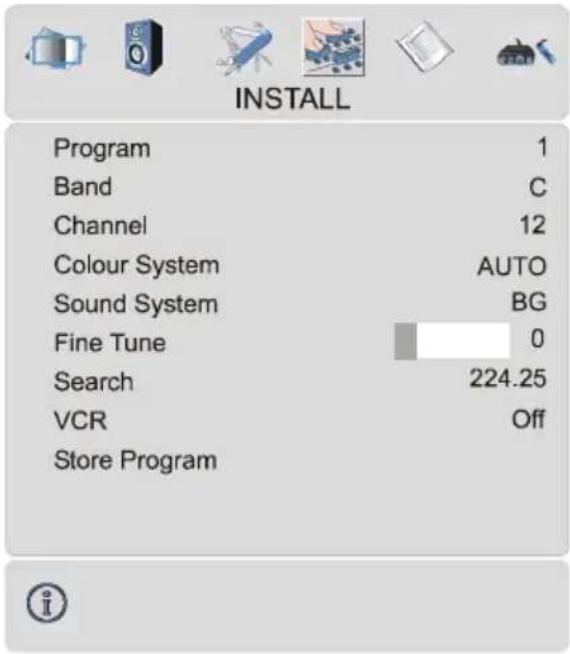

Install menu 37

Program menu 37

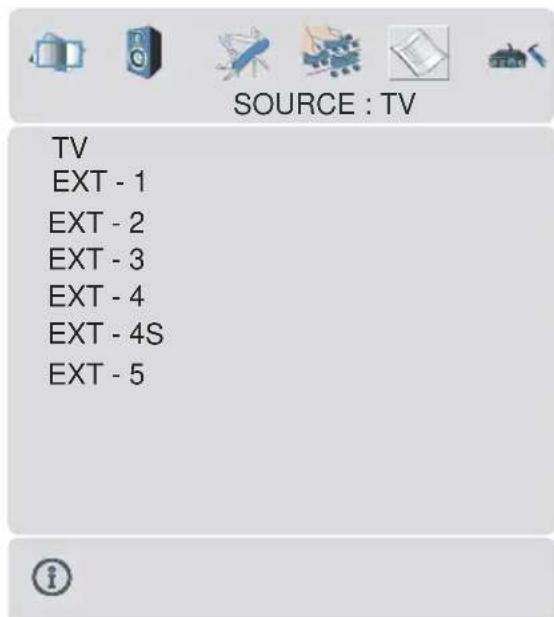

Source menu 38

Other Features 39

TV Status ....39

Mute Indicator ....39

PIP and PAP modes ....39

Freeze Picture....39

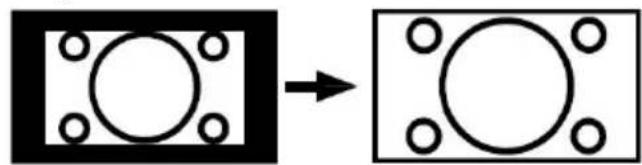

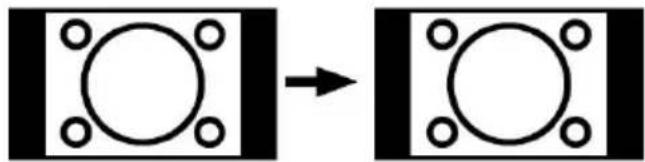

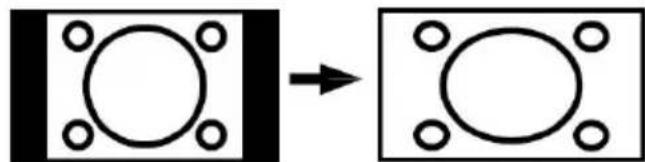

Zoom Modes ....39

Teletext 40

To Operate Teletext 40

To Select A Page Of Teletext ....41

To Select Index Page.... 41

To Select Teletext With A

TV Programme ....41

To Select Double Height Text ......41

To Reveal "Concealed" Information ...41

To Stop Automatic Page Change......41

To Select A Subcode Page ......41

To Exit Teletext 41

To Display The Time 41

Fastext....42

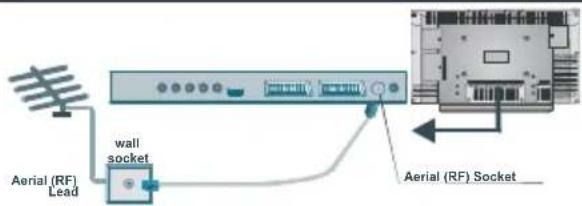

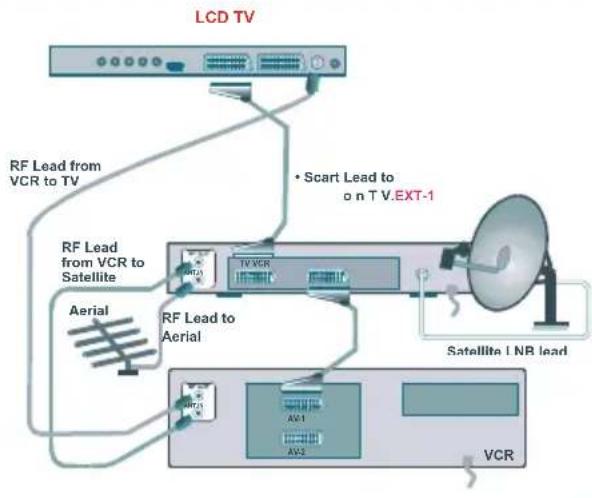

Connect Peripheral Equipment ....42

High Definition....42

Via The Scart 42

ViaAerial Input 42

Decoder....42

TV And Video Recorder....43

Playback NTSC 43

Copy Facility 43

Search For And Store The

Test Signal Of The Video Recorder....43

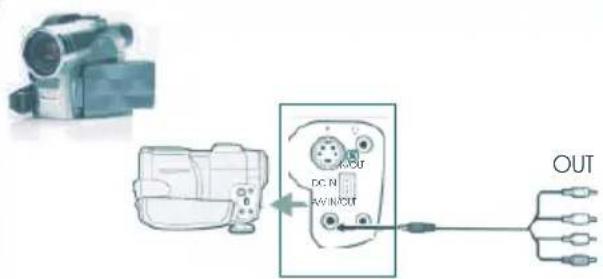

Camera And Camcorder 43

Connect The Decoder To The

Video Recorder 43

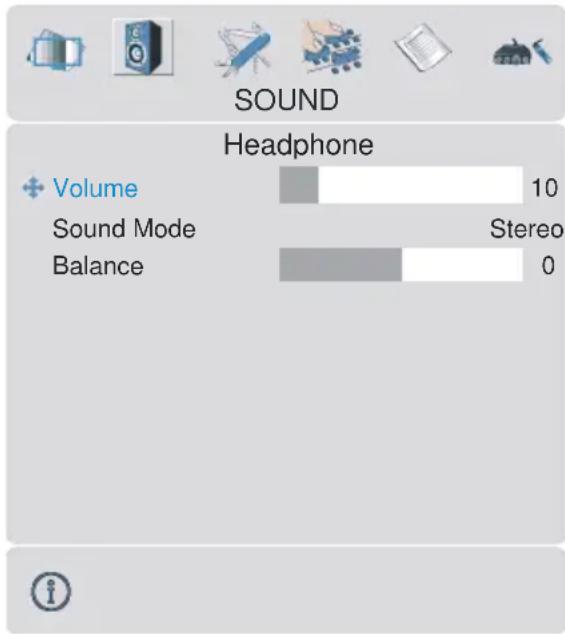

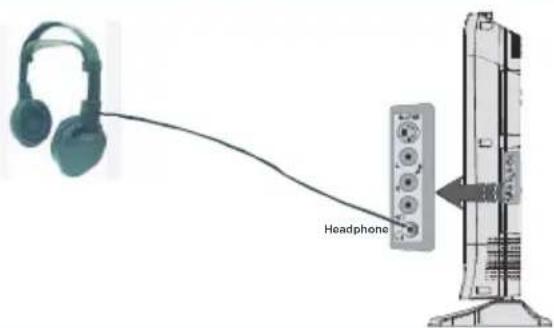

Connecting Headphones....43

Connecting External Equipment .....43

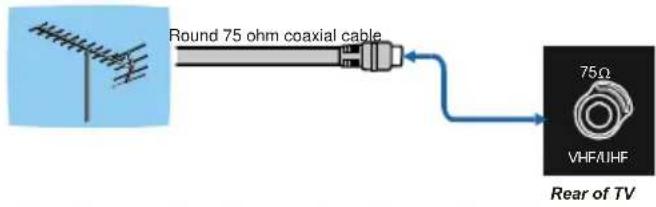

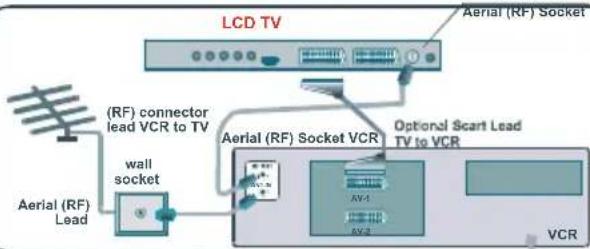

Aerial Connection ....44

Tips 45

Care Of The Screen....45

Poor Picture 45

No Picture....45

Sound 45

Remote Control 45

No solution: 45

Specifications ....46

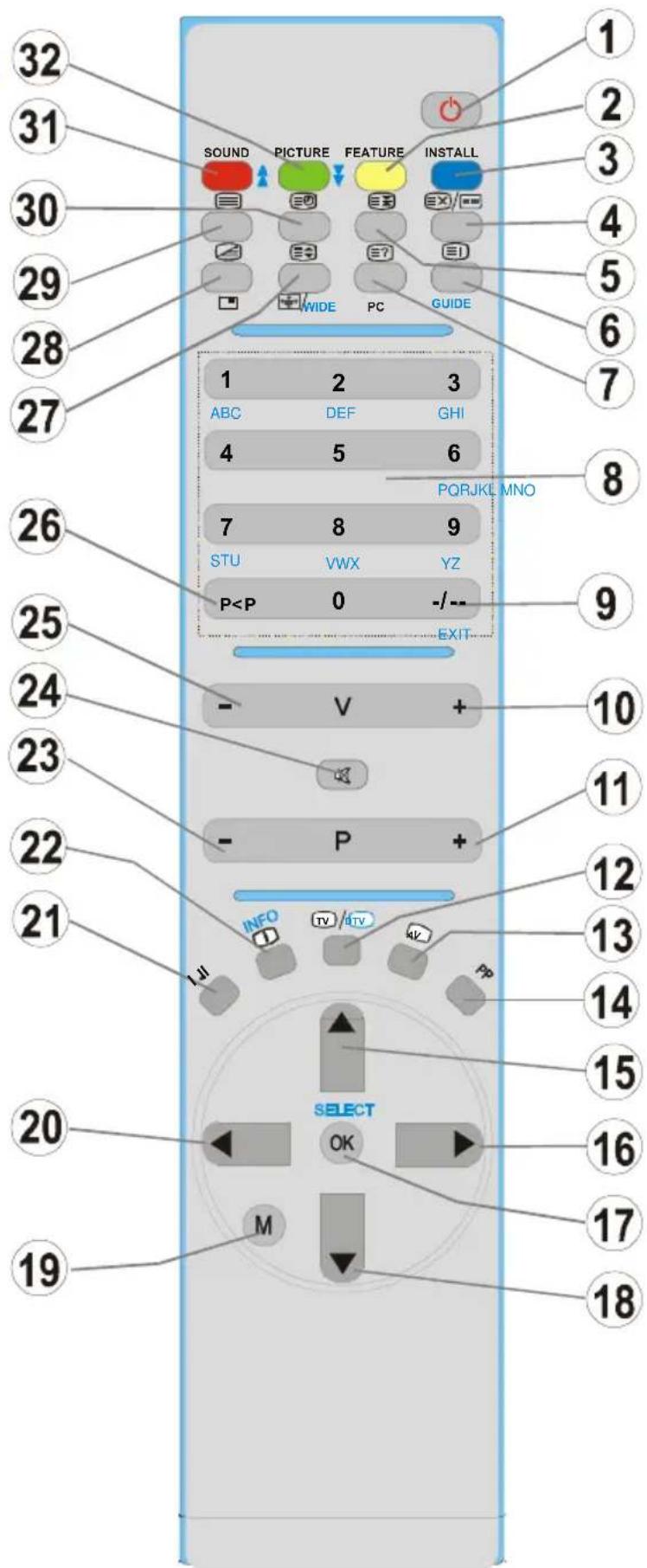

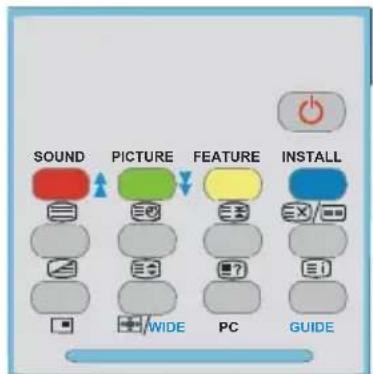

Remote Control Buttons

① Ⓧ = Stand By
2 YELLOW / FEATURE = Feature Menu
3 BLUE / INSTALL = Install Menu
4 ☒/☐ = Update / PAP Mode
5 = Hold
6 / GUIDE = Index Page
7 / PC = Reveal / No Function
8 0 - 9 = Direct Programme
9 -/-- / EXIT = No Function
10 V+ = Volume Up
11 P + = Programme Up
12 TV / DTV = TV / Quit Menu
13 AV = Source Select
14 PP = Picture Mode Selection (Natural, Cinema, Dynamic)
15 ▲ = Cursor Up
16 ▶ = Cursor Right
17 OK/SELECT = Okay / Freeze Picture
18 ▼ = Cursor Down
19 M = Main Menu
20 ◀ = Cursor Left
21 I-II = Mono/Stereo - DualA-B
22 i/ INFO = Info
23 - P = Programme Down
24 = Mute
25 - V = Volume Down
26P<P = Previous Programme
27 /WIDE / Wide / Expand
28 / =PIP mode / Mix
29 = Teletext
30 = Time / Subpage
31 RED / SOUND = Sound Menu
32 GREEN / PICTURE = Picture Menu

32 31 30 29 28 27 1 2 3 ABC DEF GHI 4 5 6 PQRJKL MNO 7 8 9 STU VWX YZ P<P 0 -/--- EXIT 26 25 24 23 22 21 INFO TV /DTV M 10 11 12 13 14 15 16 17 18 20 SELECT OK M

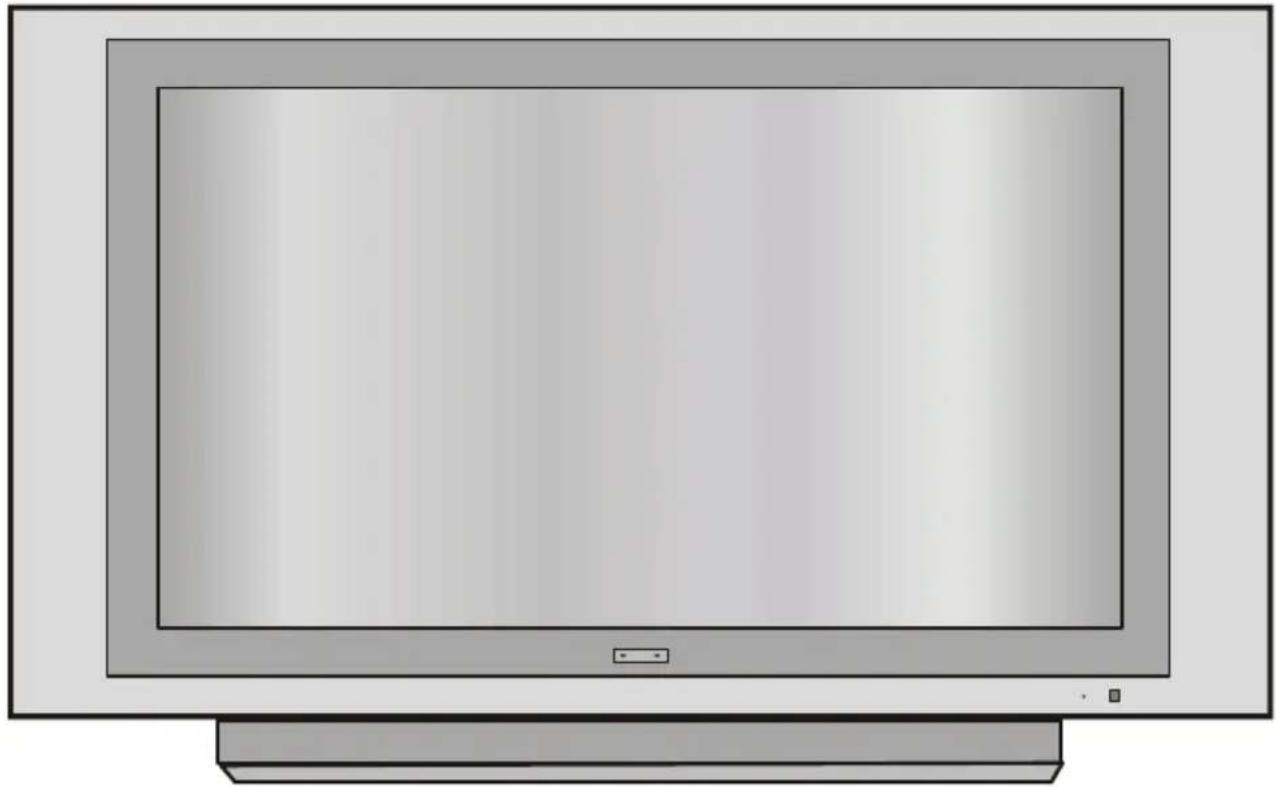

FRONT VIEW

Illustration of a flat-screen CRT television with blank screen (no text or symbols)

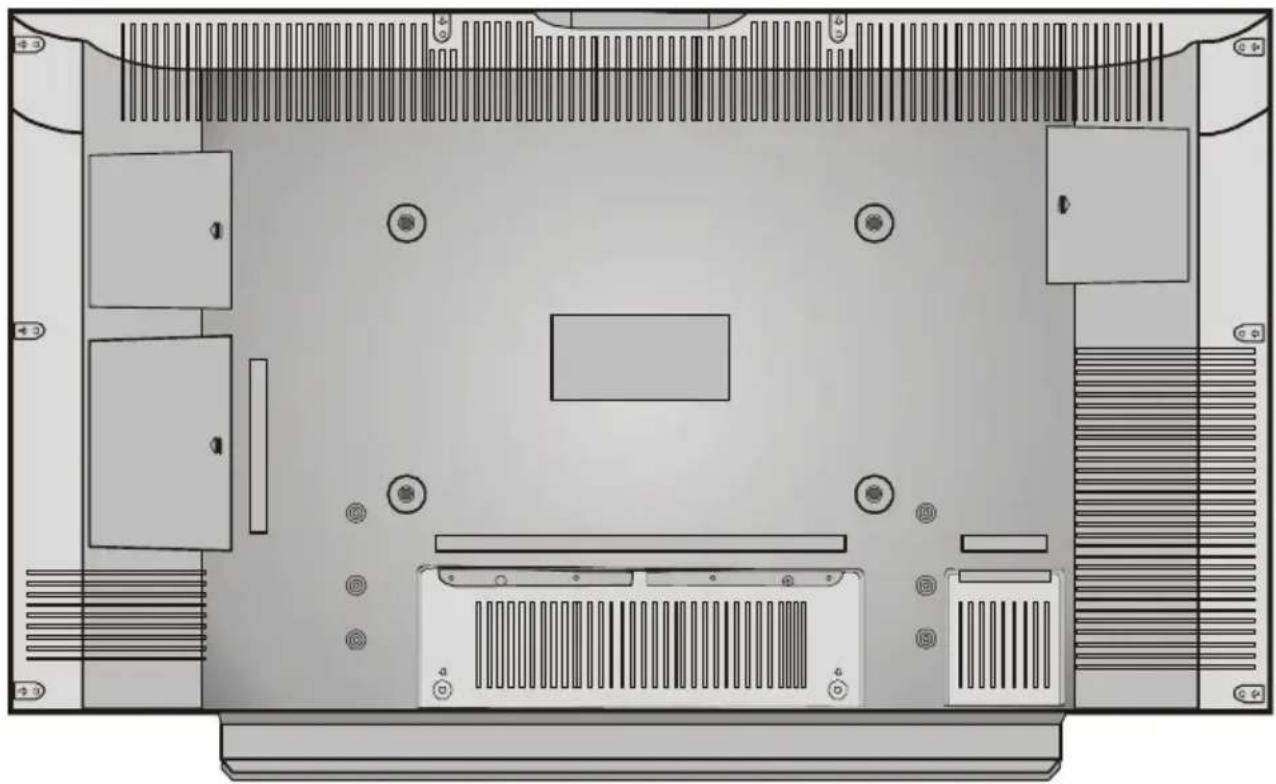

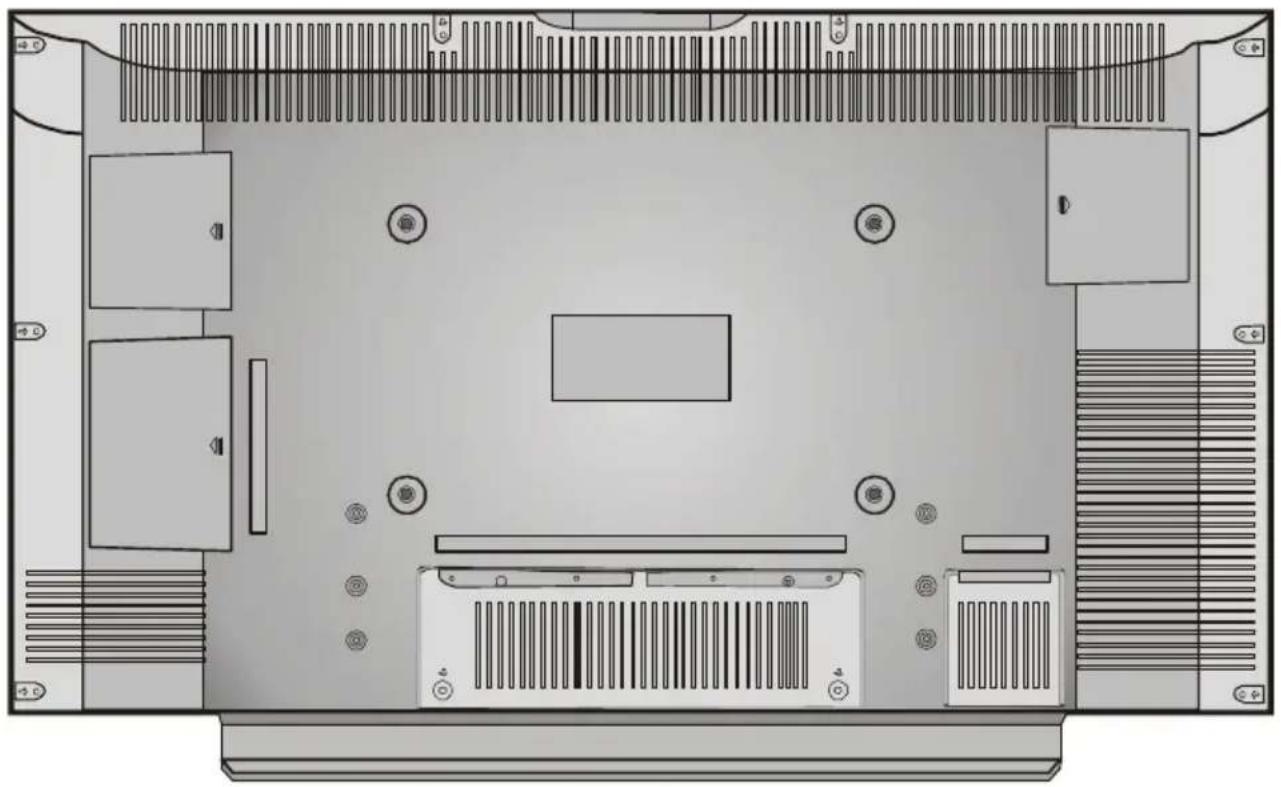

REARVIEW

Top-down schematic of a computer motherboard showing CPU socket, drive bays, and ventilation slots (no text or labels)

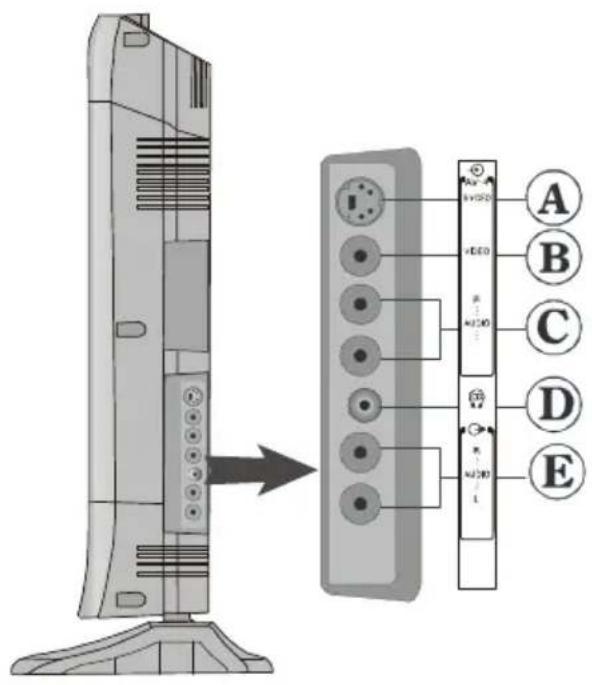

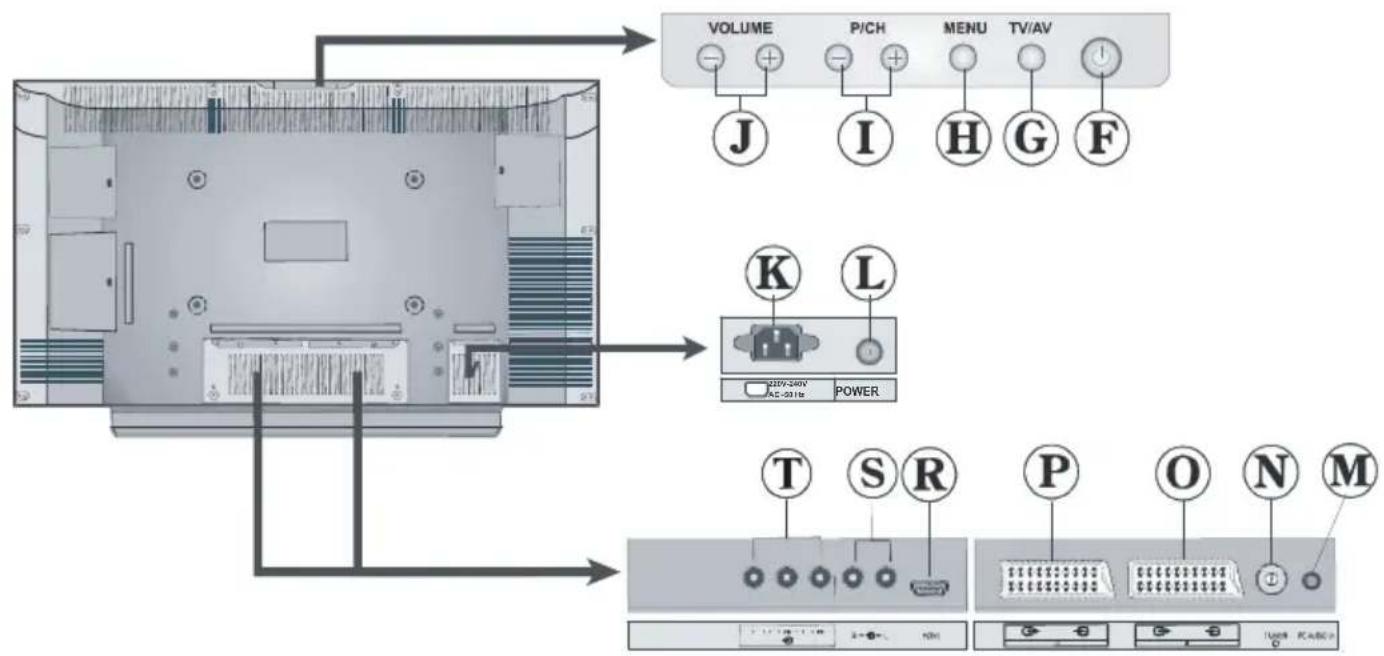

Ⓐ S-VHS Input ---- EXT-4S
B Video Input C Audio Inputss EXT-4
D Headphone
E Audio Line Out
F Standby button
G TV/AV button
®MENU button

① Prog. Up, Prog. Down buttons
① Volume Up, Volume Down buttons
K Power cord input
Power On/Off switch
M PCAudio Input
N Aerial
① Scart 2 (EXT-2)
P Scart 1 (EXT-1)
® HDMI Input (EXT-5)
⑤ Component Audio Inputss
⑦ Component Video (YPbPr) Inputs

Diagram showing a computer monitor connected to five labeled ports (A–E) via an arrow, with port labels and connection points visible.

VOLUME P/CH MENU TV/AV J I H G F K L 220V-200V AC-2016 POWER T S R P O N M

Preparation

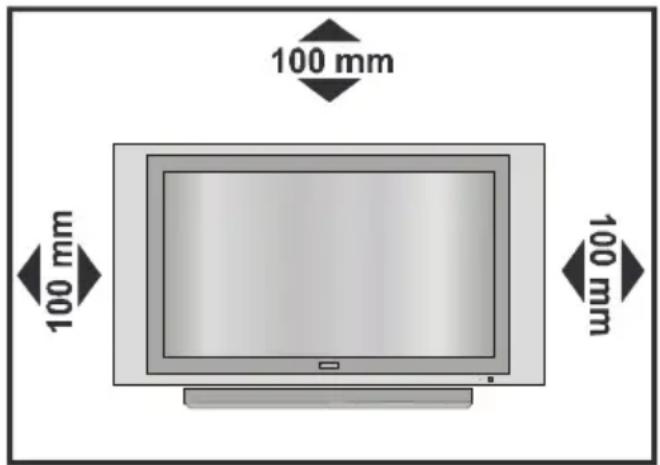

For ventilation, leave a space of at least 10 cm free all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.

Use this apparatus in moderate climates.

100 mm 100 mm 100 mm

Features

• Remote controlled colour television.
• 100 programmes from VHF, UHF bands or cable channels can be preset.
• It can tune cable channels.
• Controlling the TV is very easy by its menu driven system.
• It has 2 Scart sockets for external devices (such as video, video games, audio set, etc.)
• Stereo sound system (German+Nicam).
  • Full function Teletext.

Fastext (1000Pages), TOP text.

• Headphone connection.
• Direct channel access.
  • A.P.S. (Automatic Programming System).
• All programmes can be named.
• Forward or backward automatic tuning.
• Sleep timer.
• Child Lock.
• Automatic sound mute when no transmission.
• NTSC Playback.
• AV in and S-VHS in are available.
• It has an HDMI connector for Digital Video

and Audio. This connection is also designed to accept High Definition signals.

• It has PIP / PAP / PAT functions.
  • AVL (Automatic Volume Limiting)
• When no valid signal is detected, after 5 minutes the TV switches itself automatically to stand-by mode.
• PLL (Frequency Search)
• Stereo PC Audio Input
• 3D Comb Filter
• Audio Line Out

Panel Features

• 32-inch TFT LCD display.
• High resolution (1366 x 768)
- Contrast ratio (1000:1 typical)
- Brightness (typical) 550 cd/m ^2 .
• Display colour 16.7 Million.

SafetyPrecautions

1. Power Source

The receiver should be operated only from a 230V AC, 50 Hz. outlet. Ensure you select the correct voltage setting for your convenience.

2. Power Cord

The power supply cord should be placed so that it is not likely to be walked on or pinched by items placed upon them or against it. Pay particular attention to cord where it enters the plug, power outlet, and the point where it exits from the receiver.

3. Moisture and Water

Do not use this equipment in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this equipment to rain or water, as this may be dangerous and do not place objects filled with liquids on top. Avoid from dripping or splashing.

4. Cleaning

Before cleaning, unplug the receiver from the main supply, outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.

5. Ventilation

The slots and openings on the receiver are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

6. Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

7. Replacement Part

When replacement parts are required, be sure the service technician has used replacement parts which are specified by the manufacturer or have the same specifications as the original one. Unauthorised substitutions may result in fire, electrical shock, or other hazards.

8. Servicing

Please refer all servicing to qualified personnel. Do not remove cover as this may result in electric shock.

9. Naked Flame Sources

Do not place naked flame sources on the apparatus.

WARNING: When the device is not in use for a long time, disconnect from power.

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.
• Battery, including those which is heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environmentally sound manner. Find out about the legal regulations which apply in your area.
  • Cold cathode fluorescent lamp in LCD PANEL

contains a small amount of mercury, please follow local ordinates or regulations for disposal.

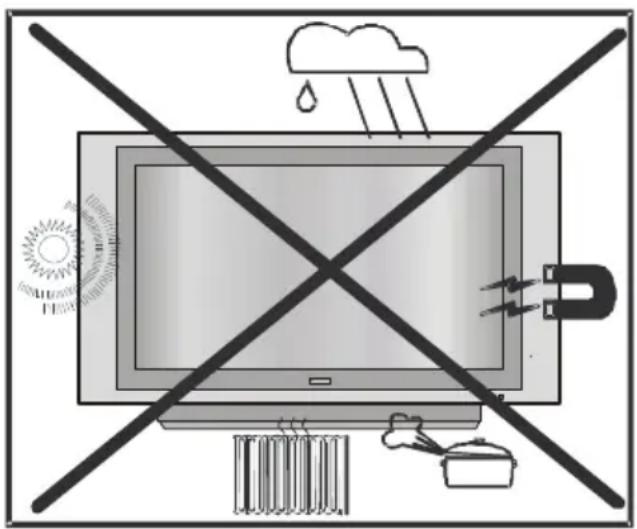

Diagram showing a TV with raindrops and a warning sign crossed out, indicating no weather or damage.

Notes regarding the use of the equipment

• Avoid frequently displaying the same image. If static content has been displayed for a relatively long period of time, it is advisable to view a moving image for a period at least twice as long as the previous image was displayed.
• Avoid frequently displaying the 4:3 format on your screen. If an image in 4:3 format has been displayed for a relatively long period of time, it is advisable to view a full-screen image for a period at least twice as long as the previous format was displayed.
• Teletext content as well as superimposed OSDs should not be displayed for long periods of time.
• Do not constantly leave the image in freeze mode or on pause (e.g. in the case of DVD players).
• Trailers should not be shown for long periods of time.

"The LCD panel is very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product."

"DO NOT LEAVE YOUR TV AT STAND-BY OR OPERATINGWHENYOULEAVEYOURHOUSE"

BeforeSwitching On Your TV

Power Connection

IMPORTANT: The TV set is designed to operate on 230V AC, 50 Hz.

•After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.

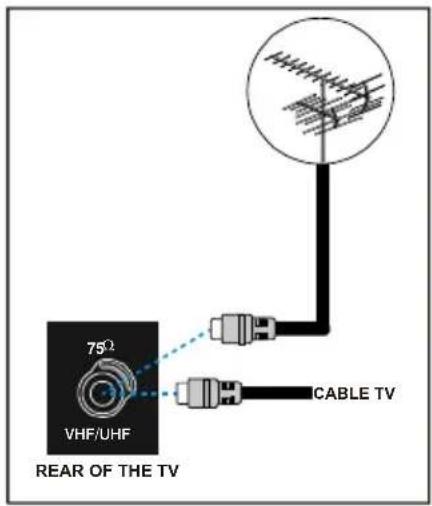

Connections To The Aerial Input Socket

75Ω VHF/UHF REAR OF THE TV CABLE TV

- Connect the aerial or cable TV plug to the Aerial input socket located at the rear of the TV and connect the cable plug coming out from the TV out socket located on the devices (VCR, DVB etc.) to this socket as well.

How To Connect Other Devices

IMPORTANT: Switch off the TV before connecting any external device.

Sockets for external connections are at the rear side of the TV. For connection of other devices via Scart refer to the manuals of the related devices.

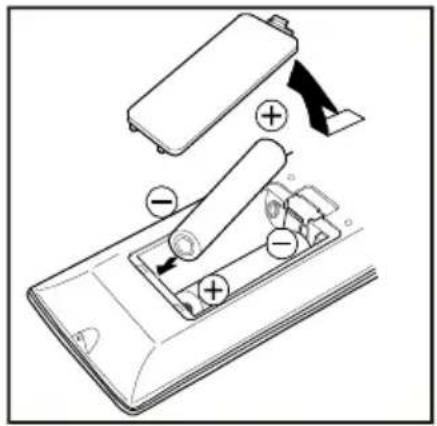

Inserting Batteries In The Remote Control Handset

• Remove the battery cover located on the back of the handset by gently pulling downwards from the indicated part.
• Insert two AA/R6 or equivalent type batteries inside. Place the batteries in the right directions.
• Replace the battery cover.

Diagram showing battery charging mechanism with labeled positive and negative charges on a device panel

NOTE: Remove the batteries from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries.

SwitchingThe TVON/OFF

To switch the TV on:

Your TV will switch on in two steps:

1- Connect the power supply cord to the system. Press On/Off switch at the rear of the TV. Then the TV switches itself to stand-by mode and the LED becomes BLUE located on the front of the TV.
2- To switch on the TV from stand-by mode either:

Press a digit button on the remote control so that a programme number is selected, or,

Press “☐”, "-P/CH" or "P/CH+" button on the right side of the TV or press "-P/CH" or "P/CH+" button on the remote control, so that last switched off programme is selected.

By either ways the TV will switch on and the LED will turn off.

To switch the TV off:

- Press the "stand-by" button on the remote control, so the TV will switch to stand-by mode and the LED will become BLUE, or,

Press the “ ⏻” button located on the right side of the TV, so the TV will switch off and the LED will become BLUE.

To power down the TV completely, press On/Off switch,

or

unplug the power cord from the mains socket.

InitialSettings

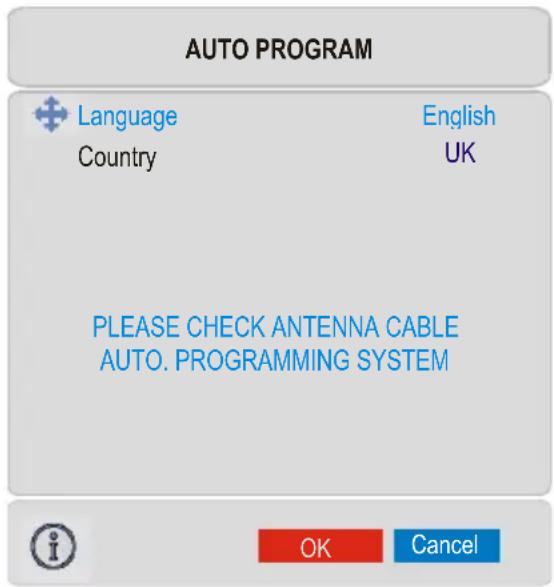

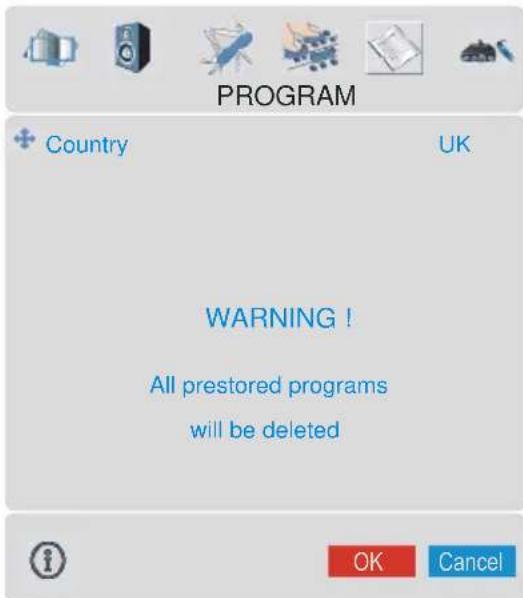

Initial APS (Automatic Programming System)

The following menu will be displayed on the screen when you turn your TV on for the first time. APS, searches and sorts all channels and stores them automatically on your TV, accord ing to the tra n smi ssi o n of programme systems in your area.

AUTO PROGRAM Language English Country UK PLEASE CHECK ANTENNA CABLE AUTO. PROGRAMMING SYSTEM OK Cancel

First of all choose Language and Country by using ▲/ ▼ and ◀/ ▶ buttons. This will affect the sort process in APS. To start APS, press the RED or "OK" button.

APS is running... UK - I 155,25 Mhz 01 - C-01 Cancel

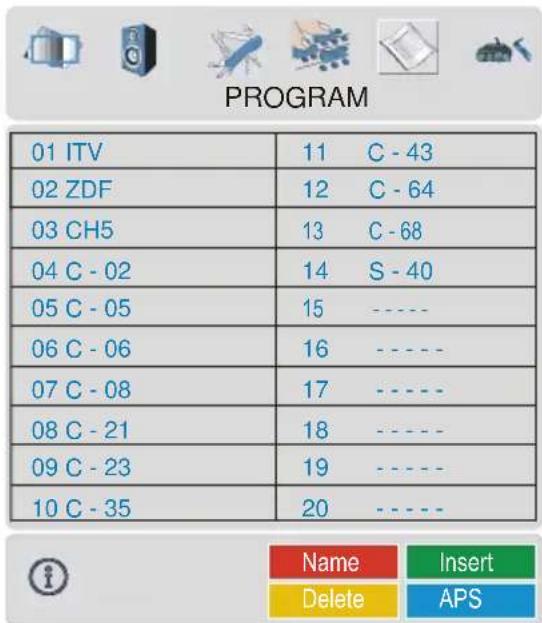

After APS is finalized, the programme table will appear on the screen. In the programme table you will see the programme numbers and names assigned to the programmes.

If you do not accept the locations and / or the programme names of programmes, you can change them from the Program Menu. (See page 37)

Operating The TV

You can operate your TV using both the remote control handset and the buttons on the set.

Operating with the buttons on the TV set

Volume setting and programme selection can be made by using the buttons on the control panel at the top of the TV.

Volume Setting

Press the "VOLUME -" button to decrease volume or the "+ VOLUME" button to increase volume, so a volume level scale (slider) will be displayed at the bottom of the screen.

Programme Selecting

Press the "+P/CH" button to select the next programme or the "P/CH-" button to select the previous programme.

Entering The Menu

Press the "MENU" button on the control panel at the top of the TV to enter the menu.

"+P/CH" / "PCH-" and "VOLUME -" / "+VOLUME" buttons on the TV are used as navigation buttons in the menu.

AV Mode

Press the "TV / AV" button on the control panel at the top of the TV to switch your TV to EXT modes.

Operating With Remote Control

The remote control handset of your TV is designed to control all the functions of your TV. The functions will be described in accordance with the menu system of your TV.

Functions of the menu system are described in Menu System section.

Volume Setting

Press the “V +” button to increase volume. Press the “- V” button to decrease volume. A volume level scale (slider) will be displayed at the bottom of the screen.

Programme Selecting

(Previous or next programme)

• Press the “- P” button to select the previous programme.
• Press the "P+" button to select the next programme.

Programme Selecting (direct access):

Press digit buttons on the remote control handset to select programmes between 0 and 9. The TV will switch to the selected programme after a short delay.

- For a two digit programme number enter the second digit after pressing the first digit within 2 seconds.

MenuSystem

Your TV has been designed with a menu system to provide easy manipulation of a multifunction system.

Press the "M" button to enter the menu.

Press ◀ / ▶ button to select a menu title and then ▲ / ▼ button to select a menu item and ◀ / ▶ or "OK" button to enter the menu item.

You can access the menus directly by pressing the coloured buttons on the remote control:

Red Button	Sound Menu
Green Button	Picture Menu
Yellow Button	Feature Men
Blue Button	Install Menu

- Press the "M" or TV button to return to the previous menu.

Picture menu

By pressing ◀/ ▶ button, select the first icon. Picture menu appears on the screen.

Mode

By pressing ▲ / ▼ button, select Mode.

Press ◀ / ▶ button to choose one of these options: Natural, Cinema and Dynamic.

Picture Mode can be directly changed via pressing the "PP" button on the remote control.

Contrast

By pressing ▲ / ▼ button, select Contrast. Press ▶ button to increase contrast. Press ◀ button to decrease contrast. Contrast level can be adjusted between 0 and 63.

Brightness

By pressing ▲ / ▼ button, select Brightness. Press ▶ button to increase brightness. Press ◀ button to decrease brightness. Brightness level can be adjusted between 0 and 63.

Sharpness

By pressing ▲ / ▼ button, select Sharpness. Press ▶ button to increase sharpness. Press ◀ button to decrease sharpness. Sharpness level can be adjusted between 0 and 31.

Colour

By pressing ▲ / ▼ button, select Colour. Press ▶ button to increase colour. Press ◀ button to decrease colour. Colour level can be adjusted between 0 and 99.

Hue

This item is displayed in picture menu when the TV receives an NTSC signal. By pressing ▲/▼ button, select Hue. Press ▶button to increase hue level. Press ◀button to decrease hue level. Hue level can be adjusted between -31 and 31.

Colour Temp

By pressing ▲ / ▼ button, select Colour Temp. Press ◀ / ▶ button to choose one of these options: Cool, Normal and Warm.

Noise Reduction

This item is used to reduce the image noise and improve the picture quality at weak signals.

By pressing ▲/▼ button, select Noise Reduction. Press ◀/► button to set Noise reduction level to Off, Low, Medium or High.

Film Mode

Films are recorded at a different number of frames per second to normal television programmes.

By pressing ▲ / ▼ button, selectFilm Mode. Press ◀ / ▶ button to set this feature On or Off. Turn this feature on when you are watching films to see the fast motion scenes clearly.

3D Comb

3D Comb is used to improve colour transitions and colour quality of pictures.

By pressing ▲/▼ button, select 3D Comb. Press ◀/▶ button to set this feature On or Off.

Reset

By pressing ▲ / ▼ button, select Reset. Press ◀/ ▶ or "OK" button to reset the picture modes to factory default settings.

Sound menu

By pressing ◀ / ▶ button, select the second icon. Sound menu appears on the screen.

SOUND Volume 10 Equalizer Balance 0 Headphone Sound Mode Stereo AVL On Effect Off Dynamic Bass Off

Volume

By pressing ▲ / ▼ button, select Volume. Press ▶ button to increase volume level. Press ◀ button to decrease volume level. Volume level can be adjusted between 0 and 63.

Equalizer

By pressing ▲ / ▼ button, select Equalizer. Press ◀ / ▶ or "OK" button to enter equalizer menu.

In equalizer menu the sound mode can be

changed to User, Pop, Rock, Jazz, Flat and Classic by pressing ◀ / ▶ button. Equalizer menu settings can be changed only when Sound Mode is User. Select the desired frequency by ▲ / ▼ button and increase or decrease the frequency gain by pressing ◀ / ▶ button.

Press the "M" button to return to the previous menu.

Balance

By pressing ▲ / ▼ button, select Balance. Press ▶ button to increase balance to the right. Press ◀ button to increase balance to the left. Balance level can be adjusted between -31 and 31.

Headphone

By pressing ▲ / ▼ button, select Headphone. Press ◀ / ▶ or "OK" button to enter hedphone menu.

volume

By pressing ▲ / ▼ button, select Volume. Press ▶ button to increase hp volume level. Press ◀ button to decrease hp volume level. Headphone volume level can be adjusted between 0 and 63.

sound mode

By pressing ▲ / ▼ button, select Sound Mode. Press ◀/ ▶ button to change sound mode.

Sound mode is used to identify sound mode of the headphone and can be set to mono, stereo, dual a or dual b according to the transmission.

balance

By pressing ▲ / ▼ button, select Balance. Press ▶ button to increase balance to the right. Press ◀ button to decrease balance to the left. Balance level can be adjusted between -31 and 31.

Press the "M" button to return to the previous menu.

Sound Mode

By pressing ▲ / ▼ button, select Sound Mode. Press ◀ / ▶ button to change the mode.

You can select Mono, Stereo, Dual A or Dual B mode, only if the selected channel supports that mode.

In case of bilingual broadcast (Dual Sound), you can select original or dubbed language using mode option.

AVL

Automatic Volume Limiting (AVL) function adjusts the sound to obtain fixed output level between programs, having different sound levels.

Pressing ◀/ ▶ button will turn this feature on or off.

Effect

You can use this feature to switch the sound effect on or off. If the current sound system is Mono and the sound effect is switched on, then the sound will be heard as if it is Stereo. If the current sound system is Stereo, switching this effect on will give a more spatial effect.

Pressing ◀/ ▶ button will turn this feature on or off.

Dynamic Bass

Dynamic Bass is used to increase bass effect of the TV set.

By pressing ▲ / ▼ button, select Dynamic

Bass. By pressing ◀ / ▶ button set Dynamic bass to Low, High or Off. It is not recommended to select High if listening at high volume levels.

Feature menu

By pressing ◀ / ▶ button, select the third icon. Feature menu appears on the screen.

FEATURE
Sleep Timer	Off
Child Lock	Off
Language	English
Ext-2 Out	EXT - 1
Default Zoom	Panoramic
Menu Background	Translucent
Menu Timeout	30 sec
Teletext Language	West

Sleep Timer

By pressing ▲ / ▼ button, select Sleep Timer. The timer can be programmed between Off and 2 hours in steps of 10 minutes by pressing ◀ / ▶ button. If sleep timer is activated, at the end of the selected time, the TV automatically goes into stand-by mode.

Child Lock

You can use this feature to prevent children from turning the TV on or changing programmes or adjustments etc. without remote control.

The child lock feature can be set by ◀/▶ button to either On or Off. When Off is selected, there will be no difference in the operation of your TV. When On is selected, the TV can only be controlled by the remote control handset. In this case the control panel buttons, except the Power on/off button, at the rear side of the TV will not work. If one of these buttons is pressed, "Child Lock On" will be displayed on the screen.

Language

By pressing ▲ / ▼ button, select Language. By pressing ◀ / ▶ button, you can select the language.

Ext-2 Out

By pressing ▲ / ▼ button, select Ext-2 Out. You can set Ext-2 Out to TV, EXT-1, EXT-3, EXT-4, EXT-4S or EXT-5 by pressing ◀ / ▶ button.

Note: Only audio output is available for EXT-3 and EXT-5. The other options have both audio and video outputs.

Default Zoom

By pressing ▲ / ▼ button, select Default Zoom. You can set Default Zoom to Pan-oramic, 4:3 or 14:9 Zoom by pressing ◀ / ▶ button.

If there is no WSS or aspect ratio (picture size) information and zoom mode is selected as Auto by pressing the “WIDE” button, then the zoom mode will automatically change to Default Zoom setting. See also Zoom Modes on page 39.

Menu Background

By pressing ▲ / ▼ button, select Menu Background. You can change menu background to Translucent or Opaque by pressing ◀ / ▶ button.

Menu Timeout

By pressing ▲ / ▼ button, select Menu Timeout. Press ◀/▶ button to change menu timeout to 15 sec, 30 sec or 60 sec.

Teletext Language

By pressing ▲ / ▼ button, select Teletext Language. Press ◀ / ▶ button to change Teletext Language to West, East, Cyrillic, Turk/Gre or Arabic. This will normally be set to West for Western Europe.

Install menu

By pressing ◀ / ▶ button, select the fourth icon. Install menu appears on the screen.

INSTALL Program 1 Band C Channel 12 Colour System AUTO Sound System BG Fine Tune 0 Search 224.25 VCR Off Store Program

Program

By pressing ▲ / ▼ button, select Program. Press ◀ / ▶ button to select the program number. You can also enter a number via digit buttons on the remote control. There are 100 program storage between 0 and 99.

Band

Band can be selected either "C" or "S" by pressing ◀ / ▶ button.

Channel

Channel can be changed by ◀ / ▶ button or Digit Buttons.

Colour System

By pressing ▲ / ▼ button, select Colour System. Press ◀ / ▶ button to change the colour system to PAL, SECAM, PAL60 or AUTO.

If Sound System is set to I, SECAM is not available for the Colour System.

Note: In EXT mode, you can choose NTSC 3.58 and NTSC 4.43 as well.

Sound System

By pressing ▲ / ▼ button, select Sound System. Press ◀ / ▶ button to change the

sound system to BG, DK, I, L or LP.

Fine Tune

By pressing ▲ / ▼ button, select Fine Tune. Press ◀ / ▶ button to adjust the tuning.

Search

By pressing ▲ / ▼ button, select Search. Press ◀ / ▶ button to start program searching. The searching will stop when a signal is found. You can also enter a frequency value directly by pressing the digit buttons.

VCR (Video Cassette Recorder)

• This item can be seen in all modes except EXT-3 and EXT-5.
• If you want to watch a VCR source from one of these modes, then it will be better to set VCR mode "on". For this, while the cursor is on this item press the ◀/▶ buttons to set it "On".
• If you want to watch a DVD, then you must set this item "Off".

Store Program

By pressing ▲/▼ button, select Store Program. Press ◀/▶ or "OK" button to store the adjustments. "Program Stored" will be displayed on the screen.

Program menu

By pressing ◀ / ▶ button, select the fifth icon. Program menu appears on the screen.

PROGRAM 01 ITV 11 C - 43 02 ZDF 12 C - 64 03 CH5 13 C - 68 04 C - 02 14 S - 40 05 C - 05 15 ---- 06 C - 06 16 ---- 07 C - 08 17 ---- 08 C - 21 18 ---- 09 C - 23 19 ---- 10 C - 35 20 ---- Name Insert Delete APS

By moving the cursor in four directions you can reach 20 programmes in the same page. You can scroll the pages up or down by pressing the navigation buttons to see all the programmes in TV mode (except the AV mode).

By cursor action, programme selection is done automatically.

Name:

To change the name of a decided programme, select the programme and press the RED button.

The first letter of the selected name starts to blink. Press ▲/ ▼ button to change that letter and ◀/ ▶ button to select the other letters. By pressing the RED button, you can store the name.

Insert:

Select the programme which you want to insert by navigation buttons. Press the GREEN button. By navigation buttons move the selected programme to the decided programme space and press the GREEN button again.

Delete:

To delete a programme, press the YELLOW button. Pressing the YELLOW button again erases the selected programme from the programme list, and the programmes below shift one up.

APS (Automatic Programming System)

When you press the BLUE button for APS, the following warning screen will be displayed.

PROGRAM + Country UK WARNING ! All prestored programs will be deleted OK Cancel

Press the BLUE button to cancel APS if you do not want to delete your existing programme list.

To continue APS, first select the country by pressing ◀ / ▶ button and then press the RED or "OK" button.

APS is running... UK - I 155,25 Mhz 01 - C-01 Cancel

After APS is finalized, the programme table will appear on the screen.

Source menu

By pressing ◀ / ▶ button, select the sixth icon. Source menu appears on the screen.

SOURCE : TV TV EXT - 1 EXT - 2 EXT - 3 EXT - 4 EXT - 4S EXT - 5

In source menu, highlight a source by pressing ▲ / ▼ button and switch to that mode by pressing ◀ / ▶ or "OK"button.

Other Features

TV Status

Programme Number, Programme Name, Sound Indicator and Zoom Mode are displayed on the upper right side of the screen when a new programme is entered, TV / "PP" button is pressed.

Mute Indicator

It is placed in the upper left side of the screen when enabled.

To cancel mute, there are two alternatives; the first one is pressing the ☑ button and the second one is increasing/decreasing the volume level.

PIP and PAP modes

Press the button to switch to PIP mode.

At PIP Mode, a small picture (PIP picture) is displayed on the main picture. There are 1 size and 4 positions (upper left, upper right, bottom left and bottom right) (optional) available for the PIP window. You can use button to change the PIP position. Aspect Ratio of the PIP window is fixed and 4:3.

When PIP Mode is entered, the default active window is PIP window and the active window is indicated by a white frame around it. The active window can be changed by pressing ◀ / ▶ button. The status info OSD belongs to active window. The place of the status OSDs are same for both windows.

By pressing "P+" or "-P" button or directly entering the channel number, you can watch the channel you want at the active window.

Press the AV button to select the source for active window.

Press "M" button to see the main menu in PIP mode. Items change due to the case

whether the active window is PIP window or main window.

You can see the available sources in source menu.

Press the button again to exit the PIP mode.

Press the button to switch to PAP mode.

At PAP Mode, two pictures with equal sizes are displayed on the screen. Aspect Ratios of the windows are fixed.

When you switch to PAP Mode, Main window in PAP Mode is displayed on the right side of the screen. The active window can be changed by pressing ◀ / ▶ button.

By pressing "P+" or "-P" button or directly entering the channel number, you can watch the channel you want at the active window.

Press the AV button to select the source for active window.

Press "M" button to see the main menu in PAP mode. Items change due to the case whether the active window is PAP window or main window.

You can see the available sources in source menu.

In PAP mode:

Press the teletext (☐) button to display the teletext page of the channel at the main window. It is displayed at the left window. Press the teletext (☐) button or TV (TV) button to exit from teletext.

Press the button again to exit the PAP mode.

Freeze Picture

You can freeze the picture on the screen by pressing the OK button. At PIP and PAP layouts; only the main picture can be frozen.

Zoom Modes

Zoom mode can be changed by pressing the WIDE button. You can change the screen size according to the picture aspect ratio.

Select the optimum one from the following ZOOM modes.

Auto:

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode according to the WSS signal.

- When the AUTO mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, change to another ZOOM mode manually.

Full:

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

Diagram showing transformation of a square with four circles to a larger square with five circles, no text or symbols present.

- For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the Full mode to restore the picture to its original shape.

Cinema:

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

Diagram showing transformation of a square with circular holes into a larger square with circles (no text or symbols)

16:9 Subtitle:

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

SUBTITLE SUBTITLE

"Default Zoom" Modes:

4:3

Use to view a normal picture (4:3 aspect ratio) as this is its original shape.

Diagram showing transformation of a square with four circles to a square with four circles, both without any text or symbols.

14:9 Zoom:

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Diagram showing transformation of a square with four circles inside, resulting in a square with four circles and five surrounding circles (no text or symbols)

Panoramic:

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

Diagram showing transformation of a square with four circles to a larger square with four circles (no text or symbols)

The top and bottom of the picture are slightly cut off.

Teletext

Teletext is an information system that displays text on your TV screen. Using the Teletext information system you can view a page of information on a subject that is available in the list of contents (index).

To Operate Teletext

• Select a TV station where Teletext is being transmitted.
• Press the 📄 button. Usually the list of contents (index) is displayed on the screen.

SOUND PICTURE FEATURE INSTALL WIDE PC GUIDE

To Select A Page Of Teletext

- Press the appropriate digit buttons for the required Teletext page number.

The selected page number is displayed in the top left corner of the screen. The Teletext page counter searches until the selected page number is located, the desired page is then displayed on the screen.

- Press the ▲ or "P+" button to move the Teletext screen forward one page at a time.

- Press the ▼ or “- P” button to move the Teletext screen backward one page at a time.

To Select Index Page

- To select the page number of the index (generally page 100), press the 📄 button.

To Select Teletext With A TV Programme

- Press the Ⓔ button. The text is now super-imposed over the programme on the screen.

- Press the 📁 button again to return to the Teletext page.

To Select Double Height Text

- Press the ⏻ button for the top half of the information page to be displayed in double height text.

- Press the ⏻ button again for the bottom half of the information page to be displayed in double height text.

- Press the ⏻ button once more for the full page of normal height text.

To Reveal "Concealed" Information

- Pressing the ☐ button once will reveal answers on a quiz or games page.

- Pressing the ☑ button again will conceal the revealed answers.

To Stop Automatic Page Change

The teletext page you have selected may contain more information than what is on the screen; the rest of the information will be displayed after a period of time.

- Press the 📄 button to stop the automatic page change.

- Press the button again to allow the next page to be displayed.

To Select A Subcode Page

Subcode pages are subsections of long Teletext pages that can only be displayed on the screen one section at a time.

- Select the required Teletext page.

- Press the 📄 button.

- Select the required subcode page number by pressing four digit buttons (e.g. 0001).

- If the selected subcode page is not displayed in a short time, press the ☒ button. TV programme will be displayed on the screen.

- Teletext page number will be displayed on the upper left corner of the screen when the selected page is found.

- Press the 📄 button to display the selected Teletext page.

To Exit Teletext

- Press the 📄 button. The screen will switch to TV mode.

To Display The Time

- While watching a TV programme with Teletext transmission press the 📊 button. The current time information, captured from Teletext will be displayed on the screen.

- If the programme being watched does not have Teletext transmission, no information will be displayed.

Fastext

Your TV supports the 1000 page Teletext system. When the page number of any of the 1000 pages in memory is entered, the system will not search for the requested page; instead it will display the page automatically. If the requested page is not in memory, the system will search for the requested page number and save the 1000 pages including the requested page into memory after finding it.

• Press the ▲ button to move the Teletext screen forward one page at a time.
• Press the ▼ button to move the Teletext screen backward one page at a time.

For Fastext

The subject-heading for the information may have a particular colour.

- Press an appropriate RED, GREEN, YELLOW or BLUE button in order to reach the relevant page quickly.

For TOP text

TOP text mode of operation will be activated automatically according to the transmission.

• If TOP text transmission is present, colour coded buttons will appear in status row.
• If TOP text transmission is not present, status row will not appear.

The subject-heading for information may be located in coloured box.

In Top mode the ▲ or ▼ commands will request the next or previous page respectively. If TOP text transmission is not available, in case of operation of these commands, wraparound occurs. For example page 100 appears to be one greater than page 199.

ConnectPeripheral Equipment

There is a wide range of audio and video equipment that can be connected to your TV.

The following connection diagrams show you where the different (Optional) equipment should be connected at the rear side of the TV.

High Definition

Your LCD Television is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI socket (EXT-5) or Component Socket (EXT-3). These sockets can accept either 720p or 1080i signals.

Note: For proper connection of a device to HDMI input of your TV via using a DVI-to-HDMI cable, use PC Audio In input for sound connection.

Via The Scart

LCD TV has 2 Scart sockets. If you want to connect peripherals (e.g. video, decoder, etc.) which have Scart sockets to the TV, use SCART 1 or SCART 2.

If an external device is connected via the Scart sockets, the TV will be switched to AV mode automatically.

- Do not connect Digital Set Top Box devices via Scart 1. Use Scart 2.

Via Aerial Input

If you want to connect to your TV, peripherals like video recorders or decoders, but the device you want to connect does not have a Scart socket, you should connect it to the Aerial input of the TV.

If the VCR is connected via Aerial input it is suggested to use Programme 0.

Decoder

Cable TV offers you a wide choice of programmes. Most of them are free, others are to be paid for by the viewer. This means

that you will need to subscribe to the broadcasting organisation whose programmes you wish to receive. This organisation will supply you a corresponding decoder unit to allow the programmes to be unscrambled.

For further information ask your dealer. See also the booklet supplied with your decoder.

Connect a decoder with an aerial socket to the TV

- Connect the aerial cable.

Connect a decoder without an aerial socket to the TV

- Connect the decoder to the TV with a Scart cable to SCART 1.

TV And Video Recorder

- Connect the aerial cables.

Better picture quality can be obtained if you also connect a Scart cable to SCART sockets.

Playback NTSC

To use this option you can;

- Connect an NTSC VCR player to a Scart socket at the rear side of the TV.

- Connect an NTSC VCR player to RCA Jacks at the side of the TV.

Then, press AV button to select appropriate source.

CopyFacility

Source selection for VCR recording.

- Select Feature menu.

- Select Ext-2 Out by pressing ◀ / ▶ button.

- Select a source to copy the picture from that source.

Search For And Store The Test Signal Of The Video Recorder

- Unplug the aerial cable from the aerial socket of your video recorder.

- Switch on your TV and put the video recorder on the test signal. (See the booklet for your video recorder.)

• Enter the Install menu and select search.
• Search for the test signal of your video recorder in the same way as you searched for and stored the TV signals. Store the test signal under programme number 0.
• Replace the aerial cable in the aerial socket of your video recorder once you have stored the test signal.

Camera And Camcorder

To Connect To AV Input

Connect your camera or camcorder to AV (EXT-4) input at the right side of the TV.

- Connect your equipment to the TV via VIDEO (yellow), AUDIO R (red) and AUDIO L (white) inputs. You must connect the jacks to the input using the same colour.

To Connect To S-VHS Input

Connect your camera or camcorder S-VHS input (EXT-4S) at the right side of the TV.

- Connect your equipment to the TV via S-VHS input and audio inputs of AV inputs by using S-VHS cables.

Connect The Decoder To The Video Recorder

Some video recorders have a special Scart socket for decoder.

• Connect a Scart cable to the Scart socket of your decoder and to the special Scart socket of your video recorder. Refer to the booklet of your video recorder.
• To connect your video recorder to the TV, refer to the TV and Video Recorder section.
  If you want to connect more equipment to your TV, consult your dealer.

Connecting Headphones

Use the stereo headphone socket at the right side of the TV, to connect headphones.

Connecting External Equipment

To connect the external speakers to your TV, use the Audio Line Outs located at the right rear side of the TV.

AerialConnection

Outdoor Aerial Connection

Round 75 ohm coaxial cable 75Ω VHF/UHF Rear of TV

Connect Peripheral Equipment

either connect the aerial straight to your TV...

Aerial (RF) Lead wall socket Aerial (RF) Socket

...or through a VCR and satellite decoder.

headphone connection

Headphone

...or connect the aerial through a VCR...

• It is recommended that a scart lead should be fitted between your TV and VCR to enhance your picture and sound quality. Scart leads are essential if you have a stereo TV and VCR and wish to obtain stereo sound from your equipment. These leads can be purchased from your dealer or any good High Street electrical retailer.

...or through a satellite decoder...

LCD TV Aerlal RF Lead from Satellite to TV • Scarl Lead to EXT-1 on TV RF Lead to Aerial Satellite LNB lead

camcorder connection

DC N AV IN OUT OUT

Tips

Care Of The Screen

Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the TV screen coating layer.

Poor Picture

Have you selected the correct TV system? Is your TV set or house aerial located too close to non-earthed audio equipment or neon lights, etc.?

Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial.

Is the picture or Teletext unrecognisable? Check if you have entered the correct frequency.

The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

No Picture

Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer.

No Picture could mean that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more.

Sound

You can not hear any sound. Did you perhaps interrupt the sound, pressing the button?

Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound menu.

Remote Control

Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons at the bottom of the TV.

Have you selected the wrong menu? Press the TV button to return to TV mode or press the "M" button to return to the previous menu.

No solution:

Switch your TV set off and on. If this does not work, call the service personnel; never attempt to repair it yourself.

Specifications

TVBROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

RECEIVINGCHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

CABLE TV (S1-S20/ S21-S41)

NUMBER OFPRESET CHANNELS 100

CHANNELINDICATOR

On Screen Display

RFAERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

230VAC, 50 Hz.

AUDIO

German+Nicam Stereo

AUDIO OUTPUT POWER (W _RMS. ) (%10 THD)

2 × 10

POWER CONSUMPTION (W)

180 W

3 W (Stand-by)

PANEL

16:9 display, 32" Screen Size

DIMENSIONS (mm)

DIMENSIONS (mm)
D L H			Weight (kg)
220	922	562	15.0	With foot
110	922	515	13.4	Without foot
