USER MANUAL PTC-2200 Primada

Black portable electrical stove with open top and side panels, no visible text or symbols on the appliance body

昇鋒國際有限公司

Pro Logic International Limited

HONG KONG: (852) 2365 0655

www.pro-logic.com.hk

Black electric stove with two circular heating screens and a rotary top (no visible text or symbols)

Please read all the instructions carefully before use and keep it well for further maintaining and cleaning in the future.

Thank you very much for choosing our . Teppanyaki Master In order to make our product serve you more properly, please read all the instructions carefully before use and keep it well for further maintaining and cleaning in the future.

Accessories:

Teppanyaki plate

BBQ cooking rack

Optional accessories:

CoverSS Shovekorea grill paper

Technical Data:

Rated Voltage: 220-240V

Rated frequency: 50/60Hz

Rated input power: 2200W

Noted: Connect a constant voltage regulator when the voltage is unstable, don't use a socket with other electronic home appliances together!

ProductFeature:

1. Advanced technology and infrared heating:

Teppanyaki Master bases on the principle of far infrared heating that is imported from German talents. The heating parts inside the cooker can reach more about 500^ C\~ 600^ C in several seconds, and the glistening and heat-concentrating materials can put the heat energy together in order to reflex to the ceramic plate and heat up the cookware bottom and the food inside. Heats base on far infrared waves;

1. Safety

1). Transfer heat by far-ultraviolet rays, thus there is no radiation.
2). High heat resistant material for heating base, touchable plastic outer plate, low temperature out of heating round base on transfer low heat crystallite plate, all of these makes use the machine more safety.
3). Dual electrical protection: Microelectronic chip and thermal fuse for high temperature protection.
4). Eight hours time adjustable, if timer is not selected, Teppanyaki Master will automatically power off after 2 hours.
3. Multi-purpose: This appliance can be used as Teppanyaki Stove, BBQ and Korea Griller. It is suitable for different types of cooking (steam, boil, fry, bake, reheat, grill and teppanyaki).
4. Environmental: it does not create any smoke or carbon monoxide.
5. Clean: Ultra-hard crystallite hotplate comes with excess oil storage tray, that can temporary store unwanted/excess oil for easy cooking and cleaning.
6. Easy to use: Clear illustrations on control panel for ease of use.
7. Energy-saving: Micro-computer controlling, power level and temperature can be adjusted automatically to save more energy.
8. Suitable for all kind of cookwares: All flat-bottom heat-resistant and non reflective Cookwares (aluminium, copper, ceramic pot and glass ware) can be used.

Notice: Pay special attention when using the Pressure Cooker and avoid overly high temperature which may cause explosion!

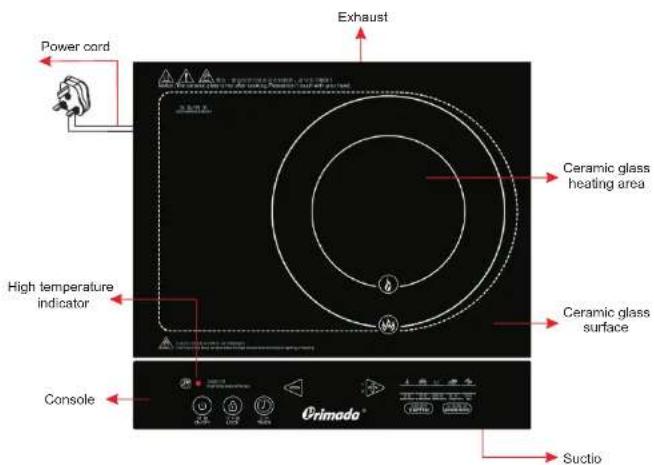

Power cord Exhaust High temperature indicator Ceramic glass heating area Ceramic glass surface Console Orimado® Suctio

Temperature adjustable automatically system: When the stove surface reaches adjust temperature, heating elements power will lower automatically and the light will be dark few seconds, but it will not affect heating speed and efficiency!

Notes:

To avoid electric shock, short circuit or fire, please adhere to the following:

1. Do not open and modify parts or to repair the Teppanyaki Master by you rself!
2. The Seppahyakol Masde horizontally and leave a 10cm distance from walls or other objects for ventilation.
3. Multifunction cooker cannot be used on metal countertop to prevent damage.
4. Do not use the nTeppargaskiMaksterstoves and other high-temperature environments
5. Do not wash the body with water directly it may affect or damage electrical insulation properties.

6. Do not place metal objects such as knives, forks, spoons or lids on the Tapdanyakil Mastered once the device is working.

7. Do not use the TappenarpierMastablecloth to avoid the blockage of air inlet vents meant for ventilation.

8. Do not insert any metal materials into the air vents to avoid electric shock.
9. Do not heat explosive materials directly or indirectly with the Teppanidakie Mazards or explosions.
10. Do not touch the hot ceramic plate surface after cooking.
11. When the appliance malfunctions or the power cord is damaged, do not attempt to open, modify parts or repair it on your own. Return to fire repair centre special purpose tools are required.
12. Do not touch the power cord and plug with wet hands.
13. Do not pull out the plug by pulling the cord, grip the plug and remove from socket.
14. Place the Tappheyakivrasted beyond the reach of children.
15. Do not power on when the cook wares are empty.
16. Stop using once the ceramic surface cracks, power off immediately and send to for repair nada repair centre
17. Do not place the power cord, plastic materials or paper near the Wepaimyake Master
18. Clean and dry the bottom of cookwares before putting on the ceramic heating glass to prevent burns caused by foreign objects.
19. Do not place objects (pot and food) heavier than 20 kg on the Tepsierry Oil Master, it will damage the plastic body cover and ceramic plate.
20. Do not boil dry, always check that there is enough liquid in the cooking pot before leaving. Do not leave cooking unattended for a long time to prevent food and pot from getting burnt..
21. This appliance cannot be used by children and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge, unless they have been given sufficient supervision or instruction concerning the use of the Tepp safety and understand fully the hazards involved. Children should not play with the appliance. Cleaning and maintenance shall not be done by children.
22. Persons fitted with the pacemaker should not use this appliance, unless with the doctor's consent..

23. If the panel is damaged please cut off power supply to avoid electrical shock hazard.

24. During the heating process with the highest power, the stove may either stop or restart heating to maintain the heat from time to time, this is normal.

25. This product is designed for domestic use only.

26. This appliance is not intended to be operated by means of an external timer or separate remote-control system

27. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall be not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

1. WARNING: Charcoal or similar combustible fuels must not be used with this appliance!

Instructionn:

1. Read the manual carefully before using the appliance.
2. Please use only 13A socket.
3. Follow the instruction to operate after power on.
4. Press 'ON/OFF' button after cooking is completed. The ceramic plate surface is still very hot if the high temperature indicator is still lighted up and the cooling fan is still rotating. Do not touch the heating area with hand to avoid burns and cover with the safety mesh immediately. After the high temperature indicator light turns off, then disconnect the power plug and cleaning may commence.

NOTE: Do not power off from the main power supply immediately after pressing the 'ON/OFF' button. Wait for the high temperature indicator light to turn off first!

Operation and Use:

After electrified the Teppanyaki Master, the buzzer will prompted with a long 'woo' sound, then the isTeppanyaki Master standby mode. Stand by status: All light t is off only the 'LOCK' indicator is lighted.

2. Safety lock:

a) The TwiparayalaiM'LaOeK' mode after power on.
b) In standby mode, touch 'LOCK' button one second, indicator goes out with short buzzer, then other buttons could select.
c) To lock again, touch 'LOCK' button softly for one second, then the 'LOCK' indicator will light up with a short buzzer, and the appliance is turned to 'LOCK' mode again. Under 'LOCK' protecting mode, only the 'LOCK' button is working.

3. ON/OFF:

Under working mode, press "ON/OFF", the Teppanyaki Master is into working mode after the light up with sound of short buzzer, the machine can be chose functions.

4. "+/-" button:

Under working mode, touch "+" buttons softly to turn up the power, temperature and increase time. Under working mode, touch "-" to turn down the power, temperature and decrease time.

5. FUNCTION key:

INNER STOVE / OUTER STOVE / TEPPAN YAKI / KOREA GRILL / BBQ keys switchover.

6. INNER STOVE function:

a) The "INNER STOVE" function will not work if you place the teppanyaki plate on the Teppanyaki Master
b) Under standby mode, when choosing 'INNER STOVE' function, the indicator will light up with sound buzzer and five

levels of power variations: 100W, 200W, 500W, 800W, 1100W will be available for selection. Touch "+" buttons softly to turn up the power, touch "-" to turn down the power, as show in the right picture. The Waspathyaki Master the power variation is selected. The following cooking guide is for your reference.

7. OUTER STOVE function:

a) The "OUTER STOVE" function will not work if you place the teppanyaki plate on the . Teppanyaki Master
b) The indicator of OUTER STOVE will light up when in corresponding function standby mode, as the below picture showing.
c) When choosing 'OUTER STOVE' function, the indicator will light up with sound buzzer and nine levels of power variations: 100W, 200W, 300W, 500W, 800W, 1200W, 1600W, 1800W, 2200W will be available for selection. Touch "+" buttons softly to turn up the power, touch "-" to turn down the power. The TwipbanyakinMastess the power variation is selected. The following cooking guide is for your reference.

OUTER STOVE
No.	(W)Power Cooking style
1	100	Keep warm
2	200-500	Heating,stewing
3	800-1200	Soup , hotpot
4	1600-2200	Frying

8. KEEP WARM/DEFROST function:

a) The "KEEP WARM/DEFROST" function will not work if you place the teppanyaki plate on the .Teppanyaki Master
b) Plug into the power socket, and then touch the safety lock to open the "LOCK". Touch the "ON/OFF" button to choose the "KEEP WARM/DEFROST" function, and the entire crystallite hotplate heats with 60°C around as shown on the right picture.
c) Under the "INNER STOVE and OUTER STOVE" mode, choose "KEEP WARM/DEFROST" function and the entire crystallite hotplate heats with 60°C around as shown on the right picture.

9. TEPPANYAKI function:

a) The "TEPPANYAKI" function will not work unless you place the teppanyaki plate on the . Teppanyaki Master
b) The indicator of teppanyaki will light up when touch "FUNCTION" button to select "Teppanyaki" function, as the below picture showing.
c) When choosing 'TEPPANYAKI' function, the indicator will light up with sound buzzer and six levels of temperature variations: 60°C, 180°C, 210°C, 240°C, 270°C, 300°C, 320°C will be available for selection. If user do not select the temperature, it will be defaulted to 320°C. Touch "+" buttons softly to turn up the power, touch "-" to turn down the power. The Teppanyaki Master will not work unless the power variation is selected. The following cooking guide is for your reference.

Teppanyaki Plate
No.	Temperature (°C)	Cooking style
1	60	Keep warm
2	180-210	Fry egg and cake
3	180-240	Seafood, fish, chicken,vegetables
4	210-270	Hotdog, beaf, pork
5	240-320	Pork chop, steak

10. KOREA GRILL function:

a) The "KOREA GRILL" function will not work unless you place the teppanyaki plate on the .Teppanyaki Master
b) The indicator of KOREA GRILL will light up when in corresponding function standby mode, as the right picture showing.

c) When choosing "KOREA GRILL" function, the indicator will light up with sound buzzer and three levels of temperature variations: 190°C, 220°C, 250°C, will be available for selection. If user do not select the temperature, it will be defaulted to 250°C. Touch "+" buttons softly to turn up the power, touch "-" to turn down the power. The Multi Stove will not work unless the power variation is selected.

Notice: The TEPPANYAKI, KOREA GRILL or BBQ function can not be selected unless you place the teppanyaki plate on the Teppanyaki Master, otherwise, the Teppanyaki Master will be defaulted to INNER STOVE or OUTER STOVE function! When selecting INNER STOVE or OUTER STOVE function mode, once the teppanyaki plate is placed on the Multi Stove, the INNER STOVE or OUTER STOVE function will shut down automatically and the light indicator will turn off and teppanyaki function will set in!

11. BBQ function:

a) The "BBQ" function will not work unless you place the teppanyaki plate on the Teppanyaki Master
b) The indicator of BBQ will light up when in corresponding function standby mode, as the right picture showing.

c) When choosing "BBQ" function, the indicator will light up with sound buzzer and three levels of power variations: 600W, 1400W, 2200W will be available for selection. If user do not select the power, it will be defaulted to 2200W. Touch "+" buttons softly to turn up the power, touch "-" to turn down the power. The Multi Stove will not work unless the power variation is selected.

12. TIMER:

a) During the working mode, touch the "TIMER" button to select the desired cooking time. It will show "0:00" and (0.5S/0.5S) will twinkle, touch "+" buttons softly to turn up the time with one minute every time, if touch the "+" button more than 5 seconds, the time will turn up with 10 minutes each time. Touch "-" button softly to turn down the time with one minute every time, if touch the "-" button more than 5 seconds, the time will turn down with 10 minutes each time. The maximum is 8 hours. The minimum is "0:00".
b) When the setting time is reached, the timer indicator will light on 5 seconds automatically with 1 sound of buzzer beeps. If setting time more than 0 seconds, the timer will count time to working.
c) When the time is setting, the showing screen will show power and temperature in turn by every 5 seconds.
d) If the working time has been selected, but you change to other functions, the previous setting time will be clear automatically.
e) If user want to adjust temperature or power after the functions and timer has been set, touch "+" buttons softly to change the showing screen to be corresponding showing, touch "+" buttons softly to turn up the temperature or power, touch "-" to turn down the temperature or power. It will not affect the previous setting time.

f) If time count down to "0", the appliances will power off automatically and will be in standby mode. If timer is not selected during cooking, it will automatically be defaulted to 2 hours. After 2 hours the Teppanyaki Master will power off automatically.

Operation: :

1. Teppanyaki Operation (Fig①\~⑦):

1) Put the teppanyaki plate on the housing, plug into the power socket, then touch the safety lock for 1 second to open the "LOCK". And then touch the "ON/OFF" switch, Fig. ①\~②
2) Touch "FUNCTION" button to select "Teppanyaki" function, The indicator of teppanyaki will light up Fig. ③
3) Touch the timer switch to set the timer (If you do not set the timer during cooking, it will automatically default to 2 hours). Fig ④, touch "+" to setting time. Fig ⑤.
4) Touch "TEPPANYAKI" button, then touch "+" and or "-" button to select the desired cooking temperature setting. When the surface of the ceramic plate reaches the setting temperature, the corresponding indicator will indicator will flash, then it will start cooking. Fig \~⑥ ⑦

2. Korea grill Operation (Fig①\~⑧).

1) Put the teppanyaki plate on the housing, plug into the power socket, then touch the safety lock for 1 second to open the "LOCK". And then touch the "ON/OFF" switch, Fig ①\~②.
2) Touch "FUNCTION" button to select "KOREA GRILL" function, then touch "+" and or "-" button to select the desired cooking temperature. Fig ③ ④
3) Touch the timer switch to set the timer (If you do not set the timer during cooking, it will automatically default to 2 hours). Fig ⑤ touch "+" button to setting the desired time, Fig . ⑥
4) Before putting the Korea paper on the Teppanyaki plate, falling a little oil on the plate to avoid the papers burns. When the plate temperature reaches to desired setting, the figure of setting temperature will twinkle, then you can cooking. Fig ⑦ ⑧

3. Barbeque Operation Fig : ①\~⑧

1) Put the teppanyaki plate on the housing, plug into the power socket, then touch the safety lock for 1 second to open the "LOCK". And then touch the "ON/OFF" switch, Fig ①\~②.
2) Touch "FUNCTION" button, then touch "+" and or "-" button to select the desired cooking power (there are 3 variations of power "600W 1400W 2200W". Fig ②.
3) Touch the timer switch to set the timer (If you do not set the timer during cooking, it will automatically default to 2 hours). Fig ⑤ touch "+" button to setting the desired time, Fig . ⑥
4) Put the BBQ rack on the ceramic plate and the food in between the two BBQ rack and lock it. You can turn the food on both sides to cook it evenly. Mutton or beef kebab can also be put on the BBQ rack to grill. Fig \~⑦ ⑧.

Clean and Maintenance:

Don't remove the plug from the socket before the high temperature indicator goes out.

1. To clean the dirt on the ceramic control panel and th e body with, a soft slightly wet cloth and dip a little toothpaste or a neutral detergent to clean the oil dirt area, then wipe it with a dry cloth. Do not clean the body with a hard brush and put it into water.
2. How to clean Teppanyaki plate: Draw out the oil from the oil tray, use shovels to clean the dregs on the plate surface, or brush it with metal ball. Or put the Tappanyaki plate into water or washing machine directly.
3. The oil high-temperature storage tanks can be detachable to clean (Note: Please press the both green sides forward showing as the right picture of the oil tank when detach it. Don't pull it straight back out use hand in case of the damage to the oil tank).
4. Use a cotton swab with a little of toothpaste or neutral detergent to clean the dust on the surface of the air/exhaust port carefully.
5. In order to prevent water flow into the machine, please use a dry cloth to wipe the machine after cleaning, and dry it before use.
6. Do not rinsed the Teppanyaki master with water or immersed into water directly.
7. Teppanyaki masterDo not open or disassemble the to clean.
8. In order to prevent the cockroaches and other insects to enter the body and cause malfunction, please use the plastic bags or boxes to pack it after use. And keep the furnace clean.
9. In order to avoid the any burnt dirt sticked on the bottom of the pot and ceramic plate. Please keep the bottom of the pot cleaning.
10. It is normal to find the Teppanyaki master body turn yellow after using a period of time, it won't affect to use the machine.

Suggestion: After using the Teppanyaki plate, put it into water when the surface is hot, clean it by metal brush with neutral detergent!
