USER MANUAL PCS-2020 Primada

Black portable electrical appliance with circular top and control buttons (no visible text or symbols)

昇鋒國際有限公司

Pro Logic International Limited

HONG KONG: (852) 2365 0655

www.pro-logic.com.hk

Exterior view of a black induction cooktop appliance with control buttons and indicator lights (no visible text or symbols)

Please read all the instructions carefully before use and keep it well for further maintaining and cleaning in the future.

Thank you very much for choosing our Ceramic stove. In order to make our product serve you more properly, Please read all the instructions carefully before use and keep it well for further maintaining and cleaning in the future.

Technical Data:

Rated Voltage: 220-240V

Rated frequency: 50/60Hz

Rated input power: 2000W

Noted: Connect a constant voltage regulator when the voltage is unstable, don't use a socket with other electronic home appliances together!

Product Feature:

1. Advanced technology and infrared heating

Ceramic stove bases on the principle of far infrared for heating that is imported from German talents. The heating parts inside the stove can reach more than 500^ CJ\~ 600^ CJ in several seconds, and the glistening and heat-concentrating materials can put the heat energy together in order to reflex to the crystallite plate and heat up the cookware bottom and the food inside.

2. Safety

1). Transfer heat by far-ultraviolet rays, no radiation.
2) High heat resistant material for heating base, touchable plastic outer plate, low temperature out of heating round base on transfer low heat crystallite plate, all of these makes use the machine more safety.
3) Safe protectors design: High temperature indicator, After press ON/OFF button to stop working, the indicator will light up, for the surface of the ceramic stove still in high temperature.
4) Dual electrical protection: Microelectronic chip and thermal fuse high temperature control.
5) Eight hours time adjustable, if timer is not selected, this Ceramic stove will automatically power off after 2 hours.

1. Environmental: it does not create any smoke or carbon monoxide.
2. Clean: ultra-hard crystallite hotplate, easy for cleaning.
3. Convenient: pattern and illustration on controlling panel, convenient to use.
4. Energy-saving: micro-computer controlling, adjust power level and temperature automatically to save more energy.
5. No choice on cookware: heat-resistant material suitable for all kinds of material cookware, include iron, aluminum, copper, earthen pot and heat resistant glass cookware. It's better to choice flat-bottomed and no reflective light cooking utensils.
6. Bottom kettle around 150mm diameter required when boil the water and the material of the kettle are involved of the iron, aluminum, copper, ceramic, casseroles and other heat resistant glass. It's better to choice flat-bottomed and no reflective light kettles, so that the heat transfer is more effective.

Notice: Pay more attention to use the pressure cookware.

For over high temperature will explode!

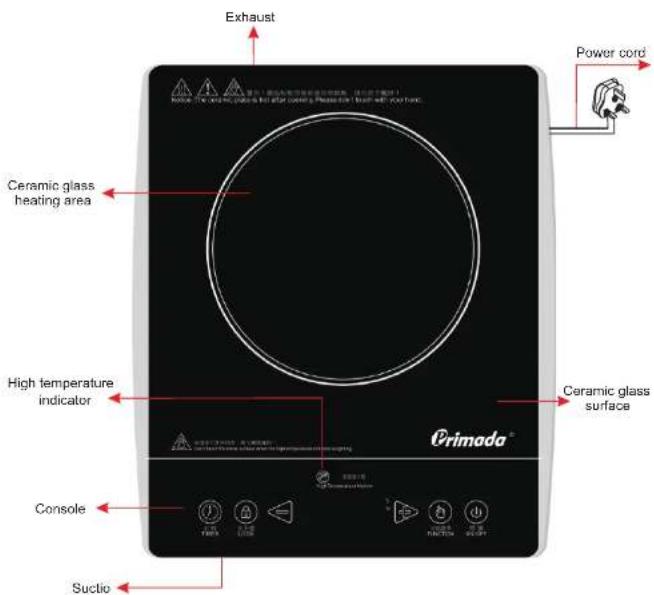

Exhaust Power cord Ceramic glass heating area High temperature indicator Ceramic glass surface Console Suctio Crimada®

Temperature adjustable automatic heating system surface reaches adjust temperature, heating elements power will lower automatically and the light will be dark few seconds, but it will not affect heating speed and efficiency!

Notes:

To avoid electric shock, short circuit or fire, please adhere to the following:

1. Don't disassemble the stove, retrofit the parts or repair on your own.

2. The ceramic stove should be placed horizontally and leave a 10cm distance from walls or other objects for ventilation.

3. Ceramic stove cannot be used on metal countertop to prevent damage.

4. Do not use the ceramic stove near to gas cooker, stoves and other high-temperature environments.
5. Do not wash the body under running tap, or it may affect or damage the electrical insulation properties.
6. Do not use the Ceramic stove on the carpet or tablecloth to avoid the blockage of air inlet vents meant for ventilation.
7. Do not insert any metal materials into the air vents to avoid electric shock.
8. Do not heat explosive materials directly or indirectly with the Ceramic stove to avoid fire hazards or explosions.
9. Do not touch the hot ceramic plate surface after cooking, cover the safety mesh immediately to avoid burns.
10. When the appliance malfunctions or the power cord is damaged, do not attempt to open, modify parts or repair it on your own. Return to Primada maintenance center for repair as special purpose tools are required.
11. Do not touch the power cord and plug with wet hands.
12. Do not pull out the plug by pulling the cord, grip the plug and remove from socket.
13. Place the Ceramic stove and the power cord beyond the reach of children.
14. Do not power on when the cook wares are empty.
15. Stop using once the ceramic surface cracks, power off immediately and send to agent for repair.

16. Do not place the power cord, plastic materials or paper near the Ceramic stove when in use.

17. Clean and dry the bottom of cookwares before putting on the ceramic heating glass to prevent burns caused by foreign objects.

18. Do not place objects (pot and food) heavier than 20 kg on the Ceramic stove surface. Otherwise, it will damage the plastic body cover and ceramic plate.
19. Do not boil dry, always check that there is enough liquid in the cooking pot before leaving. Do not leave cooking unattended for a long time to prevent food and pot from getting burnt.
20. This appliance cannot be used by children and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge, unless they have been given sufficient supervision or instruction concerning the use of the Ceramic stove in a safe way and understand fully the hazards involved. Children should not play with the appliance. Cleaning and maintenance shall not be done by children.
21. Persons fitted with the pacemaker should not use this appliance, unless with the doctor's consent.
22. If the panel is damaged please cut off power supply to avoid electrical shock hazard.
23. During the heating process with the highest power, the stove may either stop or restart heating to maintain the heat from time to time, this is normal.
24. This product is designed for domestic use only.
25. This appliance is not intended to be operated by means of an external timer or separate remote-control system
26. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall be not play with the appliance. Cl eaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

1. WARNING: Charcoal or similar combustible fuels must not be used with this appliance!

Instruction:

1. Read the manual carefully before use this machine.
2. Please use the special socket which capacity not less than 13A.
3. According to the following instruction and use way to operation after power is connected.
4. Press button ON/OFF after cooking is completed, the surface is hot if the high temperature indicator is light up and cooling fan is rotation. Do not touch the panel with hand to avoid burns, after the high temperature indicator light turns off, then disconnect the power plug and clean the surface.

Operation and Use:

After electrified the ceramic stove, electric buzzer prompt long -woo, then the ceramic stove been into standby mode. Stand by status: All light is off only lock is lighting in force.

1. Safety Lock:

a). The Ceramic stove will default ' LOCK' mode after power on.
b). In standby mode, touch 'LOCK' button one second, indicator goes out with short buzzer, then other buttons could select.
c) To lock again, touch 'LOCK' button softly for two seconds, then the 'LOCK' indicator will light up with a short buzzer, and the appliance is turned to 'LOCK' mode again. Under 'LOCK' protecting mode, only the 'LOCK' button is working.

3. ON/OFF:

Under working mode, press "ON/OFF", the ceramic stove is into working mode after the light up with sound of short buzzer, the machine can be chose functions.

4. FUNCTION:

To change the function of temperature and firepower.

5. POWER MODE:

When choose "Power Mode" function, the indicator light up with sound of buzzer, and six levels of power adjustment can be chose. The ceramic stove will not work unless chose the power.

a). Six levels power as following for your choices: 200W, 500W, 800W, 1200W, 1600W, 2000W.
b) Touch "+" button softly to turn up the power, touch "-" to turn down the power.
c) If the power have adjusted to be set max or min but the machine still can be adjustable, keep the last showing data.

6. TEMPERATURE MO DE:

When choose "Temperature Mode" function, the indicator light up with sound of buzzer, and different levels of temperature for your choices;

a) Six levels temperature as following for your choices: 60°C, 180°C, 210°C, 240°C, 270°C, 300°C.
b Touch "+" button softly to turn up the temperature, touch "-" to turn down the temperature.
c) If the temperature have adjusted to be set max or min but the machine still can be adjustable, keep the last showing data.

7. TIMER

During the working mode, touch the "TIMER" button, the indicator light up with sound of buzzer. And d ifferent time setting can be selected under timer mode from 0-8 hours. The timer will count time to working only the power or the temperature is setting. When the setting time is reached, the timer indicator will turn off automatically and the previous function also will turn off automatically with the indicator off and stop to heat.

a). Touch "+" buttons softly to turn up the time with one minute every time, if touch the "+" button more than 0.5 seconds, the time will turn up with 10 minutes each time. The maximum is 8 hours.
b). Touch "-" button softly to turn down the time with one minute every time, if touch the "-" button more than 5 seconds, the time will turn down with 10 minutes each time. The minimum is "0: 00".

If timer is not selected during cooking, it will automatically be defaulted to 2 hours. After 2 hours the Multi Stove will power off automatically.

Clean and Maintenance:

Do not remove the plug from the socket before the high temperature indicator light goes out.

1. To clean the dirt on the ceramic control panel and the body with a soft slightly damp cloth. With a soft damp cloth dipped a small amount of toothpaste or a neutral detergent to clean the oil dirt area. Then wipe it with a dry cloth. Do not clean the housing with a hard brush and never put the body of the machine into water.
2. Use a cotton swab with a little of toothbrush or neutral detergent to clean the dust on the surface of the air/exhaust port carefully.

3. In order to prevent water flow into the machine, please use a dry cloth to wipe the machine after cleaning, and dry it before use.

4. Do not rinse the body of the machine with water or immersed into water directly.

5. Do not open or disassemble the ceramic stove to clean.
6. In order to prevent the cockroaches and other insects to enter the body causing a malfunction, please use the plastic bags or boxes to pack it after use. And keep the furnace clean.
7. In order to avoid the dirt sticked on the bottom of the pot and sintered on the ceramic plate. Please to keep the bottom of the pot clean.
8. After use the ceramic stove for a period of time. It is a normal situation when the ceramic plate becomes yellow. It won't affect to use the machine.

Do not dispose of electrical appliances as unsorted municipal

waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak

into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.
