HRS 2500 - Receiver XORO - Free user manual and instructions

Product type	Digital satellite receiver (DVB-S)
Brand	Xoro
Model	HRS 2500
Dimensions (W x H x D)	180 x 120 x 43 mm
Net weight	0.5 kg (incl. remote control)
Power supply	AC 85-265 V, 50/60 Hz
Power consumption	<18 W
Input frequency	950 – 2150 MHz
LNB power	13/18 V, max. 500 mA
Video resolution	720 x 576 (PAL), 720 x 480 (NTSC)
Aspect ratios	4:3 PS & LB, 16:9
Audio output	Stereo, Left/Right, Mono
Connectors	2x SCART (TV & VCR), Coaxial digital audio (S/PDIF), USB 2.0, RF input (F-type)
USB playback	JPEG, MP3, MPEG-1/2/4 (.mpg, .avi)
DiSEqC support	DiSEqC 1.0/1.1/1.2, USALS
Operating temperature	0 °C to 40 °C
Humidity	5% – 90% (non-condensing)
Accessories included	Remote control, user manual
Safety features	Automatic shutdown after prolonged inactivity, child lock (parental control)
Cleaning instructions	Wipe with a dry, soft cloth. Do not use liquids or sprays.
Repairability	Service only by qualified personnel. Do not open the device.

Frequently Asked Questions - HRS 2500 XORO

How do I perform the first-time installation?

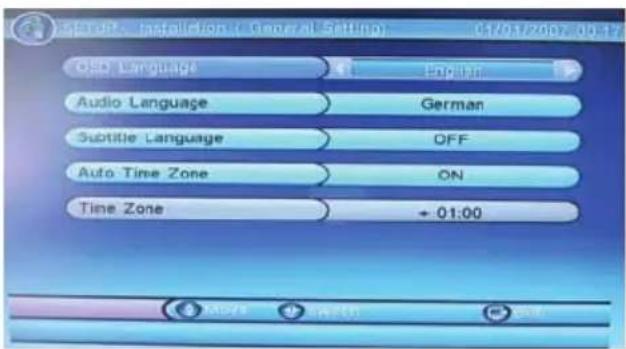

Press MENU, go to SETUP > Installation. Set your language in General Setting, then configure your dish in My Dish. Select your satellite, LNB type (usually Universal), and start a scan. The receiver will automatically find channels.

Why is there no signal or picture?

Check the dish alignment, cable connections, and LNB power settings. Ensure the correct satellite is selected. The signal strength and quality bars should be above 50%. Also verify the TV input (SCART) is properly selected.

How can I lock certain channels?

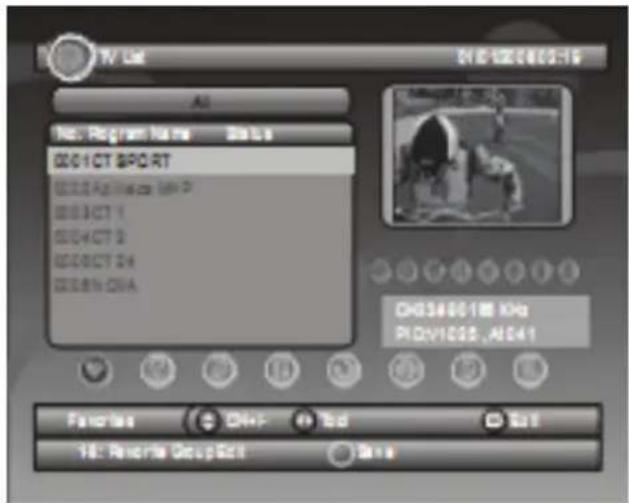

Go to TV list, press the tool button until the lock icon appears, select the channel and press OK. Then enable Channel Lock in SETUP > Password. The default password is 6666. You can change it in the same menu.

Can I play movies from a USB stick?

Yes. Connect a USB stick to the front USB port. Press MENU, go to Multimedia > My Movies. Navigate to the file and press OK to play. Supported formats: MPEG-1, MPEG-2, MPEG-4 (.mpg, .avi). Note: AC3 audio only works via digital audio output.

How do I set up multiple satellites with DiSEqC?

In Installation > My Dish, set Switch Type to DiSEqC 1.0/1.1 or 1.2/USALS. For DiSEqC 1.0, assign each satellite to a DiSEqC port (A/B). Enable Toneburst if needed for more than 4 satellites. Then scan each satellite individually or together.

The remote control does not work. What should I do?

Replace the batteries. Aim the remote within 5 meters and at an angle within 60 degrees of the front sensor. Avoid bright light on the sensor. If still not working, check for obstructions or try resetting by removing batteries for 30 seconds.

How do I update the software?

Download the update file from the Xoro website to a USB stick (FAT32). Connect the USB stick, go to SETUP > SW Update > Update via USB. The receiver will automatically detect the file and install it. Do not turn off power during update.

What is the default password and how to change it?

The default password is 6666. To change, go to SETUP > Password > Change Password, select Yes, enter old password (6666), then enter new four-digit password twice.

Can I use the receiver with a motorized dish?

Yes. In My Dish, select DiSEqC 1.2/USALS. For USALS, enter your geographical longitude and latitude. The receiver will automatically aim the dish to the chosen satellite. For DiSEqC 1.2, you can manually control the motor position.

How do I reset the receiver to factory settings?

Go to SETUP > Set Default and press OK. Confirm the reset. All settings and channel lists will be erased. You will need to perform the first-time installation again.

USER MANUAL HRS 2500 XORO

FREE TO CHOOSE INNOVATIONS

XORO®

HR 2500

x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x

Black XORO satellite TV device with visible logo and control buttons (no text-heavy elements)

BEDIENUNGSANLEITUNG

OPERATION MANUAL

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Deutsch

Green recycling symbol with three chasing arrows forming a triangle (no text or labels)

Circular logo with a green and yellow spiral design, no text or symbols present.

Batterien

Technical line drawing of a rectangular device with internal compartments and a separate housing (no text or symbols)

Line drawing of a device casing with internal components and an attached door (no text or symbols)

Program Info
Satellite Name	ASTRA 1E,1F,1G
Program Name	ate
Program No	0004	Down Frequency	10742
Local Frequency	9750	Symbol Rate	21995
Polarity	H	Video PID	0401
22K Tone	OFF	Audio PID	0402
DISEqC	OFF
Strength 86%
Quality 75%

Video

Installation

Technically unlimited

MAS

Elektronik AG

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

7

广力云智慧零售收银系统

[Non-Text]

[Non-Text]

7

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

7

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

1

[Non-Text]

[Non-Text]

[Non-Text]

Table of Contents (ENG)

Safety information 4

Recycling Information 7

Accessories 8

Control Element

Front Panel 9

Rear Panel 9

Remote Control

Insert battery and operation 10

Buttons 11

Connection

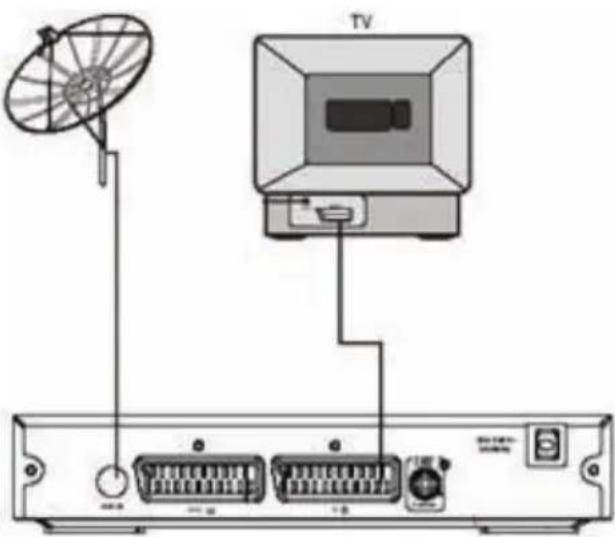

TV / Aerial 12

External audio decoder or amplifier 13

First Time Installation

First Time Installation 14

Operation

Important buttons and there functions 22

Multimedia Player

USB Port 26

My Album 27

My Music 28

My Movies 29

Setup

Main Menu 32

T V 3 2

Multimedia 37

TV Setup 37

Settings 38

Accessories 42

Troubleshooting 43

Specification 4 4

Warranty 4 5

SAFETY INFORMATION

English

The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

User Manual

1. All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. All warnings on the product and in the operating instructions should be adhered to.
4. All operating and use instructions should be followed.

Power Supply

1. Never touch the plug with wet hands.
2. If you want to pull the plug out of the plug socket, always pull directly on the plug. Never pull on the cable as it could tear.
3. Make sure that the power cable is not bent, caught or run over and that it does not come into contact with heat sources.
4. Make sure that the power cable is not wound around the device while in operation.
5. Never place the machine on the power cable while it is being operated.
6. Only use extension cables that are designed for the power consumption level of the machine.
7. Keep the appliance away from rain and any moisture.
8. Only operate the machine if the electrical voltage stated on the type plate beneath the machine agrees with the voltage on your plug socket. The wrong voltage can destroy the machine.
9. Do not stand vases etc. on the appliance. Water could seep into the appliance.
10. Do not open the appliance.
11. Pull out the mains plug if the appliance is not to be used over a longer period of time.
12. Take care that nobody can trip over the power supply cable.

Operation and Position

1. Reception of digital satellite channels (DVB-S).
2. Do not connect accessories on the box which are not defined by the manufacture.

3. Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

4. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

5. The device is able to show a still image on the TV screen or monitor over an unlimited period of time. This can cause damage to the screen. It is therefore advisable to activate the screen saver. Or switch the player off, if the device is not in use.

6. Do not uses the device permanent in the 4:3 mode. This can cause damage to the TV screen.

7. Do not increase the volume when the box is just playing very quiet sections. This cold damage the speaker if very loud passages starts all of a sudden after the quiet section.

8. Switch the box off by the Off/On switch if it is not going to used for a longer period of time. Please unplug the power cable from the wall outlet.

9. Disconnect the main plug during thunderstorms.

10. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.

11. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.

12. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

13. Protect the device against weather influences, moistures and high temperature.

14. Never spill liquid of any kind on the product.

15. Do not expose the device and the remote control to direct sunlight.

USB Port

Due to the legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port

Defect

1. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
2. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e. If the product has been dropped or damaged in any way, and

1. When the product exhibits a distinct change in performance this indicates a need for service.
2. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
3. Nicotine can damage the electronic components. In case of service regarding too much nicotine, than the warranty/guarantee expired.
4. Please read in the section Troubleshooting our service address and phone number.

Recycling Information

Recycling of electronic devices

This product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please, dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic product. Please, help us to conserve the environment we live in!

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

Recycling of paper and carton

The material recycling symbol on the carton and user manual denotes that they are recyclable. Dispose them not with the normal household waste.

Green recycling symbol with four arrows forming a triangle (no text or numbers)

Recycling of plastic parts

The material recycling symbol on the plastic parts denotes that they are recyclable. Dispose them not with the normal household waste.

Green Dot

Circular logo with a green and dark green spiral design, no text or symbols present.

Package Contents

When opening the package of this DVB-S receiver please make sure that the following accessories are included:

• HRS 2500
• Remote control
• User manual

Notes:

• If any item should be damaged or missing, please contact your dealer without delay.
- Keep the packaging materials, you may need them to transport your player in the future.
- Always transport or send the player in its original packing.
- Do not change or modify any components of the device or accessories.

CONTROL ELEMENTS

Front Panel

1. LED Display
2. Power indication light (Red = Stand-By; Green = Active)
3. Remote Control Sensor
4. USB port

Note:

The unit is automatically ready to work as soon as the power supply is applied.

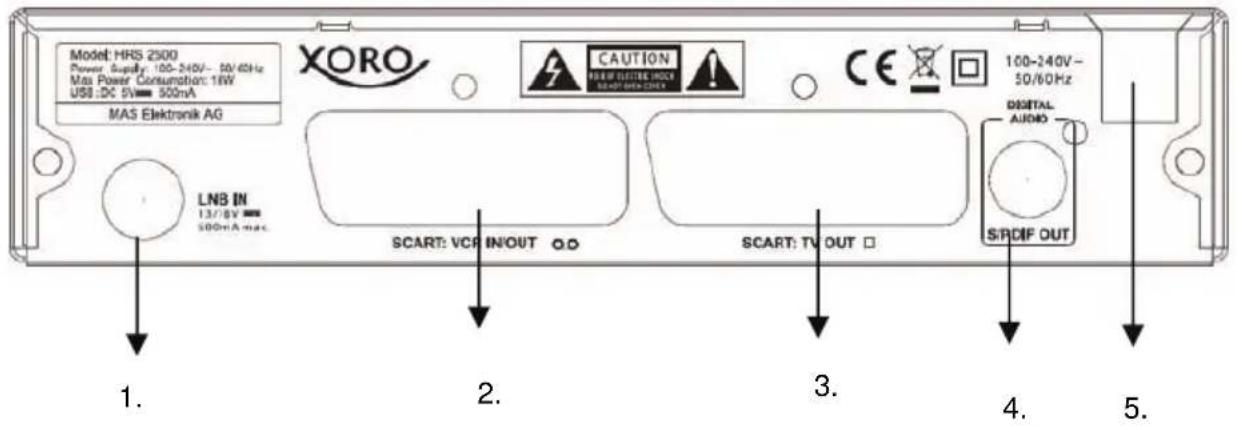

Rear Panel

Description of the elements:

1. RF input jack—IEC 60196-24 (F Type)
2. SCART (VCR IN/OUT)
3. SCART (TV-OUT)
4. Digital Audio Output (S/PDIF)
5. AC power cord

Note:

Please unplug the power cord and keep it orderly when the unit shall not be used for a long time in case that the power cord may get scratched and thus lead to electric leak and shock.

Remote Control

Insert batteries and operationradius

• Insert the battery into the receptacle and insert the receptacle into the remote.
• For the best results, aim the remote towards at the player, screweiving window. Stay within 5 meter and angles of 60 degrees or less.
  • Under normal use the battery will last for one year.
• Remove battery during storage or when you are not using the Setup Boxr for a long time.

Notes:

1. Weak batteries can leak and several damage by the remote control.
2. Leaking out battery acid can damage your health.
3. Remove the battery from the battery compartment as soon as it is exhausted or if the remote control is not going to be used for a longer period of time.
4. Wipe up leaked out battery acid with a cloth.
5. In case of skin contact immediately wash the affected area.
6. Seek medical advice if battery acid has been swallowed. In case of contact with your eyes wash out the eyes and seek medical advice.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a device casing with internal components and a separate housing (no text or symbols)

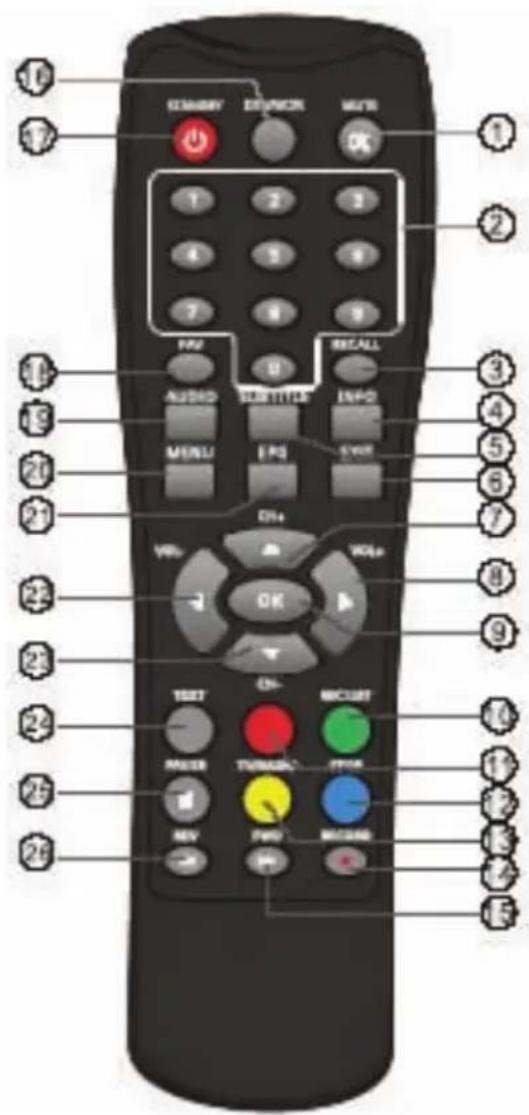

Buttons of the remote control

1. Mute button

2. Numeric Buttons

3. RECALL button

4. Information button (INFO)

5. Subtitle button

6. Exit button

7. Channel up (CH+) or navigation up

8. Volume + button or navigation right

9. OK button

10. Green button for Teletext

11. Red button for Teletext

12. Blue button for Teletext or STOP by playback

13. Yellow button for Teletext or TV/RADIO button

14. No Function

15. Fast Forward (>>) by playback

16. DTV/VCR button to activate SCART VCR input

17. STANDBY button

18. Favorite Button (FAV)

19. Audio button

20. Menu button

21. EPG button

22. Volume - button or navigation left

23. Channel down (CH-) or navigation down

24. Teletext (TTX)

25. PAUSE button

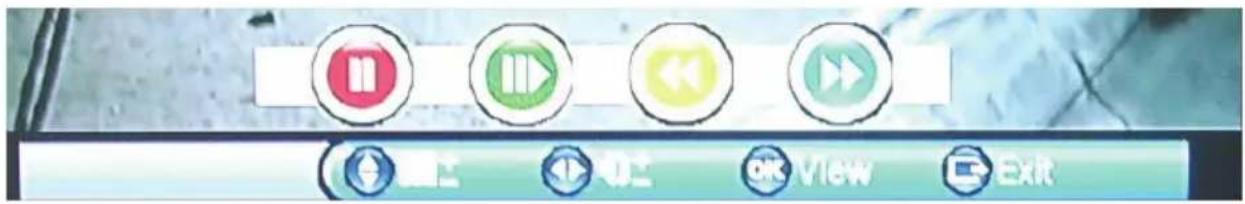

26. Fast Rewind button by playback

Note:

The same buttons on the remote control and the front panel have the same functions; either alternative shall work.

Connection

To TV Set and Aerial

Basic connection:

• Ensure that the power switches of this unit and other equipment to be connected, are turned off before commencing connection
  • Read attentively the instructions before connecting other equipments
• Ensure that you observe the color-coding when connecting audio and video cords
• Please connect the unit with TV by only one kind of video output format, and setup a suitable output mode (including signal mode and signal code type), otherwise there will be image distortion.

REMARKS:

User can choose any proper connection format according to the jacks of the TV set.

CONNECTING TO TV SET AND TO THE DISH

The schematic pictures show the connection between the HRS 2500, the TV set and to the satellite dish.

How to connect:

A. Plug a SCART cable to the SCART TV connector of the DVB-S receiver and the other end to the TV set.
B. Plug the antenna cable to the input, called LNB In. Screw the connector tightly.
C. Please pay attention that all plugs are connected correctly.
D. Connect the power cable and the plug to the wall outlet.
E. Switch on the HRS 2500 when the power indication light shows a red light.
F. Choose on your TV set the SCART input

Connect the Coaxial cable for transmission of digital Audio signals to your playback device or your amplifier. Enjoy the more realistic sound by connecting an amplifier and speaker system.

1. Insert the audio plug into the socket on the right-hand side of the device.
2. Plug the Audio jack into the corresponding socket on your playback device or your amplifier.

Note:

The cable is not part of the accessories.

First Time Installation

Settings

Please install before starting the device all cable connections to the satellite dish and to the TV set.

Press MENU, use ◀/▶ to select SETUP. Use ▲/▼ to select Installation - press OK to confirm.

• General Setting
• My Dish

In the menu General Setting you can find the settings for language and others. You can change between the two option by the navigation buttons UP and DOWN. If one of both has a dark blue background, than the option is active. Start the option by pressing the OK button.

The single settings can be change by pressing the navigation buttons RIGHT and LEFT. The menu you can cancel or quit by the EXIT button.

General Setting

In this menu you can change the options for OSD language, Audio language, Subtitle language, Auto Time Zone and Time Zone.

OSD Language

Here you can set the OSD language. Change the language by using the navigation buttons RIGHT and LEFT. The new language will be set automatically.

Audio Language

With this option you can define the first language which is provide by DVB-S broadcast. By setting the OSD language the Audio language will be set also automatically.

Subtitle Language

Here you can define, if you want to display Subtitles and in which language they appears on the screen.

Note:

Subtitles are not transmitted by every TV channel.

First Time Installation

Settings

Auto Time Zone

Here you can set the Time Zone setting automatically. The information will be taken from the EPG information.

You can set also the Time Zone manually. Here for choose the setting OFF and than the next option is active.

Time Zone

Press the navigation buttons LEFT or RIGHT until your time (depending on Greenwich Meridian) appears on the screen. Plus values are in east direction and minus values in west direction.

My Dish

Before you continue the next steps, you shall be sure about the satellite installation system. Depend of the different way to install the dish and orientation, different kind of options are available.

1. Single connection Satellite / LNB and Receiver

If you orientates the dish to a specific satellite and you use a single or Multi-LNB. Each LNB is directly connected with the cable to the receiver, than you uses these settings.

Switch off the two options Switch Type and Toneburst.

• Switch Type None
• Toneburst Off

Navigate to the third option until the is highlighted with dark blue. Start this option by pressing the OK button. The list is empty. Now you can add a satellite.

Press the RED button to add a satellite. A list of presets satellites appears on the screen. Choose the satellite which is orientated by the dish and confirm the selection by pressing the OK button.

First Time Installation

My Dish - Single Connection

A new window appears on the screen with the parameters and settings of the satellite. Please pay attention that the LNB Type is made on Universal.

LNB Type

The options are:

Normal C Searching by analogue TV channels in low frequencies

Normal Cu Searching by analogue TV channels in low frequencies

Universal Searching for analogue and digital TV channels

LNB Low and High Frequency

By using the settings of LNB Type the low and high frequencies are set automatically.

22K Tone

By using the LNB Type Universal the setting for 22k Tone is set automatically to AUTO. This setting is responsible to find analogue and digital TV channels.

By using the 22-kHz signal in conjunction with a universal LNB is the entire Astra satellite system to receive (analogue and digital) with a single 60cm antenna. To receive digital TV and radio signals will therefore only one set-top box for digital television, are required.

LNB Power

The LNB needs for receiving digital TV channels a power of 13 V and 18V. Please use the setting 13/18V, otherwise not all TV channels can be found.

In case of LNB Power is Off, the LNB do not get any power from the satellite receiver and no channels can be found and received.

Transponder

This setting needs normally no changes.

Transponders are used in principle to a signal that comes from an earth station to a satellite prepare, so that the end-user (TV, telephone, computer), the optimum signal sent and received can be recovered. A transponder is working on the whole as a kind of amplifiers and frequency converters. It receives multiple signals at a certain frequency from an earth station, amplifies these filters out interference, put it into another (the receiver dependent) frequency levels increased again and sends the signals back to Earth.

My Dish—Single Connection

Strength

The received signal strength is shown in percentage and in the bar.

Quality

The received signal quality is shown in percentage and in the bar. Lower values are an indication for more artifacts, freeze pictures and other picture distortions.

Press the OK button and you can then adjust the other parameters of the scan. Press the BLUE button on the remote control and access to the final parameters for the search.

The searching and founded the TV channels, you can affect the order in which Scan Mode. A standard search or a "blind" Search.

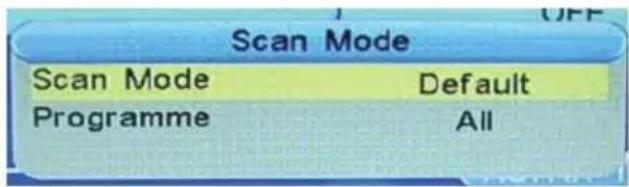

Scan Mode

The two options are:

English

Default The searching runs in depending of the preset satellite and transponder lists.

Blind With this option the searching runs without reading the transponder list and every received signal will be analyzed.

Note:

Often there are changes by the transponder list. So please use the setting Blind.

Programme

Allows you to decide whether you want to search only free channels or pay-TV. The pay-TV is encrypted and can usually only a very few times in clear to be seen. Approx. 2 / 3 of all TV channels are encrypted and can not therefore ASTRA with the recipient decrypts to be seen.

Note:

In the selection is only open after a successful scan, the TV channel list much more manageable.

First Time Installation

My Dish—Single Connection with Toneburst

Now, all search parameters are set and the scan can run. Press the OK button and the scan begins.

All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio stations are stored in the two lists and the unit goes into the live image of the first TV station.

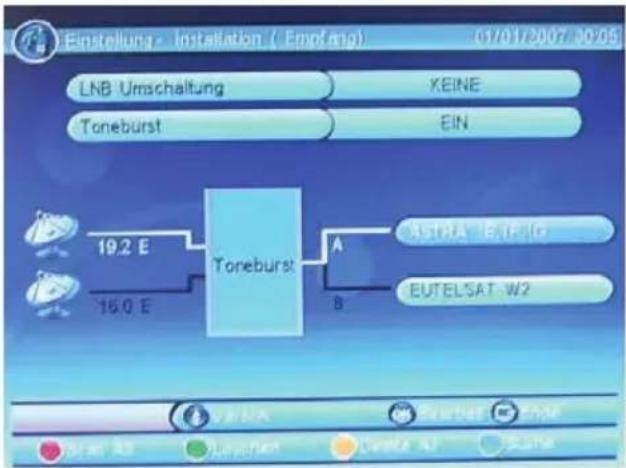

2. Single connection between Satellite / LNB and Receiver with Toneburst

Toneburst is an additional switching criterion that can deliver what the receiver. This signal does not include digital commands, but it can nevertheless be evaluated by most of the switches for position switching.

LNB Switch None

Toneburst On

Now you can insert two satellite.

A new window appears on the screen with the parameters and settings of the satellite. Please pay attention that the LNB Type is made on Universal.

After all settings are running you can start searching. Here you have the option of the two selected satellites scan individually or both of them together.

BLUE Single Satellite Search

RED Both Satellite Search in one run

My Dish—Using DiSEqC 1.0/1.1

Press the RED or BLUE button and you can influence the search and found the TV to where you are either with Scan Mode, a standard search or perform a "blind" search (explained in detail on page 17).

Now, all search parameters are set and the scan can run. Press the OK button and the scan begins.

All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio stations are stored in the two lists and the unit goes into the live image of the first TV station.

3. Using more than two satellite by DiSEqC 1.0/1.1

The distribution of analogue and digital signals from the Astra and Eutelsat is using DiSEqC ^TM (Digital Satellite Equipment Control, in other words: Deißäck) is possible if only one cable to be laid to the satellite receiver. This new tax system complements the conventional switching criteria, 14/18 Volt or 22 kHz, and removes the restrictions on maximum 4 switching states. In the simplest version of DiSEqC ^TM is used between two universal LNBs switch to. The 22 kHz switching circuit is used for the lower and upper frequency band LNB. DiSEqC 1.0 controls up to four LNBs with the command position A / B and Option A / B. DiSEqC 1.1 controls up to 64 LNBs, it will switch in several levels of government. For 16 LNBs, take for example four 4 / 1 DiSEqC 1.0 switch, whose outputs are then placed on the inputs of a 4 / 1 DiSEqC 1.1 switch.

After selecting a configuration of the satellites could look like. Also look here at the settings for each satellite that the LNB type was chosen correctly. Are required for receiving digital TV, the digital setting (Universal).

After all settings are running you can start searching. Here you have the option of the two selected satellites scan individually or both of them together.

BLUE Single Satellite Search

RED Both Satellite Search in one run

YELLOW Delete all Satellite

GREEN Delete the selected Satellite

First Time Installation

My Dish—Using DiSEqC 1.0/1.1

Press the RED or BLUE button and you can influence the search and found the TV to where you are either with Scan Mode, a standard search or perform a "blind" search (explained in detail on page 17).

Now, all search parameters are set and the scan can run. Press the OK button and the scan begins.

All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio stations are stored in the two lists and the unit goes into the live image of the first TV station.

4. Using more than two satellite by DiSEqC 1.0/1.1 with Toneburst

In combination of DiSEqC 1.0/1.1 and Toneburst you can use instead of between 4 satellite has a total of 8 different satellites.

Select all the satellites. With the DOWN navigation key you can control the second page of the satellites.

After all settings are running you can start searching. Here you have the option of the two selected satellites scan individually or both of them together.

BLUE Single Satellite Search

RED Both Satellite Search in one run

YELLOW Delete all Satellite

GREEN Delete the selected Satellite

Press the RED or BLUE button and you can influence the search and found the TV to where you are either with Scan Mode, a standard search or perform a "blind" search (explained in detail on page 17).

Now, all search parameters are set and the scan can run. Press the OK button and the scan begins.

All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio stations are stored in the two lists and the unit goes into the live image of the first TV station.

My Dish—Using DiSEqC 1.2/USALS

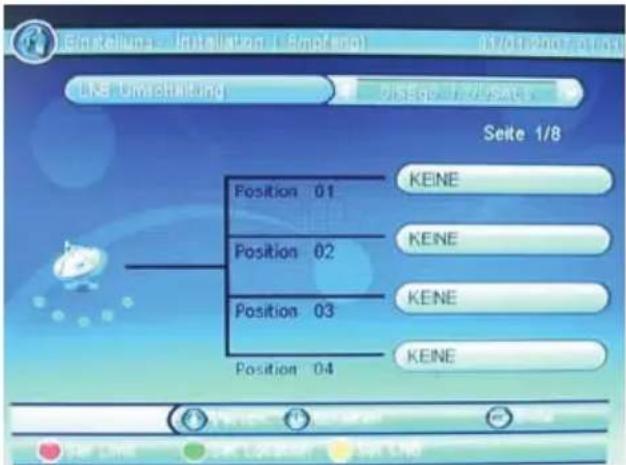

5. Using more than two satellite by DiSEqC 1.2 / USALS

DiSEqC 1.2 provides additional control of three plants by DiSEqC commands, via a single coaxial cable. Of the motor's staff was also a record producer (rod USALS) defined which is to find the satellite position is particularly simple. With the appropriate receiver is sufficient to enter the geographical position and the satellites are found automatically - provided that the curved path of the rotary engine has been correctly set mechanically.

Select the option LNB DiSEqC switch setting 1.2/USALS.

You now have two ways to make the settings, either via a DiSEqC 1.2 or USALS.

DiSEqC 1.2

Choose from the satellites, you can achieve with your motorized satellite dish.

Press the BLUE button and you can influence the search and found the TV to where you are either with scanning Mod. (Scan Mode) a standard search or perform a "blind" search (explained in detail on page 17).

Now, all search parameters are set and the scan can run. Press the OK button and the scan begins.

All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio stations are stored in the two lists and the unit goes into the live image of the first TV station.

USALS

Define the search parameters by the options Set Limit, Set Area and Set LNB

Set Limit Definition of angle of rotation in west and east direction

Set Area Define the area where the dish are placed

Set LNB Choose the parameters of the LNB

Operation

Important buttons and there functions

Channel List

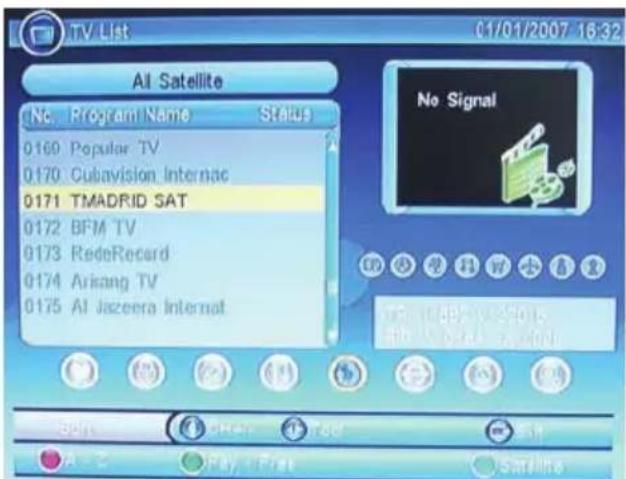

You can access to the channel list by pressing the OK button. The operation in the channel list is done by following buttons:

▲/▼ Previous or Next TV channel ◀/▶ Previous or Next page of the channel list

YELLOW Change to Favourite

BLUE Change to Satellite OK Change to the selected TV channel

EXIT Quit of the channel list

Note:

The TV and Radio list are very similar during operation.

Subtitle

If you want to display to a TV program subtitles, press the SUBTITLE button. If subtitles are available, then you can activate it by pressing the OK button.

Note:

Not all TV broadcaster supporting Subtitles.

Audio Language and Sound Tracks

If you press during the live image the AUDIO button on the remote, you can access the audio settings of the TV.

The following three options, channel, Audio PID, and audio channel. The two options include further sub-options. Can each of these measures vary with the ◀ / ▶ buttons. The shift of the two main options audio mode and audio track can be reached via the ▲ / ▼ buttons.

Audio-Track Change the audio language, or change the sound track

Audio-PID Shows the address of the sound track inside of the transport stream

Audio Modus Definition of the sound output (Stereo, Right, Left)

Note:

If you switches to the AC-3 soundtrack, then there no sound is output via SCART. The sound is only available through the digital coaxial output in conjunction with an external audio decoder (Dolby Digital Amplifier).

Important buttons and there functions

Information

When you press the INFO button, then you get a variety of Information. The first pressing the INFO button will take you to the overview: TV station names, active TV program, the next TV program whether Teletext is available and so on.

Pressing the INFO button displays the EPG information of the active television program.

When re-pressing the INFO button to get an overview of the frequency of the TV channel, date, specific information of the DVB-S transmission and the two other important parameters of "signal strength" and "signal quality".

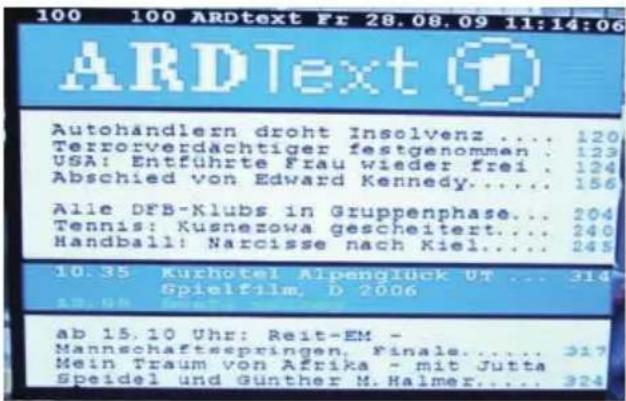

Teletext

The Teletext window you can start by pressing the TEXT button. Navigation of the Teletext window are:

• Numeric button for access to the different Teletext pages
• ◀/▶ button for one page back or forward
• EXIT to quit the Teletext window

Program Info
Satellite Name	ASTRA 1E,1F,1G
Program Name	arte
Program No	0004	Down Frequency	10742
Local Frequency	9750	Symbol Rate	21995
Polarity	H	Video PID	0401
22K Tone	OFF	Audio PID	0402
DiSEqC	OFF
Strength	86%
Quality	75%

With the buttons ◀/▶ you can change the volume output.

TV/Radio

Press the TV/Radio button to switch between TV and Radio channels.

Change TV channel

Press the ▲/▼ buttons (CH+/CH-) to change the TV channel.

Navigation by the Menu

Uses the navigation buttons to move between the settings.

Important buttons and there functions

EPG

Press the EPG button to start the EPG Guide. Following picture appears on the screen. The EPG window is organizes into:

RIGHT TOP Actually date and Time

LEFT TV channel list

MIDDLE Day of the Week and date

RIGHT BOTTOM 7-days EPG overview

BOTTOM Help information for navigation

You can operate inside of the EPG window by using:

▲/▼ Previous or next TV channel

BLUE Change to another Satellite

◀/▶ Change from Channel list into the 7-day EPG overview

EXIT Quit of the EPG window

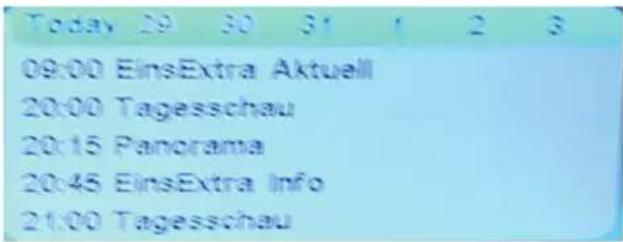

7-days EPG Overview

Using the buttons ◀ / ▶ move from the channel list in the 7-day overview. Now you have more buttons and functions for the operation are available.

▲/▼ Previous or next TV program

◄/► Change to the next day of the 7-day EPG overview

OK Display of the detailed EPG information

RED The selected TV program is booked and transferred into the Timer Programming list

EXIT Quit of the Channel List

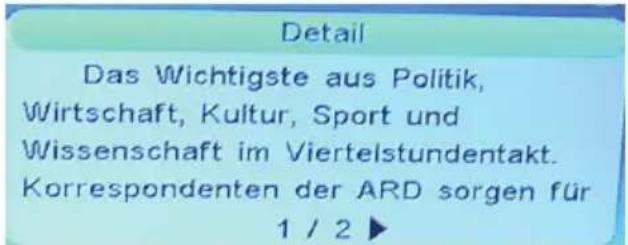

Detailed EPG Information

If you have selected in the 7-day overview to a broadcast and press the OK button, then appear the complete information of the broadcast. If the text is larger than in the window fits into it, so you can scroll with the ◀ / ▶ keys to the other pages. Press EXIT to quit the details.

If you want to uses the USB port, please connect an USB storage to the USB plug.

Close-up of a metallic USB connector with a black terminal, shown against a black background (no text or symbols visible)

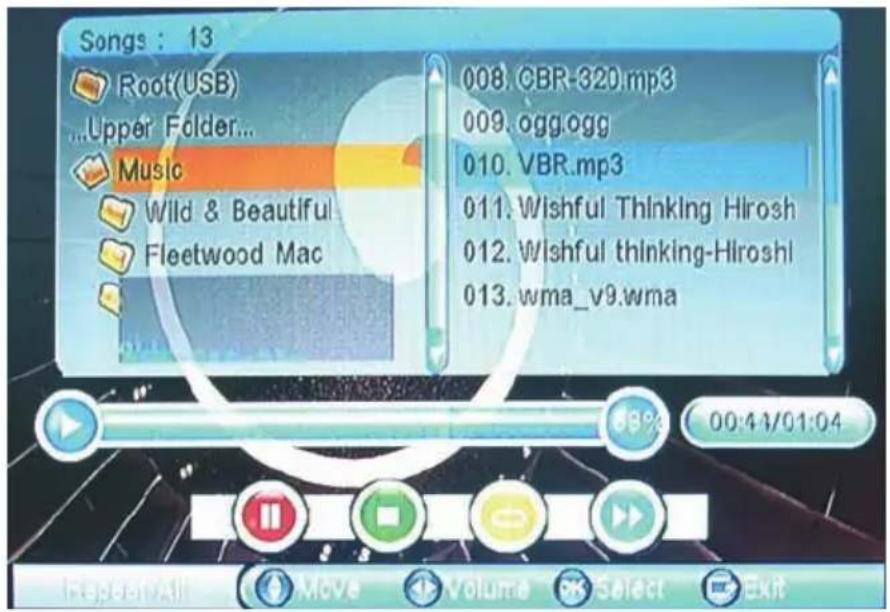

Supported File Formats from USB

From USB port you can playback picture in JEPG file format. You can playback music file with MP3 file format. You can playback video files in MPEG-1, MPEG-2 and MPEG-4 format. Do use only files with the suffix "mpg" and "avi".

Supported USB storages

The USB port supports a lot of USB-Sticks from different manufacture and different sizes.

USB Port

Due to the legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port.

If you want to play pictures, music or videos from USB, go to the media player on the device. Plug in the USB memory first, and press during the live image, the MENU button.

Displayed until you press the ◀ / ▶ keys to multimedia is.

The four sub menu's are:

• My Album
• My Music
• My Movies

My Album

If you want to display images with the HRS 2500, connect a USB storage and access to the My Pictures menu by pressing the OK button. Please organize your USB memory so far that there are all the pictures in a folder.

After successful reading of the USB memory, you will be prompted for the folder. Press the BLUE button on the remote and then select the File Browser from the folder containing the images with the OK button. The images are then displayed in the file browser in a list.

▲/▼ Changes to the previous or next picture or folder

◀/▶ Changes to folder and file list in the file browser

OK Starts the playback of the picture

INFO Displays information regarding the USB storage

EXIT Starts the Thumbnail overview of the pictures

My Album

By the Thumbnail Overview you have similar operation like in the file browser:

▲/▼ Changes to the above or bottom picture

◀/▶ Changes to previous or next pictures

OK Starts the playback of the picture

BLUE Back to the file browser view

EXIT Quits of the Thumbnail display and changes directly into the main menu

If many image files in the folder, it can take a bit more time until all the images are displayed. You will be informed of a status indicator (in percent).

If you have started a picture with the OK button, then you are more functions available.

RED Starts Zoom function

YELLOW Invert the picture vertical

BLUE Invert the picture horizontal

GREEN Can be start a music file during displaying the pictures

▲/▼ Change to the previous or next picture

◄/► Rotates the picture in every step of 90°

EXIT Quits into the Thumbnail overview

Zoom function

Press the RED button and the Zoom function starts. By pressing more than one time the RED button the Zoom factor changes in the following steps:

$$ 100\% \longrightarrow 150\% \longrightarrow 200\% \longrightarrow 25\% \longrightarrow 50\% \longrightarrow 100\% $$

Within the zoom feature you have the option to move the image magnification with the arrow keys to move and therefore have different sections in the centre.

Music playback during the picture displaying

When you press the GREEN button while playing a picture, then the file browser appears on the screen. Locate a folder with music files. Start the selected track by pressing the OK button. The other features are described on the next page, under "My Music".

Press the EXIT button to switch back to the image displaying.

Multimedia Player

My Music

If you want to play music files with the HRS 2500, connect a USB storage and access to the My Music menu by pressing the OK button. After successful reading of the USB memory, you will be prompted for the folder. Then select the file browser from the folder containing the music files with the OK button. The images are then displayed in the file browser in a list. Left side shows the folder structure and the right side of the files.

RED Starts the playback

YELLOW Selects the repetition mode "Single", "All", "Random"

BLUE Fast forward with the speed x2, x3 and x4

GREEN Quits the Music playback, back to file browser

▲/▼ Change to the previous or next music file or folder

◀/▶ Changes between folder and file list in the file browser

INFO Displays of information about the USB storage

EXIT Quits the music playback and returns into the main menu

Fast Forward

If you press while playing music the BLUE button, then you start the fast forward. Each press the BLUE button increases the speed. The velocities change as follows:

$$ x 1 \longrightarrow x 2 \longrightarrow x 3 \longrightarrow x 4 \longrightarrow x 1 $$

Notes:

To return to normal speed, you can use only the BLUE button.

My Music

Change the Volume

During the music playback you can change the volume by using the ◀/▶ button.

Supported File Formats

The HRS 2500 supports music files with follow specification:

Format: MP3

Sampling Frequency: 8 - 48 kHz (MP3)

Bit rate: 8 to 320 kbps (MP3)

My Movies

If you want to play movie files with the HRS 2500, connect a USB storage and access to the My Movies menu by pressing the OK button.

MPEG-4 disc compatibility with this player is limited as follows:

1. Available resolution size of the MPEG-4 file is under 720x576 (W x H) pixel.
2. The file name of the MPEG-4 subtitle is available by 15 characters.
3. If there is impossible code to express in the MPEG-4 file, it may be displayed as " _ "mark on the display.
4. If the number of the screen frame is over 30 per second, this unit may not operate normally.
5. If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.
6. Playable MPEG-4 file ".avi ", ".mpg ", ".mpeg".
7. Different MPEG-4 codices are supported. There must be encoded with are MPEG-4 part 2 (MPEG-4 SP/ASP) standard.
8. Container formats like "MKV", "MP4", "MOV" or similar are not supported.
9. No video files with a codec VC-1, H.264 or any container of MP4, MKV, 3GP or QT care not supported by the player.
10. Supported audio formats in the video files are:

- MPEG-4: AC3 or MP3

- MPEG1/2: MPEG-1 Layer 2 (MP2, MPA)

- Sampling Frequency: 8 - 48 kHz (MP3), 24 - 48 kHz (AC3, MP2)

• Bit Rate: 8 - 320 kbps (MP3), 92 - 256/448 kbps (MP2/AC3)

Note:

AC3 audio in movie files can only be played back only on the digital audio output and a corresponding Dolby Digital decoder. Take only the SCART output, then you will hear no sound from these files.

Multimedia Player

My Movies

After successful reading of the USB memory, you will be prompted for the folder. Then select the file browser from the folder containing the movie files with the OK button. The images are then displayed in the file browser in a list. Left side shows the folder structure and the right side of the files.

▲/▼ Change to the previous or next movie file or folder

Changes between folder and file list in the file browser

INFO Displays of information about the USB storage

OK Starts the playback

EXIT Quits the music playback and returns into the main menu

Select a movie and start it with the OK button. Top Left is the file name, which has played time and elapsed time. Among the aids to navigation will be displayed. You can always show with the INFO button. After 10 seconds it shuts off automatically.

To cancel the playback, please press the EXIT button on the remote control. The device returns into the file browser.

My Movies

The buttons for navigation and operation are:

RED Starts the playback,m Pause the playback

YELLOW Fast Rewind

BLUE Fast Forward

GREEN Slow playback

▲/▼ Change to the previous or next movie file

◄/► Changes the volume

EXIT Quits the music playback and returns into the main menu

Star the playback, Pause the playback

Start playback of a movie with the OK or RED button. Pressing it causes the RED button, that the film is interrupted and the pause mode is active. The playback, you can continue with the RED button.

Stop the playback

Press the EXIT button to cancel/stop the playback.

Slow Motion

During playback, press the GREEN button, then holds the picture. With the BLUE button to set the speed for the slow play. The velocities change with each keystroke as follows:

$$ \text { Pause } \longrightarrow x 1 / 2 \longrightarrow x 1 / 4 \longrightarrow x 1 $$

Fast Forward or Fast Rewind

With the YELLOW and BLUE button you can quickly coil within the film backwards and forwards. The velocities change with each keystroke as follows:

$$ X 1 \longrightarrow x 2 \longrightarrow x 4 \longrightarrow x 8 \longrightarrow x 1 6 \longrightarrow x 3 2 \longrightarrow x 1 $$

Settings

The main menu of the DVB-S receiver can be open by pressing the MENU button. The sub-menus are:

• TV with TV list and EPG
• Radio with Radio list and Information
• Multimedia with My Album, My Music and My Movies
• Accessories with the game Gomoku, Calendar and Calculator
- Settings with Installation, TV settings, Password, Advance Timer, Default setting and SW Update

TV

The TV menu contains the submenus TV list and EPG display. With the TV you edit the list found by one or more TV channels via satellite

TV List

With the TV menu list, you have the possibility to found TV to suit your needs sorting and editing. The following tools are available:

• Favourite
• Lock
• Edit
• Move
• Sort
• Skip
• Delete
• Search

Each time you start the TV favourites list, the tool is active first. Using the ◀ / ▶ keys to change the tools.

With the following buttons you can operate the TV list:

▲/▼ Change to the previous or next TV channel

◄/► Changes the tool

EXIT Quits

YELLOW Save the changes

BLUE Change the satellite displaying

Define Favourite

Select the TV channel you want to put in the Favourites list. Using the ▲ / ▼ buttons to select the TV channel. You can create a total of 8 favourite lists. Do this, press the numeric keys 1 to 8

The predefined favourite categories with the associated key (1 to 8) are:

1. News
2. Sport
3. Movies
4. Musik
5. Shopping
6. Travel
7. Boys
8. Girls

Operation:

1. Select a TV channel and press as the button 1 to save this station in the first favourites list.
2. To save the selected or selected TV stations in or the lists, press the YELLOW button.
3. Confirm the changes with the OK button, or cancel the operation with the EXIT button.

If you have accepted the changes, then you have with the FAV button to access the Favourites list(s). In the Favourites list, you can change the YELLOW button to display different lists and favourites.

Lock a TV channel

Do you want to block certain TV channels, so choose in the list by pressing the TV tool locks in which you ▶ button to bottom links appear locks. Select using the ▲ / ▼ buttons to select the appropriate TV and press the OK button. At the selected TV channel will see a lock icon. Save the changes with the YELLOW button and confirm the dialog with the OK button. The blocking is only active when the menu settings and password option is enabled channel locks.

If you want to watch the locked TV, then you will be asked for a move to the locked TV channels for the password. Enter the password and then you can watch the TV channel.

Settings

Edit a TV channel

Do you want to edit individual TV stations, says in the TV list and select the Edit tool by pressing the ▶ button below to edit links appear. Select using the ▲ / ▼ buttons to select the appropriate TV and press the OK button. Now you can change the TV channel name, the lower frequency and symbol rate.

Highlight the station name (the active element is dark blue) were deposited and then press the OK button to edit the station name.

The change of name takes place with the numeric keys in the SMS-style. Thus, for example, contains the key "2", the letter "a", "b", "c" and "2". Do you want to now create a "b", so you need to twice the "2" key.

Operation:

◄/► Change position

GREEN Change to

RED Delete the previous character

OK Save the new name

EXIT Quit the edit menu

With the OK button to save the changed name. Press the EXIT button to return to the previous menu screen without saving.

Press the EXIT button to exit the edit menu and return to the TV list.

Move a TV channel

Do you want to move a single TV channel, select the Move tool, press the TV list, where you ▶ button to move the bottom links appear. Select using the ▲ / ▼ buttons to select the appropriate TV and press the OK button. The selected TV channel will be ticked. Using the ▲ / ▼ buttons to move the TV to the new position. Looking for a new station square in the list and press the OK button. The TV station will be stored at this point. Save the change with the YELLOW button and confirm with the OK button.

Settings

Sort the TV channels

Do you want to rearrange the TV channel list, then select the TV button, the tool list sorting, in which you ▶ button to bottom links appear sorting. Two possible sort options are available:

• Alphanumeric (from A to Z)
- Pay for Free Channel

With the RED button, you can change the channel in order from A to Z. Press the RED button reverses the order of up to Z A.

English

With the GREEN button, you can sort by pay-

TV or free channels. Try pressing the GREEN button and the recipient to open them sorted by pay channels. Pressing the GREEN button reverses the order.

Press the EXIT key to stop the sorting. Confirm the change by pressing the OK button.

Skip a TV channel

Would you like some TV stations in the navigation to jump so choose in the list, press the TV tool skipping in which you ▶ button until the bottom appears to skip links. Select using the ▲ / ▼ buttons to select the appropriate TV and press the OK button. The TV channel is marked with a symbol. Save the changes with the YELLOW button and confirm the query with the OK button.

Note:

• When navigating this TV channel will now always skipped, and can not be selected using the ▲ / ▼ buttons.
• Only by the numeric input can be accessed at this station.

Delete a TV channel

Do you want to delete a single TV channel, so choose in the list, press the TV Tool Delete where you ▶ button until Delete appears below links. Select using the ▲ / ▼ buttons to select the appropriate TV and press the OK button. The selected TV channel will be marked with a cross symbol. Save the changes to the YELLOW button and confirm the dialog with the OK button.

The selected TV channel will be removed from the list.

Search a TV channel

Want to search some TV, then choose in the list, press the TV search tool, where you ▶ button to bottom links appear searches. Select using the ▲ / ▼ buttons to select the appropriate TV and press the OK button.

Enter the text style, the station name that you want to find in the TV list.

After entering the station name, press the OK button and the desired TV station is in the TV channel list appears, if it exists.

EPG

Under this menu, you can view the EPG information of TV channels. Detailed description of the EPG function you can see on page 24.

Radio

The menu contains the submenus TV Radio list and EPG display. With the Edit menu, radio list, you found the TV from one or more satellites.

They have the same options in radio list as in the TV list. Please read the individual steps in the TV list (pages 38 to 41).

Multimedia

The Multimedia menu contains submenus, My Pictures, My Music, and My Movies. Detailed descriptions of these menus and their functioning, refer to pages 28 to 37.

Setup

The Setup Menu includes following sub-menus:

• Installation
• TV Setup
• Password
• Advance Timer
• Set Default
• SW-Update

English

Installation

The Installation menu includes following sub-menus:

• Settings
• My Dish
• Transponder

Please refer the description in this manual on pages 14 to 21. All settings and parameters are described.

TV Setup

These settings are responsible for the kind of displaying the picture on the screen. The sub-menus are:

• TV Format
• TV Mode
• OSD Transparency
• Banner Display Time
• Video Output

Using the ▲ / ▼ keys to navigate the menus. Using the ◀ / ▶ keys to change the options. With the EXIT button to exit the TV settings, and implement the changes immediately and stored.

With this menu, enter the type of your TV television. Please pay attention to the aspect ratio of your TV device and select it from the list.

If you have a 16:9 TV device, then you should select the option 16:9 CAR.

If you have a 4:3 TV device, then you can select 4:3 LB.

TV Mode

In this menu you can choose between PAL, NTSC and AUTO. Use the AUTO option and then will always automatically select the correct setting.

OSD Transparency

With this option you can adjust the transparency of the OSD or messages. High values cause no transparency and low values have resulted in increasing transparency.

Banner Display Time

Here you can define the displaying time of the messages.

Video Output

With this option, you define the way down the video output. You can choose between RGB and CVBS. If your TV supports RGB interface device via the SCART, then you should use this option. RGB provides a better picture quality compared to Composite.

Password

In the Password menu you can define different locking features. The submenus are:

• Menu lock
• Channel Lock
• Parental Control
• Change Password

Using the ▲ / ▼ keys to navigate the menus. Using the ◀ / ▶ keys to change the options. With the EXIT button to exit the TV settings, and implement the changes immediately and stored.

With this option you can lock the menus and settings. Do you want to access it, you must always enter the password. The default password is 6 6 6 6.

The option to the menu lock is on. The Off option turns off the menu lock.

Channel Lock

Use this option to switch the channel lock on or off. If you lock in the list of individual TV channels like TV, then this option must be active (On). If not, then the lock has no effect.

Parental Control

With this option you can define the level of the ESRB. The setting switches off the Unlimited. The higher the value (to 18), the more restrictive is the level of the ESRB.

Note:

This option can only be efficient, if the relevant information will also be sent to the transmitters. This is rarely the case in Europe.

Change Password

With this option you can change the default password. The default password is 6 6 6 6. Do you want to change the password, then change the option from No to Yes. After changing you will be prompted for the old password.

1. Enter 6 6 6 6 on the remote control
2. Enter the new four-digit password
3. Repeat the new four-digit password
4. Then a message appears on the screen that the new password has been changed.

Timer Settings

With this menu you can program the timer. Either you have already a running program from EPG and then you can modify them.

Of course you can also manually program the timer. Press the RED button to add another timer added.

Settings

Following option you can edit:

• Channel Type
• Channel No.
• Channel Name
• Start Date
• Start Time
• Stop Time
• Mode
• Timer Mode

Channel Type

Here you can choose between TV or Radio.

Channel No.

Please choose the channel no which shall be record.

Channel Name

The channel name corresponds with the channel no. There is no editing necessary.

Start Date

Insert the date, when the recording shall be starts.

Start Time

Insert the time, when the recording shall be starts.

Note:

Insert a few minutes before of the time, because often the TV program do not start exactly.

Stop Time

Insert the time, when the recording shall be stops.

Note:

Insert a few minutes after of the time, because often the TV program do not ends exactly.

Mode

Here you can define the recording mode. The options are:

• Single
  • Daily
• Weekly
  • Monthly

Confirm the programming with OK button and it will appear in the timer list.

With the RED button, you can edit the settings.

With the GREEN button you can delete the programming.

Press the EXIT button to exit timer setting.

Set Default

You have the possibility to undo all the settings and changes, where you load the default settings. Go to the option and may confirm with the OK button.

Note:

All settings are reset. You must then continue to perform the search again.

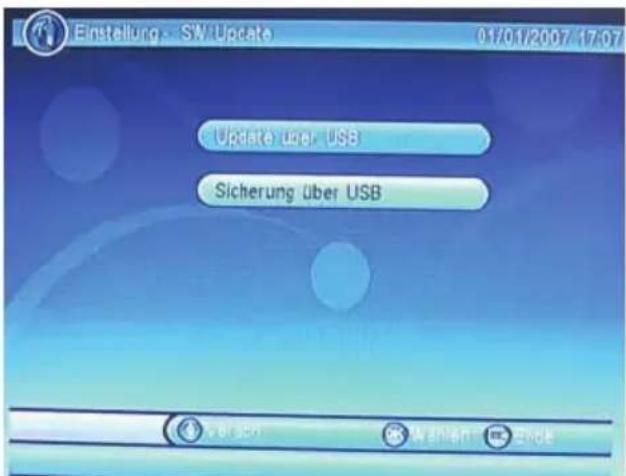

The menu SW update contains two options:

• Update via USB
• Backup via USB

You have the opportunity to update the software via USB.

Start this feature with the OK button.

The USB memory should only contain only the update file. If the file is found, then the process will start automatically.

During the backup, you can save the user database to USB memory. This contains your personal settings, the selected satellite and the TV channels found. Press the OK button to save the database. A short message appears on the screen.

Accessories

The accessory includes a game Gomoku, a calendar and a simple calculator.

Check the following guide for the possible cause of a problem before contacting service. Technical Support of Xoro:

Symptom	Correction
No DVB-T reception /serious distortion bymosaics or artefacts/freeze pictures	No DVB-S reception in your region.Realign the dish. Please pay attention to the direction of the satellite.Please use a bigger dish.Retry the Auto Scan.
No power	Plug the power cord into the outlet tightly and turn on the power.
Can not scan programs	Adjust the dishRefer settings for searching
No picture / no coloured pictures	Control the connection to the TV set.Control the video output mode in the setup.PressDTV/VCRbutton. Maybe you sets the second SCART (VCR) into the input mode.TV channel or program is scrambled
Remote control does not work	Change the batteries.Operate within normal range (max. 5 meters, 30°)The sensor is pointed to by bright light.
No sound	Cancel Mute. PressMUTEbuttonIncrease volume. PressVOL+buttonPay attention to connection to TV set or amplifier.
Audio / Subtitle without function or can no choose	Change audio track (pressAUDIObutton)Change subtitle track (pressSUBTITLEbutton)Other audio track is not supportedSubtitles are not supported by broadcaster

Specification

General data

Power supply AC 85-265 V with 50/60Hz

Power Consumption <18 Watts Dimensions 180 x 120 x 43 mm (WxHxD) Net weight 0.5 kg (incl. remote control)

TV-Tuner

RF input Connector IEC 60196-24 (F-Type) Input Frequency 950 - 2150 MHz Impedance 75 Ohm LNB Power 13 / 18 V, max. 500 mA Waveform QPSK

Video Decoder

Standard ISO/IEC 13818-2 MPEG MP@ML Compatible Aspect Ratio 4:3 PS & LB/ 16:9 Resolution 720 x 576 (PAL) 720 x 480 (NTSC) Teletext Support DVB-ETS300472

Audio Decoder

Standard ISO/IEC 11172-3 Sampling Frequency 32, 44.1 & 48 kHz Output Mode Stereo, Left/Right, Mono Output Level 0.775 Vrms, unbalanced

Connector

USB USB 2.0 high Speed Video 2x SCART (TV or VCR) Audio Coaxial RCA

Operating conditions

Temperature 0 - 40°C Humidity 5 - 90% (non condensing)

Note:

Weight and dimensions are not absolutely exact values. Specifications are subject to change (by manufacturer) without notice.

In case the products delivered are not free from defects in material or workmanship, MAS Elektronik AG has the right to either repair or replace the defective product at its choice. MAS Elektronik AG manufactures and repairs goods using components which are new or equivalent to new in accordance

Technically unlimited

MAS

Elektronik AG

with industry standards and practice. The warranty for wearing parts (e.g. rechargeable batteries) is limited to 6 months.

In case the device is equipped with internal data storage (e.g. hard disc drive, Flash drive), the customer is responsible to backup his data before sending the device. MAS Elektronik AG is not liable for any data loss on returned devices. MAS Elektronik AG reserves the right to reset returned devices to factory defaults. Please note your personal settings for this reason.

MAS Elektronik AG is not liable for any accessories not belonging to original package content such as DVDs, hard disc drives, Flash storage devices, batteries, etc.

This limited warranty covers the warranty requirements set by authorities in your country. This limited warranty only is valid in the country the product was purchased.

This limited warranty does not cover finishes, accessories or batteries, nor does it cover damage resulting from accident, misuse, abuse, dirt, water, battery leakage, tampering, servicing performed or attempted by unauthorized service agencies. This limited warranty does not cover damages resulting from firmware upgrades. Only in case of firmware upgrades needed to add functions promised at time of purchase, such damages are covered by this limited warranty. For a correct and frictionless completion of warranty or repairs you need a RMA No. You may obtain a RMA on the internet at www.xoro.de or by telephone.

Please send the device in its original packing material, all standard accessories and a copy of the invoice, a description of defect and the RMA No. to following address. Please note the RMA number clear and in large numbers on the outer package.

MAS Elektronik AG

Pollhornbogen 19

21107 Hamburg

Germany

Support

e-mail: [e-mail]

Hotline: +49 (0) 40 - 77 11 09 - 17

Fax: +49 (0) 40 - 76 73 35 - 15

FREE TO CHOOSE INNOVATIONS

XORO by MAS Elektronik AG

Pollhornbogen 19

21107 Hamburg

Deutschland

Tel: [phone]

[e-mail]

www.xoro.de

DE: V1

ENG: V1

FS: 12366

Green recycling symbol with three chasing arrows forming a triangle (no text or labels)
