ZETA ZT-150 - Scale AWS - Free user manual and instructions

Product Type	Digital Bathroom Scale
Brand	AWS (American Weigh Scales)
Model	ZETA ZT-150
Maximum Capacity	330 lb / 150 kg / 23 st
Readability	0.2 lb / 0.1 kg
Display Type	Red LED
Display Dimensions	7 x 3.2 inches
Power Supply	4 x AAA batteries (included)
Auto-Off	After 10 seconds of non-use
Unit Selection	kg, lb, st:lb (UK stone:pound)
Dimensions (W x D x H)	11.8 x 11.8 x 1.0 inches
Platform Material	Plastic
Included Accessories	Scale, 4 x AAA batteries
Warranty	Limited warranty
Country of Origin	China
Operating Temperature	Normal room temperature
Storage	Clean, dry location
Care Instructions	Wipe with damp cloth; avoid dust and moisture
Error Indication	Lo (low battery) / ---- (overload)
Overload Protection	Displays ---- when capacity exceeded

Frequently Asked Questions - ZETA ZT-150 AWS

How do I change the unit of measure on my ZETA ZT-150 scale?

Press the UNIT key on the bottom of the scale to cycle through available units: kg, lb, and st:lb (UK stone:pound). The scale will default to the last unit used when turned on again.

What does 'Lo' mean on the display?

'Lo' indicates that the batteries are low. Replace all four AAA batteries with new ones. Ensure correct polarity (positive and negative contacts).

What should I do if the display shows '----'?

'----' means the maximum capacity has been exceeded (over 330 lb / 150 kg). Remove the weight immediately to prevent damage. Do not use the scale for measurements beyond its capacity.

How do I clean the scale?

Clean the scale using a damp cloth (not wet). Avoid using harsh chemicals, solvents, or abrasive cleaners. Keep the scale dry and store in a clean, dust-free place.

Can I use the scale on carpet?

It is not recommended to weigh on carpet as it may affect accuracy. Always place the scale on a flat, level, hard surface for the most accurate readings.

Why does the scale not turn on?

First, check the batteries. If they are missing, dead, or incorrectly installed, the scale will not power on. Remove any plastic insulation strips from the battery compartment if present. Replace all four AAA batteries with fresh ones.

How does the auto-off function work?

The scale automatically turns off after 10 seconds of non-use to save battery life. Step off the scale and it will shut off automatically.

What is the maximum weight capacity?

The ZETA ZT-150 has a maximum capacity of 330 lb / 150 kg / 23 st. Exceeding this limit may permanently damage the scale.

How do I store the scale properly?

Store the scale in a clean, dry location away from extreme temperatures, dust, and moisture. Avoid exposure to direct sunlight or areas with strong vibrations. Remove batteries if storing for extended periods.

How often should I replace the batteries?

Replace the four AAA batteries when the display shows 'Lo' or if the scale becomes sluggish. Battery life depends on usage, but typically lasts several months with normal use.

USER MANUAL ZETA ZT-150 AWS

Black digital wall-mounted device with red LED display showing '0.0' and 'AWS' branding (no additional text or symbols)

ZT-150 (330lb x 0.2lb)

Thank you for purchasing the American Weigh ZETA digital bathroom scale. Please read all operating instructions carefully before use. Scales are precision measuring devices and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind:

• Do not exceed the scale’s maximum capacity. Overloading your scale can permanently damage it!
• Avoid exposure to extreme heat or cold. Scales perform best at normal room temperature. If temperatures have changed dramatically, calibration and adjustment may be necessary.
• Allow your scale to warm up for 30-60 seconds before performing calibration and adjustment(if available).
• Store your scale in a clean, dry location. Dust, dirt, and moisture can accumulate on the weighing sensors and electronics causing inaccuracy or malfunction.
• Avoid using your scale in close proximity to strong radio wave emitting devices such as computers, cash registers, and cordless phones.
• Always weigh on a flat and level surface, free from vibrations and drafts. The corner of a room is usually the most stable.
  • Gently apply all items to be weighed. Do not drop items onto the weighing platform.
• Avoid dropping your scale. The warranty does not cover damage due to rough treatment or overload.
• Check the batteries first if you are having any trouble with your scale. This simple step can remedy most scale issues.
• Do not disassemble your scale. This product contains no user serviceable parts.

I. Part List

1. Scale
2. AAA Batteries (x4)

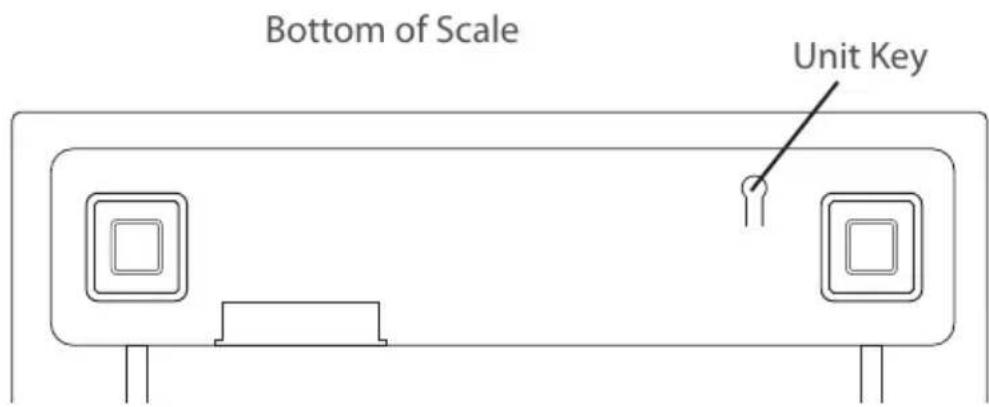

II. Key Description

III. Battery Installation

1. Before using the scale for the first time, check the battery compartment and remove any plastic insulation strips or packaging that may be in place to prevent battery drainage during shipping/storage.
2. If you are replacing the batteries, make sure the positive and negative contacts are properly aligned.

IV. Operation

1. Place the scale on a flat, level surface. Do not weigh on carpet as it may affect the accuracy.
2. Step onto the platform. Once the weight has stabilized, it will be locked on the display.
3. The scale will turn off automatically after 10 seconds of non-use.

V. Changing the Unit of Measure

1. Press the UNIT key on the bottom of the scale to change the scale's displayed unit of measure.
2. If the scale is turned off then back on, it will default to the last unit used.
3. ZT-150 Units: kg (Kilogram) lb (Pound) st:lb (UK Stone:Pound)

VI. Error Codes

1. Lo - Batteries are low. Replace the batteries.
2. ---- - Maximum capacity exceeded. This scale cannot be used to give measurements over 330lbs.

VII. Specifications

	ZT-150
Max. Capacity	b / 150kg / 23st
Readability	0.1kg / 0.2lb
Power
Dimensions	x 11.8 x 1.0”
Display Dimensions	7 x 3.2”
Warranty	r Limited Warranty

American Weigh Scales, Inc.

Norcross, GA 30092, U.S.A

Made in China to our exact specifications and quality control.
