330LPG - Scale AWS - Free user manual and instructions

Product Type	Digital Scale
Brand	AWS
Model	330LPG
Capacity	330 g
Readability	0.01 g
Units	g, oz, ct, dwt, ozt, gn
Power Source	2 x AAA Batteries (included)
Auto Shut Off	Yes, after 2.5 minutes of inactivity
Tare Function	Yes
Calibration	Manual calibration with weights
Display	LCD, backlit
Platform	Stainless steel, 60 mm diameter
Dimensions	120 x 120 x 40 mm
Product Weight	0.5 kg
Material	ABS plastic housing
Overload Indicator	Yes
Low Battery Indicator	Yes
Counting Function	Yes, parts counting
Maintenance	Clean with soft dry cloth; avoid liquids
Safety Precautions	Do not overload, use on stable surface
Spare Parts	Batteries, calibration weights available

Frequently Asked Questions - 330LPG AWS

How do I calibrate the AWS 330LPG scale?

To calibrate, power on the scale and press and hold the MODE key until 'CAL' disaplyed. Place the required calibration weight (e.g., 200g) on the platform. The scale will automatically calibrate and return to weighing mode.

What batteries does the 330LPG scale use?

The scale uses two AAA batteries. Insert them with correct polarity into the compartment at the bottom.

How do I switch between weighing units?

Press the MODE key to cycle through units: g, oz, ct, dwt, ozt, gn.

Why does the scale show 'ERR' on the display?

'ERR' indicates an overload condition. Remove excess weight immediately to avoid damage. The maximum capacity is 330g.

Can I use the scale to count small parts?

Yes, the scale has a counting function. Place a known number of parts (e.g., 10) and press the MODE key to enter counting mode. The scale will calculate the quantity.

How do I clean the scale?

Use a soft, dry cloth to wipe the surface. Do not use any liquids or chemical cleaners, as they may damage the electronics.

Does the scale have an auto shut-off feature?

Yes, the scale automatically turns off after 2.5 minutes of inactivity to conserve battery life.

What is the accuracy of the AWS 330LPG scale?

The scale has a readability of 0.01g and is accurate to within ±0.03g for loads up to 330g.

How do I replace the batteries?

Open the battery compartment on the bottom, remove old batteries, and insert two new AAA batteries following the polarity markers (+/-). Close the cover.

Can I use the scale for jewelry and coins?

Yes, the scale is ideal for small items like jewelry, gems, coins, and precious metals, thanks to its high precision and multiple units.

USER MANUAL 330LPG AWS

Digital double glass with black buttons and a digital display showing 88, no text or symbols on the device itself.

330lb x 0.2lb

150kg x 0.1kg

330LPG Manual

Thank you for purchasing the American Weigh 330LPG Bathroom Scale. Please read all operating instructions carefully before use. Scales are precision instruments and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind:

• Do not exceed the scales maximum capacity. Overloading your scale can permanently damage it!
• Avoid exposure to extreme heat or cold. Scales perform best at normal room temperature. If temperatures have changed dramatically, recalibration may be necessary.
• Store your scale in a clean, dry location. Dust, dirt, and moisture can accumulate on the weighing sensors and electronics causing innaccuracy or malfunction.
• Avoid using your scale in close proximity to strong radio wave emitting devices such as cordless phones.
  • Always weigh on a flat and level surface, free from vibrations and drafts. The corner of a room is usually the most stable.
• Avoid dropping your scale. The warranty does not cover damage due to rough treatment or overload.
• To avoid slipping, do not step on the scale with wet feet.
• Do not use the scale on carpet.

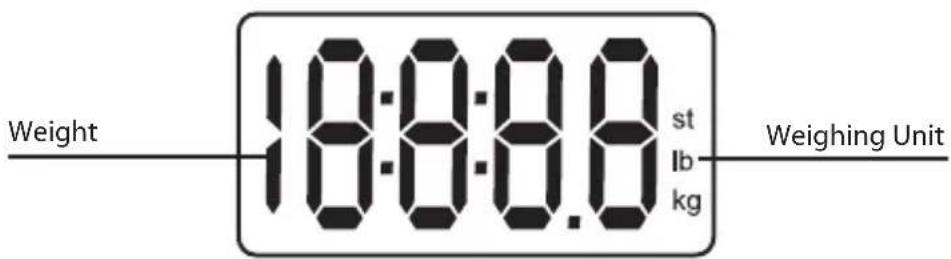

I. Display Overview

II. Battery Installation

This scale should come with the battery already installed. However, you must remove the plastic insulator strip before first use. To install the battery, turn the scale over and remove the battery cover. Insert one (1) CR2032 battery according to the diagram below. Replace the battery cover.

III. Turning the Scale On and Off

This scale has an Auto-On and Auto-Off feature. The scale will automatically turn on when the user steps on the platform and automatically turn off after the user steps off the platform. This scale is ready to weigh, and does not require tapping first before stepping on the scale.

IV. Changing Weighing Units

To change the current weighing unit, use the UNIT button on the bottom side of the scale. Notice the display will change between kg, st:lb, and lb with each button press.

V. Weighing

Once you have chosen the desired weighing unit (see above), step onto the scale to activate the Auto-On feature.

The display will begin to flash, then lock the weight on • the display once the weight is stable.

The scale will turn off automatically after 10 seconds.

Notes: Do not leave items on the scale when not in use. If moving the scale around, please first allow the display to

turn off once before stepping on. This will allow the zero-point to be re-established. Otherwise the weight of the scale may be reflected in your results.

VI. Troubleshooting

Problem: The display shows "----":

Solution: The scale is overloaded. Remove the excess weight.

Problem: The display shows "Lo".

Solution: Battery power is low. Replace the batteries.

Model 330LPG
Capacity	150kg / 330lb / 23st:13lb
Resolution	0.1kg / 0.2lb / 0.2lb (1.0lb for ≥280lb)
Weighing Units	kg, lb, st:lb
Scale Dimensions (inches)	11.8 x 11.8 x 0.7”
Power	1 x CR2032 Battery (included)
Warranty	10 Year Warranty

American Weigh Scales, Inc.

2 Carriage Ln, Suite 2

Charleston, SC 29407

Tel: [phone] (toll free)

Fax [phone]
