SK12 - Juicer Eldom - Free user manual and instructions

Brand	Eldom
Model	SK12
Product Type	Juice extractor
Power	400 W
Voltage	230 V ~ 50 Hz
Speed Settings	2 speeds: low (1) and normal (2)
Maximum Continuous Operation	2 minutes
Required Break After Operation	1 minute
Safety Features	Safety clamp, lid interlock, anti-drip valve
Material	Plastic body, stainless steel filter
Dishwasher Safe Parts	All detachable plastic parts (top rack recommended)
Pulp Container	Removable
Juice Jug	Included
Function	Extracts juice from fruits and vegetables

Frequently Asked Questions - SK12 Eldom

What is the maximum continuous operating time?

The juicer can operate continuously for a maximum of 2 minutes. After that, a break of at least 1 minute is required.

Why won't my juicer turn on?

The juicer has a safety system. Ensure all parts are assembled correctly and the lid is locked with the safety clamp. The appliance will not function if not properly assembled.

Can I wash the parts in the dishwasher?

Yes, all detachable plastic parts are dishwasher-safe. Place them on the top tray away from the heating element.

How can I prevent apple juice from turning brown?

Add a few drops of lemon juice to slow down oxidation. Drink the juice immediately for best taste and nutrition.

Which fruits are not suitable for this juicer?

Fruits that contain starch, such as bananas, papayas, avocados, figs, and mangoes, are not suitable. Use a blender or food processor for these.

How to clean the juicer after use?

Clean immediately after use. Disassemble parts, wash in warm soapy water with a brush, and rinse. Wipe the motor unit with a damp cloth. Do not immerse the motor unit in water.

What should I do if the filter is blocked?

Switch off the juicer, unplug it, and clean the feeding tube and filter. Process smaller quantities to avoid clogging.

Do I need to peel fruits before juicing?

Thin peels or skins can be left on. Remove thick peels like those from oranges, pineapples, and uncooked beetroots.

What speed should I use for soft fruits?

Use speed 1 (low) for soft fruits like watermelons, grapes, tomatoes, cucumbers, and raspberries. Speed 2 is for general use.

Is it normal for the motor to smell when first used?

Yes, a slight smell is normal during the first few uses. If it persists, check the processing quantity and time. If still smelly, contact service.

USER MANUAL SK12 Eldom

fot. 1

Close-up of a black thermosink with a metallic handle and silver ring (no visible text or symbols)

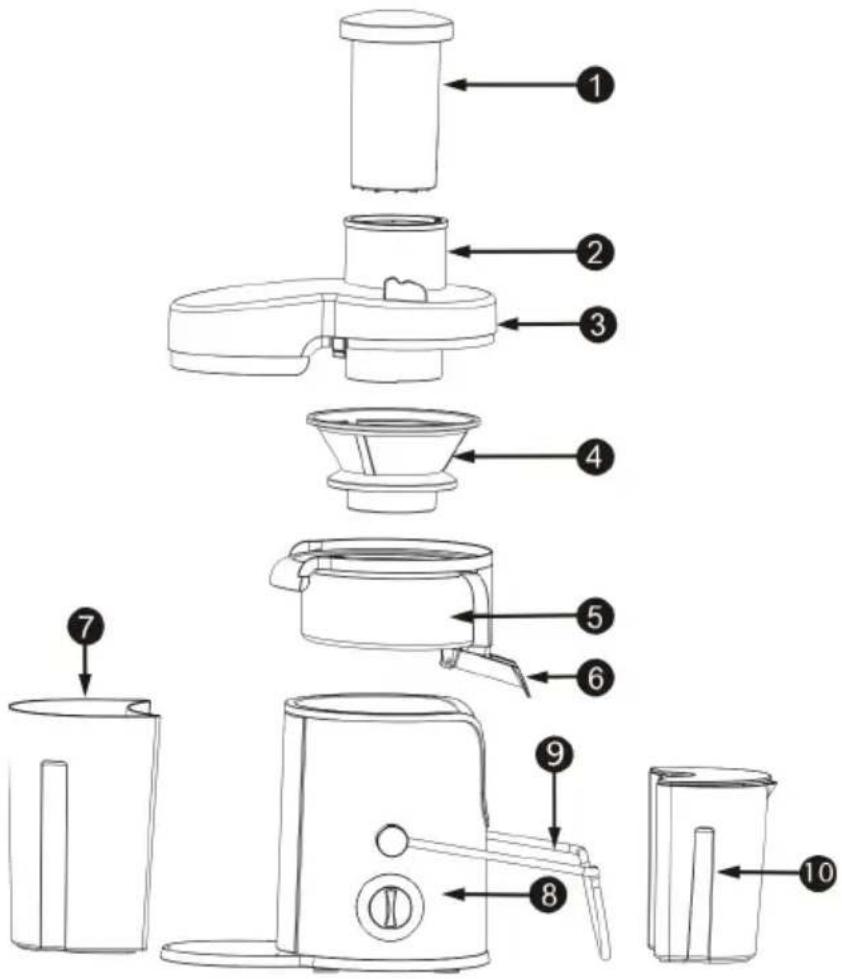

OBSŁUGA

1. Pusher
2. Feeding tube
3. Lid
4. Filter
5. Juicer collector
6. The spout with the valve
7. Pulp container
8. Control knob
9. Safety clamp
10. Juice jug

Technical data

• power: 400W
• mains voltage: 230V \~ 50Hz
• maximum time of continuous operation: 2 minutes
• break before continuation of operation: 1 minute

HOW TO USE THE APPLIANCE

The juicer is equipped with the spout with anti-drip valve.

Read these instructions for use carefully before using the appliance - wash all detachable parts, - assemble the appliance

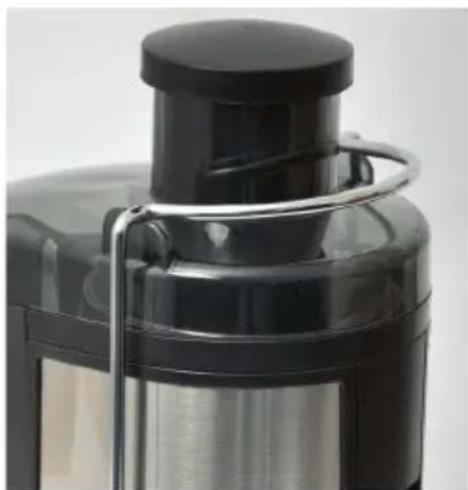

MONTAGE

Place the juice collector into the appliance and place the pulp container into the appliance by tilting it forwards slightly. Insert the top end first and then push home the bottom end Put the filter in the juice collector and hold the lid over the filter and lower it into position

Close-up of a black thermosink with a metallic handle and silver frame (no visible text or symbols)

Snap the safety clamp onto the lid to lock it into place ('click') and slide the pusher into the feeding tube by aligning the groove in the pusher with the small protrusion on the inside of the feeding tube.

Make sure the safety clamps are locked into the position on either side of the lid.

Place the juice jug under the spout.

Using the appliance

The appliance will only function if all parts have been properly assembled and the lid has been properly locked in place with the clamp.

• always operate the product on a flat, stable surface
• put the plug in the wall socket
• wash the fruit and/or vegetables and cut them into pieces that fit into the feeding tube
• make sure the juice jug has been placed under the spout.
• switch the appliance on by turning the control knob to setting 1 (low speed) or 2 (normal speed). Speed 1 is especially suitable for soft fruits and vegetables such as watermelons, grapes, tomatoes, cucumbers and raspberries. Speed 2 is suitable for all kinds of fruits and vegetables.
• put the pre-cut pieces in the feeding tube and gently press them down towards the rotating filter by means of the pusher.
• After processing part of the products and turning the appliance to an off position with the switcher (8) (position "0") you can raise the spout (6) preventing the outflow of the remaining juice. Before turning on the device next time, make sure that the spout is lowered.

While you are preparing juice, you can empty the pulp container by switching the appliance off and carefully removing the pulp container.

Make sure you observe the maximum time of continuous operation of the appliance. Exceeding the time limit and failing to provide appropriate breaks during the operation of the appliance may cause irreparable damage to the engine.

Do not exert too much pressure on the pusher, as this could affect the quality of the end result and it could even cause the filter to come to a halt.

Never insert your fingers or an object into the feeding tube.

After you have processed all ingredients and the juice flow has stopped, switch the appliance off and wait until the filter has stopped rotating.

TIPS

1. Use fresh fruit and vegetables, as they contain more juice, pineapples, beetroots, celery stalks, apples, cucumbers, carrots, spinach, melons, tomatoes, pomegranates, oranges and grapes are particularly suitable for processing in the juice extractor.
2. You don't have to remove thin peels or skins. Only thick peels, e.g. those of oranges, pineapples and uncooked beetroots need to be removed.
3. When preparing apple juice, remember that the thickness of the apple juice depends on the kind of apple you are using. The juicer the apple, the thinner the juice. Choose a kind of apple that produces the type of juice you prefer.
4. Apple juice turns brown very quickly. You can slow down this process by adding a few drops of lemon juice.
5. Fruits that contain starch, such as bananas, papayas, avocados, figs and mangoes are not suitable for processing in the juice extractor. Use a food processor, blender or bar blender to process these fruits.
6. Drink the juice immediately after yo have extracted it. If it is exposed to air for some time, the juice will lose its taste and nutritional value.
7. To extract the maximum amount of juice, always press the pusher down slowly.

CLEANING

The appliance is easier to clean if you do so immediately after use.

Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean the appliance. All detachable parts are dishwasher-safe.

Place the detachable plastic parts on the top tray of the dishwasher. Make sure they are placed well away from the heating element.

1. Switch the appliance off, remove the plug from the wall socket and wait until the filter has stopped roating.

2. Remove the dirty parts from the motor unit. Dissassemble the appliance in the following order:

- Remove the pulp container

- Remove the pusher

- Open the clamp

- Remove the lid

1. Remove the juice collector together with the filter

2. Clean these parts with a cleaning brush in warm water with some washing-up liquid and rinse them under the tap.

3. Clean the motor unit with a damp cloth.

Never immerse the motor unit in water nor rinse it under the tap.

TROUBLESHOOTING

This chapter summarises the most common problems you could encounter with your juice extractor. Please read the different sections for more details. If you are unable to solve the problem, please contact your customer care centre in your country.

PROBLEM SOLUTION
The appliance does not work	The appliance is equipped with a safety system. It won't work if the parts have not been mount properly. Check whether the parts have been assembled in the right way, but switch off the appliance before you do so.
The motor unit gives off an unpleasant smell the first few times the appliance is used.	This is not unusual. If the appliance continues to give off this smell after a few times, check the quantities you are processing and the processing time.
The appliance makes a lot of noise, gives off an unpleasant smell, is too hot to touch, gives of smoke etc.	Switch the appliance off and unplug it. Turn to the nearest service centre or your dealer for assistance.
The filter is blocked.	Switch the appliance off, clean the feeding tube and the filter and process a smaller quantity.
The filter touches the feeding tube or vibrates strongly during processing.	Switch the appliance off and unplug it. Check if the filter has been properly placed in the juice collector. The ribs in the bottom of the filter should fit properly onto the driving shaft. Check if the filter is damaged. Cracks, crazes, a loose grating disc or any other irregularity may cause malfunction.

SAFETY INSTRUCTIONS

• please acquaint precisely with whole of this instruction before using the blender for the first time,
• the power cable must be plugged in the socket with parameters the same as those given in that instruction manual,
• do not immerse the cable or the appliance in water,
• only intended for household use,
• do not use the iron outdoors,
• do not leave children unattended in the vicinity of the appliance,
• before switching the appliance on, make sure that all of its elements are appropriately assembled,
• always unplug the appliance after operation,
• always operate the product with the cover in place
• the lid lock can be released only when the appliance is switched off and the filter is not rotating,
• do not remove the pulp container (7) when the appliance is in operation,
• the device is not intended for use by people (including children) with limited physical, sensorial or mental capabilities unless they are supervised by person responsible for their safety,
• be careful with the knives as they are very sharp. Act with due caution when installing and removing the knives,
• do not touch the appliance with wet hands,
• always pull the plug of the socket before cleaning,
• do not use the juicer when the rotating strainer is damaged,
• do not exceed the maximum time of continuous operation of the appliance,
• Never reach into the feeding tube with your fingers or an object while the appliance is running. Only the pusher is to be used for this purpose.
• do not operate the juicer for more than 40 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.
• never use the if the supply cord is damaged. If found damaged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu,
• refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard
• the appliance can be used only with the originally included accessories

ENVIRONMENT PROTECTION

• the device is made of materials that can be reused or recycled
• it should be handed to the special collection point,
  that deals with collection and recycling of electronic and electric devices,

WARRANTY

• only intended for household use,
• it cannot be used for commercial purposes
• the warranty loses validity in case of inappropriate use,

obrázek 1

Používání zařízení

Close-up of a black thermosink with a metallic handle and label 'obrázek 2' (no other text or symbols visible)

Bild 1

GERÄTEGEBRAUCH

Close-up of a black and silver thermosink bottle with a metal rack, labeled 'Bild 2' in the corner (no other text or symbols visible)

MONTAGE

фот. 1

Close-up of a black and silver thermos flask with a metal strap (no visible text or symbols)
