SÄKERHETSFÖRESKRIFTER

VAD FINNS I KARTONGEN

• 1 Vinkyl
• 1 Bruksanvisning
• 6 utdragbara hyllor

PRODUKTÖVERSIKT

Technical diagram of a refrigerator internal structure with numbered labels pointing to components

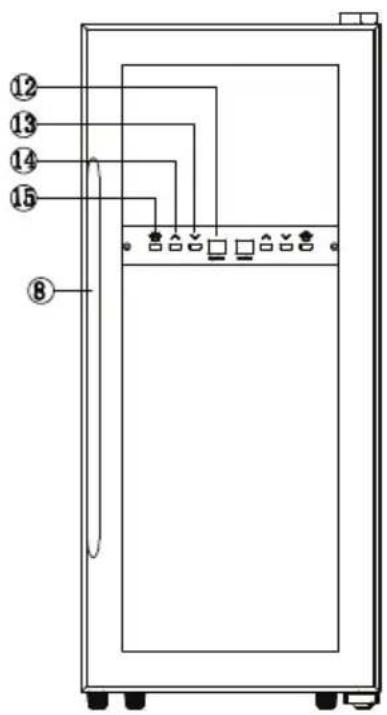

Diagram of a refrigerator interior with numbered labels pointing to various electronic components

Three simple icons: a lightbulb with rays, an upward arrow, and a downward arrow, each paired with a blank rectangular box.

SKÖTSEL OCH UNDERHÅLL

Waste of Electrical and Electronic Equipment (WEEE) WEEE-direktivet 2012/19/EU

Technical diagram of a refrigerator internal structure with numbered labels pointing to components

Diagram of a refrigerator interior with numbered labels pointing to different compartments or fixtures.

Simple diagram showing three icons: a lightbulb with rays, an upward arrow, and a downward arrow, each paired with a blank rectangular box.

PFLEGE UND WARTUNG

Waste of Electrical and Electronic Equipment (WEEE) WEEE directive 2012/19/EU

To ensure reliable and safe operation of this equipment, please read all the instructions in this instruction manual carefully. To reduce the risk of fire, electrical shock, or injury when using your appliance, follows these basic precautions;

• Before you connect the appliance: Ensure the voltage rating on the type plate corresponds to your mains voltage (type plate is located on the back of the product).
• This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.
• Do not place heavy objects on the power cord, this may damage the cord.
• Do not use the appliance if the supply cord has been damaged.
  • The appliance is intended for household use only.
• Do not use outdoors.
  • Do not expose the product to rain.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never pull the cord when removing the plug from the outlet.
  • Never touch the appliance, plug or cord with wet hands.
• Never immerse the unit in water or other liquids and do not use it in extremely warm areas or damp areas such as

shower, bath or pool.

• Do not use the appliance in the presence of explosive fumes.
• Do not let children play with the appliance. Children must be supervised when they are near the Wine Cooler.
• Keep a distance of minimum 10 cm between the appliance and walls etc.
• Do not put your fingers, pens or other objects into openings.
  • Unplug the appliance before cleaning it.
• Do not try to repair the appliance by yourself. It must be repaired by qualified service personnel to avoid hazard.
  • DANGER or WARNING: risk of child entrapment.
• Before you throw away your old wine cooler: Take of the door. Leave the shelves in place so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the appliance.
• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Does not store food in wine cooler, as interior temperature may not get cool enough to prevent spoilage
• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

BOX CONTENT

• 1 Wine Cooler
• 1 Instruction Manual
• 6 Slide Out Shelves

PRODUCT OVERVIEW

Technical diagram of a refrigerator internal structure with numbered labels pointing to components

Diagram of a refrigerator interior with numbered labels pointing to various electronic components

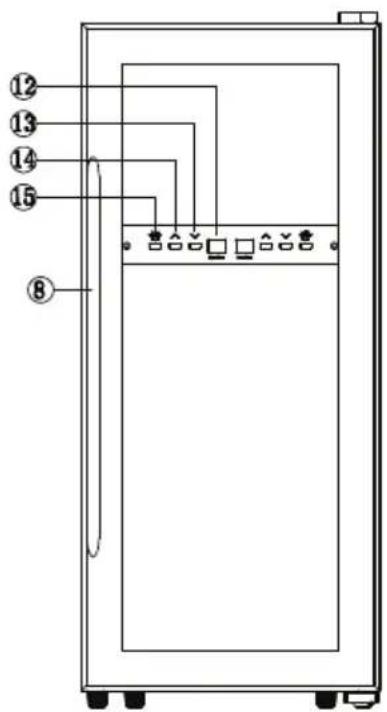

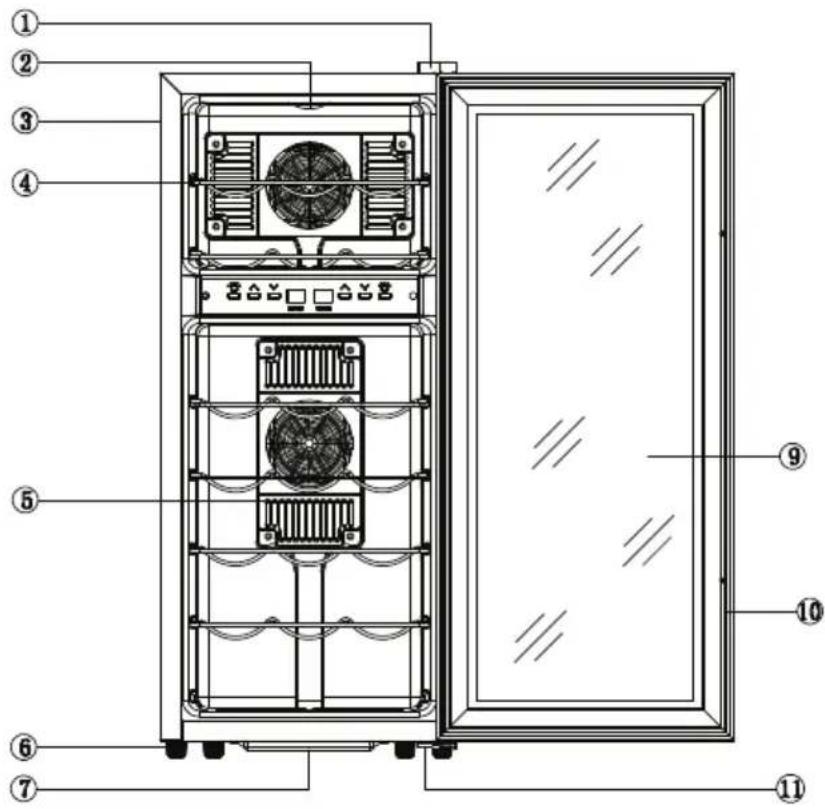

1. Upper Hinge
2. Light Cover
3. Cabinet
4. Shelf

5. Cold Fan Mask

6. Foot

7. Water Tray
8. Handle
9. Glass

10. Door Seal

11. Lower Hinge

12. Display Window
13. Temperature down
14. Temperature up
15. Light

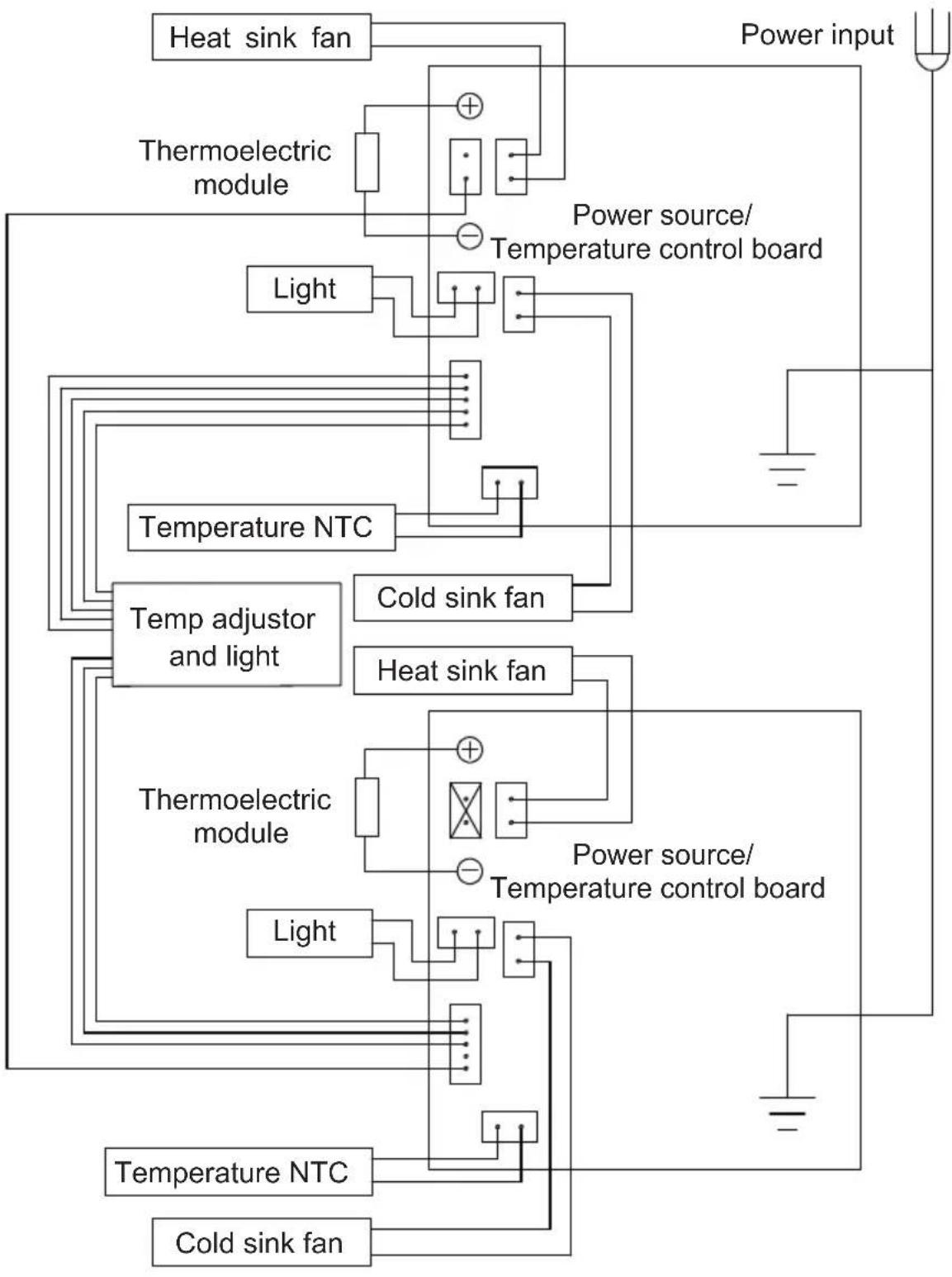

ELECTRIC DIAGRAM

ELECTRICAL CONNECTION

Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by qualified service personnel.

This unit should be properly grounded for your safety.

Use of extension cords is not recommended.

This unit requires a standard 220-240V-50Hz electrical outlet with 2-pin plug.

The cord should be secured behind the wine cooler and not let exposed or dangling to prevent accidental injury.

The appliance observes the following current EU directives:

• Low Voltage 2006/95/EC.
• Electromagnetic Compatibility 2004/108/EC.

The appliance must be protected extra according to the power regulations in order to protect the user against dangerous electric shocks in the case of defects.

When changing the power cord, it must be replaced by a power cord of corresponding type. In no circumstances cut in or remove parts from the electric circuit.

INSTALLATION INSTRUCTIONS

Before using your wine cooler

• Remove the exterior and interior packing.
• Check to be sure the following parts are included:
• 6 slide out shelves
• 1 instruction manual

- Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

- Clean the interior surface with lukewarm water using a soft cloth.

- Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the front legs at the bottom of the unit.

- Foe recedes installation away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating

and heat sources may increase electrical consumption. Extreme cold or hot ambient temperatures may also cause the appliances not to perform properly.

• Not designed for placement in adage or basement.
• The appliance is for indoor use only.

Caution: Please keep the appliance away from substance, which can cause ignition.

It is recommended that you install the wine cooler in a place where the ambient temperature is between 10-32°C. If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing in extreme cold or hot conditions may cause interior temperature to fluctuate. The range of 7-18°C/11-18°C may not be reached. The temperature may fluctuate depending on whether or not the interior light is on or off or whether the bottles are located on the upper, middle or lower section.

How to use the press-buttons on the Display Panel

You can set the temperature as your desire by pressing the button. There are three touch-button on the panel. Press “▲” and “▼” to adjust the temperature by 1°C among 7-18°C (zone 1 - upper) / 11-18°C (zone 2 - lower). You can tune the interior light on or off by touching the “Light” button.

Simple diagram showing three icons: a lightbulb with rays, an upward arrow, and a downward arrow, each paired with a blank rectangular box.

CARE AND MAINTENANCE

Cleaning your wine cooler

• Unplug the wine cooler and remove the bottles.
- Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
- The outside of wine cooler should be cleaned with mild detergent and warm water.
• Draw out the water box at the bottom, and wash.

Moving your wine cooler

• Remove all the bottles.
• Securely tape down all loose items inside your wine cooler.
  • Turn the leveling legs up to the base to avoid damage.
• Tape the door.
• Be sure the wine refrigerates stays in the upright position during transportation.

SERVICE & IMPORTANT INFORMATION

1. This machine is designed to be only used in "N" and "SN" climate.
2. If supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

WARNING: Please do not use where children can touch the unit, nor let children use the unit by themselves.

DISPOSAL

1. Please remove the door before you dispose your wine cooler.
2. Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
3. Information regarding disposal of the appliance: Flammable insulation blowing gases should be disposed appropriately. Take the cabinet to a recycling plant for flammable insulation blowing gases.

PROBLEMS DISPOSAL

You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestion below to see if you can solve the problem before calling service center.

PROBLEM POSSIBLE CAUSE
Wine cooler does not operate.	Not plugged in using different voltage.The circuit breaker tripped or a blown fuse.
Wine cooler is not cold enough.	Check the temperature control setting.External environment may require a higher setting.The door is open too often.The door is not closed completely.The door seal does not seal properly.The wine cooler does not have the correct clearance.
The light does not work. Check with your service center.
Vibrations. Check to assure that the wine cooler is level.
The wine cooler seems to make too much noise.	The wine cooler is not level.Check the fan.
The door will not close properly.	The wine cooler is not level.The doors were reversed and not properly installed.The seal is weak.The shaves out of position.
LED doesn’t work. Main control board does not work.PCB Problem.There is some problem with the plug.
LED display error. Weak quality of display.Temperature point is out off.
Bottoms are not functional. Control panel is damaged.

TECHNICAL DATA

Model No. Centurion VK220
Capacity 70 l
Voltage 220-240 V, 50 Hz
Current 1 A (25 °C)
Protection Class	I
Climate Class SN, N = 10°C - 32°C
Input Power 140 W
Power Consumption (KW.h/24h) 0,85	(15 °C)
Max Working Temperature 32 °C
Max Temperature Difference >18 °C
Temperature Control Range 7-18 °C/1	1-18 °C
Net Weight 19,7 kg
Gross Weight 22 kg
Size (W×H×D) 34,5×80,3×51,5 cm
Packing Size (W×H×D) 40,0×85,5×57	0 cm

ENERG

ENERGIA · EVERYEA

Centurion

VK220

ENRGIA·EHEPΓNЯ·ENEPEΓEA ENERGIJA·ENERGY·ENERGIE ENERGI

2010/1060

ENVIRONMENT

Waste of Electrical and Electronic Equipment (WEEE) WEEE Directive 2012/19/EU

This symbol on the product or in the instructions means that the electrical and electronic equipment must be disposed of separately from other household waste when it does not work anymore. The EU has separate waste collection systems, contact your local dealer or authority for more information.

LAW AND SAFETY

This product has been manufactured according to current regulations for electromagnetic fields (EMF), which means that it is safe to use if used according to safety instructions. The product is manufactured according to current regulations within the EU legislation, limiting the use of hazardous substances in electrical and electronic equipment (RoHS Directive 2011/65/EU).

RESERVATIONS

We reserve the right to correct any typographical errors, and reserve the right to make ongoing changes and improvements to the product and related materials.
