USER MANUAL VSL14044 Howell

Black and white image of a four-blade office ceiling fan with a central hub and decorative blades (no text or symbols visible)

C€

EUROPEAN STANDARD QUALITY

Illustration of two hand-drawn diagrams showing a candle and a mechanical component (no text or symbols)

Illustration of a five-blade ceiling fan with visible blades and central hub (no text or symbols)

1. Be sure the power is "off" before making connections by removing fuse or turning off main switch.
2. Installation by a qualified electrician is strongly recommended.
3. All electrical connections must be in accordance with local and national electrical codes.
4. To reduce the risk of injury to persons, install fan so that the blade is at least 7 feet above the floor and all objects.
5. The outlet box should be suitably supported to support at least 50 pounds. Use metallic outlet box only.
6. Make sure the fan is electrically grounded to avoid possible shock.
7. This appliance must be installed following the national regulations for electrical installations.
8. If the supply cord is damaged, it must be repaired by its manufacturer, its service agent or a similarly qualified person in order to avoid hazard
9. This product is only designed for use in living areas (and is not suitable for places constantly exposed to damp).
10. Do not install this ceiling fan in a bathroom or anywhere with a high level of Humidity.
11. Do not to fix to damp surfaces, with fresh paint or any others which may conduct electricity such as metallic surfaces.

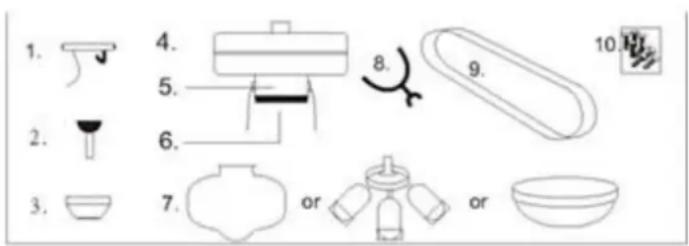

PARTS LIST

1. Mounting bracket
2. Down rod and ball
3. Canopy
4. Motor assembly
5. Switch housing
6. Light fitter
7. Glass shade
8. Blade bracket
9. Wood blade
10. Screws

1. Choose a suitable location to mount your fan. The place should be free. Do not install paddle fan less than 7 feet between floor and lowest edge of fan blades.
2. The outlet box must be able to support a hanging weight of 50 pounds and must be secured firmly with wood screw to prevent coming loose to the building structure.
3. Double "j" hook assembly fasten mounting bracket to ceiling outlet box with screws and washers. Motor assembly together with down rod have been well assembled is factory. Being very careful not to

damage wiring, hang the fan over the mounting bracket as shown and mount properly.

Note: the rubber roller should be firmly seated without metal to metal contact.

1. Ball-hanger assembly

Attach the mounting bracket to the outlet box using screws and washers. Lift the fan assembly onto the mounting bracket and check whether it has been properly mounted. Pin opposite mounting bracket should fit in slot on ball.

1. Make the wire connections as shown in the wiring instruction.

2. Secure the canopy as shown.

1. Use the wall remote to make the ceiling fan working on.
2. Push the slide switch down for forward, and up for reverse action of the blades.
3. Be careful and avoid placing your arms in the path of blades during operation. Note: before pushing the reverse slide switch, it is necessary to stop the action of the blades by turning off the fan.

TECHNICAL DATAS

	VSL14044
BLADES 5
BLADE SIZE 1	40 cm
SPEED 5
WALLCONTROL	yes
POWERSUPPLY	230V/50Hz60W
LAMPSCOVER	4
COLOUR WOOD

GUARANTEE CONDITIONS

The unit, for household only, is guaranteed for one year from the purchase date. The guarantee is not valid if units show accidentally breakages which come from bad transport or fallings, alterations not authorized by the manufacturer, improper use or any use which is not conform with the instruction manual, wrong connection to the power supply, any fixing by not authorized staff. Please for any problem apply just to seller. NOTE: please assure that the guarantee certificate is filled in all its parts, above all the purchase date, the reseller stamp and the purchase ticket

GUARANTEE CERTIFICATE HOWELL WOOD CEILING FAN MOD.: VSL14044

(Please keep it with the unit)

Issued to

Mr/Mrs

Address

City

Country

Telephone number

Reseller stamp

Empty white rectangle with black border (no text or symbols)

Purchase date (attach the ticket)

Leseni stropni ventilator

Model:

VSL14044

UPORABNIŠKI PRIROČNIK

Illustration of two hand-drawn diagrams showing a candle and a mechanical device (no text or symbols)

Illustration of a five-blade ceiling fan with visible blades and central hub (no text or symbols)

NAMESTITEV VENTILATORJA NA STROP
