USER MANUAL UL863 TOSHIBA

TOSHIBA Leading Innovation >>> SL86* Digital Series UL86* Digital Series UL87* Digital Series

Safety Precautions Installation and important information The remote control : Inserting batteries and effective range The remote control : Inserting batteries and effective range

Connecting external equipment Connecting an HDMI* or DVI device to the HDMI input … To connect an HDMI device To connect a DVI device HDMI ARC (Audio Return Channel feature REGZA-LINK connection . Connecting a computer . To connect a PC to the RGB/PC terminal To connect a PC to the HDMI terminal Connecting a home network To connect the TV to a home network - Wired connection - Wireless Setting up the USB HDD (for UL86/UL87 series) Controls and input connections. Switching on . Using the remote control ……… Using the controls and connections MENU structure

Startup Application Ant/Cable/Satellite (f available) Satellite Settings Auto Tuning ATV Manual Tuning Tuning Skip … Sorting positions . DTV Manual Tuning . Manual Tuning . Manual Tuning for DVB-C Manual Tuning for DVBSS .. DTV Settings Channels (Antenna/Cable) Channels (Satellite) ………. Standby Channel Update DVB Character Set Dynamic Scan Location setting Analogue swritch-off .

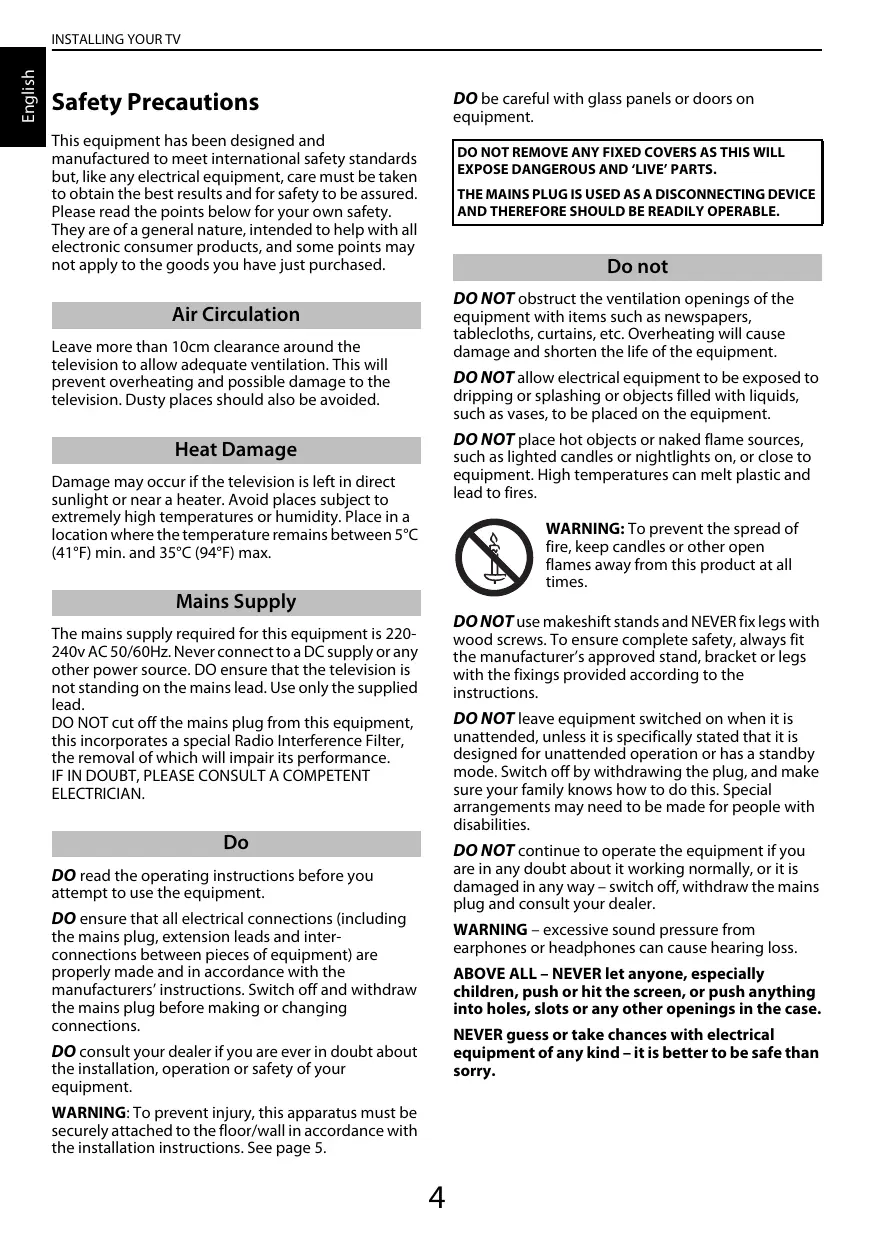

Safety Precautions This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products, and some points may not apply to the goods you have just purchased. Air Circulation Leave more than 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided. Heat Damage Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5°C {41°F) min. and 35°C (94°F) max. Mains Supply The mains supply required for this equipment is 220- 240v AC 50/60Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead. Use only the supplied lead. DO NOT eut offthe mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance.

DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and inter- connections between pieces of equipment) are properly made and in accordance with the manufacturers’ instructions. Switch off and withdraw the mains plug before making or changing connections. DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

WARNING: To prevent injury, this apparatus must be

securely attached to the floor/wall in accordance with the installation instructions. See page 5. DO be careful with glass panels or doors on equipment. DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND ‘LIVE’ PARTS. [THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE. Do not DO NOT obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment. DO NOT allow electrical equipment to be exposed to dripping or splashing or objects filed with liquids, such as vases, to be placed on the equipment. DO NOT place hot objects or naked flame sources, such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.

WARNING: To prevent the spread of

fire, keep candles or other open flames away from this product at all times. DO NOT use makeshift stands and NEVER fix legs with wood screws. To ensure complete safety, always fit the manufacturer’s approved stand, bracket or legs with the fixings provided according to the instructions. DO NOT leave equipment switched on when it is unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, and make sure your family knows how to do this. Special arrangements may need to be made for people with disabilities. DO NOT continue to operate the equipment if you are in any doubt about it working normallÿ, or it is damaged in any way - switch off, withdraw the mains plug and consult your dealer. WARNING - excessive sound pressure from earphones or headphones can cause hearing loss. ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, or push anything into holes, slots or any other openings in the case. NEVER guess or take chances with electrical equipment of any kind it is better to be safe than sorry.

Installation and important information Where to install Locate the television away from direct sunlight and strong lights. Soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen. Place the TV on a stable, level surface that can support the weight of the TV. In order to prevent injury and maintain stability of this apparatus, secure the TV to the level surface using the strap if fitted, or to a wall using a sturdy tie to the P clips provided. Otherwise secure the TV on the level surface using the supplied mounting screw. The LCD display panels are manufactured using an extremely high level of precision technology; however, sometimes some parts ofthe screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction. Make sure the televisionis locatedin a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen. Also, please be certain that small items cannot be inserted into slots or openings in the case. When using a Wall Bracket Please use a wall bracket appropriate for the size and weight of the LCD TV. + Two people are required for installation. + Never use the four screws attached to the TV. @ uplug and remove any cables and/or other component connectors from the rear of the TV. © carefulylay the front of the unit face down on a flat, cushioned surface such as a quit or blanket. @ rolowthe instructions provided bracket. your wall Before proceeding, make sure the appropriate bracket(s) are attached tothe wall and the back ofthe TVas described in the instructions provided with the wall bracket. ©Q _ aways use the screws supplied or recommended by the wall mount manufacturer. Fixing strap y + Fixing strap Sturdy tie (as short as possible)

Screw (supplied) Stand style is dependent on model Remove four screws. (Do not reuse these screws for attaching a wall racket.)

Please take note The digital reception function of this television is only effective in the countries listed in the “Country” section of the “Setup/System Setup” menu. Depending on country/area, some of this television's functions may not be available. Reception of future additional or modified services can not be guaranteed with this television. If stationary images generated by 4:3 broadcasts, text services, channel identification logos, computer displays, video games, on-screen menus, etc. are left on the television screen for any length of time, they could become conspicuous. I is always advisable to reduce both the brightness and contrast settings Very long, continuous use ofthe 43 picture on a 16:9 screen may result in some retention of the image at the 43 outlines. This is not a defect of the LCD TV and is not covered under the manufacturer's warranty. Regular use of other size modes (eg: Super Live) will prevent permanent retention. EXCLUSION CLAUSE D Fire; in Earthquake;

iv) Intentional misuse ofthe product;

M) Use of the product in improper conditions; associated equipment; operation or misuse of the product. Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by; vi). Loss and/or damage caused to the product whilst in the possession of a third party: vi Any damage or loss caused as a result ofthe owner‘ failure and/orneglectto follow the instructions set out in the owners manual;

vi) Any loss or damage caused directly as a result of misuse or malfunction ofthe product when used simultaneously with

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following; loss of profit, interruption of business, the loss of recorded data whether caused during normal NOTE: À Toshiba wall bracket or stand, where available, must be used. When Using an USB HDD (for UL86/UL87 series) The recording function has been designed for private use and entertainment in your home environment. Please note that any commercial use of the recording function could lead to copyright infringement of authors’ rights. Toshiba asks you to respect the intellectual property rights of third parties. Before recording to a device connected to the TV, make atest recording and check the recording performance. Programmes that are prohibited from copying due to copyright protection cannot be recorded, + Toshiba shall not be liable for compensation or incidental damages of any kind whatsoever resulting from content that was not properly recorded on the recording device or that was modified or lost. Toshiba shall not be liable for damages of any whatsoever (breakdown of the recording device, ication or loss of the recorded content, etc.) resulting from malfunction, operating failure or incorrect operation due to combin ith another connected device.

+ If you connect and register an USB HDD that has been used with a PC or another TV or recorder to this TV, all the data and recorded programmes stored on the disk will be deleted. + To use an USB HDD that has been used with this TV on a PC, the hard disk must first be formatted with the PC. At this time, all the data stored using the TV will be deleted. + Do not turn off the power supply to the USB HDD or disconnect the connecting cable while the USB HDD is operating. Doing so may result in loss of the recorded data or malfunction of the USB HDD. + If you connect an USB bus-powered device to the USB 1 port, it may interfere with recording on the USB HDD. The recording function is not available in all countries. Please note, that recording on the USB HDD are no longer playable, after the TV's main-board was exchanged during service.

About the Camera Sensor (for UL86/UL87 Series) The camera sensor installed in this TV can detect a person's face or movement and identify individuals by their registered faces. Please note that certain factors can affect the performance of the sensor function as set out below. General Sensor Function + Forthe sensor to operate (for each function) you will need to be within the sensor detection range as set out below. + The approximate effective detection range of the camera sensor is as shown below. (Note: The distance and angle of the detection range are based on a standard viewing environment and conditions). - Horizontal angle: approx. 58° (approx. 29° x 2) Personal Identification| (50 - 400cm)| Face Detection (50 - 500cm) - Vertical angle: approx. 38° (upward approx. 29°, downward approx. 9°) Personal Identification (50 - 400cm) Face Detection (50 - 5006m) Distance: approx, 50 cm to 500 cm (Personal Identification Function: approx, 50 cm to 400 cm) + Do not place anything in front ofthe TV that may obstruct detection or reduce the sensor detection range. Motion Detection Function + Motion detection may be affected by the surrounding environment, such as the brightness of the room. In addition, very slight, small or momentary movement may be undetected. Sensor performance can be enhanced by making sure the room is brightly lit and using prolonged and obvious movements Billowing curtains, a pet or variations in illumination in the detection range may be detected as motion, even ifthere is no person there. + You can use the camera sensor confirmation menu to check ‘hat no movement made by other persons is being detected Face Detection Function + The sensor can detect up to eight persons. + Face Detection may be affected — Your face is obstructed or partially hidden, for example, by your hair, a mask or a hat, — Your head is tilted or tuned to one side, or — You are wearing dark glasses or the light is reflected in your glasses. + You can use the camera sensor confirmation menu to check whether your face is detected. The camera sensor may detect background images such as a picture portrait or the pattern on the wall as eyes or nose even ifthere is no person there. You can use the confirmation screen to check whether any such object in the detection range is being incorrectly detected as a face. - Face Detection can be less effective on darker complexions and in darker environments. Face Detection can be enhanced by making sure your face is clearly visible and eventy lit. Ifthe room is dark, Face Detection can be enhanced by making sure the room is brightly lit. the lighting environment creates a shadow on your face, Face Detection can be enhanced by adjustingthe lighting to prevent shadows. Personal Identification Function + The Personal Identification Function is part of the Face Detection Function. The factors affecting the Face Detection Function set out above also apply to the Personal Identification Function. Personal Identification may in addition be affected by: — A different shadow pattern from that when your face was registered. Personal Identification accuracy can be enhanced by registering additional facial images under different conditions. — Adifferent lighting environment from when your face was registered, such as during the day and at night. Personal Identification accuracy can be enhanced by registering your face under various lighting environments. — Whether or not you are wearing glasses. f you wear glasses, we recommend that you register your face both with and without glasses. - Adifferentfacial expression. Personal Identification accuracy can be enhanced by registering different facial expressions. Personal Identification may be affected when faces have similar characteristics (e.g. brothers, sisters, twins). Personal Identification is less effective onthe faces of young children. Face Registration Function + Up to four people can be registered under the Personal Identification Function. The same person cannot be registered twice. + Amaximum of 10 different facial images per person can be registered. Personal identification accuracy can be enhanced by registering different facial images as set out above. Itis advisable to register your face in your usual viewing position and with your natural facial expression. Registering your face too near to or too far from the screen may hinder identification performance.

19 To access the analogue or digital Channel List 21 To display the digital on-screen Programme Guide 22 AY 3 To page up, down, left or right 23 Whenusingmenus, the arrows move the cursoronthe screen up, down, left or right. Press OK to confirm your selection

To call up text services

On-screen Menus 24 To return to previous Menu 25 Toexitmenus 26 When in TV mode: When in Text mode: Toreveal concealed [L2] Picture still OJ/EX Analogue ti text BE] dipl me To hold a wanted page To enlarge text display size To select a page while viewing à normal picture When using Programme _ During Playback: Guide: D ToPLAY Hé -24 hours M ToSToP bi +24 hours AID To PAUSE/STEP 4 1 page Hé To SKIP-BACK DD +1 page € TOREWIND D To FAST FORWARD 1 To SKIP-FORWARD 27 Colourbuttons: Text andinteractive service control buttons Inserting batteries and effective range Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the proper way. Suitable battery types for this remote are AA, IECR6 TS. Do not combine a used, old battery with a new one or mix battery types. Remove dead batteries immediately to prevent acid from leaking into the battery compartment. Dispose of them in accordance with instructions on page 94 of this manual.

Warning: Batteries must not be exposed to excessive heat

such as sunshine, fire or the like. The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. Ifthe operating range becomes reduced, the batteries may need replacing

To call up text services

Inserting batteries and effective range Remove the back cover to revealthe battery compartment and make sure the batteries are inserted the proper way. Suitable battery types for this remote are AAA, IEC RO3 1.5V. Do not combine a used, old battery with a new one or mix battery types. Remove dead batteries immediately to prevent acid from leaking into the battery compartment. Dispose ofthem in accordance with instructions on page 94 ofthis manual.

Warning: Batteries must not be exposed to excessive heat

such as sunshine, fire or the like. The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre ofthe television. the operating range becomes reduced, the batteries may need replacing

Connecting external equipment Before connecting any external equipment, turn off all main power switches. Ifthere is no switch, remove the mains plug from the wall socket.

INOUT- € Satellite dish lto the socket on the rear of the television. Connect the aer Ifyou use a decoder and/or a media recorder, it is essential thatthe aerial cable is connected through the decoder and/or through the media recorder to the television. ape Satellite cable: . . Connect the LNB from the satellite dish to the SATELLITE ANTENNA socket on the TV. Vou can receive TV, radio, interactive TV, and HD TV with clear reception. SCART leads: Connect the media recorder IN/OUT socket to the television. Connect the decoder TV socket to the television. Before running Auto Tuning, put your decoder and media recorder to Standby. The phono sockets alongside the COMPONENT VIDEO INPUT sockets will accept Land R audio signals. The Digital Audio Output socket enables the connection of a suitable surround sound system. NOTE: This output is always active. HDMI (High-Definition Multimedia Interface) is for use with a DVD decoder or electrical equipment with digital audio and video output. For acceptable video or PC signal formats through the HDMI terminals, see page 96. PC format signals will also be displayed. NOTE: Although this television is able to connect to HDMI equipment, it is possible that some equipment may not operate correctly. LAN port is used to connect the TV to your home network. This TV can play digital content stored on a DLNA CERTIFIED"®* product with server function. Awide variety of external equipment can be connected to the back ofthe television; therefore, the relevant owner's manuals for all additional equipment must be referred to for exact instructions. Ithe television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button. To recall external equipment, press to select between DTV, EXT 1, EXT 2, EXT 3, HDMI 1, HDMI 2, HDMI 3, HDMI 4, PC or ATV. When the external input mode is selected while viewing DTV mode, the SCART socket does not output video/audio signals.

Connecting an HDMI° or DVI device to the HDMI input The HDMI input on your television receives digital audio and uncompressed digital video from an HDMI source device or uncompressed digital video from a DVI (Digital Visual Interface) source device. This input is designed to accept HDCP (High-Bandwidth Digital-Content Protection) programme material in digital form from EIA/CEA-861-D-compliant ll consumer electronic devices (such as a set-top box or DVD player with HDMI or DVI output). For acceptable video signal formats, see page 96. NOTE: Some early HDMI equipment may not work properly with your latest HDMI TV, due to the adoption of a new standard. Please unplug your HDMI cable first and then try setting the INSTAPORT® and Enable Content Type options to “Off”. Your early HDMI source should operate properly with your television. See page 82. Supported Audio format: Linear PCM, Dolby Digital (AC-3), sampling rate 32/44.1/48kHz. To connect an HDMI device Connect an HDMI cable (type À connector) to the HDMI terminal. For proper operation, it is recommended that you use an HDMI cable with the HDMI Logo (I 2 your HDMI connection s capable of 1080p and/or your television is capable of refresh rates greater than 50Hz, you will need a Category 2 cable. Conventional HDMI/DVI cable may not work properly with this model. + HDMI cable transfers both video and audio. Separate analogue audio cables are not required (see illustration). + See "HDMI 3 Audio” on page 81. the back of your televisi @® ce: @e e® To view the HDMI device video, press the © button to select HDMI 1, HDMI 2, HDMI 3 or HDMI 4 mode.

To connect a DVI device Connect an HDMI-to-DVI adaptor cable (HDMI type À connecton) to the HDMI 3 terminal and audio cables to the PC/ HDMI 3 (AUDIO) socket (see illustration) + The recommended HDMI-to-DVI adaptor cable length is 66ft (2m). + An HDM-to-DVI adaptor cable transfers video only. Separate analogue audio cables are required. + See "HDMI 3 Audio” on page 81 the back of your television Audio cable for HDMIto television connection (not supplied) HDMI-to- DVI adaptor Cable —> DVI device ‘To ensure that the HDMI or DVI device is reset properiy, it is recommended that you follow these procedures: + When turning on your electronic components, turn on the television first, and then the HDMI or DVI device. + When tuming off your electronic components, turn off the HDMI or DVI device fist, and then the television. HDM/'s ARC (Audio Return Channel) feature This feature enables the audio signal of the TV to be sent to the AV amplifier via the HDMI cable. it will not be necessary to connect a cable from the audio output of the TV to the audio input of the AV amplifier to reproduce the audio received from the tuner of the TV through the AV amplifier. the back of your television ssS AV amplifier that supports ARC HDMI cable

You can control the basic functions of connected audio/video devices using the television's remote control if you connect a REGZA-LINK compatible AV amplifier or playback device. For an explanation of setup and operations, see pages 85-87. the back of your television AV amplifi fs [#3 Playback device Playback device For the setup shown above, you will need three HDMI cables. Before controlling the device(s): NOTE: + After completing the above connections, set the REGZA- - Ifseveral devices are connected, the REGZA-LINK feature LINK Setup menu as you desire (see page 85). may not operate proper. : The connected devices must also be set. For details, see the + For proper operation, it is recommended that you use HDMI operation manual for each device. cables with the HDMI Logo (HE ). : The REGZA-LINK feature uses CEC technology as regulated + This function is available when one PC and one AV amplifier by the HDMI standard. are connected separately. However, it may not operate - This feature is limited to models incorporating Toshiba's properiy ifthe PC is connected via the AV amplifier. REGZA-LINK. However, Toshiba is not liable for those operations. Refer to individual instruction manual for compatibility information.

Connecting a computer With either an RGB/PC or an HDMI connection, you can watch your computer's display on the television and hear the sound from the television's speakers. To connect a PC to the RGB/PC terminal When connecting a PC to the RGB/PC terminal on the television, use an analogue RGB (15-pin) computer cable and a PC audio cable for the PC/HDMI 3 (AUDIO) socket. Select PC from the PC/HDMI 3 Audio options in the AV Connection menu located in the Setup menu! ‘the back of your tel Mini D-sub 15 pin connector

Computer Audio cable for PC to television connection {not supplied) RGB PC cable (not — >. | supplied) UE — Conversion adaptor iFrequired {not supplied) To use a PC, set the monitor output resolution on the PC before connecting it to the television. For acceptable PC ignal formats, see page 95. To display the optimum picture, use the PC setting feature (see page 79) NOTE: The PC audio input terminal on the television is shared with the HDMI 3 analogue audio input terminal (see page 81). Some PC models cannot be connected to this television. An adaptor is not needed for computers with a compatible mini D-sub15-pin terminal Depending on the DVD' title and the specifications ofthe PC on which you are playing the DVD-Video, some scenes may be skipped or you may not be able to pause during multi-angle scenes. Aband may appear atthe edges ofthe screen or parts ofthe picture may be obscured. This is due to scaling ofthe picture by the set, it is not a malfunction. When PC input mode is selected, some ofthe television's features will be unavailable e.g. Colour System in the Setup/System Setup menu. Some PC models may output unique signals that the television may be unable to detect (see page 95).

To connect a PC to the HDMI terminal When connecting a PC to the HDMlterminal on the television, use an HDMi-to-DVI adaptor cable and an analogue audio cable. I connecting a PC with an HDMI terminal, use an HDMI cable {type À connector). À separate analogue cable is not te back of your tlev See Audio cable forPC t television connection not supplied) Computer HDMIto-DVI adaptor cable For acceptable PC and video signal formats, see page 96. NOTE: + The edges ofthe images may be hidden + Ifconnecting a certain PC model with a unique PC signal, the PC signal may not be detected correctiy.

English CONNECTING YOUR TV. Connecting a home network The LAN port allows your Toshiba TV to connect to your home network. You can usethis revolutionary home entertainment networking system to access photo, video and audio files that are stored on a DLNA CERTIFIED”* server and play/display them on your TV. NOTE: + Ifyou connect to a shared network outside your home, it is advisable to use a router. Always use DLNA CERTIFIED"* products in private network environments. I you use a hub or switch to connect the TV to your home network, you may not be able to use the automatic setup and will have to manually set up the network address. See page 46. you use a router with built-in DHCP functionality, use the automatic setup. Manual setup may not work. you connect the TV and PC directly, use a crossover LAN cable. To connect the TV to a home network - Wired the back of your tel een Server PC 181 Cable or Phone jack

11] Coaxial or telephone cable (depending on your modem type) {21 Standard LAN cable 18]0o NOT connect a phone jack direct to the TV LAN port.

To connect the TV to a home network with an internet connection - Wireless Please refer to “Wireless Setup” section on page 43. the back of your tel Access point (AP) built in NOTE: UL86 and UL87 are the adaptor buil

Setting up the USB HDD (for UL86/ULS87 series) To connect an USB HDD (not supplied) USB HDD US8 cable {not supplied) NOTE: For available USB HDD information, see "Product Information" on the website. To register an USB HDD While in the list mode, The following key operations are available: Wh + USB HDD to the USB 2 port on th ofolloming ccreen one porontne OK button o register/remove TV, the following screen will appear. RED button To disconnect An unregisterod USB HDD has been detected. GREEN button To change Device Name Rogister the USB HD? u YELLOW button … To test <« > BLUE button. o format ® press do to select Yes and press OK. NOTE: + To disconnect a USB HDD from the TV, follow the The formatting confirmation window will appear. procedures for “Removing the Device” in *Setting a USB HDD/ including unregistered devices. Press or to select Yes and press OK. + When using a USB HDD, if necessary, perform the settings and operations shown in "Setting a USB HDD” (see page xx. Connect the USB HDD to the USB 2 port. « Recording and playback cannot be performed if connected you want to name the USB HDD, press or to tothe USB 1 port. select Yes and press OK. Registration will start. Up to 8 USB hard disks can be registered to this TV. Recorded programs saved on the USB HDD can only be viewed on this TV. They cannot be viewed when connected The maximum number of characters is 10. to another TV (including the same model of TV), a PC, or other device. Ifyou prefer the default name "USB HDD X," select No You cannot connect a USB HDD to the TV via a USB hub. and press OK. + Ifan HDD is re-registered, it will not be formatted. When the USB HDD is formatted, all the data stored on the HDD will be deleted. See page 47 to input characters. @ re Device List wi appear. Device List Device Name Registered Connected USB HDD 1 USB HDD 2 mi D USB HDD3 (im! (el You can now use registered HDDS.

CONNECTING YOUR TV. Controls and input connections A wide variety of external equipment can be connected to the input sockets on the side of the television. While all the necessary adjustments and controls for the television are made using the remote control, the buttons on the television may be used for some functions. USB 1 port. — | Media Player COMMON INTERFACE The Common Interface is for a Conditional Access Module (CAM). Contact a service provider. The software updating of CI Plus CAM may be automatically executed. At this time, your Recording/Reminder programming will be canceled. USB 2 port Media Player/ WLAN adaptor ready for a home network (SL86 series) WLAN adaptor built-in (UL86/UL87 series) USB HDD connection ready (UL86/UL87 series) Switching on Ifthe RED LED is not lit, check that the mains plug is connected to the power supply and press on the remote control it may take a few moments. The GREEN LED will be lit. To put the television into Standby, press © on the remote control. To viewthe television, press again. The picture may take a few seconds to appear. ILLUSTRATION SHOWS 42UL863. Camera Sensor

Ambient Light Sensor Control panel (touch sensor) ORANGE LED - Programme timer set (digital only) RED LED - Programme timer Active (digital only) RED LED - Standby GREEN LED - Power on To use the option, press À and Y on the remote control to move up and down and press 4orB to select your desired setting. Follow the on-screen instructions. The functions of each menu are described in detail throughout the manual. Using the controls and connections To alter the volume gently touch - 214. To alter the programme position touch W Œ) A. For energy sa We recommend that you use the television with the factory settings. The factory settings are for energy saving. Unplugging the mains plug will cut energy use to zero for all televisions. This is recommended when the television is not being used for a long time, e.g. when on holiday. Reducing the brightness ofthe screen will reduce energy use. Energy efficiency cuts energy consumption and thus saves money by reducing electricity bills. NOTE: Putting the television into standby mode will reduce energy consumption, but will still draw some power. Touch MENU and W®A , - + to control the sound and picture options. Touch MENU to finish. The Media Player feature provides access to photo, movie and music files stored on an USB storage device that is connected via the USB 1 or USB 2 port or on a network device. NOTE: The USB socket has limited fun can take no responsibil equipment. ionality and Toshiba y for damage to other connected For SL86 series, the USB 2 socket has to be used with the Using the remote control Press MENU on the remote control to display the menu. The five initial topics icons will appear. As each symbol is selected by pressing ÆorB on the remote control. Press AY to enter a sub menu and then enter a further sub menu to see any options. NOTE: The same menu is displayed in DTV (Digital TV) and ATV (Analogue TV) modes; however, where some items are not available in a mode, they will appear greyed out. "TOSHIBA Dual Band WLAN Adaptor WLM-TOU2"in order to access a wireless network. This feature is available only when the "TOSHIBA Dual Band WLAN Adaptor' is used. To select an external input, touch © until the appropriate input source is selected. Please always refer to the owners manualoftheequipmentto be connected for full details. NOTE: Interactive video games that involve shooting a "gun" at an on-screen target may not work with this TV.

Startup Application © press Ok andthe AutoView screen will appear, press or to select Yes or No. Before switching on the television, set your decoder and media recorder, if applicable, to AutoVionr Standby. To set up the television, use the buttons AutoView mode automatically adjusts picture settings ! to suit ambient gt conditions. on the remote control as detailed on page 8, 9. Do you wish to enable AutoView mode? @ press the O button. The Menu Language screen will appear. This screen will appear the first time that the O television is switched on and each time Reset TV is selected. Press OK. the Ant/Cable/Satellite screen appears, press À or Y to select Antenna, Cable or Satellite and then press OK to check (4). Press À Y 4 to select the menu language and press OK. AntlCable/Satelite ® _ Highlight Country and press 4 or to select. The television is now set to tune the stations for your country. D Satellite Next Quick Setup I DVB-C is not supported in your area, Cable will not [Country Germany be displayed. Les DE ES + When you select Antenna or Cable, follow steps 9 Socondary Subtitle Language German on Primary Audio Language English + When you select Satellite, skip to step 13. Secondary Audio Language English + When you select Antenna (or Cable) and Satellite, the Satellite Settings startup screen will appear NOTE: 2 The following display menus wil difer lghtiy automatically after completing the Antenna (or according to the country you selected. Cable) scan and pressing OK. ch ta country that tto selectin thé list select Others.” atyouwanttoselectinthe (TT) select Next and press OK. The Auto Tuning start up screen will appear with the option to select between @ press Ok, and the Location screen will appear. DTV and ATV, DTV or ATV if available. Use or to select the appropriate mode. Location Touse the TV fr islayngin a store showroom, lasse ® press Y or À to highlight Start Scan, and then press sect or}. Toma} model recommended fr romal use. L PL OK. q Home » The television will start to search for available DTV and/or ATV channels. The progress bar will indicate the scan status. Press @orB to select Home or Store. For normal home use, select Home. You must allow the television to complete the @ press OK If Store is selected in step 5, a Store mode search. confirmation window will appear. [you select Yes from that window, the TV will proceed to the Auto Demo setup screen. Auto Tuning Progress Found o1V Tune RE ATV Tune Press OK, and the TV Mounting screen will appear, press or to select Stand or Wall. When the search is complete, the television will TV Mounting automatically select p you are mounting the TV on a wal please select [Wall [Stand] is recommended for other uses. ‘The Auto Tuning screen wi playthe total number This setting may be modified later under Sound Navi in the SOUND ment of services found. Le Sand | NOTE: IFthere are multiple channels with the same channel number, a confirmation window will appear. Press or to select the one you prefer.

[15] Press 4orB to view the DTV (digital channel) or ATV {analogue channel) lists. Use W or A to move through the list to select a channel, and then press OK to view. In ATV mode, some areas may receive duplicate stations. There may not be a clear picture orthe signal may be weak, so the station order can be changed using ATV Manual Tuning. REMEMBER: Press TV at any time to select between ATV and DTV (DTV Ant TV/Radio/Text, DTV Cable TV/ Radio/Text, DTV Sat TV/Radio/Text if available) modes, NOTE: The time will be set automatically by transmission but can be advanced or decreased by using Local Time Setting in the DTV Settings screen. Select Next and press OK. The Satellite Settings screenwillappear. From this window, you can add the satellites that you wish to tune and configure detailed settings for each one individually. See "Satellite settings” on page 20. Satellite Settings Switch Type LNB Power on

Highlight Done and press OK. your satellite dish is movable, the following Positioning screen will appear. Positioning Satellite : ASTRA 19.2°E ‘Transponder Goto0 Go to Stored Position Step Size Pos A183 (10743 MHz H)

Store Position Signal Level Press A or Y tohi ioning, andthen press <or to find the dish position with the strongest signal level

Press A or Y to highlight Store Position and press OK to store the dish position. Repeat steps 14 and 15 for the next satellite as necessary. four satellite dish is not movable, the Positioning screen will not appear. Adjust the dish position manually for the maximum Signal Level strength. Highlight Done and press OK. Ifthe reception testing completes successfully, the Auto Tuning startup screen wi display. Auto Tuning - Satellite Start Scan Satellite + ASTRA(9ZE) » (Scan Option Free to Air You can select Scan Option from Free to Air and AL Press A or Y to highlight Start Scan, and then press ok. The television will start to search for available DVB-S channels. The progress bar will indicate the scan status. When the searchis complete, the Auto Tuning results screen will display the total number of services found. Use A or Y to move through the list to select a channel and then press OK to view. The Quick Setup menu can also be accessed at any time from the Setup/System Setup menu. Ant/Cable/Satellite (if available) From this menu, you can set the RF input configuration. Press MENU / 4h to highlight Setup icon. Press A / 4h to highlight System Setup icon. Press OK to display System Setup menu. Press A or Y to select Ant/Cable/Satellite and press <ork to select Antenna, Cable or Satellite. NOTE: When you attempt to change the Ant/Cable/ Satellite setting, a warning message will appear followed by PIN entry (if PIN has been set) and a prompt for Auto Tuning.

When Ant/Cable/Satellite is set to Cable, the following setting options will be provided in the Auto Tuning screen. Press À or Y to select an item, andthen press 4orb to select your desired option. Auto Tuning Tuning Mode DTV and ATV Start Scan Quick Scan Auto Auto Auto ‘Symbol Rate Auto Network ID Auto With the exception of DTV Scan Type and DTV Modulation items, all of the following items will have 2 operating modes. The first is Auto where the values for each item are preset by the system. The second is an Input mode where you will be able to enter a single value in place of the pre-set value. Ifno channel is currently tuned and the Input state is chosen, a system default value will be shown. However, if a channel is currently tuned when the item is accessed, the value of the current channel will be displayed. DTV Scan Type: Thisitem determines whether a Qi be executed. The Quick Scan is a simplified version ofthe Full Scan that is designed to complete in less time. Scan or a Full Scan will DTV Start Frequency: This sets the frequency from which the scan will begin. DTV End Frequency: This sets the frequency at which the scan will end. DTV Modulation: You can choose from five QAM modulation settings. DTV Symbol Rate: This is the baud rate (KS/s) ofthe scan. DTV Network ID: This is the Network ID to be utilized forthe scan. This item is greyed out when DTV Scan Type is set to “Full Scan”. Satellite Settings From the System Setup menu, you can add the satellites that you wish to tune and configure detailed settings for each one individually. To add a satellite: Press MENU / 4h to highlight Setup icon. Press A / 4h to highlight System Setup icon. Press OK to display System Setup menu. Press A or Y to select Satellite Settings and press ok. Satellite Settings Switch Type LNB Power No.

Satellite Dish LNS Ci Tasse LT 7 ighlight a new line to add an another satellite and press OK. Press Y until the required satellite is displayed and press OK. To delete a satellit. Inthe Satellite Settings menu, press À or Y to select the satellite you want to delete. Press the RED button. À confirmation window will appear. NOTE: I is not possible to delete position No.1. Press or to select Yes and press OK.

To edit the satellite settings: @ wie satellite Settings menu, press À to highlight Switch Type. © press dor to select None, ToneBurst, DiSEqC 2way or DISEQC away as your satellite switch type. © press Y to highlight LNB Power and press {or to select On or Off. To add a transponder: @ wine Satellite Settings menu, press À or Y to highlight the line you want to edit and press OK. “ASTRA 192€ © press the GREEN button. The Transponder Settings screen will appear. Transponder Settings Frequency Polarisation Symbol Rate S/S2 ET]

© sai each parameter as required and press OK. See page 21. To delete a transponder: @ the Transponder Settings menu, press À or Y to highlight the line you want to delete. © press the RED button. To edit the Transponder Settings: @ the Transponder Settings menu, press À or Y to highlight the line you want to edit and press OK. © press dork to select Frequency, Polarisation, Symbol Rate or S/S2, and set the item using the number buttons if necessary. Press OK to save your settings. Repeat steps 1 through 3 for other lines. Press BLUE to finish editing and return to Satellite Settings. Press GREEN to cancel any edits that were made this time. Press YELLOW to reset all transponder settings to their initial default settings. To select the Dish Type: @ wtre satellite Settings menu, press À or Y to select the required satellite line, and then press OK. © press 4ork to highlight Dish and press the GREEN button. Dish Settings Dish:1 ish Type ® press 4ork to select Dish Type. You can select Movable or Fixed as the Dish Type.

To select the LNB Settings: e A screen will appear warning that previous programmes and settings will be deleted. @ nthesatellite Settings menu, press À or Y toselect the required satellite line, and then press OK. e > Auto Tuning Press Cor to ht LNB and press the GREEN PRE none DEEE button. Press EXIT for no change. LNB Settings LAB :1 Lower LOF 9750 (Upper LOF 10600 Press Æorb to select DTV and ATV, DTV or ATV, if 3] available, then highlight Start Scan and press OK to Press A or Y to select Lower LOF or Upper LOF and continue with the Auto Tuning. input the appropriate frequencies. NOTE: If you have selected "Others" for the Country . field in the System Setup menu, and selected a Auto Tuning tuning mode other than "DTV”, choose the optimum ATV broadcasting system (B/G, I, D/K or L). NOTE: As new services are broadcast, it will be necessary to re-tune the television in order to view them. The television will start to search for all available DTV ï is and/or ATV services. Auto Tuning will completely re-tune the television and can be used to update the channel list. I is recommended that Auto You must allow the television to complete the Tuning is run periodically to ensure that all new services are added. All current channels and settings, Le. locked channels, will be lost. When the search is complete, the Auto Tuning screen will display the services found. search. @ press MENU/ € to highlight Setup icon. For Satellite Tuning: Press A / B to highlight System Setup icon. Ascreen will appear warning that previous programmes and settings will be deleted. Auto Tuning Previous settings will be losti Press EXIT for no change. Satelite pt Search Option Free to Air ®@ press Ok to display System Setup menu. Press A or Y to select Auto Tuning and press OK. System Setup Menu Language English Country Germany AntiCabie/Satolite Press À or Y tohighlight Satellite and then press 4or > to select the desired satellite (No.1 Sat - No.4 Sat Auto Tuning or Al) DTV Manual Tuning You can select Free to Air or All as the Search Option. DIV Settings Highlight Start Scan and press OK to continue with the Auto Tuning. When the searchis complete, the Auto Tuning screen will display the services found. © ue Y or A to move through the list to select a channel, and then press OK to vieu.

ATV Manual Tuning o Tuning The television can be tuned-in manually using ATV Manual Tuning. For example, you might use the feature ifthe television cannot be connected to a media recorder/decoder with a SCART lead or when you want to tune-in a station on another System. Use and to move across the screen and select any of the ATV Manual Tuning options. Then use À or Y to adjust the settings. ATV Manual Tuning System T' ET

1 Posi The number to be pressed on the remote control to tune the channel. 2 System Specific to certain areas. 3 Colour System Factory set to Auto, should only be changed if problems are experienced, ie. NTSC input from external source. 4 Skip Set Skip to On (+) or Off (-e+) for the selected channel. See page 24. 5 Signal Class The channel classification. 6 Channel ‘The channel number on which a station is being broadcast. 7 Search Search up and down for a signal. 8 Manual Fine Tuning Only used if interference/weak signal is experienced. See page 90. 9 Station Station identification. Use the À and 4 buttons to enter up to seven characters. To allocate a position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded film in the media recorder, press PLAY, and then manually tune.

In the System Setup menu, press Y to highlight ATV Manual Tuning and press OK. System Setup Menu Language English Country AntiCable/Satelite Satelito Sottings Germany ATV Manual Tuning Use A or Y to highlightthe desired position. We suggest Pos. 0 for a media recorder. [ATV Manual Tuning Channel Station ifferent Channel numbers may be displayed. Press OK to select. Ifthe channel chosen forthe media recorder is set to skip, Skip should be removed before storing. Press to select System and use À or Y to change if required. ATV Manual Tuning System

Then press to select Search. Press A or Y to begin the search, The search symbol will flash. ATV Manual Tuning ASC

Each signal will show on the television. fit is not your media recorder, press À or W again to restartthe search. © when your media recorder signal is found, press to

move along to Station. Use À, Y, and B to put in the required characters, e.g. VCR. ATV Manual Tuning Station 101 AC 2 Press OK to save. Repeat for each position you want to tune, or press BACK to return to the list of channels and select the next number to tune. Press EXIT when you have finished. This television has direct channel entry ifthe channel numbers are known. Select the ATV Manual Tuning screen in Step 3. Enterthe Position number, the System, then C for standard (terrestrial) channels or $ for cable channels and the Channel number. Press OK to save. Skip To prevent certain channels from being viewed, positions can be skipped. Select ATV Manual Tuning from the System Setup menu. Use A or Y to highlight the position to be skipped and press OK to select. [ATV Manual Tuning Pos. Channel Station s10

c25 c23 c30 Press to select Skip.

Use A or Y to turn Skip on. Press OK. <&% on the screen indicates a skipped position. ATV Manual Tuning Skip: On Press BACK and repeat from Step 2 or press EXIT. Each position has to be individually selected. To turn Skip off, repeat the procedure for each position. Skipped positions cannot be selected by PA and PV or by the controls on the television but can still be accessed by the number buttons on the remote control. Sorting positions Channels may be moved and saved to the position of your choice. Select ATV Manual Tu menu. g from the System Setup With the list of channels showing, use À or Y to highlight the channel you want to move and press b. [ATV Manual Tuning Pos. Channel Station Use A or Y to move through the listto your preferred position. As you do 50, the other channels will move to make room. Press 4to save your move. Repeat as necessary, and then press EXIT.

DTV Manual Tuning NOTE: The content ofthis menu varies depending on the DTV input (Antenna, Cable, or Satellite) that is currently selected. Manual Tuning This feature is available for service engineers or can be used for direct channel entry ifthe multiplex channel is known. Select DTV Manual Tuning from the System Setup menu and press OK. DTV Manual Tuning Signal Strength MEAK Quality AVERAGE __STRONG ‘GOOD Start Scan Enter the multiplex number using the number buttons or use or to adjust the number up or down. Highlight Start Scan, and then press OK. The television will automatically search for that multiplex. DTV Manual Tuning 0 New Channels - Total 6 Name ABC ONE ABC TWO ABC THREE ABC NEWS 24 ABci When the multiplex is found, any channels that are not currently in the channel list will be added and the channel information at the top of the screen will be updated. Repeat as necessary. Press EXIT to finish. Manual Tuning for DVB-C When Ant/Cable/Satellite is set to Cable, DTV Manual Tu ms are as follows: Frequency - input a specific frequency to be scanned Modulation - choose from one of five QAM modulation options Symbol Rate input a specific baud rate (KS/s) to be used for the manual scan Highlight Start Scan, and then press OK. Manual Tuning for DVB-S When Ant/Cable/Satellite is set to Satellite, DTV Manual Tuning items are as follows: DTV Manual Tuning - Satellite WEAK AVERAGE STRONG Signal Strength Quality Satlite ‘Transponder Frequency Symbol Rate ASTRA282E 40714 MHz 22000 KSis

DTV Settings Channels (Antenna/Cable) The channel order may be changed to suit your personal preference. @ sciect DIV Settings from the System Setup menu and press OK. Select Channels and press OK. DTV Setings Subtitle and Audi Parental PIN Setup Local Time Setting Standby Channel Update of DVB Character Set Standard Dynamic Scan on @ roryourconvenience, you can jump to specific places in the list by one of two methods. Channels Line No. 110 ABC THREE CABC Channel ABC NEWS 24 ABci

Line Number Jump — Use the number buttons (0-9) to input the line number you want to select, and then press OK. Name Jump — Press or to jump to the next station name with a different initial letter. His also possible to change the Position number of a particular channel. Renumber — Press the RED button to renumber the highlighted channel. Edit the channel number using the number buttons and press OK. Ifthe position number ou input already exists, a confirmation window will appear. Pos Name Move — Press the GREEN button to activate the Move feature. Use the A or W buttons to select the channel you wish to move and press OK to check. Hyou wish to move multiple channels at once, select another channel and check in the same way. Repeat as necessary. Once all desired channels have been checked, use the A or Y buttons to place the focus at the position to which you wish to move the channels. The channels will be inserted above the highlighted channel. Press the GREEN button to execute the move. Channels Line No. 110 Pos. Name CE CE D 2 ABCTWO 7 ABCTHREE 30 CABC Channel (ABC NEWS 24

Sort — Press the YELLOW button. À confirmation window will appear. Press or to select Yes and press OK. Sort Your existing channel order will be lost. Do you wish to continue? The Sorting Type selection window will appear. Sort Sorting Type Press or to set the sorting type. A-ZSort Station name order (A to Z) Number Position No. order numerical sequence) Press Y to highlight Sort and press OK.

Channels (Satellite) Select DTV Settings from the System Setup menu and press OK. Select Channels and press OK. The satellite channel lst will appear. Channels Line No. 41200 Pos. Station Satellite TV [em] Satelite + For your convenience, you can edit and sort your channel list. Line Number Jump — Use the number buttons (0-9) to input the line number you want to select, and then press OK. Station Letter Jump — Press {or to jump to the next station name with a different initial letter. Satellite Jump — Press K or bi to jump to the next channel on a different Satel Renumber — Same as Antenna/Cable channels. See page 26. Move — Same as Antenna/Cable channels. See page 26. Sort — Press the YELLOW button. À confirmation window will appear. Press or to select Yes and press OK. The Sort menu will appear. Son Group By Sateli Sorting Type Channel Number Preset Order Group — Press 4orB to select All or By Satellite. Sorting Type — Press 4orb to setthe sorting type. A-Z Channel Number Station name order (A to Z) Position No. order (numerical sequence) Preset Order — Press 4or R to set Yes or No. This item is displayed when Country is set to Germany, and only applies to the Astra 19.2°E satellite. Press Y to highlight Sort and press OK. Standby Channel Update Ithe Standby Channel Update is set to On, when the TV is in standby mode, Digital Tuning is automatically executedand any new channels are saved. Select DTV Settings from the System Setup menu and press OK. © press Y to select Standby Channel Update and use or to select On. DVB Character Set This feature allows you to manually select the character set (Standard =Table0, West = Table 5 or Latin alphabet 9) tobe used for DVB-C or DVB-T channels. Select DTV Set and press OK. gs from the System Setup menu Press Y to select DVB Character Set and use Aorb to select Standard, West or Latin alphabet 9. Dynamic Scan Ifthe broadcast information has changed in your DVB-T receiving area, the TV screen will display the message "Broadcast information has changed. Would you like to rescan now?” Please follow the message. you do not wish for the TV to detect changes and prompt you to rescan, you should set this feature to "Off".

Select DTV Set and press OK. gs from the System Setup menu Press Y to select Dynamic Scan and use or to select On.

Location setting You can select either Home or Store mode. Home is recommended for normal home use. Select Store when using the television for displaying in a shop, etc. @ seiect Location from the System Setup menu. @ press 4orb to select Home or Store Analogue switch-off al television whichis integrated to allow the use of both digital and analogue services. However, during the lifetime of this set it is very likely that analogue services will be switched off to allow for more new digital services. This'switch-off" will happen in a number of phases, which will be advertised in your area well in advance. itis recommended that at each phase the television is re-tuned to ensure that existing and new digital services can be viewed without disruption.

General controls Quick Menu k Menu helps you access some options quickly, such as Picture Mode, Picture Size, More Information, Sleep Timer etc. Press QUICK to display the Quick Menu and use À or Y to select the option. Quick Menu Picture Mode Picture Size 4 AutoViow Super Live Personal Mode More Information ‘Channel Options Sleep Timer 00:00 REGZA-LINK Device Control Speakers Headphone Level TV Speakers Wireless Information NOTE: Quick Menu items are different depending on the current mode. Quick menu item example Mode Quick menu item When viewing a TV | Picture Mode See page 34 Pictures from the Picture Size See page 32. external input Personal Mode See page 83 More Information See page 73. Channel Options See page 75. Sleep Timer See page 71 REGZA-LINK Device See page 86. Control Speakers See page 85. Headphone Level See page 31 Wireless Information See page 45. When using EPG | Genre Colour See page 74 EPG Update/ See page 73 Cancel EPG Update Media Player Sort See page 64 Ha View. linterval Time See page 63. Repeat See page 63 Shuffle See page 67. Device Information See page 64 Wireless Information See page 45. Photo Frame Picture See page 34 ul Screen) Picture Size See page 32. Personal Mode See page 83 Selecting positions To select a position, usethe numbered buttons on the remote control. Positions can also be selected using PA and PV. To display on-screen information such as position, input mode or stereo/mono signal, press (fr). Press again to cancel The Time Display - analogue only The time display facility allows the current (text service) time to be seen on the television screen. Press (@J/EX whilst watching a normal television broadcast 0 see the time display from the broadcaster. wél remain on screen for about 5 seconds. NOTE: his display may not be available in some cases. Stereo and Bilingual transmissions For DTV programmes Forstereo or dual mono broadcasts, press CDJ/Ianduse or D to select settings. Mode Display Pressingb> CD Stereo Stereo — Left —+ Right @0 Dual mono Dual 1 — Dual 2 © Mono € Multichannel For multi-audio track broadcasts, press CDI/I repeatediy to change the audio language (see "Audio languages” on page 76). For ATV programmes Ifstereo or dual language broadcasts are transmitted, the word Stereo or Dual will appear on the screen each time positions are changed, disappearing after a few seconds. the broadcast is not in stereo, the word Mono will appear. Stereo. Press CDI/] to select Stereo or Mono. gual.…. Bilingual transmissions are rare. lfthey are transmitted, the word Dual will be displayed. Choose the required programme number, and if the word Dual appears, press CDJ/I to select Dual 1, Dual 2 or Mono.

Sound controls Volume controls and sound mute Volume Press $ or £ to adjust the volume. Sound Mute Press LK once to turn the sound off and again to cancel. Dual Ifa programme or film is being broadcast with a soundtrack in more than one language, the DUAL feature allows selection between them. Press MENU / B to highlight Setup icon. Press A / B to highlight Sound icon and press OK. Press A or to select Dual and press 4orb to choose between Dual 1 or Dual 2 Sound Balance =— Advanced Sound Setings Dolby Volume Dynamie Range Control Audio Level Ofset Headphone Setngs ‘Audio Description Balance @ nthe Sound menu, press A or Y to select Balance, and then press orb to emphasize left or right speaker balance. Sound Navi You can customize current sound mode settings. Select the appropriate mode in accordance with theinstallation location of the TV (Stand or Wall) and adjust the equalizer on-screen as desired.

Press or to select either Stand or Wall depending on how your TVis installed, and then press the RED button. Press or to select the frequency range you want to adjust from the equalizer window, and then press A or Y to adjust the level. Sound Navi

[Level] Repeat step 4 for other frequencies. Surround Settings Surround and Voice Enhancement help to create an enhanced surround sound experience with deep, rich bass from stereo sound sources. Your TV's audio will sound fuller, richer, and wider.

In the Sound menu, press À or Y to select Advanced Sound Settings and press OK. © press À or Y to select Surround and press 4orB to select Off, Spatial or Cinem: ‘Advanced Sound Settings Sound Navi Voice Enhancement Dolby Volume® This feature provides a consistent sound volume regardless of programmes, channels or input sources. In the Sound menu, press À or to select Dolby Volume. NOTE: + The Dolby Volume setting influences the Dynai Control and Digital Audio Output settings. + Dynamic Range Control is set to On, this feature will be disabled. Press or to select Low, High or Off. ic Range

Dynamic Range Control This feature allows controlofaudio compression for some digital TV programmes (MPEG-1 and MPEG-2 audio programmes are not supported). In the Sound menu, press À or Y to select Dynamic Range Control. NOTE: This feature is disabled when Dolby Volume is set to Low or High. Press Cor to select On or Off. Audio Level Offset Sometimes there can be large changes in volume when switching from a DV 5.1ch to a DTV 2ch, an ATV channel, or an external input. Using the Audio Level Offset feature reduces these volume differences.

Set the volume level usually used when watching a DTV5.1ch programme. Tune to a channel which is DTV 2ch, ATV or an external input. In the Sound menu, press À or Y to select Audio Level Offset and press OK. Press A or Y to select an option, andthen use orb to adjust the volume level NOTE: The available item changes depending on the current input source. For example, while watching a DTV 2ch programme, only DTV 2chis available and the other two items are greyed out in the menu. This allows you to easily adjust according to each condition. When watching a DTV 5.1ch programme, this feature is not available.

Headphone Settings Thissettingisusedto setthe sound output when headphones are connected. Speaker ÊE Headphone Speakers On Soundis output No sound (21 - + is available.) Off Soundis output Sound is output (Headphone level | (21- + is available.) menu is available.) In the Sound menu, press À or Y to select Headphone Settings and press OK. Press A or Y to select Speaker Link and use orb to select On or Off. Hyou select Off, then highlight Headphone Level and use Æorb to adjust the headphone sound. Headphone Settings. Speaker Link Headphone Level 50 Audio Description Audio Description is an additional narrative sound track for visually impaired individuals to understand and enjoy the story line more fully. The letters AD will be displayed in the channel banner when programmes contain AD content.

In the Sound menu, select Audio Description and press OK. Press A or Y to select Audio Description, and then press orB to select On. Audio Description Ming Level The AD button on the Remote can also be used to toggle the Audio Description feature between On and Off. To adjust the level of the audio description sound to the main sound, highlight Mixing Level and use or

Widescreen viewing Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats. SUPER LIVE CINEMA SUBTITLE 14:9 Use this setting when watching a widescreen DVD, widescreen video tape or a 16:9 broadcast (when available). Due to the range of. widescreen formats (169, 14:9, 20:9 etc.) black bars may be visible on the top and bottom ofthe screen. Use this setting to view a true 43 broadcast. This setting will enlarge a 4:3 image to fi the screen by stretching the, image horizontally and vertically, holding better proportions at the. centre ofthe image. Some distortion may occur. When watching ‘all sides panel format'films/video tapes, this setting, willeliminate or reduce the black. bars at all sides of the screen by 200ming in and selecting the image without distortion. When subtitles are included on a letterbox format broadcast, this. setting willraise the picture to ensure that all the text is displayed. Use this setting when watching a 14:9 broadcast.

This setting will show the picture NATIVE without overscan, i.e. WYSIWYG. This setting will show the picture without overscan, Le. WYSIWYG. PC NORMAL This option is only available when watching a PC signal source via HDMI or PC terminal. This setting will show the picture without overscan or side panels. PC WIDE This option is only available when watching a PC signal source via HDMI or PCterminal. “Dot by Dot"is a non-scaling display. Dependig on the input signal format, thepictures displayed with side panels Dot by Dot and/or bars atthe top and bottom (e.g. VGA input source). Press the {F3 button on the Remote to display the list of available widescreen formats. Press the button repeatedly to highlight the required format. The Quick Menu feature can also be used to select Picture Size. PCformat AV format Using the special functions to change the size ofthe displayed image (ie. changing the height/width ratio) for the purposes ofpublic display or commercial gain may infringe on copyright laws.

Picture controls Most of the picture controls and functions are available in both digital and analogue modes. PLEASE NOTE: Features not available will be greyed out. Picture Mode This television offers the choice of personalising the picture style. AutoView, Dynamic, Standard, Hollywood Night, Hollywood Day, Store, Game and PC are preset options and affect many features/settings within the television. NOTE: + Because the AutoView mode automatically adjusts picture settings based on ambient light conditions and input signal content, the Auto Brightness Sensor and Expert Mode menus are greyed out when it is selected. Store mode is only available when Loc: Game mode is available in external input mode (other than aerial input). When you select Game mode, suitable widescreen formats will be selected. PC mode is available in RGB/PC input mode or HDMI input mode. @ press MENU/ 4 to highlight Setup icon. © press À / 4 tohighlight Picture icon and press OK to display Picture menu. © press À or Y to select Picture Mode. Sharpness © press 4or to selectthe picture mode you prefer and press OK. NOTE: The picture mode you select affects the current input only. You can select a different picture mode for each input. is set to Store. Picture preferences You can customize current picture mode settings as desired. For example, while selecting"Dynamic” ifyou change the following items, such as Backlight, Contrast, Brightness, Colour, Tint, Sharpness and the Advanced Picture Settings items, your new settings are saved for "Dynamic”picture mode. @ nie Picture menu press A or Y to select either Backlight, Contrast, Brightness, Colour, Tint or Sharpness and press OK. © press dorb to adjustthe se Reset This feature resets all picture settings to the factory settings except Picture Mode. @ nthepPicture menu, press À or Y toselect Reset and press OK. © à confirmation message will appear. Press orb to select Yes and press OK. ColourMaster When ColourMaster is set to On, it allows the ‘Base Colour Adjustment’ feature to become available. @ nie Picture menu, press À or Y to select Advanced Picture Settings and press OK. © press À or Y to select ColourMaster. ‘Advanced Picture Settings Colour Temperature 10 Auto Brighiness Sensor Settings Active Backlight Control Black/White Lovel Static Gamma Noise Reduction @ press or to select On or Off, and then press OK.

Base Colour Adjustment The Base Colour Adjustment feature allows the adjustment of individual colours to suit personal preference. This can be useful when using an external source. In the Advanced Picture Settings menu, press À or Y to select Base Colour Adjustment and press OK. Press A or Y to select an option, and then press b to move to the adjustment window. Base Colour Adjustment Hue Saturation Brighiness [I Green Press or to select Hue, Saturation or Brightness, and then press À or Y to adjust the settings as required. Saturation Brightness Press BACK to return to the previous menu. To return to the factory settings, select Reset and press OK. Colour Temperature Colour Temperature increases the warmth'orcoolness'ofthe picture by increasing the red or blue tint. In the Advanced Picture Settings menu, press À or Y to select Colour Temperature and press OK. Press or to adjust the level. The adjustment range is 0 (warm) to 10 (cool). NOTE: f Picture Mode is set to Auto range is -5 to +5. +w, the adjustment Auto Brightness Sensor Settings When the Auto Brightness Sensor is activated, it will automatically optimise the backlighting levels to suit ambient light conditions. In the Advanced Picture Settings menu, press À or Y to select Auto Brightness Sensor Settings and press OK. Press or to select On and press OK. Auto Brightness Sensor Scttings Auto Brightr Backlight Adjustment Pro Press or Y to select Backlight Adjustment Pro and press OK. The Backlight Adjustment Pro window will appear. Press OK again to display the adjustment window. Press or to select a point and press À or Y to adjust the level. Backlight Adjustment Pro Backlight Control Level Press OK to fix the adjustment. To cancel the adjustment when seles select Cancel and press OK. g a point, To return the adjustments of all points to the factory defaults, select Reset and press OK. Active Backlight Control When Active Backlight Control s activated, it will automatically optimize the backlighting levels for dark scenes. In the Advanced Picture Settings menu, press À or Y to select Active Backlight Control. Press or to select On or Off.

Black/White Level Black/White Level increases the strength of dark areas ofthe Picture to improve the definition. @ the Advanced Picture Settings menu, press À or Y to select Black/White Level. © press {or to adjustthe level. Theeffect depends on the broadcast and is most noticeable on dark colours. Static Gamma The static gamma feature allows you to adjust the levels ofblack in the picture. @ the Advanced Picture Settings menu, press À or Y to select Static Gamma. @ press 4orR to adjustthe level. MPEG NR - Noise Reduction When watching a DVD, the compression may cause some words or picture elements to become distorted or pixelated. Usingthe MPEG NR feature reduces this effect by smoothing out the edges. @ the Advanced Picture Settings menu, press À or Y to select Noise Reduction and press OK. @ press to select MPEG NR @ press dorb to sclectLow, your preference. iddle, High or Offto suit DNR - Digital Noise Reduction DNR allows you to often’ the screen representation of a weak signal to reduce the noise effect. @ scicctDNR from the Noise Reduction menu © use 4ork to select Low, Middle, High, Auto or Off. The differences may not always be noticeable (for the bestresult use lower settings as picture quality can be lostifthe setting is too high). Resolution+ The Resolution+ feature allows you to adjust the clarity levels for your desired picture settings. @ nine Advanced Picture Settings menu, press À or Y to select Resolution+ and press OK. © the Resolution+ field, select On Resolution+ utiont Level @ press À or Y to highlight Level, and then press or D to adjust the level. NOTE: + This feature may not work properly depending on the content. + Adjustable range varies according to the Picture Mode you set. + Noise may appear in the picture depending on the device connected to the TV (e.g. a device with a specific enhancer function). Active Vision M100 This feature will reduce picture blur without decreasing image brightness or adding flicker. @ the Advanced Picture Settings menu, press À or Y to select Active Vision M100 © press 4orb to select Smooth, Standard or Off. NOTE: When Picture Mode is set to Game this feature will be grayed out and automatically set to Off. Motion Detection Range This feature is to set the range ofthe adjustment of movement in the double-scan processing. Fyou feel uncomfortable in motion picture, select Standard. @ nine Advanced Picture Settings menu, press À or Y to select Motion Detection Range. © press 4orb to select Wide or Standard. Wide — Double-scan effect for higher-speed motion picture Standard — Stabilized double-scan effect NOTE: When Active! be grayed out. ion M100 is setto Off this feature will

Resetting the advanced picture settings This feature allows you to reset the current Advanced Picture Settings to the default values. In the Advanced Picture Settings menu, press À or Y to select Reset. Press OK. Expert Picture Settings Test Pattern When the test pattern is on screen, you can navigate in the Picture submenus and adjust picture settings without removing the image. When you move to a non-Picture menu, or close the menus, regular video will be restored. In the Picture menu, press À or Y to select Expert Picture Settings and press OK to display Expert Picture Settings menu Press A or Y to select Test Pattern. Press or to select On. RGB Filter Press EXIT to close. This feature individually enables or disables the red, green, and blue components of the picture to allow for more accurate adjustment of each colour. Inthe Expert Picture Settings menu, press À or Y to select RGB Filter, and then press OK. Press A or Y to select Red, Green or Blue to adjust. Press or to select On. Press À or Y to select Colour or Tint, and then press <orb to adjust Press EXIT. NOTE: is not possible to turn off all three colours simultaneously. Colour Decoding Iyou view DVDs with this TV, the Colour Decoding option may be set to ensure the colourimetry reproduction. NOTE: The modes excluding Auto (BT601 and BT709) are to convert an irregular signal output from the DVD etc. with incorrect colour to the optimum state. lf BT601 or BT709 is selected with a normal signal received, the colour may not be correctiy displayed. This feature should normally be set to Auto. @ nt ExpertPicture Settings menu, press À or Y to select Colour Decoding. White Balance-Window Display Press ork to select Auto, BT601 or BT709. This feature displays a special Window Pattern to be used when adjusting white balance with a measuring device. Inthe Expert Picture Settings menu, press À or Y to select White Balance and press OK. Press A or Y to select Window Display and press 4 orb to select On White Balance-Setting Type Press EXIT to close. You can choose from two types of White Balance adjustment. In the Expert Picture Settings menu, press À or Y to select White Balance and press OK. Press À or Y to select Setting Type and press 4orb> to select 2P or 10P. White Balance-2P White Balance Press Y to select 2P White Balance. Press À or Y to select Red-Offset, Green-Offset, Blue-Offset, Red-Gain, Green-Gain, or Blue-Gai White Balance-10P White Balance NOTE: The adjustments made for Red / Green / Blue are stored separately for each IRE setting. (There are ten IRE settings from 10 to 100.) Press Aorb to adjust. Press W to select 10P White Balance. Press A or Y to select IRE, Red, Green, or Blue. Press Aorb to adjust.

Colour Calibration The aim of Colour Calibration is to measure and/or adjustthe colour response (White Balance) of your LCD panel. Colour Calibratio: used by various fields, such as gaming, photography, engineering, medical and more. In order to calibrate a display correctiy, you need a colour analyzer EODIS3-TS (not supplied). Apply Calibration ure Settings menu, press À or W to ion and press OK Press A or Y orto select Apply Calibr: <ork to select On. n and press Manual Colour Calibration In the Colour Calibration menu, press À or Y to select Manual Color Calibration and press OK. Manual Colour Calibration Plesse input the value messured with te coulour analyser. Place the prove of the USB colour analyzer over the square on screen to measure. Input the value measured with the colour analyzer using the number buttons (0-9). x y

Red Green Blue Press AB and input the values to fill all RGByc matrix table. Highlight Start and press OK. Please wait until you see "Manual Colour Calibration has been completed” on screen To return to factory setting Highlight Reset and press OK. Auto Colour Calibration In the Colour Calibration menu, press À or Y to select Auto Colour Calibration and press OK. Place the prove of the USB colour analyzer over the square on screen and press OK. Auto Colour Cal on will start. Please wait until you see "Auto Colour Calibration has been completed." Gamma Calibration Inthe Expert Picture Settings menu, press À or W to select Gamma Calibration and press OK. Press A or Y to select Apply C: or to select On ration and press 4 Press À or Y to select Auto Gamma C: press OK. Input the target value and place the USB colour analyzer over the sequare on screen. Auto Gamma Calibration Plesse input the target value and place the USB colour analyser over the square. Target Colour Ten Tage Gars Highlight Start and press OK. Auto Gamma Calibration will start. Please wait until you see "Auto Gamma Calibration has been completed” on screen. To return to factory setting Highlight Reset and press OK. Resetting to the factory defaults

Control Visualization This feature displays the brightness histogram and control curve ofthe current video signal. @ te Picture menu, press À or Y to select Control Visualization and press OK. The histogram window will appear. Brighiness Control Curve Tnput © press BACK to return to the previous menu. Automatic Format (Widescreen) When this television receives a true Widescreen picture and Auto format is On, it will automatically be displayed in Widescreen format irrespective of the television's previous setting. Press MENU / 4h to highlight Setup icon. Press A / @B to highlight Preferences icon and press OK. Press A or Y to select Display Settings and press OK. Press A or Y to select Auto Format and press orb to select On or Of. Display Settings ‘Auto Format 433 Stretch 4:3 Stretch When 4:3 Stretch is activated, the size switching system changes 43 programmes into full screen picture. @ n1e Preferences menu, press A or Y to select Display Settings and press OK. © press À or Y to select 4:3 Stretch and press 4orb to select On or Off. Blue Screen When Blue Screen is selected, the screen will turn blue and the sound will be muted on analogue channels and external input modes when no signal is received. NOTE: Some external input sounds may not be muted. @ ntePreferences menu, press À or Y to select Blue Screen. @ press 4orb to select On or Off. Picture Posi The picture position may be adjusted to suit personal preference and can be particularly useful for extemal inputs. @ n1e Preferences menu, press A or Y to select Display Settings and press OK. © nte Display Settings menu, press A or Y to select Picture Po: Display Settings Auto Format on 433 Stretch of Picture Position PC Settings @ press ok to viewthe options available for the picture format that has been selected. © press À or Y to select an option, andthen orb to adjust the settings. The options differ depending on the currently selected widescreen format and the input signal. In Cinema mode To return to the original factory settings, select Reset in the Picture Position menu and press OK.

Picture still This feature is used to hold a still image on the screen. @ pt hold an image on the screen, and press CM again to cancel. HDMI Information Display When the HDMI Information Display feature is On and you are watching an HDMI input source, pressing the (=) button displays the HDMI signal information bannir. @ wire Preferences menu, press À or Y to select HDMI Information Display. @ press 4orb to select On. HDMI signal information is as follows: Resolution, Scan Type, Frame Rate*, Aspect, Bit Depth, Colour Space, RGB/YUV, Chroma Format, and Content Type (ifavailable).

Using your home network This TVis a DLNA CERTIFIED" Player and Renderer. This TV can play digital content stored on a DLNA CERTIFIED" product with server function. If you want to use this TV as a DLNA CERTIFIED"* Player or Renderer, you will have to configure the network on your TV (see page 11). If you want to use your home network, you will have to configure the network on your TV. (see page 11) Change the network settings if necessary (see “Setting up the Network” on page 43). When using a wireless home network: Wireless Interoperability The TOSHIBA Dual Band WLAN Adaptor is designed to be interoperable with any wireless LAN product that is based on Direct Sequence Spread Spectrum (DSSS)/Orthogonal Frequency Division Multiplexing (OFDM) radio technology, andis compliant to: + The IEEE 802.11 Standard on Wireless LANS (Revision a/b/g/ n),as defined and approved by the Institute ofElectrical and Electronics Engineers. + The TOSHIBA Dual Band WLAN Adaptor is intended for use with the SL86 series LCD TV's and should not be used with any other devices Use ofthe WLAN Adaptor in other USB products may result in damage to the WLAN Adaptor and or the equipment. Such use will void any warranty that may otherwise apply, and TOSHIBA will have no liability for any damage that may result from such use. CAUTION Bluetooth” and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. If you use Bluetooth” and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection. If you should experience any such problem, immediately turn off either your Bluetooth" or Wireless LAN device. Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.

Wireless LAN and your Health Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices, however, is far less than the electromagnetic energy emitted by wireless devices such as mobile phones. Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers, These standards and recommendations reflect the consensus ofthe scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some situations or environments, the use of Wireless LAN may be restricted by the proprietor ofthe building or responsible representatives of the organization. Such restrictions may apply in environments where the risk of interference to other devices or services is perceived or identified as harmful. Hyou are uncertain of the policy that applies to the use of wireless devices in a specific organization or environment, you are encouraged to ask for authorization to use the Wireless LAN device prior to turning on the equipment. This Dual Band Wireless LAN Adaptor may be operated in the following countries: AT | Austria 15 [iceland BE _ | Belgium LI | Liechtenstein CH |Switzerland LT | Lithuania CV | Cyprus LU [Luxembourg CZ |CzechRepublic [LV | Latvia DE | Germany MT | Malta DK | Denmark NL | Netherlands ES | Spain NO [Norway FI Finland PL [Poland FR |France PT __| Portugal GB |UnitedKingdom [SE | Sweden GR | Greece Si | Slovenia EE |Estonia SK | Slovakia HU | Hungary BG | Bulgaria IT fialy RO | Romania IE |ireland TR |Turkey How to use this Dual Band Wireless LAN Adaptor + Hfthis device is going to be operated in the frequency range of 5.15 GHz to 5.35 GHz, itis restricted to indoor use. this device is going to be operated for 802.11 b/g/n function in the frequency range of 2.454 GHz to 2.4835 GHz in France, iis restricted to indoor use + A general authorization is required for using this device outdoors or in public places in Italy - This device is NOT ALLOWED to be used in the geographical area within a radius of 20km from the centre of Ny-Alesund in Norway.

Wireless LAN Information (for UL86/UL87 series) Bluetooth” and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. you use Bluetooth" and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection. you should experience any such problem, immediately turn off either your Bluetooth" or Wireless LAN device. Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions. Wireless LAN and your Health Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices, however, is far less than the electromagnetic energy emitted by wireless devices such as mobile phones. Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists. who continually review and interpret the extensive research literature In some situations or environments, the use of Wireless LAN may be restricted by the proprietor ofthe building or responsible representatives ofthe organization. Such restrictions may apply in environments where the risk of interference to other devices or services is perceived or identified as harmful. K you are uncertain ofthe policy that applies to the use of wireless devices in a specific organization or environment, you are encouraged to ask for authorization to use the Wireless LAN device prior to turning on the equipment. When using the TV under wireless LAN environment: + The function of all IEEE802.11 is not supported + The ad-hoc mode is not supported. + Itis recommended to use IEEE 802.11a or IEEE 802.11n on 5 GHz for audio and SD video streaming, Itis recommended to use IEEE 802.11n on 5 GHz for HD video streaming. I is recommended that the encoding rate for streaming video content is 20 Mbps or less. Ii not recommended to use 2.4 GHz for audio and video streaming. Content playback may be interrupted by various surrounding interference.

Europe Statement This Built-in WLAN Module may be operated in below country: AT [Austria 15 |iceland BE [Belgium LI | Liechtenstein CH [Switzerland LT [Lithuania Cv [Cyprus LU [Luxembourg €Z [CzechRepublic [LV [Latvia DE [Germany MT | Malta DK [Denmark NL | Netherlands ES [Spain NO | Norway FI [Finland PL __|Poland FR |France PT __|Portugal GB [Unitedkingdom [SE | Sweden GR _|Greece Si | Slovenia EE [Estonia SK | Slovakia HU [Hungary BG |Bulgaria im italy RO | Romania IE [Ireland TR [Turkey + Hfthis device is going to be operated in the frequency range of 5.15 GHz to 5.35 GHz, itis restricted to indoor use. + Ifthis device is going to be operated for 802.11 b/g/n function in the frequency range of 2.454 GHz to 2.4835 GHz in France, i is restricted to indoor use + A general authorization is required for using this device outdoors or in public places in Italy + This device is NOT ALLOWED to be used in the geographical area within a radius of 20km from the centre of Ny-Alesund in Norway. CEO® Ukraine Statement Contains approved Built-in WLAN Module, model name: WLU5060-D4(ROHS), approved by CB “UkrCERTRADIO”.

Setting up the Network You can select the Network Type. @ press MENU/ € to highlight Setup icon. © press À / 43 to highlight Preferences icon and press OK. ® press À or Y to select Network Setup and press OK. Preferences ETEMN Camera Sensor Setup Personal TV Setup REGZA LINK Setup Network Device Setup Photo Frame Setup Toletext © press À or Y to select Network Type, andthen press “or to select Wired or Wi Network Setup Network Type Wiroless Setup Advanced Network Setup Network Connection Test NOTE: Ifthe Dual Band WLAN Adaptor is not connected, Wireless cannot be selected. @ _ tou selected Wired, see "Advanced Network Setup" on page 45. Wireless Setup NOTE (for SL86 series): + This feature is grayed out when the Dual Band WLAN Adaptor is not connected or Network Type is set to Wired. When you insert or remove the wireless LAN adaptor, you must turn off your TV and unplug the power cord, and then plug and turn on again. Continued connection of AP (Access Point) is not guaranteed. The connection may be disconnected while watching TV. Do not remove the Dual Band WLAN Adaptor when Network Type is set to Wireless or wireless There are 3 methods for Wireless Setup: Easy Setup (WPS) Ifthe AP supports WPS, this method can be used. + WPS is an industry standard designed to make connection of wireless LAN equipment and security setup easy. WPS will automatically configure all wireless settings. Assisted Setup (setup by using the AP's notification information) Network Name, Authentication, and Encryption are decided based on information from the AP. You will manually set the Security Key. Manual Setup (manual input of all se gs) Easy Setup using PBC (Push Button Configuration) @ n1e Preferences menu, press A or Y to select Network Setup and press OK. © press A or Y to select Wi less Setup and press OK. © press À or Y to select Easy Setup and press OK. Wiroless Satup Assisted Setup Manual Setup Enhanced 11n Press or to select PBC. Press W to highlight Start Scan and press OK. Following the on-screen instructions, push the appropriate button on your AP. When a window reporting that the setup is complete appears, press OK. To cancel searching for the AP: Press BACK while searching for the AP. À message will appear, and then press 4orb to select Yes and press OK. Easy Setup using PIN (Personal Identification Number) @ n1e Preferences menu, press A or Y to select Network Setup and press OK. Press A or Y to select Wireless Setup and press OK. Press A or Y to select Easy Setup and press OK. Press or to select PIN. Press Y to select Start Scan and press OK. Press A or Y to select the desired AP and press OK. NOTE: Check the MAC address on the label ofthe AP or in the manual, and select your AP. When the PIN code window appears, enter the displayed PIN into your AP, and then press Next to continue the PIN Setup. When a message displays to report that the setup is complete, press OK.

To cancel searching for the AP: Press BACK while searching for the AP. A message will appear: then, press 4 or to select Yes and press Ok. Assisted Setup In the Preferences menu, press À or W to select Network Setup and press OK. Press À or Y to select Wireless Setup and press OK. Press A or Y to select Assisted Setup and press OK. Press A or Y to select the desired AP and press OK. NOTE: Check the MAC address on the label ofthe AP orin the manual, and select your AP. Highlight Security Key and press OK. The Software Keyboard window will appear. Input the Security Key by using the Software Keyboard (see page 47). To save your setting, press the BLUE button. NOTE: + The Security Key must adhere to these conditions: + TKIP/AES: 8-63 ASCII or 64 Hex characters = WEP:5 or 13 ASCII or 10 or 26 Hex characters + There is only one key ID to set for WEP encryption. Highlight Done and press OK. NOTE: Network Name is not displayed, see step 4 and 5 in Manual Setup below to set Network Name before pressing Done. NOTE: Settings are not saved if BACK is pressed before Done is selected. Manual Setup In the Preferences menu, press À or Y to select Network Setup and press OK. Press À or Y to select Wireless Setup and press OK. Press A or to select Manual Setup and press OK. Press A or Y to select Network Name and press OK. The Software Keyboard window will appear. Input the Network Name by using the Software Keyboard (see page 47). To save your setting, press the BLUE button. Q@ press À or Y to select Authentication, andthen press Corb to select Open System, Shared Key, WPA-PSK or WPA2-PSK. Press A or Y to select Encryption, and then press orb to select None, WEP, TKIP or AES. NOTE: + Certain encryption types are only compatible with specific authentication types. - When Authentication is Open System, only WEP or None is compatible. - When Authentication is Shared Key, only WEP is. compatible. - When Authentication is WPA-PSK or WPA2-PSK, only TKIP or AES is compatible. + When incompatible Authentication/Encryption pairings are detected, a warning message will be displayed, and no connection attempt will be made until the incompatibiliy is resolved. + There is only one key ID to set for WEP encryption. Press A or Y to select Security Key and press OK. La]

Input the Security Key by using the Software Keyboard (see page 47). To save your setting, press the BLUE button. This item is grayed out when Encryption is @ Highlight Done, and then press OK. NOTE: When Encryption is None, a message will appear. Press 4orB to select Yes and press OK. NOTE: Settings are not saved if BACK is pressed before Done is selected, Enhanced 11n When Enhanced 11n is set to On, the Dual Channel (40MHz) feature is available. NOTE: In addition, some other optional 11n features will be enabled. @ nt Preferences menu, press A or Y to select Network Setup and press OK. Highlight Wireless Setup and press OK. © press À or Y to select Enhanced 11n, andthen press or to select On.

Wireless Information The settings configured in Wireless Setup can be confirmed. Press QUICK to open the Quick Menu. Press À or Y to select Wireless Information and press OK. Quick Menu Picture Mode Picture Size AutoViow Super Live Personal Mode More Information Channel Options Sleep Timer REGZA-LINK Device Control 00:00 Speakers TV Speakers. Headphone Level ; Wireless Information © when the AP connection succeeds, a Wireless Information window will appear. NOTE: Press the RED button to scan for all available NOTE: Even ifan AP for IEEE 802.11n is used when Encryption is set to WEP or TKIP, the Speed value might be low. Itis recommended that Encryption be changed to AES (see “Manual Setup” on see page 44). Notes on wireless LAN environment: The function of al IEEE802.11 is not supported. + The ad-hoc mode is not supported. + Itis recommended to use IEEE 802.112 or IEEE 802.111n on 5 GHz for audio and SD video streaming. + Itis recommended to use IEEE 802.111n on 5 GHz for HD video streaming. + Itis recommended that the encoding rate for streaming video content is 20 Mbps or less. + Itis not recommended to use 2.4 GHz for audio and video streaming. Content playback may be interrupted by various surrounding interference. Advanced Network Setup NOTE: + When the DHCP function ofthe router connected with this TVis On, you can set Auto Setup to On or Off. This should usually be set to On.) APS + When the DHCP function ofthe routeris Off, set Auto Setup Rem Descri to Off, and set the IP Address manually. Status Connected is displayed when the TVIs IP Address Setup connected with the AP Disconnectedis displayed whentheTVis | Auto Setup: not connected with the AP. © rt nces menu, press À or Y to select Signal Connection signal strength with AP sms (STRONG/MEDIUM/WEAK) PanePr : Speed Liniowith AR, © press À or Y to select Advanced Network Setup Mode Working mode (113, 1b, 11g, Tin) and press OK. Channel Channel in use (1-165) Network Name | SSID set Authentication | Authentication set Network Setup Network Type Wireless Setup Encryption | Encryption set Advanced Network Setup Security Key | Security Key set e RP MAC The APS MAC address is displayed when fress A OV 1 select IP Address Setup and press Address the TVis connected with the AP. TVor USB MAC | The MAC address of the TV or USB (Dual FRS Address Band WLAN Adapton is displayed. DHCP Enabled is displayed when using DHCP. DNS Setup Disabled is displayed when not using MC Ads 1P Address The TV's IP address Subnet Mask | Value of the Subnet Mask Default ‘Address ofthe Default GATEWAY Gateway DNS Address ofthe DNS

@ Highlight Auto Setup andthen press 4orb to select on. 1P Address Setup ‘Auto Setup 1P Address (Subnet Mask Default Gateway NOTE: Other items to On. be grayed out when Auto Setup is set Manual Setup: @ ntre Preferences menu, press À or Y to select Network Setup and press OK. Press A or Y toselect Advanced Network Setup and press OK. ® press À or Y to select IP Address Setup and press ok. Highlight Auto Setup, and then press or to select Subnet Mask Default Gateway Press A or Y to select IP Address. Press orb to highlight the field you want to change, and then use the number buttons to input the IP address. To save the setting, press OK. NOTE: IP address field numbers must be between 0 and 255. After each field number has been set, press OK to store the entire address. the entire IP Address is invalid, a warning message will appear after OK is pressed. Press A or to select Subnet Mask, and edit in the same way as IP Address. 1P Address Setup Auto Setup of IP Address 13 . 177. 108 . 157 Subnet Mask 255 . 255 . 255. 0 Default Gateway © press À or Y to select Default Gateway, and edit in the same way as IP Address. NOTE: f you manually set the IP address, you must not use the same IP address for any other device. The IP address you use should be a private address. DNS Setup When the DHCP function ofthe router connected to this TV is Off, set Auto Setup to Off, and manually setthe DNS address(es). Vour internet service provider should have provided these to you. Auto setup: @ n1e Preferences menu, press A or Y to select Network Setup and press OK. © press A or Y to select Advanced Network Setup and press OK. © press À or Y to select DNS Setup and press OK. © press A or Y tohighlight Auto Setup, and then press or to select On. NOTE: Other items will be grayed out when Auto Setup is set to On. Manual setup: @ n1e Preferences menu, press A or Y to select Network Setup and press OK. Press À or Y to select Advanced Network Setup and press OK. © press À or Y to select DNS Setup and press OK. Press A or Y to select Auto Setup, and then press 4 orb to select Off. DNS Setup ‘Auto Setup PrmarDNS Address] 133 . 177 Socondany DNS Address 255 . 255 . 255 . © press À or Y to select Primary DNS Address. @ press 4ork to highlightthe field you want to change, and then use the number buttons to input the Primary DNS Address. To save the setting, press ok. NOTE: DNS address field numbers must be between 0 and 255. you input an incompatible number and press OK, the field number will reset to the previous value. Press À or to select Secondary DNS Address, and edit in the same way as Primary DNS Address.

MAC Address Using the software keyboard You can view the fixed MAC address for the TV and for the Dual Band WLAN Adaptor, if one is installed. You can enter text by using the Software Keyboard. e The Software Keyboard window will appear when In the Preferences menu, press À or Y to select you press OK on a field that accepts character input. Network Setup and press OK To enter text using the software keyboard: @ press aorViosclctAdvancedNetworkSetupand Œ Highlight the desired character on the on-screen press OK. software keyboard. ® press À or Y to select MAC Address and press OK. @ res0k Network Connection Test @ _ repeat steps 1 and 2 until you have entered all desired text. This function checks the Internet connectivit. @ in the Preferences menu, press À or Y to select © pressthe BLUE button to closethe software keyboard Network Setup and press OK and return to the previous screen. NOTE: BACK is pressed, changes are not saved and @ press A or Y to select Network Connection Testand the software keyboard window is closed, The text will press OK. remain as it was before starting the keyboard. A message will appear to indicate if the connection was successful or ifit could not be completed NOTE: The result of Network Connection Test does not always guarantee the connection. Depending on the situation, YouTube may not be able to be used! To cancel the Network Connection Test: @ press BACK while searching for the Internet connection. Input operation on the remote control: Button Description ok Inputs the selected character. Œ Inputs the number directly. AY Moves the character highlight. La ldd Moves the cursor. 4 Moves the cursortothe head of a character string. A Moves the cursor to the end of a character string. RED Deletes 1 character to the left of the cursor. GREEN Cycles through upper case, lower case, numbers, and symbols, if available. YELLOW Chooses an accented version of the current letter, if applicable. BLUE Saves changes and closes the Software Keyboard window. BACK Closes the Software Keyboard window without saving changes.

English Network Device Setup External Control Setup This setup allows you to operate a home network-connected your TV from an external device. Media Controller Setup @ ntre Preferences menu, press À or Y to select Network Device Setup and press OK. Preferences Recording Setup Camera Sensor Setup Personal TV Setup REGZA-LINK Setup Nebork Setup Network De up Photo Frame Setup Toletext © press À or Y to select External Control Setup and press OK. ® press À or Y to select an option and press OK. The Software Keyboard window will appear. User Name — Inputthe User Name (to control the TV from the iPhone etc.) by using the on-screen software keyboard (see page 47). The maximum number of characters is 16. Password — Input the Password (to control the TV fromthe iPhone etc. by usingthe on-screen software keyboard (see page 47). The maximum number of characters is 16. NOTE: Toshiba does not guarantee normal operation with all connected devices. Media Renderer Setup Terminology: DMS: DLNA CERTIFIED" Server DMR: DLNA CERTIFIED* Renderer DMC: DLNA CERTIFIED" Controller The TV can be configured as a DMR. When operating as a DMR, the TV displays content provided by a DMS. The selection of the media is done by the DMC -the TV does not select the input. The TV can play photo, movie, or audio files when operating as a DMR. Media Renderer @ ne Preferences menu, press A or Y to select Network Device Setup and press OK. © press À or Y to select Media Renderer Setup and press OK. © press À or Y to select Media Renderer, and then press Cor to select On or Off. Media Controller Setup You can limit which DMC can control this TV. Access Control is enabled, only those DMCS with a check will be allowed to control the TV. @ w1re Media Renderer Setup menu, press À or Y to select Media Controller Setup and press OK. © press À or Y to select Access Control, and then press <orb to select On. © press À or Y to select Select Media Controller and press OK. Press A or Y to highlight the item you want to accept, and press OK. À check will appear in the box. To remove the check, press OK again. @ 55H to highlight Done and press OK. NOTE: : You can select up to 8 DMC devices. - Ifyouwould notlike tolimitthe DMCs for this TV,set Access Control to Of. + Devices other than DMCs may be displayed in the list. Confirm the MAC address of the DMC and set it. Maximum Volume Setup This feature allows you to set the maximum volume ofthe TV when it receives volume operation commandé from a DMC. @ n1re Media Renderer Setup menu, press À or to select Maximum Volume Setup, and press 4orb to adjustto the desired volume. NOTE: + The TV's remote control can set volume regardless ofthe value of Maximum Volume Setup. + When DMR playback ends, the TV volume will return to the value in effect when DMR playback was started.

Using the USB HDD Function The USB HDD function can be used to record and view digital broadcast programmes. Read the precautions below before recording or viewing programmes using the USB HDD function. NOTE: + Recorded programs saved on the USB HDD can only be viewed on this TV. They cannot be viewed when connected to another TV (including the same model of TV), a PC, or other device. You cannot watch one channel while recording another. the recording time to the USB HDD is too short, no data may be saved. You cannot record video input signals on the USB HDD. Not all types of broadcast may be recordable. After programming the TV to record digital broadcasting, do not disconnect the power plug before recording start. Also, leaving the power switch "ON" until recording is scheduled to start, may cause the recording to fail. + Should video or audio recording fail due to malfunction of the TV or poor reception, no compensation shall be paid. + You can reserve up to a total of 64 programs for recording and viewing, there is a power failure or the power plug is disconnected during programmed recording, recording will stop and will not resume when the power returns or the plug is reconnected. + Donotdisconnect the power plug when the indicator lamp is lit. Any changes implemented by the broadcasting station may aff ect program scheduling. Scheduling of multiple consecutive programs will result in the beginning of each program not being recorded. + When the “Programme Tracking” for programmed recording is set to “On” and the broadcast time ofthe scheduled program overlaps with the start time of timer viewing due to delay, extension, or other causes, timer viewing will be cancelled. + Depending on the situation at the time, not all items can be set or changed. (°X"indicates no setting.) Programmed recording cannot take place ifthe power plug is not connected. Disconnecting the power plug during recording may result in failure to save the recorded program Changing the USB 2 Port Setup to Media Player will invalidate all previously made programmed recordings. (see page XX) To record DTV programmes (One Touch Recording) You can easy record the programme current} being viewed. @ press the @ REC button on the remote control. Recording for the currently viewing programmes will start. The RED LED will be lit. Pressing the @ REC button once more will display the screen for setting the recording time. Press or to select the desired recording time and press OK. To stop recording @ pes the M (stop) button. A confirmation window "Do you want to stop Recording” will appear. © press or to select Yes and press OK. Recording will stop. To schedule programmed recording Programmed recording can be scheduled easily using the Programme Guide or by specifying the date and time. PLEASE NOTE: When a timed programme is about to start, an information screen will appear off ering the option of watching or cancelling the programme. The menus and other channels will not be available during the timed programme unless the programme timer is cancelled. The programme timer you set is not performed when the TV is turned off with the POWER switch. Itwill only be possible to create or edit programme timers for the currently tuned DTV input. To schedule programmed recording using the Programme Guide @ p:255 the GUIDE button on the remote control (or select TV Programmes/Guide menu from the menu system) to display the EPG screen. © press À Y > tohighlightthe programme you want torecord

Press OK. The Set Timer menu Set Timer The Daily Politics [Emi 2 CABC Channel 11:30 - 12:30 Tue, 26 Apr Timer Typ: 40:50 Tue, 26 Apr Recording USB HDD1 Recording Device Programme Tracking. on Personal Grouping Subtitle (Change Time Press A or Y to highlight Timer Type and press or D to select Recording Press A or Y to highlight Recording Device and press or to select the connected USB HDD. Press A and Y to go through the list adding the details ofthe programme by using the number buttons and 4and to make selections. Programme Tracking: Hinformation concerning programme delay is sent from the broadcasting station, Programme Tracking will link recording with a delay of up to three hours. Programme Tracking is enabled when On is selected. {it does not support advancing ofthe broadcast time.) Protect: Select this function when you want to protect a recorded programme. When On is selected, the programme will be protected. You can protect and unprotect recorded programmes afterwards. Personal Grouping: Setting Personal Mode for a programme when it is recorded makes it easier to find later for viewing. Select your preferred Personal Mode. you select None, the programme will be recorded to Al in rary. Subtitle: Select On when you want subtitles to be included in the recording. NOTE: To change the set Start Time or End Time, select Change Time and press OK. Change the Start Time or End Time from the displayed Set Timer screen. Press A or Y to highlight Set Timer and press OK. The ORANGE LED will be lit. To search for and schedule a programme you want to record using Genre Search Press the QUICK button from the guide screen. Press À or to highlight Genre Colour in the Q Menu and press OK. Genre Colour Setup

Press or to select the genre. Programmes listed will change for the new genre. Press À or Y to select the programme for which you want to schedule recording.

Press OK. The Set Timer menu Set Timer The Daily Politics [Re 2 CABC Channel 11:30 - 12:30 Tue, 26 Apr 40:50 Tue, 26 Apr Timer Typ: Recording eo USB HDD1 Recording Device Programme Tracking Parsonal Grouping Suite Press A or Y to highlight Timer Type and press or D to select Recording. Press A or Y to highlight Recording Device and press or to select the connected USB HDD. Press A and Y to go through the list adding the details ofthe programme by using the number e buttons and 4andh to make selections. Refer to Step6 (see page 50) Programme Scheduling using the Programme Guide”. [4] Press A or Y to highlight Set Timer and press OK. The ORANGE LED will be lit.

To programme the timer Press MENU / 4 A / D to highlight TV Programmed/Programme Timers icons and press ok. Select the unprogrammed column (blank column) and press OK. The Set Timer menu will appear. Set Timer 10:50 Tue, 26 Apr Timer Type Recording + Em M] 50 CARC Channel Date Tue, 26 Apr 2011 Start Time 10:51 End Time Ropeat Once Rocording Device DPHoDI Personal Grouping Subtitle Press A or Y to highlight Timer Type and press or D to select Recording. Press À and Y to go through the list adding the details ofthe programme by using the number buttons and 4and B to make selections. Channel: Select the channel for programmed recording. Date: Select the date for programmed recording. Start Time: Select the time to start recording. End Time Select the time to end recording. Repeat: Select "Once, Daily” or Weekly" Once

The selected content is recorded once. The same time slot on the same channel is recorded every day on and after the selected day. Weekly | The same time slot on the same channel on the same day ofthe week is recorded on and after the selected day. Recording Device: Select the connected USB HDD.

Protect: Select this function when you want to protect a recorded programme. When On is selected, the programme will be protected. You can protect and unprotect recorded programmes aftenwards. Personal Grouping: Select a Personal Mode for the programme to be recorded to make it easier to find later for viewing. Select your preferred Personal Mode. If you select None, the programme will be recorded to Al in

Subtitle: Select On when you want subtitles to be included in the recording. Press A or Y to highlight Set Timer and press OK. The ORANGE LED will be lit. To schedule a programme using the information screen Press (Fr) ,the information screen will appear giving details ofthe channel and programme currently being viewed. Press A or Y to select the Next or Also and press OK. The Set Timer menu will appear. Set Timer The Daily Politics [a 2 CABC Channel 11:30 - 12:30 Tue, 26 Apr Timor Type 40:50 Tue, 26 Apr + Recording USB HDD1 Recording Device Programme Tracking. Personal Grouping Subtitle Change Time Press A or Y to highlight Timer Type and press or D to select Recording. Press A or Y to highlight Recording Device and press <orb to select the connected USB HDD. Press À and Y to go through the list adding the details ofthe programme by using the number buttons and 4and B to make selections. Refer to Step 6 (see page 50) “Programme Scheduling g the Programme Guide”. Press A or Y to highlight Set Timer and press OK. ‘The ORANGE LED will be lit. To check, edit or delete scheduling information You can check, edit or delete scheduling information. Press MENU / 4 A / 4 to highlight TV Programmes/Programme Timer icons and press OK. Programme Timer screen will appear. Recording List: + Depending on the transmitter information, the program broadcast time, or other information may not be correctly displayed in the recording list. The program does not appear in the recording list immediately at the start of recording, but appears a few minutes after recording starts. Up to 500 programs can be displayed in the recording list. + Ifthe channel settings are changed, the digital channel number, or other information may not appear correctly in the recording list. As the displayed program time is calculated from the actual recording information, it may not match the recording time on the USB HDD. To check a schedule Press À or Y on the Programme Timer screen to check the schedule. To edit a schedule Press À or Y on the Programme Timer screen to select the title whose schedule you want to edit and press OK. The SetTimer screen will appear. Change the settings as required, following the same procedure as for setting the schedule. Press A or Y to highlight Set Timer and press OK.

To delete a schedule Press A or W on the Programme Timer screen to select the title whose schedule you want to delete. Press the RED button. Press 4orb in the displayed confirmation window to select Ves and press OK. The selected schedule will be deleted. NOTE: ou can also delete a schedule by selecting Delete Timer from the Set Timer menu for each programming method To view a recorded programme Display the Library screen and select the title ofthe recorded programme from the list. Press MENU / @B/ A /@B to highlight TV Programmes/Library icons and press OK. Laibrary screen will appear. E 2 usa Dos Remaining Capacity Men AUFARIEON y 86 (812008) Press A or Y to select the title you want to view. The content of the title selected on the thumbnail screen is played. Tochangetheorderinwhich the titles are listed, press the BLUE button to select New or Old To display the titles by week or by Personal Mode, press the YELLOW button to select AI, Week or Personal Grouping. Press or to select a day tabor Personal Mode tab. NOTE: no titles have been registered to Personal Mode, Personal Grouping will be greyed out. Press OK. Viewing starts. @ icon appears next to the title currently being recorded. When the title currently being recorded is selected and OK is pressed, playback will start from the beginning of the programme currently being recorded. Operations during viewing The following operations can be performed using the remote control buttons. D ToPLAY Hd To SKIP-BACK M ToSToP € TOREWIND IAÏD> ToPAUSE/STEP D To FAST FORWARD

To start Time Shift» To SKIP-FORWARD Recording Operations from the Library screen Aswellasviewing thelistofrecorded titles on the Library screen, you can protect or delete titles and register titles to Personal Mode. To display the Library screen Press MENU / 4 A /@B to highlight TV Programmed/Programme Timers icons and press ok. Press A or Y to select Library, and then press OK. The Laïbrary screen will appear. 0 Jay 20Ht 1430130) USB HoD3 Remaiin Mons y 86% (P12.0G8) apacy

To protect or unprotect a recorded programme © press the QUICK button to display the Personal Protecting a programme prevents it from being accidentally Mode registration menu. deleted. Select the title of the programme you want to protect and Quick Menu press the GREEN button. À icon appears next to the title and the programme is protected. RENE None I Protect is set to On when the programme is recorded, icon appears next to the title of the recorded programme. © press 4orb to select the Personal Mode to which When a title with À icon is selected and the GREEN button is you want to register the title and press OK. d, d dth rt ON SAPPEAIS ANG KE PrOgrAMME 15 The title will be registered to the selected Personal Mode. To delete a recorded programme You can remove a title from the registered Personal Mode by selecting None. @ pressthe RED button. Check boxes will appearnextto the titles. To checkthe remaining USB HDD capacity You can checkthe remaining capacity ofthe USB HDD using @ press AorVtoselectthetitleyouwanttodeleteand Remaining Capacity. press OK. À check mark will be inserted in the check os ENT NOTE: The remaining time displayed is only a guide: i is not guaranteed. Other useful functions (Time Shift Recording) Hfyou move away from the TV for a while, such as when the phone rings while you are watching TV, you can easily start recording and then catch up with the programme later. To insert a check mark against allthe titles pressthe @D press the remote control while viewing DIV. GREEN button To uncheck all the check boxes, press the BLUE ‘The screen will switch to the Pause image and button. recording wil start automatically. The recording time is the time set in One Touch NOTE: : Recording (see page 49). + Acheckmarkwill not be inserted against protected titles. 2 Note that once deleted a title cannotberestored ED Press (la) Catch-up viewing wil start from where the ® press the RED button. Select Yes in the confirmation programme was paused. window that will appear and press OK. To change the recording time, press I (stop) and Allthe titles with check marks will be deleted. press REC. The image will switch to the image : . currently being received and the screen for setting To register a recorded title to Personal Mode the recording time will appear. Press 4orb to select the desired recording time and press OK. Recording will continue during this time. When you select a title currently being recorded from Library after the recording time has been changed, playback will start from the beginning. @ seiect the title you want to register to Personal Mode.

Recording Setup You can set your preferences for recording or for scheduling recording. To setthe recording time for One Touch Recording Press MENU /4 to highlight Setup icon. Press A or Y to highlight Preferences icon and press ok. © press À or Y to select Recording Setup and press ok. Network Setup Network Device Setup Photo Frame Setup Toletext Press À or Y to select One Touch Recording Time and press OK. None None Press or to select the recording time. You can set the Programme End Time in 30-minute increments in the range of 30 minutes to 360 minutes. To set the padding time for progranmed recording start time and end time. Press A or Y to select Start Padding Time on the Recording Setup screen. Press Cor to select a time. You can select from None, 1 minute, 3 minutes, 5 minutes and 10 minutes. Recording will start at the selected number of minutes prior to the recording start time. Press A or Y to select End Padding Time from the Recording Setup menu. Press Cor to select a time. You can select from None, 1 minute, 3 minutes, 5 minutes and 10 minutes. Recording will end at the recording end time plus the selected number of minutes.

Setting USB HDD Energy-Saving Mode Press A or Y to select Recording Devices from the Recording Setup screen and press OK. Press A or Y to select Device Energy-Saving Mode. Recording Devices Dovice Energy-Saving Mode Normal NOTE: + When set to Energy Saving, it may take a while for the USB HDD to function. + When set to Energy Saving, depending on the type of USB HDD, the USB HDD indicator lamp may not indicate standby status even when in standby status. Press or to select Normal or Energy Saving. To change the name of the USB HDD Press À or Y to select Recording Devices from the Recording Setup screen and press OK. © press À or Y to select Device List and press OK. The Device List screen will appear. Device List Device Name Registered Connected USE #DD 1 Cu Tu) Press the GREEN button. Edit the desired name by using the software keyboard (See page 47) The maximum number of characters is 25. NOTE: f multiple USB HDD appear on the Device List screen in Step 2, press À or Y to select the USB HDD whose name you want to change. To perform a USB HDD operation test

Press the YELLOW button on the Device List screen. USB HDD operation test will start. Wait until the test ends. NOTE: The results ofthe device test are only a guide. The device may not function as shown in the results.

To register a USB HDD Press OK on the Device List screen. Press 4orb to select Yes in the confirmation window that will appear and press OK. USB HDD registration will start. Wait until registration ends. NOTE: + Ifmultiple USB HD appear on the Device List screen, press A or Y to select the USB HDD you want to register. + Ifa USB HDD is re-registered, it will not be formatted. To format a USB HDD Press the BLUE button on the Device List screen. Press 4orb to select Yes in the confirmation window that will appear and press OK. Formatting will start. Wait until formatting ends. NOTE: + Ifmultiple USB HD appear on the Device List screen, press A or Y to select the USB HDD you want to format. + When the USB HDD is formatted, all the data stored on the USB HDD will be deleted. To disconnect a USB HDD Press MENU / 4B to highlight Setup icon. Press A or Y to highlight Preferences icon and press ok. Press À or to select Recording Setup and press ok. Press A or Y to select Recording Devices and press OK. The Device List screen will appear. Device List Connected CE ME EE Press the RED button. Press 4orb to select Yes in the confirmation window that will appear and press OK. The Connected check mark will be removed. Disconnect the USB HDD. NOTE: multiple USB HDD appear on the Device List screen, press A or Y to selectthe USB HDD whose name you want to change. To confirm/delete Recording Information Hfprogrammed recording is not performed correctiy or some other error oceurs, you can check the error content using Recording Information. Up to 64 Recording Information entries will be recorded and when the maximum is exceeded, entries will be deleted starting from the oldest. You can delete Recording Information after you have checked it.

8888 TV1 London We 8888 TV1 London 688 V1 London 8688 V1 London 8888 TVA London 8888 TVA London Wed, 23 Fab 10:00 - 11:00 Wed, 23 Fab 10:00 - 11:00 8888 TVA London Wed, 23 Fab 10:00 - 11:00 The recorded Recording Information list will appear. EM icon will appear next to unread Recording Information. When the information is viewed, [EEK icon will appear (the icon changes to the Opened icon). To check the content of Recording Information Press or Y on the Recording Informati to select the title you want to display. screen Press OK. The content of Recording Information will appear. Recording Information 8888 TV1 London Wed, 23 Feb 10:00 - 11:00 Schoduling Confct (Could not recard properiy because there was a conflict with another event of à higher priority When you have checked the content, press BACK. The screen will return to the previous screen.

To delete Recording Information Camera Sensor Settings @ press À 0 Y on the Recording Information screen The Camera Sensor can detecta person‘ face or movement and to select the Recording Information you want to identify individuals by their registered faces, The screen mute and delete. the standby mode functions by the face detection and motion detection functions of the Camera Sensor operate, and power @ press the RED button, consumption is saved as a result. @ nt Preference menu, press À or Y to select Camera Sensor Setup and press OK. Select Yes in the confirmation window that will appear and press OK. The selected Recording Information will be deleted. Press À or Y to select Camera Sensor and press or D to select On (to activate the following settings). Scheduling priority scheduled time slots are next to each other and there is more than one minute between the end time of the first schedule and the start time of the next schedule, programmed recording will be performed correctiy. Press A or Y to select Time until Picture Off and + When Start Padding Time and End Padding Time are set press orB to select 10min, Test (5sec.)...60min. (see page 55), the start time and end time will be the time {Smin.ntervals). plus the additional minutes. © press À or Y to select Camera Sensor Mode and press orb to select Normal or Energy Saving. NOTE: the Camera Sensor Mode is in Energy scheduling times overlap, priority will be given to the Saving mode, this feature will be grayed out. programmed recording which starts first. When the programmed recording that started first ends, recording will switch to the next scheduled programme. At this time, © press À or Y to select Time until Standby and press depending on how far the scheduling times overlap, the <orb to select Smin..60min. (Sminntervals) beginning section ofthe next scheduled programme may not a @ press À or Y to select Test Sensor and press OK to + When End Padding Time is set for the first programmed display Test Sensor screen. recording (see page 55), depending on how far the scheduling times overlap, the End Padding Time may be ignored and recording of the next scheduled programme may start. As priority is given to the time setinthe Set Timer menu over the Padding Time, recording will automatically be triggered when the next scheduled programme start time is reached during End Padding Time. Press orb to selectthe Gamma Adjustment options Auto, 1, 2, 3, or 4 watching the camera image on screen.

Using Toshiba Places A new cloud based service, where content (movies, photos, etc.) can be viewed and shared across the web through a simple user interface called “Toshiba Places”. NOTE: + You need to configure a home network before using this feature (see page 11). + IfNetwork Lock is set to On, it will be necessary to enter your four-digit PIN code in order to access network features (see page 74) Press A) onthe remote control, or press MENU / A to highlight Connected TV/Toshiba Places icons and press OK. © press AY4D t0 select the desired place and press ok. Display Example NOTE: Some features require an always-on broadband internet connection, firmware update and/or additional bandwidth dedicated to this product, Third party internet services may change or be discontinued or restricted at any time. Toshiba makes no warranties, representations, or assurances about the content, availability or functionality of third-party content or services. Use of third party internet services may require registration by a computer and/or payment of charges and membership. Not all services or content may be available on this product, in your country or with your language. In orderto experience the full capabilities ofthis product, fully compatible devices may be required. For more information, visit http//mwwtoshibaplaces.com/about.

Using YouTube" YouTube is a video-sharing service managed by YouTube, LLC. This TV allows you to view YouTube content. NOTI + You need to configure a home network before using this feature (see page 14). + IfNetwork Lock is set to On, it will be necessary to enter your four-digit PIN code in order to access network features (see page 74). Press MENU / A / D to highlight Connected TV/ YouTube icons and press OK. The YouTube top page will appear. © press AY 10 selectthefile you want to view, and press OK To close YouTube: NOTI This TV may not be able to perform all of the same operations as a computer. Depending on the network environment and use case, you may experience difficulty viewing content. Though the same volume value, actual volume might be greatiy different depending on contents. It may take time for the TV to load and begin playing back content. Service content and the look and feel ofthe interface may be changed at any time without prior notice. Press EXIT.

Using the Function Menu The Function Menu provides easy access to functions that are commonly used. Press the BLUE button while displaying YouTube: The Function menu window will appear. Ô K À Roload Menu

Back Foard Home Pointer http:/Iwww.youtube.comixl Press Æorb to select the desired icon and press OK. Item Description Back Returns to the previous page. Forward | Moves tothe fonward page Reload/ Updates the displayed page./ Abort Aborts update (X is displayed while reading, and ©) is displayed in other case) Home Returns to the top page of YouTube. Pointer Switches the pointer On/Off or drag mode Menu Switches the frame or sets various settings. Switching the pointer The tool that operates the screen can be changed to pointer or drag mode. From the Function menu, press 4or B to select Pointer, and then press OK. @ you select K,, see “To use the Pointer: ON” on this page. If you select (see "To use the Drag Mode” on this page. To use the Pointer: OI Press A or Y to select Pointer: ON and press OK. + K will appear. Press AW tothe place where , changesto + and then press OK. NOTE: When Pointer: OFF is selected and A W-4B is pressed, the highlight moves to linked areas. To use the Drag Mode: Press A or Y to select Pointer: ON and press OK. Press the BLUE button From the Function menu, press or to select Pointer, and then press OK. Press A or Y to select Drag Mode and press OK. + 89) will appear. Press OK, and then À) changes to (7) Press AY to move the selected item in the desired place Switching the frame From the Function menu, press or to select Menu, and then press OK. Setting the view feature Press Æorb to select Page Tasks. Highlight Switch Frames and press OK. From the Function menu, press or to select Menu, and then press OK. Press orb to select View Press A or Y to select the desired item, and press OK. Press A or Y to select the desired setting, and press

Item Settings Display Normal: Displays YouTube page with the Mode size as itis. Just-Fit Rendering: Displays YouTube page at a size that has been adjusted to precisely fit the width of your TV. Text Size | Changes the font size ofthe screen. Select from Largest, Large, Medium, Small or Smallest. NOTE: This font size is effective only for the page. Advanced | See the next column. Settings Page Displaysthe information ofthe page you are Information _ | viewing. Server Displays the server certification. Certficates

I you select Advanced Settings: o Item Settings Press AY 4 to select the setting items, and press Security When jumping from a protected page to an OK. A check will appear in the box, To remove the unprotected page, the message s displayed check, press OK again. when the check is applied to Notify of secure/non-secure page changes. @ press AY to select OK field, and press OK. Apply the check to select SSL version from SSL Version to use (SSL2.0, SSL3.0, TSL1.0) Item Descr A content confirmation of the certification Image Sets display/non-display of images. and a setting effect/non-effect can be done in Root Certificates and CA Certificates Table Sets effect/non-effect of tables. shown below. css Sets effect/non-effect of CSS. Cookies Accept ookie is received, andit records Pop-up Sets effect/non-effect of pop-up windows. in this TV. window Reject all: Cookie is not received Prompt before accepting: When Cookie is Animation | Sets display/non-display of animations. received, a message window will be JavaScript | Sets effect/non-effect of JavaScript. displayed. Word wrap _ | Setseffect/non-effectof Word Wrap.IfWord Delete Deletes all recorded Cookies. Wrap is enabled, a word not finished at the Cookies endof a line is shifted to the next line. Cache Use cache: When the check is applied to Rapid- Sets effect/non-effect of Rapid-Render. If this, cache is used. Render Rapid-Render is enabled, texts and links are Delete All Cache Data: Deletes allthe cache displayed first, and the images and the preserved in the television. tables, etc. are displayed afterward. The Browser | Displaysthe information on a browser. highlight can be moved with the text and Information the link displayed. NOTE: Setting other features From the Function menu, press 4orb to select Menu, and then press OK. Press orb to select Settings. Press A or Y to selectthe desired item, and press OK. Press A or to select the desired setting, and press Ok. + Cookies the technical information that a website leaves in this TV so that the website will recognize you when you use it again. Cache is a system used to shorten the display time by checking the past data preserved in this television when à page that you viewed before is seen again. To confirm Root Certificates or CA Certificats: Press À or Y to select Security in step3 in Setting other features. © press A4 to select Root Certificates or CA Certificates, and press OK. Press A or Y to select the desired certificate. + When OK is pressed,a detailed information window will appear. + When the BLUE button is pressed, Disable or Enable bar will appear. It changes whenever BLUE button is pressed. Press BACK.

Using the Media Player This TV allows you to enjoy movie, music and photo files stored on a USB device connected to the USB port. Moreover, you can also play photos, movies or music files from your PC by connecting the TV to your home network. Terminology: DMP: DLNA CERTIFIED"* Player DMS: DLNA CERTIFIED" Server DMR: DLNA CERTIFIED* Renderer DMC: DLNA CERTIFIED" Controller + DMP:The TV can control and play content from a DMS. + ADMS is a device that can function as a server for DMP or DMR. + DMR:The TV can play content from a DMS. Playback is controlled by a DMC. + ADMC is a device that can instruct the TV to display content. NOTE: + Donot + MENU is not available during playback. + When you wanttouse your TVas a DMR, set Media Renderer 0 On (see "Media Renderer” on page 48). sert/remove USB device while in use. Media Player Specificat Device USB device Interface version: USB2.0 HS USB Mass Storage Class devices (MSC) NOTE: + Connectivityis not guaranteed for all devices. + incorrect behavior may occur with a USB hub connection. File system: FAT16 and FAT32 Maximum memory size: Unlimited DLNA CERTIFIED" Server: Your PC (for example) You must obtain any required permission from copyright owners to download or use copyrighted content. TOSHIBA cannot and does not grant such permission.

Basic operation Using Media Player with USB When Auto Start is enabled, you will be asked if you want to start the Media Player whenever a USB device is inserted. If Auto Start is disabled (or if you want to connect to a DMS on the network), you must manually start the Media Player from the menu. To change the Auto Start settin Press MENU / QD / A / D to highlight Media Player/Media Player Setup icons and press OK. © press A or Y to select USB Auto Start, and then press <orb to select On or Off. Modia Player Setup (USB Auto Start DIVXE VOD Media Server Setup Auto Start: Insert USB device into the USB socket on the left side ofthe TV. A prompt will appear. Press Æorb to select Yes, and then press OK. Press A or Y to select Photo, Movie, or Music and press OK. NOTE: Auto Start is set to Off, you can start the Media Player manually.

Manual Start: Insert USB device into the USB socket on the left side ofthe TV. Press MENU / B to highlight Media Player icon. Press A / B to highlight Photo, Movie or Music icon and press OK. The thumbnail will appear. To select a file in the list of contents: Press AY (4) to select a file or folder. Press OK to move to the next layer, or press BACK to return to the previous layer. To close the Media Player: Press EXIT. Using the Media Player with a DLNA CERTIFIED"” Server You need to configure a home network before using this feature (see page 11). Press MENU / B to highlight Media Player icon. Press A / B to highlight Photo, Movie, or Music icon and press OK. The thumbnail (for Photo) or list of files (for Movie and Music) will appear. NOTE: there is more than one media server on the network, a list of all media servers will be displayed. Highlight the server you want to use, and press OK. Press A or Y to select a DMS if the selection window is displayed. To select a file in the list of contents: Press À or Y to select a file or folder. Press OK to move to the next layer, or press BACK to return to the previous layer. To close the Media Player: Press EXIT. To display the device information Press QUICK to open the Quick Menu in list mode or Multi View mode Press A or Y to select Device Information. Setting DLNA CERTIFIED" Server waking up: You only need to complete the Media Server Setup if you wish to use the "Wake-on-LAN" feature. Press MENU / QD / A / D to highlight Medi: Player/Media Player Setup icons and press OK. © press À or Y to select Media Server Setup and press OK.A list of currently available DMSs will appear. ® press À or Y to select the desired device, and press OK. A check will appear in the box. To remove the check, press OK again. NOTE: + Up to 8 DMSes can be selected. Even if the device checked is powered off it will be displayed but grayed out in the Select Device window. When OK is pressed on a highlighted grayed out item, a confirmation of Wake-on-LAN is displayed. The TV tries to wake up the DMS if Yes is pressed, The Server will start fit supports Wake-on-LAN feature. When some DMSs are connected, it may take time until the list is displayed. The list may be refreshed by the following operation. - The device selection window is closed once and it is displayed again. - The RED button is pressed Press to highlight Done, and then press OK to save

Viewing photo files (on a DLNA CERTIFIED" Server or USB device) There are three types of viewing modes. Multi View This viewr allows you to search for photos in a grid format. The pictures are displayed using thumbnail data in each image file. Photo list example DK Puy UIEK Festures EI Page The initial highlighted position will be on the top left thumbnail in the Multi View. @ ps A Y > to movethehighlightin one window. Hall of the photos wil not fitin one screen, when pressing Qat the top left thumbnail the screen wall move to the previous page. Conversely, when pressingB at the bottom right thumbnail the screen will move to the next page. PA PV buttons can be used to page up/down the photo list when there are more photos than will fit onto one screen. When the PA PV buttons are pressed, the highlight shall be on the photo at the top left of Previous/Next list. © \vnen you select a folder, press OK to move to the next layer. Press BACK to move back to the previous layer. ®@ press ok to viewthe selected photo in Single View mode. NOTE: When the TV is used as a DMR, this feature is not available. Single View Inthis mode, only files located inthe selected directory will be displayed. This view allows you to change the photo content manually. When moving from Multi Viewr to Single View, the currently selected photo will be displayed. @ 53 10 viewthe next photo. Press to previous photo. © press À to rotate the image 90° clockwise. Press Y to rotate the image 90° counterclockwise. @ rss (P) to display file status information (file number, photo title, date and time taken, resolution etc) NOTE: The information may not be correctly displayed depending on the content, DMC or DMS. Slide Show This view allows you to watch a slide show of your photos. In this mode, only files located in the selected directory will be played. @ star slideshow, press OK in the Single View mode. © press 4ork to viewthe previous/next photo. @ press À or Y to rotate the photo. OO pes To set Interval Time and Repeat settings: to display file status information. @ press Quick to open the Quick Menu while in the Single View mode or Slide Show mode. © press A or Y to select eitherinterval Time or Repeat. © press or to adjust the setting and press OK To set Background Music Press QUICK to open the Quick Menu while in the Slide Show mode. Press A or Y to select Background Music and press

<ork to select On. Press W to select Select Music and press OK.

Select a music. NOTE: + The music must be selected from the same media (USB) device or DMS from which the picture files will be played. - This feature is not available when there is no music that can be selected.

To zoom in/out photos Viewing movie files (on a DLNA During the Single View mode or Slide Show mode, the zoom CERTIFIED”" Server or USB device) function can be used. RED button: x1 — x2 — x4—+ x8—+ x16200m You can select movies from a list of available files. GREEN button: x16— x8— x4 — x2 —+ x1 z00m Movie list example BACK button: Normal playback A Y 4 D buttons: Vertical or Horizontal scrolling To sort the folders and files @ press QUICK to open the Quick Menu from Multi View mode. @ press À or Y to select Sort. @ press orb to selectTitie/File Name, New or Oldto ns ® ps A Y to select a file or folder. PA PV buttons an be used to page up/doun the movie list when Item Description there are more files than will fi onto one screen. Title (DMS)_ | File sorting rules: MSI LE Unicode priority © when you select a folder, press OK to move to the

2. (O1, 9), capital alphabet (A, B, … 2), next layer. Press BACK to move back to the previous

small alphabet (a, b, …, 2) layer.

File sorting rules. © withthe desiredfile selected, press OKor D (play) to

small alphabet (a, b 2

NOTE: + On preview screen, if you highlight the file without pressing OK, the content is played on a preview New From new to old according to the date and screen. When OK is pressed,itis played in full screen time when the picture was taken mode. oid From old to new according to the date and + Depending on the file size, it may take some time to start playback. time when the picture was taken @ press M to stop playback. NOTE: Sorting may not be supported by some DMSs NOTE: To display the device information * playback finishes before I is pressed, the screen will return to the list. @ pres QUICK to open the Quick Menu from Multi + Depending on the file size, it may take some time for View mode. playback to begin. © press A or Y to select Device Information and press OK. NOTE: When the photos onthe USB device are used, orthe TV is used as a DMR, this feature is not available. To close the Photo Viewer ® pressExIT. Thetelevisionwilreturntothelastviewed channel or external input. File Compatibility See page 97.

During playback: Press AID to pause. You can move to the desired replay position by pressing 4 orb during PAUSE. PAUSE or operations during PAUSE may not be available depending on the contents, DMC or DMS. To resume normal playback, press = (play). To play in fast reverse or fast forward directions, press 44 or during playback. Each time you pressthe €4orb, the playback speed will change. + To locate a specific file, press Hé or» repeatediy. Press (F7) to display the file status information (content number, movie title, progress time etc.). NOTE: + The information may not be correctiy displayed depending on the contents, DMC or DMS. + During playback, you can adjust the Picture, Picture Size and SOUND menu functions from the Quick Menu. To select subtile and audio languages + Press SUBTITLE repeatedly to select your preferred subtitle language. + Press DI/I repeatedly to select your preferred audio language. NOTE: This feture is not available depending on the contents. To set the repeat mode @ press QUICK to open the Quick Menu. @ press 4orb to select Off, Allor 1. Mode Description off The file is played back only once. AI Files in the same folder are repeatediy played back. 1 The same file is repeatedly played back. @ presssack NOTE: When the TV is used as a DMR, this feature is not available. To sort the folders andfiles @ press Quick to open the Quick Menu in list mode © press À or to select Sort © press or to select Title/File Name, Newor Old to setthe sorting rule. Item Description Title (DMS) File sorting rules:

New From news to old according to the date and time when the contents were updated. old From old to new according to the date and time when the contents were updated. NOTE: Sorting may not be supported by some DMSs. To display the device information @ press Quick to open the Quick Menu in list mode © press À or Y to select Device Information and press ok. NOTE: When the movies on the USB device are used, orthe TV is used as a DMR, this feature is not available. To close the Movie Viewer © »esexrr. File Compatibility See page 97.

To register your TV to a DivX” account This TV allows you to play back files purchased or rented from DivX" Video-On Demand (VOD) services. When you purchase or rent DivX" VOD files on the internet, you will be asked to enter a registration code. In the Media Player Setup menu, press À or Y to display Media Player and press OK. Press À or Y to select DivX” VOD and press OK. Press À or Y to highlight DivX” VOD Registration, and then press OK. ivXE VOD Registration DivX® VOD Deactivation The DivX" VOD window will appear and you the registration code. For details on registration, please visit the DivX” website at see http://vod.divx.com Copy the activation file to a memory device and play iton the TV. To deactivate your device In step 3 above, highlight DivX’ VOD Deactivation, and then press OK. A confirmation message will appear. Select Yes, and then press OK. The DivX" VOD window will appear and you will see the deactivation code. For details on registration, please visit the DivX” website at http://vod.divx.com ABOUT DIVX VIDEO: DivX is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on- Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified® to play DivX° and Plus” HD (H:264/MKV) video up to 1080p HD including premium content. Playing music files (on a DLNA CERTIFIED”" Server or USB device) You can listen to music from a list of available fils. Mu: example DE Por REF rsoe à rase ® pr: A Y 0 select file or folder. PA PV buttons can be used to page up/down the music list when there are more files than will fit onto one screen. © when you select a folder, press OK to move to the next layer. Press BACK t0 move back to the previous layer. @ _ withthe desired file selected, press OK or (play) to start playback NOTE: f you highlight the file without pressing OK, the content is played on à music list When OK is pressed, is played in full screen mode. @ press M to stop playback. NOTE: + Depending on the file size, it may take some time for playback to begin. + During playback, you can adjust the SOUND menu functions from the QUICK Menu. Dur g playback: + PressILAlD to pause. + To resume normal playback, press = (play) + You can move to the desired replay position by pressing 4 or during PAUSE. + PAUSE or operations during PAUSE may not be available depending on the content, DMC or DMS. To play in fast reverse or fast forward directions, press 44 or. Each time you press or}, the playback speed will change.

To set the repeat mode: Press QUICK to open the Quick Menu in list mode. Press À or Y to select Repeat. Press Cor to select Off, Al or 1. Mode Description off Files in the same folder are played back once. AI Files in the same folder are repeatediy played back. The same file is repeatedly played back. NOTE: When the TV is used as a DMR, this feature is not available. Press BACK. To set the shuffle mod. To sort the folders and files Press QUICK to open the Quick Menu in list mode. Press A or Y to select Shuffle. Press Cor to select On or Off. Press QUICK to open the Quick Menu in list mode. Press A or W to select Sort. Press or to select set the sorting rule. le/File Name, New or Old to Item Description Title (DMS) | File sorting rules:

2.(0,1,., 9) alphabet (A,

New From new to old according to the date and time when the contents were updated. Old From old to new according to the date and time when the contents were updated. NOTE: Sorting may not be supported by some DMSs.

To display the device information Press QUICK to open the Quick Menu in list mode. Press À or Y to select Device Information and press ok. NOTE: When the music files on the USB device are used, orthe TVis used as a DMR, this feature is not available. To display the file status information during playback. The information will be displayed on the bottom of the screen. NOTE: The information may not be correctly displayed depending on the content, DMC or DMS. Press (FF) again to remove the information. To close the Music Player: File Compatibility Press EXIT. See page 97.

Using the Photo Frame feature @ pH to select Start and press OK to open Photo Frame. You can use the TV screen as a digital photo frame. One image {pre-installed or user-installed) can be displayed. Date info can also be superimposed, if desired. You can overwrite the photofile with afile from a USB storage device or DLNA CERTIFIED"* Server. TOSHIBA To open Photo Frame Leading Innovation D>> @ press MENU/ € / À / 4 to highlight Setup/ Preferences icons and press OK. © press À or Y to select Photo Frame Setup and press ok To open from the Quick Menu Prec @ p::5 Quick to openthe Quick Menu. Recording Setup [Caren sas al © press À or Y to select Photo Frame and press OKto Personal TV Setup open Photo Frame. REGZA LINK Setup Den To close Photo Frame: Notuork Device Setup © seseur Toetoxt Auto û Setting the features The preview screen will appear. In the preview screen, you can set various settings for Photo Photo Frame Sotup Frame. Photo Select TOSHIBA @ nt Photo Frame Setup menu, press À or Y to Leading Innovation 293 select Photo Select and press OK. Photo Frame Setup TOSHIBA Leading Innovation 33> [proto sac Photo Eat Setings © rte device selection screen appears, press À or to select the appropriate device and press OK.

® press Ÿ 4 toselectthephotoyouwanttocopy Settings from the USB storage device or DLNA CERTIFIED"* o server to the TV's flash memory, and then press OK. Press A or Y to select Settings, and then press OK. © press À or Y toselectClock, Position or Auto Power Off. Settings Photo Edit @ press À or Y to select Photo Edit and press OK. © setthe following items as required. © press À or Y to select Rotate or Delete. + Clock — Press or to select Off, Analogue Clock or Analogue + Photo Edit : Position — Press Ar to select Left or Right. + Auto Power Off — Press Aorb to select Off, 00:30, 01:00, 02:00, 04:00, 06:00 or 12:00. Ifthe Photo Frame window is left open, the TV will automatically turn off after the set length of time {maximum 12 hours) Press BACK. DK Ener DERER Reum Select Start and press OK. @_ setthe following items as required. + Rotate — Press OK to rotate the image 90'clockwise. + Delete — Press OK. À confirmation window will appear. Press or to select VES, and then press ok. ©Q presssack NOTE: + The clock display will only appear when time from a digital broadcast is available. + The photo and clock displays are moved by 4 dots every 5 minutes to minimize the risk of screen burn-in + The pre-installed photo file is stored in the TV's flash memory before shipment. + Picture Size selection (Normal/ Dot by Dot) is available by pressing the QUICK button. However when the resolution is 1920 x 1080 or above, the Picture Size selection menu will be grayed out.

Other features Panel Lock Panel Lock disables the buttons on the television. All buttons on the remote control can still be used. @® pe: MENU/ 4 /A/ 43 to highlight Setup/ Preferences icons and press OK. Preferences Personal TV Setup REGZA-LINK Setup Netork Setup Network Device Setup Photo Frame Setup Toletext When Panel Lock is On, a reminder will appear when the buttons on the televi ressed. Ifthe standby button is pressed, the television will switch off and can only be brought out of standby by using the remote contr The timers Programme Timers - digital only This feature will set the television to go to a specific channel at a certain time. can beused to view a particular programme, or by setting the mode to daily or weekly, can be used to view a series ofprogrammes. @ press MENU/ 4 /A/ € to highlight TV Programmes/Programme Timers icons and press ok. Press Y to select Programme Timers, and then press ok. @ press V if necessary to select an open timer position, then press OK. The Set Timer menu will now appear on screen. © press À and Y to go through the list addingthe details ofthe programme by using the number buttons and and D to make selections. Set Timer imer Type 10:50 Tue, 26 Apr Rominder [Be 30 CABC Channel Date Tue, 26 Apr 2011 Start Time 10:49 Channel Repeat Once Set Timer DESU input @ Edit IBACKE Return © wnen ail ofthe details have been entered, Set Timer and press OK to save the timer. ‘The ORANGE/RED programme timer indicator on the front ofthe television will be lit (see page 92 for details). light PLEASE NOTE: When a timed programme is about to start, an information screen will appear offering the option of lable during the timed programme unless the programme timer is cancelled. The programme timer you set is not performed when the TV is turned off with the D/IPOWER switch. Itwill only be possible to create or edit programme timers for the currently tuned DTV input.

On Timer The feature allows you to set the television to turn on automatically to a preset channel at a certain time of day or after a certain length oftime. Press MENU / € / A / 4 to highlight Function/ On Timer icons and press OK. Press A or to select Enable On Timer and press 4 orb to select On. On Timer Enable On Enable DTV Clock Power On Time Repeat Input Channel Volume Press Y to select Enable DTV Clock, and then press 4 orb to select On or Off. Press A or Y to go through the list adding the details ofthe On Timer by using the number buttons and 4 and to make selections. Power On Time (only for DTV Clock On mode): Set the time you prefer with the number buttons. Repeat (only for DTV Clock On mode}: Select the desired On Timer operation (Once, Every Day, Mon- Fri, Mon-Sat, Sat-Sun). Input: Select a video input source (ATV, DTV, EXT 1, EXT 2, EXT 3, HDMI 1, HDMI 2, HDMI 3, HDMI 4 or PO). Channel: Set the channel that will be tuned when the television turns on. NOTE: When an external input selected in the Input field, a channel cannot be selected. Volume: Set the volume that will be applied when the television turns on. Time until Power On (only for DTV Clock Off mode): Setthe amount oftime from now until the TV turns on using the number buttons (maximum of 12 hours). Press À or Y to highlight Done and press OK. To cancel the On Timer In the On Timer menu, select Enable On Timer Press Cor to select Off.

Sleep Timer The television can besetto turn itself Off after a certain length of time. Press MENU / 4 / A / 4 to highlight Function/ Sleep Timer icons and press OK. Use the number buttons to set the desired time. For example, to switch the television offin one and a half hours enter 01:30, or press / to increase/decrease in steps of 10 minutes. (Maximum time setting is 12 hours) Press EXIT to fi To cancel the Sleep Timer, enter all zeros for the above setting.

Energy Saving Settings Automatic Power Down The TVwill automatically turn itself off (standby) after 4 hours, you do not operate the TV either from the remote control or the TV control panel. O pr: MENU € / A / 4 to highlight Setup/ Preferences icons and press OK. © press À or to select Energy Saving Settings and press OK. @ press À or Y to select Automatic Power Down. @ press {or to select On or Off, and press OK. NOTE: ‘This feature is set to On when Location is set to Home. 1 minute before switching to standby, a Warning message will appear. When the following features are set, the feature that is set forthe nearest time will function. + Automatic Power Down + Sleep Timer - Photo Frame/Auto Power Off - Auto shutdown after 1 hour of'inactivity (after power on by On Timer) + No signal auto power off (after 15 minute of no signal) No Signal Power Down The TVwill automatically turn itself off after 15 minutes when no signal is detected. You can change the setting to Offforthe following purposes: Low signal strength of analog channel (no signal detection) Only Audio L/R is connected to external input to listen to music through the TV speakers. @ the Energy Saving Settings menu, highlight No nal Pourer Down, and press OK. © press À or Y to highlight the item you wantto change, and press 4orb to select On or Off. NOTE: Default setting is all On. A warning message will appear 1 minute before turing off.

Digital on-screen information and Programme Guide When viewing in digital mode, the on-screen information and programme guide provide access to programme details for all available channels. Information the information screen will appear giving details ofthe channel and programme currently being viewed. © press À or Y to selectthe "Now, “Next” or "Also" information guide. @ _ rorecord the next scheduled programme, select “Next” and press OK. The Set Timer screen will appear. Set Timer 10:50 Tue, 26 Apr Tue, 26 Apr 11:00 [es 30 CABC Channel Soven Wonderé Timer Type + Rominder > Start Time Ropeat Set Timer © Edit DBACKE Return © the details of the programme will already have been added to the timer. Highlight Set Timer and press OK tosave. To indicate that a Recording Timer has been set, a clockiconwill be displayed in the Next and Also fields ofthe information screen. À check mark will appear if the timer is a Reminder Timer. @ press v t0 select Also. Details of programmes that have started on other channels will be provided. Use <orB to change the display contents.

To display More Information @ press QUICK to open the Quick Menu. © press Y tohighlight More Information and press OK. On-screen Information icons Guide @ sciectthe on-screen guide by pressing GUIDE, and the guide screen will appear highlighting details of the channel and programme currently being viewed. This may take a few moments to appear. _. mé 10:50 Tue, 6 Apr ion Description 3 SE Service info ŒÆ | Sevicetype _ Tu CUITAN Race end Die DU mumuo fous © Skip NTI HNicky La. Ex Siret fight. Dragon B.. Dragon 8. EIK 2000 Audio info o Mono [PARIS PREMIERE [Nes Ma SORCIE. Des HAPPY DAYS eu H4PP DANS œ Stereo FABT — Evama jo tete Spring Son CH guy. °0 Dualmons En Fra & Multichannel (RP OE a) Fra mo Dolby Digital re mo Dolby Digital en HE-AAC Audio Coding TS AD Audio Description MeV ï 2 CII Audiorubtite 7 For Hard of Hearing _ You can switch the time scale to 1.25 or 2.5 hours by. Recording info CES Recording + Senice pressing the GREEN button. info Personal Mode Personal Mode NOTE: Channels are displayed in groups by service info {Personal Name) type (IV, Radio, Text). Pressing the TV button will Event info HD,5D [Video format{HD, SD) switch the service type, 169,43 Video Aspect @ press orb for information on other programmes E Teletext scheduled for the channel selected. To highlight the EJ ce [subuitie (Single Multi fist programme in the genre grid, press the RED aî Multraudio track button. Da-18 Parental rating 1] Encrypted ® _ ror details of other programmes currently available, Tien à Recording press A and Y to scroll up and down the channellist As channels are selected, details of the programme Ÿ Reminder currently being broadcast will appear. Press Æorb to view information for future programmes. © sorinformation on a highlighted programme, press @ set the timer for that programme, press the BLUE button to bring up the Programme Timers menu. NOTE: In order for the recording operation to work properly, the media recorder must be set to the same time as the TV. Regarding the process for recording, please referto the owners manual of the recording equipment Q@ press PV to advance to the next page, or press PA to go back to the previous page.

Genre selection/searching From the guide screen, you can use the genre selection and search features. Press the QUICK button from the guide screen. Press A or Y to highlight Genre Colour in the Quick Menu and press OK. Genre Colour Setup Movies ER ER EE ES EI EI El BE ER RES EE @00 cour setup MEACKD Retum With the focus on a particular genre, pressthe desired colour key to assign. Four colours will be available to set. Press BACK to go back to the guide screen. Press the YELLOW button to access the Genre Search screen. Movies LOMME

[est PARIS PREMIERE Red corner [Med Apr 215-2055 CRT ETS Fu or va 0 OT [a vou to Ki r29 Apr 130-300 CET [Parenthood [Sa Apr us: 240 CRTC TT sang rs Con fran PREMIERE ne un toy EXT mi] sw [Res Corner [Sato ao 220-115 DQ um [monisione Suns ou 290 enr Pan PRE rates Suns ou 220 CO TE indiana Jones and tre Temple of Doom [Sun May 2110-2529

ml was Jouer CRIE Press or to select the genre. Programmes listed will change for the new genre. Press À or Y to highlight a particular programme. When a current programme is selected, pressing OK will tune to that programme. When a future programme is selected, pressing OK will open the Edit Timer menu, For information on a highlighted programme, press To exit the Genre Search and go back to the guide screen, press the YELLOW button. Digital settings - parental control In order to prevent viewing of unsuitable films and programmes, channels and menus can be locked in digital mode. These can then only be accessed with a security code PIN. Parental PIN Setup

Press MENU / 4 / À / D to highlight Setup/ System Setup icons and press OK. Press A or Y to select DTV Set gs and press OK. ELLE Menu Language English Germany Anionna Country AntiCable In Auto Tuning DTV Manual Tuning DTV Settings Quick Setup Ü Press A or Y to highlight Parental PIN Setup and press OK. ETS Channels Subtitle and Audio Parental PIN Setup Local Time Setting Standby Channel Update DVB Character Sot Dynamic Scan off Standard

Using the number buttons enter a four digit number. Once entered you will be prompted to confirm by entering again. Parental PIN Setup ‘The PIN number is now set. Ifthe PIN code has been set, when Auto Tuning and Reset TV are executed, entering the PIN will be necessary.

Parental Setup The Parental Control feature allows you to block programmes according to theirrating levels. Ia PIN has been set, you willneed to enter it before adjusting the level. @ nthe DTV Settings menu, press À or Y to select Parental Control and press OK. © use 4orb to choose an option (None or an age setting (4-17 or 4-18 depending on the Country setting). Parental Control Parental Setup ETES To view blocked programmes, enterthe PIN. To reactivate the Parental Control, turn the TV off and then on again. Network Lock Vou can use the Network Lock feature to prevent the Web browser from launching. When this feature is set to On, PINinput will be necessary to use YouTube. This feature will be grayed out until a PIN is set. O pr: MENU € / A / 4 to highlight Setup/ Preferences icons and press OK. @ press À or Yto select Network Lock and press OK. Preferences Personal TV Setup REGZA LINK Setup Network Setup Network Device Setup Photo Frame Setup Toletext Panel Lock @ _ enter your four-digit PIN code. © press 4or to select On, and then press OK. To unlock the Network: @ seiect Off in step 4 above. Digital settings - Channel Options Selecting favorite channels Favorite Channels creates alistofthe digital channels thatare watched most. Four lists can be created, they can be a mixture of television, radio and text channels. Select a channel you want to add to your favorite list. Press QUICK to open the Quick Menu. Press Y to select Channel Options and press OK. Press b repeatedly to select the favorite list (Fav.1-4) Channel Options Fav. 2 3 4 æ à

CLLERE Press OK to selectthe ones required. Atickwill appear in the box as they are selected. Repeat steps 1 through 5 for other channels. When all favorites have been selected, press EXIT. Favorite Channel Lists @ ?:255 LIST t0 display Channel List. @ press 4orb to select Favourites 1-4. The number of favourites available depends on how many lists have been created. Channel List

Skip channels This feature allows you to set channels that will be skipped when PVorPA are used to tune. Select the channel you want to skip in your channel list. From the Quick Menu, press Y to select Channel Options and press OK. Press repeatedly to highlight the skip (+) box. Press OK to select. À tick will appear in the box. Repeat steps 1 through 4 for other channels. Press EXIT. NOTE: Skipped channels cannot be selected by Pvor PA but still be accessed by direct number entry {when tuned a @+ icon will be displayed in the banner to indicate as a skipped channel). Locking channels Locking Channels stops the viewing of digital channels, and they can only be accessed by entering the PIN. Select the channel you want to lock in your channel list. From the Quick Menu, press Y to select Channel Options and press OK. Press Be repeatedly to highlight the lock (à) box. Press OK to select. À tick will appear in the box. HaPIN has already been set, PIN entrywill be required to setthe locked channels. Repeat steps 1 through 4 for other channels. Press EXIT. From this point on, when any of the channels in the Locked Channel list are selected, the PIN must be entered before they can be accessed. Digital settings - other settings Subtitles In digital mode, this feature will show subtitles on the screen in the selected language provided they are being broadcast. In the DTV Settings menu, press À or Y to select Subtitle and Audio and press OK. © press Y to select Subtitle Di: select On or Off. ay and use Aorb to

Normal English English Normal English English Primary Subtitle Language Secondary Subie Language ‘Audio Type Primary Audio Language Secondary Audio Language Press A or Y to select Primary Subtitle Language or Secondary Subtitle Language and press orb to select an option. The SUBTITLE button can be used to select subtitle on or off forthe current channel only and to select the subtitle language if more than one subtile is available. Audio languages This feature allows a programme or film to be viewed with a choice ofsoundtrack language, provided multiple language tracks are being broadcast. In the Subtitle and Audio menu, press À or to select Audio Type and press 4ork to select Normal or For Hard of Hearing. Press A or Y to select Primary Audio Language or Secondary Audio Language and press or to select an option. Ifmore than one soundtrackis available, use the CDI/I button to select between them.

Common Interface The Common Interface Slot, situated on the side ofthe television, enables the insertion of a CAM (Conditional Access Module) and card. These are purchased from a service provider and allow additional subscription broadcasts to be viewed. For information, see a service provider. Insert the CAM and card into the Common Interface Slot, following the instructions provided with the CAM. À box will appear on screen to confirm that the CAM has been inserted. Press MENU / €} / A / 4 to highlight Setup/ System Setup icons and press OK. Press À or to select DTV Settings and press OK. Press A or Y to select Common Interface and press ok. Details of the CAM should now be available. + Software update of a CI Plus CAM may occur automatically finstigated by the broadcaster. This could cause the cancellation of any Reminders/Recordings during this process. + Some Cl or CI+ CAM may not be supported. CH operation is not guaranteed except for Canal Ready DTT services on suffix FC models. Software Upgrade and Licences Auto Upgrade When Auto Upgrade is set to On, the television will automatically upgrade while in standby if new software is available. In the System Setup menu, press À or Y to select Software Upgrade and press OK. Press À or Y to select Over-the-air Upgrade and press OK. Press A or Y to select Auto Upgrade. Use or to select On or Off. Searching for New Software Ifpreferred, software upgrades can be searched for manually using Search for New Software. In the System Setup menu, press À or Y to select Software Upgrade and press OK. Press À or Y to select Over-the-air Upgrade and press OK. Press A or Y to select Search for New Software. Press OK. The television will automatically start searching for a software upgrade, the progress bar will move along the

SEARCHING FOR NEW SOFTWARE

Searching for a new software upgrade for this TV. Searching Ian upgrade is found, the television will automatically start downloading. Ifnot, a screen will appear stating that an upgrade is unavailable.

Network Upgrade TOSHIBA may offer upgrades for the TV's software in the future. The TV5 software is upgraded via the Network Before downloading software; Configure your TV to connect to the Internet. NOTE: While the upgrade is being performed, you wi not be able to watch the TV. In the System Setup menu, press À or Y to select Software Upgrade and press OK. Press À or Y to select Network Upgrade and press ok. NOTE: the network is not available, a warning message will appear. The TV software upgrade will start when download succeeds Software Licences The licences for the software used in this television are available for viewing. In the System Setup menu, press À or Y to select Software Licences and press OK. A screen will appear displaying all the licensing information required for the televisions software. System Information and Reset TV System Information This feature can be used to check the version of software currently installed. When in DTV mode, it includes additional diagnostic information such as signal strength, signal quality, centre frequency, modulation, etc.

WEAK AVERAGE Ch? 0 FW:13 STRONG Forinformation aboutthe signal quality of a particular multiplex, press À or Y to select that multiplex. Press OK for a screen showing detailed technical information about the selected multiplex. Reset TV Selecting Reset TV will reset all TV settings, including saved channels, to their original factory values. In the System Setup menu, press À or Y to select Reset TV. @ press OK to select. A screen will appear warning that all settings will be lost. Press OK to continue. When the set powers back on, the Quick Setup screen will appear. Press OK to advance the setup and perform an auto tune. (See "Quick Setup” section on page 18)

PC Settings Horizontal and Vertical Position Connect the PC (as shown in the Connecting a computer section) and ensure that a picture is showing on the television screen. The picture position may now be adjusted to suit personal preference.

Press MENU / €} / A / 4 to highlight Setup/ Preferences icons and press OK. Press A or Y to select Display Seti gs and press OK. Press À or Y to select PC Settings. Display Settings Auto Format 433 Stretch Picture Position PC Settings Press OK. Press À and W to select an option, then 4 or to adjust the settings. PC Settings Vera onto Clock Phase Sampling Clock Clock Phase The Clock Phase matches the PC signal with the LCD display. Adjusting this can clear horizontal stripes and picture blur. Inthe Display Settings menu, press À or to select PC Settings and press OK. Press A or Y to select Clock Phase. Press Æorb to adjust until the picture clears.

Sampling Clock Adjusting the Sampling Clock alters the number of pulses per scan, this will clear vertical lines on the screen. In the Display Settings menu, press À or Y to select PC Settings and press OK. Press A or Y to select Sampling Clock. Press or to adjust uni he picture clears. Reset Use Reset to return all items to the original factory settings. In the Display Settings menu, press À or Y to select PC Settings and press OK. Press A or Y to select Reset and press OK. The screen is disrupted momentarily when adjusting PC Settings. This is not a sign of malfunction. The default settings and adjustment ranges may vary depending on the input signal format.

Input selection and AV External input skip connections This features designed to make inputselection more convenient by allowing you to skip unused inputs. See page 10 for a detailed image showing recommended connections. ® press MENU/ 4 / A7 4 to highlight Setup/ Preferences icons and press OK. Most mediarecorders and decoders senda signalthroughthe SCART lead to switchthe television to the correct Imputsocket. … @} . Press À or Y to select AV Connection. Alternatively, press the external source selection button © until the picture from connected equipment is shown. ES Network Setup Input selection Network Device Setup Photo Frame Setup Use the Input Selection window ifthe television does not switch Tolotoxt over automaticall. ee © pressing -© on the remote control or TV, a list will Panel Lock appear on screen showing all inputs and external Display Sotings equipment. AV Connection Pressing © onthe Pressing © on the TV remote control Press OK to display the AV Connection menu.

DIV Ar Ga) TV* DIV An (Ga) ado DIV An (Ga) Tant DTVSatTV* DIV Saad: DIV Satan” Press A or Y to highlight Input Labeling and press ok. AV Connection Input Laboling PCIHDMI 3 Audio PC Digital Audio Output © press À or Y toselectthe input youwanttoskip,and then press the RED button to turn on the skip. Input Labeling input Label we Dex je 7 _| + |

• Hfradio or text channels Ex are currently available ExXTs for DIV. HDMI + HDMI2 HDMI displays equipment connected to Input HDMI DANS on the back or side ofthe television. Hourd PC displays a computer connected to Input RGB/PC on ES the back ofthe television. QG rotumoffthe skip, press the RED button again. The input set to Skip is grayed out in the Input Selection window and is skipped overwhen you press “ on the remote control.

Labeling video input sources These input labels are shown in the input selector. You can label video inputs according to the devices you have connected to the Press MENU / €} / A / 4 to highlight Setup/ Preferences icons and press OK. Press A or Y to select AV Connection and press OK. Press A or to select Input Labeling and press OK. Input Labeling Press A or Y to highlight the item you want to label, and then press or to select -, Amplifier, Cable, DVD, Game, PC, Recorder, Satellite or VCR, or press the GREEN button to select User Input. NOTE: When User Input is selected by pressing the GREEN button, the Software Keyboard window will appear. Input the desired characters (10 characters or less) by using the Software Keyboard (see page 47) or using the number buttons for a number input. To save your settings, press the BLUE button. Repeat step 4 for other video inputs. PC Audio In order to receive sound from a connected PC, plug the audio cable into the back ofthe television (as shown in the Connecting a computer section), and then use the PC/HDMI 3 Audio setting. In the Preferences menu, press À or Y to select AV Connection and press OK. Press A or Y to highlight PC/HDMI 3 Audio, and then press or to select the PC option. NOTE: Selecting the PC option will force HDMI 3 Audio to Digital mode. HDMI 3 Audio Ifthe connected HDMI source does not support digital audio, Plug the audio cable into PC/HDMI 3 (AUDIO) on the back of the television (as shown in the ‘Connecting an HDMI° or DVI device to the HDMI input'section), then use the HDMI 3 Audio setting.

In the Preferences menu, press À or Y to select AV Connection and press OK. Press À or Y to select HDMI 3 Audio, and then press <orb to select Auto or Analogue. AV Connection Input Labeling PCHDMI 3 Audio HDMI 3 Audio Digital Audio Output Ifthe sound is absent, try selecting a different setting. NOTE: HDMI 3 supports digital and analogue sound, HDMI 1, HDMI 2 and HDMI 4 are digital sound only. Certain DVD disk formats may not output from this TV (32/44.1/48kHz and 16/20/24 bits are acceptable).

HDMI Settings Some early HDMI equipment may not work proper with your HDMI TV. Please try setting the Enable Content Type and INSTAPORT* options to Off. Adjusting these settings should allow your early HDMI source to operate properly with your television. In the Preferences menu, press À or Y to select AV Connection and press OK. Press A or Y to select HDMI Settings and press OK. NOTE: HDMI Settings is grayed out on non-HDMI inputs. Press A or Y to select an item, andthen press 4orb to select a setting. HDMI Settings Enable Content Type INSTAPORT RGB Range + Enable Content Type: On + INSTAPORT" This feature is part of the HDMI1.4 standard. When set to On, the TV will automatically adjust settings according to the content type data sent from the connected HDMI device.

This feature reduces the lag time when switching HDMI sources. + RGB Range: Auto NOTE: This feature adjusts RGB full range signal automatically. When Limited is selected, RGB signal is output in the range from 16 to 235. When Full is selected, RGB signal is output in the range from 0 to

+ Ifyour HDMI connection is capable of 1080p and/or your tele ion is capable of refresh rates greater than 50Hz or supports Deep Colour, you will need a Category 2 cable. Conventional HDMI/DVI cables may not work properly with this mode. All of the above HDMI settings need proper HDMI source devices. the HDMI source products do not support these features, the television may not work properly by activating these features. Digital Audio Output When connecting a surround soundamplifierto the digital audio output (Sony/Philips Digital Interface Format [S/PDIF]) the following options can be selected or adjusted. In the Preferences menu, press À or Y to select AV Connection and press OK.

Press A or Y to select Di Audio Output. AV Connection input Labeling PCIHDMI 3 Audio HDMI 3 Audio Digital Audio Output Press OK to display Digital Audio Format menu and press À or Y to select an option. Audio Format: Press or to select PCM or Auto. PCM: This mode outputs PCM format to the digital audio output socket. Auto: This mode outputs Dolby Digital (if available) or PCM to the digital audio output socket. Dolby Digital —+ Dolby Digital Dolby Digital Plus — Dolby Digital MPEG —+ PCM HE-AAC — Dolby Digital Audio Delay, Press or to select Auto or Manual. Auto: This mode automatically adjusts the audio timing to meet the video timing. NOTE: The time lag might be large between the image and sound depending on the connected equipment (amplifier etc). In that case, select Manual. fou can manually adjust the audio signal ming to meet the video signal timing. Delay Adjustment: Press or to adjust the audio signal timing {0 250ms) to meet the video signal timing. NOTE: + This feature is grayed out when Audio Delay is in Auto Atime lag will occur when the video signal or audi signal is changed. Adjust the timing accordingly. + When adjusting the timing, turn down the volume ofthe AV equipment used as far as possible. Depending on the equipment, noise etc. may occur when the signal is changed. Dependingonthe connected equipment (amplifier, etc), adjustment may not be possible + Whenthe optical digital output setting (Auto-+—PCM) is changed, it may be necessary to adjust the timing again. Do not use other than for audio output from the AV amplifier, etc. (Malfunction may occur)

Using Personal TV Mode You can customize some TV functions as desired and those settings can be saved in one of 4 Personal Modes (A to D). The Personal Mode can be selected from the Quick Menu (manual switching), or when individual Facial Recognition is performed with the camera, at the Welcome Window, press the coloured button corresponding to each Personal Mode. Manual Switching @ press QUICK to open the Quick Menu. © press À or Y to select Personal Mode and press OK. Personal Mode Personal Mode À Personal Mode B 8 Personal Mode C Personal Mode D @ press AY orcorresponding colouredbutton to select individual Personal Mode from Normal, Personal Mode A, Personal Mode B, Personal Mode C'and Personal Mode D. The mode will default to Normal every the TV is tumed off and on. NOTE: the Personal PIN has been set, the Lock icon will be displayed. the Personal PIN entry screen is displayed, enterthe correct Personal PIN. Facial Recognition After registering faces beforehand for each Personal Mode, the Welcome Window will be displayed when the camera detects a corresponding face. The Personal Name corresponding to the detected face will be displayed in the Welcome Window. Change Personal Modes by pressing the corresponding Coloured button while the Welcome Window is being displayed. Switch at this time to the Personal Mode corresponding to the Coloured button that was pressed, even ifit is the Coloured button for a Personal Mode that corresponds to a face other than the one recognized. NOTE: Ifthe Personal PIN has been set, the Personal PIN entry screen will be displayed. Enter the correct Personal PIN. Personal TV Setup © pe: MENU/ 4 / À / 4 t0 highlight Setup/ Preferences icons and press OK. © press À or Y to select Personal TV Setup and press ok. Personal TV Setup Personal Mode A Personal Mode B (@ Personal Mode € Personal Mode D @ press À or Y (or corresponding coloured button) to selectthe individual Personal Mode and press OK. Personal TV Setup Personal Mode À al Recognition My Face Registered Faces Edit Name Personal PIN Setup Volume Type Preset Volume so Default Facial Recognition Press A or Y to select Facial Recognition and press 4orb to select On or Off to activate or deactivate this function. My Face My face is the facial registration necessary for performing Facial Recognition. @ ps À or Y to select My Face and press OK. The My Face screen will appear. @ oisplay the video image currently being taken by the camera. [fa face is detected, display the camera sensorwill place a focus around thatface. When a face is detected within the "OK to register” frame on the My Face screen, press OK to register. NOTE: + Itwill be impossible to register a face if there are multiple faces detected inside of the video image. + Itwill be impossible to register a face ifthere is no face detected inside ofthe video image. + Itwill be impossible to register a face ifthe face was already registered for another personal mode. + Itwill be impossible to register a face ifthe TV is recording Status. At this time, the video from camera cannot be played. Black screen will be displayed and "Not available” message. + Ifthe above Facial Recogni grayed out. n is Off, My Face will be

+ Ifalready registered 10 faces, new face cannot be + Personal Picture Mode: registered. The Picture Mode you selected is stored in your Personal | Mode. Registered Faces This feature is to confirm a face that has already been Personal Grouping of Recorded Programmes registered. When switching between Personal Modes, recordings (OTR, eo h TimeShift, Timer Recording) will be displayed categorically in Press À or Y to select Registered Faces and press the Library by Personal Mode ok. Programmes recorded in Personal Mode A/B/C/D with OTR or The Registered Faces screen will appear. TimeShift will be saved remembering the Personal Grouping corresponding to each respective mode. Press À Y 4 to select each registered face. When user performs a Timer Recording while in Personal Mode A/B/C/D, after the transition to Set Timer, make the Default for Personal Grouping (a Set Timer setting item) be a Press the RED button if you want to delete the face. selection item corresponding to whatever mode you are in. When you perform OTR, TimeShift, or Timer Recording while in Normal Mode, the Personal Grouping for recorded and press OK. programs will be remembered as "None." Press orb to select Yes inthe confirmation window NOTE: When the Reset TV is executed, all registered faces will be reset. Edit Name You can edit the name of your Personal Mode. Press A or Y to select Edit Name and press OK. Edit the desired name by using the software keyboard. (See page 47) The maximum number of characters is 25. Personal PIN Setup Press A or Y to select Personal PIN Setup and press ok. Enter your personal PIN in same manner as “Parental PIN Setup” on page 74. Volume Type Press A or to select Volume Type and press or) to select Preset or Last. Last — Volume level just before you turn offthe TV. Preset — Your personal volume level you set. Preset Volume Press A or Y to select Preset Volume and press À or Y to adjust your desired volume level. When the Volume Type is set to Last, this feature will be grayed out Behavior in Personal Mode + Personal Favourite Channel List (Fav5 -Fav8): Normal Mode: Favl /Fav2/Fav3 /Fav4 Personal Mode A: Fav5 Personal Mode B: Favô Personal Mode C: Fav7 Personal Mode D: Fav& Pressthe LIST button to display Channel List and press 4or D to select All or your Personal Mode (Fav5 - Fav8)

Using REGZA-LINK This is a new feature that uses CEC technology and allows you to control Toshiba REGZA-LINK compatible devices from the television remote control via HDMI connection (page 12). When the Enable REGZA-LINK item in the REGZA-LINK Setup menu is set to On, individual functions also set to On be activated. Enable REGZA-LINK @ press MENU/ > / À / 4 to highlight Setup/ Preferences icons and press OK. © press À or Y to select REGZA-LINK Setup and press ok. ® press Y to highlight Enable REGZA-LINK, and then press Corb to select On REGZA-LINK Setup ‘Amplifier Control Initial Speaker Setting Position Key Pass Through NOTE: you set Enable REGZA-LINK to Off, all other items will be grayed out. TV Auto Power The TV Auto Power setting allows the television to be automatically switched on if a REGZA-LINK device is turned on. @ the REGZALINK Setup menu, press Y tohighlight TV Auto Power. @ press 4orb to select On or Off. Auto Standby When Auto Standby is enabled, the television, when switched off will automatically switch off (standby mode) all connected REGZA-LINK equipment. © the REGZA-LINK Setup menu, press Y tohighlight Auto Standby. @ press 4orb to select On or Off. When Amplifier Control is set to On, it allows the “Speaker Preference”feature to become available. © the REGZA-LINK Setup menu, press Y tohighlight Amplifier Control. @ press 4orb to select On or Off. Ini jal Speaker Setting This feature allows the audio output preference to be set to the TVspeakers or AV amplifier speakers. The AV Amplifier option lets the television's remote control adjust or mute the volume ofthe audio. © the REGZA-LINK Setup menu, press Y tohighlight Initial Speaker Setting. © press 4ork to select TV Speakers or Amplifier. Position Key Pass Through When Position Key Pass Through for the selected HDMI input mode is set to On, the PA PV and number (0-9) keys on the remote control will pass through. When in Off, those operate as TV programme selection Keys. © the REGZA-LINK Setup menu, press Y tohighlight Position Key Pass Through and press OK. © press À or Y to select the appropriate HDMI mode. © press 4orb to select On

REGZA-LINK input source selection Ifa REGZA-LINK device with HDMI switching capability (e.g. AV amplifier) is connected to the HDMI input, you can selectanother REGZA-LINK device that is connected to the master HDMI device on the input source list. @ press © and a list will appear on screen showing available input sources. ® press Y to select the desired input source with REGZA-LINK icon. ® press and a second selection screen will appear showing al connected REGZA-LINK equipment. Inputs HDMI 3 HDMI 4

© press À or Y to select the desired input source, and then press OK. NOTE: + These functions depend on the device connected. you select the REGZA-LINK input source from the popup windows, some REGZA-LINK devices may automatically turn on. When the television is switched on it willtake a few minutes or the REGZA-LINK icon to appear in the list. When an HDMI cable is removed, it will take a few minutes for the icon to disappear. + Ifthe HDMI cable from connected equipment is changed, Enable REGZA-LINK in the REGZA-LINK Setup menu may need to be reset to On. you change the HDMI lead to a connected device or change an HDMI device setting, reset the Enable REGZA- LINK item on the REGZA-LINK Setup menu from Off to On. REGZA-LINK Device Control With the REGZA-LINK mode on your television’'s remote control, you can control the connected REGZA-LINK device you are watching. To control the REGZA-LINK input source first select the equipment by REGZA-LINK input source selection. @ press Quick to open the Quick Menu. © press À or Y to select REGZA-LINK Device Control and press OK. IREGAZA-LINK Device Recorder EX ls Root en “antants Menu Setup Menu Top Menu DV en Audio ®@ press À or Y to select a control option and press OK. NOTE: The available functions depend on the equipment connected. Please refer to the operation manual for each piece of equipment connected. REGZA-LINK one touch play When connected equipment is switched on, REGZA-LINK will automatically detect the television through the input selection. Ifthe television is in standby, it will be switched on automatically. These functions can be enabled or disabled from the REGZA- LINK Setup (see page 85). NOTI + Even ifthe equipment is showing a menu, the television may automatically show the input source. + This feature depends on the connected equipment and television state. REGZA-LINK system standby Ifthe television is turned off (standby mode), the televi will send a message to turn off (standby mode) all of the REGZA-LINK devices connected to the television. These functions can be enabled or disabled from the REGZA- LINK Setup (see page 85). NOTE: This feature depends on the connected equipment and television state.

REGZA-LINK system audio control With your television's remote control, you can adjust or mute the sound volume ofthe speakers connected to the television via an AV amplifier. @ setthe Speaker Preference to Amplifier in the REGZA-LINK Setup menu © confirmthataconnected REGZA-LINK device (such as aDVD player, etc is selected forthe AV amplifier input source NOTE: + These functions depend on the device connected. + When you turn on the AV amplifier, change its input source, or adjust the sound volume, the sound will be output from the AV amplifier speakers even if TV Speakers has been selected. Turn the television off and on again to output the sound from the TV Speakers. This feature may not work ifthe AV amplifier is operated. Toshiba PC compatible with REGZA-LINK This feature automatically adjusts the suitable widescreen formats and picture preferences when connected to a Toshiba PC compatible with REGZA-LINK NOTE: This feature depends on the connected equipment state.

(TEXT SERVICES Text services This television has a multi-page text memory, which takes à few moments to load. It offers two Modes of viewing text - Auto will display Fastext, ifavailable. LIST will save your four favorite pages. Selecting modes The text character set will be automatically chosen by the language setting in the Setup menu. Press MENU / € / A / 4 to highlight Setup/ Preferences icons and press OK. © press À or Y to select Teletext, and then press or D to select Auto or LIST. Preferences Personal TV Setup REGZA-LINK Setup Network Setup Network Device Setup Photo Frame Setup Toletext Network Lock Panel Lock Text information The TEXT button: To view text services press TEXT. Press again to superimpose the text over a normal broadcast picture and again to return to normal viewing. Channels cannot be changed until text is cancelled. ‘The first text page shown will be the initial page. Any text page can be accessed by entering the 3 digit page number using the numbered buttons, pressing the coloured buttons or pressing PA to advance to the next page and PV to go back to the previous page. Sub-pages The pages on the screen will dynamically update as sub- pages are received Ifyou open a page containing sub-pages, the sub-pages are automatically displayed in sequence. To quit automatic sub- page change, press 4orb. Once selected, the sub-page you are viewing will be highlighted and, as the television loads any additional sub- pages, the colour ofthe numbers will change, indicating that these pages have been loaded. These sub-pages will remain available to view until another Navigating pages using Auto HFastext is available, four coloured titles will appear at the base ofthe screen. ‘To access one ofthe four given subjects, press the relevant coloured button on the remote control For further information on your particular text system(s), see the broadcast text index page or, consult your local Toshiba dealer. Navigating pages using LIST The four coloured choices at the bottom of the screen are numbers - 100, 200, 300 and 400, which have been programmed into the television's memory. To view these pages, press the relevant coloured buttons To change these saved pages, press the relevant coloured button and enter the 3 digit number. This number will change in the top left ofthe screen and in the coloured highlight. Press OK to save. Whenever OK is pressed, all four page numbers showing at the bottom will be saved and the previous ones will be lost. I OK is not pressed, the selection will be forgotten when the channel is changed. Other pages may be viewed by entering the 3 digit page number - but DO NOT press OK or these pages will be saved. page is chosen or, in normal TV mode, the channel is changed.

TEXT SERVICES Control buttons Below is a guide to the functions of the remote control text buttons. To display the index/initial page: to access the index/initial page. The one displayed is dependant on the broadcaster. TEXT To display a page of text: Press TEXT to display text. Press again to superimpose text over a normal picture. Press again to return to normal television viewing. Channels cannot be changed until this has been done E?To reveal concealed text: To discover the solutions on quiz and joke pages press the (7 button. To hold a wanted page: At times it is convenient to hold a page of text. Press (FH and will appear in the top left of the screen. The page will be held on screen until the button is pressed again. To enlarge the text display size: Press (E3Jonce to enlarge the top halfofthe page, press again to enlarge the bottom half of the page. Press again to revert to normal size. pictur To select a page whilst viewing normal Enter the page number then press (@)/EX, normal picture will be displayed. The television will indicate when the page is ready by changing the colour of the page number at the top ofthe screen. Press TEXT to view the page. To display news flashes: Select the news flash page forthe chosen text service (see the index page of text service). The news flashes will be displayed as and when they are broadcast © remember to cancel text before changing channels - press the TEXT button twice.

PROBLEM SOLVING Questions and Answers Below are the answers to some of the most common queries. Q Why is there no sound or picture? Check the television is not in standby mode. Check the mains plug and all mains connections. There is a picture, but why is there little or no colour?

When using an external source, for instance, a poor quality video tape, there is little or no colour, improvements may sometimes be achieved. The colour is factory set to Auto to automatically display the best colour system To check that you have the best colour: @ win the external source playing, select Colour System from the System Setup menu. System Setup Menu Language English Country LGoiour System Gormany Auto

With ÆorB choose between Auto, PAL, SECAM, NTSC 4.43 or NTSC 3.58. Why doesn't the video/DVD being played show on screen? Make sure the media recorder or DVD player is connected to the television as shown on page 10, and then select the correct input by pressing ©). Way is there a picture but no sound? Check all lead connections No sound or unacceptable format sound may be received! Check the volume has not been turned down or that sound mute has not been selected. Check shared audio settings. © 21© © What else can cause a poor picture? Interference or a weak signal. Try a different television station. Manual Fine Tuning may help. Selectthe ATV Manual Tuning menu. Highlight the station and press OK. Then press B to select Manual Fine Tuning. Using À or Y adjust to get the best picture and sound. Press OK and then EXIT. ATV Manual Tuning Manual Fine Tuning. MEET | Why don't the controls of the television work? Check that Panel Lock is not On. Why doesn't the remote control work? Check that the batteries aren't dead or inserted incorrectly. Why is the digital channel locked? The channel has been locked in Channel Options (see "Digital Settings’ section). Why are some of the digital subscription channels unavailable? Your subscription needs upgrading. Contact your service provider. Why is the soundtrack in English when a different audio language has been selected? The programme is currently being broadcast with an English soundtrack only. Why is there incorrect or no sound when in DTV mode? Press CDI/I to ensure the hard of hearing option has not been selected.

PROBLEM SOLVING > HO 21©O 20210 > HO È2tQ 2t©Q Lt What is DVB-T? Digital Video Broadcast via an aerial/antenna. What is DVB-C? Digital Video Broadcast via a cable connection. How are radio channels selected? Press TV on the remote control and select DTV Radio. Alternatively select from the GUIDE. What can be done ifthe PIN number has been forgotten? Use the Master PIN code of 1276, then change to a number of your choice. Select Parental PIN Setup from the DTV Settings menu to enter PIN. Ensure that no-one else can use the Master PIN by removing the Owners Manual. Why are there vertical stripes on the screen when in PC mode? The Sampling Clock may need adjustment. Select PC Settings from the Display Settings menu, highlight Sampling Clock and adjust until the lines clear. Why are there horizontal stripes and/or blurred images on the screen when in PC mode? The Clock Phase may need adjustment. Select PC Settings from the Display Settings menu, highlight Clock Phase and adjust until the picture clears. Why when digital subtiles have been selected are they not showing on screen? Subtitles are not currently being transmitted by the broadcaster. Why are there problems with analogue text? Good performance oftext depends on a good strong broadcast signal. This normally requires a roof or loft aerial. Ifthe text is unreadable or garbled, check the aerial. Go to the main index page of the text service and look forthe User Guide. This will explain the basic operation oftext in some detail. further information is needed on how to use text see the text section.

>Q 206210 Why is a page number visible at the top of the screen but no text? Text has been selected but Teletext information is currently unavailable on the current source. Why are the colours wrong when an NTSC source is played? Connect the source via a SCART lead and play. Select Colour System from the System Setup menu. Setthe Colour to Auto and exit. Go to the Picture menu and adjust the tint. Why don't the devices connected via HDMI operate properly? Make sure to use cables with the HDMI logo HDMI (see page 11) Some early HDMI equipment may not work properly with the latest HDMI TV products, due to new standard adoption. Try switching the HDMI settings Enable Content Type and INSTAPORT") to Off. Why don't the REGZA-LINK devices work? When the connected REGZA-LINK device does not work correctiy after you have changed the settings of the device, turn off your television and unplug the power cord, and then plug and turn on again. Unplug the HDMI cable ofthe REGZA-LINK device and lead again. Why is he REGZA-LINK logo still showing when the equipment has been disconnected? Hthe REGZA-LINK device is disconnected, the logo will disappear after approximately one minute. Why don't the networked devices work? The LAN cables are not connected properly or at all. Connect all cables (see page 14). Make sure your network address is set up correctly (see page 45). Why doesn't the wireless network work? Make sure the TOSHIBA Dual Band WLAN Adaptoris used (see page 14). Check that the AP is powered on.

PROBLEM SOLVING Q Why doesn't the Media Player feature operate? Make sure that devices are connected correctly. Incorrect behavior may occur with a USB Hub connection. Check your network setup if using DLNA CERTIFIED"* Server. What do the LEDS on the front of the television indicate? À Check the table below. LED1 LED2 LED indication LED indication Condition Solution LED-1 | LED-2 LED-1 | LED-2 condition Solution Green | Orange Power ON OF | Green | AbnormalopertionofBUS | run orrthe tv Programme Timeris set (Glinks) line. Dhdunplug tre Both Programena Tirier - Red | OFF | AbnomaloperstonofWDT. | power cord. Plug (Recording) and Recording are en) Panererdis work Green | OFF Fan stopped jagainandtum ON Green | Red Power ON {Blinks) {if applicable) the Tv. Programme Timer (Recording) - orRecording is working Orange | Green For Service - tr Da SW Upgrade in Progress Programme Timeris NOT set Red | OF For Service u Both Programme Timer - SW Upgrade Failed (Recording) and Recording are Green | OFF For Service NOT working SW Upgrade Successful © Red_ | Orange | Power OFF (Standby} Programme Timer is set Both Programme Timer - (Recording) and Recording are NOT working Red | Red Power OFF (Standby] Programme Timer (Recording) - or Recording is working Red | OF Power OFF (Standby] Programme Timer is NOT set Both Programme Timer - (Recording) and Recording are T working

INFORMATION License Information This product achieved the European Eco label award issued by the European Commission.

kr dé || You can get more information in following link: HE. | http//eceuropa.eu/environment/ecolabel/ + DDOLBY. Manufactured under license from Dolby PARUS) Laboratories. ŒivoLey. Dolby and the double-D symbol are trademarks vom | of Dolby Laboratories. + HDMI HDMI the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC. INSTAPORT* and INSTAPORT logo are trademarks of Silicon Image, Inc. in the United States and other countries. YouTube and the YouTube Logo are trademarks of Google Inc. This product contains NetFront Browser of ACCESS CO, LTD. Eee ACCESS, the ACCESS logo and NetFront are ACEESS" rademarks or registered trademarks of ACCESS NetFront CO, LTD. in the United States, Japan and other countries. ©2010 ACCESS CO, LTD. All rights reserved. This software is based in part on the work ofthe Independent JPEG Group. Opera” Browser from Opera Software ASA. Copyright 1995-2010 Opera Software ASA. Allrights reserved. For further information, please see bttp:/mww.opera.com OPERA This product contains Adobe® Flash® Player software under license from Adobe Systems Incorporated. Copyright © 1995-2009 Adobe Systems Incorporated. Allrights reserved. Adobe and Flash are trademarks of Adobe Systems Incorporated. DVBis a registered trademark ofthe DVB Project. DIVX+ DivX DivX Certified”, DivX Plus” HD and associated logos are trademarks of DivX, Inc. and are used under license. Covered by one or more of the following US. patents: 7,295,673; 7,460,668:7,515,710;7,519,274

+ DLNA*, DNA? Certification Logo and DLNA CERTIFIED* are registered trademarks, service marks, or certification marks of the Digital Living Network Alliance. THIS PRODUCT IS LICENSED UNDER THE AVC PATENT

INFORMATION INCLUDING THAT RELATING TO

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. Audyssey EQ technology Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending. Audyssey EQ is a registered trademark of Audyssey Laboratories. Audyssey EQis based onthe same core technology as Audyssey MultEQ that is used for automatic correction of room acoustics. Audyssey EQ uses time-domain filters to correct problems that arise from speaker drivers andenclosures andis calibrated to account for the acoustical problems in a typical listening environment.

INFORMATION Cleaning the screen and cabinet. Turn offthe power, clean the screen and cabinet with a soft dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage. Disposal The following information is only for EU-member states: Disposal of products The crossed out wheeled dust bin symbol indicates that products must be collected and disposed ofseparately from household waste. Integrated batteries and accumulators can be disposed ofwith the product. They will be separated at the recycling centres. The black bar indicates that the product was placed on the market after August 13, 2005. By participating in separate collection of products and batteries, you will help to assure the proper disposal of En products and batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product. Disposal of batteries and/or accumulators EU The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separatel} from household waste. Ifthe battery or accumulator contains more than the specified values oflead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol. Hg Cd Pb By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

INFORMATION Information Before connecting any external equipment, turn off all main power switches. Ifthere is no switch, remove the mains plug from the wall socket. Signal information for Mini D-sub 15 pin connector Pin No. Signal name Pin No. Pin No. Signal name 1 R 6 nm NC 2 G 7 E NC 3 E 8 E H:syne 4 NC 9 14 V-sync 5 Ground 10 Ground 15 NC

English INFORMATION Specifications Receiving systems DVB-T Broadcast systems/channels and accessories Broadcast systems/channels uk UHF 21-68 PALI UHF UK2T-UK9 France VHFOS-10(VHFOI-05) PAL-8/G UHFE21-E69

UHF 21-69 VHFEZEN2, S1-S41

Germany VHFO5-12 SECAM UHFF21-F69

less connection Supplied accessories Optional accessories 32SL/32UL 37SL/37UL 42SL/42UL 46SL/48UL 53cm (H)_ 75cm (M) 26cm (D) 59cm (H)_ 87cm (M) 26cm (D) 68cm (H). 99cm (W) 29cm (D) 73cm (H) 10Bcm (W) 29cm (D) {Height dimension includes foot stand) 32SL/32UL 37SL/37UL 42SL/42UL 46SL/A8UL 130kg 15.0kg 20.5kg 225kg Temperature 5°C- 35°C (41*F -S4%F) Humidity 20 - 803% (non-condensing) Standard: 1E£E 802.1 1a/b/g/n Frequency Range: 5.15-5.35 GHz, 547-5725 GHz, 5.725-5.850 GHz, 2400-2835 GHz Security: WEP64/128, TKIP, AES, WPA/PA2-PSK, \WPS, None +_ Remote control CT-90369 (SL86 series) 2 batteries (AA, IEC RG 1.5V) Remote control CT-90382 (UL86/UL87 series) 2 batteries (AAA, IEC RO3 1.5) P'Clip/Screwr (for TV mounting) See page 5. + TOSHIBA Dual Band WLAN Adaptor WLM-1OU2 (for SL86 series) USB HD (for ULB6/UL87 series) For available USB HDD, see “Product Information on the website. Specification is subject to change without notice.

INFORMATION For your own records

kyx EU NS Ecolabe www.ecolabel.eu EU Ecolabel : PL/22/002 For those products that have been awarded the European Eco Label, TOSHIBA gives a minimum of 2 years guarantee for this LCD TV and 7 years availability for replacement of electronic parts. For warranty repairs, please contact the retailer where you purchased the product. Please see the Toshiba website or European Eco Label website (www.ecolabel.eu) for details of those products. TOSHIBA Television Central Europe Sp.z 0.0. Al rights reserved. Reproduction in hole or par itiout ritten permission strict prohibite. TOSHIBA Television Central Europe Sp. z 0.0. ul Pokoju 1 Biskupice Podgôrne, 55-040 Kobierzyce,Paland
