WLG66/67

Series

Owner's manual

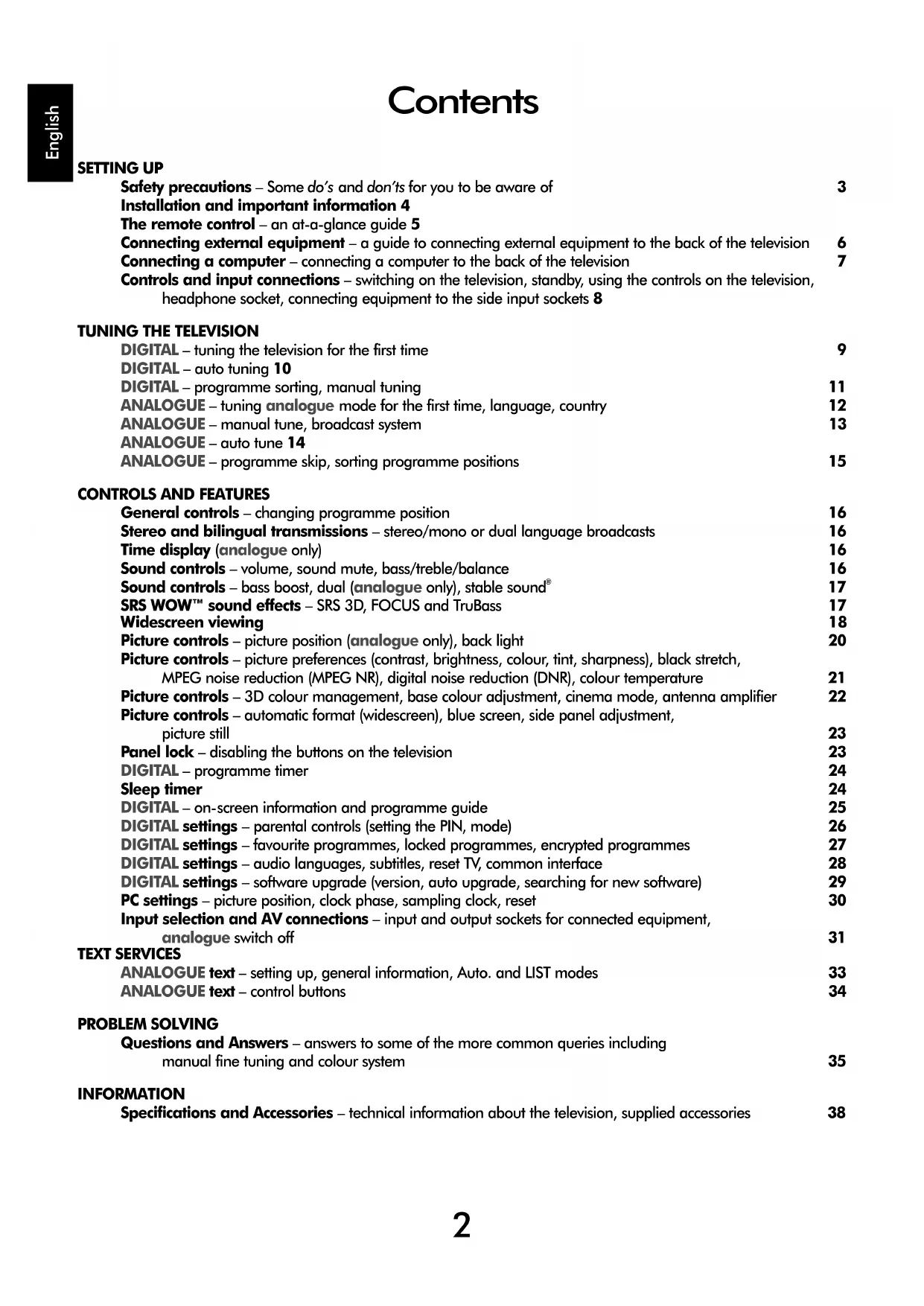

Safety precautions – Some do's and don'ts for you to be aware of 3

Installation and important information 4

The remote control - an at-a-glance guide 5

Connecting external equipment – a guide to connecting external equipment to the back of the television 6

Connecting a computer – connecting a computer to the back of the television 7

Controls and input connections – switching on the television, standby, using the controls on the television, headphone socket, connecting equipment to the side input sockets 8

TUNING THE TELEVISION

DIGITAL – tuning the television for the first time 9

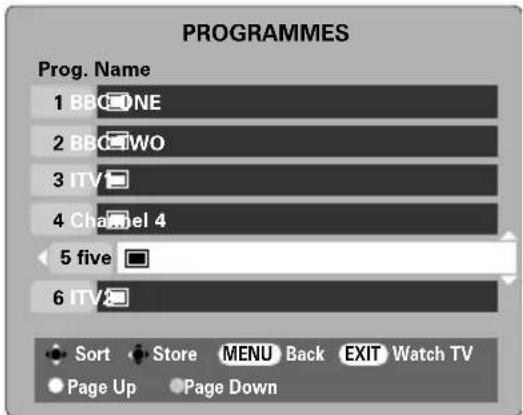

DIGITAL – auto tuning 10 DIGITAL – programme sorting, manual tuning 11

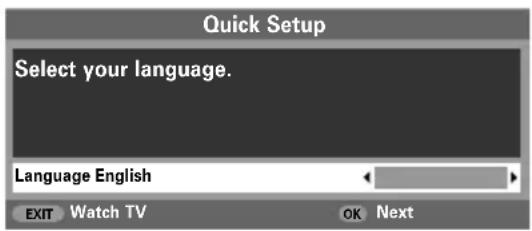

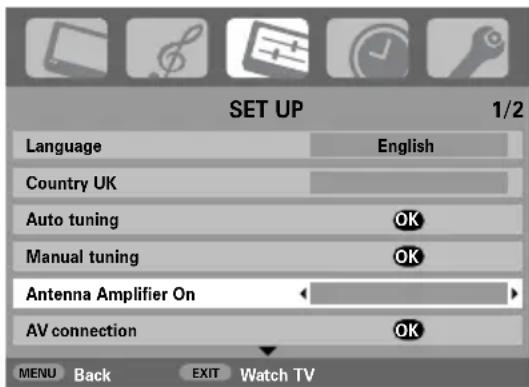

ANALOGUE – tuning analogue mode for the first time, language, country 12

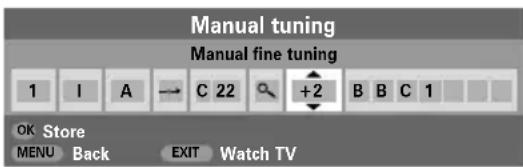

ANALOGUE – manual tune, broadcast system 13

ANALOGUE – auto tune 14 ANALOGUE – programme skip, sorting programme positions 15

CONTROLS AND FEATURES

General controls – changing programme position 16

Stereo and bilingual transmissions – stereo/mono or dual language broadcasts 16

Time display (analogue only) 16

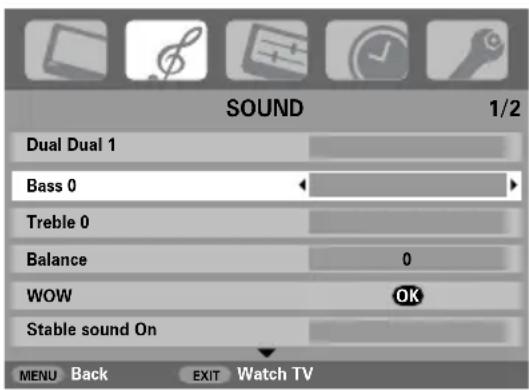

Sound controls – volume, sound mute, bass/treble/balance 16

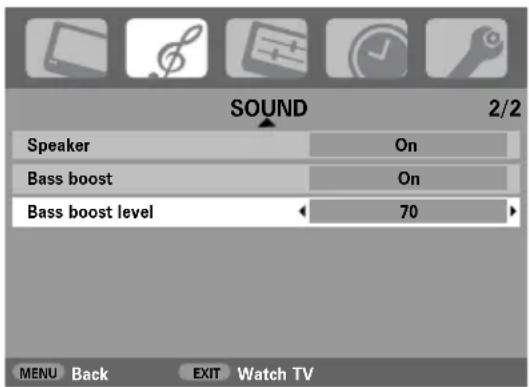

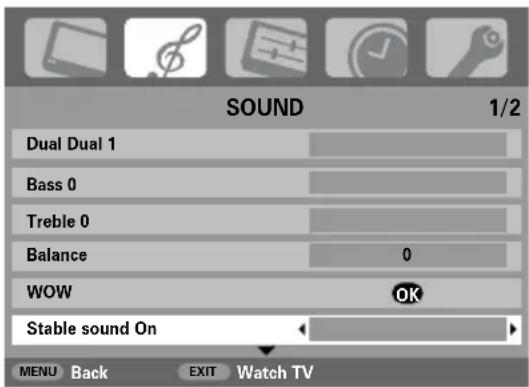

Sound controls – bass boost, dual (analogue only), stable sound ^® 17

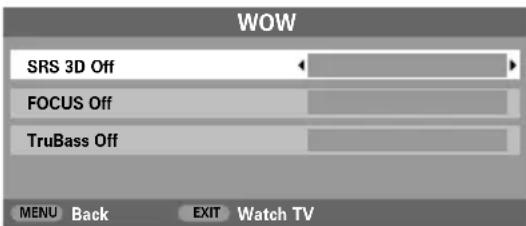

SRS WOW™ sound effects – SRS 3D, FOCUS and TruBass 17

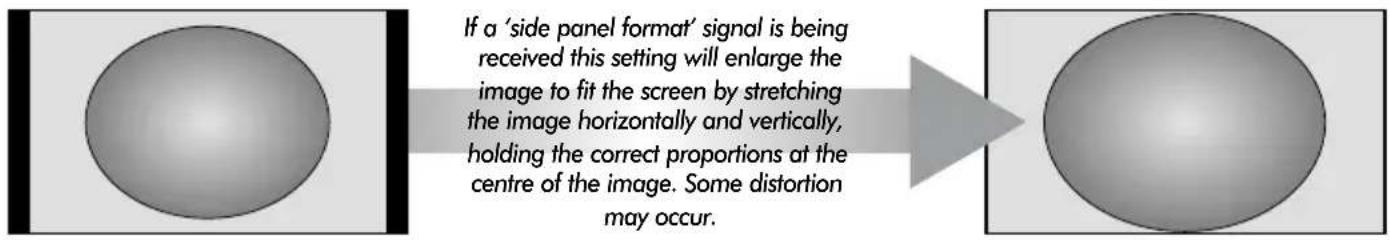

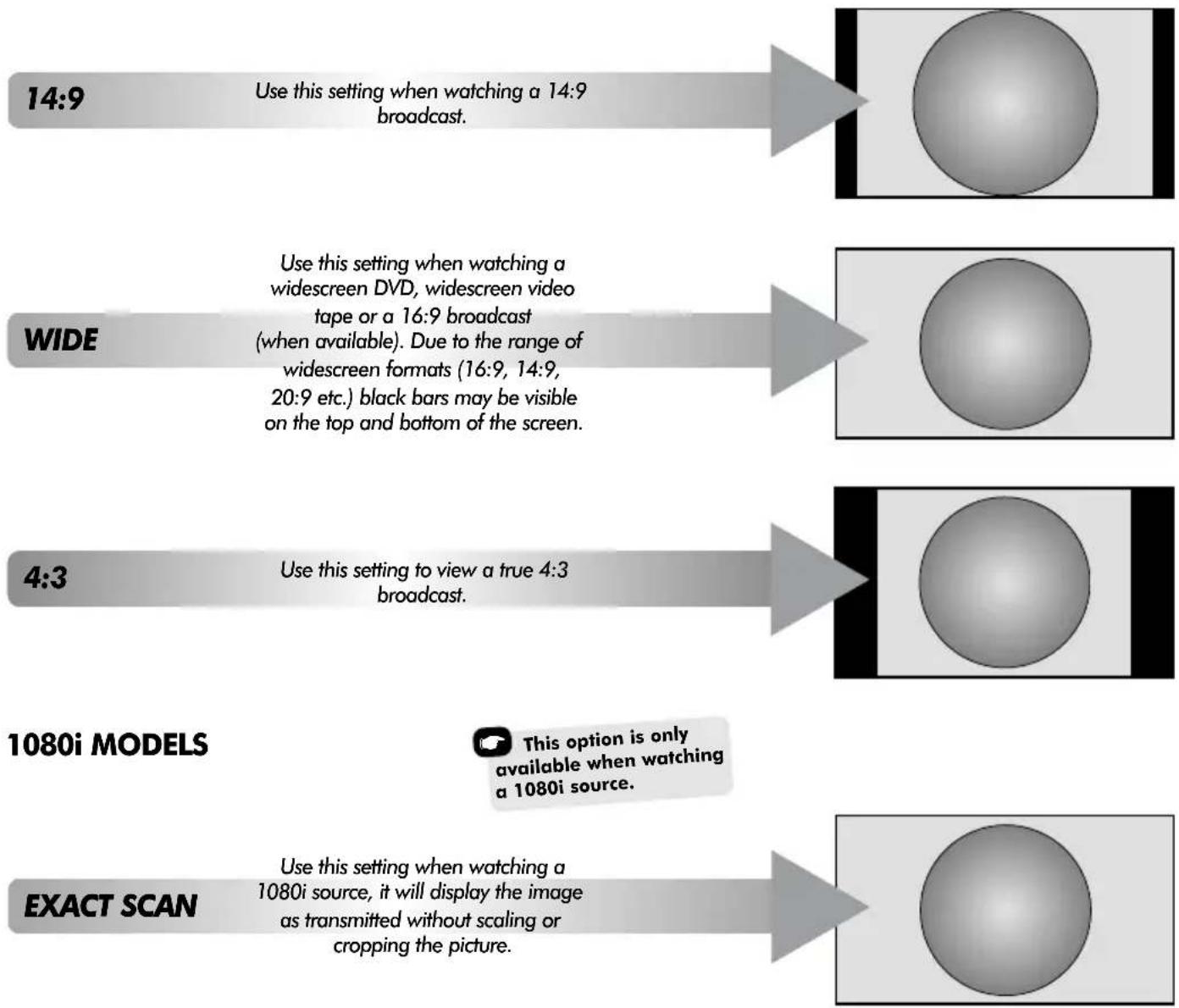

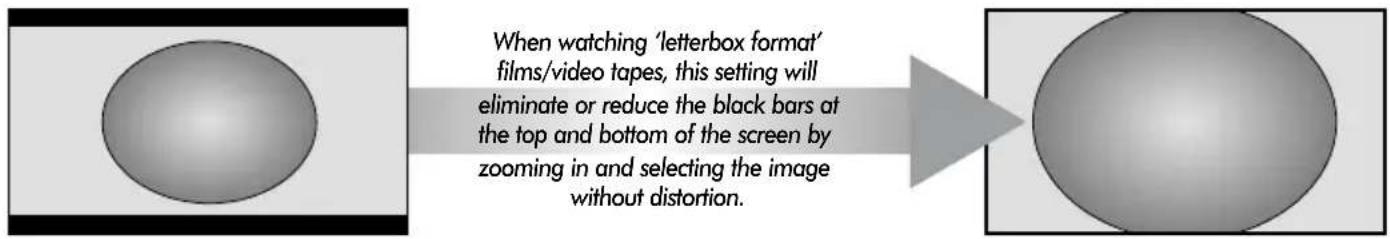

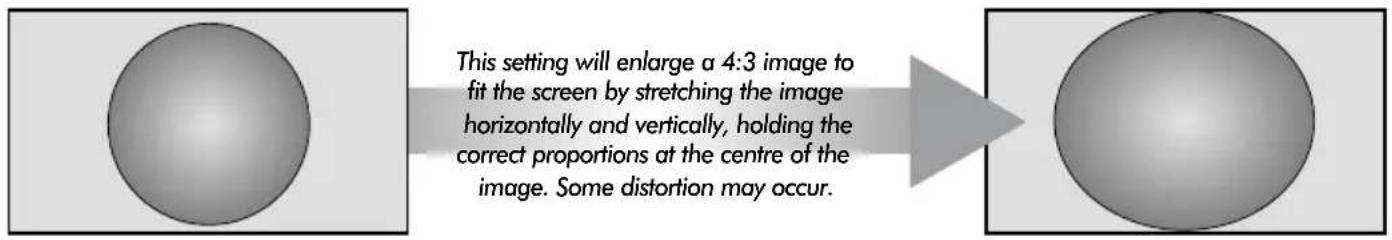

Widescreen viewing 18

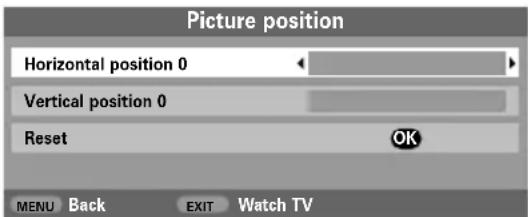

Picture controls – picture position (analogue only), back light 20

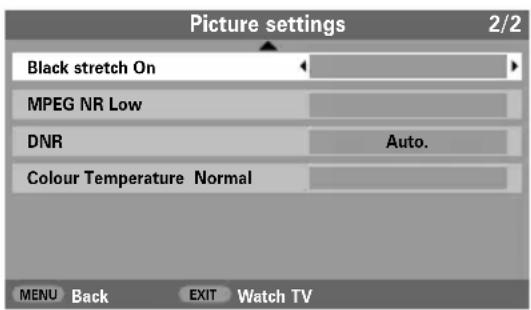

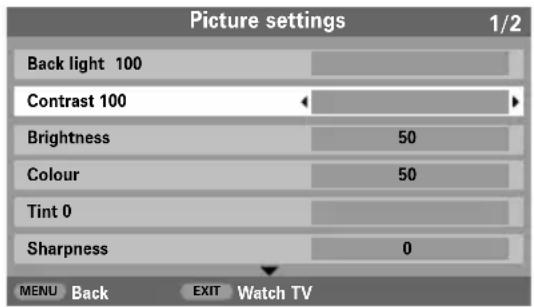

Picture controls – picture preferences (contrast, brightness, colour, tint, sharpness), black stretch, MPEG noise reduction (MPEG NR), digital noise reduction (DNR), colour temperature 21

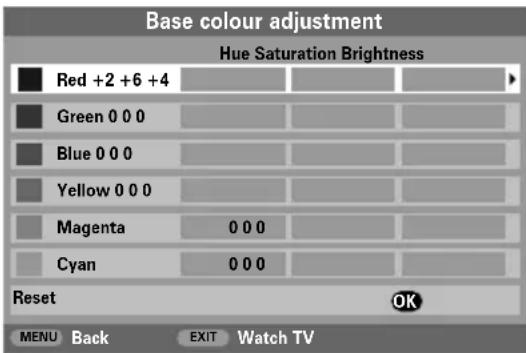

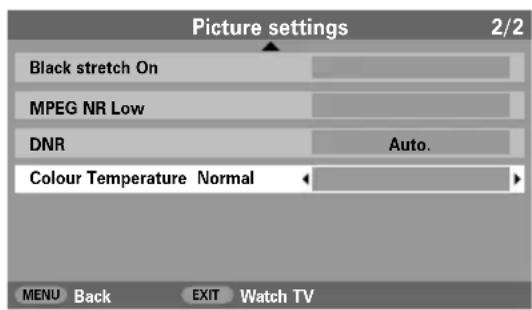

Picture controls – 3D colour management, base colour adjustment, cinema mode, antenna amplifier 22

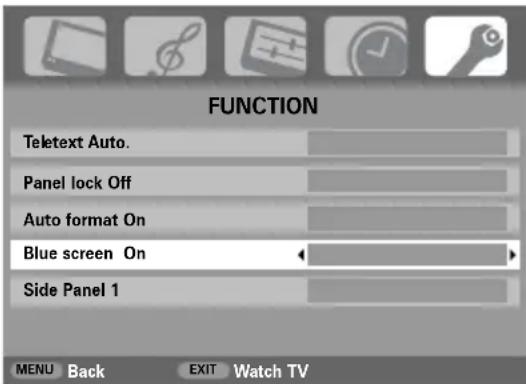

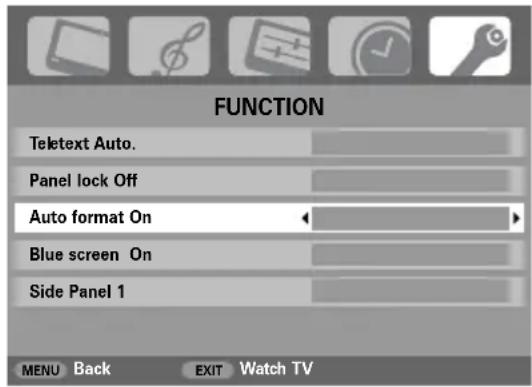

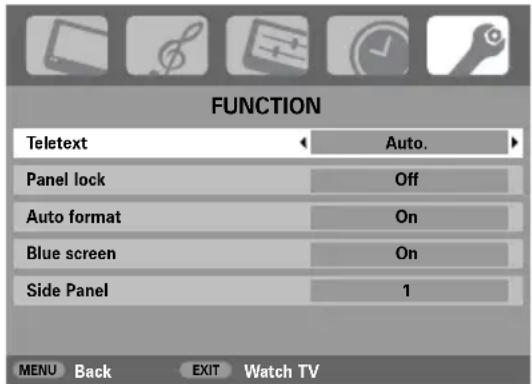

Picture controls – automatic format (widescreen), blue screen, side panel adjustment, picture still 23

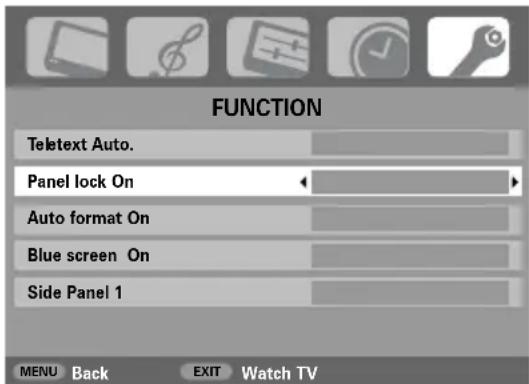

Panel lock – disabling the buttons on the television 23

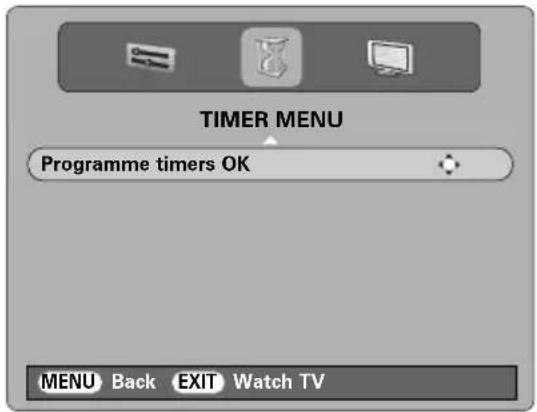

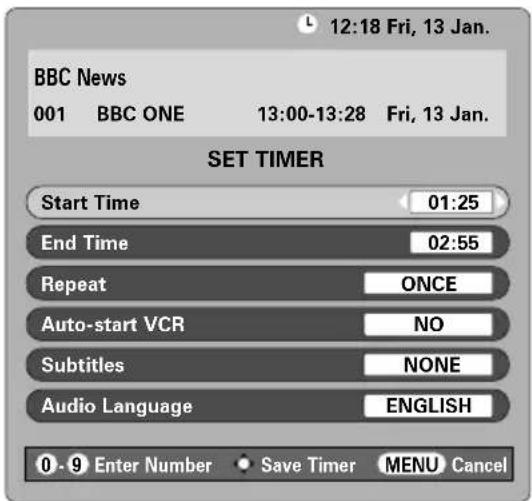

DIGITAL – programme timer 24

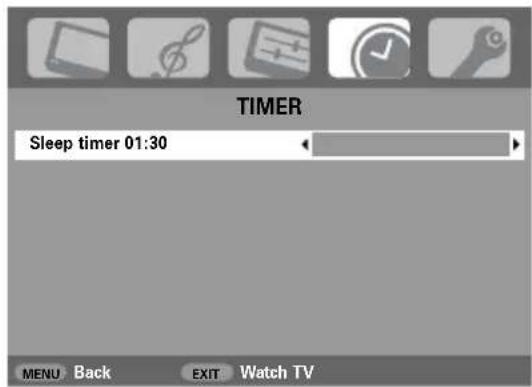

Sleep timer 24

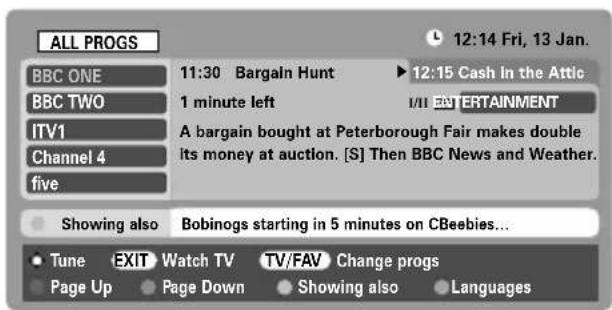

DIGITAL – on-screen information and programme guide 25

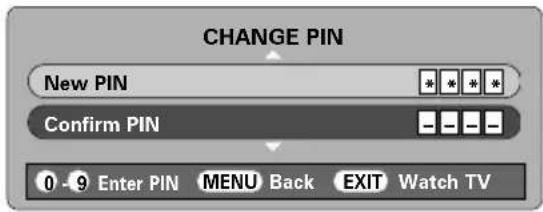

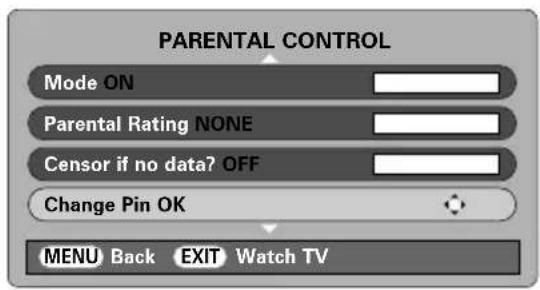

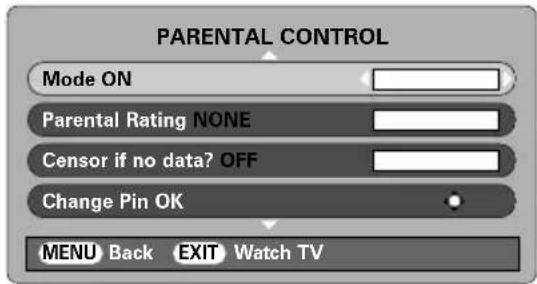

DIGITAL settings – parental controls (setting the PIN, mode) 26

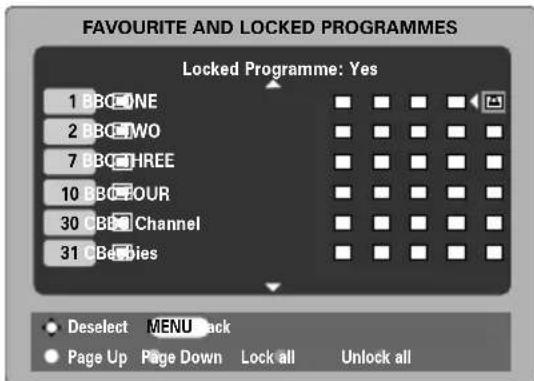

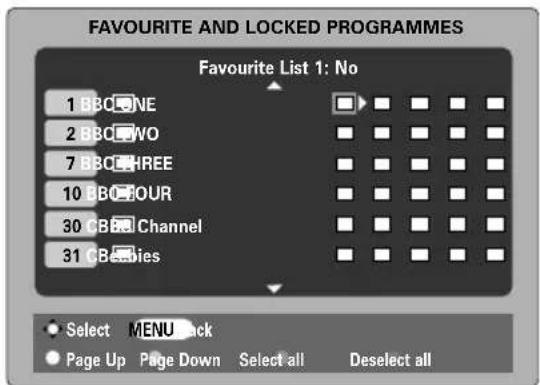

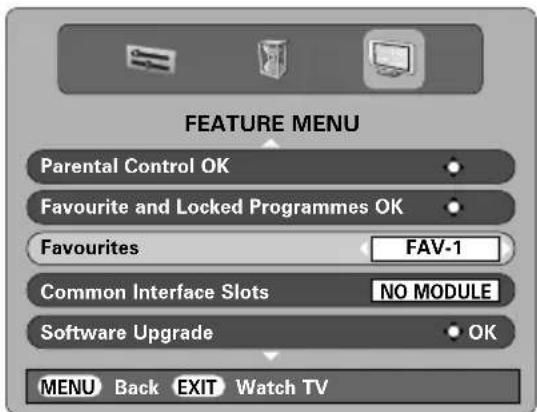

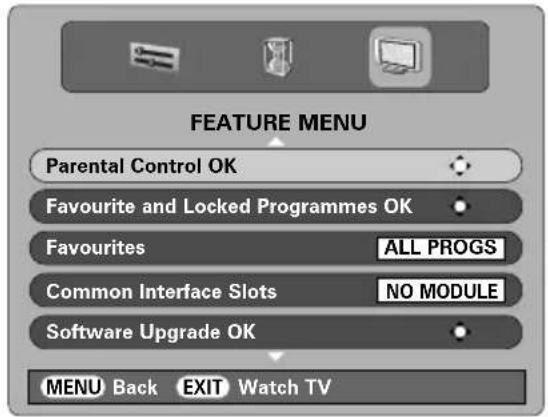

DIGITAL settings – favourite programmes, locked programmes, encrypted programmes 27

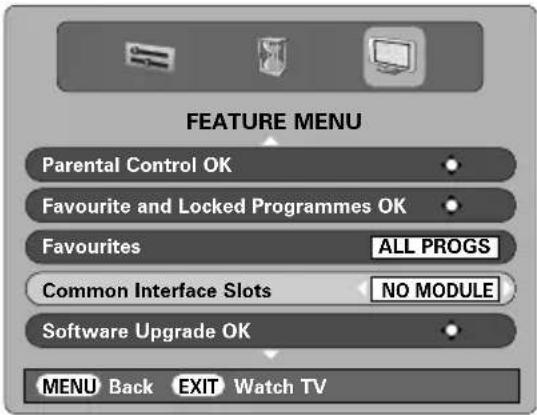

DIGITAL settings – audio languages, subtitles, reset TV, common interface 28

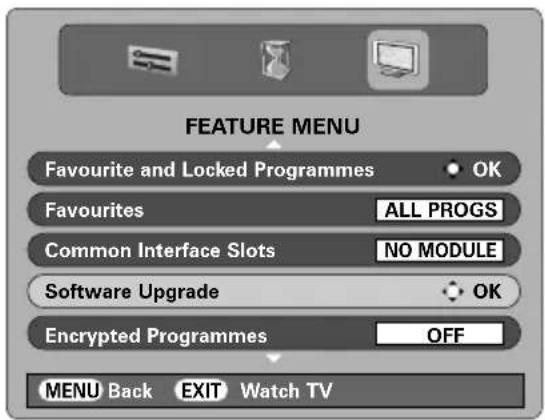

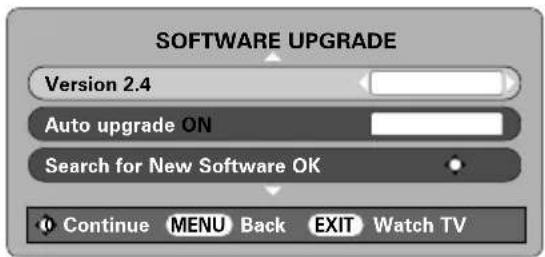

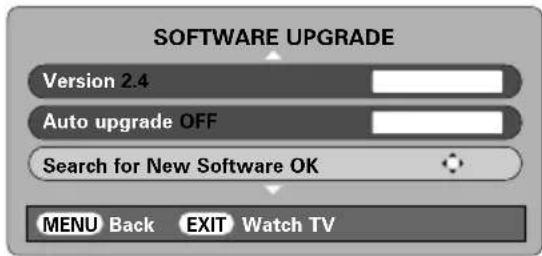

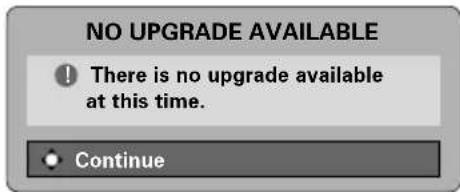

DIGITAL settings – software upgrade (version, auto upgrade, searching for new software) 29

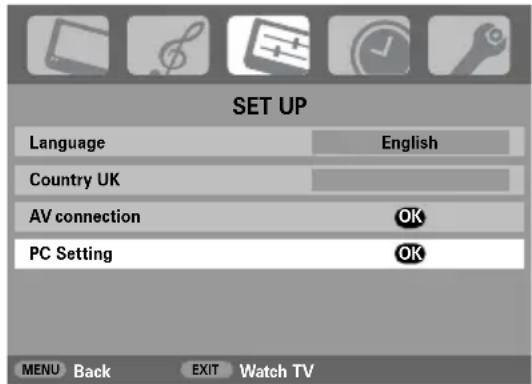

PC settings – picture position, clock phase, sampling clock, reset 30

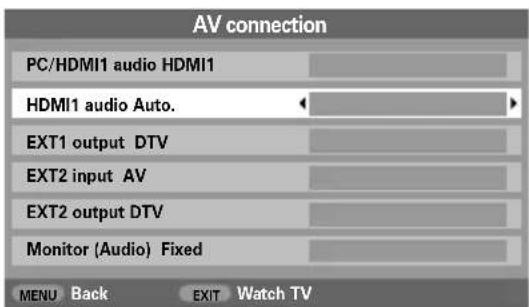

Input selection and AV connections – input and output sockets for connected equipment, analogue switch off 31

TEXT SERVICES

ANALOGUE text – setting up, general information, Auto. and LIST modes 33

ANALOGUE text – control buttons 34

PROBLEM SOLVING

Questions and Answers – answers to some of the more common queries including manual fine tuning and colour system 35

INFORMATION

Specifications and Accessories – technical information about the television, supplied accessories 38

Safety Precautions

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products and some points may not apply to the goods you have just purchased.

Air Circulation

Leave at least 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided.

Heat Damage

Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5°C (41°F) min. and 35°C (94°F) max.

Mains Supply

The mains supply required for this equipment is 220-240v AC 50/60Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead. DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance.

IF IN DOUBT PLEASE CONSULT A COMPETENT ELECTRICIAN.

Do

DO read the operating instructions before you attempt to use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections between pieces of equipment) are properly made and in accordance with the manufacturers' instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

DO be careful with glass panels or doors on equipment.

DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND 'LIVE' PARTS.

THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.

Do not

DO NOT obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

DO NOT allow electrical equipment to be exposed to dripping or splashing or objects filled with liquids, such as vases, to be placed on the equipment.

DO NOT place hot objects or naked flame sources, such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.

DO NOT use makeshift stands and NEVER fix legs with wood screws. To ensure complete safety, always fit the manufacturers' approved stand, bracket or legs with the fixings provided according to the instructions.

DO NOT listen to headphones at high volume, as such use can permanently damage your hearing.

DO NOT leave equipment switched on when it is unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, make sure your family know how to do this. Special arrangements may need to be made for people with disabilities.

DO NOT continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way – switch off, withdraw the mains plug and consult your dealer.

ABOVE ALL – NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.

NEVER guess or take chances with electrical equipment of any kind – it is better to be safe than sorry.

Where to install

Locate the television away from direct sunlight and strong lights, soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.

Place on a sturdy platform, the mounting surface should be flat and steady. It should then be secured to the wall with a sturdy tie using the clip on the back of the stand, or secured to the platform using the fixing strap located underneath the table top stand, this will prevent it from falling over.

The LCD display panels are manufactured using an extremely high level of precision technology, however sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

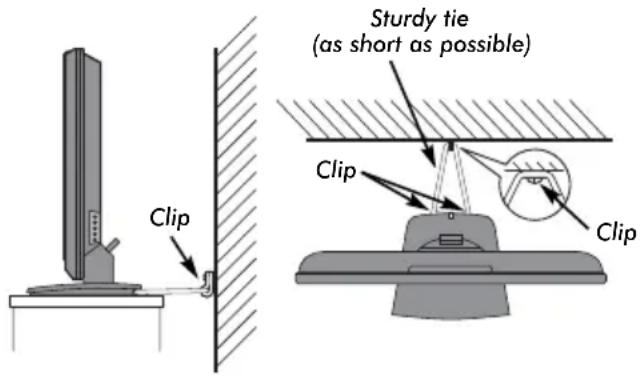

Clip Sturdy tie (as short as possible) Clip Clip

Side View Top View

Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen, and that small items cannot be inserted into slots or openings in the case.

Please take note

EXCLUSION CLAUSE

Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:

i) fire;
ii) earthquake;
iii) accidental damage;
iv) intentional misuse of the product;
v) use of the product in improper conditions;
vi) loss and/or damage caused to the product whilst in the possession of a third party;
vii) any damage or loss caused as a result of the owner's failure and/or neglect to follow the instructions set out in the owner's manual;
viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.

If stationary images generated by text services, channel identification logos, computer displays, video games, on screen menus, etc. are left on the television screen for any length of time they could become conspicuous, it is always advisable to reduce both the brightness and contrast settings.

The remote control

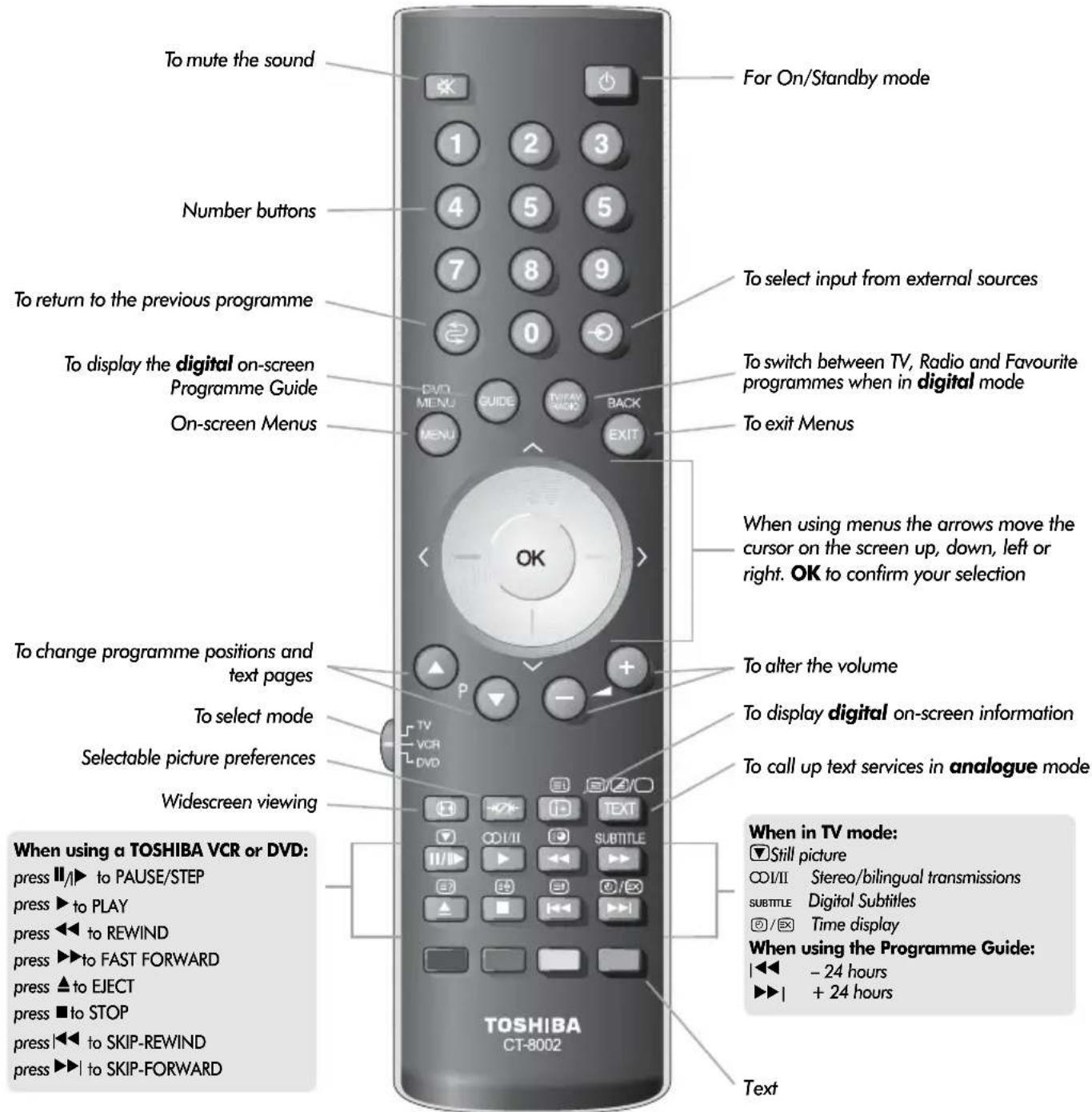

Simple at-a-glance reference of your remote control.

To mute the sound Number buttons To return to the previous programme To display the digital on-screen Programme Guide On-screen Menus For On/Standby mode To select input from external sources To switch between TV, Radio and Favourite programmes when in digital mode To exit Menus When using menus the arrows move the cursor on the screen up, down, left or right. OK to confirm your selection To alter the volume To display digital on-screen information To call up text services in analogue mode To change programme positions and text pages To select mode Selectable picture preferences Widescreen viewing When using a TOSHIBA VCR or DVD: press II/▶ to PAUSE/STEP press ▶ to PLAY press ◀ to REWIND press ▶ to FAST FORWARD press ▲ to EJECT press ■ to STOP press I◀ to SKIP-REWIND press ▶ to SKIP-FORWARD TOSHIBA CT-8002 When in TV mode: Still picture CCI/II Stereo/bilingual transmissions SUBTITLE Digital Subtitles D/☒ Time display When using the Programme Guide: |◀◀ - 24 hours ▶▶+ 24 hours Text

Inserting batteries and effective range of the remote

Technical line drawing of a battery pack assembly (no text or symbols)

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the right way round. Suitable battery types for this remote are AAA, IEC R03 1.5V.

Do not combine a used, old battery with a new one or mix battery types. Remove dead batteries immediately to prevent acid from leaking into the battery compartment. Do not expose to excessive heat such as sunshine, fire or similar. Dispose of them in a designated disposal area.

The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced the batteries may need replacing.

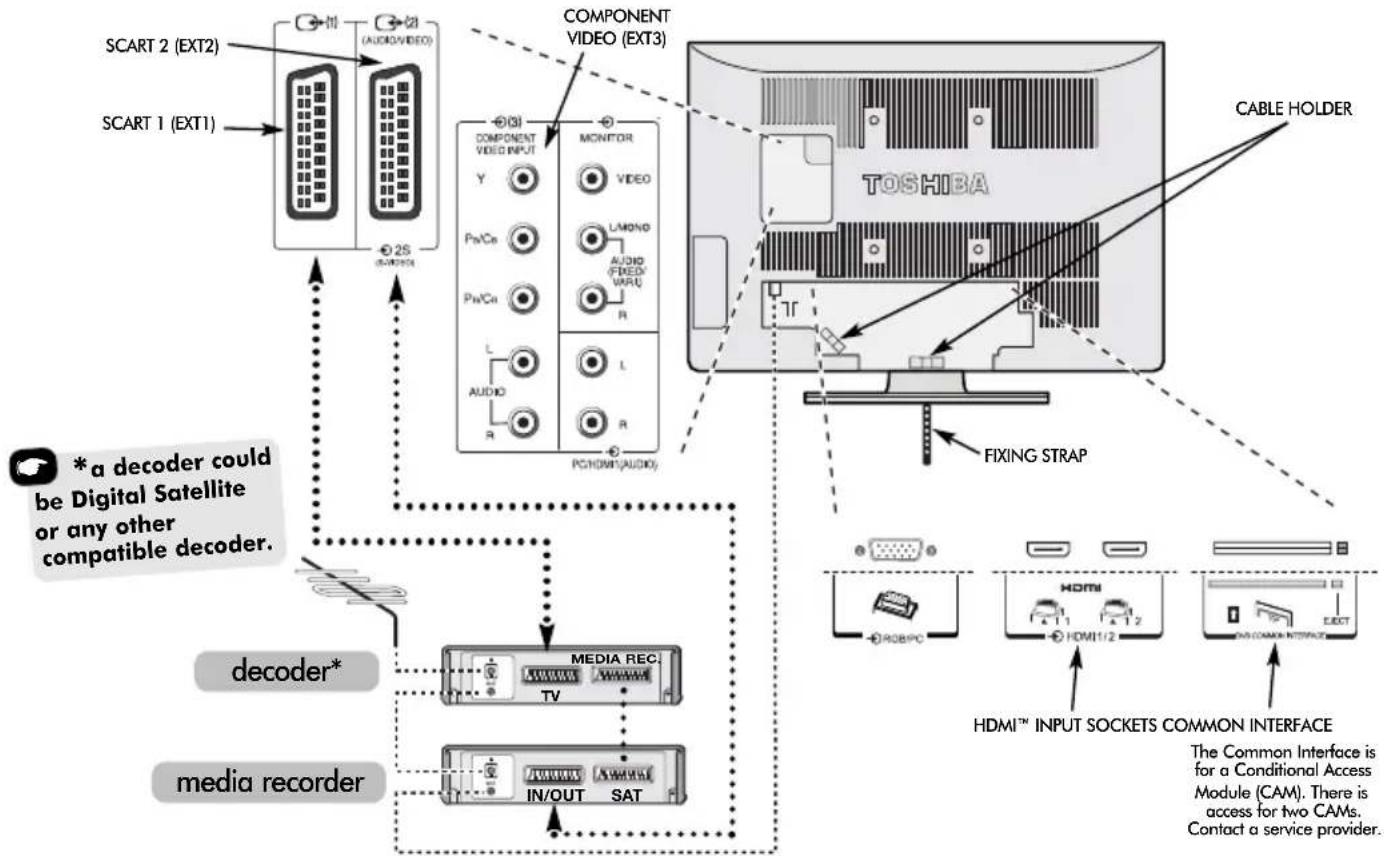

Connecting external equipment

Before connecting any external equipment, turn off all main power switches. If there is no switch remove the mains plug from the wall socket.

Aerial cables:

Connect the aerial to the socket on the rear of the television. If you use a decoder* and/or a media recorder it is essential that the aerial cable is connected through the decoder and/or through the media recorder to the television.

SCART leads:

Connect the video recorder IN/OUT socket to the television. Connect the decoder TV socket to the television. Connect the media recorder SAT socket to the decoder MEDIA REC. socket.

Before running Auto tuning put your decoder and media recorder to Standby.

The phono sockets alongside the COMPONENT VIDEO INPUT sockets will accept L and R audio signals.

In addition there is a fixed/variable external audio output which enables the connection of a suitable Hi-Fi unit. Make sure the Speaker option in the Sound menu is set to Off. The variable option is altered by using the sound controls.

HDMI™ (High-Definition Multimedia Interface) is for use with a DVD, decoder or electrical equipment with digital audio and video output.

It is designed for best performance with 1080i high-definition video signals but will also accept and display 480i, 480p, 576i, 576p and 720p signals.

PLEASE NOTE: Although this television is able to connect to HDMI equipment it is possible that some equipment may not operate correctly.

A wide variety of external equipment can be connected to the back of the television, therefore the relevant owners manuals for all additional equipment must be referred to.

We recommend SCART 1 for a decoder and SCART 2 for a media recorder.

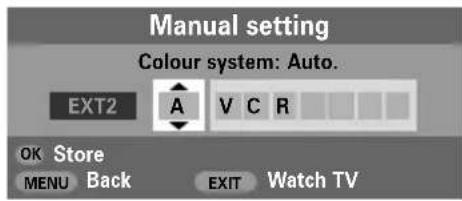

If connecting S-VIDEO equipment, set the INPUT for EXT2. See page 31.

If the television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button. To recall external equipment, press ⬤ to select between DTV, EXT1, EXT2, EXT3(C), HDMI1, HDMI2, PC, or ATV.

The cable holder can be used for aerial, media recorder and audio cables. Do not use the cable holder as a handle and make sure all cables are removed before moving the television.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

Connecting a computer

Before connecting any external equipment, turn off all main power switches. If there is no switch remove the mains plug from the wall socket.

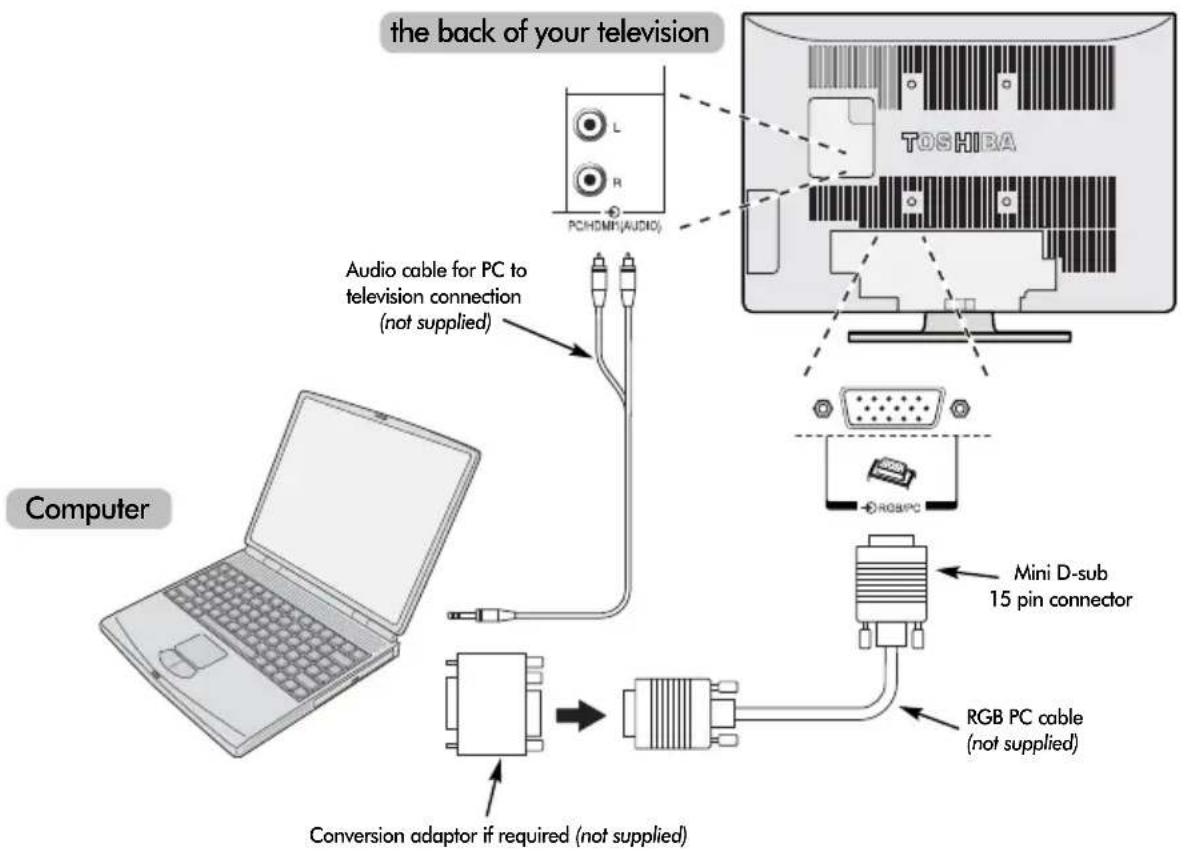

the back of your television TOSHIBA Audio cable for PC to television connection (not supplied) Mini D-sub 15 pin connector RGB PC cable (not supplied) Conversion adaptor if required (not supplied) Computer

Connect the PC cable from the computer to the PC terminal on the back of the television.

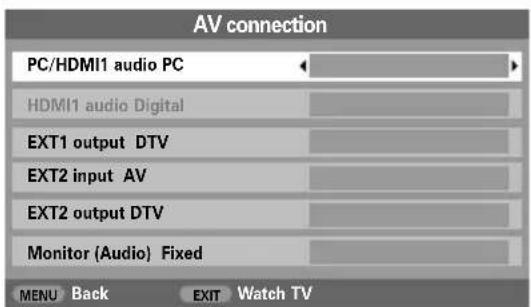

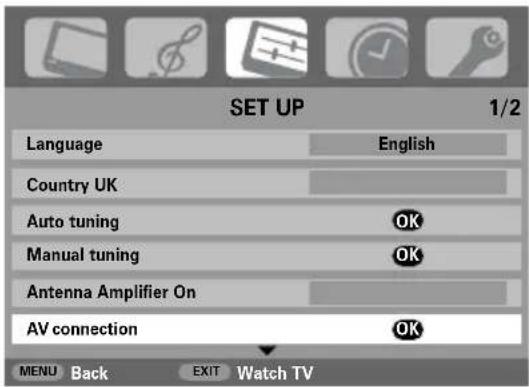

Connect the audio cable to the PC/HDMI1 Audio socket on the back of the television. Select PC from the PC/HDMI1 audio options in the AV connection menu located in the SET UP menu.

Press the → to select PC mode.

The following signals can be displayed:

VGA: 640 x 480/60 Hz (VESA)

SVGA: 800 x 600/60 Hz (VESA)

XGA: 1024 x 768/60 Hz (VESA)

SXGA: 1280 x 1024/60 Hz (VESA)

IMPORTANT NOTE: SXGA will display but it will not be to VESA standard.

PLEASE NOTE:

Some PC models cannot be connected to this television.

An adaptor is not needed for computers with a DOS/V compatible mini D-sub 15 pin terminal.

A band may appear at the edges of the screen or parts of the picture may be obscured. This is due to scaling of the picture by the set, it is not a malfunction.

When PC input mode is selected some of the television's features will be unavailable e.g. Manual setting in the SET UP menu, Colour, Tint, DNR and Black Stretch in the Picture settings menu.

Signal information for Mini D-sub 15 pin connector

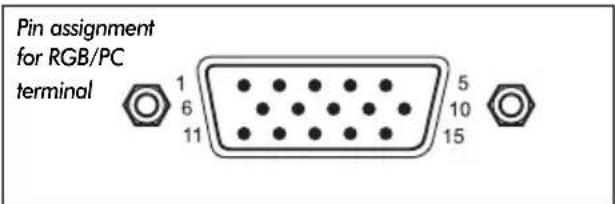

Pin assignment for RGB/PC terminal 1 5 6 10 11 15

Pin. No.	Signal name Pin No.	Signal name
1	R	9	N
2	G	10 Ground
3	B	1	1
4 NC (not connected) 12 NC
5	N	C	1
6	Ground	14	V-sync
7	Ground	15 NC
8	Ground

3

Controls and input connections

A wide variety of external equipment can be connected to the input sockets on the side of the television. Whilst all the necessary adjustments and controls for the television are made using the remote control, the buttons on the television may be used for some functions.

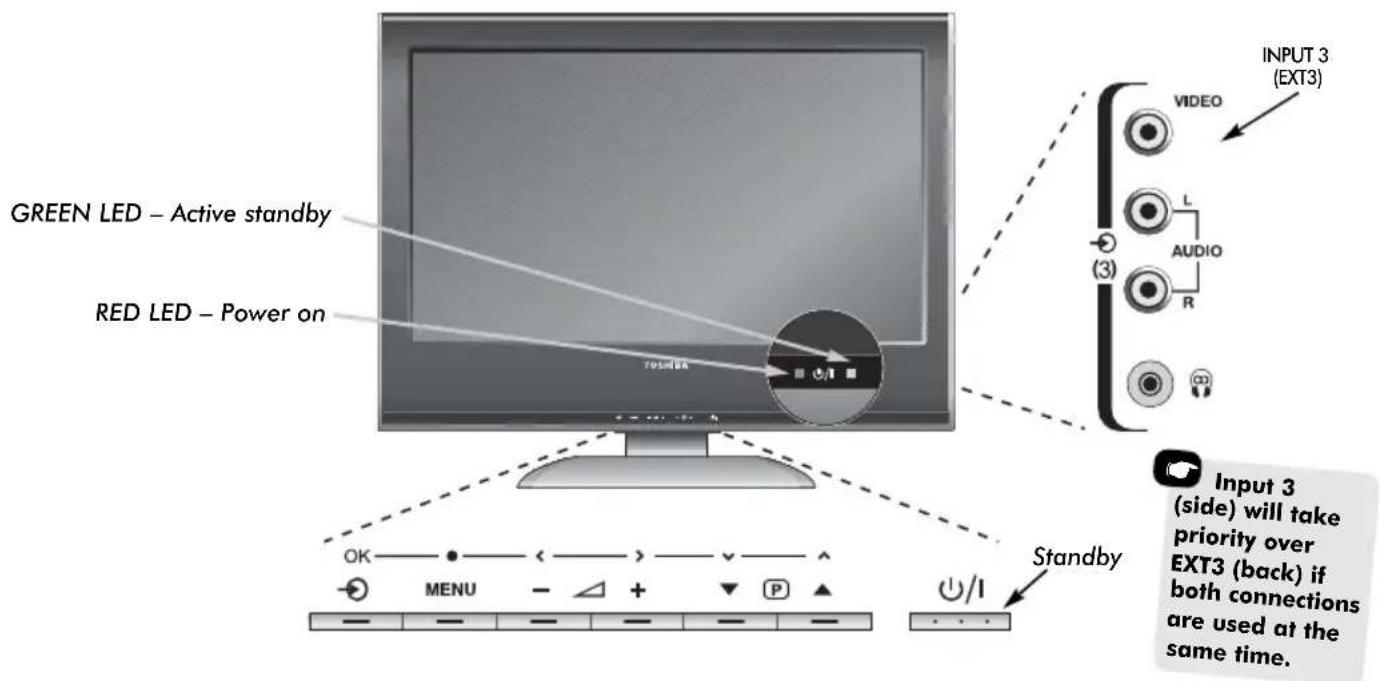

GREEN LED – Active standby RED LED – Power on OUTPUT3 VIDEO L AUDIO R (3) Input 3 (EXT3) Standby Input 3 (side) will take priority over EXT3 (back) if both connections are used at the same time. OK MENU - + P - / I

Switching on

If the RED LED is unlit check that the mains plug is connected to the power supply. If the picture does not appear press ⏻ on the remote control, it may take a few moments.

To put the television into Standby press ⏻ on the remote control, the GREEN active standby LED will appear (see 'Software Upgrade' section) next to the RED for a few moments then disappear. To view the television press ⏻ again. The picture may take a few seconds to appear.

Using the remote control

Press the MENU button on the remote control to see the menus.

In digital mode the menu bar at the top of the screens will show three different topics shown in symbols. As each symbol is selected by pressing the < or > button on the remote control, its respective options will appear below.

In analogue mode the menu appears as a list of five topics. As each symbol is selected by pressing the < or > button on the remote control, its respective options will appear below.

To use the options press the ∧ and √ button on the remote control to move up and down through them and OK, < or > to select the required choice. Follow the on screen instructions. The functions of each menu are described in detail throughout the manual.

Using the controls and connections

To alter the volume press — ∠ +.

To alter the programme position press ▼P ▲△

Press MENU and ⟨,⟩, √ or ∧ to control the sound and picture options.

Press MENU twice to finish.

When connecting sound equipment to EXT3, connect the audio output of the equipment to the phono sockets on the television.

To select the Input, press ⬤ until the display shows EXT3 as described on page 31. The television will automatically sense the type of signal.

Please always refer to the owner's manual of the equipment to be connected for full details.

Please note: Inserting the headphone plug will mute the sound from all speakers.

Tuning the television for the first time

Before switching on the television put your decoder and media recorder to Standby if they are connected and ensure the aerial is connected. To set up the television use the buttons on the remote control as detailed on page 5.

1 Press the power-on button, the LOCAL OPTIONS screen will appear. This screen will appear the first time that the television is switched on and each time the television is reset.

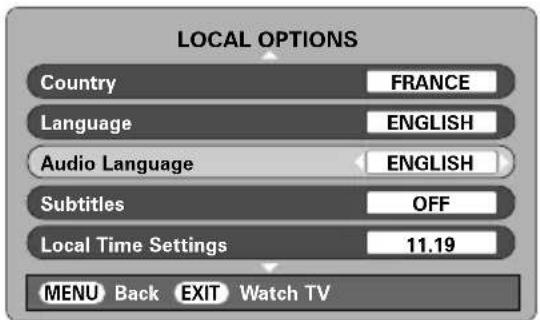

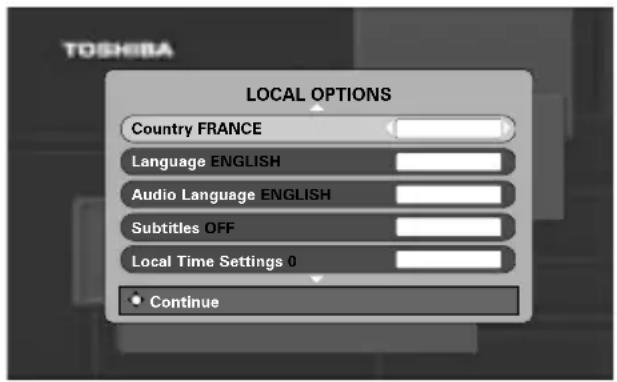

LOCAL OPTIONS Country FRANCE Language ENGLISH Audio Language ENGLISH Subtitles OFF Local Time Settings 0 Continue

2 Press √ to highlight Country and < or > to select. The television will now tune the stations for your country.
3 Using ▼highlight Language, then ⟨or⟩ to select.
4 Press OK to start tuning.

The AUTO TUNING screen will appear and the television will start to search for available stations. The progress bar will move along the line.

You must allow the television to complete the search.

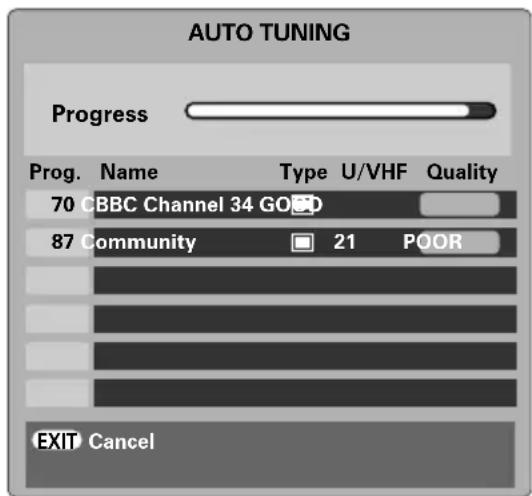

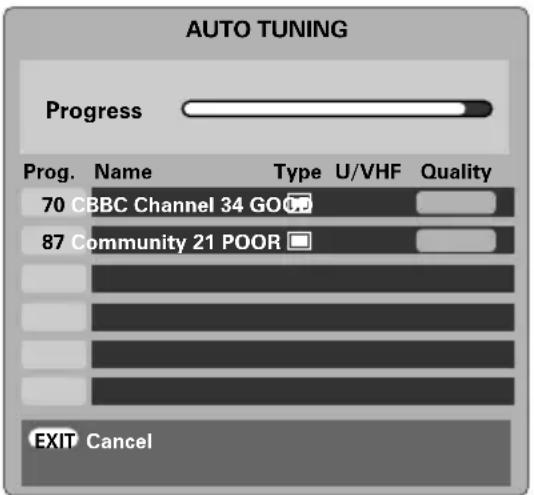

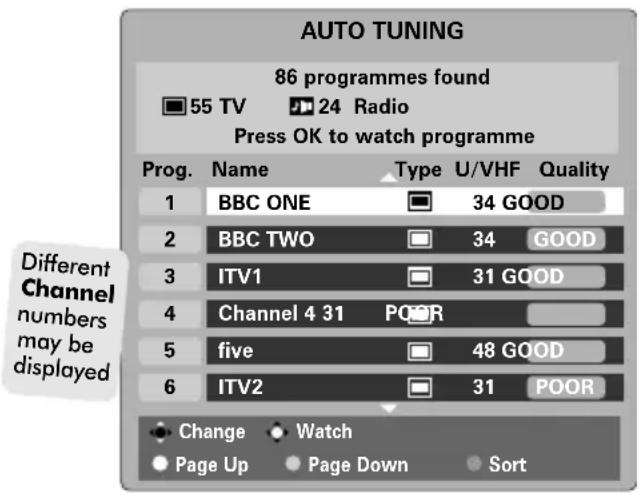

AUTO TUNING Progress Prog. Name Type U/VHF Quality 70 CBBC Channel 34 GO 87 Community 21 POOR EXIT Cancel

When the search is complete the television will automatically select programme one.

The AUTO TUNING screen will display the total number of services found.

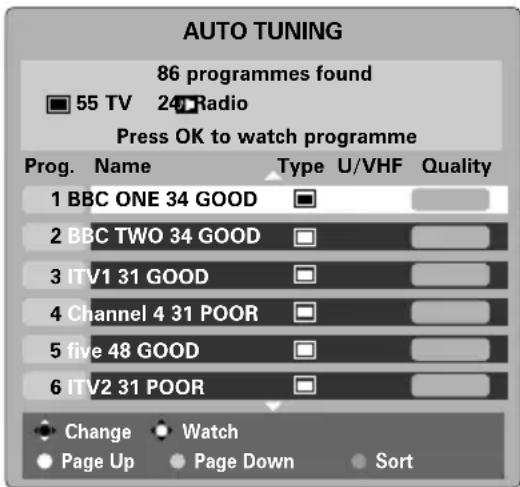

AUTO TUNING 86 programmes found 55 TV 24 Radio Press OK to watch programme Prog. Name Type U/VHF Quality 1 BBC ONE 34 GOOD 2 BBC TWO 34 GOOD 3 ITV1 31 GOOD 4 Channel 4 31 POOR 5 five 48 GOOD 6 ITV2 31 POOR Different Channel numbers may be displayed Change Watch Page Up Page Down Sort

5 Use √or ∧ to move through the list to select a programme then press OK to view.

NOTE: The time will be set automatically by transmission but can be advanced or decreased by up to 2 hours using Local Time Settings.

Digital – auto tuning

NOTE: As new services are broadcast it will be necessary to re-tune the television in order to view them.

Auto tuning

Auto tuning will completely re-tune the television and can be used to up date the channel list. It is recommended that Auto tuning is run periodically to ensure that all new services are added. All current programmes and settings, i.e. favourites and locked programmes, will be lost.

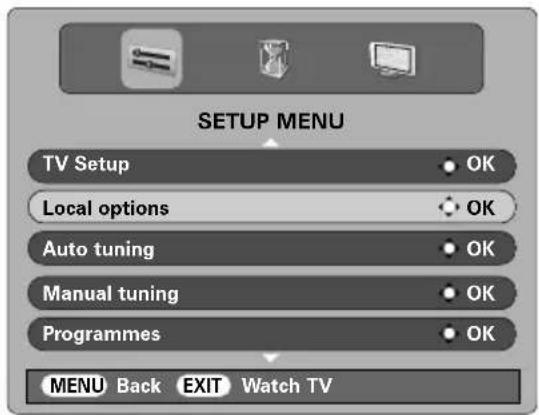

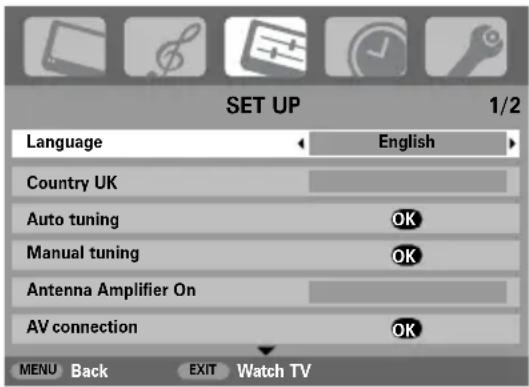

1 Press MENU, the SETUP MENU will appear. Use √ to highlight Auto tuning. Press OK.

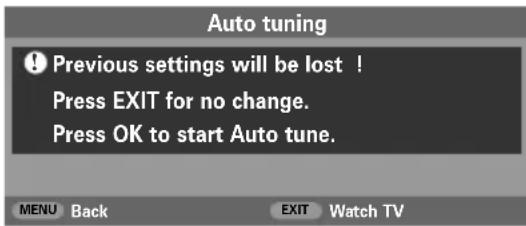

2 A screen will appear warning that previous digital programmes and settings will be deleted. Press OK to continue with the Auto tuning.

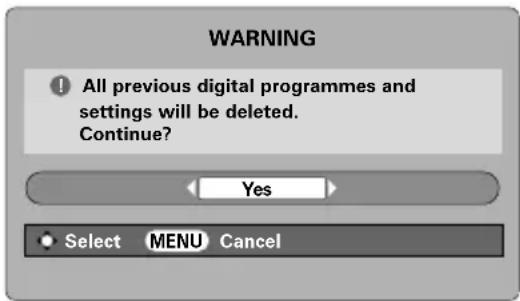

WARNING ! All previous digital programmes and settings will be deleted. Continue? Yes Select MENU Cancel

The television will start to search for all available stations.

AUTO TUNING Progress Prog. Name Type U/VHF Quality 70 BBC Channel 34 GOOD 87 Community 21 POOR EXIT Cancel

You must allow the television to complete the search.

When the search is complete the AUTO TUNING screen will display the total number of services found.

AUTO TUNING 86 programmes found 55 TV 24 Radio Press OK to watch programme Prog. Name Type U/VHF Quality 1 BBC ONE 34 GOOD 2 BBC TWO 34 GOOD 3 ITV1 31 GOOD 4 Channel 4 31 POOR 5 five 48 GOOD 6 ITV2 31 POOR Change Watch Page Up Page Down Sort

3 Use √ or ∧ to move through the list to select a programme then press OK to view.

At any time by pressing and holding ⬤ a list will appear on screen showing modes and all stored external equipment. Use ∧ and ∨ to highlight and OK to select.

3C 2 1 DTV ATV PC HDMI2

When DTV mode is selected pressing repeatedly will scroll through all connected equipment and the last channel being viewed in DTV mode.

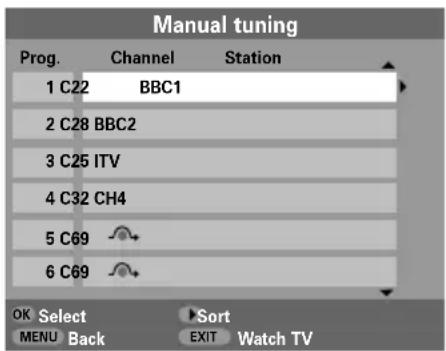

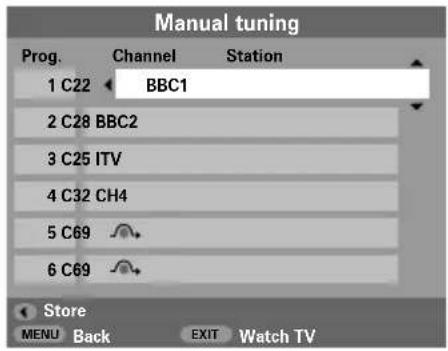

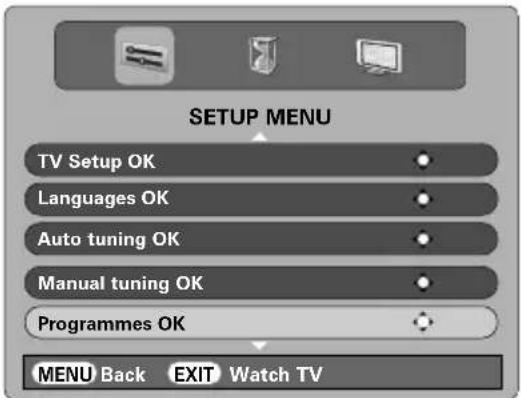

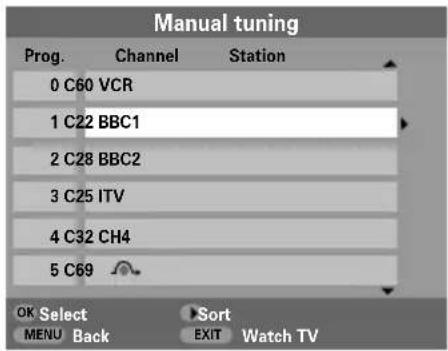

Digital – programme sorting, manual tuning

NOTE: When the television is switched off the mode being viewed at the time will automatically be selected when the television is switched back on.

Programme sorting

The station order may be changed to suit personal preference.

1 Press MENU, the SETUP MENU will appear on screen.
2 Use √to move down through the list and highlight Programmes. Press OK.

SETUP MENU TV Setup OK Languages OK Auto tuning OK Manual tuning OK Programmes OK MENU Back EXIT Watch TV

3 With the list of stations now showing use √or ∧ to highlight the station you want to move and press >.

The selected station will be moved to the right of the screen.

PROGRAMMES Prog. Name 1 BBQ ONE 2 BBQ TWO 3 ITV 4 Channel 4 5 five 6 ITV Sort Store MENU Back EXIT Watch TV Page Up Page Down

4 Use √ or ∧ to move through the list to your preferred position. As you do so the other stations will move to make room.
5 Press < to store your move. Repeat as necessary, then press EXIT.

Manual tuning

This feature is available for service engineers or can be used for direct channel entry if the multiplex channel is known.

1 Select Manual tuning from the SETUP MENU and press OK.
2 Enter the multiplex number using the number buttons and then press OK. The television will automatically search for that multiplex.

When the multiplex is found any channels not currently on the programme list will be added and the programme information at the top of the screen will be updated.

3 Repeat as necessary. Press EXIT to finish.

Tuning Analogue mode for the first time

The Quick Setup feature will tune all analogue channels currently available in the area. To put the television into ATV mode press and hold then use or to highlight ATV. Press OK to select.

1 Select ATV mode. The Quick Setup screen will appear.

Quick Setup Select your language. Language English EXIT Watch TV OK Next

2 Using < or >select your Language, then press OK.
3 Then press to select your Country.
4 To start Auto tuning press OK.

Auto tuning Searching Channel : C22 Station : BBC1 EXIT Stop

5 The search will begin for all available stations. The slide bar will move along the line as the search progresses.

You must allow the television to complete the search.

When the search is complete the television will automatically select programme position 1 and the Manual tuning screen will appear.

Manual tuning Prog. Channel Station 1 C22 BBC1 2 C28 BBC2 3 C25 ITV 4 C32 CH4 5 C69 6 C69 OK Select Sort MENU Back EXIT Watch TV

6 Use √ or ∧ to move through the list to select a programme then press EXIT to view.

The station order may be changed using the Manual tuning screen (see the analogue 'Sorting programme positions' section).

At any time by pressing and holding ⬤ a list will appear on screen showing modes and all stored external equipment. Use ∧ and ∨ to highlight and OK to select.

-2 -1 DTV ATV PC HDMI2 HDMI1

When ATV mode is selected pressing → repeatedly will scroll through all connected equipment and the last channel being viewed in ATV mode.

Analogue – manual tune

The television can be tuned-in manually using Manual tuning. For example: if the television cannot be connected to a media recorder/decoder with a SCART lead or to tune-in a station on another System.

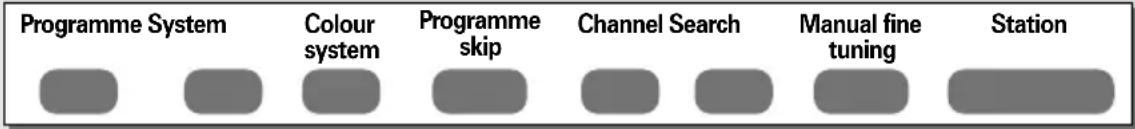

Use and to move across the screen and select any of these Manual Tune options.

Programme System Colour system Programme skip Channel Search Manual fine tuning Station

Programme: The number to be pressed on the remote control.

System: Specific to certain areas.

Colour system: Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from external source.

Programme skip: → means nothing has been stored or the facility to skip the channel is ON. See page 15.

Channel: The channel number on which a station is being broadcast.

Search: Search up and down for a signal.

Manual fine tuning: Only used if interference/weak signal is experienced. See page 35.

Station: Station identification. Use the ∧ or ∨ and ⟨ or »buttons to enter up to seven characters.

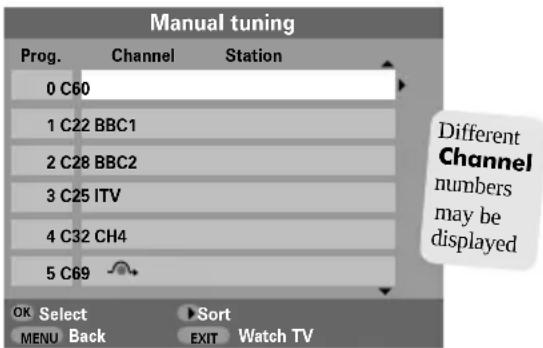

To allocate a programme position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded film in the media recorder and press PLAY, then manually tune.

1 Press MENU and using 〈 or 〉 select the SET UP menu, with √ highlight Manual tuning, press OK to select.

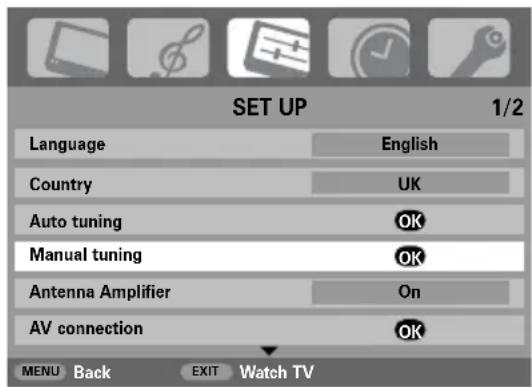

SET UP 1/2 Language English Country UK Auto tuning OK Manual tuning OK Antenna Amplifier On AV connection OK MENU Back EXIT Watch TV

2 Use ∧ or √ to highlight the programme position required e.g. we suggest Prog. 0 for a media recorder.

Manual tuning Prog. Channel Station 0 C60 1 C22 BBC1 2 C28 BBC2 3 C25 ITV 4 C32 CH4 5 C69 Different Channel numbers may be displayed OK Select Sort MENU Back EXIT Watch TV

3 Press OK to select. If the programme is skipped, Programme skip must be removed before storing.

Manual tuning System 0 I A C 60 0 OK Store MENU Back EXIT Watch TV

4 Press > to select System and use ∧ or ∨ to change if required.

5 Then press > to select Search.

6 Press ∧ or ∨ to begin the search. The search symbol will flash.

Manual tuning Search: Up 0 I A — C 60 0 OK Store MENU Back EXIT Watch TV

7 Each signal will show on the television, if it is not your media recorder, press ∧ or ∨ again to restart the search.

Analogue – manual tune continued, Auto tune

8 When your media recorder signal is found, press > to move along to Station. With ∧, ∨, < and > put in the required characters, e.g. VCR.

Manual tuning Station 0 I A → C 60 0 V C R OK Store MENU Back EXIT Watch TV

9 Press OK to store.
10 Repeat for each programme position you want to tune or, press MENU to return to the list of channels and select the next number to tune.
11 Press EXIT when you have finished.

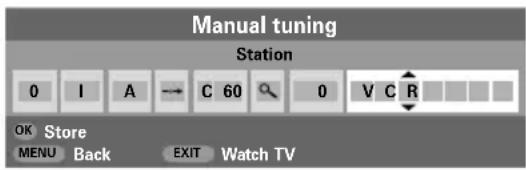

12 To name external equipment, e.g. DVD on EXT2, press → to select EXT2, then select Manual setting from the SET UP menu.
13 Press > to select Label then using ∧, ∨, < and > put in the required characters. Press OK.

Manual setting Label EXT2 A D V D OK Store MENU Back EXIT Watch TV

PLEASE NOTE This television has direct channel entry if the channel numbers are known.

Select the Manual tuning screen in Step 3. Enter the Programme number, the System, then C for standard (terrestrial) channels or S for cable channels and the Channel number. Press OK to store.

Using Auto tuning

1 To set up the television using Auto tuning, press MENU and use < or > to select the SET UP menu.

SET UP 1/2 Language English Country UK Auto tuning OK Manual tuning OK Antenna Amplifier On AV connection OK MENU Back EXIT Watch TV

2 Press √ to highlight Language and < or > to select.
3 Using ▼highlight Country, then < or > to select. The television will now tune the stations for your country.
4 Press √ to highlight Auto tuning, then press OK.

Auto tuning ! Previous settings will be lost ! Press EXIT for no change. Press OK to start Auto tune.

5 To start Auto tuning press OK.

You must allow the television to complete the search.

When the search is complete the television will automatically select programme position 1. This may not be a clear picture, so the station order can be changed (see 'Sorting programme positions' section).

Analogue – programme skip, sorting programme positions

Programme skip

To prevent certain programmes from being viewed, the programme position can be skipped. The remote control must be removed as the channels will still be available using the number buttons Programmes can then be watched as normal using the controls on the television, but the television will not show the skipped programme position.

1 Select Manual tuning from the SET UP menu.

Manual tuning Prog. Channel Station 0 C60 VCR 1 C22 BBC1 2 C28 BBC2 3 C25 ITV 4 C32 CH4 5 C69 OK Select Sort MENU Back EXIT Watch TV

2 Use ∧ or ∨ to highlight the programme position to be skipped and press OK to select.
3 Press > to select Programme skip.
4 Use ↗ or ↙ to turn Programme skip on. Press OK.

on the screen indicates a skipped programme position.

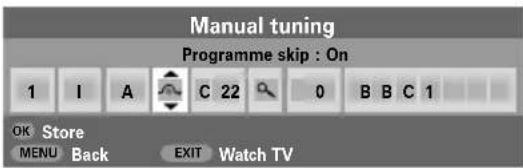

Manual tuning Programme skip : On 1 I A C 22 0 B B C 1 OK Store MENU Back EXIT Watch TV

5 Press MENU and repeat from Step 2 or press EXIT.

Each programme position has to be individually selected. To turn Programme skip off, repeat the procedure for each position.

Skipped programme positions cannot be selected by P ▲ and P ▼ or by the controls on the television, but can still be accessed by the number buttons on the remote control.

Sorting programme positions

Channels may be moved and stored on the programme position of your choice.

1 Select Manual tuning from the SET UP menu.
2 With the list of stations now showing use √or ∧ to highlight the station you want to move and press >.

The selected station will be moved to the right of the screen.

Manual tuning Prog. Channel Station 1 C22 BBC1 2 C28 BBC2 3 C25 ITV 4 C32 CH4 5 C69 6 C69 Store MENU Back EXIT Watch TV

3 Use √or ∧ to move through the list to your preferred position. As you do so the other stations will move to make room.
4 Press < to store your move. Repeat as necessary, then press EXIT.

General controls, stereo/bilingual transmissions, time display, sound controls

Selecting programme positions

To select a programme position use the numbered buttons on the remote control.

Programme positions can also be selected using P▲ and P▼.

To revert to the previous programme position press ↩.

To display on-screen information i.e. programme position, channels or stereo/mono signal, press .iPress again to cancel.

Stereo and Bilingual transmissions

If stereo or dual language broadcasts are transmitted the word Stereo or Dual will appear on the screen each time programme positions are changed, disappearing after a few seconds. If the broadcast is not in stereo the word Mono will appear.

Stereo... Press ∞I/II to select Stereo or Mono.

Bilingual... Bilingual transmissions are rare. If they are transmitted the word Dual will display. Choose the required programme number and if the word Dual appears press I/II to select Dual 1, Dual 2 or Mono.

The Time Display – analogue only

The time display facility allows the current (text service) time to be seen on the television screen.

Press 📋/EX whilst watching a normal television broadcast to see a time display from the broadcaster. It will remain on screen for about 5 seconds.

Sound controls

Volume

Press - or + to adjust the volume.

Sound Mute

Press ✗ once to turn the sound off and again to cancel.

Bass, Treble and Balance

The sound controls are accessible in digital and analogue modes, as are most of the televisions features.

1 In digital mode, press MENU and using ▼ highlight TV setup then press OK.
2 Use < or > to select SOUND.
3 In analogue mode, press MENU and to select SOUND.

SOUND 1/2 Dual Dual 1 Bass 0 Treble 0 Balance 0 WOW OK Stable sound On MENU Back EXIT Watch TV

4 Press √ to highlight Bass, Treble or Balance and < or > to change the setting.

When connecting to a Hi-fi unit, set the Speaker option to Off. Then select Fixed or Variable for the Monitor (Audio) in the AV connection menu. (See 'Input selection and AV connections' section).

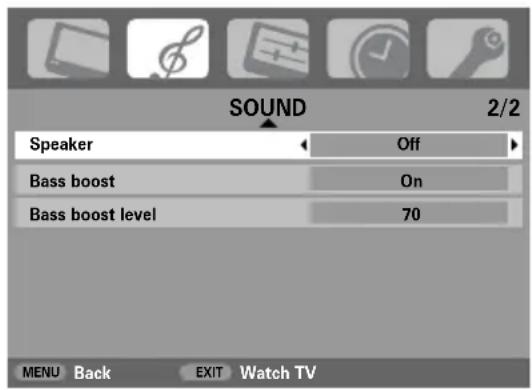

SOUND 2/2 Speaker Off Bass boost On Bass boost level 70 MENU Back EXIT Watch TV

Sound controls continued, SRS WOW™ sound effects, dual, stable sound®

Bass boost

Bass boost enhances the depth of the sound. The difference will only be noticeable on sound with a strong bass.

In the SOUND menu press √ to highlight Bass boost. Use < or > to select On.
2 Then press √ to highlight Bass boost level and using adjust to suit your preference.

SOUND 2/2 Speaker On Bass boost On Bass boost level 70 MENU Back EXIT Watch TV

SRS WOW™ sound effects

SRS WOW™ is a suite of audio effects which use the stereo signals being broadcast to produce enhanced sound from the television's speakers. If mono sound is broadcast only TruBass will be available.

SRS 3D gives a rich sound experience, FOCUS concentrates the sound and gives the effect of it coming from the centre of the television, TruBass enhances the lower bass frequencies.

1 Press MENU and select the SOUND menu.
2 Use ∧ or ∨ to highlight WOW then press OK.

WOW SRS 3D Off FOCUS Off TruBass Off MENU Back EXIT Watch TV

WOW, SRS and (●) symbol are trademarks of SRS Labs, Inc. WOW technology is incorporated under license from SRS Labs, Inc.

3 Press √ to highlight SRS 3D and using < or > select between On or Off.
4 Then press √ to highlight FOCUS and press < or > to select between On or Off.
5 Highlight TruBass and use < or > to select Off, Low or High to suit your preference.

NOTE: This feature is not available through headphones.

Dual – analogue only

If a programme or film is being broadcast with a soundtrack in more than one language, the DUAL feature allows selection between them.

1 Select the SOUND menu.
2 Use √ to highlight Dual then press < or > to choose between Dual 1 or Dual 2.

Stable sound®

The Stable Sound feature limits high volume levels and prevents the extreme changes in volume that can occur when channels are changed or a programme switches to a commercial.

1 Select the SOUND menu.
2 Use √ to highlight Stable Sound then press < or > to select On or Off.

SOUND 1/2 Dual Dual 1 Bass 0 Treble 0 Balance 0 WOW OK Stable sound On MENU Back EXIT Watch TV

Widescreen viewing

Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats. Press the ⏻ button repeatedly to select between Exact Scan, Wide, Super Live 2, Cinema 2, 4:3, Super Live 1, Cinema 1, Subtitle and 14:9.

SUPER LIVE 1

This setting will enlarge a 4:3 image to fit the screen by stretching the image horizontally and vertically, holding the correct proportions at the centre of the image. Some distortion may occur.

SUPER LIVE 2

If a 'side panel format' signal is being received this setting will enlarge the image to fit the screen by stretching the image horizontally and vertically, holding the correct proportions at the centre of the image. Some distortion may occur.

CINEMA 1

CINEMA 2


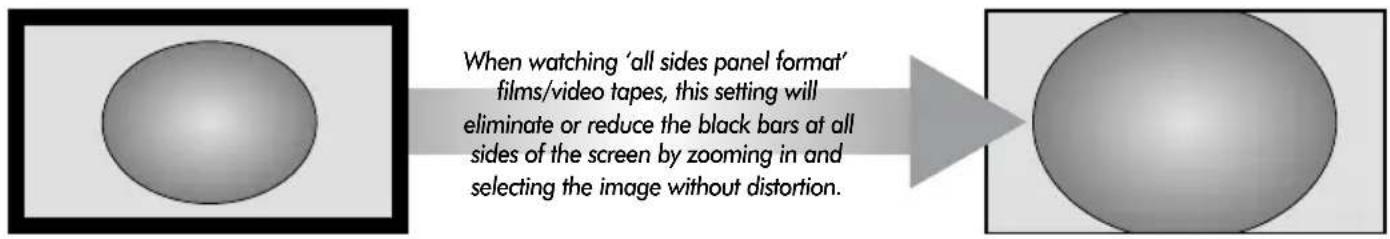

    A["Image"] -->|When watching 'all sides panel format' films/video tapes, this setting will eliminate or reduce the black bars at all sides of the screen by zooming in and selecting the image without distortion.| B["Image"]

SUBTITLE

When subtitles are included on a letterbox format broadcast, this setting will raise the picture to ensure that all the text is displayed.

Simple gray sphere with gradient shading (no text or symbols)

SUBTITLE

Widescreen viewing continued

Press and hold the ⏻ button and a list of all the widescreen formats will appear on screen. Use ∧ and √ to highlight the required format and OK to select.

Exact Scan

Wide

Super Live 2

Cinema 2

4:3

Super Live 1

Cinema 1

Subtitle

14:9

Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

Picture controls

Most of the picture controls and functions are available in both digital and analogue modes. To access the the required menus when in digital mode: press MENU and using √ select TV setup, press OK then < or > to select the desired menu. PLEASE NOTE: features not available in digital mode will be greyed out. To access the required menus when in analogue mode: press MENU and use < or > to select the desired menu.

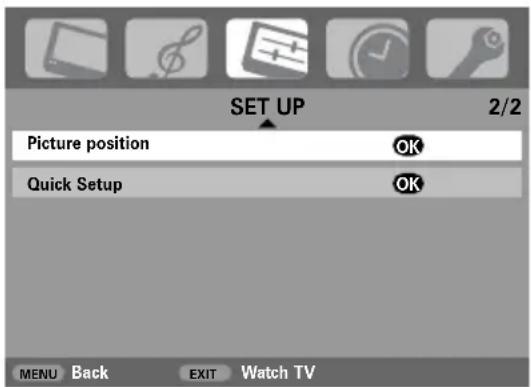

Picture position – analogue only

The picture position may be adjusted to suit personal preference and can be particularly useful for external inputs.

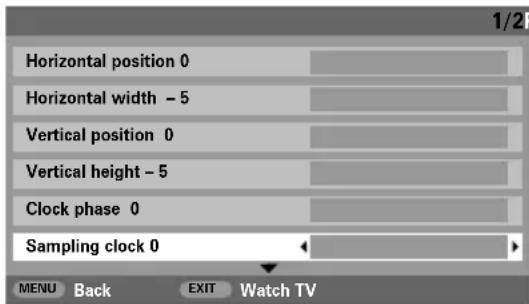

1 In the SET UP menu press √ until Picture position is highlighted.

SET UP 2/2 Picture position OK Quick Setup OK MENU Back EXIT Watch TV

2 Press OK to view the options available for the picture format that has been selected.
3 Press ∧ and ∨ to select an option, then ⟨ or⟩ to adjust the settings.

The options alter depending on the widescreen format chosen and when viewing connected equipment.

In Cinema 2:

Picture position Horizontal position 0 Vertical position 0 Reset OK MENU Back EXIT Watch TV

To return to the original factory settings select Reset in the Picture position menu and press OK.

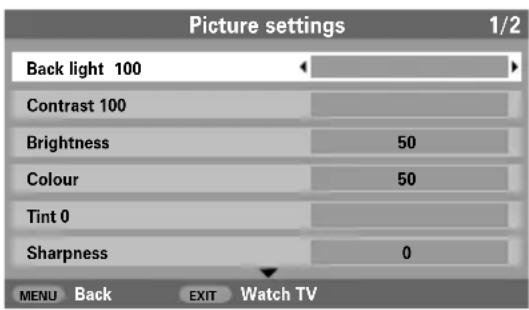

Back light

Adjusting the Back light can improve the clarity of the screen when viewing.

1 In the PICTURE menu press √ to select Picture settings, then press OK.

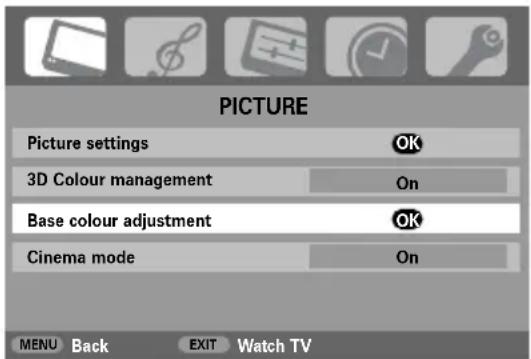

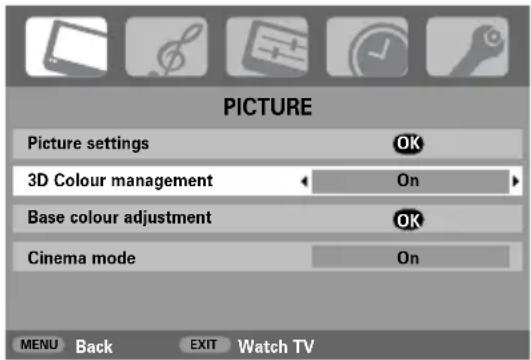

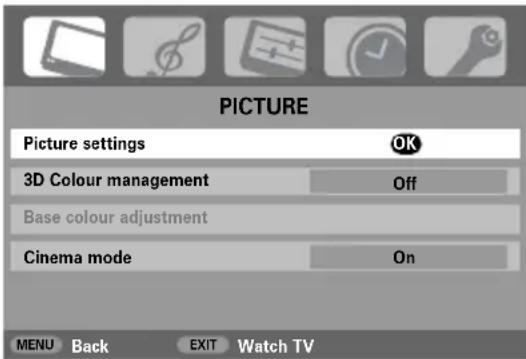

PICTURE Picture settings OK 3D Colour management Off Base colour adjustment Cinema mode On MENU Back EXIT Watch TV

2 In the Picture settings menu press √ to select Back light.
3 Press < or > to adjust.

Picture settings 1/2 Back light 100 Contrast 100 Brightness 50 Colour 50 Tint 0 Sharpness 0 MENU Back EXIT Watch TV

Picture preferences

This television offers the choice of personalising the picture style. Press →|→| to view the different styles available:

Picture mode-1 to 3 are preset options and Picture mode-M stores your own settings:

1 Select Picture settings from the PICTURE menu.

Picture settings 1/2 Back light 100 Contrast 100 Brightness 50 Colour 50 Tint 0 Sharpness 0 MENU Back EXIT Watch TV

2 Use or to adjust the Contrast, Brightness, Colour, Tint and Sharpness.

Black stretch

Black Stretch increases the strength of dark areas of the picture which improves the definition.

In the Picture settings menu press √ until Black Stretch is highlighted.

Picture settings 2/2 Black stretch On MPEG NR Low DNR Auto. Colour Temperature Normal MENU Back EXIT Watch TV

2 Press < or > to select between On and Off. The effect depends on the broadcast and is most noticeable on dark colours.

MPEG NR – Noise Reduction

When watching a DVD the compression may cause some words or picture elements to become distorted or pixelated. Using the MPEG NR feature reduces this effect by smoothing out the edges.

1 Select MPEG NR from the Picture settings menu. Use < or > to select a setting to suit your preference.

DNR – Digital Noise Reduction

DNR enables you to 'soften' the screen representation of a weak signal to reduce the noise effect.

1 Select DNR from the Picture settings menu. Use < or > to adjust. The differences may not always be noticeable (for the best result use lower settings as picture quality can be lost if the setting is too high).

Colour temperature

Colour Temperature increases the 'warmth' or 'coolness' of a picture by increasing the red or blue tint.

1 In the Picture settings menu press √ until Colour Temperature is highlighted.

Picture settings 2/2 Black stretch On MPEG NR Low DNR Auto. Colour Temperature Normal MENU Back EXIT Watch TV

2 Press < or > to select between Normal, Warm and Cool to suit your preference.

3D Colour management

When 3D Colour management is selected it allows the 'Base colour adjustment' feature to become available.

1 In the PICTURE menu press √ to select 3D Colour management.

PICTURE Picture settings 3D Colour management Base colour adjustment Cinema mode OK On OK ON MENU Back EXIT Watch TV

2 Press < or > to select On or Off.

Base colour adjustment

The Base colour adjustment feature allows the adjustment of individual colours to suit personal preference. This can be useful when using an external source.

1 In the PICTURE menu press √ to select Base colour adjustment, then press OK.

PICTURE Picture settings 3D Colour management Base colour adjustment Cinema mode MENU Back EXIT Watch TV

2 Press ∧ and √ to select an option, then > to adjust the settings.

Base colour adjustment Hue Saturation Brightness Red +2 +6 +4 Green 0 0 0 Blue 0 0 0 Yellow 0 0 0 Magenta 0 0 0 Cyan 0 0 0 Reset OK MENU Back EXIT Watch TV

To return to the original factory settings select Reset and press OK.

Cinema mode

If there are lines or jagged edges in the film or programme being viewed, selecting Cinema mode can help correct this by smoothing out the picture.

1 In the PICTURE menu press √ to select Cinema mode.

2 Press < or > to select On or Off.

Antenna amplifier

If the signal being received by the television is too strong, this may result in picture interference and/or a buzzing sound. Setting Antenna Amplifier to Off reduces the signal strength, and can help to remove the interference.

1 In the SET UP menu press √ until Antenna Amplifier is highlighted.

2 With < or > select either On or Off.

SET UP 1/2 Language English Country UK Auto tuning OK Manual tuning OK Antenna Amplifier On AV connection OK MENU Back EXIT Watch TV

Picture controls continued, panel lock

Automatic format (Widescreen)

When this television receives a true Widescreen picture and Auto format is On, it will automatically be displayed in Widescreen format, irrespective of the television's previous setting.

1 Press MENU and < or > to select the FUNCTION menu.

FUNCTION Teletext Auto. Panel lock Off Auto format On Blue screen On Side Panel 1 MENU Back EXIT Watch TV

2 Press √ to highlight Auto format, then < or > to select On or Off.

Blue screen

When Blue screen is selected the screen will turn blue and the sound will be muted when no signal is received.

1 In the FUNCTION menu press √ to highlight Blue screen.

FUNCTION Teletext Auto. Panel lock Off Auto format On Blue screen On Side Panel 1 MENU Back EXIT Watch TV

2 Press < or > to select On or Off.

Side panel adjustment

The Side Panel feature lightens or darkens the band each side of the screen when in 4:3 or 14:9 format. This helps prevent image retention of the band and can also make viewing in bright or dark conditions more comfortable.

1 In the FUNCTION menu press √ until Side Panel is highlighted.

2 Press < or > to adjust.

Picture still

This feature is used to hold a still image on the screen.

1 Press ▼ to hold an image on the screen, press ▼ again to cancel.

Panel lock

Panel lock disables the buttons on the television. All buttons on the remote control can still be used.

1 From the FUNCTION menu select Panel lock and choose On or Off using < or>.

FUNCTION Teletext Auto. Panel lock On Auto format On Blue screen On Side Panel 1 MENU Back EXIT Watch TV

When Panel lock is On, a reminder will appear when the buttons on the television are pressed. If the standby button is pressed the television will switch off and can only be brought out of standby by using the remote control.

The timers

Programme timer – digital only

This feature will set the television to go to a specific channel at a certain time. It can be used to view a particular programme, or by setting the mode to daily or weekly, can be used to view a series of programmes.

1 Press MENU and < or > to select the TIMER MENU.

TIMER MENU Programme timers OK MENU Back EXIT Watch TV

2 Press √ to select Programme timers, then press OK to select.
3 Press √ to select the first programme to be timed, then press OK. The SET TIMER menu will now appear on screen.
4 Press ∧ and √ to go through the list adding the details of the programme to be timed by using the number buttons and < and > to make selections.

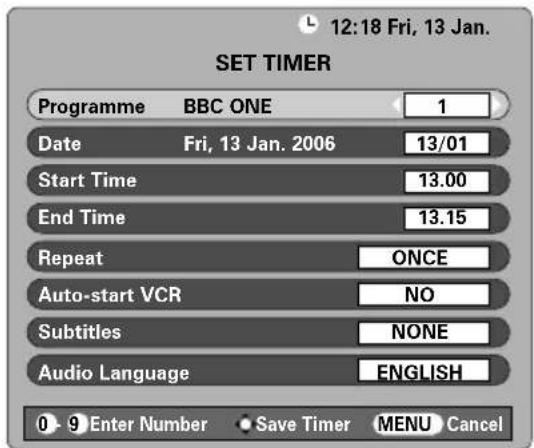

12:18 Fri, 13 Jan. SET TIMER Programme BBC ONE 1 Date Fri, 13 Jan. 2006 13/01 Start Time 13.00 End Time 13.15 Repeat ONCE Auto-start VCR NO Subtitles NONE Audio Language ENGLISH 0-9 Enter Number Save Timer MENU Cancel

5 When all the details have been entered press OK to save the timer.

Auto-start VCR: If your Toshiba media recorder is AV link compatible setting this feature to YES will auto start/stop a recording.

PLEASE NOTE: When a timed programme is about to start, an information screen will appear offering the option of watching or cancelling the programme. The menus and other channels will not be available during the timed programme unless the programme timer is cancelled.

Sleep timer

The television can be set to turn itself off after a certain time.

1 Press MENU and < or > to select the TIMER menu.

TIMER Sleep timer 01:30 MENU Back EXIT Watch TV

2 Press √ to select the Sleep timer. Use the number buttons to set the required time. For example, to switch the television off in one and a half hours enter 01:30, or press < or > to increase/decrease in steps of 10 minutes.
3 Press EXIT to finish.

Digital on-screen information and Programme Guide

When viewing in digital mode, the on-screen information and programme guide give access to programme details for all available channels.

Information

1 Select information by pressing ⓘ, the information screen will appear giving details of the channel and programme currently being viewed.

ALL PROGS BBC ONE BBC TWO ITV1 Channel 4 five 11:30 Bargain Hunt ▶ 12:15 Cash In the Attic 1 minute left I/II ENTERTAINMENT A bargain bought at Peterborough Fair makes double its money at auction. [S] Then BBC News and Weather. Showing also Bobinogs starting in 5 minutes on CBeebies... Tune EXIT Watch TV TV/FAV Change progs Page Up Page Down Showing also Languages

2 To see details of any of the other channels currently available, press ∧ and ∨ to scroll up and down the channel list. As the channel is selected details of the programme currently being broadcast will appear.
3 Pressing the YELLOW button will activate Showing also, giving details of programmes which have started on other channels.
4 To record the following programme, with the information guide showing, press >. The Tune option in the bottom section of the screen will change to Record, press OK. The SET TIMER screen will appear.

12:18 Fri, 13 Jan. BBC News 001 BBC ONE 13:00-13:28 Fri, 13 Jan. SET TIMER Start Time 01:25 End Time 02:55 Repeat ONCE Auto-start VCR NO Subtitles NONE Audio Language ENGLISH 0 - 9 Enter Number Save Timer MENU Cancel

5 The details of the programme will have been added to the screen. Press OK to save.

Guide

1 Select the on-screen guide by pressing GUIDE, the guide screen will appear highlighting details of the channel and programme currently being viewed. This may take a few moments to appear.

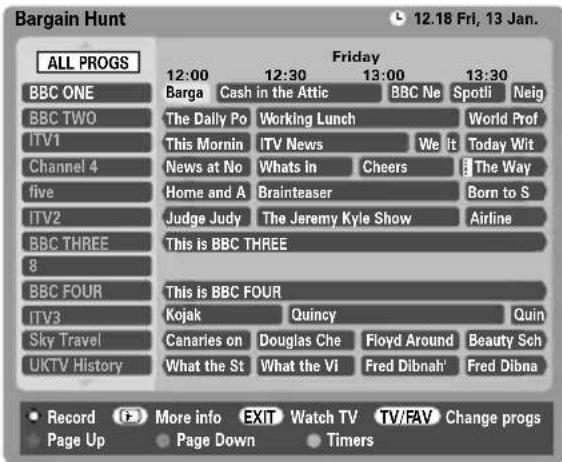

Bargain Hunt 12.18 Fri, 13 Jan. ALL PROGS Friday 12:00 12:30 13:00 13:30 BBC ONE Barga Cash in the Attic BBC Ne Spotli Neig BBC TWO The Daily Po Working Lunch World Prof ITV1 This Mornin ITV News We It Today Wit Channel 4 News at No Whats in Cheers The Way five Home and A Brainteaser Born to S ITV2 Judge Judy The Jeremy Kyle Show Airline BBC THREE This is BBC THREE 8 BBC FOUR This is BBC FOUR ITV3 Kojak Quincy Quin Sky Travel Canaries on Douglas Che Floyd Around Beauty Sch UKTV History What the St What the Vi Fred Dibnah' Fred Dibna Record More info EXIT Watch TV TV/FAV Change progs Page Up Page Down Timers

2 Press < or > for information of other programmes scheduled for the channel selected.
3 For details of other channels currently available, press ∧ and ∨ to scroll up and down the channel list. As the channel is selected details of the programme currently being broadcast will appear, then press < or >.
4 For information on a highlighted programme press (i+). To set the timer for that programme press the BLUE button to bring up the PROGRAMME TIMERS menu.

NOTE: Recording can be set from both the information screen and guide. In order for the recording operation to work the media recorder must be AV link compatible.

Digital settings – parental control

In order to prevent viewing of unsuitable films and programmes, channels and menus can be locked. These can then only be accessed with a security code PIN when in digital mode.

Setting the PIN

1 Press MENU and > to select the FEATURE MENU.

FEATURE MENU Parental Control OK Favourite and Locked Programmes OK Favourites ALL PROGS Common Interface Slots NO MODULE Software Upgrade OK MENU Back EXIT Watch TV

2 Use √ to select Parental Control then press OK.
3 Press √ to highlight Change Pin then press OK.

PARENTAL CONTROL Mode ON Parental Rating NONE Censor if no data? OFF Change Pin OK MENU Back EXIT Watch TV

4 Using the number buttons enter a four digit number, when these have been entered the screen will ask you to confirm them by entering them again.

CHANGE PIN New PIN * * * Confirm PIN 0 - 9 Enter PIN MENU Back EXIT Watch TV

5 Press MENU to go back to the Parental Control screen. The PIN number is now set.

Mode

This feature locks various menus to prevent the television being retuned or the settings being overridden.

1 In the PARENTAL CONTROL menu press √ to select Mode.

PARENTAL CONTROL Mode ON Parental Rating NONE Censor if no data? OFF Change Pin OK MENU Back EXIT Watch TV

2 Use < or > to choose between ON, OFF, LOCK MENU and LOCK INSTALL.

When menus that have been locked are now selected they will only become available when the PIN is entered.

PLEASE NOTE: Parental Rating – Use < or > to choose between PG, 12, 16, 18, TOTAL and NONE.

Digital settings – favourite programmes, locked programmes, encrypted programmes

Selecting favourite programmes

Favourite Programmes creates a list of the digital channels that are watched most. Four lists can be created, these can be a mixture of television, text and radio channels.

1 From the FEATURE MENU press √ to select Favourite and Locked Programmes.

FAVOURITE AND LOCKED PROGRAMMES Favourite List 1: No 1 BBCONE 2 BBCWO 7 BBC THREE 10 BBC TOUR 30 BBC Channel 31 BBCies Select MENU Back Page Up Page Down Select All Deselect all

2 Use ∧ and ∨ to go through the list of channels pressing OK to select the ones required, a tick will appear in the box.
3 Press > to select List 2. Follow the same procedure to make the selection. When all favourites have been selected press MENU to return to the FEATURE menu.
4 Use √ to highlight Favourites and < or > to select between ALL, TV, RADIO, FAV-1 and FAV-2. The number of favourites available depends on how many lists have been created.

FEATURE MENU Parental Control OK Favourite and Locked Programmes OK Favourites FAV-1 Common Interface Slots NO MODULE Software Upgrade OK MENU Back EXIT Watch TV

5 Press EXIT. Using the ▲ P▼ buttons will now only access those channels in Favourite List 1 when FAV-1 is selected.

Locking programmes

Locked Programmes stops the viewing of digital channels, they can only be accessed by entering the PIN.

1 From the FEATURE MENU press √ to select Favourite and Locked Programmes.
2 Press > repeatedly to select the Locked Programme list.
3 Use ∧ and ∨ to go through the list of channels pressing OK to select the ones required, a padlock will appear in the box.

FAVOURITE AND LOCKED PROGRAMMES Locked Programme: Yes 1 BBCONE 2 BBCWO 7 BBC THREE 10 BBC TOUR 30 BBC Channel 31 BBCies Deselect MENU back Page Up Page Down Lock all Unlock all

4 Press EXIT to finish.
5 When any of the channels in the Locked Programme list are now selected the PIN must be entered before they can be accessed.

Encrypted programmes

Selecting Encrypted Programmes allows all encrypted programmes to be shown in the programme list even if they are not available to select.

1 In the FEATURE MENU press ↗ or ↕ to select Encrypted Programmes.
2 Use < or > to select ON or OFF.

NOTE: CAMs (Conditional Access Modules) are available from service providers (see 'Common Interface' section).

Digital settings – audio languages, subtitles, reset tv, common interface

Audio languages

This feature allows a programme or film to be viewed with a choice of soundtrack language, provided they are currently being broadcast.

1 From the SETUP MENU press √ to select Local options.

SETUP MENU TV Setup Local options Auto tuning Manual tuning Programmes MENU Back EXIT Watch TV

2 Press OK, then press ^ or ▼ to highlight Audio Language.
3 Use < or > to select an option.

LOCAL OPTIONS Country FRANCE Language ENGLISH Audio Language ENGLISH Subtitles OFF Local Time Settings 11.19 MENU Back EXIT Watch TV

NOTE: If more than one soundtrack is available, use ODI/II to select between them.

Subtitles

This feature will show subtitles on the bottom of the screen in the selected language provided they are being broadcast.

1 From the LOCAL OPTIONS menu press √ to select Subtitles.
2 Use < or > to select an option.

Reset TV

Selecting Reset TV will delete all stored digital channels and settings. The television will return to factory settings and then auto tune.

1 Press MENU and then press √ until Reset TV is highlighted.
2 Press OK to select. A screen will appear warning that all digital settings will be lost, press OK to continue.

The LOCAL OPTIONS screen will appear, press OK to continue, the television will then auto tune.

Common interface

The Common Interface Slot, situated on the back of the television, enables the insertion of a CAM (Conditional Access Module) and card. These are purchased from a service provider and allow additional subscription broadcasts to be viewed. For information see a service provider.

1 Insert the CAM and card into the Common Interface Slot, following the instructions provided with the CAM. A box will appear on screen to confirm that the CAM is loaded.
2 From the FEATURE MENU press ↗ or ↙ to select Common Interface Slots.

FEATURE MENU Parental Control OK Favourite and Locked Programmes OK Favourites ALL PROGS Common Interface Slots NO MODULE Software Upgrade OK MENU Back EXIT Watch TV

3 Details of the CAM should now be available. Use OK to select it. If two CAMs are inserted use < or > to select between the two.

Digital settings – software upgrade

Version

This feature can be used to check the version of software currently installed.

1 From the FEATURE MENU press ↗ or ↕ to select Software upgrade. Press OK.

FEATURE MENU Favourite and Locked Programmes Favourites ALL PROGS Common Interface Slots NO MODULE Software Upgrade OK Encrypted Programmes OFF MENU Back EXIT Watch TV

2 Press ∧ or √ to select Version. Use ⟨ or⟩ to select. When the software has been updated there will be a choice of two versions available.

SOFTWARE UPGRADE Version 2.4 Auto upgrade ON Search for New Software OK Continue MENU Back EXIT Watch TV

Auto Upgrade

If Auto upgrade is selected the software will automatically update as each version becomes available, provided the television is on or in standby. If the television is on, a screen prompt will appear showing the software download taking place.

1 In the SOFTWARE UPGRADE menu press ↗ or √ to select Auto upgrade.
2 Use < or > to select ON or OFF.

Searching for new software

If preferred, software upgrades can be searched for manually using Search for New Software.

1 In the SOFTWARE UPGRADE menu press ↗ or √ to select Search for New Software.

SOFTWARE UPGRADE Version 2.4 Auto upgrade OFF Search for New Software OK MENU Back EXIT Watch TV

2 Press OK. The television will automatically start searching for a software upgrade, the progress bar will move along the line.

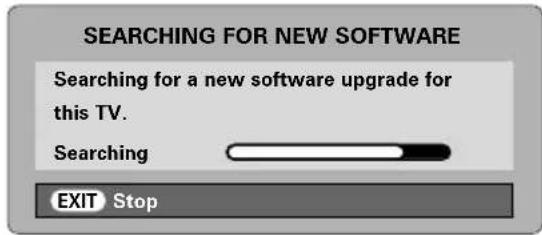

SEARCHING FOR NEW SOFTWARE Searching for a new software upgrade for this TV. Searching EXIT Stop

If an upgrade is found the television will automatically start downloading, if not a screen will appear stating that an upgrade is unavailable.

NO UPGRADE AVAILABLE ! There is no upgrade available at this time. Continue

PC settings – picture position, clock phase, sampling clock, reset

Connect the PC (as shown in the 'Connecting a PC' section) and ensure that a picture is showing on the television screen. The picture position may now be adjusted to suit personal preference.

1 Press → to select PC, then select PC Setting from the SET UP menu.

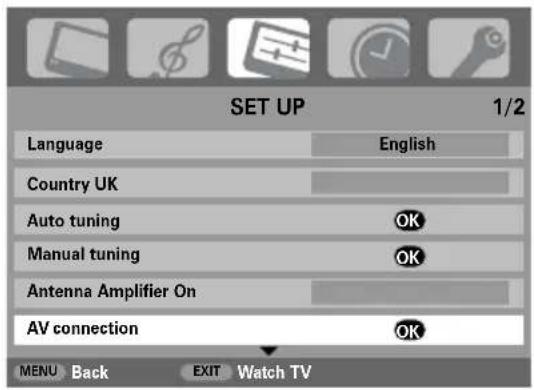

SET UP Language English Country UK AV connection OK PC Setting OK MENU Back EXIT Watch TV

2 Press OK. Press ∧ and ∨ to select an option, then ⟨ or⟩ to adjust the settings.

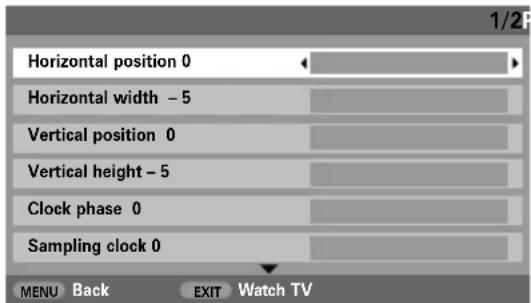

Horizontal position 0 Horizontal width - 5 Vertical position 0 Vertical height - 5 Clock phase 0 Sampling clock 0 MENU Back EXIT Watch TV

Clock phase

The Clock phase matches the PC signal with the LCD display. Adjusting this can clear horizontal stripes and picture blur.

1 In the SET UP menu press √ until PC Setting is highlighted.

2 Press OK to select, then √ to highlight Clock phase.

3 Use or to adjust until the picture clears.

Sampling clockPicture position

Adjusting the Sampling clock alters the number of pulses per scan, this will clear vertical lines on the screen.

1 In the SET UP menu press √ until PC Setting is highlighted.
2 Press OK to select, then √ to highlight Sampling clock.

Horizontal position 0 Horizontal width - 5 Vertical position 0 Vertical height - 5 Clock phase 0 Sampling clock 0 MENU Back EXIT Watch TV

3 Use < or > to adjust until the picture clears.

Reset

To return to the original factory settings.

1 In the SET UP menu press √ until PC Setting is highlighted.
2 Press OK to select, then ▼ to highlight Reset.

PC Settings 2/2 Reset MENU Back EXIT Watch TV

3 Press OK.

Input selection and AV connections

Defining the INPUT and OUTPUT sockets so that the television recognises connected equipment. See page 6 for a clear view of the back connection recommendations.

Most media recorders and decoders send a signal through the SCART lead to switch the television to the correct Input socket.

Alternatively press the external source selection button → until the picture from connected equipment is shown.

This button must be used to view equipment connected using the COMPONENT VIDEO INPUT (EXT3C).

An S in the display e.g. 2S (EXT 2S), indicates the input is set for an S-Video signal.

Input selection

Use the Input Selection if the television does not switch over automatically.

1 Press → to select →1, →2, →3(C) (EXT1-3), HDMI1, HDMI2 or PC.

HDMI™ displays equipment connected to Input HDMI on the back of the television. It is designed for best performance with 1080i high definition signals.

PC displays a computer connected to Input RGB/PC on the back of the television.

2 To return to television mode press and hold → and then select DTV or ATV.

Analogue switch-off

This is a digital television which is integrated to allow the use of both digital and analogue services. However, during the lifetime of this set it is very likely that analogue services will be switched off to allow for more new digital services.

This 'switch-off' will happen in a number of phases, which will be advertised in your area well in advance. It is recommended that at each phase the television is re-tuned to ensure that existing and new digital services can be viewed without disruption (see the 'Auto tuning' section).

INPUT signal selection

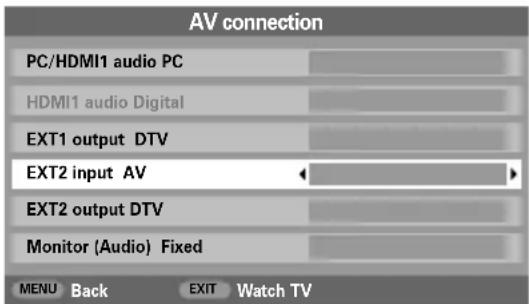

This specifies the type of signal going into SCART 2 (EXT2) on the back of the television. Please refer to the manufacturers instructions for the connected equipment.

1 In the SET UP menu press √ until AV connection is highlighted, then press OK.

SET UP 1/2 Language English Country UK Auto tuning OK Manual tuning OK Antenna Amplifier On AV connection OK MENU Back EXIT Watch TV

2 With < or > select either AV or S-VIDEO as the required input for EXT2.

AV connection PC/HDMI1 audio PC HDMI1 audio Digital EXT1 output DTV EXT2 input AV EXT2 output DTV Monitor (Audio) Fixed MENU Back EXIT Watch TV

If the colour is missing try the alternative setting.

Input selection and AV connections continued

PC audio

In order to receive sound from a connected PC, plug the audio cable into the back of the television (as shown in 'Connecting a computer' section), then use the PC/HDMI1 audio settings.

1 In the SET UP menu press √ until AV connection is highlighted, then press OK.

SET UP 1/2 Language English Country UK Auto tuning OK Manual tuning OK Antenna Amplifier On AV connection OK MENU Back EXIT Watch TV

2 Highlight PC/HDMI1 audio then use to > select the PC option.

AV connection PC/HDMI1 audio PC HDMI1 audio Digital EXT1 output DTV EXT2 input AV EXT2 output DTV Monitor (Audio) Fixed MENU Back EXIT Watch TV

NOTE: Selecting the PC option will force HDMI into digital audio.

HDMI1 audio

If the connected HDMI source does not support digital audio, plug the audio cable into PC/HDMI1 audio on the back of the television (as shown in the 'Connecting a computer' section), then use the HDMI1 audio settings.

In the SET UP menu press √ until AV connection is highlighted, then press OK.

SET UP 1/2 Language English Country UK Auto tuning OK Manual tuning OK Antenna Amplifier On AV connection OK MENU Back EXIT Watch TV

2 In the AV connection menu press √ to highlight PC/HDMI1 audio and using > select HDMI1.
3 Then highlight HDMI1 audio and using < or > select Auto., Digital or Analogue.

AV connection PC/HDMI1 audio HDMI1 HDMI1 audio Auto. EXT1 output DTV EXT2 input AV EXT2 output DTV Monitor (Audio) Fixed MENU Back EXIT Watch TV

If the sound is missing select an alternative setting.

NOTE: HDMI1 supports digital and analogue sound, HDMI2 is digital sound only.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

Analogue text services – setting up, general information, Auto and LIST modes

This television has a multi-page text memory, which takes a few moments to load. It offers two Modes of viewing text – Auto will display Fastext, if available. LIST will store your four favourite pages.

Selecting modes

The text character set will be automatically chosen by the language setting in the SET UP menu.

1 Select Teletext from the FUNCTION menu.
2 With < or > choose Auto. or LIST then press EXIT.

FUNCTION Teletext Auto. Panel lock Off Auto format On Blue screen On Side Panel 1 MENU Back EXIT Watch TV

Text information

The ☐/☐/☐ button:

To view text services press ☐/☐/☐. Press again to superimpose the text over a normal broadcast picture and again to return to normal viewing. Programmes cannot be changed until text is cancelled.

The first text page shown will be the initial page.

Any text page can be accessed by entering the 3 digit page number using the numbered buttons, pressing the coloured buttons or pressing P ▲ to advance to the next page and P ▼ to go back to the previous page.

Sub-pages

If there are sub-pages they will automatically load into memory without changing the page on screen.

To access the sub-pages press 📄 then use P ▲ and P ▼ to view them. A bar with numbers will appear on the side of the screen.

The sub-page you are viewing will be highlighted and, as the television loads any additional sub-pages the colour of the numbers will change, indicating that these pages have been loaded.

These sub-pages will remain available to view until another page is chosen or, in normal TV mode, the channel is changed.

Navigating pages using Auto.

If Fastext is available four coloured titles will appear at the base of the screen.

To access one of the four given subjects, press the relevant coloured button on the remote control.

For further information on your particular text system(s), see the broadcast text index page or, consult your local Toshiba dealer.

Navigating pages using LIST

The four coloured choices at the bottom of the screen are numbers – 100, 200, 300 and 400, which have been programmed into the television's memory. To view these pages press the relevant coloured buttons.

To change these stored pages press the relevant coloured button and enter the 3 digit number. This number will change in the top left of the screen and in the coloured highlight.

Press OK to store. The bars at the bottom of the screen will flash white. Whenever OK is pressed all four page numbers showing at the bottom will be stored and the previous ones will be lost.

If OK is not pressed the selection will be forgotten when text is cancelled.

Other pages may be viewed by entering the 3 digit page number – but DO NOT press OK or these pages will be stored.

Analogue text services – control buttons

Below is a guide to the functions of the remote control text buttons.

To display the index/initial page:

Press ☐i to access the index/initial page. The one displayed is dependant on the broadcaster.

To display a page of text:

Press ☐/☐ to display text. Press again to superimpose text over a normal broadcast picture. Press again to return to normal television viewing. Programmes cannot be changed until this has been done.

To access sub-pages:

For use with P▲ and P▼ to view sub-pages when available.

To reveal concealed text:

To discover the solutions on quiz and joke pages press the ☐ button.

To hold a wanted page:

At times it is convenient to hold a page of text. Press ☑ and ☑ will appear in the top left of the screen. The page will be held on screen until the button is pressed again.

To enlarge the text display size:

Press ☐ once to enlarge the top half of the page, press again to enlarge the bottom half of the page. Press again to revert to normal size.

To select a page whilst viewing a normal picture:

Enter the page number then press ⏻/≡×, a normal picture will be displayed. The television will indicate when the page is present by displaying the page number at the top of the screen. Press ≡/≡/≡ to view the page.

To display news flashes:

Select the news flash page for the chosen text service (see the index page of text service). Press 📋/✉. The news flashes will be displayed as and when they are broadcast. Press 📋/✉ again to cancel the display.

The news flash page must be cancelled before changing programmes.

Remember to cancel text before changing channels – press the // button twice.

Questions and Answers

Below are the answers to some of the most common queries.

For more information go to www.toshiba.co.uk

Why is there no sound or picture?

Check the mains switch is on and check all mains connections.

Check the television is not in standby mode.

There is a picture, but why is there little or no colour?

When using an external source, for instance, a poor quality video tape, if there is little or no improvement may sometimes be achieved. The factory set to Auto. to automatically display the colour system.

To check that you have the best colour:

With the external source playing, select Manual setting from the SET UP menu.

Manual setting Colour system: Auto. EXT2 A V C R OK Store MENU Back EXIT Watch TV

With ∧ or ∨ choose between Auto., PAL, SECAM, NTSC 4. 43 or 3. 58.

Why doesn't the video/DVD being played show on screen?

Make sure the VCR or DVD player is connected to the television as shown on page 6, then select the input by pressing ⬤.

Why is there a good video picture but no sound?

Check all lead connections.

Why is there a picture but no sound?

Check the volume has not been turned down or that sound mute has not been selected.

Why is the VCR/DVD picture in black and white?

Check the correct input has been chosen, S-VIDEO or AV. See AV connections page.

Why is there picture and sound interference on all digital and analogue channels?

The signal strength may be too strong. Set the Antenna Amplifier option in the SET UP menu

What else can cause a poor analogue picture?

Interference or a weak signal. Try a different television station. Manual fine tuning may help.

Select the Manual tuning menu. Highlight the station and press OK, then press > to select Manual fine tuning.

Using ∧ or ∨ adjust to get the best picture and sound. Press OK and then EXIT.

Manual tuning Manual fine tuning 1 I A → C 22 +2 B B C 1 OK Store MENU Back EXIT Watch TV

Why don't the controls on the television work?

Check that Panel lock is not ON.

Why doesn't the remote control work?

Check the side switch on the remote control is in TV mode.

Check the batteries aren't dead or inserted incorrectly.

Why is there a message permanently on the screen?

Remove it by pressing i+

Questions and Answers continued

Q Why is the DTV main menu unavailable?

A Analogue mode is selected. Press and hold → to select DTV.

Q Why are some of the menus locked?

A LOCK MENU has been enabled (see 'Parental Controls' page).

Q Why is the digital channel locked?

A The channel has been selected in Locked Programmes (see 'Digital settings' section).

Q Why can only certain digital channels be viewed?

A Favourite list has been selected (see 'Favourite Programmes' section), set the feature to ALL PROGS or change channels by using the number buttons.

Q Why are some of the digital subscription channels unavailable?

A Your subscription needs upgrading. Contact your service provider.

Q Why is the soundtrack in English when a different audio language has been selected?

A The programme is currently being broadcast with an English soundtrack only.

Q What can be done if the PIN number has been forgotten?

A Use the Master PIN code of 1276, then change to a number of your choice. Ensure that no-one else can use the Master PIN by removing the Owner's Manual.

Q Why is there no sound from my connected sound equipment?

A Check the Speaker option in the Sound menu is set to Off.

Q Why are there vertical stripes on the screen when in PC mode?

A The Sampling clock may need adjustment. Select PC Setting from the SET UP menu, highlight Sampling clock and adjust until the lines clear.

Q Why are there horizontal stripes and/or blurred images on the screen when in PC mode?

A The Clock phase may need adjustment. Select PC Setting from the SET UP menu, highlight Clock phase and adjust until the picture clears.

Q Why when digital subtitles have been selected are they not showing on screen?

A Subtitles are not currently being transmitted by the broadcaster.

Q Why is there no digital text service?

A The digital programme being viewed is not broadcasting digital text. Try another digital programme.

Q Why are there problems with analogue text?

A Good performance of text depends on a good strong broadcast signal. This normally requires a roof or loft aerial. If the text is unreadable or garbled, check the aerial. Go to the main index page of the text service and look for the User Guide. This will explain the basic operation of text in some detail. If further information is needed on how to use text see the text section.

Questions and Answers continued

Why are there no analogue text sub-pages?

A There are none broadcast or they have not yet loaded. Press the 🔒 button to access. (See text section).

Why are the four coloured text numbers visible but no text?

A Text has been selected whilst viewing an external source i.e. DVD or VCR. No text will appear on screen or a box may appear stating no information is available. Select a broadcasting channel and press ☐/☐/☐ to access.

Why does the GREEN Active Standby LED sometimes take longer to go out?

A When put into standby the television's active standby will automatically search all available channels for upgrades, provided Auto upgrade is On. The time it takes to do this may vary.

Why are the colours wrong when an NTSC source is played?

A Connect the source via a SCART lead and play. Select Manual setting from the SET UP menu.

Manual setting Colour system: Auto. EXT2 A V C R OK Store MENU Back EXIT Watch TV

1

Set the Colour to Auto. and exit.

2

Go to the Picture settings menu and adjust the tint.

Cleaning the screen and cabinet...

Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.

Disposal...

The following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Specifications and accessories

Broadcast systems/channels

PAL-I UHF UK21-UK69

PAL-B/G UHF E21-E69

VHF E2-E12, S1-S41

SECAM-L UHF F21-F69

VHF F1-F10, B-Q

SECAM-D/K UHF R21-R69

VHF R1-R12

Video Input PAL, SECAM, NTSC 3.58/4.43

External connections

EXT1 Input/Output 21-pin SCART RGB, A/V

Selectable output

EXT2 Input/Output 21-pin SCART A/V, S-video

Selectable output

EXT3 Input Phono jacks Y, P

B/CB, P_R/C_R

Phono jacks A/V

EXT3 Input (Side) Phono jack Video

Phono jacks Audio L + R

HDMI 1/2 Input HDMI connector

PC Input Mini D-sub 15-pin Analog RGB signal

PC/HDMI1 Audio

Phono jacks Audio L + R

Audio Output Fixed/Variable

Phono jacks Audio L + R

Stereo	Nicam
	2 carrier system

Visible Screen Size Model 26 66cm

(approx.)	32 80cm
	37 94cm

Display 16:9

Sound output (at 10% distortion) Main 10W + 10W

Power consumption Model 26 135W

as specified in 32 159W

EN60107-1:1997 37 188W

Standby (approx.) Model 26 <1W

32 <1W

37 <1W

Dimensions Model 26 56cm (H) 66cm (W) 28cm (D)

(approx.) 32 61cm (H) 80cm (W) 30cm (D)

37 69cm (H) 92cm (W) 30cm (D)

(Height dimension includes foot stand)

Weight (approx.) Model 26 15kg

32 20kg

37 25kg

Headphone socket 3.5mm stereo

Accessories Remote control

2 batteries

(AAA, IEC R03 1.5V)

Printed on recycled paper. 100% Chlorine free.

© Toshiba Information Systems (U.K.) Limited

All rights reserved.

Reproduction in whole or part without written permission is strictly prohibited.

Toshiba Information Systems (U.K.) Limited

Consumer Products Division,

European Service Centre,

Admiralty Way, Camberley,

Specification is subject to change without notice.

Originated by Zushi Illustration & Visualisation, Bristol, UK.

Sommaire

MISE EN ROUTE

Diagram of battery pack components including batteries and a motor (no text or labels)

Simple gray sphere with gradient shading (no text or symbols)

SOUS-TITRE

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

Audio HDMI1

Jacks audio Audio L + R

© Toshiba Information Systems (U.K.) Limited

Toshiba Information Systems (U.K.) Limited

Consumer Products Division,

European Service Centre,

Admiralty Way, Camberley,

Line drawing of a battery pack with two cylindrical batteries and internal compartments (no text or symbols)

3D Colour Management

© Toshiba Information Systems (U.K.) Limited

Toshiba Information Systems (U.K.) Limited

Consumer Products Division,

European Service Centre,

Admiralty Way, Camberley,
