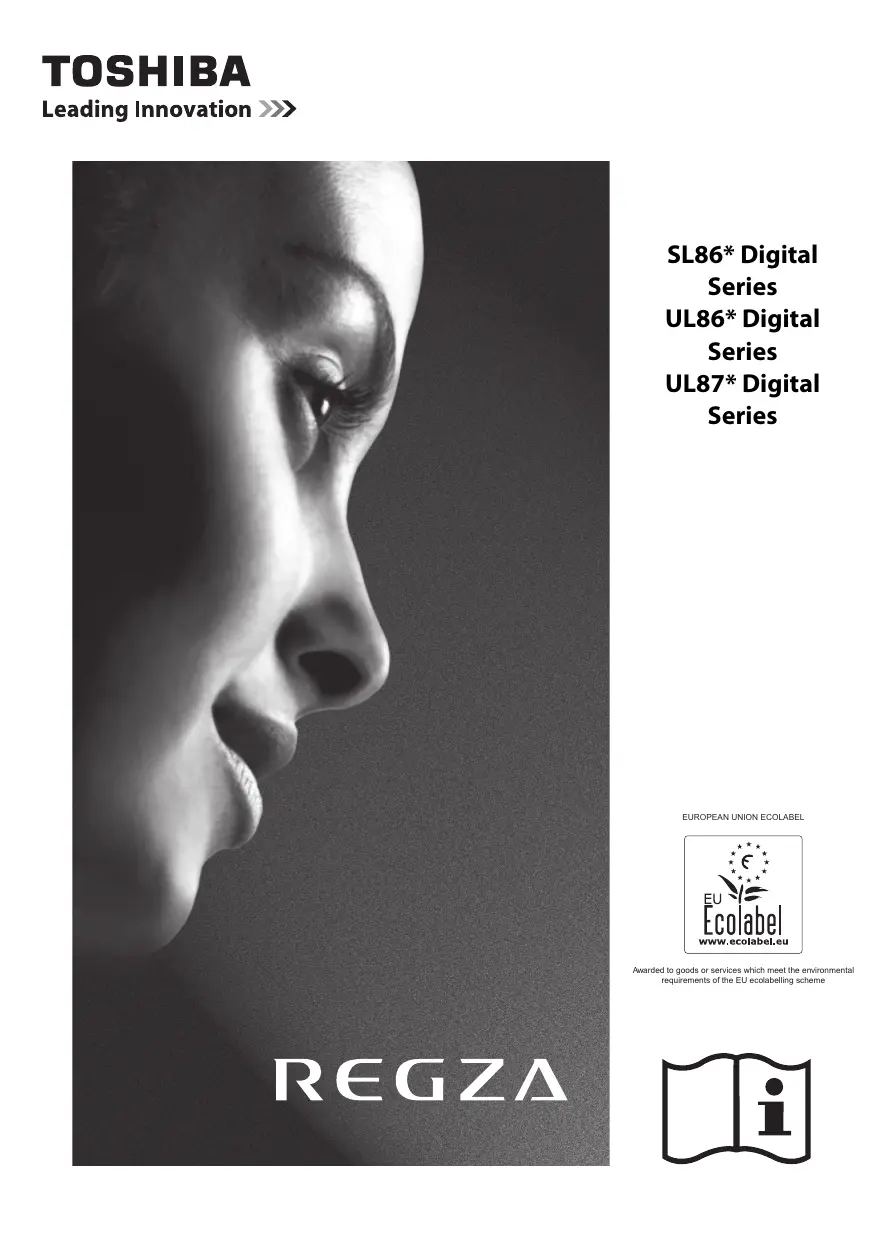

MODE D'EMPLOI UL863 TOSHIBA

SL86* Digital Series

UL86* Digital Series

UL87* Digital Series

EUROPEAN UNION ECOLABEL

Awarded to goods or services which meet the environmental requirements of the EU ocelabelling scheme

Contents

INSTALLING YOUR TV

Safety Precautions 4

Installation and important information 5

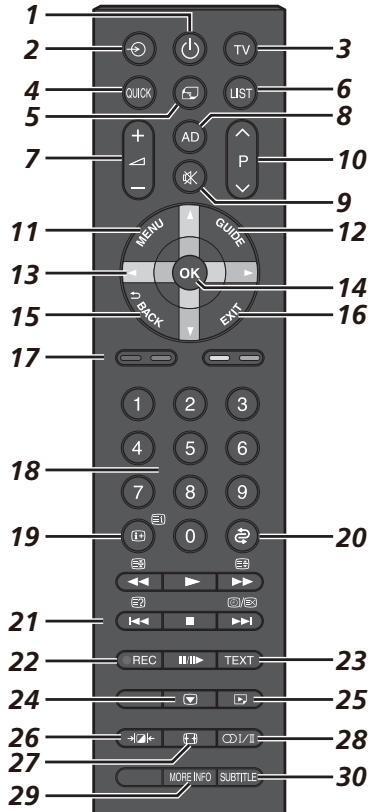

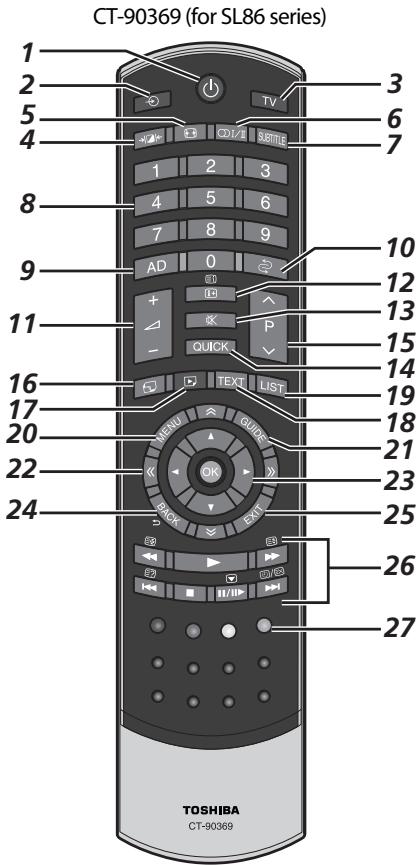

The remote control 8

Inserting batteries and effective range 8

The remote control 9

Inserting batteries and effective range 9

CONNECTING YOUR TV

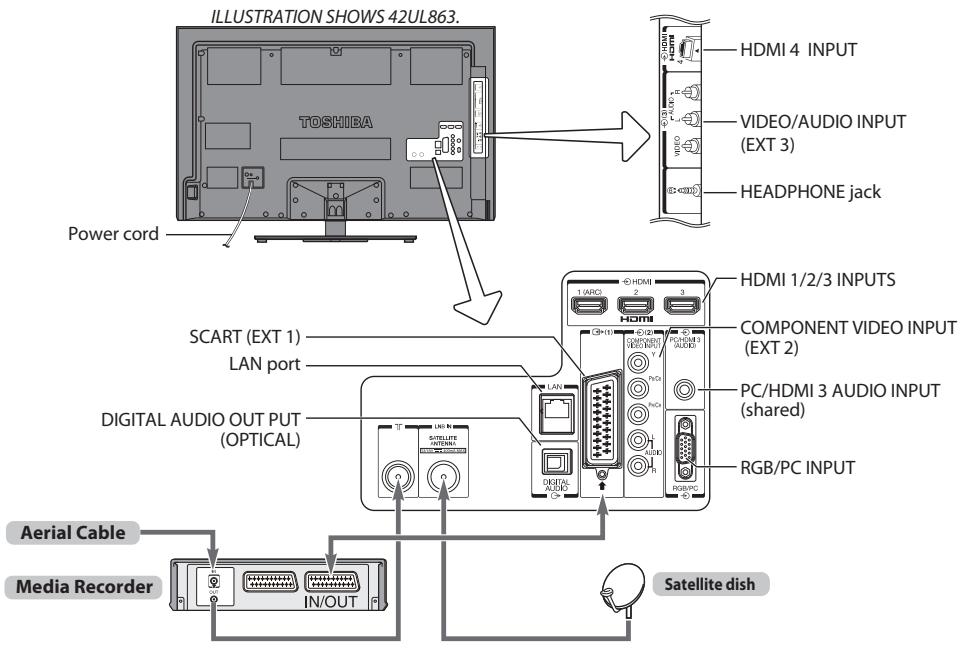

Connecting external equipment 10

Connecting an HDMI® or DVI device to the HDMI input ...11

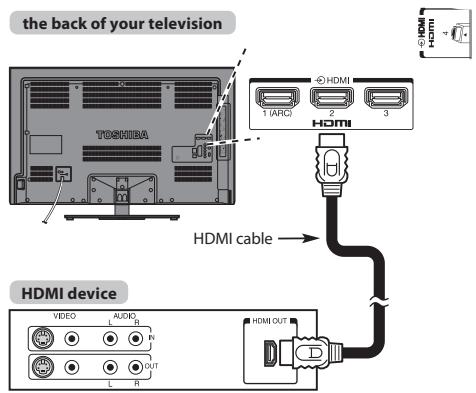

To connect an HDMI device 11

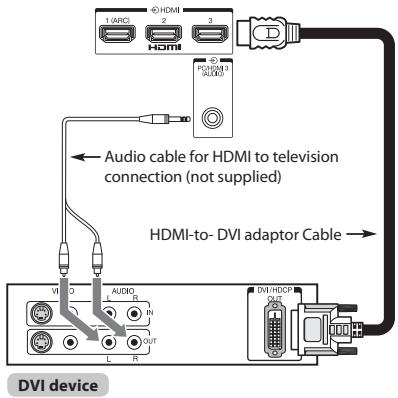

To connect a DVI device 11

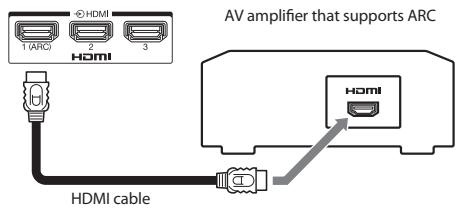

HDMI's ARC (Audio Return Channel) feature 11

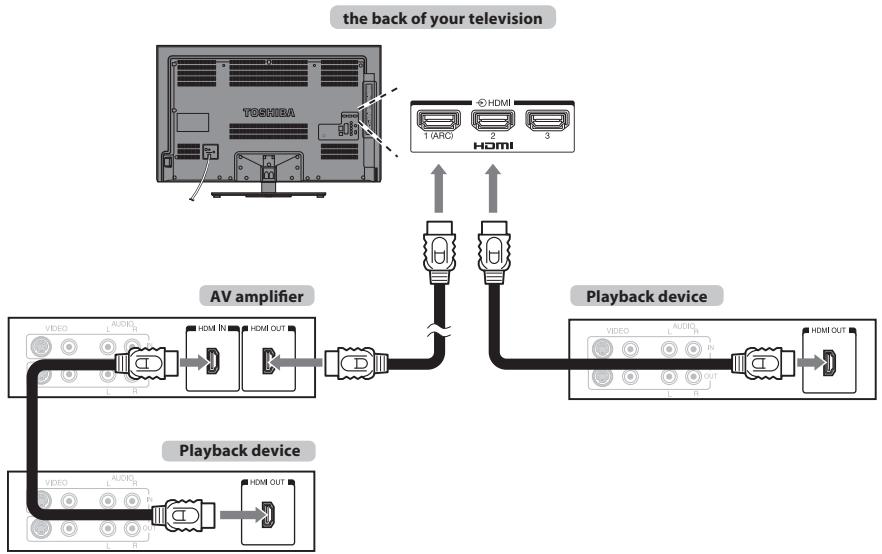

REGZA-LINK connection 12

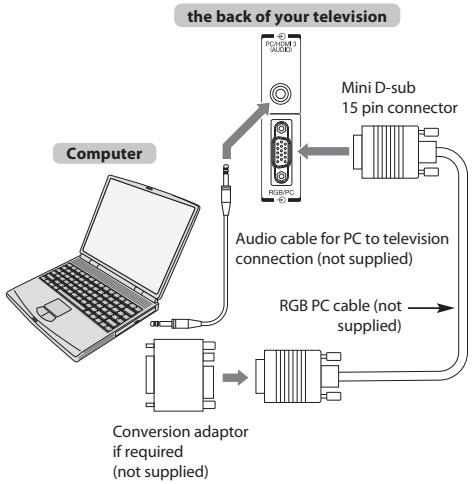

Connecting a computer 13

To connect a PC to the RGB/PC terminal 13

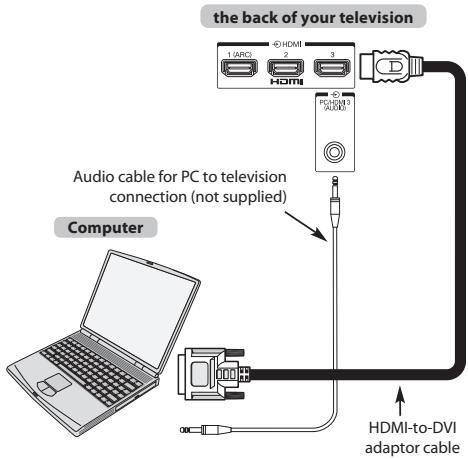

To connect a PC to the HDMI terminal 13

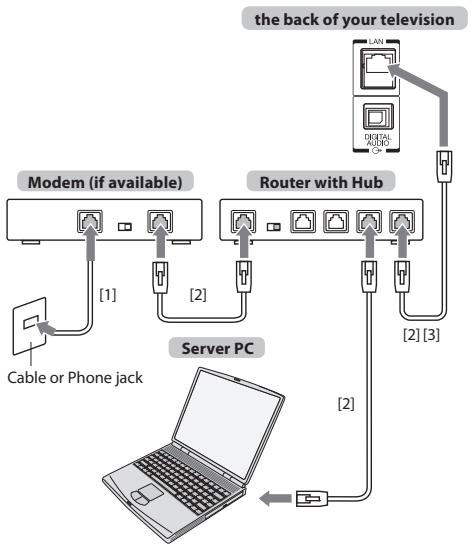

Connecting a home network 14

To connect the TV to a home network - Wired 14

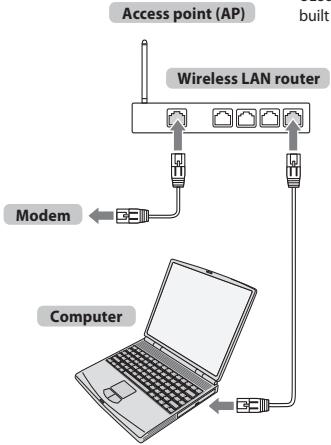

To connect the TV to a home network with an internet

connection - Wireless 14

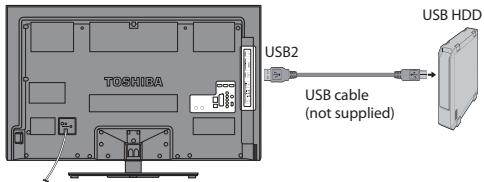

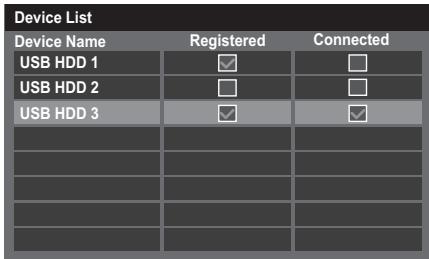

Setting up the USB HDD (for UL86/UL87 series) 15

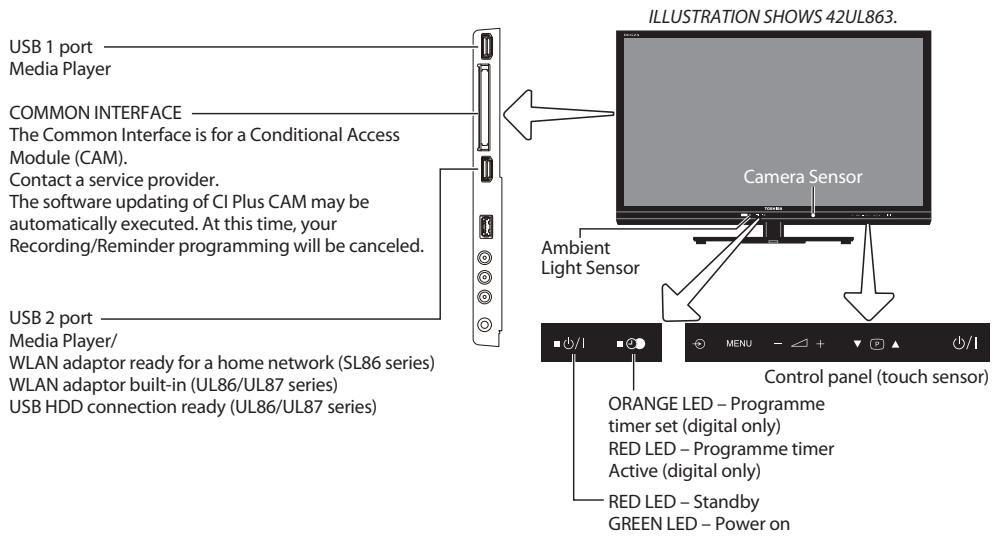

Controls and input connections 16

Switching on 16

Using the remote control 16

Using the controls and connections 16

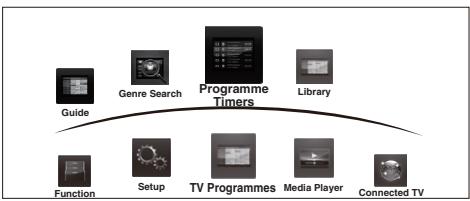

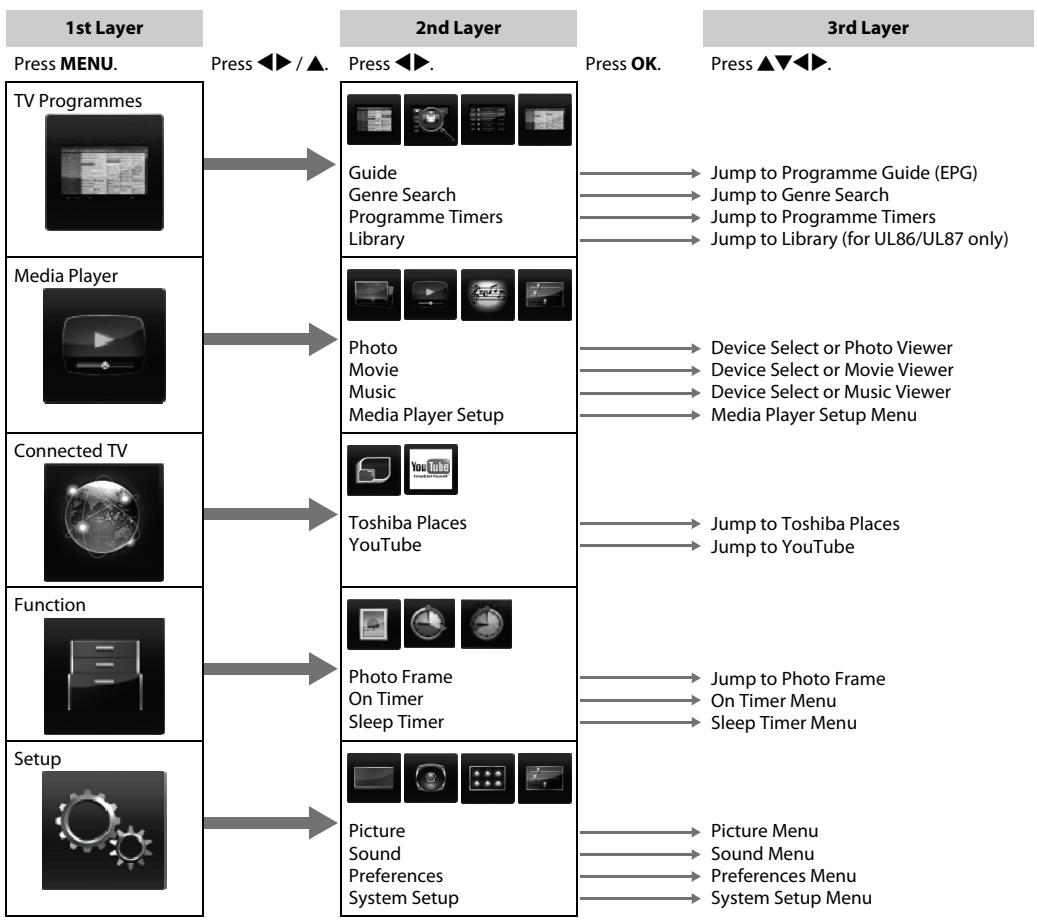

MENUSTRcuture 17

SETTING UP YOUR TV

Startup Application 18

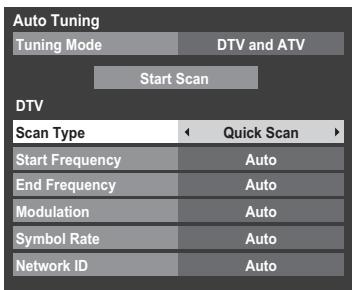

Ant/Cable/Satellite (if available) 19

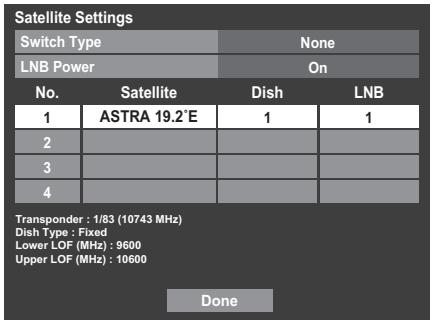

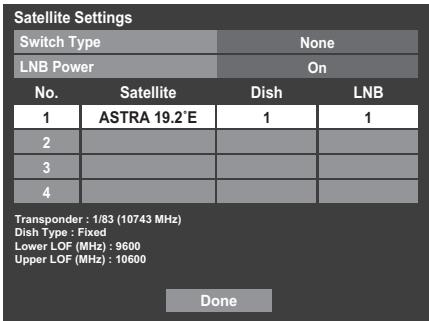

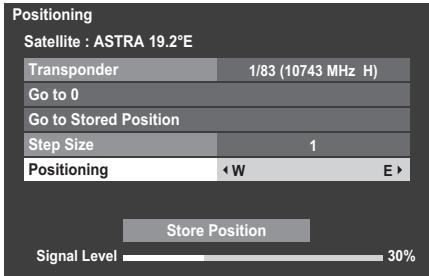

Satellite Settings 20

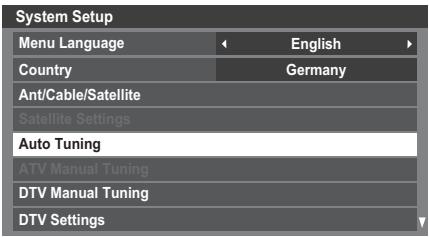

Auto Tuning 22

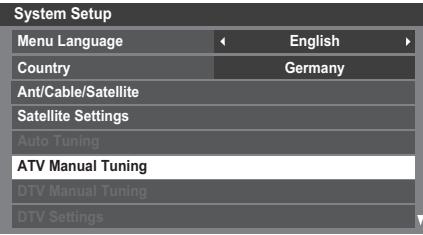

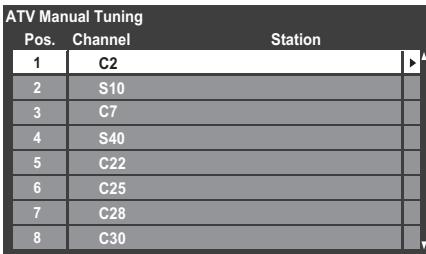

ATV Manual Tuning 23

Tuning 23

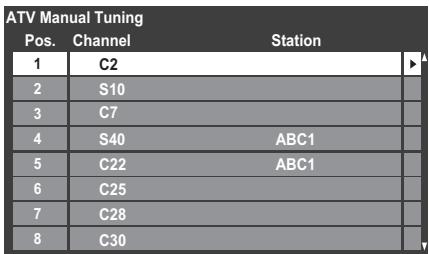

Skip 24

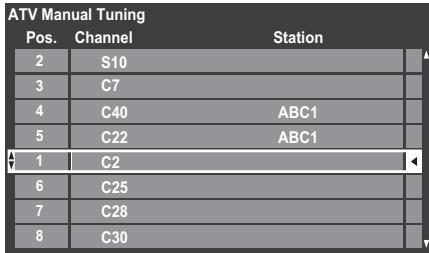

Sorting positions 24

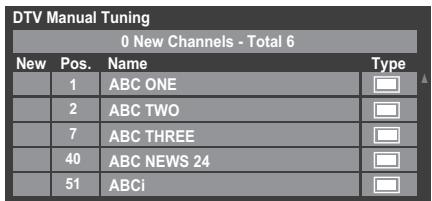

DTV Manual Tuning 25

Manual Tuning 25

Manual Tuning for DVB-C 25

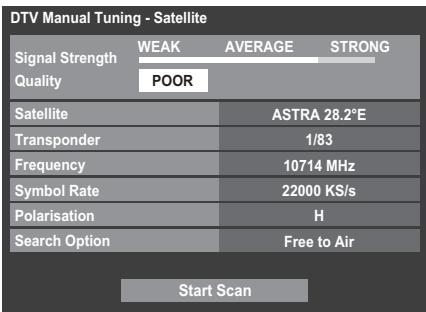

Manual Tuning for DVB-S 25

DTV Settings 26

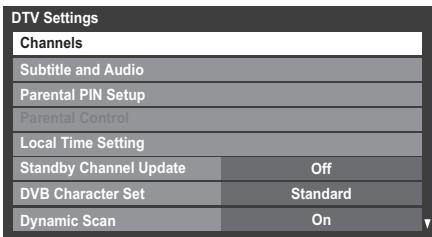

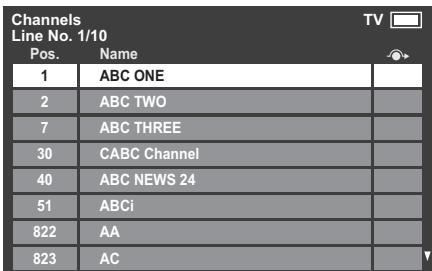

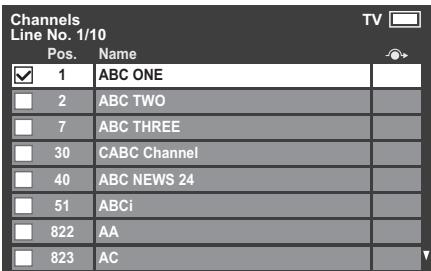

Channels (Antenna/Cable) 26

Channels (Satellite) 27

Standby Channel Update 27

DVB Character Set 27

Dynamic Scan 27

Location setting 28

Analogue switch-off 28

CONTROLS AND FEATURES

General controls 29

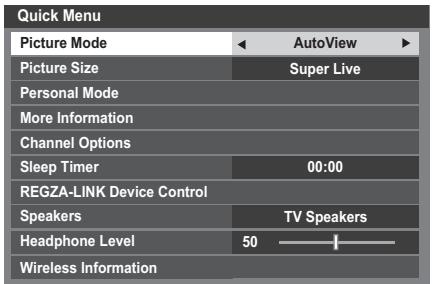

Quick Menu 29

Selecting positions 29

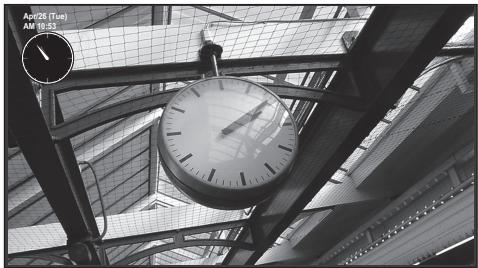

The Time Display - analogue only 29

Stereo and Bilingual transmissions 29

Sound controls 30

Volume controls and sound mute 30

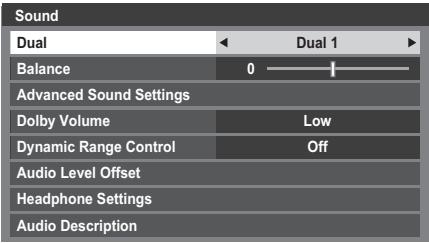

Dual 30

Balance 30

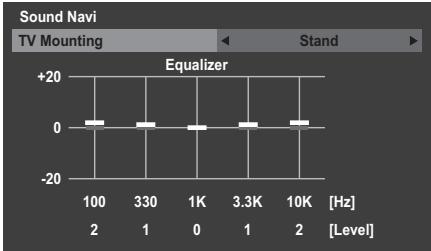

Sound Navi 30

Surround Settings 30

Dolby Volume 30

Dynamic Range Control 31

Audio Level Offset 31

Headphone Settings 31

Audio Description 31

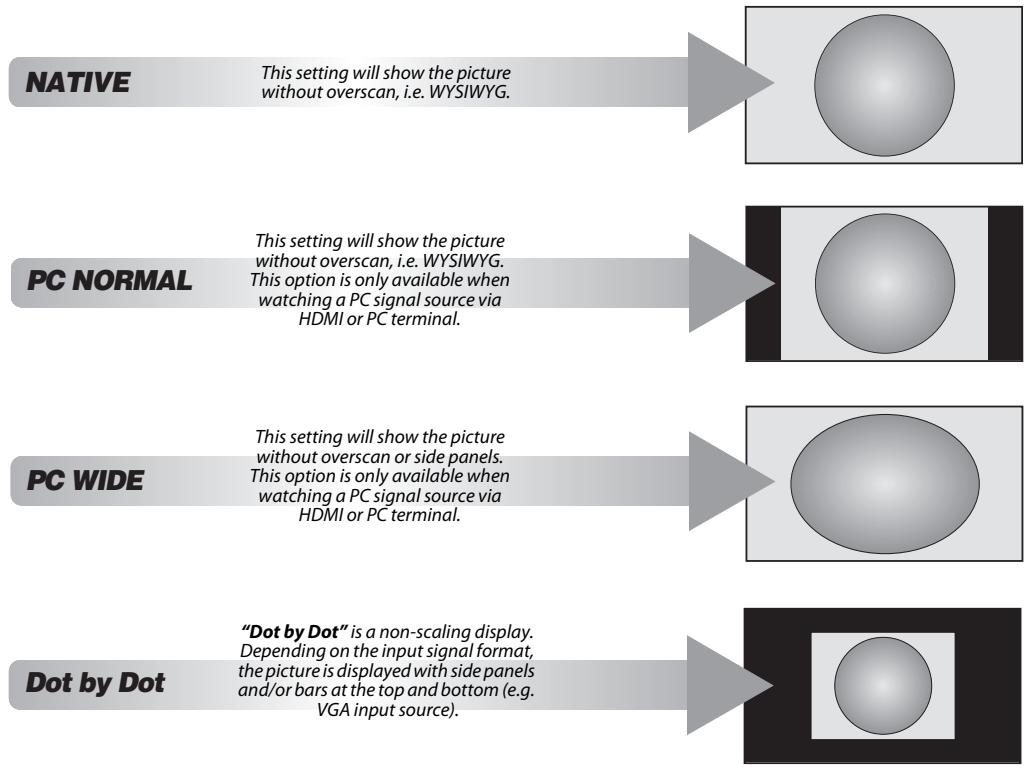

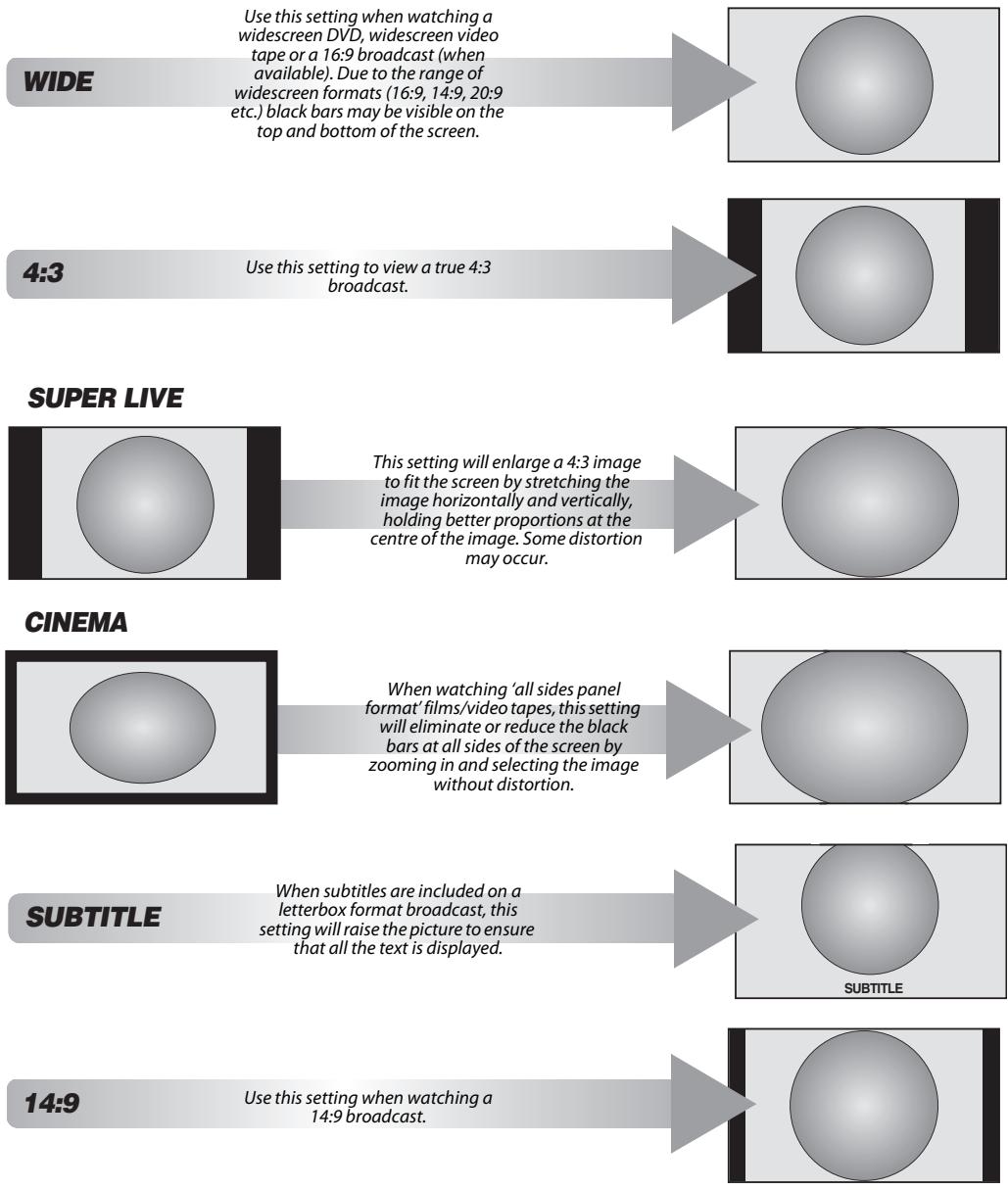

Widescreen viewing 32

Picture controls 34

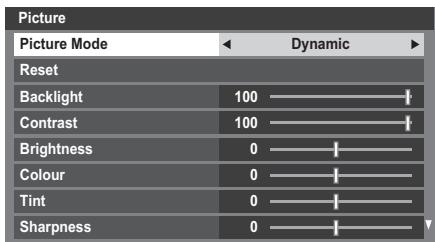

Picture Mode 34

Picture preferences 34

Reset 34

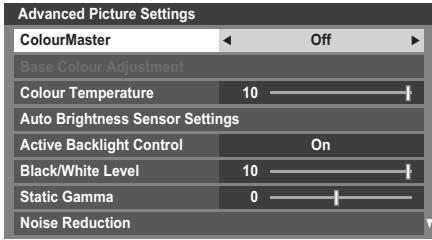

ColourMaster 34

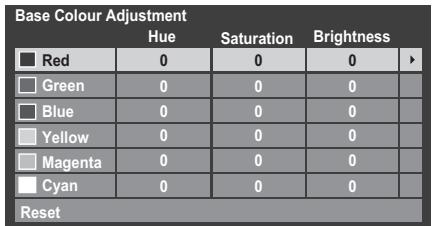

Base Colour Adjustment 35

Colour Temperature 35

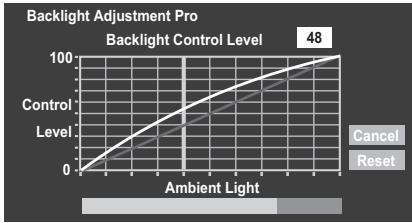

Auto Brightness Sensor Settings 35

Active Backlight Control 35

Black/White Level 36

Static Gamma 36

MPEG NR - Noise Reduction 36

DNR-Digital Noise Reduction 36

Resolution+ 36

Active Vision M100 36

Motion Detection Range 36

Resetting the advanced picture settings 37

Expert Picture Settings 37

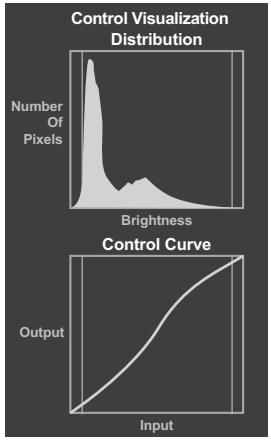

Control Visualization 39

Automatic Format (Widescreen) 39

4:3 Stretch 39

Blue Screen 39

Picture Position 39

Picture still 40

HDMI Information Display 40

Using your home network 41

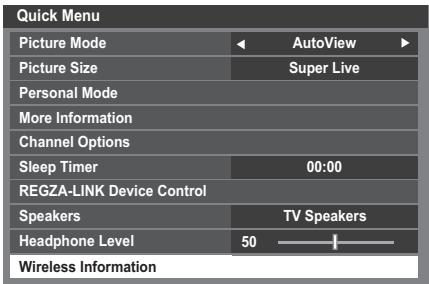

Wireless LAN Information (for UL86/UL87 series) 42

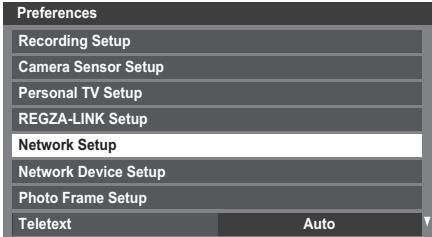

Setting up the Network 43

Wireless Setup 43

Advanced Network Setup 45

DNS Setup 46

Network Connection Test 47

Using the software keyboard 47

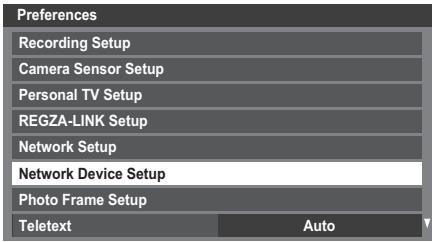

Network Device Setup 48

External Control Setup 48

Media Renderer Setup 48

Using the USB HDD Function 49

To record DTV programmes (One Touch Recording) 49

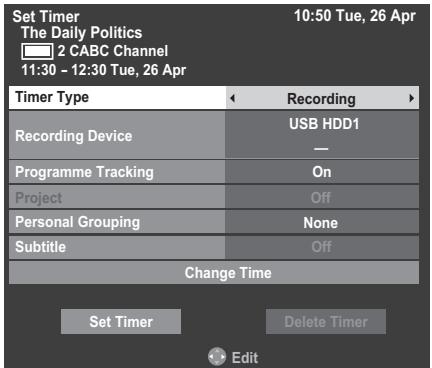

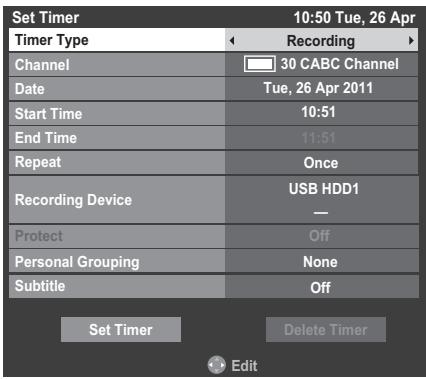

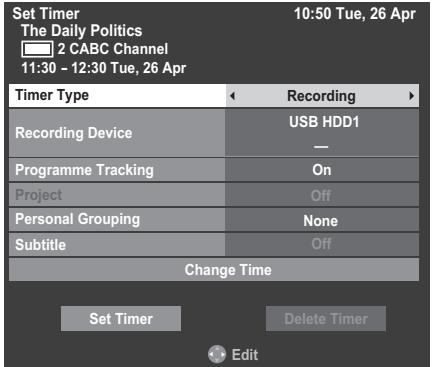

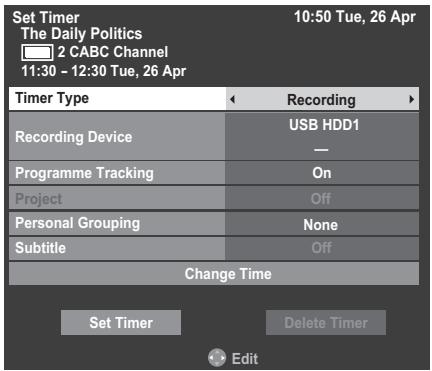

To schedule programmed recording 49

To check, edit or delete scheduling information ....52

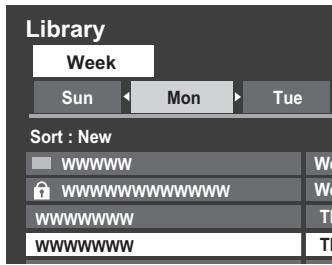

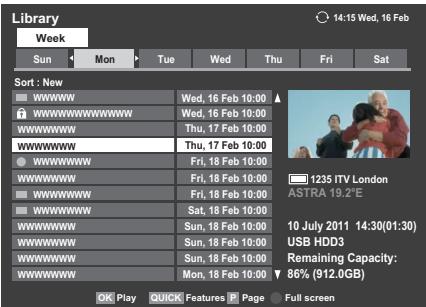

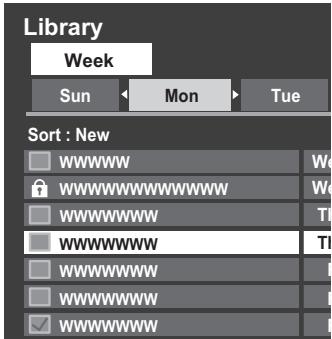

To view a recorded programme 53

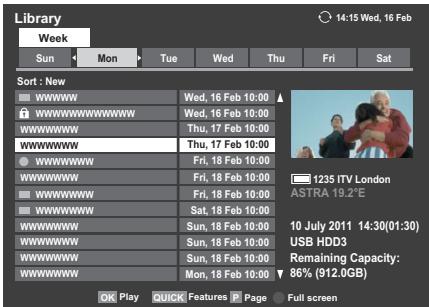

Operations from the Library screen 53

Other useful functions (Time Shift Recording) 54

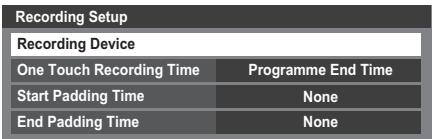

Recording Setup 55

To disconnect a USB HDD 56

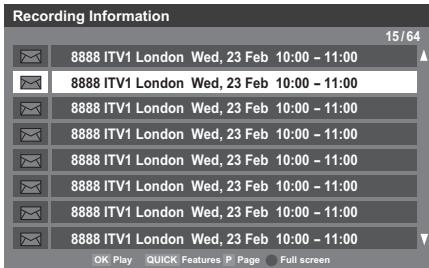

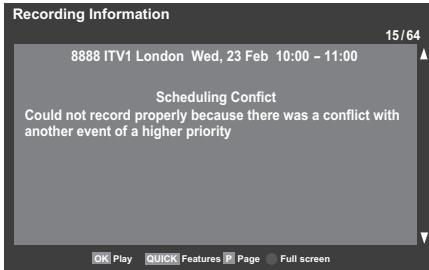

To confirm/delete Recording Information 56

Scheduling priority 57

Camera Sensor Settings 57

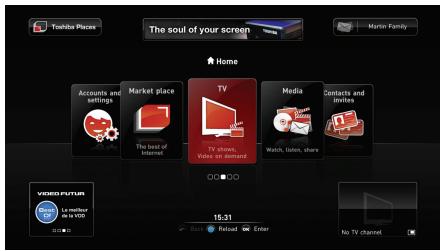

Using Toshiba Places 58

Using YouTubeTM 58

Using the Function Menu 59

Using the Media Player 61

Basic operation 61

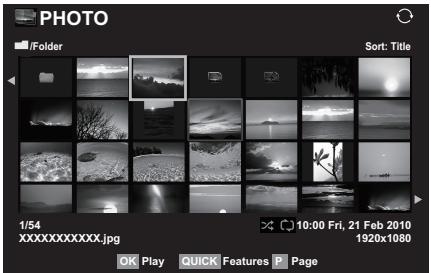

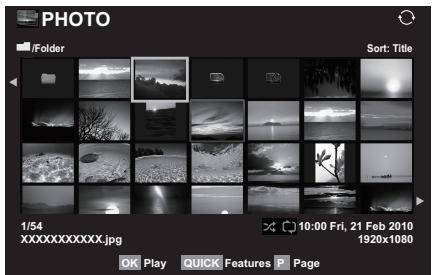

Viewing photo files (on a DLNA CERTIFIED™ Server or USB device) ....63

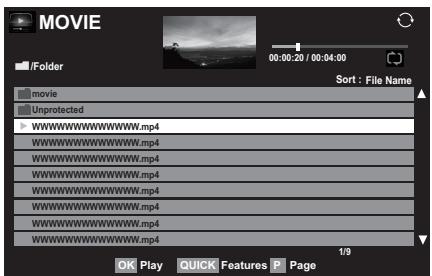

Viewing movie files (on a DLNA CERTIFIED™ Server or USB device) ....64

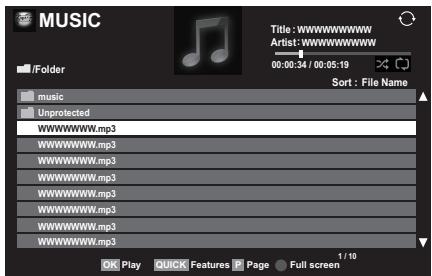

Playing music files (on a DLNA CERTIFIED™ Server or USB device) ....66

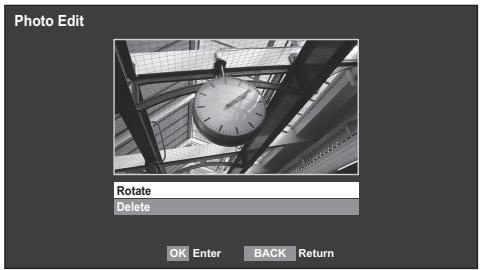

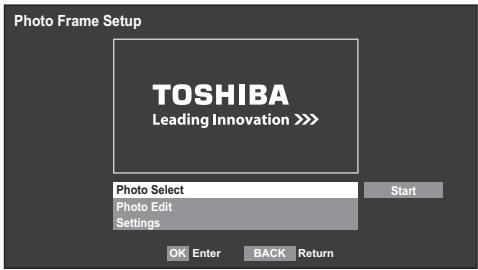

Using the Photo Frame feature 68

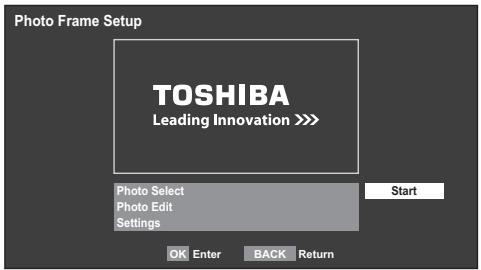

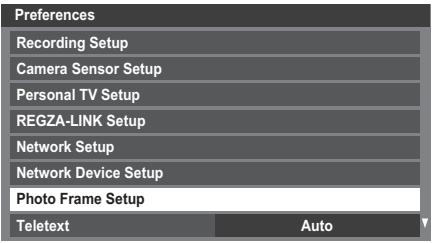

To open Photo Frame 68

Setting the features 68

Other features 70

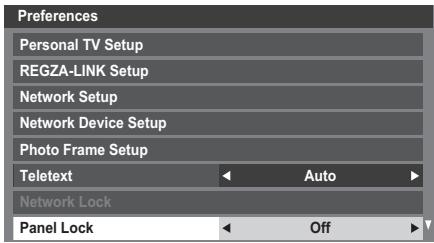

Panel Lock 70

The timers 70

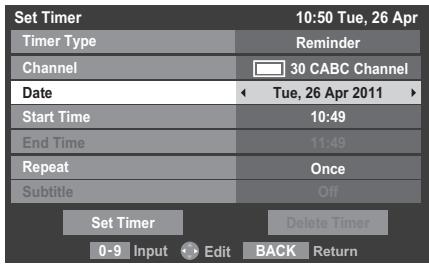

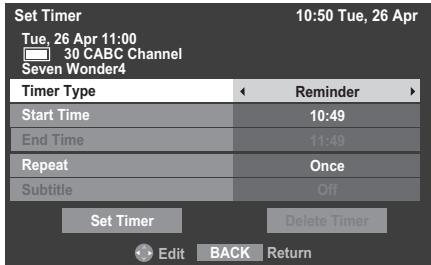

Programme Timers - digital only 70

On Timer 71

Sleep Timer 71

Energy Saving Settings 72

Automatic Power Down 72

No Signal Power Down 72

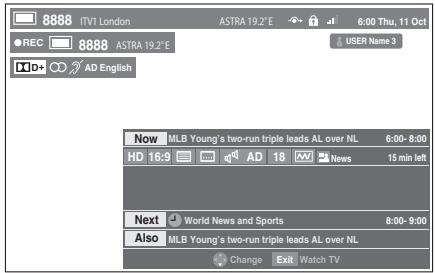

Digital on-screen information and Programme Guide ....72

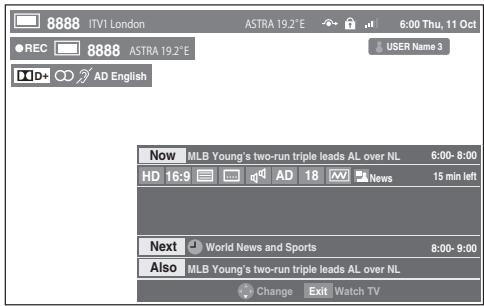

Information 72

Guide 73

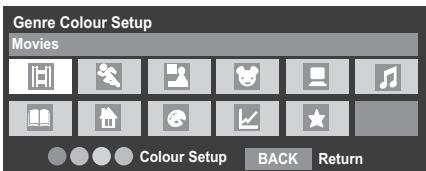

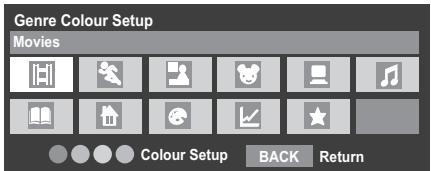

Genre selection/searching 74

Digital settings - parental control 74

Parental PIN Setup 74

Parental Setup 75

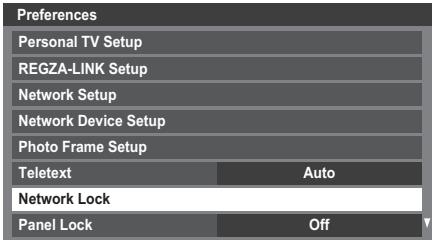

Network Lock 75

Digital settings - Channel Options 75

Selecting favorite channels 75

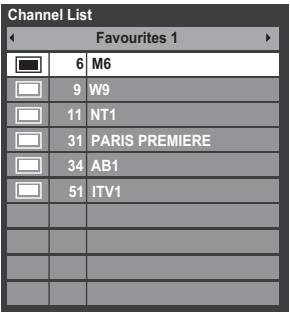

Favorite Channel Lists 75

Skip channels 76

Locking channels 76

Digital settings - other settings 76

Subtitles 76

Audio languages 76

Common Interface 77

Software Upgrade and Licences 77

Auto Upgrade 77

Searching for New Software 77

Network Upgrade 78

Software Licences 78

System Information and Reset TV 78

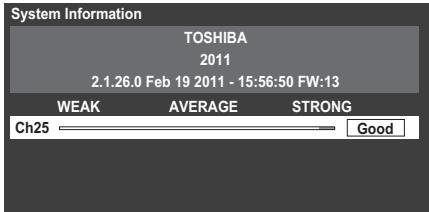

System Information 78

Reset TV 78

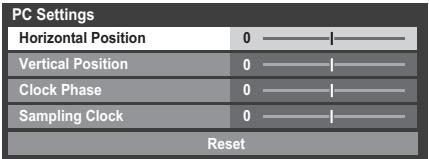

PC Settings 79

Horizontal and Vertical Position 79

Clock Phase 79

Sampling Clock 79

Reset 79

Input selection and AV connections 80

Input selection 80

External input skip 80

Labeling video input sources 81

PC Audio 81

HDMI 3 Audio . 81

HDMI Settings 82

Digital Audio Output 82

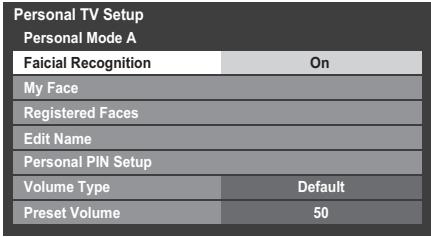

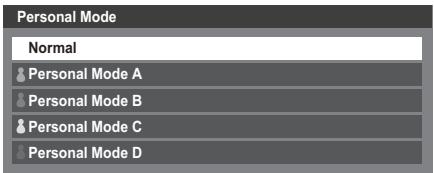

Using Personal TV Mode 83

Using REGZA-LINK 85

Enable REGZA-LINK 85

TV Auto Power 85

Auto Standby 85

Amplifier Control 85

Initial Speaker Setting 85

Position Key Pass Through 85

REGZA-LINK input source selection 86

REGZA-LINK Device Control 86

REGZA-LINK one touch play 86

REGZA-LINK system standby 86

REGZA-LINK system audio control 87

Toshiba PC compatible with REGZA-LINK 87

TEXT SERVICES

Text services 88

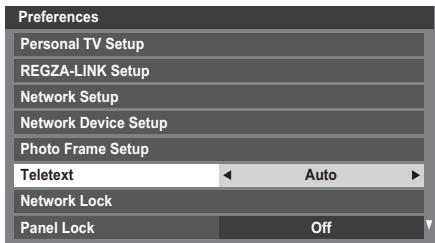

Selecting modes 88

Text information 88

Navigating pages using Auto 88

Navigating pages using LIST 88

Control buttons 89

PROBLEM SOLVING

Questions and Answers 90

INFORMATION

License Information 93

Information 95

Specifications and accessories 98

Safety Precautions

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products, and some points may not apply to the goods you have just purchased.

Air Circulation

Leave more than 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided.

Heat Damage

Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5^ (41^) min. and 35^ (94^) max.

Mains Supply

The mains supply required for this equipment is 220-240v AC 50/60Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead. Use only the supplied lead.

DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance. IF IN DOUBT, PLEASE CONSULT A COMPETENT ELECTRICIAN.

Do

DO read the operating instructions before you attempt to use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturers' instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. See page 5.

DO be careful with glass panels or doors on equipment.

DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND 'LIVE' PARTS.

THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.

Do not

DO NOT obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

DO NOT allow electrical equipment to be exposed to dripping or splashing or objects filled with liquids, such as vases, to be placed on the equipment.

DO NOT place hot objects or naked flame sources, such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.

WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all times.

DO NOT use makeshift stands and NEVER fix legs with wood screws. To ensure complete safety, always fit the manufacturer's approved stand, bracket or legs with the fixings provided according to the instructions.

DO NOT leave equipment switched on when it is unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, and make sure your family knows how to do this. Special arrangements may need to be made for people with disabilities.

DO NOT continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

WARNING - excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, or push anything into holes, slots or any other openings in the case.

NEVER guess or take chances with electrical equipment of any kind - it is better to be safe than sorry.

Installation and important information

Where to install

Locate the television away from direct sunlight and strong lights. Soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.

Place the TV on a stable, level surface that can support the weight of the TV. In order to prevent injury and maintain stability of this apparatus, secure the TV to the level surface using the strap if fitted, or to a wall using a sturdy tie to the P clips provided. Otherwise secure the TV on the level surface using the supplied mounting screw.

The LCD display panels are manufactured using an extremely high level of precision technology; however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen. Also, please be certain that small items cannot be inserted into slots or openings in the case.

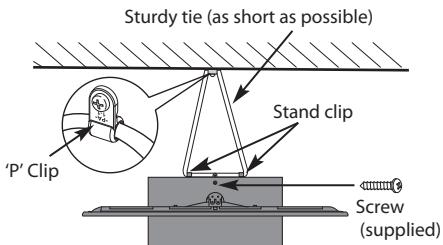

When using a Wall Bracket

Please use a wall bracket appropriate for the size and weight of the LCD TV.

• Two people are required for installation.
• Never use the four screws attached to the TV.

Unplug and remove any cables and/or other component connectors from the rear of the TV.
2 Carefully lay the front of the unit face down on a flat, cushioned surface such as a quilt or blanket.
3 Follow the instructions provided with your wall bracket.

Before proceeding, make sure the appropriate bracket(s) are attached to the wall and the back of the TV as described in the instructions provided with the wall bracket.

Always use the screws supplied or recommended by the wall mount manufacturer.

Stand style is dependent on model

Remove four screws.
(Do not reuse these screws for attaching a wall bracket.)

Please take note

The digital reception function of this television is only effective in the countries listed in the "Country" section of the "Setup/System Setup" menu. Depending on country/area, some of this television's functions may not be available. Reception of future additional or modified services can not be guaranteed with this television.

If stationary images generated by 4:3 broadcasts, text services, channel identification logos, computer displays, video games, on-screen menus, etc. are left on the television screen for any length of time, they could become conspicuous. It is always advisable to reduce both the brightness and contrast settings.

Very long, continuous use of the 4:3 picture on a 16:9 screen may result in some retention of the image at the 4:3 outlines. This is not a defect of the LCD TV and is not covered under the manufacturer's warranty. Regular use of other size modes (eg: Super Live) will prevent permanent retention.

EXCLUSION CLAUSE

Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:

i) Fire;
ii) Earthquake;
iii) Accidental damage;
iv) Intentional misuse of the product;
v) Use of the product in improper conditions;
vi) Loss and/or damage caused to the product whilst in the possession of a third party;
vii) Any damage or loss caused as a result of the owner's failure and/or neglect to follow the instructions set out in the owner's manual;
viii) Any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following: loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.

NOTE: A Toshiba wall bracket or stand, where available, must be used.

When Using an USB HDD (for UL86/UL87 series)

• The recording function has been designed for private use and entertainment in your home environment. Please note that any commercial use of the recording function could lead to copyright infringement of authors' rights. Toshiba asks you to respect the intellectual property rights of third parties.
• Before recording to a device connected to the TV, make a test recording and check the recording performance.
• Programmes that are prohibited from copying due to copyright protection cannot be recorded.
• Toshiba shall not be liable for compensation or incidental damages of any kind whatsoever resulting from content that was not properly recorded on the recording device or that was modified or lost.

• Toshiba shall not be liable for damages of any kind whatsoever (breakdown of the recording device, modification or loss of the recorded content, etc.) resulting from malfunction, operating failure or incorrect operation due to combining with another connected device.

• If you connect and register an USB HDD that has been used with a PC or another TV or recorder to this TV, all the data and recorded programmes stored on the disk will be deleted.

• To use an USB HDD that has been used with this TV on a PC, the hard disk must first be formatted with the PC. At this time, all the data stored using the TV will be deleted.
• Do not turn off the power supply to the USB HDD or disconnect the connecting cable while the USB HDD is operating.

Doing so may result in loss of the recorded data or malfunction of the USB HDD.

• If you connect an USB bus-powered device to the USB 1 port, it may interfere with recording on the USB HDD.

The recording function is not available in all countries.

• Please note, that recording on the USB HDD are no longer playable, after the TV's main-board was exchanged during service.

About the Camera Sensor (for UL86/UL87 Series)

The camera sensor installed in this TV can detect a person's face or movement and identify individuals by their registered faces. Please note that certain factors can affect the performance of the sensor function as set out below.

General Sensor Function

• For the sensor to operate (for each function) you will need to be within the sensor detection range as set out below.

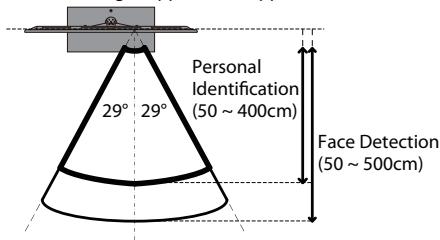

• The approximate effective detection range of the camera sensor is as shown below. (Note: The distance and angle of the detection range are based on a standard viewing environment and conditions).

• Horizontal angle: approx. 58^ (approx. 29^ × 2 )

• Vertical angle: approx. 38^ (upward approx. 29^ , downward approx. 9^ )

• Distance: approx. 50 cm to 500 cm (Personal Identification Function: approx. 50 cm to 400 cm )
• Do not place anything in front of the TV that may obstruct detection or reduce the sensor detection range.

Motion Detection Function

• Motion detection may be affected by the surrounding environment, such as the brightness of the room. In addition, very slight, small or momentary movement may be undetected.
• Sensor performance can be enhanced by making sure the room is brightly lit and using prolonged and obvious movements.
• Billowing curtains, a pet or variations in illumination in the detection range may be detected as motion, even if there is no person there.
• You can use the camera sensor confirmation menu to check that no movement made by other persons is being detected.

Face Detection Function

• The sensor can detect up to eight persons.

• Face Detection may be affected if:

• Your face is obstructed or partially hidden, for example, by your hair, a mask or a hat,

• Your head is tilted or turned to one side, or

• You are wearing dark glasses or the light is reflected in your glasses.

• You can use the camera sensor confirmation menu to check whether your face is detected.

• The camera sensor may detect background images such as a picture portrait or the pattern on the wall as eyes or nose even if there is no person there. You can use the confirmation screen to check whether any such object in the detection range is being incorrectly detected as a face.
• Face Detection can be less effective on darker complexions and in darker environments.
• Face Detection can be enhanced by making sure your face is clearly visible and evenly lit. If the room is dark, Face Detection can be enhanced by making sure the room is brightly lit. If the lighting environment creates a shadow on your face, Face Detection can be enhanced by adjusting the lighting to prevent shadows.

Personal Identification Function

• The Personal Identification Function is part of the Face Detection Function. The factors affecting the Face Detection Function set out above also apply to the Personal Identification Function.

• Personal Identification may in addition be affected by:

• A different shadow pattern from that when your face was registered. Personal Identification accuracy can be enhanced by registering additional facial images under different conditions.

• A different lighting environment from when your face was registered, such as during the day and at night. Personal Identification accuracy can be enhanced by registering your face under various lighting environments.
• Whether or not you are wearing glasses. If you wear glasses, we recommend that you register your face both with and without glasses.

• A different facial expression. Personal Identification accuracy can be enhanced by registering different facial expressions.

• Personal Identification may be affected when faces have similar characteristics (e.g. brothers, sisters, twins).

• Personal Identification is less effective on the faces of young children.

Face Registration Function

• Up to four people can be registered under the Personal Identification Function. The same person cannot be registered twice.
• A maximum of 10 different facial images per person can be registered. Personal identification accuracy can be enhanced by registering different facial images as set out above.
• It is advisable to register your face in your usual viewing position and with your natural facial expression. Registering your face too near to or too far from the screen may hinder identification performance.

The remote control

1 For On/Standby mode
2 To select external input sources
3 To select TV Mode
4 Selectable Picture preferences
5 Widescreen viewing
6 / Stereo/bilingual transmissions
7 Digital Subtitles or Analogue TEXT Subtitle pages if available
8 Number buttons
9 Switch the Audio Description On/Off
10 To return to previous programme position
11 To alter the TV volume
12 To display on-screen information To access the index page in Text mode
13 To mute the TV sound
14 To access Quick Menu
15 To change programme positions To change TEXT pages

16 To access "TOSHIBA PLACES" Top Page When network is not connected, an error message will be displayed.
17 To access Media Player Menu
18 To call up text services
19 To access the analogue or digital Channel List
20 On-screen Menus
21 To display the digital on-screen Programme Guide
22 公 To page up, down, left or right
23 When using menus, the arrows move the cursor on the screen up, down, left or right. Press OK to confirm your selection
24 To return to previous Menu
25 To exit menus

26 When in TV mode:

Picture still

× Analogue time display

When in Text mode:

To reveal concealed text

To hold a wanted page

To enlarge text display size

To select a page while viewing a normal picture

When using Programme Guide:

-24 hours

+24 hours

-1 page

+1 page

During Playback:

To PLAY

To STOP

To PAUSE/STEP

To SKIP-BACK

To REWIND

To FAST FORWARD

To SKIP-FORWARD

27 Colour buttons: Text and interactive service control buttons

Inserting batteries and effective range

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the proper way. Suitable battery types for this remote are AA, IEC R6 1.5V.

Do not combine a used, old battery with a new one or mix

battery types. Remove dead batteries immediately to prevent acid from leaking into the battery compartment. Dispose of them in accordance with instructions on page 94 of this manual.

Warning: Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced, the batteries may need replacing.

The remote control

CT-90382 (for UL86/UL87 series)

1 For On/Standby mode
2 To select external input sources
3 To select TV Mode
4 To access Quick Menu
5 To access the "TOSHIBA PLACES" Top Page When network is not connected, an error message will be displayed.
6 To access the analogue or digital Channel List
7 To alter the TV volume
8 Switch the Audio Description On/Off
9 To mute the TV sound
10 To change programme positions To change TEXT pages
11 On-screen Menus
12 To display the digital on-screen Programme Guide
13 When using menus, the arrows move the cursor on the screen up, down, left or right
14 Press OK to confirm your selection
15 To return to previous Menu

16 To exit menus
17 Colour buttons: Text and interactive service control buttons
18 Number buttons
19 To display on-screen information To access the index page in Text mode
20 To return to previous programme position

21 When in TV mode:

Analoguet time display

When in Text mode:

To reveal concealed text
To hold a wanted page
To enlarge text display size
To select a page while viewing a normal picture

When using Programme Guide:

-24 hours
+24 hours
-1 page
+1 page

During Playback:

To PLAY
To STOP
IMI To PAUSE/STEP
To SKIP-BACK
ToREWIND
To FAST FORWARD
To SKIP-FORWARD

22 To record DTV programmes
23 To call up text services
24 Picture still
25 To access Media Player Menu
26 Selectable Picture preferences
27 Widescreen viewing
28 / Stereo/bilingual transmissions
29 To access More Information Menu
30 Digital Subtitles or Analogue TEXT Subtitle pages if available

Inserting batteries and effective range

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the proper way.

Suitable battery types for this Remote are AAA, IEC R03 1.5V.

Do not combine a used, old battery with a new one or mix battery types. Remove dead batteries immediately to

prevent acid from leaking into the battery compartment. Dispose of them in accordance with instructions on page 94 of this manual.

Warning: Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced, the batteries may need replacing.

Connecting external equipment

Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket.

Aerial cables:

Connect the aerial to the socket on the rear of the television. If you use a decoder and/or a media recorder, it is essential that the aerial cable is connected through the decoder and/or through the media recorder to the television.

"F-type"

Satellite cable:

Connect the LNB from the satellite dish to the SATELLITE ANTENNA socket on the TV. You can receive TV, radio, interactive TV, and HD TV with clear reception.

SCART leads:

Connect the media recorder IN/OUT socket to the television. Connect the decoder TV socket to the television.

Before running Auto Tuning, put your decoder and media recorder to Standby.

The phono sockets alongside the COMPONENTVIDEO INPUT sockets will accept L and R audio signals.

The Digital Audio Output socket enables the connection of a suitable surround sound system.

NOTE: This output is always active.

HDMI® (High-Definition Multimedia Interface) is for use with a DVD decoder or electrical equipment with digital audio and video output. For acceptable video or PC signal formats through the HDMI terminals, see page 96.

PC format signals will also be displayed.

NOTE: Although this television is able to connect to HDMI equipment, it is possible that some equipment may not operate correctly.

LAN port is used to connect the TV to your home network. This TV can play digital content stored on a DLNA CERTIFIED™ product with server function.

A wide variety of external equipment can be connected to the back of the television; therefore, the relevant owner's manuals for all additional equipment must be referred to for exact instructions.

If the television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button. To recall external equipment, press to select between DTV, EXT 1, EXT 2, EXT 3, HDMI 1, HDMI 2, HDMI 3, HDMI 4, PC or ATV.

When the external input mode is selected while viewing DTV mode, the SCART socket does not output video/audiosignals.

Connecting an HDMI® or DVI device to the HDMI input

The HDMI input on your television receives digital audio and uncompressed digital video from an HDMI source device or uncompressed digital video from a DVI (Digital Visual Interface) source device.

This input is designed to accept HDCP (High-Bandwidth Digital-Content Protection) programme material in digital form from EIA/CEA-861-D-compliant [1] consumer electronic devices (such as a set-top box or DVD player with HDMI or DVI output). For acceptable video signal formats, see page 96.

NOTE:

• Some early HDMI equipment may not work properly with your latest HDMI TV, due to the adoption of a new standard. Please unplug your HDMI cable first and then try setting the INSTAPORT™ and Enable Content Type options to "Off". Your early HDMI source should operate properly with your television. See page 82.
  Supported Audio format: Linear PCM, Dolby Digital (AC-3), sampling rate 32/44.1/48kHz.

To connect an HDMI device

Connect an HDMI cable (type A connector) to the HDMI terminal.

For proper operation, it is recommended that you use an HDMI cable with the HDMI Logo (HDMI).

• If your HDMI connection is capable of 1080p and/or your television is capable of refresh rates greater than 50Hz , you will need a Category 2 cable. Conventional HDMI/DVI cable may not work properly with this model.
• HDMI cable transfers both video and audio. Separate analogue audio cables are not required (see illustration).
  See "HDMI 3 Audio" on page 81.

To view the HDMI device video, press the button to select HDMI 1, HDMI 2, HDMI 3 or HDMI 4 mode.

To connect a DVI device

Connect an HDMI-to-DVI adaptor cable (HDMI type A connector) to the HDMI 3 terminal and audio cables to the PC/HDMI 3 (AUDIO) socket (see illustration).

• The recommended HDMI-to-DVI adaptor cable length is 6.6 ft (2m).
• An HDMI-to-DVI adaptor cable transfers video only. Separate analogue audio cables are required.
  See "HDMI 3 Audio" on page 81.

the back of your television

NOTE:

To ensure that the HDMI or DVI device is reset properly, it is recommended that you follow these procedures:

• When turning on your electronic components, turn on the television first, and then the HDMI or DVI device.
• When turning off your electronic components, turn off the HDMI or DVI device first, and then the television.

HDMI's ARC (Audio Return Channel) feature

This feature enables the audio signal of the TV to be sent to the AV amplifier via the HDMI cable. It will not be necessary to connect a cable from the audio output of the TV to the audio input of the AV amplifier to reproduce the audio received from the tuner of the TV through the AV amplifier.

the back of your television

REGZA-LINK connection

You can control the basic functions of connected audio/video devices using the television's remote control if you connect a REGZA-LINK compatible AV amplifier or playback device. For an explanation of setup and operations, see pages 85-87.

For the setup shown above, you will need three HDMI cables.

NOTE:

• If several devices are connected, the REGZA-LINK feature may not operate properly.
• For proper operation, it is recommended that you use HDMI cables with the HDMI Logo (HDMI).
• This function is available when one PC and one AV amplifier are connected separately. However, it may not operate properly if the PC is connected via the AV amplifier.

Before controlling the device(s):

• After completing the above connections, set the REGZA-LINK Setup menu as you desire (see page 85).
• The connected devices must also be set. For details, see the operation manual for each device.
• The REGZA-LINK feature uses CEC technology as regulated by the HDMI standard.
• This feature is limited to models incorporating Toshiba's REGZA-LINK. However, Toshiba is not liable for those operations. Refer to individual instruction manuals for compatibility information.

Connecting a computer

With either an RGB/PC or an HDMI connection, you can watch your computer's display on the television and hear the sound from the television's speakers.

To connect a PC to the RGB/PC terminal

When connecting a PC to the RGB/PC terminal on the television, use an analogue RGB (15-pin) computer cable and a PC audio cable for the PC/HDMI 3 (AUDIO) socket. Select PC from the PC/HDMI 3 Audio options in the AV Connection menu located in the Setup menu.

To use a PC, set the monitor output resolution on the PC before connecting it to the television. For acceptable PC signal formats, see page 95.

To display the optimum picture, use the PC setting feature (see page 79).

NOTE:

• The PC audio input terminal on the television is shared with the HDMI 3 analogue audio input terminal (see page 81).
• Some PC models cannot be connected to this television.
• An adaptor is not needed for computers with a compatible mini D-sub15-pin terminal.
  Depending on the DVD's title and the specifications of the PC on which you are playing the DVD-Video, some scenes may be skipped or you may not be able to pause during multi-angle scenes.
• A band may appear at the edges of the screen or parts of the picture may be obscured. This is due to scaling of the picture by the set, it is not a malfunction.
• When PC input mode is selected, some of the television's features will be unavailable e.g. Colour System in the Setup/System Setup menu.
• Some PC models may output unique signals that the television may be unable to detect (see page 95).

To connect a PC to the HDMI terminal

When connecting a PC to the HDMI terminal on the television, use an HDMI-to-DVI adaptor cable and an analogue audio cable.

If connecting a PC with an HDMI terminal, use an HDMI cable (type A connector). A separate analogue cable is not necessary.

For acceptable PC and video signal formats, see page 96.

NOTE:

• The edges of the images may be hidden.
• If connecting a certain PC model with a unique PC signal, the PC signal may not be detected correctly.

Connecting a home network

The LAN port allows your Toshiba TV to connect to your home network. You can use this revolutionary home entertainment networking system to access photo, video and audio files that are stored on a DLNA CERTIFIED™ server and play/display them on your TV.

NOTE:

• If you connect to a shared network outside your home, it is advisable to use a router. Always use DLNA CERTIFIED™ products in private network environments.
• If you use a hub or switch to connect the TV to your home network, you may not be able to use the automatic setup and will have to manually set up the network address. See page 46.
• If you use a router with built-in DHCP functionality, use the automatic setup. Manual setup may not work.
• If you connect the TV and PC directly, use a crossover LAN cable.

To connect the TV to a home network - Wired

[1] Coaxial or telephone cable (depending on your modem type)
[2] Standard LAN cable
[3] Do NOT connect a phone jack directly to the TV's LAN port.

To connect the TV to a home network with an internet connection - Wireless

Please refer to "Wireless Setup" section on page 43.

the back of your television

NOTE: UL86 and UL87 are the adaptor built-in.

Setting up the USB HDD (for UL86/UL87 series)

To connect an USB HDD (not supplied)

NOTE: For available USB HDD information, see "Product Information" on the website.

To register an USB HDD

When you connect a new USB HDD to the USB 2 port on the TV, the following screen will appear.

Press or to select Yes and press OK.

The formatting confirmation window will appear.

Press or to select Yes and press OK.

Registration will start.

3 If you want to name the USB HDD, press or to select Yes and press OK.

See page 47 to input characters.

The maximum number of characters is 10.

If you prefer the default name "USB HDD X," select No and press OK.

The Device List will appear.

You can now use registered HDDs.

While in the list mode, The following key operations are available:

OK button......To register/remove

RED button......To disconnect

GREEN button .......To change Device Name

YELLOW button...... To test

BLUE button......To format

NOTE:

• To disconnect a USB HDD from the TV, follow the procedures for "Removing the Device" in "Setting a USB HDD," including unregistered devices.
• When using a USB HDD, if necessary, perform the settings and operations shown in "Setting a USB HDD" (see page xx).
• Connect the USB HDD to the USB 2 port.

Recording and playback cannot be performed if connected to the USB 1 port.

• Up to 8 USB hard disks can be registered to this TV.
• Recorded programs saved on the USB HDD can only be viewed on this TV. They cannot be viewed when connected to another TV (including the same model of TV), a PC, or other device.
• You cannot connect a USB HDD to the TV via a USB hub.
• If an HDD is re-registered, it will not be formatted.
• When the USB HDD is formatted, all the data stored on the HDD will be deleted.

Controls and input connections

A wide variety of external equipment can be connected to the input sockets on the side of the television. While all the necessary adjustments and controls for the television are made using the remote control, the buttons on the television may be used for some functions.

Switching on

If the RED LED is not lit, check that the mains plug is connected to the power supply and press on the remote control; it may take a few moments. The GREEN LED will be lit. To put the television into Standby, press on the remote control. To view the television, press again. The picture may take a few seconds to appear.

For energy saving:

We recommend that you use the television with the factory settings. The factory settings are for energy saving. Unplugging the mains plug will cut energy use to zero for all televisions. This is recommended when the television is not being used for a long time, e.g. when on holiday. Reducing the brightness of the screen will reduce energy use. Energy efficiency cuts energy consumption and thus saves money by reducing electricity bills.

NOTE: Putting the television into standby mode will reduce energy consumption, but will still draw some power.

Using the remote control

Press MENU on the remote control to display the menu.

The five initial topics icons will appear. As each symbol is selected by pressing or on the remote control. Press ▲▼ ▲▶ to enter a sub menu and then enter a further sub menu to see any options.

NOTE: The same menu is displayed in DTV (Digital TV) and ATV (Analogue TV) modes; however, where some items are not available in a mode, they will appear greyed out.

To use the option, press and on the remote control to move up and down and press or to select your desired setting. Follow the on-screen instructions. The functions of each menu are described in detail throughout the manual.

Using the controls and connections

To alter the volume gently touch - +

To alter the programme position touch

Touch MENU and , - + to control the sound and picture options.

Touch MENU to finish.

The Media Player feature provides access to photo, movie and music files stored on an USB storage device that is connected via the USB 1 or USB 2 port or on a network device.

NOTE: The USB socket has limited functionality and Toshiba can take no responsibility for damage to other connected equipment.

For SL86 series, the USB 2 socket has to be used with the "TOSHIBA Dual Band WLAN Adaptor WLM-10U2" in order to access a wireless network.

This feature is available only when the "TOSHIBA Dual Band WLAN Adaptor" is used.

To select an external input, touch until the appropriate input source is selected.

Please always refer to the owner's manual of the equipment to be connected for full details.

NOTE: Interactive video games that involve shooting a "gun" at an on-screen target may not work with this TV.

MENUSTRUCTURE

To open the main menu (illustration below), press MENU on the remote control or on the TV control panel.

Startup Application

Before switching on the television, set your decoder and media recorder, if applicable, to Standby. To set up the television, use the buttons on the remote control as detailed on page 8, 9.

Press the button. The Menu Language screen will appear. This screen will appear the first time that the television is switched on and each time Reset TV is selected.
Press to select the menu language and press OK.
3 Highlight Country and press or to select. The television is now set to tune the stations for your country.

Quick Setup
Country	← Germany	→
Primary Subtitle Language	English
Secondary Subtitle Language	German
Primary Audio Language	English
Secondary Audio Language	English

NOTE:

• The following display menus will differ slightly according to the country you selected.
• If there is not a country that you want to select in the list, select Others.

4 Press OK, and the Location screen will appear.

Location To use the TV for displaying in a store showroom, please select [Store]. [Home] mode is recommended for normal use.
«	Home

Press or to select Home or Store. For normal home use, select Home.
6 Press OK. If Store is selected in step 5, a Store mode confirmation window will appear. If you select Yes from that window, the TV will proceed to the Auto Demo setup screen.
Press OK, and the TV Mounting screen will appear, press or to select Stand or Wall.

TV Mounting If you are mounting the TV on a wall please select [Wall]. [Stand] is recommended for other uses. This setting may be modified later under Sound Navi in the SOUND menu.
Stand

Press OK, and the AutoView screen will appear, press or to select Yes or No.

9 Press OK. If the Ant/Cable/Satellite screen appears, press or to select Antenna, Cable or Satellite and then press OK to check (√).

If DVB-C is not supported in your area, Cable will not be displayed.

• When you select Antenna or Cable, follow steps 9 to 12.
• When you select Satellite, skip to step 13.
• When you select Antenna (or Cable) and Satellite, the Satellite Settings startup screen will appear automatically after completing the Antenna (or Cable) scan and pressing OK.

10 Select Next and press OK. The Auto Tuning start up screen will appear with the option to select between DTV and ATV, DTV or ATV if available. Use or to select the appropriate mode.
11 Press or to highlight Start Scan, and then press OK.

The television will start to search for available DTV and/or ATV channels. The progress bar will indicate the scan status.

You must allow the television to complete the search.

When the search is complete, the television will automatically select position one.

The Auto Tuning screen will display the total number of services found.

NOTE: If there are multiple channels with the same channel number, a confirmation window will appear. Press or to select the one you prefer.

12 Press or to view the DTV (digital channel) or ATV (analogue channel) lists.
13 Use or to move through the list to select a channel, and then press OK to view.

In ATV mode, some areas may receive duplicate stations. There may not be a clear picture or the signal may be weak, so the station order can be changed using ATV Manual Tuning.

REMEMBER: Press TV at any time to select between ATV and DTV (DTV Ant TV/Radio/Text, DTV Cable TV/ Radio/Text, DTV Sat TV/Radio/Text if available) modes.

NOTE: The time will be set automatically by transmission but can be advanced or decreased by using Local Time Setting in the DTV Settings screen.

14 Select Next and press OK. The Satellite Settings screen will appear. From this window, you can add the satellites that you wish to tune and configure detailed settings for each one individually. See "Satellite settings" on page 20.

Highlight Done and press OK.

If your satellite dish is movable, the following Positioning screen will appear.

Press or to highlight Positioning, and then press or to find the dish position with the strongest signal level.

Press or to highlight Store Position and press OK to store the dish position. Repeat steps 14 and 15 for the next satellite as necessary.

If your satellite dish is not movable, the Positioning screen will not appear.

Adjust the dish position manually for the maximum Signal Level strength.

Highlight Done and press OK.

16 If the reception testing completes successfully, the Auto Tuning startup screen will display.

You can select Scan Option from Free to Air and All.

17 Press or to highlight Start Scan, and then press OK.

The television will start to search for available DVB-S channels. The progress bar will indicate the scan status.

When the search is complete, the Auto Tuning results screen will display the total number of services found.

18 Use or to move through the list to select a channel, and then press OK to view.

PLEASE NOTE

The Quick Setup menu can also be accessed at any time from the Setup/System Setup menu.

Ant/Cable/Satellite (if available)

From this menu, you can set the RF input configuration.

Press MENU / to highlight Setup icon.
Press / to highlight System Setup icon.
Press OK to display System Setup menu.
Press or to select Ant/Cable/Satellite and press or to select Antenna, Cable or Satellite.

NOTE: When you attempt to change the Ant/Cable/ Satellite setting, a warning message will appear followed by PIN entry (if PIN has been set) and a prompt for Auto Tuning.

When Ant/Cable/Satellite is set to Cable, the following setting options will be provided in the Auto Tuning screen.

Press or to select an item, and then press or to select your desired option.

With the exception of DTV Scan Type and DTV Modulation items, all of the following items will have 2 operating modes. The first is Auto where the values for each item are preset by the system. The second is an Input mode where you will be able to enter a single value in place of the pre-set value. If no channel is currently tuned and the Input state is chosen, a system default value will be shown. However, if a channel is currently tuned when the item is accessed, the value of the current channel will be displayed.

DTV Scan Type:

This item determines whether a Quick Scan or a Full Scan will be executed.

The Quick Scan is a simplified version of the Full Scan that is designed to complete in less time.

DTV Start Frequency:

This sets the frequency from which the scan will begin.

DTV End Frequency:

This sets the frequency at which the scan will end.

DTV Modulation:

You can choose from five QAM modulation settings.

DTV Symbol Rate:

This is the baud rate (KS/s) of the scan.

DTV Network ID:

This is the Network ID to be utilized for the scan. This item is greyed out when DTV Scan Type is set to "Full Scan".

Satellite Settings

From the System Setup menu, you can add the satellites that you wish to tune and configure detailed settings for each one individually.

To add a satellite:

Press MENU / to highlight Setup icon.

Press / to highlight System Setup icon.

Press OK to display System Setup menu.

Press or to select Satellite Settings and press OK.

Press to highlight a new line to add an another satellite and press OK.

Press until the required satellite is displayed and press OK.

To delete a satellite:

In the Satellite Settings menu, press or to select the satellite you want to delete.

Press the RED button. A confirmation window will appear.

Press or to select Yes and press OK.

NOTE: It is not possible to delete position No.1.

To edit the satellite settings:

In the Satellite Settings menu, press to highlight Switch Type.
Press or to select None, ToneBurst, DiSEqC 2way or DiSEqC 4way as your satellite switch type.
Press to highlight LNB Power and press or to select On or Off.

To add a transponder:

In the Satellite Settings menu, press or to highlight the line you want to edit and press OK.

1

ASTRA 19.2'E

1

1

Press the GREEN button. The Transponder Settings screen will appear.

Transponder Settings
	Frequency	Polarisation	Symbol Rate	S/S2
1	10743	H	22000	S
2	10773	H	22000	S
3	10788	V	22000	S
4	10817	V	22000	S
5	10832	H	22000	S
6	10847	V	22000	S
7	10861	H	22000	S
8	10876	V	22000	S

Press to highlight a new line.

Transponder Settings
	Frequency	Polarisation	Symbol Rate	S/S2
76	12640	V	22000	S
77	12662	H	22000	S
78	12669	V	22000	S
79	12692	H	22000	S
80	12699	V	22000	S
81	12721	H	22000	S
82	12728	V	22000	S
83

4 Press OK.

83

0

H

0

S

Edit each parameter as required and press OK. See page 21.

83

12731

H

22000

S2

To delete a transponder:

1 In the Transponder Settings menu, press or to highlight the line you want to delete.
Press the RED button.

To edit the Transponder Settings:

1 In the Transponder Settings menu, press or to highlight the line you want to edit and press OK.
Press or to select Frequency, Polarisation, Symbol Rate or S/S2, and set the item using the number buttons if necessary.
3 Press OK to save your settings.
4 Repeat steps 1 through 3 for other lines.
5 Press BLUE to finish editing and return to Satellite Settings.

Press GREEN to cancel any edits that were made this time.

Press YELLOW to reset all transponder settings to their initial default settings.

To select the Dish Type:

1 In the Satellite Settings menu, press or to select the required satellite line, and then press OK.
Press or to highlight Dish and press the GREEN button.

Dish Settings
Dish : 1
Dish Type	Fixed

Press or to select Dish Type. You can select Movable or Fixed as the Dish Type.

To select the LNB Settings:

1 In the Satellite Settings menu, press or to select the required satellite line, and then press OK.
Press or to highlight LNB and press the GREEN button.

Press or to select Lower LOF or Upper LOF and input the appropriate frequencies.

Auto Tuning

NOTE: As new services are broadcast, it will be necessary to re-tune the television in order to view them.

Auto Tuning will completely re-tune the television and can be used to update the channel list. It is recommended that Auto Tuning is run periodically to ensure that all new services are added. All current channels and settings, i.e. locked channels, will be lost.

Press MENU /▶ to highlight Setup icon.
Press / to highlight System Setup icon.
Press OK to display System Setup menu.
Press or to select Auto Tuning and press OK.

For DTV/ATV Tuning:

A screen will appear warning that previous programmes and settings will be deleted.

Press or to select DTV and ATV, DTV or ATV, if available, then highlight Start Scan and press OK to continue with the Auto Tuning.

NOTE: If you have selected "Others" for the Country field in the System Setup menu, and selected a tuning mode other than "DTV", choose the optimum ATV broadcasting system (B/G, I, D/K or L).

The television will start to search for all available DTV and/or ATV services.

You must allow the television to complete the search.

When the search is complete, the Auto Tuning screen will display the services found.

For Satellite Tuning:

A screen will appear warning that previous programmes and settings will be deleted.

Press or to highlight Satellite and then press or to select the desired satellite (No.1 Sat No.4 Sat or All).

You can select Free to Air or All as the Search Option. Highlight Start Scan and press OK to continue with the Auto Tuning.

When the search is complete, the Auto Tuning screen will display the services found.

Use or to move through the list to select a channel, and then press OK to view.

ATV Manual Tuning

Tuning

The television can be tuned-in manually using ATV Manual Tuning. For example, you might use the feature if the television cannot be connected to a media recorder/decoder with a SCART lead or when you want to tune-in a station on another System.

Use and to move across the screen and select any of the ATV Manual Tuning options. Then use or to adjust the settings.

1 Position

The number to be pressed on the remote control to tune the channel.

2 System

Specific to certain areas.

3 Colour System

Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from external source.

4 Skip

Set Skip to On ( ) or Off ( ) for the selected channel. See page 24.

5 Signal Class

The channel classification.

6 Channel

The channel number on which a station is being broadcast.

7 Search

Search up and down for a signal.

8 Manual Fine Tuning

Only used if interference/weak signal is experienced. See page 90.

9 Station

Station identification. Use the and buttons to enter up to seven characters.

To allocate a position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded film in the media recorder, press PLAY, and then manually tune.

1 In the System Setup menu, press to highlight ATV Manual Tuning and press OK.

Use or to highlight the desired position. We suggest Pos. 0 for a media recorder.

Different Channel numbers may be displayed.

3 Press OK to select. If the channel chosen for the media recorder is set to skip, Skip should be removed before storing.

Press▶ to select System and use ▲ or ▼ to change if required.

5 Then press to select Search.

Press or to begin the search. The search symbol will flash.

Each signal will show on the television. If it is not your media recorder, press or again to restart the search.
8 When your media recorder signal is found, press to move along to Station. Use , , and to put in the required characters, e.g. VCR.

9 Press OK to save.
10 Repeat for each position you want to tune, or press BACK to return to the list of channels and select the next number to tune.
11 Press EXIT when you have finished.

PLEASE NOTE

This television has direct channel entry if the channel numbers are known. Select the ATV Manual Tuning screen in Step 3. Enter the Position number, the System, then C for standard (terrestrial) channels or S for cable channels and the Channel number. Press OK to save.

Skip

To prevent certain channels from being viewed, positions can be skipped.

1 Select ATV Manual Tuning from the System Setup menu.
Use or to highlight the position to be skipped and press OK to select.

Press▶to select Skip.

Use ▲ or ▼ to turn Skip on. Press OK.

on the screen indicates a skipped position.

5 Press BACK and repeat from Step 2 or press EXIT.

Each position has to be individually selected. To turn Skip off, repeat the procedure for each position.

Skipped positions cannot be selected by P^ and P^v or by the controls on the television but can still be accessed by the number buttons on the remote control.

Sorting positions

Channels may be moved and saved to the position of your choice.

1 Select ATV Manual Tuning from the System Setup menu.
2 With the list of channels showing, use or to highlight the channel you want to move and press.

Use ▲ or ▼ to move through the list to your preferred position. As you do so, the other channels will move to make room.
4 Press to save your move.

Repeat as necessary, and then press EXIT.

DTV Manual Tuning

NOTE: The content of this menu varies depending on the DTV input (Antenna, Cable, or Satellite) that is currently selected.

Manual Tuning

This feature is available for service engineers or can be used for direct channel entry if the multiplex channel is known.

1 Select DTV Manual Tuning from the System Setup menu and press OK.

2 Enter the multiplex number using the number buttons or use or to adjust the number up or down.
3 Highlight Start Scan, and then press OK. The television will automatically search for that multiplex.

When the multiplex is found, any channels that are not currently in the channel list will be added and the channel information at the top of the screen will be updated.

4 Repeat as necessary. Press EXIT to finish.

Manual Tuning for DVB-C

When Ant/Cable/Satellite is set to Cable, DTV Manual Tuning items are as follows:

Frequency - input a specific frequency to be scanned

Modulation - choose from one of five QAM modulation options

Symbol Rate - input a specific baud rate (KS/s) to be used for the manual scan

Highlight Start Scan, and then press OK.

Manual Tuning for DVB-S

When Ant/Cable/Satellite is set to Satellite, DTV Manual Tuning items are as follows:

Use or to highlight an item (Satellite, Transponder, Frequency, Symbol Rate, Polarisation or Search Option), and then press or to select the required option.

Highlight Start Scan, and then press OK.

DTV Settings

Channels (Antenna/Cable)

The channel order may be changed to suit your personal preference.

1 Select DTV Settings from the System Setup menu and press OK.
2 Select Channels and press OK.

3 For your convenience, you can jump to specific places in the list by one of two methods.

Line Number Jump - Use the number buttons (0-9) to input the line number you want to select, and then press OK.

Name Jump Press or to jump to the next station name with a different initial letter.

It is also possible to change the Position number of a particular channel.

Renumber Press the RED button to renumber the highlighted channel. Edit the channel number using the number buttons and press OK. If the position number you input already exists, a confirmation window will appear.

Move Press the GREEN button to activate the Move feature.Use the or buttons to select the channel you wish to move and press OK to check. If you wish to move multiple channels at once, select another channel and check in the same way. Repeat as necessary.

Once all desired channels have been checked, use the or buttons to place the focus at the position to which you wish to move the channels. The channels will be inserted above the highlighted channel. Press the GREEN button to execute the move.

Sort Press the YELLOW button. A confirmation window will appear. Press or to select Yes and press OK.

The Sorting Type selection window will appear.

Press or to set the sorting type.

A-Z Sort Station name order (A to Z)

Number Position No. order (numerical sequence)

Press to highlight Sort and press OK.

Channels (Satellite)

1 Select DTV Settings from the System Setup menu and press OK.
2 Select Channels and press OK.

The satellite channel list will appear.

Channels Line No. 4/1200 Pos. Station		Satellite TV
		Satellite
1	DDD	19.2°E
2	AB	19.2°E
3	E	19.2°E
801	BBC	22.5°E
802	BB	22.5°E
803	BA	22.5°E
822	AA	25.6°E
823	AC	25.6°E

3 For your convenience, you can edit and sort your channel list.

Line Number Jump - Use the number buttons (0-9) to input the line number you want to select, and then press OK.

Station Letter Jump Press or to jump to the next station name with a different initial letter.

Satellite Jump Press or to jump to the next channel on a different Satellite.

Renumber — Same as Antenna/Cable channels. See page 26.

Move Same as Antenna/Cable channels. See page 26.

Sort Press the YELLOW button. A confirmation window will appear. Press or to select Yes and press OK.

The Sort menu will appear.

Sort
Group	By Satellite
Sorting Type	Channel Number
Preset Order	Yes
Sort

Group Press or to select All or By Satellite.

Sorting Type Press or to set the sorting type.

A-Z

Station name order (A to Z)

Channel Number

Position No. order (numerical sequence)

Preset Order Press or to set Yes or No.

This item is displayed when Country is set to Germany, and only applies to the Astra 19.2^ satellite.

Press to highlight Sort and press OK.

Standby Channel Update

If the Standby Channel Update is set to On, when the TV is in standby mode, Digital Tuning is automatically executed and any new channels are saved.

1 Select DTV Settings from the System Setup menu and press OK.
Press to select Standby Channel Update and use or to select On.

DVB Character Set

This feature allows you to manually select the character set (Standard = Table 0, West = Table 5 or Latin alphabet 9) to be used for DVB-C or DVB-T channels.

1 Select DTV Settings from the System Setup menu and press OK.
Press to select DVB Character Set and use or to select Standard, West or Latin alphabet 9.

Dynamic Scan

If the broadcast information has changed in your DVB-T receiving area, the TV screen will display the message "Broadcast information has changed. Would you like to rescan now?" Please follow the message. If you do not wish for the TV to detect changes and prompt you to rescan, you should set this feature to "Off".

1 Select DTV Settings from the System Setup menu and press OK.
Press to select Dynamic Scan and use or to select On.

Location setting

You can select either Home or Store mode. Home is recommended for normal home use. Select Store when using the television for displaying in a shop, etc.

1 Select Location from the System Setup menu.
Press or to select Home or Store.

Analogue switch-off

This is a digital television which is integrated to allow the use of both digital and analogue services. However, during the lifetime of this set it is very likely that analogue services will be switched off to allow for more new digital services.

This 'switch-off' will happen in a number of phases, which will be advertised in your area well in advance. It is recommended that at each phase the television is re-tuned to ensure that existing and new digital services can be viewed without disruption.

General controls

Quick Menu

Quick Menu helps you access some options quickly, such as Picture Mode, Picture Size, More Information, Sleep Timer etc.

Press QUICK to display the Quick Menu and use or to select the option.

NOTE: Quick Menu items are different depending on the current mode.

Quick menu item example

Mode	Quick menu item	Description
When viewing a TV programme or pictures from the external input	Picture Mode	See page 34.
	Picture Size	See page 32.
	Personal Mode	See page 83.
	More Information	See page 73.
	Channel Options	See page 75.
	Sleep Timer	See page 71.
	REGZA-LINK Device Control	See page 86.
	Speakers	See page 85.
	Headphone Level	See page 31.
	Wireless Information	See page 45.
When using EPG	Genre Colour	See page 74.
	EPG Update/Cancel EPG Update	See page 73.
Media Player (Photo Multi View, List View)	Sort	See page 64.
	Interval Time	See page 63.
	Repeat	See page 63.
	Shuffle	See page 67.
	Device Information	See page 64.
	Wireless Information	See page 45.
Photo Frame (Full Screen)	Picture	See page 34.
	Picture Size	See page 32.
	Personal Mode	See page 83.

Selecting positions

To select a position, use the numbered buttons on the remote control.

Positions can also be selected using P^ and PV.

To display on-screen information such as position, input mode or stereo/mono signal, press i+. Press again to cancel.

The Time Display - analogue only

The time display facility allows the current (text service) time to be seen on the television screen.

Press l /EX whilst watching a normal television broadcast to see the time display from the broadcaster. It will remain on screen for about 5 seconds.

NOTE: This display may not be available in some cases.

Stereo and Bilingual transmissions

For DTV programmes

For stereo or dual mono broadcasts, press / and use to select settings.

Mode Display	Pressing▶
○ Stereo	Stereo → Left → Right
● Dual mono	Dual 1 → Dual 2
○ Mono	-
● Multichannel	-

For multi-audio track broadcasts, press / repeatedly to change the audio language (see "Audio languages" on page 76).

For ATV programmes

If stereo or dual language broadcasts are transmitted, the word Stereo or Dual will appear on the screen each time positions are changed, disappearing after a few seconds. If the broadcast is not in stereo, the word Mono will appear.

Stereo... Press / to select Stereo or Mono.

Bilingual... Bilingual transmissions are rare. If they are transmitted, the word Dual will be displayed. Choose the required programme number, and if the word Dual appears, press to select Dual 1, Dual 2 or Mono.

Sound controls

Volume controls and sound mute

Volume

Press 14 or 12 to adjust the volume.

Sound Mute

Press once to turn the sound off and again to cancel.

Dual

If a programme or film is being broadcast with a soundtrack in more than one language, the DUAL feature allows selection between them.

Press MENU /▶ to highlight Setup icon.
Press / to highlight Sound icon and press OK.
Press or to select Dual and press or to choose between Dual 1 or Dual 2.

Balance

In the Sound menu, press or to select Balance, and then press or to emphasize left or right speaker balance.

Sound Navi

You can customize current sound mode settings. Select the appropriate mode in accordance with the installation location of the TV (Stand or Wall) and adjust the equalizer on-screen as desired.

In the Sound menu, press or to select Advanced Sound Settings and press OK.
Press or to select Sound Navi and press OK.

Press or to select either Stand or Wall depending on how your TV is installed, and then press the RED button.
Press or to select the frequency range you want to adjust from the equalizer window, and then press or to adjust the level.

5 Repeat step 4 for other frequencies.

Surround Settings

Surround and Voice Enhancement help to create an enhanced surround sound experience with deep, rich bass from stereo sound sources. Your TV's audio will sound fuller, richer, and wider.

In the Sound menu, press ▲ or ▼ to select Advanced Sound Settings and press OK.
Press or to select Surround and press or to select Off, Spatial or Cinema.

Dolby Volume

This feature provides a consistent sound volume regardless of programmes, channels or input sources.

1 In the Sound menu, press or to select Dolby Volume.
Press or to select Low, High or Off.

NOTE:

• The Dolby Volume setting influences the Dynamic Range Control and Digital Audio Output settings.
• If Dynamic Range Control is set to On, this feature will be disabled.

Dynamic Range Control

This feature allows control of audio compression for some digital TV programmes (MPEG-1 and MPEG-2 audio programmes are not supported).

In the Sound menu, press or to select Dynamic Range Control.
Press or to select On or Off.

NOTE: This feature is disabled when Dolby Volume is set to Low or High.

Audio Level Offset

Sometimes there can be large changes in volume when switching from a DTV 5.1ch to a DTV 2ch, an ATV channel, or an external input. Using the Audio Level Offset feature reduces these volume differences.

1 Set the volume level usually used when watching a DTV 5.1ch programme.
2 Tune to a channel which is DTV 2ch, ATV or an external input.
In the Sound menu, press ▲ or ▼ to select Audio Level Offset and press OK.
Press or to select an option, and then use or to adjust the volume level.

NOTE:

• The available item changes depending on the current input source. For example, while watching a DTV 2ch programme, only DTV 2ch is available and the other two items are greyed out in the menu. This allows you to easily adjust according to each condition.
• When watching a DTV 5.1ch programme, this feature is not available.

Headphone Settings

This setting is used to set the sound output when headphones are connected.

Speaker Link	Headphone	Speakers
On	Sound is output (▲-+ is available.)	No sound
Off	Sound is output (Headphone level menu is available.)	Sound is output (▲-+ is available.)

In the Sound menu, press or to select Headphone Settings and press OK.
Press or to select Speaker Link and use or to select On or Off.
3 If you select Off, then highlight Headphone Level and use or to adjust the headphone sound.

Audio Description

Audio Description is an additional narrative sound track for visually impaired individuals to understand and enjoy the story line more fully. The letters AD will be displayed in the channel banner when programmes contain AD content.

In the Sound menu, select Audio Description and press OK.
Press or to select Audio Description, and then press or to select On.

The AD button on the Remote can also be used to toggle the Audio Description feature between On and Off.
3 To adjust the level of the audio description sound to the main sound, highlight Mixing Level and use or

Widescreen viewing

Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats.

Press the button on the Remote to display the list of available widescreen formats.

Press the button repeatedly to highlight the required format.

The Quick Menu feature can also be used to select Picture Size.

AV format

Picture Size

Native

Wide

4:3

Super Live

Cinema

Subtitle

14:9

PC format

Picture Size

Dot by Dot

PC Normal

PC Wide

Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

Picture controls

Most of the picture controls and functions are available in both digital and analogue modes. PLEASE NOTE: Features not available will be greyed out.

Picture Mode

This television offers the choice of personalising the picture style.

AutoView, Dynamic, Standard, Hollywood Night, Hollywood Day, Store, Game and PC are preset options and affect many features/settings within the television.

NOTE:

• Because the AutoView mode automatically adjusts picture settings based on ambient light conditions and input signal content, the Auto Brightness Sensor and Expert Mode menus are greyed out when it is selected.
• Store mode is only available when Location is set to Store.
• Game mode is available in external input mode (other than aerial input). When you select Game mode, suitable widescreen formats will be selected.
• PC mode is available in RGB/PC input mode or HDMI input mode.

Press MENU /▶ to highlight Setup icon.
Press / to highlight Picture icon and press OK to display Picture menu.
Press or to select Picture Mode.

Press or to select the picture mode you prefer and press OK.

NOTE: The picture mode you select affects the current input only. You can select a different picture mode for each input.

Picture preferences

You can customize current picture mode settings as desired. For example, while selecting "Dynamic", if you change the following items, such as Backlight, Contrast, Brightness, Colour, Tint, Sharpness and the Advanced Picture Settings items, your new settings are saved for "Dynamic" picture mode.

In the Picture menu press or to select either Backlight, Contrast, Brightness, Colour, Tint or Sharpness and press OK.
Press or to adjust the settings.

Reset

This feature resets all picture settings to the factory settings except Picture Mode.

1 In the Picture menu, press or to select Reset and press OK.
A confirmation message will appear. Press or to select Yes and press OK.

ColourMaster

When ColourMaster is set to On, it allows the 'Base Colour Adjustment' feature to become available.

In the Picture menu, press or to select Advanced Picture Settings and press OK.
Press or to select ColourMaster.

Press or to select On or Off, and then press OK.

Base Colour Adjustment

The Base Colour Adjustment feature allows the adjustment of individual colours to suit personal preference. This can be useful when using an external source.

1 In the Advanced Picture Settings menu, press ▲ or to select Base Colour Adjustment and press OK.
Press or to select an option, and then press to move to the adjustment window.

Press or to select Hue, Saturation or Brightness, and then press or to adjust the settings as required.

Press BACK to return to the previous menu.

To return to the factory settings, select Reset and press OK.

Colour Temperature

Colour Temperature increases the 'warmth' or 'coolness' of the picture by increasing the red or blue tint.

1 In the Advanced Picture Settings menu, press ▲ or to select Colour Temperature and press OK.
Press or to adjust the level.

The adjustment range is 0 (warm) to 10 (cool).

NOTE: If Picture Mode is set to AutoView, the adjustment range is -5 to +5.

Auto Brightness Sensor Settings

When the Auto Brightness Sensor is activated, it will automatically optimise the backlighting levels to suit ambient light conditions.

In the Advanced Picture Settings menu, press ▲ or to select Auto Brightness Sensor Settings and press OK.
Press or to select On and press OK.

Press ▲ or ▼ to select Backlight Adjustment Pro and press OK.
The Backlight Adjustment Pro window will appear. Press OK again to display the adjustment window.
Press or to select a point and press or to adjust the level.

6 Press OK to fix the adjustment.

To cancel the adjustment when selecting a point, select Cancel and press OK.

To return the adjustments of all points to the factory defaults, select Reset and press OK.

Active Backlight Control

When Active Backlight Control is activated, it will automatically optimize the backlighting levels for dark scenes.

1 In the Advanced Picture Settings menu, press or to select Active Backlight Control.
Press or to select On or Off.

Black/White Level

Black/White Level increases the strength of dark areas of the picture to improve the definition.

1 In the Advanced Picture Settings menu, press ▲ or to select Black/White Level.
Press or to adjust the level. The effect depends on the broadcast and is most noticeable on dark colours.

Static Gamma

The static gamma feature allows you to adjust the levels of black in the picture.

1 In the Advanced Picture Settings menu, press or to select Static Gamma.
Press or to adjust the level.

MPEG NR - Noise Reduction

When watching a DVD, the compression may cause some words or picture elements to become distorted or pixelated. Using the MPEG NR feature reduces this effect by smoothing out the edges.

In the Advanced Picture Settings menu, press or to select Noise Reduction and press OK.
Press to select MPEG NR.

Press or to select Low, Middle, High or Off to suit your preference.

DNR - Digital Noise Reduction

DNR allows you to 'soften' the screen representation of a weak signal to reduce the noise effect.

1 Select DNR from the Noise Reduction menu.
Use or to select Low, Middle, High, Auto or Off. The differences may not always be noticeable (for the best result use lower settings as picture quality can be lost if the setting is too high).

Resolution+

The Resolution+ feature allows you to adjust the clarity levels for your desired picture settings.

1 In the Advanced Picture Settings menu, press or to select Resolution+ and press OK.
In the Resolution+ field, select On.

Press or to highlight Level, and then press or to adjust the level.

NOTE:

• This feature may not work properly depending on the content.
• Adjustable range varies according to the Picture Mode you set.
• Noise may appear in the picture depending on the device connected to the TV (e.g. a device with a specific enhancer function).

Active Vision M100

This feature will reduce picture blur without decreasing image brightness or adding flicker.

In the Advanced Picture Settings menu, press ▲ or ▼ to select Active Vision M100.
Press or to select Smooth, Standard or Off.

NOTE: When Picture Mode is set to Game, this feature will be grayed out and automatically set to Off.

Motion Detection Range

This feature is to set the range of the adjustment of movement in the double-scan processing. If you feel uncomfortable in motion picture, select Standard.

1 In the Advanced Picture Settings menu, press or to select Motion Detection Range.
Press or to select Wide or Standard.

Wide — Double-scan effect for higher-speed motion picture

Standard — Stabilized double-scan effect

NOTE: When Active Vision M100 is set to Off, this feature will be grayed out.

Resetting the advanced picture settings

This feature allows you to reset the current Advanced Picture Settings to the default values.

1 In the Advanced Picture Settings menu, press ▲ or to select Reset.
Press OK.

Expert Picture Settings

Test Pattern

When the test pattern is on screen, you can navigate in the Picture submenus and adjust picture settings without removing the image. When you move to a non-Picture menu, or close the menus regular video will be restored.

In the Picture menu, press or to select Expert Picture Settings and press OK to display Expert Picture Settings menu.
Press or to select Test Pattern.
Press or to select On.
Press EXIT to close.

RGB Filter

This feature individually enables or disables the red, green, and blue components of the picture to allow for more accurate adjustment of each colour.

1 In the Expert Picture Settings menu, press or to select RGB Filter, and then press OK.
Press or to select Red, Green or Blue to adjust.
Press or to select On.
Press ▲ or ▼ to select Colour or Tint, and then press △ or ▶ to adjust.
5 Press EXIT.

NOTE: It is not possible to turn off all three colours simultaneously.

Colour Decoding

If you view DVDs with this TV, the Colour Decoding option may be set to ensure the colourimetry reproduction.

NOTE: The modes excluding Auto (BT601 and BT709) are to convert an irregular signal output from the DVD etc. with incorrect colour to the optimum state. If BT601 or BT709 is selected with a normal signal received, the colour may not be correctly displayed. This feature should normally be set to Auto.

1 In the Expert Picture Settings menu, press or to select Colour Decoding.
Press or to select Auto, BT601 or BT709.

White Balance-Window Display

This feature displays a special Window Pattern to be used when adjusting white balance with a measuring device.

In the Expert Picture Settings menu, press or to select White Balance and press OK.
Press or to select Window Display and press or to select On.
Press EXIT to close.

White Balance-Setting Type

You can choose from two types of White Balance adjustment.

In the Expert Picture Settings menu, press ▲ or ▼ to select White Balance and press OK.
Press or to select Setting Type and press or to select 2P or 10P.

White Balance-2P White Balance

1 Press to select 2P White Balance.
Press or to select Red-Offset, Green-Offset, Blue-Offset, Red-Gain, Green-Gain, or Blue-Gain.
Pressortoadjust.

White Balance-10P White Balance

1 Press to select 10P White Balance.
Press or to select IRE, Red, Green, or Blue.
Press or to adjust.

NOTE: The adjustments made for Red / Green / Blue are stored separately for each IRE setting. (There are ten IRE settings from 10 to 100.)

Colour Calibration

The aim of Colour Calibration is to measure and/or adjust the colour response (White Balance) of your LCD panel.

Colour Calibration is used by various fields, such as gaming, photography, engineering, medical and more. In order to calibrate a display correctly, you need a colour analyzer EODIS3-TS (not supplied).

Apply Calibration

In the Expert Picture Settings menu, press or to select Colour Calibration and press OK.
Press or to select Apply Calibration and press or to select On.

Manual Colour Calibration

1 In the Colour Calibration menu, press or to select Manual Color Calibration and press OK.

2 Place the prove of the USB colour analyzer over the square on screen to measure.
3 Input the value measured with the colour analyzer using the number buttons (0-9).

	x	y
Red	0.642	0.335
Green	0.277	0.603
Blue	0.143	0.067

Press ▲▼□ and input the values to fill all RGBy matrix table.
5 Highlight Start and press OK.

Please wait until you see "Manual Colour Calibration has been completed" on screen.

To return to factory setting

1 Highlight Reset and press OK.

Auto Colour Calibration

1 In the Colour Calibration menu, press or to select Auto Colour Calibration and press OK.
2 Place the prove of the USB colour analyzer over the square on screen and press OK.

Auto Colour Calibration will start.

Please wait until you see "Auto Colour Calibration has been completed."

Gamma Calibration

1 In the Expert Picture Settings menu, press or to select Gamma Calibration and press OK.
Press or to select Apply Calibration and press or to select On.
Press or to select Auto Gamma Calibration and press OK.
4 Input the target value and place the USB colour analyzer over the square on screen.

5 Highlight Start and press OK.

Auto Gamma Calibration will start.

Please wait until you see "Auto Gamma Calibration has been completed" on screen.

To return to factory setting

1 Highlight Reset and press OK.

Resetting to the factory defaults

1 In the Expert Picture Settings menu, press or to select Reset and press OK.
A confirmation screen appears.
2 Select Yes and press OK.

Control Visualization

This feature displays the brightness histogram and control curve of the current video signal.

1 In the Picture menu, press or to select Control Visualization and press OK. The histogram window will appear.

Press BACK to return to the previous menu.

Automatic Format (Widescreen)

When this television receives a true Widescreen picture and Auto format is On, it will automatically be displayed in Widescreen format irrespective of the television's previous setting.

Press MENU / ▲▶ to highlight Setup icon.
Press / to highlight Preferences icon and press OK.
Press or to select Display Settings and press OK.
Press or to select Auto Format and press or to select On or Off.

4:3 Stretch

When 4:3 Stretch is activated, the size switching system changes 4:3 programmes into full screen picture.

In the Preferences menu, press ▲ or ▼ to select Display Settings and press OK.
Press or to select 4:3 Stretch and press or to select On or Off.

Blue Screen

When Blue Screen is selected, the screen will turn blue and the sound will be muted on analogue channels and external input modes when no signal is received.

NOTE: Some external input sounds may not be muted.

1 In the Preferences menu, press or to select Blue Screen.
Press or to select On or Off.

Picture Position

The picture position may be adjusted to suit personal preference and can be particularly useful for external inputs.

In the Preferences menu, press ▲ or ▼ to select Display Settings and press OK.
In the Display Settings menu, press or to select Picture Position.

Display Settings
Auto Format	On
4:3 Stretch	Off
Picture Position
PC Settings

3 Press OK to view the options available for the picture format that has been selected.
Press or to select an option, and then or to adjust the settings.

The options differ depending on the currently selected widescreen format and the input signal.

In Cinema mode:

Picture Position
Horizontal Position	0
Vertical Position	0
Reset

To return to the original factory settings, select Reset in the Picture Position menu and press OK.

Picture still

This feature is used to hold a still image on the screen.

Press to hold an image on the screen, and press again to cancel.

HDMI Information Display

When the HDMI Information Display feature is On and you are watching an HDMI input source, pressing the + + button displays the HDMI signal information banner.

In the Preferences menu, press ▲ or ▼ to select HDMI Information Display.
Press or to select On.

HDMI signal information is as follows: Resolution, Scan Type, Frame Rate*, Aspect, Bit Depth, Colour Space, RGB/YUV, Chroma Format, and Content Type (if available).

• If the HDMI input source is interlaced, "Field Rate" will be displayed instead of "Frame Rate".

Using your home network

This TV is a DLNA CERTIFIED™ Player and Renderer. This TV can play digital content stored on a DLNA CERTIFIED™ product with server function. If you want to use this TV as a DLNA CERTIFIED™ Player or Renderer, you will have to configure the network on your TV (see page 11).

If you want to use your home network, you will have to configure the network on your TV. (see page 11)

Change the network settings if necessary (see "Setting up the Network" on page 43).

When using a wireless home network:

Wireless Interoperability

The TOSHIBA Dual Band WLAN Adaptor is designed to be interoperable with any wireless LAN product that is based on Direct Sequence Spread Spectrum (DSSS)/Orthogonal Frequency Division Multiplexing (OFDM) radio technology, and is compliant to:

• The IEEE 802.11 Standard on Wireless LANs (Revision a/b/g/n), as defined and approved by the Institute of Electrical and Electronics Engineers.
• The TOSHIBA Dual Band WLAN Adaptor is intended for use with the SL86 series LCD TV's and should not be used with any other devices.

Use of the WLAN Adaptor in other USB products may result in damage to the WLAN Adaptor and or the equipment. Such use will void any warranty that may otherwise apply, and TOSHIBA will have no liability for any damage that may result from such use.

CAUTION

Bluetooth™ and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. If you use Bluetooth™ and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection.

If you should experience any such problem, immediately turn off either your Bluetooth™ or Wireless LAN device.

Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage.

Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.

Wireless LAN and your Health

Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices, however, is far less than the electromagnetic energy emitted by wireless devices such as mobile phones.

Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Wireless LAN may be restricted by the proprietor of the building or responsible representatives of the organization. Such restrictions may apply in environments where the risk of interference to other devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies to the use of wireless devices in a specific organization or environment, you are encouraged to ask for authorization to use the Wireless LAN device prior to turning on the equipment.

This Dual Band Wireless LAN Adaptor may be operated in the following countries:

AT	Austria	IS	Iceland
BE	Belgium	LI	Liechtenstein
CH	Switzerland	LT	Lithuania
CY	Cyprus	LU	Luxembourg
CZ	Czech Republic	LV	Latvia
DE	Germany	MT	Malta
DK	Denmark	NL	Netherlands
ES	Spain	NO	Norway
FI	Finland	PL	Poland
FR	France	PT	Portugal
GB	United Kingdom	SE	Sweden
GR	Greece	SI	Slovenia
EE	Estonia	SK	Slovakia
HU	Hungary	BG	Bulgaria
IT	Italy	RO	Romania
IE	Ireland	TR	Turkey

How to use this Dual Band Wireless LAN Adaptor

• If this device is going to be operated in the frequency range of 5.15 GHz to 5.35 GHz, it is restricted to indoor use.
• If this device is going to be operated for 802.11 b/g/n function in the frequency range of 2.454 GHz to 2.4835 GHz in France, it is restricted to indoor use.
• A general authorization is required for using this device outdoors or in public places in Italy.
• This device is NOT ALLOWED to be used in the geographical area within a radius of 20km from the centre of Ny-Alesund in Norway.

Wireless LAN Information (for UL86/UL87 series)

Bluetooth™ and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. If you use Bluetooth™ and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection.

If you should experience any such problem, immediately turn off either your Bluetooth™ or Wireless LAN device.

Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.

Wireless LAN and your Health

Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices, however, is far less than the electromagnetic energy emitted by wireless devices such as mobile phones.

Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Wireless LAN may be restricted by the proprietor of the building or responsible representatives of the organization. Such restrictions may apply in environments where the risk of interference to other devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies to the use of wireless devices in a specific organization or environment, you are encouraged to ask for authorization to use the Wireless LAN device prior to turning on the equipment.

When using the TV under wireless LAN environment:

The function of all IEEE802.11 is not supported.
- The ad-hoc mode is not supported.
- It is recommended to use IEEE 802.11a or IEEE 802.11n on 5 GHz for audio and SD video streaming.
- It is recommended to use IEEE 802.11n on 5 GHz for HD video streaming.
- It is recommended that the encoding rate for streaming video content is 20 Mbps or less.
- It is not recommended to use 2.4 GHz for audio and video streaming.
- Content playback may be interrupted by various surrounding interference.

Europe Statement

This Built-in WLAN Module may be operated in below country:

AT	Austria	IS	Iceland
BE	Belgium	LI	Liechtenstein
CH	Switzerland	LT	Lithuania
CY	Cyprus	LU	Luxembourg
CZ	Czech Republic	LV	Latvia
DE	Germany	MT	Malta
DK	Denmark	NL	Netherlands
ES	Spain	NO	Norway
FI	Finland	PL	Poland
FR	France	PT	Portugal
GB	United Kingdom	SE	Sweden
GR	Greece	SI	Slovenia
EE	Estonia	SK	Slovakia
HU	Hungary	BG	Bulgaria
IT	Italy	RO	Romania
IE	Ireland	TR	Turkey

• If this device is going to be operated in the frequency range of 5.15 GHz to 5.35 GHz, it is restricted to indoor use.
• If this device is going to be operated for 802.11 b/g/n function in the frequency range of 2.454 GHz to 2.4835 GHz in France, it is restricted to indoor use.
• A general authorization is required for using this device outdoors or in public places in Italy.
• This device is NOT ALLOWED to be used in the geographical area within a radius of 20km from the centre of Ny-Alesund in Norway.

Ukraine Statement

Contains approved Built-in WLAN Module, model name: WLU5060-D4(ROHS), approved by CB "UkrCERTRADIO".

025

Setting up the Network

You can select the Network Type.

Press MENU /▶ to highlight Setup icon.
Press / to highlight Preferences icon and press OK.
Press or to select Network Setup and press OK.

Press or to select Network Type, and then press or to select Wired or Wireless.

NOTE: If the Dual Band WLAN Adaptor is not connected, Wireless cannot be selected.

5 If you selected Wired, see "Advanced Network Setup" on page 45.

Wireless Setup

NOTE (for SL86 series):

• This feature is grayed out when the Dual Band WLAN Adaptor is not connected or Network Type is set to Wired.
• When you insert or remove the wireless LAN adaptor, you must turn off your TV and unplug the power cord, and then plug and turn on again.
• Continued connection of AP (Access Point) is not guaranteed. The connection may be disconnected while watching TV.
• Do not remove the Dual Band WLAN Adaptor when Network Type is set to Wireless or wireless communication is active.

There are 3 methods for Wireless Setup:

Easy Setup (WPS)

If the AP supports WPS, this method can be used.

• WPS is an industry standard designed to make connection of wireless LAN equipment and security setup easy. WPS will automatically configure all wireless settings.

Assisted Setup (setup by using the AP's notification information)

Network Name, Authentication, and Encryption are decided based on information from the AP. You will manually set the Security Key.

Manual Setup (manual input of all settings)

Easy Setup using PBC (Push Button Configuration)

1 In the Preferences menu, press or to select Network Setup and press OK.
Press or to select Wireless Setup and press OK.
Press or to select Easy Setup and press OK.

Press or to select PBC.
5 Press to highlight Start Scan and press OK.
6 Following the on-screen instructions, push the appropriate button on your AP.
When a window reporting that the setup is complete appears, press OK.

To cancel searching for the AP:

Press BACK while searching for the AP. A message will appear, and then press or to select Yes and press OK.

Easy Setup using PIN (Personal Identification Number)

1 In the Preferences menu, press or to select Network Setup and press OK.
Press or to select Wireless Setup and press OK.
Press or to select Easy Setup and press OK.
4 Press or to select PIN.
Press to select Start Scan and press OK.
6 Press or to select the desired AP and press OK.

NOTE: Check the MAC address on the label of the AP or in the manual, and select your AP.

When the PIN code window appears, enter the displayed PIN into your AP, and then press Next to continue the PIN Setup. When a message displays to report that the setup is complete, press OK.

To cancel searching for the AP:

Press BACK while searching for the AP. A message will appear; then, press or to select Yes and press OK.

Assisted Setup

In the Preferences menu, press or to select Network Setup and press OK.
Press or to select Wireless Setup and press OK.
Press or to select Assisted Setup and press OK.
Press or to select the desired AP and press OK.

NOTE: Check the MAC address on the label of the AP or in the manual, and select your AP.

5 Highlight Security Key and press OK. The Software Keyboard window will appear.
Input the Security Key by using the Software Keyboard (see page 47). To save your setting, press the BLUE button.

NOTE:

• The Security Key must adhere to these conditions:

• TKIP/AES: 8-63 ASCII or 64 Hex characters

• WEP: 5 or 13 ASCII or 10 or 26 Hex characters

• There is only one key ID to set for WEP encryption.

7 Highlight Done and press OK.

NOTE: If Network Name is not displayed, see step 4 and 5 in Manual Setup below to set Network Name before pressing Done.

NOTE: Settings are not saved if BACK is pressed before Done is selected.

Manual Setup

In the Preferences menu, press or to select Network Setup and press OK.
Press or to select Wireless Setup and press OK.
Press or to select Manual Setup and press OK.
Press or to select Network Name and press OK. The Software Keyboard window will appear.
5 Input the Network Name by using the Software Keyboard (see page 47). To save your setting, press the BLUE button.

Press or to select Authentication, and then press or to select Open System, Shared Key, WPA-PSK or WPA2-PSK.
Press or to select Encryption, and then press or to select None, WEP, TKIP or AES.

NOTE:

• Certain encryption types are only compatible with specific authentication types.
• When Authentication is Open System, only WEP or None is compatible.
• When Authentication is Shared Key, only WEP is compatible.

• When Authentication is WPA-PSK or WPA2-PSK, only TKIP or AES is compatible.

• When incompatible Authentication/Encryption pairings are detected, a warning message will be displayed, and no connection attempt will be made until the incompatibility is resolved.

• There is only one key ID to set for WEP encryption.

Press or to select Security Key and press OK.
Input the Security Key by using the Software Keyboard (see page 47). To save your setting, press the BLUE button.

NOTE: This item is grayed out when Encryption is None.

10 Highlight Done, and then press OK.

NOTE: When Encryption is None, a message will appear. Press or to select Yes and press OK.

NOTE: Settings are not saved if BACK is pressed before Done is selected.

Enhanced 11n

When Enhanced 11n is set to On, the Dual Channel (40MHz) feature is available.

NOTE: In addition, some other optional 11n features will be enabled.

1 In the Preferences menu, press or to select Network Setup and press OK. Highlight Wireless Setup and press OK.
Press or to select Enhanced 11n, and then press or to select On.

Wireless Information

The settings configured in Wireless Setup can be confirmed.

Press QUICK to open the Quick Menu.

Press or to select Wireless Information and press OK.

3 When the AP connection succeeds, a Wireless Information window will appear.

NOTE: Press the RED button to scan for all available APs.

Item	Description
Status	Connected is displayed when the TV is connected with the AP. Disconnected is displayed when the TV is not connected with the AP.
Signal	Connection signal strength with AP (STRONG/MEDIUM/WEAK)
Speed	Link with AP
Mode	Working mode (11a, 11b, 11g, 11n)
Channel	Channel in use (1-165)
Network Name	SSID set
Authentication	Authentication set
Encryption	Encryption set
Security Key	Security Key set
AP MAC Address	The AP's MAC address is displayed when the TV is connected with the AP.
TV or USB MAC Address	The MAC address of the TV or USB (Dual Band WLAN Adaptor) is displayed.
DHCP	Enabled is displayed when using DHCP. Disabled is displayed when not using DHCP.
IP Address	The TV's IP address
Subnet Mask	Value of the Subnet Mask
Default Gateway	Address of the Default GATEWAY
DNS	Address of the DNS

NOTE: Even if an AP for IEEE 802.11n is used when Encryption is set to WEP or TKIP, the Speed value might be low. It is recommended that Encryption be changed to AES (see "Manual Setup" on see page 44).

Notes on wireless LAN environment:

The function of all IEEE802.11 is not supported.
- The ad-hoc mode is not supported.
- It is recommended to use IEEE 802.11a or IEEE 802.11n on 5 GHz for audio and SD video streaming.
- It is recommended to use IEEE 802.11n on 5 GHz for HD video streaming.
- It is recommended that the encoding rate for streaming video content is 20 Mbps or less.
- It is not recommended to use 2.4 GHz for audio and video streaming.
- Content playback may be interrupted by various surrounding interference.

Advanced Network Setup

NOTE:

• When the DHCP function of the router connected with this TV is On, you can set Auto Setup to On or Off. (This should usually be set to On.)
• When the DHCP function of the router is Off, set Auto Setup to Off, and set the IP Address manually.

IP Address Setup

Auto Setup:

In the Preferences menu, press ▲ or ▼ to select Network Setup and press OK.
Press or to select Advanced Network Setup and press OK.

Press or to select IP Address Setup and press OK.

4 Highlight Auto Setup, and then press or to select On.

IP Address Setup
Auto Setup	On
IP Address	133	177	108	157
Subnet Mask	255	255	255	0
Default Gateway

NOTE: Other items will be grayed out when Auto Setup is set to On.

Manual Setup:

In the Preferences menu, press or to select Network Setup and press OK.
Press or to select Advanced Network Setup and press OK.
Press or to select IP Address Setup and press OK.
4 Highlight Auto Setup, and then press or to select Off.

IP Address Setup
Auto Setup	Off
IP Address	133.	177.	108.	157
Subnet Mask	255.	255.	255.	0
Default Gateway

Press or to select IP Address.
Press or to highlight the field you want to change, and then use the number buttons to input the IP address. To save the setting, press OK.

NOTE: IP address field numbers must be between 0 and 255. After each field number has been set, press OK to store the entire address. If the entire IP Address is invalid, a warning message will appear after OK is pressed.

Press or to select Subnet Mask, and edit in the same way as IP Address.

IP Address Setup
Auto Setup	Off
IP Address	133	177	108	157
Subnet Mask	255	255	255	0
Default Gateway

Press or to select Default Gateway, and edit in the same way as IP Address.

NOTE: If you manually set the IP address, you must not use the same IP address for any other device. The IP address you use should be a private address.

DNS Setup

NOTE: When the DHCP function of the router connected to this TV is Off, set Auto Setup to Off, and manually set the DNS address(es). Your internet service provider should have provided these to you.

Auto setup:

In the Preferences menu, press or to select Network Setup and press OK.
Press ▲ or ▼ to select Advanced Network Setup and press OK.
Press or to select DNS Setup and press OK.
Press ▲or ▼ to highlight Auto Setup, and then press ▲or ▲to select On.

NOTE: Other items will be grayed out when Auto Setup is set to On.

Manual setup:

In the Preferences menu, press or to select Network Setup and press OK.
Press ▲ or ▼ to select Advanced Network Setup and press OK.
Press or to select DNS Setup and press OK.
Press ▲ or ▼ to select Auto Setup, and then press ▲ or ▲ to select Off.

DNS Setup
Auto Setup	Off				>
Primary DNS Address	133	.	177	.	108
Secondary DNS Address	255	.	255	.	255

Press or to select Primary DNS Address.
6 Press or to highlight the field you want to change, and then use the number buttons to input the Primary DNS Address. To save the setting, press OK.

NOTE: DNS address field numbers must be between 0 and 255. If you input an incompatible number and press OK, the field number will reset to the previous value.

Press or to select Secondary DNS Address, and edit in the same way as Primary DNS Address.

MAC Address

You can view the fixed MAC address for the TV and for the Dual Band WLAN Adaptor, if one is installed.

1 In the Preferences menu, press or to select Network Setup and press OK.
Press or to select Advanced Network Setup and press OK.
Press or to select MAC Address and press OK.

Network Connection Test

This function checks the Internet connectivity.

In the Preferences menu, press or to select Network Setup and press OK.
Press or to select Network Connection Test and press OK.

A message will appear to indicate if the connection was successful or if it could not be completed.

NOTE: The result of Network Connection Test does not always guarantee the connection. Depending on the situation, YouTube may not be able to be used.

To cancel the Network Connection Test:

Press BACK while searching for the Internet connection.

Using the software keyboard

You can enter text by using the Software Keyboard. The Software Keyboard window will appear when you press OK on a field that accepts character input.

To enter text using the software keyboard:

1 Highlight the desired character on the on-screen software keyboard.
Press OK.
Repeat steps 1 and 2 until you have entered all desired text.
4 Press the BLUE button to close the software keyboard and return to the previous screen.

NOTE: If BACK is pressed, changes are not saved and the software keyboard window is closed. The text will remain as it was before starting the keyboard.

Input operation on the remote control:

Button	Description
OK	Inputs the selected character.
0-9	Inputs the number directly.
▲▼▲	Moves the character highlight.
←→	Moves the cursor.
←	Moves the cursor to the head of a character string.
→	Moves the cursor to the end of a character string.
RED	Deletes 1 character to the left of the cursor.
GREEN	Cycles through upper case, lower case, numbers, and symbols, if available.
YELLOW	Chooses an accented version of the current letter, if applicable.
BLUE	Saves changes and closes the Software Keyboard window.
BACK	Closes the Software Keyboard window without saving changes.

Network Device Setup

External Control Setup

This setup allows you to operate a home network-connected your TV from an external device.

Media Controller Setup

In the Preferences menu, press ▲ or ▼ to select Network Device Setup and press OK.

Press or to select External Control Setup and press OK.
Press or to select an option and press OK.

The Software Keyboard window will appear.

UserID — Input the User Name (to control the TV from the iPhone etc.) by using the on-screen software keyboard (see page 47). The maximum number of characters is 16.

Password — Input the Password (to control the TV from the iPhone etc.) by using the on-screen software keyboard (see page 47). The maximum number of characters is 16.

NOTE: Toshiba does not guarantee normal operation with all connected devices.

Media Renderer Setup

Terminology:

DMS: DLNA CERTIFIED™ Server

DMR: DLNA CERTIFIED™ Renderer

DMC: DLNA CERTIFIED™ Controller

The TV can be configured as a DMR. When operating as a DMR, the TV displays content provided by a DMS. The selection of the media is done by the DMC - the TV does not select the input. The TV can play photo, movie, or audio files when operating as a DMR.

Media Renderer

1 In the Preferences menu, press or to select Network Device Setup and press OK.
Press or to select Media Renderer Setup and press OK.
Press or to select Media Renderer, and then press or to select On or Off.

Media Controller Setup

You can limit which DMC can control this TV. If Access Control is enabled, only those DMCs with a check will be allowed to control the TV.

1 In the Media Renderer Setup menu, press or to select Media Controller Setup and press OK.
Press or to select Access Control, and then press or to select On.
Press or to select Select Media Controller and press OK.
4 Press or to highlight the item you want to accept, and press OK. A check will appear in the box. To remove the check, press OK again.
Press▶ to highlight Done and press OK.

NOTE:

• You can select up to 8 DMC devices.
• If you would not like to limit the DMCs for this TV, set Access Control to Off.
  Devices other than DMCs may be displayed in the list. Confirm the MAC address of the DMC and set it.

Maximum Volume Setup

This feature allows you to set the maximum volume of the TV when it receives volume operation commands from a DMC.

1 In the Media Renderer Setup menu, press or to select Maximum Volume Setup, and press or to adjust to the desired volume.

NOTE:

• The TV's remote control can set volume regardless of the value of Maximum Volume Setup.
• When DMR playback ends, the TV volume will return to the value in effect when DMR playback was started.

Using the USB HDD Function

The USB HDD function can be used to record and view digital broadcast programmes. Read the precautions below before recording or viewing programmes using the USB HDD function.

NOTE:

• Recorded programs saved on the USB HDD can only be viewed on this TV. They cannot be viewed when connected to another TV (including the same model of TV), a PC, or other device.
• You cannot watch one channel while recording another.
• If the recording time to the USB HDD is too short, no data may be saved.
• You cannot record video input signals on the USB HDD.
• Not all types of broadcast may be recordable.
• After programming the TV to record digital broadcasting, do not disconnect the power plug before recording starts. Also, leaving the power switch "ON" until recording is scheduled to start, may cause the recording to fail.
• Should video or audio recording fail due to malfunction of the TV or poor reception, no compensation shall be paid.
• You can reserve up to a total of 64 programs for recording and viewing.
• If there is a power failure or the power plug is disconnected during programmed recording, recording will stop and will not resume when the power returns or the plug is reconnected.
• Do not disconnect the power plug when the indicator lamp is lit.
• Any changes implemented by the broadcasting station may affect program scheduling.
• Scheduling of multiple consecutive programs will result in the beginning of each program not being recorded.
• When the "Programme Tracking" for programmed recording is set to "On" and the broadcast time of the scheduled program overlaps with the start time of timer viewing due to delay, extension, or other causes, timer viewing will be cancelled.
• Depending on the situation at the time, not all items can be set or changed. ("X" indicates no setting.)
• Programmed recording cannot take place if the power plug is not connected.
• Disconnecting the power plug during recording may result in failure to save the recorded program.
• Changing the USB 2 Port Setup to Media Player will invalidate all previously made programmed recordings. (see page XX)

To record DTV programmes (One Touch Recording)

You can easily record the programme currently being viewed.

Press the REC button on the remote control.

Recording for the currently viewing programmes will start.

The RED LED will be lit.

Pressing the REC button once more will display the screen for setting the recording time. Press or to select the desired recording time and press OK.

To stop recording

Press the (stop) button.

A confirmation window "Do you want to stop Recording" will appear.

Press or to select Yes and press OK.

Recording will stop.

To schedule programmed recording

Programmed recording can be scheduled easily using the Programme Guide or by specifying the date and time.

PLEASE NOTE:

When a timed programme is about to start, an information screen will appear off ering the option of watching or cancelling the programme. The menus and other channels will not be available during the timed programme unless the programme timer is cancelled. The programme timer you set is not performed when the TV is turned off with the POWER switch.

It will only be possible to create or edit programme timers for the currently tuned DTV input.

To schedule programmed recording using the Programme Guide

Press the GUIDE button on the remote control (or select TV Programmes/Guide menu from the menu system) to display the EPG screen.

Press ▲▼ ▼▶ to highlight the programme you want to record.

Press OK. The Set Timer menu will appear.

Press or to highlight Timer Type and press or to select Recording.
Press or to highlight Recording Device and press or to select the connected USB HDD.
6 Press and to go through the list adding the details of the programme by using the number buttons and and to make selections.

Programme Tracking:

If information concerning programme delay is sent from the broadcasting station, Programme Tracking will link recording with a delay of up to three hours. Programme Tracking is enabled when On is selected. (It does not support advancing of the broadcast time.)

Protect:

Select this function when you want to protect a recorded programme. When On is selected, the programme will be protected. You can protect and unprotect recorded programmes afterwards.

Personal Grouping:

Setting Personal Mode for a programme when it is recorded makes it easier to find later for viewing. Select your preferred Personal Mode. If you select None, the programme will be recorded to All in Library.

Subtitle:

Select On when you want subtitles to be included in the recording.

NOTE: To change the set Start Time or End Time, select Change Time and press OK. Change the Start Time or End Time from the displayed Set Timer screen.

Press or to highlight Set Timer and press OK.

The ORANGE LED will be lit.

To search for and schedule a programme you want to record using Genre Search

Press the QUICK button from the guide screen.
Press ▲ or ▼ to highlight Genre Colour in the Quick Menu and press OK.

3 With the focus on a particular genre, press the desired colour key to assign. Four colours will be available to set. Press BACK to go back to the guide screen.
Press the YELLOW button to access the Genre Search screen.

Genre Search 10:50 Tue, 6 Apr
Movies
34 AB1	Hard Rain	Wed,27 Apr 0:15-1:45
31 PARIS PREMIÈRE	Red Corner	Wed,27 Apr 22:15-23:55
11 NT1	The Lawnmower Man	Thu,28 Apr 1:20-3:00
9 W9	A Vow to Kill	Fri,29 Apr 1:30-3:00
34 AB1	Parenthood	Sat,30 Apr 0:45-2:40
11 NT1	Body and Soul	Sat,30 Apr 1:15-3:00
31 PARIS PREMIÈRE	The Nun's Story	Sat,30 Apr 15:00-17:30
9 W9	Red Corner	Sat,30 Apr 23:20-1:15
11 NT1	The Real Blonde	Sun,1 May 0:40-2:00
31 PARIS PREMIÈRE	Critters	Sun,1 May 0:40-2:20
11 NT1	Indiana Jones and the Temple of Doom	Sun,1 May 21:10-23:20
11 NT1	The jackal	Sun,1 May 23:20-1:15
34 AB	Coup De Ville	Mon,1 May 1:10-3:00

Press or to select the genre. Programmes listed will change for the new genre. Press or to select the programme for which you want to schedule recording.

6 Press OK. The Set Timer menu will appear.

Press or to highlight Timer Type and press or to select Recording.
Press or to highlight Recording Device and press or to select the connected USB HDD.
Press and to go through the list adding the details of the programme by using the number buttons and and to make selections.

Refer to Step 6 (see page 50) "Programme Scheduling using the Programme Guide".

10 Press or to highlight Set Timer and press OK. The ORANGE LED will be lit.

To programme the timer

Press MENU / / ▲/▲ to highlight TV Programmed/Programme Timers icons and press OK.
2 Select the unprogrammed column (blank column) and press OK. The Set Timer menu will appear.

Press or to highlight Timer Type and press or to select Recording.
Press and to go through the list adding the details of the programme by using the number buttons and and to make selections.

Channel:

Select the channel for programmed recording.

Date:

Select the date for programmed recording.

Start Time:

Select the time to start recording.

End Time:

Select the time to end recording.

Repeat:

Select "Once", "Daily" or Weekly

Once	The selected content is recorded once.
Daily	The same time slot on the same channel is recorded every day on and after the selected day.
Weekly	The same time slot on the same channel on the same day of the week is recorded on and after the selected day.

Recording Device:

Select the connected USB HDD.

Protect:

Select this function when you want to protect a recorded programme. When On is selected, the programme will be protected.

You can protect and unprotect recorded programmes afterwards.

Personal Grouping:

Select a Personal Mode for the programme to be recorded to make it easier to find later for viewing. Select your preferred Personal Mode. If you select None, the programme will be recorded to All in Library.

Subtitle:

Select On when you want subtitles to be included in the recording.

Press or to highlight Set Timer and press OK.

The ORANGE LED will be lit.

To schedule a programme using the information screen

Press + , the information screen will appear giving details of the channel and programme currently being viewed.

Press or to select the Next or Also and press OK. The Set Timer menu will appear.

Press or to highlight Timer Type and press or to select Recording.

Press or to highlight Recording Device and press or to select the connected USB HDD.

Press and to go through the list adding the details of the programme by using the number buttons and and to make selections.

Refer to Step 6 (see page 50) "Programme Scheduling using the Programme Guide".

Press or to highlight Set Timer and press OK.

The ORANGE LED will be lit.

To check, edit or delete scheduling information

You can check, edit or delete scheduling information.

Press MENU /▶/▲/▶ to highlight TV Programmes/Programme Timer icons and press OK. Programme Timer screen will appear.

Recording List:

Depending on the transmitter information, the program broadcast time, or other information may not be correctly displayed in the recording list.
The program does not appear in the recording list immediately at the start of recording, but appears a few minutes after recording starts.
- Up to 500 programs can be displayed in the recording list.
- If the channel settings are changed, the digital channel number, or other information may not appear correctly in the recording list.
- As the displayed program time is calculated from the actual recording information, it may not match the recording time on the USB HDD.

To check a schedule

Press or on the Programme Timer screen to check the schedule.

To edit a schedule

Press ▲ or ▼ on the Programme Timer screen to select the title whose schedule you want to edit and press OK.

The Set Timer screen will appear. Change the settings as required, following the same procedure as for setting the schedule.

Press or to highlight Set Timer and press OK.

To delete a schedule

Press or on the Programme Timer screen to select the title whose schedule you want to delete.
Press the RED button.

Press or in the displayed confirmation window to select Yes and press OK. The selected schedule will be deleted.

NOTE: You can also delete a schedule by selecting Delete Timer from the Set Timer menu for each programming method.

To view a recorded programme

Display the Library screen and select the title of the recorded programme from the list.

Press MENU /▶/▲/▶ to highlight TV Programmes/Library icons and press OK. Laibrary screen will appear.

Press or to select the title you want to view.

The content of the title selected on the thumbnail screen is played.

To change the order in which the titles are listed, press the BLUE button to select New or Old.

To display the titles by week or by Personal Mode, press the YELLOW button to select All, Week or Personal Grouping.

Press to select a day tab or Personal Mode tab.

NOTE: If no titles have been registered to Personal Mode, Personal Grouping will be greyed out.

Press OK.

Viewing starts.

• icon appears next to the title currently being recorded.

When the title currently being recorded is selected and OK is pressed, playback will start from the beginning of the programme currently being recorded.

Operations during viewing

The following operations can be performed using the remote control buttons.

To PLAY To SKIP-BACK
To STOP ToREWIND
IMI To PAUSE/STEP

To start Time Shift Recording

To SKIP-FORWARD

Operations from the Library screen

As well as viewing the list of recorded titles on the Library screen, you can protect or delete titles and register titles to Personal Mode.

To display the Library screen

1 Press MENU /▶/▲/▶ to highlight TV

Programmed/Programme Timers icons and press OK.

Press or to select Library, and then press OK. The Library screen will appear.

To protect or unprotect a recorded programme

Protecting a programme prevents it from being accidentally deleted.

Select the title of the programme you want to protect and press the GREEN button. icon appears next to the title and the programme is protected.

If Protect is set to On when the programme is recorded, icon appears next to the title of the recorded programme.

When a title with icon is selected and the GREEN button is pressed, icon disappears and the programme is unprotected.

To delete a recorded programme

Press the RED button. Check boxes will appear next to the titles.
Press or to select the title you want to delete and press OK. A check mark will be inserted in the check box.

To insert a check mark against all the titles, press the GREEN button.

To uncheck all the check boxes, press the BLUE button.

NOTE:

• A check mark will not be inserted against protected titles.
  Note that once deleted, a title cannot be restored.

Press the RED button. Select Yes in the confirmation window that will appear and press OK.

All the titles with check marks will be deleted.

To register a recorded title to Personal Mode

1 Select the title you want to register to Personal Mode.

Press the QUICK button to display the Personal Mode registration menu.

Press or to select the Personal Mode to which you want to register the title and press OK.

The title will be registered to the selected Personal Mode.

You can remove a title from the registered Personal Mode by selecting None.

To check the remaining USB HDD capacity

You can check the remaining capacity of the USB HDD using Remaining Capacity.

NOTE: The remaining time displayed is only a guide; it is not guaranteed.

Other useful functions (Time Shift Recording)

If you move away from the TV for a while, such as when the phone rings while you are watching TV, you can easily start recording and then catch up with the programme later.

Press the remote control while viewing DTV.

The screen will switch to the Pause image and recording will start automatically.

The recording time is the time set in One Touch Recording (see page 49).

Press▶(play).

Catch-up viewing will start from where the programme was paused.

To change the recording time, press (stop) and press REC. The image will switch to the image currently being received and the screen for setting the recording time will appear. Press or to select the desired recording time and press OK. Recording will continue during this time.

When you select a title currently being recorded from Library after the recording time has been changed, playback will start from the beginning.

Recording Setup

You can set your preferences for recording or for scheduling recording.

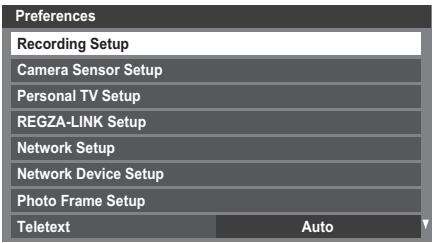

To set the recording time for One Touch Recording

Press MENU /▲▶ to highlight Setup icon.
Press or to highlight Preferences icon and press OK.
Press or to select Recording Setup and press OK.

Press or to select One Touch Recording Time and press OK.

Press or to select the recording time.

You can set the Programme End Time in 30-minute increments in the range of 30 minutes to 360 minutes.

To set the padding time for programmed recording start time and end time.

Press or to select Start Padding Time on the Recording Setup screen.
Press or to select a time.

You can select from None, 1 minute, 3 minutes, 5 minutes and 10 minutes. Recording will start at the selected number of minutes prior to the recording start time.

Press or to select End Padding Time from the Recording Setup menu.
4 Press or to select a time.

You can select from None, 1 minute, 3 minutes, 5 minutes and 10 minutes.

Recording will end at the recording end time plus the selected number of minutes.

Setting USB HDD Energy-Saving Mode

Press or to select Recording Devices from the Recording Setup screen and press OK.
Press or to select Device Energy-Saving Mode.

Press or to select Normal or Energy Saving.

NOTE:

• When set to Energy Saving, it may take a while for the USB HDD to function.
• When set to Energy Saving, depending on the type of USB HDD, the USB HDD indicator lamp may not indicate standby status even when in standby status.

To change the name of the USB HDD

Press or to select Recording Devices from the Recording Setup screen and press OK.
Press or to select Device List and press OK. The Device List screen will appear.

3 Press the GREEN button.

Edit the desired name by using the software keyboard. (See page 47) The maximum number of characters is 25.

NOTE: If multiple USB HDD appear on the Device List screen in Step 2, press or to select the USB HDD whose name you want to change.

To perform a USB HDD operation test

Press the YELLOW button on the Device List screen.

USB HDD operation test will start. Wait until the test ends.

NOTE: The results of the device test are only a guide. The device may not function as shown in the results.

To register a USB HDD

1 Press OK on the Device List screen.

Press to select Yes in the confirmation window that will appear and press OK. USB HDD registration will start. Wait until registration ends.

NOTE:

• If multiple USB HDD appear on the Device List screen, press or to select the USB HDD you want to register.
• If a USB HDD is re-registered, it will not be formatted.

To format a USB HDD

Press the BLUE button on the Device List screen.

Press or to select Yes in the confirmation window that will appear and press OK. Formatting will start. Wait until formatting ends.

NOTE:

• If multiple USB HDD appear on the Device List screen, press or to select the USB HDD you want to format.
• When the USB HDD is formatted, all the data stored on the USB HDD will be deleted.

To disconnect a USB HDD

Press MENU /▶ to highlight Setup icon.

Press or to highlight Preferences icon and press OK.
Press or to select Recording Setup and press OK.
Press or to select Recording Devices and press OK. The Device List screen will appear.

5 Press the RED button.

Press to select Yes in the confirmation window that will appear and press OK. The Connected check mark will be removed. Disconnect the USB HDD.

NOTE: If multiple USB HDD appear on the Device List screen, press or to select the USB HDD whose name you want to change.

To confirm/delete Recording Information

If programmed recording is not performed correctly or some other error occurs, you can check the error content using Recording Information. Up to 64 Recording Information entries will be recorded and when the maximum is exceeded, entries will be deleted starting from the oldest. You can delete Recording Information after you have checked it.

Press QUICK to open the Quick Menu.

Press or to select Recording Information and press OK. The Recording Information screen will appear.

The recorded Recording Information list will appear. icon will appear next to unread Recording Information. When the information is viewed, icon will appear (the icon changes to the Opened icon).

To check the content of Recording Information

Press or on the Recording Information screen to select the title you want to display.
Press OK. The content of Recording Information will appear.

When you have checked the content, press BACK. The screen will return to the previous screen.

To delete Recording Information

Press or on the Recording Information screen to select the Recording Information you want to delete.
Press the RED button.

Select Yes in the confirmation window that will appear and press OK.

The selected Recording Information will be deleted.

Scheduling priority

If scheduled time slots are next to each other and there is more than one minute between the end time of the first schedule and the start time of the next schedule, programmed recording will be performed correctly.

• When Start Padding Time and End Padding Time are set (see page 55), the start time and end time will be the time plus the additional minutes.
  If scheduling times overlap, priority will be given to the programmed recording which starts first. When the programmed recording that started first ends, recording will switch to the next scheduled programme. At this time, depending on how far the scheduling times overlap, the beginning section of the next scheduled programme may not be recorded.
• When End Padding Time is set for the first programmed recording (see page 55), depending on how far the scheduling times overlap, the End Padding Time may be ignored and recording of the next scheduled programme may start. As priority is given to the time set in the Set Timer menu over the Padding Time, recording will automatically be triggered when the next scheduled programme start time is reached during End Padding Time.

Camera Sensor Settings

The Camera Sensor can detect a person's face or movement and identify individuals by their registered faces. The screen mute and the standby mode functions by the face detection and motion detection functions of the Camera Sensor operate, and power consumption is saved as a result.

In the Preference menu, press or to select Camera Sensor Setup and press OK.
Press or to select Camera Sensor and press to select On (to activate the following settings).
Press or to select Camera Sensor Mode and press or to select Normal or Energy Saving.
Press or to select Time until Picture Off and press or to select 10min, Test (5sec.).60min. (5min.intervals).

NOTE: If the Camera Sensor Mode is in Energy Saving mode, this feature will be grayed out.

Press or to select Time until Standby and press or to select 5min...60min. (5min,intervals).
6 Press or to select Test Sensor and press OK to display Test Sensor screen.

7 Press or to select the Gamma Adjustment options Auto, 1, 2, 3, or 4 watching the camera image on screen.

Using Toshiba Places

A new cloud based service, where content (movies, photos, etc.) can be viewed and shared across the web through a simple user interface called "Toshiba Places".

NOTE:

• You need to configure a home network before using this feature (see page 11).
• If Network Lock is set to On, it will be necessary to enter your four-digit PIN code in order to access network features (see page 74).

Press on the remote control, or press MENU / ▲/ ▲▶ to highlight Connected TV/Toshiba Places icons and press OK.

Press to select the desired place and press OK.

Display Example

NOTE: Some features require an always-on broadband internet connection, firmware update and/or additional bandwidth dedicated to this product. Third party internet services may change or be discontinued or restricted at any time. Toshiba makes no warranties, representations, or assurances about the content, availability or functionality of third-party content or services. Use of third party internet services may require registration by a computer and/or payment of charges and membership. Not all services or content may be available on this product, in your country or with your language. In order to experience the full capabilities of this product, fully compatible devices may be required. For more information, visit http://www.toshibaplaces.com/about.

Using YouTube™

YouTube is a video-sharing service managed by YouTube, LLC.

This TV allows you to view YouTube content.

NOTE:

• You need to configure a home network before using this feature (see page 14).
• If Network Lock is set to On, it will be necessary to enter your four-digit PIN code in order to access network features (see page 74).

Press MENU / ▲/ ▲▶ to highlight Connected TV/YouTube icons and press OK.

The YouTube top page will appear.

Press ▲▼▶ to select the file you want to view, and press OK.

To close YouTube:

Press EXIT.

NOTE:

• This TV may not be able to perform all of the same operations as a computer.
• Depending on the network environment and use case, you may experience difficulty viewing content.
• Though the same volume value, actual volume might be greatly different depending on contents.
• It may take time for the TV to load and begin playing back content.
• Service content and the look and feel of the interface may be changed at any time without prior notice.

Using the Function Menu

The Function Menu provides easy access to functions that are commonly used.

Press the BLUE button while displaying YouTube. The Function menu window will appear.

Press or to select the desired icon and press OK.

Item	Description
Back	Returns to the previous page.
Forward	Moves to the forward page.
Reload/Abort	Updates the displayed page./Aborts update(×is displayed while reading, and ♂is displayed in other case.)
Home	Returns to the top page of YouTube.
Pointer	Switches the pointer On/Off or drag mode.
Menu	Switches the frame or sets various settings.

Switching the pointer

The tool that operates the screen can be changed to pointer or drag mode.

1 From the Function menu, press or to select Pointer, and then press OK.
2 If you select , see "To use the Pointer: ON" on this page. If you select , see "To use the Drag Mode" on this page.

To use the Pointer: ON:

Press or to select Pointer: ON and press OK. will appear.
Press ▲▼▲▶ to the place where changes to, and then press OK.

NOTE: When Pointer: OFF is selected and is pressed, the highlight moves to linked areas.

To use the Drag Mode:

Press or to select Pointer: ON and press OK.
Press the BLUE button.
3 From the Function menu, press or to select Pointer, and then press OK.
4 Press or to select Drag Mode and press OK.
5 Press OK, and then changes to
Press ▲▼▶ to move the selected item in the desired place.

Switching the frame

1 From the Function menu, press or to select Menu, and then press OK.
Press or to select Page Tasks.
3 Highlight Switch Frames and press OK.

Setting the view feature

1 From the Function menu, press or to select Menu, and then press OK.
Press or to select View.
Press or to select the desired item, and press OK.
Press or to select the desired setting, and press OK.

Item	Settings
Display Mode	Normal: Displays YouTube page with the size as it is. Just-Fit Rendering: Displays YouTube page at a size that has been adjusted to precisely fit the width of your TV.
Text Size	Changes the font size of the screen. Select from Largest, Large, Medium, Small or Smallest. NOTE: This font size is effective only for the page.
Advanced Settings	See the next column.
Page Information	Displays the information of the page you are viewing.
Server Certificates	Displays the server certification.

If you select Advanced Settings:

Press to select the setting items, and press OK. A check will appear in the box. To remove the check, press OK again.
Press ▲▼▲▶ to select OK field, and press OK.

Item	Description
Image	Sets display/non-display of images.
Table	Sets effect/non-effect of tables.
CSS	Sets effect/non-effect of CSS.
Pop-up window	Sets effect/non-effect of pop-up windows.
Animation	Sets display/non-display of animations.
JavaScript	Sets effect/non-effect of JavaScript.
Word wrap	Sets effect/non-effect of Word Wrap. If Word Wrap is enabled, a word not finished at the end of a line is shifted to the next line.
Rapid-Render	Sets effect/non-effect of Rapid-Render. If Rapid-Render is enabled, texts and links are displayed first, and the images and the tables, etc. are displayed afterward. The highlight can be moved with the text and the link displayed.

Setting other features

1 From the Function menu, press or to select Menu, and then press OK.
Press or to select Settings.
Press or to select the desired item, and press OK.
Press or to select the desired setting, and press OK.

Item	Settings
Security	When jumping from a protected page to an unprotected page, the message is displayed when the check is applied to Notify of secure/non-secure page changes. Apply the check to select SSL version from SSL Version to use (SSL2.0, SSL3.0, TSL1.0). A content confirmation of the certification and a setting effect/non-effect can be done in Root Certificates and CA Certificates shown below.
Cookies	Accept all: Cookie is received, and it records in this TV. Reject all: Cookie is not received. Prompt before accepting: When Cookie is received, a message window will be displayed.
Delete Cookies	Deletes all recorded Cookies.
Cache	Use cache: When the check is applied to this, cache is used. Delete All Cache Data: Deletes all the cache preserved in the television.
Browser Information	Displays the information on a browser.

NOTE:

• Cookie is the technical information that a website leaves in this TV so that the website will recognize you when you use it again.
• Cache is a system used to shorten the display time by checking the past data preserved in this television when a page that you viewed before is seen again.

To confirm Root Certificates or CA Certificates:

Press or to select Security in step3 in Setting other features.
Press ▲▼▶ to select Root Certificates or CA Certificates, and press OK.
Press or to select the desired certificate.

• When OK is pressed, a detailed information window will appear.
• When the BLUE button is pressed, Disable or Enable bar will appear. It changes whenever BLUE button is pressed.

4 Press BACK.

Using the Media Player

This TV allows you to enjoy movie, music and photo files stored on a USB device connected to the USB port.

Moreover, you can also play photos, movies or music files from your PC by connecting the TV to your home network.

Terminology:

DMP: DLNA CERTIFIED™ Player

DMS: DLNA CERTIFIED™ Server

DMR: DLNA CERTIFIED™ Renderer

DMC: DLNA CERTIFIED™ Controller

• DMP: The TV can control and play content from a DMS.
• A DMS is a device that can function as a server for DMP or DMR.
• DMR: The TV can play content from a DMS. Playback is controlled by a DMC.
• A DMC is a device that can instruct the TV to display content.

NOTE:

• Do not insert/remove USB device while in use.
• MENU is not available during playback.
• When you want to use your TV as a DMR, set Media Renderer to On (see "Media Renderer" on page 48).

Media Player Specifications

Device

USB device

Interface version: USB2.0 HS

USB Mass Storage Class devices (MSC)

NOTE:

• Connectivity is not guaranteed for all devices.
• Incorrect behavior may occur with a USB hub connection.

File system: FAT16 and FAT32

Maximum memory size: Unlimited

DLNA CERTIFIEDTM Server: Your PC (for example)

You must obtain any required permission from copyright owners to download or use copyrighted content. TOSHIBA cannot and does not grant such permission.

Basic operation

Using Media Player with USB

When Auto Start is enabled, you will be asked if you want to start the Media Player whenever a USB device is inserted. If Auto Start is disabled (or if you want to connect to a DMS on the network), you must manually start the Media Player from the menu.

To change the Auto Start setting:

Press MENU /▶/▲/▶ to highlight Media Player/Media Player Setup icons and press OK.
Press or to select USB Auto Start, and then press or to select On or Off.

Media Player Setup
USB Auto Start	On
DivX® VOD
Media Server Setup

Auto Start:

1 Insert USB device into the USB socket on the left side of the TV. A prompt will appear.
Press or to select Yes, and then press OK.
Press or to select Photo, Movie, or Music and press OK.

NOTE: If Auto Start is set to Off, you can start the Media Player manually.

Manual Start:

1 Insert USB device into the USB socket on the left side of the TV.
Press MENU /▶ to highlight Media Player icon.
Press / to highlight Photo, Movie or Music icon and press OK. The thumbnail will appear.

To select a file in the list of contents:

Press (▶) to select a file or folder.
2 Press OK to move to the next layer, or press BACK to return to the previous layer.

To close the Media Player:

1 Press EXIT.

Using the Media Player with a DLNA CERTIFIED™ Server

You need to configure a home network before using this feature (see page 11).

Press MENU /▶ to highlight Media Player icon.
Press / to highlight Photo, Movie, or Music icon and press OK. The thumbnail (for Photo) or list of files (for Movie and Music) will appear.

NOTE: If there is more than one media server on the network, a list of all media servers will be displayed. Highlight the server you want to use, and press OK.

Press or to select a DMS if the selection window is displayed.

To select a file in the list of contents:

Press or to select a file or folder.
2 Press OK to move to the next layer, or press BACK to return to the previous layer.

To close the Media Player:

1 Press EXIT.

To display the device information

Press QUICK to open the Quick Menu in list mode or Multi View mode.
Press or to select Device Information.

Setting DLNA CERTIFIED™ Server waking up:

You only need to complete the Media Server Setup if you wish to use the "Wake-on-LAN" feature.

Press MENU / / to highlight Media Player/Media Player Setup icons and press OK.
Press or to select Media Server Setup and press OK. A list of currently available DMSs will appear.
Press or to select the desired device, and press OK. A check will appear in the box. To remove the check, press OK again.
Press▶ to highlight Done, and then press OK to save.

NOTE:

• Up to 8 DMSes can be selected.
• Even if the device checked is powered off, it will be displayed but grayed out in the Select Device window. When OK is pressed on a highlighted grayed out item, a confirmation of Wake-on-LAN is displayed. The TV tries to wake up the DMS if Yes is pressed. The Server will start if it supports Wake-on-LAN feature.

• When some DMSs are connected, it may take time until the list is displayed. The list may be refreshed by the following operation.

• The device selection window is closed once and it is displayed again.

• The RED button is pressed.

Viewing photo files (on a DLN A CERTIFIED™ Server or USB device)

There are three types of viewing modes.

Multi View

This view allows you to search for photos in a grid format. The pictures are displayed using thumbnail data in each image file.

Photo list example

The initial highlighted position will be on the top left thumbnail in the Multi View.

1

Press to move the highlight in one window. If all of the photos will not fit in one screen, when pressing at the top left thumbnail, the screen will move to the previous page. Conversely, when pressing at the bottom right thumbnail, the screen will move to the next page.

P^PV buttons can be used to page up/down the photo list when there are more photos than will fit onto one screen. When the P^PV buttons are pressed, the highlight shall be on the photo at the top left of Previous/Next list.

2

When you select a folder, press OK to move to the next layer. Press BACK to move back to the previous layer.

3

Press OK to view the selected photo in Single View mode.

NOTE: When the TV is used as a DMR, this feature is not available.

Single View

In this mode, only files located in the selected directory will be displayed. This view allows you to change the photo content manually. When moving from Multi View to Single View, the currently selected photo will be displayed.

Press to view the next photo. Press to view the previous photo.

Press to rotate the image 90^ clockwise. Press to rotate the image 90^ counterclockwise.

Press + to display file status information (file number, photo title, date and time taken, resolution etc.).

NOTE: The information may not be correctly displayed depending on the content, DMC or DMS.

Slide Show

This view allows you to watch a slide show of your photos. In this mode, only files located in the selected directory will be played.

To start slideshow, press OK in the Single View mode.

Press or to view the previous/next photo.

Press or to rotate the photo.

Press + to display file status information.

To set Interval Time and Repeat settings:

Press QUICK to open the Quick Menu while in the Single View mode or Slide Show mode.

Press or to select either Interval Time or Repeat.

Press or to adjust the setting and press OK.

To set Background Music

Press QUICK to open the Quick Menu while in the Slide Show mode.

Press ▲ or ▼ to select Background Music and press OK.

Press ▲ or ▼ to select Background Music and press △ or ▶ to select On.

Press to select Select Music and press OK.

Select a music.

NOTE:

• The music must be selected from the same media (USB) device or DMS from which the picture files will be played.
• This feature is not available when there is no music that can be selected.

To zoom in/out photos

During the Single View mode or Slide Show mode, the zoom function can be used.

$$ R E D \text {b u t t o n :} x 1 \rightarrow x 2 \rightarrow x 4 \rightarrow x 8 \rightarrow x 1 6 \text {z o o m} $$

$$ \text {G R E E N} \quad \text {b u t t o n :} x 1 6 \longrightarrow x 8 \longrightarrow x 4 \longrightarrow x 2 \longrightarrow x 1 \text {z o o m} $$

BACK button: Normal playback

buttons: Vertical or Horizontal scrolling

To sort the folders and files

Press QUICK to open the Quick Menu from Multi View mode.
Press or to select Sort.
Press or to select Title/File Name, New or Old to set the sorting rule.

Item	Description
Title (DMS)	File sorting rules: 1. Unicode priority 2. (0, 1, ..., 9), capital alphabet (A, B, ..., Z), small alphabet (a, b, ..., z) 3. Increasing order
File Name (USB)	File sorting rules: 1. Unicode priority 2. (0, 1, ..., 9), capital alphabet (A, B, ..., Z), small alphabet (a, b, ..., z) 3. Increasing order
New	From new to old according to the date and time when the picture was taken.
Old	From old to new according to the date and time when the picture was taken.

NOTE: Sorting may not be supported by some DMSs.

To display the device information

Press QUICK to open the Quick Menu from Multi View mode.

Press or to select Device Information and press OK.

NOTE: When the photos on the USB device are used, or the TV is used as a DMR, this feature is not available.

To close the Photo Viewer

Press EXIT. The television will return to the last viewed channel or external input.

File Compatibility

See page 97.

Viewing movie files (on a DLN A CERTIFIEDTM Server or USB device)

You can select movies from a list of available files.

Movie list example

Press to select a file or folder. P Pv buttons can be used to page up/down the movie list when there are more files than will fit onto one screen.
When you select a folder, press OK to move to the next layer. Press BACK to move back to the previous layer.
3 With the desired file selected, press OK or (play) to start playback.

NOTE:

• On preview screen, if you highlight the file without pressing OK, the content is played on a preview screen. When OK is pressed, it is played in full screen mode.
  Depending on the file size, it may take some time to start playback.

4 Press to stop playback.

NOTE:

• If playback finishes before ■ is pressed, the screen will return to the list.
• Depending on the file size, it may take some time for playback to begin.

During playback:

Press to pause.

You can move to the desired replay position by pressing or during PAUSE.

PAUSE or operations during PAUSE may not be available depending on the contents, DMC or DMS.

To resume normal playback, press (play).
To play in fast reverse or fast forward directions, press or during playback. Each time you press the or the playback speed will change.
To locate a specific file, press or repeatedly.
- Press + to display the file status information (content number, movie title, progress time etc.).

NOTE:

• The information may not be correctly displayed depending on the contents, DMC or DMS.
• During playback, you can adjust the Picture, Picture Size and SOUND menu functions from the Quick Menu.

To select subtitle and audio languages

• Press SUBTITLE repeatedly to select your preferred subtitle language.
  Press / repeatedly to select your preferred audio language.

NOTE: This fecture is not available depending on the contents.

To set the repeat mode

1

Press QUICK to open the Quick Menu.

2

Press or to select Off, All or 1.

Mode	Description
Off	The file is played back only once.
All	Files in the same folder are repeatedly played back.
1	The same file is repeatedly played back.

3

Press BACK.

NOTE: When the TV is used as a DMR, this feature is not available.

To sort the folders and files

Press QUICK to open the Quick Menu in list mode.
Press or to select Sort.
Press or to select Title/File Name, New or Old to set the sorting rule.

Item	Description
Title (DMS)	File sorting rules: 1. Unicode priority 2. (0, 1, ..., 9), capital alphabet (A, B, ...,Z), small alphabet (a, b, ..., z) 3. Increasing order
File Name (USB)	File sorting rules: 1. Unicode priority 2. (0, 1, ..., 9), alphabet (A, B, ...,Z) 3. Increasing order
New	From new to old according to the date and time when the contents were updated.
Old	From old to new according to the date and time when the contents were updated.

NOTE: Sorting may not be supported by some DMSs.

To display the device information

Press QUICK to open the Quick Menu in list mode.
Press or to select Device Information and press OK.

NOTE: When the movies on the USB device are used, or the TV is used as a DMR, this feature is not available.

To close the Movie Viewer

1

Press EXIT.

File Compatibility

See page 97.

To register your TV to a DivX° account

This TV allows you to play back files purchased or rented from DivX Video-On Demand (VOD) services. When you purchase or rent DivX VOD files on the internet, you will be asked to enter a registration code.

1 In the Media Player Setup menu, press or to display Media Player and press OK.
Press or to select DivX* VOD and press OK.
Press or to highlight DivX VOD Registration, and then press OK.

DivX VOD

DivX® VOD Registration

DivX® VOD Deactivation

4 The DivX VOD window will appear and you will see the registration code. For details on registration, please visit the DivX website at
http://vod.divx.com
5 Copy the activation file to a memory device and play it on the TV.

To deactivate your device

1 In step 3 above, highlight DivX VOD Deactivation, and then press OK.
A confirmation message will appear. Select Yes, and then press OK.
The DivX VOD window will appear and you will see the deactivation code. For details on registration, please visit the DivX website at

http://vod.divx.com

ABOUT DIVXVIDEO:DivX is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX Certified® to play DivX® and DivX Plus™ HD (H.264/MKV) video up to 1080p HD including premium content.

Playing music files (on a DLNACERTIFIEDTMServer or USB device)

You can listen to music from a list of available files.

Music list example

Press to select a file or folder. PAPV buttons can be used to page up/down the music list when there are more files than will fit onto one screen.
When you select a folder, press OK to move to the next layer. Press BACK to move back to the previous layer.
3 With the desired file selected, press OK or (play) to start playback.

NOTE: If you highlight the file without pressing OK, the content is played on a music list. When OK is pressed, it is played in full screen mode.

4 Press to stop playback.

NOTE:

• Depending on the file size, it may take some time for playback to begin.
• During playback, you can adjust the SOUND menu functions from the QUICK Menu.

During playback:

Press to pause.
To resume normal playback, press (play).
- You can move to the desired replay position by pressing or during PAUSE.
- PAUSE or operations during PAUSE may not be available depending on the content, DMC or DMS.
- To play in fast reverse or fast forward directions, press or . Each time you press or , the playback speed will change.

To set the repeat mode:

Press QUICK to open the Quick Menu in list mode.
Press or to select Repeat.
Press or to select Off, All or 1.

Mode	Description
Off	Files in the same folder are played back once.
All	Files in the same folder are repeatedly played back.
1	The same file is repeatedly played back.

4 Press BACK.

NOTE: When the TV is used as a DMR, this feature is not available.

To set the shuffle mode:

Press QUICK to open the Quick Menu in list mode.
Press or to select Shuffle.
Press or to select On or Off.

To sort the folders and files

Press QUICK to open the Quick Menu in list mode.
Press or to select Sort.
Press or to select Title/File Name, New or Old to set the sorting rule.

Item	Description
Title (DMS)	File sorting rules: 1. Unicode priority 2. (0, 1, ..., 9), alphabet (A, B, ...,Z) 3. Increasing order
File Name (USB)	File sorting rules: 1. Unicode priority 2. (0, 1, ..., 9), alphabet (A, B, ...,Z) 3. Increasing order
New	From new to old according to the date and time when the contents were updated.
Old	From old to new according to the date and time when the contents were updated.

NOTE: Sorting may not be supported by some DMSs.

To display the device information

Press QUICK to open the Quick Menu in list mode.
Press or to select Device Information and press OK.

NOTE: When the music files on the USB device are used, or the TV is used as a DMR, this feature is not available.

To display the file status information

Press i+ during playback. The information will be displayed on the bottom of the screen.
Press 1 + again to remove the information.

NOTE: The information may not be correctly displayed depending on the content, DMC or DMS.

To close the Music Player:

1 Press EXIT.

File Compatibility

See page 97.

Using the Photo Frame feature

You can use the TV screen as a digital photo frame. One image (pre-installed or user-installed) can be displayed. Date info can also be superimposed, if desired.

You can overwrite the photo file with a file from a USB storage device or DLNA CERTIFIED™ Server.

To open Photo Frame

Press MENU / / to highlight Setup/ Preferences icons and press OK.
Press or to select Photo Frame Setup and press OK.

The preview screen will appear.

Press▶ to select Start and press OK to open Photo Frame.

To open from the Quick Menu

Press QUICK to open the Quick Menu.
Press or to select Photo Frame and press OK to open Photo Frame.

To close Photo Frame:

1 Press EXIT.

Setting the features

In the preview screen, you can set various settings for Photo Frame.

Photo Select

In the Photo Frame Setup menu, press or to select Photo Select and press OK.

If the device selection screen appears, press or to select the appropriate device and press OK.

Press to select the photo you want to copy from the USB storage device or DLNA CERTIFIED ^TM server to the TV's flash memory, and then press OK.

Photo Edit

Press or to select Photo Edit and press OK.
Press or to select Rotate or Delete.

3 Set the following items as required.

• Rotate — Press OK to rotate the image 90^ clockwise.
• Delete — Press OK. A confirmation window will appear. Press or to select YES, and then press OK.

4 Press BACK.

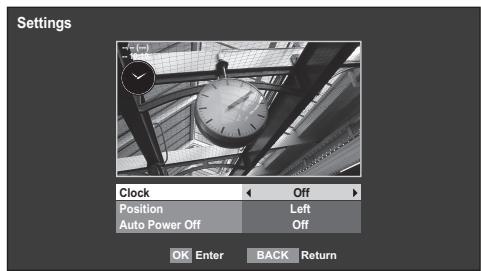

Settings

Press or to select Settings, and then press OK.
Press or to select Clock, Position or Auto Power Off.

3 Set the following items as required.

• Clock — Press or to select Off, Digital Clock, Analogue Clock or Analogue + Digital.
• Position — Press or to select Left or Right.
• Auto Power Off — Press or to select Off, 00:30, 01:00, 02:00, 04:00, 06:00 or 12:00.

If the Photo Frame window is left open, the TV will automatically turn off after the set length of time (maximum 12 hours).

4 Press BACK.
5 Select Start and press OK.

NOTE:

• The clock display will only appear when time from a digital broadcast is available.
• The photo and clock displays are moved by 4 dots every 5 minutes to minimize the risk of screen burn-in.
• The pre-installed photo file is stored in the TV's flash memory before shipment.
• Picture Size selection (Normal/ Dot by Dot) is available by pressing the QUICK button. However when the resolution is 1920 × 1080 or above, the Picture Size selection menu will be grayed out.

Other features

Panel Lock

Panel Lock disables the buttons on the television. All buttons on the remote control can still be used.

Press MENU / / to highlight Setup/ Preferences icons and press OK.

When Panel Lock is On, a reminder will appear when the buttons on the television are pressed. If the standby button is pressed, the television will switch off and can only be brought out of standby by using the remote control.

The timers

Programme Timers - digital only

This feature will set the television to go to a specific channel at a certain time. It can be used to view a particular programme, or by setting the mode to daily or weekly, can be used to view a series of programmes.

Press MENU / ▲▶/▲/□▶ to highlight TV Programmes/Programme Timers icons and press OK.
Press to select Programme Timers, and then press OK.
3 Press if necessary to select an open timer position, then press OK. The Set Timer menu will now appear on screen.
Press and to go through the list adding the details of the programme by using the number buttons and and to make selections.

When all of the details have been entered, highlight Set Timer and press OK to save the timer.

The ORANGE/RED programme timer indicator on the front of the television will be lit (see page 92 for details).

PLEASE NOTE: When a timed programme is about to start, an information screen will appear offering the option of watching or cancelling the programme. The menus and other channels will not be available during the timed programme unless the programme timer is cancelled. The programme timer you set is not performed when the TV is turned off with the (口) / I POWER switch.

It will only be possible to create or edit programme timers for the currently tuned DTV input.

On Timer

The feature allows you to set the television to turn on automatically to a preset channel at a certain time of day or after a certain length of time.

Press MENU / / to highlight Function/ On Timer icons and press OK.
Press or to select Enable On Timer and press or to select On.

On Timer
Enable On Timer	On
Enable DTV Clock	On
Power On Time	00:00
Repeat	Once
Input	DTV
Channel	12 ABC
Volume	20
Time Until Power On	00:00
Done

Press to select Enable DTV Clock, and then press or to select On or Off.
Press or to go through the list adding the details of the On Timer by using the number buttons and and to make selections.

Power On Time (only for DTV Clock On mode): Set the time you prefer with the number buttons.

Repeat (only for DTV Clock On mode): Select the desired On Timer operation (Once, Every Day, Mon-Fri, Mon-Sat, Sat-Sun).

Input: Select a video input source (ATV, DTV, EXT 1, EXT 2, EXT 3, HDMI 1, HDMI 2, HDMI 3, HDMI 4 or PC).

Channel: Set the channel that will be tuned when the television turns on.

NOTE: When an external input is selected in the Input field, a channel cannot be selected.

Volume: Set the volume that will be applied when the television turns on.

Time until Power On (only for DTV Clock Off mode): Set the amount of time from now until the TV turns on using the number buttons (maximum of 12 hours).

Press or to highlight Done and press OK.

To cancel the On Timer

1 In the On Timer menu, select Enable On Timer
Press or to select Off.

Sleep Timer

The television can be set to turn itself Off after a certain length of time.

Press MENU / / to highlight Function/ Sleep Timer icons and press OK.
Use the number buttons to set the desired time. For example, to switch the television off in one and a half hours enter 01:30, or press▶/▲ to increase/decrease in steps of 10 minutes. (Maximum time setting is 12 hours)
Press EXIT to finish.
4 To cancel the Sleep Timer, enter all zeros for the above setting.

Energy Saving Settings

Automatic Power Down

The TV will automatically turn itself off (standby) after 4 hours, if you do not operate the TV either from the remote control or the TV control panel.

Press MENU / / to highlight Setup/ Preferences icons and press OK.
Press or to select Energy Saving Settings and press OK.
Press or to select Automatic Power Down.
Press or to select On or Off, and press OK.

NOTE:

• This feature is set to On when Location is set to Home.
• 1 minute before switching to standby, a Warning message will appear.
• When the following features are set, the feature that is set for the nearest time will function.

Automatic Power Down
- Sleep Timer
- Photo Frame/Auto Power Off
- Auto shutdown after 1 hour of inactivity (after power on by On Timer)
- No signal auto power off (after 15 minute of no signal)

No Signal Power Down

The TV will automatically turn itself off after 15 minutes when no signal is detected. You can change the setting to Off for the following purposes:

• Low signal strength of analog channel (no signal detection)
• Only Audio L/R is connected to external input to listen to music through the TV speakers.

In the Energy Saving Settings menu, highlight No Signal Power Down, and press OK.
Press or to highlight the item you want to change, and press or to select On or Off.

NOTE:

• Default setting is all On.
• A warning message will appear 1 minute before turning off.

Digital on-screen information and Programme Guide

When viewing in digital mode, the on-screen information and programme guide provide access to programme details for all available channels.

Information

Press + , the information screen will appear giving details of the channel and programme currently being viewed.

Press or to select the "Now", "Next" or "Also" information guide.
3 To record the next scheduled programme, select "Next" and press OK. The Set Timer screen will appear.

4 The details of the programme will already have been added to the timer. Highlight Set Timer and press OK to save.
To indicate that a Recording Timer has been set, a clock icon will be displayed in the Next and Also fields of the information screen. A check mark will appear if the timer is a Reminder Timer.
Press to select Also. Details of programmes that have started on other channels will be provided. Use or to change the display contents.

To display More Information

Press QUICK to open the Quick Menu.
Press to highlight More Information and press OK.

On-screen Information icons

	Icon	Description
Service info	■ ▼ □	Service type (TV, Radio, Text)
	-●→	Skip
Audio info	○	Mono
	○○	Stereo
	●○	Dual mono
	○○	Multichannel
	○○D	Dolby Digital
	○○D+	Dolby Digital+
	HE-AAC	Audio Coding
	AD	Audio Description
Audio/Subtitle info	▼	For Hard of Hearing
Recording info	●REC	Recording + Service info
Personal Mode info	◇	Personal Mode (Personal Name)
Event info	HD, SD	Video format (HD, SD)
	16:9, 4:3	Video Aspect
	■	Teletext
	……□	Subtitle (Single, Multi)
	▲□	Multi-audio track
	0, 4 - 18	Parental rating
	■W	Encrypted
Timer info	◆	Recording
	✓	Reminder

Guide

1 Select the on-screen guide by pressing GUIDE, and the guide screen will appear highlighting details of the channel and programme currently being viewed. This may take a few moments to appear.

Thu6 10:50 Tue, 6 Apr
TV	← 18:00	18:30	19:00	19:30	20:00→
6 M6	###LESS SIM ###LESS SIM...	###TOP MODEL
9 W9	###SUMMERLAND ###SUMMERLAND	###LESS SIM...
11 NT1	###Nicky La... ###Street fight... ###Dragon B... ###Dragon B... ###K 2000
31 PARIS PREMIÈRE	###MA SORCIE... ###HAPPY DAYS ###HAPPY DAYS
34 AB1	###Evamag ###21 jump street ###Jerry Springer Show ###City guys ###L...
800 FlowerGd 6Mbs
801 FlowerGd 4Mbs
802 FlowerGd 2Mbs
804 Codec 4:3
806 ITV1
807 ITV3
808 ITV2
809 ITV4

You can switch the time scale to 1.25 or 2.5 hours by pressing the GREEN button.

NOTE: Channels are displayed in groups by service type (TV, Radio, Text). Pressing the TV button will switch the service type.

Press or for information on other programmes scheduled for the channel selected. To highlight the first programme in the genre grid, press the RED button.
For details of other programmes currently available, press and to scroll up and down the channel list. As channels are selected, details of the programme currently being broadcast will appear. Press or to view information for future programmes.
4 For information on a highlighted programme, press i+
5 To set the timer for that programme, press the BLUE button to bring up the Programme Timers menu.

NOTE: In order for the recording operation to work properly, the media recorder must be set to the same time as the TV. Regarding the process for recording, please refer to the owner's manual of the recording equipment.

6 Press PV to advance to the next page, or press P^to go back to the previous page.

Genre selection/searching

From the guide screen, you can use the genre selection and search features.

Press the QUICK button from the guide screen.
Press ▲ or ▼ to highlight Genre Colour in the Quick Menu and press OK.

3 With the focus on a particular genre, press the desired colour key to assign. Four colours will be available to set. Press BACK to go back to the guide screen.
Press the YELLOW button to access the Genre Search screen.

Genre Search 10:50 Tue, 6 Apr
Movies
34 AB1	Hard Rain	Wed,27 Apr 0:15-1:45
31 PARIS PREMIÈRE	Red Corner	Wed,27 Apr 22:15-23:55
11 NT1	The Lawnmower Man	Thu,28 Apr 1:20-3:00
9 W9	A Vow to Kill	Fri,29 Apr 1:30-3:00
34 AB1	Parenthood	Sat,30 Apr 0:45-2:40
11 NT1	Body and Soul	Sat,30 Apr 1:15-3:00
31 PARIS PREMIÈRE	The Nun's Story	Sat,30 Apr 15:00-17:30
9 W9	Red Corner	Sat,30 Apr 23:20-1:15
11 NT1	The Real Blonde	Sun,1 May 0:40-2:00
31 PARIS PREMIÈRE	Critters	Sun,1 May 0:40-2:20
11 NT1	Indiana Jones and the Temple of Doom	Sun,1 May 21:10-23:20
11 NT1	The jackal	Sun,1 May 23:20-1:15
34 AB	Coup De Ville	Mon,1 May 1:10-3:00

Press or to select the genre. Programmes listed will change for the new genre. Press or to highlight a particular programme.
6 When a current programme is selected, pressing OK will tune to that programme. When a future programme is selected, pressing OK will open the Edit Timer menu.
For information on a highlighted programme, press i+
8 To exit the Genre Search and go back to the guide screen, press the YELLOW button.

Digital settings - parental control

In order to prevent viewing of unsuitable films and programmes, channels and menus can be locked in digital mode. These can then only be accessed with a security code PIN.

Parental PIN Setup

Press MENU / to highlight Setup/ System Setup icons and press OK.
Press or to select DTV Settings and press OK.

System Setup
Menu Language	English
Country	Germany
Ant/Cable In	Antenna
Auto Tuning
ATV Manual Tuning
DTV Manual Tuning
DTV Settings
Quick Setup

Press ▲ or ▼ to highlight Parental PIN Setup and press OK.

DTV Settings
Channels
Subtitle and Audio
Parental PIN Setup
Parental Control
Local Time Setting
Standby Channel Update	Off
DVB Character Set	Standard
Dynamic Scan	On

4 Using the number buttons enter a four digit number. Once entered you will be prompted to confirm by entering again.

Parental PIN Setup
New PIN:	*	*	*	*
Confirm PIN:

The PIN number is now set.

If the PIN code has been set, when Auto Tuning and Reset TV are executed, entering the PIN will be necessary.

Parental Setup

The Parental Control feature allows you to block programmes according to their rating levels. If a PIN has been set, you will need to enter it before adjusting the level.

1 In the DTV Settings menu, press or to select Parental Control and press OK.
Use to choose an option (None or an age setting (4-17 or 4-18 depending on the Country setting)).

To view blocked programmes, enter the PIN. To reactivate the Parental Control, turn the TV off and then on again.

Network Lock

You can use the Network Lock feature to prevent the Web browser from launching. When this feature is set to On, PIN input will be necessary to use YouTube.

This feature will be grayed out until a PIN is set.

Press MENU / / to highlight Setup/ Preferences icons and press OK.
Press or to select Network Lock and press OK.

3 Enter your four-digit PIN code.
Press or to select On, and then press OK.

To unlock the Network:

1 Select Off in step 4 above.

Digital settings - Channel Options

Selecting favorite channels

Favorite Channels creates a list of the digital channels that are watched most. Four lists can be created, they can be a mixture of television, radio and text channels.

1 Select a channel you want to add to your favorite list.
Press QUICK to open the Quick Menu.
Press to select Channel Options and press OK.
Press▶ repeatedly to select the favorite list (Fav.1-4)

Channel Options

Fay.

1

2

3

4

Fay.

1

2

3

4

5 Press OK to select the ones required. A tick will appear in the box as they are selected.
6 Repeat steps 1 through 5 for other channels.
When all favorites have been selected, press EXIT.

Favorite Channel Lists

Press LIST to display Channel List.
Press or to select Favourites 1-4. The number of favours available depends on how many lists have been created.

Press or to highlight a channel and press OK to watch.

Skip channels

This feature allows you to set channels that will be skipped when P or P are used to tune.

1 Select the channel you want to skip in your channel list.
2 From the Quick Menu, press to select Channel Options and press OK.
Press▶ repeatedly to highlight the skip (→) box.
4 Press OK to select. A tick will appear in the box.
5 Repeat steps 1 through 4 for other channels.
6 Press EXIT.

NOTE: Skipped channels cannot be selected by P or P but still be accessed by direct number entry (when tuned a icon will be displayed in the banner to indicate as a skipped channel).

Locking channels

Locking Channels stops the viewing of digital channels, and they can only be accessed by entering the PIN.

1 Select the channel you want to lock in your channel list.
2 From the Quick Menu, press to select Channel Options and press OK.
Press▶ repeatedly to highlight the lock (1) box.
4 Press OK to select. A tick will appear in the box.

If a PIN has already been set, PIN entry will be required to set the locked channels.

5 Repeat steps 1 through 4 for other channels.
6 Press EXIT.
7 From this point on, when any of the channels in the Locked Channel list are selected, the PIN must be entered before they can be accessed.

Digital settings - other settings

Subtitles

In digital mode, this feature will show subtitles on the screen in the selected language provided they are being broadcast.

1 In the DTV Settings menu, press or to select Subtitle and Audio and press OK.
Press to select Subtitle Display and use or to select On or Off.

Subtitle and Audio
Subtitle Display	< Off >
Subtitle Type	Normal
Primary Subtitle Language	English
Secondary Subtitle Language	English
Audio Type	Normal
Primary Audio Language	English
Secondary Audio Language	English

Press ▲ or ▼ to select Primary Subtitle Language or Secondary Subtitle Language and press ▲ or ▲ to select an option.

The SUBTITLE button can be used to select subtitle on or off for the current channel only and to select the subtitle language if more than one subtitle is available.

Audio languages

This feature allows a programme or film to be viewed with a choice of soundtrack language, provided multiple language tracks are being broadcast.

In the Subtitle and Audio menu, press ▲ or ▼ to select Audio Type and press ▲ or ▲ to select Normal or For Hard of Hearing.
Press ▲ or ▼ to select Primary Audio Language or Secondary Audio Language and press ▲ or ▲ to select an option.

If more than one soundtrack is available, use the CDI/II button to select between them.

Common Interface

The Common Interface Slot, situated on the side of the television, enables the insertion of a CAM (Conditional Access Module) and card. These are purchased from a service provider and allow additional subscription broadcasts to be viewed. For information, see a service provider.

1 Insert the CAM and card into the Common Interface Slot, following the instructions provided with the CAM. A box will appear on screen to confirm that the CAM has been inserted.
Press MENU / / ▲/ to highlight Setup/System Setup icons and press OK.
Press or to select DTV Settings and press OK.
Press or to select Common Interface and press OK.
Details of the CAM should now be available.

NOTE:

• Software update of a CI Plus CAM may occur automatically if instigated by the broadcaster. This could cause the cancellation of any Reminders/Recordings during this process.
• Some Cl or Cl+ CAM may not be supported.
• Cl+ operation is not guaranteed except for Canal Ready DTT services on suffix FC models.

Software Upgrade and Licences

Auto Upgrade

When Auto Upgrade is set to On, the television will automatically upgrade while in standby if new software is available.

In the System Setup menu, press or to select Software Upgrade and press OK.
Press or to select Over-the-air Upgrade and press OK.
Press ▲ or ▼ to select Auto Upgrade.
Use or to select On or Off.

Searching for New Software

If preferred, software upgrades can be searched for manually using Search for New Software.

1 In the System Setup menu, press or to select Software Upgrade and press OK.
Press or to select Over-the-air Upgrade and press OK.
Press or to select Search for New Software.
Press OK. The television will automatically start searching for a software upgrade, the progress bar will move along the line.

SEARCHING FOR NEW SOFTWARE
Searching for a new software upgrade for this TV.
Searching

If an upgrade is found, the television will automatically start downloading. If not, a screen will appear stating that an upgrade is unavailable.

Network Upgrade

TOSHIBA may offer upgrades for the TV's software in the future. The TV's software is upgraded via the Network.

Before downloading software;

Configure your TV to connect to the Internet.

NOTE: While the upgrade is being performed, you will not be able to watch the TV.

In the System Setup menu, press or to select Software Upgrade and press OK.

Press or to select Network Upgrade and press OK.

NOTE: If the network is not available, a warning message will appear.

The TV software upgrade will start when download succeeds.

Software Licences

The licences for the software used in this television are available for viewing.

In the System Setup menu, press or to select Software Licences and press OK.

A screen will appear displaying all the licensing information required for the televisions software.

System Information and Reset TV

System Information

This feature can be used to check the version of software currently installed. When in DTV mode, it includes additional diagnostic information such as signal strength, signal quality, centre frequency, modulation, etc.

In the System Setup menu, press or to select System Information.

Press OK to display the System Information.

For information about the signal quality of a particular multiplex, press or to select that multiplex.

Press OK for a screen showing detailed technical information about the selected multiplex.

Reset TV

Selecting Reset TV will reset all TV settings, including saved channels, to their original factory values.

In the System Setup menu, press or to select Reset TV.

Press OK to select. A screen will appear warning that all settings will be lost. Press OK to continue.

When the set powers back on, the Quick Setup screen will appear. Press OK to advance the setup and perform an auto tune. (See "Quick Setup" section on page 18.)

PC Settings

Horizontal and Vertical Position

Connect the PC (as shown in the 'Connecting a computer' section) and ensure that a picture is showing on the television screen. The picture position may now be adjusted to suit personal preference.

Press MENU / / to highlight Setup/ Preferences icons and press OK.
Press or to select Display Settings and press OK.
Press or to select PC Settings.

4 Press OK. Press and to select an option, then or to adjust the settings.

Clock Phase

The Clock Phase matches the PC signal with the LCD display. Adjusting this can clear horizontal stripes and picture blur.

1 In the Display Settings menu, press or to select PC Settings and press OK.
Press or to select Clock Phase.
Press or to adjust until the picture clears.

Sampling Clock

Adjusting the Sampling Clock alters the number of pulses per scan, this will clear vertical lines on the screen.

1 In the Display Settings menu, press or to select PC Settings and press OK.
Press or to select Sampling Clock.
Press or to adjust until the picture clears.

Reset

Use Reset to return all items to the original factory settings.

1 In the Display Settings menu, press or to select PC Settings and press OK.
Press or to select Reset and press OK.

NOTE: When a PC is connected using HDMI, none of these functions will be available.

The screen is disrupted momentarily when adjusting PC Settings. This is not a sign of malfunction.

The default settings and adjustment ranges may vary depending on the input signal format.

Input selection and AV connections

See page 10 for a detailed image showing recommended connections.

Most media recorders and decoders send a signal through the SCART lead to switch the television to the correct Input socket.

Alternatively, press the external source selection button until the picture from connected equipment is shown.

Input selection

Use the Input Selection window if the television does not switch over automatically.

1

By pressing on the remote control or TV, a list will appear on screen showing all inputs and external equipment.

Pressing on the remote control

Inputs

TV

1

2

3

HDMI 1

HDMI 2

HDMI 3

HDMI 4

PC

Pressing on the TV

Inputs

DTV Ant (or Cable) TV *

DTV Ant (or Cable) Radio *

DTV Ant (or Cable) Text *

DTV Sat TV *

DTV Sat Radio *

DTV Sat Text *

1

2

3

HDMI 1

HDMI 2

HDMI 3

HDMI 4

PC

ATV

• If radio or text channels are currently available for DTV.

HDMI® displays equipment connected to Input HDMI on the back or side of the television.

PC displays a computer connected to Input RGB/PC on the back of the television.

External input skip

This feature is designed to make input selection more convenient by allowing you to skip unused inputs.

1

Press MENU /▶/▲/▶ to highlight Setup/Preferences icons and press OK.

2

Press or to select AV Connection.

Preferences
Network Setup	A
Network Device Setup
Photo Frame Setup
Teletext	Auto
Network Lock
Panel Lock	Off
Display Settings
AV Connection	Y

3

Press OK to display the AV Connection menu.

4

Press or to highlight Input Labeling and press OK.

AV Connection
Input Labeling
PC/HDMI 3 Audio	PC
HDMI 3 Audio	Digital
HDMI Settings
Digital Audio Output	Auto

5

Press or to select the input you want to skip, and then press the RED button to turn on the skip.

Input Labeling
Input	Label	#
EXT 1	← --	→
EXT 2	--
EXT 3	--
HDMI 1	--
HDMI 2	--
HDMI 3	--
HDMI 4	--
PC	--

6

To turn off the skip, press the RED button again.

The input set to Skip is grayed out in the Input Selection window and is skipped over when you press on the remote control.

Labeling video input sources

These input labels are shown in the input selector. You can label video inputs according to the devices you have connected to the TV.

Press MENU / / ▲/ △ to highlight Setup/ Preferences icons and press OK.
Press or to select AV Connection and press OK.
Press or to select Input Labeling and press OK.

Input Labeling
Input	Label	#
EXT 1	← --
EXT 2	--
EXT 3	--
HDMI 1	--
HDMI 2	--
HDMI 3	--
HDMI 4	--
PC	--

Press or to highlight the item you want to label, and then press or to select , Amplifier, Cable, DVD, Game, PC, Recorder, Satellite or VCR, or press the GREEN button to select User Input.

NOTE: When User Input is selected by pressing the GREEN button, the Software Keyboard window will appear. Input the desired characters (10 characters or less) by using the Software Keyboard (see page 47) or using the number buttons for a number input. To save your settings, press the BLUE button.

5 Repeat step 4 for other video inputs.

PC Audio

In order to receive sound from a connected PC, plug the audio cable into the back of the television (as shown in the 'Connecting a computer' section), and then use the PC/HDMI 3 Audio setting.

1 In the Preferences menu, press or to select AV Connection and press OK.
Press or to highlight PC/HDMI 3 Audio, and then press or to select the PC option.

NOTE: Selecting the PC option will force HDMI 3 Audio to Digital mode.

HDMI 3 Audio

If the connected HDMI source does not support digital audio, plug the audio cable into PC/HDMI 3 (AUDIO) on the back of the television (as shown in the 'Connecting an HDMI® or DVI device to the HDMI input' section), then use the HDMI 3 Audio setting.

1 In the Preferences menu, press or to select AV Connection and press OK.
Press or to select HDMI 3 Audio, and then press or to select Auto or Analogue.

AV Connection
Input Labeling
PC/HDMI 3 Audio	PC
HDMI 3 Audio	Auto
HDMI Settings
Digital Audio Output	Auto

If the sound is absent, try selecting a different setting.

NOTE: HDMI 3 supports digital and analogue sound, HDMI 1, HDMI 2 and HDMI 4 are digital sound only.

Certain DVD disk formats may not output from this TV (32/44.1/48kHz and 16/20/24 bits are acceptable).

HDMI Settings

Some early HDMI equipment may not work properly with your HDMI TV. Please try setting the Enable Content Type and INSTAPORT™ options to Off. Adjusting these settings should allow your early HDMI source to operate properly with your television.

1 In the Preferences menu, press or to select AV Connection and press OK.
Press or to select HDMI Settings and press OK.

NOTE: HDMI Settings is grayed out on non-HDMI inputs.

Press or to select an item, and then press or to select a setting.

HDMI Settings
Enable Content Type	<	On
INSTAPORT™		On
RGB Range		Auto

- Enable Content Type: On

This feature is part of the HDMI1.4 standard.

When set to On, the TV will automatically adjust settings according to the content type data sent from the connected HDMI device.

- INSTAPORT™: On

This feature reduces the lag time when switching HDMI sources.

- RGB Range: Auto

This feature adjusts RGB full range signal automatically. When Limited is selected, RGB signal is output in the range from 16 to 235. When Full is selected, RGB signal is output in the range from 0 to 255.

NOTE:

• If your HDMI connection is capable of 1080p and/or your television is capable of refresh rates greater than 50Hz or supports Deep Colour, you will need a Category 2 cable. Conventional HDMI/DVI cables may not work properly with this mode.
• All of the above HDMI settings need proper HDMI source devices. If the HDMI source products do not support these features, the television may not work properly by activating these features.

Digital Audio Output

When connecting a surround sound amplifier to the digital audio output (Sony/Philips Digital Interface Format [S/PDIF]), the following options can be selected or adjusted.

1 In the Preferences menu, press or to select AV Connection and press OK.

Press or to select Digital Audio Output.

AV Connection
Input Labeling
PC/HDMI 3 Audio	PC
HDMI 3 Audio	Auto
HDMI Settings
Digital Audio Output	← Auto

Press OK to display Digital Audio Format menu and press or to select an option.

Audio Format:

Press or to select PCM or Auto.

PCM: This mode outputs PCM format to the digital audio output socket.

Auto: This mode outputs Dolby Digital (if available) or PCM to the digital audio output socket. Dolby Digital Dolby Digital Dolby Digital Plus Dolby Digital MPEG PCM HE-AAC Dolby Digital

Audio Delay:

Press or to select Auto or Manual.

Auto: This mode automatically adjusts the audio timing to meet the video timing. NOTE: The time lag might be large between the image and sound depending on the connected equipment (amplifier etc.). In that case, select Manual.

Manual: You can manually adjust the audio signal timing to meet the video signal timing.

Delay Adjustment:

Press or to adjust the audio signal timing (0 - 250ms) to meet the video signal timing.

NOTE:

• This feature is grayed out when Audio Delay is in Auto.
• A time lag will occur when the video signal or audio signal is changed. Adjust the timing accordingly.
• When adjusting the timing, turn down the volume of the AV equipment used as far as possible. Depending on the equipment, noise etc. may occur when the signal is changed.
• Depending on the connected equipment (amplifier, etc.), adjustment may not be possible.
• When the optical digital output setting (Auto PCM) is changed, it may be necessary to adjust the timing again.
• Do not use other than for audio output from the AV amplifier, etc. (Malfunction may occur)

Using Personal TV Mode

You can customize some TV functions as desired and those settings can be saved in one of 4 Personal Modes (A to D). The Personal Mode can be selected from the Quick Menu (manual switching), or when individual Facial Recognition is performed with the camera, at the Welcome Window, press the coloured button corresponding to each Personal Mode.

Manual Switching

Press QUICK to open the Quick Menu.

Press or to select Personal Mode and press OK.

Press or corresponding coloured button to select individual Personal Mode from Normal, Personal Mode A, Personal Mode B, Personal Mode C and Personal Mode D. The mode will default to Normal every the TV is turned off and on.

NOTE: If the Personal PIN has been set, the Lock icon will be displayed. If the Personal PIN entry screen is displayed, enter the correct Personal PIN.

Facial Recognition

After registering faces beforehand for each Personal Mode, the Welcome Window will be displayed when the camera detects a corresponding face. The Personal Name corresponding to the detected face will be displayed in the Welcome Window.

Change Personal Modes by pressing the corresponding Coloured button while the Welcome Window is being displayed. Switch at this time to the Personal Mode corresponding to the Coloured button that was pressed, even if it is the Coloured button for a Personal Mode that corresponds to a face other than the one recognized.

NOTE: If the Personal PIN has been set, the Personal PIN entry screen will be displayed. Enter the correct Personal PIN.

Personal TV Setup

Press MENU / / ▲/ to highlight Setup/ Preferences icons and press OK.
Press or to select Personal TV Setup and press OK.

Press or (or corresponding coloured button) to select the individual Personal Mode and press OK.

Facial Recognition

Press or to select Facial Recognition and press or to select On or Off to activate or deactivate this function.

My Face

My face is the facial registration necessary for performing Facial Recognition.

Press or to select My Face and press OK.

The My Face screen will appear.

Display the video image currently being taken by the camera. If a face is detected, display the camera sensor will place a focus around that face. When a face is detected within the "OK to register" frame on the My Face screen, press OK to register.

NOTE:

• It will be impossible to register a face if there are multiple faces detected inside of the video image.
• It will be impossible to register a face if there is no face detected inside of the video image.
• It will be impossible to register a face if the face was already registered for another personal mode.
• It will be impossible to register a face if the TV is recording status. At this time, the video from camera cannot be displayed. Black screen will be displayed and "Not available" message.

• If the above Facial Recognition is Off, My Face will be grayed out.

• If already registered 10 faces, new face cannot be registered.

Registered Faces

This feature is to confirm a face that has already been registered.

1

Press or to select Registered Faces and press OK.

The Registered Faces screen will appear.

2

Press ▲▼ △ to select each registered face.

3

Press the RED button if you want to delete the face.

4

Press or to select Yes in the confirmation window and press OK.

NOTE: When the Reset TV is executed, all registered faces will be reset.

Edit Name

You can edit the name of your Personal Mode.

Press or to select Edit Name and press OK.

Edit the desired name by using the software keyboard. (See page 47) The maximum number of characters is 25.

Personal PIN Setup

Press ▲ or ▼ to select Personal PIN Setup and press OK.

Enter your personal PIN in same manner as "Parental PIN Setup" on page 74.

Volume Type

Press or to select Volume Type and press or to select Preset or Last.

Last — Volume level just before you turn off the TV.

Preset — Your personal volume level you set.

Preset Volume

Press ▲ or ▼ to select Preset Volume and press ▲ or ▼ to adjust your desired volume level. When the

Volume Type is set to Last, this feature will be grayed out.

Behavior in Personal Mode

• Personal Favourite Channel List (Fav5 -Fav8):

Normal Mode: Fav1/Fav2/Fav3/Fav4

Personal Mode A: Fav5

Personal Mode B: Fav6

Personal Mode C: Fav7

Personal Mode D: Fav8

Press the LIST button to display Channel List and press or

to select All or your Personal Mode (Fav5 - Fav8)

• Personal Picture Mode:

The Picture Mode you selected is stored in your Personal Mode.

Personal Grouping of Recorded Programmes

When switching between Personal Modes, recordings (OTR, TimeShift, Timer Recording) will be displayed categorically in the Library by Personal Mode.

Programmes recorded in Personal Mode A/B/C/D with OTR or TimeShift will be saved remembering the Personal Grouping corresponding to each respective mode.

When user performs a Timer Recording while in Personal Mode A/B/C/D, after the transition to Set Timer, make the Default for Personal Grouping (a Set Timer setting item) be a selection item corresponding to whatever mode you are in.

When you perform OTR, TimeShift, or Timer Recording while in Normal Mode, the Personal Grouping for recorded programs will be remembered as "None."

Using REGZA-LINK

This is a new feature that uses CEC technology and allows you to control Toshiba REGZA-LINK compatible devices from the television remote control via HDMI connection (page 12).

When the Enable REGZA-LINK item in the REGZA-LINK Setup menu is set to On, individual functions also set to On will be activated.

Enable REGZA-LINK

Press MENU / / to highlight Setup/ Preferences icons and press OK.
Press or to select REGZA-LINK Setup and press OK.
Press to highlight Enable REGZA-LINK, and then press or to select On.

REGZA-LINK Setup
Enable REGZA-LINK	On
TV Auto Power	On
Auto Standby	On
Amplifier Control	On
Initial Speaker Setting	TV Speakers
Position Key Pass Through	On

NOTE: If you set Enable REGZA-LINK to Off, all other items will be grayed out.

TV Auto Power

The TV Auto Power setting allows the television to be automatically switched on if a REGZA-LINK device is turned on.

1 In the REGZA-LINK Setup menu, press to highlight TV Auto Power.
Press or to select On or Off.

Auto Standby

When Auto Standby is enabled, the television, when switched off, will automatically switch off (standby mode) all connected REGZA-LINK equipment.

1 In the REGZA-LINK Setup menu, press to highlight Auto Standby.
Press or to select On or Off.

Amplifier Control

When Amplifier Control is set to On, it allows the "Speaker Preference" feature to become available.

1 In the REGZA-LINK Setup menu, press to highlight Amplifier Control.
Press or to select On or Off.

Initial Speaker Setting

This feature allows the audio output preference to be set to the TV speakers or AV amplifier speakers. The AV Amplifier option lets the television's remote control adjust or mute the volume of the audio.

1 In the REGZA-LINK Setup menu, press to highlight Initial Speaker Setting.
Press or to select TV Speakers or Amplifier.

Position Key Pass Through

When Position Key Pass Through for the selected HDMI input mode is set to On, the P^P and number (0-9) keys on the remote control will pass through. When in Off, those operate as TV programme selection keys.

1 In the REGZA-LINK Setup menu, press to highlight Position Key Pass Through and press OK.
Press or to select the appropriate HDMI mode.
Press or to select On.

REGZA-LINK input source selection

If a REGZA-LINK device with HDMI switching capability (e.g. AV amplifier) is connected to the HDMI input, you can select another REGZA-LINK device that is connected to the master HDMI device on the input source list.

Press and a list will appear on screen showing available input sources.
Press to select the desired input source with REGZA-LINK icon.
Press▶ and a second selection screen will appear showing all connected REGZA-LINK equipment.

Press or to select the desired input source, and then press OK.

NOTE:

These functions depend on the device connected.
- If you select the REGZA-LINK input source from the popup window, some REGZA-LINK devices may automatically turn on.
- When the television is switched on it will take a few minutes for the REGZA-LINK icon to appear in the list. When an HDMI cable is removed, it will take a few minutes for the icon to disappear.
- If the HDMI cable from connected equipment is changed, Enable REGZA-LINK in the REGZA-LINK Setup menu may need to be reset to On.
- If you change the HDMI lead to a connected device or change an HDMI device setting, reset the Enable REGZA-LINK item on the REGZA-LINK Setup menu from Off to On.

REGZA-LINK Device Control

With the REGZA-LINK mode on your television's remote control, you can control the connected REGZA-LINK device you are watching.

To control the REGZA-LINK input source first select the equipment by REGZA-LINK input source selection.

Press QUICK to open the Quick Menu.
Press or to select REGZA-LINK Device Control and press OK.

Press or to select a control option and press OK.

NOTE: The available functions depend on the equipment connected. Please refer to the operation manual for each piece of equipment connected.

REGZA-LINK one touch play

When connected equipment is switched on, REGZA-LINK will automatically detect the television through the input selection. If the television is in standby, it will be switched on automatically.

These functions can be enabled or disabled from the REGZALINK Setup (see page 85).

NOTE:

• Even if the equipment is showing a menu, the television may automatically show the input source.
• This feature depends on the connected equipment and television state.

REGZA-LINK system standby

If the television is turned off (standby mode), the television will send a message to turn off (standby mode) all of the REGZA-LINK devices connected to the television.

These functions can be enabled or disabled from the REGZALINK Setup (see page 85).

NOTE: This feature depends on the connected equipment and television state.

REGZA-LINK system audio control

With your television's remote control, you can adjust or mute the sound volume of the speakers connected to the television via an AV amplifier.

1 Set the Speaker Preference to Amplifier in the REGZA-LINK Setup menu.

2 Confirm that a connected REGZA-LINK device (such as a DVD player, etc) is selected for the AV amplifier input source.

NOTE:

These functions depend on the device connected.
- When you turn on the AV amplifier, change its input source, or adjust the sound volume, the sound will be output from the AV amplifier's speakers even if TV Speakers has been selected. Turn the television off and on again to output the sound from the TV Speakers.
- This feature may not work if the AV amplifier is operated.

Toshiba PC compatible with REGZA-LINK

This feature automatically adjusts the suitable wide-screen formats and picture preferences when connected to a Toshiba PC compatible with REGZA-LINK.

NOTE: This feature depends on the connected equipment state.

Text services

This television has a multi-page text memory, which takes a few moments to load. It offers two Modes of viewing text - Auto will display Fastext, if available. LIST will save your four favorite pages.

Selecting modes

The text character set will be automatically chosen by the language setting in the Setup menu.

Press MENU /▶/▲/▶ to highlight Setup/Preferences icons and press OK.
Press or to select Teletext, and then press or to select Auto or LIST.

Text information

The TEXT button:

To view text services press TEXT. Press again to superimpose the text over a normal broadcast picture and again to return to normal viewing. Channels cannot be changed until text is cancelled.

The first text page shown will be the initial page.

Any text page can be accessed by entering the 3 digit page number using the numbered buttons, pressing the coloured buttons or pressing P^ to advance to the next page and P^ to go back to the previous page.

Sub-pages

The pages on the screen will dynamically update as subpages are received.

If you open a page containing sub-pages, the sub-pages are automatically displayed in sequence. To quit automatic subpage change, press or >

Once selected, the sub-page you are viewing will be highlighted and, as the television loads any additional sub-pages, the colour of the numbers will change, indicating that these pages have been loaded.

These sub-pages will remain available to view until another page is chosen or, in normal TV mode, the channel is changed.

Navigating pages using Auto

If Fastext is available, four coloured titles will appear at the base of the screen.

To access one of the four given subjects, press the relevant coloured button on the remote control.

For further information on your particular text system(s), see the broadcast text index page or, consult your local Toshiba dealer.

Navigating pages using LIST

The four coloured choices at the bottom of the screen are numbers - 100, 200, 300 and 400, which have been programmed into the television's memory. To view these pages, press the relevant coloured buttons.

To change these saved pages, press the relevant coloured button and enter the 3 digit number. This number will change in the top left of the screen and in the coloured highlight.

Press OK to save. Whenever OK is pressed, all four page numbers showing at the bottom will be saved and the previous ones will be lost.

If OK is not pressed, the selection will be forgotten when the channel is changed.

Other pages may be viewed by entering the 3 digit page number - but DO NOT press OK or these pages will be saved.

Control buttons

Below is a guide to the functions of the remote control text buttons.

To display the index/initial page:

Press 1 to access the index/initial page. The one displayed is dependant on the broadcaster.

TEXT To display a page of text:

Press TEXT to display text. Press again to superimpose text over a normal picture. Press again to return to normal television viewing. Channels cannot be changed until this has been done.

To reveal concealed text:

To discover the solutions on quiz and joke pages press the button.

To hold a wanted page:

At times it is convenient to hold a page of text. Press and will appear in the top left of the screen. The page will be held on screen until the button is pressed again.

To enlarge the text display size:

Press ( 12) once to enlarge the top half of the page, press again to enlarge the bottom half of the page. Press again to revert to normal size.

To select a page whilst viewing normal picture:

Enter the page number then press 0 / , normal picture will be displayed. The television will indicate when the page is ready by changing the colour of the page number at the top of the screen. Press TEXT to view the page.

To display news flashes:

Select the news flash page for the chosen text service (see the index page of text service). The news flashes will be displayed as and when they are broadcast.

Remember to cancel text before

changing channels - press the TEXT

button twice.

Questions and Answers

Below are the answers to some of the most common queries.

Why is there no sound or picture?

Check the television is not in standby mode. Check the mains plug and all mains connections.

There is a picture, but why is there little or no colour?

When using an external source, for instance, a poor quality video tape, if there is little or no colour, improvements may sometimes be achieved. The colour is factory set to Auto to automatically display the best colour system.

To check that you have the best colour:

With the external source playing, select Colour System from the System Setup menu.

With or choose between Auto, PAL, SECAM, NTSC 4.43 or NTSC 3.58.

Why doesn't the video/DVD being played show on screen?

Make sure the media recorder or DVD player is connected to the television as shown on page 10, and then select the correct input by pressing .

Why is there a picture but no sound?

Check all lead connections.

No sound or unacceptable format sound may be received.

Check the volume has not been turned down or that sound mute has not been selected.

Check shared audio settings.

What else can cause a poor picture?

Interference or a weak signal. Try a different television station. Manual Fine Tuning may help.

Select the ATV Manual Tuning menu. Highlight the station and press OK. Then press to select Manual Fine Tuning.

Using or adjust to get the best picture and sound. Press OK and then EXIT.

Why don't the controls of the television work?

Check that Panel Lock is not On.

Why doesn't the remote control work?

Check that the batteries aren't dead or inserted incorrectly.

Why is the digital channel locked?

The channel has been locked in Channel Options (see 'Digital Settings' section).

Why are some of the digital subscription channels unavailable?

Your subscription needs upgrading. Contact your service provider.

Why is the soundtrack in English when a different audio language has been selected?

The programme is currently being broadcast with an English soundtrack only.

Why is there incorrect or no sound when in DTV mode?

Press / to ensure the hard of hearing option has not been selected.

Q What is DVB-T?
Digital Video Broadcast via an aerial/antenna.
Q What is DVB-C?
Digital Video Broadcast via a cable connection.
Q How are radio channels selected?
Press TV on the remote control and select DTV Radio. Alternatively select from the GUIDE.
What can be done if the PIN number has been forgotten?
A Use the Master PIN code of 1276, then change to a number of your choice. Select Parental PIN Setup from the DTV Settings menu to enter PIN. Ensure that no-one else can use the Master PIN by removing the Owner's Manual.
Why are there vertical stripes on the screen when in PC mode?
A The Sampling Clock may need adjustment. Select PC Settings from the Display Settings menu, highlight Sampling Clock and adjust until the lines clear.
Why are there horizontal stripes and/or blurred images on the screen when in PC mode?
The Clock Phase may need adjustment. Select PC Settings from the Display Settings menu, highlight Clock Phase and adjust until the picture clears.
Why when digital subtitles have been selected are they not showing on screen?
A Subtitles are not currently being transmitted by the broadcaster.
Why are there problems with analogue text?
Good performance of text depends on a good strong broadcast signal. This normally requires a roof or loft aerial. If the text is unreadable or garbled, check the aerial. Go to the main index page of the text service and look for the User Guide. This will explain the basic operation of text in some detail. If further information is needed on how to use text see the text section.

Why is a page number visible at the top of the screen but no text?
A Text has been selected but Teletext information is currently unavailable on the current source.
Why are the colours wrong when an NTSC source is played?
A Connect the source via a SCART lead and play. Select Colour System from the System Setup menu.
1 Set the Colour to Auto and exit.
2 Go to the Picture menu and adjust the tint.
Why don't the devices connected via HDMI operate properly?
A Make sure to use cables with the HDMI logo HOMI (see page 11).

Some early HDMI equipment may not work properly with the latest HDMI TV products, due to new standard adoption. Try switching the HDMI settings (Enable Content Type and INSTAPORT™) to Off.

Why don't the REGZA-LINK devices work?
When the connected REGZA-LINK device does not work correctly after you have changed the settings of the device, turn off your television and unplug the power cord, and then plug and turn on again. Unplug the HDMI cable of the REGZA-LINK device and lead again.
Why is the REGZA-LINK logo still showing when the equipment has been disconnected?
A If the REGZA-LINK device is disconnected, the logo will disappear after approximately one minute.
Why don't the networked devices work?
The LAN cables are not connected properly or at all. Connect all cables (see page 14). Make sure your network address is set up correctly (see page 45).
Why doesn't the wireless network work?
A Make sure the TOSHIBA Dual Band WLAN Adaptor is used (see page 14). Check that the AP is powered on.

Why doesn't the Media Player feature operate?

Make sure that devices are connected correctly. Incorrect behavior may occur with a USB Hub connection.

Check your network setup if using DLNA CERTIFIED™ Server.

What do the LEDs on the front of the television indicate?

Check the table below.

LED indication		Condition	Solution
LED-1	LED-2
Green	Orange	Power ON Programme Timer is set Both Programme Timer (Recording) and Recording are NOT working	-
Green	Red	Power ON Programme Timer (Recording) or Recording is working	-
Green	OFF	Power ON Programme Timer is NOT set Both Programme Timer (Recording) and Recording are NOT working	-
Red	Orange	Power OFF (Standby) Programme Timer is set Both Programme Timer (Recording) and Recording are NOT working	-
Red	Red	Power OFF (Standby) Programme Timer (Recording) or Recording is working	-
Red	OFF	Power OFF (Standby) Programme Timer is NOT set Both Programme Timer (Recording) and Recording are NOT working	-

LED indication		Condition	Solution
LED-1	LED-2
OFF	Green (Blinks)	Abnormal operation of BUS line.	Turn OFF the TV and unplug the power cord. Plug the power cord in again and turn ON the TV.
Red (Blinks)	OFF	Abnormal operation of WDT.
Green (Blinks)	OFF	Fan stopped. (if applicable)
Orange	Green	For Service SW Upgrade in Progress	-
Red	OFF	For Service SW Upgrade Failed	-
Green	OFF	For Service SW Upgrade Successful	-

License Information

This product achieved the European Eco label award issued by the European Commission. You can get more information in following link: http://ec.europa.eu/environment/ecolabel/

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

• INSTAPORT™ and INSTAPORT logo are trademarks of Silicon Image, Inc. in the United States and other countries.
  YouTube and the YouTube Logo are trademarks of Google Inc.
• This product contains NetFront Browser of ACCESS CO., LTD.

ACCESS, the ACCESS logo and NetFront are trademarks or registered trademarks of ACCESS CO., LTD. in the United States, Japan and other countries.

© 2010 ACCESS CO., LTD. All rights reserved. This software is based in part on the work of the Independent JPEG Group.

Opera*Browser from Opera Software ASA. Copyright 1995-2010 Opera Software ASA. All rights reserved.

For further information, please see http://www.opera.com

• This product contains Adobe® Flash® Player software under license from Adobe Systems Incorporated. Copyright © 1995-2009 Adobe Systems Incorporated. All rights reserved. Adobe and Flash are trademarks of Adobe Systems Incorporated.

• DVB is a registered trademark of the DVB Project.

DivX, DivX Certified, DivX Plus™ HD and associated logos are trademarks of DivX, Inc. and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274

• DLNA®, DLNA® Certification Logo and DLNA CERTIFIED™ are registered trademarks, service marks, or certification marks of the Digital Living Network Alliance.
• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODEVIDEO IN COMPLIANCE WITH THE AVC STANDARD (AVC VIDEO) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C.

SEE HTTP://WWW.MPEGLA.COM

• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, L.L.C.

SEE HTTP//WWW.MPEGLA.COM

• MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

AUDYSSEY Audyssey EQ technology

EQ

• Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending. Audyssey EQ is a registered trademark of Audyssey Laboratories. Audyssey EQ is based on the same core technology as Audyssey MultEQ that is used for automatic correction of room acoustics. Audyssey EQ uses time-domain filters to correct problems that arise from speaker drivers and enclosures and is calibrated to account for the acoustical problems in a typical listening environment.

Cleaning the screen and cabinet...

Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.

Disposal...

The following information is only for EU-member states:

Disposal of products

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres.

The black bar indicates that the product was placed on the market after August 13, 2005.

By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Information

Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket.

Signal information for Mini D-sub 15 pin connector

Pin No.	Signal name	Pin No.	Signal name	Pin No.	Signal name
1	R	6	Ground	11	NC
2	G	7	Ground	12	NC
3	B	8	Ground	13	H-sync
4	NC*	9	NC	14	V-sync
5	Ground	10	Ground	15	NC

• NC = not connected

Acceptable PC signals through the PC terminal

The PC input on this TV only accepts signal formats which are compliant with VESA-DMT as shown in the table below. Since some PCs input signals which are different from the resolution and frequency described in the table below, the following phenomenon may occur; incorrect display, false format detection, picture position failure, blur, or judder. In this case, set the monitor output format on your PC to conform to a signal in the table below.

Format	Resolution	V. Frequency	H. Frequency	Pixel Clock Frequency	VESA Standard (DMT)
VGA	640 × 480	59.940Hz	31.469kHz	25.175MHz	●
		72.809Hz	37.861kHz	31.500MHz	●
		75.000Hz	37.500kHz	31.500MHz	●
SVGA	800 × 600	56.250Hz	35.156kHz	36.000MHz	●
		60.317Hz	37.879kHz	40.000MHz	●
		72.188Hz	48.077kHz	50.000MHz	●
		75.000Hz	46.875kHz	49.500MHz	●
XGA	1024 × 768	60.004Hz	48.363kHz	65.000MHz	●
		70.069Hz	56.476kHz	75.000MHz	●
		75.029Hz	60.023kHz	78.750MHz	●
WXGA	1280 × 768	59.995Hz	47.396kHz	68.250MHz	●
		59.870Hz	47.776kHz	79.500MHz	●
		74.893Hz	60.289kHz	102.250MHz	●
	1360 × 768	60.015Hz	47.712kHz	85.500MHz	●
SXGA	1280 × 1024	60.020Hz	63.981kHz	108.000MHz	●
		75.025Hz	79.976kHz	135.000MHz	●

Acceptable video or PC signals through the HDMI terminals

The HDMI inputs on this TV only accept VGA, SVGA, XGA, WXGA, and SXGA signal formats which are compliant with VESA as shown in the table below. Since some PCs and HDMI or DVI devices input signals which are different from the resolution and frequency described in the table below, the following phenomenon may occur; incorrect display, false format detection, picture position failure, blur, or judder. In this case, set the monitor output format on your PC, HDMI or DVI device to conform to a signal in the table below.

Format	Resolution	V. Frequency	H. Frequency	Pixel Clock Frequency	VESA Standard
480i	720 × 480i	59.940/60.000Hz	15.734/15.750kHz	27.000/27.027MHz
576i	720 × 576i	50.000Hz	15.625kHz	27.000MHz
480p	720 × 480p	59.940/60.000Hz	31.469/31.500kHz	27.000/27.027MHz
576p	720 × 576p	50.000Hz	31.250kHz	27.000MHz
1080i	1920 × 1080i	59.940/60.000Hz	33.716/33.750kHz	74.176/74.250MHz
1080i	1920 × 1080i	50.000Hz	28.125kHz	74.250MHz
720p	1280 × 720p	59.940/60.000Hz	44.955/45.000kHz	74.176/74.250MHz
720p	1280 × 720p	50.000Hz	37.500kHz	74.250MHz
1080p	1920 × 1080p	59.940/60.000Hz	67.433/67.500kHz	148.352/148.500MHz
1080p	1920 × 1080p	50.000Hz	56.250kHz	148.500MHz
1080p	1920 × 1080p	24.000Hz	27.000kHz	74.250MHz
VGA	640 × 480	59.940/60.000Hz	31.469/31.500kHz	25.175/25.200MHz	●
		72.809Hz	37.861kHz	31.500MHz	●
		75.000Hz	37.500kHz	31.500MHz	●
SVGA	800 × 600	56.250Hz	35.156kHz	36.000MHz	●
		60.317Hz	37.879kHz	40.000MHz	●
		72.188Hz	48.077kHz	50.000MHz	●
		75.000Hz	46.875kHz	49.500MHz	●
XGA	1024 × 768	60.004Hz	48.363kHz	65.000MHz	●
		70.069Hz	56.476kHz	75.000MHz	●
		75.029Hz	60.023kHz	78.750MHz	●
WXGA	1280 × 768	59.995Hz	47.396kHz	68.250MHz	●
		59.870Hz	47.776kHz	79.500MHz	●
		74.893Hz	60.289kHz	102.250MHz	●
	1360 × 768	60.015Hz	47.712kHz	85.500MHz	●
SXGA	1280 × 1024	60.020Hz	63.981kHz	108.000MHz	●
		75.025Hz	79.976kHz	135.000MHz	●

Media Player Supported Format

Media Player	Media Format	File Extension	Video/Audio codec	US B	DLNA	Note
Photo	JPEG	.jpg	JPEG	Yes	Yes	<USB> Data compatibility: JPEG Exif ver 2.2 Maximum viewable resolution: 4096 x 4096 (HW decode) 16384 x 16384 (SW decode) Maximum photo size: 9MB Maximum number of files: 2000 / folder <DLNA> Data compatibility: JPEG EXIF Ver.1.x or later, JFIF 1.02a Maximum photo resolution: 4096 x 4096 Maximum photo size: 6 MB Maximum number of files: 2000 / folder
		.jpeg
		.m4a	Audio) HE AAC Dolby Digital (AC-3) MPEG-1 layer3 MPEG-1 layer3	Yes	No	<USB> Maximum number of files: 2000 / folder <DLNA> Maximum number of files: 2000 / folder * ) Some files may not be played. * ) Normal playing and trick playing may not be available depending on the contents. * ) DivX external subtitles are not support.
		.m4v	Audio) H.264(MPEG-4 AVC)	Yes	Yes
		.mp4	Audio) AAC	Yes	Yes
		.m4v	Audio) HE AAC Dolby Digital (AC-3) Dolby Digital Plus	Yes	No
	MP4	.mp4	Video) H.264(MPEG-4 AVC)	Yes	Yes
		.m4v	Audio) AAC	Yes	Yes
		.m4v	Audio) HE AAC Dolby Digital (AC-3) Dolby Digital Plus	Yes	No
	AVI	.avi	Video) DivX (3,4,5,6)	Yes	No
	DivX	.divx	Audio) Dolby Digital (AC-3) MPEG-1 Layer3	Yes	No
	DivX Plus HD	.divx	Audio) H.264	Yes	No
	MKV	.mkv	Audio) AAC	Yes	No
	DivX Plus HD	.mkv	Audio) HE AAC Dolby Digital (AC-3) MPEG-1 Layer3	Yes	No
	AVCHD	.mts	Video) H.264(MPEG-4 AVC)	Yes	Yes
		.m2ts	Audio) Dolby Digital (AC-3)	Yes	Yes
Music	MP3	.mp3	Audio) MPEG-1 Audio Layer-3 MPEG-2 Audio Layer-3 MPEG-2.5 Audio Layer-3	Yes	Yes	<USB> Maximum number of files: 2000 / folder <DLNA> Maximum number of files: 2000 / folder * Some files may not be played.
	MP4	.mp4	Audio) AAC	Yes	No
		.m4a	Audio) HE AAC	Yes	No
	L-PCM		Audio) L-PCM	No	Yes

Specifications and accessories

Receiving systems

DVB-T Broadcast systems/channels		Broadcast systems/channels
UK	UHF 21-68	PAL-I	UHF UK21-UK69
France	VHF 05-10 (VHF 01-05)	PAL-B/G	UHF E21-E69
	UHF 21-69		VHF E2-E12, S1-S41
Germany	VHF 05-12	SECAM-L	UHF F21-F69
	UHF 21-69		VHF F1-F10, B-Q
Austria	VHF 05-12	SECAM-D/K	UHF R21-R69
	UHF 21-69		VHF R1-R12
Switzerland	VHF 05-12
	UHF 21-69
Italy	VHF 05-12 (D,E,F,G,H,H1,H2)
	UHF 21-69
Spain	UHF 21-69
Nederlands	VHF 05-12
	UHF 21-69
Greece	VHF 05-12
	UHF 21-69

DVB-C Broadcast systems

DVB-S/DVB-S2 Broadcast systems

Video Input PAL, SECAM, NTSC 3.58/4.43

External connections

EXT 1	Input/Output	21-pin SCART	RGB, A/V input AV out, TV out
EXT 2	Input	Phono jacks	Y, P_B/C_B, P_R/C_R
		Phono jacks	Audio L + R
EXT 3	Input	Phono jacks	Video/Audio L + R
HDMI 1/2/3/4	Input	HDMI® compliant
		HDCP compliant (Enable Content Type, INSTAPORT™, RGB Range, supported)
PC	Input	Mini D-sub 15-pin Analog RGB signal
PC/HDMI 3 Audio input		3.5mm mini jack	Audio
Digital Audio Output (S/PDIF)		Optical
LAN port		RJ-45
USB 1/USB 2 port		Media Player
		Interface version: USB 2.0
		USB class: Mass Storage
		File system: FAT16 and FAT32
USB 2 port		Wireless LAN adaptor ready for a home network, IEEE802.11a/b/g/n compatible (for SL86 series)
		USB HDD connection ready (for UL86/UL87 series)
Headphone socket		3.5mm stereo
Stereo		Nicam
		2 carrier system
Visible Screen Size (approx.)	Model	32	80cm
		37	94cm
		42	107cm
		46	117cm
Display		16:9
Sound output (at 10% distortion)		10W + 10W

Power consumption (approx.)	32SL	103W
	37SL	107W
	42SL	135W
	46SL	147W
	32UL	107W
	37UL	111W
	42UL	139W
	46UL	151W
Annual power consumption* (approx.)	32SL	94.8kWh
	37SL	100.9kWh
	42SL	131.4kWh
	46SL	142.4kWh
	32UL	97.1kWh
	37UL	103.2kWh
	42UL	133.7kWh
	46UL	144.7kWh
On mode power consumption** (approx.)	32SL	64.9W
	37SL	69.1W
	42SL	90.0W
	46SL	97.5W
	32UL	66.5W
	37UL	70.7W
	42UL	91.6W
	46UL	99.1W
Standby power consumption (approx.)	32SL/37SL	0.3W
	42SL/46SL	0.2W
	32UL/37UL	0.3W
	42UL/46UL	0.2W

• Operating 4 hours a day and 365 days a year.
  ** Tested in accordance with IEC 62087-BD Ed. 2.0:2008.

Dimensions (approx.)	32SL/32UL	53cm (H)	75cm (W)	26cm (D)
	37SL/37UL	59cm (H)	87cm (W)	26cm (D)
	42SL/42UL	68cm (H)	99cm (W)	29cm (D)
	46SL/46UL	73cm (H)	108cm (W)	29cm (D)
(Height dimension includes foot stand)
Weight (approx.)	32SL/32UL	13.0kg
	37SL/37UL	15.0kg
	42SL/42UL	20.5kg
	46SL/46UL	22.5kg

Operating condition Temperature 5^ - 35^(41^ - 94^) Humidity 20 - 80% (non-condensing)

Wireless connection

Standard: IEEE 802.11a/b/g/n
Frequency Range: 5.15-5.35 GHz, 5.47-5.725 GHz, 5.725-5.850 GHz, 2.400-2.4835 GHz
Security: WEP64/128, TKIP, AES, WPA/PA2-PSK, WPS, None

Supplied accessories

• Remote control CT-90369 (SL86 series) 2 batteries (AA, IEC R6 1.5V)
  Remote control CT-90382 (UL86/UL87 series) 2 batteries (AAA, IEC R03 1.5V)
• 'P' Clip/Screw (for TV mounting) See page 5.

Optional accessories

TOSHIBA Dual Band WLAN Adaptor WLM-10U2 (for SL86 series)
- USB HDD (for UL86/UL87 series)
For available USB HDD, see "Product Information" on the website.

For your own records

www.ecolabel.eu

EU Ecolabel : PL/22/002

For those products that have been awarded the European Eco Label, TOSHIBA gives a minimum of 2 years guarantee for this LCD TV and 7 years availability for replacement of electronic parts. For warranty repairs, please contact the retailer where you purchased the product. Please see the Toshiba website or European Eco Label website (www.ecolabel.eu) for details of those products.
