Product Type	Microwave Oven
Brand	Novaline
Model	P80D20P-G5
Input Power	230V~50Hz, 1200W
Output Power	800W
Operation Frequency	2450MHz
Oven Capacity	20 liters
Outside Dimensions (H×W×D)	262 × 452 × 370 mm
Oven Cavity Dimensions (H×W×D)	210 × 315 × 329 mm
Net Weight	12.5 kg
Cooking Uniformity	Turntable system
Control Type	Dual knob (Power and Timer)
Power Levels	6 levels: Low (17%), Defrost (40%), M.Low (48%), Med (66%), M.High (85%), High (100%)
Timer Range	Up to 30 minutes
Door Safety Lock System	Yes
Turntable Components	Glass tray and roller ring
Installation Clearance	Top: 20 cm, Back: 10 cm, Sides: 5 cm
Grounding Requirement	Grounded plug required
Suitable Utensils	Microwave-safe glass, ceramics, plastic; No metal
Cleaning Method	Wipe with damp cloth; mild detergent; glass tray dishwasher safe
Color	White
Defrost Function	Yes (Defrost power level)
Warranty	Refer to retailer or packaging

Frequently Asked Questions - P80D20P-G5 Novaline

How do I clean the microwave oven?

Turn off and unplug the oven. Wipe the inside and outside with a damp cloth. Use mild detergent for stubborn stains. Avoid abrasive cleaners. Clean the glass tray in warm sudsy water or dishwasher. Regularly clean the roller ring and oven floor to avoid noise.

What types of utensils are safe for microwave use?

Safe utensils include heat-resistant glass, ceramics, and microwave-safe plastic. Do not use metal trays, racks, or aluminum foil (except in narrow strips kept 1 inch away from walls). Avoid recycled paper products as they may contain metal fragments.

Can I use metal in the microwave?

No, metal utensils or dishes with metallic trim should not be used because microwave cannot penetrate metal, which may cause sparks and fire. Only narrow strips of aluminum foil may be used to prevent overcooking, keeping a distance of 1 inch from cavity walls.

What should I do if the microwave does not start?

Check that the oven is plugged in securely. If not, unplug, wait 10 seconds, and plug again. Check the circuit fuse or breaker. Ensure the door is closed properly so the safety lock engages. Verify the timer is set. If it still doesn't work, contact a qualified technician.

How do I set the cooking time and power level?

Place food in the oven and close the door. Turn the Power Selector to choose a power level (Low to High). Then turn the Timer knob to set the desired cooking time (up to 30 minutes). The oven starts immediately when the timer is turned. For times under 2 minutes, turn past 2 minutes and then back.

Is it safe to cook eggs in the microwave?

No, eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens because they may explode even after heating ends. For other foods, pierce heavy skins (e.g., potatoes, apples) before cooking.

Why does steam accumulate on the door or inside the oven?

Steam inside or around the door is normal when the microwave is used under high humidity conditions. Wipe it with a soft cloth. This does not indicate a malfunction.

How can I remove bad odors from the microwave?

Combine a cup of water with the juice and skin of one lemon in a deep microwave-safe bowl. Microwave for 5 minutes. Then wipe the interior thoroughly with a soft cloth.

Can children use this microwave oven?

Only children aged 8 and above if they have been given adequate supervision and instructions on safe use. Children should not play with the appliance. Supervision is required when children use it if they are not capable of safe operation.

What are the available power levels and what are they used for?

There are six power levels: Low (17%) for delicate foods, Defrost (40%) for thawing, M.Low (48%) for gentle cooking, Med (66%) for general cooking, M.High (85%) for faster cooking, and High (100%) for quick heating. Turn the Power Selector clockwise to increase power.

USER MANUAL P80D20P-G5 Novaline

Microwave oven.....00

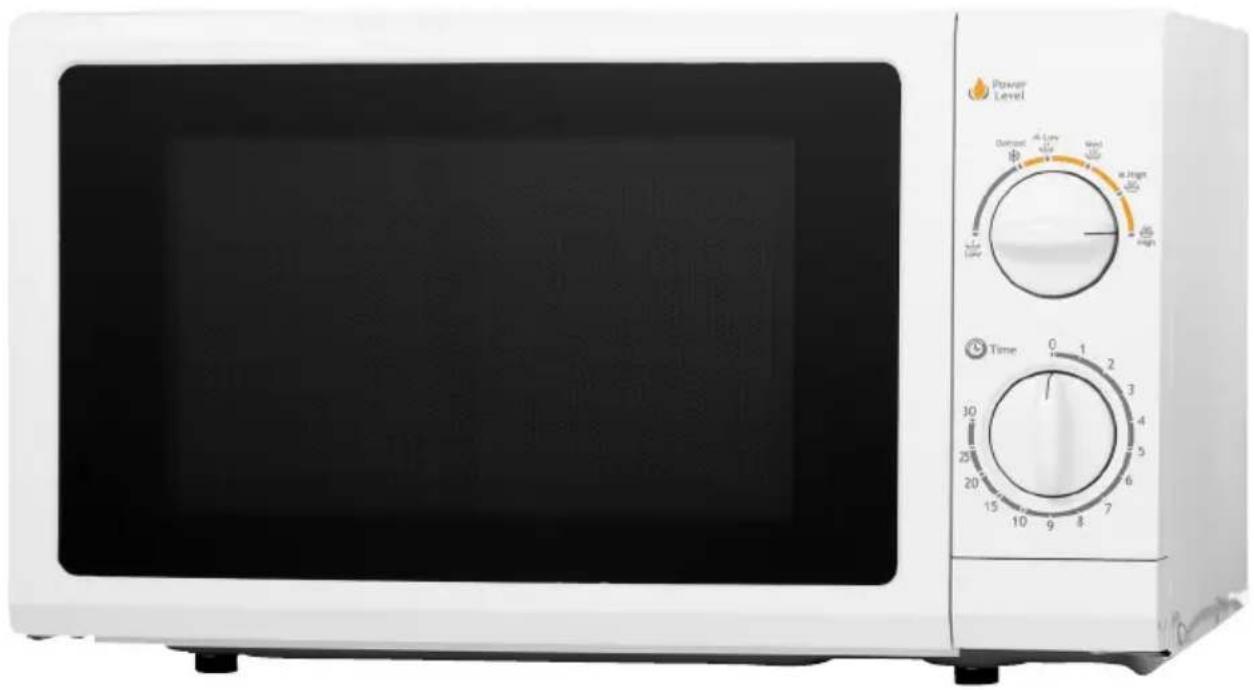

White microwave oven with dual control knobs and a power level indicator (no visible text or symbols on the main body)

P80D20P-G5

NOVALINE™

VIKTIGA SÄKERHETSFÖRESKRIFTER:

INNAN DU RINGER SERVICE:

RENG∅RING OG VEDLIKEHOLD:

IMPORTANT SAFETY INSTRUCTIONS:

Please read these instructions carefully before installing and operating the oven.

Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference.

SERIAL NO.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the
   a) Door (bent),
   b) Hinges and latches (broken or loosened),
   c) Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS:

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.

4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard

5. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

6. To reduce the risk of fire in the oven cavity:

- When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.

- Remove wire twist-ties from paper or plastic bags before placing bag in oven.

- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

- Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

1. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.

2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.

3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.

5. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

6. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

7. Cooking utensils may become hot because of heat transferred from the heated food.

Potholders may be needed to handle the utensil.

1. Utensils should be checked to ensure that they are suitable for use in microwave oven.

2. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

3. This product is Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network, which supplies buildings used for domestic purpose.

4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

5. Children should be supervised to ensure that they do not play with the appliance.

SPECIFICATIONS:

Input power: 230V\~50Hz, 1200W(Microwave)

Output power: 800W

Operation Frequency: 2450MHz

Outside Dimensions:

262mm(H)×452mm(W)×370mm(D)

Oven Cavity Dimensions:

210mm(H)×315mm(W)×329mm(D)

Oven Capacity: 20 Liters

Cooking Uniformity: Turntable System

Net Weight: Approx. 12.5 kg

INSTALLATION:

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.

4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.

5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

RADIO INTERFERENCE:

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.

3. Relocate the microwave oven with respect to the receiver.

4. Move the microwave oven away from the receiver.

5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

MICROWAVE COOKING PRINCIPLES:

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

GROUNDING INSTRUCTIONS:

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.
   The wires in this cable main are colored in accordance with the following code:
   Green and Yellow = EARTH
   Blue = NEUTRAL
   Brown = LIVE

BEFORE YOU CALL FOR SERVICE:

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

3. Check to ensure that the control panel is programmed correctly and the timer is set.

4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

UTENSILS GUIDE:

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/ oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

COOKWEAR

MICROWAVE

Heat-Resistant Glass Yes

Heat-Resistant Ceramics Yes

Microwave-Safe Plastic Dish Yes

Kitchen Paper

Metal Tray

Metal Rack

Aluminum Foil & Foil Containers No

Yes

No

No

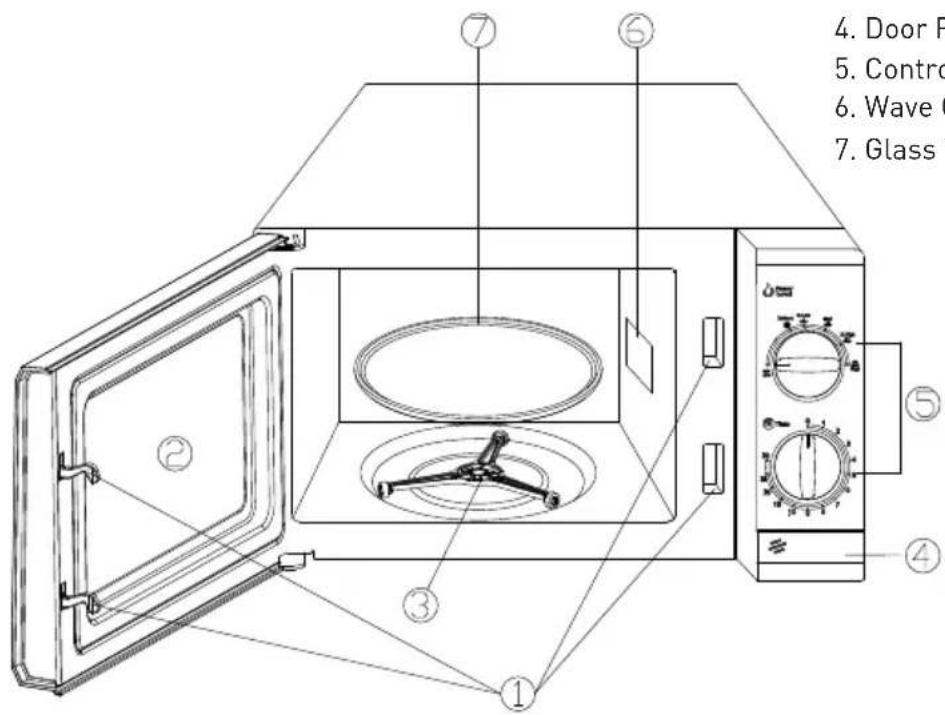

PART NAMES:

4. Door R 5. Control 6. Wave C 7. Glass T ① ② ③ ④ ⑤ ⑥ ⑦

1. Door Safety Lock System
2. Oven Window
3. Turntable Roller
4. Door Release Button
5. Control Panel
6. Wave Guide
7. Glass Tray

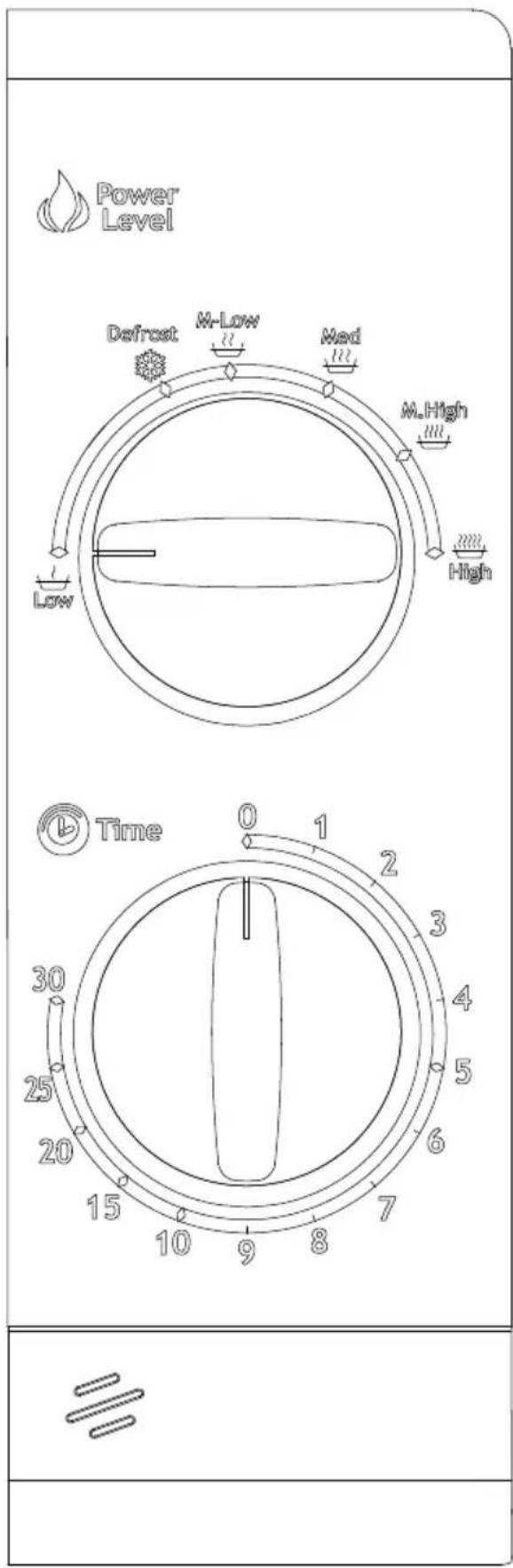

CONTROL PANEL:

Power Level Defrost M-Low Med M.High Low High Time 0 1 2 3 4 5 6 7 8 9 10 15 20 25 30 ≡

The control panel consists of two function operators. One is a timer knob, and another a power knob.

You use this operator knob to choose a cooking power level. It is the first step to start a cooking process.

TIMER KNOB

Offer visual timing settings at easy turn of your thumb to select a desired cooking time up to 30 minutes per cooking process.

MICROWAVE COOKING

For pure microwave cooking, there are six power levels from which to choose one as best fit to do the job at hand.

Power level increases with the knob turning clockwise. The power levels can be classified as the following:

POWER OUTPUT DESCRIPTION

1	100%	HIGH
2	85%	M.HIGH
3	66%	MED
4 48%	M.LOW
5	40%	DEFROST
6 17%	LOW

OPERATION:

To start a cooking process,

1. Place food in oven and close the door.
2. Turn Power Selector to select a power level.
3. Use Timer knob to set a cooking time

NOTE:

As soon as the timer is turned, oven starts cooking. When selecting time for less than 2 minutes, turn timer past 2 minutes and then return to the correct time.

CAUTION: Always return timer back to zero position if food is removed from oven before the set cooking time is complete or when oven is not in use. To stop oven during cooking process, push the door release button to open the oven door.

CLEANING AND CARE:

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be

cleaned regularly to avoid excessive noise.

Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

1. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
2. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
3. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous.
4. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

Produced in China for

ICA Sverige AB, 171 93 Solna
