USER MANUAL REGZA AV550 DIGITAL TOSHIBA

Leading Innovation >>>

REGZA

AV55*

DIGITAL

Series

Simple line drawing of a waving flag with an information icon inside (no text or symbols)

Contents

INSTALLING YOUR TV

Safety Precautions ....4

Installation and important information ....5

The remote control 6

Inserting batteries and effective range of the remote 6

CONNECTING YOUR TV

Connecting external equipment 7

Connecting an HDMI ^™ or DVI device to the HDMI input 8

To connect an HDMI device 8

To connect a DVI device 8

Connecting a computer 9

To connect a PC to the HDMI terminal .....9

Using the controls 10

Switching on 10

Using the remote control 10

Using the controls 10

SETTING UP YOUR TV

Startup Application 11

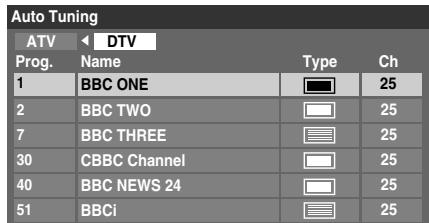

Quick Setup 11

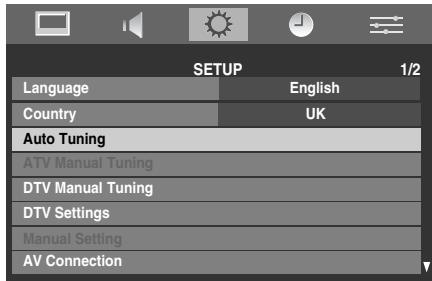

Auto Tuning 12

Auto Programme Update 12

Analogue switch-off 12

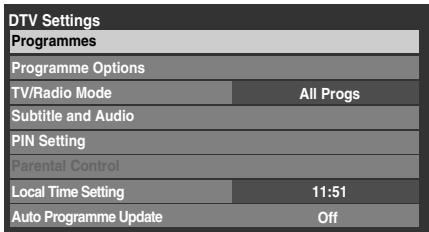

DTV Settings 13

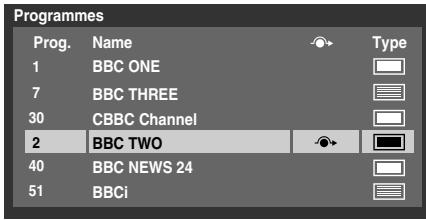

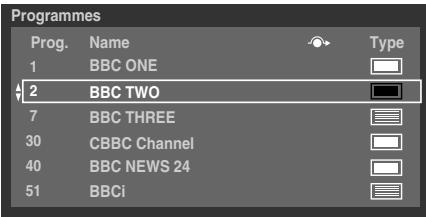

Programmes 13

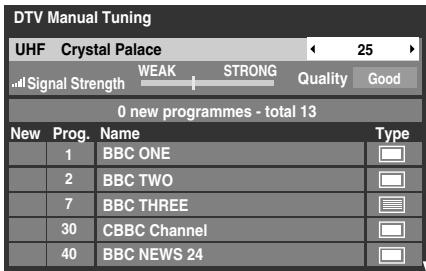

DTV Manual Tuning 13

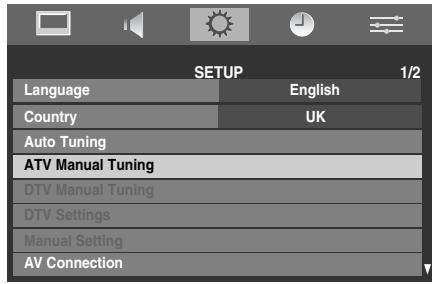

ATV Manual Tuning 14

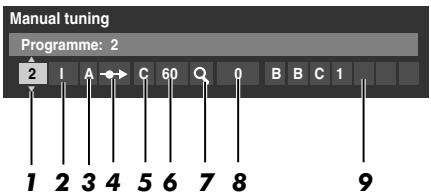

Tuning 14

Programme skip 15

Sorting programme positions 16

CONTROLS AND FEATURES

General controls 17

Selecting programme positions 17

The Time Display – analogue only .....17

Stereo and Bilingual transmissions 17

Sound controls 17

Volume controls and mute sound 17

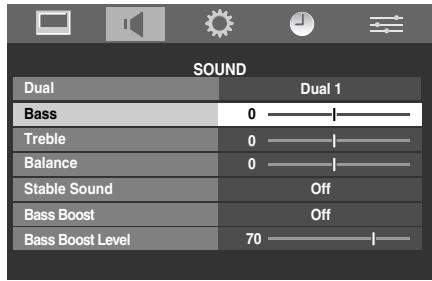

Bass, Treble and Balance 17

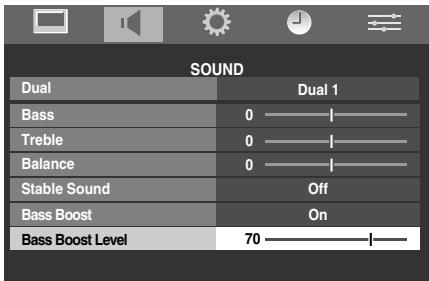

Bass Boost 18

Dual 18

Stable Sound® 18

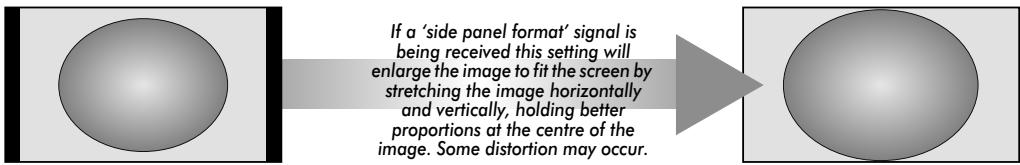

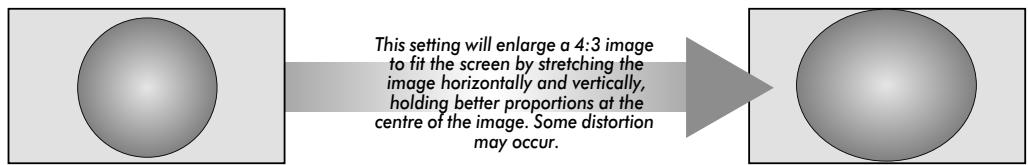

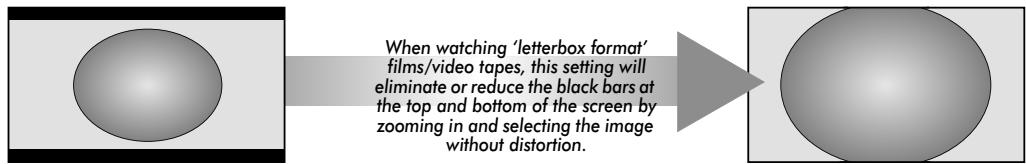

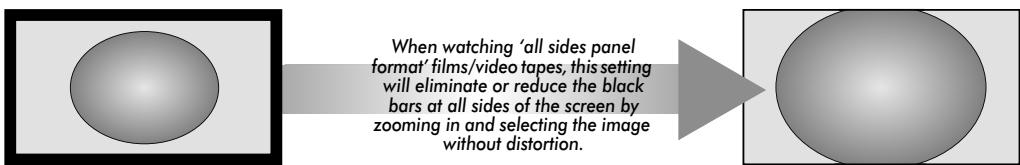

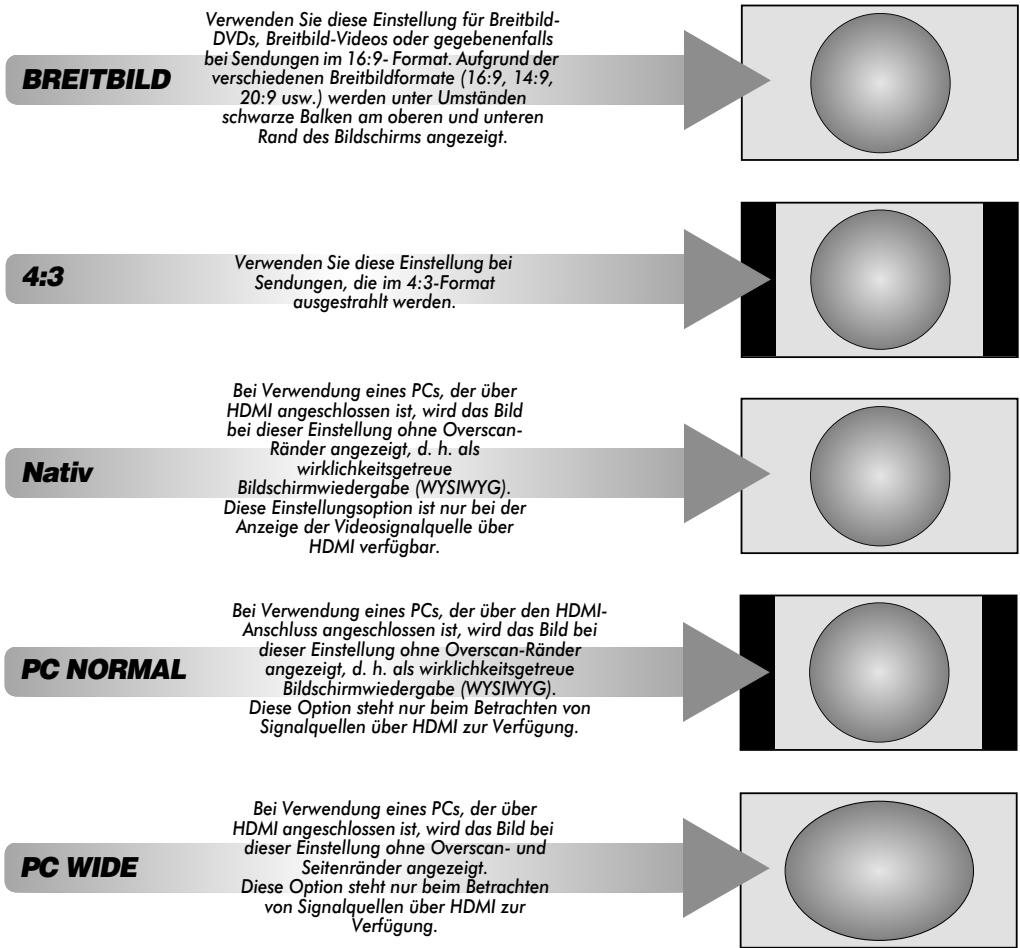

Widescreen viewing 19

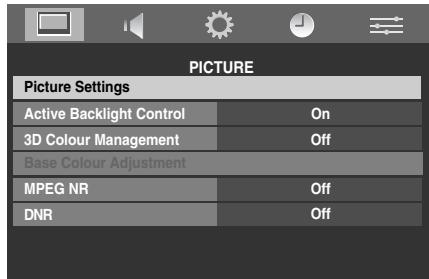

Picture controls 21

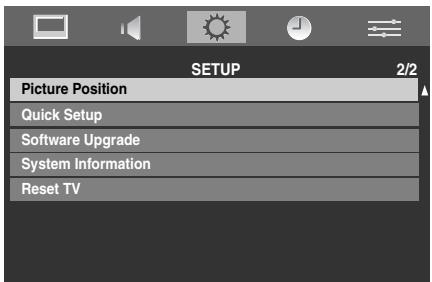

Picture Position 21

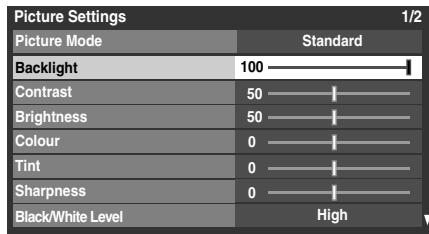

Backlight 21

Picture preferences ......22

Black/White Level 22

Cinema Mode 22

Colour Temperature 22

Reset 22

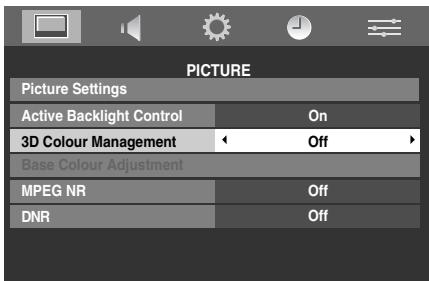

3D Colour Management 23

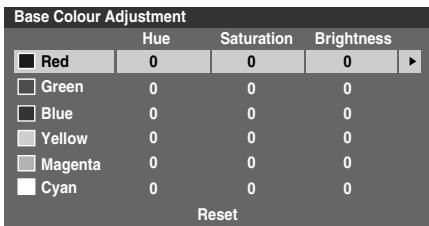

Base Colour Adjustment 23

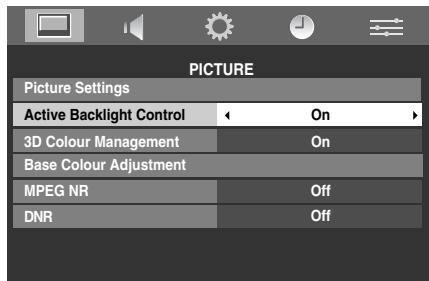

Active Backlight Control 23

MPEG NR – Noise Reduction ......23

DNR - Digital Noise Reduction 23

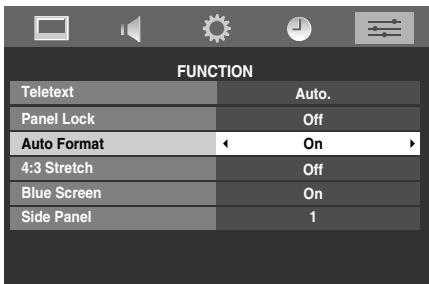

Automatic Format (Widescreen) 24

4:3 Stretch 24

Blue Screen 24

Side panel adjustment 24

Picture still 24

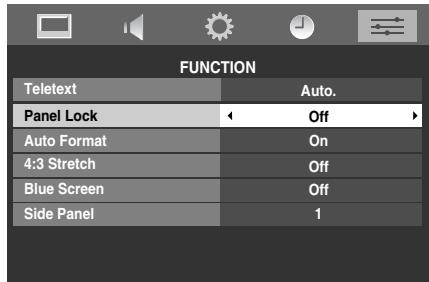

Panel lock 24

The timers 25

Programme Timers – digital only .....25

Sleep Timer 25

Digital on-screen information and Programme

Guide 26

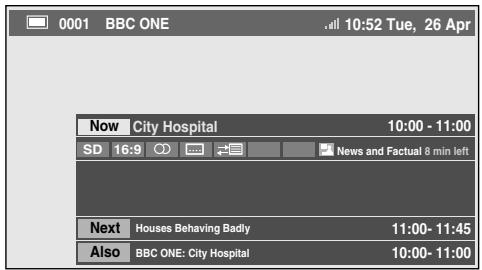

Information 26

Guide 27

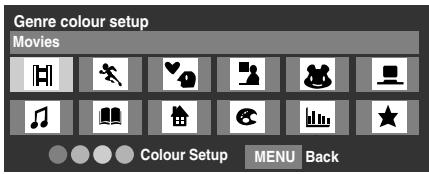

Genre selection 27

Digital settings – parental control .....28

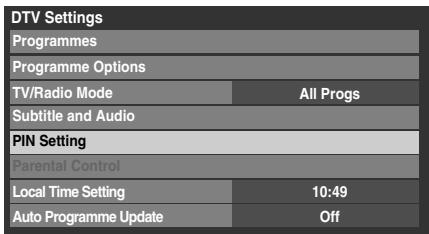

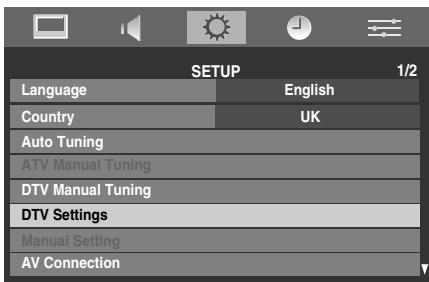

Setting the PIN 28

Parental Setup 28

Digital settings – Programme Options ......29

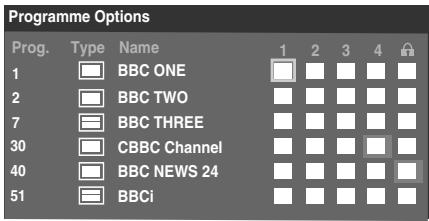

Selecting favourite programmes 29

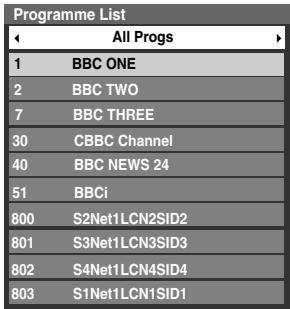

Favourite Programme Lists 29

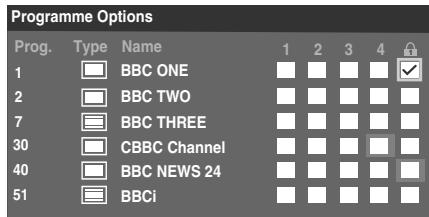

Locking programmes 29

TV/Radio Mode 29

Digital settings – other settings ......30

Subtitles 30

Audio languages 30

Common Interface 30

Software Upgrade 31

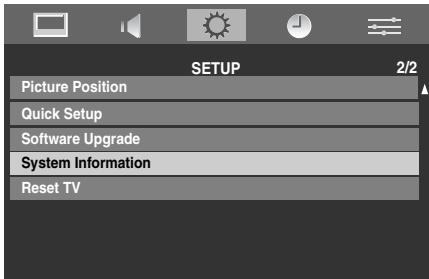

Version 31

Auto Upgrade 31

Searching for New Software 31

Reset TV 31

Input selection and AV connections 32

Input selection 32

INPUT signal selection 32

HDMI1 Audio 32

Lip Sync Latency 32

TEXT SERVICES

Text services 33

Selecting modes 33

Text information 33

Navigating pages using Auto 33

Navigating pages using List 33

Control buttons 34

PROBLEM SOLVING

Questions and Answers 35

INFORMATION

Notes 37

Specifications and accessories 38

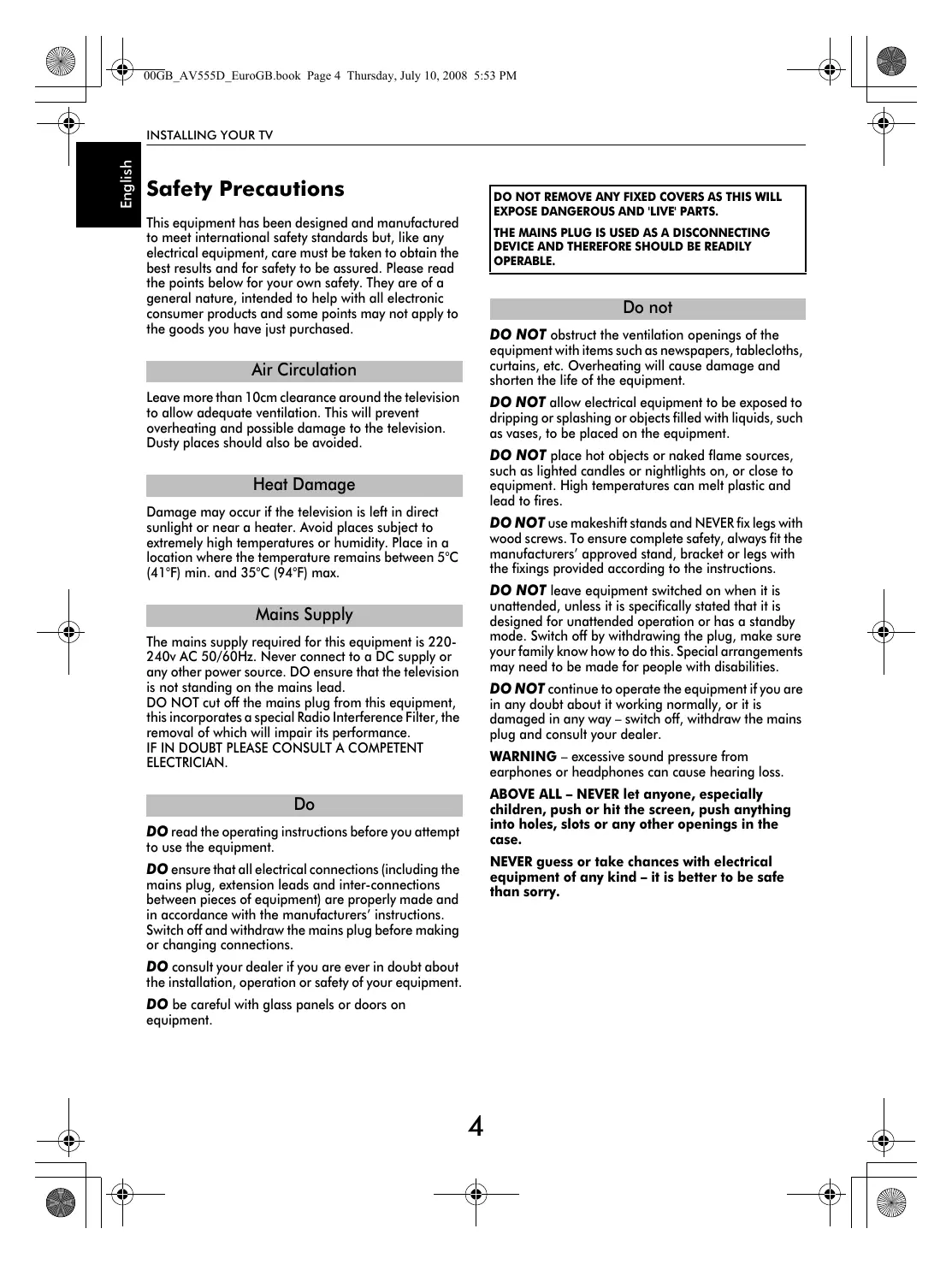

Safety Precautions

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products and some points may not apply to the goods you have just purchased.

Air Circulation

Leave more than 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided.

Heat Damage

Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5^ C ( 41^ F) min. and 35^ C ( 94^ F) max.

Mains Supply

The mains supply required for this equipment is 220-240v AC 50/60Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead. DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance. IF IN DOUBT PLEASE CONSULT A COMPETENT ELECTRICIAN.

Do

DO read the operating instructions before you attempt to use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections between pieces of equipment) are properly made and in accordance with the manufacturers' instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

DO be careful with glass panels or doors on equipment.

DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND 'LIVE' PARTS.

THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.

Do not

DO NOT obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

DO NOT allow electrical equipment to be exposed to dripping or splashing or objects filled with liquids, such as vases, to be placed on the equipment.

DO NOT place hot objects or naked flame sources, such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.

DO NOT use makeshift stands and NEVER fix legs with wood screws. To ensure complete safety, always fit the manufacturers' approved stand, bracket or legs with the fixings provided according to the instructions.

DO NOT leave equipment switched on when it is unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, make sure your family know how to do this. Special arrangements may need to be made for people with disabilities.

DO NOT continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way – switch off, withdraw the mains plug and consult your dealer.

WARNING – excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL – NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.

NEVER guess or take chances with electrical equipment of any kind – it is better to be safe than sorry.

Installation and important information

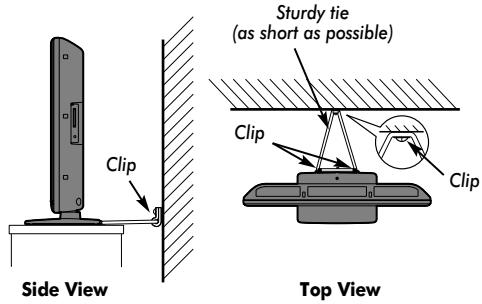

Where to install

Locate the television away from direct sunlight and strong lights, soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.

Place on a sturdy platform, the mounting surface should be flat and steady. It should be secured to the wall with a sturdy tie using the clip on the back of the stand, or secured to the platform using the fixing strap located underneath the table top stand, this will prevent it from falling over.

The LCD display panels are manufactured using an extremely high level of precision technology, however sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen, and that small items cannot be inserted into slots or openings in the case.

Please take note

EXCLUSION CLAUSE

Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:

i) fire;
ii) earthquake;
iii) accidental damage;
iv) intentional misuse of the product;
v) use of the product in improper conditions;
vi) loss and/or damage caused to the product whilst in the possession of a third party;
vii) any damage or loss caused as a result of the owner's failure and/or neglect to follow the instructions set out in the owner's manual;
viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.

NOTE: A Toshiba wall bracket or stand, where available, must be used. If a non Toshiba wall bracket or stand is used the product's BEAB approval will become void and the equipment is then used at the consumers own risk.

• The digital reception function of this television is only effective in the countries listed in the "COUNTRY" of the "SETUP" menu. Depending on country/area, some of this television's functions may not be available. Reception of future additional or modified services can not be guaranteed with this television.
• If stationary images generated by 4:3 broadcasts, text services, channel identification logos, computer displays, video games, on screen menus, etc. are left on the television screen for any length of time they could become conspicuous, it is always advisable to reduce both the brightness and contrast settings.
• Very long, continuous use of the 4:3 picture on a 16:9 screen may result in some retention of the image at the 4:3 outlines, this is not a defect of the LCD TV and is not covered under the manufacturers warranty. Regular use of other size modes (eg: Superlive) and varying the "side panel" brightness (if available on the model) will prevent permanent retention.

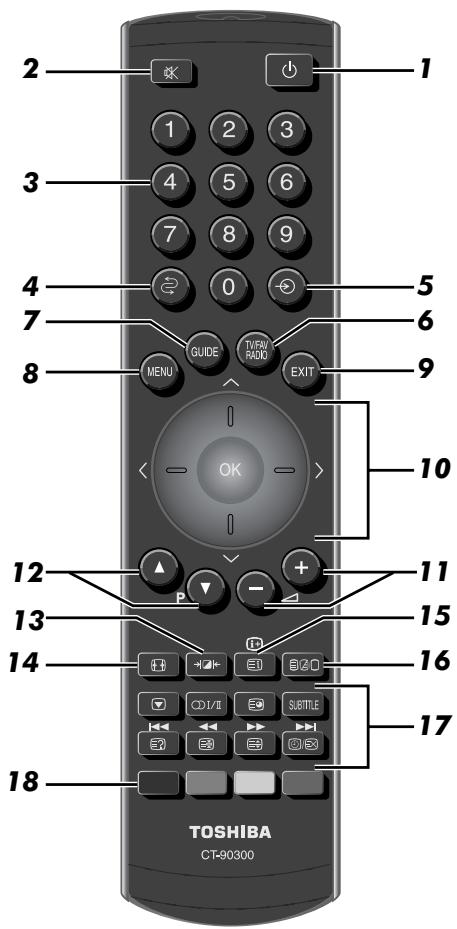

The remote control

Simple at-a-glance reference of your remote control.

2 1 3 4 5 6 7 8 9 4 0 5 6 7 GUIDE TV/AM RADIO EXIT 8 10 12 11 13 15 14 16 17 18 TOSHIBA CT-90300

1 For On/Standby mode
2 To mute the sound
3 Number buttons
4 To return to the previous programme
5 To select input from external sources, analogue or digital TV
6 To display TV, Radio and Favourite programme list when in digital mode
7 To display the digital on-screen Programme Guide
8 On-screen Menus
9 To exit Menus

10 When using menus press ∧ (up), ∨ (down), ∮ (left) and > (right) to move the cursor on the screen. Ⓞ to confirm your selection

11 To alter the volume

12 To change programme positions and text pages

13 Selectable picture preferences

14 Widescreen viewing

15 To display on-screen information

16 To call up text services in analogue mode and interactive services in digital mode

17 When in TV mode:

Still picture Stereo/bilingual transmissions SubTITLE Digital Subtitles Time display

When using the Programme Guide:

-24 hours
▶ + 24 hours
◀ - 1 page
▶▶ + 1 page

18 Text and interactive service control buttons

Inserting batteries and effective range of the remote

Line drawing of a battery pack with internal components and external casing (no text or symbols)

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the right way round. Suitable battery types for this remote are AAA, IEC R03 1.5V.

Do not combine a used, old battery with a new one or mix

battery types. Remove dead batteries immediately to prevent acid from leaking into the battery compartment. Dispose of them in a designated disposal area. Warning: batteries must not be exposed to excessive heat such as sunshine, fire or the like.

The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced the batteries may need replacing.

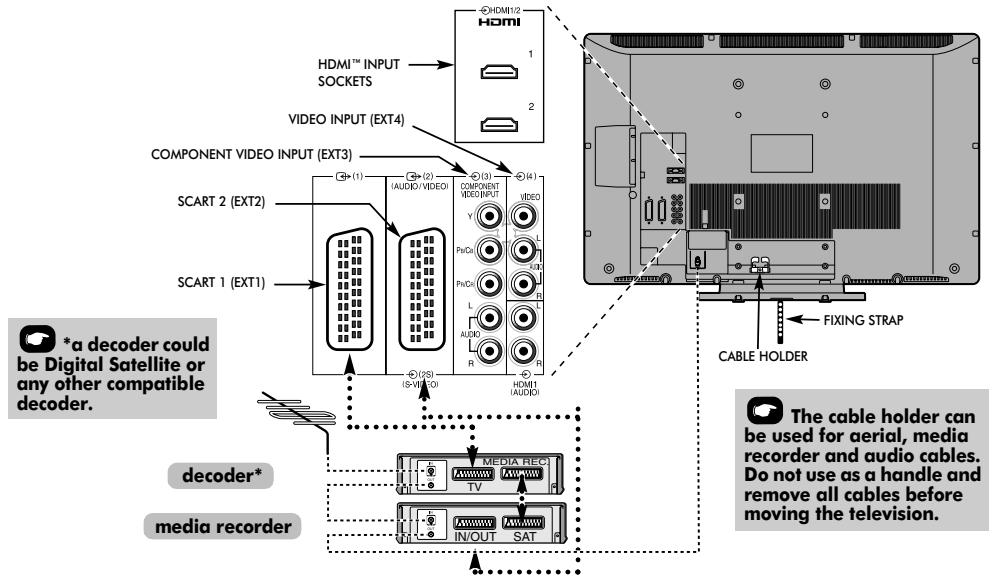

Connecting external equipment

Before connecting any external equipment, turn off all main power switches. If there is no switch remove the mains plug from the wall socket.

HDMI1/2 HDMI 1 2 HDMI™ INPUT SOCKETS VIDEO INPUT (EXT4) COMPONENT VIDEO INPUT (EXT3) SCART 2 (EXT2) SCART 1 (EXT1) COMPONENT VIDEO INPUT VIDEO Y L PvD: PvD: L AUDIO R HDMI1 (AUDIO) (S-VI/IO) (HDMI1) (FIXING STRAP) CABLE HOLDER *a decoder could be Digital Satellite or any other compatible decoder. decoder* media recorder MEDIA REC TV IN/OUT SAT The cable holder can be used for aerial, media recorder and audio cables. Do not use as a handle and remove all cables before moving the television.

Aerial cables:

Connect the aerial to the socket on the rear of the television. If you use a decoder* and/or a media recorder it is essential that the aerial cable is connected through the decoder and/or through the media recorder to the television.

SCART leads:

Connect the video recorder IN/OUT socket to the television. Connect the decoder TV socket to the television. Connect the media recorder SAT socket to the decoder MEDIA REC. socket.

Before running Auto Tuning put your decoder and media recorder to Standby.

The phono sockets alongside the COMPONENT VIDEO INPUT sockets will accept L and R audio signals.

The phono sockets alongside the VIDEO INPUT socket will accept L and R audio signals.

HDMI™ (High-Definition Multimedia Interface) is for use with a DVD, decoder or electrical equipment with digital audio and video output. It is designed for best performance with 1080i and 1080p high-definition video signals but will also accept and display VGA, 480i, 480p, 576i, 576p and 720p signals.

NOTE: Although this television is able to connect to HDMI equipment it is possible that some equipment may not operate correctly.

A wide variety of external equipment can be connected to the back of the television, therefore the relevant owners manuals for all additional equipment must be referred to.

We recommend SCART 1 for a decoder and SCART 2 for a media recorder.

If connecting S-VIDEO equipment, set the INPUT for EXT2. See page 32.

If the television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button. To recall external equipment, press ⬤ to select between DTV, EXT1, EXT2, EXT3, EXT4, HDMI1, HDMI2 or ATV.

HDMI

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

Connecting an HDMI™ or DVI device to the HDMI input

The HDMI input on your television receives digital audio and uncompressed digital video from an HDMI source device, or uncompressed digital video from a DVI (Digital Visual Interface) source device.

This input is designed to accept HDCP (High-Bandwidth Digital-Content Protection) program material in digital form from EIA/CEA-861-D-compliant [1] consumer electronic devices (such as a set-top box or DVD player with HDMI or DVI output). For acceptable video signal formats, see page 9.

NOTE:

- Some early HDMI equipment may not work properly with your latest HDMI TV, due to the adoption of a new standard. Please unplug your HDMI cable first and then try setting the Lip Sync to "Off". Your early HDMI source should operate properly with your television. See page 32.

- Supported Audio format: Linear PCM, sampling rate 32/44.1/48kHz.

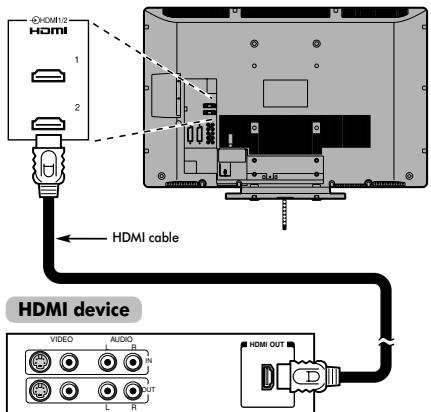

To connect an HDMI device

Connect an HDMI cable (type A connector) to the HDMI terminal.

For proper operation, it is recommended that you use an HDMI cable with the HDMI Logo (HDMI).

• If your HDMI connection is capable of 1080p and/or your television is capable of refresh rates greater than 60Hz, you will need a Category 2 cable. Conventional HDMI/DVI cable may not work properly with this mode.
• HDMI cable transfers both video and audio. Separate analogue audio cables are not required (see illustration).
  • See "HDMI1 Audio" on page 32.

HDMI/2 HDMI 1 2 HDMI cable HDMI device VIDEO AUDIO L R HDMI OUT

To view the HDMI device video, press the ⬤ to select HDMI1 or HDMI2 mode.

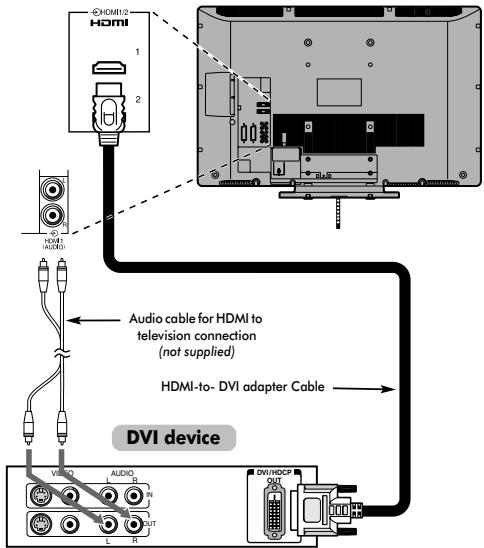

To connect a DVI device

Connect an HDMI-to-DVI adapter cable (HDMI type A connector) to the HDMI1 terminal and audio cables to the HDMI1 (AUDIO) socket (see illustration).

• The recommended HDMI-to-DVI adapter cable length is 6.6 ft (2m).
• An HDMI-to-DVI adapter cable transfers video only. Separate analogue audio cables are required.
  • See "HDMI1 Audio" on page 32.

HDMI1/2 HDMI 1 2 HDMI1 (ALPHA) Audio cable for HDMI to television connection (not supplied) HDMI-to- DVI adapter Cable DVI device VISA AUDIO L R R OUT L R DVI/HDCP OUT

NOTE:

To ensure that the HDMI or DVI device is reset properly, it is recommended that you follow these procedures:

• When turning on your electronic components, turn on the television first, and then the HDMI or DVI device.
• When turning off your electronic components, turn off the HDMI or DVI device first, and then the television.

Connecting a computer

With the HDMI connection, you can watch your computer's display on the television and hear the sound from the televisions speakers.

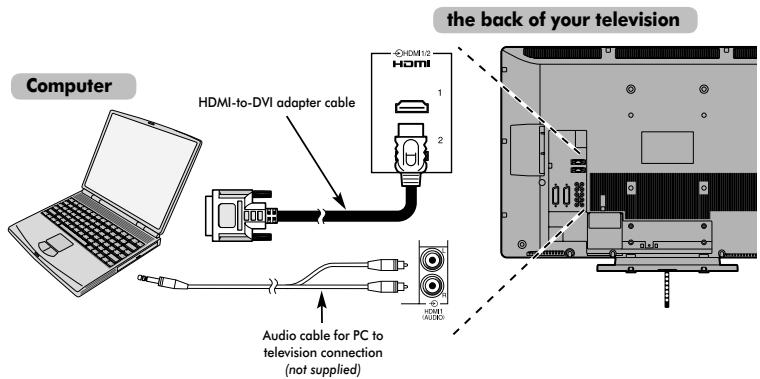

To connect a PC to the HDMI terminal

When connecting a PC to the HDMI terminal on the television, use an HDMI-to DVI adapter cable and an analogue audio cable. If connecting a PC with an HDMI terminal, use an HDMI cable (type A connector). A separate analogue cable is not necessary (see page 8).

Computer HDMI-to-DVI adapter cable the back of your television 1 2 HDMI HDMI/2 AUDIO Audio cable for PC to television connection (not supplied)

For acceptable signal formats, see below.

NOTE:

• The edges of the images may be hidden.
• If connecting a certain PC model with a unique PC signal, the PC signal may not be detected correctly.

Acceptable signals through HDMI terminals

Format	Resolution	V. Frequency	H. Frequency	Pixel Clock Frequency
480i	720 × 480i	59.940/60.000Hz	15.734/15.750kHz	27.000/27.027MHz
576i	720 × 576i	50.000Hz	15.625kHz	27.000MHz
480p	720 × 480p	59.940/60.000Hz	31.469/31.500kHz	27.000/27.027MHz
576p	720 × 576p	50.000Hz	31.250kHz	27.000MHz
1080i	1920 × 1080i	59.940/60.000Hz	33.716/33.750kHz	74.176/74.250MHz
1080i	1920 × 1080i	50.000Hz	28.125kHz	74.250MHz
720p	1280 × 720p	59.940/60.000Hz	44.955/45.000kHz	74.176/74.250MHz
720p	1280 × 720p	50.000Hz	37.500kHz	74.250MHz
1080p	1920 × 1080p	59.940/60.000Hz	67.500kHz	148.500MHz
1080p	1920 × 1080p	50.000Hz	56.250kHz	148.500MHz
1080p	1920 × 1080p	24.000Hz	27.000kHz	74.250MHz
VGA	640 × 480	59.940/60.000Hz	31.469/31.500kHz	25.175/25.200MHz

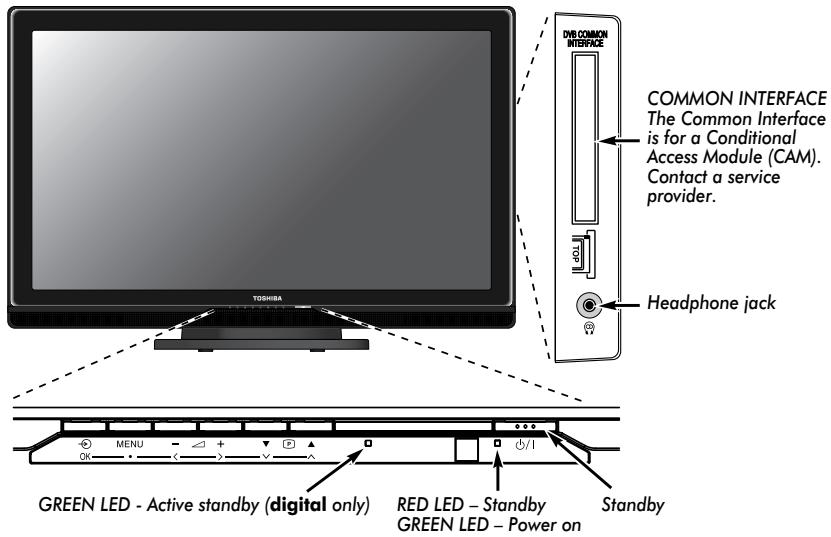

Using the controls

Whilst all the necessary adjustments and controls for the television are made using the remote control, the buttons on the television may be used for some functions.

COMMON INTERFACE The Common Interface is for a Conditional Access Module (CAM). Contact a service provider. Headphone jack GREEN LED - Active standby (digital only) RED LED - Standby GREEN LED - Power on Standby

Switching on

If the RED LED is unlit check that the mains plug is connected to the power supply. If the picture does not appear press ⏻ on the remote control, it may take a few moments. The GREEN LED will be lit.

To put the television into Standby press ⏻ on the remote control. To view the television press ⏻ again. The picture may take a few seconds to appear.

Using the remote control

Press Ⓜ on the remote control to see the menus.

The menu appears as a list of five topics. As each symbol is selected by pressing < or > on the navigation ring on the remote control, its respective options will appear below.

NOTE: The same menu is displayed in DTV (Digital TV) and ATV (Analogue TV) modes; however some items are greyed out in each case.

To use the options, press ∧ and ∨ on the remote control to move up and down through them and Ⓞ, < or > to select the required choice. Follow the on-screen instructions. The functions of each menu are described in detail throughout the manual.

Using the controls

To alter the volume press - ∠ +.

To alter the programme position press ▼ P ▲.

Press MENU and <, >, ∧ or ∨ to control the sound and picture options.

Press MENU to finish.

To select an external input, press until the appropriate input source is selected as described on page 32.

Please always refer to the owner's manual of the equipment to be connected for full details.

Please note: Inserting the headphone plug will mute the sound from all speakers.

Startup Application

Before switching on the television put your decoder and media recorder to Standby if they are connected.

To set up the television use the buttons on the remote control as detailed on page 6.

Quick Setup

1 Press the ⏻ button. The Quick Setup screen will appear. This screen will appear the first time that the television is switched on and each time "Reset TV" is executed.

Quick Setup
Language	English
Country	UK
Primary Subtitle Language	English
Secondary Subtitle Language	English
Primary Audio Language	English
Secondary Audio Language	English

2 Press ∨ to highlight Language and < or> to select the menu language.
3 Press √ to highlight Country and < or > to select. The television will now tune the stations for your country.
4 Press OK. Use < or > to select ATV and DTV, ATV or DTV. To execute Auto Tuning press OK again.

The television will start to search for available ATV and/or DTV channels. The progress bar will indicate the scan status.

You must allow the television to complete the search.

When the search is complete the television will automatically select programme one.

The Auto Tuning results screen will display the services that are found.

Auto Tuning
ATV	DTV
Prog.	Name		Ch
0	VCR		60
1			2
2			10
3			7
4			40
5			22

5 Press < or > to view the DTV (digital channel) or ATV (analogue channel) lists.

Auto Tuning ATV DTV Prog. Name Type Ch 1 BBC ONE 25 2 BBC TWO 25 7 BBC THREE 25 30 CBBC Channel 25 40 BBC NEWS 24 25 51 BBCi 25

6 Use ∨ or ∧ to move through the list to select a programme then press Ⓞ to view.

NOTE: The time will be set automatically by transmission but can be advanced or decreased by up to 3 hours using Local Time Setting in the DTV Settings menu.

PLEASE NOTE

The Quick Setup menu can also be displayed at any time from the SETUP menu.

Auto Tuning

NOTE: As new services are broadcast it will be necessary to re-tune the television in order to view them.

Auto Tuning will completely re-tune the television and can be used to up date the channel list.

It is recommended that Auto Tuning is run periodically to ensure that all new services are added. All current programmes and settings, i.e. favourites and locked programmes, will be lost.

1 Press Ⓜ and use < or > to select SETUP menu. Use √ to highlight Auto Tuning. Press Ⓞ.

SETUP Language English Country UK Auto Tuning ATV Manual Tuning DTV Manual Tuning DTV Settings Manual Setting AV Connection

2 A screen will appear warning that previous programmes and settings will be deleted.

Auto Tuning Previous settings will be lost! Press EXIT for no change. Press OK to start Auto tune. ATV and DTV

Use < or > to select ATV and DTV, ATV or DTV, then press OK to continue with the Auto Tuning.

The television will start to search for all available ATV and/or DTV stations.

You must allow the television to complete the search.

When the search is complete the Auto Tuning screen will display the services found.

3 Use √ or ∧ to move through the list to select a programme then press Ⓞ to view (see page 11).

Auto Programme Update

If the Auto Programme Update is set to On, when the TV is in standby mode, the Digital Tuning is automatically executed and new programmes are memorized.

1 Press Ⓜ, and select SETUP menu.

2 Use √ to highlight DTV Settings and press OK.

3 Press √ to select Auto Programme Update and use < or > to select On.

Analogue switch-off

This is a digital television which is integrated to allow the use of both digital and analogue services. However, during the lifetime of this set it is very likely that analogue services will be switched off to allow for more new digital services.

This ‘switch-off’ will happen in a number of phases, which will be advertised in your area well in advance. It is recommended that at each phase the television is re-tuned to ensure that existing and new digital services can be viewed without disruption.

DTV Settings

Programmes

The station order may be changed to suit your personal preference.

1 Press Ⓜ, and select SETUP menu.
2 Use √ to highlight DTV Settings and press OK.
3 Select Programmes from the DTV Settings menu and press OK.

DTV Settings Programmes Programme Options TV/Radio Mode All Progs Subtitle and Audio PIN Setting Parental Control Local Time Setting 11:51 Auto Programme Update Off

4 With the list of stations now showing use √ or ∧ to highlight the station you want to move and press OK.

Programmes Prog. Name Type 1 BBC ONE #2 BBC TWO 7 BBC THREE 30 CBBC Channel 40 BBC NEWS 24 51 BBCi

5 Use √ or ∧ to move through the list to your preferred position. As you do so the other stations will move to make room.
6 Press OK to store your move. Repeat as necessary, then press EXIT.

The Skip setting for the highlighted programme can be switched between "Set/Not Set" by pressing the RED button on the remote control. This feature allows you to set channels that will be skipped when P▼ or P▲. However, these channels will still be available by direct number entry (when tuned a 🔗 icon will be displayed in the banner to indicate as a skipped channel).

Programmes Prog. Name Type 1 BBC ONE 7 BBC THREE 30 CBBC Channel 2 BBC TWO 40 BBC NEWS 24 51 BBCi

DTV Manual Tuning

This feature is available for service engineers or can be used for direct channel entry if the multiplex channel is known.

1 Select DTV Manual Tuning from the SETUP menu and press OK.
2 Enter the multiplex number using the number buttons or use to adjust the number up or down and then press OK. The television will automatically search for that multiplex.

DTV Manual Tuning UHF Crystal Palace 25 Signal Strength WEAK STRONG Quality Good 0 new programmes - total 13 New Prog. Name Type 1 BBC ONE 2 BBC TWO 7 BBC THREE 30 CBBC Channel 40 BBC NEWS 24

When the multiplex is found any channels that are not currently on the programme list will be added and the programme information at the top of the screen will be updated.

3 Repeat as necessary. Press EXIT to finish.

ATV Manual Tuning

Tuning

The television can be tuned-in manually using ATV Manual Tuning. For example: if the television cannot be connected to a media recorder/decoder with a SCART lead or to tune-in a station on another System.

Use < and > to move across the screen and select any of the ATV Manual Tuning options. Then use ∧ or ∨ to adjust the settings.

Manual tuning Programme: 2 2 I A C 60 Q 0 B B C 1 1 2 3 4 5 6 7 8 9

1 Programme:

The number to be pressed on the remote control to tune the programme.

2 System:

Specific to certain areas.

3 Colour System:

Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from external source.

4 Skip:

→ means skip OFF.

→ means nothing has been stored or the facility to skip the channel is ON. See page 15.

5 Signal Class:

The channel classification.

6 Channel:

The channel number on which a station is being broadcast.

7 Searching:

Search up and down for a signal.

8 Manual fine tuning:

Only used if interference/weak signal is experienced. See page 35.

9 Station:

Station identification. Use the ∧ or ∨ and < or > buttons to enter up to seven characters.

To allocate a programme position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded film in the media recorder and press PLAY, then manually tune.

1 Press Ⓜ and using < or > select the SETUP menu. With √ highlight ATV Manual Tuning and press Ⓒ to select.

SETUP 1/2 Language English Country UK Auto Tuning ATV Manual Tuning DTV Manual Tuning DTV Settings Manual Setting AV Connection

2 Use ∧ or ∨ to highlight the programme position required e.g. we suggest Prog. 0 for a media recorder.

Manual Tuning
Prog.	Channel	Station
2	C60	BBC1
3	S23	C-23
4	C27	C-27
5	S31	S-31
6	C35	C-35
7	C40	C-40
8	C50	C-50
9	C65	C-65

Different Channel numbers may be displayed.

3 Press OK to select. If the programme is skipped, Skip must be removed before storing.

Manual tuning Programme: 2 2 I A C 60 Q 0 B B C 1

4 Press > to select System and use ^ or ∨ to change if required.

5 Then press > to select Searching.

6 Press ∧ or ∨ to begin the search. The search symbol will flash.

Manual tuning Searching: 2 I A C 60 0 B B C 1

7 Each signal will show on the television, if it is not your media recorder, press ^ or ∨ again to restart the search.
8 When your media recorder signal is found, press > to move along to Station. With ∧, ∨, < and > put in the required characters, e.g. VCR.

Manual tuning Station: VCR 0 I A → C 60 Q 0 V C R

9 Press OK to store.
10 Repeat for each programme position you want to tune or, press MENU to return to the list of channels and select the next number to tune.
11 Press EXIT when you have finished.

To name external equipment:

12 To name external equipment, e.g. DVD on EXT2, press → to select →2, then select Manual Setting from the SETUP menu.
13 Press > to select Label then using ∧, ∨, < and > put in the required characters.

Manual Setting Label:DVD EXT2 A D V D

PLEASE NOTE

This television has direct channel entry if the channel numbers are known.

Select the ATV Manual Tuning screen in Step 3. Enter the Programme number, the System, then C for standard (terrestrial) channels or S for cable channels and the Channel number. Press OK to store.

Programme skip

To prevent certain programmes from being viewed, the programme position can be skipped. The remote control must be removed as the channels will still be available using the number buttons. Programmes can then be watched as normal using the controls on the television, but the television will not show the skipped programme position.

1 Select ATV Manual Tuning from the SETUP menu.

Manual tuning
Prog.	Channel	Station
2	C60	BBC1
3	C23	C-23
4	C27	C-27
5	S31	C-31
6	C35	C-35
7	C40	C-40
8	C50	C-50
9	C63	C-65

2 Use ∧ or ∨ to highlight the programme position to be skipped and press OK to select.
3 Press > to select Skip.
4 Use ∧ or ∨ to turn Skip on. Press OK.

→ on the screen indicates a skipped programme position.

Manual tuning Skip: On 2 I A C 60 Q 0 B B C 1

5 Press Ⓜ and repeat from Step 2 or press Ⓑ.

Each programme position has to be individually selected. To turn Skip off, repeat the procedure for each position.

Skipped programme positions cannot be selected by P▲ and P▼ or by the controls on the television, but can still be accessed by the number buttons on the remote control.

Sorting programme positions

Channels may be moved and stored to the programme position of your choice.

1 Select ATV Manual Tuning from the SETUP menu.
2 With the list of stations now showing use ∧ or ∨ to highlight the station you want to move and press >.

The selected station will be moved to the right of the screen.

Manual tuning
Prog.	Channel	Station
2	C60	BBC1
3	C23	C-23
4	C27	C-27
5	C31	C-31
1	C43	BBC1
6	C35	C-35
7	C40	C-40
8	C50	C-50

3 Use ^ or ∨ to move through the list to your preferred position. As you do so the other stations will move to make room.
4 Press < to store your move. Repeat as necessary, then press EXIT.

General controls

Selecting programme positions

To select a programme position use the numbered buttons on the remote control.

Programme positions can also be selected using P▲ and PV▼.

To revert to the previous programme position press ↩.

To display on-screen information i.e. programme position, input mode or stereo/mono signal, press i^+ . Press again to cancel.

The Time Display – analogue only

The time display facility allows the current (text service) time to be seen on the television screen.

Press ⏻/≡X whilst watching a normal television broadcast to see a time display from the broadcaster. It will remain on screen for about 5 seconds.

NOTE: This display may not be available in some cases.

Stereo and Bilingual transmissions

For ATV programmes

If stereo or dual language broadcasts are transmitted the word Stereo or Dual will appear on the screen each time programme positions are changed, disappearing after a few seconds. If the broadcast is not in stereo the word Mono will appear.

Stereo... Press I/II to select Stereo or Mono.

Bilingual... Bilingual transmissions are rare. If they are transmitted the word Dual will display. Choose the required programme number and if the word Dual appears press OI/II to select Dual 1, Dual 2 or Mono.

For DTV programmes

For stereo or dual mono broadcasts, press ODI/II and use < or > to select settings.

Mode Display	Pressing >
○○ Stereo	Stereo → Left → Right
●○ Dual mono	Dual 1 → Dual 2 → Dual
○ Mono	-
○○ Surround	-

For multi-audio track broadcasts, press ⒶI/Ⅱ repeatedly to change the audio language (see 'Audio language' on page 30).

Sound controls

Volume controls and mute sound

Volume

Press or to adjust the volume.

Sound Mute

Press ☒ once to turn the sound off and again to cancel.

Bass, Treble and Balance

The sound controls are accessible in digital and analogue modes.

1 Press Ⓜ and < or > to select SOUND.

SOUND Dual Dual 1 Bass 0 Treble 0 Balance 0 Stable Sound Off Bass Boost Off Bass Boost Level 70

2 Press √ to highlight Bass, Treble or Balance and < or > to change the setting.

Bass Boost

Bass Boost enhances the depth of the sound on the TV speakers. The difference will only be noticeable on sound with a strong bass.

1 In the SOUND menu press √ to highlight Bass Boost. Use < or > to select On.

2 Then press √ to highlight Bass Boost Level and using < or > adjust to suit your preference.

SOUND Dual Dual 1 Bass 0 Treble 0 Balance 0 Stable Sound Off Bass Boost On Bass Boost Level 70

Dual

If a programme or film is being broadcast with a soundtrack in more than one language, the DUAL feature allows selection between them.

1 Press MENU and select the SOUND menu.

2 Use √ to highlight Dual then press < or > to choose between Dual 1 or Dual 2.

Stable Sound®

The Stable Sound feature limits high volume levels on the TV speakers, preventing the extreme changes in volume that can occur when channels are changed or a programme switches to a commercial.

1 Select the SOUND menu.

2 Use √ to highlight Stable Sound then press < or > to select On or Off.

Widescreen viewing

Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats. Press ⊕ repeatedly to select between Native, Wide, Super Live 2, Cinema 2, 4:3, Super Live 1, Cinema 1, Subtitle and 14:9.

SUPER LIVE 1

SUPER LIVE 2

If a 'side panel format' signal is being received this setting will enlarge the image to fit the screen by stretching the image horizontally and vertically, holding better proportions at the centre of the image. Some distortion may occur.

CINEMA 1

CINEMA 2

SUBTITLE

When subtitles are included on a letterbox format broadcast, this setting will raise the picture to ensure that all the text is displayed.

SUBTITLE

14:9

Use this setting when watching a 14:9 broadcast.

Simple grayscale sphere with gradient shading, no text or symbols present

WIDE	Use this setting when watching a widescreen DVD, widescreen video tape or a 16:9 broadcast (when available). Due to the range of widescreen formats (16:9, 14:9, 20:9 etc.) black bars may be visible on the top and bottom of the screen.
4:3	Use this setting to view a true 4:3 broadcast.
Native	When using a PC connected via HDMI this setting will show the picture without over scan, i.e. WYSIWYG. This option is only available when watching video signal source via HDMI.
PC NORMAL	When using a PC connected via HDMI, this setting will show the picture without over scan, i.e. WYSIWYG. This option is only available when watching VGA signal source via HDMI.
PC WIDE	When using a PC connected via HDMI, this setting will show the picture without over scan and side panel. This option is only available when watching VGA signal source via HDMI.

Press 📋 to display the list of available widescreen formats. Use ∧ and ∨ to highlight the required format and Ⓒ to select.

AV format

Picture Size Native Wide Super Live 2 Cinema 2 4:3 Super Live 1 Cinema 1 Subtitle 14:9

VGA format

Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

Picture controls

Most of the picture controls and functions are available in both digital and analogue modes. PLEASE NOTE: features not available will be greyed out.

Picture Position

The picture position may be adjusted to suit personal preference and can be particularly useful for external inputs.

1 In the SETUP menu press √ until Picture Position is highlighted.

SETUP 2/2 Picture Position Quick Setup Software Upgrade System Information Reset TV

2 Press OK to view the options available for the picture format that has been selected.

3 Press ∧ and ∨ to select an option, then < or > to adjust the settings.

The options alter depending on currently selected widescreen format and the input signal.

In Cinema 2:

Picture Position Horizontal Position 0 ———— Vertical Position 0 ———— Reset

To return to the original factory settings select Reset in the Picture Position menu and press OK.

Backlight

Adjusting the Backlight can improve the clarity of the screen when viewing.

1 In the PICTURE menu press √ to select Picture Settings, then press OK.

PICTURE Picture Settings Active Backlight Control On 3D Colour Management Off Base Colour Adjustment MPEG NR Off DNR Off

2 In the Picture Settings menu press √ to select Backlight.

3 Press < or > to adjust.

Picture Settings 1/2 Picture Mode Standard Backlight 100 Contrast 50 Brightness 50 Colour 0 Tint 0 Sharpness 0 Black/White Level High

Picture preferences

This television offers the choice of personalising the picture style. Press →|→|← to view the different styles available:

Dynamic, Standard, Movie, Game* and PC** are preset options and affect many features/settings within the television. You can customise current picture mode settings as desired. For example, while selecting "Dynamic," if you change the following items, such as Backlight, Contrast, Brightness, Colour, Tint, Sharpness, Black/White Level, Cinema Mode and Colour Temperature, your new setting is stored as "User Setting."

* Game mode is available in external input mode (other than aerial input). When you select Game mode, suitable widescreen formats will be selected.
** PC mode is available in HDMI input mode.

1 Select Picture Settings from the PICTURE menu.

Picture Settings		1/2
Picture Mode	Standard
Backlight	100
Contrast	50
Brightness	50
Colour	0
Tint	0
Sharpness	0
Black/White Level	High

2 Use to adjust the Contrast, Brightness, Colour, Tint and Sharpness.

Black/White Level

Black/White Level increases the strength of dark areas of the picture which improves the definition.

1 In the Picture Settings menu press √ until Black/White Level is highlighted.
2 Press < or > to select Low, Middle, High or Off. The effect depends on the broadcast and is most noticeable on dark colours.

Cinema Mode

If there are lines or jagged edges in the film or programme being viewed, selecting Cinema Mode can help correct this by smoothing out the picture.

1 In the Picture Settings menu press √ to select Cinema Mode.

Picture Settings Cinema Mode Off Colour Temperature Cool Reset 2/2

2 Press < or > to select On or Off.

NOTE: When a DVD with subtitles is being played this mode may not work correctly.

Colour Temperature

Colour Temperature increases the 'warmth' or 'coolness' of the picture by increasing the red or blue tint.

1 In the Picture Settings menu press √ until Colour Temperature is highlighted.
2 Press < or > to select Cool, Natural or Warm to suit your preference.

Reset

To reset the current Picture Mode setting to the default values.

1 In the Picture Settings menu press √ to select Reset.
2 Press OK.

3D Colour Management

When 3D Colour Management is set to On it allows the 'Base Colour Adjustment' feature to become available.

1 In the PICTURE menu press √ to select 3D Colour Management.

PICTURE Picture Settings Active Backlight Control On 3D Colour Management Off Base Colour Adjustment MPEG NR Off DNR Off

2 Press < or > to select On or Off.

Base Colour Adjustment

The Base Colour Adjustment feature allows the adjustment of individual colours to suit personal preference. This can be useful when using an external source.

1 In the PICTURE menu press √ to select Base Colour Adjustment, then press OK.
2 Press ∧ or ∨ to select an option, then > to move to the adjustment window.

Base Colour Adjustment Hue Saturation Brightness Red 0 0 0 Green 0 0 0 Blue 0 0 0 Yellow 0 0 0 Magenta 0 0 0 Cyan 0 0 0 Reset

3 Press < or > to select Hue, Saturation or Brightness, then press ^ or √ to adjust the settings as required.

Hue Saturation Brightness Red 0 0 0

To return to the original factory settings select Reset and press OK.

Active Backlight Control

When Active Backlight Control is activated it will automatically optimise the backlighting levels for dark scenes.

1 In the PICTURE menu press √ to select Active Backlight Control.

PICTURE Picture Settings Active Backlight Control On 3D Colour Management On Base Colour Adjustment MPEG NR Off DNR Off

2 Press < or > to select On or Off.

MPEG NR – Noise Reduction

When watching a DVD the compression may cause some words or picture elements to become distorted or pixelated. Using the MPEG NR feature reduces this effect by smoothing out the edges.

1 Select MPEG NR from the PICTURE menu. Use < or > to select Low, Middle, High or Off to suit your preference.

DNR – Digital Noise Reduction

DNR enables you to 'soften' the screen representation of a weak signal to reduce the noise effect.

1 Select DNR from the PICTURE menu.
2 Use < or > to select Low, Middle, High, Auto. or Off. The differences may not always be noticeable (for the best result use lower settings as picture quality can be lost if the setting is too high).

Automatic Format (Widescreen)

When this television receives a true Widescreen picture and Auto format is On, it will automatically be displayed in Widescreen format, irrespective of the television's previous setting.

1 Press MENU and < or > to select the FUNCTION menu.

FUNCTION Teletext Auto. Panel Lock Off Auto Format On 4:3 Stretch Off Blue Screen On Side Panel 1

2 Press ∨ to highlight Auto Format, then < or > to select On or Off.

4:3 Stretch

When 4:3 Stretch is activated the size switching system changes 4:3 programs into a full screen picture.

1 In the FUNCTION menu press √ to highlight 4:3 Stretch.

2 Press < or > to select On or Off.

Blue Screen

When Blue Screen is selected the screen will turn blue and the sound will be muted on analogues programmes and external input modes when no signal is received.

1 In the FUNCTION menu press √ to highlight Blue Screen.

2 Press < or > to select On or Off.

Side panel adjustment

The Side Panel feature lightens or darkens the band on each side of the screen when in 4:3 or 14:9 format. This helps prevent image retention of the band and can also make viewing in bright or dark conditions more comfortable.

1 In the FUNCTION menu press √ until Side Panel is highlighted.

2 Press < or > to adjust.

Picture still

This feature is used to hold a still image on the screen.

Press ▼ to hold an image on the screen, press ▼ again to cancel.

Panel lock

Panel lock disables the buttons on the television. All buttons on the remote control can still be used.

1 From the FUNCTION menu select Panel Lock and choose On or Off using < or >.

FUNCTION Teletext Auto. Panel Lock Off Auto Format On 4:3 Stretch Off Blue Screen Off Side Panel 1

When Panel Lock is On, a reminder will appear when the buttons on the television are pressed. If the standby button is pressed the television will switch off and can only be brought out of standby by using the remote control.

The timers

Programme Timers – digital only

This feature will set the television to go to a specific channel at a certain time. It can be used to view a particular programme, or by setting the mode to daily or weekly, can be used to view a series of programmes.

1 Press Ⓜ and < or > to select the TIMER menu.

TIMER Programme Timers Sleep Timer 00:00

2 Press √ to select Programme Timers, then press OK.
3 Press √ if necessary to select an open timer position, then press OK. The SET TIMER menu will now appear on screen.
4 Press ∧ and ∨ to go through the list adding the details of the programme by using the number buttons and < and > to make selections.

SET TIMER
Programme	BBC ONE
Date	Tue, 26 Apr
Start Time	10:49
End Time	11:49
Repeat	Once

5 When all the details have been entered press OK to save the timer.

A timer icon will be displayed within the programme event in the guide screen.

PLEASE NOTE: When a timed programme is about to start, an information screen will appear offering the option of watching or cancelling the programme. The menus and other channels will not be available during the timed programme unless the programme timer is cancelled.

Sleep Timer

The television can be set to turn itself Off after a certain length of time.

1 Press Ⓜ and < or > to select the TIMER menu.

TIMER Programme Timers Sleep Timer ← 00:00 >

2 Press √ to select Sleep Timer. Use the number buttons to set the required time. For example, to switch the television off in one and a half hours enter 01:30, or press >/< to increase/decrease in steps of 10 minutes.
3 Press EXIT to finish.
4 To cancel the Sleep Timer, enter zero in the above setting.

Digital on-screen information and Programme Guide

When viewing in digital mode, the on-screen information and programme guide give access to programme details for all available channels.

Information

1 Press i+, the information screen will appear giving details of the programme and event currently being viewed.

0001 BBC ONE all 10:52 Tue, 26 Apr Now City Hospital 10:00 - 11:00 SD 16:9 News and Factual 8 min left Next Houses Behaving Badly 11:00- 11:45 Also BBC ONE: City Hospital 10:00- 11:00

2 Press ∧ or ∨ to select the "Now", "Next" or "Also" information guide.
3 To record the following programme, select "Next" and, press OK. The SET TIMER screen will appear.

SET TIMER Tue, 26 Apr 18:35-18:57 4 CANAL+ Le JT de Canal+ Start Time ← 18:35 ► End Time 18:57 Repeat Once

4 The details of the programme will have been added to the timer. Press OK to save.
5 Press √ to select Also. Details of programmes that have started on other channels will be provided. Use < or > to change the display contents.

On-screen Information icons

	Icon	Description
Service info		Service type (TV, Radio)
		Skip
Audio info		Mono
		Stereo
		Dual mono
Audio/Subtitle info		Hard of Hearing
Event info	SD	Video format
	16:9, 4:3	Video Aspect
		Teletext
		Subtitle (Single, Multi)
		Multi-audio track
	0, 4 – 18	Parental rating
		Encrypted

Guide

1 Select the on-screen guide by pressing GUIDE, the guide screen will appear highlighting details of the programme and event currently being viewed. This may take a few moments to appear.

All Progs	10:30	11:00	11:30	12:00	12:30
1 BBC ONE	City Hospital	HousesBehaving Badly	Mind Your Ow.	Bargain Hunt
2 BBC TWO	Landma..	Schools..	The Daily Politics	Working Lunch
7 BBC THREE	This Is BBC THREE			This Is BBC THREE
30 CBBCChan..	Class..	Class TV .. Class ..	Class TV .. Class ..	Class ..
40 BBC NEWS..	BBC News	BBC News	BBC News
51 BBC	BBCi			BBCi
800 S2Net1LCN..
801 S3Net1LCN..
802 S4Net1LCN..
803 S1Net1LCN..
804 Doku/KiKa
805 Info/3sat
805 ZDF

You can switch the time scale to 1.25 or 2.5 hours by pressing the RED button.

NOTE: Only programmes selected by the TV/Radio Mode are displayed. Skipped programmes are not displayed.

2 Press < or > for information on other events scheduled for the programme selected.
3 For details of other programmes currently available, press ^ and ∨ to scroll up and down the programme list. As programmes are selected details of the programme currently being broadcast will appear. Press < or > to view information for future events.
4 For information on a highlighted event press i+.

NOTE: In order for the recording operation to work properly, the media recorder must be set to the same time as the TV. Regarding the process for recording, please refer to the owner's manual of the recording equipment.

5 Press ▶▶ to move the Guide forward by 24 hours, press ◀◀ to go back. Pressing ▶▶ or ◀◀ will move the Guide forwards or backwards a page at a time.

Press P▼ to advance to the next page, press P▲ to go back to the previous page.

Genre selection

From the guide screen, you can use the genre selection feature.

1 Press the YELLOW button from the guide screen. The Genre Colour Setup window will appear.

Genre colour setup Movies Colour Setup MENU Back

2 With the focus on a particular genre, press the desired colour key to assign. Four colours will be available to set. Press Ⓞ to go back to the guide screen.

Digital settings – parental control

In order to prevent viewing of unsuitable films and programmes, channels and menus can be locked. These can then only be accessed with a security code PIN when in digital mode.

Setting the PIN

1 Press Ⓜ and > to select the SETUP menu.

2 Use √ to select DTV Settings then press OK.

SETUP Language English Country UK Auto Tuning ATV Manual Tuning DTV Manual Tuning DTV Settings Manual Setting AV Connection

3 Press √ to highlight PIN Setting then press OK.

DTV Settings Programmes Programme Options TV/Radio Mode All Progs Subtitle and Audio PIN Setting Parental Control Local Time Setting 10:49 Auto Programme Update Off

4 Using the number buttons enter a four digit number. Once entered you will be prompted to confirm by entering again.

New PIN Confirm PIN

The PIN number is now set.

If the PIN code has been set, enter your four digit code in the Enter PIN Code screen.

Enter PIN Code * * * *

The PIN Setting menu will appear. Use < or > to select Enabled or Disabled.

PIN Setting Enabled

NOTE: If the PIN code has been set, when Auto Tune and Reset TV are executed, entering the PIN will be necessary.

Parental Setup

The Parental Control feature allows you to block programmes according to their rating levels. If a PIN has been set, you will need to enter it before adjusting the level.

1 In the Parental Control menu press √ to select Parental Setup.

Parental Control Parental Setup ← None ►

2 Use < or > to choose options (None or age settings (4-18)).

To view blocked programmes, enter the PIN. To reactivate the Parental Control, turn the TV off and then on again.

Digital settings – Programme Options

Selecting favourite programmes

Favourite Programmes creates a list of the digital programmes that are watched most. Four lists can be created, these can be a mixture of television and radio programmes.

1 From the DTV Settings menu press √ to select Programme Options and press OK.

Programme Options Prog. Type Name 1 2 3 4 1 BBC ONE 2 BBC TWO 7 BBC THREE 30 CBBC Channel 40 BBC NEWS 24 51 BBCi

2 Use ∧ ∨ < > to go through the list of programmes. Press OK to select the ones required. A tick will appear in the box as they are selected.

To select all programmes in the highlighted column, press the RED button. To erase all programmes in the highlighted column, press the GREEN button.

Favourite Programme Lists

1 Press the TV/FAV RADIO button. The Programme List will appear. Press < or > to select the TV/Radio Mode and Favourites 1-4. The number of favourites available depends on how many lists have been created.

Programme List All Progs 1 BBC ONE 2 BBC TWO 7 BBC THREE 30 CBBC Channel 40 BBC NEWS 24 51 BBCi 800 S2Net1LCN2SID2 801 S3Net1LCN3SID3 802 S4Net1LCN4SID4 803 S1Net1LCN1SID1

2 Press ∧ or ∨ to highlight a programme and press Ⓞ to watch.

Locking programmes

Locking Programmes stops the viewing of digital channels, they can only be accessed by entering the PIN.

1 From the DTV Settings menu press √ to select Programme Options and press OK.

2 Press > repeatedly to select the Locked Programme list.

3 Use ∧ and ∨ to go through the list of programmes. Press Ⓞ to select the ones required. A tick will appear in the box.

If a PIN has already been set, PIN entry will be required to set the locked programmes.

Programme Options Prog. Type Name 1 2 3 4 1 BBC ONE ✓ 2 BBC TWO 7 BBC THREE 30 CBBC Channel 40 BBC NEWS 24 51 BBCi

4 Press EXIT.

5 From this point on, when any of the programmes in the Locked Programme list are selected the PIN must be entered before they can be accessed.

TV/Radio Mode

This feature determines the programme list profile that will be applied to regular programme changing, the programme guide, and the TV/FAV RADIO button in digital mode.

1 From the DTV Settings menu press ∧ or ∨ to select TV/Radio Mode.

2 Use < or > to select All Progs, TV or RADIO.

NOTE: When setting to TV or RADIO, using the P▼ and P▲ button will now only access that particular type of programme, however channels that are not in the currently selected list can still be selected by direct programme number entry.

Digital settings – other settings

Subtitles

In digital mode, this feature will show subtitles on the screen in the selected language provided they are being broadcast.

1 In the SETUP menu press √ to select DTV Settings.
2 Press OK, then press ∧ and ∨ to highlight Subtitle and Audio.
3 Press √ to select Subtitle and use < or > to select On or Off.

Subtitle and Audio
Subtitle	<	Off
Subtitle Type		Normal
Primary Subtitle Language		English
Secondary Subtitle Language		English
Audio Type		Normal
Primary Audio Language		English
Secondary Audio Language		English

4 Press ∨ to select Subtitle Type and use < or > to select Normal or For Hard of Hearing.
5 Press √ to select Primary Subtitle Language or Secondary Subtitle Language and use < or > to select an option.

The SUBTITLE button can also be used to select On or Off, and to select subtitle language if more than one subtitle is available.

Audio languages

This feature allows a programme or film to be viewed with a choice of soundtrack language, provided they are currently being broadcast.

In the Subtitle and Audio menu press √ to select Audio Type and use < or > to select Normal or For Hard of Hearing.
2 Press ∨ to select Primary Audio Language or Secondary Audio Language and use < or > to select an option.

If more than one soundtrack is available, use the ⒶI/Ⅱ button to select between them.

Common Interface

The Common Interface Slot, situated on the side of the television, enables the insertion of a CAM (Conditional Access Module) and card. These are purchased from a service provider and allow additional subscription broadcasts to be viewed. For information see a service provider.

1 Insert the CAM and card into the Common Interface Slot, following the instructions provided with the CAM. A box will appear on screen to confirm that the CAM has been inserted.
2 In the DTV Settings menu press ∧ or ∨ to select Common Interface and press OK.
3 Details of the CAM should now be available.

Software Upgrade

Version

This feature can be used to check the version of software currently installed.

1 From the SETUP menu press ^ or √ to select System Information.

SETUP 2/2 Picture Position Quick Setup Software Upgrade System Information Reset TV

2 Press OK to display the Software Version.

System Information Software Version AV555D 042.669 May 29 2008 - 11:59:26

Auto Upgrade

When Auto Upgrade is set to On (default setting), the television will automatically upgrade while in standby if new software is available.

1 From the SETUP menu press ^ or √ to select Software Upgrade and press OK.
2 Press √ to select Auto Upgrade.
3 Use < or > to select On or Off.

Searching for New Software

If preferred, software upgrades can be searched for manually using Search for New Software.

1 In the Software Upgrade menu press ^ or √ to select Search for New Software.
2 Press OK. The television will automatically start searching for a software upgrade, the progress bar will move along the line.

Search for New Software Searching for a new software upgrade for this TV. Searching 2%

If an upgrade is found the television will automatically start downloading. If not, a screen will appear stating that an upgrade is unavailable.

Reset TV

Selecting Reset TV will reset all TV settings, including stored channels, to their original factory values.

1 In the SETUP menu press √ until Reset TV is highlighted.
2 Press OK to select. A screen will appear warning that all settings will be lost. Press OK to continue.

When the set powers back on, the Quick Setup screen will appear. Press OK to continue, the television will then auto tune. (See 'Quick Setup' section on page 11.)

Input selection and AV connections

See page 7 for a clear view of the back connection recommendations.

Most media recorders and decoders send a signal through the SCART lead to switch the television to the correct Input socket.

Alternatively press the external source selection button ⬤ until the picture from connected equipment is shown.

This button must be used to view equipment connected using the COMPONENT VIDEO INPUT (EXT3) and the VIDEO INPUT (EXT4).

An S in the display e.g. 2S (EXT 2S), indicates the input is set for an S-Video signal.

Input selection

Use the Input Selection window if the television does not switch over automatically.

1 At any time by pressing ⬤ a list will appear on screen showing all stored programmes and external equipment. Use ∧ and ∨ to highlight and ⓄK to select.

Inputs DTV 1 2 3 4 HDMI1 HDMI2 ATV

HDMI™ displays equipment connected to Input HDMI on the back of the television.

INPUT signal selection

This specifies the type of signal going into SCART 2 (EXT2) on the back of the television. Please refer to the manufacturers instructions for the connected equipment.

1 In the SETUP menu press √ until AV Connection is highlighted, then press OK.

2 With < or > select either AV or S-VIDEO as the required input for EXT2.

AV Connection HDMI1 audio Auto. EXT2 Input AV Lip Sync On

If video colour is absent, try the alternative setting.

HDMI1 Audio

If the connected HDMI source does not support digital audio, plug the audio cable into HDMI1 (AUDIO) on the back of the television (as shown in the 'Connecting an HDMI™ or DVI device to the HDMI input' section), then use the HDMI1 Audio setting.

In the AV Connection menu press √ to highlight HDMI1 Audio and using < or > select Auto., Digital or Analogue.

If the sound is missing select an alternative setting.

NOTE: HDMI1 supports digital and analogue sound, HDMI2 is digital sound only.

Certain DVD disk formats may not output from this TV (32/44.1/48kHz and 16/20/24 bits are acceptable).

Lip Sync Latency

Lip Sync can synchronize the sound and picture. This feature is only available for HDMI equipment compatible with Lip Sync.

1 In the AV Connection menu press √ to highlight Lip Sync.

2 Using < or > select On or Off.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

Text services

This television has a multi-page text memory, which takes a few moments to load. It offers two Modes of viewing text – Auto. will display Fastext, if available. List will store your four favourite pages.

Selecting modes

The text character set will be automatically chosen by the language setting in the SETUP menu.

1 Select Teletext from the FUNCTION menu.

2 With < or > choose Auto. or List then press EXIT.

FUNCTION Teletext < Auto. > Panel Lock Off Auto Format On 4:3 Stretch Off Blue Screen On Side Panel 1

Text information

The ≡/∅/□ button:

To view text services press ☐/☐/☐. Press again to superimpose the text over a normal broadcast picture and again to return to normal viewing. Programmes cannot be changed until text is cancelled.

The first text page shown will be the initial page.

Any text page can be accessed by entering the 3 digit page number using the numbered buttons, pressing the coloured buttons or pressing P▲ to advance to the next page and P▼ to go back to the previous page.

Sub-pages

The pages on the screen will dynamically update as sub-pages are received.

To access the sub-pages selector press ☐ then use P▲ and P▼ to view them.

Once selected, the sub-page you are viewing will be highlighted and, as the television loads any additional sub-pages, the colour of the numbers will change, indicating that these pages have been loaded.

These sub-pages will remain available to view until another page is chosen or, in normal TV mode, the channel is changed.

Navigating pages using Auto

If Fastext is available four coloured titles will appear at the base of the screen.

To access one of the four given subjects, press the relevant coloured button on the remote control.

For further information on your particular text system(s), see the broadcast text index page or, consult your local Toshiba dealer.

Navigating pages using List

The four coloured choices at the bottom of the screen are numbers – 100, 200, 300 and 400, which have been programmed into the television's memory. To view these pages press the relevant coloured buttons.

To change these stored pages press the relevant coloured button and enter the 3 digit number. This number will change in the top left of the screen and in the coloured highlight.

Control buttons

Below is a guide to the functions of the remote control text buttons.

≡i To display the index/initial page:

Press i to access the index/initial page. The one displayed is dependant on the broadcaster.

☐/☐/☐ To display a page of text:

Press ☐/☐/☐ to display text. Press again to superimpose text over a normal picture. Press again to return to normal television viewing. Programmes cannot be changed until this has been done.

To access sub-pages:

For use with P▲ and P▼ to view sub-pages when available.

≡? To reveal concealed text:

To discover the solutions on quiz and joke pages press the ☐? button.

To hold a wanted page:

At times it is convenient to hold a page of text. Press 2 and 2 will appear in the top left of the screen. The page will be held on screen until the button is pressed again.

To enlarge the text display size:

Press ☑ once to enlarge the top half of the page, press again to enlarge the bottom half of the page. Press again to revert to normal size.

☑/☑ To select a page whilst viewing normal picture:

Enter the page number then press ⏻/≡×, normal picture will be displayed. The television will indicate when the page is ready by changing the colour of the page number at the top of the screen. Press ≡/∅/□ to view the page.

To display news flashes:

Select the news flash page for the chosen text service (see the index page of text service). The news flashes will be displayed as and when they are broadcast.

Remember to cancel text before changing channels - press the button twice.

Questions and Answers

Below are the answers to some of the most common queries.

For more information go to www.toshiba.co.uk

Why is there no sound or picture?

Check the television is not in standby mode. Check the mains plug and all mains connections.

There is a picture, but why is there little or no colour?

When using an external source, for instance, a poor quality video tape, if there is little or no colour, improvements may sometimes be achieved. The colour is factory set to Auto. to automatically display the best colour system.

To check that you have the best colour:

With the external source playing, select Manual Setting from the SETUP menu.

Manual Setting Colour system :Auto. EXT2 A

With ∧ or ∨ choose between Auto., PAL, SECAM, NTSC 4.43 or NTSC 3.58.

Why doesn't the video/DVD being played show on screen?

Make sure the VCR or DVD player is connected to the television as shown on page 7, then select the correct input by pressing ⬤.

Why is there a picture but no sound?

Check all lead connections.
No sound or unacceptable format sound may be received.
Check the volume has not been turned down or that sound mute has not been selected.

Why is the VCR/DVD picture in black and white?

Check the correct input has been chosen, S-VIDEO or AV. See AV Connections on page 32.

What else can cause a poor picture?

Interference or a weak signal. Try a different television station. Manual fine tuning may help.

Select the ATV Manual Tuning menu. Highlight the station and press OK, then press > to select Manual fine tuning.

Using ∧ or ∨ adjust to get the best picture and sound. Press Ⓒ and then Ⓔ.

Manual tuning Manual fine tuning: 0 2 I A C 60 Q 0 B B C 1

Why don't the controls of the television work?

Check that Panel Lock is not On.

Why doesn't the remote control work?

Check that the batteries aren't dead or inserted incorrectly.

Why is there a message permanently on the screen?

Remove it by pressing i+.

Why is the digital channel locked?

The channel has been selected in Locked Programmes (see 'Digital Settings' section).

Why can only certain digital channels be viewed?

A Favourite list has been selected (see 'Favourite Programmes' section), set the feature to All Progs or change channels by using the number buttons.

Q Why are some of the digital subscription channels unavailable?

A Your subscription needs upgrading. Contact your service provider.

Q Why is the soundtrack in English when a different audio language has been selected?

A The programme is currently being broadcast with an English soundtrack only.

Q Why is there incorrect or no sound when in DTV mode?

A Press I/II to ensure the hard of hearing option has not been selected.

Q What can be done if the PIN number has been forgotten?

A Use the Master PIN code of 1276, then change to a number of your choice. Ensure that no-one else can use the Master PIN by removing the Owner's Manual.

Q Why when digital subtitles have been selected are they not showing on screen?

A Subtitles are not currently being transmitted by the broadcaster.

Why is there no digital text service?

A The digital programme being viewed is not broadcasting digital text. Try another digital programme.

Q Why are there problems with analogue text?

A Good performance of text depends on a good strong broadcast signal. This normally requires a roof or loft aerial. If the text is unreadable or garbled, check the aerial. Go to the main index page of the text service and look for the User Guide. This will explain the basic operation of text in some detail. If further information is needed on how to use text see the text section.

Q Why are there no analogue text sub-pages?

A There are none broadcast or they have not yet loaded. Press the ⏻ button to access. (See text section).

Q Why is a page number visible at the top of the screen but no text?

A Text has been selected whilst viewing an external source without Teletext information.

Q Why are the colours wrong when an NTSC source is played?

A Connect the source via a SCART lead and play. Select Manual Setting from the SETUP menu.

Manual Setting Colour system:Auto. EXT2 A

1 Set the Colour to Auto. and exit.

2 Go to the Picture Settings menu and adjust the tint.

Q Why don't the devices connected via HDMI operate properly?

A Make sure to use cables with the HDMI logo HDMI (see page 8).

Some early HDMI equipment may not work properly with the latest HDMI TV products, due to new standard adoption. Try setting Lip Sync to Off.

Notes

For your own records

Cleaning the screen and cabinet...

Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.

Disposal...

The following information is only for EU-member states:

Disposal of products

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres.

The black bar indicates that the product was placed on the market after August 13, 2005.

By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Specifications and accessories

DVB-T Broadcast systems/channels Broadcast systems/channels

UK	UHF 21-68	PAL-I	UHF UK21-UK69
France	VHF 05-10 (VHF 01-05)UHF 21-69	PAL-B/G	UHF E21-E69VHF E2-E12, S1-S41
Germany	VHF 05-12UHF 21-69	SECAM-L	UHF F21-F69VHF F1-F10, B-Q
Austria	VHF 05-12UHF 21-69	SECAM-D/K	UHF R21-R69VHF R1-R12
Switzerland	VHF 05-12UHF 21-69
Italy	VHF 05-12 (D,E,F,G,H,H1,H2)UHF 21-69
Spain	UHF 21-69
Nederlands	VHF 05-12UHF 21-69
Sweden	VHF 05-12UHF 21-69
Finland	VHF 05-12UHF 21-69
Greece	VHF 05-12UHF 21-69
Video Input PAL, SECAM, NTSC 3.58/4.43

External connections

EXT1	Input/Output	21-pin SCART	RGB, A/V
EXT2	Input/Output	21-pin SCART	A/V, S-video
EXT3	Input	Phono jacks	Y, P_B/C_B, P_R/C_R
		Phono jacks	Audio L + R
EXT4	Input	Phono jack	Video
		Phono jacks	Audio L + R
HDMI 1/2	Input	HDMI ^TM (Audio LIP SYNC supported)
HDMI1 Audio		Phono jacks	Audio L + R

Stereo		Nicam2 carrier system
Visible Screen Size (approx.)	Model	32	80cm
		37	94cm
		42	107cm
Display		16:9
Sound output(at 10% distortion)		Main 10W + 10W
Power consumption as specified in EN60107-1 : 1997	Model	32	112W
		37	149W
		42	195W
Standby (approx.)	Model	32	0.9W
		37	0.9W
		42	0.9W
Dimensions (approx.)	Model	32	55cm (H) 80cm (W) 22cm (D)
		37	62cm (H) 91cm (W) 25cm (D)
		42	68cm (H) 101cm (W) 26cm (D)(Height dimension includes foot stand)
Weight (approx.)	Model	32	14.0 kg
		37	18.0 kg
		42	20.0 kg
Headphone socket		3.5mm stereo
Operating condition		Temperature 5°C - 35°C (41°F - 94°F) Humidity 20 - 80% (non-condensing)
Accessories		Remote control2 batteries(AAA, IEC R03 1.5V)

DVB is a registered trademark of the DVB Project

Printed on recycled paper. 100% Chlorine free.

© Toshiba Information Systems (U.K.) Limited

All rights reserved.

Reproduction in whole or part without written permission is strictly prohibited.

Toshiba Information Systems (U.K.) Limited

Consumer Products Division,

European Service Centre,

Admiralty Way, Camberley,

Specification is subject to change without notice.

Simple line icon of an open book with an information symbol (no text or numbers present)

Sommaire

INSTALLATION DU TÉLÉVISEUR

Line drawing of a handheld electronic device with multiple components, no text or symbols present

Format	Résolution	Fréquence V	Fréquence H	Fréquence pixel
480i	720 × 480i	59,940/60,000 Hz	15,734/15,750 kHz	27,000/27,027 MHz
576i	720 × 576i	50,000 Hz	15,625 kHz	27,000 MHz
480p	720 × 480p	59,940/60,000 Hz	31,469/31,500 kHz	27,000/27,027 MHz
576p	720 × 576p	50,000 Hz	31,250 kHz	27,000 MHz
1080i	1920 × 1080i	59,940/60,000 Hz	33,716/33,750 kHz	74,176/74,250 MHz
1080i	1920 × 1080i	50,000 Hz	28,125 kHz	74,250 MHz
720p	1280 × 720p	59,940/60,000 Hz	44,955/45,000 kHz	74,176/74,250 MHz
720p	1280 × 720p	50,000 Hz	37,500 kHz	74,250 MHz
1080p	1920 × 1080p	59,940/60,000 Hz	67,500 kHz	148,500 MHz
1080p	1920 × 1080p	50,000 Hz	56,250 kHz	148,500 MHz
1080p	1920 × 1080p	24,000 Hz	27,000 kHz	74,250 MHz
VGA	640 × 480	59,940/60,000 Hz	31,469/31,500 kHz	25,175/25,200 MHz

Quick Setup
Language	◀	English ▶
Country	UK
Primary Subtitle Language	English
Secondary Subtitle Language	English
Primary Audio Language	English
Secondary Audio Language	English

© Toshiba Information Systems (U.K.) Limited

Toshiba Information Systems (U.K.) Limited

Consumer Products Division,

European Service Centre,

Admiralty Way, Camberley,

Simple line drawing of a waving flag with an information icon inside (no text or symbols)

Inhalt

INSTALLATION IHRES FERNSEHGERÄTS

Active Backlight Control 23

Common Interface (CI) 30

Software Upgrade 31

Version 31

Line drawing of a battery pack with internal components and external casing (no text or symbols)

Nehmen Sie die

Format	Auflösung	V. Frequenz	H. Frequenz	Pixelfrequenz
480i	720 × 480i	59,940/60,000 Hz	15,734/15,750 kHz	27,000/27,027 MHz
576i	720 × 576i	50,000 Hz	15,625 kHz	27,000 MHz
480p	720 × 480p	59,940/60,000 Hz	31,469/31,500 kHz	27,000/27,027 MHz
576p	720 × 576p	50,000 Hz	31,250 kHz	27,000 MHz
1080i	1920 × 1080i	59,940/60,000 Hz	33,716/33,750 kHz	74,176/74,250 MHz
1080i	1920 × 1080i	50,000 Hz	28,125 kHz	74,250 MHz
720p	1280 × 720p	59,940/60,000 Hz	44,955/45,000 kHz	74,176/74,250 MHz
720p	1280 × 720p	50,000 Hz	37,500 kHz	74,250 MHz
1080p	1920 × 1080p	59,940/60,000 Hz	67,500 kHz	148,500 MHz
1080p	1920 × 1080p	50,000 Hz	56,250 kHz	148,500 MHz
1080p	1920 × 1080p	24,000 Hz	27,000 kHz	74,250 MHz
VGA	640 × 480	59,940/60,000 Hz	31,469/31,500 kHz	25,175/25,200 MHz

Quick Setup
Language	English
Country	UK
Primary Subtitle Language	English
Secondary Subtitle Language	English
Primary Audio Language	English
Secondary Audio Language	English

Simple grayscale oval shape with gradient shading, no text or symbols present

Simple 3D illustration of a gray sphere with a shadow on the left side, enclosed in a rectangular frame (no text or symbols)

SUPER LIVE2

Simple grayscale sphere centered within a rectangular frame (no text or symbols)

Simple grayscale sphere with gradient shading inside a rectangular frame (no text or symbols)

KINO1

Simple grayscale sphere with gradient shading on a plain background (no text or symbols)

Simple 3D sphere with a shadow on its left side, enclosed in a rectangular frame (no text or symbols)

KINO2

Simple grayscale oval shape with gradient shading, no text or symbols present

Simple grayscale illustration of a sphere with a shadow, enclosed in a rectangular frame (no text or symbols)

UNTERTITEL

Simple grayscale oval shape with a shadow on the left side, enclosed in a rectangular frame (no text or symbols)

3D Colour Management

Active Backlight Control

Common Interface (CI)

© Toshiba Information Systems (U.K.) Limited

Toshiba Information Systems (U.K.) Limited

Consumer Products Division,

European Service Centre,

Admiralty Way, Camberley,

Simple line icon of an open book with an information symbol (no text or numbers present)

Contenido

Line drawing of a handheld electronic device with battery, switch, and cylindrical components (no text or symbols)

Quick Setup
Language	◀	English ▶
Country	UK
Primary Subtitle Language	English
Secondary Subtitle Language	English
Primary Audio Language	English
Secondary Audio Language	English

Simple grayscale sphere centered within a rectangular frame (no text or symbols)

Nuevo PIN Confirmar PIN

Consumer Products Division, European Service Centre, Admiralty Way, Camberley, Surrey,

GU15 3DT England (Razón social)

ENGINEERING AND Q.A. MANAGER

(Cargo)

© Toshiba Information Systems (U.K.) Limited

Toshiba Information Systems (U.K.) Limited

Consumer Products Division,

European Service Centre,

Admiralty Way, Camberley,

Simple line drawing of a waving flag with an information icon inside (no text or symbols)

Sommario

Line drawing of a remote control device with battery, switch, and casing (no text or symbols)

Formato	Risoluzione	Frequenza V	Frequenza O	Frequenza di clock per pixel
480i	720 × 480i	59,940/60,000 Hz	15,734/15,750 kHz	27,000/27,027 MHz
576i	720 × 576i	50,000 Hz	15,625 kHz	27,000 MHz
480p	720 × 480p	59,940/60,000 Hz	31,469/31,500 kHz	27,000/27,027 MHz
576p	720 × 576p	50,000 Hz	31,250 kHz	27,000 MHz
1080i	1920 × 1080i	59,940/60,000 Hz	33,716/33,750 kHz	74,176/74,250 MHz
1080i	1920 × 1080i	50,000 Hz	28,125 kHz	74,250 MHz
720p	1280 × 720p	59,940/60,000 Hz	44,955/45,000 kHz	74,176/74,250 MHz
720p	1280 × 720p	50,000 Hz	37,500 kHz	74,250 MHz
1080p	1920 × 1080p	59,940/60,000 Hz	67,500 kHz	148,500 MHz
1080p	1920 × 1080p	50,000 Hz	56,250 kHz	148,500 MHz
1080p	1920 × 1080p	24,000 Hz	27,000 kHz	74,250 MHz
VGA	640 × 480	59,940/60,000 Hz	31,469/31,500 kHz	25,175/25,200 MHz

Quick Setup
Language	English
Country	UK
Primary Subtitle Language	English
Secondary Subtitle Language	English
Primary Audio Language	English
Secondary Audio Language	English

0001 RaiUno 10:52 Mar, 26 Apr ORA City Hospital 10:00 - 11:00 SD 16:9 News and Factual 8 min rim Success. Houses Behaving Badly 11:00- 11:45 Mostra anche RaiUno: City Hospital 10:00- 11:00

Impost. PIN Abilit.

La Società Toshiba Information Systems (U.K.) Limited Consumer Products Division, European Service Centre, Admiralty Way, Camberley, Surrey GU15 3DT.

© Toshiba Information Systems (U.K.) Limited

Toshiba Information Systems (U.K.) Limited

Consumer Products Division,

European Service Centre,

Admiralty Way, Camberley,

Printed on recycled paper. 100% Chlorine free.
