00GB_AV505D_EngOM.book Page 1 Saturday, November 24, 2007 5:53 PM AV50*

00GB_AV505D_EngOM.book Page 2 Saturday, November 24, 2007 5:53 PM

00GB_AV505D_EngOM.book Page 3 Saturday, November 24, 2007 5:53 PM English

SETTING UP Safety Precautions 4

Installation and important information 5 The remote control 6 Inserting batteries and effective range of the remote 6 Connecting external equipment 7 Connecting an HDMI™ or DVI device to the HDMI input 8 To connect an HDMI device 8 To connect a DVI device 8 Connecting a computer 9 To connect a PC to the HDMI terminal 9 Using the controls 10 Switching on 10 Using the remote control 10 Using the controls 10

CONTROLS AND FEATURES PROBLEM SOLVING Questions and Answers 35

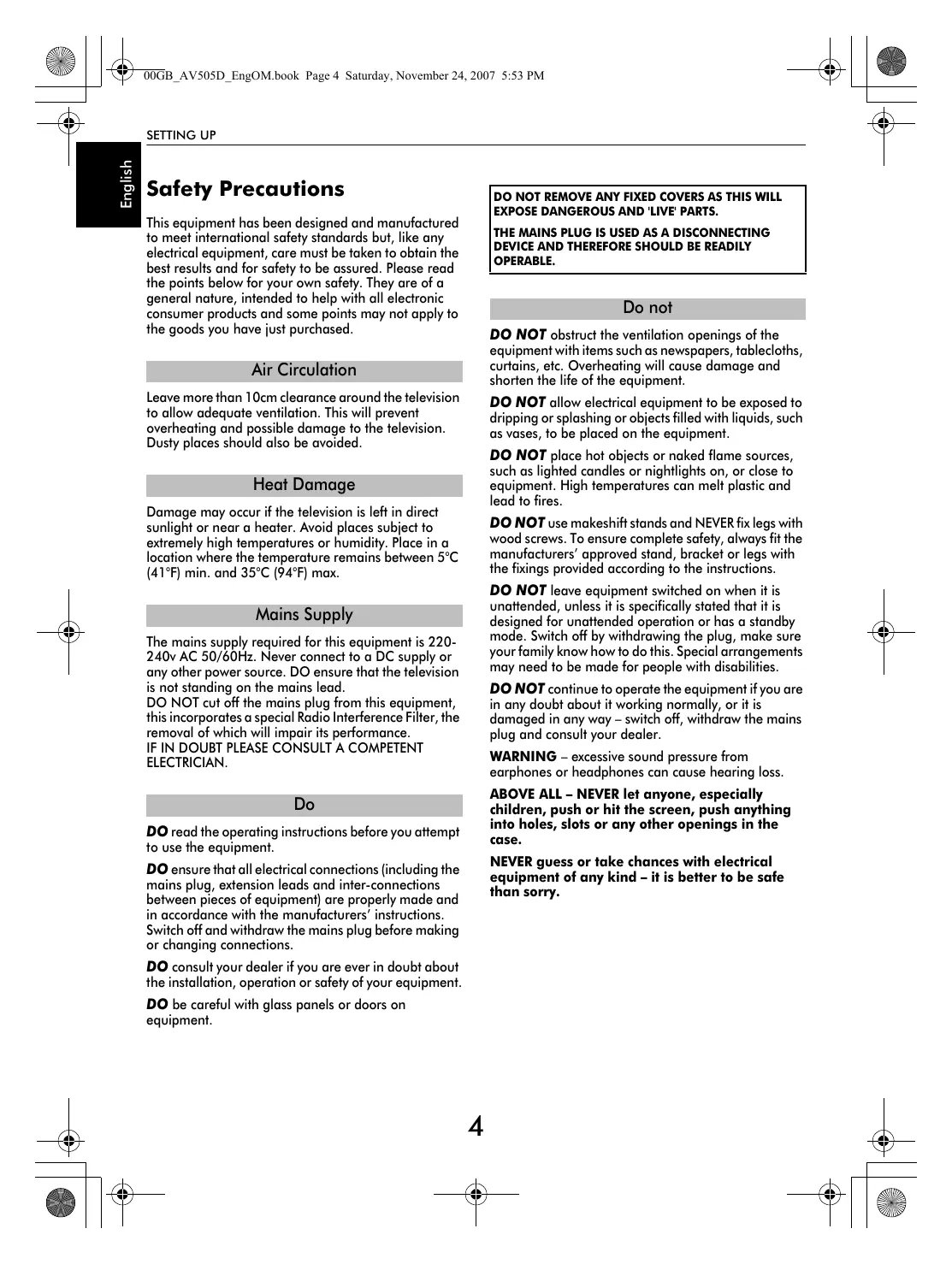

00GB_AV505D_EngOM.book Page 4 Saturday, November 24, 2007 5:53 PM English

SETTING UP Safety Precautions

DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND 'LIVE' PARTS.

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products and some points may not apply to the goods you have just purchased.

DO NOT obstruct the ventilation openings of the

equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

Leave more than 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television.

Dusty places should also be avoided.

DO NOT allow electrical equipment to be exposed to dripping or splashing or objects filled with liquids, such as vases, to be placed on the equipment.

DO NOT place hot objects or naked flame sources, such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.

Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5°C (41°F) min. and 35°C (94°F) max.

DO NOT use makeshift stands and NEVER fix legs with wood screws. To ensure complete safety, always fit the manufacturers’ approved stand, bracket or legs with the fixings provided according to the instructions.

DO NOT leave equipment switched on when it is unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, make sure your family know how to do this. Special arrangements may need to be made for people with disabilities.

The mains supply required for this equipment is 220240v AC 50/60Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead. DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance. IF IN DOUBT PLEASE CONSULT A COMPETENT ELECTRICIAN.

DO NOT continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way – switch off, withdraw the mains plug and consult your dealer.

WARNING – excessive sound pressure from earphones or headphones can cause hearing loss. ABOVE ALL – NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.

DO read the operating instructions before you attempt to use the equipment.

NEVER guess or take chances with electrical equipment of any kind – it is better to be safe than sorry.

DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections between pieces of equipment) are properly made and in accordance with the manufacturers’ instructions.

Switch off and withdraw the mains plug before making or changing connections. DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels or doors on equipment.

00GB_AV505D_EngOM.book Page 5 Wednesday, November 28, 2007 3:13 PM SETTING UP English

Installation and important information

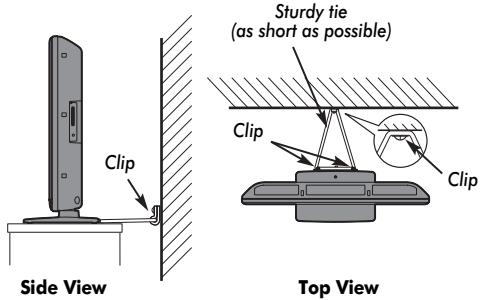

Where to install Locate the television away from direct sunlight and strong lights, soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.

(as short as possible)

Place on a sturdy platform, the mounting surface should be flat and steady. It should be secured to the wall with a sturdy tie using the clip on the back of the stand, or secured to the platform using the fixing strap located underneath the table top stand, this will prevent it from falling over.

The LCD display panels are manufactured using an extremely high level of precision technology, however sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen, and that small items cannot be inserted into slots or openings in the case.

EXCLUSION CLAUSE Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by: i) fire; ii) earthquake; iii) accidental damage; iv) intentional misuse of the product; v) use of the product in improper conditions; vi) loss and/or damage caused to the product whilst in the possession of a third party; vii) any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the owner’s manual; viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product. NOTE: A Toshiba wall bracket or stand, where available, must be used. If a non Toshiba wall bracket or stand is used the product’s BEAB approval will become void and the equipment is then used at the consumers own risk. • The digital reception function of this television is only effective in the countries listed in the “COUNTRY SET UP” section of the “DIGITAL MENU”. Depending on country/area, some of this television's functions may not be available. Reception of future additional or modified services can not be guaranteed with this television. • If stationary images generated by 4:3 broadcasts, text services, channel identification logos, computer displays, video games, on screen menus, etc. are left on the television screen for any length of time they could become conspicuous, it is always advisable to reduce both the brightness and contrast settings. • Very long, continuous use of the 4:3 picture on a 16:9 screen may result in some retention of the image at the 4:3 outlines, this is not a defect of the LCD TV and is not covered under the manufacturers warranty. Regular use of other size modes (eg: Superlive) and varying the “side panel” brightness (if available on the model) will prevent permanent retention.

00GB_AV505D_EngOM.book Page 6 Saturday, November 24, 2007 5:53 PM English

10 When using menus press U (up), u (down), I (left) and i (right) to move the cursor on the screen. Q to confirm your selection

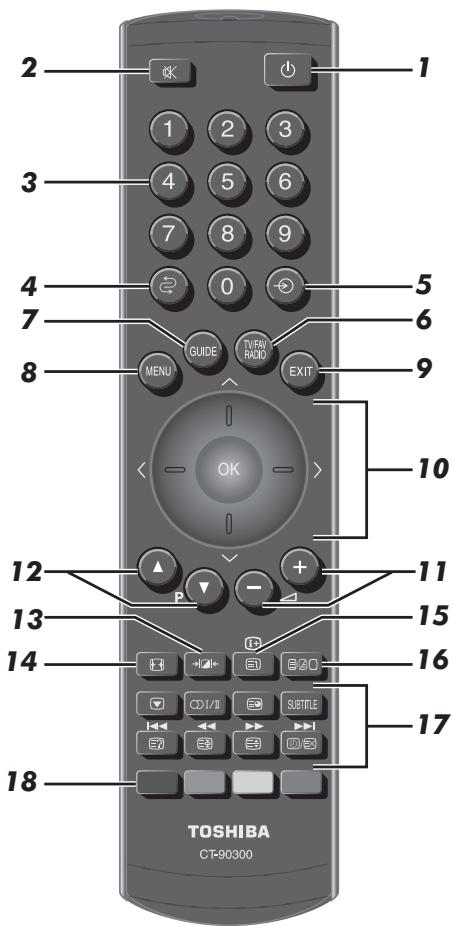

Simple at-a-glance reference of your remote control.

11 To alter the volume

12 To change programme positions and text pages 13 Selectable picture preferences

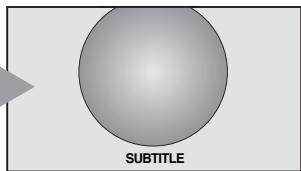

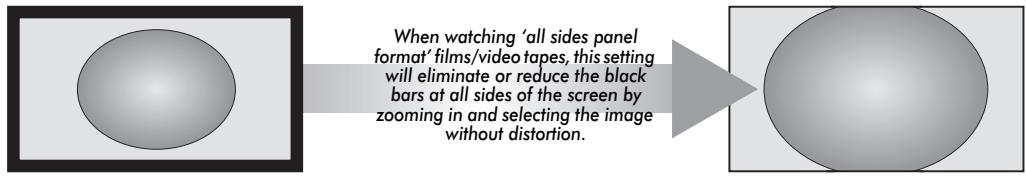

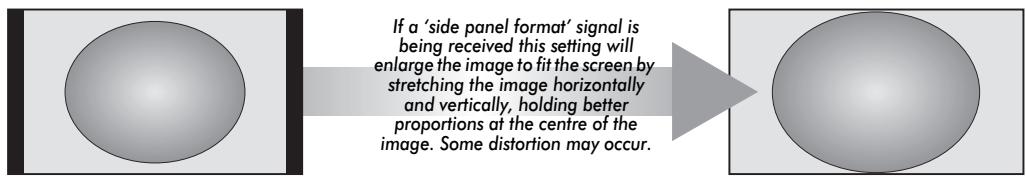

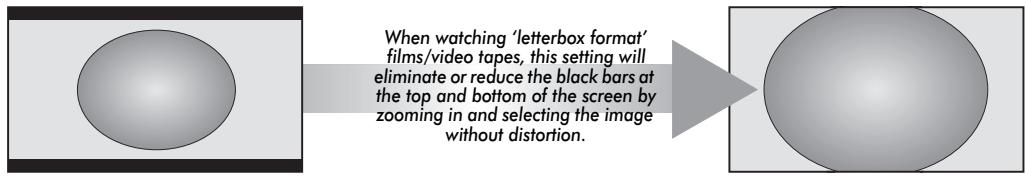

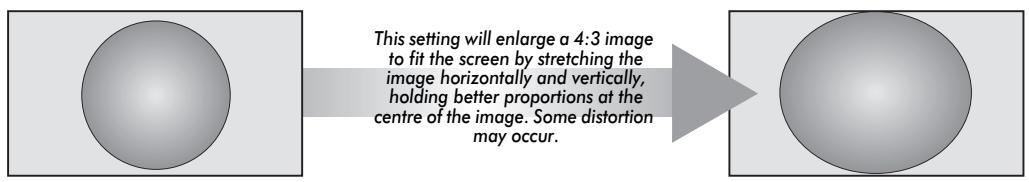

14 Widescreen viewing

15 To display on-screen information

16 To call up text services 17 When in TV mode: r Still picture s Stereo/bilingual transmissions SUBTITLE Digital Subtitles D Time display

When using the Programme Guide:

Z – 24 hours z + 24 hours CC – 1 page cc + 1 page 18 Text and interactive service control buttons

Inserting batteries and effective range of the remote

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the right way round. Suitable battery types for this remote are AAA, IEC R03 1.5V. Do not combine a used, old battery with a new one or mix battery types. Remove dead batteries immediately to prevent acid from leaking into the battery compartment. Dispose of them in a designated disposal area. Warning: batteries must not be exposed to excessive heat such as sunshine, fire or the like.

The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced the batteries may need replacing.

To return to the previous programme

To select input from external sources, analogue or digital

To switch between TV, Radio and Favourite programmes when in digital mode

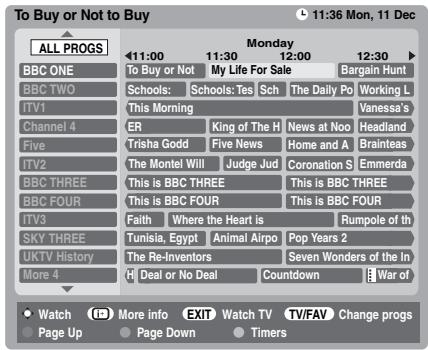

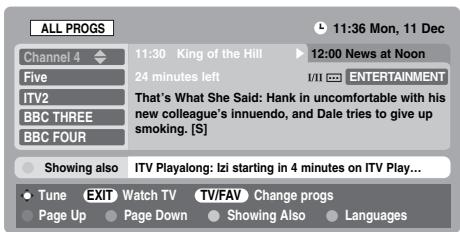

To display the digital on-screen Programme Guide

00GB_AV505D_EngOM.book Page 7 Saturday, November 24, 2007 5:53 PM SETTING UP English

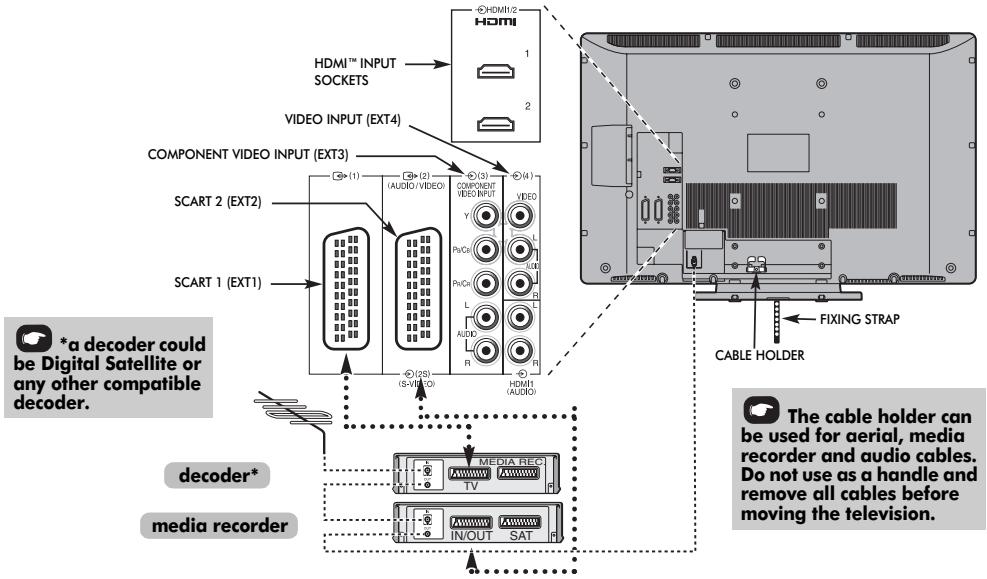

Connecting external equipment

Before connecting any external equipment, turn off all main power switches. If there is no switch remove the mains plug from the wall socket.

HDMI™ INPUT SOCKETS VIDEO INPUT (EXT4)

COMPONENT VIDEO INPUT (EXT3) SCART 2 (EXT2)

*a decoder could be Digital Satellite or any other compatible decoder.

CABLE HOLDER MEDIA REC.

decoder* media recorder

TV IN/OUT The cable holder can be used for aerial, media recorder and audio cables.

Do not use as a handle and remove all cables before moving the television.

SAT Aerial cables: - - - - - - - - - - - - - - - - - - - - - -

NOTE: Although this television is able to connect to HDMI equipment it is possible that some equipment may not operate correctly.

Connect the aerial to the socket on the rear of the television.

If you use a decoder* and/or a media recorder it is essential that the aerial cable is connected through the decoder and/or through the media recorder to the television.

A wide variety of external equipment can be connected to the back of the television, therefore the relevant owners manuals for all additional equipment must be referred to.

SCART leads: . . . . . . . . . . . . . . . . . . . . . . . . . .

Connect the video recorder IN/OUT socket to the television. Connect the decoder TV socket to the television. Connect the media recorder SAT socket to the decoder MEDIA REC. socket.

We recommend SCART 1 for a decoder and SCART 2 for a media recorder.

Before running Auto tuning put your decoder and media recorder to Standby.

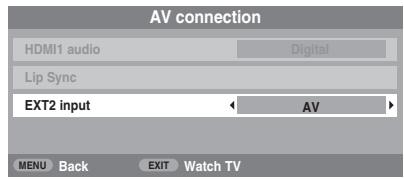

If connecting S-VIDEO equipment, set the INPUT for EXT2.

The phono sockets alongside the COMPONENT VIDEO INPUT sockets will accept L and R audio signals.

If the television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button. To recall external equipment, press o to select between DTV, EXT1, EXT2, EXT3, EXT4,

HDMI1, HDMI2 or ATV.

The phono sockets alongside the VIDEO INPUT socket will accept L and R audio signals.

HDMI™ (High-Definition Multimedia Interface) is for use with a DVD, decoder or electrical equipment with digital audio and video output. It is designed for best performance with 1080i high-definition video signals but will also accept and display VGA, 480i, 480p, 576i, 576p and 720p signals.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

00GB_AV505D_EngOM.book Page 8 Saturday, November 24, 2007 5:53 PM English

SETTING UP Connecting an HDMI™ or DVI device to the HDMI input

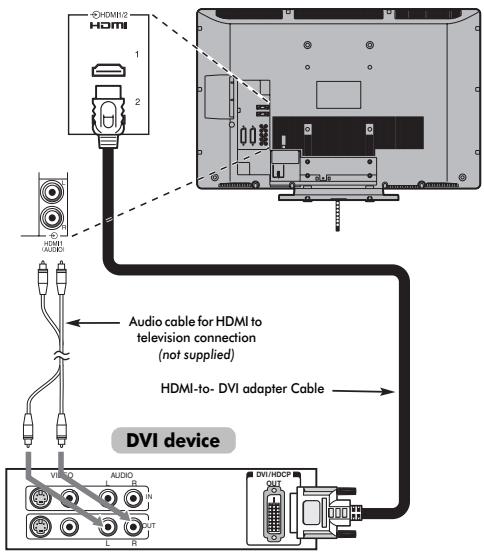

To connect a DVI device

Connect an HDMI-to-DVI adapter cable (HDMI type A connector) to HDMI1 terminal and audio cables to the HDMI1 Audio socket (see illustration). • The recommended HDMI-to-DVI adapter cable length is 6.6 ft (2m). • An HDMI-to-DVI adapter cable transfers video only. Separate analog audio cables are required. • See “HDMI1 audio” on page 32.

The HDMI input on your television receives digital audio and uncompressed digital video from an

HDMI source device, or uncompressed digital video from a DVI (Digital Visual Interface) source device. This input is designed to accept HDCP (High-Bandwidth Digital-Content Protection) program material in digital form from EIA/CEA-861-D–compliant [1] consumer electronic devices (such as a set-top box or DVD player with HDMI or DVI output). For acceptable video signal formats, see page 9. NOTE: • Some early HDMI equipment may not work properly with your latest HDMI TV, due to the adoption of a new standard. • Supported Audio format: Linear PCM, sampling rate 32/ 44.1/48kHz.

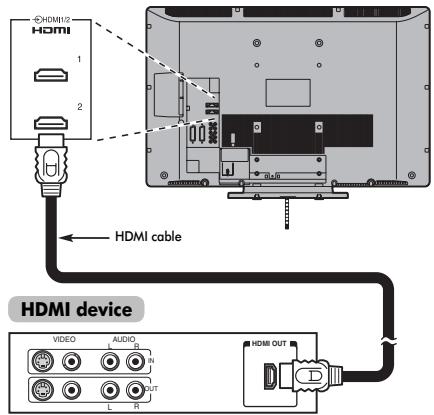

To connect an HDMI device

Connect an HDMI cable (type A connector) to the HDMI terminal.

Audio cable for HDMI to television connection

For proper operation, it is recommended that you use an HDMI cable with the HDMI Logo (

). • HDMI cable transfers both video and audio. Separate analog audio cables are not required (see illustration). • See “HDMI1 audio” on page 32.

HDMI-to- DVI adapter Cable

To ensure that the HDMI or DVI device is reset properly, it is recommended that you follow these procedures: • When turning on your electronic components, turn on the television first, and then the HDMI or DVI device. • When turning off your electronic components, turn off the HDMI or DVI device first, and then the television.

To view the HDMI device video, press the o to select HDMI1 or HDMI2 mode.

[1] EIA/CEA-861-D compliance covers the transmission of uncompressed digital video with high-bandwidth digital content protection, which is being standardized for reception of high-definition video signals. Because this is an evolving technology, it is possible that some devices may not operate properly with the television.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

00GB_AV505D_EngOM.book Page 9 Saturday, November 24, 2007 5:53 PM SETTING UP English

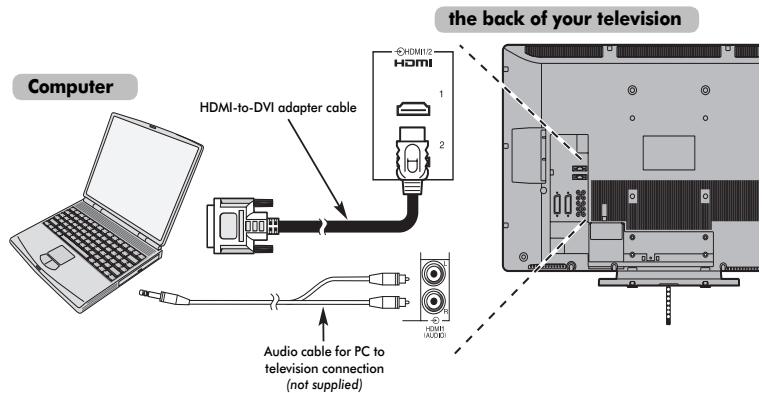

Connecting a computer

With the HDMI connection, you can watch your computer’s display on the television and hear the sound from the televisions speakers.

To connect a PC to the HDMI terminal

When connecting a PC to the HDMI terminal on the television, use an HDMI-to DVI adapter cable and analog audio cables. If connecting a PC with an HDMI terminal, use an HDMI cable (type A connector). Separate analog cables are not necessary (see page 8). the back of your television

HDMI-to-DVI adapter cable

Audio cable for PC to television connection

For acceptable PC signal formats, see “Acceptable video or PC singnals through HDMI terminals”.

NOTE: The edges of the images may be hidden.

Acceptable video or PC signals through HDMI terminals

Pixel Clock Frequency

00GB_AV505D_EngOM.book Page 10 Saturday, November 24, 2007 5:53 PM English

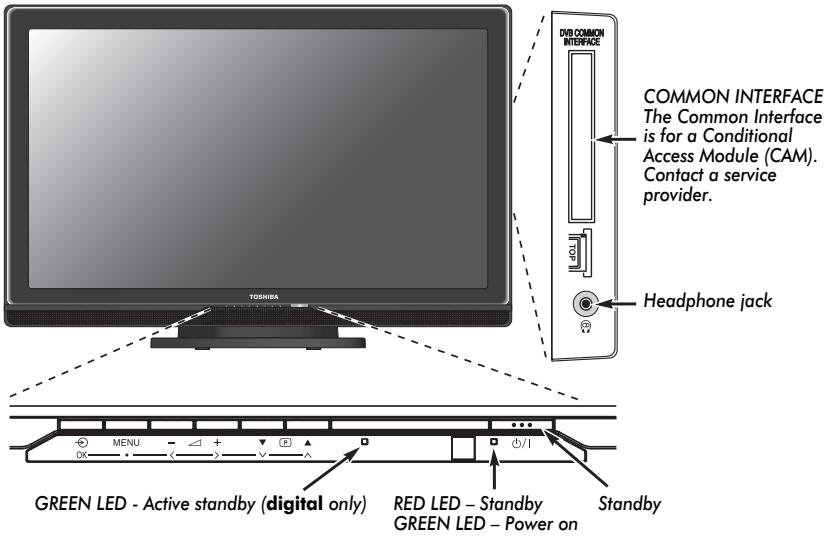

SETTING UP Using the controls

Whilst all the necessary adjustments and controls for the television are made using the remote control, the buttons on the television may be used for some functions.

COMMON INTERFACE The Common Interface is for a Conditional

Access Module (CAM). Contact a service provider.

GREEN LED - Active standby (digital only)

GREEN LED – Power on

If the RED LED is unlit check that the mains plug is connected to the power supply. If the picture does not appear press 1 on the remote control, it may take a few moments.

To put the television into Standby press 1 on the remote control, the GREEN active standby LED will appear (see ‘Software Upgrade’ section) next to the RED for a few moments then disappear. To view the television press 1 again. The picture may take a few seconds to appear.

To alter the volume press – 2 +.

To alter the programme position press b p B. Press MENU and I, i, U or u to control the sound and picture options. Press MENU to finish. To select the external input, press o until the appropriate input source is selected as described on page 31. Please always refer to the owner’s manual of the equipment to be connected for full details.

Using the remote control

Press M on the remote control to see the menus. In digital mode the menu bar at the top of the screens will show three different topics shown in symbols. As each symbol is selected by pressing the I or i button on the remote control, its respective options will appear below.

Please note: Inserting the headphone plug will mute the sound from all speakers.

In analogue mode the menu appears as a list of five topics.

As each symbol is selected by pressing I or i on the navigation ring on the remote control, its respective options will appear below. To use the options press the U and u button on the remote control to move up and down through them and Q, I or i to select the required choice. Follow the on-screen instructions. The functions of each menu are described in detail throughout the manual.

00GB_AV505D_EngOM.book Page 11 Saturday, November 24, 2007 5:53 PM When the search is complete the television will automatically select programme one.

Before switching on the television put your decoder and media recorder to Standby if they are connected.

To set up the television use the buttons on the remote control as detailed on page 6.

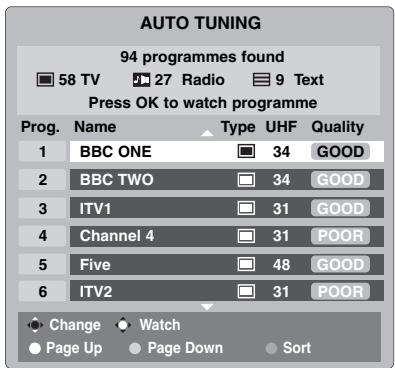

The AUTO TUNING screen will display the total number of services found.

AUTO TUNING 94 programmes found

58 TV Tuning for the first time

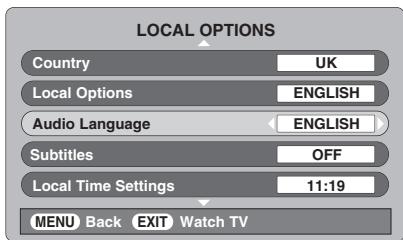

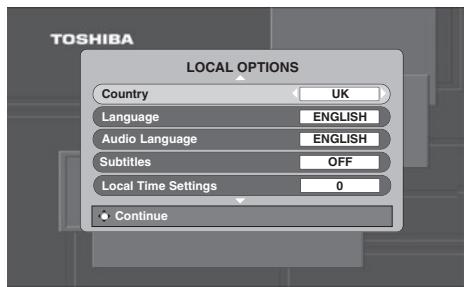

Press the 1 button, the LOCAL OPTIONS screen will appear. This screen will appear the first time that the television is switched on and each time the television is reset.

ENGLISH Audio Language

OFF Local Time Settings

Press OK to watch programme

Use u or U to move through the list to select a programme then press Q to view.

NOTE: The time will be set automatically by transmission but can be advanced or decreased by up to 3 hours using Local Time Settings.

Press u to highlight Country and I or i to select. The television will now tune the stations for your country.

Using u highlight Language, then I or i to select.

Press Q to start tuning.

The AUTO TUNING screen will appear and the television will start to search for available stations. The progress bar will move along the line. You must allow the television to complete the search. AUTO TUNING Progress Prog. Name

Tuning Digital television

00GB_AV505D_EngOM.book Page 12 Saturday, November 24, 2007 5:53 PM English

You must allow the television to complete the search.

NOTE: As new services are broadcast it will be necessary to retune the television in order to view them.

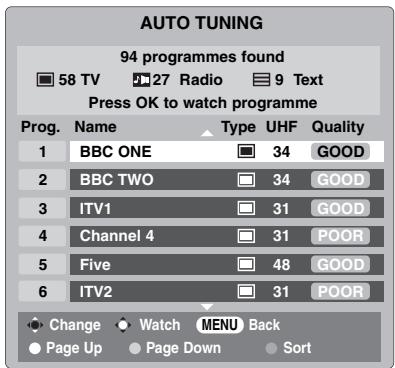

When the search is complete the Auto tuning screen will display the total number of services found.

Auto tuning will completely re-tune the television and can be used to up date the channel list.

It is recommended that Auto tuning is run periodically to ensure that all new services are added. All current programmes and settings, i.e. favourites and locked programmes, will be lost.

94 programmes found 58 TV 27 Radio 9 Text Press OK to watch programme Prog. Name Type UHF Quality

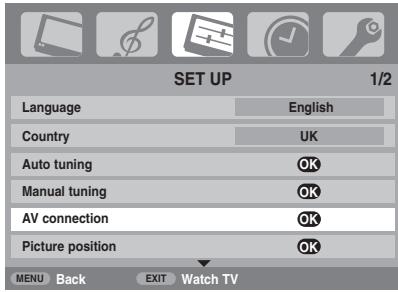

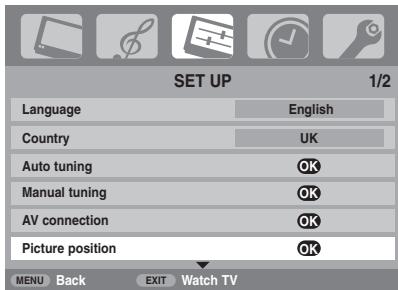

Press M, the SETUP MENU will appear.

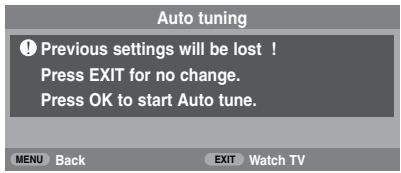

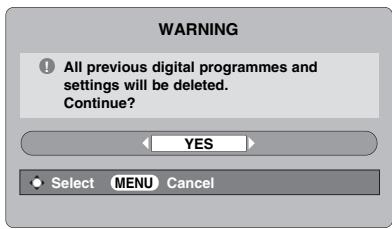

Use u to highlight Auto tuning. Press Q. A screen will appear warning that previous digital programmes and settings will be deleted. Press Q to continue with the Auto tuning. WARNING

Use u or U to move through the list to select a programme then press Q to view.

The television will start to search for all available stations.

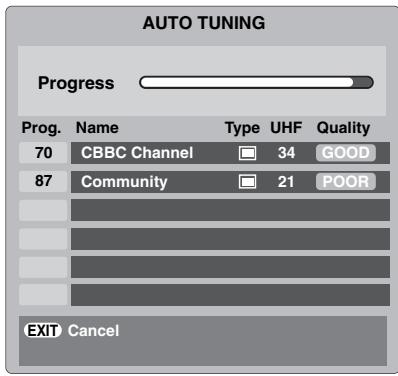

AUTO TUNING Progress Prog. Name

! All previous digital programmes and settings will be deleted.

POOR This is a digital television which is integrated to allow the use of both digital and analogue services. However, during the lifetime of this set it is very likely that analogue services will be switched off to allow for more new digital services.

This ‘switch-off’ will happen in a number of phases, which will be advertised in your area well in advance. It is recommended that at each phase the television is re-tuned to ensure that existing and new digital services can be viewed without disruption (see the 'Auto tuning' section).

00GB_AV505D_EngOM.book Page 13 Saturday, November 24, 2007 5:53 PM Digital manual tuning

This feature is available for service engineers or can be used for direct channel entry if the multiplex channel is known.

NOTE: When the television is switched off the mode being viewed at the time will automatically be selected when the television is switched back on.

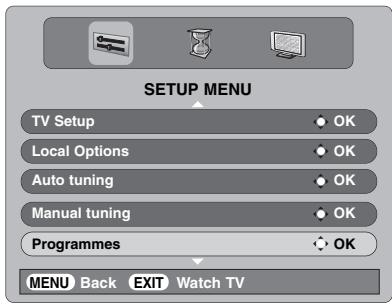

The station order may be changed to suit personal preference. Press M, the SETUP MENU will appear on screen.

Use u to move down through the list and highlight

Programmes. Press Q.

Select Manual tuning from the SETUP MENU and press Q.

Enter the multiplex number using the number buttons and then press Q. The television will automatically search for that multiplex.

When the multiplex is found any channels not currently on the programme list will be added and the programme information at the top of the screen will be updated.

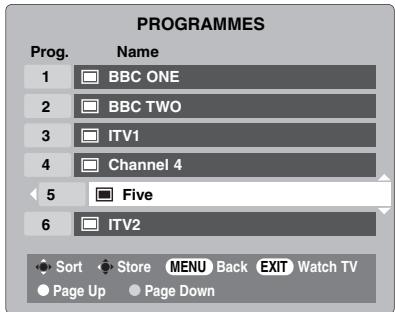

EXIT Watch TV With the list of stations now showing use u or U to highlight the station you want to move and press i.

The selected station will be moved to the right of the screen. PROGRAMMES Prog.

Use u or U to move through the list to your preferred position. As you do so the other stations will move to make room.

Press I to store your move. Repeat as necessary, then press P.

Repeat as necessary. Press P to finish.

Digital programme sorting

00GB_AV505D_EngOM.book Page 14 Saturday, November 24, 2007 5:53 PM English

Tuning Analogue mode

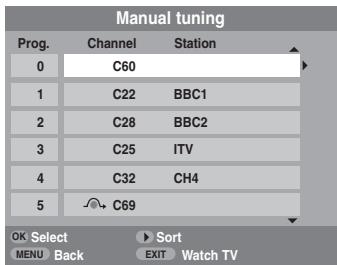

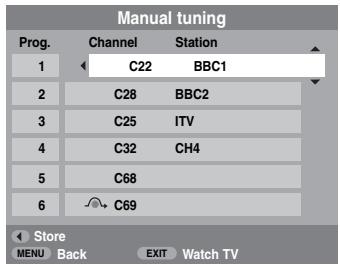

The station order may be changed using the Manual tuning screen (see the analogue ‘Sorting programme positions’ section).

The Quick Setup feature will tune all analogue channels currently available in the area. To put the television into ATV mode press the o button then use U or u to select ATV.

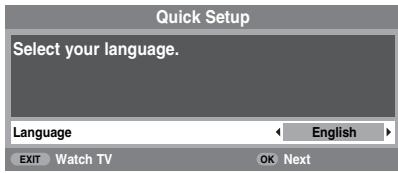

Select ATV mode. The Quick Setup screen will appear.

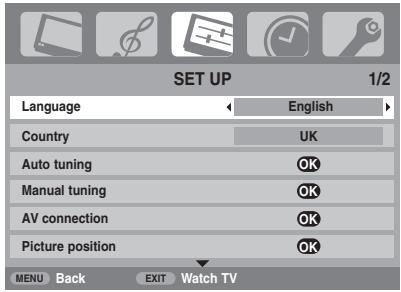

Quick Setup Select your language.

Using I or i select your language, then press Q.

Then press I or i to select your country.

To start Auto tuning press Q.

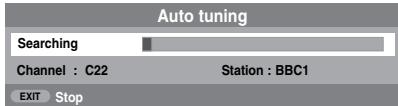

Auto tuning Searching Channel : C22 EXIT

The search will begin for all available stations.

The slide bar will move along the line as the search progresses. You must allow the television to complete the search. When the search is complete the television will automatically select programme position 1 and the Manual tuning screen will appear. Manual tuning Prog.

Use u or U to move through the list to select a programme then press P to view.

00GB_AV505D_EngOM.book Page 15 Saturday, November 24, 2007 5:53 PM The television can be tuned-in manually using Manual tuning. For example: if the television cannot be connected to a media recorder/decoder with a SCART lead or to tune-in a station on another System.

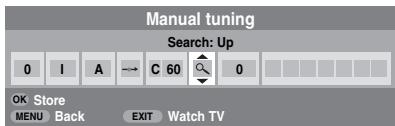

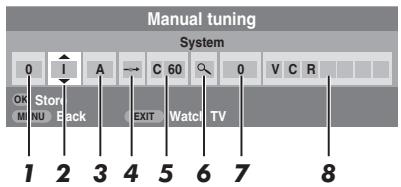

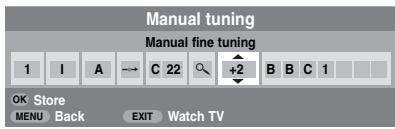

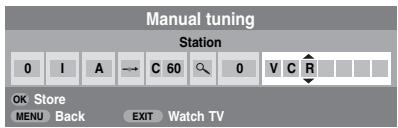

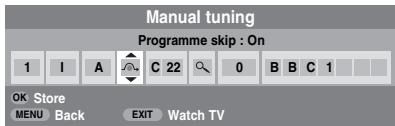

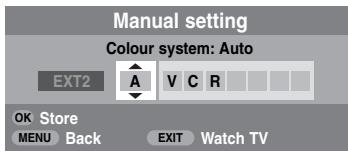

Use I and i to move across the screen and select any of these Manual Tune options. System

The number to be pressed on the remote control.

Specific to certain areas.

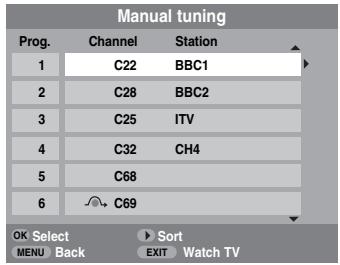

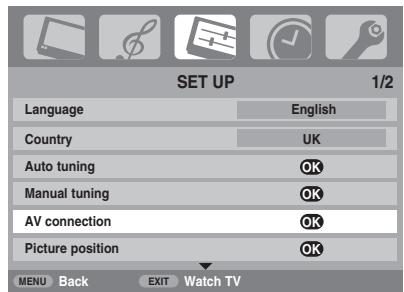

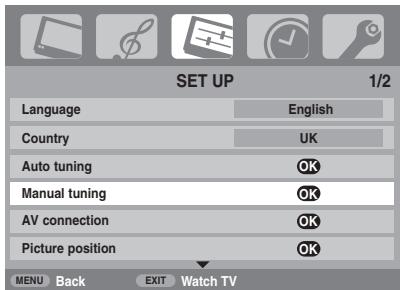

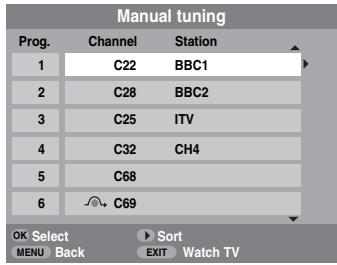

Press M and using I or i select the SET UP menu, with u highlight Manual tuning, press Q to select.

Watch TV EXIT Use U or u to highlight the programme position required e.g. we suggest Prog. 0 for a media recorder.

Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from external source. Programme skip: 8 means nothing has been stored or the facility to skip the channel is ON. See page 16. OK

The channel number on which a station is being broadcast.

Search up and down for a signal.

Only used if interference/weak signal is experienced. See page 35.

Station identification. Use the U or u and I or i buttons to enter up to seven characters.

MENU Watch TV EXIT Different Channel numbers may be displayed.

To allocate a programme position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded film in the media recorder and press PLAY, then manually tune.

Press Q to select. If the programme is skipped,

Programme skip must be removed before storing. Manual tuning System 0

I A Press i to select System and use U or u to change if required.

Then press i to select Search.

Press U or u to begin the search. The search symbol will flash.

Manual tuning Search: Up 0

00GB_AV505D_EngOM.book Page 16 Saturday, November 24, 2007 5:53 PM English

Each signal will show on the television, if it is not your media recorder, press U or u again to restart the search.

When your media recorder signal is found, press i to move along to Station. With U, u, I and i put in the required characters, e.g. VCR.

To prevent certain programmes from being viewed, the programme position can be skipped. The remote control must be removed as the channels will still be available using the number buttons. Programmes can then be watched as normal using the controls on the television, but the television will not show the skipped programme position.

Select Manual tuning from the SET UP menu.

EXIT Watch TV Press Q to store.

Repeat for each programme position you want to tune or, press M to return to the list of channels and select the next number to tune.

Press P when you have finished.

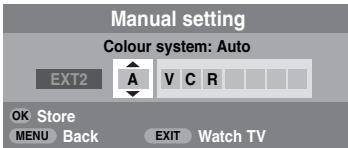

To name external equipment, e.g. DVD on EXT2, press o to select o2, then select Manual setting from the

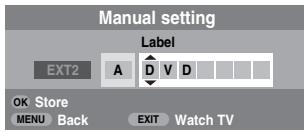

Press i to select Label then using U, u, I and i put in the required characters.

Use U or u to highlight the programme position to be skipped and press Q to select.

Press i to select Programme skip.

Use U or u to turn Programme skip on.

8 on the screen indicates a skipped programme position.

I PLEASE NOTE This television has direct channel entry if the channel numbers are known.

Select the Manual tuning screen in Step 3. Enter the Programme number, the System, then C for standard (terrestrial) channels or S for cable channels and the Channel number. Press Q to store.

EXIT Watch TV Press M and repeat from Step 2 or press P.

Each programme position has to be individually selected. To turn Programme skip off, repeat the procedure for each position. Skipped programme positions cannot be selected by

> and < or by the controls on the television, but can still be accessed by the number buttons on the remote control.

00GB_AV505D_EngOM.book Page 17 Saturday, November 24, 2007 5:53 PM Using Auto tuning

Channels may be moved and stored on the programme position of your choice.

Select Manual tuning from the SET UP menu.

With the list of stations now showing use U or u to highlight the station you want to move and press i.

SET UP Manual tuning

To set up the television using Auto tuning, press M and use I or i to select the SET UP menu.

OK The selected station will be moved to the right of the screen.

Sorting programme positions

Press u to highlight Language and I or i to select.

Using u highlight Country, then I or i to select. The television will now tune the stations for your country.

Press u to highlight Auto tuning, then press Q.

Watch TV Use U or u to move through the list to your preferred position. As you do so the other stations will move to make room.

! Previous settings will be lost !

Press EXIT for no change. Press OK to start Auto tune.

Press I to store your move.

Repeat as necessary, then press P.

EXIT Watch TV You must allow the television to complete the search.

When the search is complete the television will automatically select programme position 1. This may not be a clear picture, so the station order can be changed (see ‘Sorting programme positions’ section).

00GB_AV505D_EngOM.book Page 18 Saturday, November 24, 2007 5:53 PM English

CONTROLS AND FEATURES General controls

In analogue mode, press M and I or i to select

Selecting programme positions

To select a programme position use the numbered buttons on the remote control.

SOUND Programme positions can also be selected using > and <.

To revert to the previous programme position press

To display on-screen information i.e. programme position, input mode or stereo/mono signal, press

. Press again to cancel.

The Time Display – analogue only

MENU The time display facility allows the current (text service) time to be seen on the television screen.

Press D whilst watching a normal television broadcast to see a time display from the broadcaster. It will remain on screen for about 5 seconds.

Stereo and Bilingual transmissions

Volume controls and mute sound

Volume Press Y or y to adjust the volume.

The sound controls are accessible in digital and analogue modes, as are most of the televisions features.

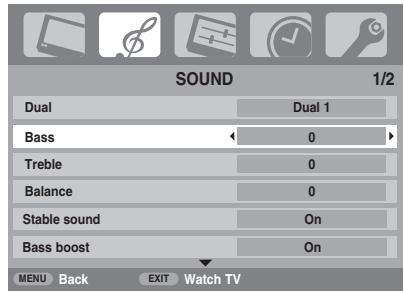

In digital mode, press M and using u highlight TV Setup then press Q.

Use I or i to select SOUND.

Press u to highlight Bass, Treble or Balance and I or i to change the setting.

In the SOUND menu press u to highlight Bass boost.

Use I or i to select On.

Then press u to highlight Bass boost level and using

I or i adjust to suit your preference.

Dual – analogue only

If a programme or film is being broadcast with a soundtrack in more than one language, the DUAL feature allows selection between them.

Press M and select the SOUND menu.

Use u to highlight Dual then press I or i to choose between Dual 1 or Dual 2.

Press once to turn the sound off and again to cancel.

Bass, Treble and Balance

Bilingual… Bilingual transmissions are rare. If they are transmitted the word Dual will display. Choose the required programme number and if the word Dual appears press s to select Dual 1, Dual 2 or Mono.

EXIT Bass boost enhances the depth of the sound on the TV speakers. The difference will only be noticeable on sound with a strong bass.

If stereo or dual language broadcasts are transmitted the word

Stereo or Dual will appear on the screen each time programme positions are changed, disappearing after a few seconds. If the broadcast is not in stereo the word Mono will appear. Stereo… Press s to select Stereo or Mono.

The Stable Sound feature limits high volume levels on the TV speakers, preventing the extreme changes in volume that can occur when channels are changed or a programme switches to a commercial.

Use u to highlight Stable sound then press I or i to select On or Off.

00GB_AV505D_EngOM.book Page 19 Saturday, November 24, 2007 5:53 PM CONTROLS AND FEATURES English

Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats. Press repeatedly to select between 4:3, Super Live 1, Cinema 1, Subtitle, 14:9, Wide, Super Live 2, Cinema 2 and PC.

This setting will enlarge a 4:3 image to fit the screen by stretching the image horizontally and vertically, holding better proportions at the centre of the image. Some distortion may occur.

If a ‘side panel format’ signal is being received this setting will enlarge the image to fit the screen by stretching the image horizontally and vertically, holding better proportions at the centre of the image. Some distortion may occur.

When watching ‘letterbox format’ films/video tapes, this setting will eliminate or reduce the black bars at the top and bottom of the screen by zooming in and selecting the image without distortion.

When watching ‘all sides panel format’ films/video tapes, this setting will eliminate or reduce the black bars at all sides of the screen by zooming in and selecting the image without distortion.

SUBTITLE When subtitles are included on a letterbox format broadcast, this setting will raise the picture to ensure that all the text is displayed.

00GB_AV505D_EngOM.book Page 20 Saturday, November 24, 2007 5:53 PM English

CONTROLS AND FEATURES

WIDE Use this setting when watching a

Use this setting when watching a widescreen DVD, widescreen video tape or a 16:9 broadcast (when available). Due to the range of widescreen formats (16:9, 14:9,

20:9 etc.) black bars may be visible on the top and bottom of the screen.

Use this setting to view a true 4:3 broadcast.

PC When using a PC connected via HDMI this setting will show the picture without over scan, i.e. WYSIWYG.

This option is only available when watching 1080i or 720p source via HDMI.

Press and a list of all the widescreen formats will appear on screen.

Use U and u to highlight the required format and Q to select.

Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

00GB_AV505D_EngOM.book Page 21 Saturday, November 24, 2007 5:53 PM CONTROLS AND FEATURES Backlight

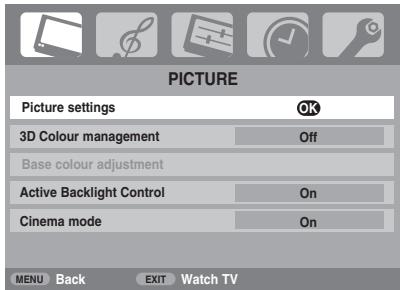

Most of the picture controls and functions are available in both digital and analogue modes. To access the required menus when in digital mode: press M and using u select TV Setup, press Q then I or i to select the desired menu.

PLEASE NOTE: features not available in digital mode will be greyed out. To access the required menus when in analogue mode: press M and use I or i to select the desired menu.

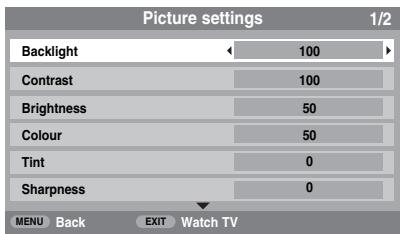

Adjusting the Backlight can improve the clarity of the screen when viewing.

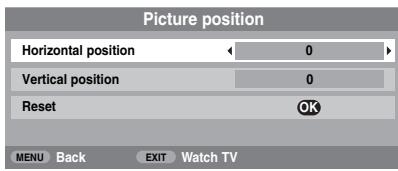

In the SET UP menu press u until Picture position is highlighted.

SET UP Picture settings

3D Colour management

Base colour adjustment

The picture position may be adjusted to suit personal preference and can be particularly useful for external inputs.

In the PICTURE menu press u to select Picture settings, then press Q.

PICTURE Picture position – analogue only

Active Backlight Control

In the Picture settings menu press u to select

Press I or i to adjust.

Press Q to view the options available for the picture format that has been selected.

Press U and u to select an option, then I or i to adjust the settings.

The options alter depending on the widescreen format chosen and when viewing connected equipment. In Cinema 2: Picture position Horizontal position

EXIT Watch TV To return to the original factory settings select Reset in the Picture position menu and press Q.

00GB_AV505D_EngOM.book Page 22 Saturday, November 24, 2007 5:53 PM English

CONTROLS AND FEATURES Picture preferences

This television offers the choice of personalising the picture style. Press to view the different styles available:

When watching a DVD the compression may cause some words or picture elements to become distorted or pixelated.

Using the MPEG NR feature reduces this effect by smoothing out the edges.

Dynamic, Standard and Movie are preset options and effect many features/settings within the television, User setting stores your own settings as detailed below:

Select Picture settings from the PICTURE menu.

DNR – Digital Noise Reduction

DNR enables you to ‘soften’ the screen representation of a weak signal to reduce the noise effect.

EXIT Select MPEG NR from the Picture settings menu. Use

I or i to select a setting to suit your preference.

Select DNR from the Picture settings menu.

Use I or i to select between Auto., Low, Middle,

High and Off. The differences may not always be noticeable (for the best result use lower settings as picture quality can be lost if the setting is too high).

Watch TV Use I or i to adjust the Contrast, Brightness, Colour,

Black stretch Black Stretch increases the strength of dark areas of the picture which improves the definition.

Colour Temperature increases the ‘warmth’ or ‘coolness’ of a picture by increasing the red or blue tint.

In the Picture settings menu press u until Black

Stretch is highlighted. Picture settings

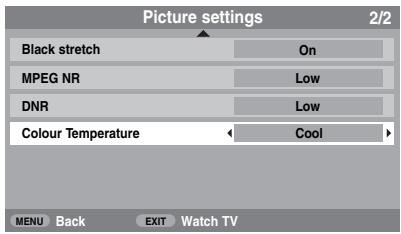

In the Picture settings menu press u until Colour

Temperature is highlighted. Picture settings

Press I or i to select between On and Off. The effect depends on the broadcast and is most noticeable on dark colours.

EXIT Watch TV Press I or i to select between Natural, Warm and

Cool to suit your preference.

00GB_AV505D_EngOM.book Page 23 Saturday, November 24, 2007 5:53 PM CONTROLS AND FEATURES Active Backlight Control

When 3D Colour management is selected it allows the ‘Base colour adjustment’ feature to become available.

When Active Backlight Control is activated it will automatically optimise the backlighting levels for dark scenes.

In the PICTURE menu press u to select Active

Press I or i to select On or Off.

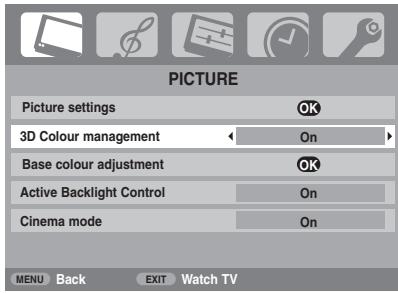

In the PICTURE menu press u to select 3D Colour management.

3D Colour management

Base colour adjustment

OK Active Backlight Control

OK If there are lines or jagged edges in the film or programme being viewed, selecting Cinema mode can help correct this by smoothing out the picture.

In the PICTURE menu press u to select Cinema mode.

Press I or i to select On or Off.

Press I or i to select On or Off.

NOTE: When a DVD with subtitles is being played this mode may not work correctly.

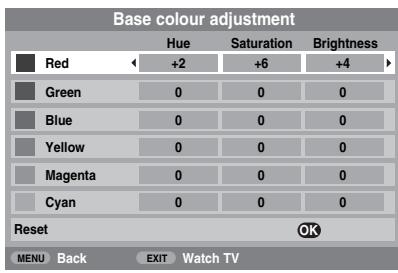

Base colour adjustment

Automatic format (Widescreen)

The Base colour adjustment feature allows the adjustment of individual colours to suit personal preference. This can be useful when using an external source.

In the PICTURE menu press u to select Base colour adjustment, then press Q.

Press U or u to select an option, then i to adjust the settings.

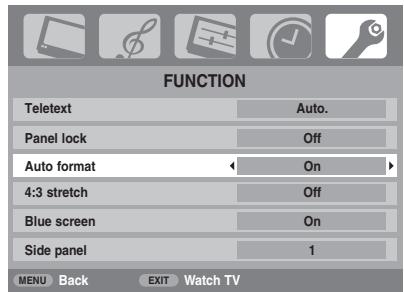

When this television receives a true Widescreen picture and

Auto format is On, it will automatically be displayed in Widescreen format, irrespective of the television’s previous setting.

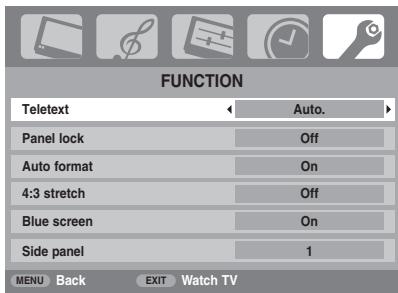

Press M and I or i to select the FUNCTION menu.

Base colour adjustment

MENU FUNCTION Brightness

Press I or i to select Hue, Saturation or Brightness, then press U or u to adjust the settings as required.

To return to the original factory settings select Reset and press Q.

EXIT Watch TV Press u to highlight Auto format, then I or i to select

3D Colour management

00GB_AV505D_EngOM.book Page 24 Saturday, November 24, 2007 5:53 PM English

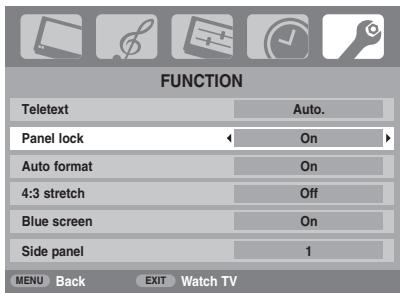

CONTROLS AND FEATURES Panel lock

When 4:3 stretch is activated the size switching system changes 4:3 programs into a full screen picture.

Panel lock disables the buttons on the television. All buttons on the remote control can still be used.

In the FUNCTION menu press u to highlight 4:3 stretch.

Press I or i to select On or Off.

From the FUNCTION menu select Panel lock and choose On or Off using I or i.

When Blue screen is selected the screen will turn blue and the sound will be muted when no signal is received.

In the FUNCTION menu press u to highlight Blue screen.

Press I or i to select On or Off.

MENU Side panel adjustment

The Side panel feature lightens or darkens the band each side of the screen when in 4:3 or 14:9 format. This helps prevent image retention of the band and can also make viewing in bright or dark conditions more comfortable.

In the FUNCTION menu press u until Side panel is highlighted.

Press I or i to adjust.

EXIT Watch TV When Panel lock is On, a reminder will appear when the buttons on the television are pressed. If the standby button is pressed the television will switch off and can only be brought out of standby by using the remote control.

This feature is used to hold a still image on the screen.

Press r to hold an image on the screen, press r again to cancel.

00GB_AV505D_EngOM.book Page 25 Saturday, November 24, 2007 5:53 PM CONTROLS AND FEATURES

Programme timer – digital only

This feature will set the television to go to a specific channel at a certain time. It can be used to view a particular programme, or by setting the mode to daily or weekly, can be used to view a series of programmes.

When all the details have been entered press Q to save the timer.

PLEASE NOTE: When a timed programme is about to start, an information screen will appear offering the option of watching or cancelling the programme. The menus and other channels will not be available during the timed programme unless the programme timer is cancelled.

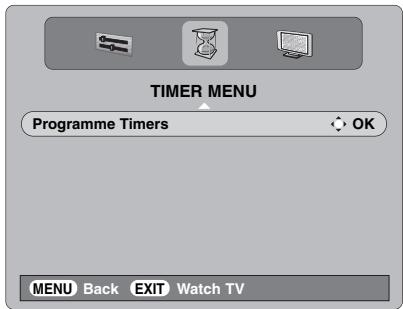

Press M and I or i to select the TIMER MENU.

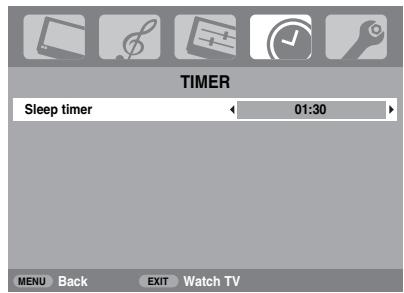

The television can be set to turn itself Off after a certain time.

Press M and I or i to select the TIMER menu.

Press u to select Programme Timers, then press Q to select.

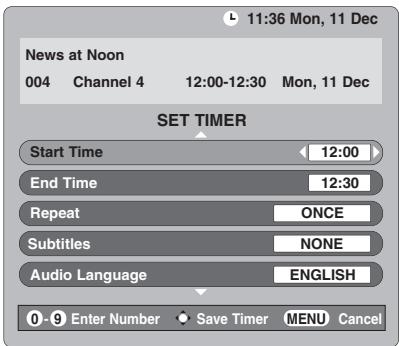

Press u to select the first programme to be timed, then press Q. The SET TIMER menu will now appear on screen.

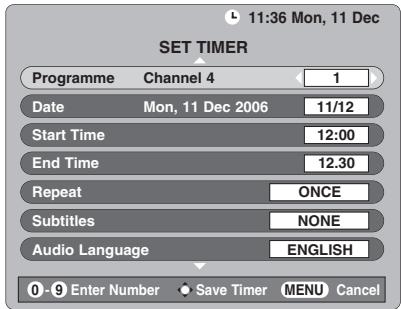

Press U and u to go through the list adding the details of the programme to be timed by using the number buttons and I and i to make selections.

To cancel the Sleep timer, enter zero in above setting.

Press u to select Sleep timer. Use the number buttons to set the required time. For example, to switch the television off in one and a half hours enter 01:30, or press i/I to increase/decrease in steps of 10 minutes.

00GB_AV505D_EngOM.book Page 26 Saturday, November 24, 2007 5:53 PM English

CONTROLS AND FEATURES Digital on-screen information and Programme

When viewing in digital mode, the on-screen information and programme guide give access to programme details for all available channels.

ALL PROGS BBC ONE BBC TWO ITV1

Channel 4 Five ITV2 BBC THREE BBC FOUR ITV3 SKY THREE UKTV History More 4

11:30 King of the Hill

That’s What She Said: Hank in uncomfortable with his new colleague’s innuendo, and Dale tries to give up smoking. [S]

To see details of any of the other channels currently available, press U and u to scroll up and down the channel list. As the channel is selected details of the programme currently being broadcast will appear.

Pressing the YELLOW button will activate Showing also, giving details of programmes which have started on other channels.

To record the following programme, with the information guide showing, press i. The Tune option in the bottom section of the screen will change to

Record, press Q. The SET TIMER screen will appear.

Schools: Tes Sch The Daily Po Working L This Morning

King of The H News at Noo Headland Five News Home and A Brainteas

This is BBC THREE This is BBC FOUR Faith

Judge Jud Coronation S Emmerda

This is BBC THREE This is BBC FOUR Where the Heart is

Tunisia, Egypt Animal Airpo Pop Years 2

The Re-Inventors Seven Wonders of the In H Deal or No Deal

Press I or i for information of other programmes scheduled for the channel selected.

For details of other channels currently available, press

U and u to scroll up and down the channel list. As the channel is selected details of the programme currently being broadcast will appear, then press I or i.

For information on a highlighted programme press

. To set the timer for that programme press the BLUE button to bring up the Programme timers menu. NOTE: Recording can be set from both the information screen and guide. In order for the recording operation to work the media recorder must be AV link compatible.

More info EXIT Watch TV TV/FAV Change progs

ITV Playalong: Izi starting in 4 minutes on ITV Play…

Tune EXIT Watch TV TV/FAV Change progs

Page Up Languages Page Down Showing Also

Select the on-screen guide by pressing GUIDE, the guide screen will appear highlighting details of the channel and programme currently being viewed. This may take a few moments to appear.

To Buy or Not to Buy

Select information by pressing

, the information screen will appear giving details of the channel and programme currently being viewed.

BBC THREE BBC FOUR The details of the programme will have been added to the screen. Press Q to save.

Press z to move the Guide forward by 24 hours, press Z to go back. Pressing ccor CC will move the

Guide forwards or backwards a page at a time.

00GB_AV505D_EngOM.book Page 27 Saturday, November 24, 2007 5:53 PM CONTROLS AND FEATURES English

Digital settings – parental control

This feature locks various menus to prevent the television being retuned or the settings being overridden.

In order to prevent viewing of unsuitable films and programmes, channels and menus can be locked.

These can then only be accessed with a security code PIN when in digital mode.

Setting the PIN ON Change Pin

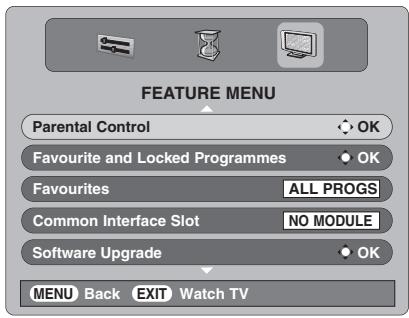

Press M and i to select the FEATURE MENU.

OK EXIT Watch TV Use I or i to choose between ON, LOCK MENU,

LOCK INSTALL and OFF.

FEATURE MENU Parental Control

Favourite and Locked Programmes

ALL PROGS Common Interface Slot

NO MODULE OK Software Upgrade

When menus that have been locked are now selected they will only become available when the PIN is entered.

Use u to select Parental Control then press Q.

Press u to highlight Change Pin then press Q.

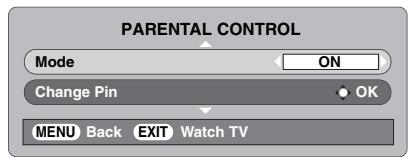

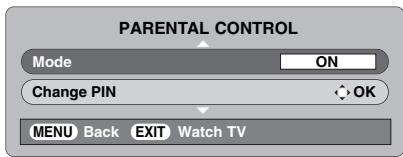

PARENTAL CONTROL Mode

ON Change PIN OK MENU Back

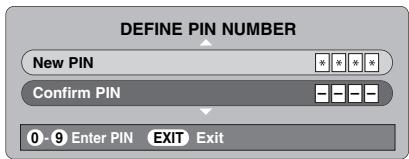

EXIT Watch TV Using the number buttons enter a four digit number, when these have been entered the screen will ask you to confirm them by entering them again.

DEFINE PIN NUMBER New PIN – – – –

0 - 9 Enter PIN EXIT Exit

The PIN number is now set. To activate put the television into standby.

00GB_AV505D_EngOM.book Page 28 Saturday, November 24, 2007 5:53 PM English

CONTROLS AND FEATURES Digital settings – other features

Locked Programmes stops the viewing of digital channels, they can only be accessed by entering the PIN.

Selecting favourite programmes

From the FEATURE MENU press u to select Favourite and Locked Programmes.

Favourite Programmes creates a list of the digital channels that are watched most. Four lists can be created, these can be a mixture of television, text and radio channels.

Press i repeatedly to select the Locked Programme list.

Use U and u to go through the list of channels pressing Q to select the ones required, a padlock will appear in the box.

From the FEATURE MENU press u to select Favourite and Locked Programmes.

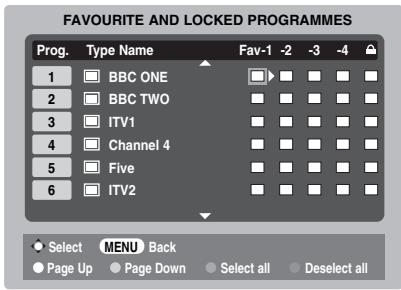

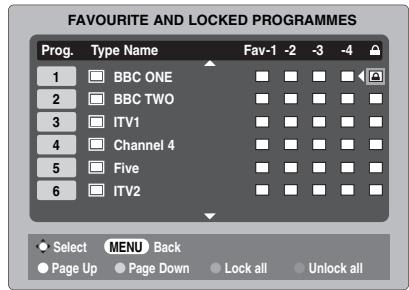

FAVOURITE AND LOCKED PROGRAMMES Prog.

Use U and u to go through the list of channels pressing Q to select the ones required, a tick will appear in the box.

Press i to select List 2. Follow the same procedure to make the selection. When all favourites have been selected press M to return to the FEATURE MENU.

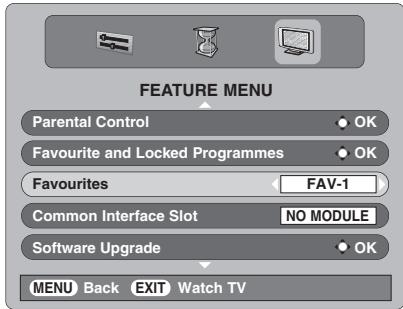

Use u to highlight Favourites and I or i to select between ALL, TV, RADIO, FAV-1 and FAV-2. The number of favourites available depends on how many lists have been created.

Favourite and Locked Programmes

Press P and put the television into standby.

When the television is switched back on and any of the channels in the Locked Programme list are selected the PIN must be entered before they can be accessed.

Encrypted programmes

Selecting Encrypted Programmes allows all encrypted programmes to be shown in the programme list even if they are not available to select.

In the FEATURE MENU press U or u to select

Encrypted Programmes.

Use I or i to select ON or OFF.

NOTE: CAMs (Conditional Access Modules) are available from service providers (see 'Common Interface' section)

Common Interface Slot

NO MODULE OK EXIT Watch TV Press P.

Using the B P b buttons will now only access those channels in Favourite List 1 when FAV-1 is selected.

00GB_AV505D_EngOM.book Page 29 Saturday, November 24, 2007 5:53 PM CONTROLS AND FEATURES Common interface

This feature allows a programme or film to be viewed with a choice of soundtrack language, provided they are currently being broadcast.

The Common Interface Slot, situated on the back of the television, enables the insertion of a CAM (Conditional Access

Module) and card. These are purchased from a service provider and allow additional subscription broadcasts to be viewed. For information see a service provider.

In the SETUP MENU press u to select Local Options.

Press Q, then press U and u to highlight Audio

Insert the CAM and card into the Common Interface

Slot, following the instructions provided with the CAM. A box will appear on screen to confirm that the CAM is loaded.

In the FEATURE MENU press U or u to select

Common Interface Slot.

Details of the CAM should now be available. Use Q to select it.

EXIT Watch TV Use I or i to select an option.

NOTE: If more than one soundtrack is available, use s to select between them.

This feature will show subtitles on the bottom of the screen in the selected language provided they are being broadcast.

Use I or i to select an option.

Reset TV Selecting Reset TV will delete all stored digital channels and settings. The television will return to factory settings and then auto tune.

In the SETUP MENU press u until Reset TV is highlighted.

Press Q to select. A screen will appear warning that all digital settings will be lost, press Q to continue.

The Welcome screen will appear, press Q to continue, the television will then auto tune.

00GB_AV505D_EngOM.book Page 30 Saturday, November 24, 2007 5:53 PM English

CONTROLS AND FEATURES Digital settings – software upgrade

Searching for new software

If preferred, software upgrades can be searched for manually using Search for New Software.

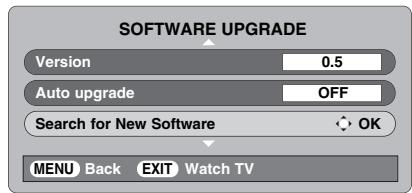

In the SOFTWARE UPGRADE menu press U or u to select Search for New Software.

This feature can be used to check the version of software currently installed.

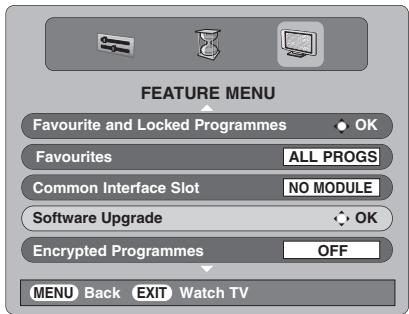

SOFTWARE UPGRADE From the FEATURE MENU press U or u to select

Software upgrade. Press Q.

OFF FEATURE MENU Favourite and Locked Programmes

ALL PROGS Common Interface Slot

Press Q. The television will automatically start searching for a software upgrade, the progress bar will move along the line.

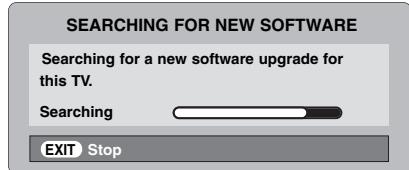

SEARCHING FOR NEW SOFTWARE Encrypted Programmes

OFF Searching for a new software upgrade for

EXIT Watch TV Searching

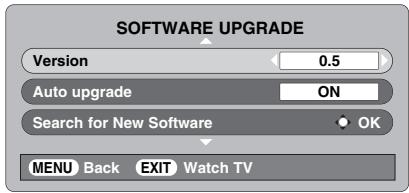

Press U or u to select Version. Use I or i to select.

When the software has been updated there will be a choice of two versions available.

If an upgrade is found the television will automatically start downloading, if not a screen will appear stating that an upgrade is unavailable.

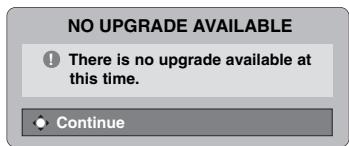

NO UPGRADE AVAILABLE

! There is no upgrade available at this time.

OK EXIT Watch TV Continue

If Auto upgrade is selected the software will automatically update as each version becomes available, provided the television is on or in standby. If the television is on, a screen prompt will appear showing the software download taking place.

In the SOFTWARE UPGRADE menu press U or u to select Auto upgrade.

Use I or i to select ON or OFF.

00GB_AV505D_EngOM.book Page 31 Saturday, November 24, 2007 5:53 PM CONTROLS AND FEATURES English

Input selection and AV connections

INPUT signal selection

This specifies the type of signal going into SCART 2 (EXT2) on the back of the television. Please refer to the manufacturers instructions for the connected equipment.

Defining the INPUT and OUTPUT sockets so that the television recognises connected equipment.

See page 7 for a clear view of the back connection recommendations.

In the SET UP menu press u until AV connection is highlighted, then press Q.

Most media recorders and decoders send a signal through the

SCART lead to switch the television to the correct Input socket. Alternatively press the external source selection button o until the picture from connected equipment is shown.

This button must be used to view equipment connected using the COMPONENT VIDEO INPUT (EXT3) and the VIDEO INPUT

(EXT4). An S in the display e.g.o2S (EXT 2S), indicates the input is set for an S-Video signal.

OK Use the Input Selection if the television does not switch over automatically.

At any time by pressing o a list will appear on screen showing all stored programmes and external equipment. Use U and u to highlight and Q to select.

OK EXIT Watch TV With I or i select either AV or S-VIDEO as the required input for EXT2.

AV connection HDMI1 audio

If the colour is missing try the alternative setting.

HDMI™ displays equipment connected to Input HDMI on the back of the television. It is designed for best performance with 1080i high definition signals.

00GB_AV505D_EngOM.book Page 32 Saturday, November 24, 2007 5:53 PM English

CONTROLS AND FEATURES HDMI1 audio

If the connected HDMI source does not support digital audio, plug the audio cable into HDMI1 (AUDIO) on the back of the television (as shown in the ‘Connecting an HDMI™ or DVI device to the HDMI input’ section), then use the HDMI1 audio settings.

Lip Sync can synchronize the sound and picture. This feature is only available when equipment compatible with Lip Sync is connected via HDMI.

In the SET UP menu press u until AV connection is highlighted, then press Q.

Using I or i select On or Off.

In the AV connection menu press u to highlight Lip

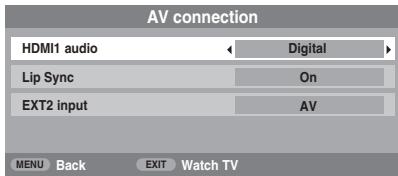

OK EXIT Watch TV In the AV connection menu press u to highlight

HDMI1 audio and using I or i select Auto, Digital or Analogue. AV connection HDMI1 audio

EXIT Watch TV If the sound is missing select an alternative setting.

NOTE: HDMI1 supports digital and analogue sound, HDMI2 is digital sound only. Certain formats of DVD disk may not output from this TV (32/44.1/48kHz and 16/20/24 bits are acceptable).

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing,

00GB_AV505D_EngOM.book Page 33 Saturday, November 24, 2007 5:53 PM TEXT SERVICES This television has a multi-page text memory, which takes a few moments to load. It offers two Modes of viewing text – Auto. will display Fastext, if available. LIST will store your four favourite pages.

If Fastext is available four coloured titles will appear at the base of the screen.

To access one of the four given subjects, press the relevant coloured button on the remote control. For further information on your particular text system(s), see the broadcast text index page or, consult your local Toshiba dealer.

The text character set will be automatically chosen by the language setting in the SET UP menu.

Select Teletext from the FUNCTION menu.

Navigating pages using LIST The four coloured choices at the bottom of the screen are numbers – 100, 200, 300 and 400, which have been programmed into the television’s memory. To view these pages press the relevant coloured buttons.

To change these stored pages press the relevant coloured button and enter the 3 digit number. This number will change in the top left of the screen and in the coloured highlight.

Press Q to store. The bars at the bottom of the screen will flash white. Whenever Q is pressed all four page numbers showing at the bottom will be stored and the previous ones will be lost.

If Q is not pressed the selection will be forgotten when text is cancelled.

Other pages may be viewed by entering the 3 digit page number – but DO NOT press Q or these pages will be stored.

EXIT Watch TV To view text services press

. Press again to superimpose the text over a normal broadcast picture and again to return to normal viewing. Programmes cannot be changed until text is cancelled. The first text page shown will be the initial page. Any text page can be accessed by entering the 3 digit page number using the numbered buttons, pressing the coloured buttons or pressing > to advance to the next page and < to go back to the previous page. NOTE: While viewing text services, the on-screen menu will not appear when you press M. Sub-pages If there are sub-pages they will automatically load into memory without changing the page on screen. To access the sub-pages press l then use > and < to view them. A bar with numbers will appear on the side of the screen. The sub-page you are viewing will be highlighted and, as the television loads any additional sub-pages the colour of the numbers will change, indicating that these pages have been loaded. These sub-pages will remain available to view until another page is chosen or, in normal TV mode, the channel is changed.

Analogue text services

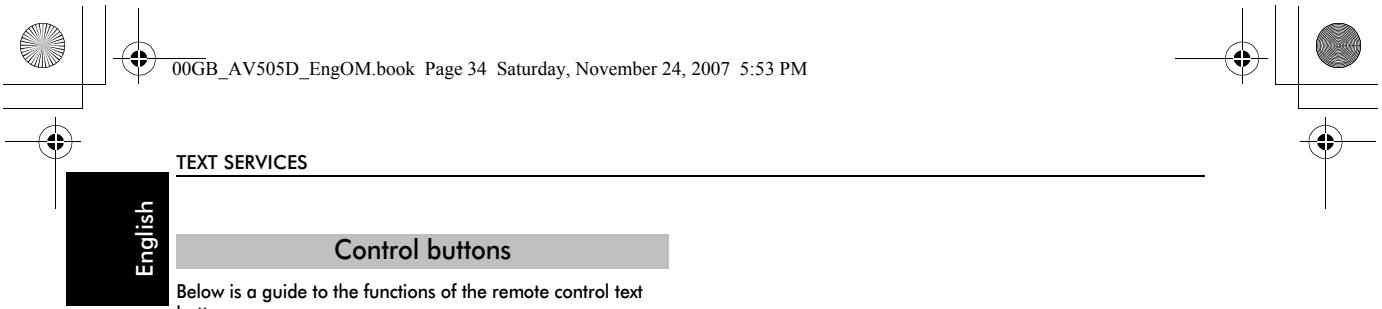

00GB_AV505D_EngOM.book Page 34 Saturday, November 24, 2007 5:53 PM English

TEXT SERVICES Control buttons

Below is a guide to the functions of the remote control text buttons.

k To display the index/initial page:

Press k to access the index/initial page. The one displayed is dependant on the broadcaster.

To display a page of text:

Press to display text. Press again to superimpose text over a normal picture. Press again to return to normal television viewing. Programmes cannot be changed until this has been done.

l To access sub-pages:

For use with U and u to view sub-pages when available.

A To reveal concealed text:

To discover the solutions on quiz and joke pages press the A button.

B To hold a wanted page:

At times it is convenient to hold a page of text. Press B and B will appear in the top left of the screen. The page will be held on screen until the button is pressed again.

C To enlarge the text display size:

Press C once to enlarge the top half of the page, press again to enlarge the bottom half of the page. Press again to revert to normal size.

D To select a page whilst viewing a normal picture:

Enter the page number then press D , a normal picture will be displayed. The television will indicate when the page is present by displaying the page number at the top of the screen. Press to view the page. To display news flashes: Select the news flash page for the chosen text service (see the index page of text service). Press D . The news flashes will be displayed as and when they are broadcast. Press D again to cancel the display. The news flash page must be cancelled before changing programmes.

Remember to cancel text before changing channels - press the button twice.

00GB_AV505D_EngOM.book Page 35 Saturday, November 24, 2007 5:53 PM PROBLEM SOLVING Q A Q A Why is the VCR/DVD picture in black and white?

Select the Manual tuning menu. Highlight the station and press Q, then press i to select Manual fine tuning.

Using U or u adjust to get the best picture and sound.

Below are the answers to some of the most common queries.

For more information go to www.toshiba.co.uk

Q A Q A Why is there no sound or picture?

Check the television is not in standby mode. Check the mains plug and all mains connections.

There is a picture, but why is there little or no colour?

When using an external source, for instance, a poor quality video tape, if there is little or no colour, improvements may sometimes be achieved. The colour is factory set to Auto to automatically display the best colour system.

Check the correct input has been chosen, S-VIDEO or

AV. See AV connections page 31.

What else can cause a poor analogue picture?

Interference or a weak signal. Try a different television station. Manual fine tuning may help.

To check that you have the best colour:

With the external source playing, select Manual setting from the SET UP menu.

Q A Q A Q A With U or u choose between Auto, PAL, SECAM,

Q A Why doesn’t the video/DVD being played show on screen?

Q A Q A I Make sure the VCR or DVD player is connected to the television as shown on page 7, then select the correct input by pressing o.

Why is there a good video picture but no sound?

Check all lead connections.

Why is there a picture but no sound?

Check the volume has not been turned down or that sound mute has not been selected.

EXIT Watch TV Why don’t the controls on the front of the television work?

Check that Panel lock is not ON.

Why doesn’t the remote control work?

Check the batteries aren’t dead or inserted incorrectly.

Why is there a message permanently on the screen?

Remove it by pressing

Questions and Answers

00GB_AV505D_EngOM.book Page 36 Saturday, November 24, 2007 5:53 PM English

PROBLEM SOLVING Q A Q A Q A Q A Why is the DTV main menu unavailable?

Q A Q A Q A Q A Why are some of the digital subscription channels unavailable?

Q A Another mode is selected. Press o to select DTV.

Why are some of the menus locked?

Lock Menu has been enabled (see 'Parental Controls' page).

Q A Why is there no digital text service?

Q A Why are there problems with analogue text?

Q A Why are there no analogue text sub-pages?

Q A Why are the four coloured text numbers visible but no text?

Why is the digital channel locked?

The channel has been selected in Locked Programmes (see 'Digital Settings' section).

Why can only certain digital channels be viewed?

A Favourite list has been selected (see 'Favourite Programmes' section), set the feature to ALL PROGS or change channels by using the number buttons.

Your subscription needs upgrading. Contact your service provider.

Why is the soundtrack in English when a different audio language has been selected?

The programme is currently being broadcast with an English soundtrack only.

Why is there incorrect or no sound when in DTV mode?

Press s to check if the hard of hearing option has been selected.

What can be done if the PIN number has been forgotten?

Use the Master PIN code of 1276, then change to a number of your choice. Ensure that no-one else can use the Master PIN by removing the Owner’s Manual.

Why when digital subtitles have been selected are they not showing on screen?

Subtitles are not currently being transmitted by the broadcaster.

The digital programme being viewed is not broadcasting digital text. Try another digital programme.

Good performance of text depends on a good strong broadcast signal. This normally requires a roof or loft aerial. If the text is unreadable or garbled, check the aerial. Go to the main index page of the text service and look for the User Guide. This will explain the basic operation of text in some detail. If further information is needed on how to use text see the text section.

There are none broadcast or they have not yet loaded.

Press the l button to access. (See text section).

Text has been selected whilst viewing an external source i.e. DVD or VCR. No text will appear on screen or a box may appear stating no information is available. Select a broadcasting channel and press to access.

00GB_AV505D_EngOM.book Page 37 Saturday, November 24, 2007 5:53 PM PROBLEM SOLVING Why does the GREEN Active Standby LED sometimes take longer to go out?

Q A Why are the colours wrong when an NTSC source is played?

Q A When put into standby the television’s active standby will automatically search all available channels for downloads, provided Auto upgrade is On. The time it takes to do this may vary.

Connect the source via a SCART lead and play.

Select Manual setting from the SET UP menu.

Colour system: Auto EXT2

MENU A V C R EXIT Watch TV

Set the Colour to Auto and exit.

Go to the Picture settings menu and adjust the tint.

Q A Why don't the devices connected via HDMI operate properly?

Make sure to use cables with the HDMI logo (see page 8). Some early HDMI equipment may not work properly with the latest HDMI TV products, due to new standard adoption. Try Lip Sync setting to Off.

00GB_AV505D_EngOM.book Page 38 Saturday, November 24, 2007 5:53 PM English

For your own records

Cleaning the screen and cabinet…

Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage. Disposal… The following information is only for EU-member states: The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

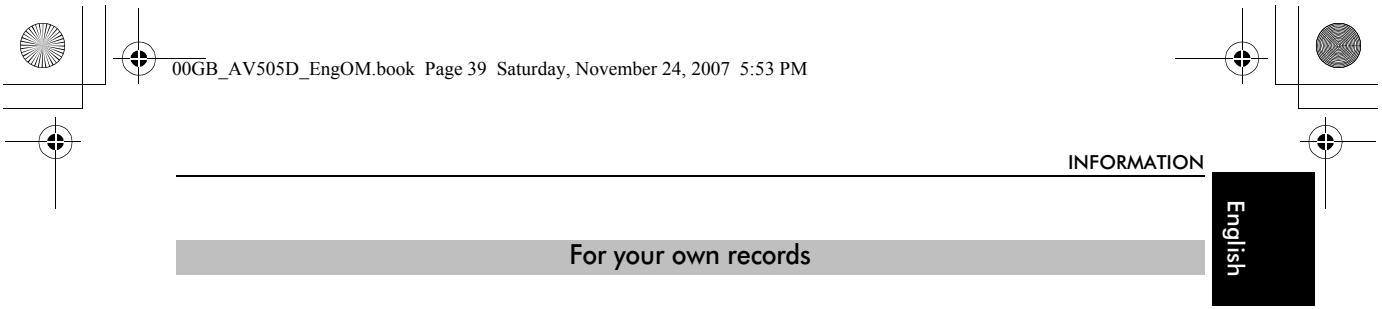

00GB_AV505D_EngOM.book Page 39 Saturday, November 24, 2007 5:53 PM INFORMATION

For your own records

00GB_AV505D_EngOM.book Page 40 Saturday, November 24, 2007 5:53 PM English

INFORMATION Specifications and accessories

DVB-T Broadcast systems/channels UK UHF 21-68

Broadcast systems/channels

SECAM-D/K UHF R21-R69

Switzerland VHF 05-12

VHF 05-12 (D,E,F,G,H,H1,H2)

Visible Screen Size Model 32

Main 10W + 10W Power consumption Model 32 as specified in

37 EN60107-1 : 1997 42

217W Standby (approx.)

Model 32 55cm (H) 80cm (W) 22cm (D)

37 62cm (H) 91cm (W) 25cm (D) 42 68cm (H) 101cm (W) 26cm (D) (Height dimension includes foot stand)

2 batteries (AAA, IEC R03 1.5V)

External connections

Y, PB/CB, PR/CR Audio L + R EXT4

Audio L + R HDMI 1/2

HDMI™ (Audio LIP SYNC supported)

Audio L + R DVB is a registered trademark of the DVB Project

Printed on recycled paper. 100% Chlorine free.

© Toshiba Information Systems (U.K.) Limited

All rights reserved. Reproduction in whole or part without written permission is strictly prohibited.

Toshiba Information Systems (U.K.) Limited

Consumer Products Division, European Service Centre, Admiralty Way, Camberley, Surrey, GU15 3DT, UK Specification is subject to change without notice.

00GB_AV505D_EngOM.book Page 41 Saturday, November 24, 2007 5:53 PM

00FR_AV505D_EngOM.book Page 2 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 3 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 4 Monday, November 26, 2007 1:41 PM MISE EN ROUTE

00FR_AV505D_EngOM.book Page 5 Monday, November 26, 2007 1:41 PM MISE EN ROUTE

00FR_AV505D_EngOM.book Page 6 Monday, November 26, 2007 1:41 PM MISE EN ROUTE

00FR_AV505D_EngOM.book Page 7 Monday, November 26, 2007 1:41 PM MISE EN ROUTE

00FR_AV505D_EngOM.book Page 8 Monday, November 26, 2007 1:41 PM MISE EN ROUTE

00FR_AV505D_EngOM.book Page 9 Monday, November 26, 2007 1:41 PM MISE EN ROUTE

00FR_AV505D_EngOM.book Page 10 Monday, November 26, 2007 1:41 PM MISE EN ROUTE

00FR_AV505D_EngOM.book Page 11 Monday, November 26, 2007 1:41 PM Subtitles

00FR_AV505D_EngOM.book Page 12 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 13 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 14 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 15 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 16 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 17 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 18 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 19 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 20 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 21 Monday, November 26, 2007 1:41 PM IMAGE Réglage image

00FR_AV505D_EngOM.book Page 22 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 23 Monday, November 26, 2007 1:41 PM IMAGE Réglage image

00FR_AV505D_EngOM.book Page 24 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 25 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 26 Monday, November 26, 2007 1:41 PM TF1

France 2 France 3 CANAL+ France 5

France 2 France 3 CANAL+ France 5 M6 ARTE Direct 8 W9 TMC NT1 NRJ12 Enregistrer Page -

TV/FAV changer progs Programmations

00FR_AV505D_EngOM.book Page 27 Monday, November 26, 2007 1:41 PM MARCHE SANS ARRÊT OK

00FR_AV505D_EngOM.book Page 28 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 29 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 30 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 31 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 32 Monday, November 26, 2007 1:41 PM Latence Lip Sync

00FR_AV505D_EngOM.book Page 33 Monday, November 26, 2007 1:41 PM SERVICES TEXTE

00FR_AV505D_EngOM.book Page 34 Monday, November 26, 2007 1:41 PM SERVICES TEXTE

00FR_AV505D_EngOM.book Page 35 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 36 Monday, November 26, 2007 1:41 PM Français

Q R Q R Q R Q R Q R Q R Q R Q R

00FR_AV505D_EngOM.book Page 37 Monday, November 26, 2007 1:41 PM

00FR_AV505D_EngOM.book Page 38 Monday, November 26, 2007 1:41 PM INFORMATIONS Notes

00FR_AV505D_EngOM.book Page 39 Monday, November 26, 2007 1:41 PM INFORMATIONS A conserver

00FR_AV505D_EngOM.book Page 40 Monday, November 26, 2007 1:41 PM INFORMATIONS SECAM-D/K UHF R21-R69

VHF 05-12 (D,E,F,G,H,H1,H2)

Principale 10W + 10W Jacks audio

Y, PB/CB, PR/CR Audio L + R EXT4

00FR_AV505D_EngOM.book Page 41 Monday, November 26, 2007 1:41 PM

00DE_AV505D_EngOM.book Page 2 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 3 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 4 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 5 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 6 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 7 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 8 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 9 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 10 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 11 Wednesday, November 28, 2007 10:32 AM Local Time Settings

00DE_AV505D_EngOM.book Page 12 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 13 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 14 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 15 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 16 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 17 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 18 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 19 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 20 Wednesday, November 28, 2007 10:32 AM Deutsch

00DE_AV505D_EngOM.book Page 21 Wednesday, November 28, 2007 10:32 AM

3D Colour Management

Active Backlight Control

00DE_AV505D_EngOM.book Page 22 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 23 Wednesday, November 28, 2007 10:32 AM

3D Colour Management

Active Backlight Control

3D Colour Management

OK Active Backlight Control

00DE_AV505D_EngOM.book Page 24 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 25 Wednesday, November 28, 2007 10:32 AM ENGLISCH Timer sp.

00DE_AV505D_EngOM.book Page 26 Wednesday, November 28, 2007 10:32 AM ENGLISCH Timer sp.

00DE_AV505D_EngOM.book Page 27 Wednesday, November 28, 2007 10:32 AM Common Interface Schacht

KEIN MODUL OK Software Upgrade

00DE_AV505D_EngOM.book Page 28 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 29 Wednesday, November 28, 2007 10:32 AM Common Interface (CI)

00DE_AV505D_EngOM.book Page 30 Wednesday, November 28, 2007 10:32 AM Common Interface Schacht

KEIN MODUL Verschlüsselte Programme

00DE_AV505D_EngOM.book Page 31 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 32 Wednesday, November 28, 2007 10:32 AM

00DE_AV505D_EngOM.book Page 33 Wednesday, November 28, 2007 10:32 AM VIDEOTEXT Analoger Videotext

Untergeordnete Seiten

00DE_AV505D_EngOM.book Page 34 Wednesday, November 28, 2007 10:32 AM VIDEOTEXT

00DE_AV505D_EngOM.book Page 35 Wednesday, November 28, 2007 10:32 AM PROBLEMLÖSUNG

00DE_AV505D_EngOM.book Page 36 Wednesday, November 28, 2007 10:32 AM PROBLEMLÖSUNG Deutsch

F A F A F A F A F A F A F A F A

00DE_AV505D_EngOM.book Page 37 Wednesday, November 28, 2007 10:32 AM PROBLEMLÖSUNG F A

00DE_AV505D_EngOM.book Page 38 Wednesday, November 28, 2007 10:32 AM INFORMATIONEN Notizen

00DE_AV505D_EngOM.book Page 39 Wednesday, November 28, 2007 10:32 AM INFORMATIONEN

00DE_AV505D_EngOM.book Page 40 Wednesday, November 28, 2007 10:32 AM INFORMATIONEN SECAM-D/K UHF R21-R69

VHF 05-12 (D,E,F,G,H,H1,H2)

Y, PB/CB, PR/CR Audio L + R EXT4

Audio L + R HDMI 1/2

00DE_AV505D_EngOM.book Page 41 Wednesday, November 28, 2007 10:32 AM

00ES_AV505D_EngOM.book Page 2 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 3 Friday, November 23, 2007 6:27 PM Contenido

00ES_AV505D_EngOM.book Page 4 Friday, November 23, 2007 6:27 PM CONFIGURACIÓN

00ES_AV505D_EngOM.book Page 5 Friday, November 23, 2007 6:27 PM CONFIGURACIÓN

00ES_AV505D_EngOM.book Page 6 Friday, November 23, 2007 6:27 PM CONFIGURACIÓN

00ES_AV505D_EngOM.book Page 7 Friday, November 23, 2007 6:27 PM CONFIGURACIÓN

00ES_AV505D_EngOM.book Page 8 Friday, November 23, 2007 6:27 PM CONFIGURACIÓN

00ES_AV505D_EngOM.book Page 9 Friday, November 23, 2007 6:27 PM CONFIGURACIÓN

00ES_AV505D_EngOM.book Page 10 Friday, November 23, 2007 6:27 PM CONFIGURACIÓN

00ES_AV505D_EngOM.book Page 11 Friday, November 23, 2007 6:27 PM Subtitles

85 programas encontrados

00ES_AV505D_EngOM.book Page 12 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 13 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 14 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 15 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 16 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 17 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 18 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 19 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 20 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 21 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 22 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 23 Friday, November 23, 2007 6:27 PM Panel Lateral

00ES_AV505D_EngOM.book Page 24 Friday, November 23, 2007 6:27 PM Panel Lateral

00ES_AV505D_EngOM.book Page 25 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 26 Friday, November 23, 2007 6:27 PM INGLÉS Guardar Temp.

00ES_AV505D_EngOM.book Page 27 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 28 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 29 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 30 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 31 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 32 Friday, November 23, 2007 6:27 PM Lip Sync Latency

00ES_AV505D_EngOM.book Page 33 Friday, November 23, 2007 6:27 PM TELETEXTO Panel Lateral

00ES_AV505D_EngOM.book Page 34 Friday, November 23, 2007 6:27 PM TELETEXTO

00ES_AV505D_EngOM.book Page 35 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 36 Friday, November 23, 2007 6:27 PM P R P R P R P R P R P R P R P R

00ES_AV505D_EngOM.book Page 37 Friday, November 23, 2007 6:27 PM

00ES_AV505D_EngOM.book Page 38 Friday, November 23, 2007 6:27 PM INFORMACIÓN TOSHIBA INFORMATION SYSTEMS (U.K.) LIMITED (Nombre del fabricante)

Consumer Products Division, European Service Centre, Admiralty Way, Camberley, Surrey, GU15 3DT England (Razón social)

ENGINEERING AND Q.A. MANAGER

00ES_AV505D_EngOM.book Page 39 Friday, November 23, 2007 6:27 PM INFORMACIÓN

00ES_AV505D_EngOM.book Page 40 Friday, November 23, 2007 6:27 PM INFORMACIÓN SECAM-D/K UHF R21-R69

VHF 05-12 (D,E,F,G,H,H1,H2)

Y, PB/CB, PR/CR Audio I + R EXT4

Principal 10 W + 10 W

00ES_AV505D_EngOM.book Page 41 Friday, November 23, 2007 6:27 PM

00IT_AV505D_EngOM.book Page 2 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 3 Monday, November 26, 2007 11:13 AM Contenuto

00IT_AV505D_EngOM.book Page 4 Monday, November 26, 2007 11:13 AM IMPOSTAZIONI

00IT_AV505D_EngOM.book Page 5 Monday, November 26, 2007 11:13 AM IMPOSTAZIONI

00IT_AV505D_EngOM.book Page 6 Monday, November 26, 2007 11:13 AM IMPOSTAZIONI

00IT_AV505D_EngOM.book Page 7 Monday, November 26, 2007 11:13 AM IMPOSTAZIONI SCART 1 (EXT1)

CINGHIA DI FISSAGGIO

00IT_AV505D_EngOM.book Page 8 Monday, November 26, 2007 11:13 AM IMPOSTAZIONI

00IT_AV505D_EngOM.book Page 9 Monday, November 26, 2007 11:13 AM IMPOSTAZIONI

00IT_AV505D_EngOM.book Page 10 Monday, November 26, 2007 11:13 AM IMPOSTAZIONI

00IT_AV505D_EngOM.book Page 11 Monday, November 26, 2007 11:13 AM Subtitles

SINTONIZZAZIONE AUTOM.

85 programmi trovati

00IT_AV505D_EngOM.book Page 12 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 13 Monday, November 26, 2007 11:13 AM MENU Preced. EXIT TV

00IT_AV505D_EngOM.book Page 14 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 15 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 16 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 17 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 18 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 19 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 20 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 21 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 22 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 23 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 24 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 25 Monday, November 26, 2007 11:13 AM MENU Preced. EXIT TV

00IT_AV505D_EngOM.book Page 26 Monday, November 26, 2007 11:13 AM UN DETECTIVE IN COR BAYWATCH

00IT_AV505D_EngOM.book Page 27 Monday, November 26, 2007 11:13 AM MENU Preced. EXIT TV MENU Preced. EXIT TV

00IT_AV505D_EngOM.book Page 28 Monday, November 26, 2007 11:13 AM MENU Preced. EXIT TV

00IT_AV505D_EngOM.book Page 29 Monday, November 26, 2007 11:13 AM MENU Preced. EXIT TV

00IT_AV505D_EngOM.book Page 30 Monday, November 26, 2007 11:13 AM MENU Preced. EXIT TV MENU Preced. EXIT TV Continua

00IT_AV505D_EngOM.book Page 31 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 32 Monday, November 26, 2007 11:13 AM Lip Sync Latency

00IT_AV505D_EngOM.book Page 33 Monday, November 26, 2007 11:13 AM TELEVIDEO

00IT_AV505D_EngOM.book Page 34 Monday, November 26, 2007 11:13 AM TELEVIDEO

00IT_AV505D_EngOM.book Page 35 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 36 Monday, November 26, 2007 11:13 AM Italiano

D R D R D R D R D R D R D R D R

00IT_AV505D_EngOM.book Page 37 Monday, November 26, 2007 11:13 AM

00IT_AV505D_EngOM.book Page 38 Monday, November 26, 2007 11:13 AM INFORMAZIONI

00IT_AV505D_EngOM.book Page 39 Monday, November 26, 2007 11:13 AM INFORMAZIONI

00IT_AV505D_EngOM.book Page 40 Monday, November 26, 2007 11:13 AM INFORMAZIONI Principale 10 W + 10 W Austria

SECAM-D/K UHF R21-R69

VHF 05-12 (D,E,F,G,H,H1,H2)

Y, PB/CB, PR/CR Audio S + D EXT4

Audio S + D HDMI 1/2

Toshiba Information Systems (U.K.) Limited

00GB_AV505D_EngOM.book Page 41 Wednesday, November 28, 2007 10:27 AM License Information used with

00GB_AV505D_EngOM.book Page 42 Wednesday, November 28, 2007 10:27 AM Information

The software pre-installed in TOSHIBA Digital Televisions consists of multiple, independent software components. Each software component is copyrighted by TOSHIBA or a third party. The TOSHIBA Digital Television uses software components that are distributed as freeware under a third-party end-user license agreement or copyright notice (hereinafter referred to as a “EULA”). Some EULAs require that the source code of the applicable component be disclosed as the condition for distributing the software component in executable format. You can check the software components subject to such EULA requirements on the following Home Page: URL: http://tesc.toshiba.co.uk/Web/Website.nsf/ContentFrameSet?OpenFrameset In addition, some of the software components which are used in TOSHIBA Digital Televisions include the software that are made or developed originally by Toshiba. These software and accompanied documents are copyrighted by TOSHIBA, and protected by Copyright Act, an international treaty’s articles and other governing laws. The software components which are made or developed originally by TOSHIBA and not subject to EULAs are not a target of source code offering. TOSHIBA provides a warranty for the TOSHIBA Digital Television you have purchased under conditions set forth by TOSHIBA.However, some of the software components distributed under an EULA are made available for use by the user on the assumption that they are not copyrighted or warranted by TOSHIBA or any third party. These software components are licensed to the user free of charge and therefore are not covered by a warranty within the scope of the applicable laws. These software components are not subject to any copyrights or other third-party rights and are provided in “as is” condition without any warranty, whether express or implied. “Warranty” here includes, but not limited to, an implied warranty for marketability or fitness for specific uses. All risks associated with the quality or performance of these software components are assumed by the user. TOSHIBA shall not be liable whatsoever for any cost of repair or correction or other incidental expense incurred in connection with a defect found in any of these software components. Unless specified under the applicable laws or in a written agreement, a party who changes or redistributes the software with consent from the copyright holders or based on the aforementioned licenses shall not be held liable whatsoever for any loss arising from the use of or inability to use such software. The same applies even when the copyright holders or relevant third parties have been informed of the possibility of such loss. “Loss” here includes normal, special, incidental and indirect loss (including, but not limited to, the loss of data or its accuracy; loss incurred by the user or any third party; and interface incompatibility with other software). Please read each EULA for details on the use conditions and items that must be observed regarding these software components. The table below lists the software components pre-installed in TOSHIBA Digital Televisions, which are subject to EULAs. The user should read the applicable EULAs carefully before using these software components. The EULAs are exhibited in their original text (English) as exactly written by the respective parties other than TOSHIBA. Pre-Installed Software

00GB_AV505D_EngOM.book Page 43 Wednesday, November 28, 2007 10:27 AM Exhibit A GNU GENERAL PUBLIC LICENSE Version 2, June 1991

Copyright © 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software – to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of the free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights you have. You must make sure that they too, receive or can get the source code. Also you must show them these terms so they know their rights. We protect your right with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent license, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow. GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This license applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the terms “modification”.) Each licensee is addressed as “you”.

00GB_AV505D_EngOM.book Page 44 Wednesday, November 28, 2007 10:27 AM Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the program or any portion of it, thus forming a work based on the program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these condition: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program, or any part there of, to be licensed as a whole at no charge to all third parties under the terms of the this License. c) If the modified Program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the program itself is interactive but does not normally print such an announcement, your work based on the program is not required to print such an announcement.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative and collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 3. You may copy and distribute the program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

00GB_AV505D_EngOM.book Page 45 Wednesday, November 28, 2007 10:27 AM

Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributes need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code. 4. You many not copy, modify, sublicense, or distribute the program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. 5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying and distributing the Program (or any works based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it. 6. Each time you redistribute the Program (or any works based on the Program), the recipient automatically receives a License from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipient’s exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License. 7. If as a consequence of a court judgement or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradicts the conditions of the License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforcable under any particular circumstances, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patent to other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance upon consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

00GB_AV505D_EngOM.book Page 46 Wednesday, November 28, 2007 10:27 AM

8. If the distribution and/or use of the program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the general Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation. 10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and use of software generally. NO WARRANTY 11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU, SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. 12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. END OF TERMS AND CONDITIONS

00GB_AV505D_EngOM.book Page 47 Wednesday, November 28, 2007 10:27 AM How to Apply These Terms to Your New Programs

If you develop a new program, and you want it be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms. To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. <One line to give the program’s name and a brief idea of what it does.> Copyright © 19yy <name of author> This program is free software; you can redistribute it and/or modify is under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA. Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode. Gnomovision version 69, Copyright © 19yy name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type "show w". This is free software, and you are welcome to redistribute it under certain conditions; type "show c" for details. The hypothetical commands "show w" and "show c" should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than "show w" and "show c"; they could even be mouse-clicks or menu items – whatever suits your program. You should also get your employer (if you works as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program; if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the 'Gnomovision' (which makes passes at compilers) written by James Hacker. <signature of Ty Coon>, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Library General Public License instead of this License.

00GB_AV505D_EngOM.book Page 48 Wednesday, November 28, 2007 10:27 AM Exhibit B GNU LESSER GENERAL PUBLIC LICENSE Version 2.1, February 1999

Copyright © 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.] Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software – to make sure the software is free for all its users. This License, the Lesser General Public License, applies to some specially designated software packages – typically libraries – of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below. When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software or use pieces of it in new free programs; and that you are informed that you can do these things. To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it. For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can link them with the library after making changes to the library and recompiling it. Also you must show them these terms so they know their rights. We protect your rights with a two step method: (1) we copyright the library, and (2) we offer you this license which gives you legal permission to copy, distribute and/or modify the library. To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that original authors’ reputation will not be affected by problems that might be introduced by others. Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license. Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

00GB_AV505D_EngOM.book Page 49 Wednesday, November 28, 2007 10:27 AM When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public

License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library. We call this license the "Lesser" General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances. For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License. In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system. Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library. The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a "work based on the library" and a "work that uses the library". The former contains code derived from the library, whereas the latter must be combined with the library in order to run. GNU LESSER GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorised party saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as “you”. A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables. The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the terms “modification”.) Each licensee is addressed as “you”. "Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using a library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

00GB_AV505D_EngOM.book Page 50 Wednesday, November 28, 2007 10:27 AM

1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the program or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these condition: a) The modified work must itself be a software library. b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change. c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License. c) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative and collective works based on the Library. In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices. Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy. This option is useful when you wish to copy part of the code of the Library into a program that is not a Library.

00GB_AV505D_EngOM.book Page 51 Wednesday, November 28, 2007 10:27 AM

4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the Sections 1 and 2 above provided that you accompany it with the complete corresponding machine readable source code, which must be distributed under the terms of sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code. 5. A program that contains no derivative of any portion of the Library, but is designed to work with the library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License. However, linking "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the Library". The executable is therefore covered by this License. Section 6 states terms for distribution of such executables. When a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law. If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.) Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself. 6. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such modifications. You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by the License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things: a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.) b) Use a suitable shared library mechanism for linking the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.

00GB_AV505D_EngOM.book Page 52 Wednesday, November 28, 2007 10:27 AM

Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution. d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place. e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means that you cannot use both them and the Library together in an executable that you distribute. 7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things: a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above. b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work. 8. You many not copy, modify, sublicense, link with or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. 9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying and distributing the Library (or any works based on the Library), you indicate your acceptance of the License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it. 10. Each time you redistribute the Library (or any works based on the Library), the recipient automatically receives a License from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipient’s exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

00GB_AV505D_EngOM.book Page 53 Wednesday, November 28, 2007 10:27 AM

11. If, as a consequence of a court judgement or allegation of patent infringement or for any other reason

(not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradicts the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library. If any portion of this section is held invalid or unenforcable under any particular circumstances, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents to other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance upon consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 12. If the distribution and/or use of the program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License. 13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation. 14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY 15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

00GB_AV505D_EngOM.book Page 54 Wednesday, November 28, 2007 10:27 AM

16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License). To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. <One line to give the library’s name and a brief idea of what it does.> Copyright © 19yy <name of author> This library is free software; you can redistribute it and/or modify is under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version. This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details. You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 021111307 USA. Also add any information on how to contact you by electronic and paper mail. You should also get your employer (if you works as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the library 'Frob' (a library for tweaking knobs) written by James Random Hacker. <signature of Ty Coon>, 1 April 1990 Ty Coon, President of Vice That’s all there is to it!

00GB_AV505D_EngOM.book Page 55 Wednesday, November 28, 2007 10:27 AM Exhibit C

/* zlib.h--interface of the 'zlib' general purpose compression library version 1.2.3, July 18th, 2005 Copyright © 1995-2005 Jean-loup Gailly and Mark Adler This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software. Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions: 1.

The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgement in the product documentation would be appreciated but is not required.

Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software. This notice may not be removed or altered from any source distribution.

00IT_AV505D_EngOM.book Page 42 Monday, November 26, 2007 11:13 AM Printed on recycled paper. 100% Chlorine free.
