Product Type	Built-in Kitchen Appliance (Cooker)
Brand	Amica
Model	EHC 12425 E
Dimensions (H x W x D)	59.5 x 59.5 x 57.5 cm
Weight	Approx. 44 kg
Power Supply	400/230V ~50 Hz, max 10.0 kW
Usable Oven Capacity	53-58 litres
Hob Type	Ceramic hob with 4 heating zones (including a widened zone 14x25 cm)
Oven Functions	Top heater, bottom heater, grill, convection with ring heating element, convection roasting, enhanced roaster, fast heat-up, defrosting, drying
Electronic Programmer	Timer, semi-automatic, automatic operation, adjustable beeps
Control Type	Retractable knobs with electronic sensors
Safety Features	Child safety, residual heat indicators, automatic switch-off, safety catch on door
Door Type	Removable door with inner glass panel for easy cleaning
Oven Light	Replaceable: 230V, 25W, E14, 300°C resistant
Cleaning	Steam cleaning function; ceramic hob scraper included
Accessories Included	Baking tray, grill grate, roasting tray (optional)
Energy Efficiency Class	Not specified in manual (energy label present)
Installation Type	Built-in; worktop recess dimensions: 560x490 mm
Connection Type	Three-phase (400V 3N~) adaptable to single-phase via bridging
Compliance	CE, Low Voltage Directive 73/23/EEC, EMC 89/336/EEC

Frequently Asked Questions - EHC 12425 E AMICA

How do I set the current time on the electronic programmer?

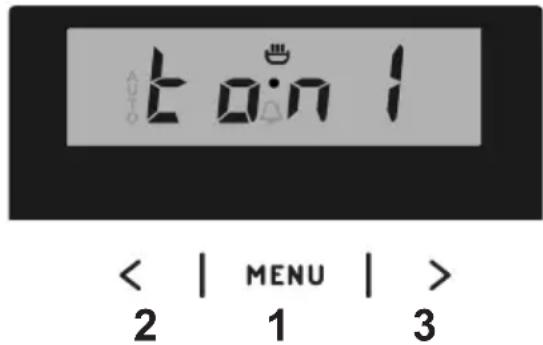

Press the MENU sensor (1) until the display shows flashing '0.00', then use the + and - sensors (3 and 2) to set the time. After 7 seconds, the time is saved. Note: The oven will not operate without setting the time.

How do I use the timer function?

Press the MENU sensor (1) until the display shows a flashing alarm symbol. Then use the + and - sensors to set the desired time (1 minute to 23 hours 59 minutes). The timer will beep when time is up. Press any sensor to stop the alarm.

How do I clean the ceramic hob?

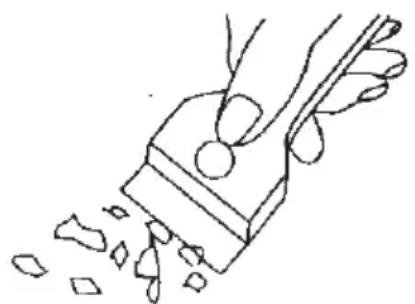

Clean the hob regularly after each use while still warm (but not hot). Use a scraper for burnt-on residues, then apply a special ceramic hob cleaner or a mild detergent solution. Avoid abrasive cleaners or scouring pads to prevent scratches.

How do I replace the oven light bulb?

Ensure the oven is switched off and disconnected from power. Remove the lamp cover by unscrewing it. Replace the bulb with a high-temperature bulb (230V, 25W, E14, 300°C). Screw the cover back on securely.

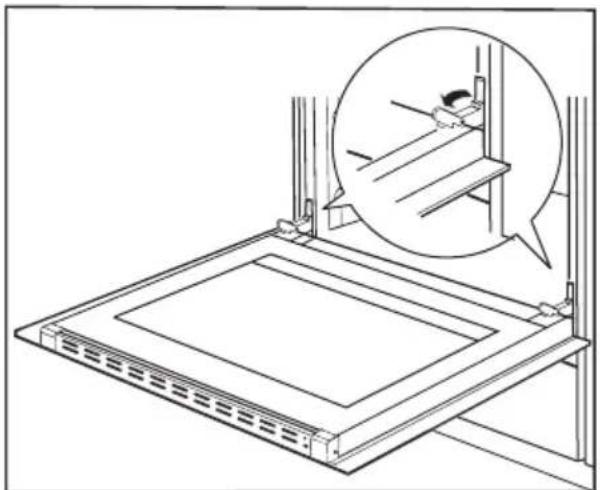

How do I remove the oven door for cleaning?

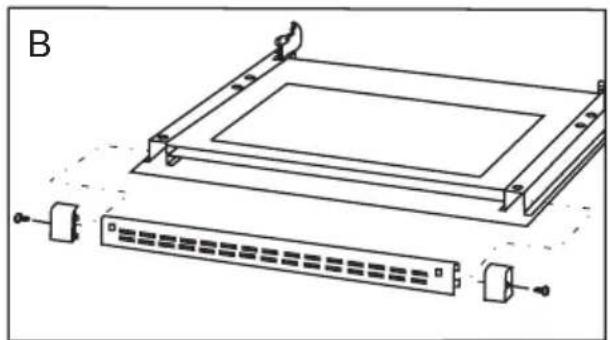

Open the door fully, tilt the safety catches on both hinges upward. Close the door to a 45° angle, lift it slightly, and pull it out toward you. To reinstall, reverse steps and ensure safety catches are lowered.

What does the fast heat-up function do and how to use it?

Fast heat-up allows the oven to reach 150°C in about 4 minutes. Set the oven function to ultra-fan and bottom heater, and temperature to 150°C. When the red light goes off, insert food and switch to desired baking mode. Do not use the programmer timer during fast heat-up.

Why is the '0:00' flashing on the display?

This indicates the appliance has been disconnected from power or experienced a power cut. You need to reset the current time using the electronic programmer (see FAQ on setting time). The oven will not work until the time is set.

Can I use the grill with the oven door open?

No, when using the grill function, the oven door must be closed to ensure proper operation and safety. The manual specifically states to close the door during grilling.

What pans are suitable for the ceramic hob?

Use pans with thick, flat bases that match the heating zone diameter. Avoid pans with concave or convex bases. For roasting tins, use the widened zone (14x25 cm). Always use pans with covers for energy efficiency.

How do I use the steam cleaning function?

Place 250 ml of water in a bowl on the lowest oven shelf. Close the door, set temperature to 50°C and function to bottom heater only. Heat for about 30 minutes, then wipe the oven interior with a damp cloth and mild detergent.

USER MANUAL EHC 12425 E AMICA

Four abstract curved line patterns on a black background, no text or symbols present

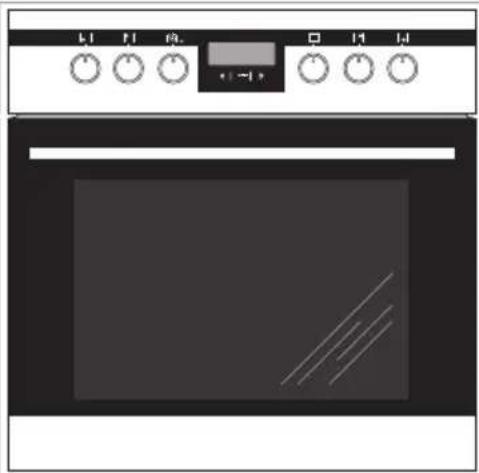

Illustration of a standard oven with control knobs and a digital display (no text or symbols)

(EN) INSTRUCTION MANUAL....2

(NL) GEBRUIKERSHANDLEIDING....35

The cooker is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy.

Before being packaged and leaving the manufacturer, the cooker was thoroughly checked with regard to safety and functionality.

Before using the appliance, please read the instruction manual carefully.

By following these instructions carefully you will be able to avoid any problems in using the appliance.

It is important to keep the instruction manual and store it in a safe place so that it can be consulted at any time.

It is necessary to follow the instructions in the manual carefully in order to avoid possible accidents.

Caution!

Do not use the cooker until you have read this instruction manual.

The cooker is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

TABLE OF CONTENTS

Safety instructions 4

Description of the appliance 7

Installation....11

Operation....18

Baking in the oven – practical hints ...... 27

Cleaning and maintenance 29

Technical data....34

• The appliance becomes hot during operation. Take care not to touch the hot parts inside the oven.
  ● Always keep children away from the cooker.
  While in operation direct contact with the cooker may cause burns!
• Ensure that small items of household equipment, including connection leads, do not touch the hot oven or the hob as the insulation material of this equipment is usually not resistant to high temperatures.
• Do not leave the cooker unattended when frying. Oils and fats may catch fire due to overheating or boiling over.
• Do not allow the hob to get soiled and prevent liquids from boiling over onto the surface of the hob. This refers in particular to sugar which can react with the ceramic hob and cause irreversible damage. Any spillages should be cleaned up as they happen.
• Do not place pans with a wet bottom on the warmed up heating zones as this can cause irreversible changes to the hob (irremovable stains).
• Use pans that are specified by the manufacturer as designed for use with a ceramic hob.
• If any defects, deep scratches, cracks or chips appear on the ceramic hob, stop using the cooker immediately and contact the service centre.
• Do not switch on the hob until a pan has been placed on it.
• Do not use pans with sharp edges that may cause damage to the ceramic hob.
• Do not look directly at the halogen heating zones (not covered by a pan) when they are warming up.
• Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25 kg on the hob.
• Do not use harsh cleaning agents or sharp metal objects to clean the door as they can scratch the surface, which could then result in the glass cracking.
• Do not use the cooker in the event of a technical fault. Any faults must be fixed by an appropriately qualified and authorised person.
• In the event of any incident caused by a technical fault, disconnect the power and report the fault to the service centre to be repaired.
  ● Unless properly supervised by caretakers or upon thorough studies of the operating manual, the appliance must not be operated by persons (including children) of limited physical or psychical abilities, these of limited technical expertise, or unfamiliar with the equipment.
• Never allow children to remain unattended near the cooktop nor to play with the control panel.
  ● The cooker should not be cleaned using steam cleaning equipment.

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Using energy in a responsible way not only saves money but also helps the environment. So let's save energy! And this is how you can do it:

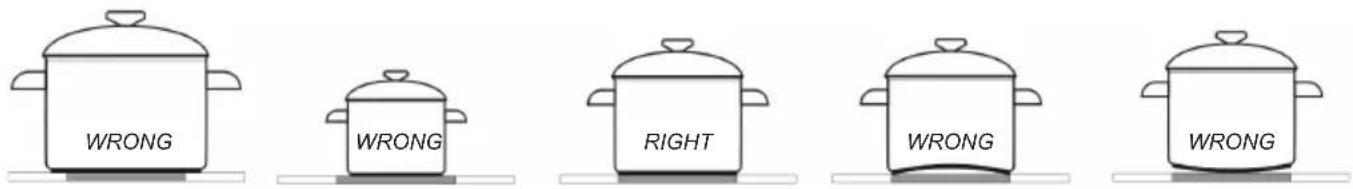

●Use proper pans for cooking.

Pans with thick, flat bases can save up to 1/3 on electric energy. Remember to cover pans if possible otherwise you will use four times as much energy!

- Match the size of the saucepan to the surface of the heating zone.

A saucepan should never be smaller than a heating zone.

●Ensure heating zones and pan bases are clean.

Soils can prevent heat transfer – and repeatedly burnt-on spillages can often only be removed by products which cause damage to the environment.

- Do not uncover the pan too often (a watched pot never boils!).

Do not open the oven door unnecessarily often.

Switch off the oven in good time and make use of residual heat.

For long cooking times, switch off heating zones 5 to 10 minutes before finishing cooking. This saves up to 20% on energy.

Only use the oven when cooking larger dishes.

Meat of up to 1 kg can be prepared more economically in a pan on the cooker hob.

● Make use of residual heat from the oven.

If the cooking time is greater than 40 minutes switch off the oven 10 minutes before the end time.

Important! When using the timer, set appropriately shorter cooking times according to the dish being prepared.

●Only grill with the ultrafan after closing the oven door.

●Make sure the oven door is properly closed.

Heat can leak through spillages on the door seals. Clean up any spillages immediately.

- Do not install the cooker in the direct vicinity of refrigerators/freezers.

Otherwise energy consumption increases unnecessarily.

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept out of reach of children.

Symbol of a recycling bin with crossed lines indicating no waste or plastic (no text or labels)

Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling.

Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you are making a significant contribution to the protection of our environment.

Information on appropriate disposal centres for used devices can be provided by your local authority.

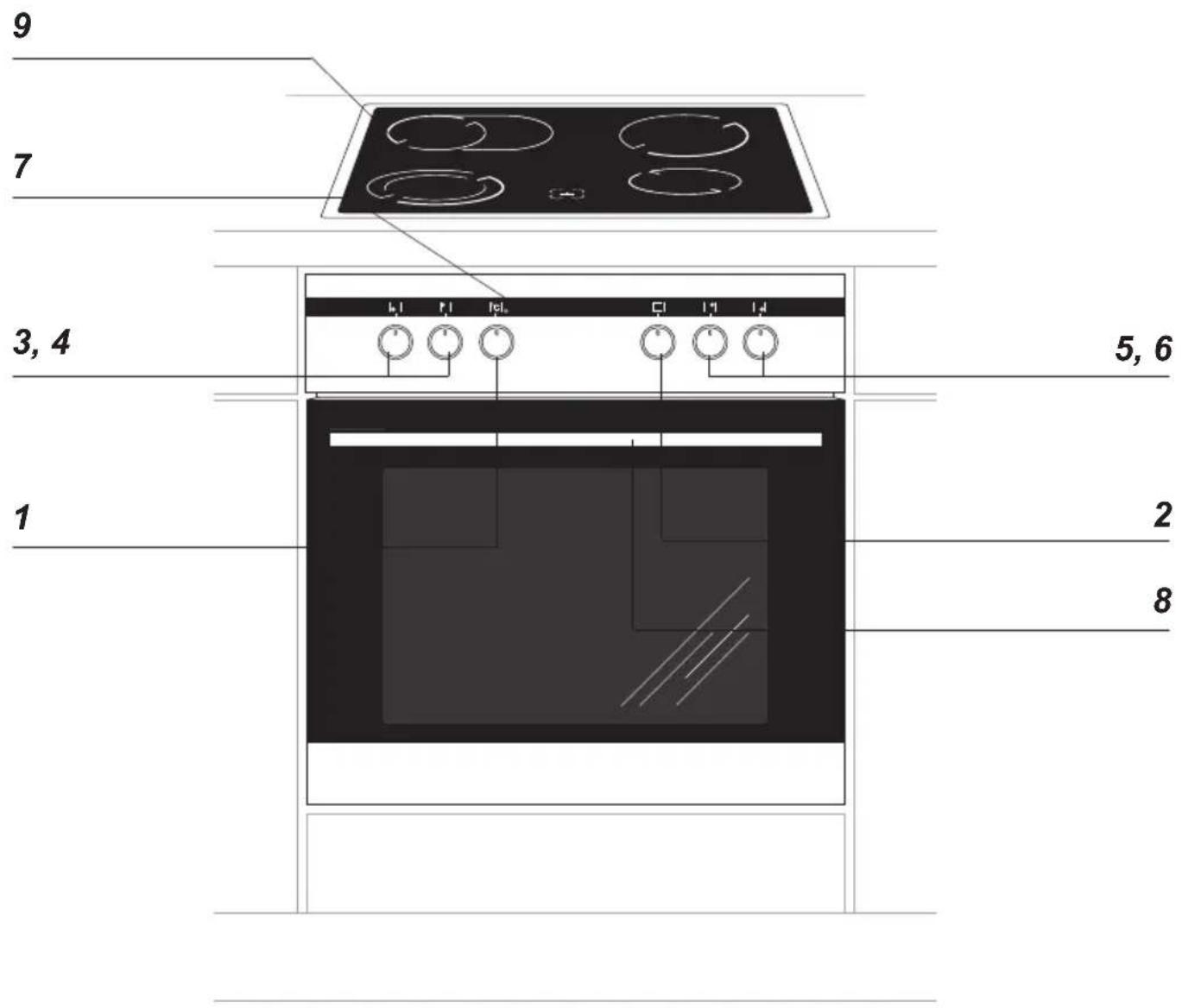

DESCRIPTION OF THE APPLIANCE

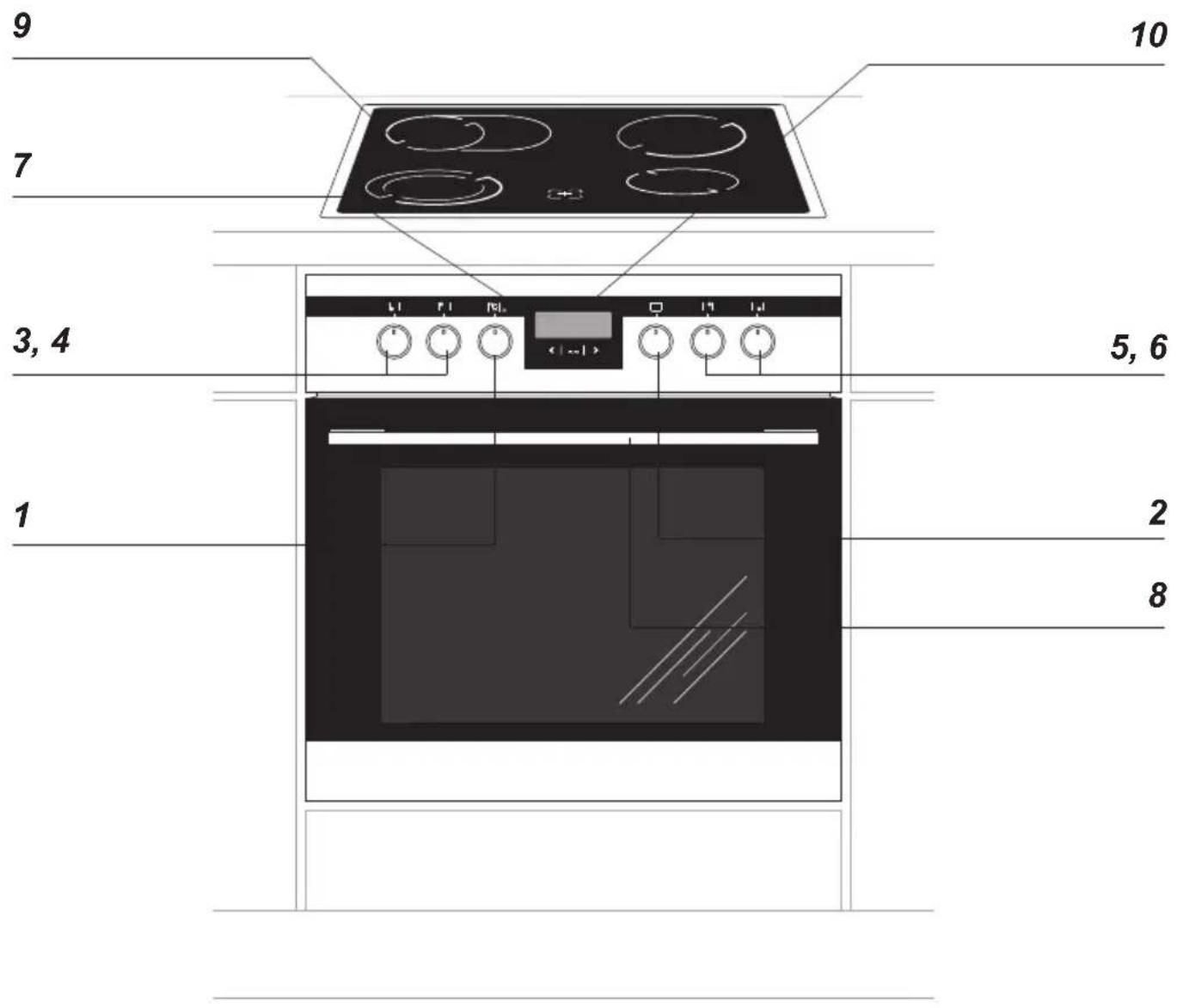

1 Temperature control knob

2 Oven function selection knob

3, 4, 5, 6 Heating zone control knobs

7 Temperatureregulatorsignal light red

8 Oven door handle

9 Ceramic hob

10 Electronic programmer

DESCRIPTION OF THE APPLIANCE

1 Temperature control knob

2 Oven function selection knob

3, 4, 5, 6 Heating zone control knobs

7 Temperatureregulatorsignal light red

8 Oven door handle

9 Ceramic hob

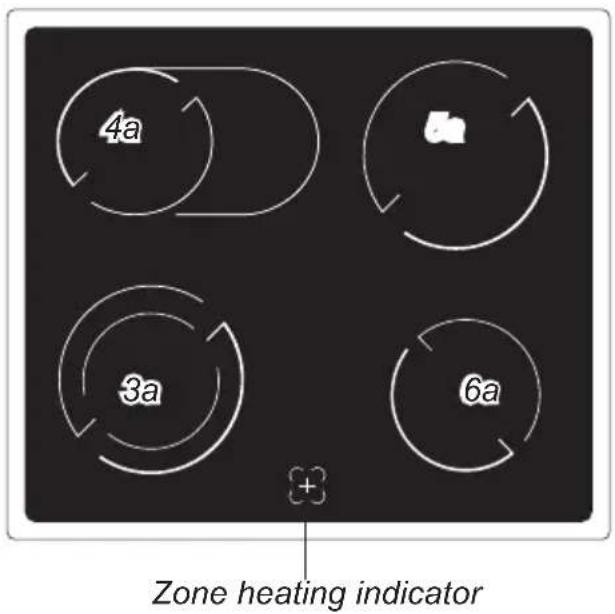

Ceramic hob

3a ∅ 18 / ∅ 12 cm

4a ∅ 14 x 25 cm

5a ∅ 18 cm

6a ∅ 14,5 cm

Cooker fittings:

Line drawing of a rectangular frame with rounded corners and mounting holes (no text or symbols)

Baking tray*

Line drawing of a rectangular grid structure with no text or symbols

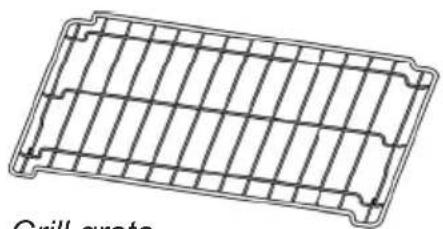

Grill grate (drying rack)

Line drawing of a rectangular frame with two side handles (no text or symbols)

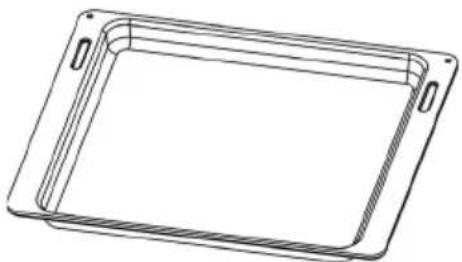

Roasting tray

*optional

Making the worktop recess

- The kitchen area should be dry and aired and equipped with efficient ventilation. When installing the cooker, easy access to all control elements should be ensured.

This is a Y-type design built-in cooker, which means that its back wall and one side wall can be placed next to a high piece of furniture or a wall.

• Worktop thickness should be 28 - 40 mm, while its width at least 600 mm. The worktop must be flat and level. Edge of the worktop near the wall must be sealed to prevent ingress of water or other liquids.
• There should be sufficient spacing around the opening, in particular, at least 50 mm distance to the wall and 60 mm distance to the front edge of worktop.
• Worktop must be made of materials, including veneer and adhesives, resistant to a temperature of 100^ C. Otherwise, veneer could come off or surface of the worktop become deformed.
• Edge of the opening should be sealed with suitable materials to prevent ingress of water.

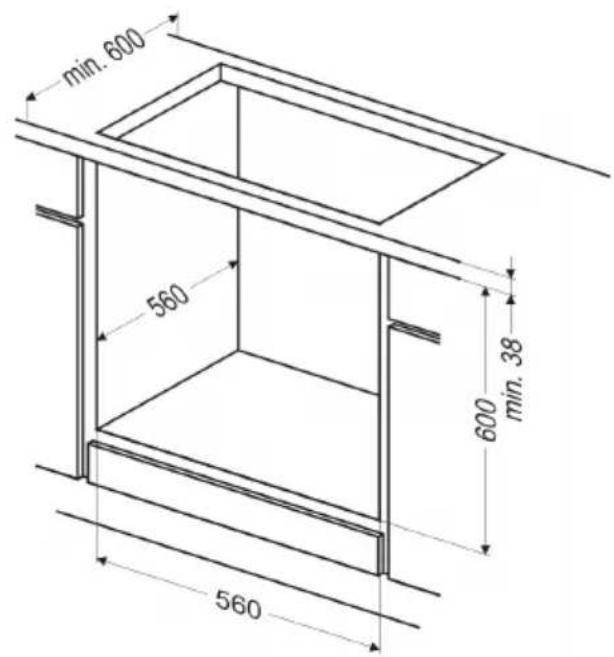

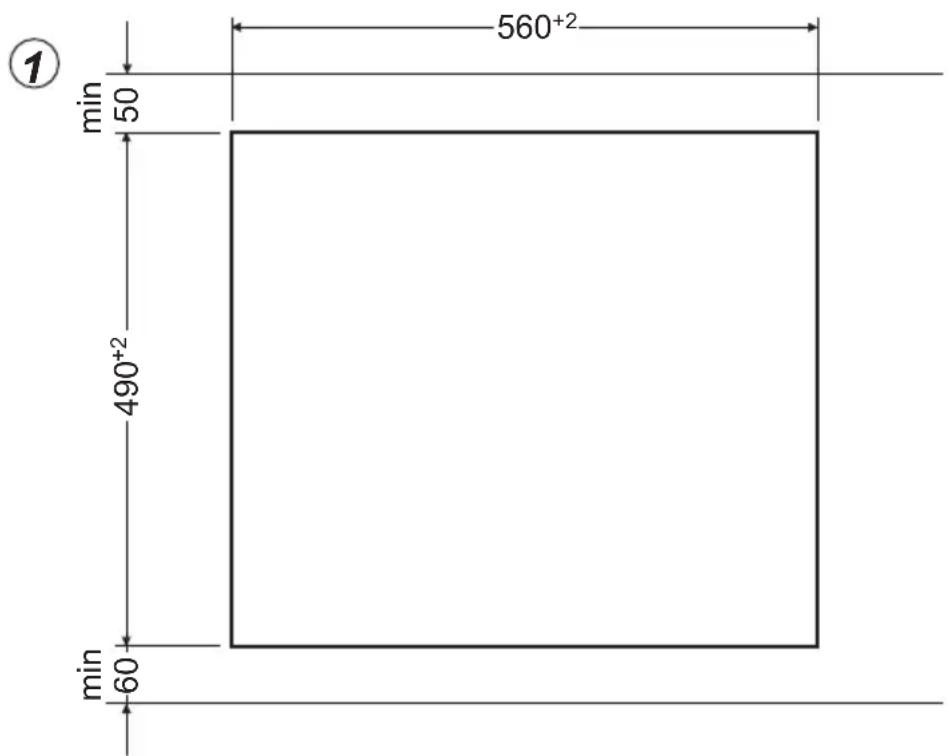

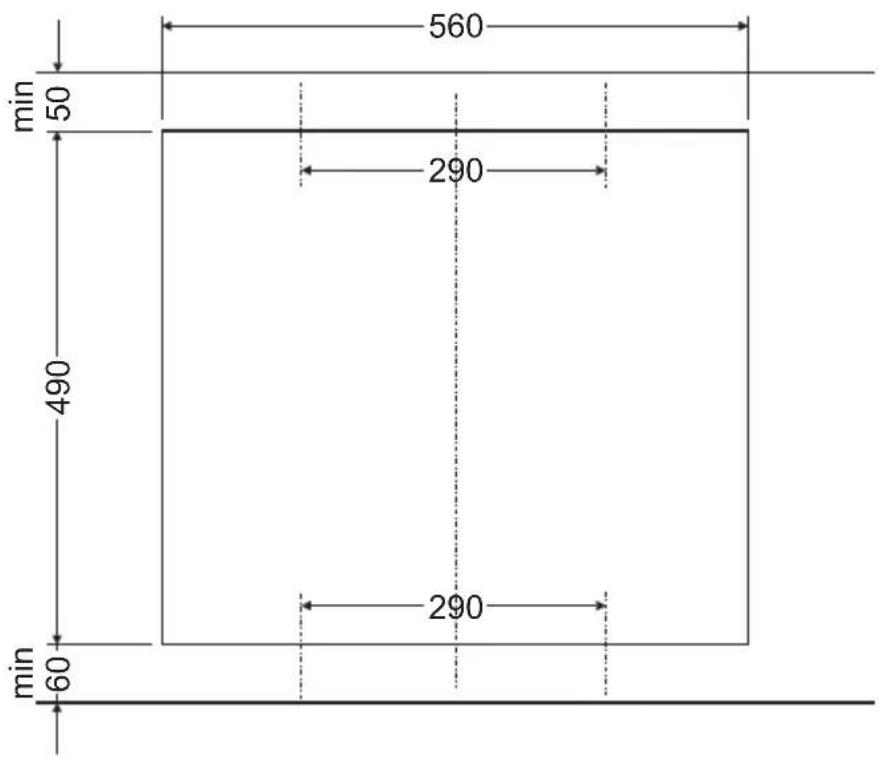

  • Worktop opening must cut to dimensions as shown on figure

Installation of self-adhesive foam gasket

Do not install the appliance without the foam gasket.

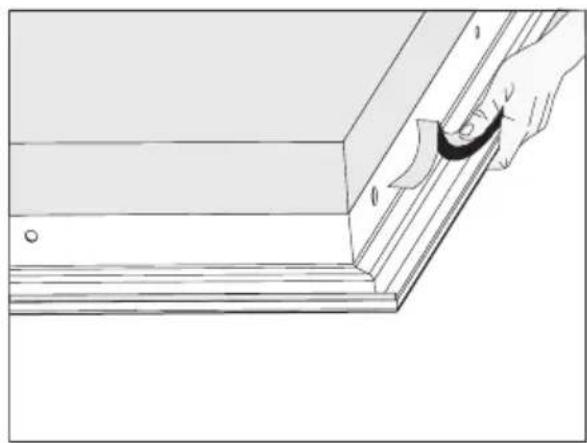

The gasket must be applied on the appliance as follows:

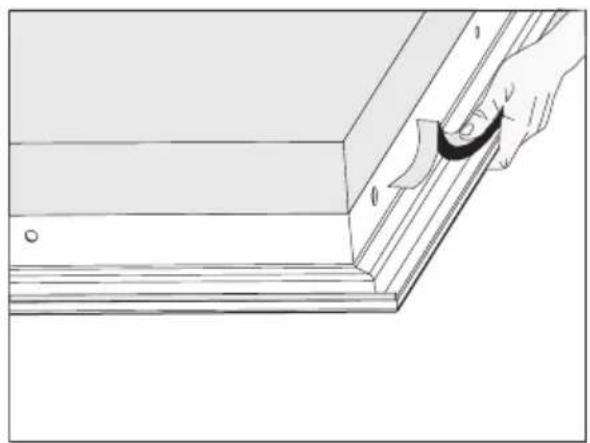

Before fitting the appliance in the kitchen worktop, apply self-adhesive foam gasket provided underneath the rim.

• before applying, remove the protective film from the self-adhesive foam gasket

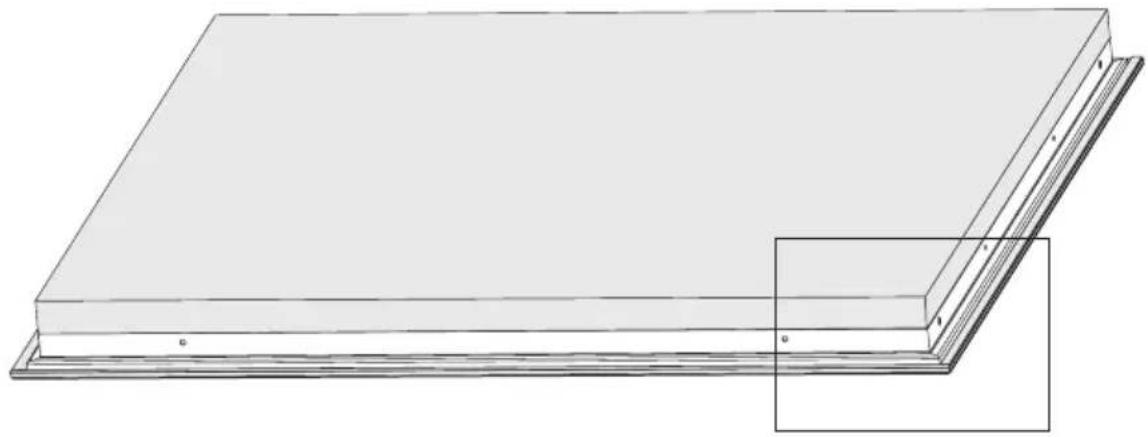

• apply the self-adhesive foam gasket underneath the appliance rim (Figure)

3D diagram of a rectangular panel with a flanged corner and two small circular features, no text or symbols present.

Illustration of a hand holding a paper clip attached to a wooden plank (no text or symbols)

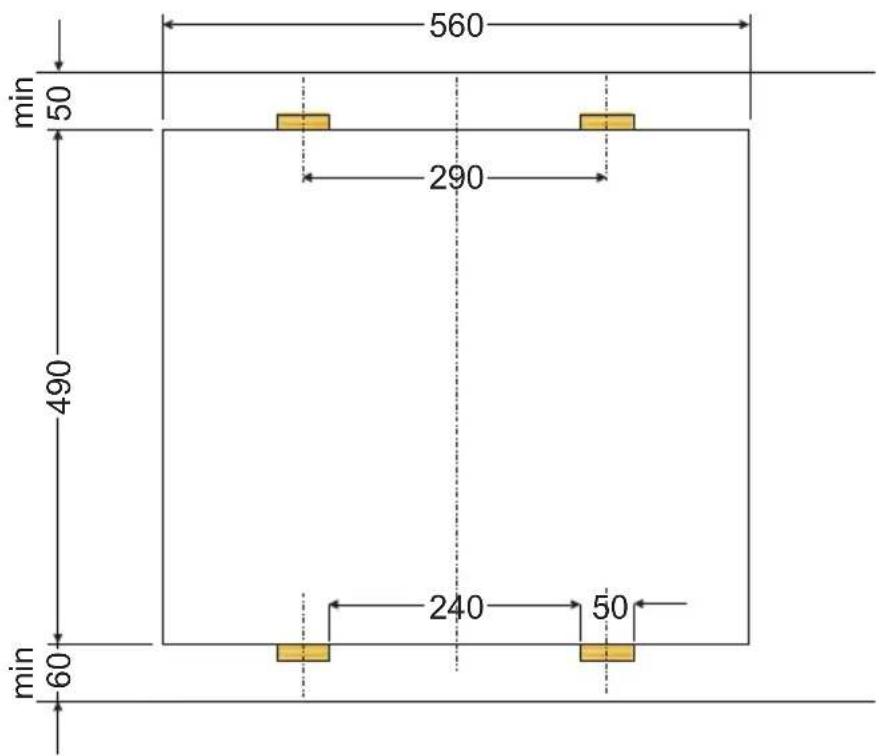

Installing the hob in worktop opening

• Use four “A” brackets for 38 mm thick worktops. Fit the hob into worktop opening as shown on figure 2 and 3. To properly secure hob in 28 mm thick worktop, use four 15x15x50 mm wooden blocks in addition to “A” brackets. Fit the hob into worktop opening as shown on figure 4 and 5.
• Check if adhesive seal is properly applied to the hob's flange.
• Loosely attach fixing brackets to the bottom of the hob
• Remove dust from the worktop, insert hob into the opening and press in firmly,
• Position fixing brackets perpendicularly to the hob's edge and tighten firmly.

2

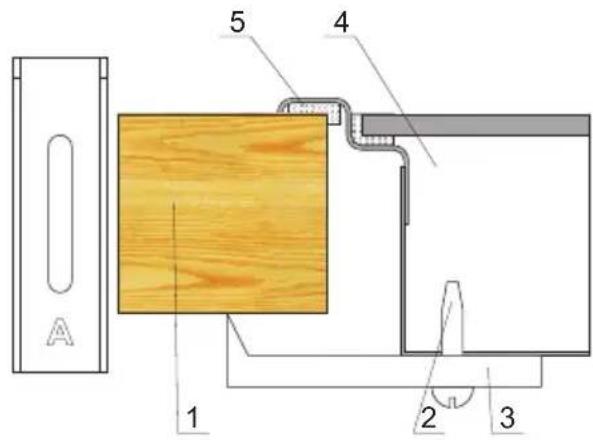

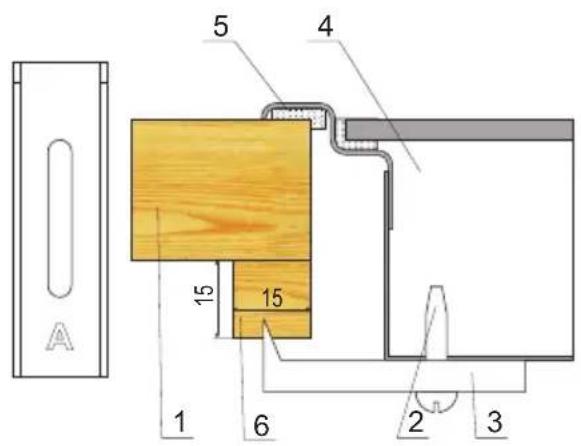

1 - worktop
2 - screw
3 - fixing bracket
4 - hob
5 - seal

③

Installing the hob in worktop opening

4

1 - worktop
2 - screw
3 - fixing bracket
4 - hob
5 - seal
6 - wooden block

5

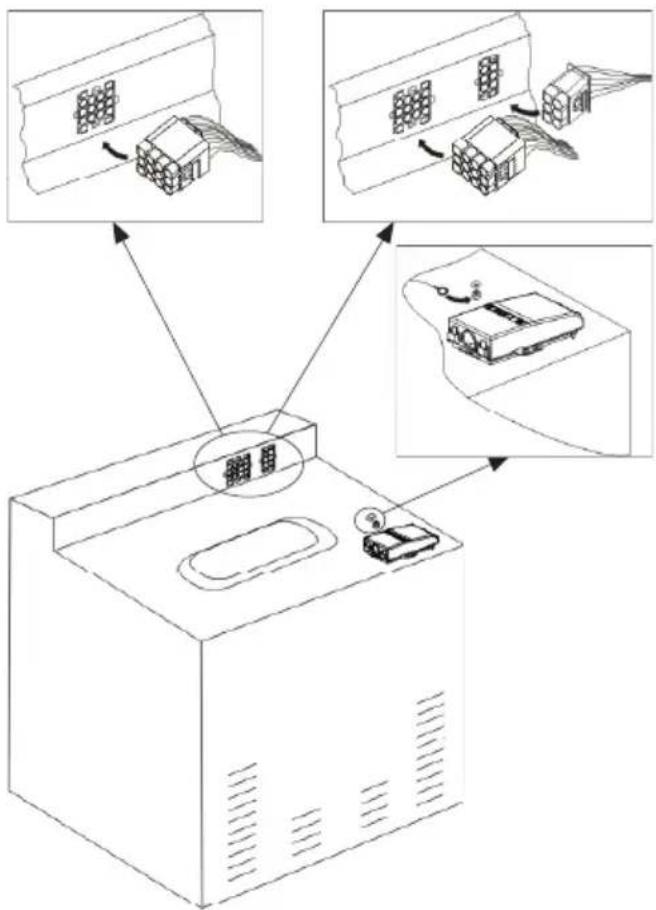

Assembly of the oven:

● Make an opening with the dimensions given in the diagram for the oven to be fitted.(Fig.A)
● Make sure the mains plug is disconnected and then connect the oven to the mains supply.

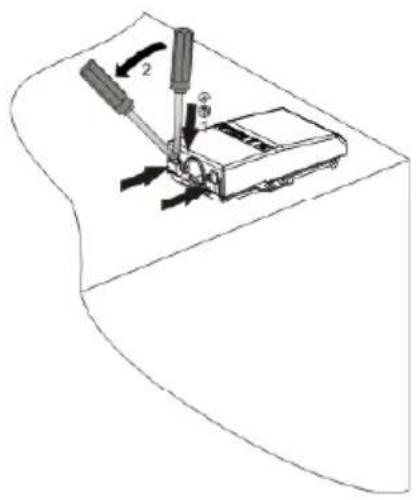

- Partially insert the oven into the prepared opening and connect the oven to the hob. (Fig.B)
- The appliance must be earthed. Connect the earth lead of the hob (yellow-green) with the earth terminal of the oven (marked ⏻ which is located near the connection box

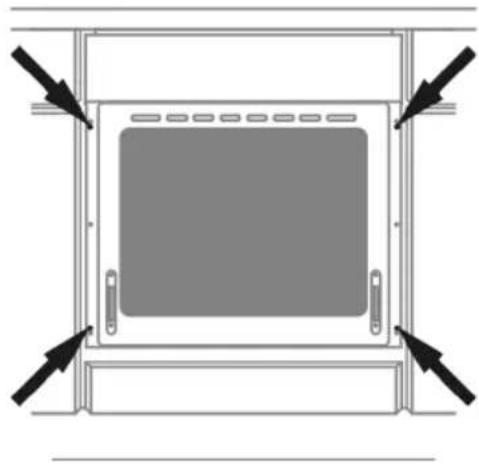

- Insert the oven completely into the opening without allowing the four screws in the places shown in the diagram to fall out. (Fig.C)

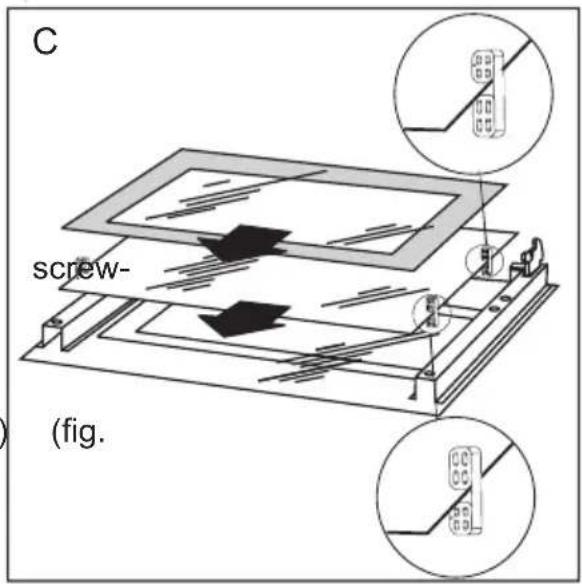

Fig. A

Fig. B

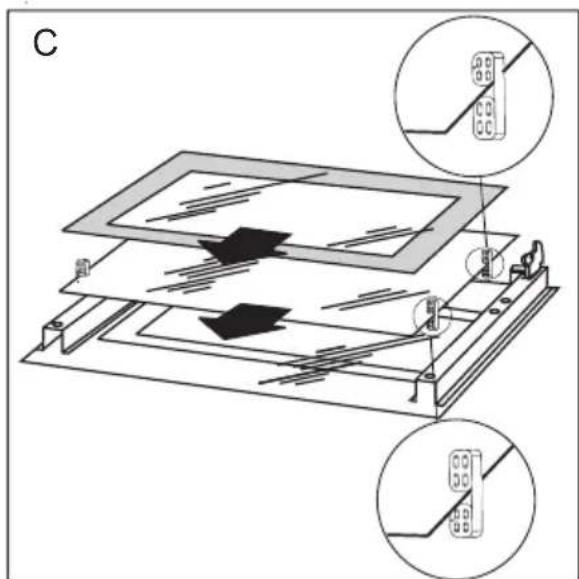

Diagram of a cabinet or enclosure with arrows indicating directional forces or movement (no text or symbols present)

Fig. C

Electrical connection

Warning!

All electrical work should be carried out by a suitably qualified and authorised electrician. No alterations or wilful changes in the electricity supply should be carried out.

Fitting guidelines

The cooker is manufactured to work with three-phase alternating current (400V 3N\~50Hz). The voltage rating of the cooker heating elements is 230V. Adapting the cooker to operate with one-phase current is possible by appropriate bridging in the connection box according to the connection diagram below. The connection diagram is also found on the cover of the connection box. Remember that the connection wire should match the connection type and the power rating of the cooker.

The connection cable must be secured in a strain-relief clamp.

Warning!

Remember to connect the safety circuit to the connection box terminal marked with ⏚. The electricity supply for the cooker must have a safety switch which enables the power to be cut off in case of emergency. The distance between the working contacts of the safety switch must be at least 3 mm.

Before connecting the cooker to the power supply it is important to read the information on the data plate and the connection diagram.

Diagram of a mechanical device with two sensors and directional arrows, no text or symbols present

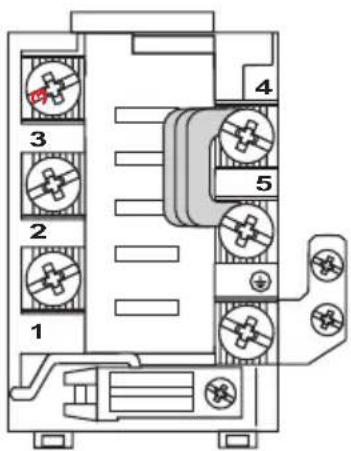

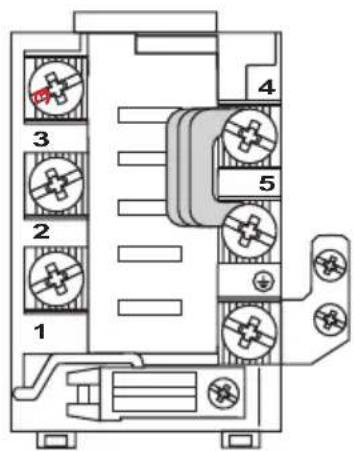

CONNECTION DIAGRAMCaution! Voltage of heating elements 230VCaution! In the event of any connection the safety wire must be connected to the PE terminal					Recommended type of connection lead
1 F	For 230 V earthed one-phase connection, bridges connect 1-2-3 terminals and 4-5 terminals, safety wire to				H05VV-F3G4
2 F	For 400/230 V earthed two-phase connection, bridges connect 2-3 terminals and 4-5 terminals, the safety wire to				H05VV-F4G2,5
3 F	For 400/230V earthed three-phase connection, bridges connect 4-5 terminals, phases in succession 1,2 and 3, earth to 4-5, the safety wire to				H05VV-F5G1,5
L1=R, L2=S, L3=T, N=earth terminal, PE= safety wire terminal

Before using the oven for the first time

• Remove packaging, clean the interior of the oven,
  ● Take out and wash the oven fittings with warm water and a little washing-up liquid,
• Switch on the ventilation in the room or open a window,
• Gently press the knob and turn it right to position or (see section: electronic programmer operation and oven control),
• Heat up the oven (to a temperature of 250^ C for approximately 30 minutes), remove any stains and wash the interior carefully.

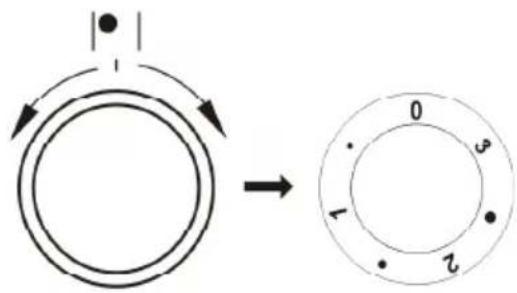

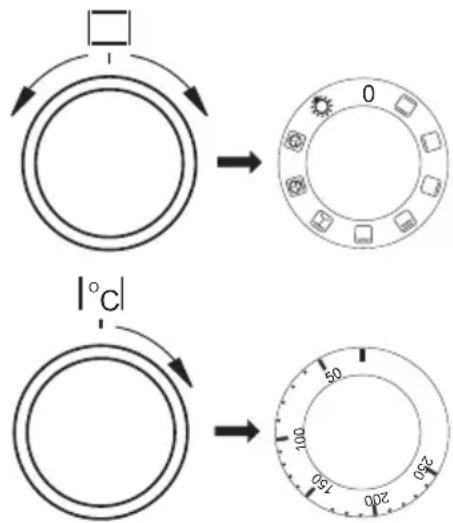

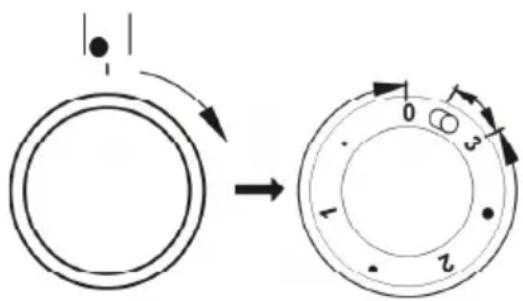

The oven is equipped with a retractable knobs. In order to select a function do the following:

1. Gently press and release a knob which will pop out,
2. Turn the oven functions selection knob to the desired function.
   Symbols printed around the knob indicate available oven functions.

Diagram of a cylindrical device with an arrow indicating rotation, no text or symbols present

Important!

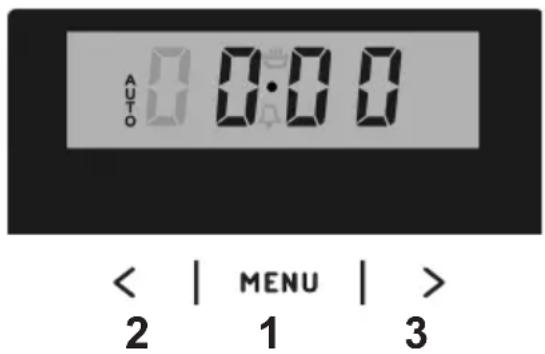

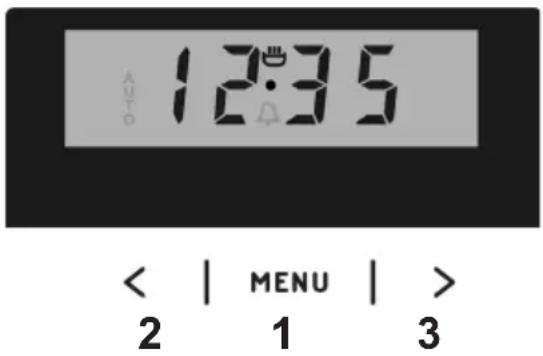

In ovens equipped with the electronic programmer Ts, the time "0.00" will start flashing in the display field upon connection to the power supply.

The programmer should be set with the current time. (See Electronic programmer). If the current time is not set operation of the oven is impossible.

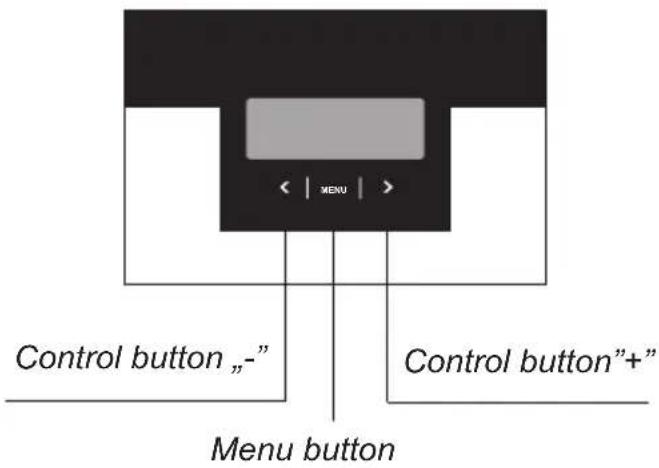

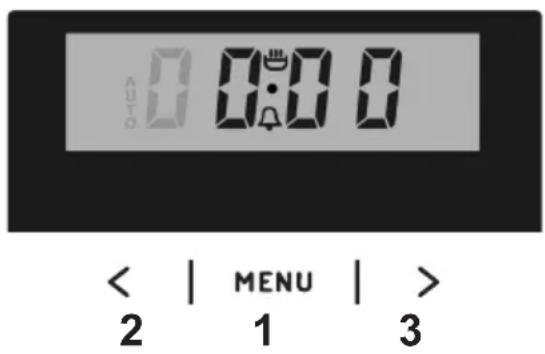

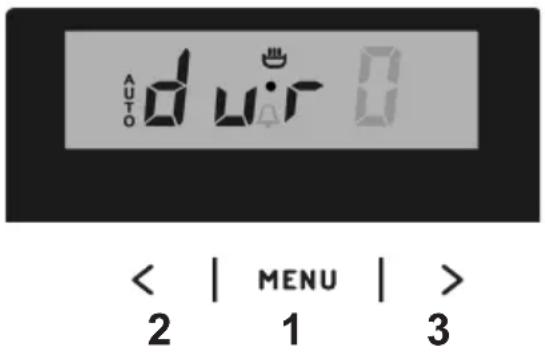

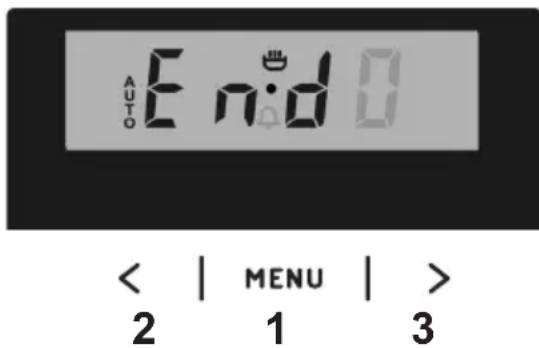

The electronic programmer Ts is equipped with electronic sensors which are switched on by touching or pressing the sensor surface for at least one second.

Each sensor reaction is confirmed by the beep. Keep the sensor surface clean at all times.

Controlling the heating zones of the ceramic hob.

Choice of cookware

Choose a pan with a diameter that is at least as large as the heating zone. For roasting tins there is a special widened heating zone of 140x250. Do not use pans with a concave or convex base. Always remember to put a proper cover on the pan. We recommend the use of pans with thick, even bases.

If the heating zones and pans are solied it is impossible to make full use of the heat.

Heat level selection

The heating zones have different levels of heat. The level of heat can be adjusted gradually by turning the appropriate knob to the right or left.

0 Switch off

• MIN. Warming up

1 Stewing vegetables, slow cooking

• Cooking soups, larger dishes

2 Slow frying

- Grilling meat, fish

3 MAX. Fast heating up, fast cooking, frying

Switching on the wider heating zone

Important!

Only switch on a heating zone by turning the knob clockwise. Turning the knob in the opposite direction can cause damage to the switch.

With the settings 0 ● 1 ● 2 ● 3 the knob operates the internal heating zone and it is possible to smoothly control the amount of heat transferred to a pan. Turning the knob temporarily to the position marked causes the external heating zone to be switched on. From that point, you can smoothly control the amount of heat trasferred to a pan by both heating zones (internal and external) as the internal switch will switch both zones off only after the knob is set to position 0.

Zone heating indicator

If the temperature of a heating zone exceeds 50^ C this is signalled by an indicator which lights up for that zone.

When the heating indicator lights up it warns the person using the cooker against touching a hot heating zone.

For about 5 to 10 minutes after a heating zone is switched off it will still have residual heat that can be used, for example to warm up or keep dishes warm without switching on another heating zone.

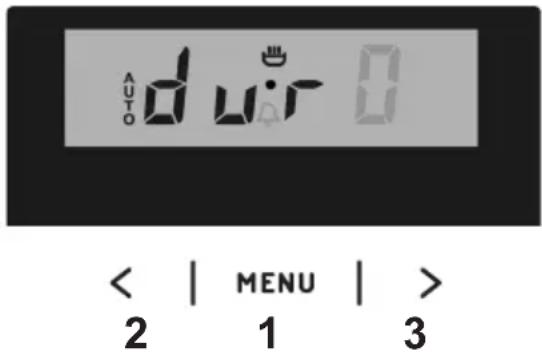

Electronic programmer\*

1 - function selection button
2 - “-” sensor
3 - “+” sensor

The electronic programmer is equipped with electronic sensors which are switched on by touching or pressing the sensor surface for at least one second.

Each sensor reaction is confirmed by the beep.

Keep the sensor surface clean at all times.

Setting the time

After connection to the mains or reconnection after a power cut the display shows flash: 0.00

- Press sensor 1, then the display will show 🤨,

- set the time using sensors 3 and 2.

7 seconds after the time has been set the new data will be saved.

Caution!

If the correct time is not set then proper operation of the oven is not possible.

*optional

Timer

The timer can be activated at any time, regardless of the status of other functions. The timer can be set for from 1 minute to up to 23 hours and 59 minutes.

To set the timer you should:

- Press sensor 1, then the display will show flashing 🔊,

• set the timer using sensors 3 and 2.
  The time set is shown on the display and the signal function 🔔 is on.

- Press sensor 1, 2 or 3 in order to switch off the signal, the signal function will go out and the display will show the current time.

Caution!

If the alarm signal is not turned off manually, it will be turned off automatically after approx. 7 minutes.

Semi-automatic operation

If the oven is to be switched off at a given time, then you should:

- Set the oven function knob and the temperature regulator knob to the setting at which you want the oven to operate.

- Press sensor 1 until the display will show:

- Set the required time using sensors 3 and 2, within a range from 1 minute to 10 hours.

The set time will be introduced to the memory after approx. 7 seconds and the display will show AUTO function.

When the set time has passed the oven is switched off automatically, the alarm signal is activated and the signal function AUTO flashing again;

• Set the oven function knob and the temperature regulator knob to the switched-off position.
• Press sensor 1, 2 or 3 in order to switch off the signal; the signal function will go out and the display will show the current time.

Caution!

In ovens equipped with one control knob, the oven function knob is integrated with the temperature regulator knob.

Automatic operation

If the oven is to be switched on for a specified period of time and switched off at a fixed hour then you should set the operation time and the operation end time:

- Press sensor1 until the display will show:

• Set the required time using the sensors 3 and 2 within a range from 1 minute to 10 hours.
• Press sensor 1 until the display will show:

• Set the switch-off time (operation end time) using sensors 3 and 2, which is limited to a period of 23 hours and 59 minutes from the current time.
• Set the oven function knob and the temperature regulator knob to the setting at which you want the oven to operate.

The function AUTO is now on; the oven will start operating from the point when the difference between the set operation end time and the operation duration time occurs (e.g. the operation time is set to 1 hour, the operation end time is set to 14.00, so the oven will start working automatically at 13.00).

When the oven reaches the operation end time it will switch off automatically, the alarm will be activated and the function AUTO will start flashing again.

• Set the oven function knob and the temperature regulator knob to the switched-off position.
• Press sensor 1, 2 or 3 in order to switch off the alarm; the function AUTO will go out and the display will show the current time.

Cancel settings

Timer and automatic function settings may be cancelled at any time.

Cancel automatic function settings:
- press sensors 2 and 3 simultaneously,

Cancel timer settings:
- press sensor 1 to select timer settings,
- press sensors 2 and 3 again,

Change the timer beeps

The tone of the timer beeps may be changed as follows:

• press sensors 2 and 3 simultaneously,
• select "tone" function with the 1 sensor, the display panel will start to blink:

- with the 2 sensor press the appropriate sensors from 1 to 3 to select the option you wish.

Oven functions and operation.

Oven with automatic air circulation (including a fan and an ultra-fan heater)

The oven can be heated up using the bottom and top heaters, the grill or the ultra-fan heater. Operation of the oven is controlled by the oven function knob – to set a required function you should turn the knob to the selected position, and the temperature regulator knob – to set a required function you should turn the knob to the selected position.

The oven is equipped with a retractable knobs. In order to select a function do the following:

• gently press and release a knob which will pop out,
• turn the oven functions selection knob to the desired function.

Symbols printed around the knob indicate available oven functions.

The oven can be switched off by setting both of these knobs to the position „●” / „0”.

Caution!

When selecting any heating function (switching a heater on etc.) the oven will only be switched on after the temperature has been set by the temperature regulator knob.

0 Oven is off

Independent oven lighting

Set the knob in this position to light up the oven interior.

Convection with ring heating element

Setting the knob in this position allows the oven to be heated up by a heating element with air circulation forced by a rotating fan fitted in the central part of the back wall of the of and chamber. Lower baking temperatures than in the conventional oven can be used.

Heating the oven up in this manner ensures uniform heat circulation around the dish being cooked in the oven.

Baking of ready made (frozen) dishes such as cakes, pizza, chips.

Defrosting (meat, fruits, vegetables, bread) – for delicate foods (for consumption in the fresh, raw state – i.e. strawberries) heating is not turned on, when defrosting meat, set thermostat temperature to 50 – 75°C.

Drying fruits, mushrooms (on several levels, temperature of 50 – 80°C).

Convection with ring heating element and bottom heater on

With this setting the convection fan and bottom heater are on, which increases the temperature at the bottom of the cooked dish. Intense heat from the bottom, moist cakes, pizza.

Convection roasting

In this knob setting, the oven's convection roasting function is on. In this mode the roasting process is speeded up, which enhances the taste of a cooked dish.

Top heater on

Setting the knob to this position allows the oven to be heated only by the top heater. Browning on top, finishing baking, grilling.

Caution!

When the functions have been selected but the temperature knob is set to zero only the fan will be on. With this function you can cool the dish or the oven chamber.

Bottom heater on

When the knob is set to this position the oven is heated using only the bottom heater. Baking of cakes from the bottom until done (moist cakes with fruit stuffing).

Roaster on.

Roasting is used for cooking of small portions of meat: steaks, schnitzel, fish, toasts, Frankfurter sausages, (thickness of roasted dish should not exceed 2-3 cm and should be turned over during roasting).

Top and bottom heaters on

Set the knob in this position for conventional baking. This setting is ideal for baking cakes, meat, fish, bread and pizza (it is necessary to preheat the oven and use a baking tray) on one oven level.

Enhanced roaster (super roaster)

In this setting both roaster and top heater are on. This increases temperature in the top part of the oven's interior, which makes it suitable for browning and roasting of larger portions of food.

Switching on the oven is indicated by two signal lights, yellow and red, turning on. The yellow light turned on means the oven is working. If the red light goes out, it means the oven has reached the set temperature. If a recipe recommends placing dishes in a warmed-up oven, this should be not done before the red light goes out for the first time. When baking, the red light will temporarily come on and go out (to maintain the temperature inside the oven). The yellow signal light may also turn on at the knob position of “oven chamber lighting”.

Fast oven heat-up

In ovens with automatic air circulation, equipped with a fan and an ultra-fan heater, the fast heat-up function may be used – the oven will reach a temperature of 150^ C within approximately 4 minutes.

Mode of operation:

• set the oven function to the position of ultra-fan and bottom heater
• set the temperature to the position of 150^ C,
• the oven warms up to the temperature of 150°C (or lower if set); the oven reaching the temperature is signalled by the red light of the temperature regulator going off,
• now put the tray with dough into the oven,
• set the oven function knob to the selected heating mode, (see the chapter Baking in the oven – practical hints).

Use of the grill

The grilling process operates through infrared rays emitted onto the dish by the incandescent grill heater.

In order to switch on the grill you need to:

• Set the oven knob to the position marked grill ,
• Heat the oven for approx. 5 minutes (with the oven door shut).
• Insert a tray with a dish onto the appropriate cooking level; and if you are grilling on the grate insert a tray for dripping on the level immediately below (under the grate).
• Close the oven door.

For grilling with the function grill and combined grill the temperature must be set to 250^ C, but for the function fan and grill it must be set to a maximum of 200^ C.

Important!

When the fast oven heat-up function has been selected, the chamber should not contain a baking tray with dough or other elements that do not constitute the oven fittings.

The fast heat-up function is not recommended for use with the programmer set.

Warning!

When using function grill it is recommended that the oven door is closed.

When the grill is in use accessible parts can become hot.

It is best to keep children away from the oven.

Baking

• we recommend using the baking trays which were provided with your cooker;
• it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;
  ● shapes and trays with bright or shiny surfaces are not recommended when using the conventional heating method (top and bottom heaters), use of such tins can result in undercooking the base of cakes;
• when using the ultra-fan function it is not necessary to initially heat up the oven chamber, for other types of heating you should warm up the oven chamber before the cake is inserted;
• before the cake is taken out of the oven, check if it is ready using a wooden stick (if the cake is ready the stick should come out dry and clean after being inserted into the cake);
  ● after switching off the oven it is advisable to leave the cake inside for about 5 min.;
• temperatures for baking with the ultra-fan function are usually around 20 – 30 degrees lower than in normal baking (using top and bottom heaters);
• the baking parameters given in Table are approximate and can be corrected based on your own experience and cooking preferences;
• if information given in recipe books is significantly different from the values included in this instruction manual, please apply the instructions from the manual.

Roasting meat

• cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on the gas burners.
• use heatproof ovenware for roasting, with handles that are also resistant to high temperatures;
• when roasting on the drying rack or the grate we recommend that you place a baking tray with a small amount of water on the lowest level of the oven;
• it is advisable to turn the meat over at least once during the roasting time and during roasting you should also baste the meat with its juices or with hot salty water – do not pour cold water over the meat.

BAKING IN THE OVEN – PRACTICAL HINTS

Type of dish	Oven functions	Temperature Level Time	in minutes
		160 - 200 2 - 3 30 - 50
	[ZYAS]	160 - 180 2 20 - 40*
	[CZHS]	140 - 160 2 10 - 40*
[SACG]		200 - 230 1 - 3 10 - 20
		210 - 220 2 45 - 60
		160 - 180 2 - 3 45 - 60
		190 2 - 3 60 - 70
[45SH]		230 - 250 4 14 - 18
[XXZC]		225 - 250 2 120 - 150
[Z0XC]		160 - 180 2 120 - 160
[70AA]		160 - 230 2 90 - 120
		160 - 190 2 90 - 120
[BWGT]	[AYBY]	200 - 220 2 - 3 50 - 60
		160 - 180 2 45 - 60
[DZS4]		175 - 190 2 60 - 70
[CZGS]		190 - 210 2 40 - 50
	[XXXS]	170 - 190 3 40 - 50

* Baking smaller items

Caution!

The figures given in Tables are approximate and can be adapted based on your own experience and cooking preferences.

By ensuring proper cleaning and maintenance of your cooker you can have a significant influence on the continuing fault-free operation of your appliance.

Before you start cleaning, the cooker must be switched off and you should ensure that all knobs are set to the “●”/“0” position. Do not start cleaning until the cooker has completely cooled.

Ceramic hob

• The hob should be cleaned regularly after each use. If possible, it is recommended that the hob is washed while still warm (after the heating zone indicator goes off). Do not allow the hob to get heavily stained; particularly from burnt-on spillages from boiled over liquids.
• When cleaning do not use cleaning agents with a strong abrasive effect, such as e.g. scouring powders containing an abrasive, abrasive compounds, abrasive stones, pumice stones, wire brushes and so on. They may scratch the hob surface, causing irreversible damage.

Do not use the cleaning fluid "Cillit" for cleaning the oven.

- Large spillages that are firmly stuck to the hob can be removed by a special scraper; but be careful not to damage the ceramic hob frame when doing this.

Line drawing of a hand using a tool to cut or spread fragments (no text or symbols)

Scraper for cleaning the hob

Caution! The sharp blade should always be protected by adjusting the cover (just push it with your thumb). Injuries are possible so be careful when using this instrument – keep out of reach of children.

- Appropriate light cleaning or washing products are recommended, such as e.g. any kind of liquids or emulsions for fat removal. In particular, special cleaning products such as COLLO Luneta, Sidol Stahlglanz, Stahl-Fix for washing and cleaning and Cera-Fix for maintenance are recommended. If the recommended products are not available, it is advisable to use a solution of warm water with a little washing-up liquid or cleaning products for stainless steel sinks.

Oven

- The oven should be cleaned after every use. When cleaning the oven the lighting should be switched on to enable you to see the surfaces better.

- The oven chamber should only be washed with warm water and a small amount of washing-up liquid.

- After cleaning the oven chamber wipe it dry.

- Steam Cleaning function:

-pour 250ml of water (1 glass) into a bowl placed in the oven on the first level from the bottom,

• close the oven door,
• set the temperature knob to 50^ C, and the function knob to the bottom heater position ☐

- heat the oven chamber for approximately 30 minutes,

- open the oven door, wipe the chamber inside with a cloth or sponge and wash using warm water with washing-up liquid.,

● After cleaning the oven chamber wipe it dry.

Caution!

Do not use cleaning products containing abrasive materials for the cleaning and maintenance of the glass front panel.

Replacement of the oven light bulb

In order to avoid the possibility of an electric shock ensure that the appliance is switched off before replacing the bulb.

• Set all control knobs to the position “●”/“0” and disconnect the mains plug,
• unscrew and wash the lamp cover and then wipe it dry.

• unscrew the light bulb from the socket, replace the bulb with a new one – a high temperature bulb (300°C) with the following parameters:

• voltage 230 V

• power 25 W
• thread E14.

Oven light bulb

• Screw the bulb in, making sure it is properly inserted into the ceramic socket.
• Screw in the lamp cover.

Dismounting the side racks

Ovens marked with the letter D are equipped with easily removable wire guides (side racks*) of oven inserts. To remove them for washing purposes, pull the front catch (Z1), then tilt the guide and remove it from the rear catch (Z2). After washing the guides, put them in the mounting holes of the oven and press the catches (Z1 and Z2).

Dismounting the side racks

Ovens types marked with the letters Db in the model number have moveable stainless telescopic runners* attached to the side racks. The runners should be taken out and washed along with the side racks. Before putting trays on the telescopic runners they should be pulled out (if the oven is warmed up the runners should be pulled out by hooking the back edge of trays on the bumpers in the front part of the telescopic runners) and then insert them together with a tray.

*optional

Door removal

In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door. To do this, tilt the safety catch part of the hinge upwards. Close the door lightly, lift and pull it out towards you. In order to fit the door back on to the cooker, do the inverse. When fitting, ensure that the notch hinge is correctly placed on the protrusion of the hinge holder. After the door is fitted to the oven, the safety catch should be carefully lowered down again. If the safety catch is not set it may cause damage to the hinge when closing the door.

Technical line drawing of a mechanical assembly with a magnified inset showing a small component (no text or symbols)

Tilting the hinge safety catches

Removing the inner panel

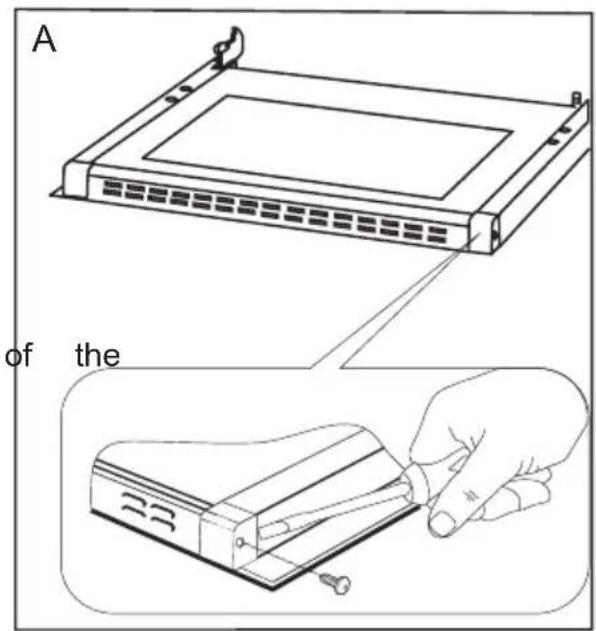

1. Use a cross-head screwdriver to turn the side clamp bolts loose (fig. A).
2. Push the clamps off with a flat driver. Pull the upper door slat loose. (fig. A, B).
3. Pull the inner glass panel from its seat (in the lower section of the door) C).

3a. Remove the inner panel.

1. Clean the panel with warm water with some cleaning agent added.

Carry out the same in reverse order to reassemble the inner glass panel. Its smooth surface shall be pointed upwards.

Technical line drawing of a rectangular device with internal components and a separate rack-like structure (no text or symbols)

Removal of the internal glass panel

Regular inspections

Besides keeping the oven clean, you should:

- carry out periodic inspections of the control elements and cooking units of the cooker. After the guarantee has expired you should have a technical inspection of the cooker carried out at a service centre at least once every two years,

• fix any operational faults,
  ● carry out periodical maintenance of the cooking units of the oven.

Caution!

All repairs and regulatory activities should be carried out by the appropriate service centre or by an appropriately authorised fitter.

OPERATION IN CASE OF EMERGENCY

In the event of an emergency, you should:

• switch off all working units of the oven
• disconnect the mains plug
• call the service centre
• some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the service centre check the following points that are presented in the table.

PROBLEM REASON ACTION
1. The appliance does not work.	Break in power supply. Check the household fuse box; if there is a blown fuse replace it with a new one.
2. The programmer display shows “0:00”.	The appliance was disconnected from the mains or there was a temporary power cut.	Set the current time (see ‘Use of the programmer’).
3. The oven lighting does not work.	The bulb is loose or damaged.	Tighten up or replace the blown bulb (see ‘Cleaning and Maintenance’).

Voltage rating 400/230V\~50 Hz

Power rating max. 10,0 kW

Cooker dimensions H/W/D 59,5 / 59,5 / 57,5 cm

Usable capacity of the oven* 53-58 litres

Energy rating on the energy label

Weight approx. 44 kg

Complies with EU regulations EN 50304, EN 60335-1, EN 60335-2-6 standards

* according to EN 50304

the capacity depends on the oven fittings – indicated on the energy label.

Certificate of compliance CE

The Manufacturer hereby declares that this product complies with the general requirements pursuant to the following European Directives:

● The Low Voltage Directive 73/23/EEC,
● Electromagnetic Compatibility Directive 89/336/EEC,

and therefore the product has been marked with the Ⓒ symbol and the Declaration of Conformity has been issued to the manufacturer and is available to the competent authorities regulating the market.

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Line drawing of a rectangular frame with rounded corners and mounting holes (no text or symbols)

Line drawing of a rectangular grid structure with no text or symbols

Line drawing of a rectangular tray or frame with two side handles (no text or symbols)

Technical line drawing of a layered rectangular panel or shelf with a small inset detail (no text or symbols)

Illustration of a hand holding a tool near a wooden plank (no text or symbols)

Diagram of a cabinet frame with arrows indicating direction (no text or symbols)

Fig. C

Diagram of a mechanical device with lever and adjustment arrows, no text or symbols present

Diagram of a cylindrical device with a rotating arrow and base plate, no text or symbols present

Attentie!

Illustration of a hand using a tool to cut or fragment fragments (no text or symbols)

Three-step diagram showing a mechanical component with threaded end, then assembled and rotating (no text or symbols)

Lampje van de oven

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Wegnemen van de deur

Technical illustration of a device with a panel and a close-up view showing a hand inserting a component into a housing (no text or symbols present)

Technical line drawing of a rectangular device with internal components and two separate views (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
