SATADOCKU2 - Computer Accessories StarTech.com - Free user manual and instructions

Product Type	USB 2.0 to SATA Hard Drive Docking Station
Brand	StarTech.com
Model	SATADOCKU2
Interface	USB 2.0
Supported Drives	2.5" and 3.5" SATA HDD/SSD (SATA II compatible)
Internal Connectors	1 x SATA Power (15-pin Female), 1 x SATA Data (7-pin Female)
External Connectors	1 x USB Type-B Female, 1 x DC Power Jack
Power Adapter	12V DC, 2.0A (included)
OS Compatibility	Windows 2000/2003/XP/Vista/7 (32/64-bit), Mac OS 10.0+, Linux
Hot Swap	Yes
Plug and Play	Yes
Dimensions (Approx.)	13.0 x 7.5 x 6.0 cm (5.1 x 3.0 x 2.4 in)
Weight (Approx.)	200 g (0.44 lbs)
Material	Plastic (ABS)
Color	Black
LED Indicators	Power and drive activity
Warranty	2 Years
Package Contents	Docking Station, USB Cable, Power Adapter, Instruction Manual
Maintenance	Wipe with a dry cloth; avoid liquids
Safety	Use only provided power adapter; keep away from moisture
Repairability	No user-serviceable parts; contact support for warranty

Frequently Asked Questions - SATADOCKU2 StarTech.com

What types of hard drives does the SATADOCKU2 support?

The SATADOCKU2 supports both 2.5-inch and 3.5-inch SATA hard drives, including SATA II. No adapters are required.

Is the SATADOCKU2 compatible with SSDs?

Yes, it supports SATA SSDs in both 2.5-inch and 3.5-inch form factors.

Is the docking station hot-swappable?

Yes, the SATADOCKU2 is hot-swappable, allowing you to insert and remove drives without powering down the system.

Which operating systems are supported?

It supports Windows 2000/2003/XP/Vista/7 (32/64-bit), Mac OS 10.0 and later, and Linux.

How do I install a hard drive into the dock?

First, connect the dock to power and to your computer via USB. Then, insert the SATA drive into the upright slot, ensuring proper alignment. Finally, turn the power switch to ON. The drive should be detected automatically.

How do I safely remove a drive?

Use the 'Safely Remove Hardware' feature in your operating system (e.g., click the Safe Remove icon in the Windows taskbar). Then, gently pull the drive out from the top of the dock.

What power adapter does the SATADOCKU2 use?

It uses a 12V DC power adapter with a 2.0A output. The adapter is included in the package.

Does the dock come with a USB cable?

Yes, a USB cable is included in the package to connect the dock to your computer.

Is there a warranty for this product?

Yes, the SATADOCKU2 is backed by a two-year warranty from StarTech.com.

Can I use the SATADOCKU2 with both SATA and eSATA?

The SATADOCKU2 uses USB 2.0 connectivity; it does not have an eSATA port. However, some model variants may offer eSATA. Check your specific model for details.

USER MANUAL SATADOCKU2 StarTech.com

USB 2.0 to SATA Hard Drive Docking Station

SATADOCKU2

SATDOCKU2GB

SATDOCKU2EU

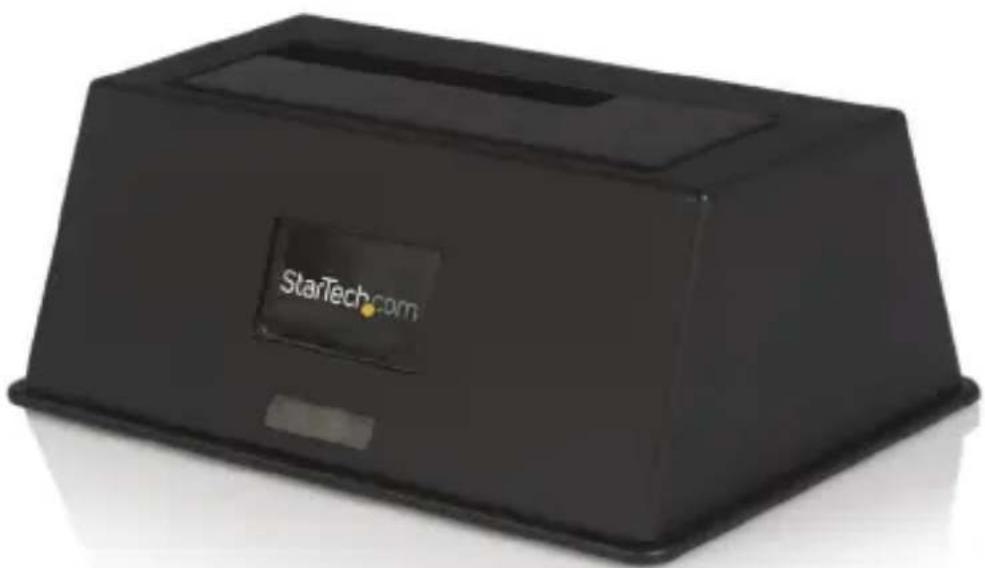

Black rectangular electronic device labeled 'StarTech.com' on a white background (no other text or symbols visible)

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction ....1

Features .... 1

Package Contents....1

SATADOCKU2....2

Rear View....2

Disk Installation ....3

SATA Drive Removal ....3

Preparing the Hard Drives for Use ....4

Specifications ....7

Technical Support 8

Warranty Information 8

Introduction

Thank you for purchasing a StarTech.com SATA HD Docking station. This unit allows you to install and access SATA drives quickly, and without the need for an enclosure. Simply plug the hard drive into the upright dock and connect it to a PC or notebook. The StarTech.com SATA HD Docking Station is a perfect solution for data recovery, drive imaging, and testing centers, or any environment requiring fast access to uninstalled/archived drives.

Features

• Hot Swap Compatible
• Plug and Play support for most operating systems
• Supports both SATA 2.5" and SATA 3.5" hard drives without and adapters

Package Contents

SATADOCKU2

• SATA hard drive docking station
- USB Cable
- Power Adapter
• Instruction Manual

SATADOCKU2

Rear View

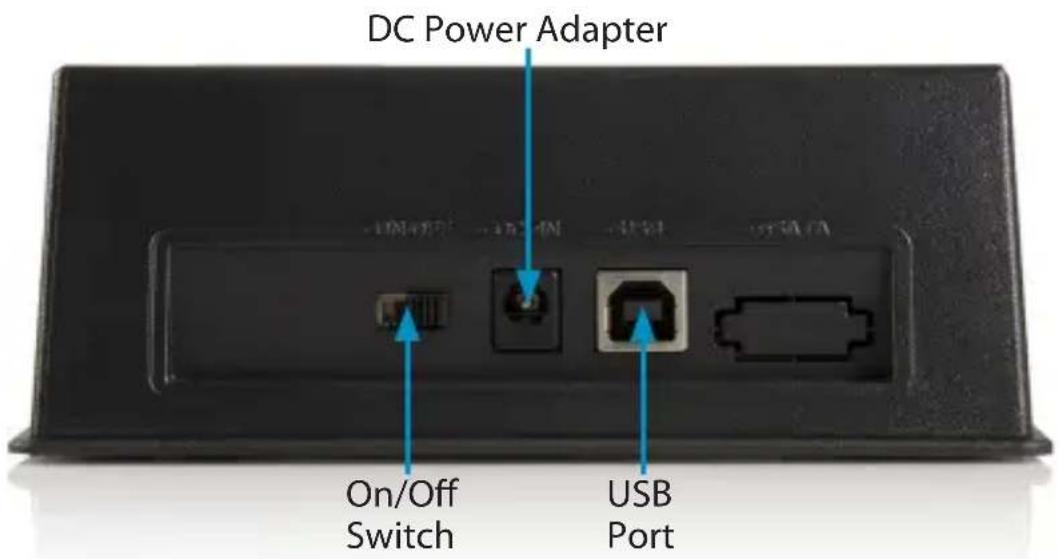

DC Power Adapter On/Off Switch USB Port

Disk Installation

1. Connect the Dock to an available power outlet, using the provided power adapter.

2. Connect the Dock to the (powered) Host Computer, using the provided USB/eSATA cables.

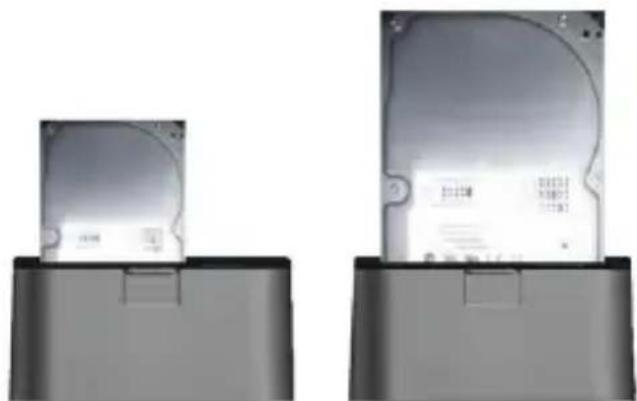

3. Insert the 2.5" or 3.5" SATA/SATA II drive(s) you wish to install, such that the SATA power and data connectors at the back of the drive are properly aligned with the corresponding connectors inside the Dock.

Two views of a CD-ROM drive showing front and side views (no text or symbols visible)

1. Switch the power switch to "ON" position.

Once the drive has been inserted, the operating system will detect that it has been connected and automatically update the drivers for proper operation.

SATA Drive Removal

If you are using the SATADOCKU2 or SATADOCKU2E, you can remove SATA drives from the docking station by gently pulling them out from the top of the dock.

When removing the installed drive from the Dock, please ensure that you have followed the appropriate steps (dependant on the operating system) to disconnect removable storage. In Windows for example, click on the Safe Remove icon located in the taskbar. Select the drive from the menu provided, then click Stop. Select the device to disconnect, and click OK.

Preparing the Hard Drives for Use

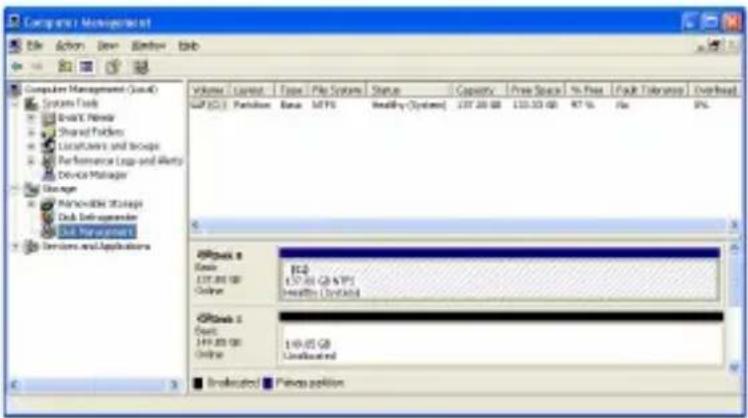

1. With the hard drives inserted and the dock powered on, right click on the My Computer icon and select Manage. In the left pane of the Computer Management window, click Disk Management.

Computer Management File Action Save Window Help Computer Management (Local) System Tools Brack1. Newer Shared Folders Locations and Broops Performance Log-and Alerts Device Manager Storage Performance Storage Disk Infrastructure Disk Management Services and Applications Volume Layer Type File System Status Capacity Free Space % Print Fault Termination Overhead USB323 Partition Base MTPS Healthy Systems 137.00 GB 110.00 GB 87% No 9% USB4.8 Base F4.8 137.00 GB MP1 Online Healths (Unmarked) USB6.5 Base F6.5 149.00 GB Online Unallocated ■ Breakdown ▼ Focus portion

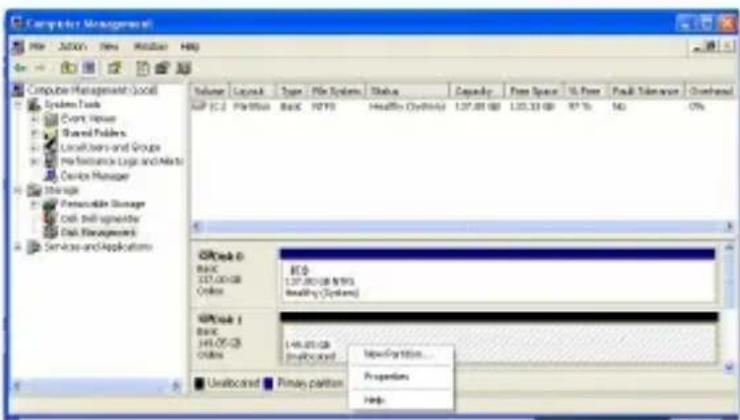

1. In the bottom right pane of the Computer Management window, you should see your drives listed as unallocated. Click on the unallocated drive and select New Partition. The New Partition Wizard will launch.

Computer Management File Edit Tools New Window Help Computer Management: Local System Tools Curt, H库存 Travel Folders LocalUsers and Groups Performance Logs and MLs Service Manager Storage Perpendicular Storage Cell Shell Signifier Disk Management Services and Applications Volume Layout Type File System Status Capacity Free Space % Power Pack Tolerance Continuous ASP (C:) File System Basic NETD Health (Systems) 137.00 GB 125.33 GB 97% 54% 0% Office Sub 0 Basic 137.00 GB NETD Healthy Systems Office Office Sub 1 Basic 145.07 GB Office Unallocated Primary partition New Generation... Properties Help

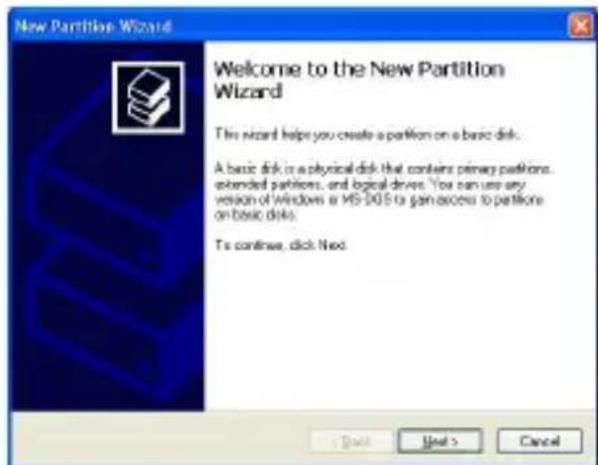

1. When the New Partition Wizard appears, click Next to continue

New Partition Wizard Welcome to the New Partition Wizard This wizard helps you create a partition on a basic disk. A basic disk is a physical disk that contains primary partitions, extended partitiones, and logical drives. You can use any version of Windows or MS-DOS to gain access to partition or basic disks. To continue, click Next.

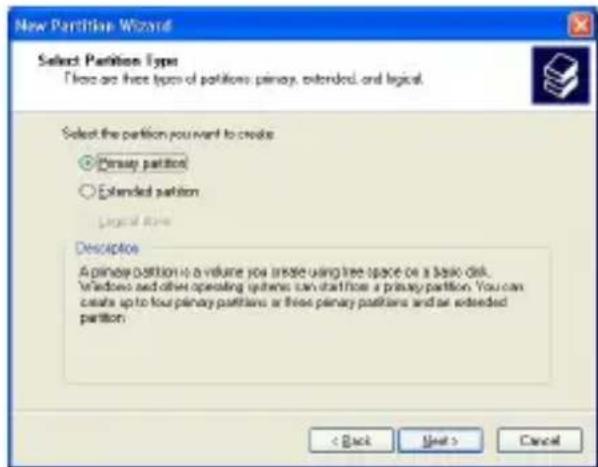

1. Select the partition type you wish to create by clicking on Primary or Extended, as appropriate. When you have made your selection, click Next to continue.

New Partition Wizard Select Partition Type There are three types of partitions: primary, extended, and logical. Select the partition you want to create: ○ Primary partition ○ Extended partition Logical Style Description A primary partition is a volume you inside using free space on a basic disk. Windows and other operating systems can start from a primary partition. You can create up to four primary partitions or these primary partitions and/or extended partition. < Back Next > Cancel

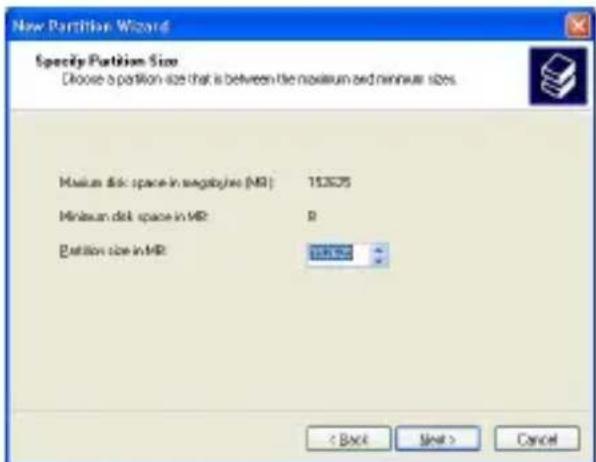

1. Specify the size of the partition you wish to create. You must select a partition size that is between the maximum and minimum sizes (typically the maximum disk space available). Once you have done so, click Next to continue.

New Partition Wizard Specify Partition Size Choose a partition size that is between the maximum and minimum sizes. Maximum disk space in magabytes (MB) 153625 Minimum disk space in MB R Partition size in MB 1.05 GB < Back Next > Cancel

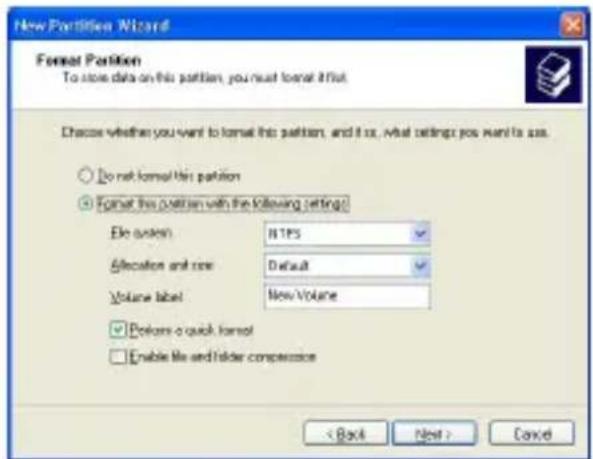

1. Select Format this partition with the following settings. Using the drop down buttons, select the file system, allocation unit size, and volume label you wish to use. Select Perform a Quick Format and click Next to continue.

New Partition Wizard Format Partition To store data on this pattern, you must format it first. Choose whether you want to format this pattern, and it is. What settings you want to use. Do not format this pattern Format this pattern with the following settings? File system: NTPS Allocation and row: Default Volume label: New Volume ✓ Perform a quick format ☐ Enable file and folder compression < Back Next > Cancel

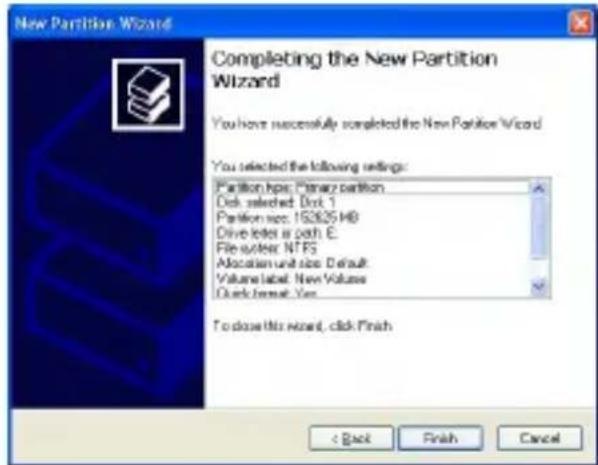

1. A notification window will appear indicating that you have successfully completed the New Partition Wizard. Click Finish to commence the formatting of the drive.

New Partition Wizard Completing the New Partition Wizard You have successfully completed the New Partition Wizard. You selected the following settings: Partition type: Pyramid partition Disk selected: Disk 1 Partition size: 152825 MB Drive label is path E: File style: NTFS Allocation unit size: Default Value label: New Value Quick format: Yes To close this word, click Finish < Back Finish Cancel

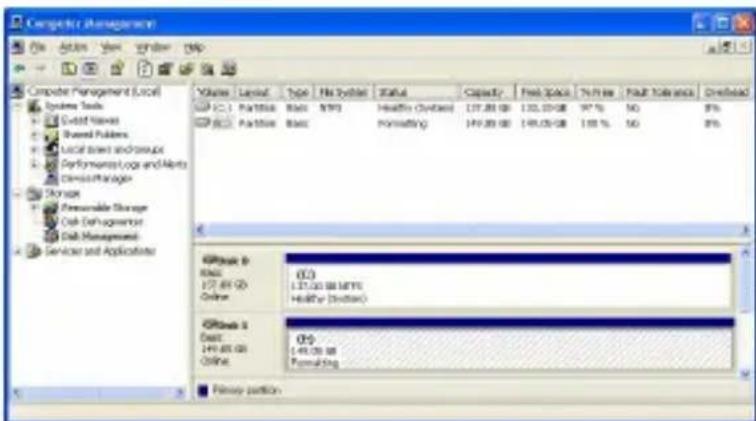

1. The status of the drive, as shown in the Computer Management window, will be updated to reflect the selections you have made. Please wait while the drive is being formatted.

Computer Management File Action View Window Help Computer Management (Local) System Tools Custal Features Shared Powers Local Start and Process Performance Log and Alert Cross-Storage Storage Presessable Storage Cash End Management Cash Management Services and Applicators Volume Layout Type File System Status Capacity Free Space Play Area Fault Notes Default (1) Platform Basic MP3 Health (Current) LIT.80 GB LIT.00 GB 97% NO 8% (2) Platform Basic Formatting LIT.80 GB LIT.00 GB 100% NO 8% Primary partition (3) LIT.80 GB MP3 Healthy (Current) (4) LIT.00 GB Formatting Primary portion

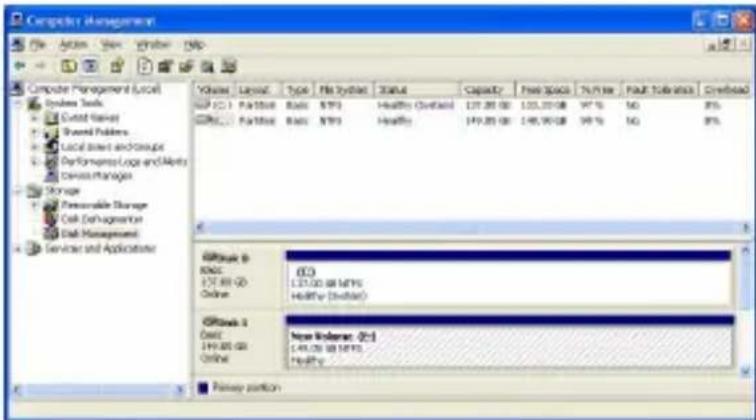

1. Once the drive has been successfully partitioned and formatted, it will display as Healthy.

Computer Management File Action View Window Help Computer Management (Local) System Tools Custal Server Shared Providers Local Site and Groups Performance Log and Assets Denum Managers Storage Personal Storage Cash DeTagments Disk Management Services and Applicators Volume Layout Type File Bytes Status Capacity Free Spreads TV Rate Fault To Retain Direct Load UP (C:) Platform Base NTP Healths (Default) 127.28 GB 125.23 GB 97% MG 8% PC: Platform Base NTP Healths 149.28 GB 146.90 GB 98% MG 8% IPBook 0 NPS: 127.00 GB MPFS Online Healths (Default) IPBook 1 Grid: New Provider: [C:\] 149.28 GB 146.90 GB Online Healths Proxy portion

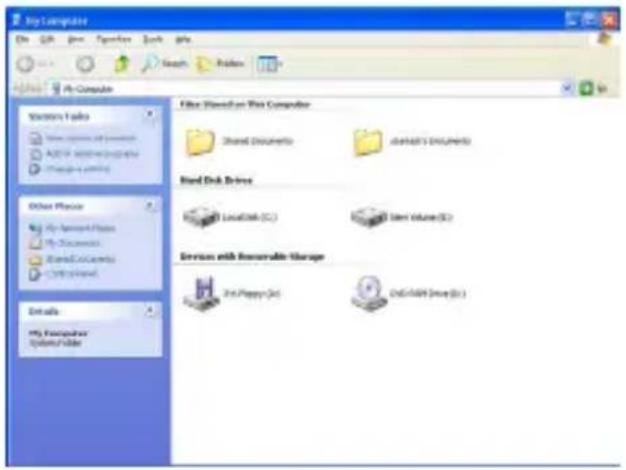

1. To access your newly partitioned drive(s), open My Computer. Your drive(s) should be displayed below the heading Hard Disk Drives.

My Computer File Search on This Computer Shared Documents Default's Documents Hard Disk Drive LocalDisk (C:) Edit Item Volume (E:) Server with Renewable Storage Zir/Plappy (A:) DelAXM (New (N:)

Specifications

SKU
Specification SATADOCKU2/SATDOCKU2EU/SATDOCKU2GB
Internal Connectors	1 x SATA Power 15-Pin Female1 x SATA Data 7-Pin Female
External Connectors	1 x USB B Female1 x DC Power Adapter
Drive Compatibility	2.5/3.5" SATA Hard Drives
OS Support	Windows 2000/2003/XP/Vista/7 x64/x86, Mac OS 10.0 and up, Linux
Power Adapter 12V 2.0A

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
