SV231DVIUA - Computer Accessories StarTech.com - Free user manual and instructions

Product Type	KVM Switch
Dimensions	2.4 x 3.1 x 1.0 in (6.1 x 7.9 x 2.5 cm)
Weight	0.6 lbs (0.27 kg)
Power	USB powered (no external power adapter required)
Video Interface	DVI-D (single link)
Number of Computers Supported	2
Audio Support	Yes, via 3.5mm jacks (headphone/mic pass-through)
USB Support	2 USB 2.0 ports (for keyboard/mouse)
Hotkey Switching	Yes (via keyboard commands)
Remote Switch	Included push-button remote switch
Max Resolution	1920 x 1200 (single link DVI)
LED Indicators	Yes, for port selection
Housing Material	Metal
Operating Temperature	0°C to 50°C (32°F to 122°F)
Certifications	CE, FCC
Package Contents	KVM switch, remote switch, USB cable, DVI cable, audio cables, manual
Warranty	2 years
Maintenance	Wipe with a dry, lint-free cloth
Safety	Class B device; keep away from moisture
Repairability	Not user-serviceable; contact StarTech.com support

Frequently Asked Questions - SV231DVIUA StarTech.com

How do I switch between computers?

Press the push-button on the included remote switch, or use the hotkey combination (typically Scroll Lock twice).

Does the SV231DVIUA support audio?

Yes, it provides 3.5mm audio pass-through for both microphone and headphone jacks, allowing you to share speakers and mic between two computers.

Do I need to install drivers?

No, the SV231DVIUA is driverless and works with all major operating systems (Windows, macOS, Linux).

What cables are included in the box?

The package includes: 1 KVM switch, 1 remote switch, 1 DVI cable, 1 USB cable, and 2 audio cables (one for each computer).

What is the maximum resolution supported?

It supports up to 1920x1200 at 60Hz via DVI-D single link. Higher resolutions may not work properly.

Can I use a wireless keyboard and mouse with this KVM?

Yes, as long as your wireless keyboard and mouse connect via a USB receiver. The KVM emulates USB connectivity, so it should work seamlessly.

How do I connect the KVM to my computers?

Connect a DVI cable from each computer's video output to the KVM, then connect a USB cable from each computer to the KVM's USB ports for keyboard/mouse. Optionally, connect audio cables.

Does it support USB 3.0?

No, the USB ports on the SV231DVIUA are USB 2.0 (480 Mbps), which is sufficient for keyboard and mouse. USB 3.0 devices may work at reduced speed.

My monitor shows no signal. What should I do?

Ensure all cables are securely connected. Try pressing the remote switch to change ports. Also verify that the DVI cable is single link and not damaged. Restart the computers if needed.

Is the SV231DVIUA compatible with Mac computers?

Yes, it works with Mac (including Mac mini, MacBook Pro) using DVI output or a compatible adapter. Audio may require additional configuration on some Mac models.

USER MANUAL SV231DVIUA StarTech.com

2 Port DVI USB KVM Switch with Audio and USB 2.0 Hub

SV231DVIUA

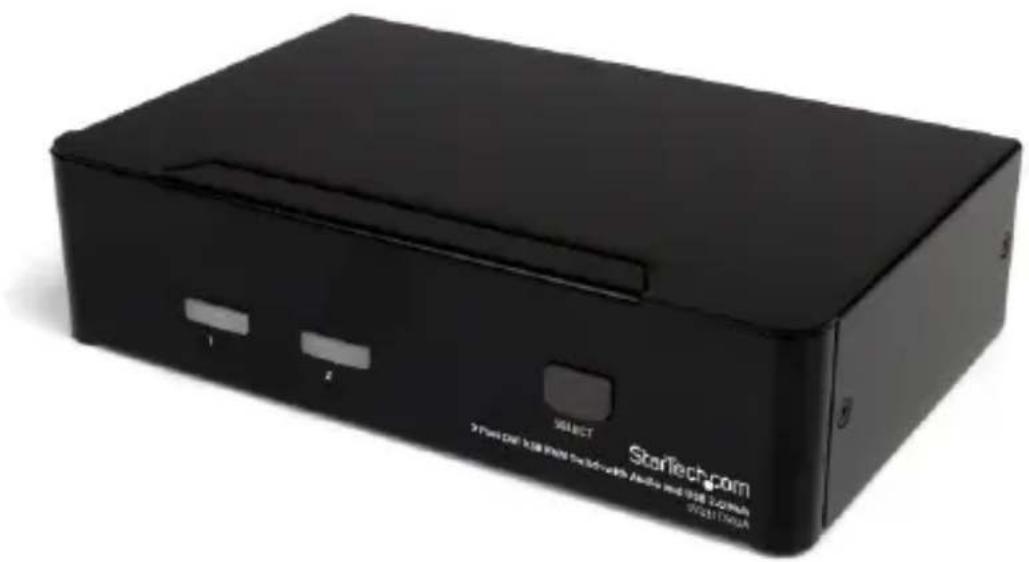

Black StarTech.com device with two ports and a select button, no visible text or symbols on the device itself.

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction....1

Packaging Contents ....1

System Requirements....1

Front View....2

Rear View....2

Installation....3

Hardware Installation....3

Driver Installation....4

Operation 5

Front Panel 5

HotKey Control....5

Alternative Hotkey Commands....7

Change Leading Hotkey....7

Specifications....8

Technical Support....9

Warranty Information....9

Introduction

The 2-Port DVI USB KVM Switch with Audio and USB 2.0 Hub lets you control two USB enabled, DVI capable computers from a single monitor and peripheral set (keyboard, mouse and speakers) and up to two additional USB peripherals connected through the USB hub ports.

Featuring convenient hot-key and front panel push-button switching options and high-resolution support up to 1920x1200, the KVM switch is perfect for applications where central control of two high-resolution computer systems is required. Ideal for multimedia applications, this KVM switch supports audio and microphone switching, allowing you to switch between audio/mic channels either independently or simultaneously when switching between computers for KVM control.

The DVI USB KVM switch also features an integrated USB 2.0 hub which allows you to use shared USB peripherals from the control point as if the devices were connected directly to the slave computers - an economical solution that lets you use USB peripherals between computers (when selected) without the expense of buying individual peripherals for each slave computer.

Packaging Contents

• 1 x KVM Switch
  • 1 x Universal Power Adapter
• 1 x Set of rubber feet
  • 1 x Instruction Manual

System Requirements

• DVI and USB enabled computer systems
- DVI enabled display device (i.e. monitor, projector, HDTV, etc)
• A standard 104-key wired USB keyboard
• A standard 3-button wired USB mouse

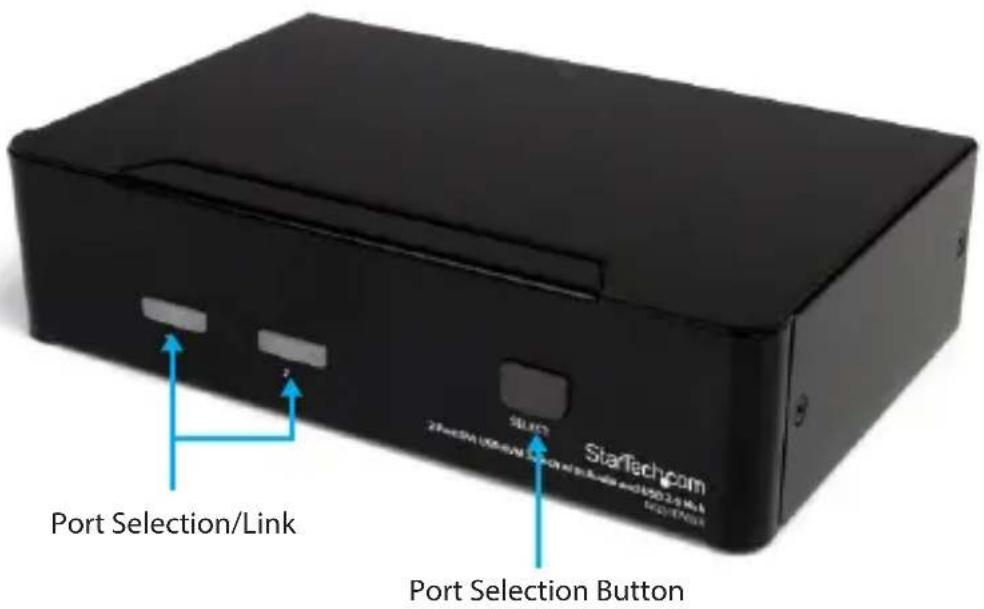

Front View

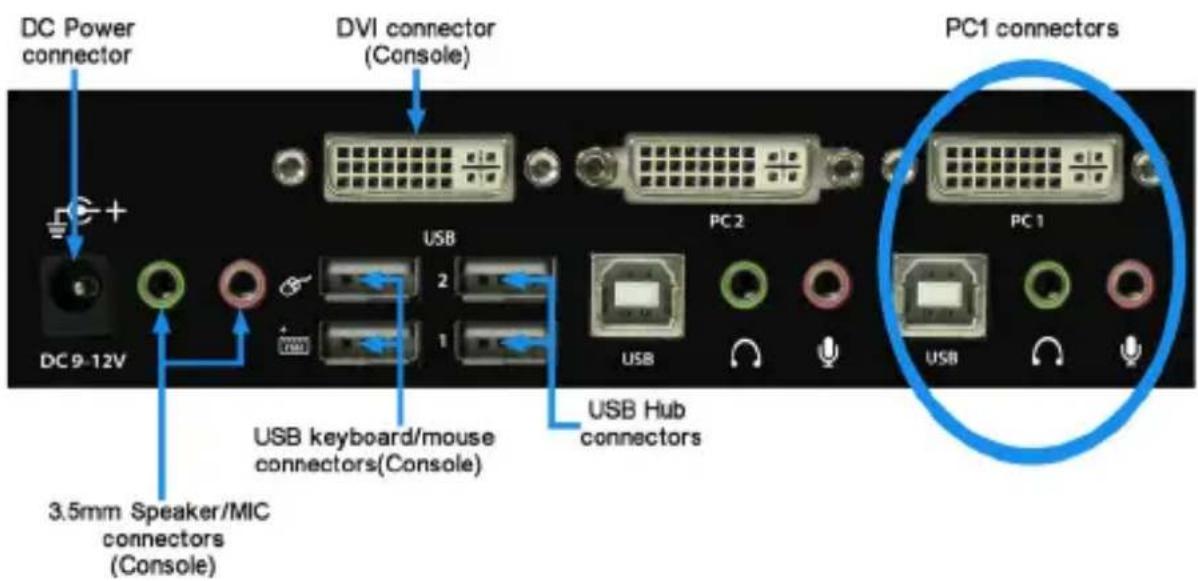

Rear View

Installation

NOTE: Prior to the installation, please power off all devices that will be connected to this system.

Ensure that all devices you will connect are properly grounded.

Place cables away from fluorescent lights, air conditioners, and machines that are likely to generate electrical noise.

If you experience any problems using a USB KVM switch, the following BIOS setup changes may be necessary for PC users and not necessary for Mac users:

Set HALT ON ERROR to ALL BUT KEYBOARD.

In PNP AND PCI SETUP, set PNP OS INSTALLED to YES and set USB IRQ to ENABLED.

Different systems may use different naming, so contact your system manufacturer for further assistance with these settings.

Hardware Installation

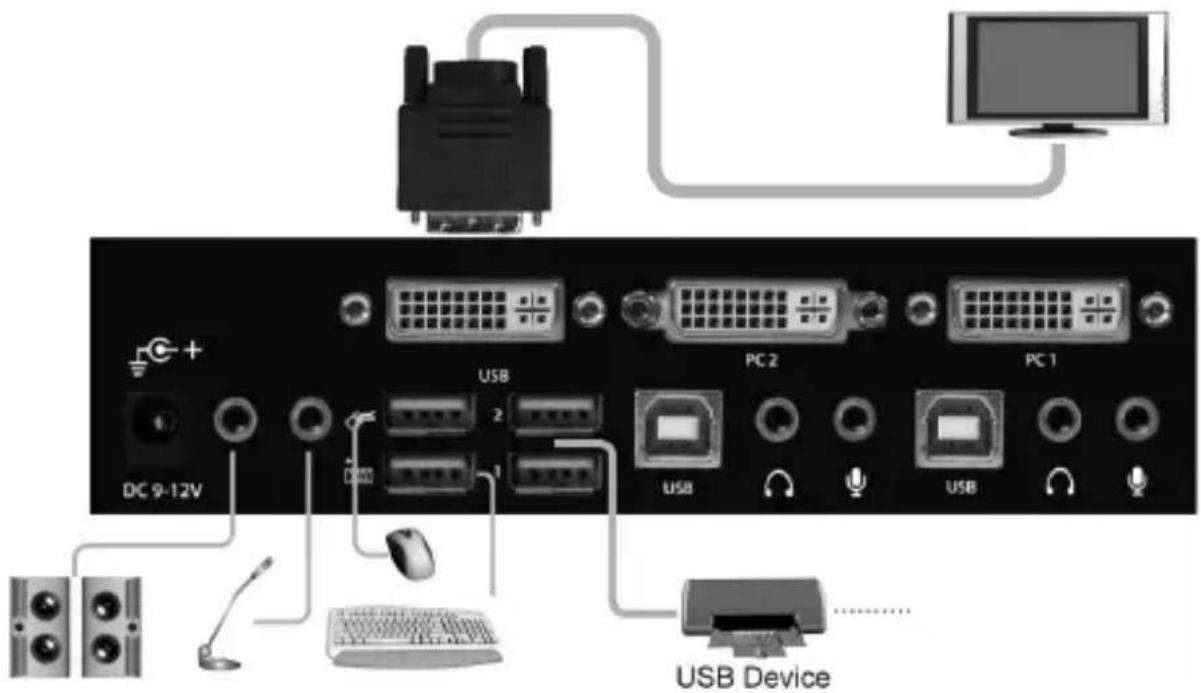

1. Plug a monitor into the Console side DVI connector using a standard male/male DVI cable; plug a USB keyboard and a USB mouse into the dedicated USB keyboard and mouse ports on the KVM switch.

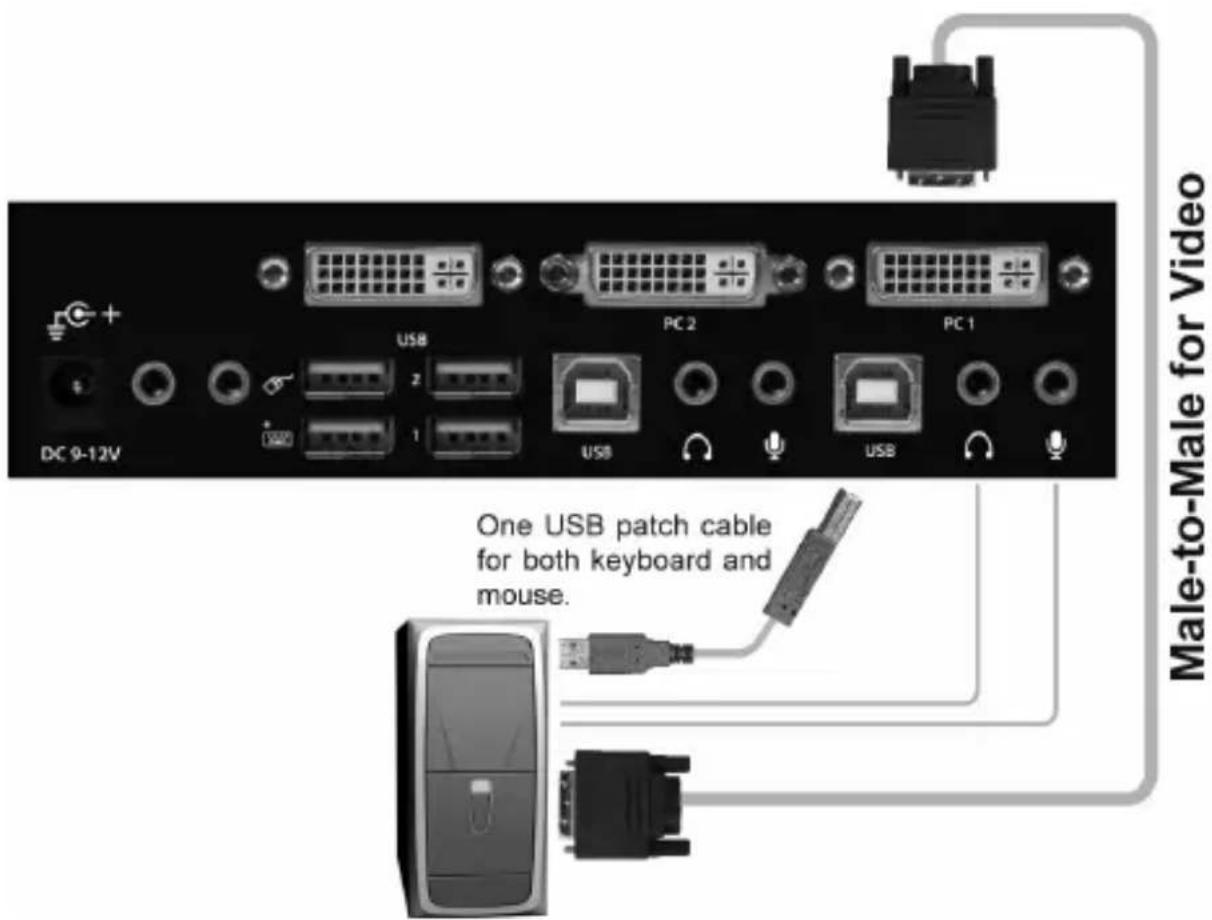

2. Use a male/male DVI video cable to connect the DVI connector on the computer's video card, to one of the KVM's PC ports (i.e. PC1). A dedicated DVI, USB and audio 4-in-1 KVM cable can be used (i.e. StarTech.com ID: USBDVI4N1A6 or DVID4N1USB6).

NOTE: Ensure you are using the same type of DVI cabling throughout the installation (i.e. DVI-D (digital) or DVI-I (analog/digital)). Mixing or using the incorrect type can result in problems with the video.

1. Use a USB type A-B Cable to connect the KVM's USB port (type B, square connector) for the PC port used in Step 2, and the USB port on the computer (type A, flat connector).

1. Repeat for Steps 2 and 3 for each PC port on the KVM switch, or each computer you wish to use on the KVM.

2. OPTIONAL: Connect any other USB peripherals you wish to share between the connected computers/devices to the extra USB Hub ports on the Console side.

3. Connect the external power adapter from a wall outlet to the power connector on the rear panel of the KVM switch. The Power LED should light up solid and/or the LED for the selected PC port.

4. Power up the first computer/device and wait for it to fully boot and test keyboard/mouse functionality.

5. Once operation has been successfully confirmed, switch to the next port and power up that computer/device and confirm.

Driver Installation

No driver installation is required for the KVM switch, as the keyboard and mouse uses native USB keyboard/mouse drivers that are already installed on all operating systems that fully support USB.

Operation

Front Panel

Port Selection/Link LED

The LED turns green when the connected computer is powered-on. The corresponding LED will also illuminate red when that PC port is currently selected.

Port Selection Button

Pressing the front panel "Select" button toggles between the PC ports on the KVM switch.

HotKey Control

A Hotkey command is a short keyboard sequence for selecting a computer, activating computer scan, etc. A hotkey sequence starts with two left keystrokes (successively within 0.2 seconds) followed by one or two more keystrokes. A high-pitch beep will be generated for each correct hotkey command; otherwise, one low-pitch beep is generated for errors and the bad key sequence will not be forwarded to the selected computer.

NOTE: Press and hold Left and press twice, then release followed by pressing left once, which will enable / disable the hotkey feature.

To select a computer:

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < 1 > $$

(Example: Selects the computer at port 1.)

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < 2 > $$

(Example: Selects the computer at port 2.)

NOTE: Do not use the keypad on the right-side of the keyboard.

Auto Scan

The KVM automatically scans through the powered-on computers in sequence on a fixed time interval (see Scan Time below).

To start Auto Scan:

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < \text { F1 } > $$

To abort the Auto Scan mode, press the left key twice.

NOTE: When Auto Scan detects any keyboard activity, it suspends the scanning until the activity stops; it then resumes with the next computer in sequence. The length of the Auto Scan interval (Scan Rate) is adjustable, see below.

Manual Scan

Allows users to manually switch back and forth between powered-on computers.

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < \text { F2 } > $$

To select the previous or the next computer, press or arrow keys. To abort the Manual Scan, press any other key.

Scan Time

Four options are available for users to set the Scan Time duration, it Includes 3, 8, 15 and 30 seconds.

Note: Scan Time is set to 3 seconds by default.

To adjust Scan Rate, set the scan time of duration before switching to the next computer:

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < \text { F3 } > $$

The KVM Switch generates 1 to 4 beeps indicating a scan time duration for 3, 8, 15 or 30 seconds respectively.

Audio Lock

There are two options for Audio Lock: ON and OFF.

When ON, audio selection follows computer selection. When OFF, audio selection stops following computer selection. It is useful if you want to listen to a particular computer's audio signal while operating other computers.

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < \text { F5 } > $$

The KVM switch beeps once or twice corresponding to ON and OFF respectively.

To change which computer port the audio stays on to the currently selected port, press the following hotkey:

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < \text { A } > $$

Alternative Hotkey Commands

In addition to the Left + Left hotkeys, there are two alternative hotkey sequences available.

1. For the following operations, users may press twice instead of pressing left twice.

To select a computer:

$$ < \text { ScrollLock } > + < \text { ScrollLock } > + < 1 > $$

(Example: Select the computer at port 1.)

$$ < \text { ScrollLock } > + < \text { ScrollLock } > + < 2 > $$

(Example: Select the computer at port 2.)

NOTE: Do not use the keypad at the right of the keyboard.

1. For those keyboards that do not have or support , please press and HOLD the Left and press twice instead of pressing Left twice.

To select a computer:

hold Left + press + press

then release + press <1>

Example: Select the computer at port 1.)

hold Left + press + press

then release + press <2>

(Example: Select the computer at port 2.)

NOTE: Do not use the keypad at the right of the keyboard.

Change Leading Hotkey

The default leading hotkey sequence involves pressing the left twice in succession (e.g. left + left ). This can be changed to the right key instead, to avoid accidental activation due to using the left key for functions such as Copy/Paste.

To change the leading hotkey sequence to Right :

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + \text { hold } < \text { ALT } > + \text { press Right } < \text { CTRL } > $$

All hotkey commands that previously required pressing the Left will be switched to requiring the right instead.

To change the leading hotkey sequence back to Left :

$$ \text { Right } < \text { CTRL } > + \text { Right } < \text { CTRL } > + \text { hold } < \text { ALT } > + \text { press Left } < \text { CTRL } > $$

Specifications

Number of Ports 2
Computer Connectors (per Port)	1 x 29-pin DVI female1 x USB type B female2 x 3.5mm mini-jack female
Console Connectors	1 x 29-pin DVI female4 x USB type A female2 x 3.5mm mini-jack female1 x DC Power
LEDs 2 x Port Selection/Link
Maximum Video Resolution 1920x1200
DDC Support Yes
Audio Support Yes
OSD No
Cascadable No
Switching Modes Front push button, Hotkeys
Power Adapter 9~12VDC, 1500mA, center positive
Enclosure Material Metal
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Humidity 0% ~ 80% RH
Dimensions	160.0mm x 100.0mm x 40.0mm
Weight	1200g

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a three year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
