Dr. Beat LED - Loudspeaker Auna - Free user manual and instructions

Product type	Portable Bluetooth speaker with LED lights
Brand	Auna
Model	Dr. Beat LED
Dimensions (approx.)	20 x 10 x 10 cm
Weight	0.5 kg
Power source	Built-in rechargeable battery via USB-C
Battery life	Up to 6 hours at moderate volume
Charging time	Approximately 3 hours
Bluetooth version	5.0
Wireless range	Up to 10 meters
LED lighting	Multi-color beat-driven LED patterns
Audio input	Bluetooth, AUX 3.5 mm, microSD card, FM radio
Speaker output	10 W RMS
Frequency range	100 Hz - 20 kHz
Controls	Power, volume, mode, LED toggle, play/pause, next/previous
Materials	Plastic with fabric grille
Cleaning and maintenance	Wipe with a soft, dry cloth. Avoid solvents and water.
Safety warnings	Keep away from water and high temperatures. Do not disassemble.
Spare parts and repairability	Contact Auna support for battery replacement or repair service.
Included accessories	USB-C charging cable, AUX cable, user manual
Warranty	2 years standard manufacturer warranty

Frequently Asked Questions - Dr. Beat LED Auna

How do I pair my phone with the Dr. Beat LED speaker?

Turn on the speaker by pressing the power button. It will enter pairing mode automatically (LED flashes). On your phone, enable Bluetooth and select 'Dr. Beat LED' from the list. If prompted, enter '0000' as the PIN.

Why is the LED light not working?

Check if the LED feature is enabled by pressing the LED toggle button. If it still doesn't work, try resetting the speaker (press and hold power for 10 seconds). If the issue persists, the LED module may need servicing.

How can I use the speaker in FM radio mode?

Press the mode button until 'FM' is displayed. The speaker will automatically search for stations. Use the next/previous buttons to tune manually. Ensure the AUX cable is connected as an antenna for better reception.

What should I do if there is no sound from the speaker?

First, ensure the volume is turned up on both the speaker and your device. Check that the audio source is playing and not paused. If using Bluetooth, try re-pairing. If using AUX, check the cable connection.

How do I charge the speaker?

Connect the supplied USB-C cable to the speaker's charging port and a USB power adapter (5V/1A or higher). The LED indicator will show red during charging and turn off when fully charged. Do not charge for more than 6 hours.

What is the battery life and how can I extend it?

The battery lasts up to 6 hours at moderate volume. To extend battery life, reduce the volume, turn off LED lights, and disconnect unused cables.

Can I use the speaker while it is charging?

Yes, you can use the speaker while charging, but it may affect battery performance over time. It is recommended to charge fully before use.

How do I reset the speaker?

To reset, press and hold the power button for about 10 seconds until the speaker turns off and restarts. This clears temporary settings and may resolve connection issues.

Is the Dr. Beat LED speaker waterproof?

No, the speaker is not waterproof. Keep it away from water, rain, and high humidity to avoid damage.

How do I clean the speaker?

Use a soft, dry cloth to gently wipe the surface. Do not use any cleaning agents, sprays, or water. Ensure the speaker is turned off and unplugged before cleaning.

USER MANUAL Dr. Beat LED Auna

Black and white photo of a portable electronic device with purple mesh cover and speaker grille (no visible text or symbols)

Congratulations on purchasing this product. Please read and follow these instructions, in order to avoid damaging the item. We do not cover any damages that may arise from improper use of the item or the disregard of the safety instructions.

Technical Data

Item # 10030551

Output power 7W

Battery capacity 800mAh

Speakers 2 x ∅ 2" (Subwoofer: ∅ 4")

Power supply DC5V

Dimension ∅145 x 256mm

Scope of delivery Device, USB charging cable, audio cable, strap, user manual

Important Safety Instructions

• Read all instructions before using.
• Do not place on or near a hot gas or electric burner or in a heated oven.
• To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs or device in water or other liquids.
• Do not expose the appliance to extreme temperatures. The appliance shall be used in moderate climates.
• Disconnect the appliance from the power source if it is not going to be used for a long time, if there is a thunderstorm or if it isn't working properly.
• The use of attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.
• Do not open the unit by removing any cover parts. Do not attempt to repair the unit. Any repairs or servicing should be done by qualified personell only.
• Only qualified persons may perform technical work on the product. The product may not be opened or changed. The components cannot be serviced by the user. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications.
• The appliance is not a toy. Do not let children play with it. Never let children insert foreign objects into the appliance.
• Do not use the appliance for other than intended use. This appliance has been designed solely for domestic use; the manufacturer's liability shall not be engaged in the event of any professional use, by any misuse or by any use not complying with the operating instructions.
• Before turning on the power for the first time, make sure that the power cord is properly installed and the voltage switch is correctly set.
• Never clean the surface of the device with solvents, paint thinners, cleansers or other chemical products. Instead, use a soft, dry cloth or soft brush.
• Save these instructions.

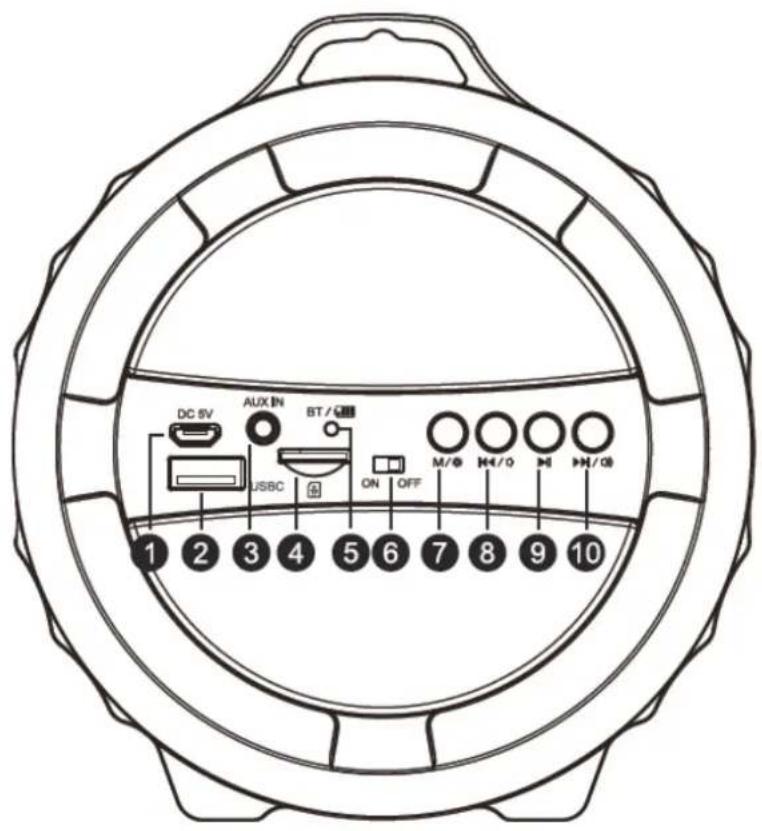

Controls

USB charging port	6 ON/DFF
USBC port	2 7 MODE (USB/BT/SD/FM/AUX) / LED
AUX IN	3 8 Back / VOL- (hold)
SD slot	4 9 Play/Pause
BT/Batt LED	5 10 Von / VOL+ (halten)

Operation

Playing music from USB disk & SD card

• Turn the Power button to "ON".
• Insert SD card or USB flash disk into slot, the music stored will be played automatically and blue LED light always keep lighting.
• Under playing mode, short press Forward or Backward button to select songs you like, long press to fast forward or backward the song.
• Press PLAY/PAUSE to play or pause.
• Please turn the Power button to "OFF" while without use.

Remark: Under BT playing mode, insert SD or USB will disconnect the BT and switch the playing from USB or SD card. You can press the MODE button to switch to BT mode again.

How to Use FM Radio

• Under FM radio state, the audio cable provided treat as antenaL. Please Insert the audio cable to get the best FM signal before using.
• Turn the power button to "ON", press the "MODE" button to switch to FM radio state.
  • Under playing mode, short press "Play/pause" button to auto search the FM Channel and store it automatically.
• Press LAST or NEXT button to change the stored FM channel.

BT

• Turn the power button to "ON", The LED light turn blue and twinkle quickly and beep twice.
• Activate BT of mobile phone and search for "Dr. Beat LED" then connect it. The blue LED stops flashing.
• Play the music from your mobile phone and enjoy.
• Press LAST or NEXT button on the devices or on Mobile phones to select songs you like.
• Press Play/pause button on the devices or on Mobile phones to play/stop the music
• Use the "Volume Gear" to adjust volume up and down. Or adjust the mobile phones' volume.

AUX-IN

For other compatible music devices or your MP3/MP4 players, use the supplied audio line cable to connect from the device's "Line Out" to the "Aux In" of this devices. Then press the "MODE" button to switch to AUX-IN state. Enjoy... When using an external device, all functions will be controlled by the external devise except the "Play/pause" button.

Light Effects: The default status of light is on. Long press the M button to switch to different light effect. The second mode is to switch off the light. Totally 5 different light modes for switching. The light is stay off under FM radio mode.

Remarks: Line-in prior, in the "MUSIC" mode, Line-in function is prior to SD/MMC card or U flash disk. Turn the power button to "off" to cut off the power supply while without use.

How to charge

• Power off the unit, put the charge cable into the charge slot of unit, connect the other end to PC or other charger with 5V output (Not included), the charging indicator beside the LED screen will keep lighting.
• Charge time should be 6—8 hours. When charging full, the indicator light will switch off. In order to prolong the life of battery, please do not exceed 8 hours.

Environment Concerns

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will hep prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: CHAL-TEC GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European directives:

1999/05/EC (R&TTE);

2011/65/EU (RoHS)

CE
