Brand	Black & Decker
Model	DCM400
Product Type	Coffee Maker
Input Voltage	AC 230 V
Power Input	800 W
Weight	1.4 kg
Dimensions (Approx.)	30 x 25 x 35 cm
Capacity	10-12 cups (approx.)
Material	Plastic, glass carafe
Color	White/Black (typical)
Water Reservoir	Removable with built-in filter
Filter Type	Paper filter (size #4 or similar)
Anti-Drip Function	Yes, allows removing carafe mid-brew
Hotplate	Keeps coffee warm after brewing
On/Off Button	Yes, with indicator light
Safety Features	Auto shut-off (on some models), lid locking mechanism
Cleaning	Hand wash carafe, filter holder; wipe exterior
Descaling	Recommended with vinegar or descaling agent
Warranty	2 years (EU/EFTA)
Certification	CE, Earthed (Class 1)

Frequently Asked Questions - DCM400 BLACK & DECKER

How do I clean the coffee maker?

After unplugging and cooling, wash the carafe, filter holder, and filter in hot soapy water. Do not immerse the appliance. Wipe the exterior with a damp cloth. The carafe is not dishwasher safe.

How do I descale the DCM400?

Fill the water reservoir with water and add 3 teaspoons of vinegar. Run a brewing cycle without coffee until empty. Repeat 2-3 times with fresh water to rinse. Use a commercial descaling agent if preferred.

Can I use the coffee maker without the water reservoir filter?

Yes, the water reservoir filter is optional for reducing hardness. It can be removed if needed, but using it helps improve taste and reduce scale buildup.

What type of coffee filter should I use?

Use a standard paper filter, typically size #4 or flat-bottom filters that fit the filter holder. Reusable filters are also compatible.

Why is coffee not dripping?

Check that the carafe is properly placed under the bowl. The anti-drip function stops flow if the carafe is removed. Also ensure the filter holder is correctly locked and not clogged.

Is the carafe microwave-safe?

No, the carafe is made of glass and is not intended for microwave use. It should only be used on the hotplate.

What does the anti-drip function do?

It allows you to remove the carafe during brewing to pour a cup without spilling. When the carafe is removed, a valve closes to stop dripping. Replace the carafe to continue.

How do I replace the water reservoir filter?

Remove the water reservoir by pulling it from the back. Open the lid and take out the old filter. Insert a new filter (compatible size) and reassemble.

Can I brew less than a full pot?

Yes, you can fill the water reservoir with the desired amount of water. The coffee maker will brew that amount. Ensure you use proportionally less coffee grounds.

What does the 'Earthed' safety mean?

The DCM400 is a Class 1 appliance, meaning it has a grounding wire to protect against electric shock. Always plug into a grounded outlet and do not use an ungrounded adapter.

USER MANUAL DCM400 BLACK & DECKER

English 3

Italiano 6

Ελληνικά

Line drawing of a kitchen mixer with labeled parts (no text or symbols present)

D

Intended use

Your Black & Decker coffee maker has been designed for making coffee.

This product is intended for household use only.

Thank you for choosing Black & Decker. We hope that you will enjoy using this product for many years.

Safety instructions

• Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock and personal injury.
  ◆ Read all of this manual carefully before using the appliance.
• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
  ◆ Retain this manual for future reference.

Using your appliance

◆ Always take care when using the appliance.
◆ Do not use the appliance outdoors.
- Do not operate the appliance if your hands are wet. Do not operate the appliance if you are barefoot.
◆ Guide the power supply cord neatly so it does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.
- Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil and sharp edges.
- If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.
- Disconnect the appliance from the power supply when not in use and before cleaning.

Safety of others

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for the their safety.
  ◆ Children should be supervised to ensure that they do not play with the appliance.

After use

- Switch off, remove the plug from the socket and let the appliance cool down before leaving it unattended and before changing, cleaning or inspecting any parts of the appliance.

- When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
- Do not use the appliance if any part is damaged or defective.
◆ Have any damaged or defective parts repaired or replaced by an authorised repair agent.
- Before use, check the power supply cord for signs of damage, ageing and wear.
- Do not use the appliance if the power supply cord or mains plug is damaged or defective.
If the power supply cord or mains plug is damaged or defective it must be repaired by an authorised repair agent in order to avoid a hazard. Do not cut the power supply cord and do not attempt to repair it yourself.
- Never attempt to remove or replace any parts other than those specified in this manual.

Electrical safety

This product must be earthed. Always check that the mains voltage corresponds to the voltage on the rating plate.

Appliance plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (Class 1) appliances. Unmodified plugs and matching outlets will reduce the risk of electric shock.

Extension cables & class 1 product

◆ A 3 core cable must be used as your tool is earthed and of class 1 construction.
◆ Up to 30m (100 ft) can be used without loss of power.
- This appliance is not intended for use by young or infirm persons without supervision. Children must be supervised to ensure they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

Additional safety instructions for coffee makers

Warning! The lid may become hot during use.

Warning! Steam may escape from the unit.

• Allow the appliance to cool before fitting or removing any parts and before cleaning.
  ◆ During use, the carafe and the hotplate can get very hot.
• Do not use the appliance if the carafe shows any sign of cracks.
  ◆ Do not immerse the appliance in liquid.

ENGLISH

Features

1. On/off button
2. Hotplate
3. Carafe
4. Carafe lid
5. Bowl
6. Bowl lid
7. Water reservoir

Fig. A.

1. Filter holder
2. Filter
3. Water reservoir filter

Assembly

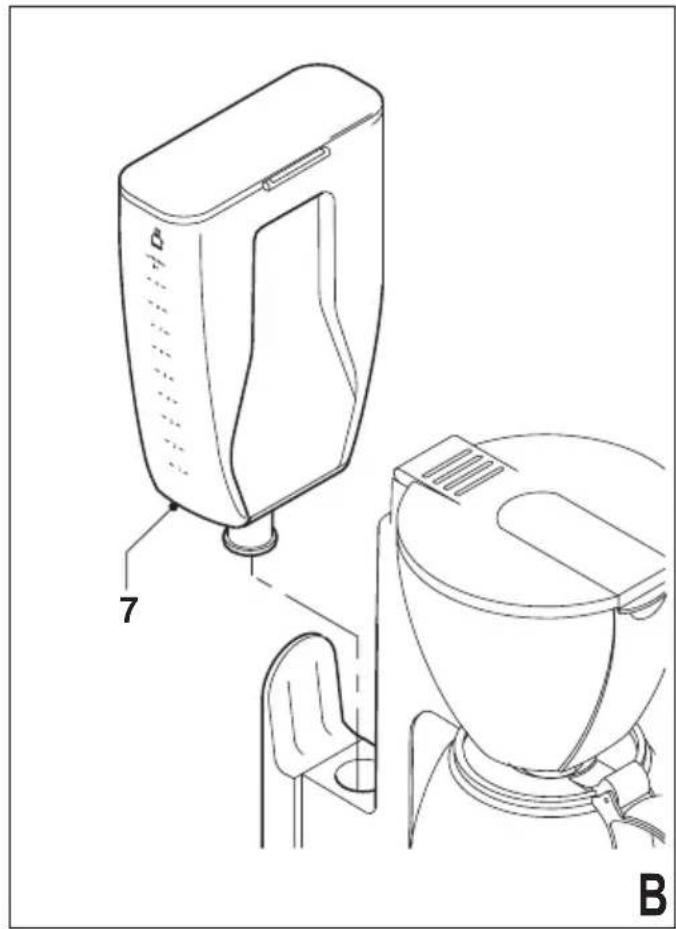

Fitting and removing the water reservoir (fig. A & B)

◆ Place the water reservoir filter (10) in the water reservoir (7).
◆ Slide the water reservoir (7) in the back of the appliance until it is correctly fitted.
◆ Pull the water reservoir from the back to remove it.

Use

- Warning! Never use the appliance without water in the reservoir.

Before first use

• Wash the carafe, the filter holder and the filter in hot, soapy water.
  ◆ Rinse and dry all parts.

Filling the water reservoir (fig. A & B)

The water reservoir can also be filled while fitted to the appliance. The filter can be removed if required.

◆ Remove the water reservoir (7) from the appliance.
◆ Open the water reservoir lid.
◆ Fill the water reservoir (7) with the desired amount of water through the water reservoir filter (10).

Adding coffee

◆ Place the filter (9) in the filter holder (8). Add the desired amount of coffee.
- Open the lid (6) and place the filter holder in the bowl (5). Make sure the pins on the filter holder fit securely into the bayonet holes in the bowl.
◆ Place the carafe under the bowl.

Switching on and off

◆ To switch the appliance on, press the on/off button (1).
◆ To switch the appliance off, press the on/off button (1) again.

Anti-drip function

The appliance is fitted with an anti-drip function, allowing you to remove the carafe at any time, even when coffee is still dripping from the filter bowl.

Take the carafe (3) from the hotplate (2) and pour the desired amount of coffee.
◆ Replace the carafe on the hotplate and allow the remainder of the coffee to drip into the carafe.

Cleaning and maintenance

Warning! Before cleaning and maintenance, switch the appliance off and remove the plug from the socket.

◆ Using the handles, remove the filter (9) and the filter holder (8) from the bowl (5). Remove the used coffee grounds from the filter.
◆ Wash the carafe (3), the filter holder and the filter in hot, soapy water. Dry all parts and refit them.
◆ Wipe the outside of the appliance with a damp cloth.

Note: The carafe is not dishwasher proof.

Descaling the appliance

If the appliance is used in an area with hard water, it is advised to descale the appliance when from time to time.

◆ Use a commercial descaling agent for coffee makers, or use water and vinegar as follows:
◆ Fill the water reservoir (7) and add 3 teaspoons of vinegar. Operate the appliance as for making coffee until the reservoir is empty.
◆ Discard the used water and repeat the procedure 2 or 3 times with fresh water.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Technical data

DCM400
Input voltage V	AC 230
Power input W 800
Weight kg 1.4

EC declaration of conformity

DCM400

Black & Decker declares that these products conform to:

73/23/EEC, EN 60335

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

23-6-2009

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆ The product has been used for trade, professional or hire purposes;
◆ The product has been subjected to misuse or neglect;

• The product has sustained damage through foreign objects, substances or accidents;
  ◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.
  To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:
  www.2helpU.com

Please register at our website www.blackanddecker.co.uk to be kept up to date on new products and special offers.

Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk
