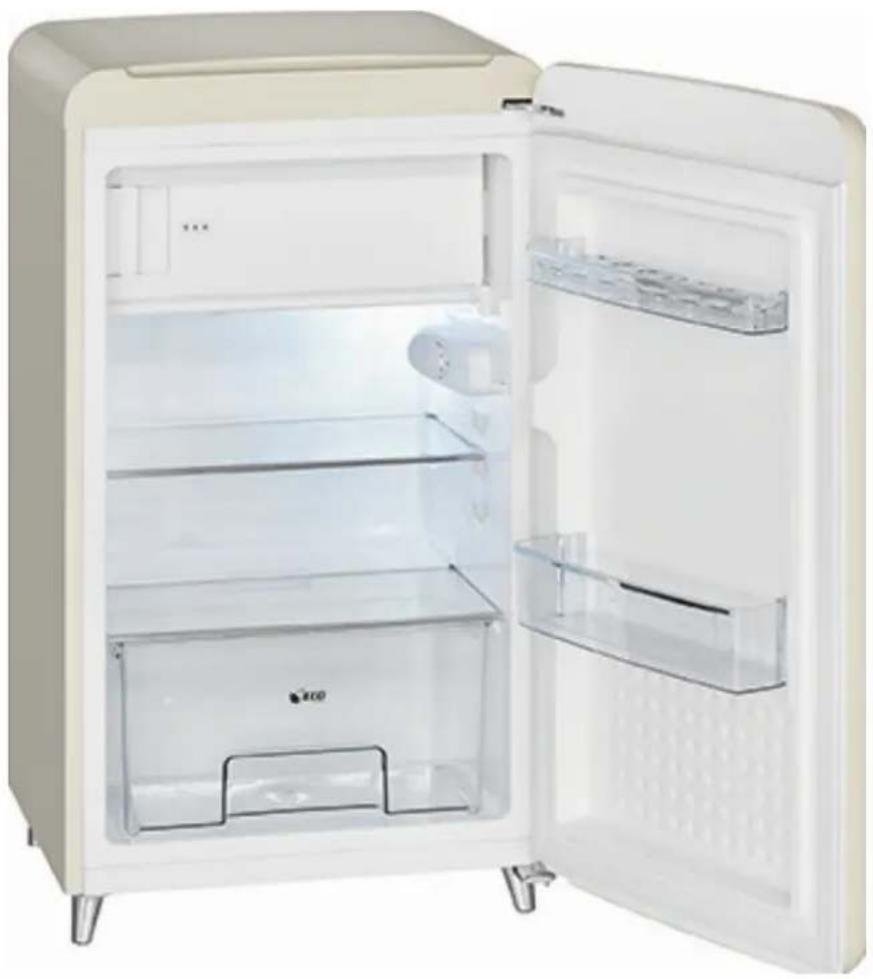

Interior view of a white electric refrigerator with open doors and internal compartments (no visible text or symbols)

Special safety Information for this Unit......Page 19

Unpacking the Appliance......Page 20

Overview of the Appliance......Page 20

Installation....Page 21

Assembling the door handle....Page 22

Startup / Operation......Page 22

Tips for Energy saving......Page 25

Cleaning and Maintenance......Page 26

Repairs....Page 26

Troubleshooting......Page 27

Technical Data......Page 28

Installation Installation

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in the System Instructions for Usese Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNINGING

This warns you of dangers to your health and indicates possible injury risks.

CAUTIONCAUTION

This refers to possible hazards to the machine or other objects.

IOTENOtshighlights tips and information.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• For safety reasons, alterations or modifications of the device are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNINGNING

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this U special safety Information fo

• This unit is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING: WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance appliance way and understand the hazards involved.

- ChildrenShidrent play with the appliance.

- Cleaning and user maintenance shall maintain made by children, while they are older 8 years and supervised.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable

be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

- Use the provided collection points of electrical equipment for the disposal of the appliance.

CoolantCoolant

WARNING

The coolant circuit of this device contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the device.

If the coolant circuit is damaged: If the coolant circuit is damaged:

- It is imperative to avoid any open flames or ignition source.

• Thoroughly air the room in which the device is installed.

Unpacking the Appliandengolhanée

1. Remove the appliance from its packaging.
2. The device and parts of the interior are protected for transport. Remove all adhesive tapes from the unit lid. You may remove adhesive residue with a cleaning solvent. Also remove any adhesive tapes and packaging materials from the inside of the device.
3. To prevent hazards, check the appliance for any transport damage.
4. In case of damage, do not put the device into operation. Contact your trader.

NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and Maintenance".

Overview of the Appliance

NOTENOTE

The drawing can deviate from the original device.

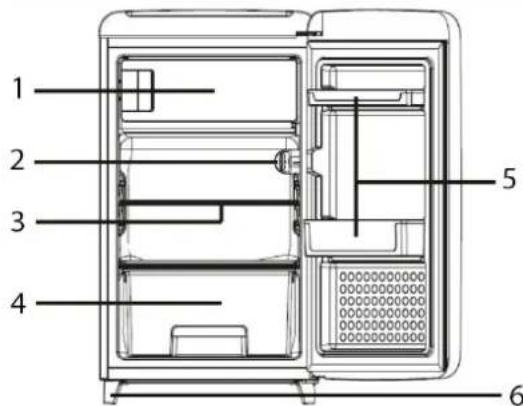

1 2 3 4 5 6

1	Freezer compartment
2	Thermostat
3	Height-adjustable glass shelf
4	Vegetable box with glass cover
5	Door storage racks
6	Adjustable feet

Delivery scope Delivery scope

1 x height-adjustable glass shelf, 1 x vegetable box with glass cover, 2 x door storage rack, 1 x door handle incl. fixing screws with cover

Installation Installation

Conditions for the installation of which is stated

- Sufficient ventilation around the device is necessary in order for the heat to dissipate properly and to guarantee efficient cooling operation at low power consumption. For this purpose, leave sufficient space around the device:

• minimum distance of 5 cm between rear side and wall;
• at least 1 cm on both sides;

• keep proper space in front of the device in order to open the door at an angle of 160^ .

• Only install at a location with an ambient temperature suitable for the climate class of the device. For information on the climate class, please refer to chapter “Technical Data” or to the rating label located in the interior or on the rear side of the device.

• Place the device on a steady and safe surface. If the device is not horizontally leveled, adjust the feet accordingly.
  • Install the device for the wall socket to be freely accessible.
• Avoid the installation: Avoid the installation:

- near heaters, next to a stove, direct sunlight or any other heat sources;

- at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;

- near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.) and in rooms which may have poor air circulation (e.g. garages).

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured in order to disconnect the device from the power supply in case of an emergency.

CAUTIONE

In case you disconnect the device or in case of power failure: Wait for approx. 5 minutes before restarting the device.

• Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.
• Connect the mains cable to a properly installed and earthed wall outlet.

Assembling the door handle Assembling the door handl

To assemble the door handles, follow the steps below:

• Position the handle and fix three screws on the door.
• Install the handle part and use a screw to fix handle.

Startup / OperationStartup / Operation

Prior to first use Prior to first use

CAUTIONCAUTION

After transport, the device should be left standing for 4 hours in order for the oil to be collected in the compressor. Nonobservance could cause damage to the compressor and hence result in failure of the device. This would void your warranty claim.

- Clean the interior of the device including all accessory parts located inside. Please consider the instructions that we have included for you in the chapter on "Cleaning and Maintenance".

Turning on Turning on

• Turn on the unit by connecting the device to the power supply.
• Operate the temperature control, which is located in the fridge interior. See also the following section "Settings".

SettingsSettings

Setting 0 means that the unit is in the off state. Turn the temperature control clockwise, starting from this setting; the device will turn on automatically. The power levels 11 – 7 regulates the different values of the internal temperature. When opening the door, the interior lamp will turn on.

Setting 0: off state

Setting 1: lowest setting (warmest inside temperature)

Setting 7: highest setting (coldest inside temperature)

Turning the temperature control clockwise will lower the inside temperature. Please keep in mind that the temperature changes with the ambient temperature (of the location), with the frequency of door opening and the amount of food in the device.

During initial operation, turn the temperature control to the highest setting first, until the device has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

Storing foodStoring food

FridgeFridge

i NOTENOTE

Always store food covered or packed in order to prevent drying-out and transfer of odor or taste onto other food items.

You may pack the food with:

• Polyethylene plastic bags or foil
- Plastic containers with a lid
• Special elasticated plastic covers
- Aluminum foil

The following safety precautions are recommended The following safety precautions are recommended

• The device is suitable for storing fresh food and drinks.
• Store fresh packed items on the glass shelves and fresh fruits and vegetables in the vegetable box.
• Place bottles in the door storage rack.
• Store meat well packed and only for 2 to 3 days. Avoid contact with cooked dishes.
• Let warm food cool down before putting it in the device.

FreezerFreezer

The freezer allows you to store frozen food at a temperature of -18^ or below (from a middle temperature control setting) for several months, to produce ice cubes and to freeze fresh good.

The temperature of the device is automatically controlled by the temperature control in the fridge.

Due to external influences such as room temperature, placements, frequency of opening the door and the amount of food the temperature in the freezer can be influenced.

Freezing Freezing

• 24 hours before freezing we recommend turning the temperature control to the highest power level and to keep this setting even after freezing for a few hours.
  The device is not compromised if the setting will not revert to a normal operating temperature (temperature control in middle setting) after the freezing process, but for economic reasons you should possibly avoid it.
• Fresh food should be frozen as fast as possible to the core. Therefore during freezing operation, the temperature of fresh food should be lowered as fast as possible in order to keep formation of ice crystals as little as possible and not to damage the food structure.
• Frozen food should be kept in contact with the bottom of the compartment.
• Keep a space between the individual items, so that the cold air can circulate.

Storing frozen food Storing frozen food

• Packed frozen merchandise should be stored in a 4-star-freezer compartment in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.
• It is possible to store food for longer periods of time, up to three months. This period might vary, so please observe the storage information on the packaging of the merchandise.

i NOTENOTE

Make sure that the temperature in the freezer does not rise above -18^ .

Moreover the device should be defrosted regularly. A thick layer of ice on the wall deteriorates the cooling effect and the power consumption increases.

Safety precautions Safety precautions

• Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.
• Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.
• Do not open the door in case of power failure. If the failure does not take longer than 10 hours, the food will not be affected.
• Do not eat food that is still frozen. Do not allow children to eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.
• Touching metal parts inside the device can cause symptoms similar to burns if the skin is very sensitive.
• Do not touch frozen food with moist or wet hands; they could freeze to the items.

DefrostingDefrosting

The fridgefidgean automatic defrosting system. During defrosting the water drops drain off at the rear side of the cooling chamber. The water running through a flume, is collected in a container underneath the compressor, where it will evaporate. Make sure the water discharge opening does not get clogged. Clean it carefully with a pipe cleaner or knitting needle. A light formation of ice on the rear side during operation is normal.

To achieve better cooling and to save energy, defrost there were regularly. To start the defrosting process turn the temperature control to the 0-position and disconnect the plug or turn off the fuse. Remove the food items and keep covered at a cool location. When the ice has melted, wipe the condensate away and dry the device interior. You may then restart the device by connecting the plug and turning the temperature control.

CAUTION:

Never use metal objects (e.g. knives) for removing ice from the vaporizer. The vaporizer could be damaged. A defect vaporizer could cause serious damages.

i NOTE:NOTE:

In order to speed up the defrosting process, you may put a bowl of warm water (about 50^ C) into the freezer chamber.

Operating noise Operating noise

Type of sound	Type of sound	Cause / solution	Cause / solution
Normal Norma	Mumbling	Caused by the	compressor during its operation.
noisenoise			This is stronger when it turns on or off.
	Liquid sounds	Caused by the circulation of the refrigerant in the device.
	Click sounds	The temperature control turns the compressor on or off.
	Disturbing noises	Vibration of the shelves or cooling coils – check if those are securely fastened.

Turning off

Turn the temperature control to the 0-setting in order to turn off the device.

If the device will not be operated for a longer period of time:

• Remove the entire food from the device.
• Turn the temperature control to the 0-setting.
• Disconnect the plug or turn off / unscrew the fuse.
• Thoroughly clean the device (see "Cleaning and Maintenance").
• Keep the device lid open in order to prevent bad odors.

Tips for Energy saving

• Disconnect the plug if you do not use the device.
• Do not install the device near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure sufficient ventilation at the bottom and rear device side. Never block ventilation openings.
• Allow warm dishes to cool down before putting them in the device.
• Do not open the door longer than necessary.
• Do not adjust the temperature colder than necessary. The ideal temperature in the fridge is 7^ .
  • Make sure that the temperature in the freezer does not rise above -18^ C.
  • The device should be defrosted regularly.
• The seal of the device door must be completely intact, so that the lid closes properly.

Cleaning and Maintenance Cleaning and Maintenance

WARNING: WARNING:

• Always turn off the device and disconnect the plug or turn off / unscrew the fuse before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the device; moisture could enter electrical components. Risk of electric shock! Risk of electric shock damage the plastic parts. The device must be dry before restarting operation.

△ CAUTION:CAUTION

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not bend the cooling coils.

- Essential oils and organic solvents, such as the juice of lemon or orange skin, butanoic acid or cleaning agents containing acetic acid can damage plastic parts. Prevent contact of any part with such substances.

For hygienic reasons, clean the interior and accessory parts regularly:

• Remove all food and keep covered at a cool location.
• Use warm water and a mild detergent for cleaning the interior (including rear side and bottom).
• Clean the water discharge opening carefully with a pipe cleaner or knitting needle.
  • After everything was thoroughly dried, you can restart the operation.

Reverse the bulbReverse the bulb

Lamp specifications: 220-240 specifications:5:W

• Remove the screw from the lamp cover.
• Press on the lamp cover and remove to the back.
• Replace the defect illuminant.
• Reattach the lamp cover and fasten the screw.
• Reconnect the device and turn on.

Repairs

A wrong or improperly performed repair brings danger to the user.

Repairs to electrical appliances must only be carried out by an authorized specialist. A damaged power cord must be changed only by a qualified electrician.

Troubleshooting Troubleshooting

Before you contact an authorized specialist Before you contact an authorized specialist

You need the service may not call if you read this troubleshooting table.

ProblemProbleable	Possible causePossible cause	SolutionSolution
The device is not working properly or at all.	- Is the unit not connected to mains power?- Is the temperature control properly set?- Is the place unqualified?- Do food items prevent the device door from closing properly?- Are the ventilation openings clear of obstruction?	- Insert the plug properly in the contact socket. Check the fuse.- Check the temperature setting.- Check the ambient temperature.- Arrange the food properly.- Unblock the ventilation openings, install the device freely.
Device cools too much.	Is the temperature control set properly? Check	the temperature setting.
The food is too warm.	- Is the temperature control set properly?- Was the device door open for an extended period?- Was large quantity of food placed in the device within the last 24 hours?- Is the device near a heat source?	- Check the temperature setting.- Open the door only as long as necessary.- Turn the control panel to a colder setting temporally.- Check the installation location (see “Installation”).
Loud noise during operation.	Does the device not stand vertical or horizontal?	Adjust the feet accordingly.Liquid flow sounds in the cooling circuit are normal.
Water on the bottom.	- Is the temperature control set properly?- Is the water discharge opening blocked?	- Check the temperature setting.- Check the discharge opening.
Light does not work.	- Is the unit not connected to mains power?- Is the light bulb defect?	- Insert the plug properly in the contact socket. Check the fuse.- See the section “Reverse the bulb”.
The housing becomes warmly.	The refrigeration cycle takes place in the foaming. The heat exchangers are installed in the housing covered. The device cut the interior heat, which must be dissipated through the housing areas.
Water on the outer surface.	On days of high humidity, condensation might occur on the outer surface of the device. This is no malfunction; you may simply wipe the water off.

i NOTE:

If a problem still persists after following the steps above, please contact your trader or an authorized technician.

Technical Data Technical Data

Measures / WeightsMeasures / Weights
Height x Width x Depth cm		97.8 x 54.3 x 61.5
Net weight kg		33.0
Electrical connectionElectrical connection
Connection power W		110
Connection voltage V~ / Hz		220-240 / 50

The right to make technical and design modifications in the course of continuous product development remains reserved.

Product data sheet for household refrigerators/freezers according to regulation (EU) No.1060/2019 stores/fireezersregulation

BrandBrand		BomannBomann
ModelModel		KSR 350R 350
Category1)		7
Energy Efficiency class2)		A++
Annual Energy consumption3)	kWh/a	136
Net capacity cooling total	I	108
- thereof cold storage compartment		-
- thereof wine storage compartment		-
- thereof cellar compartment		-
- thereof storage compartment for fresh-food	I	108
Net capacity freezing total	I	13
Star rating4)		4
Design temperature of other compartments		-
Coldest storage temperature of wine storage compartment		-
Frost-free		-
Temperature rise time	h	10
Freezing capacity	kg/24h	2
Climate class5)		SN/N/ST
Noise emission	dB(A) re1pW	42
Built-in / integrable		- / -
Wine storage appliance		-

1) Category:

1 = Refrigerator with one or more fresh-food storage compartments, 2 = Refrigerator-cellar, Cellar and Wine storage appliances, 3 = Refrigerator-chiller and Refrigerator with a 0-star compartment, 4 = Refrigerator with a one-star compartment, 5 = Refrigerator with a two-star compartment, 6 = Refrigerator with a three-star compartment, 7 = Refrigerator-freezer, 8 = Upright freezer, 9 = Chest freezer, 10 = Multi-use and other refrigerating appliances.

2) A+++ (highest efficiency) to G (lowest efficiency).

3) Annual energy consumption „XYZ“ kWh per year based on standard test results for 24 h. Actual energy consumption will depend on how the appliance is

used and where is located.

4) * = compartment: a frozen-food storage compartment in which the temperature is not warmer than -6°C.

** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C.

*** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C.

^ ( ^** ) = food freezer compartment in which the temperature is not warmer than -18^ C and a min. freezing capacity in 24 h.

5) Climate class SN: ambient temperature of +10°C up to +32°C.

Climate class N: ambient temperature of +16°C up to +32°C.

Climate class ST: ambient temperature of +16°C up to +38°C.

Climate class T: ambient temperature of +16°C up to +43°C.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations

Disposal Disposal

Meaning of the "Dustbin" SymbolMeaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

WARNING: WARNING:

Remove or disable any existing snap and bolt locks, if you take the device out of operation or dispose it.

BOMANN®
