| Product Type | Beverage Cooler |
| Brand | Bomann |
| Model | KSG 235 |
| Dimensions (H x W x D) | 142.3 x 55.0 x 57.5 cm (without handle) |
| Net Weight | 46.0 kg |
| Power Consumption | 100 W |
| Voltage / Frequency | 220-240 V~ / 50 Hz |
| Annual Energy Consumption | 212 kWh/a |
| Net Capacity | 247 I |
| Bottle Capacity | Up to 173 (0.33 l bottles) |
| Climate Class | 0, 1, 2, 3, 4, 6 |
| Noise Emission | 40 dB(A) |
| Refrigerant | R600a (Isobutane) |
| Defrost Type | Automatic |
| Interior Light | LED (E14) |
| Temperature Control | Rotary knob (0 off, 1-7) |
| Door Reversal | Yes, reversible |
| Shelves | 5 grid shelves (max load: upper 32 kg, bottom 18 kg) |
| Feet Adjustment | 4 adjustable feet at front, wheels at back |
| Storage Type | Beverage storage |
Frequently Asked Questions - KSG 235 BOMANN
User questions about KSG 235 BOMANN
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual KSG 235 - BOMANN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KSG 235 by BOMANN.
USER MANUAL KSG 235 BOMANN
FLASCHENEKSCHLSNHRANKÜKSGK235
BEVERAGE EXCHANGE


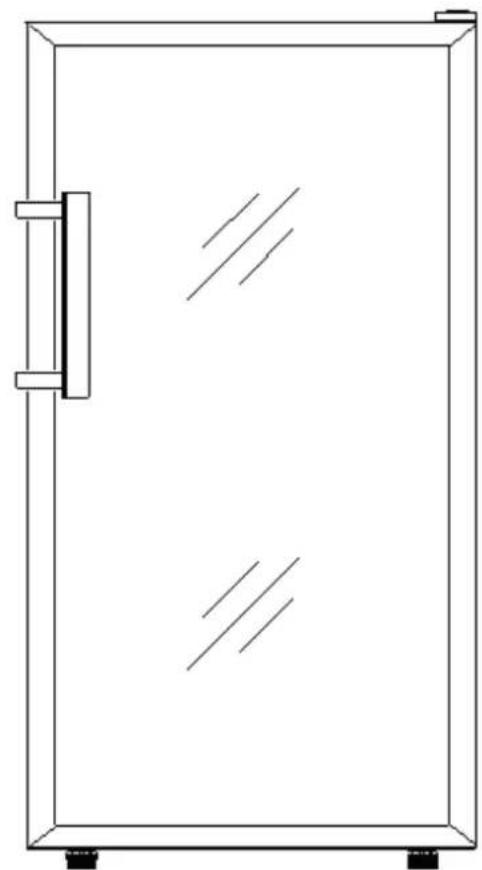

Simple line drawing of a rectangular cabinet or enclosure with no text, numbers, or symbolsSpecial safety Information for this Unit......Page 13
Transport and Unpacking the Appliance.....Page 14
Appliance Overview......Page 15
Installation......Page 15
Startup / Operation......Page 16
Cleaning and Maintenance......Page 18
Troubleshooting......Page 18
Technical Data......Page 19
Installation Installation
Thank you for choosing our product. We hope you will enjoy using the appliance.
Symbols in the SynInstructions for Usese Instructions for Use appliance is not fit for private use.
Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage:
WARNINGING
This warns you of dangers to your health and indicates possible injury risks.
CAUTIONCAUTION
This refers to possible hazards to the machine or other objects.
IOTENOTEhighlights tips and information.
General Notes General Notes
Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.
i NOTENOTIllustrations in this instruction manual can deviate from the original appliance.
- The appliance is designed exclusively for commercial use and for the envisaged purpose. This
- The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.
- Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
- When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
- The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
- For safety reasons, alterations or modifications of the appliance are prohibited.
- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
WARNING: WARNING:
Do not allow small children to play with the foil.
There is a danger of suffocation!
Special safety Information for this Unit
- This appliance is intended for commercial use only.
WARNING:
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
WARNING: WARNING:
- Do not damage the refrigerant circuit.
- Do not use electrical devices inside the appliance.
- Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of use of the appliance appliance way and understand the hazards involved.
- ChildrenShiddrent play with the appliance.
- Cleaning and user maintenance shall not be made by children, while they are older 8 years and supervised.
- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
- Use the provided collection points of electrical equipment for the disposal of the appliance.
CoolantCoolant
WARNING:
The coolant circuit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure that the coolant circuit gets not damaged during transport and installation of the appliance.
If the coolant circuit is damaged:
- avoid any open flames or ignition source,
- disconnect the plug,
- thoroughly air the room in which the appliance is installed and
- contact an authorized technician.
Transport and Unpacking the Appliance
Transport the appliance
Transport the appliance, if possible, only in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.
i NOTE:
The appliance has wheels which facilitate the transport and installation of the appliance. Tilt the appliance back slightly and move it gently.
Unpack the appliance
- Remove the appliance from its packaging.
- Remove all packaging material, such as foils, filler and cardboard packaging.
- To prevent hazards, check the appliance for any transport damage.
- In case of damage, do not put the appliance into operation. Contact your distributor.
△ CAUTION: A transport protection!ransport protection!
- Pull off the foil from the appliance sides.
- Remove the Styrofoam part between appliance back and condenser (metal grille).
i NOTENOTE
Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”.
guarantee efficient cooling operation at low power consumption. Sufficient clearance must be created for this purpose.
- Gap to the appliance back about 5 cm and to the side walls each about 10 cm;
- Clearance to the front must be created so that the appliance door can open without being impeded.
- Only install at a location with an ambient temperature suitable for the climate class of the appliance. For information on the climate class, please refer to chapter "Technical Data" or to the rating label located in the interior or on the rear side of the appliance.
- Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust
Appliance Overview Appliance Overview the feet accordingly.


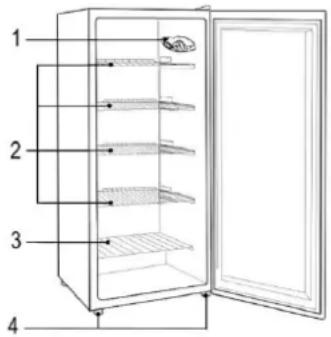

Diagram of a refrigerator with numbered compartments and labeled parts1 Temperature control / Interior light with on/off switch
2 Height-adjustable grid shelves
3 Grid shelf above the compressor
4 Adjustable feet at the front; wheels at the back
Delivery scope Delivery scope
5 x grid shelf, 1 x door handle incl. fixing screws with covers
Installationstahat
Condition\$fordtheinstallation location
- Good ventilation is required around the appliance, in order to dissipate the heat properly and to
- Install the appliance for the wall socket to be freely accessible.
- Avoid the installation:
- near heaters, next to a stove, direct sunlight or any other heat sources;
- at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
- near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.) and in rooms which may have poor air circulation (e.g. garages).
- Do not expose the appliance any weather.
Assembling the door handle
Attach the door handle with the supplied screws to the holes on the door outside (left side, delivery condition).
Put included screw covers on.
CAUTION:CAUTION:
To prevent damage, do not tighten the screws too tight.
Electrical connection Electrical connection
WARNING: WARNING:
- The installation to the mains supply must conform to the local standards and regulations.
- Improper connection may cause to an electric shockshock
- Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
- The accessibility of the power plug must be ensured in order to disconnect the appliance from the power supply in case of an emergency.
△ CAUTION/CAUTION
In case of disconnection or power failure:
- wait for approx. 5 minutes before restarting;
- check the operation settings.
- Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.
- Connect the mains cable to a properly installed and earthed wall outlet.
Reverse the Door Opening Reverse the Door Opening If required, the door opening can be moved from the right (delivery condition) to the left side.
WARNING: WARNING:
When replacing the door stop, the appliance must be disconnected from the power supply. Always unplug the appliance first.
i NOTENOTE
- When installing, ask another person to assist.
- You possibly need: screw wrench, Phillips screw-driver as well as a thin-blade screwdriver.
- Remove the cover (a) of the upper door hinge (b) and dismount it by loosening the screws underneath.
- Open the appliance door a little and take it carefully of the lower door hinge. Place the door on a padded surface to prevent it from scratches.
- Move the cap (c) to the opposite holes.
- Tilt the appliance slightly backwards and block it in this position. Unscrew the feet. Dismount the lower door hinge (d) and the holding device (e) by loosening the screws.
- Rotate the hinge (d) and the holding device (e) about 180° and replace the items after you have unscrewed the hinge pin and used by the other hinge side. Tighten all screws and turn in the feet accordingly.
- Replace the appliance upright again. Insert the appliance door on the lower hinge pin and fix the door to the property position.
- Transfer the upper door hinge (b) accordingly. Put the hinge pin in the hole of the appliance door and tight the hinge. Put on the hinge cover (a) again.
- Check if the door is arranged vertical as well as horizontal, so that a smooth opening and closing of the door is ensured.
- Dismount the door handle and attach it to the corresponding other door outer side. Refer to the instructions in "Assembling the door handle".
Startup / OperationStartup / Operation
Prior to first use Prior to first use
CAUTIONCAUTION
After transport, the appliance should be left standing upright for about 4 hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.
Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".
Starting the appliance Starting the appliance
- Connect the appliance to the power supply.
- Operate the temperature control. See also the following section "Settings".
SettingsSettings
i NOTENOTE
Due to external influences such as ambient temperature, frequency of door opening and appliance assembly, the temperature can be affected.
Setting [0] means that the appliance is in the off state. Turn the temperature control clockwise, starting from this setting; the appliance will turn on automatically.
The power levels [1-7] regulates the different values of the internal temperature.
Setting 0 Setting 1 Setting 1 Setting 7 Setting 7 Setting 7
| Off state | Lowest setting | Highest setting |
| (warmest inside temperature) | (coldest inside temperature) |
During initial operation, turn the temperature control to the highest setting first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the temperature control back to a medium setting.
Interior light Interior light
You can switch on or off the interior light by the on/off switch.
StoringStoring
The appliance is suitable for cooling and storage of beverages.
Store bottles horizontally, with the opening to the front, on the grid shelves.
The maximum load on the upper shelves is 32 kg a piece and on the bottom shelf 18 kg.
Operating Noise Noise
| Type of soundTQ | Causule |
| Mumbling | Compressor during its operation |
| Liquid sounds | Circulation of the refrigerant |
| Click sounds | The temperature control turns the compressor on or off |
| Disturbing noises | Vibration of the shelves or cooling coils |
Switching off
To switch off the appliance turn the temperature control to the off state.the off state.
If the appliance is out of use for long periods:
- Disconnect the mains plug or switch off the fuse.
- Thoroughly clean the appliance (see "Cleaning and Maintenance").
- Leave open the appliance door to prevent unpleasant odours.
Tips for Energy saving
- Disconnect the plug if the appliance is not in use.
- Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
- Ensure sufficient ventilation at the bottom and rear side. Never block ventilation openings.
- Do not adjust the temperature colder than necessary.
- Switch on the interior light only if needed.
- Do not open the door longer than necessary.
- The seal of the appliance door must be completely intact, so that the door closes properly.
Cleaning@ealMaintenanceand Maintenance@clean the thaw water discharge channel / opening
WARNING:WARNING:
- Always turn off the appliance and disconnect the plug or turn off / unscrew the fuse before cleaning and user maintenance.
- Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components.
Risk of electric shock! Risk steel electrochemical damage the plastic parts.
- The appliance must be dry before restarting operation.
△ CAUTION: AUITION:
- Do not use a wire brush or other sharp, abrasive items.
- Do not use any acidic or abrasive detergents.
- Do not damage the refrigerant circuit.
carefully with e.g. a pipe cleaner.
- After everything was thoroughly dried, you can restart the operation.
- Wipe at least once a year the dust that has accumulated on the appliance back and condenser (metal grille). To do this, use a soft brush or a vacuum cleaner.
DefrostingDefrosting
The appliance has an automatic defrost. During defrosting water drops drains off at the back of the cooling chamber. This thaw water running through a channel, is collected in a drip tray located on the compressor, where it evaporates. Make sure that the water discharge opening does not get clogged.
Cleaning the appliance including interiorCleaning the appliance including interior
- Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent.
- Remove the appliance content and storage at a cool location.
Lamp specifications: LED E14 Lamp specifications: LED E14
- Remove the lamp cover.
- Replace the defective bulb.
- Reattach the lamp cover.
- Reconnect the appliance and put into operation again.
Troubleshooting
Before you contact an authorized specialist
| Problem | Possible cause | Solution |
| The appliance is not working properly or at all | - Is the unit not connected to mains power?- Is the temperature properly set?- Is the place unqualified?- Does the content prevent the appliance door from closing properly?- Are the ventilation openings clear of obstruction? | - Insert the plug properly in the contact socket. Check the fuse.- Check the temperature setting.- Check the ambient temperature.- Check the appliance content.- Unblock the ventilation openings, install the appliance freely. |
| The content is not cold enough | - Is the temperature set properly?- Was the appliance door open for an extended period?- Is the appliance near a heat source? | - Check the temperature setting.- Open the door only as long as necessary.- Check the location (see “Installation”). |
| ProblemPossible | Possible causePossible cause | SolutionSolution |
| Loud noise during operation | - Does the appliance not stand vertical or horizontal? | - Adjust the feet accordingly.- See the section “Operating noise”. |
| Water on the bottom | - Is the temperature set properly?- Is the water discharge channel / opening blocked? | - Check the temperature setting.- Clean the water discharge channel / opening. |
| Light does not work | - Is the unit not connected to mains power?- Is the bulb defect? | - Insert the plug properly in the contact socket.Check the fuse.- See the section “Reverse the bulb”. |
| Water on the outer surface | On days of high humidity, condensation might occur on the outer surface of the appliance. This is no malfunction; you may simply wipe the water off. | |
i NOTE:NOTE:
If a problem still persists after following the steps above, contact your trader or an authorized technician.
Technical Data Technical Data
| Measures / WeightsMeasures / Weights | ||
| Height x Width x Depth cm 142.3 x 55.0 x 57.5 (without handle) | ||
| Net weight kg 46.0 | ||
| Electrical connection | ||
| Connection power | W | 100 |
| Connection voltage | V~ / Hz | 220-240 / 50 |
The right to make technical and design modifications in the course of continuous product development remains reserved.
Product data sheet Product data sheet
| Brand | BomannBomann | |
| Model | KSG 235 | |
| Appliance category | Baverage cooler | |
| Annual Energy consumption | kWh/a | 212 |
| Actual energy consumption will depend on how the appliance is used and where is located. | ||
| Net capacity cooling total | I | 247 (up to 173 bottles à 0,33 I) |
| Climate class* | 0, 1, 2, 3, 4, 6 | |
| Noise emission | dB(A) re1 pW | 40 |
| Built-in | - | |
* Climate class according ISO 23953-2
| Climate class | Temperature °C | Relative humidity (%) |
| 0 | 20 | 50 |
| 1 | 16 | 80 |
| 2 | 22 | 65 |
| 3 | 25 | 60 |
| Climate class | Temperature °C | Relative humidity (%) | Relative humidity (%) |
| 4 30 55 | |||
| 5 40 40 | |||
| 6 27 70 |
This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations
Disposal Disposal
This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.
Meaning of the "Dustbin" Symbol Meaning of the "Dustbin In- rmballon where the equipment can be disposed can be obtained from your local authority.
Protect our environment; do not dispose of electrical equipment in the domestic waste.
Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.
WARNING: WARNING:
Remove or destroy any existing snap and bolt locks, if you take the device out of operation, or dispose it.
