VSE 339 - Fridge BOMANN - Free user manual and instructions

Product Type	Built-in Larder Refrigerator
Brand	Bomann
Model	VSE 339
Dimensions (H x W x D)	87.2 x 54.0 x 54.5 cm
Net Weight	30.0 kg
Energy Efficiency Class	A++
Annual Energy Consumption	94 kWh/year
Net Capacity (Fresh Food)	138 L
Climate Class	N/ST (16-38 °C)
Noise Emission	39 dB(A)
Power Connection	220-240 V ~ 50 Hz, 60 W
Temperature Control	Rotary knob (0-7), with interior light
Defrosting	Automatic defrosting system
Interior Light	Automatic on door opening, bulb 15W
Reversible Door	Yes, door opening can be changed from right to left
Adjustable Shelves	2 height-adjustable glass shelves
Door Storage Racks	2, including cheese/butter case and bottle holder
Vegetable Boxes	2 with glass cover
Refrigerant	Isobutane (R600a), flammable
Safety Features	Child lock (children over 8 years supervised), manual includes warnings
Installation Type	Built-in, requires ventilation openings min. 200 cm²
Scope of Delivery	2 glass shelves, 2 vegetable boxes, 2 door racks, egg tray, mounting material

Frequently Asked Questions - VSE 339 BOMANN

How do I adjust the temperature of the Bomann VSE 339?

Turn the temperature control knob clockwise from 0 (off) to 7 (coldest). A medium setting (3-4) is recommended for normal use. Allow 24 hours to stabilize.

What is the recommended storage temperature for the refrigerator?

The internal temperature should be around 4-5 °C. The coldest zone is at the rear lower part, the warmest at the door and upper shelves.

Does the Bomann VSE 339 require manual defrosting?

No, it has an automatic defrosting system. Water drains via a channel into a drip tray on the compressor. Keep the drain opening clear.

Can I reverse the door opening direction?

Yes, the door hinge can be moved from right to left. Disconnect power first, remove hinges and reposition as described in the manual. Use a screwdriver and wrench.

Why is the refrigerator making unusual noises?

Normal sounds include mumbling (compressor), liquid gurgling (refrigerant), and clicks (thermostat). Disturbing vibrations may be due to uneven floor or loose shelves.

How should I clean the Bomann VSE 339?

Unplug the appliance. Clean interior and seals with warm water and mild detergent. Do not use abrasive cleaners or steam. Dry thoroughly before restarting.

What are the proper clearances for built-in installation?

Built-in opening should be 872-880 mm high, 560-570 mm wide, and 550 mm deep. Provide a ventilation duct of 50 mm at the back and min. 200 cm² ventilation openings.

How can I save energy with this refrigerator?

Place away from heat sources, allow warm food to cool, open door briefly, keep door seal intact, and set temperature to medium. Ensure proper ventilation.

What should I do if the interior light does not work?

Check power connection and fuse. If still off, the bulb may need replacement (15W, E14 base). Unscrew the lamp cover, replace bulb, and reattach cover.

Is the Bomann VSE 339 suitable for storing frozen food?

No, this is a larder refrigerator with a fresh food compartment only. It has no freezer compartment and cannot freeze food.

USER MANUAL VSE 339 BOMANN

HOUSEHOLD - BUILT-IN LARDER

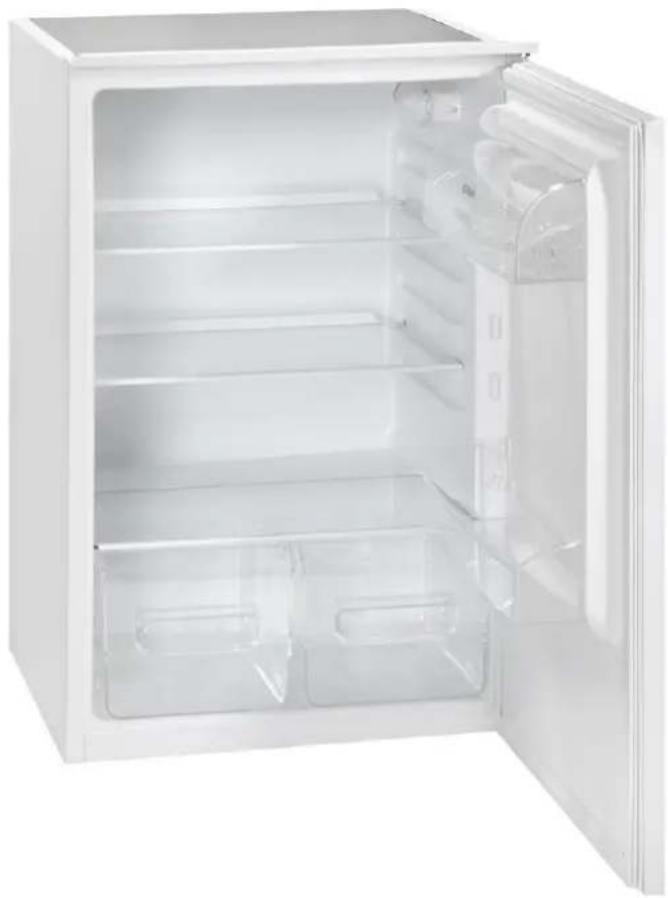

White refrigerator with open door showing empty shelves and doors (no text or symbols visible)

Special safety Information for this Unit......Page 14

Unpacking the Appliance......Page 16

Appliance Equipment......Page 16

Installation......Page 16

Startup / Operation......Page 18

Cleaning and Maintenance......Page 19

Troubleshooting......Page 20

Technical Data......Page 21

Technical line drawing of a cabinet with internal components and dimension arrows (no text or symbols)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols In these Instructions for Use:se Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNINGING

This warns you of dangers to your health and indicates possible injury risks.

CAUTIONCAUTION

This refers to possible hazards to the machine or other objects.

IOTENOL highlights tips and information.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

IOTENOTE

The illustrations in this instruction manual can deviate from the original appliance.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.

• The appliance is only to be used as described in the user manual. Do not use the appliance for any use other purpose. Any other use is not intended and can result in damages or personal injuries.

• Operate the appliance only properly installed. properly installed

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special safety Information for this Unit

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING: WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of use of the appliance. The appliance is safe way and understand the hazards involved.

- Children Shadreat play with the appliance.

- Cleaning and user maintenance shall maintain a trade by children miles they are older 8 years and supervised.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

- Use the provided collection points of electrical equipment for the disposal of the appliance.

CoolantCoolant

WARNING:

The coolant circuit of this appliance contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Unpacking the Appliance Unpacking the Appliance Refer to the instructions which we give you in "Built-in";

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

CAUTION: CAUTION:

Pull off the protective foil from the appliance sides.

IOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”.

Appliance Equipment equipment

Appliance overviewAppliance overview

1 2 3 4

1 Temperature control / interior light
2 Height-adjustable glass shelves
3 Door storage racks
4 Vegetable boxes with glass shelf

Delivery scope

2 x height-adjustable glass shelf, 2 x vegetable box with glass cover, 2 x door storage rack (incl. cheese-/butter case and metal rod for bottle holder), 2 x egg tray, installation material

Installation

Conditions for the installation location

Good ventilation is required around the appliance, in order to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Sufficient clearance is necessary.

- Place the appliance so that the appliance door can open without being impeded.

• Only install at a location with an ambient temperature suitable for the climate class of the appliance. For information on the climate class, please refer to chapter “Technical Data” or to the rating label located in the interior or on the rear side of the appliance.
• Look for stable, horizontal appliance position.
• Avoid the installation:

- near heaters, next to a stove, direct sunlight or any other heat sources;

- at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;

- near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).

- Do not expose the appliance any weather.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

CAUTION:

In case of disconnection or power failure:

- Wait for approx. 5 minutes before restarting.

- Check the operation settings.

• Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.
• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Reverse the Boreopingopening

If required, the door opening can be moved from the right (supplied condition) to the left side.

WARNING: WARNING:

When replacing the door stop, the appliance must be disconnected from the power supply. Always unplug the appliance first.

IOTENOTE

• When installing, ask another person to assist.
• You possibly need: screw wrench, Phillips screw-driver as well as a thin-blade screwdriver.

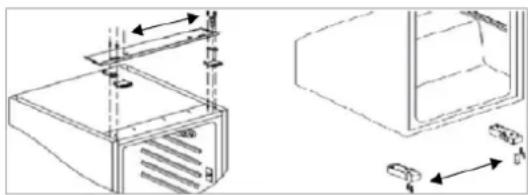

Technical line drawing of a server rack with mounting bracket and internal components (no text or symbols)

- Dismount the upper limit plate incl. hinge pin by loosening the screws. Open the door a little and take it carefully off the lower door hinge. Place the door on a padded surface to prevent it from scratches.

- Tilt the appliance slightly backwards and block it in this position. Loosen the lower hinge pin and put it in the opposite bracket.

- Replace the appliance upright again. Insert the appliance door on the lower hinge pin and fix the door to the property position.

- Attach the upper limit plate after you have un-screwed the hinge pin and used it on the other side of the plate. Insert the hinge pin in the hole of the appliance door and tight the plate.

- Check if the door is arranged vertical as well as horizontal, so that a smooth opening and closing of the door is ensured.

BuiltBuilt

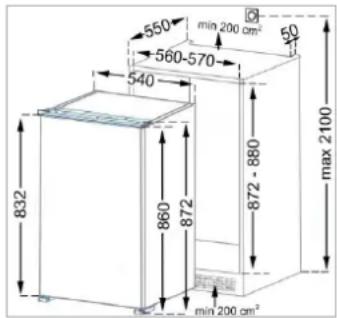

550 min 200 cm² 560-570 540 832 860 872 872 - 880 max 2100 min 200 cm²

Figures in mm

Built-in openings Height x Width x Depth 872–880 x 560–570 x 550 mm

For the appropriate venting an exhaust duct of approx. 50 mm depth is to provide at the appliance back.

The ventilation openings in the furniture base and building must be min. 200 cm ^4 to ensure that heated air can freely escape.

Install the power cord so that the appliance can be easily connected after installation. Slide the appliance into the build-in opening until the stop plate (A) abuts the furniture.

Press the rubber seal between the appliance and built-in furniture firmly (on the side without hinge).

Open the appliance door. Push the appliance side, which is located opposite the hinges, against the built-in furniture. Arrange the appliance for a secure, vertical position, fix it with the supplied screws and put the protective cap (B) on.

Separate the parts b, c and d of part a.

In consideration of the shown distances, hold the guide (a) at the top and bottom inside of the furniture door; mark the positions of the drill holes. After drilling, fix the guide with the screws provided.

Insert the cover (c) until it clicks in the guide (a).

Fully open the appliance and furniture door and join them together. Slide the bracket (b) in the guide (a) and mark the drill holes. Remove the bracket and drill ∅ 2 mm holes with about 8 mm distance to the outer door edge. Put the bracket on again; secure it with the screws provided.

If an aligning of the furniture door is necessary, use the slot spacing. Check if the door is arranged vertical as well as horizontal, so that a smooth opening and closing of the door is ensured.

Insert the cover (D) until it clicks on the angle (B).

Starting the appliance Starting the appliance

• Connect the appliance to the power supply.
• Operate the temperature control. See also the following section "Settings".

SettingsSettings

Setting [0] means that the appliance is in the off state. Turn the temperature control clockwise, starting from this setting; the appliance will turn on automatically.

The power levels [1-7] regulates the different values of the internal temperature.

Setting 0tiSetting 1 Setting 1Setting 7 Setting 7Setting 7

Off state Lowest setting Highest setting

(warmest inside (coldest inside

temperature) temperature)

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance.

During initial operation, turn the temperature control to the highest setting first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later

Startup / OperationStartup / Operation point would then be easier.

Prior to first use Prior to first use

CAUTIONCAUTION

After transport, the appliance should be left standing upright for about 4 hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Interior light Interior light

When opening the appliance door, the interior light will turn on automatically.

Storing foodStoring food

NOTE: Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:

Always pay attention to the storage instructions on the sales packaging.

Always store food covered or packed in order to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil

• Special plastic covers with elastic strip

- Plastic bowl with lid

- Aluminum foil

Recommendations Recommendations

• Store fresh packed items on the glass shelves, fresh fruits and vegetables in the vegetable box.
• Place bottles in the door storage rack.
• By the air circulation different climate zones arises.

- The coldest zone is located at the rear and the lower fridge part. Recommended for the storage of foods such as fish, sausages and meat.

- The warmest zone is located at the door and the upper fridge part. Suitable for the storage of e.g. cheese and butter.

- Let warm food cool down first.

Operating noise Operating noise

Type of soundT	CadeaseCade
Mumbling Compressor during its operation
Liquid sounds Circulation of the refrigerant
Click sounds The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching Softening

To switch off the appliance turns the temperature, then to the off state.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Disconnect the mains plug or switch off the fuse.
• Thoroughly clean the appliance (see "Cleaning and Maintenance").
• Leave open the appliance door to prevent unpleasant odours.

Tips for Energy saving

• Disconnect the plug if you do not use the appliance.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure sufficient ventilation at the bottom and rear side. Never block ventilation openings.
• Allow warm dishes to cool down before putting into the appliance.
• Do not adjust the temperature colder than necessary.
• Do not open the door longer than necessary.
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and Maintenance

WARNING:

• Always turn off the appliance and disconnect the plug or turn off / unscrew the fuse before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
• The appliance must be dry before restarting operation.

△ CAUTION:

Do not use a wire brush or other sharp, abrasive temperature items.

- Do not use any acidic or abrasive detergents.

- Do not damage the refrigerant circuit.

Cleaning the appliance including interior

- Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent.

• Remove for that the appliance content and storage at a cool location.
• Clean the thaw water discharge channel / opening carefully e.g. with a pipe cleaner.
  • After everything was thoroughly dried, you can restart the operation.

DefrostingDefrosting

The appliance has an automatic defrosting system. During defrosting water drops drains off at the back of the cooling chamber. The thaw water running through a channel, is collected in a drip tray located on the compressor, where it will evaporate. Make sure the water discharge opening does not get clogged. A light formation of ice on the interior back during operation is normal.

CAUTIONCAUTION

Never use metal objects (e.g. knives) to remove ice from the evaporator. Otherwise it can be damaged. A defect evaporator can cause serious damage.

Reverse the bulb Reverse the bulb

Lamp specifications: 220L240V240N315W, 220x. 15 W

• Unscrew the screw of the lamp cover.
• Press on the lamp cover and remove it to the back.
• Replace the defective bulb.
• Reattach the lamp cover and tighten the screw.
• Reconnect the appliance and switch on.

Troubleshooting Troubleshooting

Before you contact an authorized specialist Before you contact an authorized specialist

ProblemPossible	Possible causePossible cause	Solution
The appliance is not working properly or at all	- Is the unit not connected to mains power?- Is the temperature properly set?- Is the place unqualified?- Does the content prevent the appliance door from closing properly?- Are the ventilation openings clear of obstruction?	- Insert the plug properly in the contact socket. Check the fuse.- Check the temperature setting.- Check the ambient temperature.- Check the appliance content.- Unblock the ventilation openings, install the appliance freely.
The content is too warm	- Is the temperature set properly?- Was the appliance door open for an extended period?- Was large quantity of food placed in the appliance within the last 24 hours?- Is the appliance near a heat source?	- Check the temperature setting.- Open the door only as long as necessary.- Set a colder temperature.- Check the location (see “Installation”).
Loud noise during operation	- Does the appliance not stand vertical or horizontal?	- Check the appliance position.- See the section “Operating noise”.
Water on the bottom	- Is the temperature set properly?- Is the water discharge channel / opening blocked?	- Check the temperature setting.- Clean the water discharge channel / opening.
ProblemPossible	Possible causePSolutioncause	SolutionSolution
Light does not work	- Is the unit not connected to mains power?- Is the bulb defect?	- Insert the plug properly in the contact socket.Check the fuse.- See the section “Reverse the bulb”.

i NOTE:NOTE:

If a problem still persists after following the steps above, contact your trader or an authorized technician.

Technical Data Technical Data

Measures / WeightsMeasures / Weights
Height x Width x Depth cm	87.2 x 54.0 x 54.5
Net weight kg	30.0
Electrical connectionElectrical connection
Connection power W	60
Connection voltage V~ / Hz	220-240 / 50

The right to make technical and design modifications in the course of continuous product development remains reserved.

Product data sheet for household refrigerators/freezers according to regulation (EU) No. 1060/2010

Brand	Bomann
Model	VSE 339
Category1)	1
Energy Efficiency class2)	A++
Annual Energy consumption3) kWh/a	94
Net capacity cooling total I	138
- thereof cold storage compartment I	-
- thereof wine storage compartment I	-
- thereof cellar compartment I	-
- thereof storage compartment for fresh-food I	138
Net capacity freezing total I	-
Star rating4)	-
Design temperature of other compartments	-
Coldest storage temperature of wine storage compartment	-
Frost-free	-
Temperature rise time h	-
Freezing capacity kg/24h	-
Climate class5)	N/ST
Noise emission dB(A) re1 pW	39
Built-in	•
Wine storage appliance	-

1) 1Category: 1 = Refrigerator with one or more fresh-food storage compartments, 2 = Refrigerator-cellar, Cellar and Wine storage appliances, 3 = Refrigerator-chiller and Refrigerator with a 0-star compartment, 4 = Refrigerator with a one-star compartment, 5 = Refrigerator with a two-star compartment, 6 = Refrigerator with a three-star compartment, 7 = Refrigerator-freezer, 8 = Upright freezer, 9 = Chest freezer, 10 = Multi-use and other refrigerating appliances
2) A+++ (highest efficiency) to G (lowest efficiency)
3) Annual energy consumption „XYZ“ kWh per year based on standard test results for 24 h. Actual energy consumption will depend on how the appliance is used and where is located.
4)* = compartment: a frozen-food storage compartment in which the temperature is not warmer than -6°C
** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C
*** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C
* (***)= food freezer compartment in which the temperature is not warmer than -18^ and a min. freezing capacity in 24 h
5) Climate class SN: ambient temperature of +10°C up to +32°C
Climate class N: ambient temperature of +16°C up to +32°C
Climate class ST: ambient temperature of +16°C up to +38°C
Climate class T: ambient temperature of +16°C up to +43°C

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal Disposal

Meaning of the "Dustbin" SymbolMeaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING: WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

BOMANN®
