USER MANUAL DTE 338 BOMANN

Interior view of a two-door refrigerator with open doors showing empty shelves (no text or symbols visible)

Special safety Information for this Unit......Page 16

Unpacking the Appliance......Page 18

Appliance Equipment......Page 18

Installation......Page 18

Startup / Operation......Page 20

Cleaning and Maintenance......Page 23

Troubleshooting......Page 24

Technical Data......Page 24

Diagram of a refrigerator interior with numbered compartments for identification

Technical diagram of a refrigerator with numbered components for identification

Technical diagram of a refrigerator with numbered components for identification

a c 8 mm b a

Close-up of a mechanical bracket with two circular components and a metal hinge (no visible text or symbols)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols In these Instructions for Usee Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNINGING

This warns you of dangers to your health and indicates possible injury risks.

CAUTIONCAUTION

This refers to possible hazards to the machine or other objects.

IOTENOL highlights tips and information.

General Notes General Not

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

IOTENOTE

The illustrations in this instruction manual can deviate from the original appliance.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.

• The appliance is only to be used as described in the user manual. Do not use the appliance for any use other purpose. Any other use is not intended and can result in damages or personal injuries.

• Operate the appliance only properly installed.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special safety Information for this Unit

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING: WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of use of the appliance. The safety way and understand the hazards involved.

- Children Shadreat play with the appliance.

- Cleaning and user maintenance shall maintain a trade by children miles they are older 8 years and supervised.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

- Use the provided collection points of electrical equipment for the disposal of the appliance.

CoolantCoolant

WARNING:

The coolant circuit of this appliance contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Unpacking the Appliance Unpacking the Appliance ceiling operation at low power consumption.

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”.

Appliance Equipment Equipment

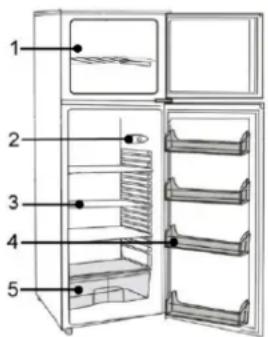

Appliance overview

Diagram of an open refrigerator with numbered parts labeled 1 to 5

1 4-Star freezer compartment with grid shelf
2 Temperature control / interior light
3 Height-adjustable glass shelves
4 Door storage racks
5 Vegetable box with glass shelf

Delivery scopeDelivery scope

3 x height-adjustable glass shelf, 1 x vegetable box with glass cover, 4 x door storage rack, 1 x egg tray, 1 x removable grid shelf, 1 x ice-cube tray, incl. installation material: sealing tape, fixing screws appliance, fixing screws hinges, cover caps, security angles

Installation Installation

Conditions: condition installation localized installation

Good ventilation is required around the appliance, in order to dissipate the heat properly and to guarantee

Sufficient clearance is necessary.

- Refer to the instructions which we give you in "Built-in"; - Place the appliance so that the appliance door can open without being impeded.

• Only install at a location with an ambient temperature suitable for the climate class of the appliance. For information on the climate class, please refer to chapter “Technical Data” or to the rating label located in the interior or on the rear side of the appliance.
• Look for stable, horizontal appliance position.

• Avoid little ein installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

△ CAUTION:

In case of disconnection or power failure:

- Wait for approx. 5 minutes before restarting.

Check the operation settings.

• Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.
• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Reverse the Boorepofdingpening

If required, the door openings can be moved from the right (supplied condition) to the left side.

WARNING: WARNING:

When replacing the door stops, the appliance must be disconnected from the power supply. Always unplug the appliance first.

IOTENOTE

• When installing, ask another person to assist.
• You possibly need: screw wrench, Phillips screw-driver as well as a thin-blade screwdriver.

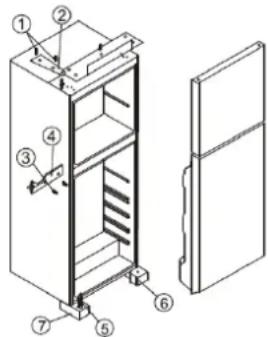

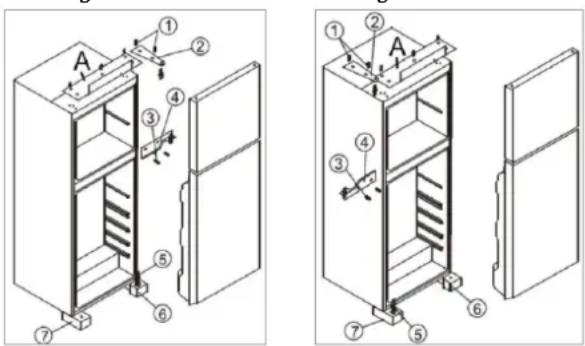

From right to left side From left to right side

Technical diagram of a refrigerator with numbered components and labeled parts, showing internal structure and mounting details.

• First dismount the stop plate (A).
• Dismount the upper door hinge (2) by loosening the screws (1). Open the freezer door a little and take it carefully of the middle door hinge. Place the door safely aside.

• Solve the middle door hinge (4) with the screws (3). Open the fridge door a little and take it carefully of the lower door hinge. Place the door at a safe place too.

• Tilt the appliance slightly backwards and block it in this position. Dismount the lower door hinge (6) and the door support device (7).

• Attach the door hinge (6) and the door support device (7) each on the other appliance side, after you have displaced the hinge pin (5) in the hinge (6) accordingly.
• Replace the appliance upright again. Put on the fridge door and fix it to the property position.
• Turn the middle door hinge (4) about 180° and transfer it at the opposite side. Put the hinge pin in the hole of the fridge door and tight the screws (3).
• Put on the freezer door and fix it to the property position.
• Transfer the upper door hinge (2) on the opposite appliance side. Put the hinge pin in the hole of the freezer door and tight the screws (1).
• Check if the doors are arranged vertically as well as horizontally, so that a smooth opening and closing of the doors are ensured.
  • Install the stop plate (A).

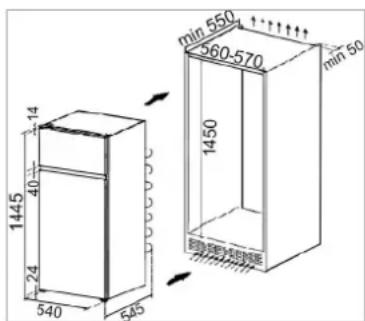

BuiltBoilt

14 24 540 543 1445 40 min 550 560-570 1450 min 50

Figures in mm

Built-in openings

Height x Width x Depth

1450 x 560-570 x 550 mm

For the appropriate venting an exhaust duct of approx. 50 mm depth is to provide at the appliance back.

The ventilation openings in the furniture base and building must be min. 200 cm ^4 to ensure that heated air can freely escape.

Install the power cord so that the appliance can be easily connected after installation.

Cut the sealing tape in accordance with the built-in opening.

Stick the sealing tape succinct on the appliance side to which the door opens. Insert the appliance into the built-in opening until the stop plate (A) abuts the furniture.

Make sure that the stop plate lines up properly with the top of the built-in opening.

screws provided.

If an aligning of the furniture door is necessary, use the slot spacing. Check if the door is arranged vertical as well as horizontal, so that a smooth opening and closing of the door is ensured.

Insert the cover (d) until it clicks on the angle (b).

Fasten the appliance In the Fultonshire opening peeling the

Screw the appliance door with the furniture door Screw the appliance supplied by a single door to stabilize the

i NOTENOTE

Follow below instruction for connecting the furniture door with the freezer and fridge appliance door.

First remove the caps of the bores on the outer edges of the appliance doors.

Thereon the sliding hinge brackets have to be fixed.

Separate the parts b, c and d of part a.

In consideration of the shown distances, and in accordance with the appropriate door holes, hold the guide (a) at the inside of the furniture door and mark the positions of the drill holes.

After drilling, fix the guide with the screws provided.

Insert the cover (c) until it clicks in the guide (a).

Fully open the appliance and furniture door and join them together. Slide the bracket (b) in the guide (a) and mark the drill holes. Remove the bracket and drill ∅ 2 mm holes with about 8 mm distance to the outer door edge. Put the bracket on again; secure it with the

appliance. Attach the angles between the two doors on the appliance and on the side of the furniture. Fix the angle of the hinge-side in combination with the hinge. Adjust the proper position of the angles by sliding them in the screw-openings to the right/left until they meet the sides of the built-in furniture.

Startup / OperationStartup / Operation

Prior to fiPfiorsterst use

CAUTIONCAUTION

After transport, the appliance should be left standing upright for about 4 hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Starting the appliance Starting the appliance

• Connect the appliance to the power supply.
• Operate the temperature control. See also the following section "Settings".

SettingsSettings

Setting [0] means that the appliance is in the off state. Turn the temperature control clockwise, starting from this setting; the appliance will turn on automatically.

The power levels [1-7] regulates the different values of the internal temperature.

Setting 0 Setting 01 Setting 1 Setting 7 Setting 7 Setting 7

Off state Lowest setting

Highest setting

(warmest inside

(coldest inside

temperature)

temperature)

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance.

During initial operation, turn the temperature control to the highest setting first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

Interior light Interior light

When opening the appliance door, the interior light will turn on automatically.

Storing foodStoring food

NOTE: Recommendation! Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:CAUTION:

Always pay attention to the storage instructions on the sales packaging.

..in the fridge..in the fridge

Always store food covered or packed in order to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil

- Special plastic covers with elastic strip

- Plastic bowl with lid

- Aluminum foil

Recommendations Recommendations

• Store fresh packed items on the glass shelves, fresh fruits and vegetables in the vegetable box.
• Place bottles in the door storage rack.
• By the air circulation different climate zones arises.

- The coldest zone is located at the rear and the lower fridge part. Recommended for the storage of foods such as fish, sausages and meat.

- The warmest zone is located at the door and the upper fridge part. Suitable for the storage of e.g. cheese and butter.

- Let warm food cool down first.

..in the freezer

The ✦ freezer allows you to store frozen food at a temperature of -18^ or colder for several months; to produce ice cubes and to freeze fresh food. The temperature of the freezer is automatically controlled by the temperature control in the fridge. Due to external influences such as ambient temperature, site, frequency of door opening and the amount of food, the temperature can affect the appliance.

i NOTE:NOTE:

Make sure that the temperature in the freezer does not rise above -18^ . For this, the unit should be defrosted regularly. A thick frozen layer deteriorates the cooling and increases the power consumption.

Freezing

- 24 hours before freezing we recommend turning the temperature control to the highest power level and to keep this setting even after freezing for a few hours. The appliance is not compromised if the setting will not revert to a normal operating temperature after the freezing process, but for economic reasons you should possibly avoid it.

• Fresh food should be frozen as fast as possible to the core. Therefore during freezing operation, the temperature of fresh food should be lowered as fast as possible in order to keep formation of ice crystals as little as possible and not to damage the food structure.
• Frozen food should be kept in contact with the bottom of the compartment.
• Keep a space between the individual items, so that the cold air can circulate.

Storing frozen food Storing frozen food

• Packed frozen merchandise should be stored in a 4-star-freezer compartment in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.
• It is possible to store food for longer periods of time, up to three months. This period might vary, so observe the storage information on the packaging of the merchandise.

General safety precautions General safety precautions

• Do not exceed the maximum freezing capacity. See data under "Technical Data" and on the rating label.
• Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.
• Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.
• Do not open the door in case of power failure. If the failure does not take longer than 10 hours, the food will not be affected.

• Do not eat food that is still frozen. Do not eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.

• Touching metal parts inside the appliance can cause symptoms similar to burns if the skin is very sensitive.

• Never touch frozen food with moist or wet hands.

Operating noise Operating noise

Type of sound Type of use Cause
Mumbling Compressor during its operation
Liquid sounds Circulation of the refrigerant
Click sounds The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching Softening

To switch off the appliance türmsthe temperature bond the temperatu trol to the off state.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Disconnect the mains plug or switch off the fuse.
• Thoroughly clean the appliance (see "Cleaning and Maintenance").
• Leave open the appliance door to prevent unpleasant odours.

Tips for Energy saving

• Disconnect the plug if you do not use the appliance.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure sufficient ventilation at the bottom and rear side. Never block ventilation openings.
• Allow warm dishes to cool down before putting into the appliance.
• Do not adjust the temperature colder than necessary.
• Do not open the door longer than necessary.
• The appliance should be defrosted regularly.

- The seal of the appliance door must be completely intact, so that the door closes properly.

clogged. A light formation of ice on the interior back during operation is normal.

To achieve better cooling and to save energy, defrost

Cleaning and Maintenance and Maintenance the freezer regularly as follows:

WARNING: WARNING:

• Always turn off the appliance and disconnect the plug or turn off / unscrew the fuse before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Risk steel electric shock damage the plastic parts.
• The appliance must be dry before restarting operation.

△ CAUTION:CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.

• Do not damage the refrigerant circuit.

• To start the defrosting process turn the temperature control to the off state and disconnect the plug or turn off the fuse.

• Remove the food items and keep covered at a cool location.
• When the ice has melted, wipe the condensate away and dry the appliance interior.
• Then you may restart the appliance by connecting the plug and turning the temperature control.

CAUTIONUTION

Never use metal objects (e.g. knives) to remove ice from the evaporator. Otherwise it can be damaged. A defect evaporator can cause serious damage.

i NOTE:NOTE:

To speed up the defrosting process, you may put a bowl of warm water into the freezer chamber.

Cleaning the appliance including interiorCleaning the appliance including interior

Reverse the bulbReverse the bulb

• Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent.
• Remove for that the appliance content and storage at a cool location.
• Clean the thaw water discharge channel / opening carefully e.g. with a pipe cleaner.
• After everything was thoroughly dried, you can restart the operation.

- Loosen the screw of the lamp cover and remove it to the back.

- Replace the defective bulb.

- Reattach the lamp cover and tighten the screw.

- Reconnect the appliance and switch on.

DefrostingDefrosting

The fridge has an automatic defrosting system. During defrosting water drops drains off at the back of the cooling chamber. The thaw water running through a channel, is collected in a drip tray located on the compressor, where it will evaporate. Make sure the water discharge opening does not get

Troubleshooting Troubleshooting

Before you contact an a Bthforized specialistatherized specialist

ProblemPossible	Possible causePossible cause	SolutionSolution
The appliance is not working properly or at all	- Is the unit not connected to mains power?- Is the temperature properly set?- Is the place unqualified?- Does the content prevent the appliance door from closing properly?- Are the ventilation openings clear of obstruction?	- Insert the plug properly in the contact socket. Check the fuse.- Check the temperature setting.- Check the ambient temperature.- Check the appliance content.- Unblock the ventilation openings, install the appliance freely.
The food is too warm	- Is the temperature set properly?- Was the appliance door open for an extended period?- Was large quantity of food placed in the appliance within the last 24 hours?- Is the appliance near a heat source?	- Check the temperature setting.- Open the door only as long as necessary.- Set a colder temperature.- Check the location (see “Installation”).
Loud noise during operation	- Does the appliance not stand vertical or horizontal?	- Check the appliance position.- See the section “Operating noise”.
Water on the bottom	- Is the temperature set properly?- Is the water discharge channel / opening blocked?	- Check the temperature setting.- Clean the water discharge channel / opening.
Light does not work	- Is the unit not connected to mains power?- Is the bulb defect?	- Insert the plug properly in the contact socket. Check the fuse.- See the section “Reverse the bulb”.

i NOTE:NOTE:

If a problem still persists after following the steps above, contact your trader or an authorized technician.

Technical Data

Measure / Weight
Height x Width x Depth	cm	143.9 x 54.0 x 54.5
Net weight	kg	45.0
Electrical connection
Connection power	W	98
Connection voltage	V~ / Hz	220-240 / 50

The right to make technical and design modifications in the course of continuous product development remains reserved.

Product data sheet for household refrigerators/freezers a Bonding data regulation (EDU) No. 1080/2010 Ours/decy to regulation (

BrandBrand	BOMANNBOMANN
ModelModel	DTE 338DTE 338
CategoryCategory	7
Energy Efficiency class2)	A++
Annual Energy consumption3) kWh/a	183
Net capacity cooling total I	168
- thereof cold storage compartment	-
- thereof wine storage compartment	-
- thereof cellar compartment	-
- thereof storage compartment for fresh-food I	168
Net capacity freezing total I	40
Star rating4)	4
Design temperature of other compartments	-
Coldest storage temperature of wine storage compartment	-
Frost-free	-
Temperature rise time h	10
Freezing capacity kg/24h	2
Climate class5)	N/ST
Noise emission dB(A) re1 pW	42
Built-in	•
Wine storage appliance	-

1) 1Category: 1 = Refrigerator with one or more fresh-food storage compartments, 2 = Refrigerator-cellar, Cellar and Wine storage appliances, 3 = Refrigerator-chiller and Refrigerator with a 0-star compartment, 4 = Refrigerator with a one-star compartment, 5 = Refrigerator with a two-star compartment, 6 = Refrigerator with a three-star compartment, 7 = Refrigerator-freezer, 8 = Upright freezer, 9 = Chest freezer, 10 = Multi-use and other refrigerating appliances
2) A+++ (highest efficiency) to G (lowest efficiency)
3) Annual energy consumption „XYZ“ kWh per year based on standard test results for 24 h. Actual energy consumption will depend on how the appliance is used and where is located.
4)* = compartment: a frozen-food storage compartment in which the temperature is not warmer than -6°C
** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C
*** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C
^ (**) = food freezer compartment in which the temperature is not warmer than -18^ and a min. freezing capacity in 24 h
5) Climate class SN: ambient temperature of +10°C up to +32°C
Climate class N: ambient temperature of +16°C up to +32°C
Climate class ST: ambient temperature of +16°C up to +38°C
Climate class T: ambient temperature of +16°C up to +43°C

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal Disposal

Meaning of the "Dustbin" SymbolMeaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING: WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

BOMANN®
