Product Type	Hi-Fi System
Brand	Karcher Audio
Model	MC 6570
Dimensions (W x H x D)	430 x 140 x 300 mm
Weight	5.5 kg
Power Consumption	50 W
Standby Consumption	< 1 W
Power Supply	AC 230 V, 50 Hz
Speaker Output	2 x 20 W RMS
CD Player	Yes
FM Radio	Yes, with 30 presets
Bluetooth	Yes, version 5.0
USB Playback	Yes, MP3/WMA
AUX Input	3.5 mm jack
Display	LCD screen
Remote Control	Included
Headphone Jack	3.5 mm
Warranty	2 years
Cleaning	Wipe with dry cloth
Safety	Automatic power-off
Spare Parts	Available via support website

Frequently Asked Questions - MC 6570 Karcher Audio

How do I connect my phone via Bluetooth?

Press the Bluetooth button on the remote or unit. Activate Bluetooth on your phone and select MC 6570 from the list. Pair when prompted.

How can I preset FM radio stations?

Tune to a station using SEEK or manual SEEK UP/DOWN. Press and hold a preset number (1-30) to save. Repeat for other stations.

Can I play music from a USB drive?

Yes, insert a USB drive with MP3 or WMA files into the USB port. Use SOURCE to select USB mode. Navigate tracks with SKIP buttons.

How do I clean the system?

Unplug the system. Use a soft dry cloth to wipe the exterior. Do not use liquid cleaners, solvents, or abrasive pads.

What is the power consumption?

Normal operation consumes 50 W. In standby mode, it consumes less than 1 W.

Does it have a headphone output?

Yes, a 3.5 mm headphone jack is located on the front panel. Inserting headphones will mute the speakers.

How do I reset the system to factory settings?

Press and hold the POWER button for 5 seconds until RESET appears on the display. Confirm with the PLAY button.

Can I connect the system to my TV?

Yes, use the AUX input with a 3.5 mm to RCA cable (not included). Connect to your TV's headphone or audio output.

What is the warranty period?

The Karcher Audio MC 6570 comes with a 2-year manufacturer warranty. Retain your purchase receipt for service.

Where can I find spare parts?

Spare parts are available through the Karcher Audio support website. Go to the Spare Parts section and enter your model number MC 6570.

USER MANUAL MC 6570 Karcher Audio

Line drawing of three computer monitors with open rear panels and control panel (no text or symbols)

MC 6570

Line drawing of a server rack with control panel and indicator hand (no text or symbols)

Line drawing of a mechanical device with an open lid and internal compartments, no text or symbols present

Line drawing of an open laptop with a screen and keyboard, showing internal components and a directional arrow (no text or symbols)

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture – Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup – The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.

1. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
2. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
3. Cables and Plugs – The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
4. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
5. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
6. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
7. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

a) The power-supply cord or the plug has been damaged; or
b) Objects have fallen, or liquid has been spilled into the appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure damaged.

1. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
2. Open Fire – Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.
3. Thunderstorms – During a thunderstorm the mains plug should be unplugged.
4. Safety Check – After servicing the technician should conduct a safety check in order to ensure that the apparatus is working properly and safely.

5. Batteries – Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.

6. Volume Levels – To prevent possible hearing damage, do not listen at high volume levels for long periods.

7. Headphones – Excessive sound pressure from earphones and headphones can cause hearing damage or loss (headphones not included).

CAUTION

RISK OF ELECTRO SHOCK

DO NOT OPEN

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL A LASER DE CLASS 1

LUOKAN 1 CLASSLAITE

KLASS 1 LASERAPPARAT

DO NOT STARE INTO BEAM – INVISIBLE LASER RADIATION

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. Handling discs

• Always keep the CD compartment shut to prevent dust or dirt from getting into the CD mechanism.
- Do not touch the recorded surface.
- Do not stick paper or write on either side of the CD.
- Do not bend the CD.
- Only handle a disc on its outer edges.

1. Storing discs

• To avoid scratches/damages always put CDs back into their cases after use.
- Do not expose CDs to direct sunlight, dust, dirt, high temperatures, high humidity or water.

1. Cleaning discs

2. Use a soft cloth to wipe fingerprints and dust from the disc surface.

3. Carefully move the cloth from the center of the disc to its edge:

Correct False

- Never use benzene, thinners, record cleaner fluid or antistatic spray to clean CDs.

1. Compatibility

- Due to the numerous compression methods, some discs may not play.

QUICK START GUIDE!

EN

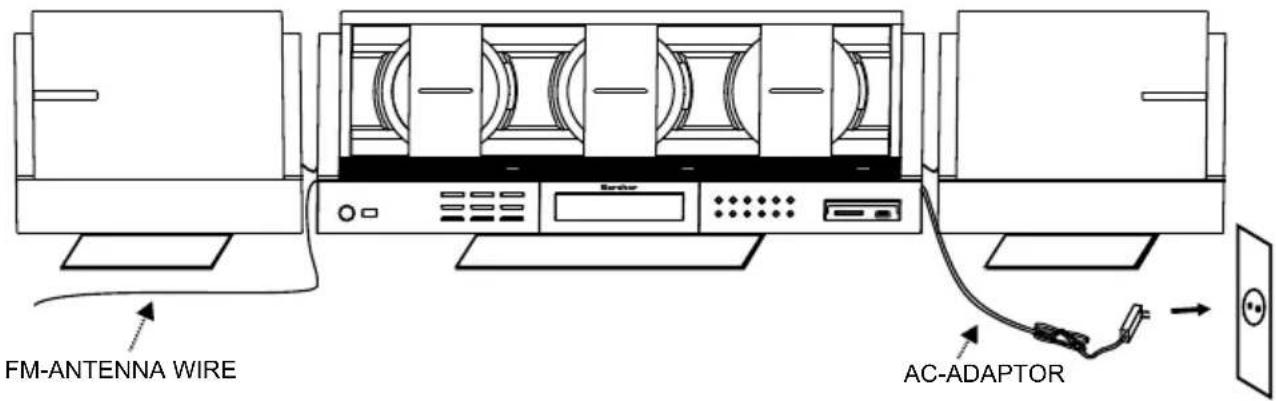

1. CONNECT THE SPEAKERS & ATTACH THE TABLE STANDS
2. PLUG THE TAIL END OF ADAPTOR INTO THE DC-JACK ON RIGHT SIDE OF UNIT THEN PLUG THE ADAPTOR INTO A WALL OUTLET WITH AC POWER.
3. UNWRAP THE FM-ANTENNA WIRE.

1. PRESS "ON/STANDBY" KEY ⏻TO SWITCH "ON" THE UNIT

Line drawing of a server rack with control panel and indicator lights, no text or symbols present

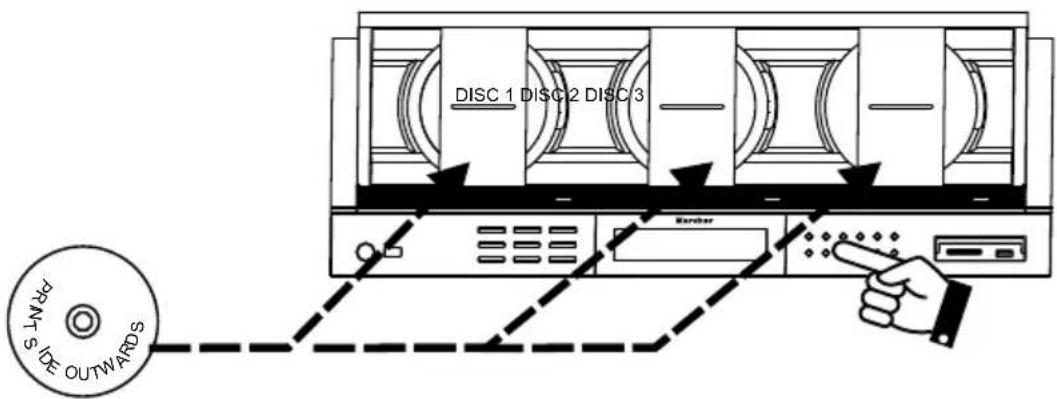

1. PLAYING A CD

2. PRESS "CD 1" or "CD 2" or "CD3" KEY

3. PRESS THE APPROPRIATE "DISC ▲ KEY TO OPEN THE DESIRED CD DOOR
4. INSERT A DISC (CD-AUDIO or CD-MP3)
5. PRESS "PLAY/ PAUSE" KEY ( ▶) TO START PLAYING CD
6. ADJUST VOLUME LEVEL (VOL+) or (VOL)

(CONTINUED ON NEXT PAGE)

(CONTINUED)

1. TO LISTEN TO RADIO


- PRESS "TUNER" KEY TO SWITCH TO RADIO (TUNER) MODE

- PRESS & RELEASE NEXT TO TUNE RADIO FREQUENCY UP (1-STEP).

- "PRESS & HOLD" NEXT (2 SECS.) TO SCAN UP (TO SEEK NEXT STATION).

- "PRESS & HOLD" BACK (2 SECS.) TO SCAN DOWN (TO SEEK PREV. STATION).

7. TO LISTEN TO MP3 SONGS ON USB PEN-DRIVE OR SD-CARD

Front view diagram of a server rack with control panel and indicator lights (no text labels)

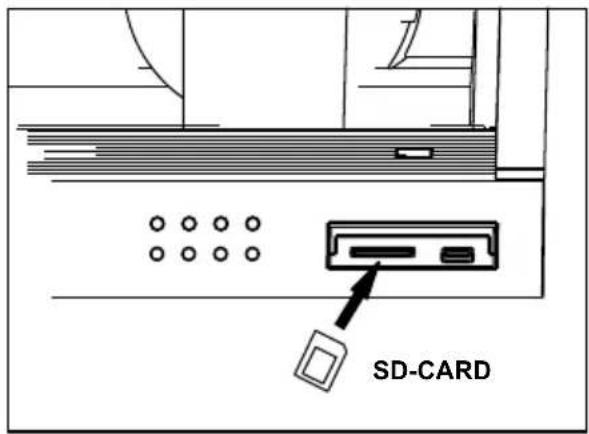

OPEN THE DOOR UPWARDS TO REVEAL USB & SD-CARD SLOTS

- PRESS SD/USB KEY, DISPLAY SHOWS "USB-CARD".

- INSERT A USB PEN-DRIVE OR SD-CARD INTO THE CORRECT SLOT.

- THE FIRST MP3 MUSIC FILE ON THE INSERTED MEDIA WILL START TO PLAY.

- PRESS ▶ TO PAUSE AND ■ TO STOP PLAYBACK

- PRESS OR TO SKIP TO PREVIOUS OR NEXT SONG.

END

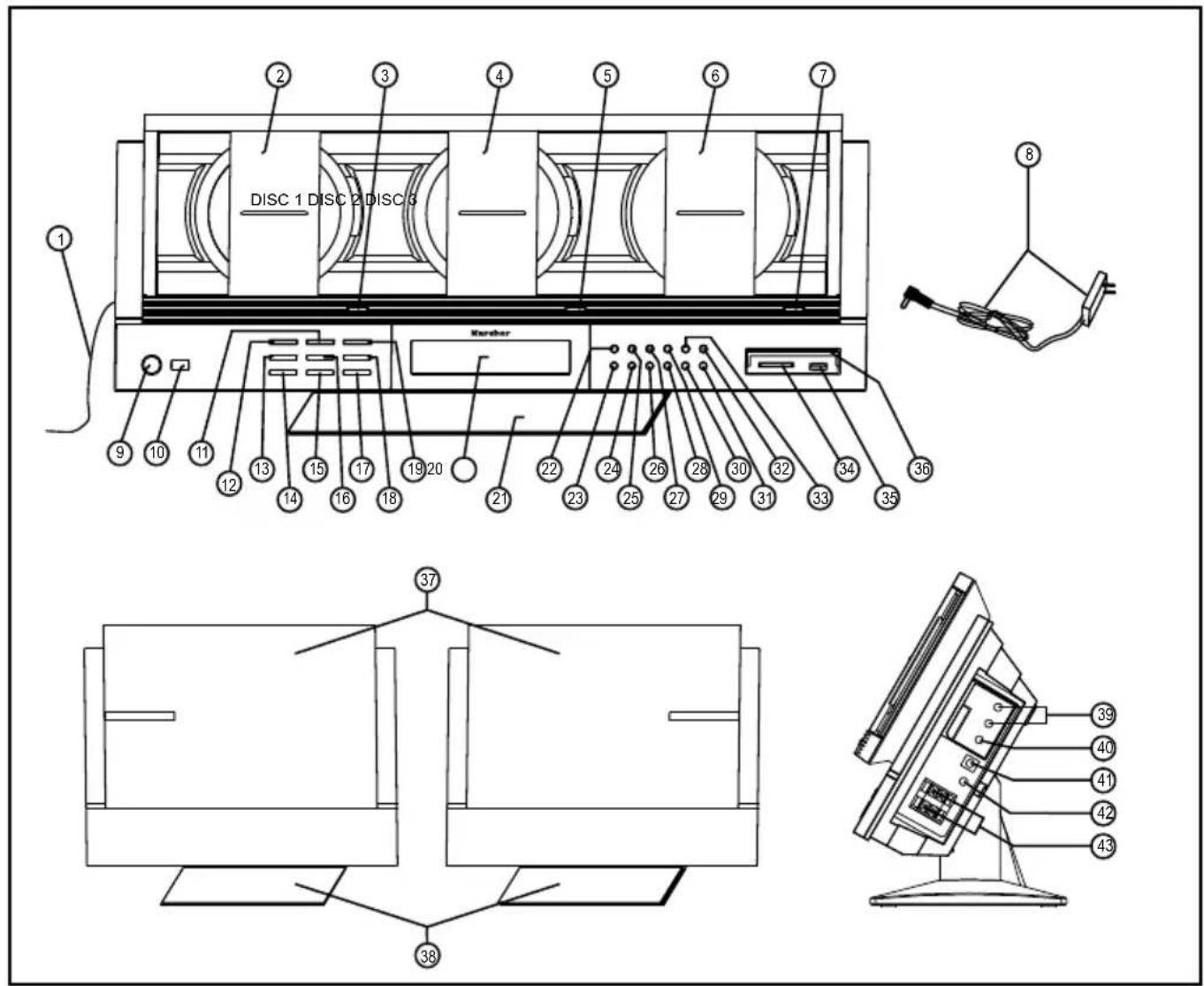

1. FM-ANTENNA WIRE
2. CD DOOR (DISC 1)
3. DISC 1 OPEN/ CLOSE KEY
4. CD DOOR (DISC 2)
5. DISC 2 OPEN/ CLOSE KEY
6. CD DOOR (DISC 3)
7. DISC 3 OPEN/ CLOSE KEY
8. AC ADAPTOR POWER CORD + PLUG
9. ON/ STANDBY KEY
10. REMOTE CONTROL SENSOR
11. PLAY/ PAUSE KEY
12. BACK/ TUNE -KEY
13. MEMORY + KEY
14. MEMORY -KEY
15. REPEAT/ RANDOM KEY
16. STOP KEY
17. VOLUME -KEY
18. VOLUME + KEY
19. NEXT/TUNE + KEY
20. MULTIFUNCTION DISPLAY
21. DESK STAND (FOR MAIN UNIT)

22. CD 1 SELECT KEY

23. 3-DISC PLAY MODE (3 CD P-MODE) KEY

24. EQUALIZER (EQ) KEY
25. CD 2 SELECT KEY
26. id3/ FM MODE KEY
27. CD 3 SELECT KEY
28. FOLDER KEY
29. TUNER KEY
30. TIMER KEY
31. PROGRAM/ CLOCK ADJUST KEY
32. AUX KEY
33. SD/USB KEY
34. SD MEMORY CARD SOCKET
35. USB SOCKET
36. USB/ SD COMPARTMENT DOOR
37. SPEAKERS (LEFT & RIGHT)
38. DESK STANDS (FOR SPEAKERS LEFT & RIGHT)
39. AUDIO LINE IN SOCKETS [AUX-IN] (LEFT & RIGHT)
40. SUBWOOFER OUTPUT SOCKET
41. DC JACK (DC 12V - - - -)
42. HEADPHONE SOC KET
43. SPEAKER OUTPUT SOCKETS (LEFT & RIGHT)

REMOTE CONTROL HANDSET

LOCATION OF REMOTE CONTROL KEYS

1. ON/ STANDBY BUTTON	15. DISC 1 OPEN/ CLOSE KEY
2. SNOOZE KEY	16. DISC 2 OPEN/ CLOSE KEY
3. MUTE KEY	17. DISC 3 OPEN/ CLOSE KEY
4. TIMER KEY	18. USB/ CARD KEY
5. SLEEP KEY	19. TUNER KEY
6. id3/ FM MODE KEY	20. AUX KEY
7. FOLDER UP KEY	21. MEMORY ( → ) KEY
8. EQ KEY	22. PROGRAM/ CLOCK ADJUST KEY
9. FOLDER DOWN KEY	23. MEMORY ( + ) KEY
10. 3CD PLAY MODE KEY	24. CD PLAY/ PAUSE KEY
11. REPEAT/ RANDOM KEY	25. BACK/ TUNE DOWN KEY
12. CD 1 SELECT KEY	26. NEXT/ TUNE UP KEY
13. CD 2 SELECT KEY	27. STOP KEY
14. CD 3 SELECT KEY	28. VOLUME UP ( + )KEY
	29. VOLUME DOWN ( → ) KEY

POWER SUPPLY

AC OPERATION (EXTERNAL AC-DC POWER ADAPTOR)

• THIS SET IS EQUIPPED WITH A "DC-JACK" CAPABLE OF ACCEPTING AC-ADAPTORS WITH A RATING OF DC = 12V, 2.5A, AND WITH A PLUG WITH THE FOLLOWING POLARITIES AS SHOWN (CENTER POSITIVE):
• PLEASE USE ONLY THE SUPPLIED AC-ADAPTOR TO OPERATE THE UNIT. USE OF OTHER ADAPTORS MAY DAMAGE THE UNIT OR CAUSE IT TO MALFUNCTION.
• PLUG THE TAIL END OF THE AC-ADAPTOR INTO THE DC-JACK (SOCKET) ON THE SIDE OF THE MAIN UNIT.
• MAKE SURE THE VOLTAGE OF THE AC ADAPTOR OPERATES AT THE SAME VOLTAGE AS YOUR LOCAL HOUSEHO LD VOLTAGE.
• PLUG THE ADAPTOR INTO THE WALL AC SOCKET.
• PRESS THE "ON/ STANDBY" KEY TO SWITCH ON THE UNIT.
• THIS UNIT IS DESIGNED TO OPERATE WITHOUT EVER BEING TOTALLY POWERED "OFF". IT WILL EITHER BE "ON" OR IN "STANDBY MODE".
• IN STANDBY MODE, THE BLUE BACK-LIGHT OF THE DIGITAL DISPLAY WILL BE DIMMED BUT THE DISPLAY WILL SHOW THE CURRENT TIME (CLOCK FUNCTION).
• ANYTIME DURING STANDBY MODE, YOU CAN SWITCH "ON" THE UNIT BY PRESSING THE "ON/ STANDBY" KEY (ON REM OTE CONTROL OR FRONT PANEL OF THE MAIN UNIT).
• SAVE ENERGY BY SWITCHING THE SYSTEM TO "STANDBY" MODE.

• THIS SET HAS A BUILT-IN POWER SAVING SYSTEM WHICH WILL AUTOMATICALLY PUT THE SET INTO A "STANDBY MODE" TO REDUCE POWER CONSUMPTION WHEN IT DETECTS THAT THE SET IS NOT IN USE.
• THIS AUTOMATIC SWITCHING TO "STANDBY MODE" WILL HAPPEN APPROXIMATELY 10-15 MINUTES AFTER THE FOLLOWING CIRCUMSTANCES:

(A) "CD" MODE: CD PLAYBACK HAS STOPPED (EG. AT THE END OF A DISC).
(B) "AUX" MODE: NO INPUT SIGNAL IS DETECTED AT THE AUX INPUT JACK.
(C) "USB" MODE: USB PLAYBACK HAS STOPPED.
(D) "CARD" MODE: SD CARD PLAYBACK HAS STOPPED.

- TO RE-ACTIVATE THE UNIT AFTER IT HAS AUTOMATICALLY SWITCHED TO "STANDBY MODE", SIMPLY PRESS THE "ON/ STANDBY" KEY TO SWITCH THE UNIT ON.

CONNECTION OF SPEAKER BOXES

• UNWRAP THE SPEAKER-CORDS OF BOTH SPEAKER-BOXES.
• PLEASE NOTICE THAT EACH SPEAKERS CORD CONSISTS OF 2 WIRES, ONE IS "CLEAR" AND ONE HAS A BLACK LINE.
• INSERT THE "CLEAR" WIRE OF THE LEFT SPEAKER-BOX INTO THE "RED" (+) SPEAKER TERMINAL ON THE RIGHT SIDE OF THE MAIN-UNIT, WHICH HAS THE "L" INDICATION (NEXT TO THE SPEAKER-CONNECTOR).
• INSERT THE "BLACK" WIRE OF THE LEFT SPEAKER-BOX INTO THE "BLACK" (-) SPEAKER TERMINAL, WHICH HAS THE "L" INDICATION (NEXT TO THE SPEAKER-CONNECTOR).
• REPEAT THE ABOVE 2 STEPS FOR THE "RIGHT" SPEAKER BOX, BUT THIS TIME, INSERTING THEM INTO THE RED & BLACK TERMINALS WHICH HAVE THE "R" INDICATION.
• WHEN INSERTING EACH WIRE INTO A TERMINAL, PRESS DOWNWARDS ON THE PLASTIC KNOB (RED OR BLACK PART) & PUSH THE EXPOSED METAL END OF THE WIRE ALL THE WAY INTO THE HOLE ADJACENT TO THIS KNOB.
• PLACE THE SPEAKER BOXES AS FAR APART AS POSSIBLE FOR BEST POSSIBLE ACOUSTIC EFFECT.

DIGITAL CLOCK FUNCTION

EN

HOW TO SET CORRECT TIME:

• THE SET HAS A BUILT-IN DIGITAL CLOC K, WHICH IS DISPLAYED WHEN THE UNIT IS IN "STANDBY MODE" OR WHEN YOU PRESS & HOLD PROG. / CLOC K ADJ. KEY FOR TWO SECON DS DURING CD OR RADI O OPERATION.
• TO SET THE CORRECT TIME, FOLLOW THIS PROCE DURE:

SWITCH UNIT TO "STAND-BY" MODE (DISPLAY LIGHT = DIMMED)

PRESS & HOLD PROG. / CLOCK ADJ. FOR 3 SECONDS DISPLAY SHOWS 12 HOUR OR 24 HOUR (FLASHING)

PRESS NEXT OR BACK TO SELECT 12-HOUR OR 24-HOUR CLOCK DISPLAY SYSTEM & PRESS PROG. / CLOCK ADJ. TO CONFIRM YOUR SELECTION

PRESS NEXT OR BACK REPEATEDLY TO SET THE CORRE CT HOUR IN THE DISPLAY & PRESS PROG. / CLOCK ADJ. TO CONFIRM

PRESS NEXT OR BACK REPEATEDLY TO SET THE CORRE CT MINUTE IN THE DISPLAY & PRESS PROG. / CLOCK ADJ. TO CONFIRM

CORRE CT TIME IS NOW SET & WILL BE SHOWN IN THE DISPLAY!

AUTOMATIC POWER ON/OFF TIMER FUNCTION (ALARM CLOCK)

THIS HIFI SYSTEM FEATURES A TIMER FUNCTION WHICH ENABLES YOU TO PROGRAM IT TO SWITCH "ON" OR "OFF" AUTOMATICALLY AT PRESET TIMES. THIS FUNCTION SERVES AS A VERY USEFUL ALARM CLOCK.

HOW TO SET TIMER

1. PRESS AND HOLD TIMER. THE ON TIME SYMBOL WILL APPEAR IN THE DISPLAY MOMENTARILY.
2. PRESS NEXT OR BACK TO SET THE HOUR OF THE DESIRED "POWER ON" TIME AND THEN PRESS TIMER TO CONFIRM.
3. PRESS NEXT OR BACK TO SET THE MINUTES OF THE DESIRED "POWER ON" TIME AND THEN PRESS TIMER TO CONFIRM.
4. NOW THE SYMBOL IN THE DISPLAY CHANGES TO SHOW OFF TIME
5. PRESS NEXT OR BACK TO SET THE HOUR OF THE DESIRED "POWER OFF" TIME AND THEN PRESS TIMER TO CONFIRM.
6. PRESS NEXT OR BACK TO SET THE MINUTES OF THE DESIRED "POWER OFF" TIME AND THEN PRESS TIMER TO CONFIRM.
7. NOW THE DISPLAY WILL INDICATE THE "WAK E UP MODE", PRESS NEXT OR BACK TO CHOOSE THE DESIRED WAKE UP MODE (CD-1/ CD-2/ CD-3/ SD-CARD/ TUNER/ USB) THEN PRESS TIMER TO CONFIRM.
8. THE DISPLAY THEN SHOWS THE "WAKE UP VOLUME LEVEL" (LOUDNESS). PRESS NEXT OR BACK TO INCREASE OR DECREASE THE VOLUME LEVEL AT WHICH THE MUSIC WILL BE PLAYED THE MUSIC WILL BE PLAYED WHEN THE TIMER SWITCHES ON THE UNIT AT THE PRE- SET TIME, PRESS TIMER TO CONFIRM.
9. THE DISPLAY WILL THEN RETURN TO NORMAL, AND THE SYMBOL "TIMER" WILL BE DISPLAYED, TO INDICATE THAT YOU HAVE PROGRAMMED A POWER ON/OFF ALARM SETTING. YOU CAN REACTIVATE IT BY PRESSING TIMER AGAIN
10. TO DISABLE THE TIMER, PRESS TIMER & THE "TIMER" SYMBOL DISAPPEARS. (NOTE : THE AUTOMATIC POWER ON/OFF TIMER WILL SWITCH ON THE UNIT AS IF YOU HAVE MANUALLY PRESSED THE ON/STANDBY KEY. IF YOU HAVE SELECTED "WAKE TO RADIO", THE EXACT PRESET RADIO BAND & STATION WILL BECOME ACTIVATED WHEN POWER SWITCHES ON).

SLEEP FUNCTION (AUTO POWER OFF)

• THIS SET HAS A SPECIAL SLEEP TIMER FUNCTION WHICH IS ABLE TO SWITCH OFF THE UNIT AUTOMATICALLY. THIS IS USEFUL FOR SLEEPING TO MUSIC AT NIGHT.
• AT ANY TIME WHILE THE UNIT IS OPERATING, PRESS SLEEREY (ON REMOTE CONTROL) REPEATEDLY TO CHOOSE THE AUTOMATIC POWER OFF TIME.

(*00 MEANS SLEEP TIMER IS DEACTIVATED)

SNOOZE FUNCTION

• WHENEVER THE ALARM (RADIO, CD, USB OR SD CARD) COMES ON, IT CAN BE TEMPORARILY SUSPENDED FOR A SHORT PERIOD OF 10 MINUTES, BY PRESSING THE "SNOOZE" KEY (ON REMOTE CONTROL) ONCE.
• THE ALARM WILL THEN AUTOMATICALLY COME ON AGAIN AFTER THE 10 MINUTES "SNOOZE" PERIOD HAS ENDED.
• THE PROCEDURE CAN BE REPEATED FOR APPROXIMATELY AN HOUR.

ELECTRONIC VOLUME CONTROL

• THIS UNIT USES AN ELECTRONIC VOLUME CONTROL . (PUSH BUTTON TYPE)
• TO INCREASE OR DECREASE THE SOUND OUTPUT, PRESS AND HOLD VOLUME UP OR VOLUME DOWN KEYS RESPECTIVELY.
• RELEASE THE KEY WHEN VOLUME LEVEL IS AT THE DESIRED LEVEL.
• YOU MAY HEAR A SERIES OF CLICKS WHILE ADJUSTING THE VOLUME LEVEL (PARTICULARLY WHEN LISTENING TO THE RADIO). THIS IS A NORMAL CONDITION. THE CLICKING WILL STOP WHEN YOU RELEASE THE VOLUME KEY AT THE DESIRED LEVEL.

MUSIC EQUALIZER

EN

- PRESS EQ KEY REPEATEDLY TO SELECT THE ACOUSTIC PROFILE THAT BEST MATCHES THE MUSIC GENRE TO WHICH YOU ARE LISTENING.

IMPORTANT: CERTAIN EQUALIZER SETTINGS ARE NOT SUITABLE FOR SOME SPECIFIC GENRES/TYPES OF MUSIC & MAY CAUSE DISTORTION, ESPECIALLY AT HIGH VOLUME LEVELS. IN SUCH CASES, PLEASE CHANGE THE EQ TO A DIFFERENT SETTING OR SWITCH TO "EQ OFF" MODE.

OPERATION OF RADIO

• PRESS THE "ON/STANDBY" KEY ONCE TO SWITCH ON THE HIFI SYSTEM.
• PRESS THE TUNER KEY TO SELECT THE RADIO FUNCTION.
• TO IMPROVE FM-RADIO RECEPTION, FULLY EXTEND THE FM-ANTENNA WIRE AND ADJUST IT'S POSITION.
• IN FM-RADIO, USE THE "id3/ FM MODE" KEY TO SELECT THE DESIRED MODE (FM MONO/ STEREO). IN LOCATIONS WITH POOR SIGNAL RECEPTION, WHERE RECEPTION IS POOR, IT MAY BE ADVISABLE TO SELECT "MONO" MODE, FOR A CLEARER RADIO SIGNAL.

MANUAL FREQUENCY ADJUSTMENT (SCAN MODE)

• PRESS (AND IMMEDIATELY RELEASE) THE NEXT BACK KEY TO "SCAN" (MANUALLY ADJUST) THE RADIO FREQUENCY BY 1-STEP AT A TIME.
• THE RADIO DIGITAL DISPLAY WILL INDICATE THE EXACT FREQUENCY AT EACH POSITION.
• WHEN A DESIRED FREQUENCY OR STATION IS REACHED, IT CAN BE SAVED INTO ONE OF THE "MEMORY"SLOTS. (SEE "RADIO MEMORY" SECTION).

AUTOMATIC FREQUENCY ADJUSTMENT (SEEK MODE)

• PRESS AND HOLD NEXT ORACK TO COSEEKE (ANDS)ATICALLY ADJUST) THE RADIO FREQUENCY TO THE NEXT AVAILABLE RADIO STATION.
• THE RADIOS DIGITAL DISPLAY WILL INDICATE THE EXACT FREQUENCY OF THE STATION THAT IS FOUND.
• WHEN A DESIRED STATION IS REACHED. IT CAN BE SAVED INTO ONE OF THE "MEMORY" SLOTS. (SEE "RADIO MEMORY" SECTION).

INSERTING AND REMOVING DISCS:

PRESS CD 1 or CD 2 or CD3 TO SWITCH TO CD MODE.

PRESS THE "▲" (CD-DOOR OPEN/CLOSE) KEY (EITHER DISC 1 OR DISC 2 OR DISC 3 AS DESIRED)

TO OPEN THE CD-DOOR. CAREFULLY PLACE A COMPACT DISC (CD OR MP3 DISC) ONTO THE CENTER SPINDLE WITH THE LABEL SIDE (PRINTED SIDE OF DISC) FACING OUTWARDS (TOWARDS YOU).

PRESS AGAIN THE " ▲" (CD-DOOR OPEN/CLOSE) AGAIN TO CLOSE THE CD-DOOR.

AFTER A FEW SECON DS, THE CD-DISPLAY WILL MOMENT ARILY SHOW THE TOTAL NUMBER OF TRACKS AND TOTAL PLAYING TIME OF THE DISC (FOR CD-MP3 DISCS, THE DISPLAYED INFORMATION WIL L BE DIFFERENT.

PLEASE REFER TO THE SECTION "PLAY BACK OF CD-MP3 DISCS".)

THE CD WILL NOW AUTOMATICALLY START PLAYING. TO REMOVE A DISC, PRES S THE "▲"

(CD-DOOR OPEN/ CLOSE) KEY. THE DOOR WILL OPEN ALLOWING THE REMOVAL OF THE CD.

IMPORTANT: ALWAYS HOLD A CD BY IT'S EDGES. AVOID GETTING ANY FINGER- PRINTS, SMUDGE S OR DIRT ONTO THE SURFACE OF A DISC. IN CASE THIS HAPPENS,

USE A SPECIAL CD-CLEANING CLOT H OR CLEANING KIT TO REMOVE THE DIRT OR SMUDGE S.

NORMAL CD OPERATION

• PRESS "ON/STANDBY" KEY TO SWITCH ON THE UNIT.
• PRESS CD 1 or CD 2 or CD3 KEY TO SELECT CD MODE.
• PRESS THE DESIRED " ▲(CD DOOR OPEN/CLOSE) KEY & INSERT A CD AS DESCRIBED.
• THE DISK WILL START SPINNING & THE FIRST SONG (TRACK) WILL START PLAYING. THE DISPLAY WILL INDICATE THE CURRENT TRACK NO. & PLAYBACK TIME.
• AT ANYTIME DURING PLAYBACK, PRESS PLAY/PAUSE TO PAUSE THE OPERATION. PRESS PLAY/PAUSE KEY AGAIN TO RESUME.
• AT ANYTIME DURING PLAYBACK, PRESS STOP TO STOP THE OPERATION. THIS WILL RES ET THE CD AND PREPARE PLAYING FROM THE BEGINNING OF THE CD.
• AT ANYTIME DURING PLAYBACK, PRESS AND RELEASE NEXTRBACK TO SKIP FORWARD OR BACKWARDS BY ONE TRACK, AS DESIRED.
• AT ANYTIME DURING PLAYBACK, PRESS AND HOLD NEXT OR BACK TO FAST-FORWARD (CUE) OR FAST-REVERSE (REVIEW) THE SPECIFIC TRACK, WHICH IS CURRENTLY PLAYING.

PROGRAMMING THE CD-PLAYER

- THE CD PLAYER CAN BE PROGRAMMED IN ANY PLAYING SEQUENCE OF UPTO 20 TRACKS FOR CD/64 TRACKS FOR MP3 AS DESIRED.

FOR STANDARD CD-AUDIO DISCS:

• ALWAYS PRESS STOP KEY BEFORE PROGRAMMING.
• PRESS THE PROG./CLOCK ADJ. KEY ONCE, THE DISPLAY WILL SHOW THE "PROGRAM" SYMBOL TO INDICATE THAT THE SET IS NOW IN "MEMORY PROGRAMMING MODE".
• PRESS NEXT KEXOR KEY TO SELECT THE TRACK (SONG) NUMBER YOU WISH TO BE PLAYED FIRST IN THE DESIRED PLAYING SEQUENCE.
• PRESS PROG./CLOCK ADJ. KEY TO CONFIRM YOUR SELECTION.
• REPEAT THE LAST 2 STEPS, EACH TIME SELECTING THE TRACK NUMBER THAT YOU WANT TO STORE (PROGRAM) IN A MEMORY SLOT.
• AFTER A MAXIMUM OF 20 SONGS (OR LESS) HAVE BEEN SELECTED AS DESCRIBED ABOVE, PRESS PROG./CLOCK ADJ. KEY, THE DISPLAY WILL NOW SHOW MEMORY TO INDICATE THAT YOU HAVE SAVED A PROGRAM-MEMORY.
• PRESS PLAY/PAUSE KEY, THE CD-PLAYER WILL PLAYBACK THE "SAVED SEQUENCE" IN THE PROGRAM MEMORY.
• TO CLEAR (CANCEL) THE ENTIRE PROGRAM WHICH IS STORED IN THE MEMORY, SIMPLY PRESS STOP KEY TO RESET THE MEMORY & ERASE THE PROGRAM.

PLAYBACK OF CD-MP3 DISCS

EN

• PRESS "ON/STANDBY" KEY TO SWITCH ON THE HIFI SYSTEM.
• PRESS CD 1 OR CD 2 OR CD 3 TO SELECT A CD SLOT FOR PLAYBACK.
• INSERT AN MP3 CD INTO THE CD PLAYER (IN THE SELECTED CD SLOT) AND CLOSE THE CD DOOR.
• THE UNIT WILL THEN READ THE FULL "TABLE OF CONTENTS" OF THE CD-MP3 DISC. THIS MAY TAKE UPTO 60 SECONDS SINCE THE AMOUNT OF DATA ON A CD-MP3 DISC CAN BE QUITE LARGE.
• THE UNIT WILL THEN MOMENTARILY DISPLAY THE NUMBER OF FOLDERS & TRACKS (SONGS) ON THE ENTIRE MP3-CD AS FOLLOWS:

• PLAYBACK WILL AUTOMATICALLY START OF THE FIRST SONG (TRACK)IN THE FIRST FOLDER.
• AT ANYTIME DURING PLAYBACK, PRESS PLAY/PAUSE KEY TO PAUSE AND PRESS PLAY/PAUSE KEY TO RESUME OPERATION AT THE SAME TRACK & POSITION.
• AT ANYTIME DURING PLAYBACK, PRESS AND RELEASE NEXT BACK TO SKIP FORWARDS OR BACKWARDS BY ONE TRACK, WITHIN THE SAME FOLDER.
• AT ANYTIME DURING PLAYBACK, PRESS AND HOLD NEXT BACK TO REVIEW (FAST REWIND) OR CUE (FAST FORWARDS) THE CURRENT TRACK.
• AT ANYTIME DURING PLAYBACK, PRESS FOLDER REPEATEDLY TO MOVE TO THE NE XT FOLDER NUMBER. WITH EACH PRESS OF FOLDER KEY THE DISPLAY WILL SHOW THE NEXT FOLDER NUMBER (F01 F02 F03 .. ETC.) AND THE FIRST SONG IN THAT FOLDER STARTS PLAYING.

PROGRAMMING THE CD-PLAYER

- THE CD PLAYER CAN BE PROGRAMMED IN ANY PLAYING SEQUENCE OF UPTO 64 TRACKS FOR MP3 AS DESIRED.

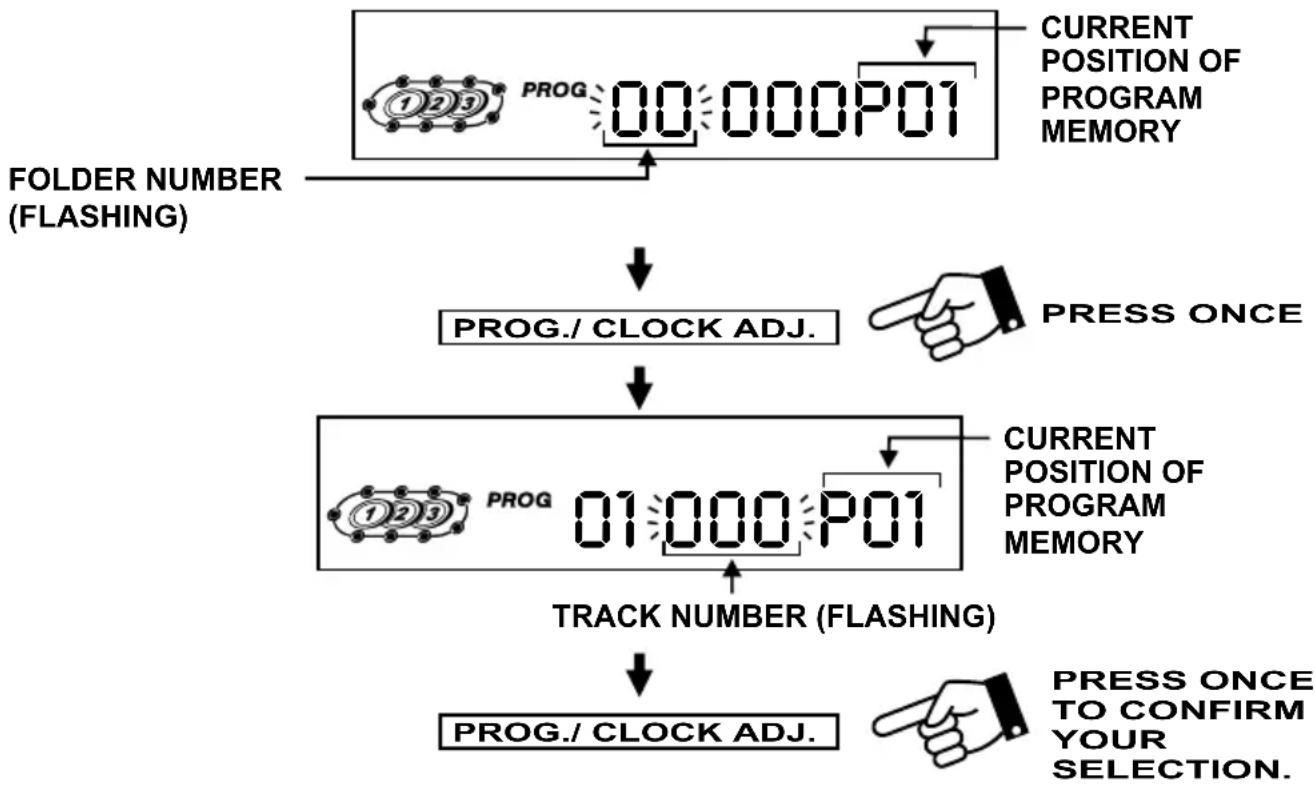

FOR CD-MP3 DATA DISCS:

• ALWAYS PRESS STOP KEY BEFORE PROGRAMMING.
• PRESS THE PROG./CLOCK ADJ. KEY ONCE, THE DISPLAY WILL SHOW THE "PROGRAM" SYMBOL TO INDICATE THAT THE SET IS NOW IN "MEMORY PROGRAMMING MODE".
• PRESS THE NEXT KEY OR BACK KEY TO SELECT THE ALBUM (FOLDER DIRECTORY) NUMBER WHICH CONTAINS THE SONG YOU WISH TO SELECT
• PRESS PROGRAM KEY TO CONFIRM YOUR SELECTION.
• PRESS NEXT BACK KEY TO SELECT THE TRACK (SONG) NUMBER YOU WISH TO STORE IN THE CURRENT MEMORY (PROGRAM) POSITION.
• PRESS THE PROG./CLOCK ADJ. KEY TO CONFIRM YOUR SELE CTION.
• REPEAT THE PREVIOUS 4 STEPS, EACH TIME SELECTING ANY ALBUM AND TRACK NUMBER OF YOUR CHOICE TO BE STORED IN SUCCEEDIVE (PROGRAM) POSITIONS.
• AFTER A MAXIMUM OF 64 SONGS (OR LESS) HAVE BEEN SELECTED AS DESCRIBED ABOVE, PRESS PROG./CLOCK ADJ., THE DISPLAY WILL NOW SHOW MEMORY TO INDICATE YOU HAVE SAVED A PROGRAM-MEMORY.
• PRESS PLAY/ PAUSE, THE CD-PLAYER WILL PLAYBACK THE "SAVED SEQUENCE" IN THE PROGRAM MEMORY.
• PRESS STOP KEY TO ESCAPE MEMORY PLAYBACK TEMPORARILY.
• PRESS PROG./CLOCK ADJ. KEY TO RESUME MEMORY PLAYBACK.
• TO MODIFY A SPECIFIC SONG IN A PARTICULAR MEMORY POSITION, SIMPLY SAVE A NEW SONG OVER THE SAME MEMORY POSITION.
• TO CLEAR (CANCEL) THE ENTIRE PROGRAM WHICH IS STORED IN THE MEMORY, SIMPLY OPEN THE CD DOOR.

USB- & SD-CARD MP3 PLAYBACKDRIVE

EN

• THIS UNIT IS EQUIPPED WITH A USB SOCKET WHICH ACCEPTS AND PLAYS MP3 FILES STORED ON STANDARD USB FLASH DRIVES (ALSO KNOWN AS "PEN DRIVES") WHICH ARE FOR MEMORY STORAGE. (COMPATIBLE WITH USB VERSION 1.1 & 2.0).
• THIS UNIT ALSO HAS A BUILT-IN SD-CARD SOCKET WHICH ACCEPTS AND PLAYS MP3 FILES STORED ON STANDARD "SD" TYPE FLASH MEMORY CARDS (OF MAXIMUM CAPACITY = 16 GB).
• TO UTILIZE THIS FACILITY, FIRST OPEN THE USB/ SD COMPARTMENT DOOR (UPWARDS) AND INSERT EITHER A USB-DRIVE OR A SD-CARD INTO THE CORRECT SLOT (PORT) ON THE FRONT OF THE UNIT AS SHOWN BELOW:

• PRESS USB/SD ONCE TO SWITCH TO "USB--CARD" MODE.
• WITHIN 30-60 SECONDS THE DISPLAY WILL INDICATE THE NUMBER OF MP3 SONGS FOUND ON THE USB-DRIVE OR SD-CARD, AND ALSO THE NUMBER OF FOLDERS ON THE DEVICE.
• PRESS THE FOLDER KEY REPEATEDLY TO SELECT THE DESIRED FOLDER NUMBER.
• PRESS NEXT OR BACK TO SKIP FORWARD OR BACKWARDS TO SELECT THE DESIRED MP3 FILE IN THE SELECTED FOLDER.
• PRESS PLAY/PAUSE TO PLAY OR PAUSE THE SELECTED SONG.
• ALL FUNCTIONS FOR USB-DRIVE & SD-CARD MP3 PLAYBACK ARE EXACTLY THE SAME AS IN CD-MP3 MODE (AS PREVIOUSLY DESCRIBED).
• TO SWITCH FROM USB TO SD-CARD, OR VICE-VERSA SIMPLY PRESS THE USB/SD KEY.

NOTE:

ALTHOUGH THIS PRODUCT IS FULLY COMPATIBLE WITH USB 1.1 & 2.0 STANDARDS, A SMALL PERCENTAGE (ABOUT 5%) OF USB FLASH DRIVES MIGHT NOT BE READABLE, DUE TO THOSE USB-DRIVE MANUFACTURERS NON-COMPLIANCE WITH THE FULL (OFFICIAL) USB 1.1 / 2.0 STANDARDS.

THIS UNIT DOES NOT SUPPORT USB-MP3 PLAYER, DUE TO THEIR INHERENT LACK OF SOFTWARE COMPATIBILITY. ONLY USB "PEN DRIVES" (FLASH MEMORY USB DRIVES) CAN BE USED, FOR MP3 PLAYBACK.

IMPORTANT:

PLEASE DO NOT USE A USB EXTENSION CABLE TO CONNECT YOUR USB FLASH DRIVE TO THE USB PORT OF THIS UNIT.

SUCH CABLES CAN PICK UP ADDITIONAL INTERFERENCE WHICH CAN CORRUPT THE DATA FLOW, PREVENTING NORMAL OPERATION AND USAGE OF THE USB PORT. ALWAYS CONNECT YOUR USB FLASH DRIVE DIRECTLY TO THE USB PORT WITHOUT ANY USB EXTENSION CABLES. THE READING TIME FOR A USB-DRIVE OR SD-CARD VARIES DEPENDING ON THE SPEED OF THE MEMORY DEVICE AND THE NUMBER OF SONGS AND FOLDERS. IN SOME CASES THE READING TIME MAY BE AS LONG AS 60 SECONDS.

PRECAUTION

ALWAYS SWITCH OFF THE UNIT OR CHANGE MODE TO "CD" OR "RADIO" BEFORE REMOVING A USB FLASH DRIVE OR SD-CARD, TO PREVENT DAMAGE TO YOUR USB DEVICE OR MEMORY CARD.

NOTE

THIS UNIT SUPPORTS UP TO MAXIMUM MEMORY SIZE OF 16 GB USB PEN DRIVES & SD CARDS.

id3-TAG TEXT DISPLAY (FOR MP3 PLAYBACK)

• THIS HIFI SYSTEM IS CAPABLE OF DISPLAYING THE "TEXT INFORMATION" (id3 TAG) THAT MIGHT BE EMBEDDED WITHIN AN MP3 SONG FILE.
• DURING PLAYBACK OF AN MP3 SONG, IF ANY id3 TEXT INFORMATION IS DETECTED, THE LCD DISPLAY WILL SCROLL THIS TEXT INFORMATION ACROSS THE SCREEN APPROXIMATELY EVERY 4-5 SECONDS, AS SHOWN:

- TO SWITCH OFF THE id3-TAG TEXT DISPLAY, SIMPLY PRESS THE id3/ FM-MODE KEY, THE DISPLAY WILL INDICATE:

- TO SWITCH ON THE id3-TAG TEXT DISPLAY AGAIN, SIMPLY PRESS THE id3/ FM-MODE KEY ONCE MORE, THE DISPLAY WILL INDICATE:

NOTE: THE id3 TEXT DISPLAY FUNCTION ONLY WORKS WHEN PLAYING BACK "MP3" SONG FILES & ONLY IF THE PARTICULAR MP3 FILE HAS id3 TAGS EMBEDDED WITHIN IT.

3-CD P.MODE (3-DISC PLAY MODE)

EN

THERE ARE 3 DIFFERENT MODES TO PLAYBACK THE SONGS ON THIS 3-DISC CHANGER AUTOMATICALLY:

1. SINGLE-DISC PLAY MODE: THIS IS THE NORMAL PLAYBACK MODE OF THE UNIT. ONLY ONE DISC IS PLAYED & WHEN PLAYBACK IS COMPLETED THE UNIT DOES NOT AUTOMATICALLY START PLAYING THE OTHER 2 DISCS. SINGLE-DISC PLAY MODE IS INDICATED BY THE FOLLOWING SYMBOL IN THE DISPLAY:

THIS INDICATES DISC 1 IS IN USE

NOTE: ALL CIRCLES ARE WITHOUT BLACK DOTS IN THIS MODE.

1. 3-DISC CONTINUOUS PLAY MODE: TO SELECT THIS MODE, PRESS THE 3-CD P.MODE KEY REPEATEDLY UNTIL THE FOLLOWING IS DISPLAYED:

THIS MEANS THAT THE BLACK DOT CONTINUOUSLY MOVES FROM CIRCLE TO CIRCLE IN ROTATION IN THIS MODE

IN THIS MODE, ALL SONGS ON CD1 ARE PLAYED, THEN ALL SONGS ON CD2, THEN ALL SONGS ON CD3, AND THEN THE SEQUENCE REPEATS FROM CD1 AGAIN CONTINUOUSLY. IT MEANS THE MUSIC WILL BE PLAYED NON-STOP, AS FOLLOWS.

TO CANCEL THE 3-DISC CONTINUOUS PLAY MODE, SIMPLY PRESS STOP KEY AT ANY TIME.

1. 3-DISC SEQUENTIAL PLAY MODE: TO SELECT THIS MODE, PRESS THE 3-CD P.MODE KEY REPEATEDLY UNTIL THE FOLLOWING IS DISPLAYED:

NOTE: IN THIS MODE, ALL CIRCLES HAVE BLACK DOTS INSIDE THE

IN THIS MODE, ALL SONGS ON CD1 ARE PLAYED, THEN ALL SONGS ON CD2, THEN ALL SONGS ON CD3, AND THEN PLAYBACK WILL AUTOMATICALLY STOP. IT MEANS EACH DISC WILL BE PLAYED ONLY ONCE IN SEQUENCE, AS FOLLOWS:

TO CANCEL THE 3-DISC SEQUENTIAL PLAY MODE, SIMPLY PRESS STOP KEY AT ANYTIME.

REPEAT PLAYBACK FUNCTION

YOU CAN CHOOSE TO "REPEAT" PLAYBACK OF MUSIC IN SEVERAL WAYS:

REPEAT ONE SONG: PRESS THE REPEAT KEY ONCE, DURING PLAYBACK OF THE DESIRED SONG. THE DISPLAY WILL SHOW THE "REPEAT" SYMBOL, AND THE SONG BEING PLAYED WILL CONTINUOUSLY REPEAT ITSELF UNTIL STOP KEY IS PRESSED.

REPEAT A-B PORTION: DURING PLAYBACK OF ANY SONG, PRESS THE REPEAT KEY TWICE UNTIL "REPEAT A" IS DISPLAYED. AFTER A FEW SECONDS, PRESS REPEAT AGAIN, AND "REPEAT AB" WILL BE DISPLAYED. THE UNIT WILL THEN PLAYBACK THE PORTION OF MUSIC FROM POSITION "A" TO POSITION "B" REPEATEDLY UNTIL STOP KEY IS PRESSED. THIS IS USEFUL FOR LANGUAGE LEARNING DISCS.

REPEAT ALL: PRESS THE REPEAT KEY REPEATEDLY UNTIL "REPEAT ALL" IS DISPLAYED. NOW THE ENTIRE CD WILL BE PLAYED REPEATEDLY OVER & OVER UNTIL THE STOP KEY IS PRESSED.

REPEAT FOLDER (MP3 FILE PLAYBACK ONLY): PRESS THE REPEAT KEY REPEATEDLY UNTIL "REPEAT FOLDER" APPEARS IN THE DISPLAY. NOW THE UNIT WILL REPEATEDLY PLAYBACK ALL SONGS IN THE CURRENTLY SELECTED FOLDER. PLEASE NOTE THAT IF NO FOLDER IS SELECTED, THE "ROOT" FOLDER WILL BE PLAYED REPEATEDLY BY DEFAULT. TO SELECT A SPECIFIC FOLDER, USE THE FOLDER KEY.

ANTI-SKIP (ANTISHOCK) FUNCTION [ESP]

• THIS HIFI SYSTEM IS EQUIPPED WITH A BUILT-IN DIGITAL ANTI-SKIP FEATURES WHICH PREVENTS CD "SKIPPING" WHEN THE UNIT IS PHYSICALLY MOVED OR SUBJECTED TO VIBRATIONS FOR UP TO 20 SECONDS WHEN PLAYING CD-MP3 DISCS. PLEASE NOTE THERE IS NO ANTI-SKIP FUNCTION FOR NORMAL AUDIO-CD PLAYBACK. (ONLY FOR CD-MP3).
• WHENEVER ANY CD-MP3 DISC IS PLAYED, DURING THE FIRST 15 SECONDS (APPROX.) THE ANTI-SKIP MEMORY IS BEING FILLED UP (BUT IS NOT YET FULL). THE ANTI-SHOCK PROTECTION IS ALREADY ACTIVE (IN USE) AT THIS TIME, BUT HAS NOT YET REACHED ITS MAXIMUM CAPACITY OF 20 SECONDS.
• ONCE THE ANTI-SHCOK MEMORY IS FULL, THE UNIT PROVIDES ANTI-SKIP PROTECTION FOR 20 SECONDS OF VIBRATION.
• PLEASE NOTE THAT THE ANTI-SKIP FUNCTION ONLY PROTECTS AGAINST NORMAL VIBRATION LEVELS OR MINOR MOVEMENT. SEVERE OR STRONG SHOCKS/ VIBRATIONS TO THE UNIT MAY STILL CAUSE SKIPPING.

RANDOM PLAYBACK FUNCTION

• THIS UNIT IS ABLE TO SHUFFLE ALL SONGS ON A DISC (OR USB OR SD-CARD) AND PLAY THEM BACK IN "RANDOM" ORDER.
• TO ACTIVATE THIS FUNCTION, PRESS RANDOM KEY (ON REMOTE CONTROL) DURING PLAYBACK.
• THE "RANDOM" SYMBOL WILL BE DISPLAYED ON THE SCREEN & THE SONGS WILL BE PLAYED IN RANDOM ORDER.

MUTE FUNCTION

- THIS SET HAS A MUTE FUNCTION TO ENABLE YOU TO TURN OFF THE VOLUME TEMPORARILY.

- PRESS THE MUTE KEY (ON REMOTE CONTROL) ONCE, THE VOLUME WILL TURN OFF, THE "MUTE" SYMBOL WILL DISPLAYED AND FLASH.

- TO RESUME THE SOUND, SIMPLY PRESS THE MUTE KEY AGAIN.

USING THE AUDIO LINE IN CONNECTION (AUX-INPUT)

• YOU CAN CONNECT THE AUDIO OUTPUT OF AN EXTERNAL DEVICE SUCH AS AN MP3 PLAYER TO THIS UNIT, ALLOWING YOU TO PLAY THE SOUND OF THAT DEVICE THROUGH THIS SYSTEM'S HIGH FIDELITY AMPLIFIER.
• TO CONNECT THE EXTERNAL DEVICE PLEASE USE A STANDARD RCA CABLE TO CONNECT THE "AUDIO LINE-OUT" OF THE DEVICE (LEFT AND RIGHT CHANNELS) TO THE "AUX LINE-IN" RCA SOCKETS (LEFT & RIGHT) ON THE SIDE PANEL OF THIS UNIT.
• SWITCH TO FUNCTION "AUX" BY PRESSING AUX KEY.
• MAKE SURE THAT THE SPEAKERS ARE CONNECTED TO THE MAIN UNIT.
• SWITCH ON THE POWER OF THE MAIN UNIT AND THE EXTERNAL DEVICE (eg. MP3-PLAYER).
• START PLAYBACK OF THE EXTERNAL DEVICE AND ADJUST THE VOLUME CONTROL OF THE MAIN UNIT TO THE DESIRED LEVEL.
• REMEMBER TO SWITCH OFF THE POWER OF THE MUSIC SYSTEM (MAIN HIFI SYSTEM) WHEN YOU ARE FINISHED USING THE EXTERNAL DEVICE.

CONNECTING AN EXTERNAL POWERED SUBWOOFER (NOT INCLUDED)

• THIS HIFI SYSTEM IS EQUIPPED WITH A SUBWOOFER CONNECTOR WHICH CAN BE CONNECTED TO ANY STANDARD POWERED SUBWOOFER.
• CONNECTING A AMPLIFIED SUBWOOFER TO THE HIFI SYSTEM WILL GREATLY ENHANCE THE BASS (LOW FREQUENCY) SOUNDS, PROVIDING A MUCH RICHER, DEEPER & MORE POWERFUL MUSICAL EXPERIENCE.
• TO USE THIS FACILITY, SIMPLY CONNECT ANY STANDARD POWERED SUBWOOFER (EASILY AVAILABLE FROM MOST MUSIC EQUIPMENT STORES) USING THE RCA CONNECTOR ON THE REAR PANEL OF THE MAIN UNIT.
• SWITCH ON THE POWERED SUBWOOFER.
• PLAY ANY MUSIC SOURCE (CD or RADIO or AUX) AS USUAL.
• YOU WILL IMMEDIATELY NOTICE THE DEEPER SOUND.
• PLEASE NOTE THAT THE SPEAKERS SHOULD BE CONNECTED AS USUAL TO THE MAIN UNIT, WHEN USING A SUBWOOFER.
• PLEASE NOTE THAT "PASSIVE" (NON-AMPLIFIED) SUBWOOFERS WILL NOT WORK WITH THIS UNIT.

SPECIFICATIONS

AC-POWER SUPPLY : ...... DC 12V, 2.5A THOUGH BUILT-IN DC JACK EXTERNAL AC-DC POWERADAPTOR 100V-240V \~ , 50/60 Hz REMOTE CONTROL UNIT : ......3V (AAA SIZE/ UM-4/ LR03/ R03G x 2 PCS) (BATTERIES NOT INCLUDED)

SPEAKER : 4" x 2 WOOFER + 1.5" x 2 TWEETER

Technical specifications and design may change without notice.

A.ASA"SHELFSYSTEM"(TABLETOPUSE)

Technical line drawing of an open electronic device with a black arrow pointing to the component (no text or symbols present)

2.SLIDETHESTANDUPWARD (SEEDIAGRAMBELOW).

Technical line drawing of an open electronic device with internal components and a directional arrow (no text or symbols)

1. STOPWHENTHEINDICATORMARKONTESTANDISALIGNEDWITHTHELOCKSYMBOL ONTHEREARCABINET.

(TORELEASETHESTANDFROMTHEMAINUNITORSPEAKERS, SLIDETHE STANDDOWNWARDS(OPPOSITEDIRECTION)UNTILITBECOMES RELEASES..

Karcher

www.karcher-products.de
