KR 112 - Radio Karcher Audio - Free user manual and instructions

Product Type	Portable AM/FM Radio with Hand Crank and LED Flashlight
Brand	Karcher Audio
Model	KR 112
Dimensions (LxWxH)	175 x 63.5 x 62.5 mm
Weight	300 g
Power Supply	Rechargeable Lithium battery 3.7V / 800mAh
Charging Methods	Hand crank (120-130 rpm, ~70 min for full charge); DC input (5V, 300mA, adaptor not included)
Radio Frequency Range	FM: 87.5-108 MHz; AM: 522-1620 kHz (selectable 9/10 kHz step)
LED Flashlight	Light intensity: 1100 Lux at 1m; LED life: ~10,000 hours; Working time: ~480 min (full charge to 200 Lux)
Siren	Yes, with flashing red light
Mobile Phone Charging	USB output (5V, 400-500mA) via supplied USB adaptor cable
Clock	Digital display, selectable 12h/24h format
Antenna	Telescopic for FM/AM
Max Power Consumption	4W (all radio functions); LED: 500mW
Radio Working Time	~600 min at moderate volume from full charge
Charging Indicator	Green LED when hand crank charging
Cleaning	Wipe with dry, clean cloth; no chemical cleaners
Safety	Do not expose to water, drip, or splash; keep away from heat sources; unplug during thunderstorms
Battery Disposal	Recycle separately; do not dispose as household waste
Accessories Included	USB adaptor cable (cinch to female USB)

Frequently Asked Questions - KR 112 Karcher Audio

How long does the battery last when listening to the radio?

With a fully charged battery, the radio can operate for approximately 600 minutes at moderate volume.

How can I charge the battery?

The battery can be charged in two ways: by using the hand crank (rotate at 120-130 rpm for about 70 minutes for a full charge) or by connecting an external DC power adaptor (5V, 300mA) to the DC In port.

Can I charge my mobile phone with this radio?

Yes, the KR 112 can charge many mobile phones via the supplied USB adaptor cable. Connect the cable to the device's output, select USB mode by pressing BAND/CELL repeatedly until the USB icon appears, then connect your phone's charging cable.

How do I set the clock?

In standby mode, press and hold the BAND/CELL button for 3 seconds. The hours will flash, adjust with CHANNEL UP/DOWN, press BAND/CELL to confirm. Then set minutes, then choose 12h or 24h display.

How do I use the flashlight?

Press the FLASHLIGHT ON/OFF button on top of the unit to turn the LED flashlight on or off. The flashlight also has an auto-off when battery is weak.

How do I activate the siren?

Press the SIREN button once to activate the siren and flashing red light. Press again to deactivate.

What is the AM frequency range and how do I change the step size?

The AM range is 522-1620 kHz (Europe) or 520-1710 kHz (USA). In standby, press and hold CHANNEL UP for 2 seconds to toggle between 9 kHz (Europe) and 10 kHz (USA) steps.

Can I replace the battery?

Yes, if the battery deteriorates and provides short usage, it can be replaced with a new rechargeable Lithium battery of the same type (3.7V / 800mAh).

What safety precautions should I follow?

Do not expose the radio to water, dripping, or splashing. Keep it away from heat sources, ensure proper ventilation (min 5 cm clearance), and unplug during thunderstorms. Do not use chemical cleaners.

How do I clean the radio?

Clean the exterior with a dry, clean cloth. Do not use chemical cleaners or detergents. Always unplug the unit before cleaning.

USER MANUAL KR 112 Karcher Audio

Exterior view of a Karcher portable radio device with digital display and black handle (no readable text or symbols beyond branding)

Vorwort

Batterie

MW (AM) 522 - 1620 kHz

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture – Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup – The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs – The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
    a) The power-supply cord or the plug has been damaged; or
    b) Objects have fallen, or liquid has been spilled into the appliance; or
    c) The appliance has been exposed to rain; or
    d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
    e) The appliance has been dropped, or the enclosure damaged.

15. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

16. Open Fire – Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.

17. Thunderstorms – During a thunderstorm the mains plug should be unplugged.

18. Safety Check – After servicing the technician should conduct a safety check in order to

ensure that the apparatus is working properly and safely.

1. Batteries – Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.
2. Headphones (if applicable) – Excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTION

RISK OF ELECTRO SHOCK

DO NOT OPEN

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

NOTES ABOUT THIS INSTRUCTION MANUAL

1. This instruction manual is published by the manufacturer without any warranty. Corrections and changes of this instruction manual for the removal of typographic mistakes and editorial inaccuracies as well as due to (technical) improvements (changes) of the devices can be done by the manufacturer at any time without announcement. Changes of this kind are considered in future versions of this user manual. All rights reserved.

2. All figures are only for illustration and do not always show the exact representation of the product.

3. This unit is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit.

FURTHER NOTES ON THE DEVICE

Setting a safe volume level

• If you continually listen to loud music, your hearing gradually adapts to it and gives you the impression that the volume is lower.
  • What seems normal to you can be already for long time too loud and unhealthy.
  • To protect yourself from this, set the volume to a low level.
• Increase the volume slowly.
• Damage to your hearing can be extensive and cannot be reversed.
• If you notice a hearing problem, please consult a doctor.

Unpacking

• Take out carefully the unit from the packing. Please keep the packing for further use.
- Carefully remove possible protection cardboards and slipcovers.

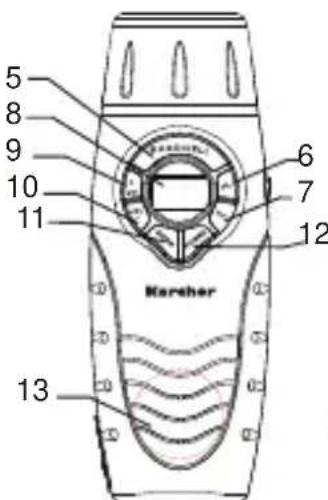

Overview

1. FM antenna
2. Panel
3. DC In
4. Cell phone charging Out
5. Band/Cell
6. Channel Up

7. Channel Down

8. LCD

9. VOL +
10. VOL -
11. Siren
12. Power
13. Speaker

14. Hand crank

15. Battery cover

16. Charging indicator
17. Siren light
18. Flashlight On/Off button
19. LED flashlight
20. Luminous ring

Battery

EN

This radio has a rechargeable battery inside (details see “Specifications”). The current battery status is shown in the icon in the top right corner of the LCD display. If this icon is flashing or if there is no more display at all, the battery is weak and needs to be recharged.

The battery can be recharged in 2 ways:

Charging by Hand Crank

To charge the battery by hand crank, simply fold out the hand crank on the back of the unit and crank at around 120 - 130 r/min in either direction.

While cranking, the CHARGING INDICATOR will be lit green.

To fully charge an empty battery, you need to crank for about 70 minutes at the above indicated speed.

Charging via DC

You can connect an external power adaptor with 5V, 300mA (not supplied) to the DC In on the radio to charge the battery.

Clock

To set the time, the radio needs to be in standby mode:

1. While the radio is in standby mode, press and hold for 3 seconds the BAND/CELL button. The hours will be flashing.
2. Set the current hours by pressing the CHANNEL UP or CHANNEL DOWN button.
3. Press the BAND/CELL button again to confirm. The minutes will be flashing.
4. Set the current minutes by pressing the CHANNEL UP or CHANNEL DOWN button.
5. Press the BAND/CELL button again to confirm. You can now select between 24h and 12h time display by pressing the CHANNEL UP or CHANNEL DOWN button.
6. Press the BAND/CELL button again to confirm. The time is now set and is shown in the display

Siren

• To activate the siren, press the SIREN button once. While the siren is on, the red siren light will be flashing as well.
- To turn the siren off, press the SIREN button once again.

Radio

1. To turn on the radio, press the POWER button.
2. Select the desired band (AM or FM) by pressing the BAND/CELL button.
3. Select a desired radio frequency by pressing the CHANNEL UP or CHANNEL DOWN button.

Press the button once to manually select a specific frequency.

Press and hold for 2 seconds the button to automatically tune to the next available radio station.

1. Fully extend the telescopic antenna for best reception.

2. Set the desired volume by pressing the VOL + or VOL - button.

3. To turn the radio off, press the POWER button.

Note:

The AM frequency range in the USA (520 - 1710kHz) is different from the one in Europe (522 - 1620kHz). Users need to set the range correctly depending on their location:

While in standby mode, press and hold for 2 seconds the CHANNEL UP button. The display will show either 9 kHz or 10 kHz. When in the USA, select 10 kHz by pressing CHANNEL UP. When in Europe, select 9 kHz by pressing CHANNEL UP.

Radio Working Time

Conditions Working	Time Remarks
Battery fully charged ~ 600 min	utes Moderate volume
When battery level decreases to a level that the radio stops working, and user hand-cranks for one minute (speed ≥130 r/min)	~ 30 minutes Moderate volume

Flashlight

• To turn on the flashlight, press the FLASHLIGHT ON/OFF button on the top of the unit.
- Press the button once again to turn the flashlight off.

Lighting Time

Conditions Lighting	Time Remarks
Battery fully charged ~ 480 min	utes Until the light intensity drops to 200 Lux
When battery level decreases to a level that the lighting fades out or the light intensity drops to 200 Lux, and user hand-cranks for one minute (speed ≥130 r/min)	~ 15 minutes Until the light intensity drops to 200 Lux

• If the light seems dim, this means that the battery is weak. In this case you need to recharge it.
  • If a fully charged battery only provides for a short lighting time, it may be that the battery is deteriorating. In this case you need to change the battery to a new one.

Mobile Phone Charging

This radio enables you to charge many mobile phones (that can be charged via USB) with the supplied USB adaptor cable.

1. Connect the cinch connector of the USB adaptor cable to the output of the unit (underneath the rubber cover).
2. The other end of the USB adaptor cable is a female USB plug to which you can connect

your phone's USB charger cable.

1. Press the POWER button on the radio and then repeatedly the BAND/CELL button until the USB icon appears in the LCD.
2. The mobile phone battery will now be charged from the radio.
3. Once the charging is finished, disconnect all cables to avoid damage.

Also please exit the USB mode by pressing the BAND/CELL button to select AM or FM, and then pressing the POWER button to switch off the radio.

Notes:

• The charging time varies from phone to phone, depending on the phone's battery.
• If the battery of the radio is too weak, charging a phone will not be possible. You need to charge the radio's battery first.
• If the charging does not seem to work, check whether all cables are properly connected.

Specifications

Radio frequency range: FM 87.5 - 108 MHz AM 522 - 1620 kHz

Unit dimensions (LxWxH) ca.: 175 x 63,5 x 62,5 mm

Unit weight ca.: 300 g

Max. power: 4W (all radio functions)

Dynamo battery: Rechargeable Lithium battery 3.7V / 800mAh

LED lighting: Light intensity: 1,100 Lux (1 m distance)

LED life: \~ 10,000 hours

Max. consumption: 500mW

Cell phone charging output: DC 5V, +/-0.25V / 400-500mA

DC In (ext. adaptor): 5V, 300mA

Technical specifications and design may change without notice.
