Product Type	Car Stereo
Brand	Auna
Model	MD-130 (10026868)
Power Supply	DC 12V
Power Consumption	10A max
Connectivity	USB, SD/MMC, Bluetooth, AUX, AM/FM Radio
Supported Audio Formats	MP3, WMA
File System	FAT16/FAT32
Max Storage Capacity	32GB (USB/SD)
Display	Digital LCD Display
Remote Control	Included, with lithium battery
Installation Type	DIN front/rear mount, max 30° angle
Dimensions	1 DIN standard
Weight	0.6 kg
Bluetooth	Yes, for hands-free calling and music streaming
Front Panel	Detachable for theft prevention
Radio Features	RDS, PTY, AF, TA, EON
Audio Controls	Bass, Treble, Balance, Fader
Equalizer	Preset EQ modes (on/off)
Remote Control Range	~30° in front of IR sensor
Package Contents	Device, Remote Control, Mounting Kit
Safety	Read manual, do not immerse in water
Cleaning	Use a soft dry cloth
Disposal	WEEE compliant, do not dispose as household waste

Frequently Asked Questions - MD-130 10026868 Auna

How do I install the Auna MD-130 car stereo?

Choose a mounting location that does not interfere with driving. Temporarily connect wiring to test functionality, then mount using the included DIN front or rear mount kit. Ensure installation angle does not exceed 30° from horizontal for optimal performance.

How do I connect my phone via Bluetooth?

Activate Bluetooth on your phone and search for devices. Pair with 'IWI Car'. If prompted for a password, enter 0000. After pairing, press MODE to activate BT mode and enjoy hands-free calls and music streaming.

What should I do if the stereo does not turn on?

Check the power connections: ensure the ignition switch (+), memory/back-up, and ground (-) are correctly connected. Verify the 10A fuse is not blown. Press the Power button (multi knob) to turn on.

How do I detach the front panel?

Press the Detach front panel button (3) on the control panel and gently pull the panel off. Store it safely to prevent theft.

How should I clean the car stereo?

Use a soft, dry cloth to clean the surface. Do not use solvents, thinners, or chemical products as they may damage the device.

What audio file formats are supported?

The stereo supports MP3 and WMA file formats. For storage devices, use FAT16/FAT32 file systems with up to 32GB capacity.

How do I set the clock?

Press and hold the Clock/Mute button until the time displays. Then press and hold again to enter clock setting mode. Rotate the multi knob (SELECT) to adjust the time.

How do I use the remote control?

Remove the lithium battery protection foil before first use. Point the remote at the IR sensor on the front panel within a 30° angle. The remote controls power, volume, mode, track navigation, and more.

What can I do if radio reception is poor?

Ensure the antenna is properly connected. In RDS mode, AF (Alternative Frequency) automatically switches to a stronger station. You can also manually tune with Skip buttons or perform an APS (Auto Preset Scan).

How do I reset the device to factory defaults?

Press the Reset button (18) on the front panel using a pointed object. This restores all settings to factory defaults.

USER MANUAL MD-130 10026868 Auna

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Elektroaltgeräte

Congratulations on purchasing this product. Please read and follow these instructions, in order to avoid damaging the item. We do not cover any damages that may arise from improper use of the item or the disregard of the safety instructions.

Important Safety Advice

• Read all instructions before using.
• To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs or device in water or other liquids.
• Do not expose the appliance to extreme temperatures. The appliance shall be used in moderate climates.
• The use of attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.
• Do not open the unit by removing any cover parts. Do not attempt to repair the unit. Any repairs or servicing should be done by qualified personell only.
• Only qualified persons may perform technical work on the product. The product may not be opened or changed. The components cannot be serviced by the user. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications.
• The appliance is not a toy. Do not let children play with it. Never let children insert foreign objects into the appliance.
• Never clean the surface of the device with solvents, paint thinners, cleansers or other chemical products. Instead, use a soft, dry cloth or soft brush.
• Save these instructions.

Small objects

Keep small objects (i.e. screws, mounting material, memory cards etc.) and packaging out of the range of children. Do not let Children play with foil. Choking hazard!

Transporting the device

Please keep the original packaging. To gain sufficient protection of the device while shipment or transportation, make sure to put it back in its original packaging.

Cleaning the surface

Do not use any volatile liquids, detergents or the like. Use a clean dry cloth.

Technical Data

Art # 10026868, 10026869

Power supply DC12V
Power consumption	10A max.
Connections	Stereo RCAAntennaISO
Data interfaces	USB, SD, BT, AUX
File fomats supported	MP3, WMA
File systems supported	FAT16/FAT32
File drives supported	USB/SD/MMC: 32GB max.
Scope of delivery	1 x device1 x RCMounting equipment
Dimensions / wight	DIN ISO standard (1 DIN)/ 0.6kgs

Installation

• Choose the mounting location where the unit will not interfere with the normal driving.
• Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.
• Consult your nearest dealer if any other modifications of the vehicle are required.
• Install the unit where it does not get in the driver's way and cannot injure any passenger.
  • If installation angle exceeds 30 from horizontal, the unit might not give ist optimum performance.

- Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from „Front“(conventional DIN Front-mount) or „Rear“(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, first remove the PLASTIC TRIM OUT of the both sides away, then insert the two KEY PLATE into left and right side of chassis as above illustration.

Preparing the Remote Control

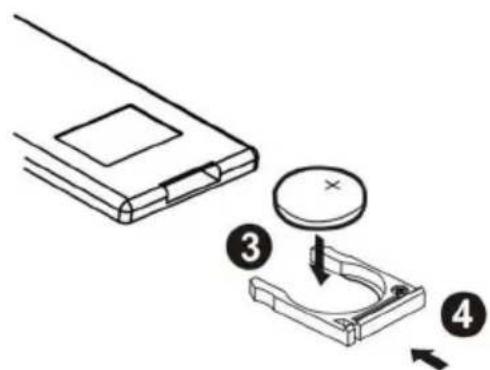

• First push to inside as the direction indicated by the arrow (See 1) and then Remove the battery holder as the direction indicated by the arrow (See 2).
• Replace the battery Set a new battery property with (+)side up as illustrated (See 3).
• Insert the battery holder. Push in the holder to the original position (See 4).

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal receiver). Operation angle: About 30 degree in each the direction of the front of the IR mark.

Note :

The lithium cell in the battery compartment of remote control has been secured for transport with a foil. Before initial use please remove this foil so that the remote control is ready for operation.

Connection Diagram

Controls / Overview

Remote Control:

Power (on/off) 1 11 Answer phone (BT)

Hang up (BT phone) 2 12 Vol+

Mode selection 3 13 Scan / Skip / Back

INT / ,2'4 14 Repeat / ,3'

Play / Pause / ,1'5 15 Vol-

Random / ,4'6 16 PTY / ,7'

-10 (skip back 10 tracks) / ,5'7 17 +10 (skip 10 tracks) / ,6'

AF / ,818 18 Clock

TA / ,9' 9 19 Band / ,0'

SEL/RDS10

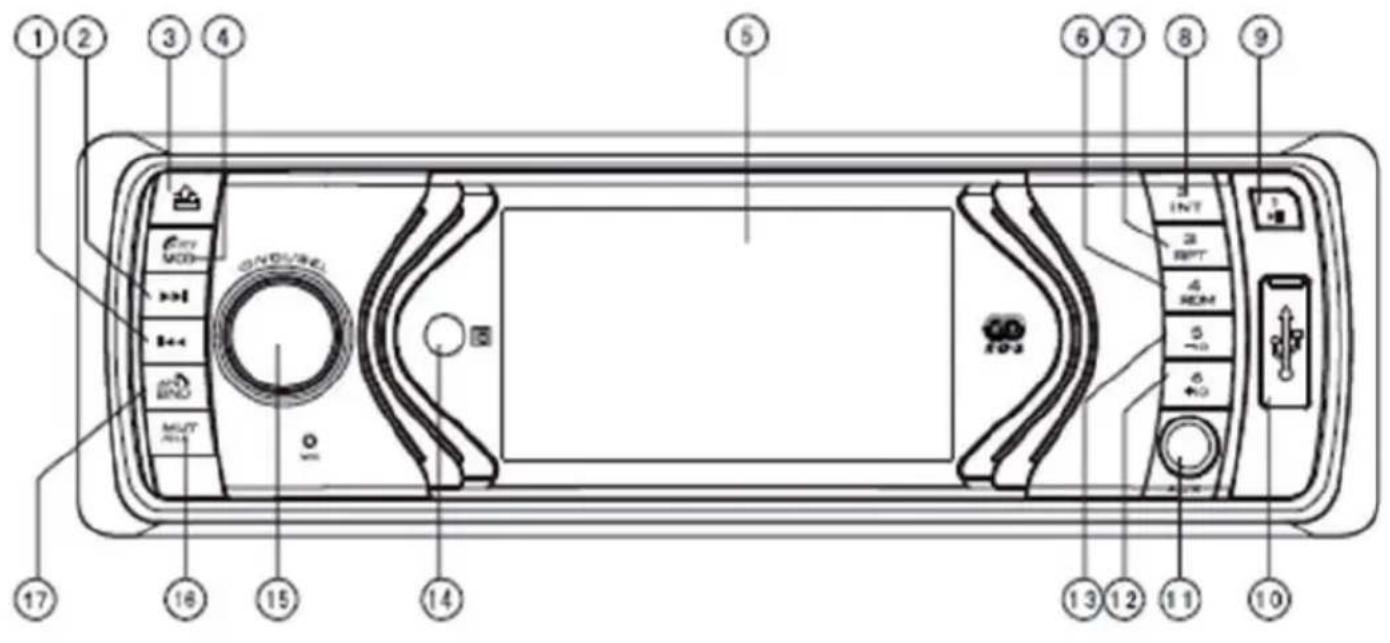

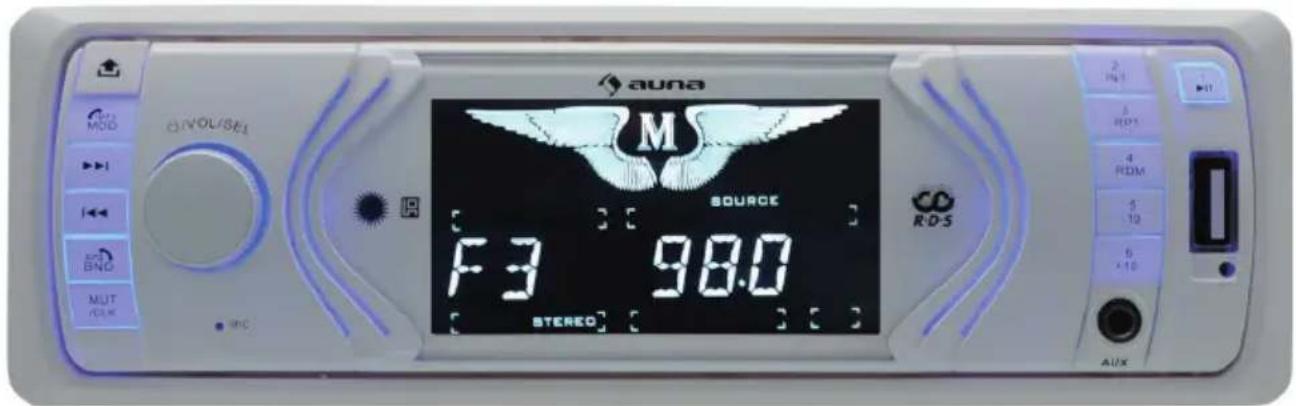

Front:

Control panel detached:

Skip back / rewind 1	11 Aux	In
Skip / FFW 2	12 +10	(skip 10 tracks) / ,6'
Detach front panel 3	13 -10	(skip 10 tracks back) / ,5'
Mode / PTY / end call/decline incoming call	4	14	IR sensor for remote control
Display 5	15		Power / VOL / SELECT / RDS / Color (multi knob)
Random / ,4'	6 16	Mute / Clock
Repeat / ,3'	7 17	Band / APS / Answer phone
INT / ,2'	8 18	Reset
Play / Pause / ,1'	9 19	SD/MMC slot
USB port 10

Operation

- Skip back / fast rewind

Radio: press to change to previous station; hold to scan band downward. MP3 mode: press to skip back to previous track; hold for fast rewind.

- Skip / fast forward

Radio: press to change to next station; hold to scan band upward. MP3 mode: press to skip track; hold for fast forward.

- Detach front panel: Take the front panel off to prevent from being stolen.

- Mode / PTY / end call/decline incoming call

Press repeatedly to select operation mode (radio / USB / SD / BT / AUX)

a) SD mode and USB mode can only be selected when a corresponding SD card / USB drive is connected/inserted.
b) In radio mode: press and hold to change to PTY mode in order to select stations via num buttons.
c) When in BT hands free mode, press to end calls, respectively decline incoming calls.

- Random / ,4'

Radio: Save current station to preset #4.

MP3 mode: Toggle random mode on/off. In random mode, all available tracks will be played in a random order.

- Repeat / ,3'

Radio: Save current station to preset #3 MP3 mode: Toggle repeat play on/off

- INT / ,2'

Radio: Save current station to preset #2 MP3 mode: Browse through mp3 directory

- Play / Pause / ,1'

Radio: Hold to save current station to preset #1; press for station scan. MP3 mode: Play/pause current track.

• AUX In: Connect external media player via 3.5mm audio cable to play back over the car hifi.

• +10 / ,6'

Radio: Save current station to preset #6 MP3 mode: Skip 10 tracks.

-10 / ,5'

Radio: Save current station to preset #5 MP3 mode: Skip back 10 tracks.

• Power / VOL / Select / RDS / Color (multi button)

a) press to switch the device on; press and hold to switch to standby. b) rotate to adjust the output volume. c) in radio or MP3 modes: press repeatedly to access the settings menus: BAS(+/-), TRE(+/-), BL AUTO, AF (ON/OFF), REG (ON/OFF), TA (ON/OFF), EON (ON/OFF), EQ (ON/OFF) (press to select; rotate to change value, press to quit sub menu)

- Mute / Clock

a) Toggle mute on/off.
b) Press and hold to show current time on display.
c) When clock is displayed, hold to enter clock setting. Set clock by pressing and rotating SELECT (15).

• Band / APS / Answer call

Radio: Press to toggle bands FM1/2/3; hold for automated scan followed by a sequential tuning-in of found stations for a few seconds each.

- Reset: Press to re-set to factory default.

BT Operation

• Activate BT on your smartphone and pair with "IWI Car". If prompted to enter a password, please enter "0000".
• Incoming phone calls and music playback can now be dispatched from the smartphone/tablet/laptop to the car hifi.

• After successful pairing, press MODE (4) to activate the BT-ready state.

- Press 🎨 and use the number buttons to type in a telephone number. Then, press 🎨 again to dial.

• To answer an incoming call. also press .

- Press and hold INT / ,2' (4) to toggle the telephone audio between your phone and the car hifi.

- Press to end calls or decline incoming calls.

Radio Operation

• AF: On initial startup, the radio is in RDS mode (AF).
  • REG / TA / EON: Use the multi knob to toggle REG / TA / EON etc. on/off.
• PTY:

In radio mode, press and hold PTY (4), then use the number buttons to save the current station to available presets on bands 1, 2, or 3.

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will hep prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Manufacturer: CHAL-TEC GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European directives:

1999/05/EG (R&TTE)

2011/65/EU (RoHS)
