Product Type	Portable Twin DVD Player with Dual Screens
Model Number	SDV48-AC
Brand	Nextbase
Disc Compatibility	DVD, VCD, CD, MP3, DivX, DVD±R, DVD±RW
Display Size	7 inches (SDV48 series)
Display Resolution	480 x 234 RGB pixels
Signal System	PAL / NTSC
Dimensions (DVD Player)	212 x 167 x 40 mm
Weight (DVD Player)	0.70 kg
Power Source	DC 9-12V via included AC adaptor (100-240V 50/60Hz) or 12V car adaptor
Internal Battery Type	Lithium Polymer, 7.4V, 850mAh
Battery Playback Time	Approximately 2 hours after full charge
Battery Charging Time	1.25 to 1.75 hours (SDV48 series)
Remote Control Battery	CR2025 coin cell (two remotes included)
USB/SD Card Max Capacity	8 GB, formatted FAT or FAT32
Audio Output Level	1.4Vrms / 10kOhm (stereo)
Video Output Level	1 Vp-p / 75 Ohm (composite)
Frequency Response	20 Hz - 20 kHz
Signal-to-Noise Ratio	Better than 80 dB
Dynamic Range	Better than 85 dB
Laser Type	Semiconductor laser, 650nm/780nm, 5mW
Operating Temperature	0°C to 40°C
Storage Temperature	0°C to 50°C
Included Accessories	AC adaptor, car adaptor, AV cable, headrest mounts, two remote controls
Safety Features	Headrest mount with straps, battery protection, smash-resistant LCD safety layer

Frequently Asked Questions - SDV48-AC Nextbase

How long does the battery last on a full charge?

The internal Lithium Polymer battery provides approximately 2 hours of playback under normal conditions.

Can I charge the battery while using the player?

Yes, but if the player is turned on, charging stops and the unit runs on external power only. It is recommended to charge with the player switched OFF/CHARGE.

What types of discs can this player read?

It supports DVD, VCD, CD, MP3, DivX, DVD±R, and DVD±RW discs.

How do I use the remote control?

Remove the isolating tab from the battery compartment. Point the remote at the DVD player (not the monitor) within 3 meters. Replace the battery with a CR2025 when needed.

Why is there no picture on the screen?

Check that the screen is closed firmly, that the DVD/IN button is set to DVD, and that the player is receiving power. If the screen appears white or has lines, it may be damaged (see smashed screen identification in manual).

Can I play video files from a USB drive?

Yes, USB drives up to 8 GB formatted in FAT32 are supported. Videos must be in official DivX format. Music (MP3) and photos (JPEG) also work.

How do I set up the headrest mount?

Fit the mount around the headrest with the straps and secure the trident clips. Pull the straps tight and tuck loose ends. Attach the player or monitor to the mount using the fixing straps.

What should I do if the remote control stops working?

Replace the battery with a new CR2025. Ensure there are no obstructions and the remote is pointed at the infrared receiver on the DVD player. Remove the battery isolating tab if still present.

Is it safe to use this in a car while driving?

The driver should not view the screen while driving. It is only for passenger use. Always connect power before starting the engine and disconnect before turning off the engine.

How do I connect an external TV or game console?

Use the supplied AV cable: yellow for video, red/white for audio. For an external source like a game console, connect the AV cable and press DVD/IN on the remote to switch to AV-IN mode.

USER MANUAL SDV48-AC Nextbase

Safety Precautions....3

Package Contents....4

Primary Controls 5

System Connection....6

In Car Installation....11

Remote Control Operation....15

Basic Operation ...... 17

System Setup 28

Specification....31

Internal Battery 32

Troubleshooting 35

This manul covers as the following models:

1) SDV48-A / SDV49-A Single DVD player.
2) SDV48-AM / SDV49-AM Single DVD player + monitor.
3) SDV48-AC / SDV49-AC Twin DVD player.

The model number of your product is clearly marked on the box.

Safety Precautions

Thank you for choosing a SDV48/SDV49 portable DVD player. This unit incorporates the latest state of art electronics and is designed for use at home, in hotels and in offices etc for your enjoyment. The compact size makes carrying easier, as well as use. Please read this manual carefully prior to use and keep it for later reference.

RISK OF ELECTRIC

SHOCK. DONOT OPEN

LASER

Type Semiconductor laser GaAIAs

Wave length 650 nm/780nm

Output Power 5mW

Beam divergence 60degree

Warning: To reduce the risk of fire or electric shock, do not expose this player to rain or moisture.

1. Please read this instruction manual carefully and follow all the requirements for safe operation of the player & accessories.
2. Do not use this player near water. Do not place any container with liquid inside, above the player.
3. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
4. Unplug this unit during lightning storms or when unused for a long time.
5. Cleaning: Unplug the player, use only dry cloth to clean. Do not use liquid detergent or other cleaning agents.
6. Only use accessories specified by the manufacturer.
7. Refer all servicing to the Next base Service Centre. Servicing is required when the unit has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen on to the unit, exposed to moisture, or does not operate normally. Don't try to repair the player by yourself, because of the danger of high voltage and electric shock.
8. Do not use irregular shaped discs such as heart or star-shaped discs as they may cause the unit to malfunction.

SPECIAL NOTE REGARDING USE OF THE PLAYER IN A VEHICLE

• We strongly advise against the driver of a vehicle using this product, whilst moving.
- Most countries and states have laws which prohibit or severely restrict the use of the product in vehicles while driving, where the driver can see the screen. Please adhere to these laws.
- Do not leave the product in places where the temperature is extremely low (about-10 °C or lower) or extremely high (about 60 °C or higher), such as inside the passenger cabin or trunk in midsummer. Doing so may warp the outer case or reduce the performance or quality of the battery pack.

Always switch the engine on before connecting power to the product.

Always disconnect the power play before switching off the engine.

SPECIAL NOTE REGARDING USE OF THE PLAYER ON AEROPLANES

This product may be allowed to be used on an aero plane at the discretion of the airline.

Always conform to the instructions given with respect to the use of electronic devices whilst traveling on an aero plane.

©

©

©

©

©

In Car Installation

1. Fit the headrest mount to the DVD Player / Monitor as required.

front straps

Once secured correctly, the back of the player (or monitor) will sit against the front of the headrest mount.

TOP

fixing strap

fixing strap

front

Turn the headrest mount and player around so the backs are facing you.

fixing point

back

Slide the fixing strap through the left-hand fixing point on the back of the player or monitor, as shown.

Fold the strap over on to the back of the headrest mount and secure firmly.

Repeat process for the other strap.

Ensure the DVD player or monitor is mounted centrally.

Turn the headrest and player around so the front is facing you.

Using the front straps secure the player or monitor as shown.

NOTE: For SDV48-AM /SDV49-AM products the same design headrest mount is used for both the player and monitor.

1. Fitting the Headrest Mount to the Headrest

Fit the straps around the headrest and engage the 2 trident clips.

Ensure clips are securely fastened.

Pull the straps tight using the adjustment.

Tuck the loose ends into the strap tidy.

PULL

PULL

NOTE:

For SDV48-AM / SDV49-AM installation it is recommended that the DVD Player is on the LEFT headrest, to ensure a neat cable run to the monitor, as shown below.

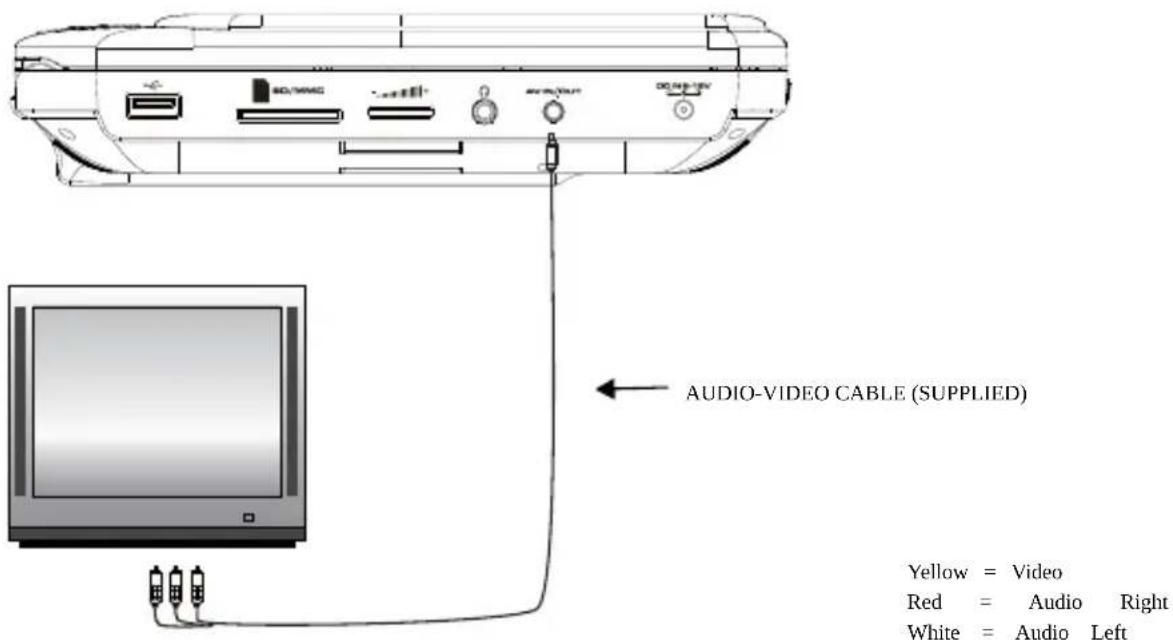

Connecting to an external TV screen

SDV49 series

The unit can be connected to an external TV set. Please see below.

AUDIO-VIDEO CABLE (SUPPLIED) Yellow = Video Red = Audio Right White = Audio Left

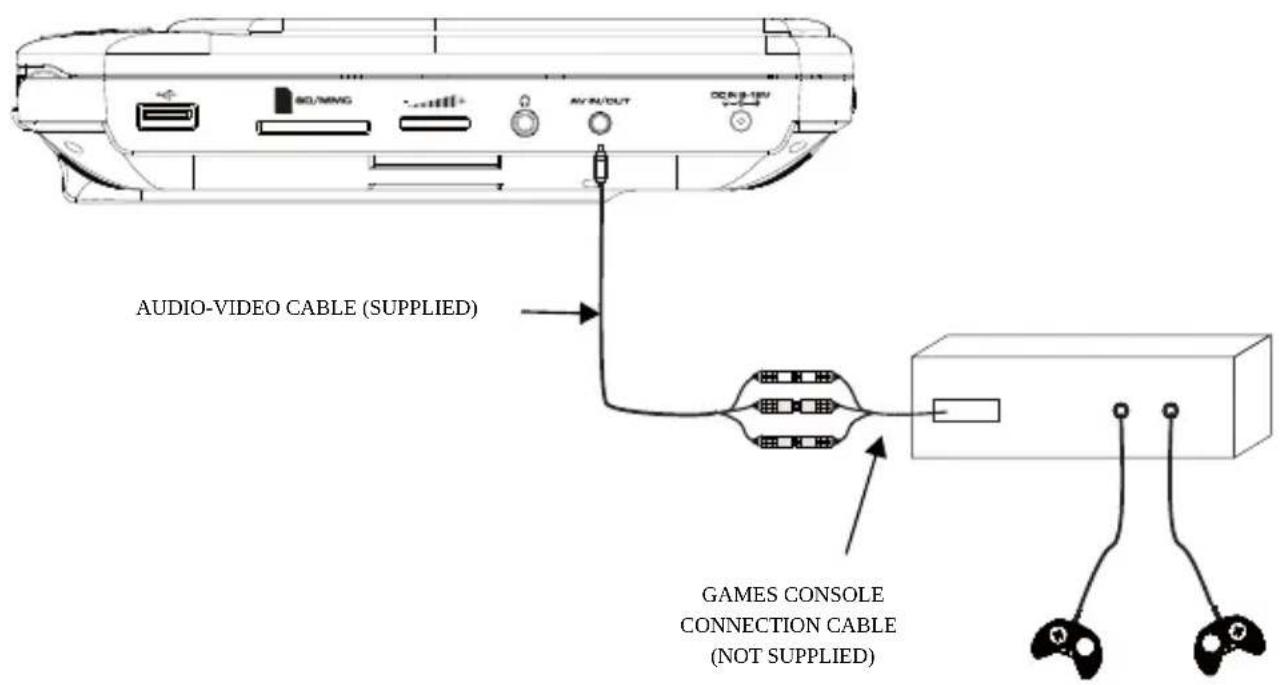

Connecting to an external AV source

The unit can be connected to an external AV source, such as a games console. Please see below.

AUDIO-VIDEO CABLE (SUPPLIED) GAMES CONSOLE CONNECTION CABLE (NOT SUPPLIED)

Press DVD/IN on the remote control to switch between DVD playback and the AV-IN mode. Once connected correctly, the image and sound will appear on the player.

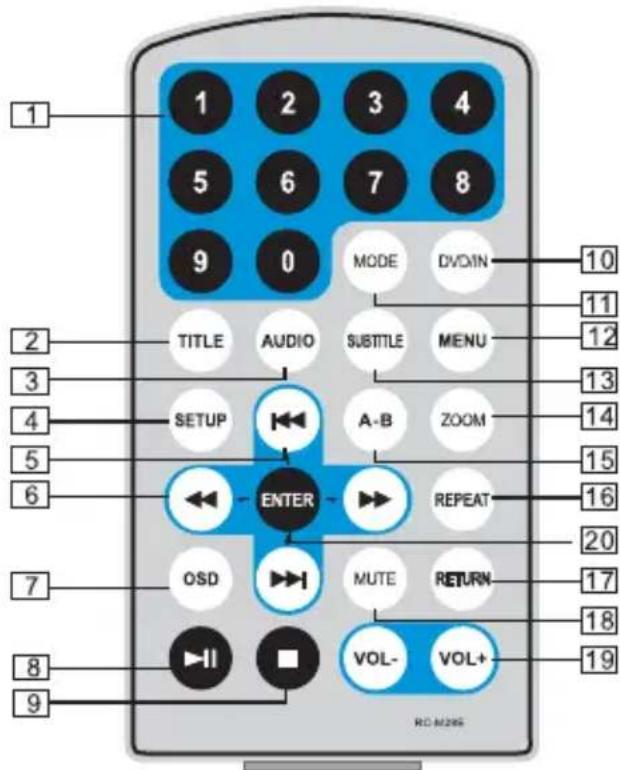

Remote Control Operation

1 2 3 4 5 6 7 8 9 0 MODE DV0IN TITLE AUDIO SUBTITLE MENU 10 11 12 13 14 15 16 20 ENTER REPEAT OSD MUTE RETURN- 17 18 VOL- VOL+ 19 RD-M285

1. Number buttons
2. TITLE (To display title information)
3. AUDIO (To select audio language)
4. SETUP(To go to, or exit setup menu)
5. << >> buttons (To go to previous or next chapter / track or scene during playback) DOWN / UP when navigating menus
6. <</▶buttons (To scan forward /backward at 2,4,8,16 or 32 times speed) LEFT / RIGHT when navigating menus
7. OSD - On Screen Display. (To display disc information during playing such as elapsed and remaining)
8. Play/Pause

9. Stop (Press once to stop playback, then press ▶II to resume playback from the point where you stopped. Press stop button twice to stop playback completely.

10. DVD / IN (DVD playback or AV input mode)

11. MODE (To select the source of either DVD / SD/MMC / USB)
12. Menu (To enter or exit DVD menu)
13. Subtitle (To select a subtitle language, when playing a DVD disc)
14. ZOOM (To zoom in/out the image during playback)
15. A-B (Repeat a specific portion from point A to B. Press it again to cancel repeat playback)
16. Repeat (To Repeat playing title, chapter or track)
17. Return (To return to the main menu)
18. MUTE (To mute / unmute the sound)
19. VOL+/- (To adjust the volume)
20. Enter (To confirm an entry)

Use of the Remote Control

As supplied, a new battery is already fitted to the remote control. To activate, simply pull out the isolating tab, where it says PULL.

To replace the battery in the remote control, see illustration below.

1) Push down tab.
2) Pull out tray
3) Insert battery with + to the back
4) Refit

① + CR2025

② + CR2025

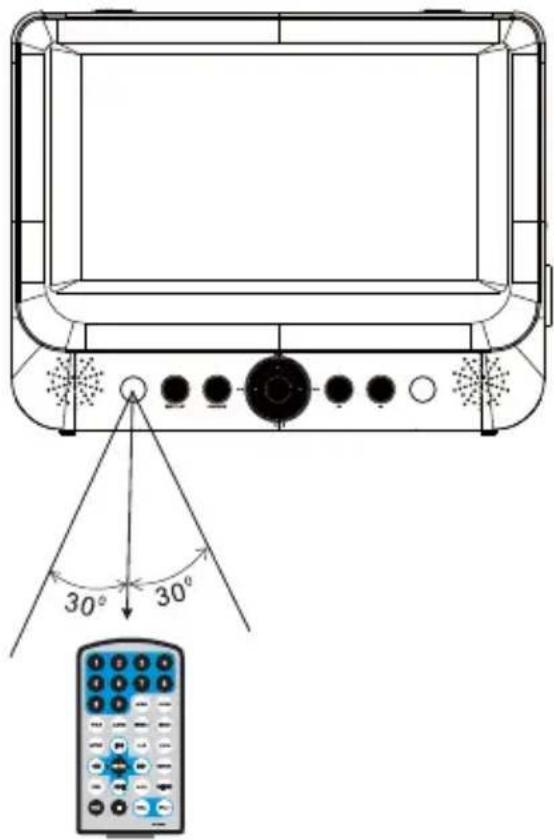

When using the remote control, make sure the remote is pointed to the infrared receiving window of the DVD player (NOT the monitor). The distance between player and remote control must be within 3 meters. Please see below.

30° 30°

Notices

1. Do not drop or step on the remote control or subject it to shock or liquid.
2. Do not expose the DVD player to direct sunlight or this may prevent the remote control from working normally.
3. If the remote control stops working, replace the battery with a new one, type Cr2025.
4. With an SDV48-AM / SDV49-AM the remote control must be pointed at the DVD player, not the monitor.
5. With an SDV48-AC / SDV49-AC there are two identical remote controls supplied, to simplify matters. Just point the remote control at the specific DVD player to control it.

©

©

©

©

©

©

©

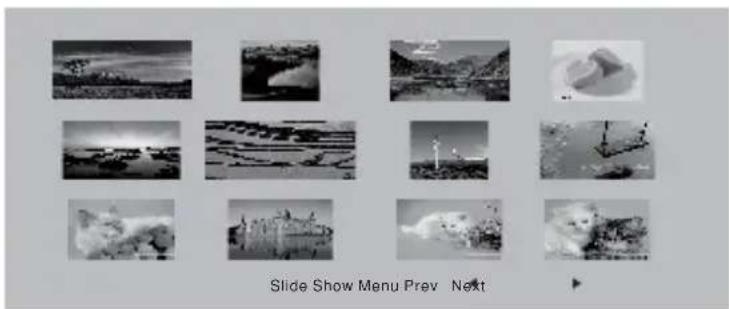

Photo Mode

Grid of grayscale landscape photos showing landscapes and structures, no text or symbols present

In the Photo Mode, the player will show the thumbnail view first.

Press Up, Down, Left, Right to select the desired photo then press "ENTER" to start the slideshow from that point. Press "▶II" to pause on any one specific photo.

From the thumbnail view, you can press Down, to move the cursor to the menu at the bottom of the screen. This has four options.

Slide Show: Starts the slide show of the thumbnails shown

Menu: Options for the slide show (zoom, rotate etc)

Prev: Previous page of thumbnails

Next: Next page of thumbnails

When viewing the photos, there are a number of options available:

1. To rotate the picture counter-clockwise, press “◀”.

To rotate the picture clockwise, press “▶”.

1. Press the OSD button when viewing pictures, to select different transitions between photos, as follows:

a. From top to bottom

b. From bottom to top

c. From left side to right side

d. From right side to left side

e. From left top to right bottom

f. From right top to left bottom

g. From left bottom to right top

h. From right bottom to left top

i. From horizontal center to both sides

j. From vertical center to both sides

k. From top and bottom to center.

I. From right and left to center.

m. From four window's top side to bottom side.

n. From four window's left side to right side.

o. From 4 edges to center.

1. Whilst viewing files, “∅” may appear when pressing “Subtitle”, “Audio”, “A-B” or “Title” etc. During photo playback, these options are unavailable.

2. When viewing photo files, press "■" or "RETURN" key to return to the thumbnail mode.

Note: If want to return the Main Menu, you can Press "Return" key in the thumbnail mode.

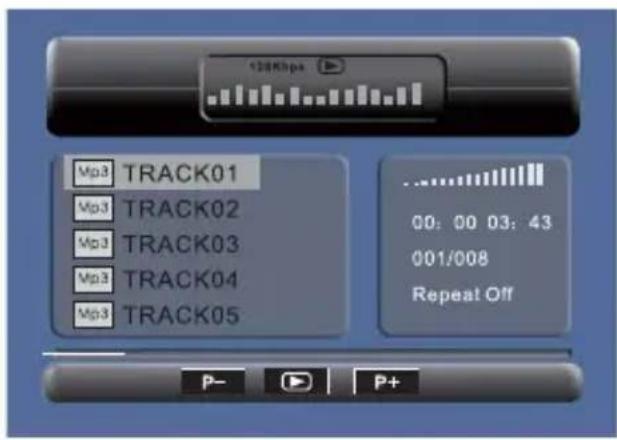

Music Mode

128Kbps Mp3 TRACK01 Mp3 TRACK02 Mp3 TRACK03 Mp3 TRACK04 Mp3 TRACK05 00: 00 03: 43 001/008 Repeat Off P- P+

In Music Mode, the player will show the list of playable music files.

Press Up, Down to select the desired track and "ENTER", to play.

Press “◀/▶” to fast forward /backward the music during playback.

When stopped, press the Right or Left to highlight the lower menu options, as follows:

P- Page Up

P+ Page Down

Play

Note : Press "Return" Key to Return to the Main Menu.

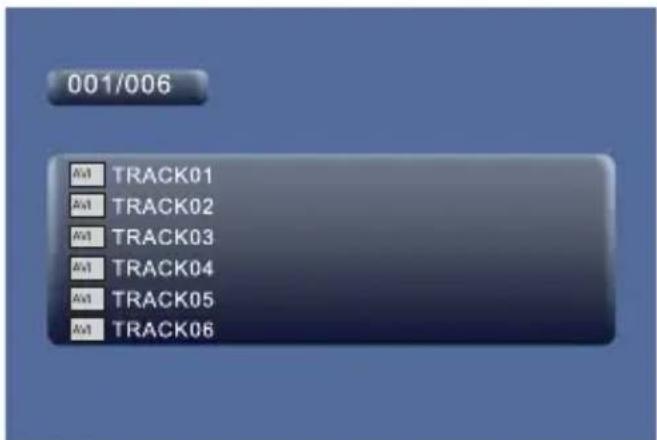

Movie Mode

001/006 AVI TRACK01 AVI TRACK02 AVI TRACK03 AVI TRACK04 AVI TRACK05 AVI TRACK06

In the Movie Mode, the player will show a list of playable Movie files, such as MP2, DivX etc. Press Up, Down to select the desired movie and then “ENTER” to play.

When playing a movie you can press “MENU” or the “RETURN” Key to go back to the list of playable movie files.

If you want to return to the Main Menu, Please Press the "Return" key when the list of movie files is displayed.

NOTE:

For details upon playable movie formats and recommendations, see later in this manual.

Movie compression formats

The use of the DivX encoder is recommended in order to compress movies and then play upon this player. Whilst there are many movie formats and compression software available, most use MPEG4 algorithms at their heart.

DivX is just one such MPEG4 compressor, but it is the most widely used and recognised by Sony, Panasonic and other manufacturers.

This device is capable of DivX playback in order to provide a reliable and consistent playback performance.

When using the official DivX encoder (download from www.DivX.com at a small charge) and always use the “Home Theatre” option for optimum compression and suitable playback quality upon the player. Maintain the 16:9 ratio for full screen viewing.

Use of other compression software, or the playback of other format files (such as Quick Time) may have unreliable or unpredictable results and is not recommended.

©

©

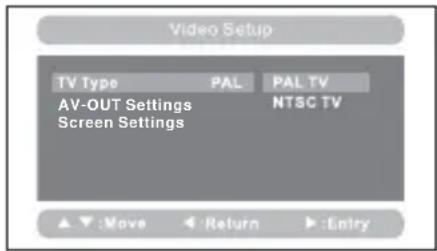

Video Setup Page

Video Setup TV Type PAL PAL TV AV-OUT Settings NTSC TV Screen Settings ▲ :Move ◀ Return ▶ :Entry

TV Type:

Enter this option to select TV type (PAL, NTSC) The default is PAL.

Video Setup TV Type PAL AV-OUT Settings Screen Settings ▲ :Move ←:Return ►:Entry

Set the Video Quality upon the AV OUT or Additional Monitor in the case of SDV48-AM / SDV49-AM Settings of Brightness, Contrast, Hue and Saturation.

Video Setup TV Type PAL AV-OUT Settings Screen Settings ▲ :Move < ,Return ► :Entry

Set the Video Quality upon the integral screen of the Master DVD player. Settings of Brightness, Contrast, Hue and Saturation.

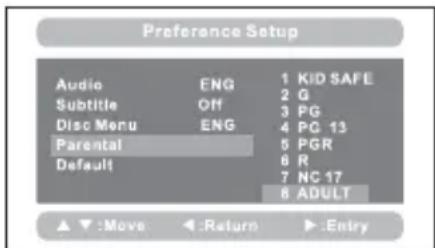

Preference Setup Page

Preference Setup Audio ENG English Subtitle Off French Disc Menu ENG Spanish Parental Default ▲ ▼ :Move ←:Return ►:Entry

Audio :

You can select your preferred audio language for DVDs.

(English, French, German, Italian)

Default is English

The audio language depends upon the information available upon each disc.

You can also change the audio language during playback by pressing the "AUDIO" button.

Preference Setup Audio ENG Subtitle Off English Disc Menu ENG French Parental Spanish Default Off ▲ ▼:Move ◀:Return ▶ Entry

Subtitle

Select your preferred language to show the subtitles upon the screen.

(English, French, German, Italian, Off)

The default is OFF

The subtitle languages depends upon the information available on each disc.

You can also change the subtitle language during playback by pressing the "SUBTITLE" button.

	Disc Menu:This function allows you to choose the menu language from the DVD disc.Default is English.The disc menu language depends upon the information available upon each disc.
	Parental:Enter this option to set the parental control level, to prevent unsuitable disc scenes being watched by children.Optional parental control levels: KID SAFE, G, PG, PG 13, PGR, R, NC17, ADULT.The default of this option is ADULT.The default password: 8888.
	Default:Select this item and press the “ENTER” button to reset all settings to the original factory settings.This includes reset of the region setting to multiregional.

Specification

Compatible disc: DVD / VCD / CD / MP3 / DIVX / DVD±R / DVD±RW

Signal system: PAL/NTSC

Panel size: SDV48 series: 7"

SDV49

series:

9"

Panel resolution: SDV48 series: 480 x 234 RGB

SDV49 series: 640 x 234 RGB

Frequency response: 20 Hz to 20 kHz

Video output: 1 Vp-p/75 Ohm, unbalanced (Composite video)

Audio output: 1.4Vrms/10kOhm (Stereo Audio)

Audio S/N: Better than 80 dB

Dynamic range: Better than 85 dB

Laser: Semiconductor Laser, Wave Length: 650 mm/795 mm

Power source: DC 9-12V

Mains adaptor:

Input: 100-240V 50-60Hz

Output: 9VDC 1A

Car adaptor:

Input: 12V (not for use with 24V systems)

Fuse Type: SDV48-A / SDV49-A & SDV48-AM / SDV49-AM

Fuse Type: SDV48-AC / SDV49-AC

Battery:

Type: Lithium Polymer

Capacity: SDV48 series: 850mAh

SDV49 series:1000mAh

Voltage: 7.4V

Power consumption: <10W for all model types

Remote Control Battery:

Type: CR2025

USB stick: Max. size 8GB, formatted FAT or FAT32

SD/MMC card: Max. size 8GB, formatted FAT or FAT32

Operating temperature: 0\~40°C

Storage temperature: 0\~50°C

Dimensions:

DVD Player: SDV48 Series: 212 x 167 x 40 mm

SDV49 Series: 245 x 190 x 42 mm

Monitor: SDV48 Series: 212 x 167 x 25 mm

SDV49 Series: 245 x 190 x 30 mm

Weight:

DVD Player: SDV48 Series: 0.70Kg

SDV49 Series: 0.91Kg

Monitor: SDV48 Series: 0.35Kg

SDV49 Series: 0.52Kg

Internal Battery

The DVD Player incorporates an integral Lithium Polymer battery for high performance and optimum playback times. The battery has no memory effect and be charged safely, regardless of whether the battery is fully or partially discharged.

Playback time is approximately 2 hours after a full battery charge, when used under normal operating conditions.

Battery Charging

Connect the DVD player to the supplied power supply (either the AC Adaptor or 12V Car Adaptor) and switch the Player to OFF/CHARGE.

If the player is turned on, then charging stops, but playback will continue from the external power source and NOT drain the battery.

Always unplug from the AC Adaptor or Car Adaptor once charging is complete.

LED Indicator light

Green / Red flashing = player is checking battery level

Red = charging

Green = fully charged

Blue = Power on

Battery Replacement

The integral battery is not user replaceable once exhausted (approx. 300 charging cycles).

Please contact your NEXTBASE Authorised Service Centre for a replacement battery to be fitted by a qualified engineer.

Low Battery Warning

A low battery warning will appear on-screen when the battery is nearly exhausted.

Please connect the supplied power source (car power cable or mains adaptor) at this time to either continue using the player, or recharge the battery.

Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

battery charge time paragraph

Charge time for a fully discharged battery is approximately:

SDV48 1.25 to 1.75 hours

SDV49 2.15 to 2.30 hours

Battery Recycling

In accordance with Directive 2006/66/EC of the European Parliament of the Council of September 2006 on batteries and accumulators and waste batteries and accumulators:

Disposal of waste batteries (applicable in the European Union and other countries with separate collection systems).

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste.

On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of these materials will help converse natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only.

To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for recycling of waste batteries.

For more detailed information about recycling of this product or batteries, please contact your local Civic Office, your household waste disposal service, place of purchase or an Authorized Nextbase Service Centre.

Smashed Screen Identification

A Liquid Crystal Display (LCD) Screen is a multilayer component.

Under the tougher outer plastic layer, the glass sandwich beneath holds the LCD crystals in place, which are themselves suspended in fluid. In the unfortunate event of an accident, particularly a sharp localized impact, the glass will break. the tough plastic outer sheet on the surface of the glass keeps all the glass intact underneath preventing the shards from falling out. This is a specific safety feature particularly implemented for the younger users and also in-car use.

The broken glass normally shows signs of the impact mark and also cracks radiating away. The resultant fluid leakage renders the panel inoperable.

Symptoms are often a dark round mark, a white screen without picture and maybe some multi-coloured lines. Depending on the individual break, an element of the TV picture may remain for a while but not for long, as the fluid leaks away. Some inky black staining may appear beneath the plastic layer upon the crack lines, as the fluid escapes.

Unfortunately a break of this nature is not covered under the manufacturers warranty as it is accidental damage to the product. Rather than an original defect from manufacture.

Please see below for some sample images of broken LCD panels for reference. Replacement panels can however be installed by a qualified NEXTBASE Approved engineer.

Pixel Failure Statement

This product incorporates an LCD screen of 480 x 3 x 234 pixels or 640 x 3 x 234 pixels, totaling 336,960 pixels or 449,280 pixels in total.

Pixels can fail during normal product life, one pixel equates to a 0.0003% / 0.0002% failure rate. One pixel failure per year of operation is considered normal and not a cause for concern or warrantable.

Troubleshooting

Problem	Solution
No sound or distorted sound Turn the	the volume UP on both the remote control AND the volume wheel on the side of the player (and monitor). Ensure that the MUTE key has not been pressed. If using an SDV48-AC / SDV49-AC make sure that the interconnection cable is NOT fitted if watching different movies on the 2 screens.
Can't advance through a movie You	can't advance through the opening credits and copyright warnings at the beginning of a movie as the disk is programmed to prevent this.
The icon ☉ appears on screen	The requested operation is not allowed or available at this time.
The picture is pixelated or distorted	The disc may be damaged or dirty.Clean the disc or change to another one.
The disc will not play The disc may	be damaged or dirty.Clean the disc or change to another one.Poor playback may be caused by dirt on the laser lens, use a clean, dry cotton bud (add pure alcohol sparingly if available) and wipe across the lens VERY gently, the lens is held by spring suspension, so be very gentle.
No sound from the speakers Check	the player by using headphones. If these are working normally then the headphone connector is damaged and needs repairing.
Remote control doesn't work Remove	the battery isolating tape from original delivery.Approach player more closely or remove any obstructions.Replace battery for new. Type CR2025.
No picture Check that the screen is	closed firmly.Check the broken screen identification information.Check the DV/IN button has the DVD option chosen.
Lines on the screen Check the broken screen identification page. Any permanent diagonal lines are indication of breakage. The screen glass does NOT fall out, as this is a safety feature.
USB media will not play Video, Music	and Photo's may not be of the correct format.Ensure that any video recording is an official DivX type.(See earlier in manual) Music, MP3 and Photo JPEG formats.Use only USB sticks plugged directly to the USB socket and formatted in FAT 32.Check media device is not damaged.
SD/MMC Card media will not play Video	Music and Photo's may not be of the correct format.Ensure that any video recording is an official DivX type.(See earlier in manual) Music, MP3 and Photo JPEG formats.Check SD/MMC card is inserted correctly and is not damaged.
DVD player will not work Turn Power switch to ON. Battery may be exhausted.Connect the car adaptor or AC adaptor to DC-IN socket.Check the player LED indicator illuminates to show player is receiving power. If the player LED indicators do not illuminate then check cables for damage and correct connection.Check the fuse in the car adaptor (see earlier section of the manual). Re-check by using the domestic mains adaptor.
Monitor will not work Turn Power switch to ON. There is no battery in the monitor, so ensure that the external 12Vdc supply is working, by plugging directly to the monitor DC-IN socket. If working, check power supply cables for damage and correct connection.Check the fuse in the car adaptor (see earlier section of the manual). Re-check by using the domestic mains adaptor.
Monitor shows no audio or video image	Check the AV connection cable between DVD player and monitor is connected correctly and plugs are fully inserted. Check for power to the monitor, see earlier section.
Second screen in a SDV48-AC / SDV49-AC system does not show the image from the other DVD player	Press the DVD / IN button on the remote control to enable this feature.

©

©

Tragbarer 7- & 9-Zoll DVD-Player

Line drawing of a toaster oven with control panel and indicator lights (no text or symbols)

Line drawing of a rectangular electronic device with two side-mounted fans and a central screen (no text or symbols)

Bedienungsanleitung

©

Sicherheitshinweise

Slide Show Menu Prev Next

CD RIP Options Track Speed Normal Track 01 03:56 Stroke 128kbps Track 02 03:56 Device USB 1 Track 03 03:56 SUMMARY Track 04 03:56 Track 05 03:56 Track 06 03:56 Track 07 03:56 Selected Track 0 Selected Time 00:00 Start Exit Selected all Selected nono

CD RIP Ripping Selected track Track Progress Track 01 9% Total Progress Cancel SUMMARY Now ripping Track 01/01

Preference Setup Audio ENG English Subtitle Off French Disc Menu ENG Spanish Parental Default ▲ :Move ←:Return ►:Entry
