Product Type	2-Channel Class A/B Car Amplifier
Model	GZIA 2235HPX
Brand	Ground Zero
RMS Power @ 4 ohms	2 x 150 Watts (1% THD+N)
RMS Power @ 2 ohms	2 x 235 Watts (1% THD+N)
Bridged RMS Power @ 4 ohms	1 x 470 Watts (1% THD+N)
Frequency Response	10 Hz - 30 kHz
Input Sensitivity	200 mV - 6 V
Low Pass Filter (LPF)	30 - 250 Hz, variable
High Pass Filter (HPF)	40 - 3000 Hz, variable
Bass Boost	0 - 12 dB @ 45 Hz
Bass Remote Control	Yes (included)
Auto-On Function	Yes (via High Level Input)
Input Types	RCA and High Level (speaker wire)
Protection	Thermal, Short, Overload
Fuse Rating	2 x 25 A
Dimensions (W x H x L)	285 x 213 x 50 mm (11.22" x 8.39" x 1.97")
Damping Factor	> 100
Signal-to-Noise Ratio	> 80 dB
Recommended Power/Ground Wire	Min. 10 mm² (AWG 7)
Recommended Speaker Wire	Min. 2 x 1.5 mm²

Frequently Asked Questions - GZIA 2235HPX Ground Zero

What is the RMS power output of the GZIA 2235HPX at 4 ohms?

The amplifier delivers 2 x 150 Watts RMS at 4 ohms with 1% THD+N per channel.

Can I bridge the GZIA 2235HPX?

Yes, in bridged mode at 4 ohms it produces 1 x 470 Watts RMS (1% THD+N).

Does the GZIA 2235HPX include a bass remote control?

Yes, a bass remote control is included for adjusting bass boost level.

What is the frequency response of this amplifier?

The frequency response is 10 Hz to 30 kHz.

How do I connect the amplifier to an OEM head unit without RCA outputs?

Use the High Level Input (speaker wire) connector. The amplifier also features Auto-On when signal is detected.

What are the crossover filters available?

It has a variable Low Pass Filter (30-250 Hz) and variable High Pass Filter (40-3000 Hz), plus a FLAT mode.

What is the recommended fuse size?

The amplifier uses 2 x 25A fuses.

Does the amplifier have protection features?

Yes, it includes thermal, short circuit, and overload protection. The protection LED indicates errors.

What are the dimensions of the GZIA 2235HPX?

Dimensions: 285 x 213 x 50 mm (11.22 x 8.39 x 1.97 inches).

Can I use both RCA and High Level inputs simultaneously?

No, do not use both inputs at the same time; it may damage the amplifier. Choose one input type.

USER MANUAL GZIA 2235HPX Ground Zero

To car stereo line out /

Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.

www.ground-zero-audio.com

We reserve the right to make needed change or improvement to the product without informing customer about this in advance.

Abstract geometric shape with diagonal stripes and a central vertical bar, no text or symbols present

GROUND ZER

MOBILE ENTERTAINMENT

GERMAN ENGINEERING

Amplifier

Owner's Manual

IRIDIUM

GZIA 1.300HPX

GZIA 1.600HPX

GZIA 2080HPX

GZIA 2130HPX

GZIA 2235HPX

GZIA 4115HPX

PLEASE READ BEFORE INSTALLATION

Thank you for selecting a Ground Zero amplifier.

We are providing a helpful hints list which should keep you from experiencing unnecessary shut down. Have fun with this high quality Titanium product.

Features

• 4 Ohm / 2 Ohm stable Stereo
• 4 Ohm stable Mono (GZIA 1.300HPX)
• 1 Ohm stable Mono (GZIA 1.600HPX)
• Power & Protection indicator
• Bass Boost (GZIA 1.300HPX / 1.600HPX)
• Variable highpass (GZIA 2080HPX / 2235HPX / 2130HPX / 4115HPX)
- Variable lowpass
• Auto-On @ High Level Input
- White illuminated logo (except GZIA 1.300HPX / 2080HPX)
- Adjustable input sensitivity
- Soft delayed remote turn-on
• Bass remote (GZIA 1.300HPX / 1.600HPX / 2235HPX, GZIA 2130HPX optional)
• Thermal / Short / Overload protection

Tools and materials you need

• Screwdriver
  • Electric drill, 3 mm / 0.12" carbide drill bit
• Mounting screws
  • Power wire min. 10 mm ^4
  • Ground wire min. 10 mm ^4
• Speaker wire min. 2 × 1,5 ~mm^2

Please note!

• As a precaution it is advisable to disconnect the vehicle's battery before making connection to the +12 Volts supply wiring (see owner's manual of your car for further information).
• Please use great caution drilling your trunk. Your gas tank and brake lines can be damaged by puncturing with your drill bit – this could cause damage or failure of your cars operating systems.
• Never pass wires over sharp angles. It is recommended to buffer the power supply of the amplifier with a capacitor min. 1 Farad to guarantee a stable operation voltage.

WARNING!

High powered audio systems in a vehicle are capable of generating "Live Concert" levels of sound pressure. Continued exposure to excessively high volume sound levels may cause hearing loss or damage. Also, operation of a motor vehicle while listening to audio equipment at high volume levels may impair your ability to hear

external sounds such as; horns, warning signals, or emergency vehicles, thus constituting to a potential traffic hazard. In the interest of safety, Consumer Electronics recommends listening at lower volume levels while driving.

Planning your system

Before beginning the installation, consider the following:

a. If you plan to expand your system by adding other components sometime in the future, ensure adequate space is left, and cooling requirements are met.
b. If your radio / source is equipped with pre-amp outputs, it is possible to utilize them to drive the amplifier and connecting (amplifier) to the 2 rear speakers.

Mounting your amplifier

a. Select a suitable location that is convenient for mounting, is accessible for wiring and has ample room for air circulation and cooling.
b. Use the amplifier as a template to mark the mounting holes, remove the amplifier.

Warning

Chose a mounting position where all eclectic wires are protected from being damaged by sharp edges, heat or other conditions. +12Volt DC electrical connections must be fused on the battery side. Make sure your radio and all other devices will be turned off while connection your system.

If you need to replace the power fuse, replace it only with a fuse identical to that supplied with the system. Using a fuse of different type or rating may result in damage to this system which isn't covered by the warranty.

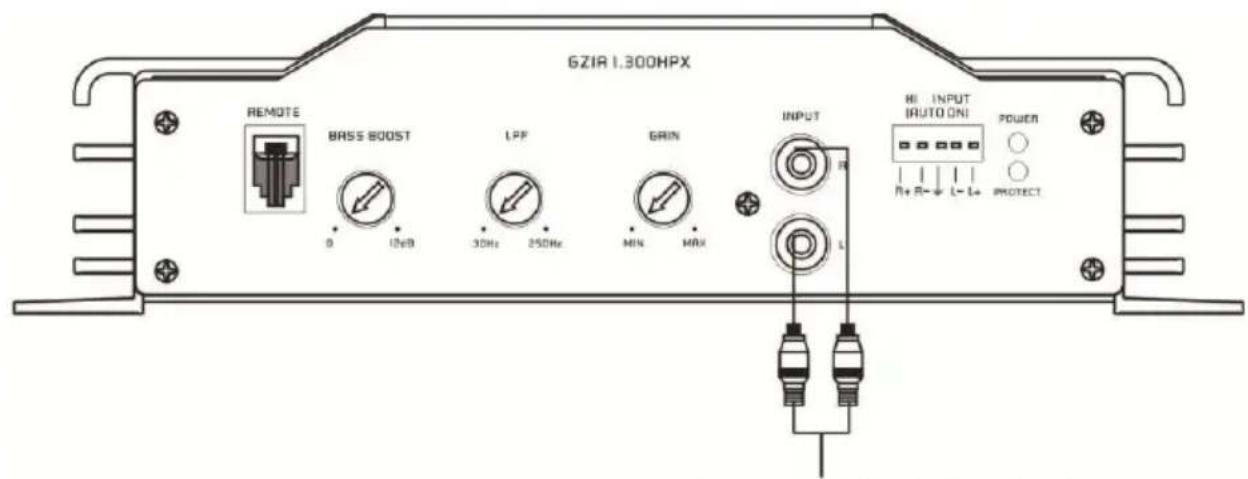

Controls and functions - GZIA 1.300HPX

Controls and functions - GZIA 1.600HPX

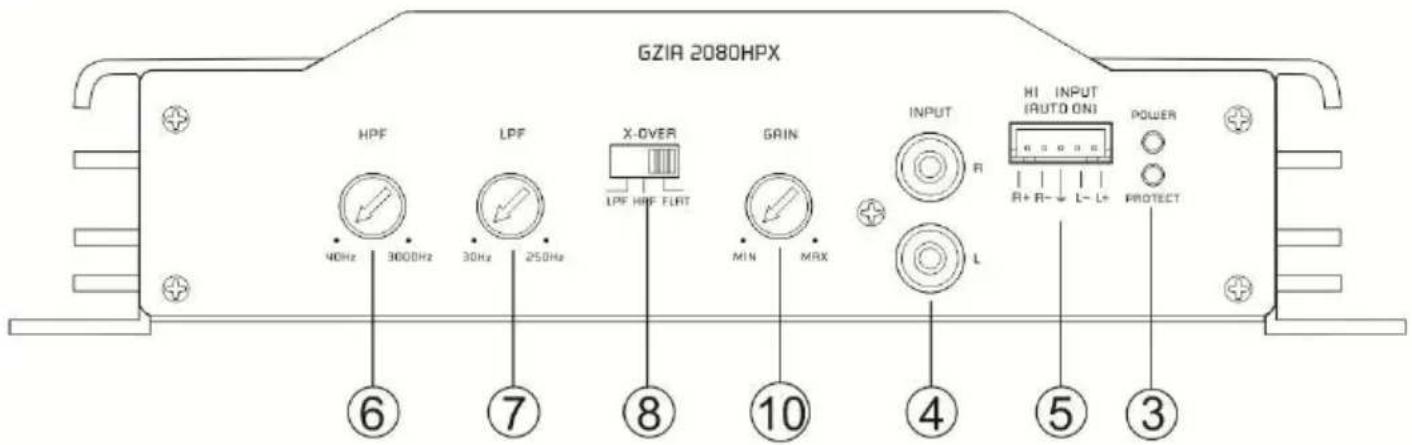

Controls and functions - GZIA 2080HPX

Controls and functions - GZIA 2130HPX

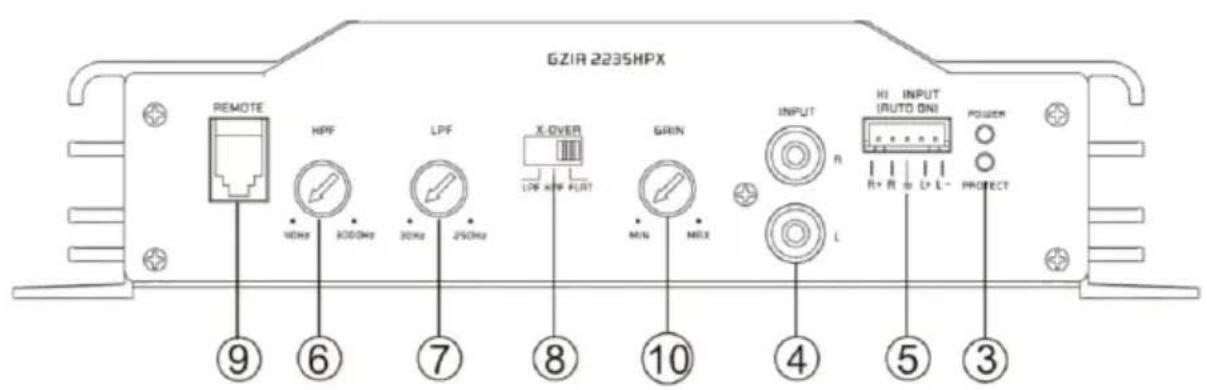

Controls and functions - GZIA 2235HPX

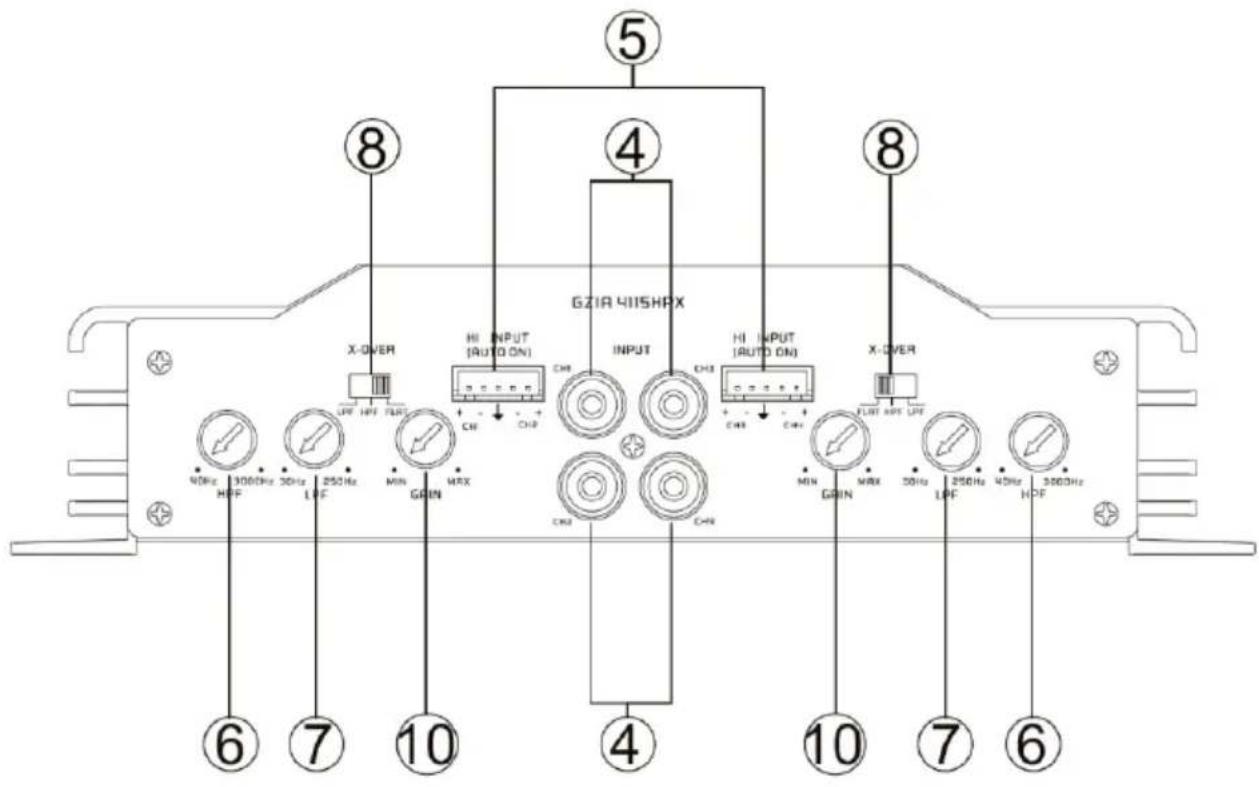

Controls and functions - GZIA 4115HPX

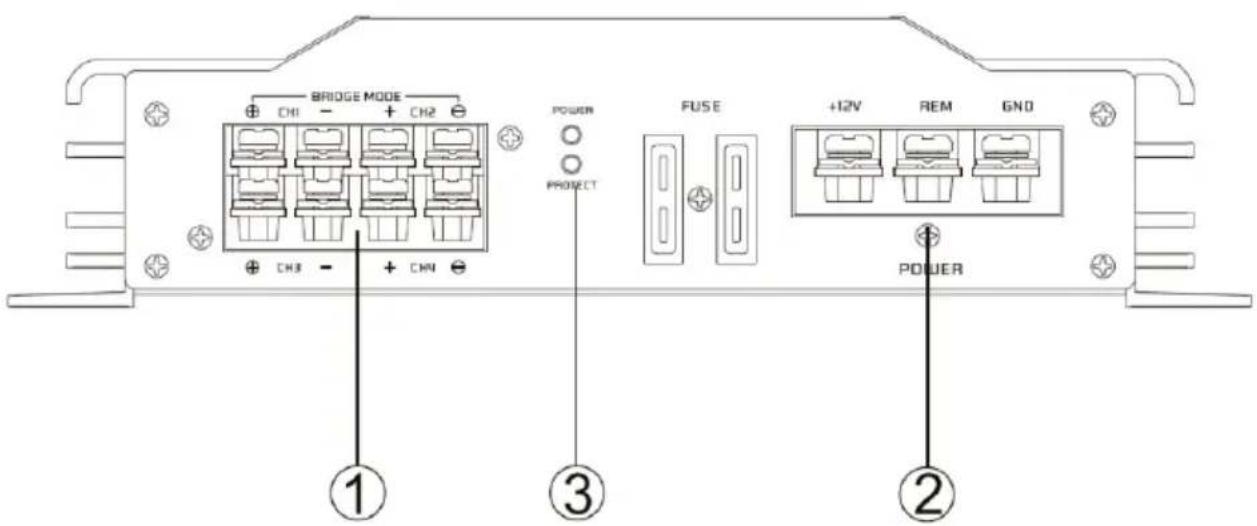

Controls and functions

1	Speaker terminals	For connection of the speakers
2	Power terminals	GND -> Ground connectionREM -> Remote antenna terminal [Not for use with High level inputs (5)]BATT -> +12 Volt
3	Satus indication	GREEN - OKRED - Error
4	Cinch inputs	Terminal for connection of the RCA wires.To avoid failure, please use high quality RCA wires.IMPORTANT!Do not use the High level inputs and the Cinch inputs parallel, this can damage the amplifier. Use either the Cinch OR the High Level inputs.
5	High Level inputs	These inputs must be used if your head unit is not equipped with a Low Level Cinch output.Connect this input to the speaker outputs of your head unit. The amplifier automatically turns on as soon as a signal is received (Auto On). The remote connection of the Power- Terminal (2) won't be used.IMPORTANT!Do not use the High level inputs and the Cinch inputs parallel, this can damage the amplifier. Use either the Cinch OR the High Level inputs.
6	High Pass controller	Set the filter switch to „HIGH" position.Adjust the variable HPF crossover frequency to the desired frequency using the controller. All frequency between 40 and 3000 Hz will be reproduced.
7	Low Pass controller	Only frequencies from 30Hz to 250Hz will be reproduced (depending on the LPF filter controller position). Set the filter switch to „LOW" position. Adjust the variable LPF frequency to the desired frequency using the controller.
8	Mode switch	Adjust the crossover for the chosen utilization.LPF - Only bass frequencies (below 30Hz - 250Hz) will be reproduced.FLAT - All frequencies will be reproduced.HPF - Only middle and high frequencies (over 40Hz - 3000Hz) will be reproduced.
9	Remote control input	For connection of bass remote control (GZIA 2130HPX/2235HPX/1.600HPX)
10	Input level controller	With this controller you can adjust the input sensitivity.
11	Bass Boost controller	For adjusting a Bass Boost at 45 Hz from 0 - 12 dB

High Level Input

Depending on the configuration of your car and sound system, error noises may appear when using the high level inputs. Please use the additional middle ground-connection of this input to reduce these noises.

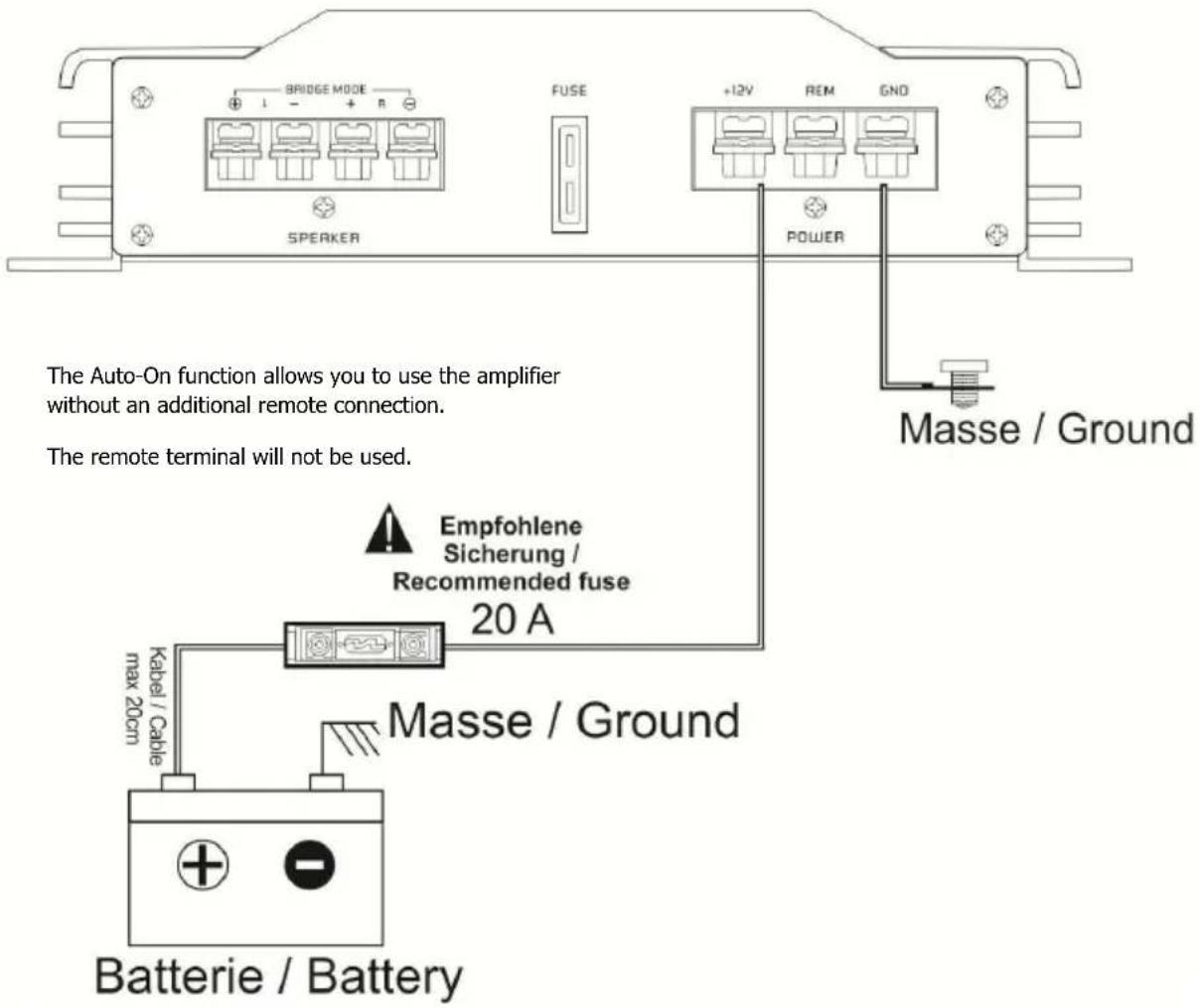

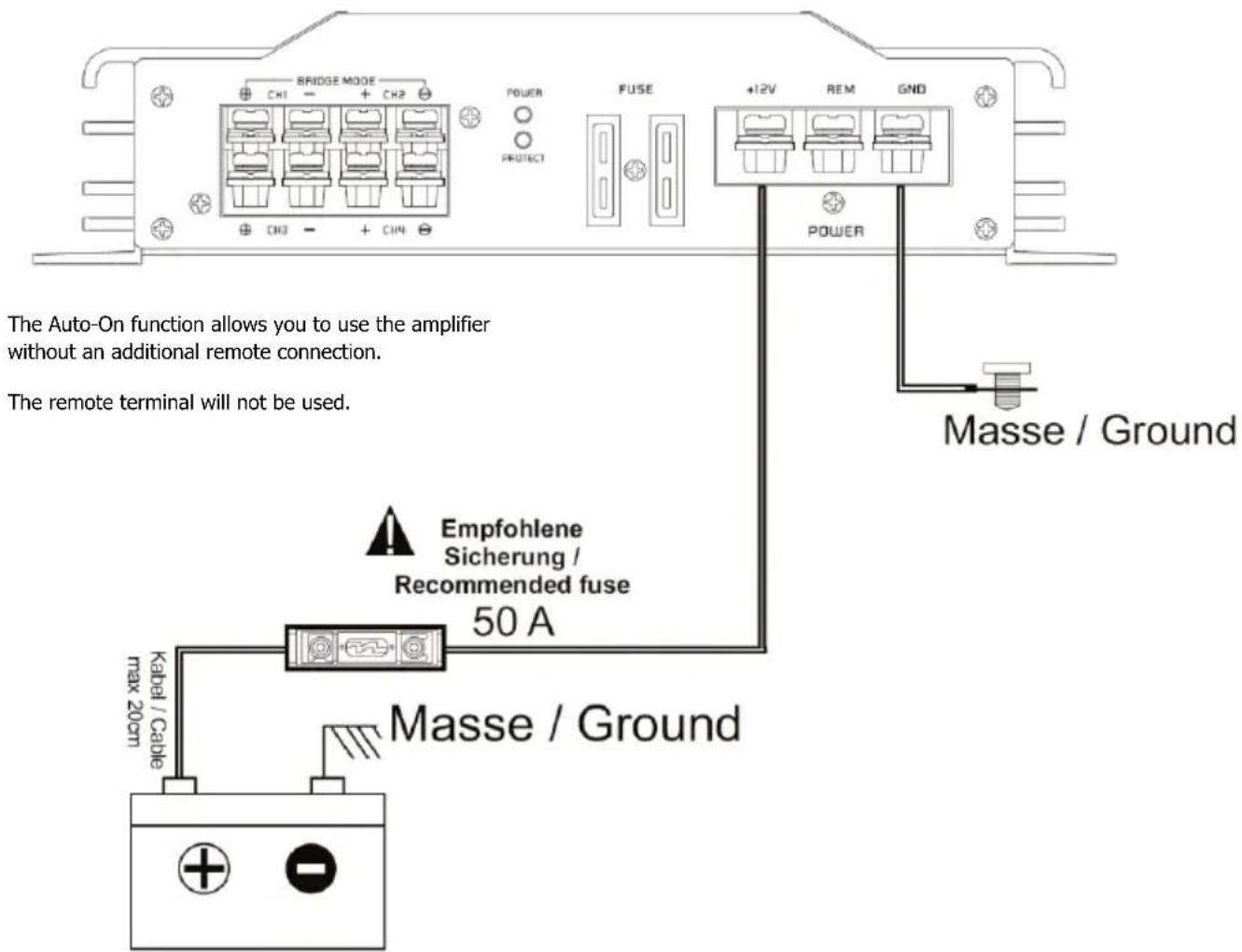

The Auto-On function allows you to use the amplifier without an additional remote connection. This makes it possible to operate it with an OEM headunit and OEM active systems, which are not equipped with cinch outputs or switched remote-outputs.

High Level Input - GZIA 1.300HPX

A connection to the GND connection of the signal source can also be useful.

High Level Input - GZIA 1.600HPX

Connect this wire to the GND powerterminal. A connection to the GND connection of the signal source can also be useful.

High Level Input - GZIA 2080HPX

A connection to the GND connection of the signal source can also be useful.

A connection to the GND connection of the signal source can also be useful.

High Level Input - GZIA 2235HPX

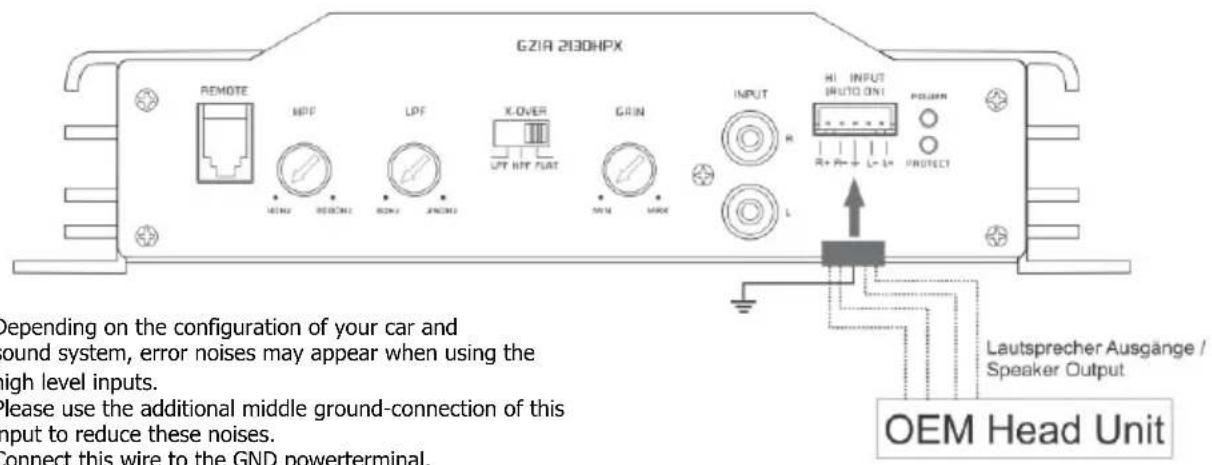

Depending on the configuration of your car and sound system, error noises may appear when using the high level inputs.

Please use the additional middle ground-connection of this input to reduce these noises.

Connect this wire to the GND powerterminal.

A connection to the GND connection of the signal source can also be useful.

High Level Input - GZIA 4115HPX

Depending on the
configuration of your car and sound system, error noises may appear when using the high level inputs.
Please use the additional middle ground-connection of this input to reduce these noises.
Connect this wire to the GND powerterminal.
A connection to the GND connection of the signal source can also be useful.

Turning on the amplifier

The amplifier automatically turns on a few seconds after you turn on your radio.

Note: Your amplifier temporarily shuts down if it gets too hot, then restarts automatically once it cools

(At about 80^ / 176^ F).

Adjusting the audio level

1. LEVEL (Min/Max): Turn fully counter-clockwise to MIN position
2. Turn the auto sound system's volume control to about two-third of its full range.
3. Adjust LEVEL to a comfortable listening level.

Connecting the speaker for trimode operation - notes

TRI MODE operation output allows a subwoofer to be operated in mono mode while the main speakers are playing in stereo. Leave the crossover switch on "Full" position.

Use 100 volt, non-polar capacitors for a high pass crossover to filter out low frequencies and Air-core or Ferrit-ore coils with a minimum diameter of 1 mm / 0.039" for the lowpass crossover to filter out high frequencies.

The capacitor and inductor values as written in the below table. The front and rear channels of this amplifier get this capability. Only the rear left and right channels are shown on the following pictures.

Values for 6dB passive crossover

Frequency	Inductor	Capacitor
80 Hz	7,5 mH	470 uF
100 Hz	6,5 mH	330 uF
120 Hz	5,5 mH	370 uF
150 Hz	4 mH	220 uF

Wiring - GZIA 1.300HPX

Trimode operation - GZIA 4115HPX

Spule / Inductor / Filtre Pass bas / Spoiel Lowpass Filter
—|— Kondensator / Capacitor / Condensateur / Condensator Highpass Filter

Lautsprecher Impedanz / Speaker impedance / Impédance haut parleur 4 \~ 8 Ohm

Specifications

Model	GZIA1.300HPX	GZIA1.600HPX
Type	1 Channel Class A/B	1 Channel Class A/B
RMS Power @ 4 ΩCEA Standard CEA-2006-A	1 x 200 W(1% THD+N)	1 x 230 W(1% THD+N)
RMS Power @ 2 ΩCEA Standard CEA-2006-A	-	1 x 400 W(1% THD+N)
RMS Power @ 1 ΩCEA Standard CEA-2006-A	-	1 x 600 W(1% THD+N)
MAX PowerCEA Standard CEA-2006-A	1 x 300 W @ 4 Ω(10% THD+N)	1 x 700 W @ 1 Ω(10% THD+N)
Damping factor	> 150	> 150
Signal to noise Ratio	> 80 dB	> 80 dB
Lowpass	30 – 250 Hz	30 – 250 Hz
Bass Boost	0 – 12 dB	0 – 12 dB
Highpass	-	-
Frequency response	10 Hz – 250 Hz	10 Hz – 30 KHz
Input sensitivity	200 mV – 6 V	200 mV – 6 V
Bass remote control	√	√
Auto-On @ High Input	√	√
Fuse	1 x 30A	2 x 30A
DimensionsW x H x L mm	200 x 213 x 50	333 x 213 x 50
DimensionsW x H x L inch	8.39" x 8.39" x 1.97"	13.11" x 8.39" x 1.97"

Specifications

Model	GZIA2080HPX	GZIA2130HPX	GZIA2235HPX	GZIA4115HPX
Type	2 Channel ClassA/B	2 Channel ClassA/B	2 Channel ClassA/B	4 Channel ClassA/B
RMS Power @ 4 ΩCEA Standard CEA-2006-A	2 x 60 W(1% THD+N)	2 x 85 W(1% THD+N)	2 x 150 W(1% THD+N)	4 x 70 W(1% THD+N)
RMS Power @ 2 ΩCEA Standard CEA-2006-A	2 x 80 W(1% THD+N)	2 x 130 W(1% THD+N)	2 x 235 W(1% THD+N)	4 x 115 W(1% THD+N)
RMS Power @ 1 ΩCEA Standard CEA-2006-A	-	-	-	-
RMS Power @ 4ΩBridgedCEA Standard CEA-2006-A	1 x 200 W(1% THD+N)1 x 240 W(10% THD+N)	1 x 260 W(1% THD+N)1 x 320 W(10% THD+N)	1 x 470 W(1% THD+N)1 x 540 W(10% THD+N)	2 x 230 W(1% THD+N)2 x 250 W(10% THD+N)
Damping factor	>150	>150	>100	>100
Signal to noise Ratio	>85 dB	>85 dB	>80 dB	>80 dB
Lowpass	30 – 250 Hz	30 – 250 Hz	30 – 250 Hz	30 – 250 Hz
Highpass	40 – 3000 Hz	40 – 3000 Hz	40 – 3000 Hz	40 – 3000 Hz
Frequency response	10 Hz – 30 KHz	10 Hz – 30 KHz	10 Hz – 30 KHz	10 Hz – 30 KHz
Input sensitivity	200 mV – 6 V	200 mV – 6 V	200 mV – 6 V	200 mV – 6 V
Bass remote control	-	√ (optional)	√	-
Auto-On @ High Input	√	√	√	√
Fuse	1 x 20A	2 x 15A	2 x 25A	2 x 25A
DimensionsW x H x L mm	175 x 213 x 50	215 x 213 x 50	285 x 213 x 50	285 x 213 x 50
DimensionsW x H x L inch	6.89" x 8.39" x1.97"	8.46" x 8.39" x1.97"	11.22" x 8.39" x1.97"	11.22" x 8.39" x1.97"

Trouble shooting guide

Symptoms	Check Points	Cure
No sound	Is the POWER LED illuminated?	Check fuses in amplifier. Be sure remote lead is connected. Check signal leads. Check again control. Check tuner/deck volume level.
	Is the diagnostic LED illuminated?	Check for speaker short or amplifier overheating
Amp not switching on	No power to the amplifier	Check power wire or connections
	No power to remote wire with receiver on	Check connections to radio
No sound in one channel	Check speaker leads	Inspect for short circuit or an open connection
	Check audio leads	Reverse left and right RCA inputs to determine if it is occurring before the amp
Amp turning off at medium / high volume	Check speaker load impedance	Be sure proper speaker load impedance recommendations are observed (If you use an ohm meter to check speaker resistance, please remember that DC resistance and AC impedance may not be the same.)
Protection LED is on	Temperature shut down	Turn radio volume down
	Speaker wires short	Separate speaker wires and insulate

Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.

www.ground-zero-audio.com

We reserve the right to make needed change or improvement to the product without informing customer about this in advance.

Controles and functions - GZIA 4115HPX

To car stereo line out /

To car stereo line out /

Trimode operation – GZIA 2080HPX

Spule / Inductor / Filtre Pass bas / Spioel Lowpass Filter

Kondensator / Capacitor / Condensateur / Condensator Highpass Filter

Lautsprecher Impedanz / Speaker impedance / Impédance haut parleur 4 \~ 8 Ohm

Stereo wiring - GZIA 2130HPX

Trimode operation - GZIA 2130HPX

Spule / Inductor / Filtre Pass bas / Spioel Lowpass Filter

— Kondensator / Capacitor / Condensateur / Condensator Highpass Filter

Lautsprecher Impedanz / Speaker impedance / Impédance haut parleur 4 \~ 8 Ohm

Stereo wiring - GZIA 2235HPX

Bridged wiring – GZIA 4115HPX

Lautsprecher Impedanz / Speaker impedance / Impédance haut parleur 4 \~ 8 Ohm

Trimode operation - GZIA 4115HPX

Spule / Inductor / Filtre Pass bas / Spioel Lowpass Filter

—|— Kondensator / Capacitor / Condensateur / Condensator Highpass Filter

Lautsprecher Impedanz / Speaker impedance / Impédance haut parleur 4 \~ 8 Ohm

Modelo	GZIA1.300HPX	GZIA1.600HPX
Tipo	1 Canales Class A/B	1 Canales Class A/B
RMS Power @ 4 ΩCEA Standard CEA-2006-A	1 x 200 W(1% THD+N)	1 x 230 W(1% THD+N)
RMS Power @ 2 ΩCEA Standard CEA-2006-A	-	1 x 400 W(1% THD+N)
RMS Power @ 1 ΩCEA Standard CEA-2006-A	-	1 x 600 W(1% THD+N)
MAX PowerCEA Standard CEA-2006-A	1 x 300 W @ 4 Ω(10% THD+N)	1 x 700 W @ 1 Ω(10% THD+N)
Damping factor	>150	>150
Signal to noise Ratio	>80 dB	>80 dB
Lowpass	30 – 250 Hz	30 – 250 Hz
Bass Boost	0 – 12 dB	0 – 12 dB
Highpass	-	-
Respuesta de frecuencia	10 Hz – 250 Hz	10 Hz – 30 KHz
Sensibilidad de entrada	200 mV – 6 V	200 mV – 6 V
Bass remote control	√	√
Auto-On @ High Input	√	√
Fusible	1 x 30A	2 x 30A
DimensionesW x H x L mm	200 x 213 x 50	333 x 213 x 50
DimensionesW x H x L inch	8.39" x 8.39" x 1.97"	13.11" x 8.39" x 1.97"

Modelo	GZIA2080HPX	GZIA2130HPX	GZIA2235HPX	GZIA4115HPX
Tipo	2 Canales ClassA/B	2 Canales ClassA/B	2 Canales ClassA/B	4 Canales ClassA/B
RMS Power @ 4 ΩCEA Standard CEA-2006-A	2 x 60 W(1% THD+N)	2 x 85 W (1%THD+N)	2 x 150 W (1%THD+N)	4 x 70 W (1%THD+N)
RMS Power @ 2 ΩCEA Standard CEA-2006-A	2 x 80 W(1% THD+N)	2 x 130 W (1%THD+N)	2 x 235 W (1%THD+N)	4 x 115 W (1%THD+N)
RMS Power @ 1 ΩCEA Standard CEA-2006-A	-	-	-	-
RMS Power @ 4ΩBridgedCEA Standard CEA-2006-A	1 x 200 W(1% THD+N)1 x 240 W(10% THD+N)	1 x 260 W (1%THD+N)1 x 320 W (10%THD+N)	1 x 470 W (1%THD+N)1 x 540 W (10%THD+N)	2 x 230 W (1%THD+N)2 x 250 W (10%THD+N)
Damping factor	>150	>150	>100	>100
Signal to noiseRatio	>85 dB	>85 dB	>80 dB	>80 dB
Lowpass	30 – 250 Hz	30 – 250 Hz	30 – 250 Hz	30 – 250 Hz
Highpass	40 – 3000 Hz	40 – 3000 Hz	40 – 3000 Hz	40 – 3000 Hz
Respuesta defrecuencia	10 Hz – 30 KHz	10 Hz – 30 KHz	10 Hz – 30 KHz	10 Hz – 30 KHz
Sensibilidad deentrada	200 mV – 6 V	200 mV – 6 V	200 mV – 6 V	200 mV – 6 V
Bass remotecontrol	-	√ (opcional)	√	-
Auto-On @ HighInput	√	√	√	√
Fusible	1 x 20A	2 x 15A	2 x 25A	2 x 25A
DimensionesW x H x L mm	175 x 213 x 50	215 x 213 x 50	285 x 213 x 50	285 x 213 x 50
DimensionesW x H x L inch	6.89" x 8.39" x1.97"	8.46" x 8.39" x1.97"	11.22" x 8.39" x1.97"	11.22" x 8.39" x1.97"

Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.

www.ground-zero-audio.com

Abstract geometric shape with diagonal stripes and a central vertical bar, no text or symbols present

GROUND ZERO

MOBILE ENTERTAINMENT

GERMAN ENGINEERING

Vahvistimen

Käyttöohje

IRIDIUM

GZIA 1.300HPX

GZIA 1.600HPX

GZIA 2080HPX

GZIA 2130HPX

GZIA 2235HPX

GZIA 4115HPX

To car stereo line out /

Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.

www.ground-zero-audio.com

We reserve the right to make needed change or improvement to the product without informing customer about this in advance.
