USER MANUAL Echelon 20 Telex

The Echelon 20 full cushion aviation headset offers comfort, excellent hearing protection and value.

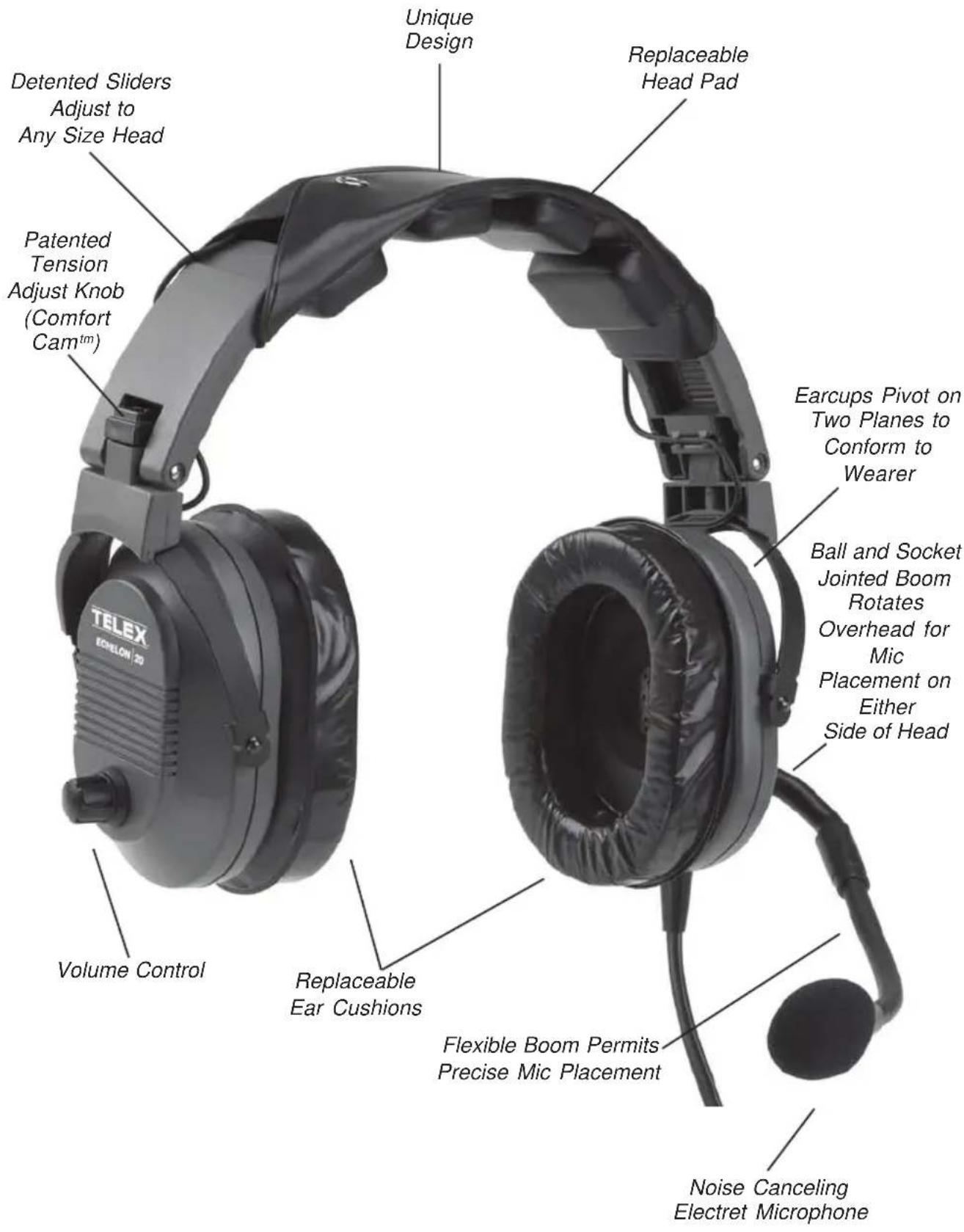

Detented Sliders Adjust to Any Size Head Patented Tension Adjust Knob (Comfort Cam™) Volume Control TELEX EONELON 20 Unique Design Replaceable Head Pad Earcups Pivot on Two Planes to Conform to Wearer Ball and Socket Jointed Boom Rotates Overhead for Mic Placement on Either Side of Head Replaceable Ear Cushions Flexible Boom Permits Precise Mic Placement Noise Canceling Electret Microphone

Echelon 20 Reference View
Figure 1

GENERAL DESCRIPTION

The Telex Echelon 20 is a medium-weight noise-reduction headset with amplified, noise-canceling, electret microphone.

DESIGN FEATURES

(See Figure 1)

Comfortable foam-filled headband pad and ear cushions. The headband pad evenly distributes the headset weight with no pressure points, for maximum wearer comfort. The lightweight ear cushions combine comfort with an excellent acoustic seal. An outer urethane layer ensures long life. Gel-filled ear cushions are also available for this headset for users who prefer this type. All cushions are field-replaceable.

Boom Microphone: The boom arm features a sealed ball-and-socket joint and flexible boom for precise microphone placement on any head size. The boom rotates overhead for microphone placement on either side of the head. The microphone cartridge features a noise-canceling electret element. The cartridge snaps on and off for easy replacement. The microphone amplifier is in the microphone cartridge. It operates on current supplied by the aircraft radio via the microphone jack.

Cordage: The microphone cordage is protected inside the boom arm. Shielded wire throughout the headset protects against RFI and EMI. Strain-reliefs on all cords provide maximum durability.

OPERATION

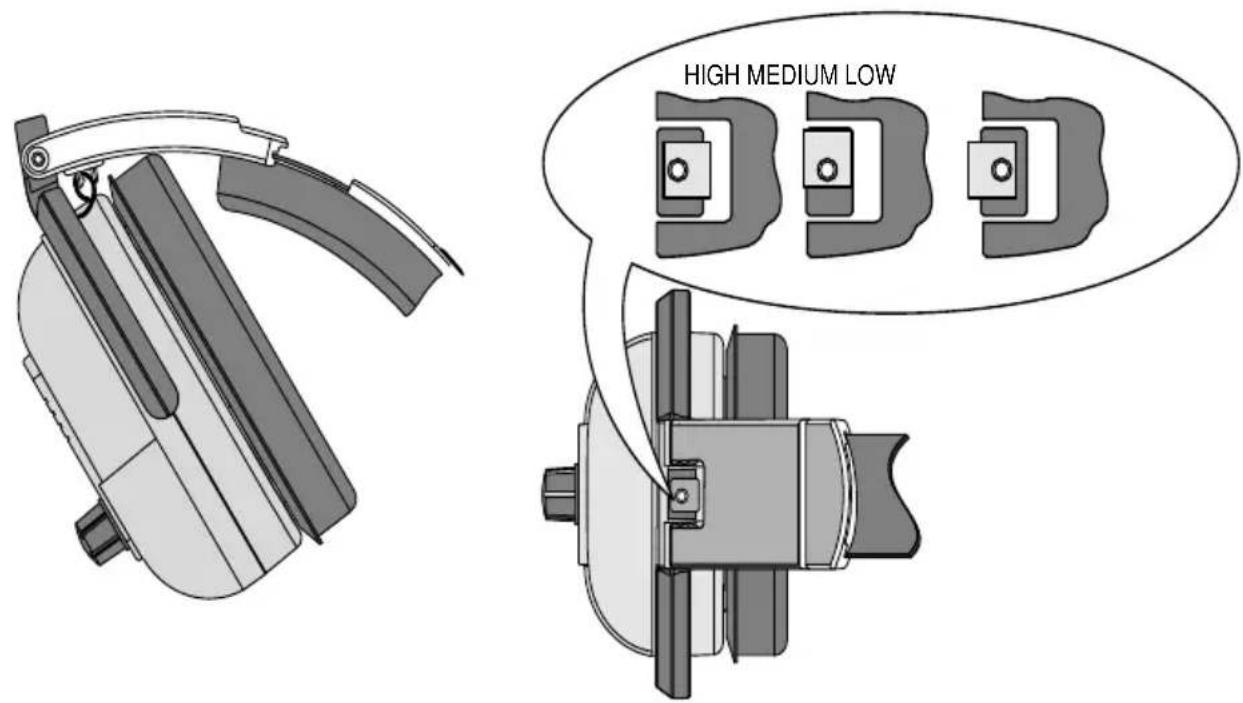

Headband Pressure Adjustments

There are three pressure settings for headband comfort. Increasing the pressure will improve the seal between the earcup and the head for greater noise reduction. To change the pressure setting, remove the headset and fold the earcup inward as shown, then rotate the adjustment knob to the desired setting. Repeat for both earcups. Both sides of the headband should be set to the same pressure setting to keep the headband properly centered on the head.

HIGH MEDIUM LOW

Figure 2

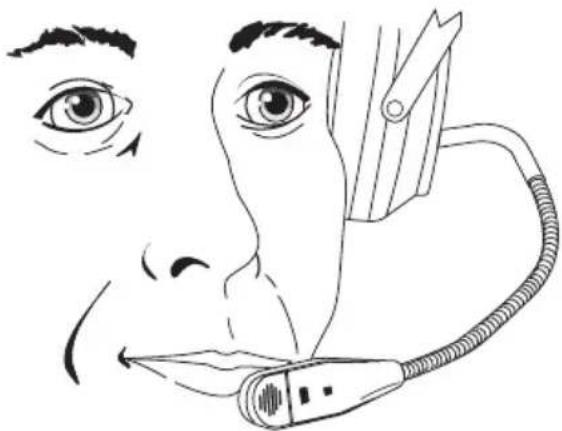

Boom Microphone Placement

1. Rotate the entire boom overhead to wear the microphone on either the right or left side of the head.
2. For best noise cancelation, position the microphone as close to the mouth as possible and speak in a normal voice. (See figure 3)
3. When the microphone is not in use, it may be swung slightly away from the mouth.

Line drawing of a person's face with a tool near the mouth, showing eye and nose (no text or symbols)

Figure 3

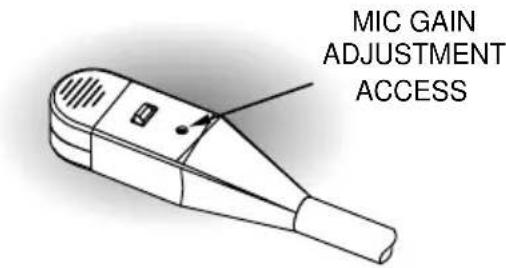

Microphone Gain Adjustment

The microphone gain has been factory-adjusted to the nominal level required for aviation use. It should normally not require readjustment. Readjustment by a qualified avionics technician is recommended if adjustment is needed. To access the gain trimmer, insert a small flat-blade screwdriver through the access hole in the mic assembly. Clockwise rotation of the trimmer increases gain.

MIC GAIN ADJUSTMENT ACCESS

Figure 4

SPECIFICATIONS

Receivers:

Type: Dynamic

Frequency Response: 100 Hz - 3.5 kHz

Sensitivity: 95 dB SPL minimum (1 kHz, 1 mW input)

Impedance (at 1 kHz): 150 ohms (receivers wired in parallel)

Microphone and Amplifier:

Element Type: Noise-canceling electret

Frequency Response: 100 Hz - 3.5 kHz

Sensitivity: -50 ±6 dB (ref:1 V/ μbar at 1 kHz with 12 Vdc supply voltage and 470-ohm DC, 150ohm AC load).

Matching Impedance: 50-600 ohms

Gain Adjustment Range: ± 5 dB (clockwise rotation increases gain)

Operating Voltage (supplied by aircraft radio): 8-16 volts dc

Cordage:

Straight Y-cord, 5.5 ft (1.67 m)

Connectors:

PJ-068 equivalent plug for radio mic jack; PJ-055 equivalent plug for radio phone jack

Weight:

Effective Head Weight: Approximately 14.2 oz. (403g)

Color: Medium Gray

ORDERING INFORMATION

Headset Catalog no. PRD000012000

Thin-skin foam ear cushions (set of two) ...... Catalog no. 800456008

Gel-filled ear cushions (set of two).... Catalog no. 800456009

Head pad Catalog no. 800456004

Microphone cartridge ...... Catalog no. 800136100

Microphone windscreen ...... Catalog no. 800456000

Model PT-300 Portable Push-To-Talk Switch* ...... Catalog no. 63966000

Zipper Pouch Catalog no. 590061003

TELEX COMMUNICATIONS, INC. - LIMITED WARRANTY

Uniform Limited Warranty: Telex branded products are warranted by Telex Communications, Inc. against malfunction due to defects in materials and workmanship for a specified period, as noted in the individual product line statements below, beginning with the date of original purchase by the end-user. If such malfunction occurs during the specified period, the product will be repaired with new or remanufactured equivalent parts and products or replaced (at our option) without charge. The product will be returned to the customer postage prepaid.

Exclusions and Limitations: The limited warranty does not apply to: (a) exterior finish or appearance; (b) certain specific items described in the individual product line statements below, (c) malfunction resulting from use or operation of the product other than as specified in the product data sheet or owner's manual; (d) malfunction resulting from misuse or abuse of the product, including accidents; (e) defects resulting from excess moisture, lightning or power surges; or (f) malfunction occurring at any time after repairs have been made to the product by anyone other than a Telex Service Department employee or any of its authorized service representatives. The warranty is void if the label bearing the product serial number (if applicable) has been removed or defaced.

Other Express or Implied Warranties Excluded: TO THE EXTENT PERMITTED BY APPLICABLE LAW, THE WARRANTIES SET FORTH HEREIN ARE IN LIEU OF, AND EXCLUSIVE OF, ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. SPECIFICALLY EXCLUDED, WITHOUT LIMITATION, ARE THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, AND WARRANTIES ARISING FROM COURSE OF DEALING OR USAGE OF TRADE OR ANY OTHER MATTER. IF, UNDER APPLICABLE LAW, IMPLIED WARRANTIES MAY NOT BE VALIDLY EXCLUDED, THE DURATION OF SUCH IMPLIED WARRANTIES IS LIMITED TO THE WARRANTY PERIOD.

Limitation of Remedies; Certain Damages Excluded: REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS ARE THE SOLE AND EXCLUSIVE REMEDIES PROVIDED BY TELEX TO THE CUSTOMER OR TO ANY OTHER PERSON AND SHALL CONSTITUTE FULL SATISFACTION OF ALL CLAIMS, WHETHER BASED ON CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE. TELEX's MAXIMUM LIABILITY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT BY THE CUSTOMER. TELEX AND ITS SUBSIDIARIES SHALL NOT BE LIABLE FOR ANY INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, WITHOUT LIMITATION, INJURY TO PERSONS OR PROPERTY OR LOSS OF USE. SOME STATES AND COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CERTAIN DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. IN SUCH STATES AND COUNTRIES, TELEX SHALL BE LIABLE FOR NO MORE THAN THE DIRECT DAMAGES FOR BODILY INJURY AND/OR REAL OR PERSONAL PROPERTY ARISING FROM THE NEGLIGENCE OF TELEX.

Other Rights: This warranty gives you specific legal rights, and you may also have other rights, depending upon where you live.

Obtaining Warranty Service: To obtain warranty service, a customer must deliver the product, prepaid, to the appropriate Telex Service Department listed below or any of its authorized service representatives together with proof of purchase of the product in the form of a bill of sale or invoice.

Applicable Law. The validity, performance and construction of this limited warranty shall be governed by the laws of the State of Minnesota without reference to its choice of law principles. The Minnesota federal courts and/or the state courts located in Hennepin County, Minnesota, shall have exclusive personal and subject matter jurisdiction over, and the parties shall each submit to the jurisdiction of such courts and to venue in Minnesota with respect to any dispute concerning the product or pursuant to this limited warranty, and all objections to such jurisdiction or to such venue are hereby waived.

For additional warranty repair or service information, contact the Telex Service Department listed below:

For information or technical assistance, call, write, or email Telex at:

Customer Service Department

Telex Communications, Inc.

12000 Portland Ave. So.

Burnsville, MN 55337 U.S.A.

[phone]

www.telex.com/aircraft

When returning equipment for repair, please enclose an explanation of the problem. And, if the equipment is covered under warranty, please enclose a copy of your proof of purchase. The equipment must be accompanied by documentation stating your name, return address, and telephone number.

Return equipment for factory repair to:

Customer Service Department

Telex Communications, Inc.

1720 East 14th St.

Glencoe, MN 55336 U.S.A.

[phone]

Warranty Repairs - If in warranty, no charge will be made for the repairs. Equipment being returned for warranty repair must be sent prepaid and will be returned prepaid.

Non-warranty Repairs - Equipment that is not under warranty must be sent postage prepaid to Telex. If requested, an estimate of repair costs will be issued prior to service. Once you approve repair, and repair of equipment is completed, the equipment will be returned on a collect on delivery basis. Collect charges may be avoided by sending a signed check for payment in full along with your signed estimate approval form (the estimate includes the shipping charge).

	shtgneLmreTytnarraWxeleT
	1	3	12	24	36	rehtO
	htnoM	sh	htnoM	sh	htnoM	sh
NOITAIVA
02nolehcE					X
.ecitontuohtignahcottcejbuG

TELEX®
