USER MANUAL KFWM I 6501 Kernau

INSTRUKCJA OBSŁUGI I INSTALACJI

PRALKI

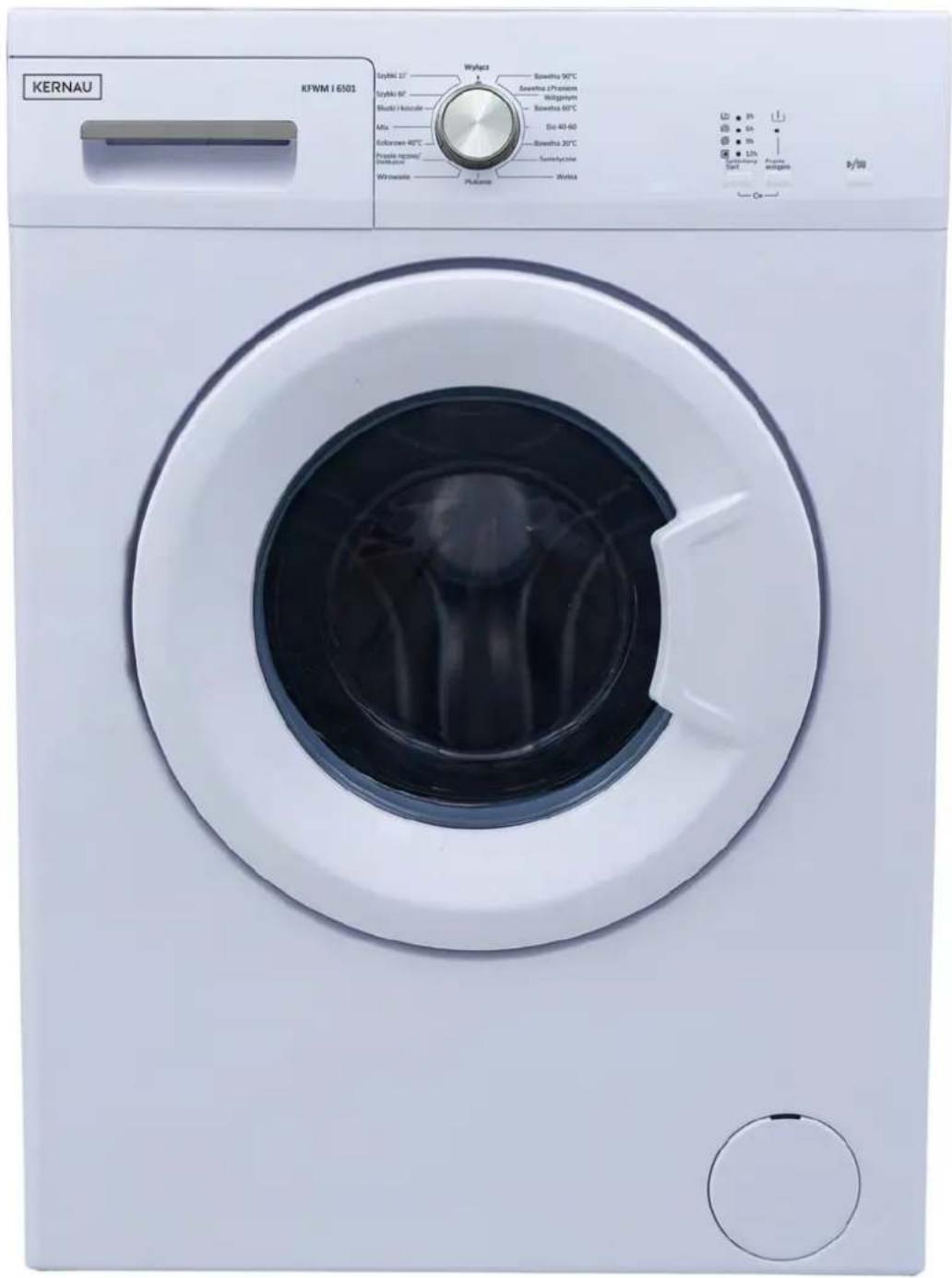

KFWM I 6501

Line drawing of a washing machine with no text or symbols

Illustration of a hand using a tool to clean or inspect a surface with a funnel and test tube (no text or symbols)

Illustration of a hand using a tool to clean or inspect a surface with a funnel and pipe (no text or symbols)

ZAGROŻENIE POŻAREM!

Illustration of two workers carrying a large washing machine (no text or symbols present)

BEZPIECZEŃSTWO DZIECI!

Line drawing of a hand holding a wrist bandage (no text or symbols)

OPAKOWANIE I ŚRODOWISKO

USUWANIE OPAKOWANIA

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Technical line drawing of a washing machine casing with internal components and wiring (no text or labels)

DANE TECHNICZNE

Diagram of a washing machine showing internal components and a close-up view of the dial indicator (no text or symbols present)

Diagram showing a washing machine with directional arrows and a close-up of its component detail, including a close-up view of the washing machine's base.

x4

Line drawing of a front-loading washing machine with no text or symbols

Diagram showing two electrical plugs connected to a socket, with an arrow indicating direction of change.

Simple line drawing of a coiled tube or hose with two connectors (no text or symbols)

3/4" 10 mm

Diagram of a pipe fitting with a bulb attached, showing fluid flow (no text or symbols)

Diagram showing a mechanical component with an inset view of a curved pipe or arch structure (no text or symbols present)

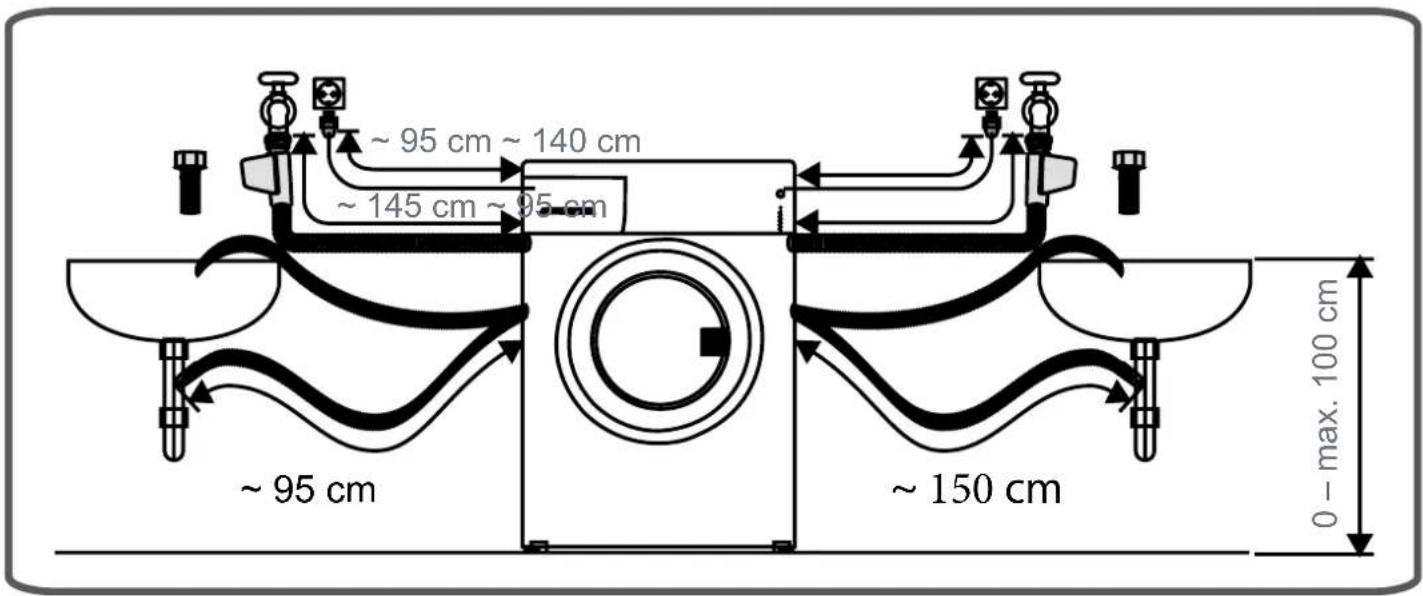

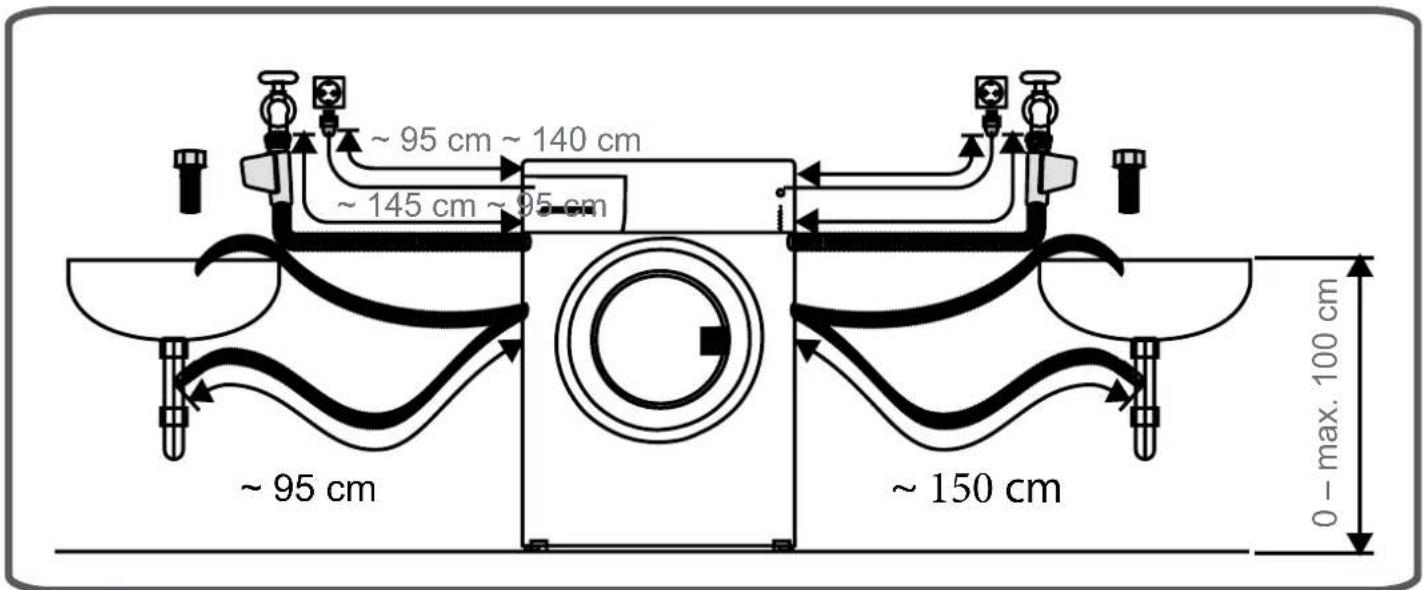

~ 95 cm ~ 140 cm ~ 145 cm ~ 95 cm ~ 95 cm ~ 150 cm 0 - max. 100 cm

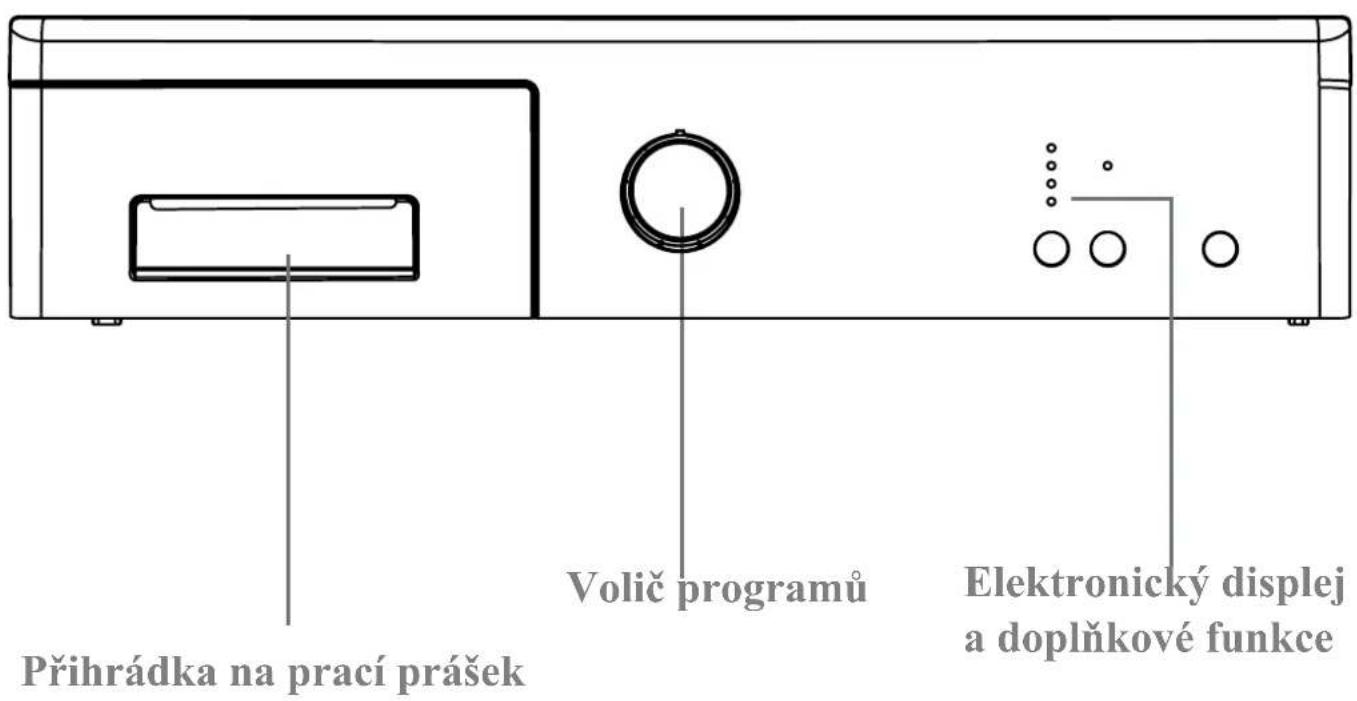

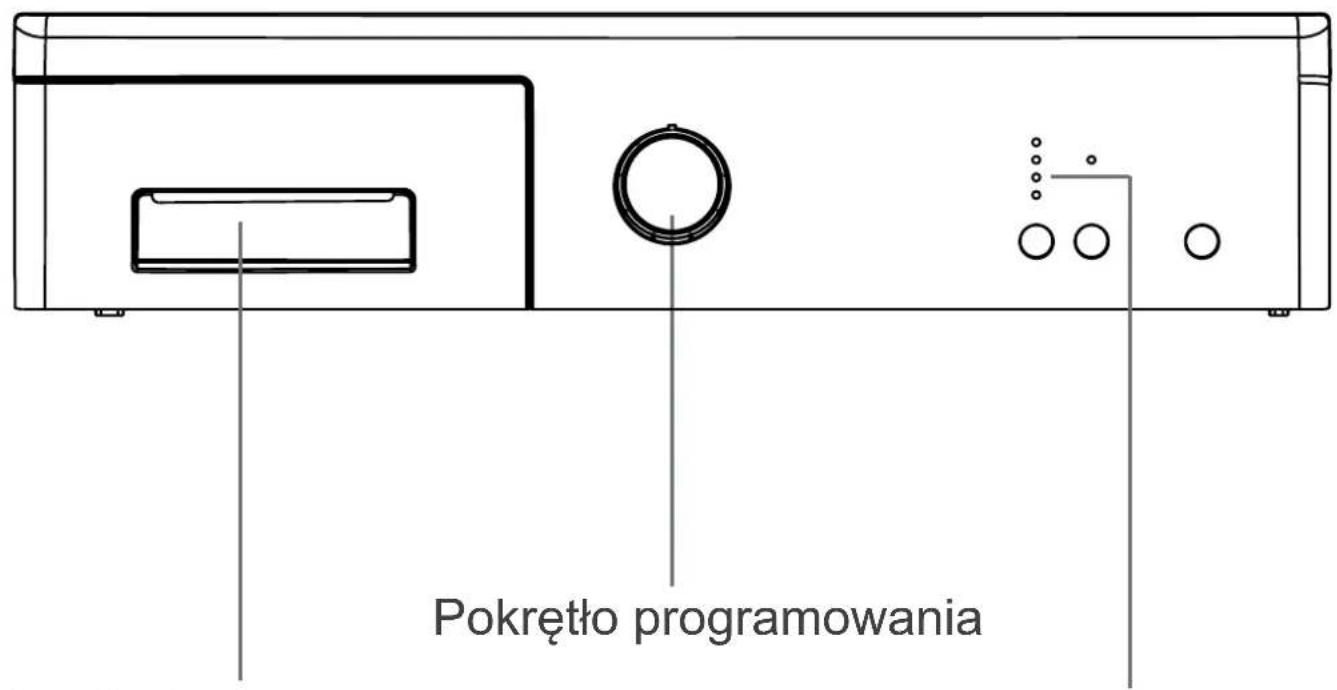

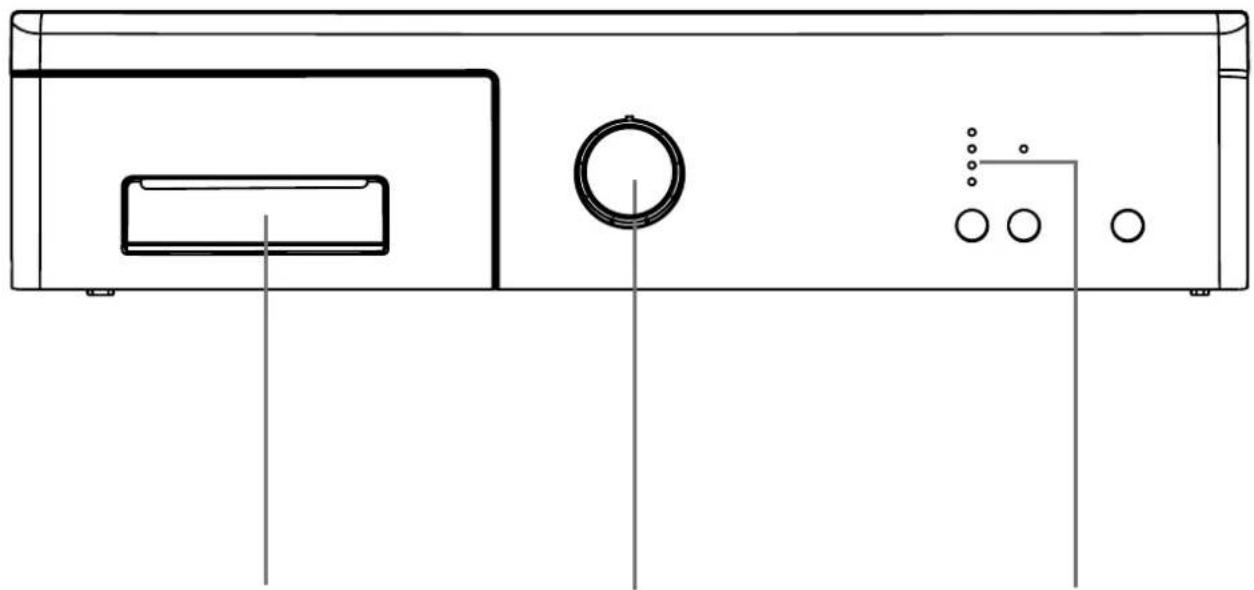

ROZDZIAŁ 4: WPROWADZENIE DO PANELU STERUJĄCEGO

Line drawing of a washing machine with an inset showing internal components (no text or symbols)

Technical line drawing of a vertical cylindrical device with internal components, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical component inside a circular frame (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Geometric diagram of a triangle with two intersecting lines forming an angle (no text or symbols)

Line drawing of a washing machine with a handle inserting into it (no text or symbols)

Line drawing of a washing machine with front panel and side vent (no text or symbols)

⚠️ UWAGA:

Simple line drawing of an electric plug with a cable (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

SYSTEM WYKRYWANIA POŁOWY WSADU

Simple line drawing of an electrical outlet with a plug and cable (no text or symbols)

Illustration of a hand using a tool to adjust or install a pipe fitting (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of hands assembling a mechanical component (no text or symbols)

OSTRZEŻENIE:

Mechanical assembly diagram showing gear and housing components with directional arrows (no text or symbols)

Technical illustration of a mechanical component with two views: top shows internal gear-like structure, bottom shows circular housing (no text or symbols)

Illustration of hands performing a manual procedure with a tool (no text or symbols present)

Diagram of mechanical components with highlighted parts, showing rotational and linear motion (no text or symbols)

Simple line drawing of a mechanical component with a warning triangle and a circular inset (no text or symbols)

Diagram showing three steps of washing machine operation: opening, adjusting a dial, and closing with a magnified inset.

Technical line drawing of a mechanical device with internal compartments and housing (no text or symbols)

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols)

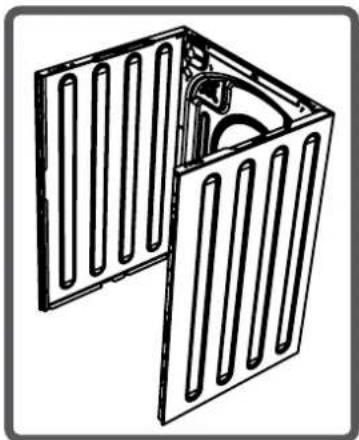

OBUDOWA

Technical line drawing of a 3D panel or enclosure with internal compartments and ventilation slots (no text or symbols)

BEBEN

Simple line drawing of a mug with handle and side rim (no text or symbols)

Czekolada i kakao:

Simple line drawing of a steaming cup with swirling smoke (no text or symbols)

Simple line drawing of a pitcher with liquid and handle (no text or symbols)

Musztarda:

Simple line drawing of a coffee maker with a dome and chimney, no text or symbols present

Owoce:

Simple line drawing of an orange fruit with a leaf on top, enclosed in a square frame (no text or symbols)

Plamy od trawy:

Line drawing of a paintbrush with a handle and bristles (no text or symbols)

Osmalenia:

Illustration of a waffle ice cream cone with chocolate swirls (no text or symbols)

Pleśń:

USER MANUAL WASHING MACHINE KFWM I 6501

KERNAU KFWM I 6501 Szybki 27 Szybki 6C Moło / Hoścule Mix Kolorsen 40°C People reciesie/ Dolubuń Wrożewite Pladzans Wolka Rasotha 90°C Rasotha z Plassom Wolganym Rasotha 60°C Eio 40-60 Rasotha 30°C Tumstycjane Wolka Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg Lg

www.kernau.com

CONTENTS

CHAPTER 1: SAFETY INSTRUCTIONS ...... 60

• GENERAL SAFETY WARNINGS 61
• SAFETY WARNINGS 63
  • DURING USE 65
• PACKAGING AND ENVIRONMENT 66
  • SAVINGS INFORMATION 66

CHAPTER 2: TECHNICAL SPECIFICATIONS ...... 67

• GENERAL APPEARANCE 67
• TECHNICAL SPECIFICATIONS 69

CHAPTER 3. INSTALLATION ...... 70

• REMOVING THE TRANSIT BOLTS 70

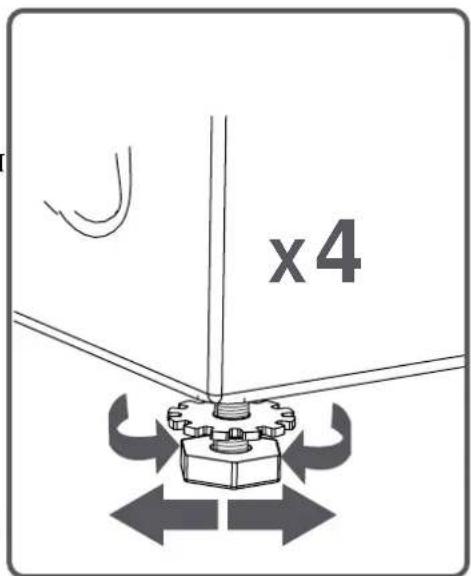

• ADJUSTING THE FEET / ADJUSTING ADJUSTABLE \$AYS...... 71
  • ELECTRICAL CONNECTION 72
• WATER INLET HOSE CONNECTION 72
• WATER DISCHARGE CONNECTION 3

CHAPTER 4. CONTROL PANEL OVERVIEW ...... 74

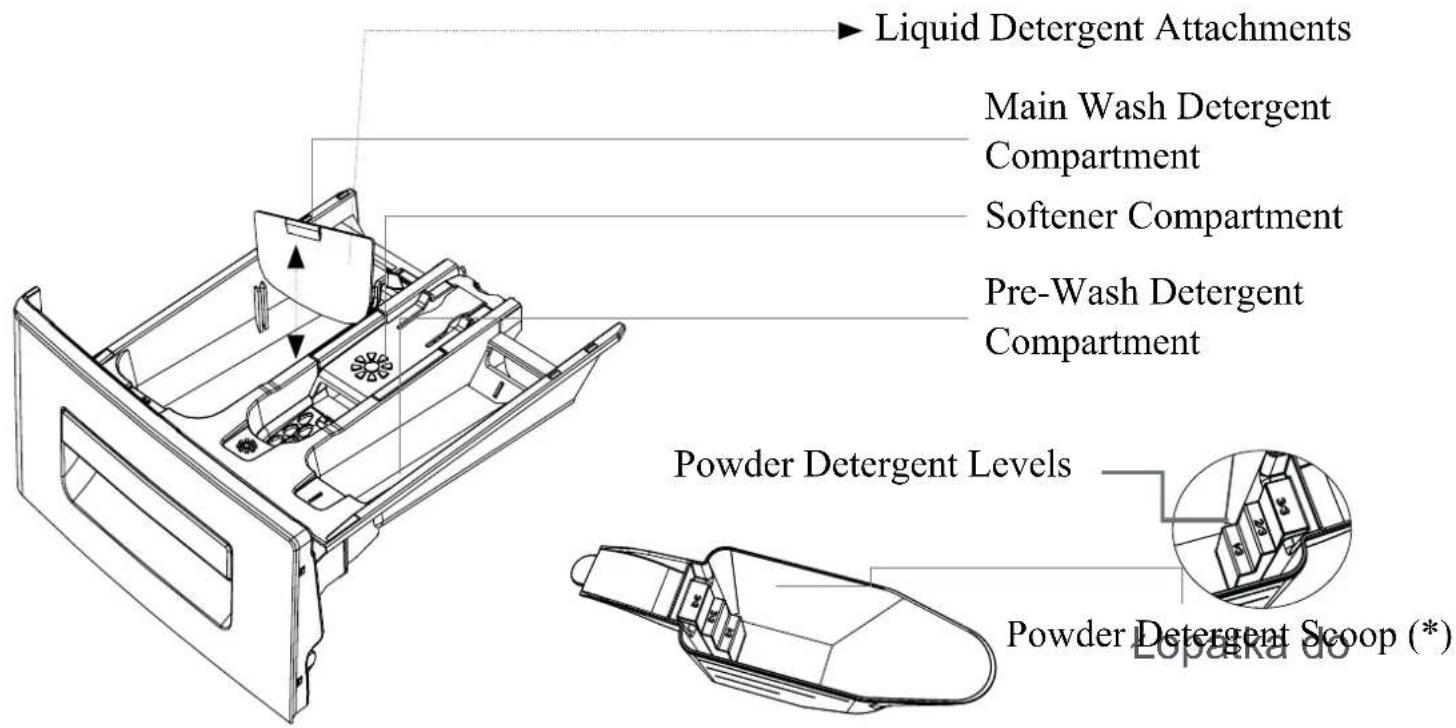

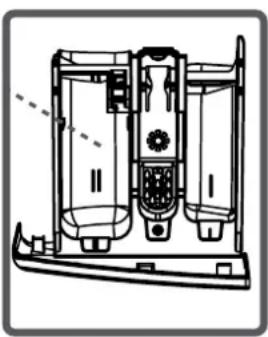

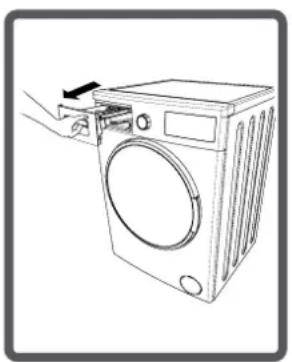

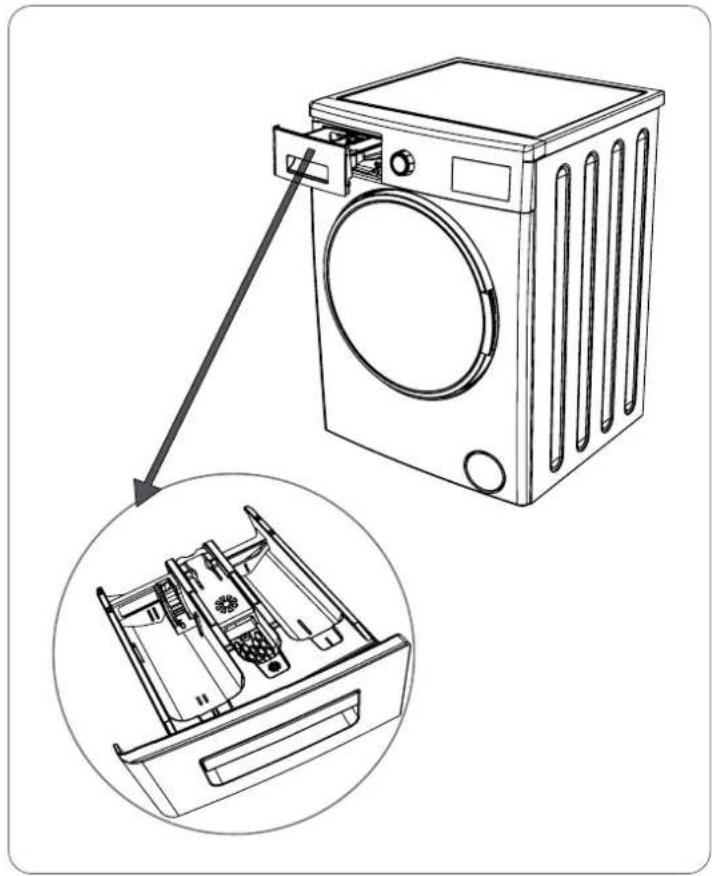

• DETERGENT DRAWER 75
  • PROGRAM DIAL 76
• ELECTRONIC DISPLAY 77

CHAPTER 5. USING YOUR WASHING MACHINE .... 78

• PREPARING YOUR LAUNDRY 78
• PUTTING LAUNDRY IN THE MACHINE 80
• ADDING DETERGENT TO THE MACHINE 81
  • OPERATING YOUR MACHINE 81
• ADDITIONAL FUNCTIONS 83
• CHILD LOCK 84
• CANCELLING THE PROGRAMME 8
  • PROGRAMME END ...... 8

CHAPTER 6. PROGRAMME TABLE 86

CHAPTER 7. CLEANING AND MAINTENANCE ...... 94

• WARNING 94
• WATER INLET FILTERS 94
• PUMP FILTER 95
• DETERGENT DRAWER 96

CHAPTER 8. FLUSH STOPPER/ BODY / DRUM ...... 97

CHAPTER 9. TROUBLESHOOTING ...... 98

CHAPTER 10. AUTOMATIC FAULT WARNINGS AND WHAT TO DO... 101

CHAPTER 11. PRACTICAL INFORMATION ...... 102

• DISPOSAL OF USED EQUIPMENT 105

CHAPTER 1: SAFETY INSTRUCTIONS

Operating voltage / frequency (220-240) V~/50Hz
Total current (A) 10
Water pressure (Mpa)	Maximum: 1 MpaMinimum: 0,1 Mpa
Total power (W) 2100
Maximum washing capacity (dry laundry) (kg)	6

• Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of appliance by a person responsible for their safety.
• Children of less than 3 years should be kept away unless continuously supervised.
• Call the nearest authorized service centre for a replacement if the power cord malfunctions.
• Use only the new water inlet hose coming with your machine when making water inlet connections to your machine. Never use old, used or damaged water inlet hoses.
• Children should not play with the appliance. Cleaning and user maintainans should not be made by children without supervision.

GENERAL SAFETY WARNINGS

- Read this user manual carefully.

- Your machine is for domestic use only. Using it for commercial purposes will cause your warranty to be cancelled.

- This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

- The necessary ambient temperature for operation of your Washing Machine is 15-25 °C.

- Where the temperature is below 0^ , hoses may split or the electronic card may not operate correctly.

- Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins.

- It is recommended that for your first wash, you select the 90^ Cotton programme without laundry and half fill compartment II of the detergent drawer with a suitable detergent.

- Residue may build up on detergent and softeners exposed to air for a long period of time. Only put softener or detergent in the drawer at the beginning of each wash.

- Unplug your Washing Machine and switch off the water supply if the Washing Machine is left unused for a long time. We also recommend that you leave the door open to prevent build up of humidity inside the Washing Machine.

- Some water may be left in your Washing Machine as a result of quality checks during production. This will not affect the operation of your Washing Machine.

- The packaging of the machine could be hazardous to children. Do not a children to play with the packaging or small parts from the Washing Machine.

- Keep the packaging materials in a place where children cannot reach them or dispose of them appropriately.

- Use pre-wash programs only for very dirty laundry.

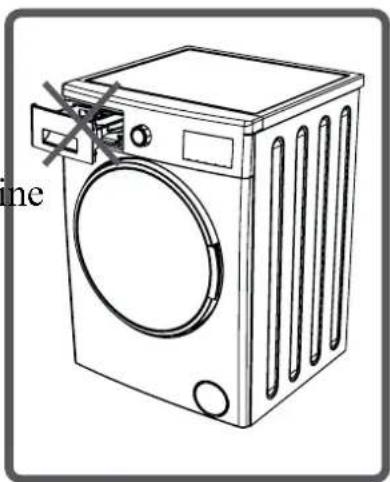

- Never open the detergent drawer while the machine is running.

- In the event of a breakdown, unplug the machine from the mains supply and turn the water supply off. Do not attempt to carry out any repairs. Always contact an authorised service agent.

Line drawing of a washing machine with a door and front panel, no text or symbols present

- Do not exceed the maximum load for the washing programme you have chosen. Never force the door open when your Washing Machine is running.

- Washing laundry containing flour may damage your machine.

- Please follow the manufacturers' instructions regarding the use of fabric conditioner or any similar products that you intend to use in your Washing Machine.

Line drawing of a washing machine with no text or symbols

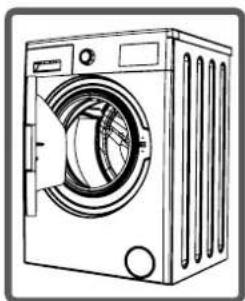

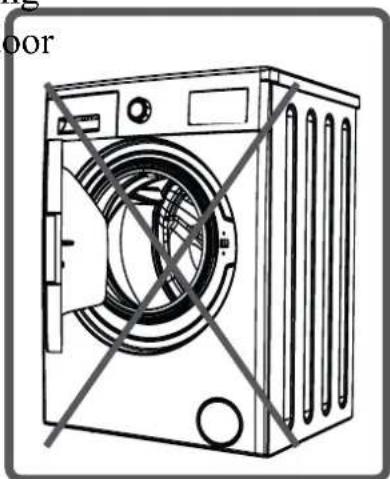

- Make sure that the door of your Washing Machine is not restricted and can be opened fully.

• Install your machine in a location that can be fully ventilated and preferably has constant air circulation.

SAFETY WARNINGS

- Read these warnings. Follow the advice given to protect yourself and others from risks and fatal injuries.

RISK OF BURNS!

- Do not touch the drain hose or any discharged water while Washing Machine is running. The high temperatures involved pose a burn risk.

RISK OF DEATH FROM ELECTRICAL CURRENT!

- Do not connect your Washing Machine to the m electricity supply using an extension lead.

- Do not insert a damaged plug into a socket.

- Never remove the plug from the socket by pulling the cord. Always hold the plug.

- Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

- Do not touch your Washing Machine if your hands or feet are wet.

- A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, should only be done by qualified personnel.

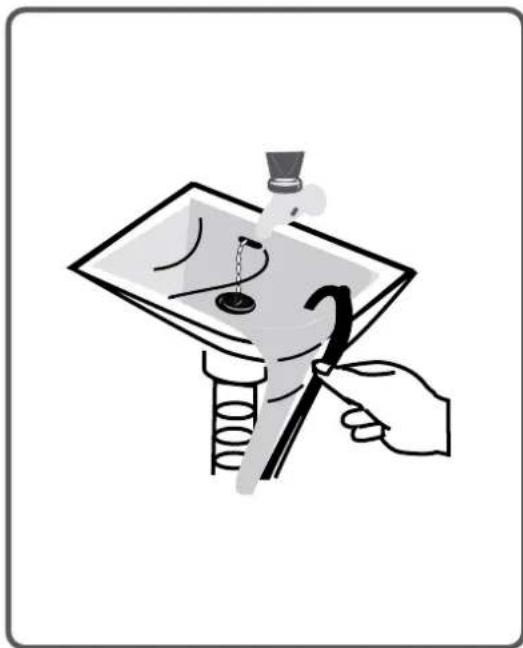

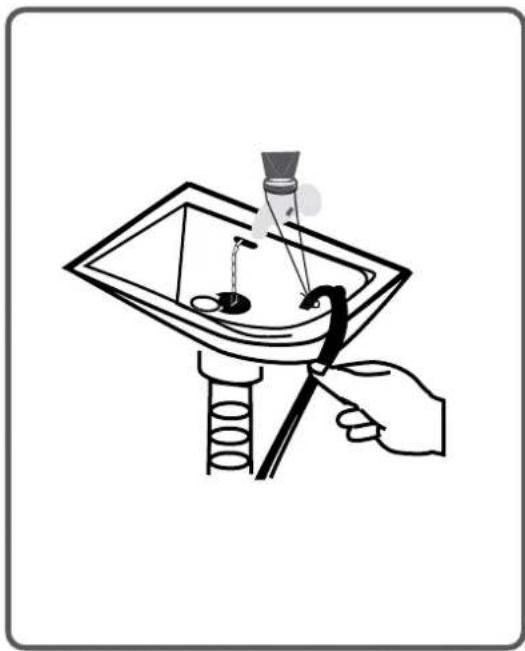

RISK OF FLOODING!

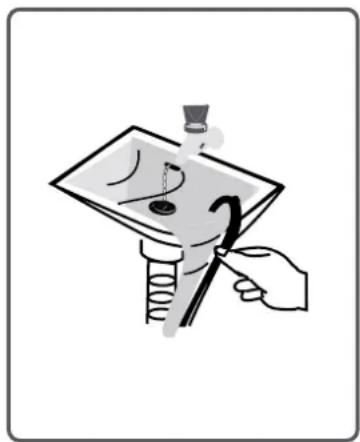

- Check the speed of water flow before placing the drain hose in a sink.

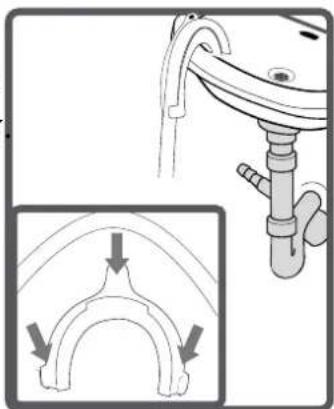

• Take necessary measures to prevent the hose from slipping.

- Water flow may dislodge the hose if it is not properly secured. Make sure the plug in your sink does not block the plug hole.

Illustration of a hand using a tool to clean or inspect a test tube with a funnel (no text or symbols)

Illustration of a hand using a tool to clean or inspect a surface with a funnel and pipe (no text or symbols)

DANGER OF FIRE!

- Do not store inflammable liquids near your machine.

- The sulphur content of paint removers may cause corrosion. Never use p. removing materials in your machine.

- Never use products that contain solvents in your machine.

- Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins.

- Risk of fire and explosion.

RISK OF FALLING AND INJURY!

- Do not climb on your Washing Machine.

- Make sure hoses and cables do not cause a trip hazard.

- Do not turn your Washing Machine upside down or on its side.

- Do not lift your Washing Machine using the door or detergent drawer.

• The machine must be carried by at least 2 people.

Line drawing of two workers holding a large washing machine (no text or symbols)

CHILD SAFETY!

- Do not leave children unattended near the machine. Children might lock themselves in the machine resulting in risk of death.

- Do not allow children to touch the glass door during operation. The sur becomes extremely hot and may cause damage to skin.

- Keep packaging material away from children.

- Poisoning and irritation may occur if detergent and cleaning materials are consumed or come into contact with the skin and eyes. Keep cleaning materials out of the reach of children.

Illustration of a hand holding a bandage or tape, no text or symbols present

DURING USE

- Keep pets away from your machine.

- Please check the packaging of your machine before installation and the ou surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

- Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

- This appliance can be used by children aged 8 years and above and pe with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

- Only use your machine for laundry that is labelled as suitable for washing by the manufacturer.

- Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed they may cause heavy vibration, noise and malfunction of the machine and cause the guarantee to be void.

- Your warranty does not cover damage caused by external factors such as fire, flooding and other sources of damage.

- Please do not throw away this user manual; keep it for future reference and pass it onto the next owner.

NOTE:

Specifications for the machine may vary depending on the product purchased.

PACKAGING AND ENVIRONMENT

REMOVAL OF PACKAGING MATERIALS

Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

SAVINGS INFORMATION

Some important information to get the most efficient use out of your machine:

- Do not exceed the maximum load for the washing programme you have chosen. This will allow your machine to run in energy saving mode.

- Do not use the pre-wash feature for lightly soiled laundry. This will help you save on the amount of electricity and water consumed.

CE DECLARATION OF CONFORMITY

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

CHAPTER 2: TECHNICAL SPECIFICATIONS

GENERAL APPEARANCE

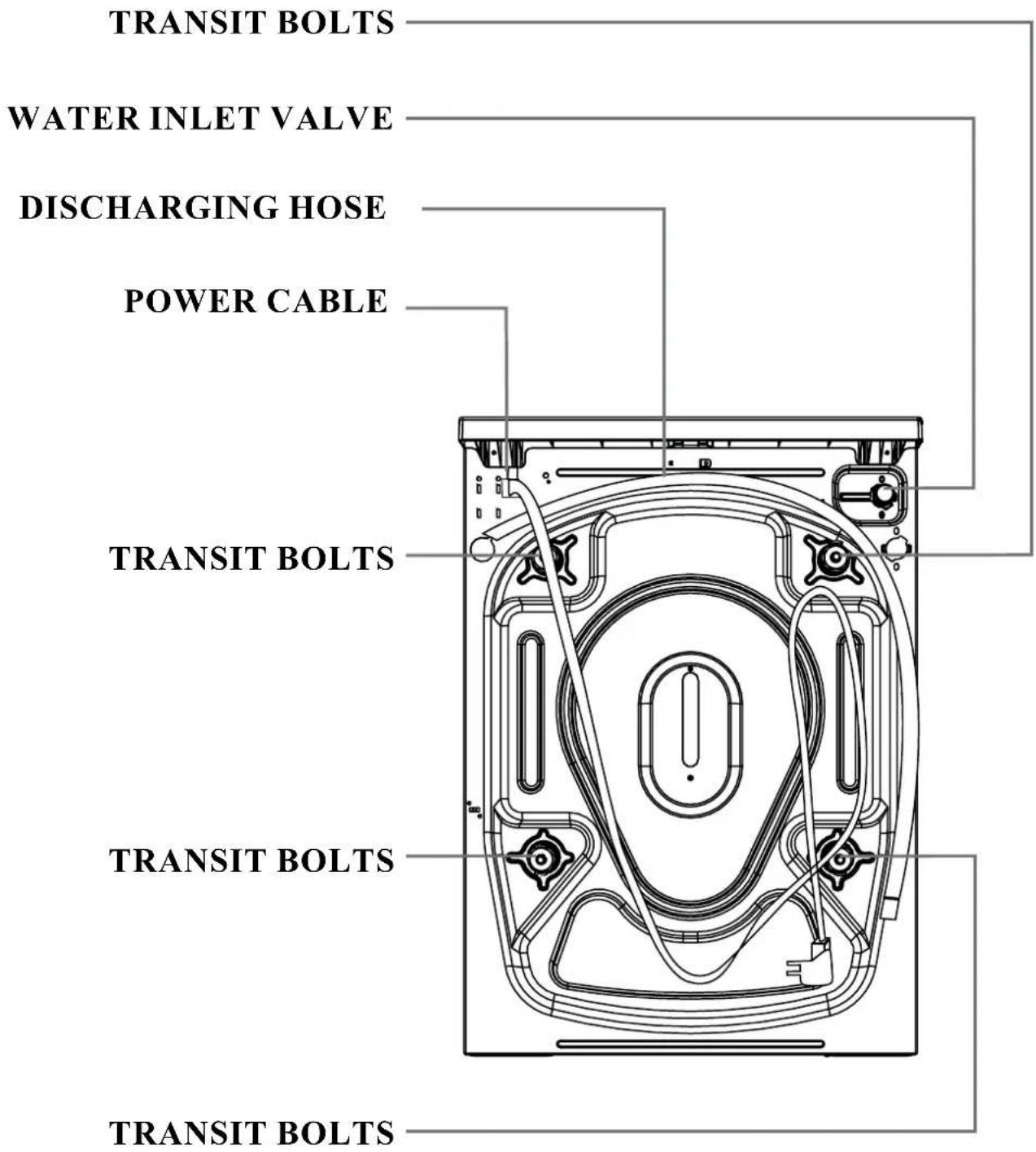

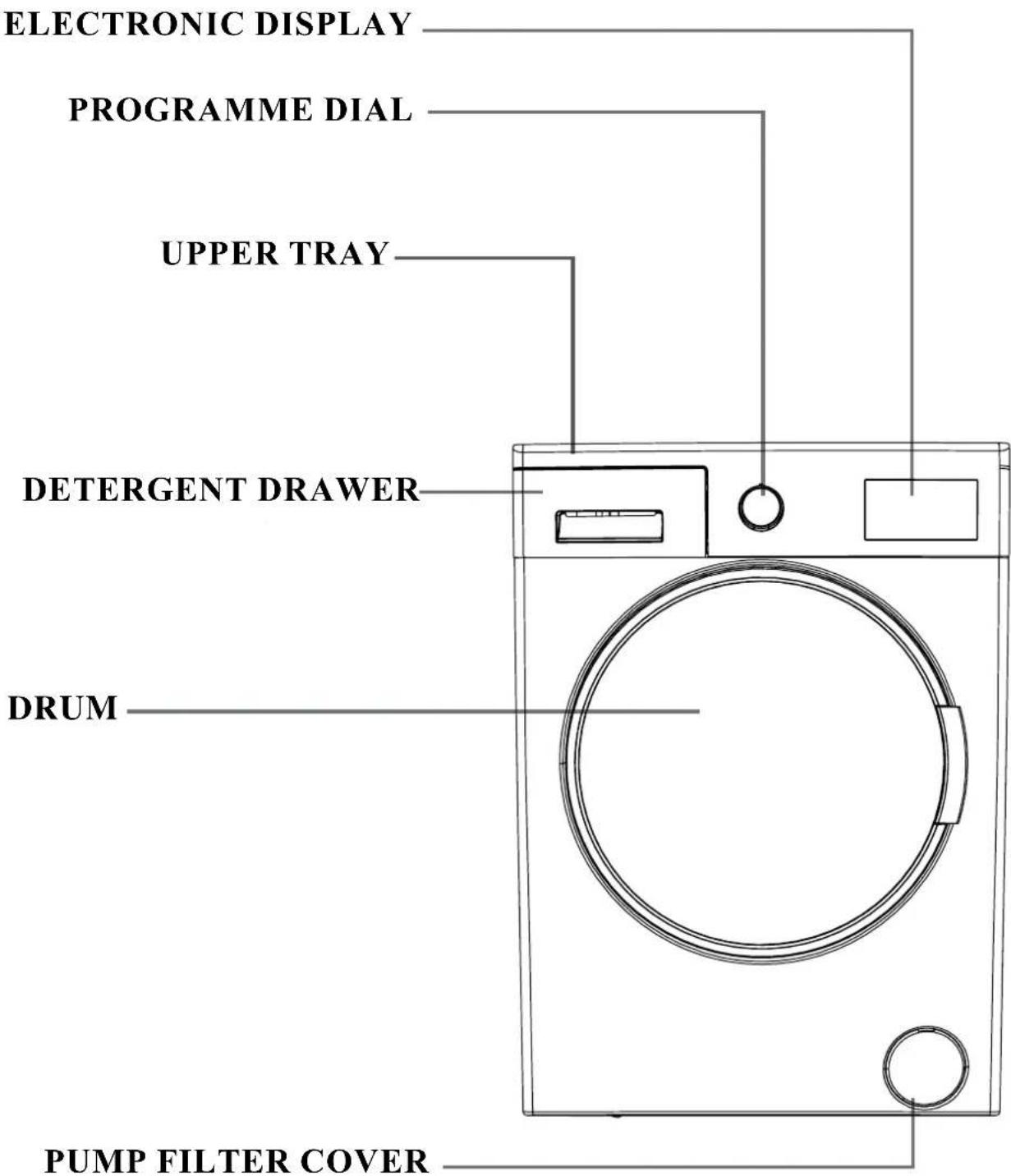

ELECTRONIC DISPLAY PROGRAMME DIAL UPPER TRAY DETERGENT DRAWER DRUM PUMP FILTER COVER

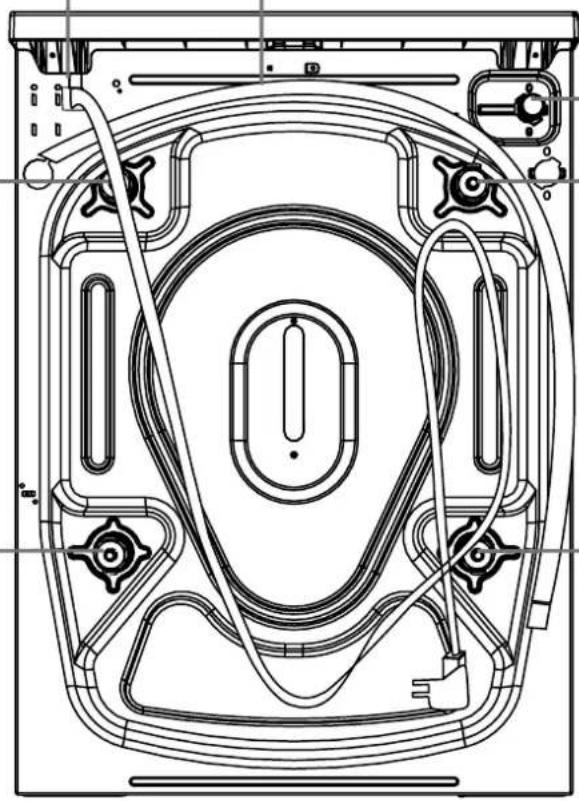

TRANSIT BOLTS WATER INLET VALVE DISCHARGING HOSE POWER CABLE TRANSIT BOLTS TRANSIT BOLTS TRANSIT BOLTS

TECHNICAL SPECIFICATIONS

OPERATING VOLTAGE / FREQUENCY (V/HZ)	(220-240) V~/50 HZ
TOTAL CURRENT (A) 10
WATER PRESSURE (MPA)	MAXIMUM: 1 MPA MINIMUM : 0,1
TOTAL POWER (W) 2100
MAXIMUM DRY LAUNDRY CAPACITY (KG)	6
SPINNING REVOLUTION (REV / MIN)	1000
PROGRAMME NUMBER 15
DIMENSIONS (MM) HEIGHT X WIDTH X DEPTH	845 X 597 X 497

CHAPTER 3. INSTALLATION

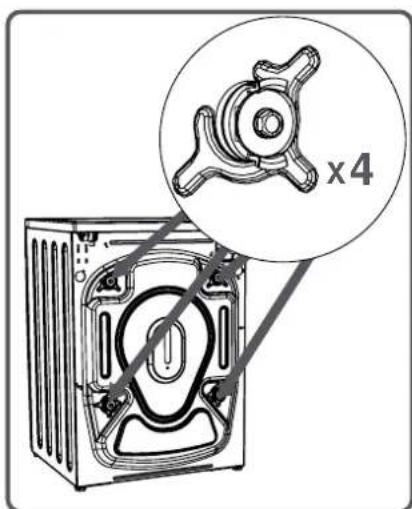

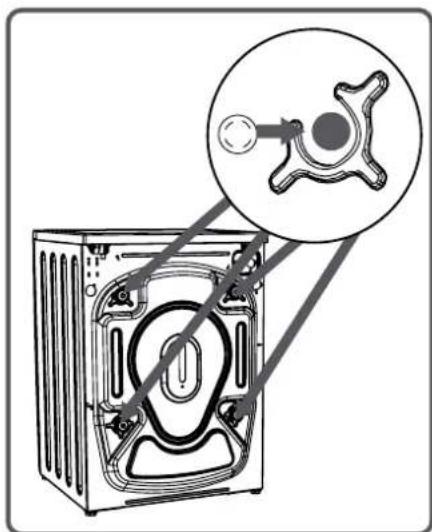

REMOVING THE TRANSIT BOLTS

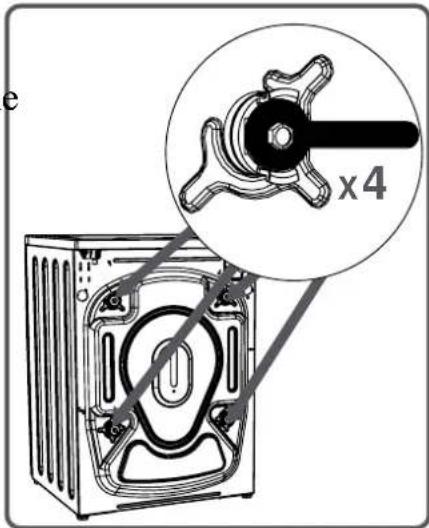

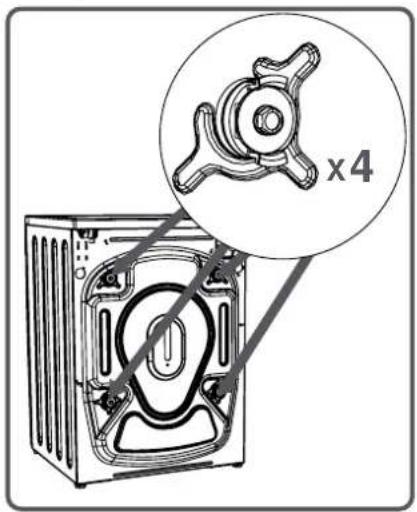

Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed, they may cause heavy vibration, noise and malfunction of the machine and void the warranty.

e x4

x4

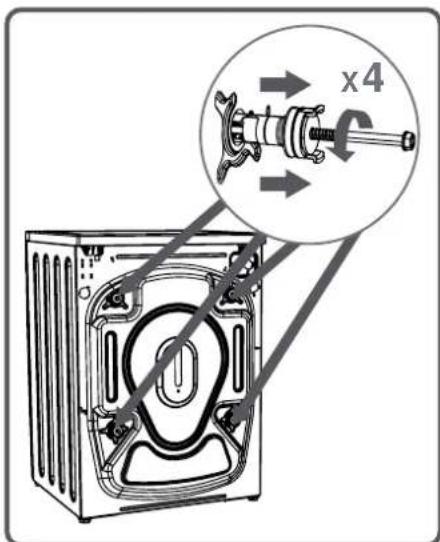

Loosen the transit bolts by turning them anticlockwise with an appropriate spanner.

Remove the transit bolts with a straight pull.

x4

Fit the plastic blanking caps supplied in the accessories bag into the gaps left by the removal of the transit bolts.

Diagram of a washing machine with an inset showing internal components (no text or labels)

The transit bolts should be stored for future use.

NOTE:

Remove the transit bolts before using the machine for the first time. Faults occurring due to the machine being operated with transit bolts fitted are out of the scope of the warranty.

- Do not install your machine on surface (such as carpet) that would prevent ventilation at the base.

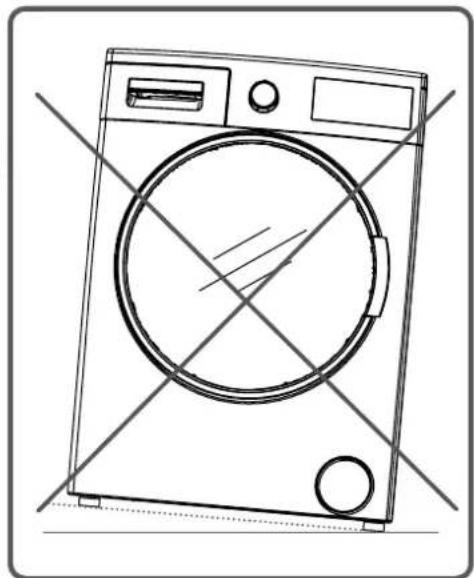

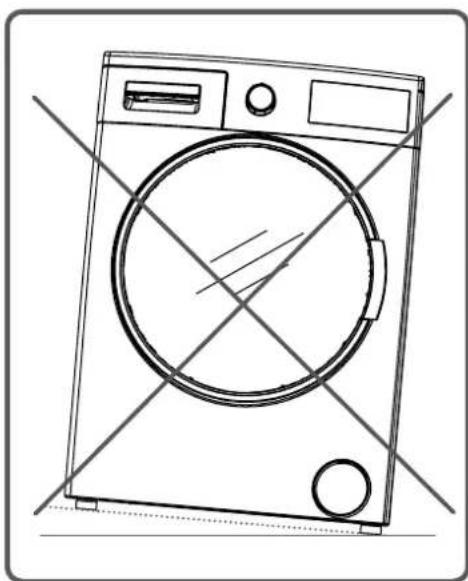

• To ensure silent and vibration-free operation of your machine, install it on a firm surface.

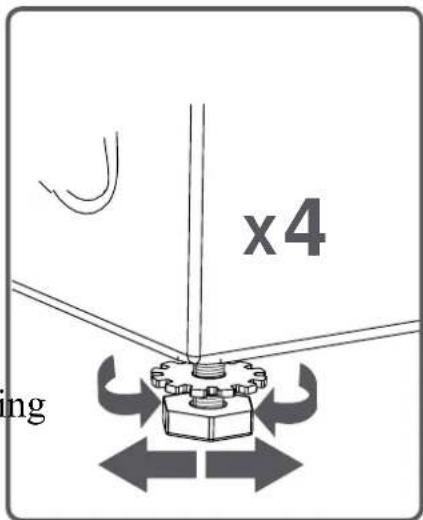

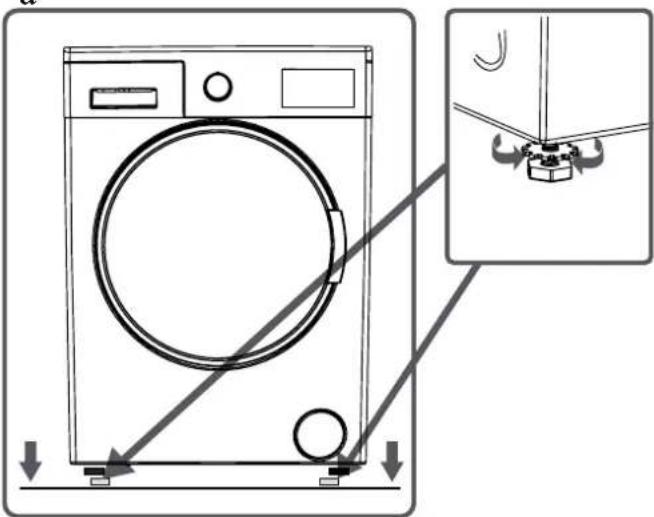

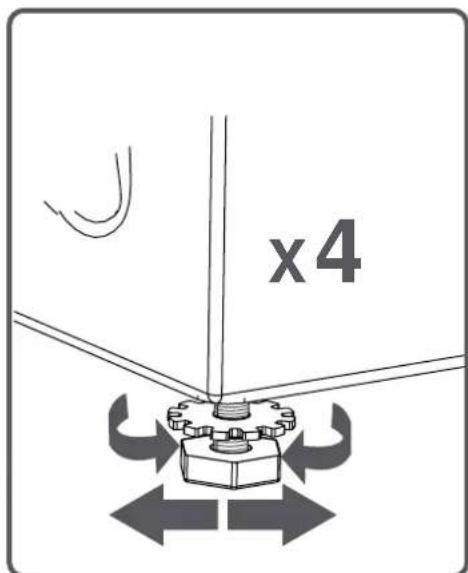

- You can level your machine using the adjustable feet.

- Loosen the plastic locking nut.

- To increase the height of the machine, turn the feet clockwise. To decrease the height of the machine, turn the feet anticlockwise.

- Once the machine is level, tighten the locking nuts by turning them clockwise.

- Never insert cardboard, wood or other similar materials under the machine to level it.

- When cleaning the ground on which the machine is located, take care not to disturb the level of the machine.

Diagram showing a washing machine with a close-up view of its internal components, including a mechanical clamp and directional arrows indicating motion.

x4 ing

Line drawing of a washing machine with circular vent and side buttons (no text or symbols)

ELECTRICAL CONNECTION

- Your Washing Machine requires a 220-240V, 50Hz mains supply.

- The mains cord of your washing machine is equipped with an earthed plug. This plug should always be inserted to an earthed socket of 10 amps.

- If you do not have a suitable socket and fuse conforming with this, please ensure the work is carried out by a qualified electrician.

- We do not take responsibility for damage that occurs due to the use of ungrounded equipment.

Diagram showing two electrical connectors with a power outlet, indicating installation or connection steps.

NOTE:

Operating your machine with low voltage will cause the life cycle of your machine to be reduced and its performance to be restricted.

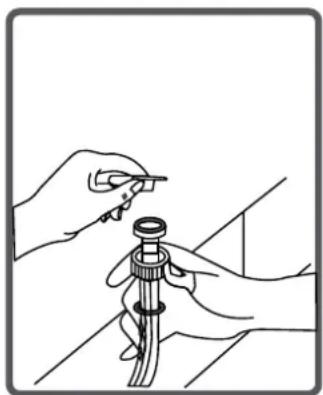

WATER INLET HOSE CONNECTION

- Your machine may have either a single water inlet connection (cold) or double water inlet connection (hot and cold) depending

on the machine specifications. The white capped hose should be connected to cold water inlet and red capped hose to the hot water inlet (if applicable).

- To prevent water leaks at the joints, either 1 or 2 nuts (depending on your machine's specifications) are supplied in the packaging with the hose. Fit these nuts to the end(s) of the water inlet hose that connect to the water supply.

- Connect new water inlet hoses to a 3/4" , threaded tap.

- Connect the white capped end of the water inlet hose to the white water inlet valve on the rear side of the machine and the red capped end of the hose to the red water inlet valve (if applicable).

- Hand tighten the connections. If in any doubt, consult a qualified plumber.

- Water flow with pressure of 0.1-1 Mpa will allow your machine to operate at optimum efficiency (pressure of 0.1 Mpa means that more than 8 litres of water per minute will flow through a fully opened tap).

Line drawing of a coiled hose with two connectors (no text or symbols)

3/4" 10 mm line and at valve

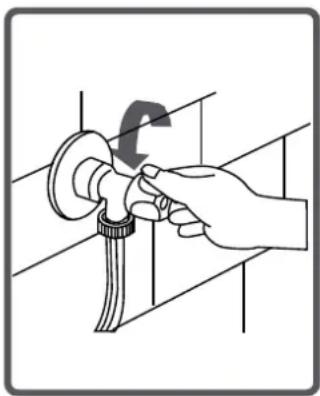

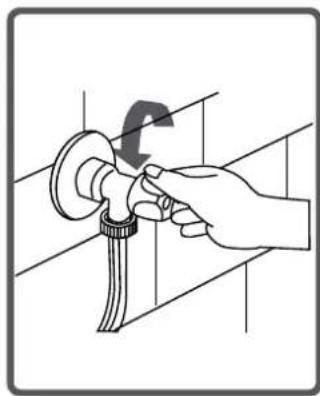

- Once you have made all of the connections, carefully turn the water supply on and check for leaks.

- Ensure that the new water inlet hoses are not trapped, kinked, twisted, folded or crushed.

- If your machine has a hot water inlet connection, the temperature of the hot water supply should not be higher than 70^ C .

NOTE:

Your Washing Machine must only be connected to your water supply using the supplied new fill hose. Old hoses must not be reused.

Diagram of a car fuel pump with valve and valve (no text or labels)

Illustration of a hand adjusting a showerhead valve on a tiled wall, with no text or symbols present.

WATER DISCHARGE CONNECTION

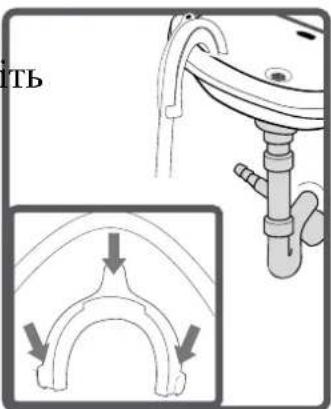

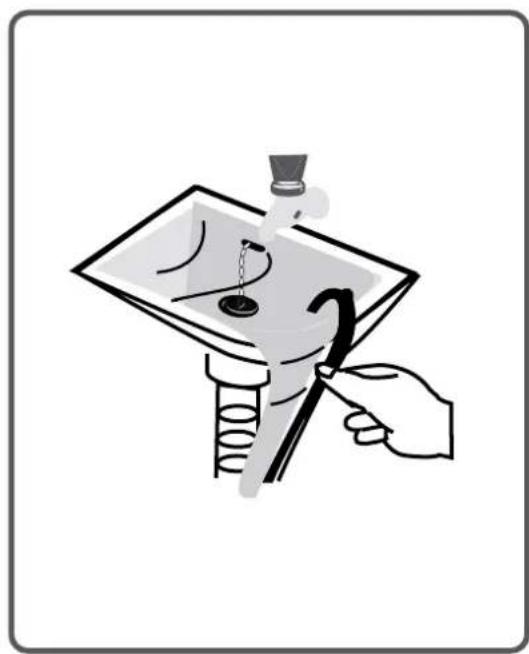

- Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional equipment.

- Never attempt to extend the water drain hose.

- Do not put the water drain hose from your machine container, bucket or bathtub.

- Make sure that the water drain hose is not bent, buckled, crushed or extended.

- The water drain hose must be installed at a maximum height of 100 cm from the ground.

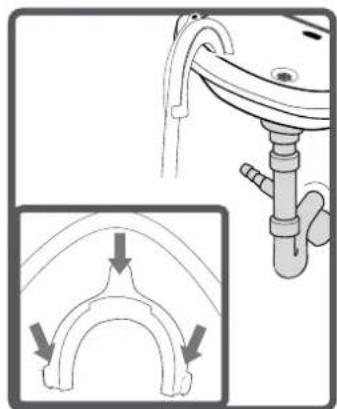

Diagram of a pipe outlet with a bulb and tubing, no text or symbols present

Diagram showing a mechanical component with an inset view of a curved structural element (no text or symbols)

~ 95 cm ~ 140 cm ~ 145 cm ~ 95 cm ~ 95 cm ~ 150 cm 0 - max. 100 cm

CHAPTER 4. CONTROL PANEL OVERVIEW

Technical line drawing of a device rear panel with labeled components (no text or symbols)

Detergent drawer Programme Dial
Function LEDs

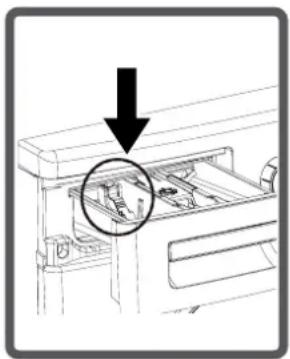

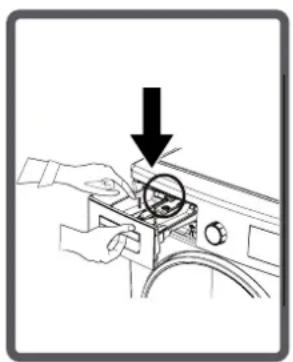

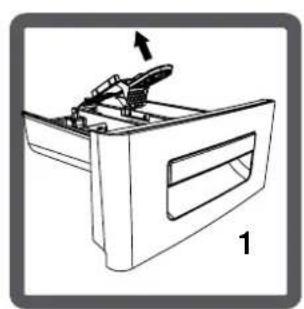

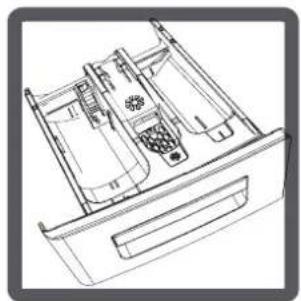

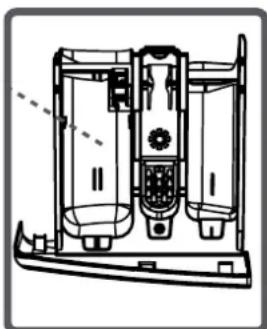

DETERGENT DRAWER

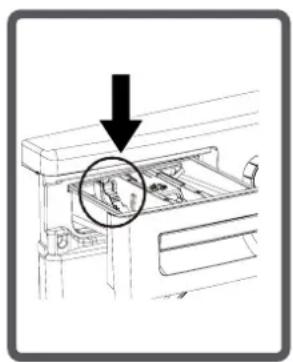

Line drawing of a washing machine with an inset showing internal components (no text or symbols)

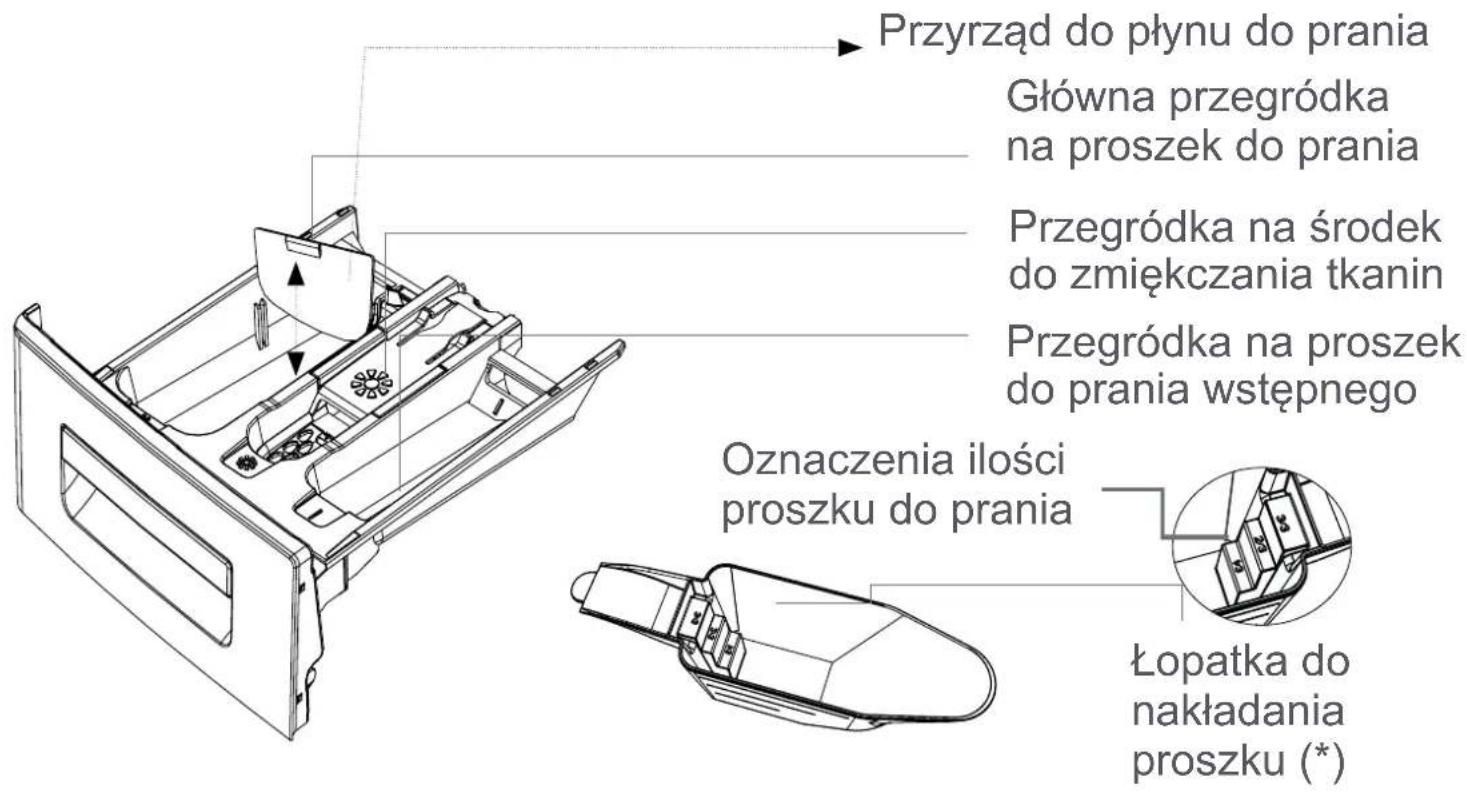

Liquid Detergent Attachments Main Wash Detergent Compartment Softener Compartment Pre-Wash Detergent Compartment Powder Detergent Levels Powder Detergent Scoop (*)

(*) Specifications may vary depending on the machine purchased.

SECTIONS

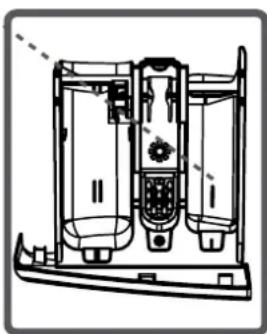

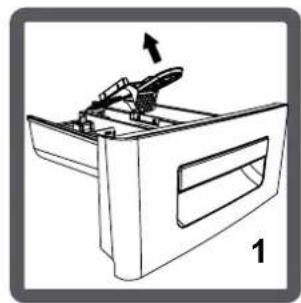

Main wash detergent compartment:

This compartment is for liquid or powder detergents or limescale remover. The fluid detergent level plate will be supplied inside your machine. (*)

Technical line drawing of a cylindrical device with a base and lever mechanism, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

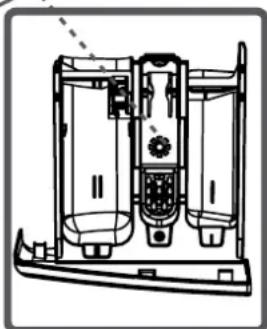

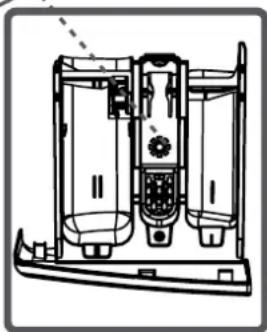

Fabric conditioner, starch, detergent compartment:

This compartment is for softeners, conditioners or starch. Follow the instructions on the packaging. If softeners leave residue after use, try diluting them or using a liquid softener.

Technical line drawing of a mechanical device with internal components and a flower-like pattern (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

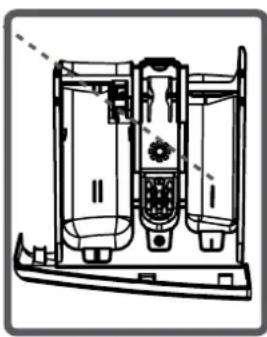

Pre-wash detergent compartment:

This compartment should be used only when the pre-wash feature is selected. We recommend that the pre-wash feature is used only for very dirty laundry.

Technical line drawing of a mechanical component inside a circular frame (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

(*) Specifications may vary depending on the machine purchased.

PROGRAM DIAL

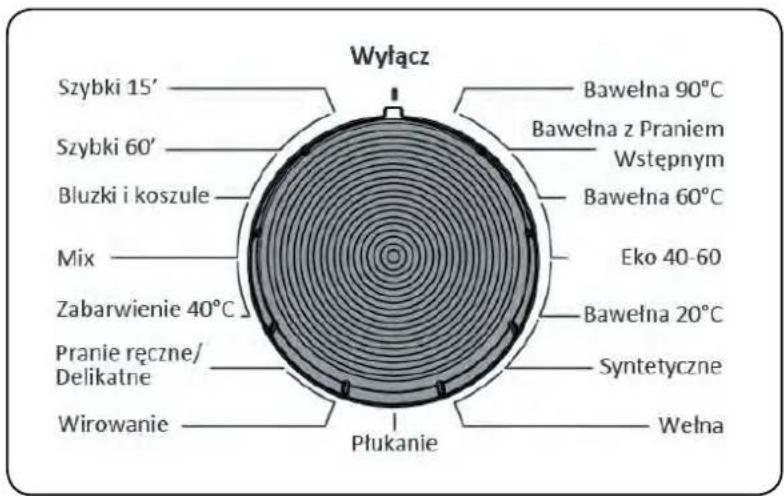

• To select the desired programme, turn the programme dial either clockwise or anti-clockwise until the marker on the programme dial points to the chosen programme.
• Make sure that the programme dial is set exactly to the programme you want.

Display Panel Washing Rinsing Spinning End Additional Function LEDs Start/Pause Button Additional function Button 2

Additional function Button 1

The function LEDs show how much longer the programme has to run, the additional functions you have selected and the wash stages of the selected programme ( pre wash / wash state, rinsing stage, spinning stage).

The display panel shows “Finished” when the selected programme is complete. The display panel also indicates if a fault has occurred with your machine

CHAPTER 5. USING YOUR WASHING MACHINE

PREPARING YOUR LAUNDRY

• Follow the instructions given in the care labels on the clothing.
• Separate your laundry according to type (cotton, synthetic, sensitive, wool etc.), washing temperature (cold, 30^ , 40^ , 60^ , 90^ ) and the degree of dirtiness (slightly stained, stained, highly stained).
• Never wash coloured and white laundry together.
• Dark textiles may contain excess dye and should be washed separately several times.
• Ensure that there are no metallic materials on your laundry or in the pockets; if so, remove them.

CAUTION:

Any malfunctions which occur due to foreign materials damaging machine are not covered by the warranty.

• Close zips and fasten any hooks and eyes.
• Remove the metallic or plastic hooks of curtains or place them in a washing net or bag.
• Reverse textiles such as pants, knitwear, t-shirts and sweat shirts.
• Wash socks, handkerchiefs and other small items in a washing net.

Can be bleached Do

it bleach Normal washing

Simple line drawing of two cups with different liquid levels, no text or symbols present

Maximum ironing temperature 150°C

Maximum ironing temperature 200°C

Do not iron

Simple geometric diagram with a circle above a horizontal line, no text or symbols present.

Simple geometric diagram with intersecting lines and a circle, no text or symbols present

- Dry flatNo dry c

Drip dry

Hang to dry

Do not tumble dry

F Dry cleaning in gas oil, pure alcohol and R113 is allowed

P Perchloroethylene R11, R13, Petroleum

A Perchlorinetyhlene R11, R113, Gas oil

PUTTING LAUNDRY IN THE MACHINE

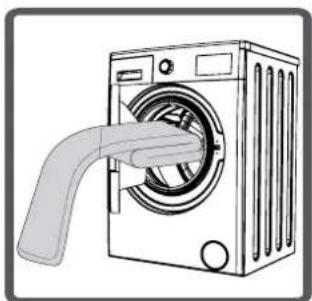

- Open the door of your machine.

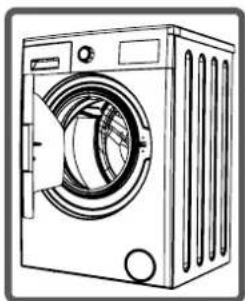

Line drawing of a washing machine with a handle inserting into the air (no text or symbols)

Line drawing of a washing machine with front panel and side vent (no text or symbols)

- Spread your laundry evenly in the machine.

NOTE:

Take care not to exceed the maximum load of the drum as this will give poor wash results and cause creasing.

Refer to the washing programme tables for information on load capacities.

The following table shows approximate weights of typical laundry items:

LAUNDRY TYPE WEIGHT (GR)
Towel 200
Linen 500
Bathrobe 1200
Quilt cover 700
Pillow slip 200
Underwear	100
Tablecloth	250

- Load each item of laundry separately.

- Check that no items of laundry are trapped between the rubber seal and the door.

• Gently push the door until it clicks shut.

- Make sure the door is fully closed, otherwise the programme will not start.

Line drawing of a washing machine with a circular dial and a 'click' button, no text or symbols present.

ADDING DETERGENT TO THE MACHINE

The amount of detergent you will need to put in your machine will depend following criteria:

- If your clothes are only slightly soiled, do not pre-wash. Put a small air of detergent (as specified by the manufacturer) into compartment II of the detergent drawer.

- If your clothes are excessively soiled, select a programme with pre-wash and put 14 of the detergent to be used into compartment I of the detergent drawer and the rest in compartment II.

- Use detergents produced for automatic washing machines. Follow the manufacturer's instructions on the amount of detergent to use.

- In areas of hard water, more detergent will be required.

- The amount of the detergent required will increase with higher washing loads.

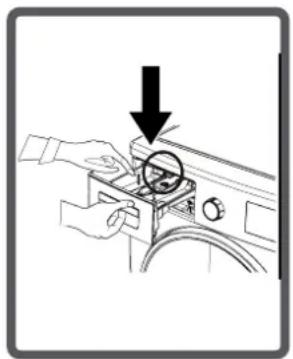

- Put softener in the middle compartment of the detergent drawer. Do not exceed the MAX level.

- Thick softeners may cause clogging of the drawer and should be diluted.

- It is possible to use fluid detergents in all programmes without a pre-wash. To do this, slide the fluid detergent level plate (*) into the guides in compartment II of the detergent drawer. Use the lines on the plate as a guide to fill the drawer to the required level.

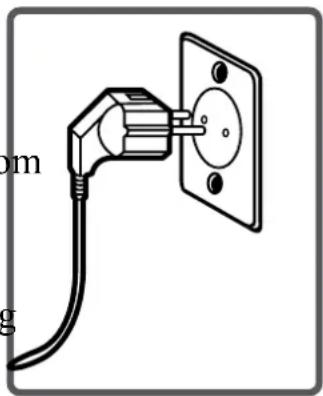

- Plug your machine in to the mains supply.

- Turn on the water supply.

- Open the machine door.

- Evenly spread your laundry in themachine.

- Gently push the door until it clicks shut.

Simple line drawing of an electrical outlet with a plug and cable (no text or symbols)

Illustration of a hand using a tool to clean or adjust a circular component (no text or symbols visible)

(*) Specifications may vary depending on the machine purchased.

SELECTING A PROGRAMME

Use the programme tables to select the most appropriate programme for your laundry.

HALF-LOAD DETECTION SYSTEM

Your machine features a half-load detection system. If you put less than half the maximum load of laundry into your machine it will automatically set the half-load function regardless of the programme you selected. This means that the selected programme will take less time to complete and will use less water and energy.

ADDITIONAL FUNCTIONS

Before starting a programme, you can select an additional function.

- Press the button on the Control Panel below the symbol of the additional function you wish to select.

- If the symbol of the additional function flashes continuously, the function has been activated.

- If the symbol of the additional function blinks, the function has not been selected.

REASON FOR NON-ACTIVATION:

- The additional function is not compatible with the selected washing programme.

- Your machine has progressed too far into the selected programme for the additional function to be possible.

- The additional function you have chosen is not compatible with another additional function you have already selected.

ADDITIONAL FUNCTIONS

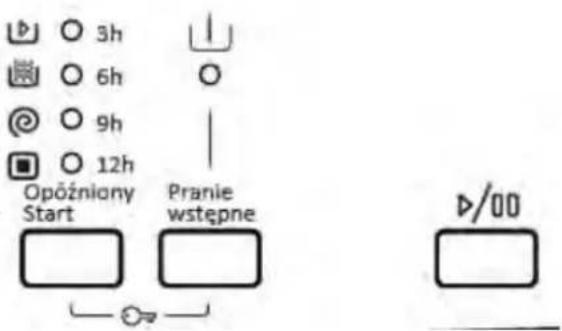

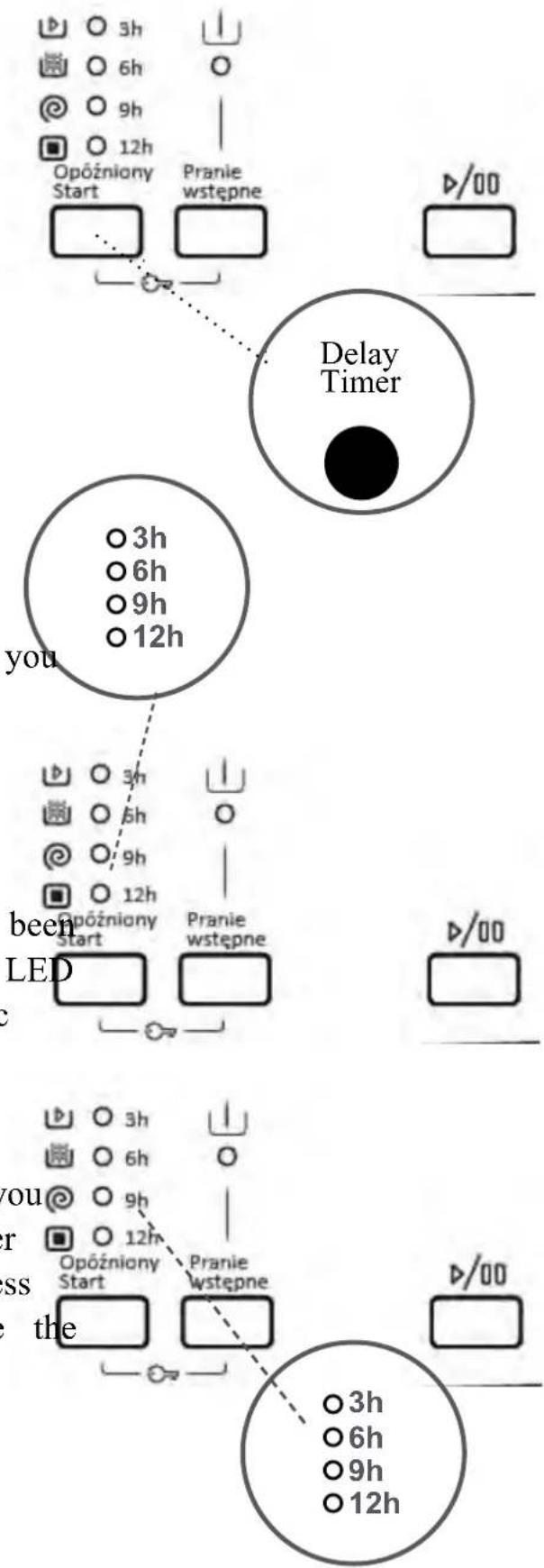

1. Delay Timer

- Press the Delay button once.

• The “3 h” LED indicator is lit.

- Press the Delay button until the desired delay period LED is lit.

- If you have skipped the delay time you wanted to set, keep pressing the Delay button until the desired delay time is displayed again.

- For the delay timer function to work, you must press Start/Pause button.

- To activate the time delay, press "Start/Pause" button.

• To cancel the time delay once it has set, press the Delay button once. The indicator will no longer flash on the electronic display.

- In order to add/remove laundry whilst the delay timer function is working, you must press the Start/Pause button. After adding/ removing laundry, you must press the Start/Pause button again to activate the delay timer function.

This allows you to give heavily soiled laund a pre-wash before the main washing programme takes place. When using this function, you should put detergent in the front washing compartment of the detergent drawer.


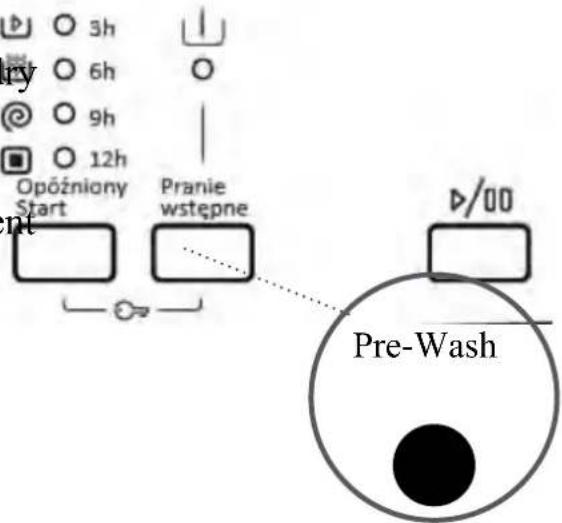

To select this function, press the Pre-wash button when the symbol is displayed.

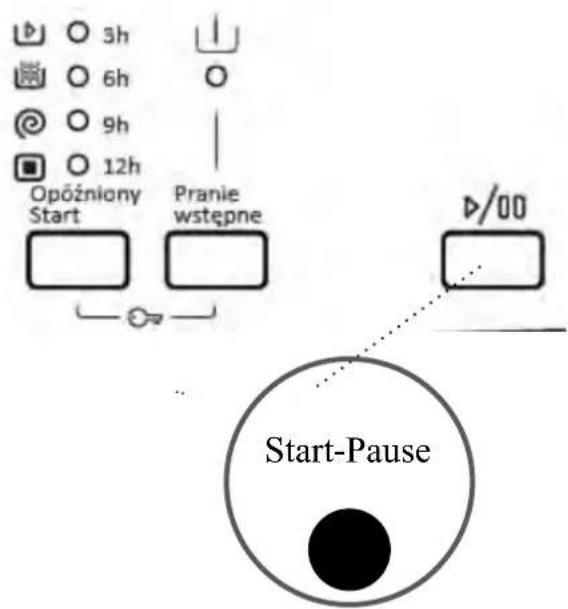

3. Start/Pause Button

To start the selected programme, press the Start/ Pause button.

If you switch your machine to standby mode, the Start/Pause indicator on the electronic display will blink.


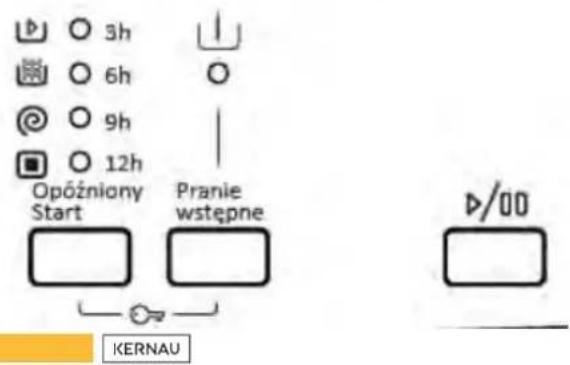

CHILD LOCK

The child lock function prevents the machine being operated unintentionally or unsupervised children.

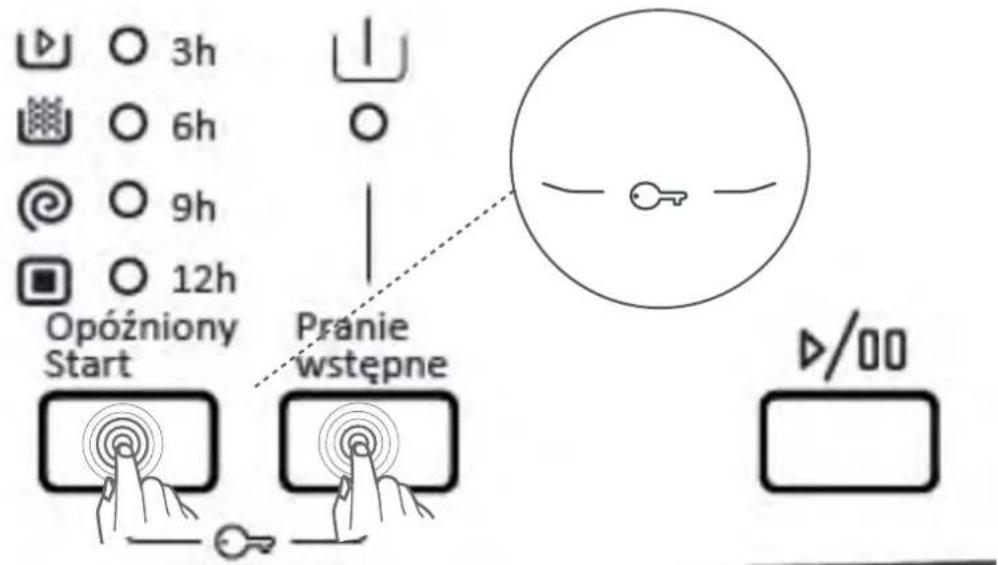

To activate the child lock, press and hold additional functions 1 and 2 but simultaneously for at least 3 seconds. The Additional Function LEDs will be lit on the control panel when the child lock is activated.

If any button is pressed while the child lock is active, the Additional Function LEDs on the control panel will blink.

If the child lock is engaged and any programme is running, when the programme dial is turned to the CANCEL position and another programme selected, the previously selected programme continues from where it was left.

To deactivate the child lock, press and hold additional functions 1 and 2 but simultaneously for at least 3 seconds. The Additional Function LEDs will will blink on the display.

CANCELLING THE PROGRAMME

TO CANCEL A RUNNING PROGRAMME AT ANY TIME:

1. Turn the programme dial to the "STOP" position.
2. Your machine will stop the washing operation and the programme will be cancelled.
3. Turn the programme dial to any other programme to drain the machine.
4. Your machine will perform the necessary discharge operation and cancel the programme.
5. You can now select and run a new programme.

PROGRAMME END

Your machine will stop by itself as soon as the selected programme finishes.

• “END” will flash on the display panel.
• You can open the machine's door and remove the laundry.
• Leave the door of your machine open to allow the inner part of your machine to dry.
• Turn the programme dial to the "STOP" position.
  • Unplug your machine.
• Turn the water tap off.

3h 6h 9h 12h

COTTON 90°C
Washing temperature (°C) 90°
Maximum dry laundry amount (kg)	6,0
Detergent compartment 2
Programme duration (Min.)	179
Laundry type / Descriptions	Very dirty, cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 3,0 kg), bedclothes, etc.)

PRE-WASH COTTON 60°C
Washing temperature (°C) 60°
Maximum dry laundry amount (kg)	6,0
Detergent compartment 1 & 2
Programme duration (Min.)	164
Laundry type / Descriptions	Dirty cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 3,0 kg), bedclothes, etc.)

NOTE:

PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

COTTON 60°C
Washing temperature (°C) 60°
Maximum dry laundry amount (kg)	6,0
Detergent compartment 2
Programme duration (Min.)	200
Laundry type / Descriptions	Dirty cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 3,0 kg), bedclothes, etc.)

ECO 40-60
Washing temperature (°C)	40°
Maximum dry laundry amount (kg)	6,0
Detergent compartment 2
Programme duration (Min.)	193
Laundry type / Descriptions	Dirty cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 3,0 kg), bedclothes, etc.)

COTTON 20°C
Washing temperature (°C) 20°
Maximum dry laundry amount (kg)	3,0
Detergent compartment 2
Programme duration (Min.) 96
Laundry type / Descriptions	Less dirty, cotton and linen textiles. (Underwear, bedsheet, tablecloth, towel (max. 2 kg) bedcloth, etc.)

NOTE:

PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

EASY CARE
Washing temperature (°C) 40°
Maximum dry laundry amount (kg)	3,0
Detergent compartment 2
Programme duration (Min.) 110
Laundry type / Descriptions	Very dirty or synthetic-mixed textiles. (Nylon socks, shirts, blouses, synthetic-including trousers etc.)

WOOL
Washing temperature (°C) 30
Maximum dry laundry amount (kg)	2,0
Detergent compartment 2
Programme duration (Min.) 39
Laundry type / Descriptions Woollen	laundries with machine wash labels.

RINSING
Washing temperature (°C) -
Maximum dry laundry amount (kg)	6,0
Detergent compartment -
Programme duration (Min.) 36
Laundry type / Descriptions	Provides an additional rinse to any type of laundry after the washing cycle.

NOTE:

PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

SPINNING
Washing temperature (°C) -
Maximum dry laundry amount (kg)	6,0
Detergent compartment -
Programme duration (Min.) 15
Laundry type / Descriptions	Provides an additional spin cycle to any type of laundry after the washing cycle.

SENSITIVE/HAND WASH
Washing temperature (°C) 30°
Maximum dry laundry amount (kg)	2,0
Detergent compartment 2
Programme duration (Min.) 90
Laundry type / Descriptions	Laundry recommended for hand wash or sensitive laundry.

COLORS 40°C
Washing temperature (°C)	40°
Maximum dry laundry amount (kg)	3,0
Detergent compartment 2
Programme duration (Min.) 195
Laundry type / Descriptions	Less dirty, cotton and linen textiles. (Underwear, bedsheet, tablecloth, towel (max. 2 kg) bedcloth, etc.)

NOTE:

PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

MIXED
Washing temperature (°C) 30°
Maximum dry laundry amount (kg)	3,0
Detergent compartment 2
Programme duration (Min.)	81
Laundry type / Descriptions	Dirty cotton, synthetics, colour and flax textiles can be washed together.

BLOUSES / SHIRTS
Washing temperature (°C) 60°
Maximum dry laundry amount (kg)	3,0
Detergent compartment 2
Programme duration (Min.) 107
Laundry type / Descriptions	Dirty cotton, synthetic and synthetic-mixed shirts and blouses can be washed together.

FAST 60 MIN.
Washing temperature (°C) 60°
Maximum dry laundry amount (kg)	3,0
Detergent compartment 2
Programme duration (Min.) 60
Laundry type / Descriptions	Dirty, cotton, coloured and linen textiles washed at 60°C in 60 minutes.

NOTE:

PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

RAPID 15 MIN. (*)
Washing temperature (°C) 30°
Maximum dry laundry amount (kg)	2,0
Detergent compartment 2
Programme duration (Min.) 15
Laundry type / Descriptions	Lightly soiled, cotton, colored and linen textiles.

NOTE: PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

• (*) Due to the short washing time of this programme, we recommend that less detergent is used. The programme may last longer than 15 minutes if your machine detects an uneven load. You can open the door of your machine 2 minutes after the completion of a washing operation. (The 2 minute period is not included in the programme duration).
• According to regulation 1015/2010 and 1061/2010, the programme 3 and the programme 4 are respectively the ‘Standard 60°C cotton programme’ and the ‘Standard 40°C cotton programme’
• The Eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ or 60^ , together in the same cycle, and that this programme is used to assess the compliance with the EU ecodesign legislation.

NOTE:

PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

- The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

- Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.

- Program duration, energy consumption and water consumption values may vary according to wash load weight and type, selected extra functions, tap water and ambient temperature.

- It’s recommended to use liquid detergent for the washing programmes at low temperature. The amount of detergent to be used may vary depending on the amount of laundry and the level of dirtiness of the laundry. Please follow the detergent manufacturers’ recommendations for the amount of the detergent to be used.

- The noise and remaining moisture content are influenced by the spinning speed. The higher spinning speed in the spinning phase, the higher noise and the lower remaining moisture content.

- You can access the product database where the model information is stored by reading the QR code on the energy label.

Programme Name

Rated Capacity kg

Energy Consumption kWh/cycle

Programme Duration Hours:Minutes

Water Consumption Litres/Cycle

max. Temperature °C

Remaining Moisture Content % 1000 Rpm

Rated Capacity

1/2 Load

1/4 Load

Rated Capacity

1/2 Load

1/4 Load

Rated Capacity

1/2 Load

1/4 Load

Rated Capacity

1/2 Load

1/4 Load

Rated Capacity

1/2 Load

1/4 Load

COTTON 90°C

6 2,22 02:59

72 81

62%

COTTON 60°C

6 0,81 03:20

49 46

62%

ECO 40-60

6

0,92

0,53

0,29

03:13

02:34

02:32

49

40

35

44

36

26

62%

62%

62%

EASY CARE

3 0,49 01:50

39 42

71%

FAST 60'

3 0,94 01:00

31 58

62%

COTTON 20°C

3 0,19 01:36

42 20

62%

Important Informations

• Use detergents, softeners and other additives suitable for automatic washing machines only. Excessive foam has occurred and automatic foam absorption system has been activated due to too much detergent usage.
• We recommend that periodic cleaning for washing machine every 2 months. For periodic cleaning please use Drum Clean programme. If your machine do not have Drum Clean programme, use Cottons-90 programme. When required, use limescale removers manufactured specifically for washing machines only.
• Never force the door open when your Washing Machine is running. You can open the door of your machine 2 minutes after the completion of a washing operation. *
• Never force the door open when your Washing Machine is running. The door will open immediately after the washing cycle has ended. *
• The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons.

(*) Specifications may vary depending on the machine purchased.

CHAPTER 7. CLEANING AND MAINTENANCE

WARNING

Turn your mains power supply off and remove the plug from the socket before carrying out maintenance and cleaning of your machine.

Simple line drawing of an electrical plug connecting a wall socket (no text or symbols)

Illustration of a hand using a tool to adjust or install a pipe fitting (no text or symbols present)

Turn off the water supply before starting maintenance and cleaning of your machine.

⚠️ CAUTION:

Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning agents to clean your Washing Machine. They may damage the plastic surfaces and other components with the chemicals they contain.

WATER INLET FILTERS

Water inlet filters prevent dirt and foreign materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive sufficient water, although your water supply is on and the tap is open. We recommend that you clean your water inlet filters every 2 months.

- Unscrew the water inlet hose(s) from the Washing Machine.

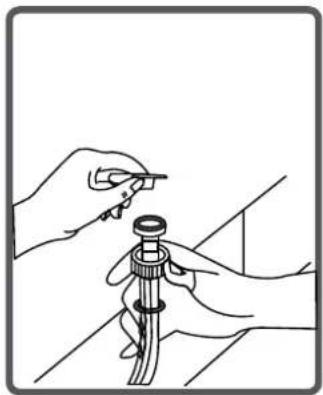

- To remove the water inlet filter from the water inlet valve, use a pair of longnosed pliers to gently pull on the plastic bar in the filter.

- A second water inlet filter is located in the tap end of the water inlet hose. To remove the second water inlet filter, use a pair of long-nosed pliers to gently pull on the plastic bar in the filter.

- Clean the filter thoroughly with a soft brush and wash with soapy water and rinse thoroughly. Re-insert the filter by gently pushing it back into place.

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of hands assembling a mechanical component (no text or symbols)

CAUTION:

The filters at the water inlet valve may become clogged due to water quality or lack of required maintenance and may break down. This may cause a water leak. Any such breakdowns are out of the scope of the warranty.

PUMP FILTER

The pump filter system in your Washing Machine prolongs the life of the pump by preventing lint from entering your machine. We recommend that you clean the pump filter every 2 months.

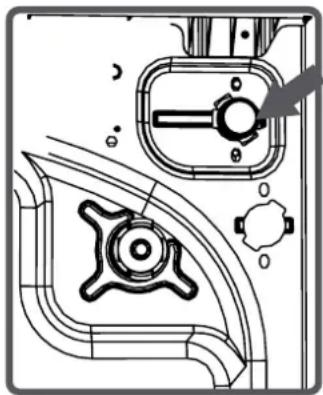

The pump filter is located behind the cover on the front-lower right corner.

To clean the pump filter:

- You may use the washing powder spade (*) supplied with your machine or liquid detergent level plate to open the pump cover.

- Lodge the end of the powder spade or liquid detergent level plate in the opening of the cover and gently press backwards. The cover will open.

- Before opening the filter cover, place a container under the filter cover to collect any water left in the machine.

- Loosen the filter by turning anticlockwise and remove pulling. Wait for the water to drain.

NOTE:

Depending on the amount of water inside the machine, you may have to empty the water collection container a few times.

Diagram showing a hand holding a device with a circular arrow indicating rotation or movement (no text or symbols present)

by

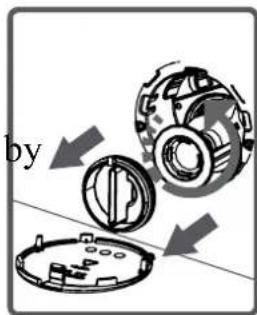

Technical illustration of a mechanical component with cross-sectional view (no text or symbols)

- Remove any foreign materials from the filter with a soft brush.

Line drawing of hands performing a manual task with a tool (no text or symbols present)

• After cleaning, re-fit the filter by inserting it and turning clockwise.

Diagram of a mechanical assembly with circular components and red arrows indicating motion (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and warning symbol (no text or labels)

- When closing the pump cover, ensure that the mountings inside the cover meet the holes on the front panel side.

- Close the filter cover.

WARNING:

The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance.

(*) Specifications may vary depending on the machine purchased.

DETERGENT DRAWER

The use of detergent may cause residual build up in the detergent drawer over time.

We recommend that you remove the drawer every 2 months to clean the accumulated residue.

To remove the detergent drawer:

• Pull the drawer forwards until it is fully extended.

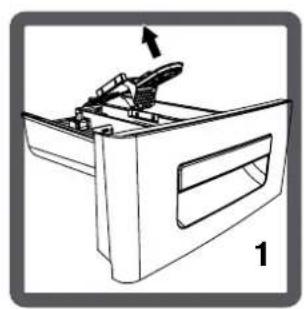

• Gently press down on the drawer (as shown below) and pull the drawer from its housing.

Line drawing of a hand opening a washing machine (no text or symbols)

Illustration of hands installing a circular component into a washing machine (no text or symbols)

Diagram of a printer drawer with an arrow pointing to a circular inset showing internal components (no text or symbols)

• Clean the drawer with water and a soft brush.
• If there is any residue in the drawer housing, remove with a soft brush. Take care to prevent any residue from dropping into the machine.
• Dry the drawer thoroughly and slide it back into the housing.

Do not wash your detergent drawer in dishwasher.

CHAPTER 8. FLUSH STOPPER/ BODY / DRUM

FLUSH STOPPER

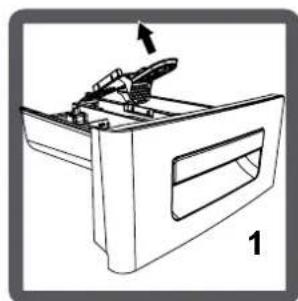

Remove the detergent drawer and disassemble the flush stopper. Clean thoroughly to completely remove any softener residue. Refit the flush stopper after cleaning and check that it is seated properly.

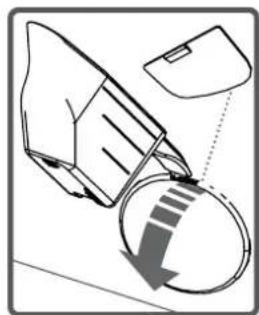

Technical line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Line drawing of a mechanical device with a handle and control panel, labeled '1' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols)

BODY

Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth.

Technical line drawing of a 3D panel or enclosure structure with internal compartments and mounting holes (no text or symbols)

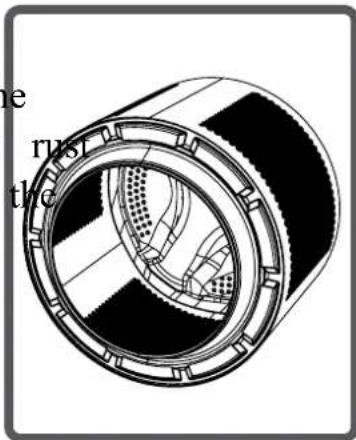

DRUM

Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. These objects lead to the formation of rust stains in the drum. To clean such stains, use a non-chlorine cleaning agent and follow the instructions of manufacturer of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust stains.

ne nbs the

CHAPTER 9. TROUBLESHOOTING

Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should:

• Unplug your machine from the mains power supply.
• Turn off the water supply.

FAULT	POSSIBLE CAUSE TROUBLESHOOTING
Your machine does not start.	Machine not plugged in. Plug machine in.
	Fuses are faulty. Replace the fuses.
	No mains power supply. Check mains power.
	Start/Pause button not pressed.	Press the Start/Pause button.
	Programme dial ‘stop’ position.	Turn the programme dial to the desired position.
	The machine door is not completely closed.	Close the machine door.
Your machine does not intake water.	Water tap is turned off. Turn tap on.
	Water inlet hose may be twisted.	Check water inlet hose and untwist.
	Water inlet hose clogged. Clean water inlet hose filters. (*)
	Inlet filter clogged. Clean the inlet filters. (*)
	The machine door is not completely closed.	Close the machine door.
Your machine does not discharge water.	Drain hose clogged or twisted.	Check the drain hose, then either clean or untwist.
	Pump filter clogged. Clean the pump filter. (*)
	Laundry is too tightly packed together in the drum.	Spread your laundry in the machine evenly.

(*) See the chapter regarding maintenance and cleaning of your machine.
(**) See the chapter regarding installation of your machine.

FAULT POSSIBLE CAUSE TROUBLESHOOTING
Your machine vibrates.	The feet have not been adjusted.	Adjust the feet. (**)
	Transit bolts fitted for transportation have not been removed.	Remove the transit bolts from the machine. (**)
	Small load in the drum.	This will not prevent operation of your machine.
	Your machine is overloaded with laundry or laundry is unevenly spread.	Do not overload the drum. Spread laundry evenly in the drum.
	Your machine rests on a hard surface.	Do not set up your Washing Machine on a hard surface.
Excessive foam is formed in the detergent drawer.	Excessive amount of detergent used.	Press the Start/Pause button. To stop the foam, dilute one tablespoon of softener into 1/2 litre of water and pour into the detergent drawer. Press the Start/Pause button after 5-10 mins.
	Wrong detergent used.	Only use detergents produced for automatic Washing Machines.
Unsatisfactory washing result.	Your washing is too dirty for the programme selected.	Use the information in the programme tables to select the most appropriate programme.
	Amount of detergent used insufficient.	Use the amount of detergent as instructed on the packaging.
	There is too much laundry in your machine.	Check that the maximum capacity for the selected programme has not been exceeded.
Unsatisfactory washing result.	Hard water.	Increase the amount of detergent following the manufacturer's instructions.
	Your laundry is too tightly packed together in the drum.	Check that your laundry is spread out.

(*) See the chapter regarding maintenance and cleaning of your machine.
(**) See the chapter regarding installation of your machine.

FAULT	POSSIBLE CAUSE TROUBLESHOOTING
As soon as the machine is loaded with water, water discharges.	The end of water drain hose is too low for the machine.	Check that the drain hose is at a suitable height. (**) .
No water appears in the drum during washing.	No fault. Water is in the unseen part of the drum.	——
Laundry has detergent residue.	Non-dissolving particles of some detergents may appear on your laundry as white spots.	Perform an extra rinse, or clean your laundry with a brush after it dries.
Grey spots appear on the laundry.	There is untreated oil, cream or ointment on your laundry.	Use the amount of detergent as instructed on the packaging in the next wash.
The spin cycle does not take place or takes place later than expected.	No fault. The Unbalanced load control system has been activated.	The Unbalanced load control system will try to spread your laundry. The spinning cycle will begin once your laundry is spread. Load the drum evenly for the next wash.

(*) See the chapter regarding maintenance and cleaning of your machine.
(**) See the chapter regarding installation of your machine.

CHAPTER 10. AUTOMATIC FAULT WARNINGS AND WHAT TO DO

Your Washing Machine is equipped with a built-in fault detection system, indicated by a combination of flashing wash operation lights. The most common failure codes are shown below.

TROUBLE CODE	POSSIBLE FAULT WHAT TO DO
E01	The door of your machine is not shut properly.	Shut the door properly until you hear a click. If your machine persists to indicate fault, turn off your machine, unplug it and contact the nearest authorised service agent immediately.
E02	The water pressure or the water level inside the machine may be low.	Check the tap is fully turned on.Mains water may be cut-off. If the problem still continues, your machine will stop after a while automatically.Unplug the machine, turn off your tap and contact the nearest authorised service agent.
E03	The pump is faulty or pump filter is clogged or electrical connection of the pump is faulty.	Clean the pump filter. If the problem persists, contact the nearest authorised service agent. (*)
E04	Your machine has excessive amount of water.	Your machine will discharge water by itself. Once the water has drained, turn off your machine and unplug it. Turn off the tap and contact the nearest authorised service agent.

(*) See the chapter regarding maintenance and cleaning of your machine.

CHAPTER 11. PRACTICAL INFORMATION

Alcohol:

The dirty area should first be washed with cold water, then wiped with glycerin and water and rinsed with water and vinegar.

Simple line drawing of a wine bottle with no text or symbols

Shoe polish:

The stain should be gently wiped off without damaging the then scrubbed with powder and rinsed. If the stain is not removed, scrub it with a mixture of 1 part alcohol (96°) and 2 parts water, then rinse with warm water.

material,

Tea and coffe:

Extend the stained area on the opening of the dish and pour hot water in the amount that the type of material can withstand. If the allows, wash in bleach.

material

Chocolate and cocoa:

After immersing I cold water, and scrubbed with soap or powder, wash in accurate temperature for the type of material. If the oily stain is still visible, wipe with hydrogen peroxide (3%).

Simple line drawing of a steaming cup with swirling smoke (no text or symbols)

Tomato puree:

After wiping the dried substance without damaging the laundry, immerse the laundry in water for 30 minutes, then wipe and wash with powder.

Simple line drawing of a tomato (no text or symbols)

Egg broth:

Remove dried residue, then wipe with a sponge or soft cloth in cold water before. Wipe off with powder and wash in diluted bleach.

dipped

Oil and fat stains:

Remove residues first. Then wipe the stain with powder and in warm soapy water.

wash

Mustard:

Apply glycerin to the stained area. Wipe with powder and wash. If the stain could not be removed, wipe with alcohol. (For artificial and colored fabrics, use a mixture consisting of 1 scoop of alcohol and of water).

2 scoops

Fruit:

Stain the stained area on the opening of the dish and pour cold water. Do not pour hot water over this place. Wipe with cold water and apply glycerin. Leave for 1-2 hours, wipe with a few drops of vinegar rinse.

and

Grass stains:

Wipe stained areas with powder. If the material is suitable use bleach. Wipe woolen clothes with alcohol (for colored fabrics, use a mixture consisting of 1 scoop of pure alcohol and 2 scoops of water).

for this,

Oil-color:

The stain should be removed with a thinner before drying. Then wipe with a cleaning agent and wash.

Line drawing of a paintbrush with bristles and handle (no text or symbols)

Burnings:

If possible for the material, use bleach. You can add bleach to the washing water. For woolen fabrics, you can put a cloth dipped in hyperoxide on the stain and iron it after placing it on a still dry cloth. After thorough rinsing, wash the material.

g hydrogen

Blood stains:

Immerse the laundry in cold water for 30 minutes. If the stain has not been removed, soak it in a mixture of water and ammonia (3 teaspoons of ammonia per 4 liters of water) for 30 minutes.

Abstract black ink splatter illustration with droplets and central core (no text or symbols)

Cream, ice creams, milk:

Immerse the laundry in cold water and wipe with washing powder por liquid. If the stain has not been removed, use bleach in that level which this material allows. (Do not use bleach to color materials.)

Illustration of a waffle ice cream cone with chocolate swirls (no text or symbols)

Mold:

The stain from mold should be wash as soon as possible. The stain wash with water and soap. If the stain has not been removed with hydrogen peroxide (3%).

be it with

Ink:

Place a stained spot under running water and wait for the ink to drain completely. Then wipe the stain with water and lemon, and then wash after 5 minutes.

Simple line drawing of a pen with a droplet on the tip (no text or symbols)

RECYCLING

Fig. A

Fig. B

This device has been designed and manufactured of high-quality reusable materials and components. The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. A crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment. Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials.

Penalties may be imposed in accordance with national legislation for improper disposal of this product. If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device.

Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

KERNAU

www.kernau.com

NÁVOD K OBSLUZE A INSTALACI PRAÈKA

KFWM I 6501

Line drawing of a washing machine with a door and front panel, no text or symbols present

Line drawing of a front-loading washing machine with no text or symbols

Illustration of a hand using a tool to apply liquid into a container (no text or symbols visible)

Illustration of a hand using a tool to clean or inspect a surface with a funnel and pipe (no text or symbols)

NEBEZPEČÍ POŽÁRU!

Safety warning illustration showing two workers holding a washing machine and a hand cleaning a cloth, with a warning triangle and warning symbol.

BEZPEČNOST DĚTÍ!

Simple line drawing of a circular mechanical component with a rectangular slot, no text or symbols present.

KRYT FILTRU ČERPADLA

TRANSPORTNÍ BEZPEČNOSTNÍ ŠROUBY

VENTIL VYPOUŠTĚNÍ VODY

VYPOUŠTĚCÍ HADICE

PŘÍVODNÍ KABEL

TRANSPORTNÍ BEZPEČNOSTNÍ ŠROUBY

TRANSPORTNÍ BEZPEČNOSTNÍ ŠROUBY

TRANSPORTNÍ BEZPEČNOSTNÍ ŠROUBY

Technical line drawing of a mechanical device interior with no visible text or symbols

TECHNICKÉ SPECIFIKACE

PROVOZNÍ NAPĚTÍ/ FREKVENCE	(220-240) V~/50 HZ
CELKOVÝ PROUD 10
TLAK VODY	MAKSYMALNE: 1 MINIMALNE: 0,1
CELKOVÝ VÝKON 2100
MAXIMÁLNÍ KAPACITA SUCHÉHO PRÁDLA	6
MAX. OTÁČKY 1000
POČET PROGRAMŮ 15
ROZMĚRY VÝŠKA X ŠÍRKA X HLOUBKA	845 X 597 X 497

KAPITOLA 3: INSTALACE

ODSTRANĚNÍ TRANSPORTNÍCH ŠROUBŮ

it x4 cky

x4

Diagram of a washing machine showing internal components and a close-up view of the dial indicator (no text or symbols present)

Line drawing of a washing machine with circular vent and side buttons (no text or symbols)

ELEKTRICKÉ PŘIPOJENÍ

Line drawing of a coiled hose with two connectors (no text or symbols)

Diagram of a car fuel pump with valve and valve (no text or labels)

Illustration of a hand adjusting a wall-mounted pipe fitting with a valve, showing mechanical components (no text or symbols)

⚠️ POZNÁMKA:

Diagram of a pipe fitting with a bulb attached, showing fluid flow and support structure (no text or symbols)

Diagram showing a mechanical component with an inset view of a curved bracket or arch (no text or symbols present)

~ 95 cm ~ 140 cm ~ 145 cm ~ 95 cm ~ 95 cm ~ 150 cm 0 - max. 100 cm

KAPITULA 4: INSTRUKCE K OVLÁDACÍMU PANELU

Line drawing of a washing machine with an inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device inside a circular frame (no text or symbols)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Diagram of a mechanical device with internal components and a flower-like pattern, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical component inside a circular frame (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Geometric diagram of a triangle with two intersecting lines forming an angle (no text or symbols)

Illustration of a washing machine with a handle inserting into the air (no text or symbols)

Line drawing of a washing machine with front panel and side vent (no text or symbols)

Two technical illustrations showing installation or cleaning steps: top shows electrical plug installation, bottom shows hand holding tool (no text or symbols)

DŮVODY NEAKTIVACE DOPLŇKOVÉ FUNKCE:

KAPITOLA 6: TABULKA PROGRAMÜ

Illustration of a hand using a tool to adjust or install a pipe fitting (no text or symbols present)

Simple line drawing of an electrical outlet with a plug and cable (no text or symbols)

FILTRY PŘÍVODU VODY

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

⚠️ VAROVÁNÍ:

Diagram showing a hand holding a device with a circular arrow indicating rotation or movement (no text or symbols present)

ch

⚠️ POZNÁMKA:

Technical line drawing of a mechanical component with two views: top shows internal gear-like structure, bottom shows circular housing (no text or symbols)

Line drawing of hands performing a manual task with a tool (no text or symbols present)

Diagram of mechanical components with no visible text or symbols

Simple line drawing of a mechanical component with a warning triangle and a circular feature (no text or symbols)

Diagram showing three steps of washing machine operation: opening, adjusting a component, and closing.

Line drawing of a refrigerator drawer with internal compartments and storage bins (no text or symbols)

Line drawing of a mechanical device with an arrow indicating direction, labeled '1' (no text or symbols on the device itself)

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Plášť pračky

Technical line drawing of a 3D panel or enclosure with internal structural ribs and a curved cutout (no text or symbols)

BUBEN

Cross-sectional diagram of a cylindrical mechanical component with internal gear-like structure (no text or symbols)

Simple line drawing of a wine bottle with no text or symbols

Leštidlo na boty:

Simple line drawing of a boots with no text or symbols

Čaj a káva:

Simple line drawing of a steaming cup (no text or symbols)

Kečup:

Simple line drawing of a tomato (no text or symbols)

Vývar, vejce:

Simple line drawing of a pitcher with a handle and spout (no text or symbols)

Hořčice:

Simple icon of a coffee maker with a dome-shaped base (no text or symbols)

Ovoce:

Simple line drawing of an orange fruit with a leaf, enclosed in a square frame (no text or symbols)

Skvrny od trávy:

Simple line drawing of two curved lines inside a square frame (no text or symbols)

Olejové barvy:

Line drawing of a paintbrush with handle and bristles (no text or symbols)

Skvrny od opálení:

Abstract black ink splatter illustration with droplets and central core (no text or symbols)

Smetana, zmrzlina a mléko:

Illustration of a waffle ice cream cone with chocolate swirls (no text or symbols)

Hlína:

Simple line drawing of a mushroom with a leaf at the base (no text or symbols)

Inkoust:

Line drawing of a washing machine with a circular vent and side slots (no text or symbols)

Line drawing of a washing machine with no text or symbols

Illustration of a hand using a tool to clean or inspect a surface with a funnel and test tube (no text or symbols)

Illustration of a hand using a tool to clean or inspect a surface with a funnel and pipe (no text or symbols)

НЕБЕЗПЕКА ПОЖЕЖИ!

Illustration of two workers holding a large washing machine (no text or symbols)

Line drawing of a hand holding a wrist bandage (no text or symbols)

Technical line drawing of a mechanical device interior with no visible text or symbols

Diagram of a washing machine showing internal components and a close-up view of the dial indicator (no text or symbols present)

Diagram showing a washing machine with directional arrows and a close-up of its component being installed, including a close-up view of the device's base.

x4

Line drawing of a front-loading washing machine with circular vent and buttons (no text or symbols)

Diagram showing two electrical connectors with a switch, indicating installation or connection steps

Line drawing of a flexible hose with two connectors (no text or symbols)

Tb 3/4" 10 mm

Illustration of a hand adjusting a faucet with a valve, showing mechanical components (no text or symbols)

⚠️ЗВЕРНІТЬ УВАГУ:

Diagram of a pipe fitting with a bulb attached, showing fluid flow (no text or symbols)

ITB

~ 95 cm ~ 140 cm ~ 145 cm ~ 95 cm ~ 95 cm ~ 150 cm 0 - max. 100 cm

Line drawing of a washing machine with an inset showing internal components (no text or symbols)

Technical line drawing of a vertical cylindrical device with mounting base and side connectors, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

СТЬ КИ

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical component inside a circular frame (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

КНОПКА ПРОГРАМИ

Geometric diagram of a triangle intersected by two lines (no text or symbols)

Line drawing of a washing machine with a handle inserting into the air gap (no text or symbols)

Line drawing of a washing machine with front panel and side vent (no text or symbols)

⚠️ ПРИМІТКА:

Line drawing of a washing machine with a circular vent and handle (no text or symbols)

Simple line drawing of an electric shock plug (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

ВИБІР ПРОГРАМИ

Simple line drawing of an electrical outlet with a plug and cable (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of hands assembling a mechanical component (no text or symbols)

⚠️ УВАГА:

Mechanical assembly diagram showing gear and housing components with directional arrows (no text or symbols)

⚠️ ПРИМІТКА:

Illustration of a hand holding a small object with a tool above, possibly a tool or device (no text or symbols visible)

Technical line drawing of a mechanical component with two views: top shows internal gear and bottom shows circular housing (no text or symbols)

Diagram of mechanical components with no visible text or symbols

Simple line drawing of a mechanical setup with a gear and warning triangle (no text or symbols)

Line drawing of a hand inserting a fan into a washing machine (no text or symbols)

Illustration of a hand operating a washing machine with a black arrow pointing to the dial (no text or symbols present)

Diagram of a printer drawer with an arrow pointing to a circular inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Diagram of a printer or printer holder with an arrow indicating the top part (no text or symbols present)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

КОРПУС

Technical line drawing of a mechanical component with slats and a curved internal structure (no text or symbols)

БАРАБАН

Cross-sectional diagram of a cylindrical mechanical component with internal gear-like structure (no text or symbols)

Simple line drawing of a wine bottle with a black label on its side (no text or symbols)

Блиск для взуття:

Simple line drawing of a mug with handle and side rim (no text or symbols)

Шоколад і какао:

Simple line drawing of a steaming cup with smoke, no text or symbols present

Томатна паста:

Simple line drawing of a tomato (no text or symbols)

Бульон-яйця:

Simple line drawing of a pitcher with a handle and spout (no text or symbols)

Гірчиця:

Abstract line drawing with three curved strokes inside a square frame (no text or symbols)

Масляна фарба:

Line drawing of a paintbrush (no text or symbols)

Плями від вогню:

Simple line drawing of a mushroom with a leaf at the base (no text or symbols)

Чорнило:
