USER MANUAL KFWM 6423 I Kernau

Simple line drawing of a washing machine with two circles and a header (no text or symbols)

SZANOWNY KLIENCIE,

WYGLĄD OGÓLNY

Diagram showing a pipe connection and its magnified detail of a curved pipe system (no text or symbols)

Line drawing of a washing machine with a close-up view of its internal components (no text or symbols)

Technical line drawings of two mechanical devices, one showing internal components and the other a transparent housing (no text or symbols)

Technical line drawing of two electronic devices with no visible text or symbols

Technical line drawing of a battery pack and its internal components (no text or symbols)

Illustration of two washing machines with one showing a pipe insertion into the other (no text or symbols)

Illustration showing two steps of a hairpin installation: one with a plug, the other with a hand holding a screwdriver (no text or symbols present)

Illustration showing a plug inserted into a wall socket and a hand adjusting the pipe with a handle (no text or symbols present)

Technical illustration showing a mechanical component being inserted into a piping bag, with no visible text or symbols.

Diagram of two mechanical components with circular cross-sections and internal bearing housing (no text or labels)

5

Simple line drawing of a mechanical component with a triangular warning symbol (no text or labels)

6

Technical diagram of a mechanical assembly with internal components and an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a hand operating a component with arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with arrows indicating assembly or movement, no visible text or symbols

Technical drawings of two mechanical components: a 3D panel assembly and a cylindrical housing (no text or symbols)

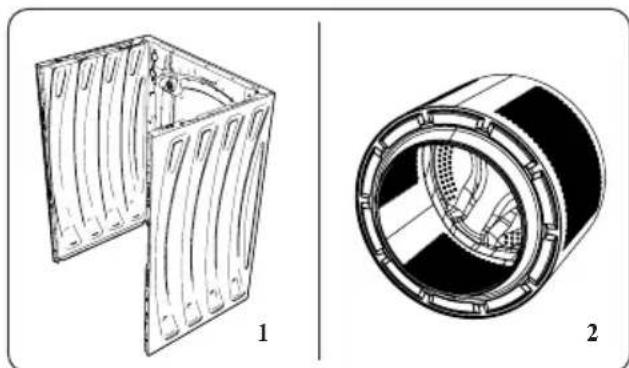

1. Korpus

Simple line drawing of a washing machine with two circles and a horizontal bar (no text or symbols)

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Caption Meaning
	Warning Serious injury or death risk
	Risk of electric shock Dangerous voltage risk
	Fire	Warning; Risk of fire / flammable materials
	Attention / Caution Injury or property damage risk
	Important/Note Operating the system correctl
	Read the instructions

CONTENTS

CHAPTER 1. Safety instructions....41

General Safety Warnings 41
During Use 44
Packaging and Environment....44
Savings Information 44

CHAPTER 2. Technical specifications....45

General Appearance....45
Technical Specifications....46

CHAPTER 3. Installation ....46

Removing the Transit Bolts....46
Adjusting the Feet / Adjusting Adjustable Stays 47
Electrical Connection 48

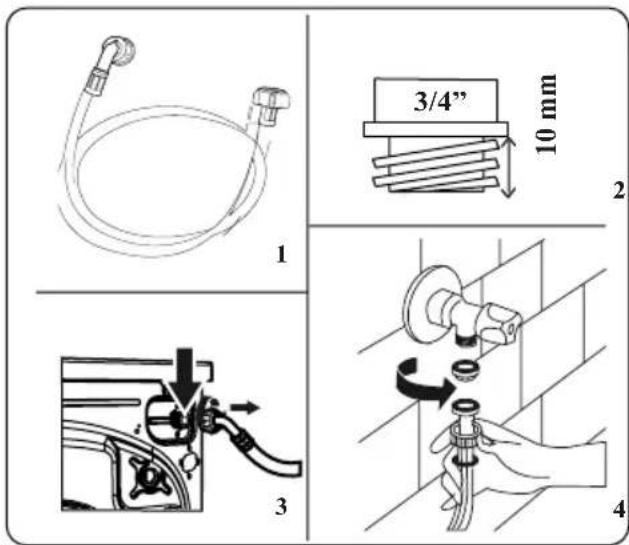

Water Inlet Hose Connection....48
Water Discharge Connection....49

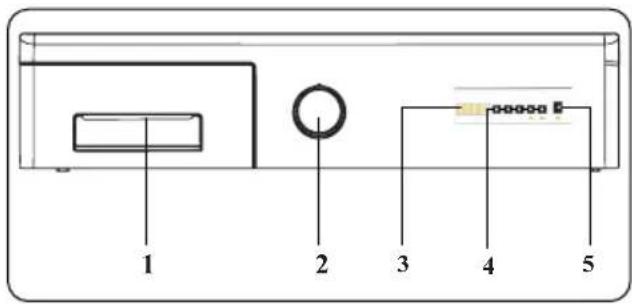

CHAPTER 4. Control panel overview....50

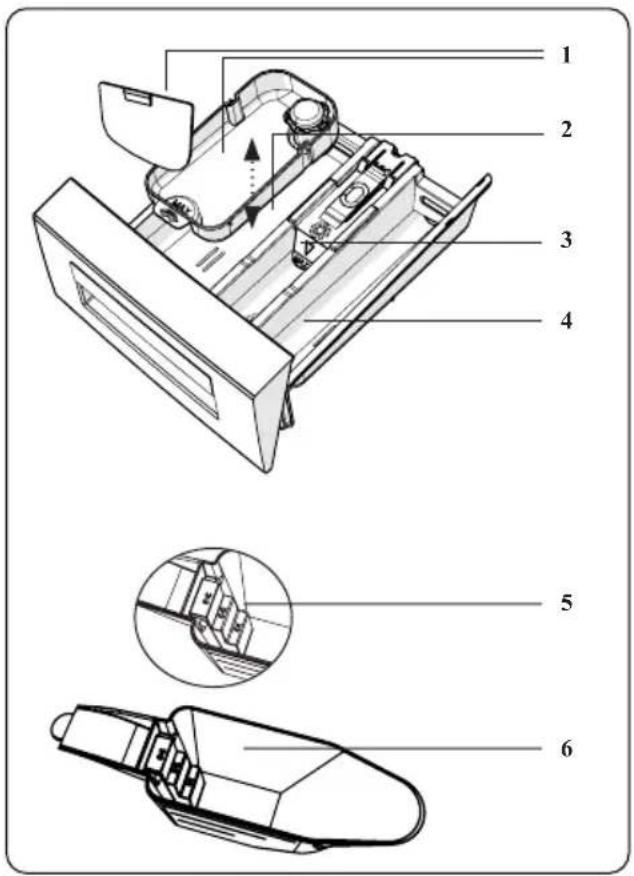

Detergent Drawer 50

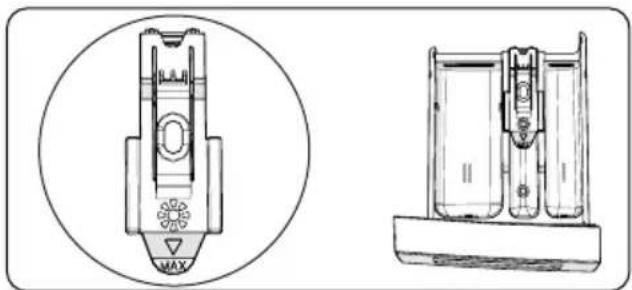

Sections 51
Program Dial 51

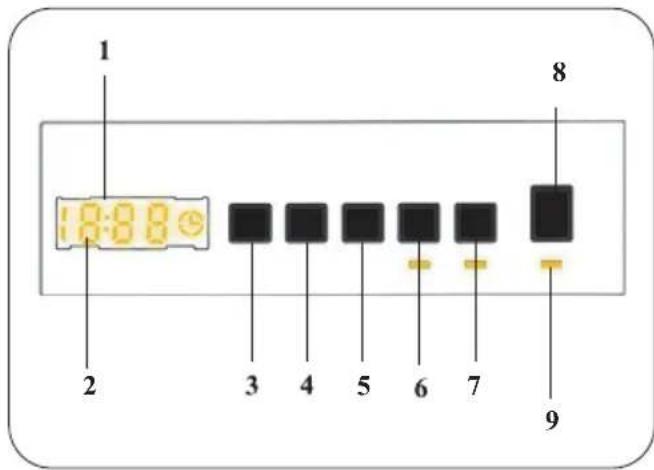

Electronic Display 52

CHAPTER 5. Using your washing machine....52

Preparing Your Laundry ....52

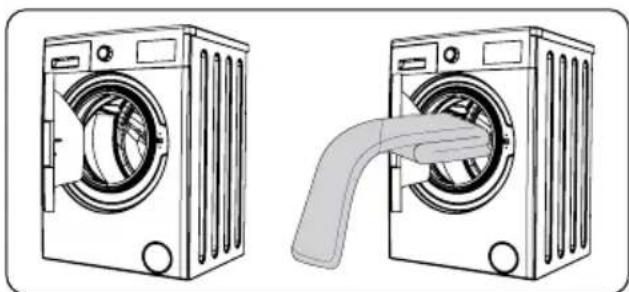

Putting Laundry in the Machine....54
Adding Detergent to the Machine ....55
Operating Your Machine 55
Selecting a Programme....55
Half-Load Detection System 55
Additional Functions....56
Start/Pause button....58
Child Lock....58
Cancelling the Programme ....59

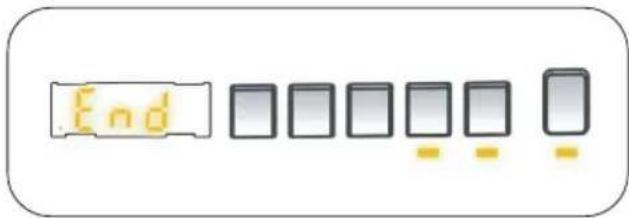

Programme End....59

CHAPTER 6. Programme table....60

Important Informations....63

CHAPTER 7. Cleaning and maintenance ....64

Warning 64
Water Inlet Filters 64
Pump Filter 65
Detergent Drawer 65

CHAPTER 8. Body / Drum....67

CHAPTER 9. Troubleshooting....67

CHAPTER 10. Automatic fault warnings and what to do....70

CHAPTER 11. Describing the energy label and saving energy....71

Disposal of used equipment 72

CHAPTER 1. SAFETY INSTRUCTIONS

Operating voltage / frequency (220–240)	V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum 1 Mpa / Minimum 0.1Mpa
Total power (W) 1850
Maximum washing capacity(dry laundry) (kg)	6

• Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children of less than 3 years should be kept away unless continuously supervised.
  • Call the nearest authorized service centre for a replacement if the power cord malfunctions.
  • Use only the new water inlet hose coming with your machine when making water inlet connections to your machine. Never use old, used or damaged water inlet hoses.
  • Children should not play with the appliance.

Cleaning and user maintenance should not be made by children without supervision.

READ THIS USER MANUAL CAREFULLY.

Your machine is for domestic use only.

Using it for commercial purposes will cause your warranty to be cancelled.

This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

GENERAL SAFETY WARNINGS

• The necessary ambient temperature for operation of your Washing Machine is 15-25 °C.
• Where the temperature is below 0^ , hoses may split or the electronic card may not operate correctly.
• Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins.
• It is recommended that for your first wash, you select the 90^ Cotton programme without laundry and half fill compartment II of the detergent drawer with a suitable detergent.
• Residue may build up on detergent and softeners exposed to air for a long period of time. Only put softener or detergent in the drawer at the beginning of each wash.
• Unplug your Washing Machine and switch off the water supply if the Washing Machine is left unused for a long time. We also recommend that you leave the door open to prevent build up of humidity inside the Washing Machine.
  • Some water may be left in your Washing Machine as a result of quality checks during production. This will not affect the operation of your Washing Machine.
• The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small parts from the Washing Machine.
• Keep the packaging materials in a place where children cannot reach them, or dispose of them appropriately.
• Use pre-wash programs only for very dirty laundry.

NOTE

Never open the detergent drawer while the machine is running.

- In the event of a breakdown, unplug the machine from the mains supply and turn the water supply off. Do not attempt to carry out any repairs.

Always contact an authorised service agent.

- Do not exceed the maximum load for the washing programme you have chosen.

NOTE

Never force the door open when your Washing Machine is running.

- Washing laundry containing flour may damage your machine.

- Please follow the manufacturers' instructions regarding the use of fabric conditioner or any similar products that you intend to use in your Washing Machine.

- Make sure that the door of your Washing Machine is not restricted and can be opened fully.

Install your machine in a location that can be fully ventilated and preferably has constant air circulation.

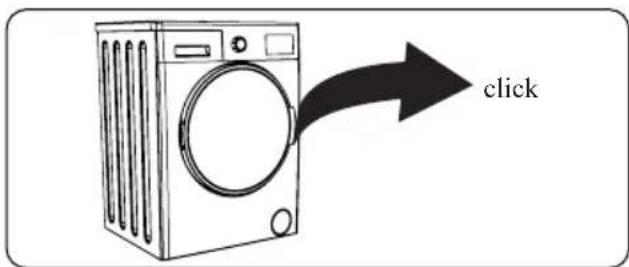

Door emergency opening function

When the machine is running, any power cut or when the program is not yet complete, the door will remain locked.

To open the door:

1. Please turn off the machine. Take off the power plug from the mains socket.

2. To drain the waste water, follow the instructions given in cleaning the pump filter section.

3. Pull the down the emergency opening mechanism with the help of a tool and open the door at the same time.

4. Doors, move the emergency opening handle to the open position after being closed again, if the door remains locked.

NOTE

Read these warnings. Follow the advice given to protect yourself and others from risks and fatal injuries.

RISK OF BURNS

NOTE

Do not touch the drain hose or any discharged water while your Washing Machine is running. The high temperatures involved pose a burn risk.

RISK OF DEATH FROM ELECTRICAL CURRENT

• Do not connect your Washing Machine to the mains electricity supply using an extension lead.
- Do not insert a damaged plug into a socket.
- Never remove the plug from the socket by pulling the cord. Always hold the plug.
- Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
- Do not touch your Washing Machine if your hands or feet are wet.
• A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

NOTE RISK OF FLOODING

• Check the speed of water flow before placing the drain hose in a sink.
  • Take necessary measures to prevent the hose from slipping.
  • Water flow may dislodge the hose if it is not properly secured. Make sure the plug in your sink does not block the plug hole.

DANGER OF FIRE

• Do not store inflammable liquids near your machine.
• The sulphur content of paint removers may cause corrosion. Never use paint removing materials in your machine.
• Never use products that contain solvents in your machine.
• Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins.

Risk of fire and explosion

RISK OF FALLING AND INJURY

• Do not climb on your Washing Machine.
  • Make sure hoses and cables do not cause a trip hazard.
• Do not turn your Washing Machine upside down or on its side.
• Do not lift your Washing Machine using the door or detergent drawer.

NOTE The machine must be carried by at least 2 people.

NOTE CHILD SAFETY

• Do not leave children unattended near the machine. Children might lock themselves in the machine resulting in risk of death.
• Do not allow children to touch the glass door during operation. The surface becomes extremely hot and may cause damage to skin.

- Keep packaging material away from children.

• Poisoning and irritation may occur if detergent and cleaning materials are consumed or come into contact with the skin and eyes. Keep cleaning materials out of the reach of children.

DURING USE

- Keep pets away from your machine.

- Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

- Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

• Only use your machine for laundry that is labelled as suitable for washing by the manufacturer.

• Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed they may cause heavy vibration, noise and malfunction of the machine and cause the guarantee to be void.

- Your warranty does not cover damage caused by external factors such as fire, flooding and other sources of damage.

- Please do not throw away this user manual; keep it for future reference and pass it onto the next owner.

NOTE:

Specifications for the machine may vary depending on the product purchased.

PACKAGING AND ENVIRONMENT

Removal of packaging materials

Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

SAVINGS INFORMATION

Some important information to get the most efficient use out of your machine:

- Do not exceed the maximum load for the washing programme you have chosen. This will allow your machine to run in energy saying mode.

- Do not use the pre-wash feature for lightly soiled laundry. This will help you save on the amount of electricity and water consumed.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CHAPTER 2. TECHNICAL SPECIFICATIONS

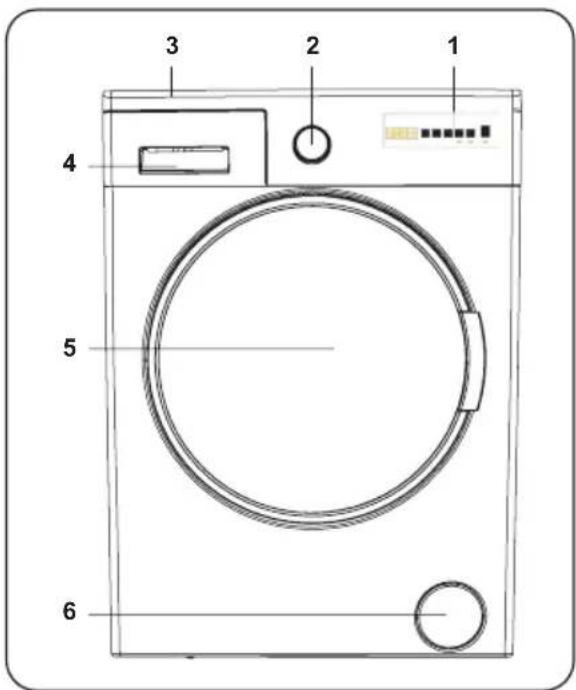

GENERAL APPEARANCE

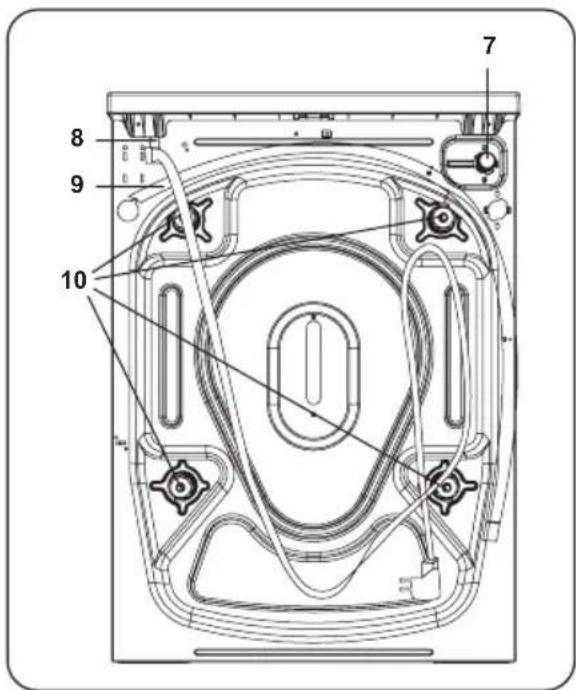

1. Electronic Display

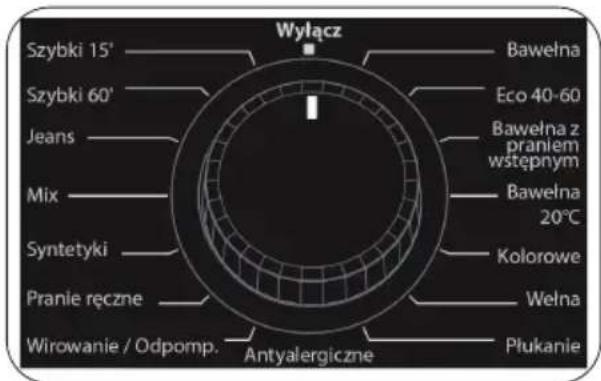

2. Programme Dial
3. Upper Tray

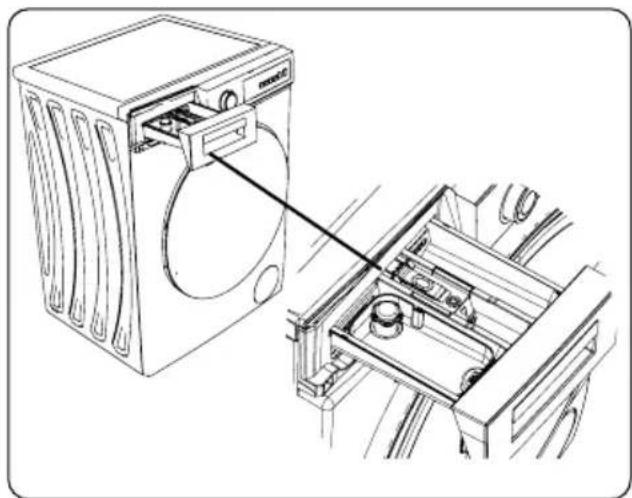

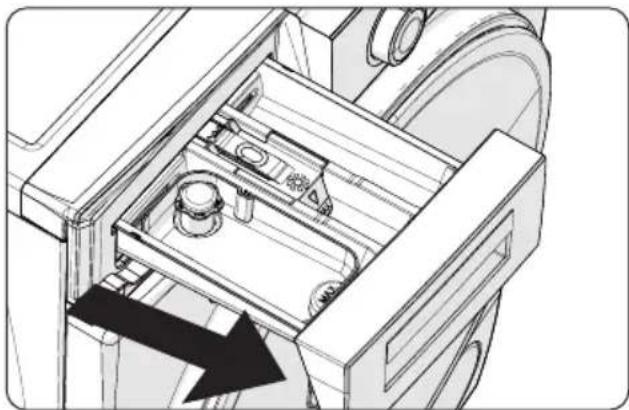

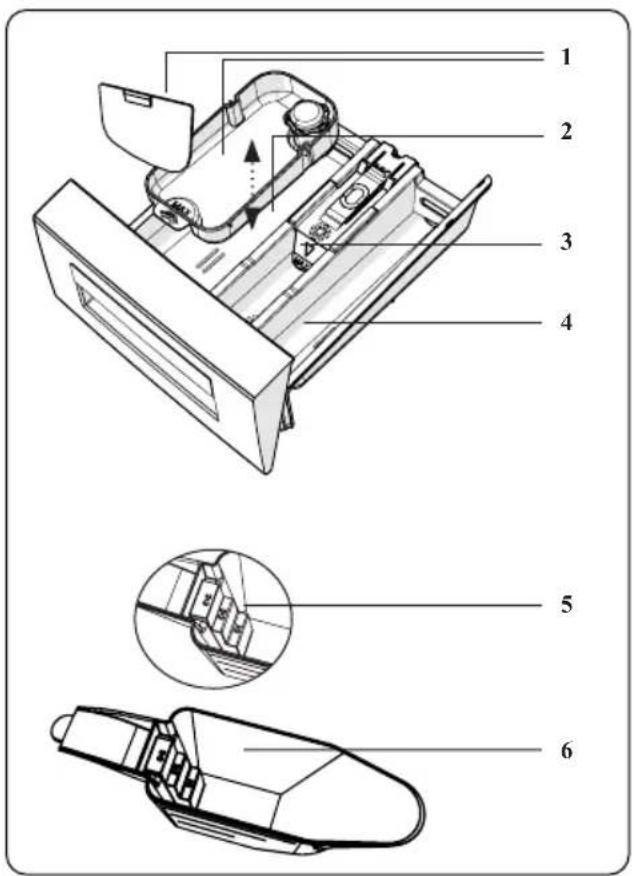

4. Detergent Drawer

5. Drum

6. Pump Filter Cover

7. Water Inlet Valve
8. Power Cable
9. Discharging Hose
10. Transit Bolts

TECHNICAL SPECIFICATIONS

Operating voltage / frequency (V/Hz (220–240) V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum: 1 Mpa Minimum : 0.1 Mpa
Total power (W) 1850
Maximum dry laundry capacity (kg) 6
Spinning revolution (rev / min) 1000
Programme number 15
Dimensions (mm)
Height	845
Width	597
Depth	416

CHAPTER 3. INSTALLATION

REMOVING THE TRANSIT BOLTS

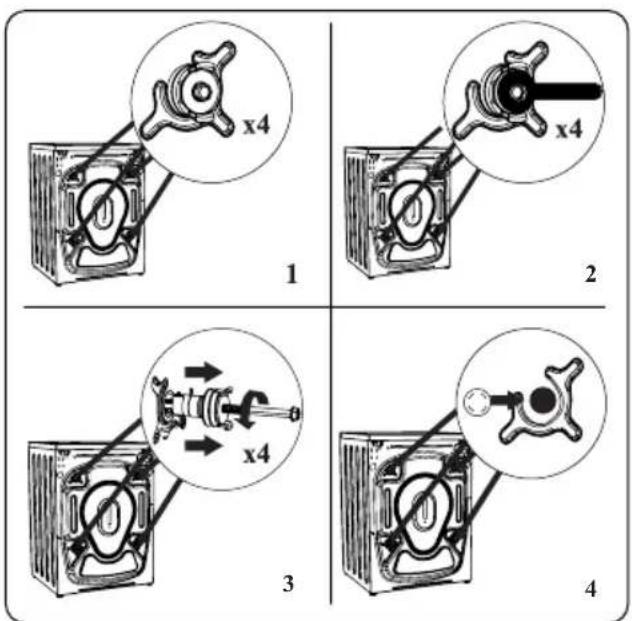

1. Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed, they may cause heavy vibration, noise and malfunction of the machine and void the warranty.
2. Loosen the transit bolts by turning them anticlockwise with an appropriate spanner.
3. Remove the transit bolts with a straight pull.
4. Fit the plastic blanking caps supplied in the accessories bag into the gaps left by the removal of the transit bolts. The transit bolts should be stored for future use.

NOTE

Remove the transit bolts before using the machine for the first time. Faults occurring due to the machine being operated with transit bolts fitted are out of the scope of the warranty.

1. Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base.

• To ensure silent and vibration-free operation of your machine, install it on a firm surface.

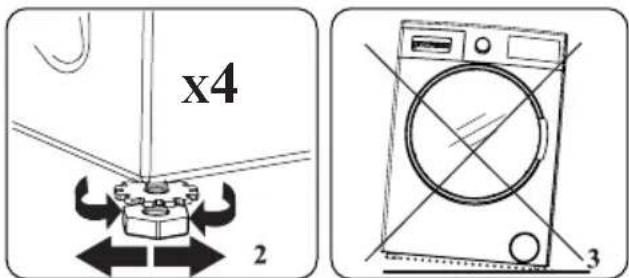

- You can level your machine using the adjustable feet.
- Loosen the plastic locking nut.

1. To increase the height of the machine, turn the feet clockwise. To decrease the height of the machine, turn the feet anticlockwise.

- Once the machine is level, tighten the locking nuts by turning them clockwise.

1. Never insert cardboard, wood or other similar materials under the machine to level it.

- When cleaning the ground on which the machine is located, take care not to disturb the level of the machine.

ELECTRICAL CONNECTION

- Your Washing Machine requires a 220-240V, 50 mains supply.

- The mains cord of your washing machine is equipped with an earthed plug. This plug should always be inserted to an earthed socket of 10 amps.

• If you do not have a suitable socket and fuse conforming with this, please ensure the work is carried out by a qualified electrician.

• We do not take responsibility for damage that occurs due to the use of ungrounded equipment.

NOTE

Operating your machine with low voltage will cause the life cycle of your machine to be reduced and its performance to be restricted.

WATER INLET HOSE CONNECTION

1. Your machine may have either a single water inlet connection (cold) or double water inlet connection (hot and cold) depending on the machine specifications. The white capped hose should be connected to cold water inlet and red capped hose to the hot water inlet (if applicable).

- To prevent water leaks at the joints, either 1 or 2 nuts (depending on your machine's specifications) are supplied in the packaging with the hose. Fit these nuts to the end(s) of the water inlet hose that connect to the water supply.

1. Connect new water inlet hoses to a 34 " , threaded tap.

- Connect the white capped end of the water inlet hose to the white water inlet valve on the rear side of the machine and the red capped end of the hose to the red water inlet valve (if applicable).

- Hand tighten the connections. If in any doubt, consult a qualified plumber.

• Water flow with pressure of 0.1-1 Mpa will allow your machine to operate at optimum efficiency (pressure of 0.1 Mpa means that more than 8 litres of water per minute will flow through a fully opened tap).

1. Once you have made all of the connections, carefully turn the water supply on and check for leaks.

2. Ensure that the new water inlet hoses are not trapped, kinked, twisted, folded or crushed.

- If your machine has a hot water inlet connection, the temperature of the hot water supply should not be higher than 70°C.

NOTE

Your Washing Machine must only be connected to your water supply using the supplied new fill hose. Old hoses must not be reused.

WATER DISCHARGE CONNECTION

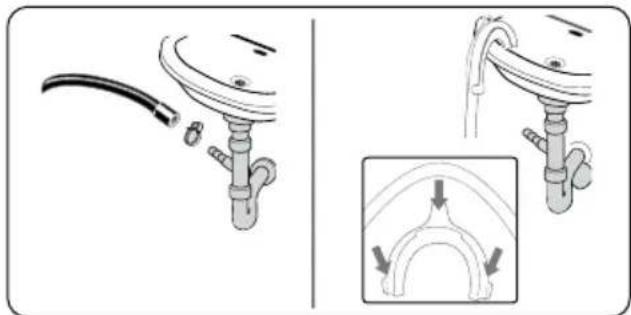

Diagram showing a pipe connection to a sink with an inset illustrating the arc shape (no text or symbols)

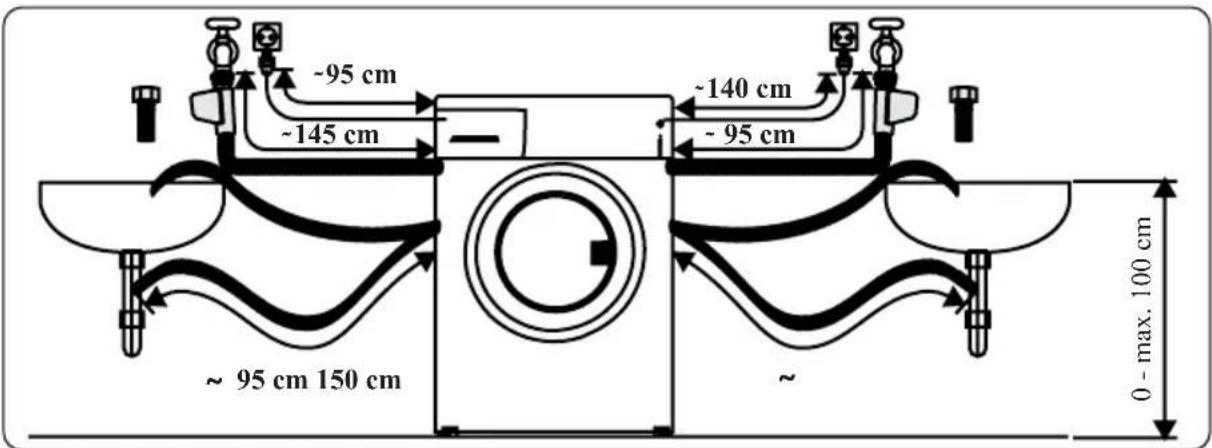

• Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional equipment.
• Never attempt to extend the water drain hose.
• Do not put the water drain hose from your machine into a container, bucket or bathtub.
  • Make sure that the water drain hose is not bent, buckled, crushed or extended.
  • The water drain hose must be installed at a maximum height of 100 cm from the ground.

CHAPTER 4. CONTROL PANEL OVERVIEW

1. Detergent Drawer
2. Programme Dial
3. Electronic Display
4. Additional Functions Button
5. Start/Pause Button

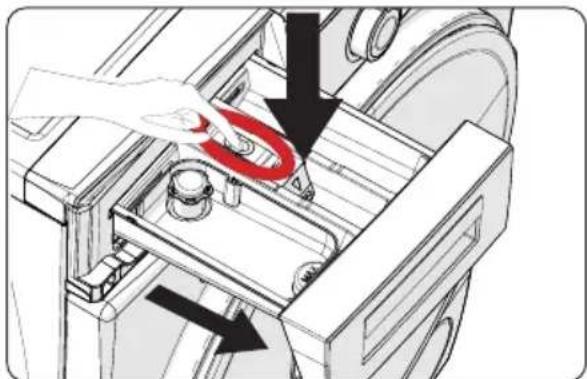

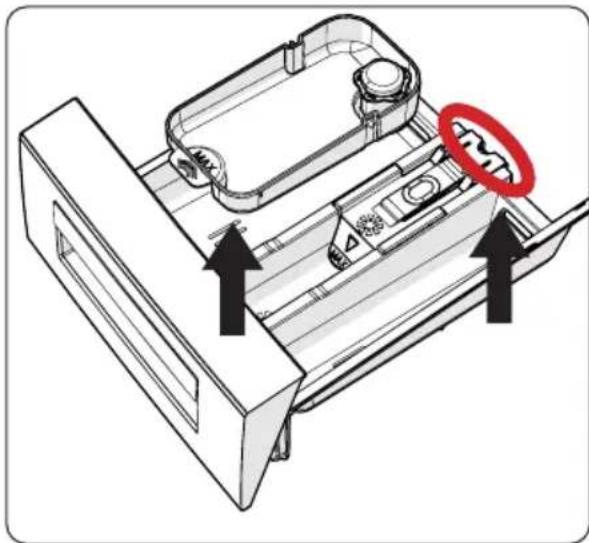

DETERGENT DRAWER

Line drawing of a washing machine with a close-up view of its internal components (no text or symbols)

1. Liquid Detergent Attachments
2. Main Wash Detergent Compartment
3. Softener Compartment
4. Pre-Wash Detergent Compartment
5. Powder Detergent Levels
6. Powder Detergent Scoop (*)
   (*) Specifications may vary depending on the machine purchased.

SECTIONS

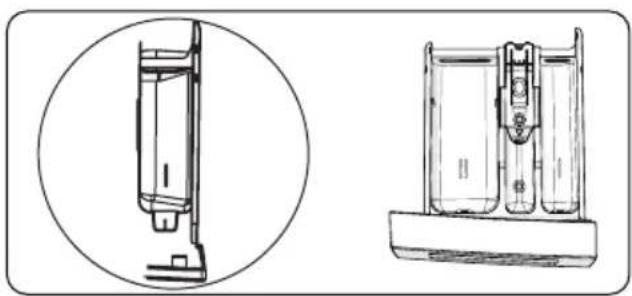

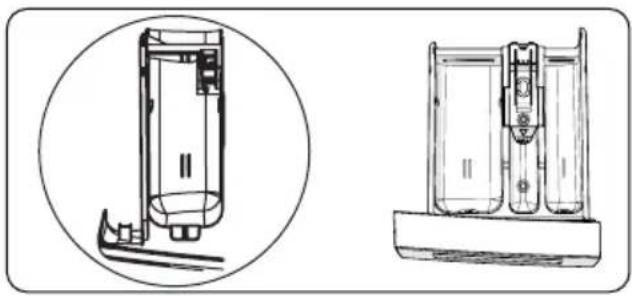

Main wash detergent compartment:

Technical line drawings of a cylindrical device and a multi-well plate (no text or symbols)

Fabric conditioner, starch, detergent compartment:

Technical line drawing of a mechanical device with a circular inset showing its top view (no text or symbols)

Pre-wash detergent compartment:

Technical line drawing of a mechanical device with cross-sectional and top views (no text or symbols)

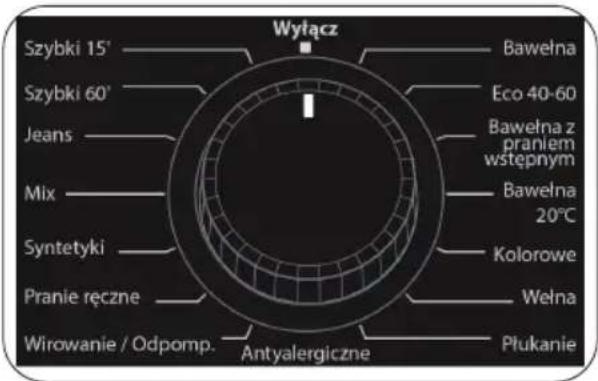

PROGRAM DIAL

This compartment is for liquid or powder detergents or limescale remover. The fluid detergent level plate will be supplied inside your machine. (*)

This compartment is for softeners, conditioners or starch. Follow the instructions on the packaging. If softeners leave residue after use, try diluting them or using a liquid softener.

This compartment should be used only when the pre-wash feature is selected. We recommend that the pre-wash feature is used only for very dirty laundry.

(*) Specifications may vary depending on the machine purchased.

• To select the desired programme, turn the programme dial either clockwise or anti-clockwise until the marker on the programme dial points to the chosen programme.

• Make sure that the programme dial is set exactly to the programme you want.

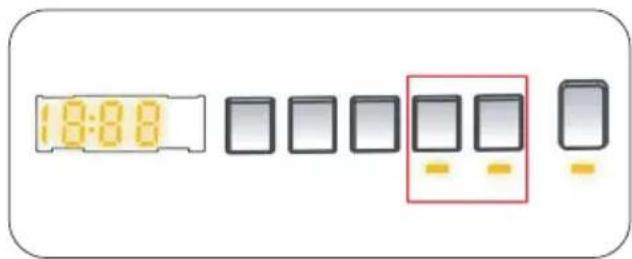

ELECTRONIC DISPLAY

1. Electronic Display
2. Digital Display
3. Water Temperature Adjustment Button
4. RPM Speed Adjustment Button
5. Delayed Start Additional Function
6. Additional Function Button 1
7. Additional Function Button 2
8. Start/Pause Button
9. Start/Pause Button Lamp

The display panel shows the washing delay timer (if set), temperature selection, spin speed, any additional functions selected.

The display panel shows "End" when the selected programme is complete. The display panel also indicates if a fault has occurred with your machine.

CHAPTER 5. USING YOUR WASHING MACHINE

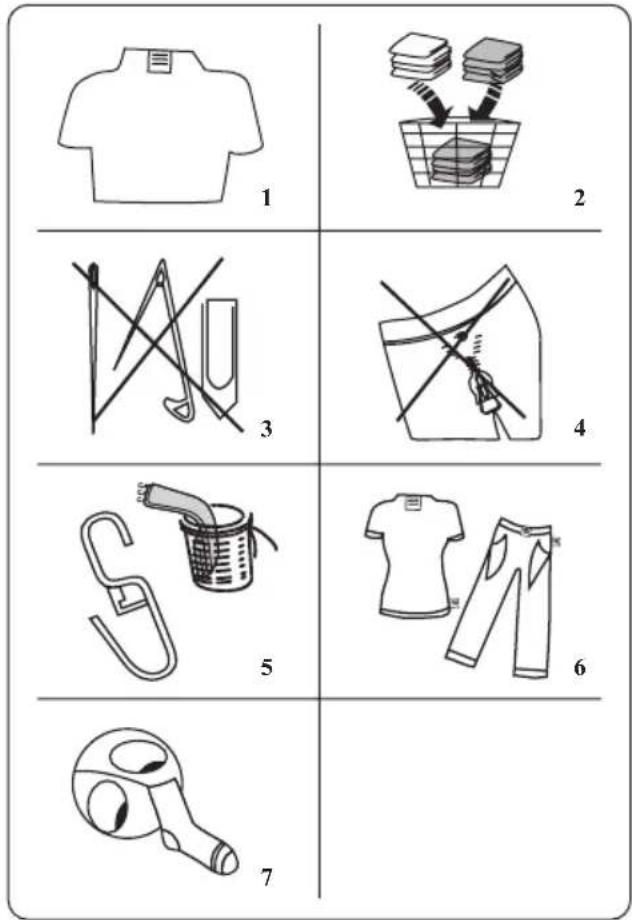

PREPARING YOUR LAUNDRY

1. Follow the instructions given in the care labels on the clothing.

2. Separate your laundry according to type (cotton, synthetic, sensitive, wool etc.), washing temperature (cold, 30°, 40°, 60°, 90°) and the degree of dirtiness (slightly stained, stained, highly stained).

3. Never wash coloured and white laundry together.
   • Dark textiles may contain excess dye and should be washed separately several times.
4. Ensure that there are no metallic materials on your laundry or in the pockets; if so, remove them.

CAUTION

Any malfunctions which occur due to foreign materials damaging your machine are not covered by the warranty.

1. Close zips and fasten any hooks and eyes.

2. Remove the metallic or plastic hooks of curtains or place them in a washing net or bag.

3. Reverse textiles such as pants, knitwear, t-shirts and sweat shirts.
4. Wash socks, handkerchiefs and other small items in a washing net.

Can be bleached	Do not bleach Normal washing
Maximum ironing temperature 150°C	Maximum ironing temperature 200°C	Do not iron
Can be dry cleaned No dry cleaning Dry flat
Drip dry Hang to dry Do not tumble		dry
Dry cleaning in gas oil, pure alcohol and R113 is allowed	Perchloroethylene R11, R13, Petroleum	Perchlorinetyhlene R11, R113, Gas oil

PUTTING LAUNDRY IN THE MACHINE

Illustration of two washing machines with one opening the other, showing mechanical components (no text or symbols)

- Open the door of your machine. - Spread your laundry evenly in the machine.

NOTE

Take care not to exceed the maximum load of the drum as this will give poor wash results and cause creasing.

Refer to the washing programme tables for information on load capacities.

The following table shows approximate weights of typical laundry items:

LAUNDRY TYPE WEIGHT (gr)
Towel 200
Linen 500
Bathrobe 1200
Quilt cover 700
Pillow slip 200
Underwear 100
Tablecloth 250

• Load each item of laundry separately.
• Check that no items of laundry are trapped between the rubber seal and the door.
  • Gently push the door until it clicks shut.

- Make sure the door is fully closed, otherwise the programme will not start.

ADDING DETERGENT TO THE MACHINE

The amount of detergent you will need to put in your machine will depend on the following criteria:

• If your clothes are only slightly soiled, do not pre-wash. Put a small amount of detergent (as specified by the manufacturer) into compartment II of the detergent drawer.

• If your clothes are excessively soiled, select a programme with pre-wash and put 14 of the detergent to be used into compartment I of the detergent drawer and the rest in compartment II.

- Use detergents produced for automatic washing machines. Follow the manufacturer's instructions on the amount of detergent to use.

• In areas of hard water, more detergent will be required.

• The amount of the detergent required will increase with higher washing loads.

• Put softener in the middle compartment of the detergent drawer. Do not exceed the MAX level.

• Thick softeners may cause clogging of the drawer and should be diluted.

- It is possible to use fluid detergents in all programmes without a pre-wash. To do this, slide the fluid detergent level plate (*) into the guides in compartment II of the detergent drawer. Use the lines on the plate as a guide to fill the drawer to the required level.

(*) Specifications may vary depending on the machine purchased.

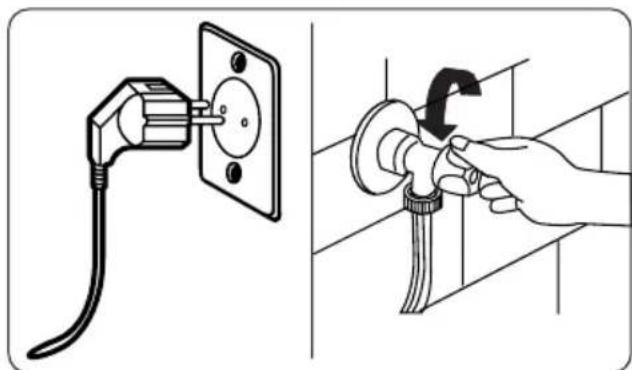

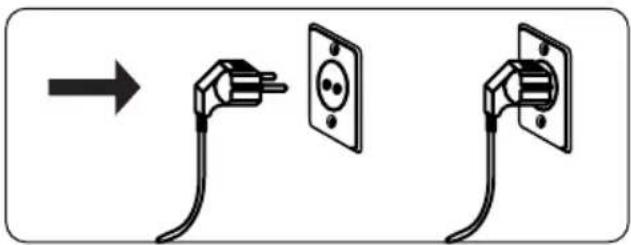

Illustration showing a plug-in socket connected to a wall and a hand holding a screwdriver (no text or symbols present)

1. Plug your machine in to the mains supply.

2. Turn on the water supply.

- Open the machine door.

• Evenly spread your laundry in the machine.

• Gently push the door until it clicks shut.

SELECTING A PROGRAMME

Use the programme tables to select the most appropriate programme for your laundry.

HALF-LOAD DETECTION SYSTEM

Your machine features a half-load detection system.

If you put less than half the maximum load of laundry into your machine it will automatically set the half-load function, regardless of the programme you selected.

This means that the selected programme will take less time to complete and will use less water and energy.

(*) Model Dependant

ADDITIONAL FUNCTIONS

1. Temperature Selection

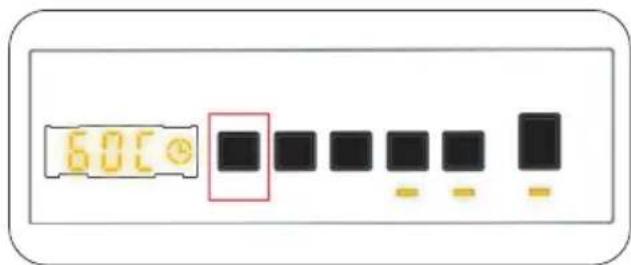

Use the washing water temperature adjustment button to alter the automatically programmed washing water temperature.

When you select a programme the maximum temperature for that programme is automatically selected. To adjust the temperature, press the water temperature adjustment button until the desired temperature is displayed on the digital display.

You can gradually decrease the washing water temperature between the maximum washing water temperature of the selected programme and cold washing (- - C) selections by pressing the temperature adjustment button.

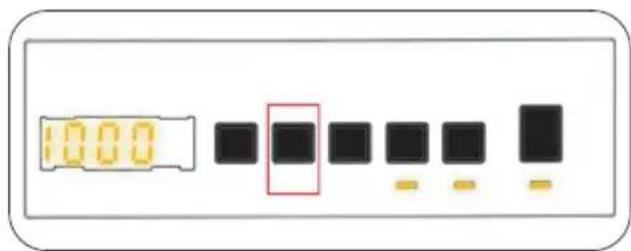

2. Spin Speed Selection

When you select a programme, the maximum spin speed is automatically selected.

To adjust the spin speed between the maximum spin speed and the cancel spinning option (-- -), press the Spin speed button until the desired speed is displayed.

If you have skipped the spin speed you want to set, keep pressing the spin speed adjustment button until the desired spin speed is displayed again.

3. Delay Timer(\*)

You can use this auxiliary function to delay the start time of the washing cycle for 1 to 23 hours. To use the delay function:

• Press the delay key once.
  • “01h” will be displayed. the electronic display. ⏱ will light up on
• Press the delay key until you reach the time after which you want the machine to start the washing cycle.
  • If you have skipped the delay time you would like to set, you can keep pressing the delay key until you reach that time again.
  • To use the time delay function, you need to press the Start/Pause key to start the machine.
  • If you want to cancel the delay:

- If you have pressed the Start/Pause key to start the machine, you just need to press the delay key once. ○ will go off on the electronic display.

- If you have not pressed the Start/ Pause key, press the delay key continuously until ⑧ goes off on the electronic display.. ⏻ will go off on the electronic display.

NOTE:

In the case that you want to select the auxiliary function feature, if the auxiliary function LED is not on, this means that this feature is not being used in the washing programme you have selected.

4. Steam Assist(\*)

Owing to the steam system ironing has become quick and as easy. The steam used dream washing penetrates and loosens the fibres, eliminates creases and leaves our clothes soft and delicate.

Auxiliary function button 4 or 5 Steam Assist

5. Anti- Allergic(\*)

You can add an additional rinse operation to your laundry using this additional function.

Your machine will carry out all rinsing steps with hot water. We recommend this setting for laundry worn on delicate skin, baby clothes and underwear.

To select this function, press the Antiallergic button when the Ⓧ symbol is displayed.

Auxiliary function button 4 or 5 Anti- Allergic

6. Easy Ironing(\*)

Using this function will result in your laundry being less wrinkled at the end of the selected washing programme.

To select this function, press the Easy ironing button when the 🔔 symbol is displayed.

Auxiliary function button 4 or 5 Easy Ironing

7. Pre-Wash(\*)

This additional function allows you to give heavily soiled laundry a pre-wash before the main washing programme takes place.

When using this function, put detergent in front washing compartment of the detergent drawer. To select this function, press the Pre-wash button when the ⊥ symbol is displayed.

Auxiliary function button 4 or 5 Pre-Wash

8. Extra Rinse(\*)

You can add an additional rinse operation to the end of the selected wash programme using this additional function. To select this function, press the Extra rinse button when the symbol is displayed.

Auxiliary function button 4 or 5 Extra Rinse

9. Rapid Wash(\*)

You can wash your laundry in a shorter time, using less energy and water by selecting this additional function.

We recommend that you only use this option if you are washing less than half the maximum dry load for the selected programme.

To select this function, press the Rapid wash button when the 🔒 symbol is displayed.

Auxiliary function button 4 or 5 Rapid Wash

NOTE:

If you put less than half the maximum load of laundry into your machine the half-load function will be automatically set, regardless of the programme you selected. This means that the selected programme will take less time to complete and will use less water and energy. When your machine detects half load, the ⏻ symbol is displayed automatically.

10. No Spin(\*)

If you don't want to perform wringing on your laundry, you can use this auxiliary function. You may make the programme active by pressing the wringing cancel button on the display panel when the led light of the 🔒 symbol turns on.

Auxiliary function button 4 or 5 No Spin

11. Cold Wash(\*)

You can use this auxiliary function when you want to wash your laundry with cold water (tap water). You may make the programme active by pressing the cold washing button on the display panel when the led light of the ⚡ symbol turns on.

Auxiliary function button 4 or 5 Cold Wash

(*) Machinery specifications may vary depending on the product purchased.
(*) Model Dependant

START/PAUSE BUTTON

By pressing on the Start/Pause button, you may start the programme you have selected or suspend a running programme. If you switch your machine to the standby mode, the Start/Pause led on the electronic display will blink.

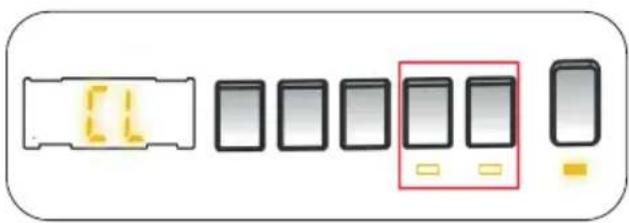

CHILD LOCK

The Child Lock function allows you to lock the buttons so that the wash cycle you have chosen cannot be changed unintentionally.

To activate child lock, press and hold button 4 and 5 simultaneously for at least 3 seconds. “CL” will flash on the electronic display for 2 seconds when the child lock is activated.

If any button is pressed or selected programme is changed by the programme dial while the child lock is active, the “CL” symbol will flash on the electronic display for 2 seconds.

If the child lock function is active and a programme is running, when the programme dial is turned to the CANCEL position and another programme is selected the previously selected programme continues from where it was left.

To deactivate the child lock, press and hold button 4 and 5 simultaneously for at least 3 seconds until the "CL" symbol on the electronic display disappears.

CANCELLING THE PROGRAMME

To cancel a running programme at any time:

1. Turn the programme dial to the "STOP" position.
2. Your machine will stop the washing operation and the programme will be cancelled.
3. Turn the programme dial to any other programme to drain the machine.
4. Your machine will perform the necessary draining operation and cancel the programme.
5. You can now select and run a new programme.

PROGRAMME END

Your machine will stop by itself as soon as the programme you have selected finishes.

• "OFF" will flash on the electronic display.
• You can open the machine's door and remove the laundry.
• Leave the door of your machine open to allow the inner part of your machine to dry.
• Switch the programme dial to STOP position.
  • Unplug your machine.
• Turn the water tap off

CHAPTER 6. PROGRAMME TABLE

Programme	Washing temperature (°C)	Maximum dry laundry amount (kg)	Detergent compartment	Programme duration (Min.)	Laundry type / Descriptions
Cotton	90, 80, 70,*60, 40, 30,"- -C"	6,0 2 145			Very dirty, cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 3,0 kg), bedclothes, etc.)
ECO 40-60 *40 - 60 6,0 2 198					Dirty cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 3,0 kg), bedclothes, etc.)
Cotton Prewash	*60 - 50- 40 -30 - “- -C”	6,0 1&2	164		Dirty cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 3,0 kg), bedclothes, etc.)
Cotton 20°C *20- “- -C” 3,0 2		59			Less dirty, cotton and linen textiles. (Underwear, bedsheet, tablecloth, towel (max.1,5 kg) bedcloth, etc.)
Colours	*40 - 30 -“- -C”	6,0 2 130			Less dirty, cotton and linen textiles. (Underwear, bedsheet, tablecloth, towel (max. 3,0 kg) bedcloth, etc.)
Wool *30 - “- -C” 2,0 2 44					Woollen laundries with machine wash labels.
Rinse *“- -C” 6,0		-	30		Provides an additional rinse to any type of laundry after the washing cycle.
Allergy safe	*60 - 50- 40 -30 - “- -C”	3,0 2 197	Baby laundry
Spin/Drain	*“- -C” 6,0	- 18			You can use this program for any type of laundry if you want an additional spin step after the washing cycle./ You can use the drain program to drain the water accumulated inside the machine (adding or removing laundry). To enable the drain program, turn the program knob to the spin/drain program. After you select “spin cancelled” using the auxiliary function key, the program will start to run.
Hand wash *3	0 - “- -C” 2,0 2	90			Laundry recommended for hand wash or sensitive laundry.
Easy Care / Outdoor	*40 - 30 - “- -C”	3,0 2 135			Very dirty or synthetic-mixed textiles. (Nylon socks, shirts, blouses, synthetic-including trousers etc.).
Mixed	*40 - 30 - “- -C”	3,0 2 105			Dirty cotton, synthetics, colour and flax textiles can be washed together.
Jeans / Dark Garments	*30 - “- -C” 3	0 2 96			Black and dark items made of cotton, mixed fibre or jeans. Wash inside out., Jeans often contains excess dye and may run during the first few washes. Wash light and dark coloured items separately.
(**)Fast 60’ 60°C	*60 - 50 - 40 - 30 - “- -C”	3,0 2 60			Dirty, cotton, coloured and linen textiles washed at 60°C in 60 minutes.
(***) Rapid 15 min.	*30 - “- -C” 2	0 2 15			In a short time of 15 minutes, Lightly soiled, cotton, colored and linen textiles your can wash.

NOTE

PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

(*) Washing water temperature of the programme is the factory default.
(**) If your machine has the rapid wash auxiliary function, you can enable the quick wash option on the display panel and load the machine with 2 kg or less laundry to wash it in 30 minutes.
(***) Due to the short washing time of this programme, we recommend that less detergent is used. The programme may last longer than 15 minutes if your machine detects an uneven load. You can open the door of your machine 2 minutes after the completion of a washing operation. (The 2 minute period is not included in the programme duration).

According to regulation 1015/2010 and 1061/2010, the programme 1 and the programme 2 are respectively the ‘Standard 60°C cotton programme’ and the ‘Standard 40°C cotton programme’.

The Eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle, and that this programme is used to assess the compliance with the EU ecodesign legislation.

• The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.
• Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.
• Program duration, energy consumption and water consumption values may vary according to wash load weight and type, selected extra functions, tap water and ambient temperature.
• It's recommended to use liquid detergent for the washing programmes at low temperature. The amount of detergent to be used may vary depending on the amount of laundry and the level of dirtiness of the laundry. Please follow the detergent manufacturers' recommendations for the amount of the detergent to be used.
• The noise and remaining moisture content are influenced by the spinning speed. The higher spinning speed in the spinning phase, the higher noise and the lower remaining moisture content.
• You can access the product database where the model information is stored by reading the QR code on the energy label.

Cotton20	Fast 60	Easy Care /Outdoor	Eco40–60		Cotton 90Cotton 60		ProgrammeName
3	3,0,87	3	6,0,79	6	6		RatedCapacity kg
1,11		0,5		0,95	2,23	RatedCapacity	EnergykWh/cycle
			0,29,015			1/2 Load
						1/4 Load
00:59	01:00	02:15	03:18	02:25	03:00	RatedCapacity	ProgrammeHours:Minutes
			02:36			1/2 Load
			02:36			1/4 Load
23 20	31 60	33 45	50 40	38 57	69 81	RatedCapacity	WaterLitres/Cycle
			40 41 28 22			1/2 Load
						1/4 Load
						RatedCapacity	Temperature°C
						1/2 Load
						1/4 Load
62%	62%	71%	62%	62%	62%	RatedCapacity	Remaining Moisture Content1000 Rpm %
			62% 62%			1/2 Load
						1/4 Load

IMPORTANT INFORMATIONS

- Use detergents, softeners and other additives suitable for automatic washing machines only. Excessive foam has occurred and automatic foam absorption system has been activated due to too much detergent usage.

• We recommend that periodic cleaning for washing machine every 2 months. For periodic cleaning please use Drum Clean programme. If your machine do not have Drum Clean programme, use Cottons-90 programme. When required, use limescale removers manufactured specifically for washing machines only.

- Never force the door open when your Washing Machine is running. You can open the door of your machine 2 minutes after the completion of a washing operation. *

- Never force the door open when your Washing Machine is running. The door will open immediately after the washing cycle has ended. *

• The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons.

(*) Specifications may vary depending on the machine purchased.

CHAPTER 7. CLEANING AND MAINTENANCE

WARNING

Illustration showing a plug inserted into a wall socket and a hand using a tool to clean the installation (no text or symbols present)

Turn your mains power supply off and remove the plug from the socket before carrying out maintenance and cleaning of your machine. Turn off the water supply before starting maintenance and cleaning of your machine.

CAUTION: Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning agents to clean your Washing Machine. They may damage the plastic surfaces and other components with the chemicals they contain.

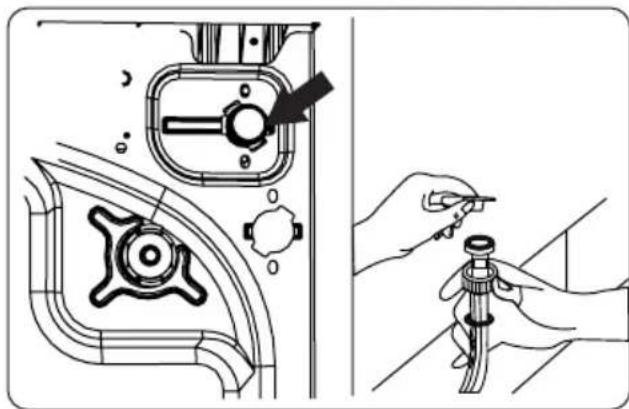

WATER INLET FILTERS

Water inlet filters prevent dirt and foreign materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive sufficient water, although your water supply is on and the tap is open. We recommend that you clean your water inlet filters every 2 months.

Technical illustration showing a mechanical component being inserted into a pipe fitting, with no visible text or symbols.

• Unscrew the water inlet hose(s) from the Washing Machine.
  • To remove the water inlet filter from the water inlet valve, use a pair of longnosed pliers to gently pull on the plastic bar in the filter.
  • A second water inlet filter is located in the tap end of the water inlet hose. To remove the second water inlet filter, use a pair of long-nosed pliers to gently pull on the plastic bar in the filter.

- Clean the filter thoroughly with a soft brush and wash with soapy water and rinse thoroughly. Re-insert the filter by gently pushing it back into place.

CAUTION: The filters at the water inlet valve may become clogged due to water quality or lack of required maintenance and may break down.

This may cause a water leak. Any such breakdowns are out of the scope of the warranty.

PUMP FILTER

The pump filter system in your Washing Machine prolongs the life of the pump by preventing lint from entering your machine. We recommend that you clean the pump filter every 2 months.

The pump filter is located behind the cover on the front-lower right corner. To clean the pump filter:

1. You may use the washing powder spade (*) supplied with your machine or liquid detergent level plate to open the pump cover.

2. Lodge the end of the powder spade or liquid detergent level plate in the opening of the cover and gently press backwards. The cover will open.

• Before opening the filter cover, place a container under the filter cover to collect any water left in the machine.
• Loosen the filter by turning anticlockwise and remove by pulling. Wait for the water to drain.

NOTE: Depending on the amount of water inside the machine, you may have to empty the water collection container a few times.

1. Remove any foreign materials from the filter with a soft brush.
2. After cleaning, re-fit the filter by inserting it and turning clockwise.
3. When closing the pump cover, ensure that the mountings inside the cover meet the holes on the front panel side.
4. Close the filter cover.

WARNING: The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance.

(*) Specifications may vary depending on the machine purchased.

DETERGENT DRAWER

The use of detergent may cause residual build up in the detergent drawer over time. We recommend that you remove the drawer every 2 months to clean the accumulated residue.

To remove the detergent drawer:

- Pull the drawer forwards until it is fully extended.

Technical line drawing of a mechanical device interior with no visible text or symbols

- Press the region shown below inside the detergent drawer you have pulled all the way back, and continue pulling and remove the detergent drawer from its place

Mechanical assembly diagram showing a hand operating a component with arrows indicating motion (no text or symbols)

- Remove the detergent drawer and disassemble the flush stopper. Clean thoroughly to completely remove any softener residue. Refit the flush stopper after cleaning and check that it is seated properly.

Technical diagram of a mechanical device with arrows indicating assembly or movement, no visible text or symbols

- Rinse with a brush and lots of water.

• Collect the residues inside the detergent drawer slot so that they don't fall inside your machine.
• Dry the detergent drawer with a towel or dry cloth and place it back

NOTE

Do not wash your detergent drawer in a dishwasher.

Liquid detergent apparatus(\*)

For the cleaning and maintenance of the liquid level detergent apparatus, remove the apparatus from its location as shown in the picture below, and thoroughly clean the remaining detergent residues.

Replace the apparatus. Make sure that no residual material remains inside the siphon.

(*) Specifications may vary depending on the machine purchased.

CHAPTER 8. BODY / DRUM

1. Body

Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth.

2. Drum

Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. These objects lead to the formation of rust stains in the drum. To clean such rust stains, use a non-chlorine cleaning agent and follow the instructions of manufacturer of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust stains.

CHAPTER 9. TROUBLESHOOTING

Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should:

• Unplug your machine from the mains power supply.
  • Turn off the water supply.

FAULT POSSIBLE CAUSE		TROUBLESHOOTING
Your machine does not start.	Machine not plugged in. Plug machine in.
	Fuses are faulty. Replace the fuses.
	No mains power supply. Check mains power.
	Start/Pause button not pressed. Press the Start/Pause button.
	Programme dial ‘stop’ position.	Turn the programme dial to the desired position.
	The machine door is not completely closed.	Close the machine door.
Your machine does not intake water.	Water tap is turned off. Turn tap on.
	Water inlet hose may be twisted.	Check water inlet hose and untwist.
	Water inlet hose clogged. Clean water inlet hose filters. (*)
	Inlet filter clogged. Clean the inlet filters. (*)
	The machine door is not completely closed.	Close the machine door.
Your machine does not discharge water.	Drain hose clogged or twisted.	Check the drain hose, then either clean or untwist.
	Pump filter clogged. Clean the pump filter. (*)
	Laundry is too tightly packed together in the drum.	Spread your laundry in the machine evenly.
Your machine vibrates.	The feet have not been adjusted.	Adjust the feet. (**)
	Transit bolts fitted for transportation have not been removed.	Remove the transit bolts from the machine. (**)
	Small load in the drum.	This will not prevent operation of your machine.
	Your machine is overloaded with laundry or laundry is unevenly spread.	Do not overload the drum. Spread laundry evenly in the drum.
	Your machine rests on a hard surface.	Do not set up your Washing Machine on a hard surface.
Excessive foam is formed in the detergent drawer.	Excessive amount of detergent used.	Press the Start/Pause button. To stop the foam, dilute one tablespoon of softener into 1/2 litre of water and pour into the detergent drawer. Press the Start/Pause button after 5-10 mins.
	Wrong detergent used.	Only use detergents produced for automatic Washing Machines.
Unsatisfactory washing result.	Your washing is too dirty for the programme selected.	Use the information in the programme tables to select the most appropriate programme.
	Amount of detergent used insufficient.	Use the amount of detergent as instructed on the packaging.
	There is too much laundry in your machine.	Check that the maximum capacity for the selected programme has not been exceeded.
Unsatisfactory washing result.	Hard water.	Increase the amount of detergent following the manufacturer's instructions.
	Your laundry is too tightly packed together in the drum.	Check that your laundry is spread out.
As soon as the machine is loaded with water, water discharges.	The end of water drain hose is too low for the machine.	Check that the drain hose is at a suitable height. (**).
No water appears in the drum during washing.	No fault. Water is in the unseen part of the drum.
Laundry has detergent residue.	Non-dissolving particles of some detergents may appear on your laundry as white spots.	Perform an extra rinse, or clean your laundry with a brush after it dries.
Grey spots appear on the laundry.	There is untreated oil, cream or ointment on your laundry.	Use the amount of detergent as instructed on the packaging in the next wash.
The spin cycle does not take place or takes place later than expected.	No fault. The Unbalanced load control system has been activated.	The Unbalanced load control system will try to spread your laundry. The spinning cycle will begin once your laundry is spread. Load the drum evenly for the next wash.

(*) See the chapter regarding maintenance and cleaning of your machine. (**) See the chapter regarding installation of your machine.

CHAPTER 10. AUTOMATIC FAULT WARNINGS AND WHAT TO DO

Your Washing Machine is equipped with a built-in fault detection system, indicated by a combination of flashing wash operation lights. The most common failure codes are shown below.

TROUBLE CODE POSSIBLE FAULT WHAT TO DO
E01	The door of your machine is not shut properly.	Shut the door properly until you hear a click. If your machine persists to indicate fault, turn off your machine, unplug it and contact the nearest authorised service agent immediately.
E02	The water pressure or the water level inside the machine may be low.	Check the tap is fully turned on. Mains water may be cut-off. If the problem still continues, your machine will stop after a while automatically. Unplug the machine, turn off your tap and contact the nearest authorised service agent.
E03	The pump is faulty or pump filter is clogged or electrical connection of the pump is faulty.	Clean the pump filter. If the problem persists, contact the nearest authorised service agent (*)
E04	Your machine has excessive amount of water.	Your machine will discharge water by itself. Once the water has drained, turn off your machine and unplug it. Turn off the tap and contact the nearest authorised service agent.

(*) See the chapter regarding maintenance and cleaning of your machine.

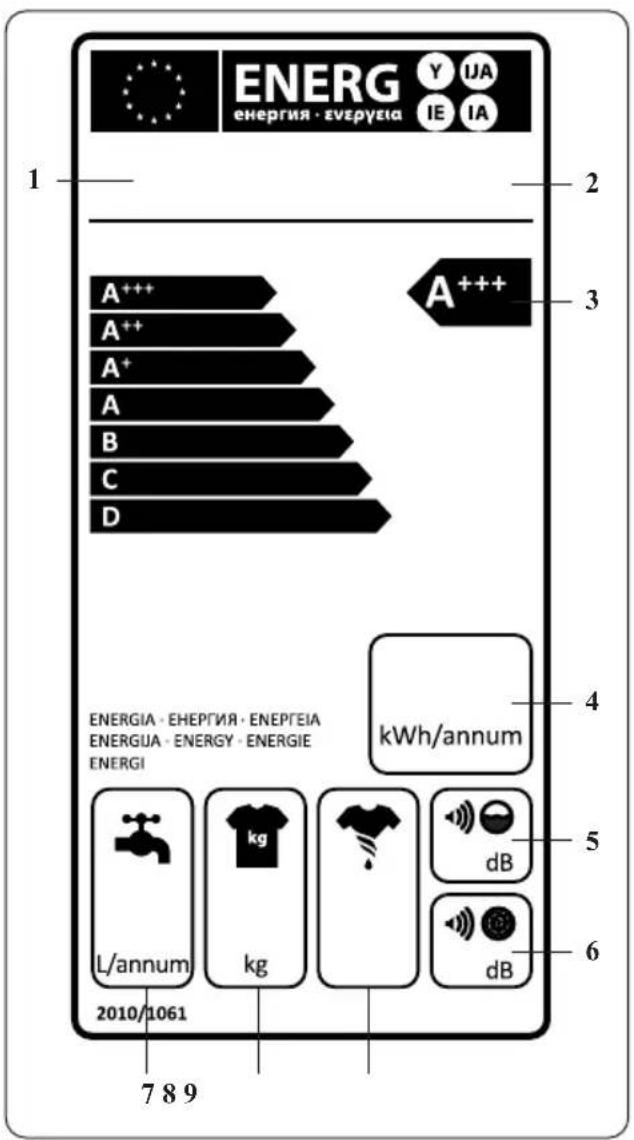

CHAPTER 11. DESCRIBING THE ENERGY LABEL AND SAVING ENERGY

1. Brand
2. Model
3. Energy Class
4. Energy Consumption
5. Noise Value While Washing
6. Noise Value While Spinning
7. Annual Water Consumption
8. Dry Laundry Capacity
9. Spinning Performance

Energy use and water consumption may vary based on water pressure, water hardness, water temperature, ambient temperature, amount of laundry, additional function selection and voltage fluctuations.

Energy consumption and water usage can be reduced by not exceeding the washing load specified in the programme tables.

Use programmes of shorter duration for lightly soiled laundry and daily washes.

Carry out cleaning and maintenance at regular intervals.

DISPOSAL OF USED EQUIPMENT

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. a crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials. Penalties may be imposed in accordance with national legislation for improper disposal of this product. If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device. Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

Fig. A

Fig. B

CE

www.kernau.com

GT Group Tomaszek Sp. z o.o.,

Simple line drawing of a washing machine with two circles and a header (no text or symbols)

VZHLED

Diagram showing a pipe connection to a sink with an inset illustrating the arc structure (no text or symbols)

Line drawing of a washing machine with a close-up view of its internal components (no text or symbols)

Technical line drawings of a mechanical device with cross-sectional and top views (no text or symbols)

Technical line drawing of two mechanical devices, one with a circular component and the other with three cylindrical containers (no text or symbols)

Technical line drawing of a battery holder and its internal components (no text or symbols)

VOLIČ PROGRAMŮ

Illustration of two washing machines with one opening the other, showing mechanical components and a pipe connection (no text or symbols)

Illustration showing two steps of a hairpin installation: one with a plug, the other with a hand holding a screwdriver (no text or symbols present)

Illustration showing a plug inserted into a wall socket and a hand holding a hose with a curved arrow indicating rotation (no text or symbols)

FILTRY NA PŘÍVODU VODY

Technical illustration showing a mechanical component being inserted into a pipe fitting, with no visible text or symbols.

Technical line drawing of a mechanical device interior with internal components and an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a hand operating a component with a red ring and black arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with arrows indicating assembly or movement, no visible text or symbols

Technical diagrams of two mechanical components: a rectangular frame with internal channels and a cylindrical housing with internal structure (no text or symbols)

1. Tělo

Simple line drawing of a washing machine with two circles and a horizontal bar (no text or symbols)

ЗАГАЛЬНИЙ ВИГЛЯД

Diagram showing a mechanical component with a curved cable and a magnified inset illustrating the structural change (no text or symbols)

Line drawing of a washing machine with an open door and internal components, showing structural assembly (no text or symbols)

Technical line drawings of two mechanical devices, one showing internal components and the other a transparent housing (no text or symbols)

Technical line drawing of two mechanical devices, one with a circular component and the other with three cylindrical containers (no text or symbols)

Technical line drawing of a battery holder and its internal components (no text or symbols)

Illustration of two washing machines with a pipe connecting them (no text or symbols)

Illustration of a plug electrical outlet and a hand holding a screwdriver (no text or symbols)

ВИБІР ПРОГРАМИ

Illustration showing a plug inserted into a wall socket and a hand using a tool to clean the bulb (no text or symbols present)

Technical illustration showing a mechanical component being inserted into a pipe, with no visible text or symbols.

Diagram of two mechanical components with circular cross-sections and internal bearing housing (no text or labels)

5

Simple line drawing of a mechanical component with a triangular warning symbol (no text or labels)

6

Technical line drawing of a mechanical device interior with internal components and a black arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a hand operating a component with red circular ring and black arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with arrows indicating assembly or movement, no visible text or symbols

Technical diagrams of two mechanical components: a 3D panel with internal channels and a cylindrical housing (no text or symbols)

1. Корпус
