Product Type	Freestanding Washing Machine
Brand	Kernau
Model	KFWM 7523 I
Dimensions (H x W x D)	845 x 597 x 527 mm
Power Consumption	2100 W
Voltage / Frequency	220-240 V ~ 50 Hz
Current	10 A
Water Pressure Range	0.1 - 1 MPa
Maximum Dry Laundry Capacity	7 kg
Maximum Spin Speed	1200 rpm
Number of Programmes	15
Water Connection	Cold water only
Half-Load Detection	Automatic adjustment of water and energy
Child Lock	Yes, prevents accidental button presses
Delayed Start	1 to 23 hours
Stain Selection	Supports stain types for optimized washing

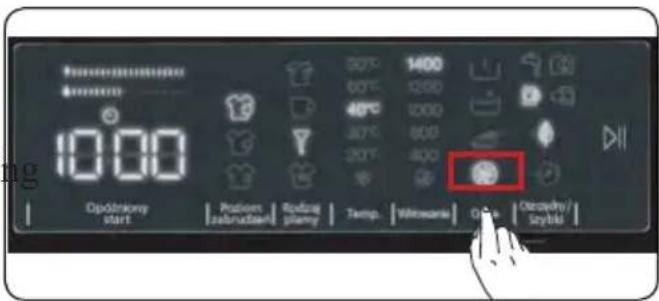

Additional Functions	Prewash, Extra Rinse, Easy Ironing, Anti-Allergy, Rapid, Save
Pump Filter Cleaning Interval	Every 2 months
Water Inlet Filter Cleaning	Recommended every 2 months

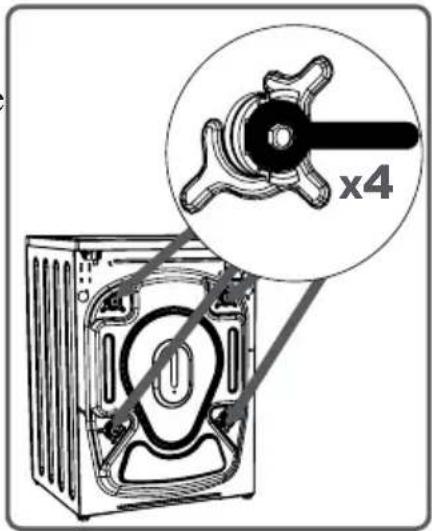

Transit Bolts	4 bolts must be removed before use
Energy Efficiency Bar	Visual indicator of energy/water consumption

Frequently Asked Questions - KFWM 7523 I Kernau

How do I install my Kernau KFWM 7523 I washing machine?

First, remove the 4 transit bolts and rubber spacers from the rear. Level the machine using the adjustable feet. Connect the water inlet hose to a 3/4" threaded tap and the drain hose to a standpipe at max 100 cm height. Ensure the electrical connection is to an earthed 10A socket.

What should I do for the first wash?

Select the 90° Cotton programme without laundry and add a suitable detergent to compartment II. This cleans the drum and removes any residues from production.

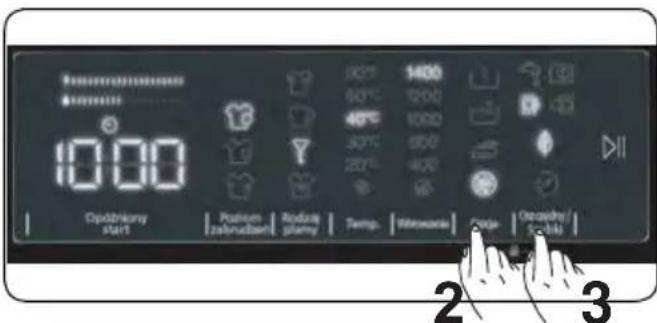

How do I activate the child lock?

Press and hold buttons 2 and 3 simultaneously for at least 3 seconds until 'CL' appears. To deactivate, repeat the same process until 'CL' disappears.

Why is my machine not starting?

Check that the machine is plugged in, the fuses are okay, the door is fully closed, the programme dial is not at 'stop', and the Start/Pause button has been pressed.

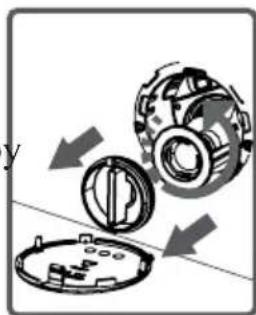

How do I clean the pump filter?

Turn off the machine and unplug it. Open the lower right cover, place a container underneath, unscrew the filter anticlockwise, remove lint, clean with a brush, and reinsert clockwise. Do this every 2 months.

What does error code E01 mean?

E01 indicates the door is not properly shut. Close the door until you hear a click. If the error persists, unplug the machine and contact an authorised service agent.

Can I use bleach in this washing machine?

The manual does not specifically mention bleach. For stain removal, use the stain selection function. Avoid using solvents or abrasive cleaners.

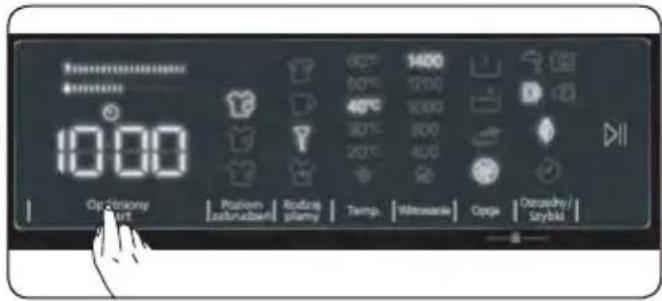

How do I delay the start of a programme?

Press the Delay key repeatedly to set a delay from 1 to 23 hours. Then press Start/Pause. The machine will begin the cycle after the set delay.

Why is there excessive foam in the detergent drawer?

This may be due to using too much detergent. Press Start/Pause, mix 1 tablespoon of softener with 0.5 litre of water, pour into the drawer, and resume after 5-10 minutes. Use only detergents for automatic washers.

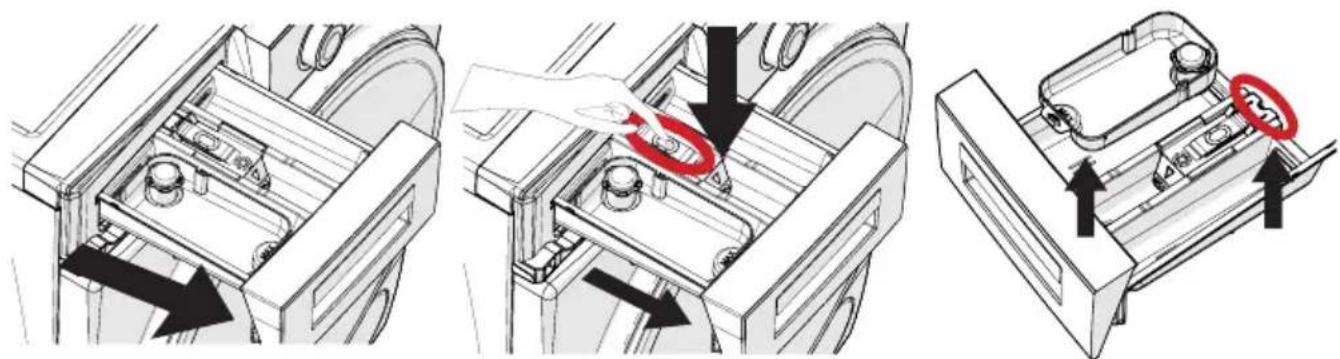

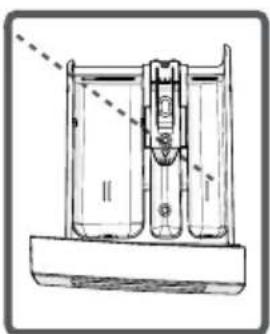

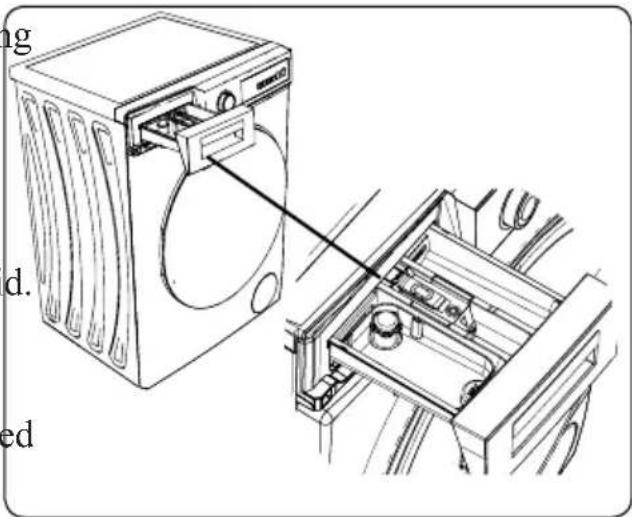

How do I clean the detergent drawer?

Remove the drawer by pulling it out fully, pressing down the release tab, and pulling it out. Rinse with water and a brush to remove residue. Do not wash in a dishwasher. Clean every 2 months.

USER MANUAL KFWM 7523 I Kernau

INSTRUKCJA OBSŁUGI I INSTALACJI

PRALKI

KFWM 7523 I

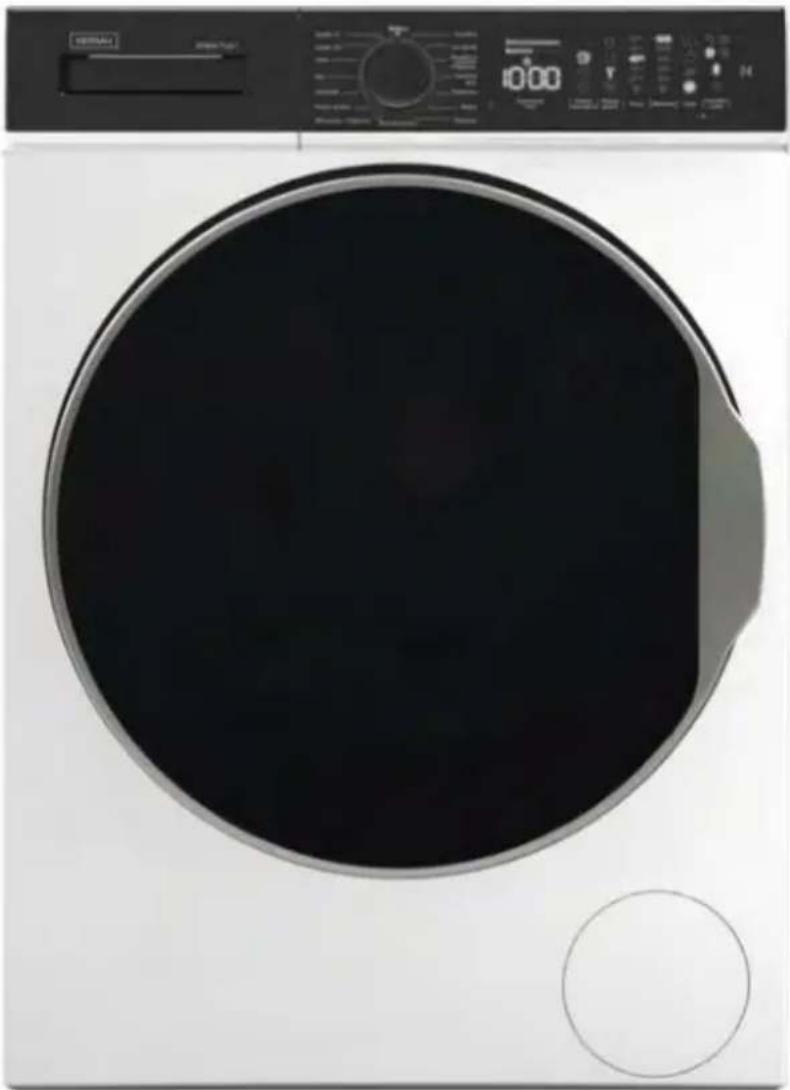

Front view of a white washing machine with a black circular lid and control panel (no visible text or symbols)

www.kernau.com

SZANOWNY KLIENCIE,

Line drawing of a washing machine with a circular vent and side buttons (no text or symbols)

Line drawing of a washing machine with no text or symbols

Close-up of a magnifying glass focusing on a circular object with a red arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or inspect a component with a funnel and test tube (no text or symbols)

Illustration of a hand using a tool to clean or inspect a surface with a funnel (no text or symbols)

ZAGROŻENIE POŻAREM!

Line drawing of two workers holding a large washing machine (no text or symbols)

BEZPIECZEŃSTWO DZIECI!

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing of a washing machine interior with internal components and wiring (no text or labels)

DANE TECHNICZNE

Diagram of a washing machine showing internal components and a close-up view of the dial (no text or labels)

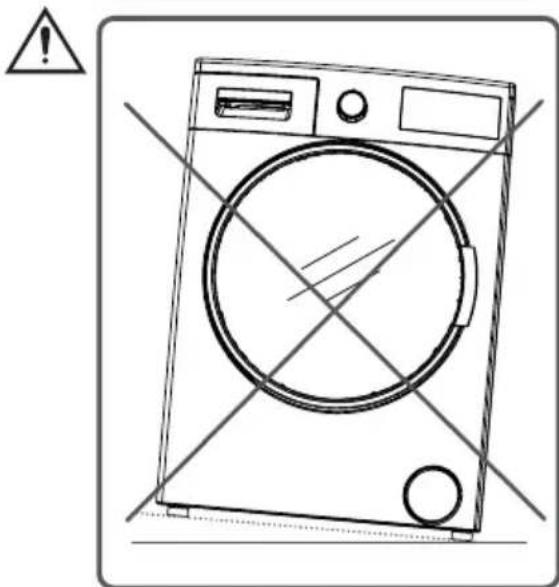

Line drawing of a washing machine with warning symbol (no text or labels)

Simple line drawing of a coiled tube with two connectors (no text or symbols)

Diagram of a pipe outlet with a flexible hose and fittings (no text or symbols)

Diagram showing a pipe installation with an inset illustrating the curved pipe connection (no text or symbols present)

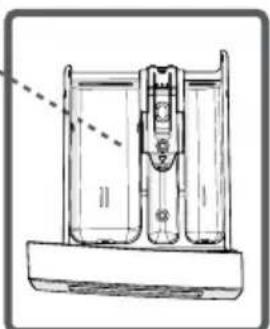

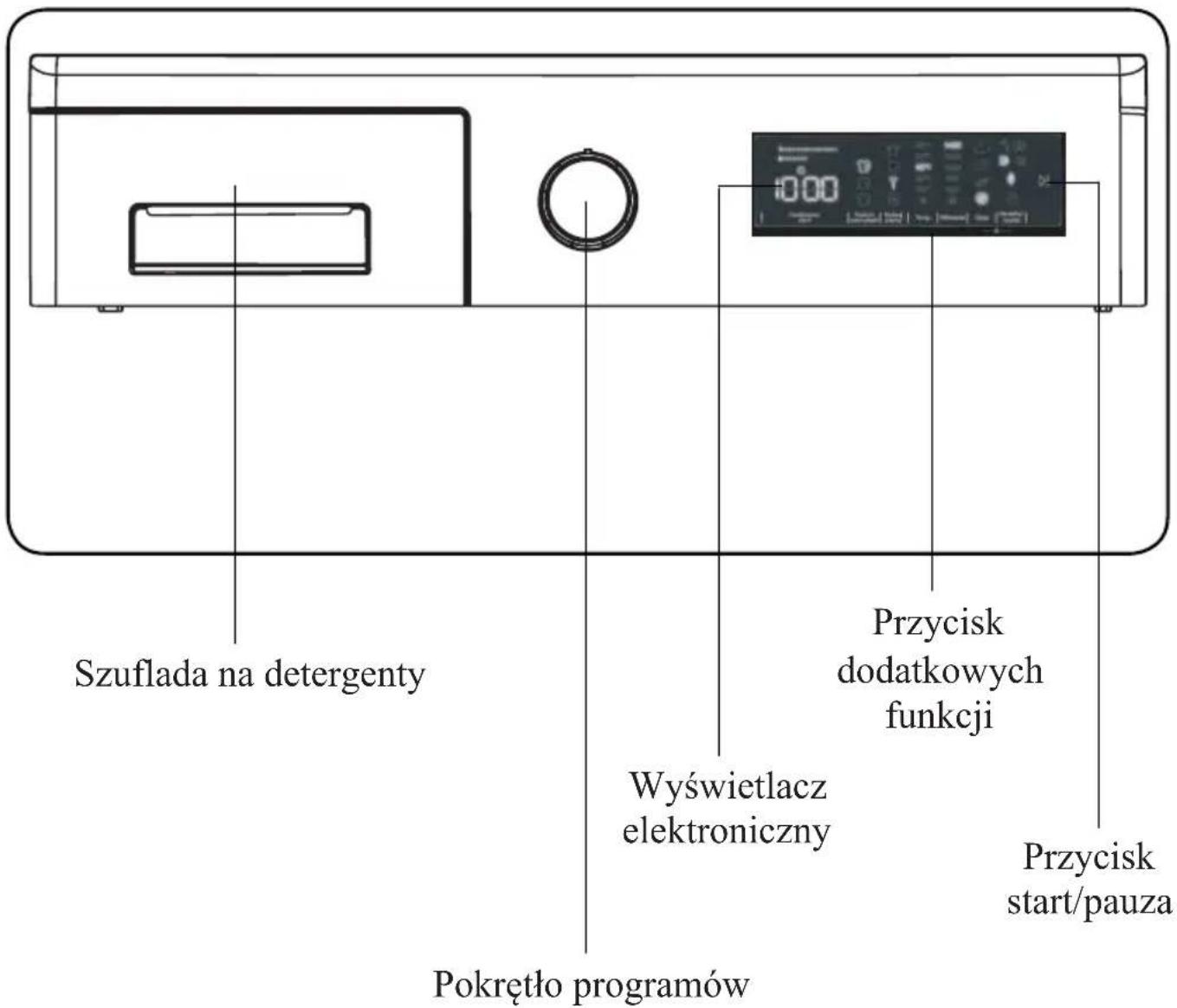

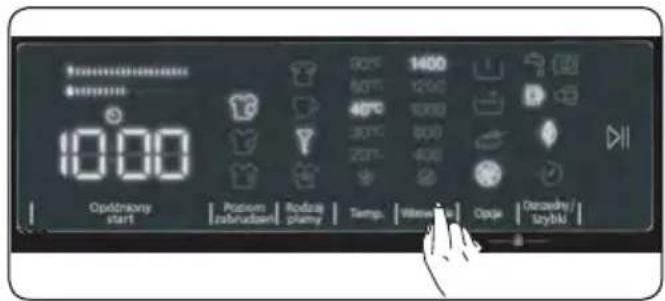

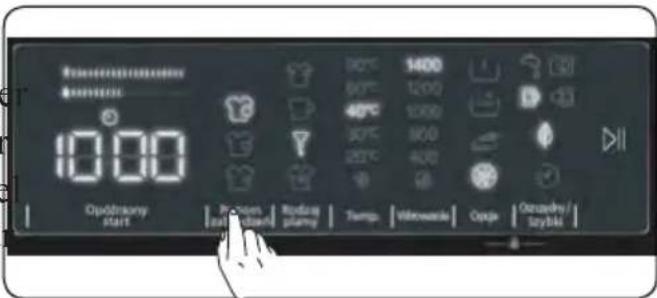

ROZDZIAŁ 4: WPROWADZENIE DO PANELU STERUJĄCEGO

Line drawing of a washing machine with internal components, showing front and side views (no text or symbols)

Technical line drawing of a mechanical component or tool (no text or symbols)

Technical line drawing of a cylindrical device with internal components, enclosed in a circular frame (no text or symbols)

Simple line drawing of a laboratory apparatus with three beakers and a stand, no text or symbols present.

Simple line drawing of a laboratory apparatus with two beakers and a central device (no text or symbols)

Technical line drawing of a mechanical component inside a circular frame (no text or symbols)

Technical line drawing of a mechanical device with internal components and a dashed diagonal line (no text or symbols)

Simple line drawing of two cups with liquid, one above and one below, separated by a horizontal line (no text or symbols)

Illustration of a washing machine with a handle inserting into it (no text or symbols)

Line drawing of a washing machine with a circular vent and side buttons (no text or symbols)

Simple line drawing of an electric shock plug (no text or symbols)

Hand using a power tool to clean or adjust a circular component (no text or symbols visible)

WYBÓR PROGRAMU

BAWEŁNA + PRANIE WSTĘPNE

Simple line drawing of an electrical outlet with a plug and cable (no text or symbols)

Illustration of a hand using a tool to adjust or install a pipe fitting (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

OSTRZEŻENIE:

UWAGA:

Mechanical assembly diagram showing a gear and rotor components with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows internal gear-like structure, bottom shows circular housing (no text or symbols)

Line drawing of hands performing a manual task with a tool (no text or symbols)

Simple line drawing of a mechanical setup with a gear and base, no text or symbols present

Diagram of a mechanical assembly with circular components and red arrows indicating motion (no text or symbols)

Three-step diagram showing mechanical assembly steps with arrows indicating direction (no text or symbols)

Technical line drawing of a rectangular panel with internal slots and a curved cutout (no text or symbols)

BEBEN

Cross-sectional diagram of a cylindrical mechanical component with internal grooves and internal channels (no text or symbols)

ROZDZIAŁ 9: ROZWIĄZYWANIE PROBLEMÓW

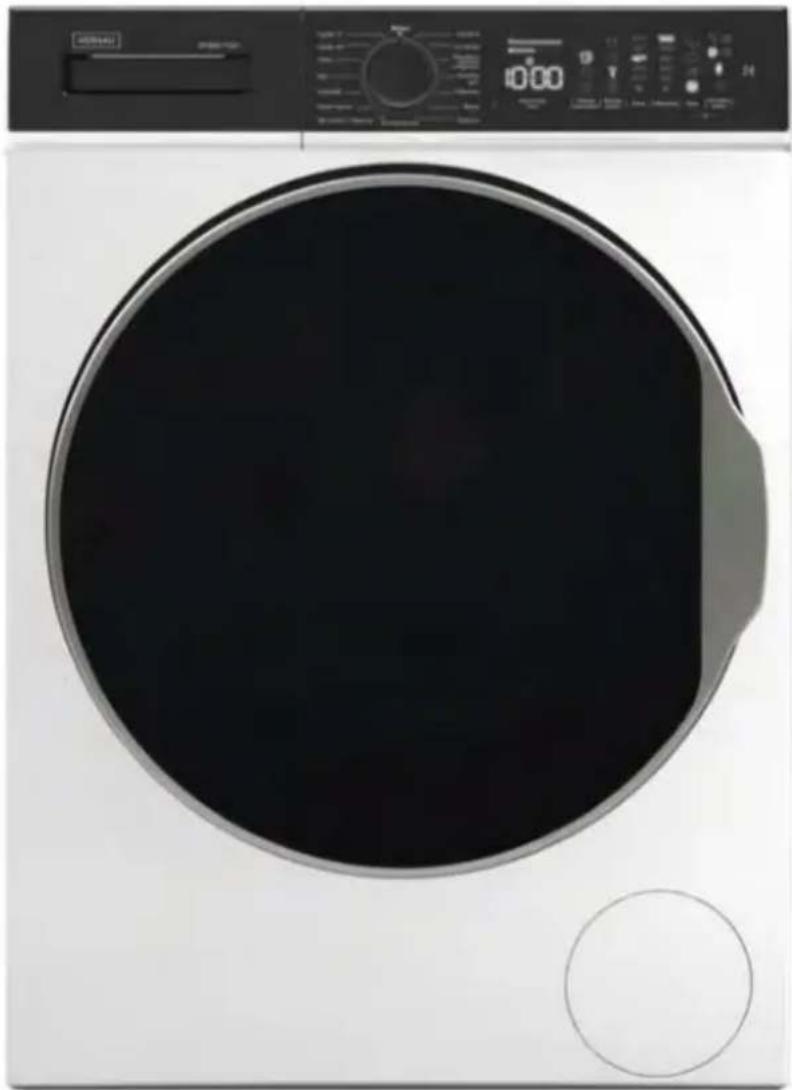

USER MANUAL WASHING MACHINE KFWM 7523 I

Front view of a white washing machine with a black circular lid and control panel (no visible text or symbols)

www.kernau.com

CONTENTS

CHAPTER 1: SAFETY INSTRUCTIONS....59

• GENERAL SAFETY WARNINGS....60
• SAFETY WARNINGS....62
  • DURING USE....64
• PACKAGING AND ENVIRONMENT....65
• SAVINGS INFORMATION......65

CHAPTER 2: TECHNICAL SPECIFICATIONS....66

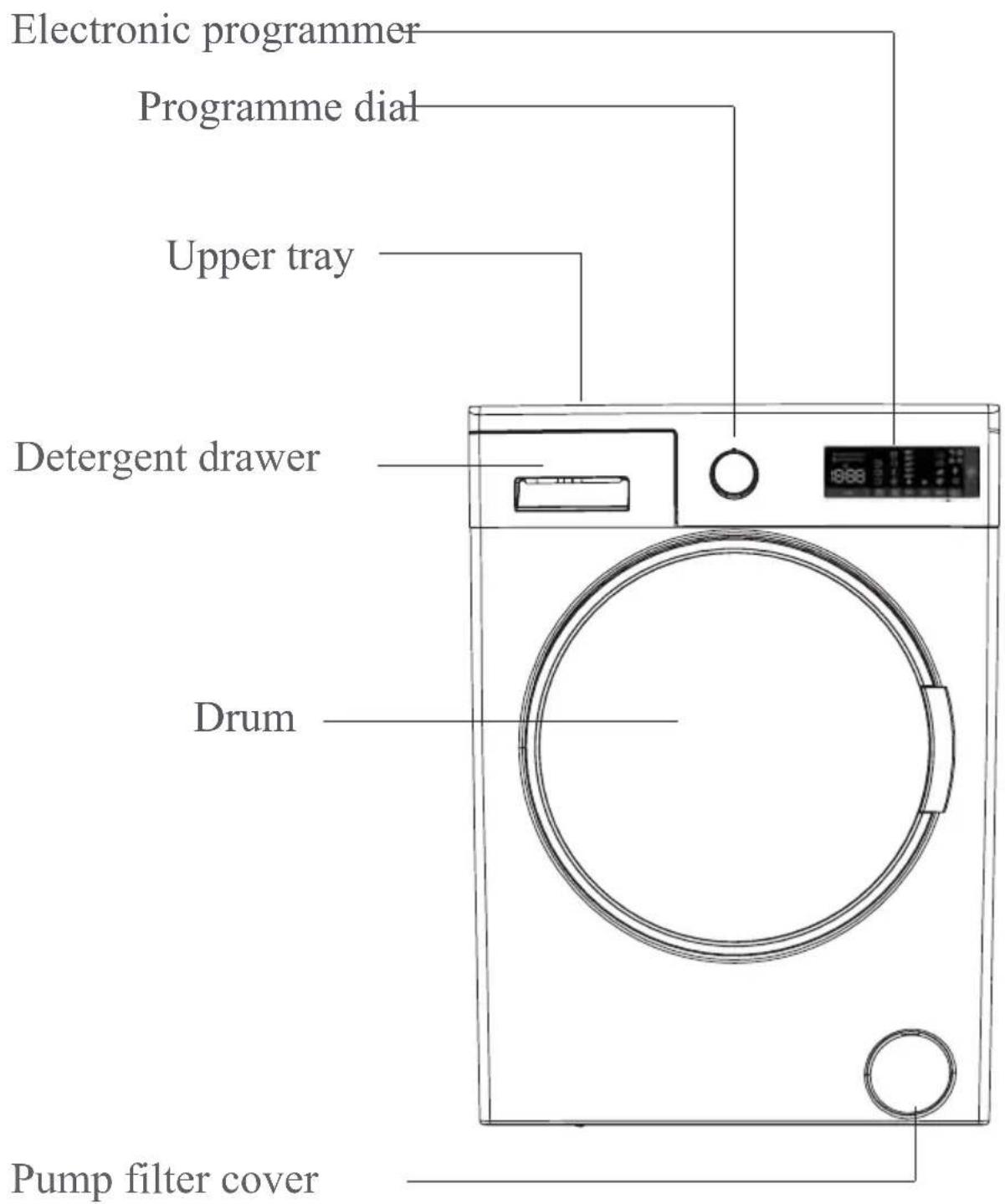

• GENERAL APPEARANCE....66
• TECHNICAL SPECIFICATIONS....68

CHAPTER 3. INSTALLATION....69

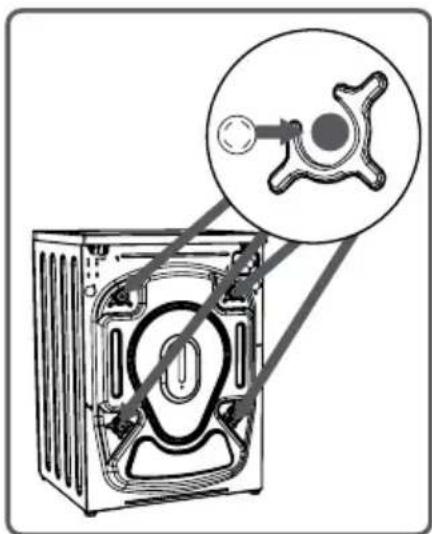

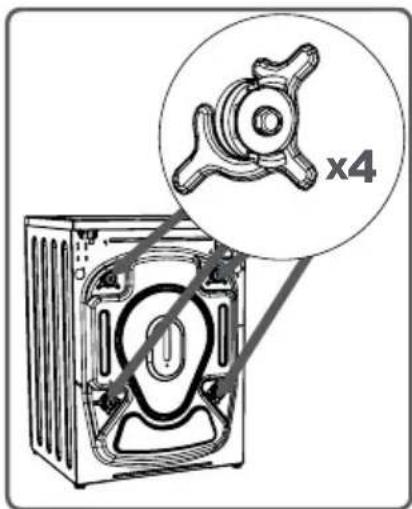

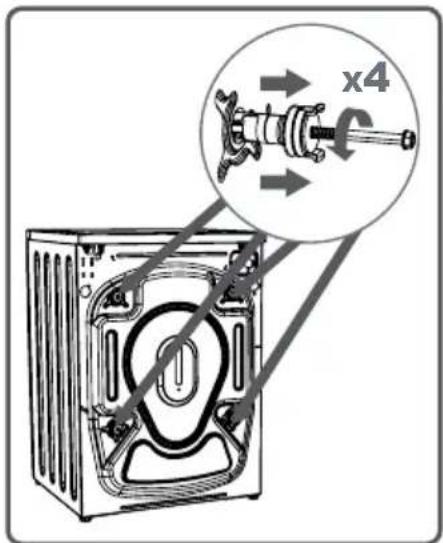

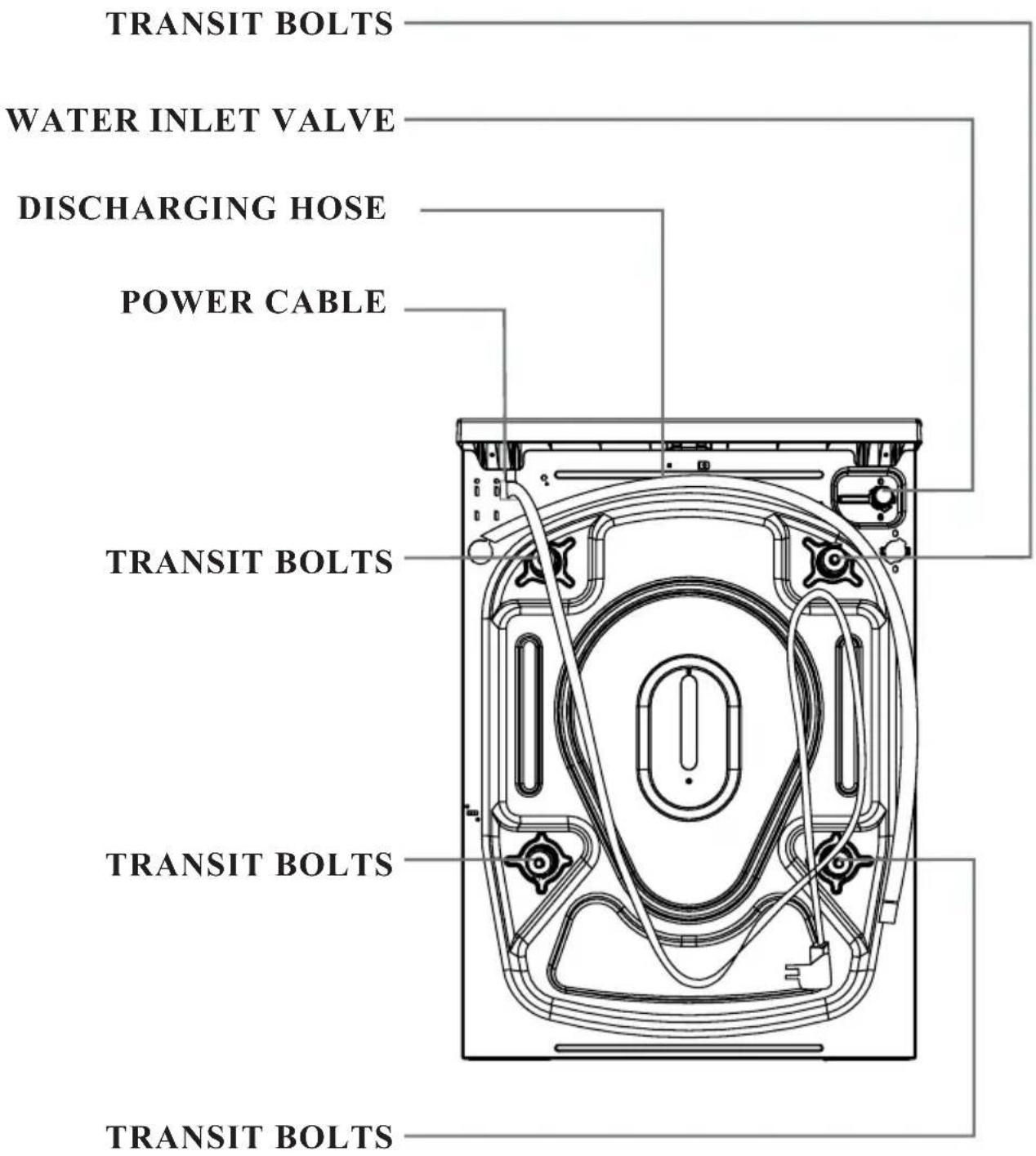

• REMOVING THE TRANSIT BOLTS....69

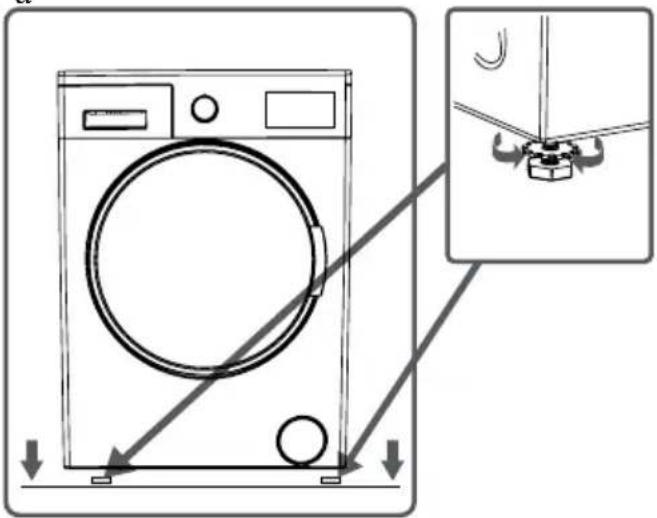

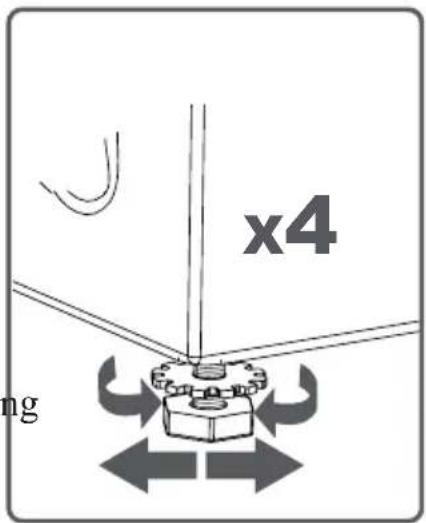

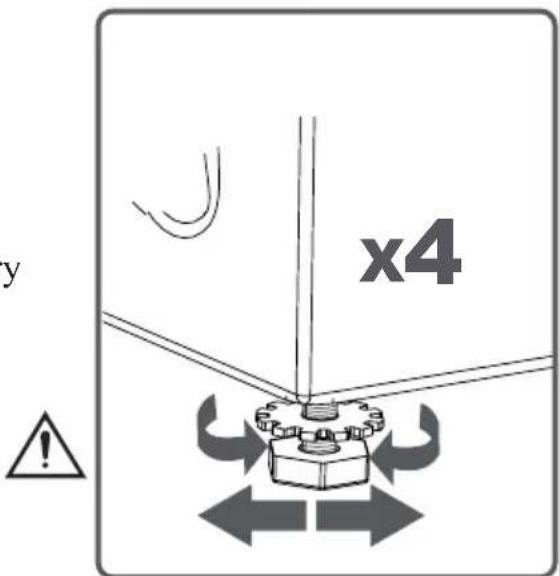

• ADJUSTING THE FEET / ADJUSTING ADJUSTABLE STAYS....70
  • ELECTRICAL CONNECTION....71
• WATER INLET HOSE CONNECTION....71

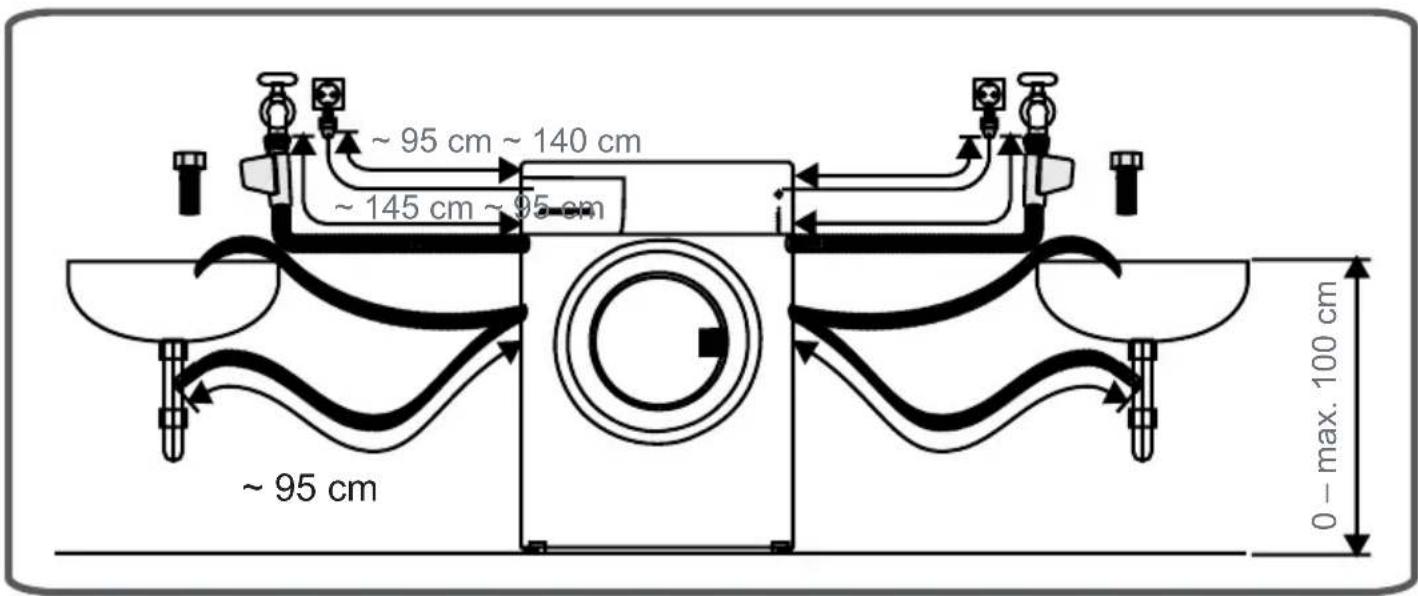

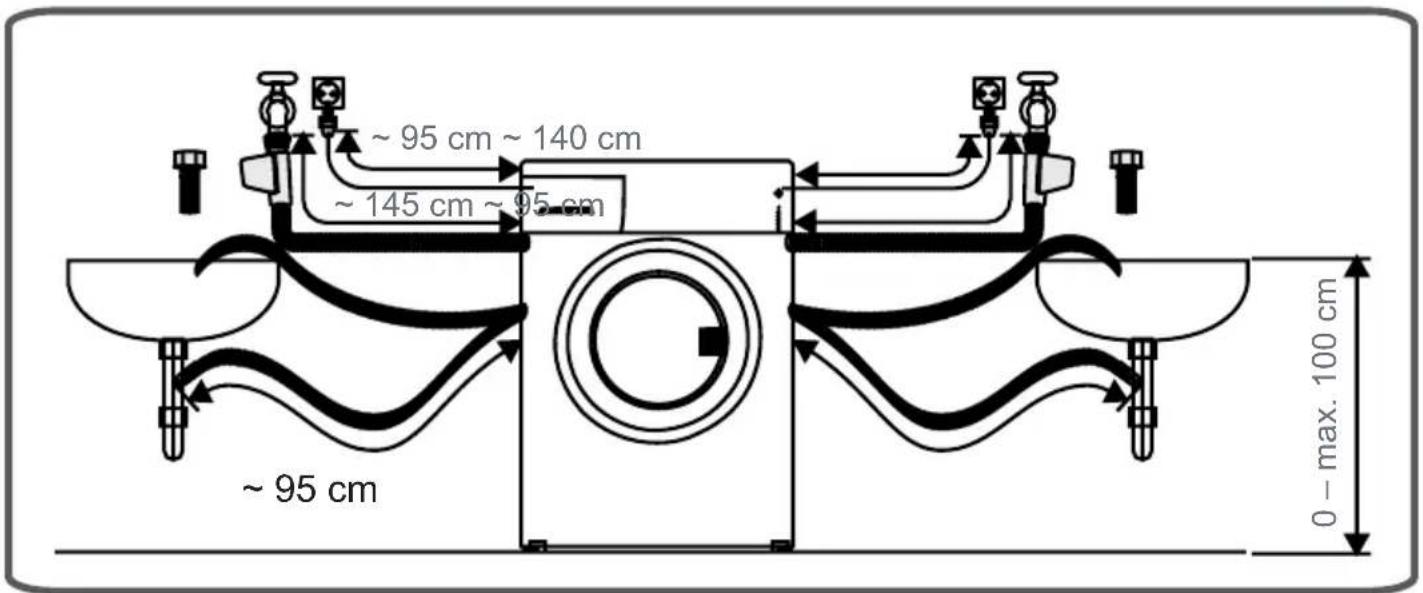

• WATER DISCHARGE CONNECTION....72

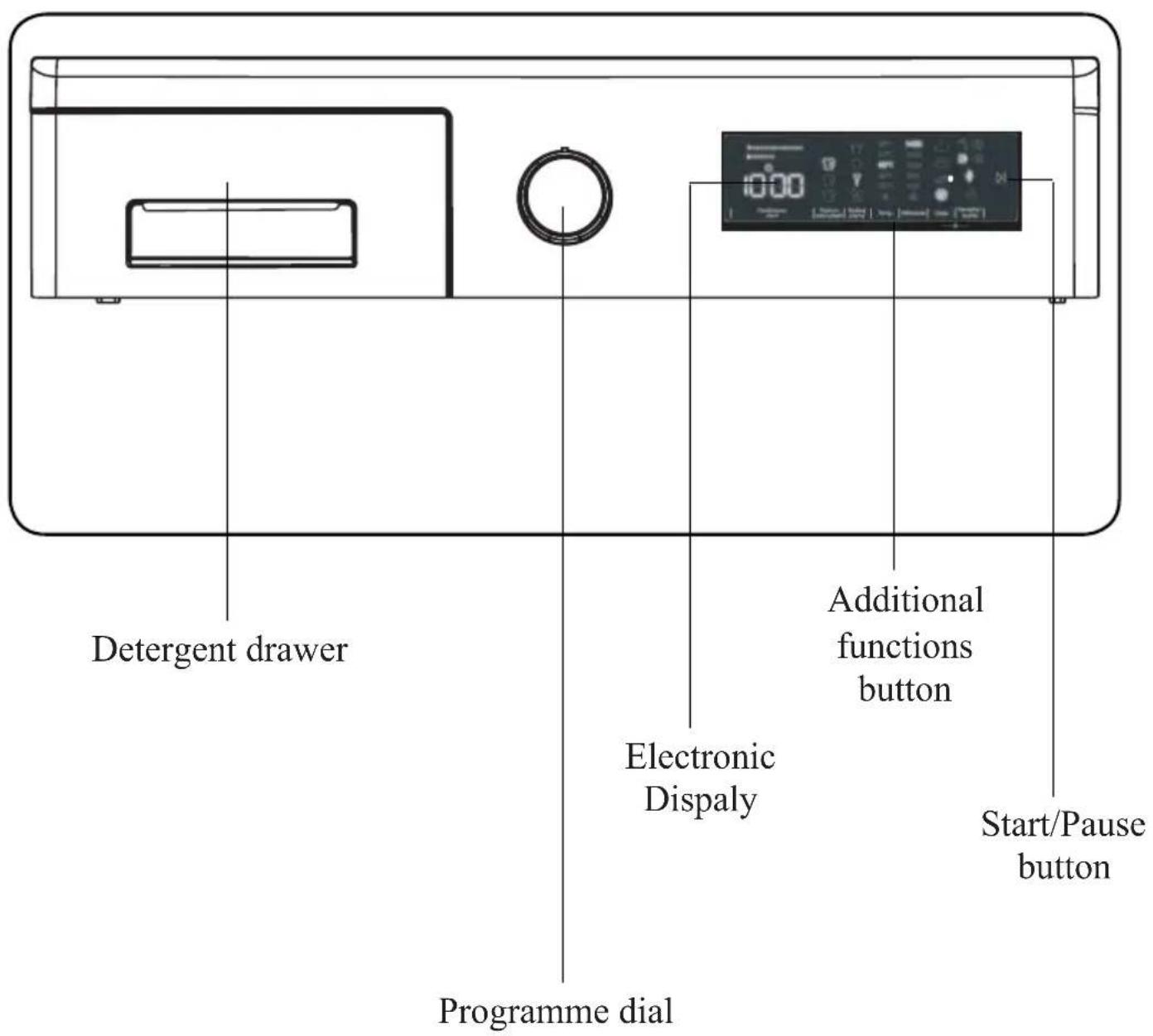

CHAPTER 4. CONTROL PANEL OVERVIEW....73

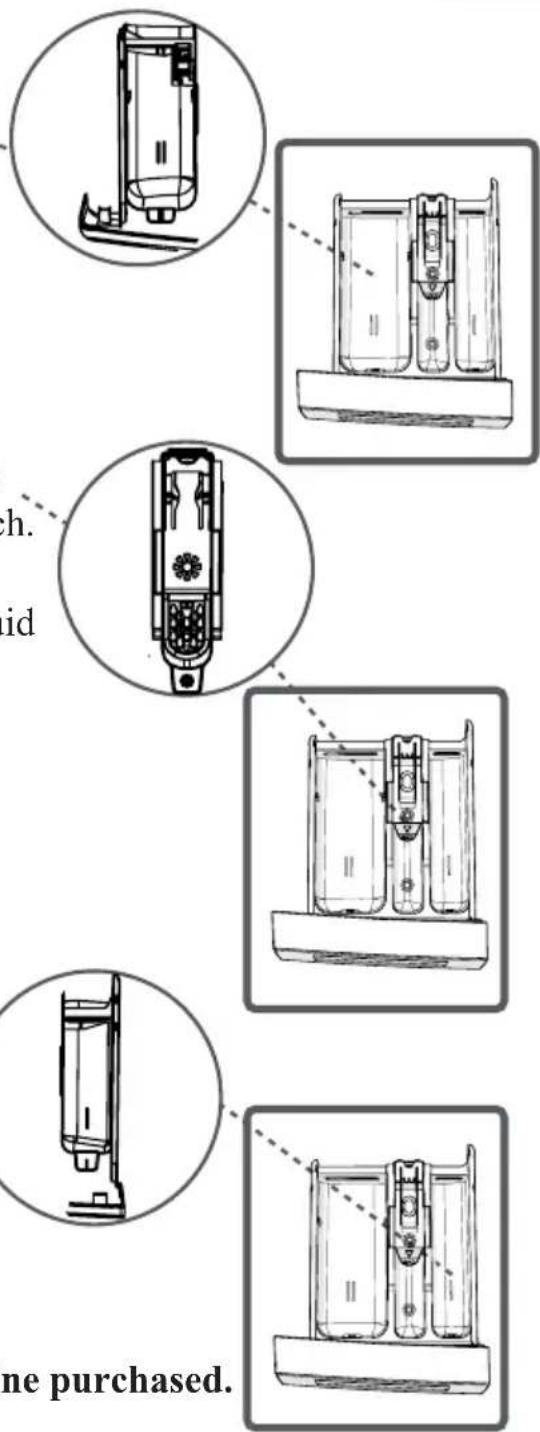

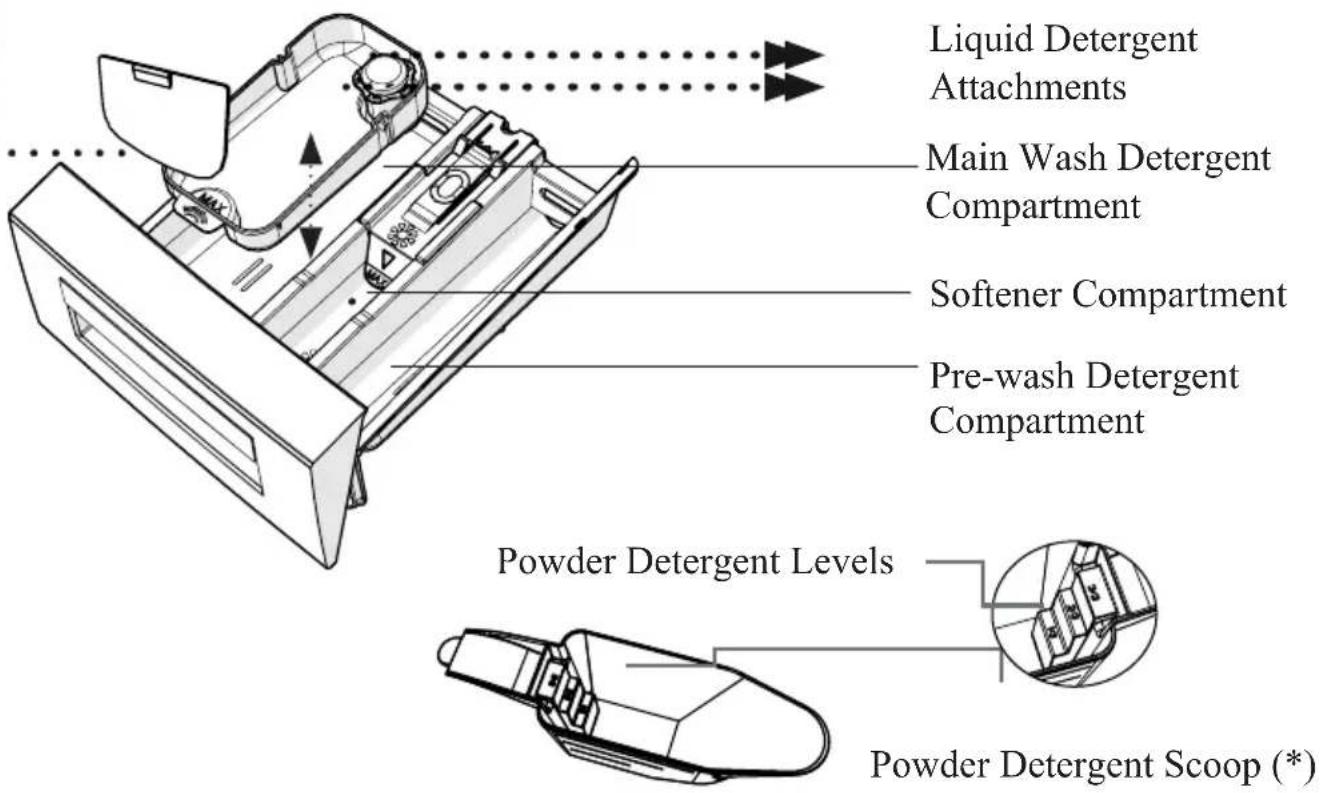

• DETERGENT DRAWER....74

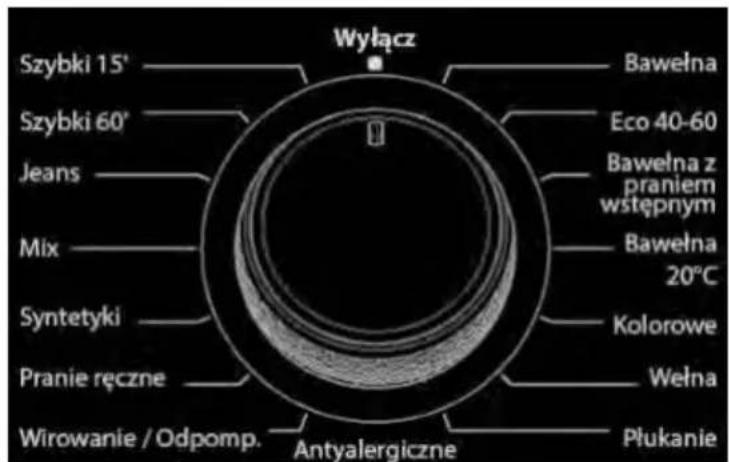

  • PROGRAM DIAL....75

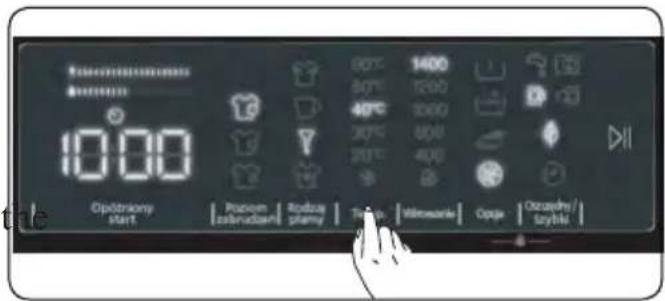

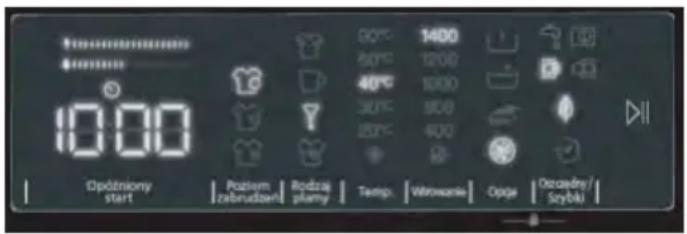

  • ELECTRONIC DISPLAY....76

CHAPTER 5. USING YOUR WASHING MACHINE....77

• PREPARING YOUR LAUNDRY....78

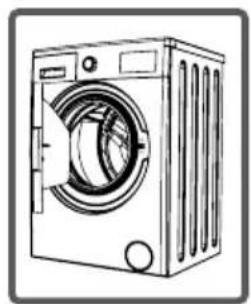

• PUTTING LAUNDRY IN THE MACHINE....79
• ADDING DETERGENT TO THE MACHINE....80

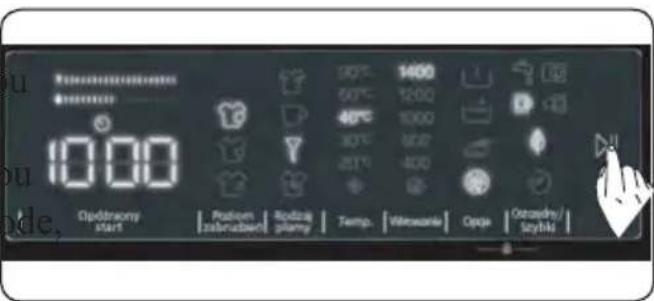

  • OPERATING YOUR MACHINE....80

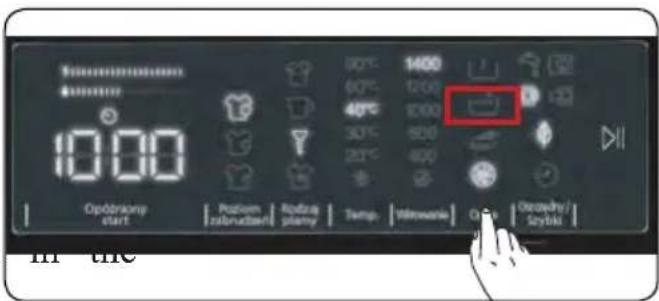

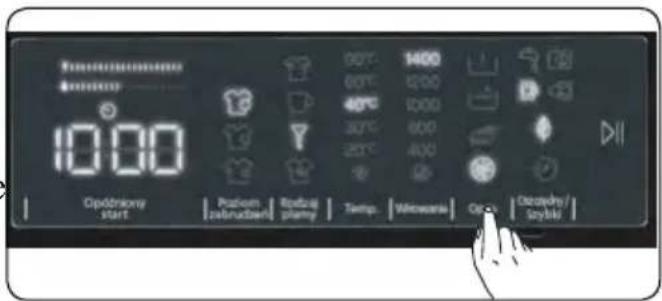

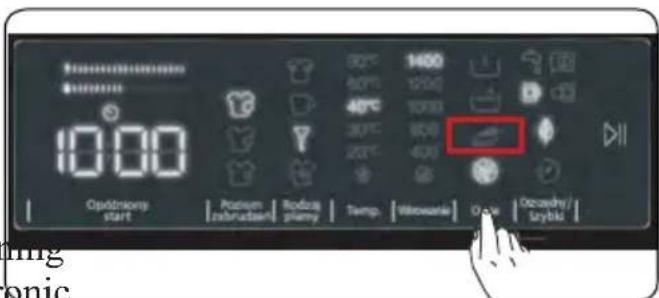

  • ADDITIONAL FUNCTIONS....82
• CHILD LOCK....87
• CANCELLING THE PROGRAMME....88

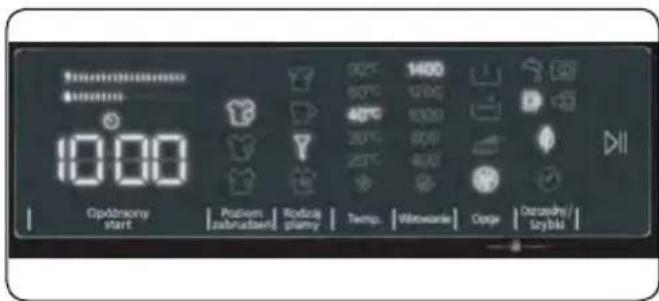

  • PROGRAMME END......88

CHAPTER 6. PROGRAMME TABLE......89

CHAPTER 7. CLEANING AND MAINTENANCE....97

• WARNING....97

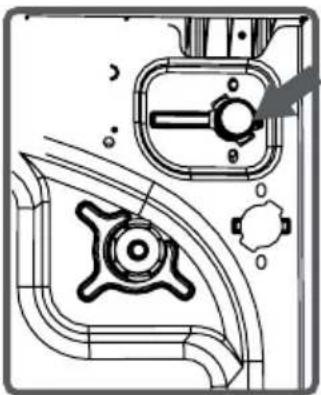

• WATER INLET FILTERS....98
• PUMP FILTER....99
• DETERGENT DRAWER....99

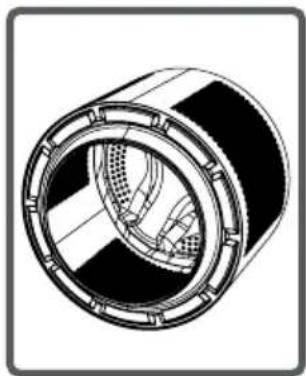

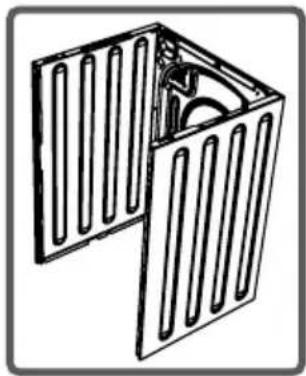

CHAPTER 8. BODY / DRUM....100

CHAPTER 9. TROUBLESHOOTING....101

CHAPTER 10. AUTOMATIC FAULT WARNINGS AND WHAT TO DO...104

CHAPTER 11. PRACTICAL INFORMATION......105

• DISPOSAL OF USED EQUIPMENT....105

CHAPTER 1: SAFETY INSTRUCTIONS

Operating voltage / frequency (220-240) V~/50Hz
Total current (A) 10
Water pressure (Mpa)	Maximum: 1 MpaMinimum: 0,1 Mpa
Total power (W)	2100
Maximum washing capacity (dry laundry) (kg)	7

• Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of appliance by a person responsible for their safety.
• Children of less than 3 years should be kept away unless continuously supervised.
• Call the nearest authorized service centre for a replacement if the power cord malfunctions.
• Use only the new water inlet hose coming with your machine when making water inlet connections to your machine. Never use old, used or damaged water inlet hoses.
• Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

GENERAL SAFETY WARNINGS

- Read this user manual carefully.

- Your machine is for domestic use only. Using it for commercial purposes will cause your warranty to be cancelled.

- This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

- The necessary ambient temperature for operation of your Washing Machine is 15-25 °C.

- Where the temperature is below 0^ , hoses may split or the electronic card may not operate correctly.

- Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins.

- It is recommended that for your first wash, you select the 90° Cotton programme without laundry and half fill compartment II of the detergent drawer with a suitable detergent.

- Residue may build up on detergent and softeners exposed to air for a long period of time. Only put softener or detergent in the drawer at the beginning of each wash.

- Unplug your Washing Machine and switch off the water supply if the Washing Machine is left unused for a long time. We also recommend that you leave the door open to prevent build up of humidity inside the Washing Machine.

- Some water may be left in your Washing Machine as a result of quality checks during production. This will not affect the operation of your Washing Machine.

• The packaging of the machine could be hazardous to children. Do not all children to play with the packaging or small parts from the Washing Machine.
• Keep the packaging materials in a place where children cannot reach them or dispose of them appropriately.
• Use pre-wash programs only for very dirty laundry.

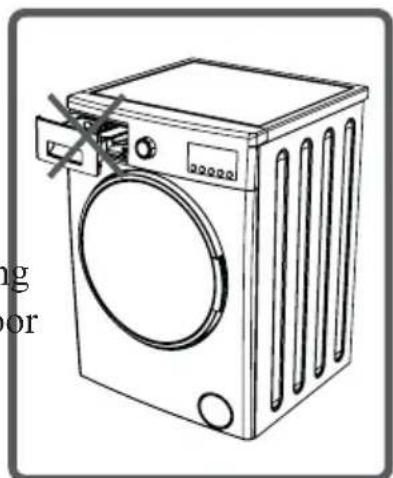

• Never open the detergent drawer while the machine is running.

- In the event of a breakdown, unplug the machine from the mains supply and turn the water supply off. Do not attempt to carry out any repairs. Always contact an authorised service agent.

- Do not exceed the maximum load for the washing programme you have chosen. Never force the door open when your Washing Machine is running.

- Washing laundry containing flour may damage your machine.

- Please follow the manufacturers' instructions regarding the use of fabric conditioner or any similar products that you intend to use in your Washing Machine.

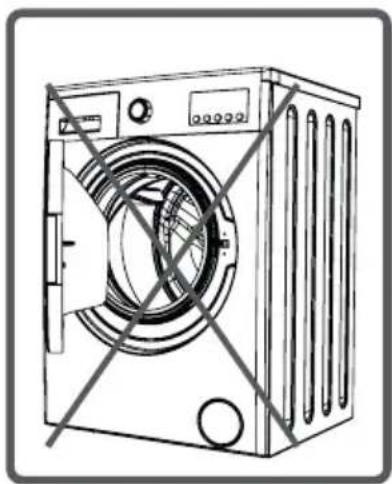

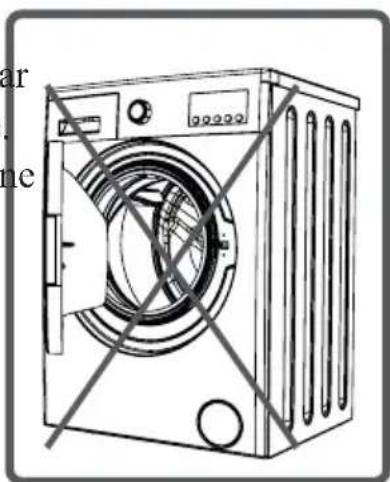

• Make sure that the door of your Washing Machine is not restricted and can be opened fully.

• Install your machine in a location that can be fully ventilated and preferably has constant air circulation.

Line drawing of a washing machine with ventilation slots and a door, no text or symbols present

Line drawing of a washing machine with no text or symbols on the device itself

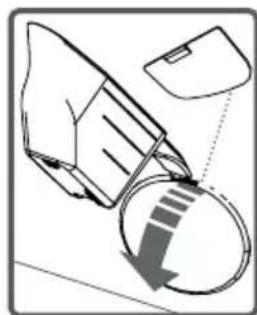

Door emergency opening function

When the machine is running, any power cut or when the program is not yet complete, the door will remain locked.

To open the door;

1. Please turn off the machine. Take off the power plug from the mains socket.

2. To drain the waste water, follow the instructions given in cleaning the pump filter section.

3. Pull the down the emergency opening mechanism with the help of a tool and open the door at the same time.
4. Doors, move the emergency opening handle to the open position after being closed again, if the door remains locked

Close-up of a magnifying glass focusing on a circular object with a red arrow indicating rotation (no text or symbols)

SAFETY WARNINGS

- Read these warnings. Follow the advice given to protect yourself and others from risks and fatal injuries.

RISK OF BURNS!

- Do not touch the drain hose or any discharged water while Washing Machine is running. The high temperatures involved pose a burn risk.

RISK OF DEATH FROM ELECTRICAL CURRENT!

- Do not connect your Washing Machine to the mains electricity supply using an extension lead.

- Do not insert a damaged plug into a socket.

- Never remove the plug from the socket by pulling the cord. Always hold the plug.

- Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

- Do not touch your Washing Machine if your hands or feet are wet.

- A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

RISK OF FLOODING!

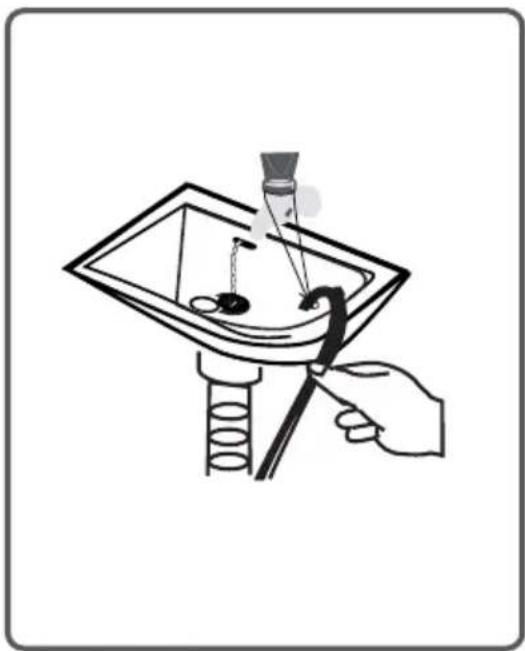

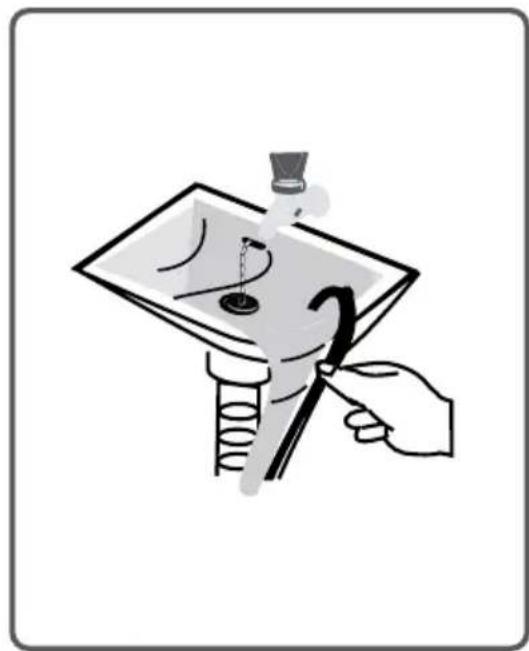

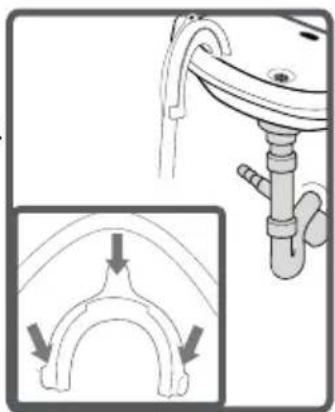

- Check the speed of water flow before placing the drain hose in a sink.

• Take necessary measures to prevent the hose from slipping.

- Water flow may dislodge the hose if it is not properly secured. Make sure the plug in your sink does not block the plug hole.

Illustration of a hand using a tool to clean or inspect a surface with a funnel and test tube (no text or symbols)

Illustration of a hand holding a pen and measuring a surface with a funnel (no text or symbols)

DANGER OF FIRE!

- Do not store inflammable liquids near your machine.

- The sulphur content of paint removers may cause corrosion. Never use pair removing materials in your machine.

- Never use products that contain solvents in your machine.

- Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins.

- Risk of fire and explosion.

RISK OF FALLING AND INJURY!

- Do not climb on your Washing Machine.

- Make sure hoses and cables do not cause a trip hazard.

- Do not turn your Washing Machine upside down or on its side.

- Do not lift your Washing Machine using the door or detergent drawer.

• The machine must be carried by at least 2 people.

Line drawing of two workers holding a large washing machine (no text or symbols)

CHILD SAFETY!

- Do not leave children unattended near the machine. Children might lock themselves in the machine resulting in risk of death.

- Do not allow children to touch the glass door during operation. The surface becomes extremely hot and may cause damage to skin.

- Keep packaging material away from children.

- Poisoning and irritation may occur if detergent and cleaning materials are consumed or come into contact with the skin and eyes. Keep cleaning materials out of the reach of children.

Illustration of a hand holding a piece of paper or tape, no text or symbols present

DURING USE

- Keep pets away from your machine.

- Please check the packaging of your machine before installation and the out surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

- Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

- This appliance can be used by children aged 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

- Only use your machine for laundry that is labelled as suitable for washing by the manufacturer.

- Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed they may cause heavy vibration, noise and malfunction of the machine and cause the guarantee to be void.

- Your warranty does not cover damage caused by external factors such as fire, flooding and other sources of damage.

- Please do not throw away this user manual; keep it for future reference and pass it onto the next owner.

NOTE:

Specifications for the machine may vary depending on the product purchased.

PACKAGING AND ENVIRONMENT

REMOVAL OF PACKAGING MATERIALS

Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

SAVINGS INFORMATION

Some important information to get the most efficient use out of your machine:

- Do not exceed the maximum load for the washing programme you have chosen. This will allow your machine to run in energy saving mode.

- Do not use the pre-wash feature for lightly soiled laundry. This will help you save on the amount of electricity and water consumed.

CE DECLARATION OF CONFORMITY

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

DISPOSAL OF YOUR OLD MACHINE

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be had over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CHAPTER 2: TECHNICAL SPECIFICATIONS

GENERAL APPEARANCE

OPERATING VOLTAGE / FREQUENCY (V/HZ)	(220-240) V~/50 HZ
TOTAL CURRENT (A) 10
WATER PRESSURE (MPA)	MAXIMUM: 1 MPA MINIMUM : 0,1
TOTAL POWER (W)	2100
MAXIMUM DRY LAUNDRY CAPACITY (KG)	7
SPINNING REVOLUTION (REV / MIN)	1200
PROGRAMME NUMBER 15
DIMENSIONS (MM) HEIGHT X WIDTH X DEPTH	845 X 597 X 527
WATER CONNECTION COLD WATER

CHAPTER 3. INSTALLATION

REMOVING THE TRANSIT BOLTS

Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed, they may cause heavy vibration, noise and malfunction of the machine and void the warranty.

Loosen the transit bolts by turning them anticlockwise with an appropriate spanner.

Remove the transit bolts with a straight pull.

Fit the plastic blanking caps supplied in the accessories bag into the gaps left by the removal of the transit bolts.

Diagram of a washing machine with internal components and a magnified inset showing the handle mechanism (no text or labels)

The transit bolts should be stored for future use.

NOTE:

Remove the transit bolts before using the machine for the first time. Faults occurring due to the machine being operated with transit bolts fitted are out of the scope of the warranty.

- Do not install your machine on

surface (such as carpet) that would prevent ventilation at the base.

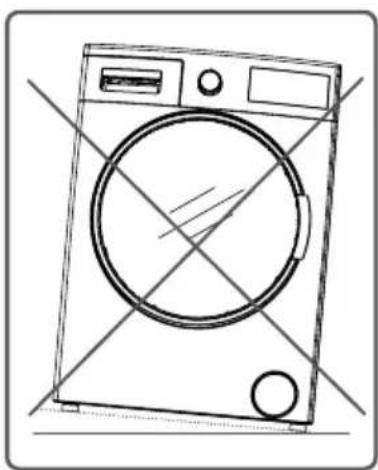

• To ensure silent and vibration-free operation of your machine, install it on a firm surface.

• You can level your machine using the adjustable feet.

- Loosen the plastic locking nut.

- To increase the height of the machine, turn the feet clockwise. To decrease the height of the machine, turn the feet anticlockwise.

- Once the machine is level, tighten the locking nuts by turning them clockwise.

- Never insert cardboard, wood or other similar materials under the machine to level it.

- When cleaning the ground on which the machine is located, take care not to disturb the level of the machine.

Line drawing of a front-loading washing machine with no text or symbols

ELECTRICAL CONNECTION

- Your Washing Machine requires a 220-240V, 50Hz mains supply.

- The mains cord of your washing machine is equipped with an earthed plug. This plug should always be inserted to an earthed socket of 10 amps.

- If you do not have a suitable socket and fuse conforming with this, please ensure the work is carried out by a qualified electrician.

- We do not take responsibility for damage that occurs due to the use of ungrounded equipment.

Diagram showing two electrical plugs connected to a wall socket, with an arrow indicating direction (no text or symbols)

NOTE:

Operating your machine with low voltage will cause the life cycle of your machine to be reduced and its performance to be restricted.

WATER INLET HOSE CONNECTION

- Your machine may have either a single water inlet connection (cold) or double water inlet connection (hot and cold) depending on the machine specifications. The white capped hose should be connected to cold water inlet and red capped hose to the hot water inlet (if applicable).

- To prevent water leaks at the joints, either 1 or 2 nuts (depending on your machine's specifications) are supplied in the packaging with the hose. Fit these nuts to the end(s) of the water inlet hose that connect to the water supply.

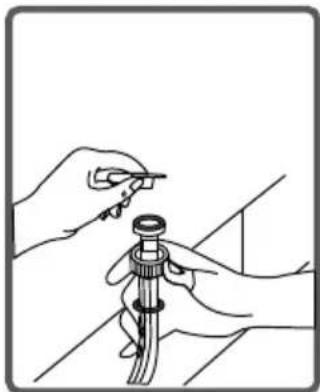

- Connect new water inlet hoses to a 3/4" , threaded tap.

- Connect the white capped end of the water inlet hose to the white water inlet valve on the rear side of the machine and the red capped end of the hose to the red water inlet valve (if applicable).

- Hand tighten the connections. If in any doubt, consult a qualified plumber.

- Water flow with pressure of 0.1-1 Mpa will allow your machine to operate at optimum efficiency (pressure of 0.1 Mpa means that more than 8 litres of water per minute will flow through a fully opened tap).

Line drawing of a coiled hose with two connectors (no text or symbols)

- Once you have made all of the connections, carefully turn the water supply on and check for leaks.

- Ensure that the new water inlet hoses are not trapped, kinked, twisted, folded or crushed.

- If your machine has a hot water inlet connection, the temperature of the hot water supply should not be higher than 70^ C.

NOTE:

Your Washing Machine must only be connected to your water supply using the supplied new fill hose. Old hoses must not be reused.

Diagram of a car fuel pump assembly with valve and valve (no text or labels)

Illustration of a hand using a valve to adjust a pipe in a tiled room (no text or symbols)

WATER DISCHARGE CONNECTION

- Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional equipment.

- Never attempt to extend the water drain hose.

- Do not put the water drain hose from your machine into a container, bucket or bathtub.

• Make sure that the water drain hose is not bent, buckled, crushed or extended.

- The water drain hose must be installed at a maximum height of 100 cm from the ground.

Simple line drawing of a faucet with a pipe and handle, no text or symbols present

Diagram showing a mechanical assembly with an inset view of a curved bracket (no text or symbols present)

CHAPTER 4. CONTROL PANEL OVERVIEW

DETERGENT DRAWER

- You can use the dipstick to determine the fluid level, if you want to use washing liquid during washing. You can use the washing liquid for all programs without prewash. Place the washing liquid dispenser into the other compartment (available inside the washing machine) of the powder drawer (*) and pour in the correct amount of liquid. (Use the amount recommended by the fluid manufacturer.) Do not exceed the maximum level. The instrument should only be used for liquids (it must not be used to measure powder and remove it).

(*) Specifications may vary depending on the machine purch

SECTIONS

Main wash detergent compartment:

This compartment is for liquid or powder detergents or limescale remover. The fluid detergent level plate will be supplied inside your machine. (*)

Fabric conditioner, starch, detergent compartment:

This compartment is for softeners, conditioners or starch. Follow the instructions on the packaging. If softeners leave residue after use, try diluting them or using a liquid softener.

Pre-wash detergent compartment:

This compartment should be used only when the pre-wash feature is selected. We recommend that the pre-wash feature is used only for very dirty laundry.

Technical line drawing of a vertical mechanical component inside a circle (no text or symbols)

(*) Specifications may vary depending on the machine purchased.

PROGRAM DIAL

• To select the desired programme, turn the programme dial either clockwise or anti-clockwise until the marker on the programme dial points to the chosen programme.

• Make sure that the programme dial is set exactly to the programme you want.

• Follow the instructions given in the care labels on the clothing.
• Separate your laundry according to type (cotton, synthetic, sensitive, wool etc.), washing temperature (cold, 30°, 40°, 60°, 90°) and the degree of dirtiness (slightly stained, stained, highly stained).
• Never wash coloured and white laundry together.
• Dark textiles may contain excess dye and should be washed separately several times.
• Ensure that there are no metallic materials on your laundry or in the pockets; if so, remove them.

CAUTION:

Any malfunctions which occur due to foreign materials damaging machine are not covered by the warranty.

• Close zips and fasten any hooks and eyes.
• Remove the metallic or plastic hooks of curtains or place them in a washing net or bag.
• Reverse textiles such as pants, knitwear, t-shirts and sweat shirts.
• Wash socks, handkerchiefs and other small items in a washing net.

Simple line drawing of two cups above a horizontal line, no text or symbols present

Simple geometric diagram with a circle above a horizontal line, no text or symbols present.

Simple geometric diagram with intersecting lines and a circle, no text or symbols present

PUTTING LAUNDRY IN THE MACHINE

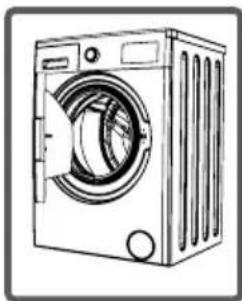

- Open the door of your machine.

Illustration of a washing machine with a handle inserting into the air (no text or symbols)

Line drawing of a washing machine with front panel and side vent (no text or symbols)

- Spread your laundry evenly in the machine.

NOTE:

Take care not to exceed the maximum load of the drum as this will give poor wash results and cause creasing.

Refer to the washing programme tables for information on load capacities.

The following table shows approximate weights of typical laundry items:

LAUNDRY TYPE WEIGHT (GR)
Towel 200
Linen 500
Bathrobe 1200
Quilt cover 700
Pillow slip 200
Underwear 100
Tablecloth 250

- Load each item of laundry separately.

- Check that no items of laundry are trapped between the rubber seal and the door.

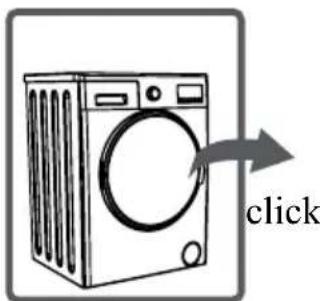

• Gently push the door until it clicks shut.

• Make sure the door is fully closed, otherwise the programme will not start.

ADDING DETERGENT TO THE MACHINE

The amount of detergent you will need to put in your machine will depend on following criteria:

- If your clothes are only slightly soiled, do not pre-wash. Put a small amount of detergent (as specified by the manufacturer) into compartment II of the detergent drawer.

- If your clothes are excessively soiled, select a programme with pre-wash and put 14 of the detergent to be used into compartment I of the detergent drawer and the rest in compartment II.

- Use detergents produced for automatic washing machines. Follow the manufacturer's instructions on the amount of detergent to use.

- In areas of hard water, more detergent will be required.

- The amount of the detergent required will increase with higher washing loads.

- Put softener in the middle compartment of the detergent drawer. Do not exceed the MAX level.

- Thick softeners may cause clogging of the drawer and should be diluted.

- It is possible to use fluid detergents in all programmes without a pre-wash. To do this, slide the fluid detergent level plate (*) into the guides in compartment II of the detergent drawer. Use the lines on the plate as a guide to fill the drawer to the required level.

(*) Specifications may vary depending on the machine purchased.

- Plug your machine in to the mains supply.

- Turn on the water supply.

- Open the machine door.

• Evenly spread your laundry in themachine.

• Gently push the door until it clicks shut.

Simple line drawing of an electric shock plug (no text or symbols)

Line drawing of a hand using a power tool to clean or adjust a mechanical component (no text or symbols)

(*) Specifications may vary depending on the machine purchased.

SELECTING A PROGRAMME

Use the programme tables to select the most appropriate programme for your laundry.

HALF-LOAD DETECTION SYSTEM

Your machine features a half-load detection system. If you put less than half the maximum load of laundry into your machine it will automatically set the half-load function regardless of the programme you selected. This means that the selected programme will take less time to complete and will use less water and energy.

(*) Model Dependant

ADDITIONAL FUNCTIONS

Before starting a programme, you can select an additional function.

- Press the button on the Control panel above the symbol of the additional function you wish to select.

- If the symbol of the additional function flashes continuously, the function has been activated.

- If the symbol of the additional function blinks, the function has not been selected.

REASON FOR NON-ACTIVATION:

• The additional function is not compatible with the selected washing programme.
• Your machine has progressed too far into the selected programme for the additional function to be possible.
• The additional function you have chosen is not compatible with another additional function you have already selected.

ADDITIONAL FUNCTIONS

1. Delayed start auxiliary function

You can use this auxiliary function to delay the start time of the washing cycle for 1 to 23 hours.

To use the delay function:

the machine to start the washing cycle.

keep pressing the delay key until you reach that time again.

key to start the machine.

Note: After selecting the delay function, you can select other functions without touching the “Start/Pause” key, and then you can touch the “Start/Pause” key to enable delay.

To cancel the delay function:

electronic display shows the duration of the program you have selected. Once you see the program time on the electronic display, this means that the delay has been cancelled.

touch the delay key once. 📋 will go off on the electronic display, press “Start/Pause” key to start the washing cycle.

2. Selecting the level of soiling

You can wash your laundries in shorter or longer durations, at lower or higher temperatures by selecting a soiling level depending on the soiling level on your laundries.

Soiling levels are automatically set in some programs. You can make changes your discretion.

Note: If there are no changes in the level when you touch the soiling level key, it means there is no soiling level selection in the program you have selected.

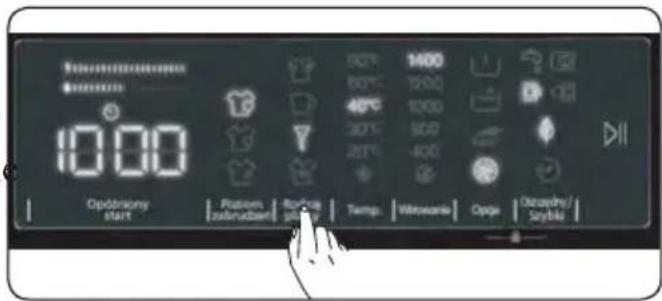

3. Stain selection

You can make use of these auxiliary functions on washing depending on th types of stains.

Warning: Do not let the stains on your laundries to get dry and stuck in order for the auxiliary function dedicated for soiling level selection to fully perform its functions. Clean the solids beforehand.

Warning: Press on the newly formed stains on your laundries with a piece of cloth before starting to wash them in your product. Do not scrub!

Your washing machine adjusts the washing temperature, drum rotation, and number and duration of rinse automatically according to the type of stain.

For example, the stain removal methods of your washing machine are as follows:

washing program will work for cleansing the stained surfaces by dissolving the blood stains in cold water and then the selected washing program will be activated.

softening the egg remains in lukewarm water, and then the combined washing program will complete the washing process by picking up where the function has left off.

For any other stain selection, similar stain removal solutions are available.

(*) The appliance specifications may vary depending on the purchased product.

Note: Before starting your machine, you can switch between stain types. Once you have started the machine, you cannot cancel or change the selected stain type. You can cancel the washing program of your machine, and select the correct stain type and restart the program. If the desired results could not be achieved with the set stain selection at the end of washing, you may have selected the wrong type; restart the washing cycle with the correct stain selection to remove the stain.

4. selecting the washing water temperature

You can use the washing water temperature setting key to set the temperature of washing water for your laundry.

will be displayed on the washing water temperature display.

water temperature gradually between the maximum water temperature of the selected program and cold water wash ( * ).

pressing the washing water temperature key to find the desired temperature again.

5. Spin speed selection

You can use the speed setting key to set the spin speed for your laundry. When you select a new program, the selected program's maximum spin speed will be displayed the spin speed display.

You can press the spin speed setting key to decrease the spin speed gradually between the selected program's maximum spin speed and the spin cancelled ( ) option. If you have skipped the spin speed you wanted to set, you can keep pressing the spin speed key to find the desired speed again.

6. Auxiliary functions

You can use auxiliary functions to make the best washing selection for your laundry. To do this, you can touch the options key on the display panel to enable the following:

1. Prewash auxiliary function
2. Extra rinse auxiliary function
3. Easy ironing auxiliary function
4. Anti-allergy auxiliary function.

Prewash auxiliary function

You can use this auxiliary function to perform pre-wash before the main wash cycle for your highly soiled laundry. When you use this function, you need to add detergent into the prewash dispenser of the detergent drawer.

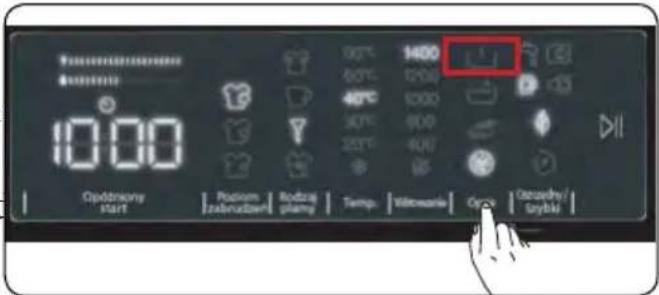

To enable the prewash auxiliary function, press the options key until the prewash symbol turns on. If the prewash LED is constantly on in the electronic display, it means that the auxiliary function is selected.

Note: When you want to select the prewash auxiliary function, if ∪does not appear on the display, this means that this feature is not available in the selected washing program.

Extra rinse auxiliary function

You can use this auxiliary function for extra rinsing on your laundry. To enable the extra rinse function, keep pressing the options key until the extra rinse symbol turns on. If the extra rinse LED is constantly on electronic display, it means that the auxiliary function is selected.

Note: When you want to select the extra rinse auxiliary function, if it does not appear on the display, this means that this feature is not available in the selected w program.

Easy ironing auxiliary function

This auxiliary function allows you to have less creased clothes after washing. To enable the easy ironing auxiliary function, press the options key until the easy ironing symbol 📋 turns on. If the easy ironing LED 🔔 is constantly on in the electronic display, it means that the auxiliary function is selected.

Note: When you want to select the easy ironing auxiliary function, if ☐ does not appear on the display, this means that this feature is not available in the selected w program.

Anti-allergy auxiliary function

You can use this auxiliary function to add another rinse cycle for your laundry. Your machine will use hot water in all rinsi steps. (It is recommended for sensitive skin clothing, baby clothes and underclothes).

To enable the anti-allergy auxiliary function, keep pressing the options key until the anti-allergy function symbol turns on. If the anti-allergy LED is constantly electronic display, it means that the auxiliary function is selected.

Note: When you want to select the anti-allergy auxiliary function, if ⚙does not appear on the display, this means that this feature is not available in the selected was program.

Save / Rapid

Saving washing auxiliary function: If you select this auxiliary function, yo machine will slightly extend the duration of the washing program. However, it will less energy and water for the washing cycle.

To enable this function, you can touch the Save / Rapid selection key on the display panel to turn on the LED light of the symbol ⏻.

Rapid auxiliary function:

If you select this auxiliary function, your machine will shorten the duration of washing program. (It is recommended to load the machine with half or less than half of the capacity of the selected washing program.) To enable this function, you can touch the Save / Rapid selection key on the display panel to turn on the LED light of the symbol.

NOTE: If you load the machine with half or less than half of the laundry capacity of the selected washing program, the machine will detect it thanks to the half load detection system, and this way, it will wash your laundry with less energy and less water in a shorter time. When your machine detects half load, LED light of the symbol 📋 will automatically turn on in the display panel.

(*) The appliance specifications may vary depending on the purchased product.

7. Energy/Water Efficiency Bar

is an efficiency indicator comprising 2 bars. The energy/water efficiency bar shows the amount of energy and water consumption. The bigger the bar is more energy or water consumption you will have. The energy/water efficiency might extend or shorten depending on the selected program's duration, temperature setting, spin speed and other auxiliary functions.

8. Start/Pause button

By pressing on the Start/Pause button, you may start the programme you have selected or suspend a running programme. If you switch your machine to the standby m the Start/Pause led on the electronic display will blink.

The Child Lock function allows you to lock the buttons so that the wash cycle you have chosen cannot be changed unintentionally.

To activate child lock, press and hold button 2 and 3 simultaneously for at least 3 seconds. “CL” will flash on the electronic display for 2 seconds when the child lock is activated.

while the child lock is active, the “CL” symbol will flash on the electronic display for 2 seconds.

programme dial is turned to the “Off” position and another programme is selected the previously selected programme continues from where it was left.

To deactivate the child lock, press and hold button 2 and 3 simultaneously for at least 3 seconds until the “CL” symbol on the electronic display disappears.

Note: Door remains unlocked in case when child lock is active and electricity is cut off

10. If you want to pause/cancel a running program or add laundry:

DII

want to add laundry, you can use this function.

▷||

[NO TEXT]

the loading door and add laundry.

position. Your machine will stop washing process and the program will be cancelled. To drain the water in the machine, turn the program knob to any program position. Your machine will drain the water and cancel the program. You can select a new program and start the machine.

11. Program End

Your machine will automatically stop when the selected program ends.

display.

the laundry. After taking out the laundry, leave the door open so that the inside of the machine can dry.

position.

COTTON
Washing temperature (°C)	*60°- 90°
Maximum dry laundry amount (kg)	7
Detergent compartment 2
Programme duration (Min.)	240
Laundry type / Descriptions	Very dirty, cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 3,5 kg), bedclothes, etc.)

ECO 40-60
Washing temperature (°C)	*40° - 60°
Maximum dry laundry amount (kg)	7
Detergent compartment	2
Programme duration (Min.)	208
Laundry type / Descriptions	Dirty cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 3,5 kg), bedclothes, etc.)

NOTE:

PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

COTTON PRE-WASH 60°C
Washing temperature (°C)	*60° - 40°- 30°- "- -C"
Maximum dry laundry amount (kg)	7
Detergent compartment	1&2
Programme duration (Min.)	171
Laundry type / Descriptions	Dirty cotton and flax textiles.(Underwear, linen, tablecloth, towel(maximum 3,5 kg), bedclothes, etc.)

COTTON 20°
Washing temperature (°C)	20° " - - C"
Maximum dry laundry amount (kg)	3,5
Detergent compartment 2
Programme duration (Min.)	96
Laundry type / Descriptions	Less dirty, cotton and linen textiles. (Underwear, bedsheet, tablecloth, towel (max.2,0 kg) bedcloth, etc.)

NOTE:

PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

COLOURS
Washing temperature (°C)	*40° - 30° - "-- C"
Maximum dry laundry amount (kg)	3,5
Detergent compartment 2
Programme duration (Min.)	235
Laundry type / Descriptions	Less dirty, cotton and linen textiles. (Underwear, bedsheet, tablecloth, towel (max. 2 kg) bedcloth, etc.)

WOOL
Washing temperature (°C)	*30°-"- - C"
Maximum dry laundry amount (kg)	2,5
Detergent compartment 2
Programme duration (Min.)	39
Laundry type / Descriptions	Woollen laundries with machine wash labels.

RINSE
Washing temperature (°C)	"- - C"
Maximum dry laundry amount (kg)	7
Detergent compartment -
Programme duration (Min.)	30
Laundry type / Descriptions	Provides an additional rinse to any type of laundry after the washing cycle.

NOTE:

PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

ANTI-ALLERGY
Washing temperature (°C)	*60° - 40° - 30° -"- -C"
Maximum dry laundry amount (kg)	3,5
Detergent compartment	2
Programme duration (Min.)	212
Laundry type / Descriptions	Baby laundry

SPIN / DRAIN
Washing temperature (°C)	"- - C"
Maximum dry laundry amount (kg)	7
Detergent compartment -
Programme duration (Min.)	17
Laundry type / Descriptions	Provides an additional spin cycle to any type of laundry after the washing cycle.

HAND WASH
Washing temperature (°C)	30° "-- C"
Maximum dry laundry amount (kg)	2,5
Detergent compartment 2
Programme duration (Min.)	90
Laundry type / Descriptions	Laundry recommended for hand wash or sensitive laundry.

NOTE:

PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

EASY CARE / OUTDOOR
Washing temperature (°C)	*40° - 30° "-- C"
Maximum dry laundry amount (kg)	3,5
Detergent compartment	2
Programme duration (Min.)	110
Laundry type / Descriptions	Very dirty or synthetic-mixed textiles. (Nylon socks, shirts, blouses, synthetic-including trousers etc.)

MIX
Washing temperature (°C)	*40° -30° "-- C"
Maximum dry laundry amount (kg)	3,5
Detergent compartment 2
Programme duration (Min.)	105
Laundry type / Descriptions	Dirty cotton, synthetics, colour and flax textiles can be washed together.

JEANS / DARK GARMENTS
Washing temperature (°C)	*30° "-- C"
Maximum dry laundry amount (kg)	3,5
Detergent compartment 2
Programme duration (Min.)	96
Laundry type / Descriptions	Dirty cotton, synthetic and synthetic-mixed shirts and blouses can be washed together.

NOTE:

PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

FAST 60' 60°C
Washing temperature (°C)	*60°- 40° -30°" - -C"
Maximum dry laundry amount (kg)	3
Detergent compartment 2
Programme duration (Min.) 60
Laundry type / Descriptions	Dirty, cotton, coloured and linen textiles washed at 60°C in 60 minutes.

RAPID 15 MIN.
Washing temperature (°C)	*30°"- - C"
Maximum dry laundry amount (kg)	2
Detergent compartment 2
Programme duration (Min.) 15
Laundry type / Descriptions	Lightly soiled, cotton, colored and linen textiles.

NOTE: PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

(*) Washing water temperature of the programme is the factory default.

(**) If your machine has the rapid wash auxiliary function, you can enable the quick wash option on the display panel and load the machine with 2 kg or less laundry to wash it in 30 minutes.

(***) Due to the short washing time of this programme, we recommend that less detergent is used. The programme may last longer than 15 minutes if your machine detects an uneven load. You can open the door of your machine 2 minutes after the completion of a washing operation. (The 2 minute period is not included in the programme duration).

According to regulation 1015/2010 and 1061/2010, the programme 1 and the programme 2 are respectively the ‘Standard 60°C cotton programme’ and the ‘Standard 40°C cotton programme’.

The Eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle, and that this programme is used to assess the compliance with the EU ecodesign legislation.

- The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

- Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.

- Program duration, energy consumption and water consumption values may vary according to wash load weight and type, selected extra functions, tap water and ambient temperature.

- It’s recommended to use liquid detergent for the washing programmes at low temperature. The amount of detergent to be used may vary depending on the amount of laundry and the level of dirtiness of the laundry. Please follow the detergent manufacturers’ recommendations for the amount of the detergent to be used.

- The noise and remaining moisture content are influenced by the spinning speed. The higher spinning speed in the spinning phase, the higher noise and the lower remaining moisture content.

- You can access the product database where the model information is stored by reading the QR code on the energy label.

Programme Name	Rated Capacity kg	Energy Consumption kWh/cycle			Programme Duration Hours:Minutes			Water Consumption Litres/Cycle			max. Temperature °C			Remaining Moisture Content % 1200 Rpm
		Rated Capacity	1/2 Load	1/4 Load	Rated Capacity	1/2 Load	1/4 Load	Rated Capacity	1/2 Load	1/4 Load	Rated Capacity	1/2 Load	1/4 Load	Rated Capacity	1/2 Load	1/4 Load
Cotton 90	7 2	25 03:13	70 81	53%
Cotton 60	7 0	76 04:00	52 50	53%
Eco 40-60	7	0,96	0,43	0,23	03:28	02:42	02:42	51	41	40	44	32	26	53%	53%	53%
Easy Care / Outdoor	3,5	0,58			01:50			42			42			62%
Fast 60	3	1,00			01:00			32			58			53%
Cotton 20	3,5 0,2			01:36 41	20 53%

Important Informations

- Use detergents, softeners and other additives suitable for automatic washing machines only. Excessive foam has occurred and automatic foam absorption system has been activated due to too much detergent usage.

- We recommend that periodic cleaning for washing machine every 2 months. For periodic cleaning please use Drum Clean programme. If your machine do not have Drum Clean programme, use Cottons-90 programme. When required, use limescale removers manufactured specifically for washing machines only.

- Never force the door open when your Washing Machine is running. You can open the door of your machine 2 minutes after the completion of a washing operation. *

- Never force the door open when your Washing Machine is running. The door will open immediately after the washing cycle has ended. *

- The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons.

(*) Specifications may vary depending on the machine purchased.

CHAPTER 7. CLEANING AND MAINTENANCE

WARNING

Turn your mains power supply off and remove the plug the socket before carrying out maintenance and cleaning of your machine.

Simple line drawing of an electrical outlet with a plug and socket (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols present

Turn off the water supply before starting maintenance and cleaning of your machine.

CAUTION:

Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning agents to clean your Washing Machine. They may damage the plastic surfaces and other components with the chemicals they contain.

WATER INLET FILTERS

Water inlet filters prevent dirt and foreign materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive sufficient water, although your water supply is on and the tap is open. We recommend that you clean your water inlet filters every 2 months.

- Unscrew the water inlet hose(s) from the Washing Machine.

- To remove the water inlet filter from the water inlet valve, use a pair of longnosed pliers to gently pull on the plastic bar in the filter.

- A second water inlet filter is located in the tap end of the water inlet hose. To remove the second water inlet filter, use a pair of long-nosed pliers to gently pull on the plastic bar in the filter.

- Clean the filter thoroughly with a soft brush and wash with soapy water and rinse thoroughly. Re-insert the filter by gently pushing it back into place.

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

CAUTION:

The filters at the water inlet valve may become clogged due to water quality or lack of required maintenance and may break down. This may cause a water leak. Any such breakdowns are out of the scope of the warranty.

PUMP FILTER

The pump filter system in your Washing Machine prolongs the life of the pump by preventing lint from entering your machine. We recommend that you clean the pump filter every 2 months.

The pump filter is located behind the cover on the front-lower right corner.

To clean the pump filter:

- You may use the washing powder spade (*) supplied with your machine or liquid detergent level plate to open the pump cover.

- Lodge the end of the powder spade or liquid detergent level plate in the opening of the cover and gently press backwards. The cover will open.

- Before opening the filter cover, place a container under the filter cover to collect any water left in the machine.

- Loosen the filter by turning anticlockwise and remove by pulling. Wait for the water to drain.

NOTE:

Depending on the amount of water inside the machine, you may have to empty the water collection container a few times.

Diagram of a hand holding a device with a circular arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing gear and housing components with directional arrows (no text or labels)

Technical illustration of a mechanical gear assembly (no text or symbols)

Illustration of hands performing a manual procedure with a tool (no text or symbols visible)

- Remove any foreign materials from the filter with a soft brush.

• After cleaning, re-fit the filter by inserting it and turning clockwise.

Diagram of a mechanical assembly with circular components and red arrows indicating motion (no text or symbols)

Simple line drawing of a mechanical setup with a gear and base, no text or symbols present

- When closing the pump cover, ensure that the mountings inside the cover meet the holes on the front panel side.

- Close the filter cover.

WARNING:

The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance.

(*) Specifications may vary depending on the machine purchased.

DETERGENT DRAWER

The use of detergent may cause residual build up in the detergent drawer over time.

We recommend that you remove the drawer every 2 months to clean the accumulated residue.

To remove the detergent drawer:

• Pull the drawer forwards until it is fully extended.

- Gently press down on the drawer (as shown below) and pull the drawer from its housing.

Three technical diagrams showing mechanical assembly steps with arrows indicating direction of movement (no text or symbols present)

the way back, and continue pulling and remove the detergent drawer from its place.

thoroughly to completely remove any softener residue. Refit the flush stopper after cleaning and check that it is seated properly. Rinse with a brush and lots of water.

inside your machine.

Do not wash your detergent drawer in dishwasher.

Liquid detergent apparatus(\*)

For the cleaning and maintenance of the liquid level detergent apparatus, remove the apparatus from its location as shown in the picture below, and thoroughly clean the remaining detergent residues. Replace the apparatus. Make sure that no residual material remains inside the siphon.

(*) Specifications may vary depending on the machine purchased.

CHAPTER 8. BODY / DRUM

BODY

Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth.

Technical line drawing of a 3D rectangular frame with internal slots and a curved cutout (no text or symbols)

DRUM

Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. These objects lead to the formation of rust stains in the drum. To clean such rust stains, use a non-chlorine cleaning agent and follow the instructions of manufacturer of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust stains.

Cross-sectional diagram of a cylindrical mechanical component with internal gear-like structure (no text or symbols)

CHAPTER 9. TROUBLESHOOTING

Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should:

• Unplug your machine from the mains power supply.
• Turn off the water supply.

FAULT	POSSIBLE CAUSE TROUBLESHOOTING
Your machine does not start.	Machine not plugged in. Plug machine in.
	Fuses are faulty. Replace the fuses.
	No mains power supply. Check mains power.
	Start/Pause button not pressed.	Press the Start/Pause button.
	Programme dial ‘stop’ position.	Turn the programme dial to the desired position.
	The machine door is not completely closed.	Close the machine door.
Your machine does not intake water.	Water tap is turned off. Turn tap on.
	Water inlet hose may be twisted.	Check water inlet hose and untwist.
	Water inlet hose clogged. Clean water inlet hose filters. (*)
	Inlet filter clogged. Clean the inlet filters. (*)
	The machine door is not completely closed.	Close the machine door.
Your machine does not discharge water.	Drain hose clogged or twisted.	Check the drain hose, then either clean or untwist.
	Pump filter clogged. Clean the pump filter. (*)
	Laundry is too tightly packed together in the drum.	Spread your laundry in the machine evenly.

(*) See the chapter regarding maintenance and cleaning of your machine.
(**) See the chapter regarding installation of your machine.

FAULT POSSIBLE CAUSE TROUBLESHOOTING
Your machine vibrates.	The feet have not been adjusted.	Adjust the feet. (**)
	Transit bolts fitted for transportation have not been removed.	Remove the transit bolts from the machine. (**)
	Small load in the drum.	This will not prevent operation of your machine.
	Your machine is overloaded with laundry or laundry is unevenly spread.	Do not overload the drum. Spread laundry evenly in the drum.
	Your machine rests on a hard surface.	Do not set up your Washing Machine on a hard surface.
Excessive foam is formed in the detergent drawer.	Excessive amount of detergent used.	Press the Start/Pause button. To stop the foam, dilute one tablespoon of softener into 1/2 litre of water and pour into the detergent drawer. Press the Start/Pause button after 5-10 mins.
	Wrong detergent used.	Only use detergents produced for automatic Washing Machines.
Unsatisfactory washing result.	Your washing is too dirty for the programme selected.	Use the information in the programme tables to select the most appropriate programme.
	Amount of detergent used insufficient.	Use the amount of detergent as instructed on the packaging.
	There is too much laundry in your machine.	Check that the maximum capacity for the selected programme has not been exceeded.
Unsatisfactory washing result.	Hard water.	Increase the amount of detergent following the manufacturer's instructions.
	Your laundry is too tightly packed together in the drum.	Check that your laundry is spread out.

(*) See the chapter regarding maintenance and cleaning of your machine.
(**) See the chapter regarding installation of your machine.

FAULT	POSSIBLE CAUSE TROUBLESHOOTING
As soon as the machine is loaded with water, water discharges.	The end of water drain hose is too low for the machine.	Check that the drain hose is at a suitable height. (**) .
No water appears in the drum during washing.	No fault. Water is in the unseen part of the drum.	——
Laundry has detergent residue.	Non-dissolving particles of some detergents may appear on your laundry as white spots.	Perform an extra rinse, or clean your laundry with a brush after it dries.
Grey spots appear on the laundry.	There is untreated oil, cream or ointment on your laundry.	Use the amount of detergent as instructed on the packaging in the next wash.
The spin cycle does not take place or takes place later than expected.	No fault. The Unbalanced load control system has been activated.	The Unbalanced load control system will try to spread your laundry. The spinning cycle will begin once your laundry is spread. Load the drum evenly for the next wash.

(*) See the chapter regarding maintenance and cleaning of your machine.
(**) See the chapter regarding installation of your machine.

CHAPTER 10. AUTOMATIC FAULT WARNINGS AND WHAT TO DO

Your Washing Machine is equipped with a built-in fault detection system, indicated by a combination of flashing wash operation lights. The most common failure codes are shown below.

TROUBLE CODE	POSSIBLE FAULT	WHAT TO DO
E01	The door of your machine is not shut properly.	Shut the door properly until you hear a click. If your machine persists to indicate fault, turn off your machine, unplug it and contact the nearest authorised service agent immediately.
E02	The water pressure or the water level inside the machine may be low.	Check the tap is fully turned on.Mains water may be cut-off. If the problem still continues, your machine will stop after a while automatically.Unplug the machine, turn off your tap and contact the nearest authorised service agent.
E03	The pump is faulty or pump filter is clogged or electrical connection of the pump is faulty.	Clean the pump filter. If the problem persists, contact the nearest authorised service agent. (*)
E04	Your machine has excessive amount of water.	Your machine will discharge water by itself. Once the water has drained, turn off your machine and unplug it. Turn off the tap and contact the nearest authorised service agent.

(*) See the chapter regarding maintenance and cleaning of your machine.

CHAPTER 11. PRACTICAL INFORMATIONS

DISPOSAL OF USED EQUIPMENT

Fig. A

Fig. B

This device has been designed and manufactured of high-quality reusable materials and components. The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. A crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment. Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries.

Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials. Penalties may be imposed in accordance with national legislation for improper disposal of this product. If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device.

Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.
