ZI-BG100Y - Polisher Zipper - Free user manual and instructions

Product Type	Concrete Polisher / Power Trowel
Brand	Zipper
Model	ZI-BG100Y
EAN	9120039231600
Engine Type	4-stroke, single cylinder
Fuel Type	Petrol (RON 95)
Engine Oil Capacity	Approx. 0.5 L
Engine Oil Type	SAE 10W40 or equivalent
Gearbox Oil Change Interval	Every 100 hours
Starting Method	Recoil starter
Choke	Manual
Rotor Blades	Adjustable angle (0° position for stop)
Max. Slope	20°
Max. Idle Speed	3,500 rpm
Weight	Approx. 80–100 kg (requires 2 persons to lift)
Dimensions (L×W×H)	Approx. 1000 × 500 × 1000 mm
Operating Temperature	+5°C to +40°C
Storage Temperature	-20°C to +55°C
Noise Level	Use hearing protection!
Vibration	Take regular breaks; use protective gloves
Maintenance Intervals	Oil check before each use; air filter every 100h; spark plug every 50h
Safety Features	Emergency stop (speed governor), engine cut-off switch, fuel shut-off valve

Frequently Asked Questions - ZI-BG100Y Zipper

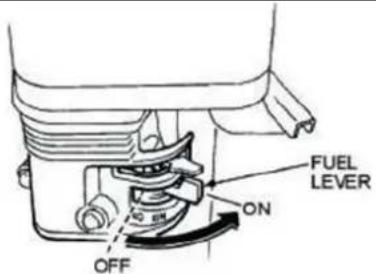

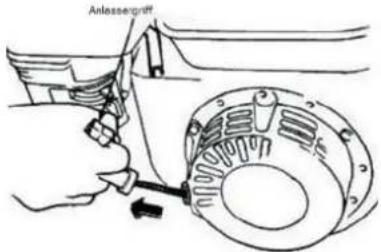

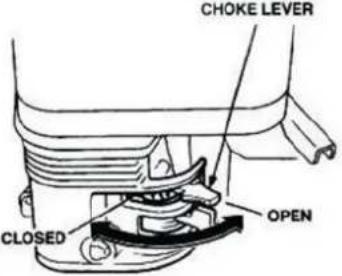

How do I start the Zipper ZI-BG100Y polisher?

Turn the fuel valve to ON, set the engine switch to ON, close the choke for a cold engine, set throttle to half, pull the starter rope slowly until resistance, then pull sharply. Once running, open the choke.

Why won't the engine start?

Check that the engine switch and fuel valve are ON. Ensure there is fuel and the oil level is sufficient. The engine will not start if the oil level is too low. Also check the spark plug and air filter.

How do I check the engine oil level?

Place the machine on a level surface, turn off the engine, wait 10 minutes. Unscrew the dipstick, wipe it, reinsert without screwing, then remove and check the oil level. It should be between the two marks. Top up with SAE 10W40 if needed.

What type of fuel does the machine use?

The engine requires petrol with an octane rating of RON 95. Do not use fuel with ethanol content above 10%. Always filter fuel during refueling.

How often should I change the engine oil?

Change the engine oil after the first 20 hours of operation, and then every 200 hours of operation. Use SAE 10W40 or similar high-quality oil.

What safety precautions should I take when operating the polisher?

Always wear hearing protection, safety shoes, and close-fitting clothing. Keep hands and feet away from moving parts. Never operate indoors (risk of carbon monoxide poisoning). Maintain a safe distance from edges and slopes.

How do I stop the machine in an emergency?

Push the speed governor fully into the STOP position to quickly shut off the engine. Then turn the engine switch to OFF and close the fuel valve.

How should I transport the machine?

Drain fuel and oils, dismount the throttle, and pack the machine in its box. Use two persons and a forklift or hoist. Secure the machine to prevent movement during transport.

What should I do if the machine will not be used for more than 30 days?

Empty the fuel tank, change the engine oil, remove the spark plug, pour a few drops of oil into the cylinder, pull the starter a few times, then replace the spark plug. Store in a dry, frost-free area.

Where can I find spare parts for the ZI-BG100Y?

Use original ZIPPER spare parts. Fill out the service form at the end of the manual with the machine type, part number, and a copy of the exploded drawing. Contact your dealer or ZIPPER directly.

USER MANUAL ZI-BG100Y Zipper

Green and black industrial machine tool with a circular base, no visible text or symbols

ZI-BG100Y

EAN: 9120039231600

CE

Engine don't start with low oil!!

1 INHALT/ INDEX

1 INHALT/ INDEX 2

7.4 Maschine stoppen....14

14.1 Intended use of the machine.... 18

14.1.1 Technical Restrictions 18
14.1.2 Prohibited Use / Forseeable Misuse.... 18

14.2 User Qualification.... 18

14.3 Safety instructions 18
14.4 Special safety instructions for the operation of ZI-BG100Y 19
14.5 Safety instructions for machines with combustion engine.... 19
14.6 Hazard warnings 20

15 OPERATION 21

15.1 Check scope of delivery 21
15.2 Checklist before each use 21

15.2.1 Checking the engine oil level 21
15.2.2 Checking the fuel tank level 22
15.2.3 Checking the gear box oil level 22

16 OPERATION 22

16.1 Information on Initial Start-up....22

16.1.1 Test Run Initial Start-up.... 22
16.1.2 Notes on the first 20 operating hours.... 22

16.2 Operating Instructions 22
16.3 Starting the Machine 23

16.4 Stopping the Machine....24

16.4.1 Emergency Stop 24

16.4.2 Normal switch-off 24

17 MAINTENANCE 24

17.1 Maintenance and Servicing Plan 24

17.1.1 Table of Measures 24

17.2 Changing gear box oil.... 24

17.3 Changing the engine oil 25

17.4 Cleaning the air filter 25

17.5 Cleaning the spark plug 25

18 TRANSPORT 25

18.1 Lifting and transporting with separate devices.... 25

19 STORAGE 26

20 RECYCLING 26

21 TROUBLESHOOTING 26

22 PŘEDMLUVA (CZ) 27

23 BEZPECNOST 28

EN CE-Conformal! - This product complies with the EC-directives.

EN Follow the instructions!

EN No open flame, fire, open source of ignition and smoking prohibited!

EN Wear personal protective equipment!

EN Keep safe distance!

EN ATTENTION: Check Oil! Engine don't start with low oil!!

Warning signs and/or stickers on the machine which are illegible or have been removed must be replaced immediately!

Close-up of a green industrial machine component with a yellow arrow pointing to a yellow-orange knob (no visible text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Cartoon illustration of a smiling robot holding a tool, with thought bubbles showing mechanical components (no text or symbols)

This manual contains information and important instructions for the installation and correct use of the ZIPPER ZI-BG100Y.

Following the usual commercial name of the machine (see cover) is substituted in this manual with the name "machine".

This manual is part of the product and shall not be stored separately from the product. Save it for later reference and if you let other people use the product, add this instruction manual to the product.

Please read and obey the security instructions!

Due to constant advancements in product design, construction pictures and content may diverse slightly. However, if you discover any errors, inform us please.

Technical specifications are subject to changes!

Please check the product contents immediately after receipt for any eventual transport damage or missing parts.

Claims from transport damage or missing parts must be placed immediately after initial product receipt and unpacking before putting the product into operation.

Please understand that later claims cannot be accepted anymore.

Copyright

© 2018

This document is protected by international copyright law. Any unauthorized duplication, translation or use of pictures, illustrations or text of this manual will be pursued by law. Court of jurisdiction is the regional court Linz or the competent court for 4707 Schlüsslberg, Austria!

Customer service contact

This section contains information and important notices for safe commissioning and handling of machine.

For your own safety, read these operating instructions carefully before putting the machine into operation. This will enable you to handle the machine safely and prevent misunderstandings as well as possible damage to property and persons. Also observe the symbols and pictograms used as well as the safety instructions and hazard warnings!

14.1 Intended use of the machine

The machine is intended exclusively for the following activities:

Smoothing of fresh concrete or screed surfaces after installation and compaction. Residues from the placing of the concrete, such as burrs or other pressure points and unevenness are levelled and the floor receives a smooth and fine surface.

ZIPPER-MASCHINEN assumes no responsibility or warranty for any other use or use beyond this and for any resulting damage to property or injury.

14.1.1 Technical Restrictions

The machine is intended for use under the following ambient conditions:

Relative humidity: max. 65 %

Temperature (for operation) +5°C bis +40°C

Temperature (for storage and/or transport) -20^ C bis +55^ C

14.1.2 Prohibited Use / Forseeable Misuse

• Operation of the machine without adequate physical and mental aptitude
- Operating the machine without appropriate knowledge of the operating instructions (machine + motor).
• Changes in the design of the machine
- Operating the machine in wet and rainy conditions
- Operating the machine in a potentially explosive environment
- Operating the machine indoors or in closed areas
• Operation of the machine without functioning or missing guards
- Remove the safety markings attached to the machine.
- Modify, circumvent or disable the safety devices of the machine.
- Use of the machine for the transport of persons

The prohibited/hazardous use or disregard of the information and instructions presented in this manual will result in the voiding of all warranty and damage claims against Zipper Maschinen GmbH.

14.2 User Qualification

Prerequisite for the use / operation of the machine is a corresponding physical and mental aptitude as well as knowledge and understanding of the instruction Manual.

Please note that local laws and regulations may determine the minimum age of the operator and restrict the use of this machine!

Put on your personal protective equipment before working on the machine.

Work on electrical components or equipment may only be carried out by a qualified electrician or carried out under the guidance and supervision of a qualified Electrician.

14.3 Safety instructions

In order to avoid malfunctions, damage and health hazards when working with this machine, in addition to the general rules for safe working, the following measures in particular must be observed UNCONDITIONALLY:

• Check that the machine is in perfect condition before each use. Ensure that all guards are in place and working properly and that all nuts, bolts, etc. are securely tightened. Do not take the machine into operation if you notice that parts are missing or damaged!
• Ensure sufficient lighting conditions in the working and surrounding areas of the machine.
• Keep hands and feet away from moving machine parts and always ensure a safe stand when working.
• Ensure that the area to be tamped does not contain any electric cables, gas or water lines which could be damaged by vibration.
• Remove the adjustment tool from the machine before operation.
  • Never leave the running machine unattended (always stop the machine before leaving it).
• Ensure that unauthorised persons maintain a safe distance from the machine and keep children away from the machine.
• The machine may only be operated, serviced or repaired by persons who are familiar with it and who have been informed of the dangers arising during this work.
• Always wear suitable personal protective equipment (ear protection, gloves, safety shoes, close-fitting protective clothing, etc.)!
• Do not work with the machine if you are tired, not concentrated or under the influence of medication, alcohol or drugs!
• Never operate the unit in the presence of flammable liquids or gases (danger of explosion!)
• Carry out maintenance, adjustment and cleaning work only when the engine is switched off.
  • Only use spare parts and accessories recommended by Zipper machines.

14.4 Special safety instructions for the operation of ZI-BG100Y

• The machine is designed to be operated by one person. Always operate the machine from behind. Never stand next to or in front of the machine when the engine is running.
• Longer continuous use of the vibratory plate can lead to circulatory disturbances, especially of the hands, caused by vibration. Therefore, take regular breaks from work!
• Wear suitable protective gloves to reduce the vibration intensity. The hardness of the surface to be treated, personal predisposition to circulatory disorders and low outside temperatures considerably reduce the permitted period of use.
• Keep away from edges and trenches and avoid situations where the vibratory plate could tip over.
• Excessive noise can cause hearing damage and temporary or permanent hearing loss. Wear hearing protection certified to health and safety regulations to limit noise exposure.
• Do not increase the regulated idle speed of the engine above 3,500 rpm. This could result in damage to the machine or personal injury.

14.5 Safety instructions for machines with combustion engine

• Do not touch the engine and/or muffler during operation or immediately after switching off! These areas become hot during operation and can cause burns.
  • Do not touch the spark plug connector when the engine is running (electric shock!).
• Do not operate the unit in closed areas or in poorly ventilated rooms unless there is adequate ventilation through exhaust fans or hoses. (Risk of suffocation from carbon monoxide!)
• Do not smoke while the machine is in operation.
• Do not smoke when refuelling the machine.
  • Refuel the machine only in a well ventilated area.
  • Do not refuel the machine when the engine is running or the machine is still hot.
• Do not refuel the machine near naked flames.
• Do not spill fuel when refuelling.

• Do not crank a gas flooded engine as long as the spark plug is removed- fuel in the cylinder sprays out of the spark plug opening.

• Do not carry out an ignition spark test on engines if the engine is flooded or gas can be smelled. A stray spark could ignite the vapours.

• Do not use fuel to clean machine parts, especially indoors. Vapours from fuels may explode.
• Always keep the area around the muffler free of foreign substances such as leaves, paper, cardboard, etc. A hot muffler could ignite these substances and cause a fire.
• Close the filler cap after refuelling.
• Check the fuel line and tank regularly for leaks and cracks. Do not operate the machine if leaks in the fuel system are known.
• Store fuel only in designated and approved containers.

14.6 Hazard warnings

Despite intended use, certain residual risks remain. Due to the design and construction of the machine, hazardous situations may occur which are identified as follows in these operating instructions:

DANGER

A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Such a safety instruction indicates a potentially hazardous situation which, if not avoided, may result in serious injury or even death.

CAUTION

A safety instruction designed in this way indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

A safety note designed in this way indicates a potentially dangerous situation which, if not avoided, may result in property damage.

Irrespective of all safety regulations, their sound common sense and corresponding technical suitability/training are and remain the most important safety factor in the error-free operation of the machine. Safe working depends first and foremost on you!

15 OPERATION

15.1 Check scope of delivery

After delivery, check the machine immediately for transport damage and missing Parts.

15.2 Checklist before each use

NOTICE

The use of paint thinners, petrol, aggressive chemicals or abrasives leads to material damage to the surfaces! Therefore use only mild detergents for cleaning!

• Clean the machine and remove dirt and dust if necessary.

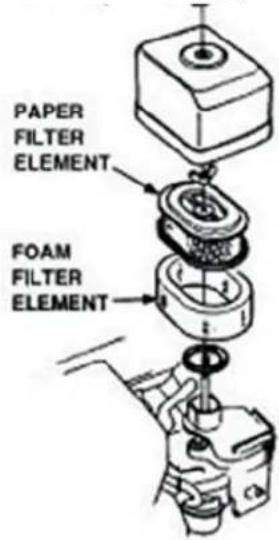

• If the air filter is dirty, blow the filter cartridge from the inside by moving a jet of dry compressed air up and down. Continue until all dust has been removed. Replace the air filter with a new one if necessary.
• Check the carburettor for external dirt and dust and clean it with dry compressed air if necessary.
• Check the nuts and bolts for tightness. (Screws or bolts loosened by vibrations can lead to accidents!)

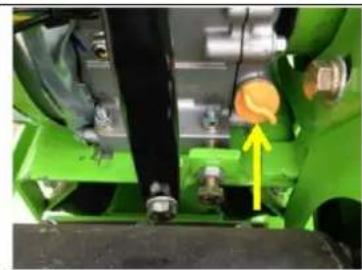

15.2.1 Checking the engine oil level

NOT ICE

Too low an oil level will damage the engine and shorten the life of the machine. Therefore, check the engine oil level before every start and top up the engine oil if necessary.

Close-up of a green industrial machine component with a yellow arrow pointing to a yellow-orange valve (no visible text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. To check the engine oil level, place the machine on a safe, level surface. Switch off the engine and allow the machine to stand for ten minutes so that the circulating oil can collect in the oil pan.

2. Unscrew the oil dipstick and wipe with a clean, lint-free cloth or a non-fibrous paper towel.

3. Push the dipstick into the opening, but do not screw it in. (Make sure that the dipstick has really been pushed in completely).

4. Pull out the oil dipstick again and read off the oil level. There are two markings for this - see illustration on the left.

5. If the oil level is low, refill the recommended oil up to the upper edge (maximum filling volume: approx. 0.5 litres).

6. Push in the oil dipstick again and tighten.

15.2.2 Checking the fuel tank level

NOTICE

Observe the safety regulations for fuel control. Filter the fuel during refuelling to prevent foreign particles from entering the combustion chamber. Wipe up leaked fuel.

1. Screw on the tank cap (sits on the fuel tank).
2. Level check in the form of a visual inspection. If necessary, top up with fuel with the appropriate octane number (RON 95).
3. Close the fuel filler cap tightly after refuelling.

15.2.3 Checking the gear box oil level

16 OPERATION

• Save the working environment before you start working.
• Only put the machine into operation after you have read and understood the safety instructions and carried out the necessary measures before initial commissioning.
  • Proper preparation and consistency of the concrete are essential for a good working.
• Transport of the machine onto the concrete to be processed: Mount the transport bar into the bar holder at the front side of the machine. Minimum two persons lift the machine onto the concrete surface. Attention! The machine is heavy. Be sure to proper lifting technique to avoid injuries.

16.1 Information on Initial Start-up

NOT ICE

Note that the machine is delivered without engine oil and fuel. Make sure that this equipment is filled up before the machine is put into operation for the first time. ATTENTION: The machine does not start until the engine oil has been refilled to the upper limit.

16.1.1 Test Run Initial Start-up

• Let the machine run idle for about 3 minutes.
• Pay attention to abnormal noises.
• Pay attention to the exhaust fumes (too black, too white)?

16.1.2 Notes on the first 20 operating hours

In order to optimize the life expectancy of your machine, the following points should be observed:

• Do not operate the engine for the first 20 operating hours @ maximum load (this also applies to used engines after extensive maintenance). This means lower speed and lower maximum working load than during normal operation.
• Change the engine oil after the first 20 hours of operation.

16.2 Operating Instructions

• Never use the recoil-starter while the engine is running. This will damage the engine.
• The pull mechanism for changing the engine speed is limited by an adjusting screw. This is factory set. Never change this setting on your own, you could overload the motor.
• Do not operate the machine on slopes of more than 20^ , as even with an optimum oil level the engine may not be supplied with sufficient lubrication.
• In the direction of the machine and within a range of one meter around the vibrator, nobody but the operator must stand.
• If the machine is working in an environment e.g. on soft or uneven ground, make sure to reduce the horsepower to the lowest level to prevent the machine from sinking. On slopes (max. 20° allowed!!!), make sure that the machine does not tilt.

16.3 Starting the Machine

		1. Fold up the handle and clamp the transport wheel in the rubber holder.
		2. Turn the fuel valve to the "ON" position.
		3. Set the engine ON/OFF switch (ignition switch) also to the "On" position.
		Note: The closed position of the choke lever enriches the fuel mixture for starting a cold engine. The open position provides the correct fuel mixture for normal operation after starting and for restarting a warm engine.4. Turn the choke lever to the "Closed" position, only for cold engine.
		5. Set the throttle lever to "half throttle" (= middle position between "fast" and "slow").Note: Do not pull the starter rope through to the end and do not let it rewind after pulling, but only rewind it quickly.6. Grab the starter handle and pull it out slowly. The resistance becomes strongest at a certain point. This point corresponds to the compression point. Let the rope roll back a little from this point and then pull it out powerfully.7. Turn the choke lever to "Open when the engine is running.8. Adjust rotor blades

16.4 Stopping the Machine

16.4.1 Emergency Stop

In case of danger and/or in an emergency situation, you can quickly switch off the machine with the speed governor by pushing it completely into the STOP position.

16.4.2 Normal switch-off

1. Adjust rotors to even 0^ position
2. Set the upper throttle lever to "minimum" and let the engine run idle for approx. 3 minutes at low engine speed.
3. Then set the engine ON/OFF switch (ignition switch) to the OFF position.
4. Close the fuel switch.
5. Wait until the engine has cooled down before storing the machine.

17 MAINTENANCE

WARNING

Hot surfaces and rotating machine parts while the engine is running can cause serious injury or even death. Always stop the machine before carrying out any conversion, adjustment, cleaning or maintenance work and secure it against unintentional restarting.

17.1 Maintenance and Servicing PLan

17.1.1 Table of Measures

Checks and activities to be performed
Check fuel level	Always before operation
Loose or lost screws and nuts	Always before operation
Damage of any machine part	Always before operation
Check for Petrol or oil patch/spot under the machine. Check petrol pipe, fuel tank and fuel tank cap for leaks.	Always before operation
Check motor oil level / fill-up if necessary	Always before operation
Clean machine and rotor blades	Always after operation
Belt tension	Always before operation
Belt condition	Always before operation
Lubricate rotor blades at lubr. nipples	every 20 working hour / weekly
Clean air filter	every 100 working hour/ monthly
Check spark plug/ event. clean	every 50 working hour/ weekly
CHANGE motor oil (SAE 10W40 or similar)	20 working hours after 1st operation /every 200 working hours
Gear oil	every 100 working hours

The specified intervals refer to working under "normal" operating conditions. Depending on the load, a change/exchange may also be necessary at an earlier point in time.

17.2 Changing gear box oil

NO TICE

Waste oils are toxic and must not be released into the environment! Contact your local authorities for information on proper disposal.

17.3 Changing the engine oil

NOTICE

Waste oils are toxic and must not be released into the environment! Contact your local authorities for information on proper disposal.

Cartoon illustration of a smiling robot with speech bubbles and mechanical components (no text or symbols)

1. Loosen oil drain plug on the rear of the engine.
2. Open oil tank cap. Collect the draining oil in a collecting container and dispose of it properly!
3. Tighten oil drain plug again after emptying.
4. Top up with fresh oil via the filling opening (K) (see section Checking the engine oil level).
   Only use high-quality engine oil, e.g. SAE30, 15W40 or similar!

17.4 Cleaning the air filter

A contaminated air filter can contribute to problems starting the machine, loss of performance during operation and shorten engine life.

Zipper Machines does not accept any liability for engine damage caused by failure to clean the air filter regularly.

To clean the air filter, first loosen the wing nut on the air filter housing, remove the cover (foam filter element) and remove the air filter cassette (paper filter element). Clean both elements mechanically with a soft brush.

If only the air filter cassette is to be cleaned, blow a dry jet of compressed air from the inside against the filter until all dust has been removed.

An air filter change is necessary when:

• The engine power drops and the fuel consumption increases at the same time.
  • the oil consumption increases
  • the starting of the engine becomes more difficult

17.5 Cleaning the spark plug

1. Pull out the spark plug cap and remove impurities from the outside of the spark plug.
2. Unscrew the spark plug using the spark plug wrench.
3. Check the ceramic insulation, clean the electrodes (metal tips) and check the distance between the contacts. It should be 0.7 to 0.8 mm.
4. Reinstall the cleaned (or replaced) spark plug and replace the spark plug cap.

18 TRANSPORT

WA RNING

Never lift or transport the machine with the engine running!

18.1 Lifting and transporting with separate devices

NO TICE

There are two persons required to lift and park the machine on another transporting devices. - one person to operate the hoist and one person to keep the machine in balance.

Illustration of a truck with two thought bubbles showing food items (no text or symbols present)

Dismount the throttle on the handle. Drain fuel, engine oil and transmission oil. Then pack the machine into the packing box, lift it onto the transport trolley with forklift trucks, then fix it in place to avoid displacement and machine damage.

19 STORAGE

If the machine is not used for a longer period of time (>30 days):

1. Empty the oil tanks or fuel tank.

2. Remove the spark plug and pour a few drops of engine oil into the cylinder. Using a rope starter, turn the engine a few times so that the oil is well distributed inside the cylinder. Clean the spark plug and replace it.

3. Cover the cooled machine and store it out of the reach of children and unauthorised persons in a well-ventilated, dry and frost-free environment.

20 RECYCLING

Do not dispose of your machine in residual waste. Contact your local authorities for information on available disposal options. If you buy a new vibratory plate or equivalent from your dealer, he is obliged in certain countries to dispose of your old machine properly.

21 TROUBLESHOOTING

WARNING

Hot surfaces and rotating machine parts while the engine is running can cause serious injury or even death. Always stop the machine before carrying out troubleshooting work and secure it against unintentional restarting.

Failure	Possible root-cause / measure
If the engine does not want to start:	Check the ON/OFF switch if it is „ON”Check the fuel cock if onCheck for fuel, check the fuel pipe for leaksCold start / warm start differenceSpark plugCarburator or air filter polluted.
When the engine stops:	Cehck fuel supply chain.Check motor oil level.Check air filter.
When engine output drops:	Check the air filter.
The machine doesn’t work porperly	Check Gear oil, check lubrication of rotor blades, check if rotor blades clean.

22 PŘEDMLUVA (CZ)

Vážený zákazníku!

Cartoon illustration of a smiling robot holding a device, with thought bubbles showing mechanical parts (no text or symbols)

Illustration of a truck with two thought bubbles showing a cow and a pig (no text or symbols)

(EN) With ZIPPER spare parts you use spare parts that are ideally matched to each other. The fitting accuracy of the parts shortens their installation time and increases the service life of the machine.

NO TE

The installation of parts other than original spare parts leads to the loss of the guarantee! Therefore, when replacing components/parts, only use original spare parts!

When ordering spare parts, please use the service form at the end of this manual. Always state machine type, spare part number and designation. In order to avoid misunderstandings, we recommend enclosing a copy of the spare part drawing with the spare part order, on which the required spare parts are clearly marked.

You will find the ordering address under customer service addresses in the foreword to this documentation.

Company ZIPPER Maschinen GmbH grants for mechanical and electrical components a warranty period of 2 years for amateur use; and warranty period of 1 year for professional use, starting with the purchase of the final consumer. In case of defects during this period, which are not excluded by paragraph 3, ZIPPER will repair or replace the machine at its own discretion.

2.) Report:

In order to check the legitimacy of warranty claims, the final consumer must contact his dealer. The dealer has to report in written form the occurred defect to ZIPPER. If the warranty claim is legitimate, ZIPPER will pick up the defective machine from the dealer. Returned shippings by dealers which have not been coordinated with ZIPPER, will not be accepted and refused.

3.) Regulations:

a) Warranty claims will only be accepted, when a copy of the original invoice or cash voucher from the trading partner of ZIPPER is enclosed to the machine. The warranty claim expires if the accessories belonging to the machine are missing.
b) The warranty does not include free checking, maintenance, inspection or service works on the machine. Defects due to incorrect usage of the final consumer or his dealer will not be accepted as warranty claims either. Some examples: usage of wrong fuel, frost damages in water tanks, leaving fuel in the tank during the winter, etc.
c) Defects on wear parts are excluded, e.g. carbon brushes, collection bags, knives, cylinders, cutting blades, clutches, sealings, wheels, saw blades, splitting crosses, riving knives, riving knife extensions, hydraulic oils, oil/air/fuel filters, chains, spark plugs, sliding blocks, etc.
d) Also excluded are damages on the machine caused by incorrect or inappropriate usage, if it was used for a purpose which the machine is not supposed to, ignoring the user manual, force majeure, repairs or technical manipulations by not authorized workshops or by the customer himself, usage of non-original ZIPPER spare parts or accessories.
e) After inspection by our qualified personnel, resulted costs (like freight charges) and expenses for not legitimated warranty claims will be charged to the final customer or dealer.
f) In case of defective machines outside the warranty period, we will only repair after advance payment or dealer's invoice according to the cost estimate (incl. freight costs) of ZIPPER.
g) Warranty claims can only be granted for customers of an authorized ZIPPER dealer who directly purchased the machine from ZIPPER. These claims are not transferable in case of multiple sales of the machine.

4.) Claims for compensation and other liabilities:

The liability of company ZIPPER is limited to the value of goods in all cases. Claims for compensation because of poor performance, lacks, damages or loss of earnings due to defects during the warranty period will not be accepted. ZIPPER insists on its right to subsequent improvement of the machine.

35 ZÁRUKA (CZ)

1.) Záruka:

Please describe amongst others in the problem: What has cause the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked you electric supply and the machine already by a certified electrician?

3. Bitte beachten

/ Additional information

INCOMPLETELY FILLED SERVICE FORMS CANNOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES/ DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED. FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE. THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCEL- LERATES THE HANDLING OF YOUR INQUIRY.
