Product Type	Submersible Clean and Dirt Water Pump
Model Number	ZI-DWP1100N
EAN	9120039230030
Power Supply	230 V ~ 50 Hz
Fuse Requirement	Min. 6 A
Max. Water Temperature	35 °C
Float Switch	Yes, adjustable
Protection	Thermal cutout (overheat protection)
Recommended Shaft Size	Min. 40 x 40 x 50 cm
Installation	Stationary with fixed pipeline or flexible hose
Applications	Cellar drainage, flood protection, water transfer in home, agriculture, horticulture
Mains Cable	Shock-proof plug, 230 V / 50 Hz
Ground-Fault Protection	Recommended (max. 30 mA)
Dry-Run Protection	Avoid running dry; pump switches off automatically?
Frost Protection	Must be protected from frost
Maintenance	Clean with clear water after each use; check float switch every 3 months
Impeller Cleaning	Remove intake cage, clean impeller with water
Spare Parts	Use original ZIPPER parts
Warranty	2 years amateur use, 1 year professional use
Warranty Conditions	Valid with original invoice; excludes wear parts and improper use

Frequently Asked Questions - ZI-DWP1100N Zipper

What is the maximum water temperature for the ZI-DWP1100N pump?

The maximum water temperature is 35 °C. Do not exceed this limit to avoid damage.

Can this pump be used for swimming pools?

Yes, but it must be equipped with a ground-fault circuit interrupter with a nominal trip current of max. 30 mA. Do not operate while people are in the pool.

What type of fluid can the pump handle?

The pump is designed for clean and dirty water. Do not use for aggressive fluids, abrasive materials, motor fuels, cleaning fluids, or chemical products.

How to install the float switch correctly?

Secure the float switch in its latching holder so that the ON and OFF levels can be reached easily. Ensure the switch does not touch the base before pump switches off to avoid dry-running.

What does the thermal cutout do?

The thermal cutout stops the pump if it overheats due to dirty water or high temperature. After cooling, the pump may restart automatically? Not specified. It says 'switches off after short operation period' due to thermal cutout.

How to clean the impeller?

Remove the intake cage from the pump case, clean the impeller with clear water. Do not rest the pump on the impeller during cleaning. Reassemble in reverse order.

What should I do if the pump does not start?

Check the mains supply and ensure the floater switch is in a higher position. If not, consult a qualified electrician.

How often should maintenance be performed?

Clean the pump with clear water after each use if frequently transported. For stationary installation, check the float switch every 3 months and clean the shaft ground from mud.

What are the warranty conditions?

Warranty is 2 years for amateur use and 1 year for professional use. Requires original invoice. Excludes wear parts, improper use, and unauthorized repairs.

Can the pump run dry?

No, the pump must be protected from running dry. The float switch should be adjusted to prevent dry-running.

USER MANUAL ZI-DWP1100N Zipper

Clean and Dirt Water Pumps

CZ Návod k použití

PUMPE ZA ČISTU I NEČISTU VODU

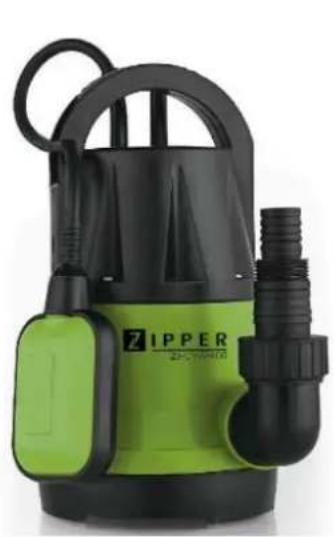

Green and black ZIPPER water purifier with handle and control knob (no visible text or symbols)

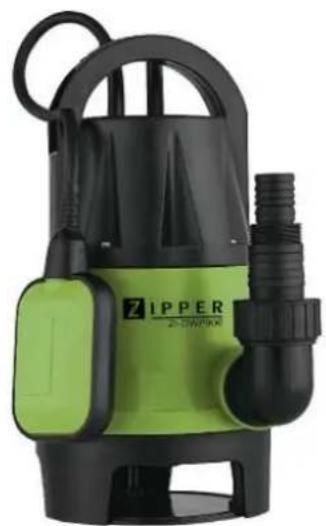

Green and black ZIPPER water purifier with handle and hose (no visible text or symbols)

Exterior view of a modern office building (no signage)

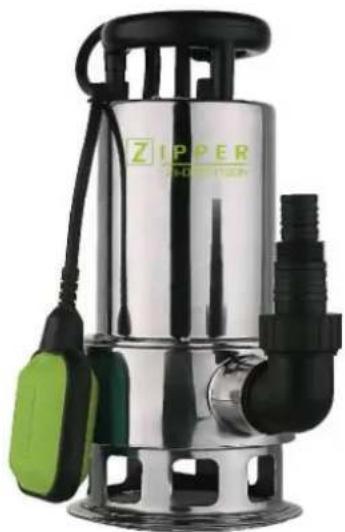

ZI-CWP400 / ZI-DWP900 / ZI-DWP1100N

EAN: 9120039230016 / 9120039230023 / 9120039230030

1 INHALT / INDEX

1 INHALT / INDEX 2

2 TECHNISCHE DATEN / TECHNICAL DATA / TECHNICKÁ DATA / TEHNIČNI PODATKI / SPECIFIKACIJE 3

3 VORWORT (DE) 4

This manual contains important information and advice for the correct and safe use and maintenance of the Clean and Dirt Water pump ZI-CWP400; ZI-DWP900; ZI-DWP1100N. Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".

The manual is part of the machine and may not be stored separately. Read it profoundly before first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.

Please follow the security instructions!

Please read the entire manual, to prevent misunderstandings, machine damage or even injuries!

Due to continuous development of our products illustrations, pictures might differ slightly.

If you however find errors in this manual, please inform us.

Technical changes excepted!

Copyright law

© 2018

This manual is protected by copyright law – all rights reserved. Especially the reprinting as well as the translation and depiction of pictures will be prosecuted by law. Court of jurisdiction is the Landesgericht Linz or the competent court for 4707 Schlüsslberg, AUSTRIA.

Customer Support

The pump can be connected to any shock-proof plug which has been installed according to regulations. The plug must have a supply voltage of 230V\~50Hz. Fuse min. 6Amp.

- CAUTION!

When the pump is to be used near swimming pools or garden ponds and in their area of protection, it must be equipped with a ground-fault circuit interrupter with a nominal trip current of max. 30mA (according to VDE0100, part 702 and 738). The pump must not be operated while people are in the swimming pool or in the garden pond! Please contact your electrician!

- ATTENTION! (Important for your own Security)

Before starting to run your new submersible pump, please have the following items checked by an expert:

• Ground connection
• Zero conductor
• Fault current breaker switch must correspond the safety regulations of the power plants and they must work faultlessly.
• The electrical connections must be protected from moisture.
• If there is danger of flooding, the electrical connections must be taken to higher ground.
• Circulation of aggressive fluids, as well as the circulation of abrasive materials must be avoided at all costs.
• The submersible motor-driven pump must be protected from frost.
• The pump must be protected from running dry.
• Access on the part of children should also be prevented with appropriate measures.

• CONSISTENCY

Your submersible pump is designated for the circulation of water with a maximum temperature of 35^ C. This pump may not be used for other fluids. Especially motor fuels, cleaning fluids, and other chemical products.

• INSTALLATION

The submersible motor pump is installed as follows:

• In a stationary position with fixed pipeline or
• in a stationary position with a flexible hose pipe.

- PLEASE NOTE!

You should never install the pump by suspending it unsupported from its delivery pipe of power cable. The submersible motor pump must be suspended from the specially provided handle or be placed on the bottom of the shaft. To guarantee that the pump works properly, the bottom of the shaft must be kept free of sludge and dirt of all kinds.

If the level of water sinks too far, any sludge in the shaft will dry out quickly and stop the pump from starting up. It is necessary therefore to check the submersible motor pump regularly (by carrying out start-up tests).

The floater is adjusted in a way that the pump can immediately be started.

Note: The pump shaft should have minimum dimensions of 40x40x50cm, so that the floating switch can move freely.

• MAINS SUPPLY

Your new submersible pump is equipped with a shock-proof plug according to regulations. The pump is designed to be connected to a 230V / 50Hz safely socket. Make sure that the socket is sufficiently secured (min. 6Amp.) and is in excellent condition. Introduce the plug into the socket and the pump is ready to go.

Important note: If the mains cable or plug suffer any damage from external action, repairs to the cable are prohibited. This work may only be performed by a qualified electrician.

- AREAS OF USE

This pump is used primarily as cellar pump when installed in a shaft, this pump provides protection from flooding. They are also used wherever water has to be moved from one place to another, e.g. in the home, agriculture, horticulture, plumbing and many other applications.

- SETTING TO WORK

After having read these instructions carefully, you can set your pump to work, reconsidering the following item:

• Check if the pump rests on the ground of the shaft.
• Check if pressure cord has been attached properly.

• Check if electrical connection is 230V / 50 Hz.

• Check if socket is in good condition.

• Make sure that water and humidity can never come to the mains supply.
• Avoid pump running dry.

• MAINTENANCE GUIDELINES

This submersible pump is an approved maintenance-free high quality product which is subject to severe final controls. We recommend regular inspection and maintenance to ensure long equipment life and uninterrupted operation.

Important:

- Remove the mains plug before all maintenance work.

• In the event that the pump is often transported in the course of operation, it should be cleaned out with clear water after every use.
• In case of stationary installation, the function of the floating switch should be checked every 3 months.
• All fibrous particles which may have built-up inside the pump housing should be removed with a water jet.
• Every 3 months the shaft ground should be cleaned from mud.
• Remove deposits on the floater with clear water.

- CLEANING THE IMPELLER

If excessive deposits collect in the pump case you must dismantle the bottom part of the pump as follows:

1. Remove the intake cage from the pump case.
2. Clean the impeller with clear water. Important: Do not put down or rest the pump on the impeller!
3. Assemble is reverse order

The ON and OFF operation point of the float switch can be set by adjusting the float switch in its latching holder.

Before you put the pump into operation, please check the following:

• The float switch must be installed so that the level of the ON operating point and the level of the OFF operating point can be reached easily and with little force. To check this, place the pump in a vessel filled with water, raise the float switch carefully by hand and then lower it again. As you do so, note whether the pump switches on and off.
• Make sure that the distance between the float switch head and the latching holder is not too small. Proper operation is not guaranteed if the gap is too small.
• When you set the float switch, make sure that it does not touch the base before the pump switches off. Caution: risk of dry-running.

8 TROUBLE SHOOTING

PROBLEM	PROBABLE CAUSE	REMEDY SUGGESTED
Pump does not start	- No mains supply- Floater does not switch	- Check mains supply- Bring floater in a higher position
No flow	- Inlet sieve is clogged- Pressure hose in bent	- Clean inlet sieve water jet- Reset hose
Pump does not switch off	- Floater cannot sink down	- Place pump properly on shaft ground
Insufficient flow	- Inlet sieve is clogged- Reduced pumping capacity by dirty and abrasive water	- Clean inlet sieve- Clean pump and replace worn-out parts
Pump switches of after shout operation period	- Thermal cutout stops pumps due to dirty water- Water too hot, thermal-cutout stops pump	- Remove mains plug, clean pump and shaft- Make sure that a water temperature of max. 35°C is not exceed

8.1 Disposal

Do not dispose the machine in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

9 PŘEDMLUVAR (CZ)

Vážený zákazníku!

AT-4707 Schlüsslberg

Tel [phone] - 700

Fax [phone] - 720

[e-mail]

10 PROVOZNÍ BEZPEČNOSTNÍ POKYNY

17 SIGURNOSNA UPOZORENJA I UPUTE

- PRIJE KORISTENJA, PROČITAJTE SLJEDEĆE!

With original ZIPPER spare parts you use parts that are attuned to each other shorten the installation time and elongate your machines lifespan.

IMPORTANT

The installation of other than original spare parts voids the warranty!

So you always have to use original spare parts

When you place a spare parts order please use the service formular you can find in the last chapter of this manual. Always take a note of the machine type, spare parts number and partname. We recommend to copy the spare parts diagram and mark the spare part you need.

You find the order address in the preface of this operation manual.

Company ZIPPER Maschinen GmbH grants for mechanical and electrical components a warranty period of 2 years for amateur use; and warranty period of 1 year for professional use, starting with the purchase of the final consumer. In case of defects during this period, which are not excluded by paragraph 3, ZIPPER will repair or replace the machine at its own discretion.

2.) Report:

In order to check the legitimacy of warranty claims, the final consumer must contact his dealer. The dealer has to report in written form the occurred defect to ZIPPER. If the warranty claim is legitimate, ZIPPER will pick up the defective machine from the dealer. Returned shippings by dealers which have not been coordinated with ZIPPER, will not be accepted and refused.

3.) Regulations:

a) Warranty claims will only be accepted, when a copy of the original invoice or cash voucher from the trading partner of ZIPPER is enclosed to the machine. The warranty claim expires if the accessories belonging to the machine are missing.
b) The warranty does not include free checking, maintenance, inspection or service works on the machine. Defects due to incorrect usage of the final consumer or his dealer will not be accepted as warranty claims either. Some examples: usage of wrong fuel, frost damages in water tanks, leaving fuel in the tank during the winter, etc.
c) Defects on wear parts are excluded, e.g. carbon brushes, collection bags, knives, cylinders, cutting blades, clutches, sealings, wheels, saw blades, splitting crosses, riving knives, riving knife extensions, hydraulic oils, oil/air/fuel filters, chains, spark plugs, sliding blocks, etc.
d) Also excluded are damages on the machine caused by incorrect or inappropriate usage, if it was used for a purpose which the machine is not supposed to, ignoring the user manual, force majeure, repairs or technical manipulations by not authorized workshops or by the customer himself, usage of non-original ZIPPER spare parts or accessories.
e) After inspection by our qualified personnel, resulted costs (like freight charges) and expenses for not legitimated warranty claims will be charged to the final customer or dealer.
f) In case of defective machines outside the warranty period, we will only repair after advance payment or dealer's invoice according to the cost estimate (incl. freight costs) of ZIPPER.
g) Warranty claims can only be granted for customers of an authorized ZIPPER dealer who directly purchased the machine from ZIPPER. These claims are not transferable in case of multiple sales of the machine.

4.) Claims for compensation and other liabilities:

The liability of company ZIPPER is limited to the value of goods in all cases. Claims for compensation because of poor performance, lacks, damages or loss of earnings due to defects during the warranty period will not be accepted. ZIPPER insists on its right to subsequent improvement of the machine.

25 ZÁRUKA (CZ)

1.) Záruka:

Product experience form

We observe the quality of our delivered products in the frame of a Quality Management policy.

Your opinion is essential for further product development and product choice. Please let us know about your:

• Impressions and suggestions for improvement.
• experiences that may be useful for other users and for product design
• Experiences with malfunctions that occur in specific operation modes

We would like to ask you to note down your experiences and observations and send them to us via FAX, E-Mail or by post:

Please describe amongst others in the problem: What has cause the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked you electric supply and the machine already by a certified electrician?

3. Bitte beachten

/ Additional information

INCOMPLETELY FILLED SERVICE FORMS CANNOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES / DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED. FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE. THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCEL- LERATES THE HANDLING OF YOUR INQUIRY.
