TV-32S61T2 - TV Vivax - Free user manual and instructions

Product Type	LED Television
Model	TV-32S61T2
Screen Size	32 inches
Display Resolution	1366 x 768 pixels
Dimensions (with stand)	732 x 480 x 206 mm
Dimensions (without stand)	732 x 435 x 85 mm
Weight (with stand)	4.3 kg
Weight (without stand)	4.1 kg
Audio Power Output	6 W + 6 W
Power Rating	54 W
Power Supply	AC 180-240 V ~ 50/60 Hz
Tuner Type	DVB-T2, DVB-C, DVB-S2 (optional)
Input Ports	HDMI (2), USB, SCART, YPbPr, AV, CI+, SPDIF
Media Playback	Photo, Music, Video, Text via USB
Remote Control	Full function with batteries (2x AAA)
Stand Included	Yes, with screws
Cleaning Instructions	Unplug, use soft damp cloth; no liquid or abrasive cleaners
Safety Warnings	Do not open; keep away from children; avoid heat sources
Spare Parts Availability	Replacement parts available through authorized service centers
Warranty	12 months (24 months for Imago series)

Frequently Asked Questions - TV-32S61T2 Vivax

How do I connect an external device like a DVD player?

Connect the device using HDMI, SCART, or AV cables. Press the SOURCE button on the remote, select the corresponding input (e.g., HDMI1).

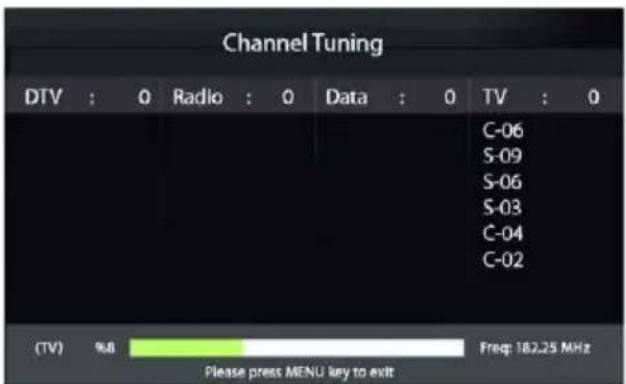

How can I tune channels automatically?

Press MENU, go to CHANNEL > Auto Tuning. Select your country and tune type (DTV+ATV), then press OK to start.

Why is there no sound from the TV?

Check if the volume is turned up and MUTE is off. Also ensure the audio output setting is correct (e.g., not set to external speakers).

How do I reset the TV to factory settings?

Press MENU, go to OPTION > Reset, then confirm. All settings will be restored to defaults.

Can I record TV programs using a USB drive?

Yes, connect a USB drive (FAT32 format) and press REC on the remote during a DTV broadcast. Ensure the USB has enough space and is not overloaded.

What should I do if the remote control doesn't work?

First, check the batteries and ensure they are installed correctly. Point the remote within 5 meters of the TV sensor. If issues persist, replace the batteries.

How do I update the TV software?

Download the update file to a USB stick, insert it into the TV's USB port, then press MENU > OPTION > Software Update (USB) and follow on-screen instructions.

What is the maximum USB storage size supported?

The TV supports USB storage devices up to 1 TB. The USB port provides 5V/500mA output, so high-power devices may require external power.

How can I enable parental controls?

Press MENU, go to LOCK. Enter the default password 0000, then enable Lock System and set Parental Guidance or block specific channels.

The picture is distorted or wavy. What could be the cause?

Check for nearby electrical appliances that may cause interference. Adjust the antenna direction or ensure the antenna cable is properly connected. Also try resetting the TV by unplugging for 60 seconds.

USER MANUAL TV-32S61T2 Vivax

Media player — Pristupite svojim muzičkim zapisima, slikama i video materijalima putem vašeg USB medija te ih pokrenite direktno na TV prijamniku.

Kontrolirajte sve funkcije pomoću jednog daljinskog upravljača. Priključite vaš televizor direktno na zemaljsku, ili kabelsku mrežu te uživajte u sadržajima u najvišoj kvaliteti.

Popis pribora uz uređaj

Prilikom otvaranja kutije i instalacije uređaja, provjerite da li ste uz vaš uređaj dobili sav potreban pribor:

• Korisnički priručnik s jamstvenom izjavom
• Daljinski upravljač
• Baterije x2

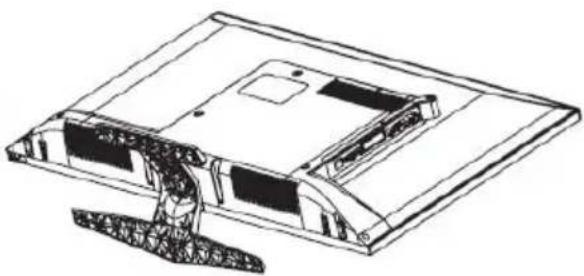

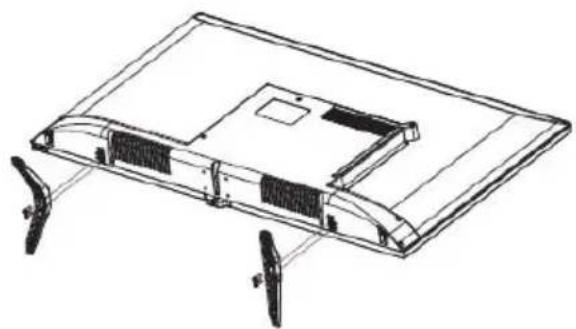

• Stalak + Vijci za stalak

Black remote control device with various function keys and buttons (no visible text or labels)

Two abstract geometric line drawings with no text or symbols, featuring curved and straight segments (no text or symbols present)

Slike služe samo kao referenca i mogu se neznatno razlikovati od stvarnog proizvoda. Pri tome funkcionalnost ostaje ista.

Munja sa simbolom strelice unutar trokuta upozorava korisnika na prisutnosti opasnog neizoliranog napona unutar proizvoda, te koji može biti dovoljno jak da bi predstavljao rizik od strujnog udara ili ozljeda.

Uskličnik unutar trokuta upozorava korisnika o prisutnosti važnih uputa o rukovanju i održavanju u dokumentu priloženom u pakiranju.

OPREZ

RIZIK OD STRUJNOG UDARA NE OTVARAJTE UREĐAJ

Symbolic illustration of a burning candle with flames crossed out by a diagonal line (no text or labels)

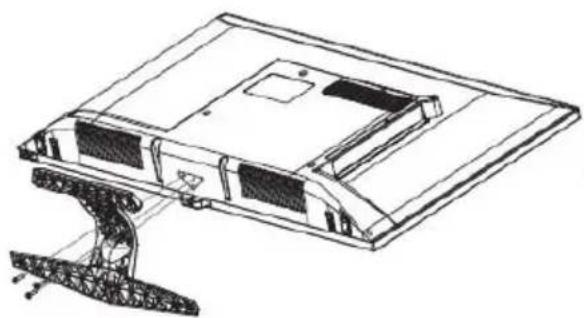

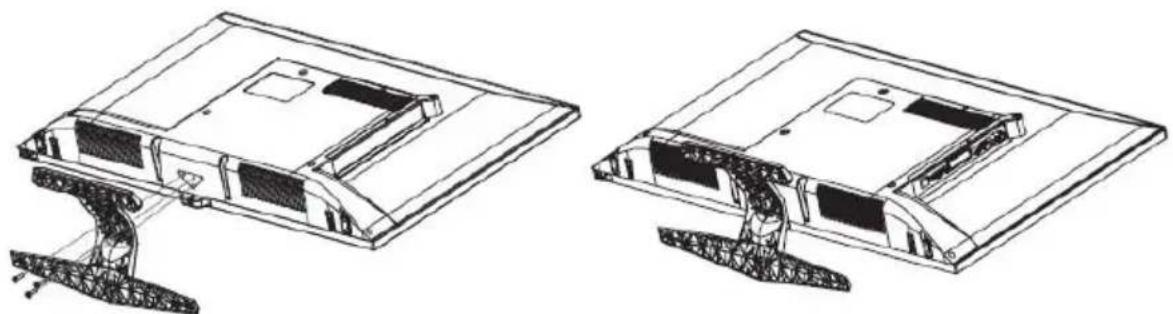

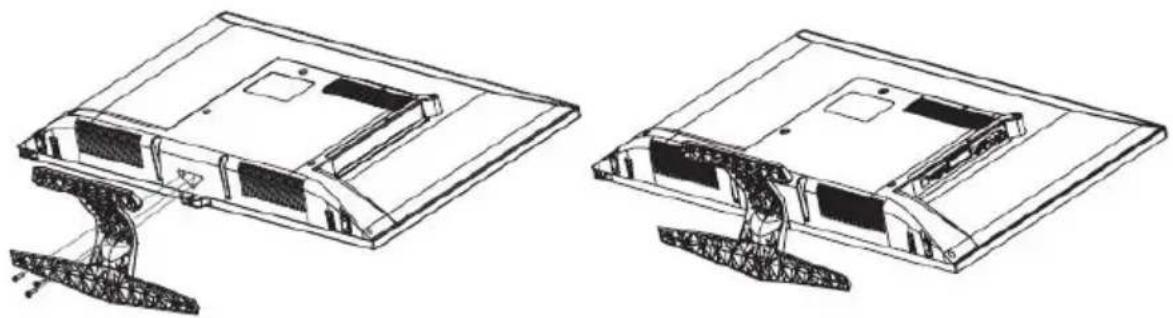

Technical line drawings of two views of a flat electronic device casing (no text or symbols)

TV-32S62T2, TV-32S62T2S2

Technical line drawings of two views of a computer chassis (no text or symbols present)

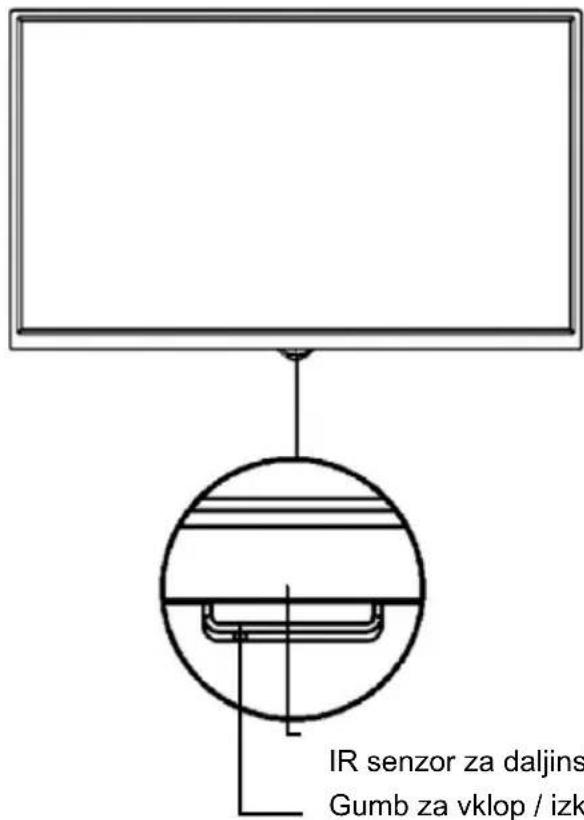

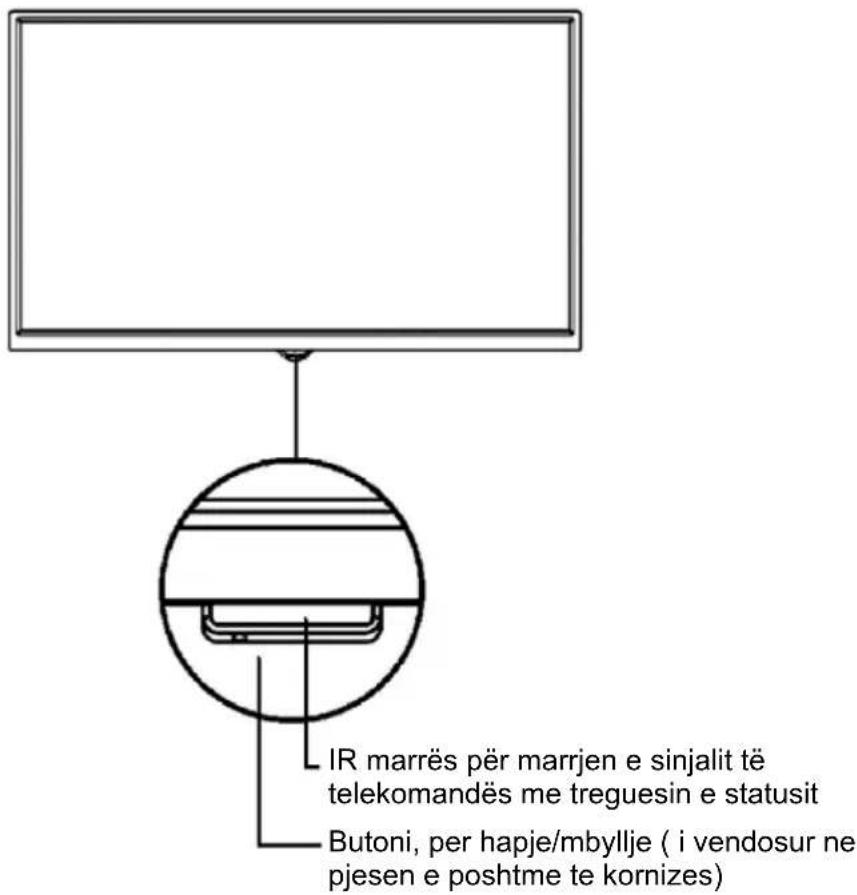

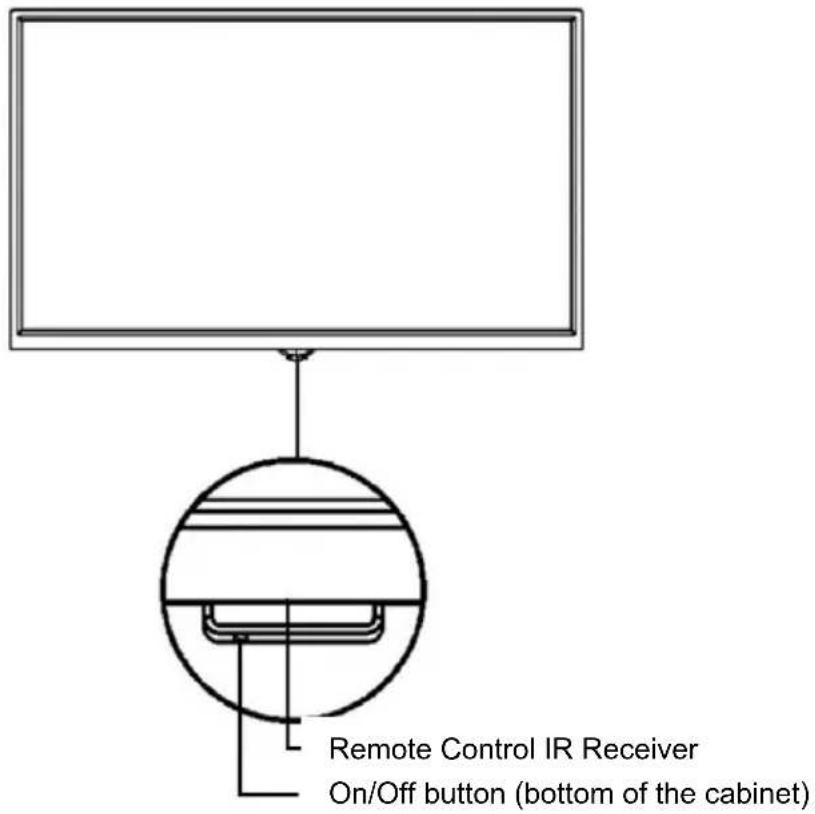

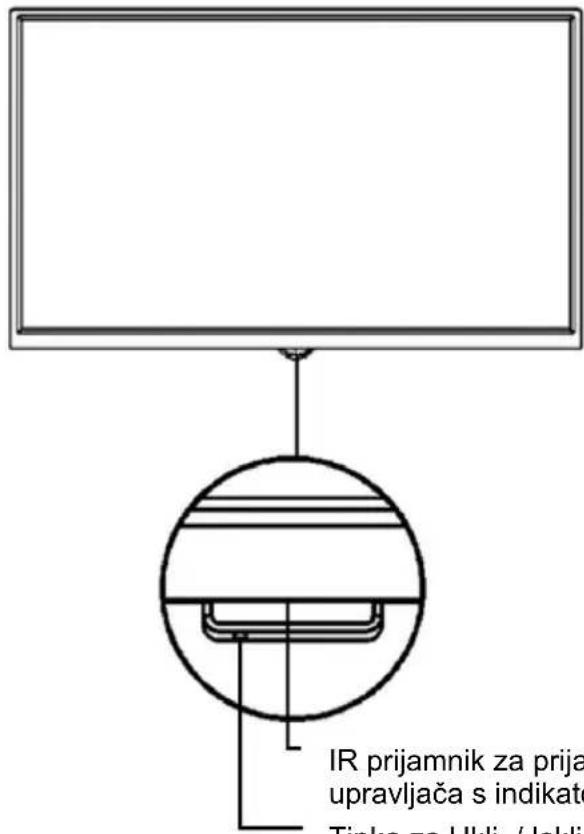

Prednja strana TV prijamnika

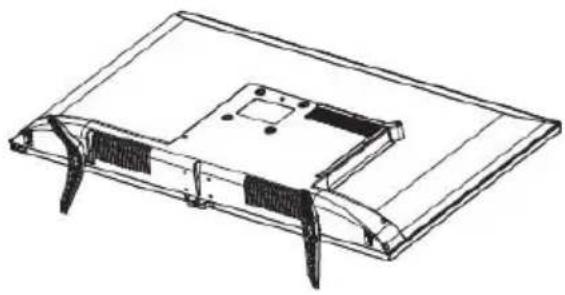

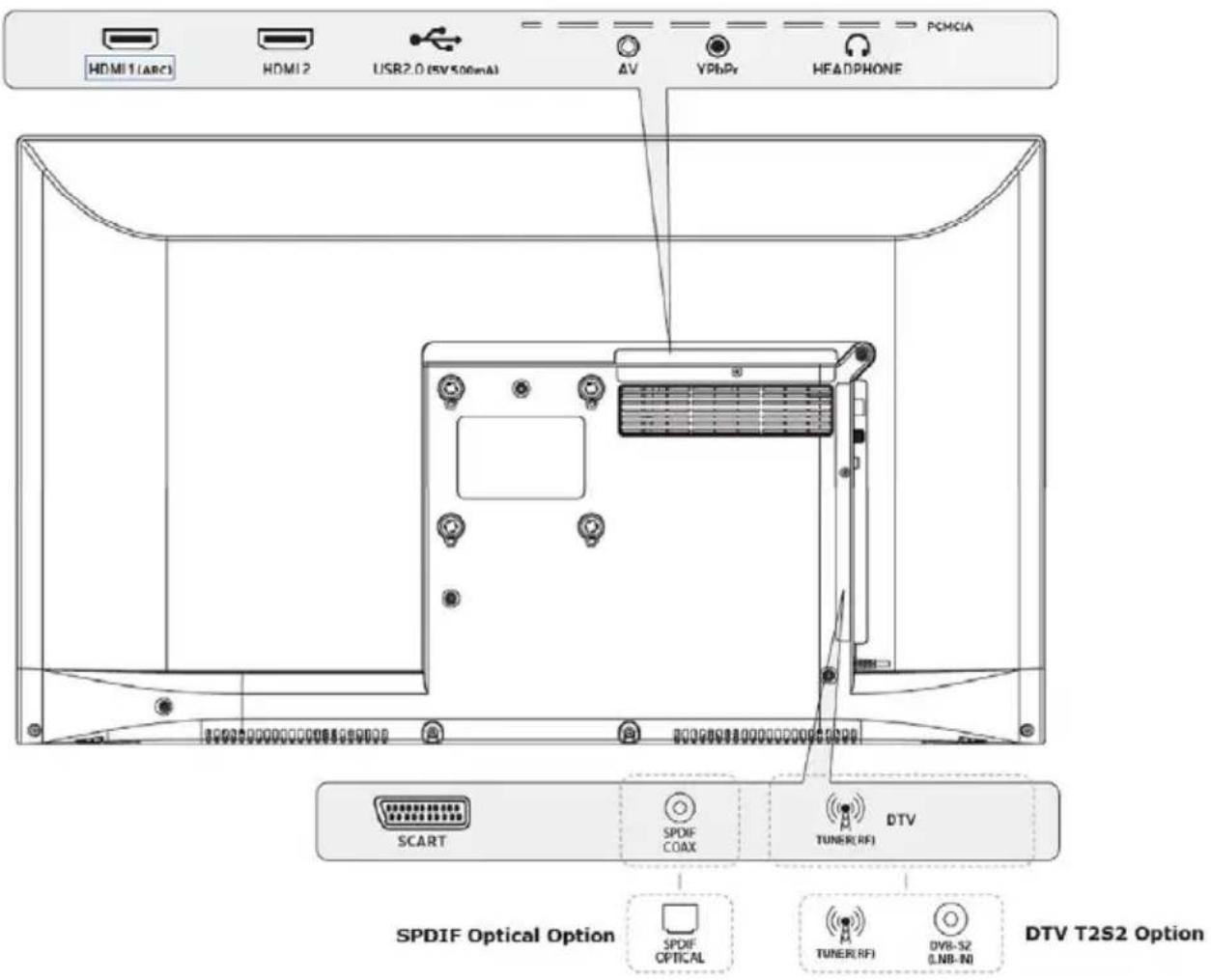

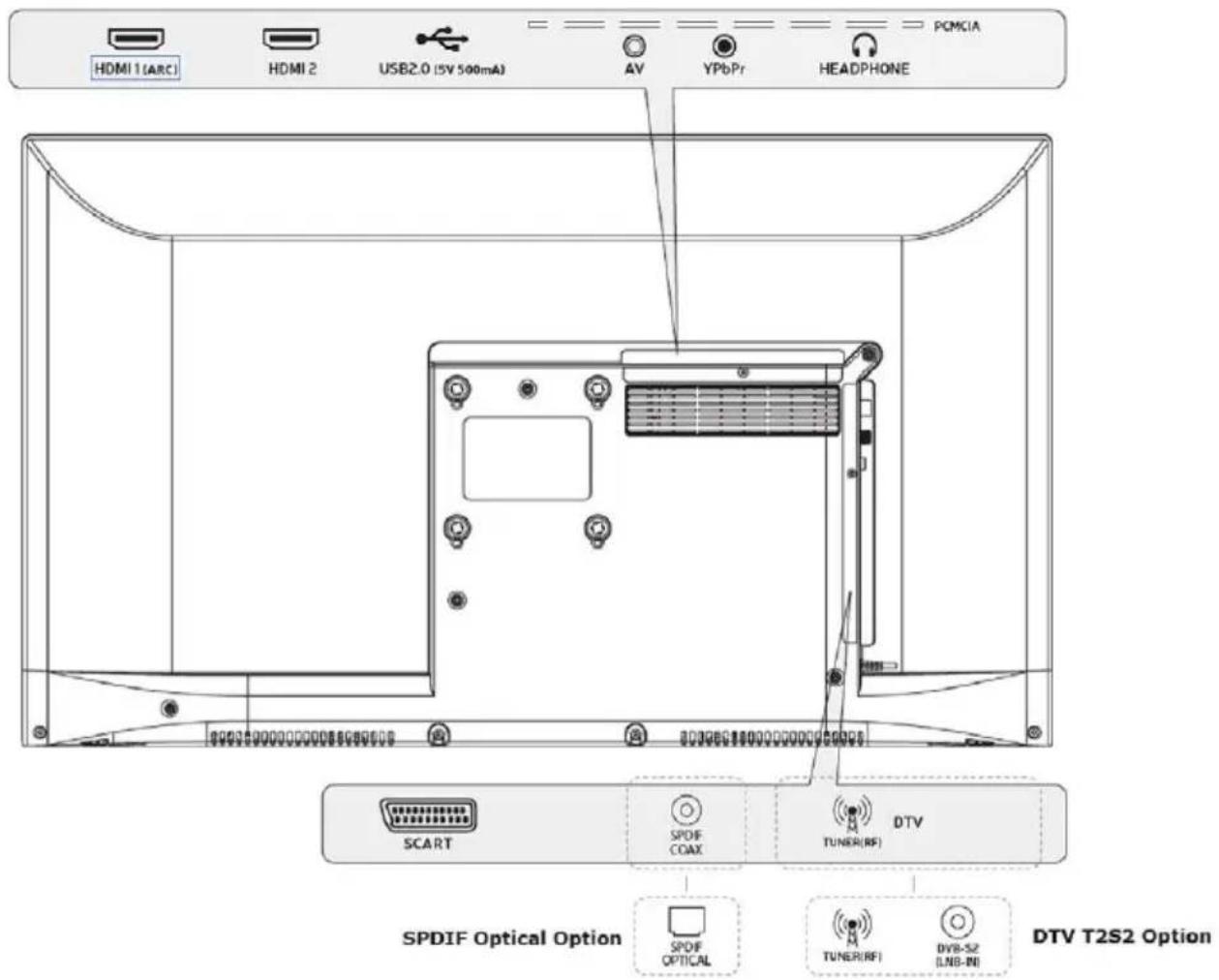

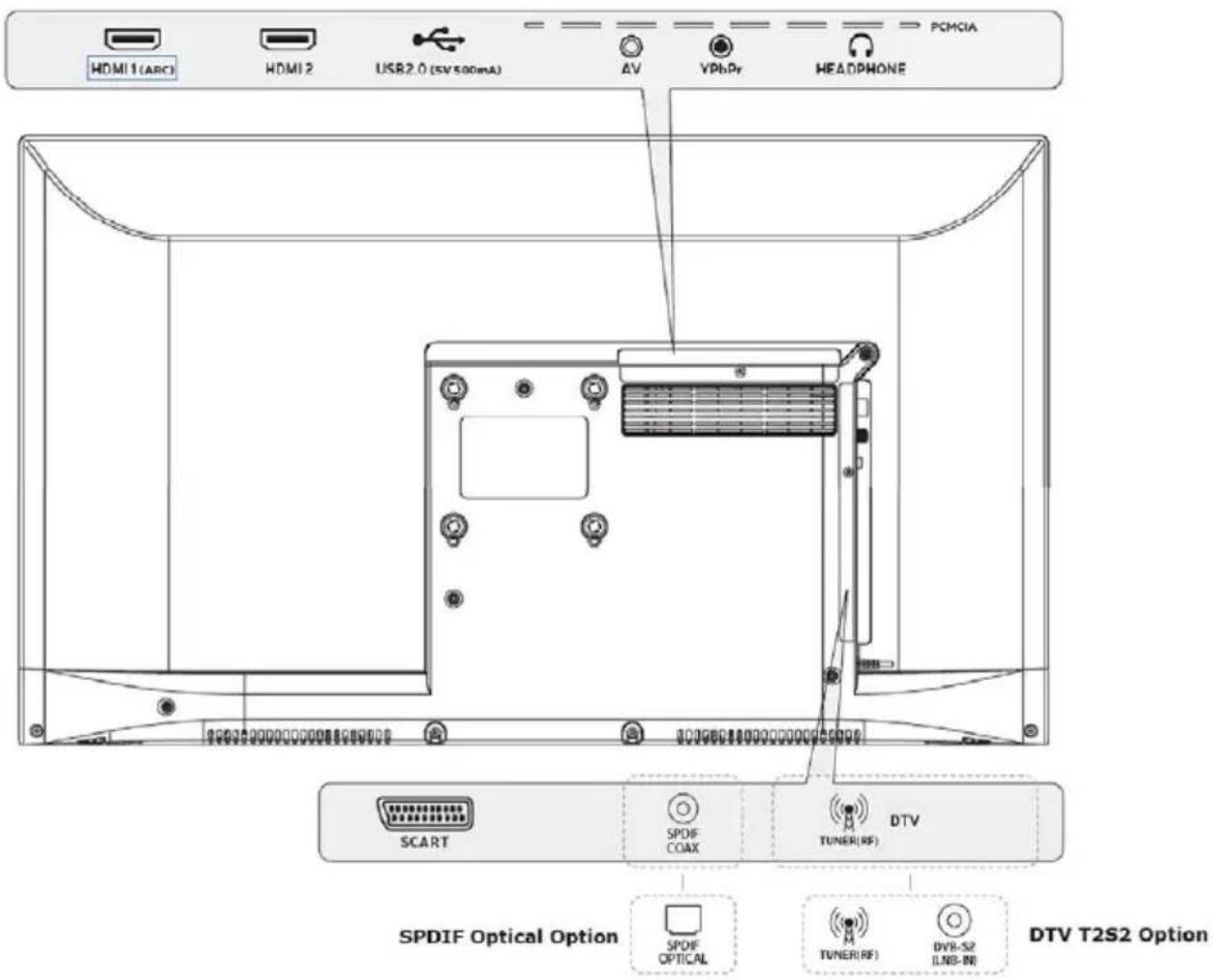

Stražnja strana

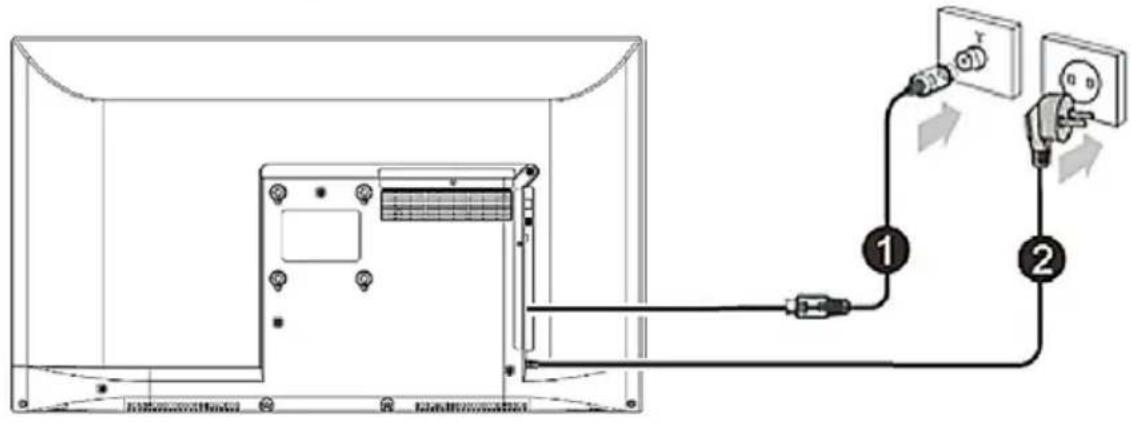

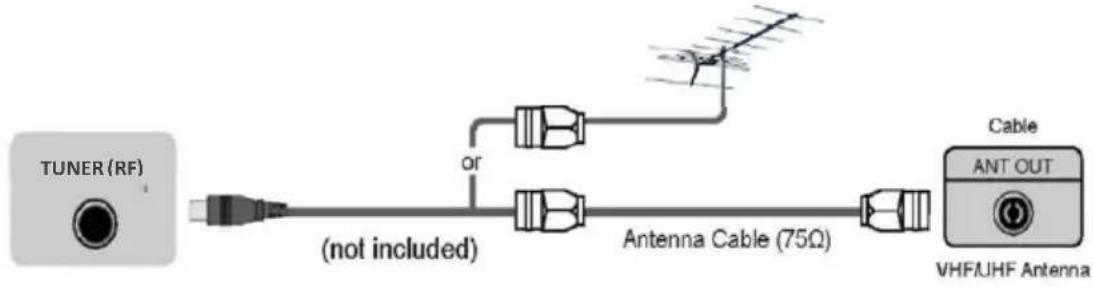

▶ PRIKLJUČENJE

NAPOMENE

Slika je samo za informaciju. Vaš uređaj može se neznatno razlikovati od gornje slike.

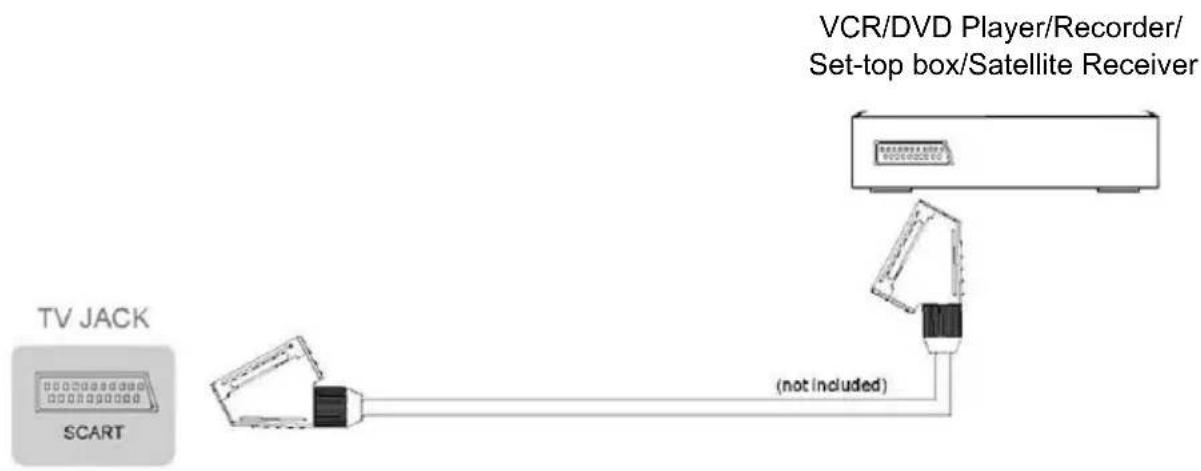

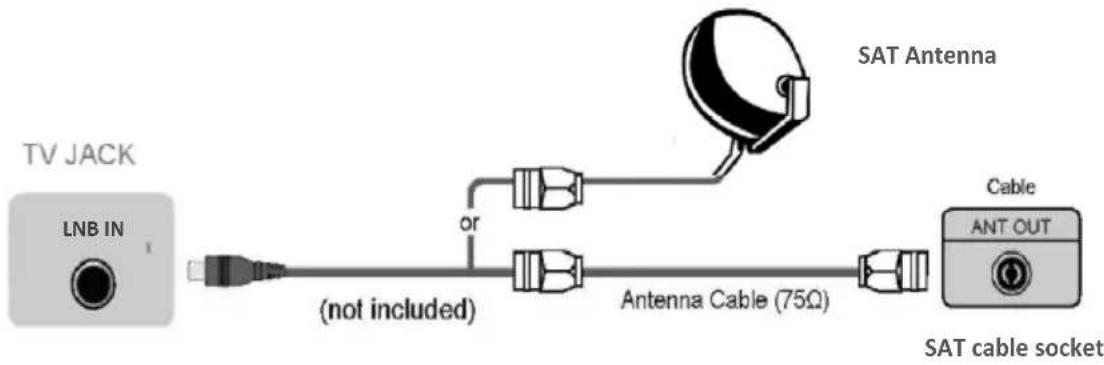


▶ USB

Priključite USB uređaj kao što je USB memorija ili USB tvrdi disk ili digitalnu kameru za pregledavanje fotografija, slušanje glazbe ili gledanje video materijala.

Ovaj ulaz koristi se i za nadogradnju software-a. Nadogradnja će se izvršiti automatski čim USB sa datotekama za nadogradnju bude umetnut u USB sučelje.

NAPOMENE

• Prilikom priključenja tvrdog diska ili USB memorije, uvijek priključite adapter napajanja spojenog uređaja u izvor napajanja. Preopterečenje USB priključka može dovesti do oštećenja. Najveća dozvoljena potrošnja struje USB ulaza iznosi 500mA.
• TV prijamnik ne podržava samostalne, nestandardne tvrde diskove visokih performansi koji nemaju vanjsko napajanje, ukoliko je zahtjevana struja jača ili jednaka 500mA. To može dovesti do oštećenja TV uređaja ili tvrdog diska.
• USB utor podržava napon od 5V.
• Maksimalna podržana veličina prostora za pohranu je 1T.

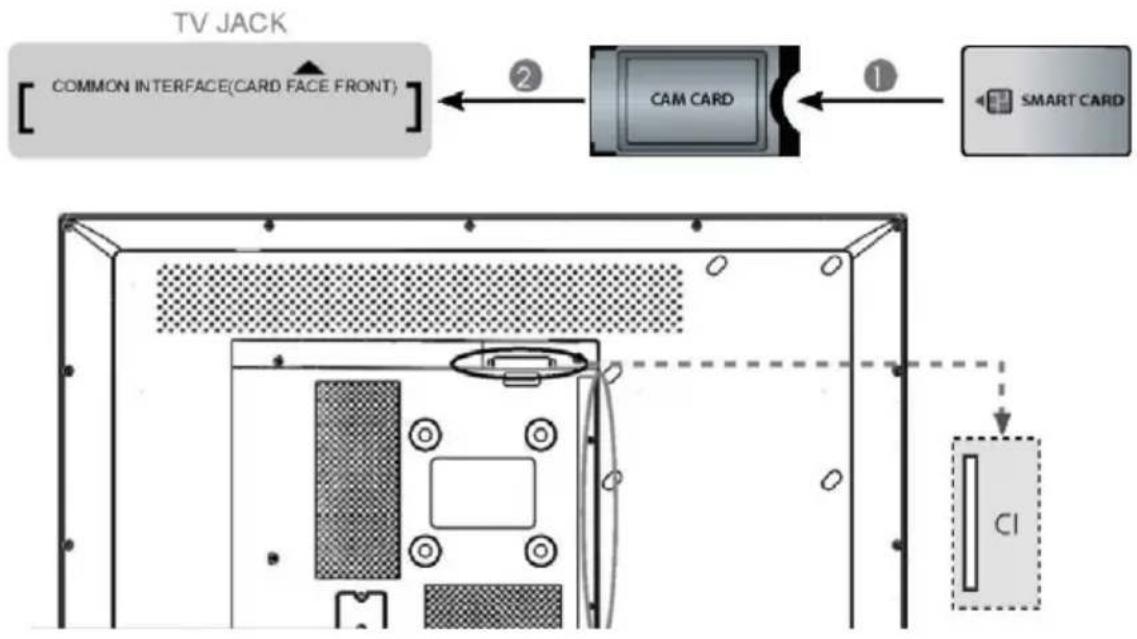

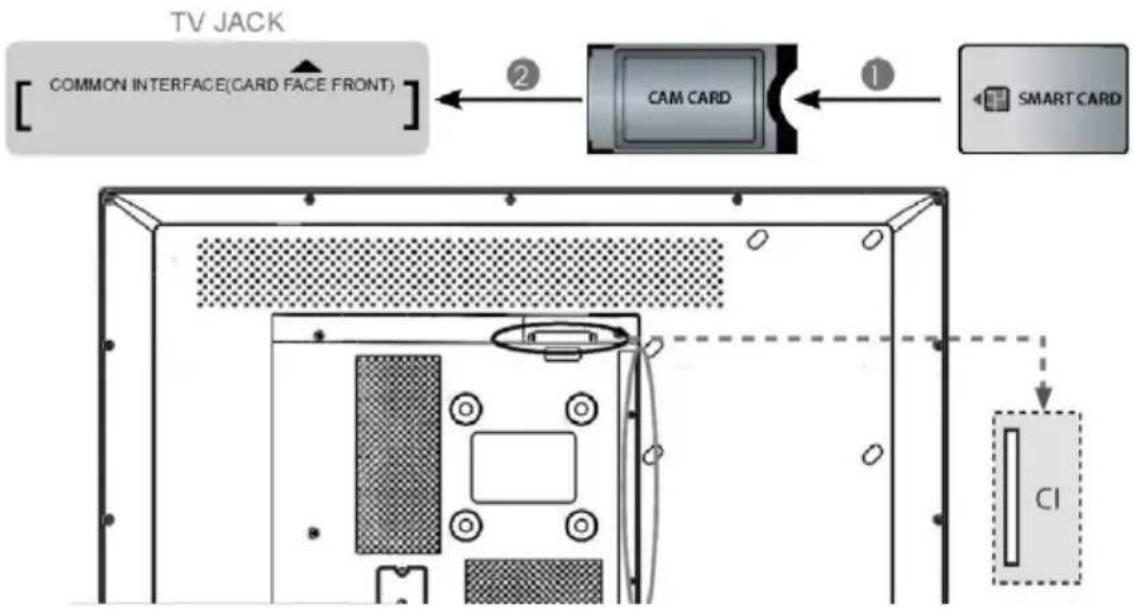

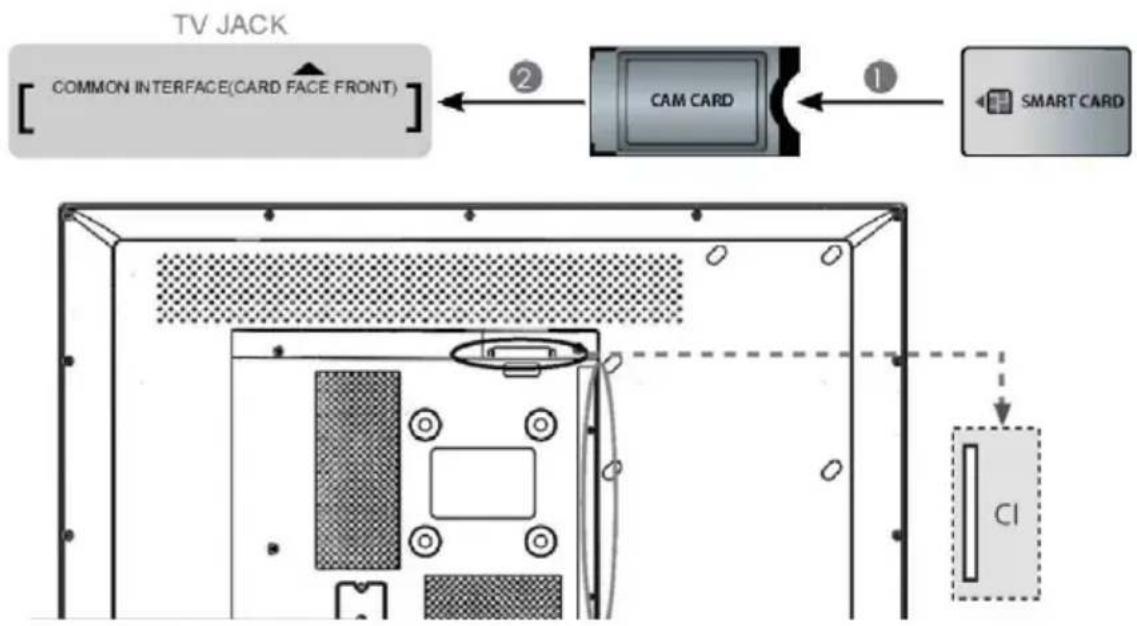

▶ COMMON INTERFACE (CI+ SUČELJE)

Umetnite CI modul za otvaranje kodiranih programa kao što su PAYTV ili HD PAYTV programi.

NAPOMENE

• Prije umetanja/uklanjanja CI modula osigurajte da je televizor isključen. Zatim umetnite CI karticu u CI modul u skladu sa uputama proizvođača.
• Nemojte učestalo umetati ili uklanjati CI modul pošto to može dovesti do oštećenja sučelja ili dovesti do kvara.
• CI modul i karticu morate dobaviti od pružatelja usluga za Programe koje želite gledati.
• Umetnite CI modul sa Smart Karticom u smijeru prikazanom na modulu i Smart kartici.
• CI nije podržan u nekim državama i regijama; provjerite sa ovlaštenim distributerom.

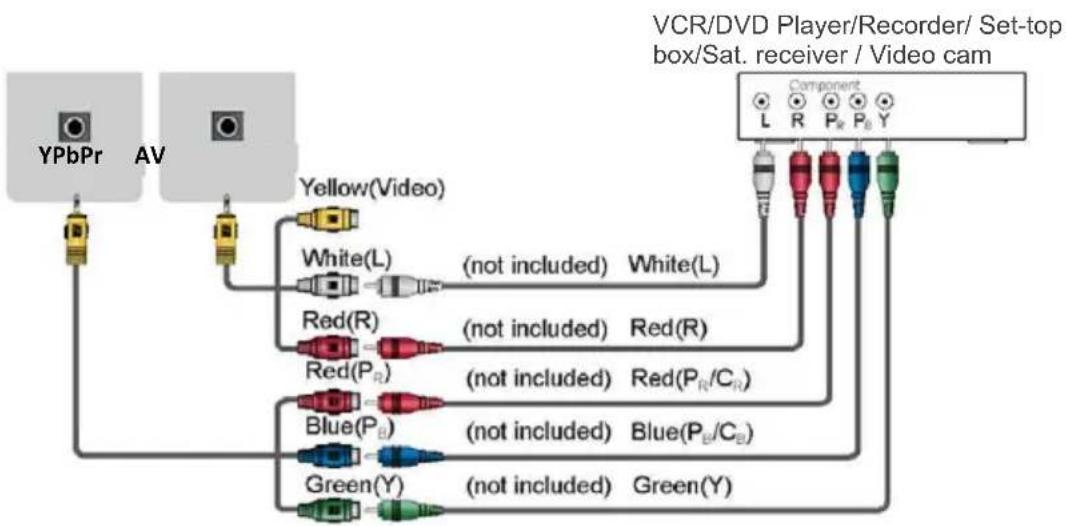

▶ YpbPr IN

Priključite kabel Video komponentnog ulaza i audio kabel između TV prijamnika i vanjskog A/V uređaja.

Komponentni priključci Y, P_B i P_R na VCD i DVD uređaju mogu ponekad biti označeni i kao Y, C_B i C_R .

(spojni kabeli nisu isporučeni uz TV)

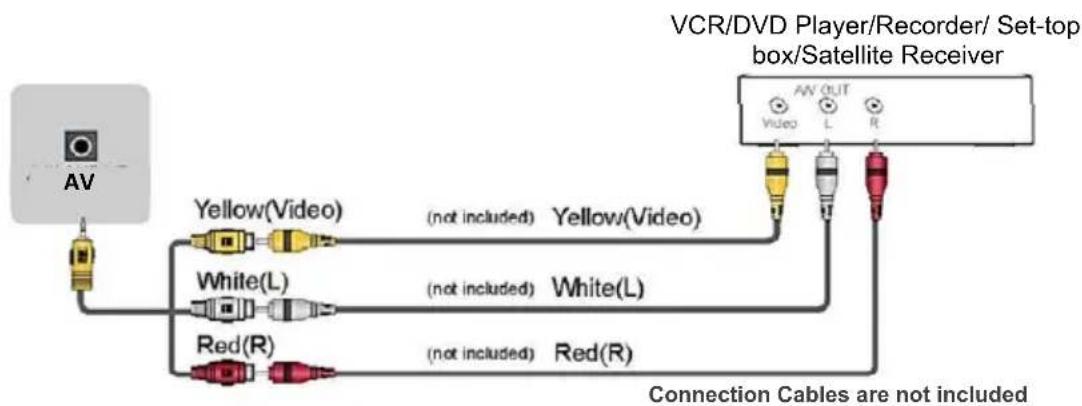

AV

Kabeli nisu uključeni u kompletu

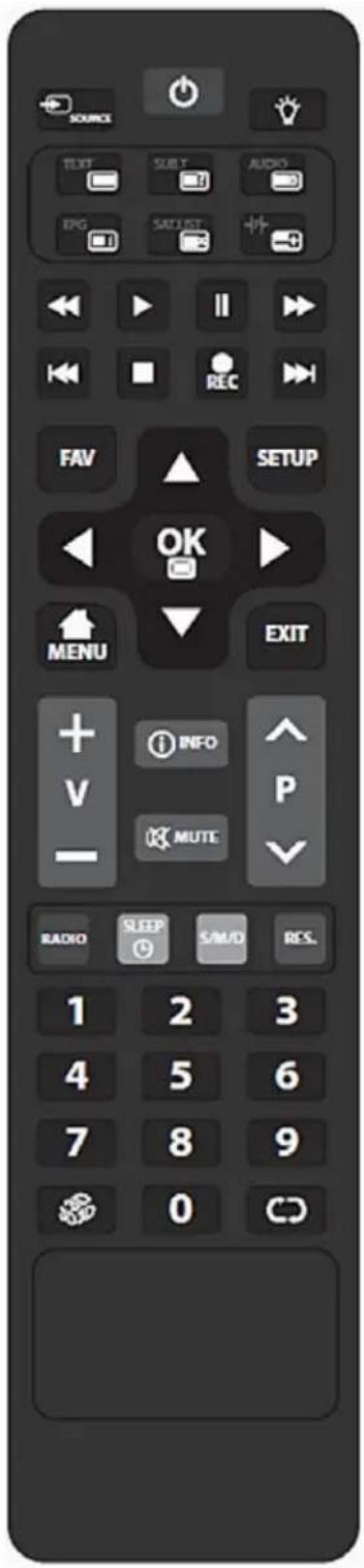

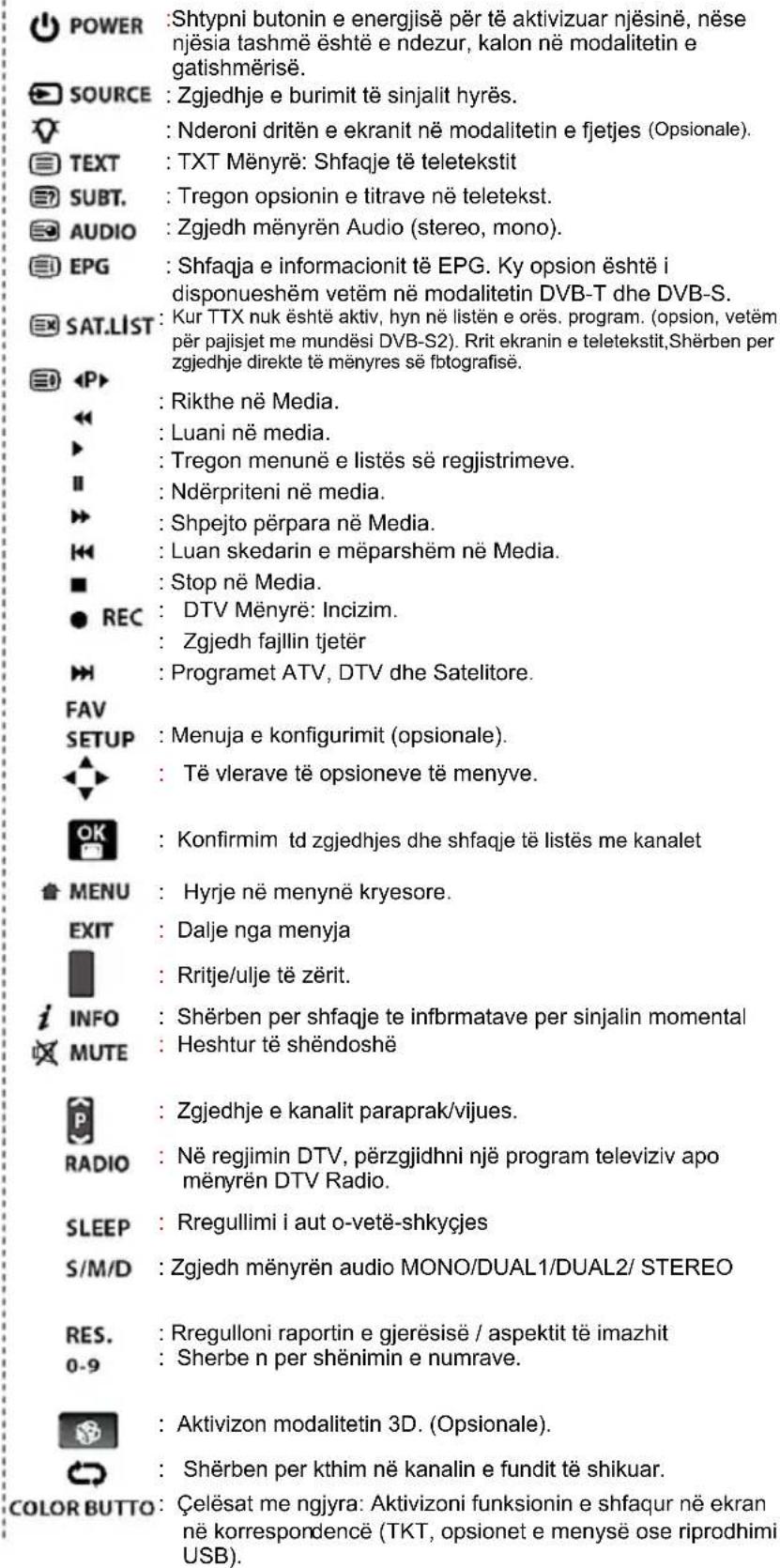

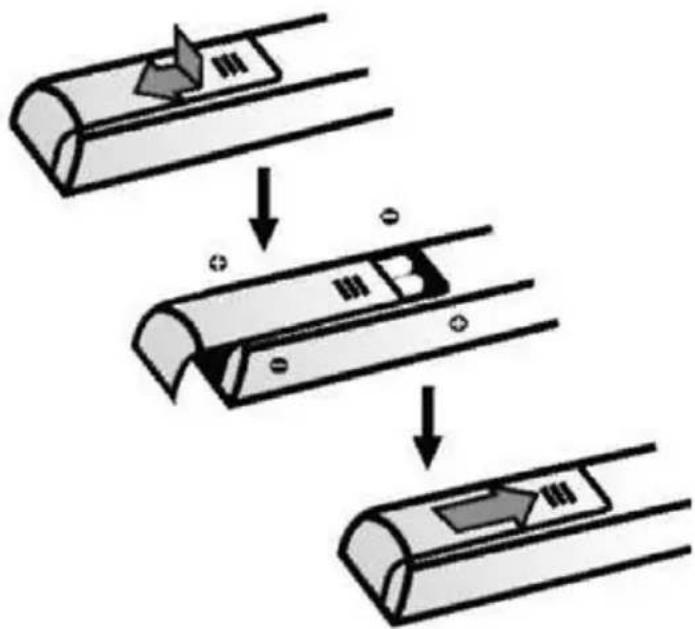

DALJINSKI UPRAVLJAČ

OSD Jezik

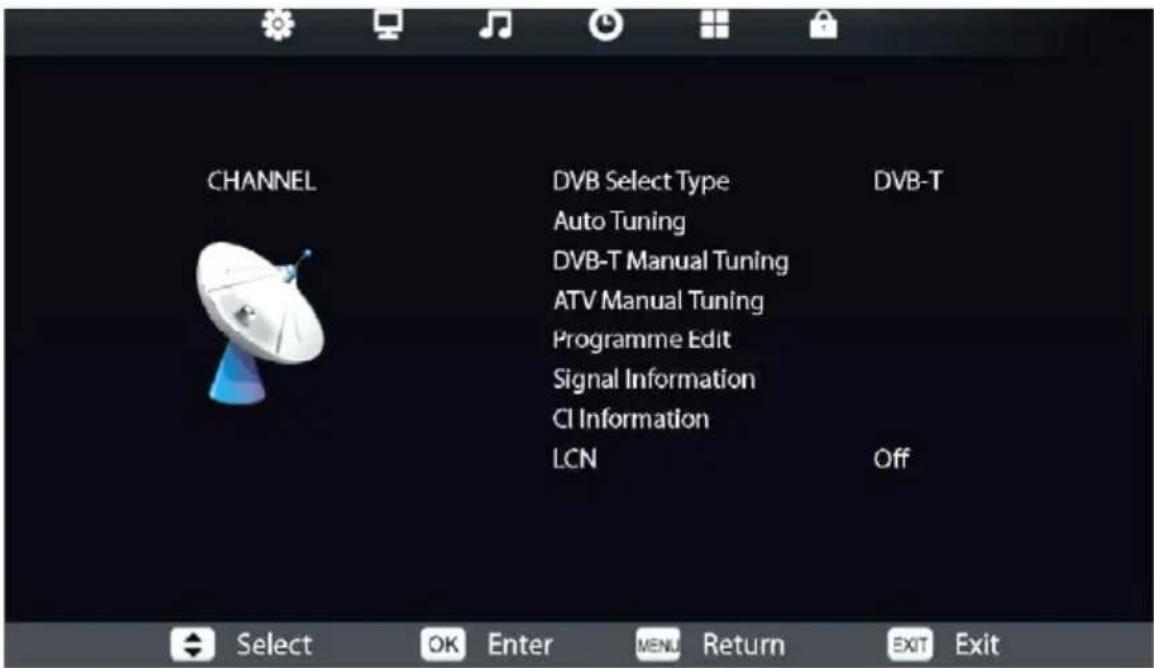

Sustav Izbornika

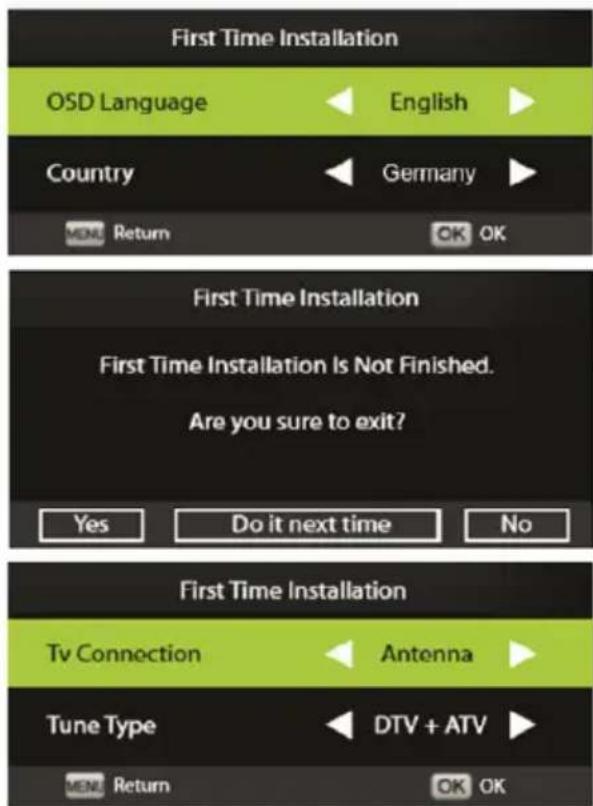

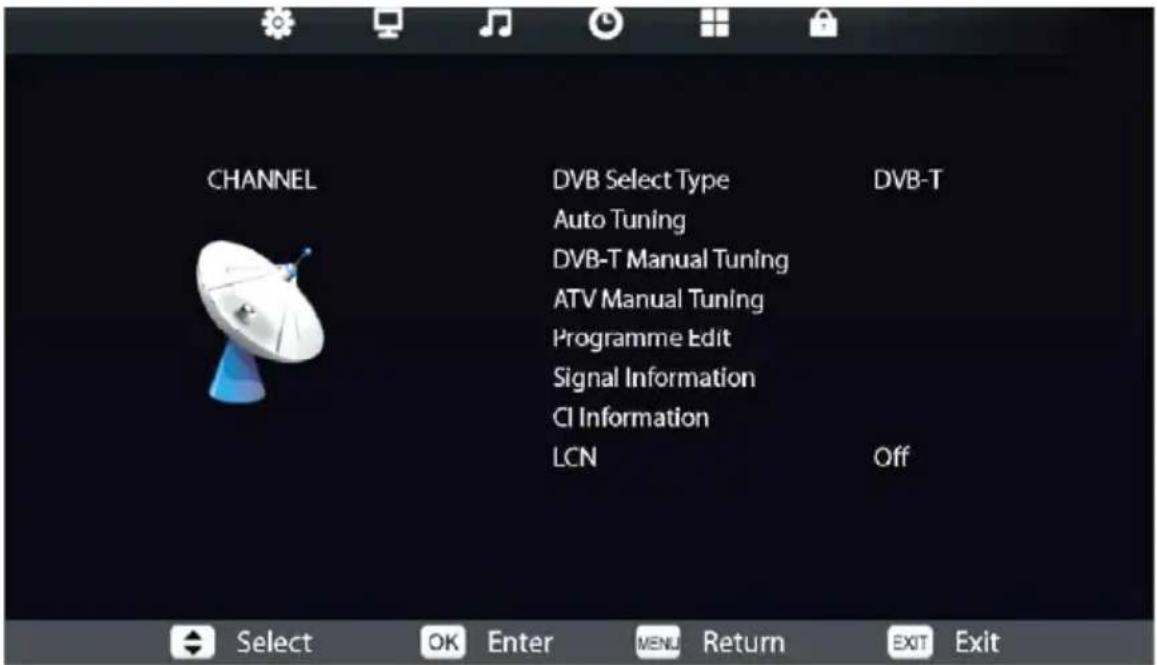

Za ugađanje TV prijamnika i ulaz u sustav izbornika, pritisnite tipku MENU za prikaz Glavnog izbornika. Možete odabrati slijedeće izbornike: CHANNEL (KANAL), PICTURE (SLIKA), SOUND (ZVUK), TIME (SAT), LOCK (ZAKLJUČAVANJE) i SETTINGS (POSTAVKE).

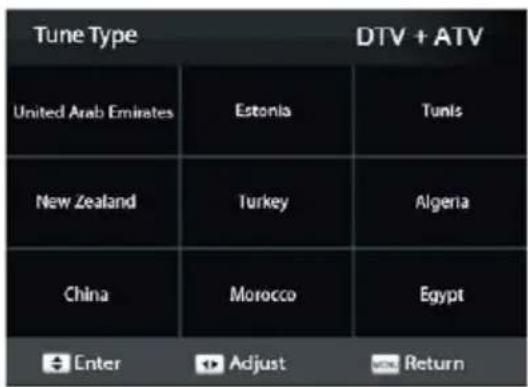

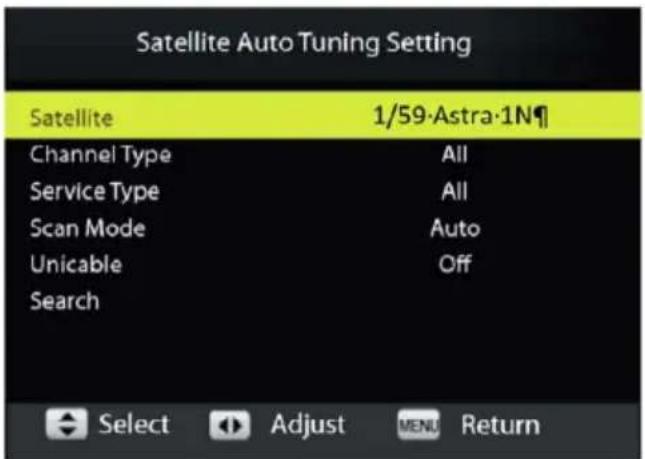

Country (Država)

Service Type (Vrsta usluge)

Za odabir vrste usluge pritisnite tipke ◀▶

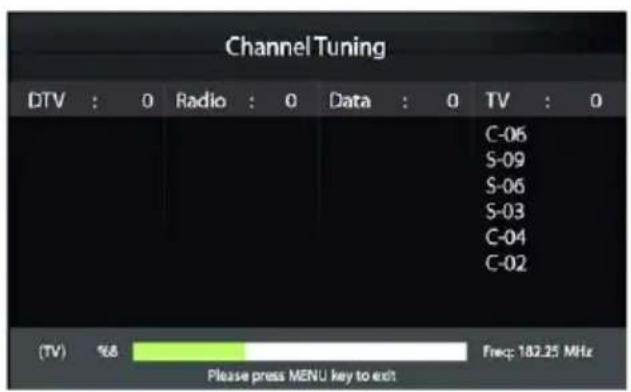

Scan Mode (Način pretrage)

Za odabir načina pretraživanja pritisnite

Unicable (Jedinstveni kabel)

Za postavljanje jedinstvenog kabela pritisnite OK.

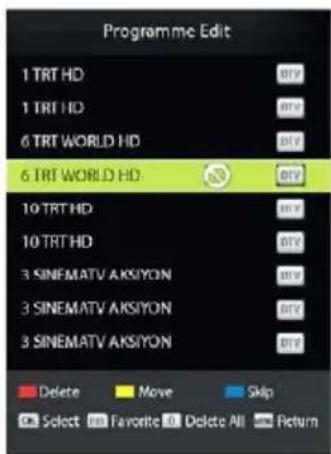

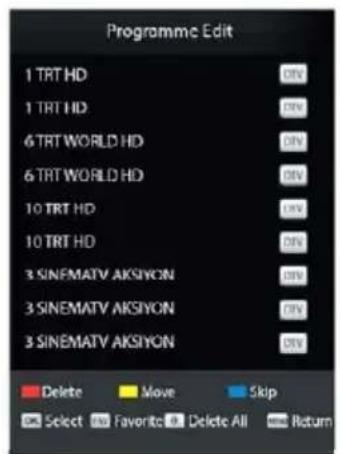

Delete (Brisanje)

Pritisnite ▲ ▼ za odabir kanala koje želite obrisati te zatim Crvenu tipku za ulazak u podizbornik.

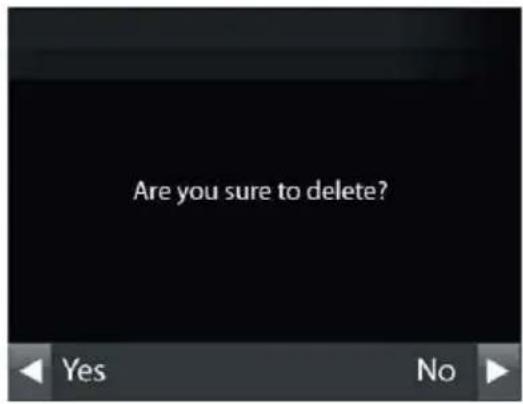

Pritisnite ◀▶ za odabir Yes (Da) / No (Ne).

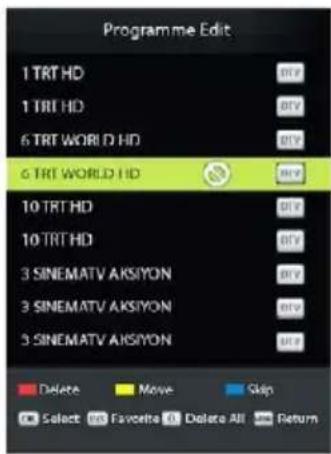

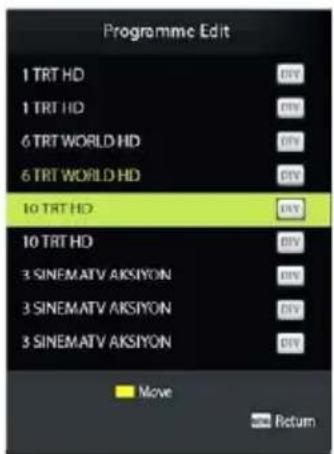

Move (Premještanje)

Pritisnite ▲ ▼ za odabir kanala za premještanje te zatim Žutu tipku za odabir.

Pritisnite ▲ ▼ za odabir pozicije.

Skip (Preskakanje)

Pritisnite ▲ ▼ za odabir kanala za preskakanje te zatim Plavu tipku za ulazak u podizbonik.

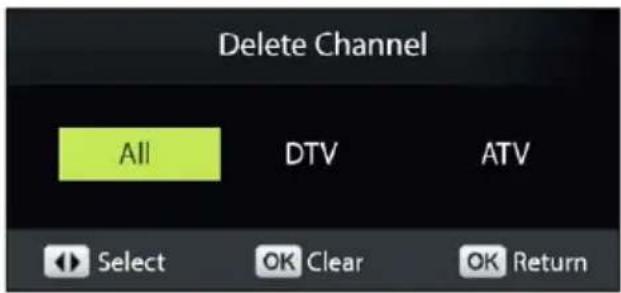

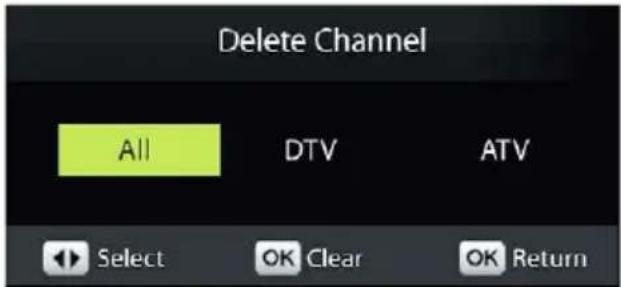

Delete All (Briši sve)

Pritisnite 0 za ulazak u podizbornik te zatim ◀▶ za odabir ALL (SVE)/DTV/ATV, pritisnite OK za brisanje.

Select (Odabir)

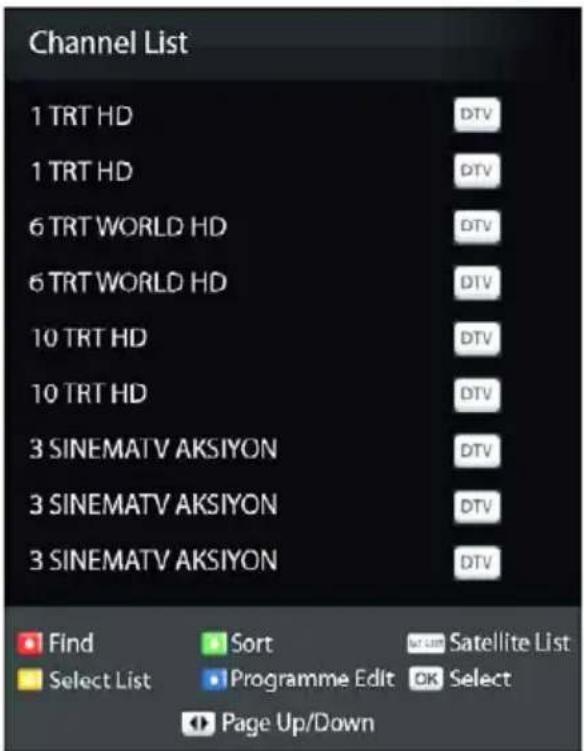

Channel List (Lista kanala)

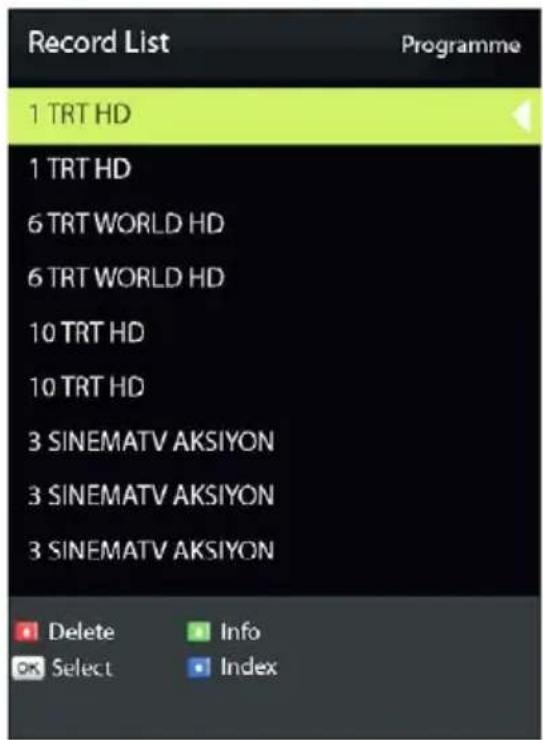

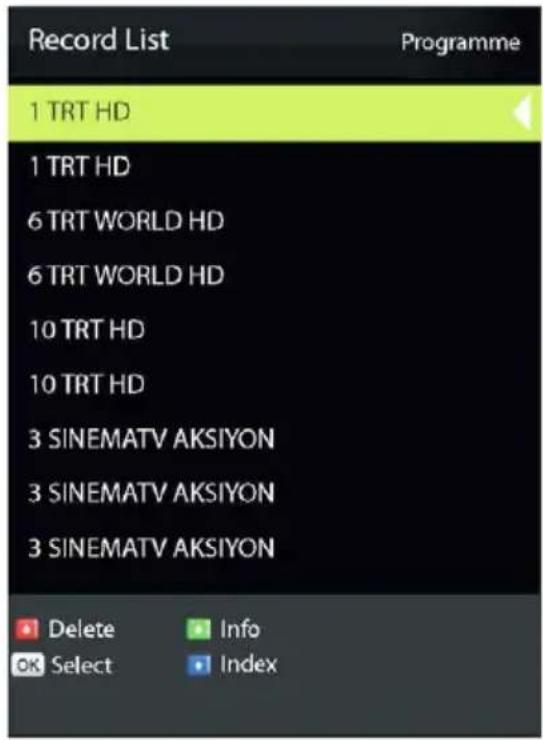

Record List (Lista Snimljenih Zapisa)

Za otvaranje liste snimljenih zapisa pritisnite tipku PLAY (REPRODUKCIJA).

Delete (Brisanje)

Pritisnite Crvenu tipku za brisanje zapisa.

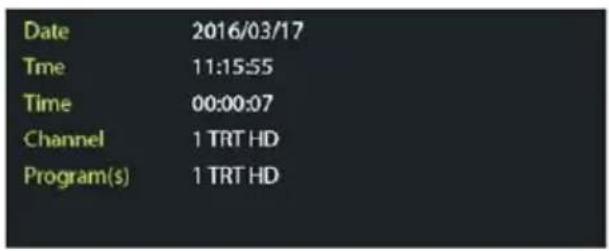

Information (Informacije)

Pritisnite Zelenu tipku za informacije o zapisu.

Select (Odabir)

Za reprodukciju zapisa pritisnite OK.

Index (Indeksiranje)

Pritisnite Plavu tipku za promjenu vrste sortiranja.

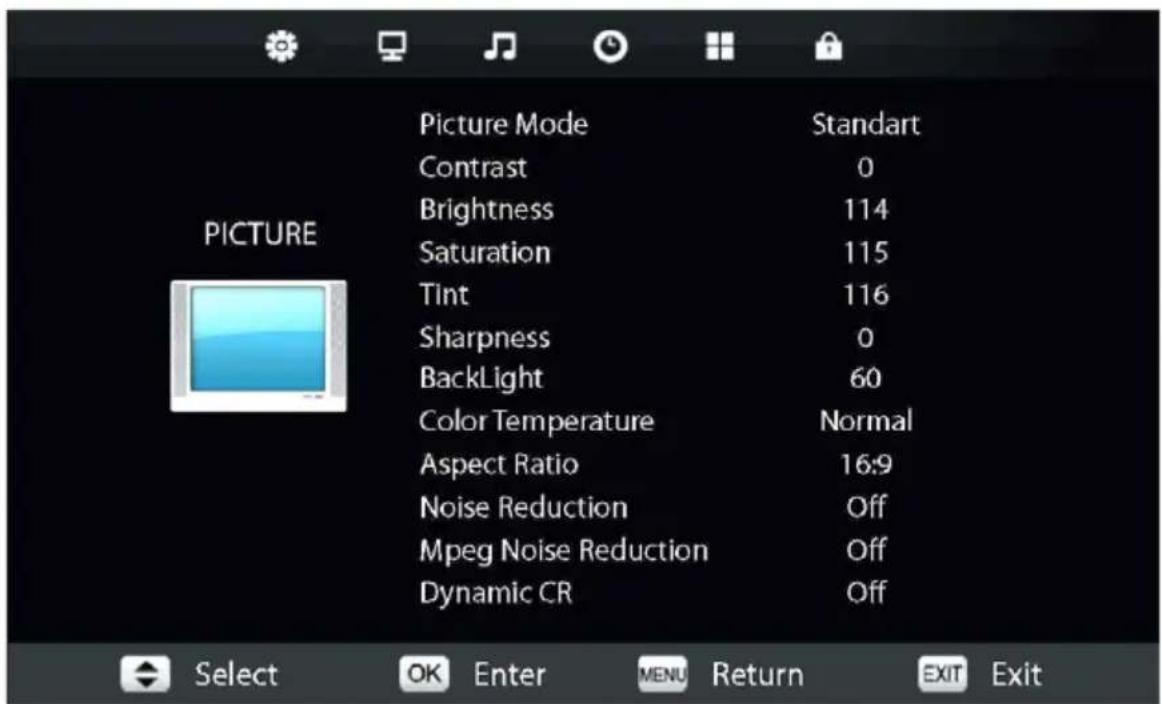

Picture Menu (Izbornik Slike)

U Glavnom izborniku odaberite opciju Picture (Slika) pritiskom na tipke ◀▶ te zatim pritisnite OK.

Za odabir podizbornika u izborniku slike pritisnite ◀▶ te zatim OK.

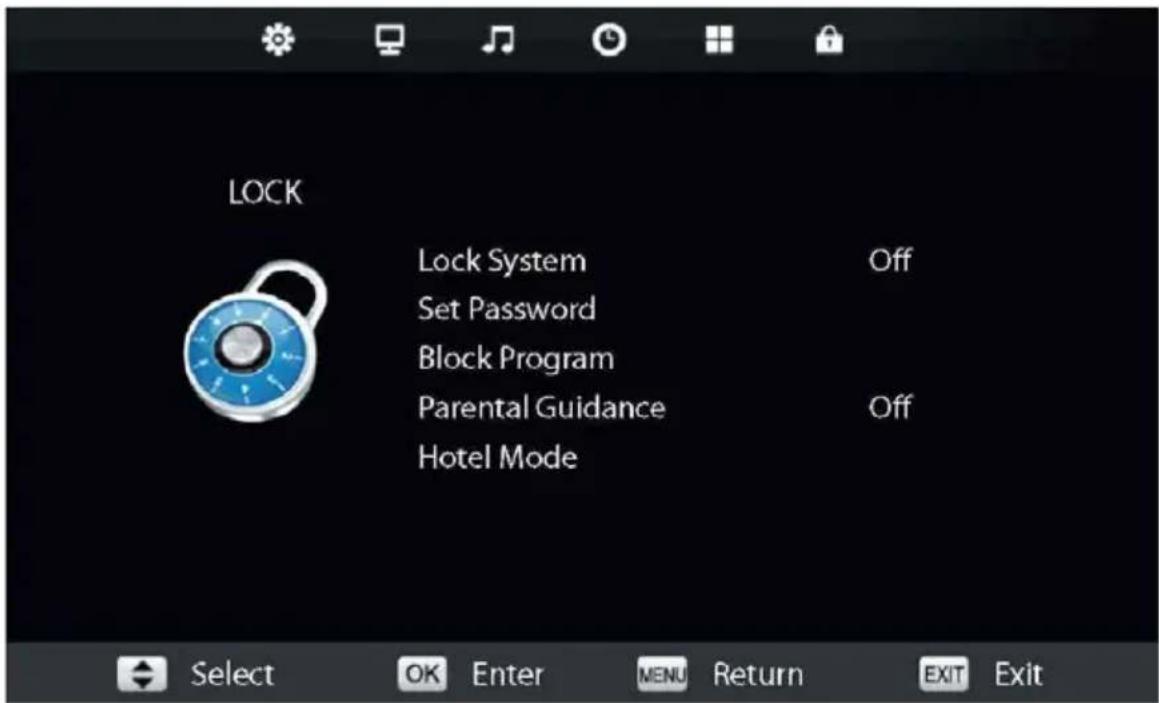

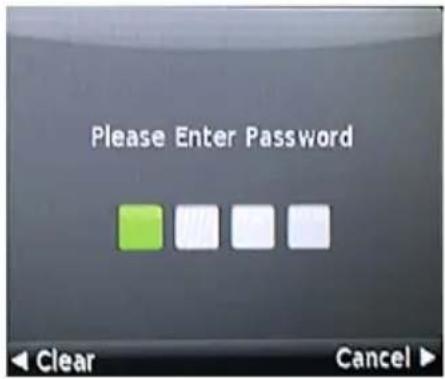

Lock System (Sustav zaključavanja)

Odaberite opciju Lock System i pritisnete tipku OK.

(Početna lozinka je "0000")

Block program (Blokiranje programa)

Odaberite opciju Program Block (Blokiraj program) pomoću tipki ▲▼ te pritisnite OK..

Otvoriti će se podizbornik Blokiranja programa. Odaberite program koji želite blokirati pomoću tipki ▲▼ te ga blokirajte pritiskom Zelene tipke na daljinskom upravljaču.

Hotel Mode (Hotelski mod)

Odaberite Hotelski mod pomoću ▲▼ te pritisnite OK. Slijedite upute na zaslonu za uključenje i ugađanje hotelskog moda (ograničenje pristupa izbornicima, ograničenje jačine zvuka, uključenje na program i sl.).

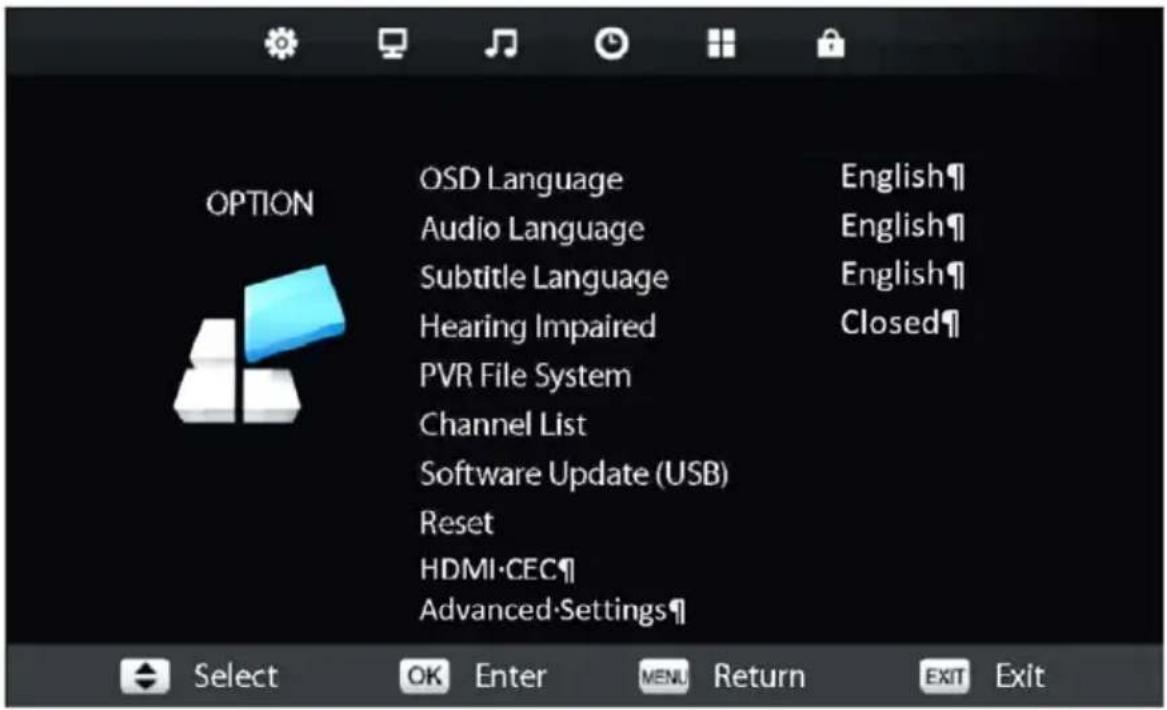

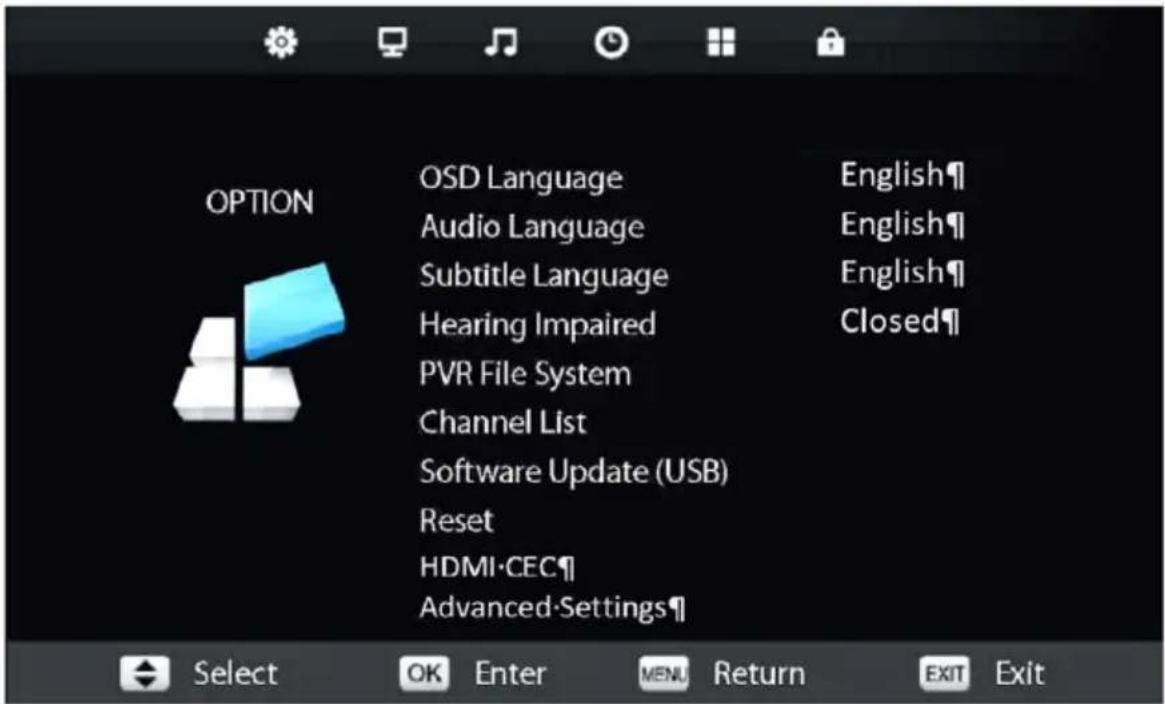

Option menu (Izbornik Postavki)

Odaberite opciju Option (Postavke) pritiskom ◀▶ te zatim pritisnite OK. Za odabir podizbornika u pritisnite ◀▶ te zatim OK. Nakon završene radnje u podizborniku pritisnite MENU kako bi se vratili na prethodni izbornik, pritisnite EXIT za izlaz iz izbornika.

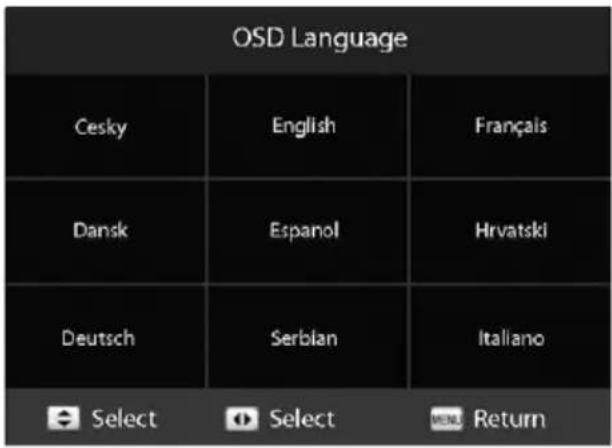

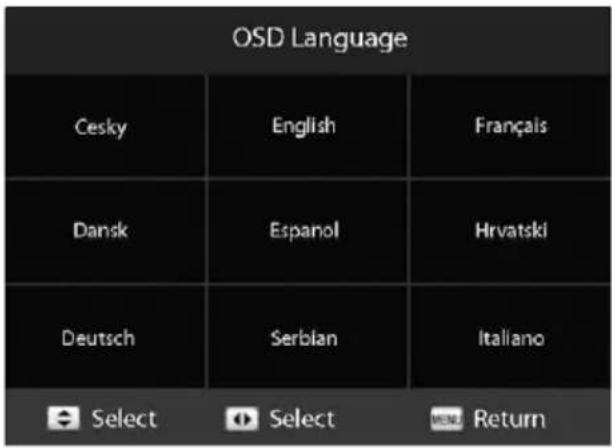

OSD Language (OSD Jezik)

Odaberite opciju OSD Jezik jezik koristeći ▲ ▼ te pritisnite OK.

Odaberite željeni jezik pomoću ▲▼ ili ◀▶ tipki te pritisnite OK.

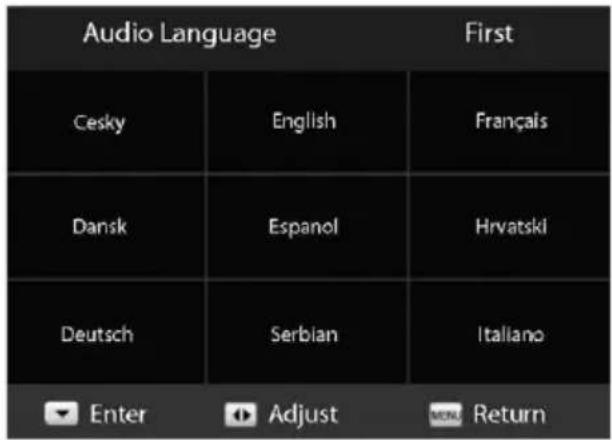

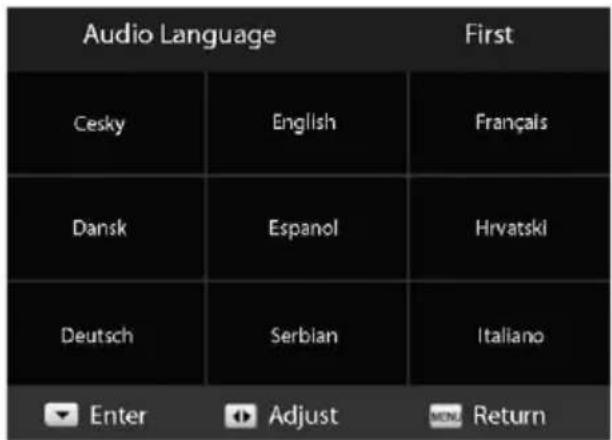

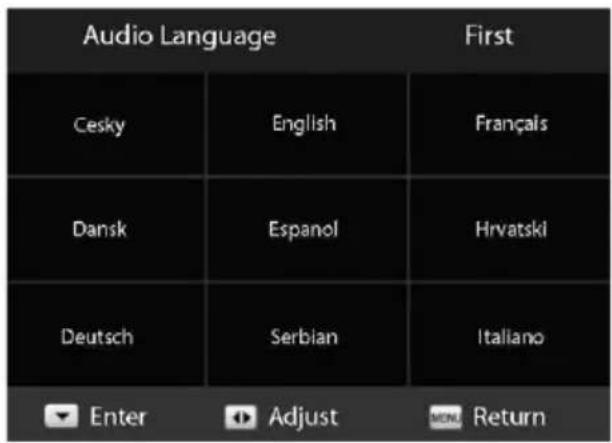

Audio Language (Audio jezici)

Odaberite opciju Audio jezike pomoću ▲▼ te pritisnite OK.

Odaberite željeni jezik pomoću ▲▼ ili ◀▶ te pritisnite OK.

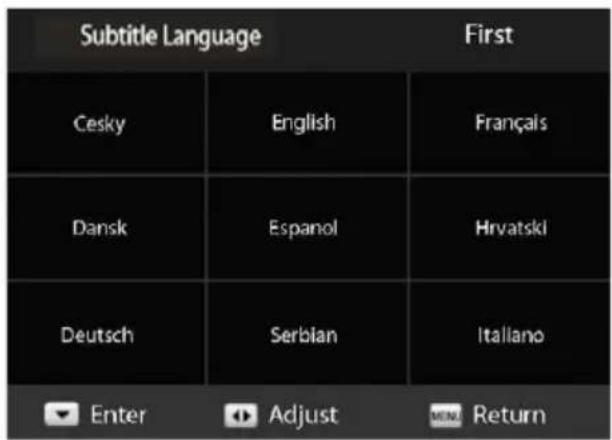

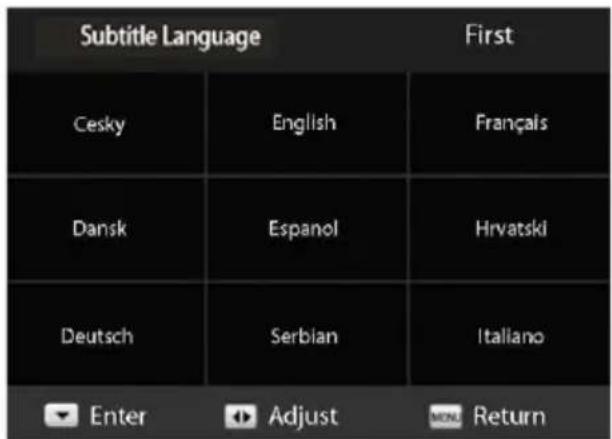

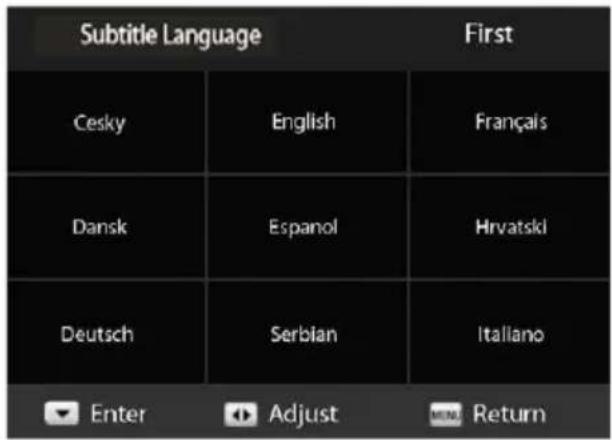

Subtitle Language (Jezik podnaslova)

Odaberite opciju Jezik podnaslova pomoću ▲▼ te pritisnite OK.

Odaberite željeni jezik pomoću ▲▼ ili ◀▶ te pritisnite OK.

Hearing Impaired (Oštećenje sluha)

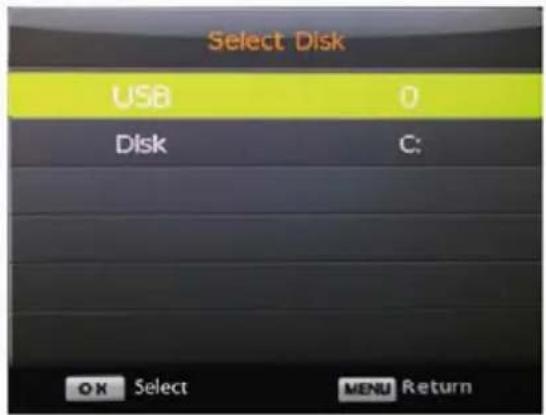

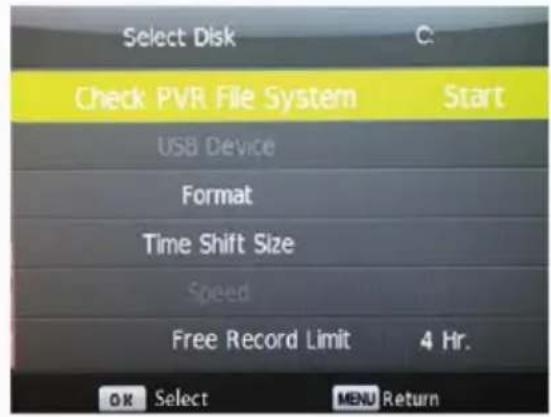

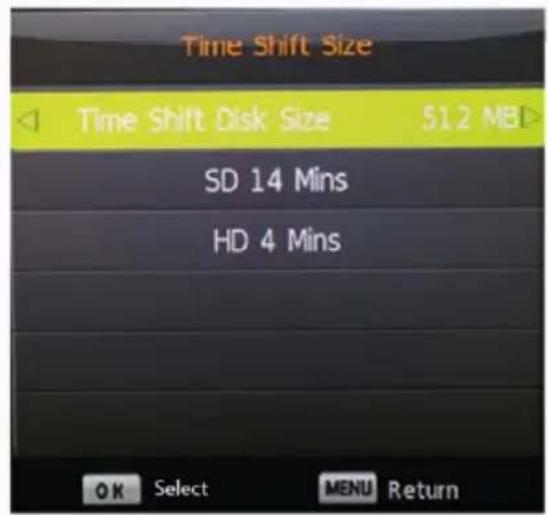

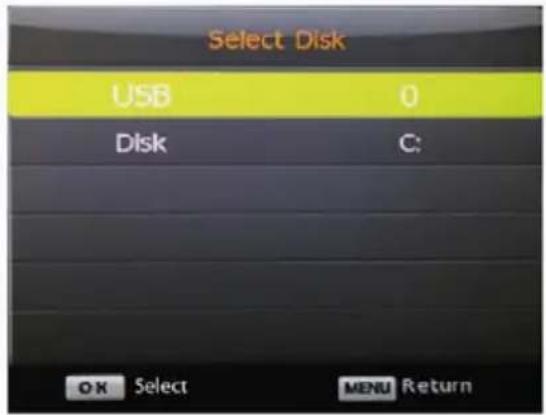

Select Disk (Odabir diska)

Pritisnite tipke ▲▼ za odabir diska, zatim pritisnite OK za ulazak u podizbornik.

Pritisnite tipke ▲▼ za odabir USB/Diska.

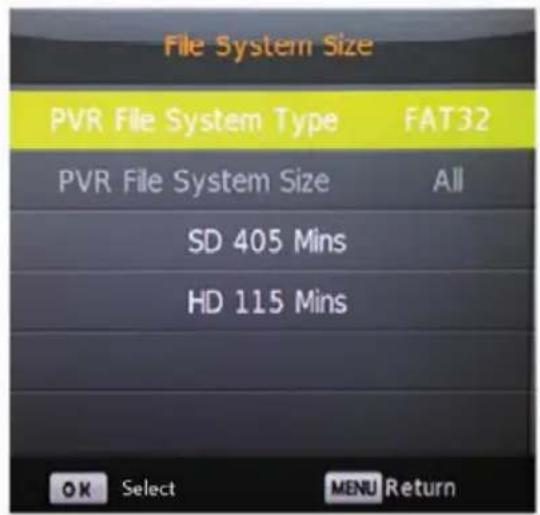

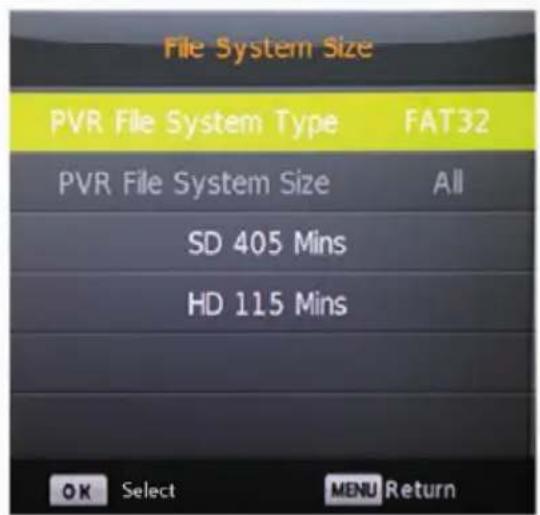

Check PVR File System (Provjera PVR Sustava datoteka)

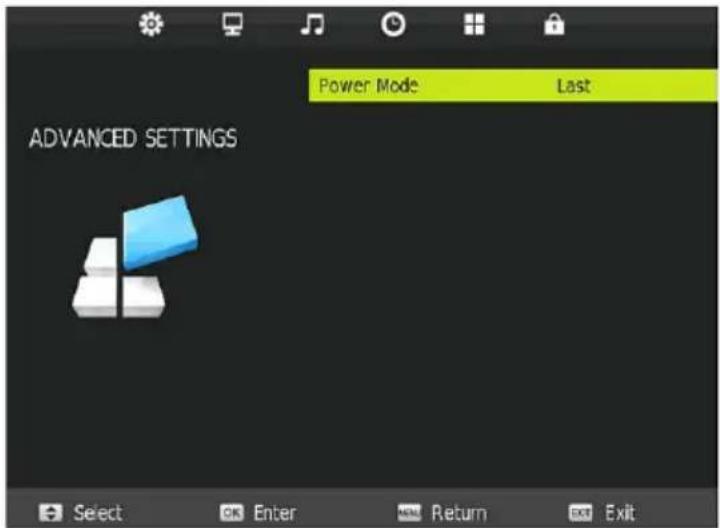

Power Mode

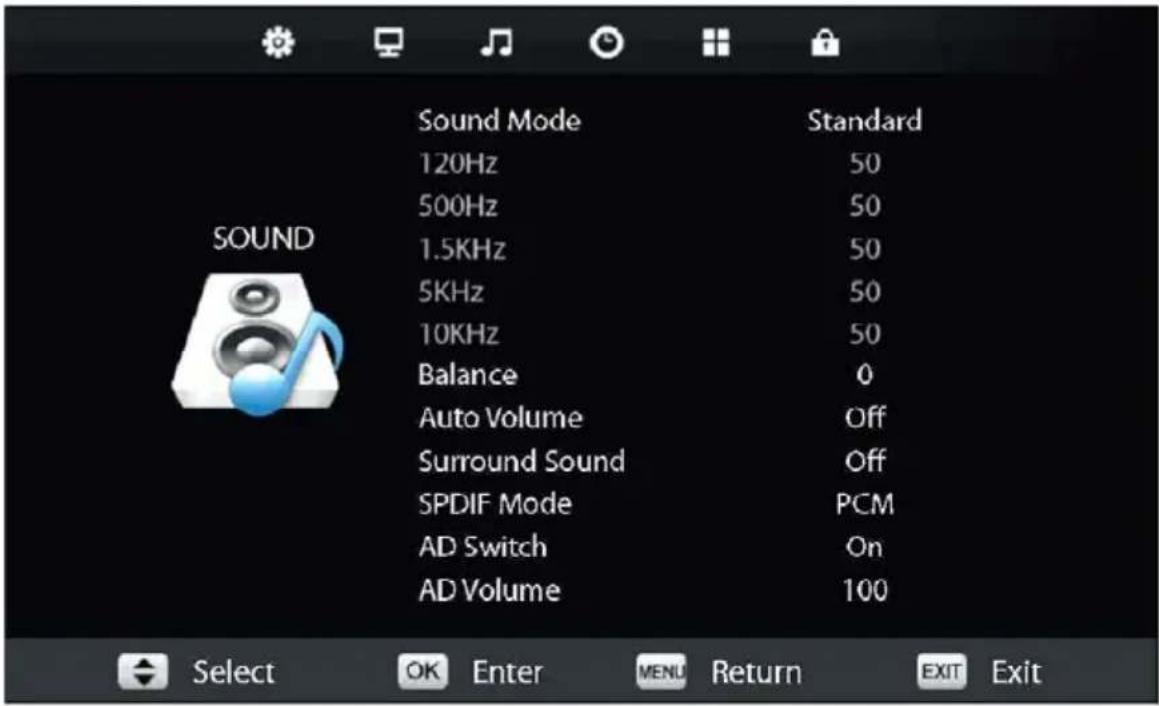

Meni Sound (Zvuk) 33

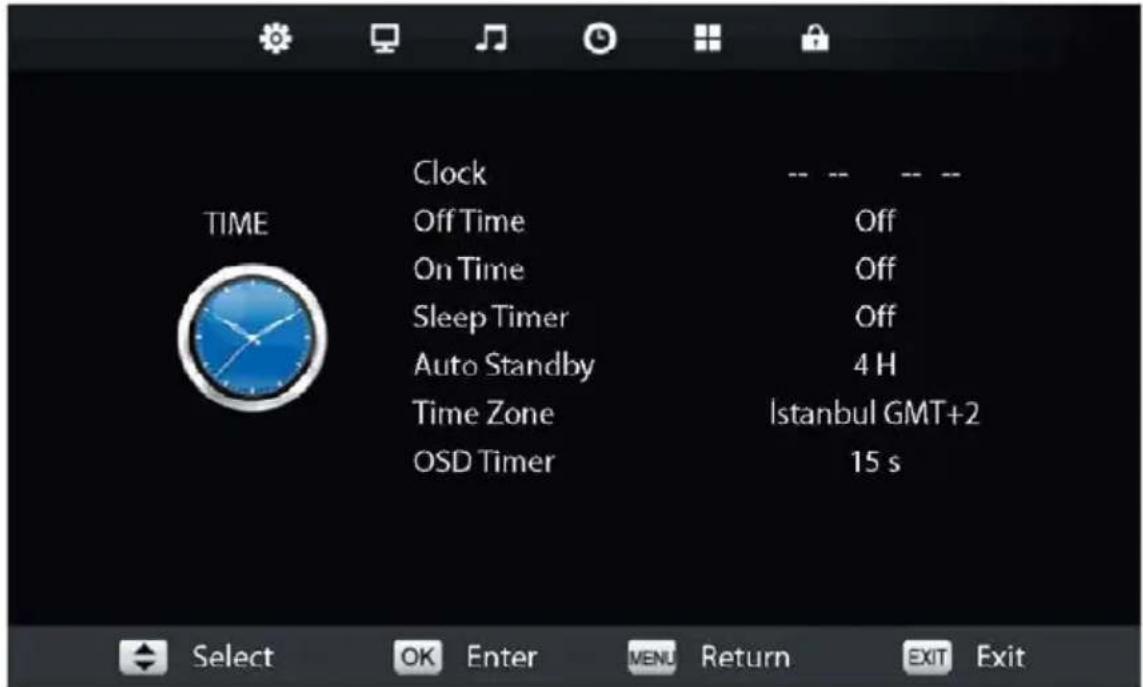

Meni Time (Vreme) 35

Meni Lock (Zaključavanje) 36

Meni Option (Opcije) 37

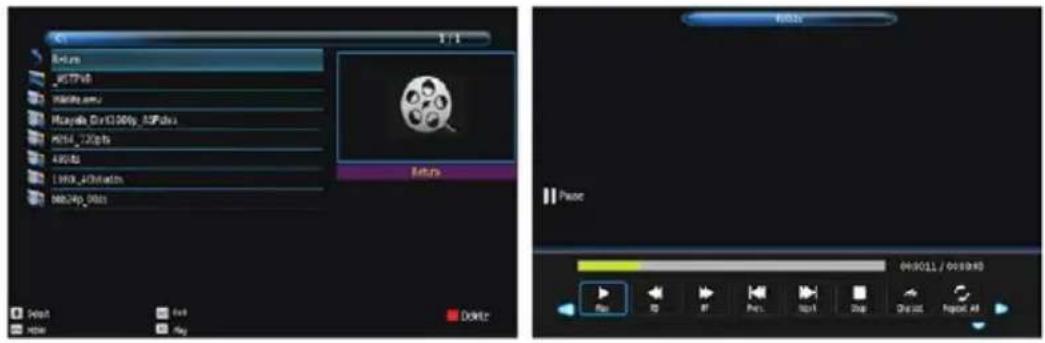

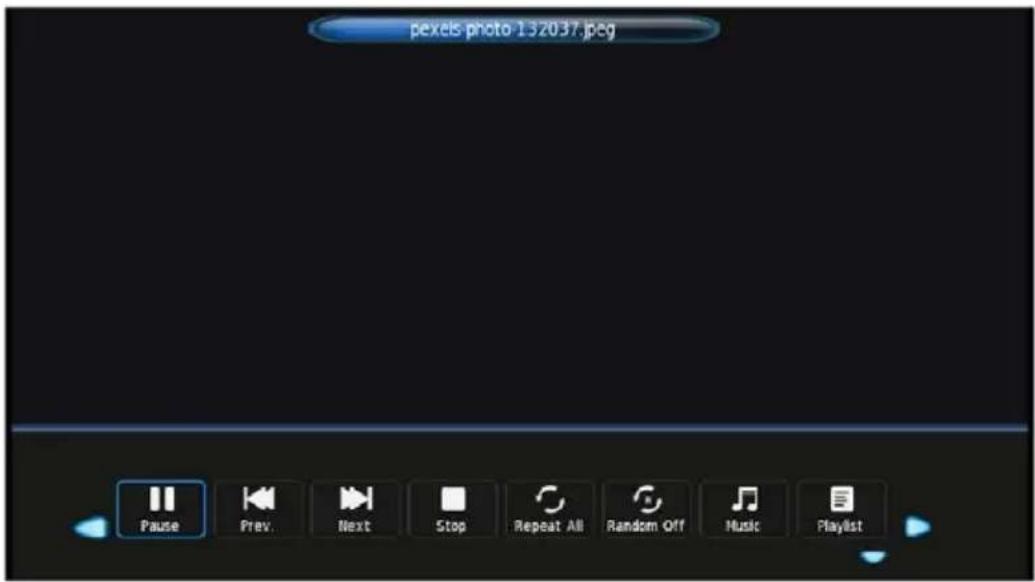

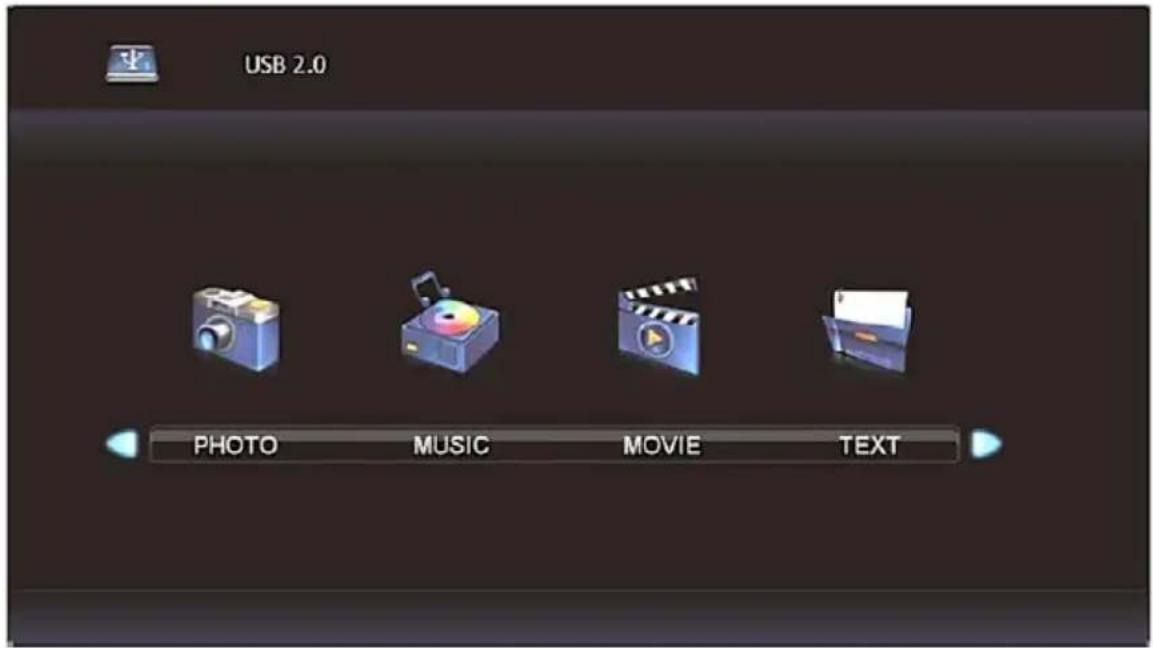

USB - Multimedia 41

Ostale informacije 44

Rešavanje problema 44

Tehničke specifikacije 47

Odlaganje istrošenog uređaja 48

Symbolic illustration of a candle crossed out by a diagonal line, representing fire or smoke (no text present)

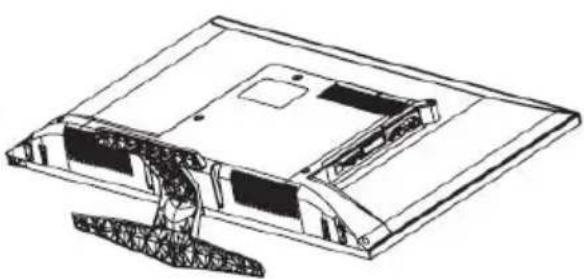

Technical line drawings of two views of a flat electronic device casing (no text or symbols)

TV-32S62T2, TV-32S62T2S2

Technical line drawings of two views of a computer chassis (no text or symbols)

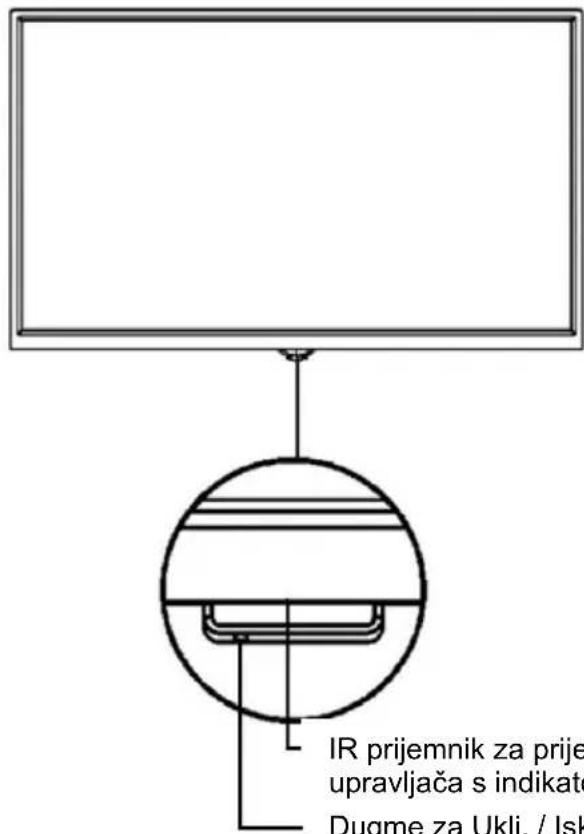

PREDNJA STRANA TV PRIJEMNIKA

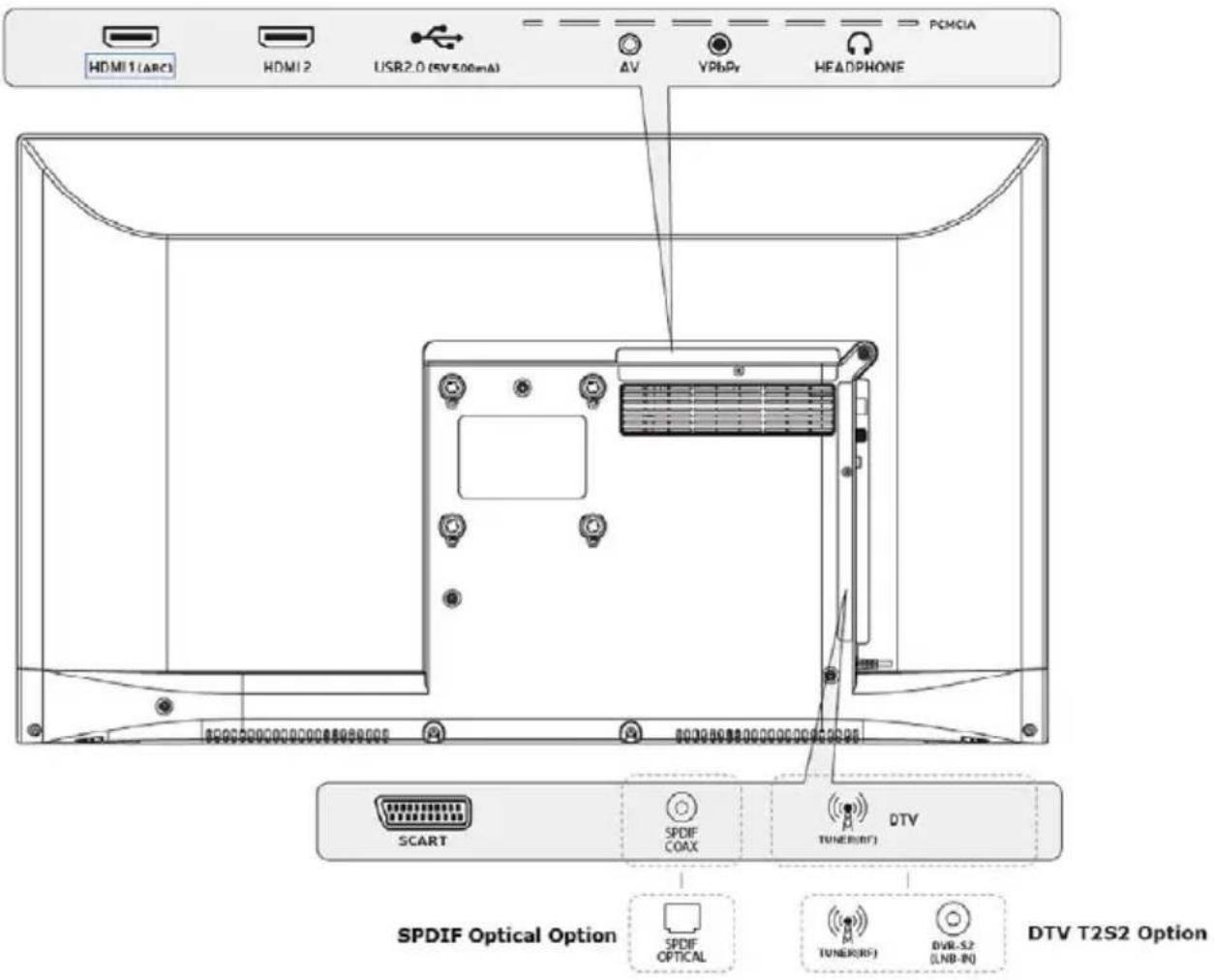

Zadnja strana

▶ PRIKLJUČENJE

NAPOMENE

▶ USB

Spojite USB uređaj kao što je USB memorija ili USB tvrdi disk ili digitalnu kameru za pregledavanje fotografija, slušanje muzika ili gledanje video materijala.

Ovaj ulaz koristi se i za nadogradnju softvera. Nadogradnja će da se izvrši automatski čim USB sa datotekama za nadogradnju bude umetnut u USB ulaz.

NAPOMENE

• Prilikom spajanja tvrdog diska ili USB memorije uvek priključite adapter napajanja priključenog uređaja u izvor napajanja. Preopterečenje USB priključka može da dovede do oštećenja. Najveća dozvoljena potrošnja struje iznosi 500mA.
• TV prijemnik ne podržava samostalne, nestandardne tvrde diskove koji nemaju spoljno napajanje, ako je zahtevana struja jača ili jednaka 500mA. To može da dovede do oštećenja TV uređaja ili tvrdog diska.
• USB ulaz podržava napon od 5V.
• Maksimalna podržana veličina prostora za spremanje je 1T.
• Ako želite reproducirati DTV video, brzina prijenosa USB uređaja za pohranu ne smije biti manja od 5 MB/s.

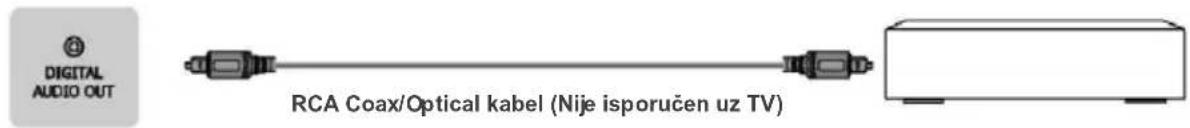

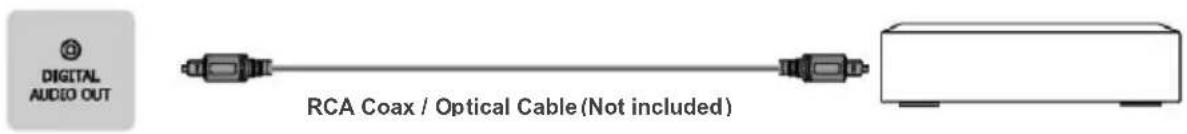

▶ SPDF DIGITAL COAX AUDIO OUT / OPTICAL AUDIO OUT (opcija)

Za reprodukciju TV Audio sadržaja na spoljnom uređaju, priključite spoljni digitalni audio uređaj na Digitalni optički izlaz TV uređaja. Pre spajanja digitalnog audio sustava na optički priključak trebali bi smanjiti jačinu zvuka TV uređaja i audio sustava da bi izbegli nenadano pojačanje zvuka.

TV DIGITAL AUDIO

Audio pojačalo

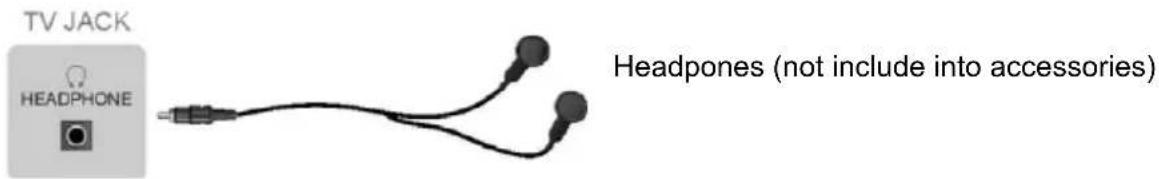

▶ EARPHONE (SLUŠALICE)

▶ COMMON INTERFACE (CI+ INTERFEJS)

Umetnite CI modul za otvaranje kodiranih programa kao što su PAYTV ili HD PAYTV programi.

NAPOMENE

• Pre umetanja/uklanjanja CI modula obezbedite da je televizor isključen. Zatim umetnite CI karticu u CI modul prema uputstvima proizvođača modula.
• Nemojte stalno da umećete ili uklanjate CI modul pošto to može dovesti do oštećenja ili kvara.
• CI modul i karticu morate dobaviti od pružatelja usluga za Programe koje želite primati.
• Umetnite CI modul sa Smart Karticom u smeru prikazanom na modulu i Smart kartici.
• CI nije podržan u nekim državama i regijama; proverite sa ovlašćenim distributerom.

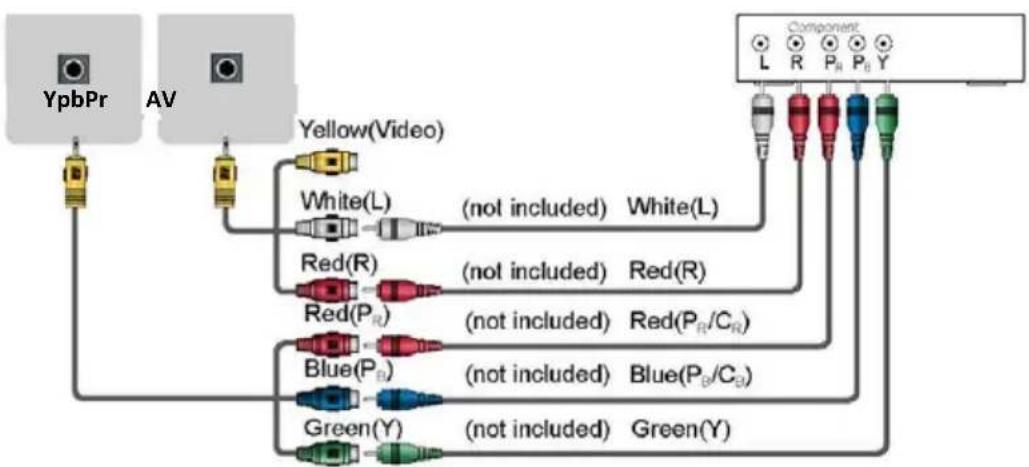

▶ YPbPr

Priključite kabl Video komponentnog ulaza i audio kabl između TV prijemnika i spoljnog A/V uređaja.

Komponentni priključci Y, P_B i P_R na VCD i DVD uređaju mogu ponekad da budu prepoznati kao Y, C_B i C_R .

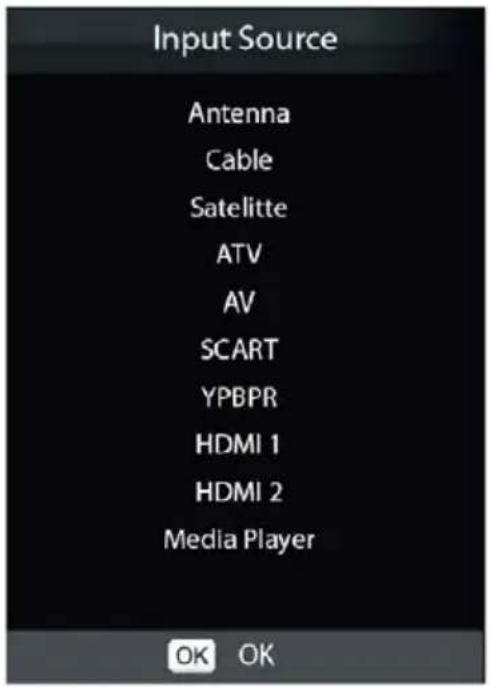

- Pritisnite taster [SOURCE], kada se prikaže meni s listom izvora pritisnite tastere [▲/▼] da bi odabrali izvor [YPbPr] i za odabir pritisnite taster OK.

(spojni kabeli nisu isporučeni uz TV)

AV

Kablovi nisu uključeni u kompletu

DALJINSKI UPRAVLJAČ

OSD Jezik

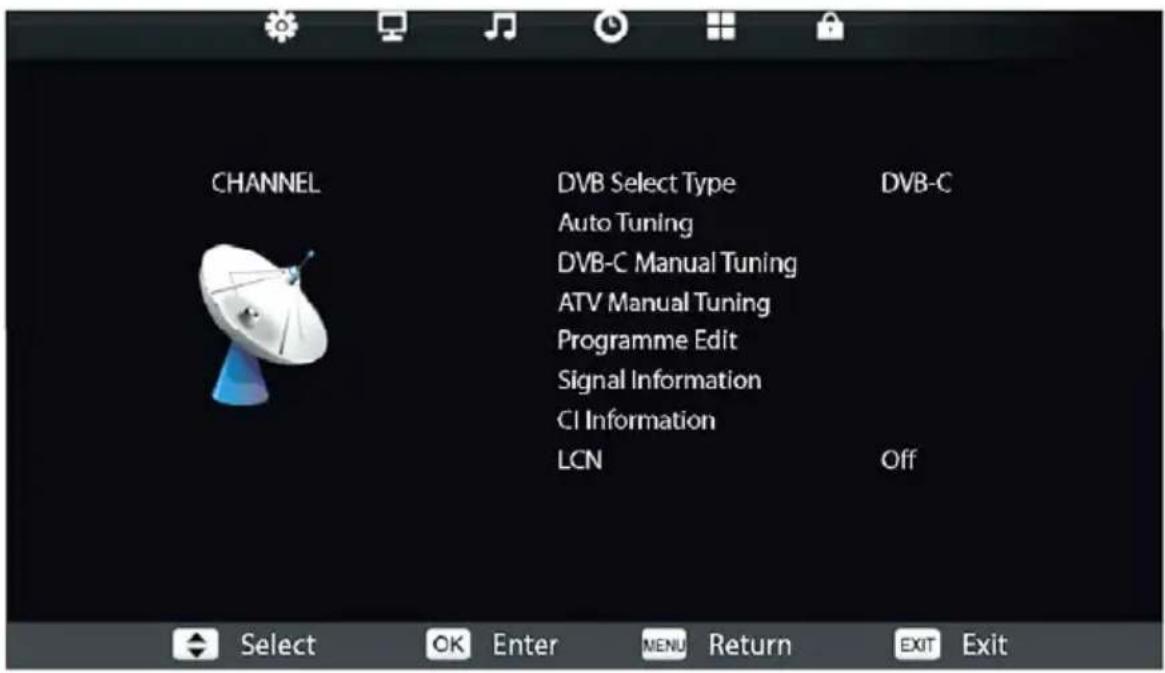

Sustav Menija

Za podešavanje TV prijemnika i ulaz u sustav menija, pritisnite taster MENU za prikaz Glavnog menija. Možete da odaberete sledeće menije: CHANNEL (KANAL), PICTURE (SLIKA), SOUND (ZVUK), TIME (SAT), LOCK (ZAKLJUČAVANJE) i SETTINGS (PODEŠAVANJA).

Pritisnite ◀▶ za odabir podmenija i zatim taster OK za ulaz u opcije željenog podmenija i podešavanje vrednosti.

Country (Država)

Service Type (Vrsta usluge)

Za odabir vrste usluge pritisnite taster◀▶

Scan Mode (Način pretrage)

Za odabir načina pretraživanja pritisnite

Unicable (Jedinstveni kabl)

Za postavljanje jedinstvenog kabla pritisnite OK.

Delete (Brisanje)

Pritisnite ▲ ▼ za odabir kanala koje želite da obrišete, te zatim Crveni taster za ulazak u podmeni.

Pritisnite ◀▶ za odabir Yes (Da) / No (Ne).

Move (Pomeranje)

Pritisnite ▲ ▼ za odabir kanala za pomeranje, te zatim Žuti taster za odabir.

Pritisnite ▲ ▼ za odabir pozicije.

Skip (Preskakanje)

Pritisnite ▲ ▼ za odabir kanala za preskakanje te zatim Plavi taster za ulazak u podmeni.

Delete All (Briši sve)

Pritisnite 0 za ulazak u podmeni te zatim ◀▶ za odabir ALL (SVE)/DTV/ATV, pritisnite OK za brisanje.

Select (Odabir)

Channel List (Lista kanala)

Ukoliko gledate program, pritisnite OK za ulaz u podmeni gdje možete da vidite listu kanala.

Povratak

U Glavnom meniju odaberite opciju Picture (Slika) pritiskom na taster ◀▶ te zatim pritisnite OK.

Za odabir podmenija u meniju Slike pritisnite ◀▶ te zatim OK.

Sleep Timer (Automatsko isključenje)

Za podešavanje automatskog isključenja pritisnite OK te podesite vreme za koje će uređaj automatski da se isključi.

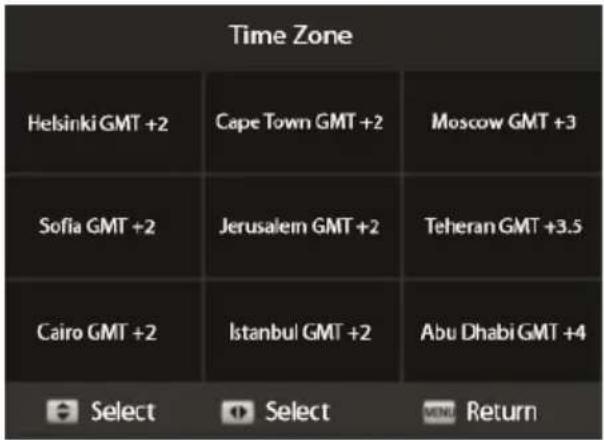

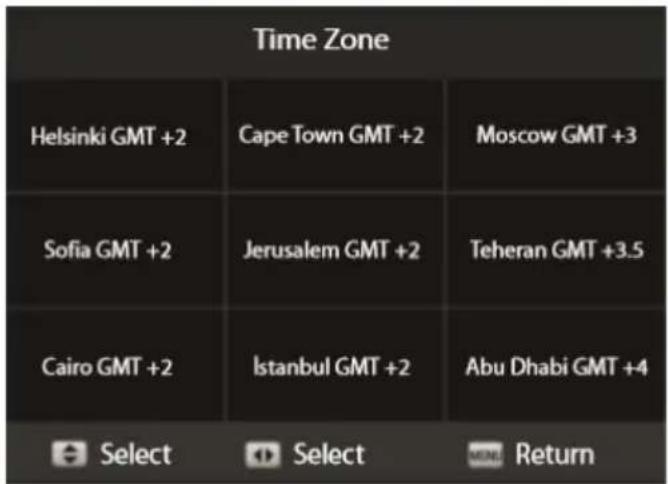

Time Zone (Vremenska zona)

Koristi se za podešavanjee vremenske zone u kojoj živite. Vremensku zonu možete da postavite pritiskom tastera OK te zatim ▲ ▼.

Auto Standby (Auto mirovanje)

Koristi se za postavljanje uređaja u način automatskog mirovanja. Možete da odaberete Automatsko mirovanje pritiskom tastera OK te zatim ▲▼.

OSD Timer (OSD prikaz)

Lock System (Sustav zaključavanja)

Odaberite opciju Lock System i pritisnete taster OK.

(Početna lozinka je "0000")

Set Password (Podešavanje lozinke)

Pritiskom tastera OK možete da uđete u podmeni i promenite lozinku.

Block program (Blokiranje programa)

Odaberite opciju Program Block (Blokiraj program) pomoću tastera ▲▼ te pritisnite OK.

Otvoriti će se podmeni Blokiranja programa. Odaberite program koji želite da blokirate pomoću tastera ▲▼ te ga blokirajte pritiskom Zelenog tastera na daljinskom upravljaču.

Hotel Mode (Hotelski mod)

Odaberite Hotelski mod pomoću ▲▼ te pritisnite OK. Sledite uputstva na ekranu za uključenje i podešavanje hotelskog moda (ograničenje pristupa menijima, ograničenje jačine zvuka, uključenje na program i sl.).

Option menu (Meni Postavki)

Odaberite opciju Option (Postavke) pritiskom ◀▶ te zatim pritisnite OK. Za odabir podmenija pritisnite ◀▶ te zatim OK. Nakon završene radnje u podmeniju pritisnite MENU kako bi se vratili na prethodni meni, pritisnite EXIT za izlaz iz menija.

OSD Language (OSD Jezik)

Odaberite opciju OSD Jezik jezik koristeći ▲ ▼ te pritisnite OK.

Odaberite željeni jezik pomoću ▲▼ ili ◀▶ tastera te pritisnite OK.

Audio Language (Audio jezici)

Odaberite Audio jezike pomoću ▲▼ te pritisnite OK.

Odaberite željeni jezik pomoću ▲▼ ili ◀▶ te pritisnite OK.

Subtitle Language (Jezik titlova)

Odaberite Jezik titlova pomoću ▲▼ te pritisnite OK.

Odaberite željeni jezik pomoću ▲▼ ili ◀▶ te pritisnite OK.

Hearing Impaired (Oštećenje sluha)

Odabir titlova s dodatnim opisima koji su namenjeni osobama sa oštećenjem sluha.

Odaberite opciju pomoću tastera ▲▼.

PVR System File (PVR Sustav datoteka)

Odaberite opciju PVR System File (PVR sustav datoteka) za podešavanje memorije i parametara vezanih uz snimanje na spoljnu memoriju. Pritisnite OK za ulaz u podmeni.

Odaberite željenu opciju unutar PVR sustav datoteka ▲▼ te pritisnite OK za ugađanje ili potvrdu opcije.

Select Disk (Odabir diska)

Pritisnite tastere ▲▼ za odabir diska, zatim pritisnite OK za ulazak u podmeni.

Pritisnite tastere ▲▼ za odabir USB/Diska.

Check PVR File System (Provjera PVR Sustava datoteka)

Power Mode (opcija)

Two abstract line drawings of mechanical or structural components, no text or symbols present

Line drawing of a flat electronic device with ventilation slots and a central mounting bracket (no text or symbols)

Technical line drawing of a flat electronic device casing with internal components (no text or symbols)

TV-32S62T2, TV-32S62T2S2

Technical line drawing of a computer monitor chassis with mounting bracket (no text or symbols)

Technical line drawing of a computer monitor case with internal components (no text or symbols)

Заден дел на телевизоро

▶ USB

OSD Jazik

Систем Мени

Country (Држава)

Delete (Бришење)

Brightness (Светлина)

Power Mode

Black remote control with various function keys and buttons (no visible text or symbols)

Two abstract line drawings of mechanical or structural components, no text or symbols present

Symbolic illustration of a candle crossed with flames, representing fire resistance or toxicity (no text present)

Line drawing of a flat-panel electronic device with ventilation slots and mounting feet (no text or symbols)

Technical line drawing of a flat electronic device casing with internal components (no text or symbols)

TV-32S62T2, TV-32S62T2S2

Technical line drawing of a computer monitor chassis with base mount (no text or symbols)

Technical line drawing of a computer monitor with internal components and a base mount (no text or symbols)

ANA E PËRPARME E TELEVIZORIT

▶ USB

▶ DIGITAL COAX / OPTICAL AUDIO OUT (option)

PËRDORIMI I TELEKOMANDËS

Gjuha OSD

Sistemi i Menysë

Country (Shteti)

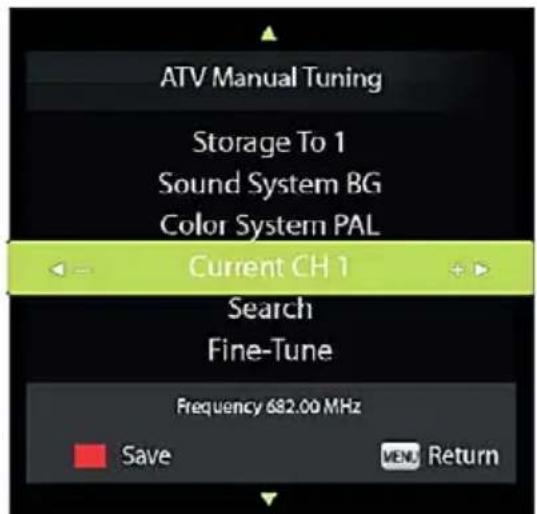

ATV Manual Tuning (ATV tuning manual)

Color System (Sistemi I ngjyrave)

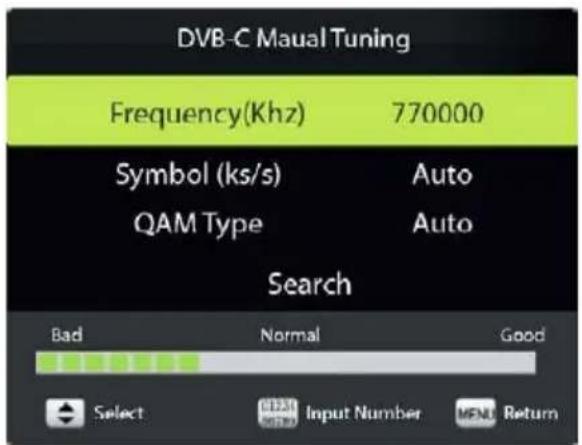

Network ID/Frequency/Symbol Rate

Program Edit (Rregullim i programit)

Delete (Fshirje)

Rename (Ndryshim i emrit)

Channel List (Lista e kanaleve)

Record List (Lista E Regjistrimeve)

Noise Reduction (Zvogëlimi i zhurmës)

MPEG Noise Reduction (MPEG Zvogëlimi i zhurmës)

Off Time (Koha e shkyçjes)

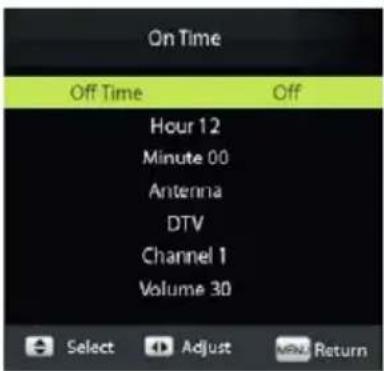

On Time (Koha e kyçjes)

OSD Timer (OSD shfaqje)

Lock menu (Meny E Kyçjes)

Lock System (Sistemi i kyçjes)

Block program (Bllokimi i programit)

Zgjidhni opsonin Program Block (Bllokimi i

Select Disk (Zgjidhje e diskut)

Advanced Settings (Rregullime shtesë)

MOVIE (Meni film) 43

TEXT (Meni besedila) 43

Druge informacije 44

Black remote control device with various function keys and buttons (no visible text or symbols)

Technical line drawings of two mechanical components with no visible text or symbols

Slike so samo za referenco

Line drawing of a flat-screen computer chassis with ventilation slots and wheels (no text or symbols)

Technical line drawing of a flat electronic device casing with internal components (no text or symbols)

TV-32S62T2, TV-32S62T2S2

Technical line drawing of a computer monitor chassis with mounting bracket (no text or symbols)

Technical line drawing of a computer monitor with visible internal components and base mount (no text or labels)

SPREDNJA STRAN TV-SPREJEMNIKA

Pritisnite tipko [SOURCE], ko se pojavi meni s seznamom virov, pritisnite tipki [▲ / ▼], da izberete vir [SCART] na katerega je priključena zunanja A / V naprava in za izbiro pritisnite tipko OK.

▶ USB

▶ SPDF DIGITAL COAX / OPTICAL AUDIO OUT

▶ HEADPHONE (SLUŠALKE)

▶ CI+ COMMON INTERFACE (CI VMESNIK)

▶ COMPONENT IN (YPbPr)

Povežite kabel Video komponentnega vhoda in avdio kabel med TV sprejemnikom in zunanjo A / V napravo.


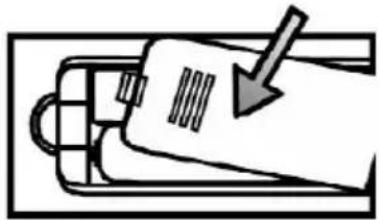

Simple line drawing of a battery with an arrow pointing to its side (no text or symbols)

Simple line drawing of a battery cell with two coils (no text or symbols)

Simple line drawing of a mechanical component with an arrow pointing to it (no text or symbols)

OPOMBE

• Source: Izbira vira (vhod)

Izberite vir glede na to, katera video naprava je priključena na TV.

OSD jezik

Pritisnite tipko ▲ ▼ za izbiro OSD jezika, in nato pritisnite ◀▶ za nastavitve.

Country (Država)

Meni Sistem

Pritisnite tipko MENU za prikaz menija: CHANNEL (KANAL), PICTURE (SLIKA), SOUND (ZVOK), TIME (ČAS), LOCK (ZAKLAPANJE) i SETTINGS (NASTAVITEV).

Pritisnite tipko OK za izbiro željenega podmenija in nastavljive vrednosti.

Country (Država)

Pritisnite ▲ ▼ za izbiro države, nato pritisnite ◀▶, da izberete državo nastavitve.

Tuning Type (Vrsta nastavitev)

Pitisnite ▲ ▼ za izbiro vrste nastavitev in potem ◀▶za izberite DTV / ATV / ATV + DTV.

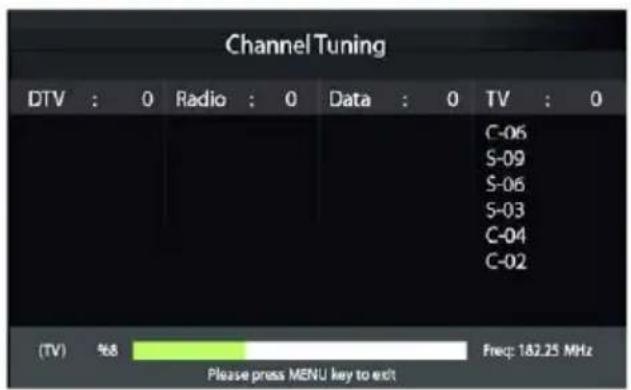

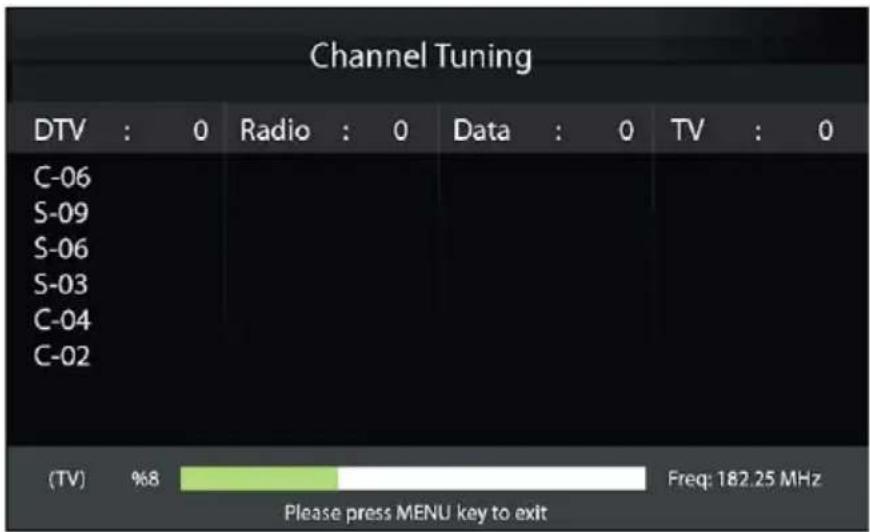

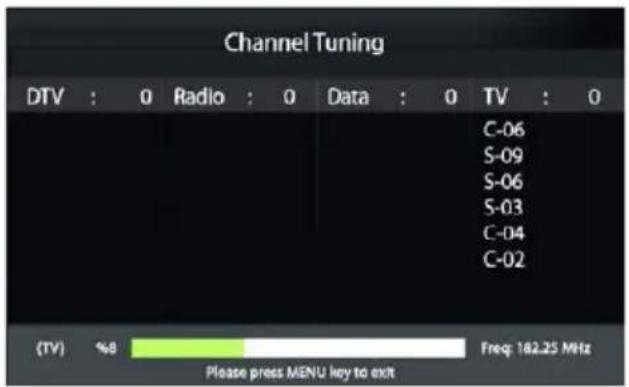

Pritisnite OK za vstop v samodejno prilagajanje programov.

Delete (Brisanje)

Channel List (Seznam kanalov)

Brightness (Svetlost)

Lahko prilagodite raven svetlobe z ◀▶.

Saturation (Nasićenost)

Sleep Timer (Časovnik spanja)

Lock System (Sistem zaklepanja)

Block program (Blokiranje programov)

Izberite Blokiraj program z uporabo ▲ ▼ in pritisnite OK.

Odpre se podmeni Blokiranje programov. Izberite program, ki ga želite blokirati s ▲ ▼ in ga blokirajte s pritiskom na zeleno tipko na daljinskem upravljalniku.

Potrebno je vnesti geslo za odblokiranje. Kliknite OK, da shranite nastavitve po operaciji.

Parental Lock (Starševski nadzor)

Izberite Starševski nadzor z uporabo ▲ ▼ in pritisnite OK.

Hotel Mode (Hotelski mod)

Izberite Hotelski način z uporabo ▲ ▼ in pritisnite OK.

Select Disk (Izbir diska)

Pritisnite ▲ ▼ za izbiro diska, nato pa pritisnite OK za vstop v podmeni.

Pritisnite ▲ ▼ za izbiro USB/Diska.

Check PVR File System (Preverjanje PVR Sistema datotek)

Pritisnite ▲ ▼ za izbiro preverjanja PVR datotečnega sistema, nato pa pritisnite OK, da za preverjanje.

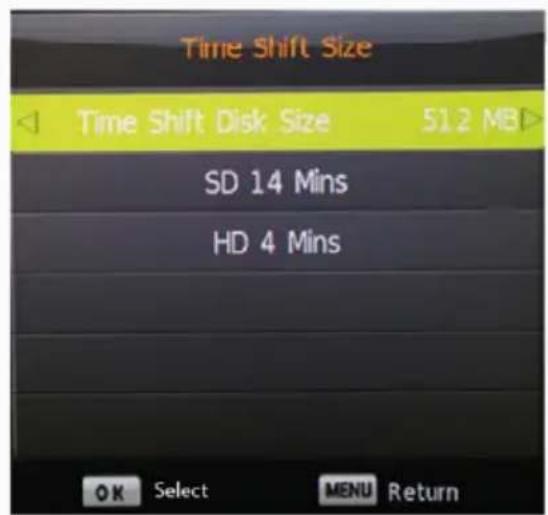

Time Shift Size (Omejitev TimeShift snemanja)

Pritisnite ▲ ▼ za izbiro Formata in pritisnite ◀▶ za nastavitev. Pritisnite MENU, da se vrnete.

Format

Pritisnite ▲ ▼ za izbiro Formata, nato pa pritisnite OK za vstop v podmeni.

Pritisnite ◀▶, da izberete vrsto PVR datotečnega sistema, in nato ◀▶ za nastavitev.

Pritisnite ◀▶, da izberete velikost PVR datotečnega sistema, in nato ◀▶ za nastavitev.

Opomba: Če želite nastaviti USB, časovni zamik in druge funkcije USB, priključite napravo USB v vrata USB na televizorju.

Channel List (Seznam kanalov)

Pritisnite OK, da naložite seznam kanalov z ali v pomnilnik USB.

Software Update (Nadogradnja sustava) (USB)

Pritisnite OK, će želite nadgraditi sistem iz USB-ja.

Power Mode

Kad je Power Mode Način delovanja napajanja je nastavljen kot "Vključeno", će izgine električne

Important Safety Instructions 6

Installation 11

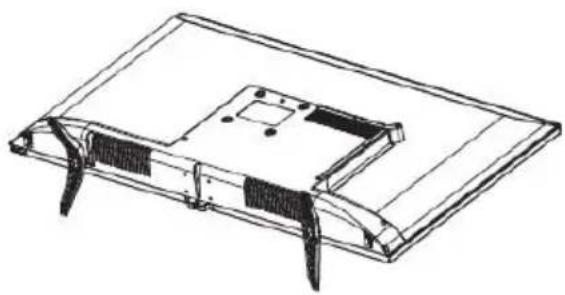

Stand Installation 11

TV Front 12

Antenna and Power Connection 13

TV Rear 13

Connections 14

Remote Controller 19

Installing batteries in the Controller 20

Using the Remote Control 21

Basic Features 22

The first installation 22

Main Menu 22

Input Source 23

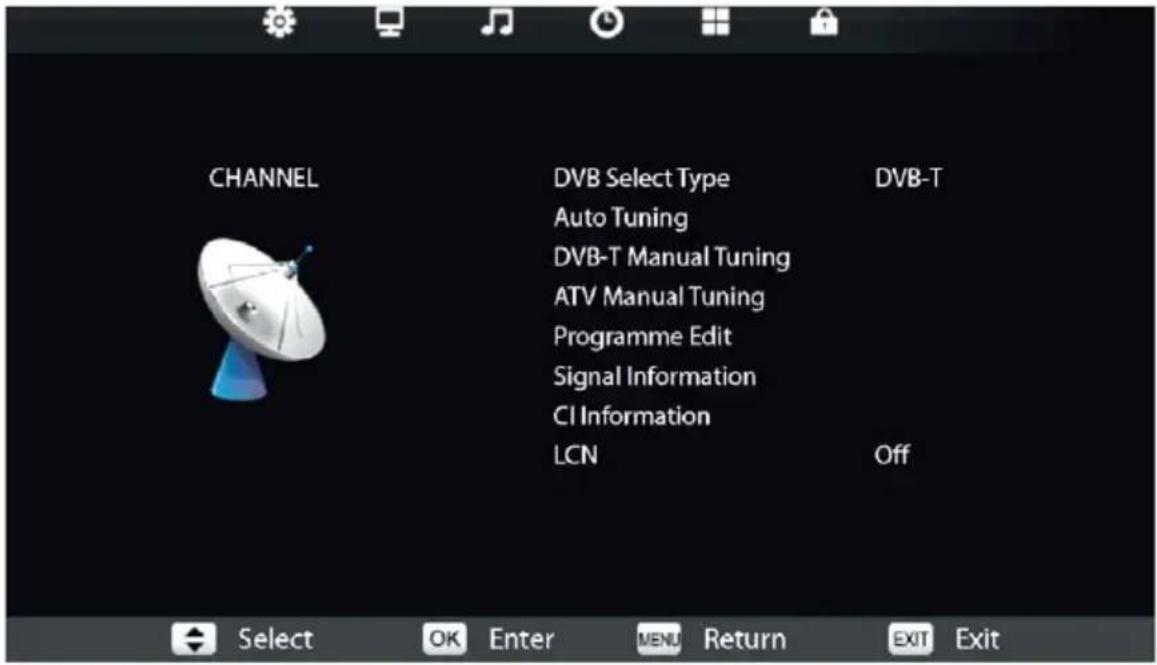

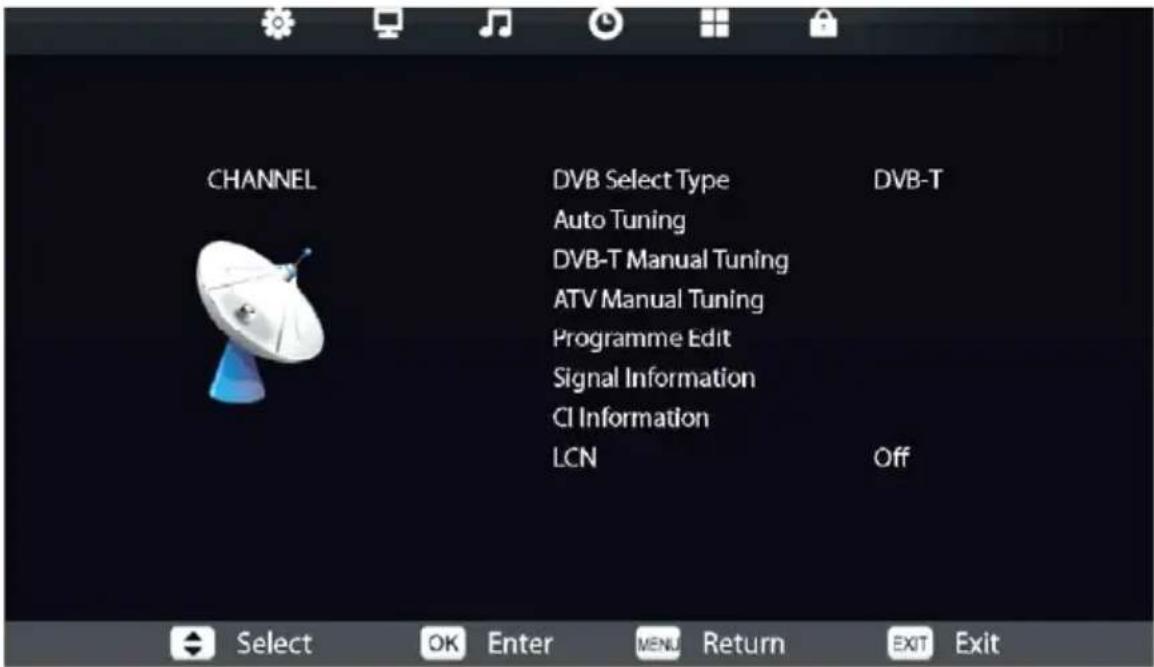

Channel Menu 24

Picture Menu 32

Sound Menu 33

Time Menu 35

Lock Menu 36

Option Menu 37

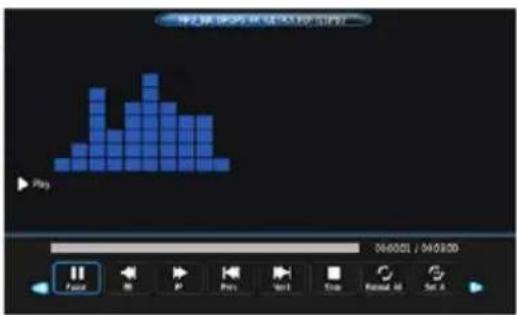

USB - Multimedia 41

Other Information 44

Trouble Shooting 44

Technical Specifications 47

Disposal of Waste Electrical & Electronic Equipment 48

EU Declaration of Conformity 48

Warranty Declaration (at the end of the Manual)

APPLIANCE FEATURES

Dear customer

Please read the user manual carefully before proceeding.

The appliance has the following features:

• Full function remote control
- Displaying all menus and commands for the operations performed on the screen (OSD).
- Multilanguage OSD menu support
- 100 analognih channel memory DVB-T2 500 memory, DVB-C 500 memory and DVB-S2 4000 channels (Optional)
- Autoscan option
- Programmable Switch ON/OFF times
• Auto stand-by after the end of broadcast
• Auto display format (4:3 or 16:9) definition
- Fast teletext with 1000 pages of memory
• Digital Connection with HDMI Inputs
- Playing audio, picture and film files from USB input.
- CI+ CAM Module
- AV Input
- YPbPr Input
- Scart
- Earphone
• DVB T2 H.264, H.265 HEVC, HE-AAC, DVB-C (Optional)
• DVB T2 H.264, H.265 HEVC, HE-AAC, DVB-C, DVB-S2 (Optional)

WELCOME

This device lives up to the highest standards, innovative technology and high user comfort.

With this TV you can do it fast and simple, whilst in the comfort of your living room.

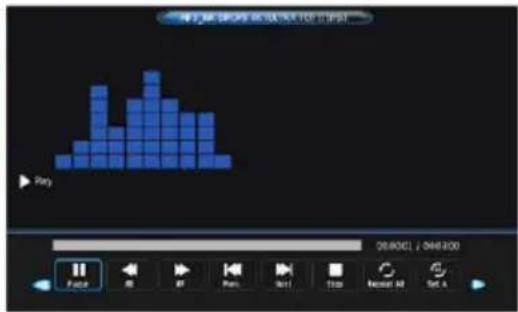

Media player — access your music, pictures and videos from your network or USB storage media and play them directly on your TV.

Everything works with one remote control now. Connect your TV directly to your terrestrial, satellite antenna or cable and enjoy contents in high quality without loss

The Accessories

When opening the box and installing the machine, make sure you have get all the necessary accessories:

• User manual with warranty declaration
• Remote Control
• Batteries x2
• Stand + Screws for stand

Black remote control with various function keys and buttons (no visible text or symbols)

Diagram showing two abstract geometric shapes with no text or symbols, one resembling a bent structure and the other a curved form (no text or symbols present)

Images are for reference only

The flash with the symbol of arrowhead, inside an equilateral triangle alerts the user about the presence of a dangerous tension not isolated inside the product which can be sufficiently powerful to constitute a risk of electrocution.

The point of exclamation inside an equilateral triangle alerts the user about the presence of important operating instructions and maintenance in the document enclosed in the package.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Do not open the back cover. In no case the user is allowed to operate inside the TV set. Only a qualified technician from the manufacture is entitled to operate.

Main plug is used as the disconnect device, the disconnect device shall remain ready for operating.

Incorrect replacement of the battery may lead to the risk, including the replacement of another similar or the same type. Do not expose batteries to heat such as sun or fire or something like that.

The device should not be exposed to dripping and spraying and it can not be placed under objects filled with liquids.

Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television.

IMPORTANT SAFETY INSTRUCTIONS

1. Read, Retain, Follow All Instructions

Read all safeties and operations about the TV. Retain them safely for future reference. Follow all operations and instructions accordingly.

WARNING: People (including children) with reduced physical, nervous or mental disabilities or who lack experience and / or knowledge of safe use of the device do not allow the use of electrical devices unattended!

2. Heed Warnings

Adhere to all warnings on the appliance and in the operating instructions.

3. Cleaning

Unplug the TV from the wall outlet before cleaning. Do not use liquid, abrasive, or aerosol cleaners. Cleaners can permanently damage the cabinet and screen. Use a soft dampened cloth for cleaning.

4. Attachments and Equipment

Never add any attachment and/or equipment without approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

5. Water and Moisture

The apparatus shall not be exposed to dripping of splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

6. Setting

Do not place this TV on an unstable cart, stand or table. Placing the TV on an unstable base can cause the TV to fall, result in serious personal injuries as well as damage to the TV. Use only a cart, stand, bracket or table recommended by the manufacturer or salesperson.

7. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation for the TV and to protect it from overheating. Do not cover the ventilation openings in the cabinet and never place the set in a confined space such as built-in cabinet unless proper ventilation is provided. Leave a minimum 10 cm gap all around the unit.

8. Power Source

This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power company.

9. Grounding or Polarization

TV equipped with this sign have alternating current line plug. The unit has a double insulation (Class II Protection), and no need additional grounding. Do not defeat the safety purpose of the polarized plug. To check do you need Grounding socket, check rating plate on the unit back side. If you did not find this sign, than you need grounding socket!

10. Lightning

For added protection for this TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will protect the TV from damage due to lightning and power-line surge.

11. Power Lines and Antenna cables

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. Where installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

12. Overloading

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

13. Object and Liquid Entry

Never push any kinds of object into this TV through openings as they may come up against dangerous voltage points or short-out parts that could result in fire or electric shock. Never spill any kinds of liquid on or into the TV.

14. Outdoor Antenna Grounding

If an outside antenna or cable system is connected with the TV, be sure the antenna or cable system is grounded so as to provide protection against voltage surges and built-up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

15. Servicing

Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

16. Damage Requiring Service

Unplug the TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power-supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the TV.
• If the TV has been exposed to rain or water.
• If the TV operates abnormally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.
• If the TV has been dropped or the cabinet has been damaged.

17. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

18. Safety Check

Upon completion of any service or repair to the TV, ask the service technician to perform safety checks to determine that the TV is in safe operating condition.

19. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that product heat.

The TV should not be placed near open flames and sources of intense heat.

20. Earphones use - Attention

Excessive sound pressure from earphones and headphones can cause hearing loss. If you notice any disturbance or hum noise in your ears, stop using the headset or earphones. To prevent possible hearing damage, do not listen at high volume levels for long periods.

1. Power cord and Plug should be easily accessible. Do not put a TV or furniture on the power cord. A damaged power cord or plug can cause fire or electric shock. Do not bend or squeeze the power cord. Unplug your TV from main supply to hold the plug and pull it from the power outlet. Never pull the power cord. Never touch a power cord / plug with wet hands, it could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cables

2. The instructions for installation or use provided with non-floor standing televisions likely to be used in the home and weighing over 7 kg shall contain the following information or equivalent:

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support. -Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of knowledge and experience to use the appliance, unless they are supervised by a person who is responsible for their safety or you're not received training on the use of appliances

Children do not always correctly recognize possible danger situations.

Swallowing batteries can be fatal. Keep batteries out of the reach of small children. If the battery is swallowed, immediate contact medical help.

Packaging equipment and protective bags keep away from children. There is a risk of suffocation.

LED Panel

Materials used when generating this product are made up of fragile elements. Therefore, product can be broken when in cases of falling over or bumps. LED panel is a high tech product and offers you high detailed images. From time to time, a few inactive pixels on screen can appear in blue, green or red steadily. This hes no effect over the product performance.

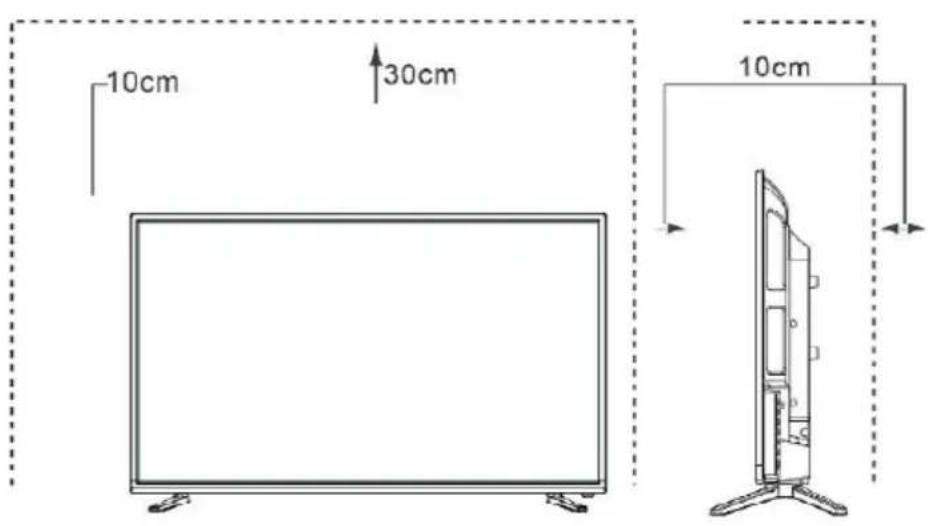

Positioning the TV set

Place the TV set on a firm and flat surface, leaving a space of at least 10cm around the set and 30cm from the top of the set to the wall.

STAND INSTALLATION

Notes

• The TV screen is very fragile, and must be protected at all times when removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the screen, come into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.
• For tabletop use, the TV must be attached to the provided stand as shown on this page.
• Product images are only for reference, actual product may vary in appearance

WARNING! Be sure to disconnect the AC power cord before installing a stand or wall-mount brackets.

CAUTION!

Carefully place your TV facedown on a soft, cushioned surface to prevent damage to the TV or scratching to the screen.

Follow the illustrations and textual instructions below to complete the installation steps:

1. Attach the stand to the TV set as shown in the picture.
2. Use the attached screws to fix the stand tightly.

TV-32S61T2, TV-32S61T2S2, TV-39S60T2S2, TV-39S61T2S2

Line drawing of a flat-screen electronic device with ventilation slots and mounting feet (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and mounting brackets (no text or symbols)

TV-32S62T2, TV-32S62T2S2

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a computer monitor case with internal components (no text or symbols)

TV FRONT

		Description

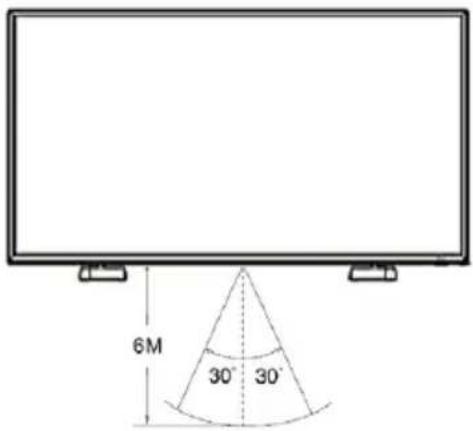

1 IR Remote Sensor		Receive remote signals from the remote control.Do not put anything near the sensor, as its function may be affected.
2 Remote Indicator Red light up in standby mode.

NOTES

The Picture is Only for Reference.

Powering on the TV requires several seconds to load program.

Do not rapidly turn the TV off as it may cause the TV to work abnormally.

ANTENNA AND POWER CONNECTION

1. Connect the antenna cable into the antenna input terminal at the rear panel and wall antenna socket.
2. Connect the Power Plug into the wall outlet.

TV Rear

▶ CONNECTIONS

NOTES

The Picture is Only for Reference.

Check the jacks for position and type before making any connections. Loose connections can result in image or color problems. Make sure that all connections are tight and secure.

Not all A/V devices have the ability to connect to a TV, please refer to the user's manual of your A/V device for compatibility and connections procedure.

Before connecting external equipment, remove the mains plug from the wall socket. This may cause electric shock

▶ TUNER (RF) Connect (DVB-T2) an outdoor VHF/UHF antenna or cable

▶ DVB-S2 (LNB IN) Connect (DVB-S2) satellite dish or Sat cable connection.

▶ HDMI1, HDMI2 Digital connection

Connect an HDMI cable from an external A/V equipment.

Some devices such as DVD player require HDMI signal to be set to output in the device's settings.

Please consult your device user manual for instructions. Please note that the HDMI connector provides both video and audio signals, it's not necessary to connect an audio cable.

- Press [SOURCE] button, when the list of Input Source appears, press [▲/▼] to select the source [HDMI], then press [OK] to connect.

▶ SCART

Connect the Scant cable from an external A/V Device.

- Press [Source] button, when the list of Input Source appears, press [▲/▼] to select the source [Scart] and press [OK] to connect.

▶ USB

Connect the USB devices such as hard drives, USB sticks and digital cameras for browsing photos, listening music and watching recorded movies. At the same time update is also an easy thing and will be done just by plugging the USB with the updating files into the same interface

NOTES

When connecting a hard disk or a USB hub, always connect the mains adapter of the connected device to the power supply. Exceeding a total current consumption may result in damage. The maximum current consumption is 500mA.

For individual non-standard high-capacity mobile hard disk, if it's impulse current is greater than or equal 500mA, it may cause TV-rebooting or self-locking. So the TV does not support it.

The USB port supports a voltage of 5V.

The maximum supported storage space of the hard disk is 1T.

If you want to play the video streaming of a DTV program, the transfer rate of the USB storage device must not be less than 5MB/s.

▶ SPDF DIGITAL COAX AUDIO OUT / OPTICAL AUDIO OUT (option)

Connect to an external digital audio device.

Before connecting a digital audio system to the SPDIF DIGITAL AUDIO jack, you should decrease the volume of both the TV and the system to avoid that the volume suddenly become bigger.

TV SOCKET DIGITAL AUDIO
Audio Amplifier

▶ EARPHONE

Connect Headphone for audio out of the TV.

▶ COMMON INTERFACE CI+

Insert the CI module for watching scrambled services like pay-tv channels or some HD channels

NOTES

• Before you insert/remove the CI module, ensure that the TV is switched off. Then insert the CI card into the CI module in accordance with the Service Provider's instructions.
• Do not repeatedly insert or remove the Common Access Module as this may damage the interface and cause a malfunction.
• You must obtain a CI module and card from the service provider of the channels you want to watch.
• Insert the CI module with the SmartCard in the direction marked on the module and SmartCard.
• CI is not supported in some countries and regions; check with your authorized dealer.

▶ YPbPr IN

Connect a component cable and an audio cable from an external A/V Device. The component output ports Y, PB and PR on the VCD or DVD can sometimes be identified as Y, CB and CR.

Press [SOURCE] button, when the list of Input Source appears, press [▲/▼] to select the source [YPbPr] and press [OK] to connect.

Connection Cables are not included

AV

Connect the Composite cable from an external A/V Device.

Use the audio and video cables to connect the external A/V device's composite video/audio jacks to the TV's jacks. (Video = yellow, Audio Left = White, and Audio Right = Red)

- Press [SOURCE] button, when the list of Input Source appears, press [▲/▼] to select the source [AV] and press [OK] to connect.
    note bottom
        Connection Cables are not included
    end

REMOTE CONTROLLER

POWER	: Press Power button to turn ON unit, if unit is already turned on it passes to Standby mode.
SOURCE	: Opens the TV input sources menu.
	: Moves the screen ligt to Sleep mode (Optional).
TEXT	: Enters the teletext page.
SUBT.	: Shows the subtitle option in teletext.
AUDIO	: Selects the Audio mode (stereo, mono).

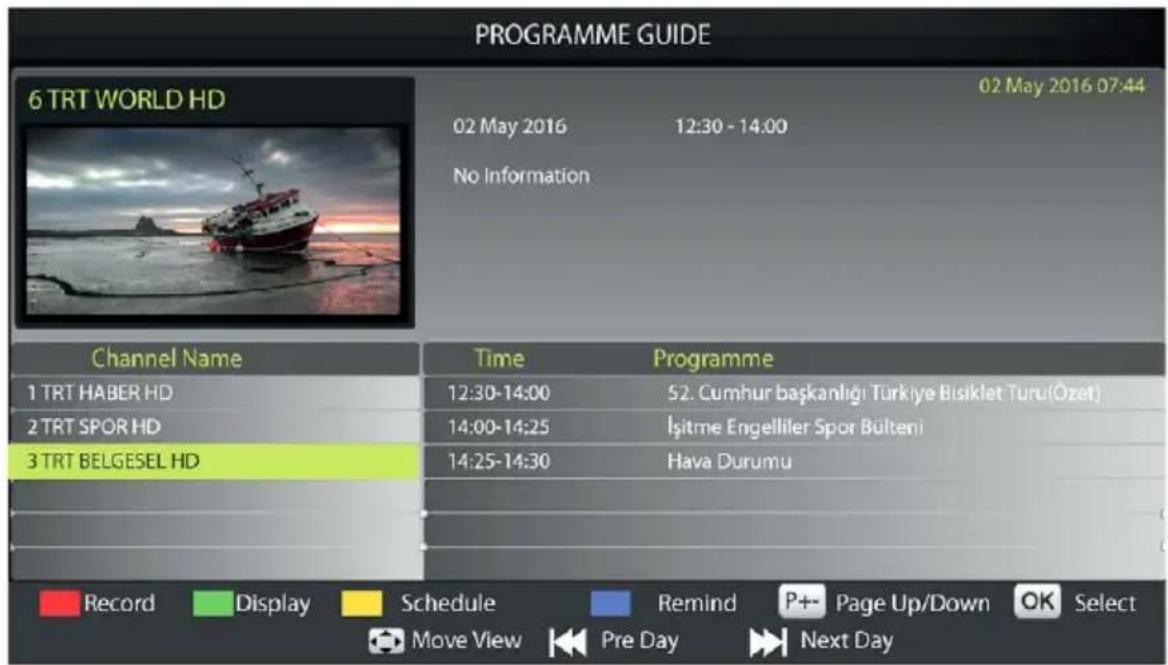

EPG	: Shows the broadcast information. Activates in TVs which include EPG (Electronic Program Guide) service.
SAT.LIST	: TTX is canceled. Lists the satellites(Activates in TVs which includes satellite feature).
	: Increases the font size in TTX, changes the picture mode.
	: Rewind in Media.
	: Play in Media. Shows record list menu.
	: Pause in Media.
	: Fast forward in Media.
	: Plays the previous file in Media.
	: Stop in Media.
REC	: Makes the recording in DTV source (Activates in TVs which include TV and satellite features).
	: Plays the next file in Media.
FAV	: Makes list of favourite channels in ATV, DTV and Sat.sources.
SETUP	: Opens the settings menu (This function is optional).
	: Used for taking actions on OSD menu or changing the settings.
	: Used for confirming the selected processes.
MENU	: Pops up the main menu on the screen.
EXIT	: Used for exit processes from menus.
	: Used for increasing or decreasing the audio level.
INFO	: Gives the information of the watched source.
MUTE	: Turns down the volume, the mute button is pressed again to turn up the volume.
	: Used for switching to previous or next program.
RADIO	: Makes lists of radio channels in DTV or satellite sources (Activates in TVs which include DTV and Sat. features).
SLEEP	: Activates the Sleep mode.
S/M/D	: Used for selecting one of the MONO/DUAL1 /DUAL2/STEREO audio modes.
RES.	: Adjusts the width/length ratio of the display.
0-9	: Used for selecting the TV program which you want to watch or the teletext page.
	: Activates the 3D mode. (This function is optional)
	: Used for going back to previous program.
COLOR BUTTO	: Activates the functions in Red/green/yellow/blue coloured icons.

▶ Installing Batteries in the Remote Control

Slide the back cover to open the battery compartment of the remote control.

Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.

Close the battery compartment cover.

(1) Gently open battery cover
(2) Insert the batteries
(3) Gently push cover back

NOTES

Product image is only for reference, actual product may vary in appearance.

Dispose of your batteries in a designated disposal area. Do not throw the batteries into a fire.

Do not mix battery types or combine used batteries with new ones.

Remove depleted batteries immediately to prevent battery acid from leaking into the battery compartment.

If you do not intend to use the remote control for a long time, remove the batteries.

Batteries should not be exposed to excessive heat, such as sunshine, heat registers, or fire.

Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.

Remote Control Operation Range

Point the remote control at the TV within no more than 5 metres from the remote control sensor on the TV and within 60° in front of the TV.

The operating distance may vary depending on the brightness of the room.

USING THE REMOTE CONTROL

- Turning your TV on and off

Turning off to standby mode: Press [ ( | ) Power Standby] on the back RHS panel or on the remote control to switch to standby mode. You can activate the unit again by pressing [ ( I ) Power Standby].

Power indicator: Light indicates standby mode. There will be no light when the power switch is in the off position.

NOTE

Remove the connection from the wall power outlet if you do not intend to use the unit for long periods, for example if you plan to be away a few days. Wait at least 5 seconds after turning off if you want to re-start the TV.

- Selecting the Input Source

Select the Input Source depending on the video device you have connected to your TV. To select the Input Source: Press [Source] button. When the list of Input Source appears, press [▲/▼] to select the source, then Press [OK] to connect.

- Adjusting the volume

Press [VOL ▲/VOL ▼] to increase or decrease the volume. Press [MUTE] to turn the sound off. Press [MUTE] again to turn the sound back on.

- Changing channels

Press the [CH ▲/CH ▼] buttons to go to the next higher or lower channel. Or, Press the number buttons to select a channel. For example, to select channel 12, press [1], then press [2].

- Selecting the sound mode

Press the [Sound Mode] button to select between 5 different pre-adjusted sound modes: Standard, Music, Movie, Sports and Personal.

- Selecting the picture mode

Press the [Picture Mode] button to select between 6 different pre-adjusted picture modes: Standard, Cinema Day, Cinema Night, PC Game, Dynamic and Personal.

- Selecting the aspect ratio

Press the [ASPECT] button to change the screen aspect ratio among Normal, 4:3, Wide, Zoom and Cinema

▶ NOTE: The option of aspect is vary with different source.

- Setting the sleep timer

You can specify how long you want your TV to wait for before it automatically turns off. Pressing [SLEEP] button repeatedly will allow you to change the sleep timer mode: Off, 15Min, 30Min, 45Min, 60Min, 90Min, 120Min and 240Min.

- Audio function

Pressing [ AUDIO ] button the TV screen will display the Audio options such as Stereo, Dual I, Dual II, Mixed.

- Displaying Channel List

Press [OK] to display the full list of digital and analogue channels available.

• Electronic Programming Guide (EPG)

Provides convenient access to the television programs that will be available in the next 7 days. The information displayed by the EPG is made available by the commercial television networks for digital channels only. The EPG also provides a simple way to program the recording of your favorite programs. There is no need to setup complicated timers.

BASIC FEATURES

The first installation

OSD Language

Press ▲▼ button to select OSD Language, and then Press ◀▶ to set.

Country

Press ▲▼ button to select Country, and then Press ◀▶ to set.

TV Connection

Press ◀▶ button to set Antenna or Cable.

Tune Type

Press ◀▶ button to set DTV+ATV / DTV / ATV tune type to search.

Auto Tuning

Press OK button to select Auto Tuning.

Return

Press MENU button to enter Submenu and then press ◀▶ button to select Yes/No/Do it next time.

NOTE: This page is Optional.

SOURCE LIST

Press SOURCE button to show Source List.

Press ▲ ▼ button to choose Source.

Press OK button to confirm selection and switch into desired Source mode.

Menu System

To adjust and tune your TV, press MENU button to show Main Menu. In main Menu, press ◀▶, you can choose a following Submenus: CHANNEL, PICTURE, SOUND, TIME, LOCK and SETTINGS.

Press OK button to show selected submenu.

In submenue, press ▲▼ or ◀▶ to select item or adjust selected item.

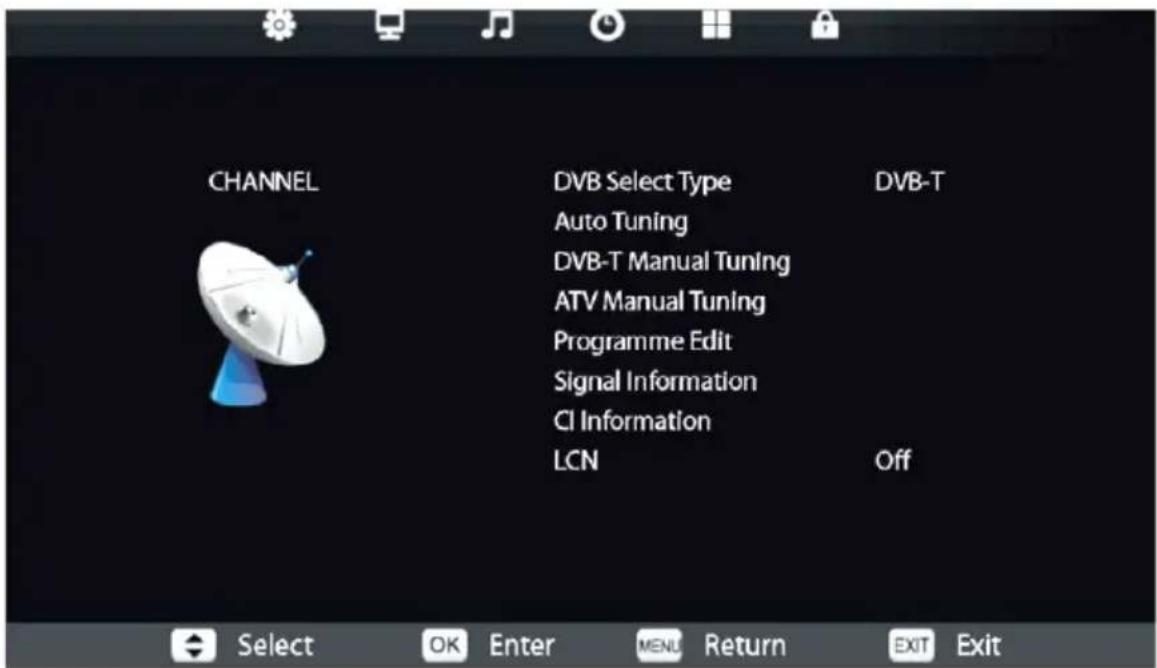

CHANNEL

Press ▲ ▼ button to select subemues: DVB Select type, Auto Tuning, DVB-T manual Tuning, ATV Manual Tuning, Program Edit, Signal Information, CI Information and LCN (Logical Channel Numbering).

Press OK button to enter into selected Submenu.

Press EXIT button to exit.

Auto Tuning

Press ▲▼ button to select Auto Tuning and then press OK button to enter submenu.

Country

Press ▲ ▼ button to select Country and then press ◀ ▶ button to select County/Region.

Tuning Type

Press ▲ ▼ button to select Tune Type, and then press ◀▶ to choose DTV/ATV/ATV+DTV (search Digital, Analog or all schannels).

Press OK button to enter Auto channel Tuning.

Press MENU button to exit Auto channel Tuning.

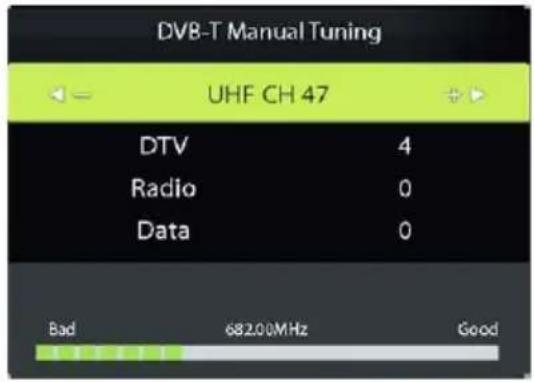

DVB-T Manual Tuning

Press ▲▼ to select DVB-T Manual Tuning, and then press OK button to enter submenu.

Press. ◀▶ to select channel.

Return

Press MENU button to return from Search mode.

Press OK button to start search channel.

ATV Manual Tuning

Press ▲▼ to select ATV Manual Tuning, and then press OK button to enter submenu.

Press. ◀▶ to select channel.

Program No (Storage To)

Press ▲ ▼ button to select Program No. storage place, than press ◀ ▶ button to choose storage place number.

Color System

Press ▲ ▼ button to select Color System, and then press ◀▶ to choose: AUTO / PAL / SECAM.

Sound System

Press ▲▼ button to select Audio System, and then Press ◀▶ to choose L / DK / BG / I.

AFC

Press ▲ ▼ button to select AFC (Auto frequency Control), and then press ◀▶ to choose On / Off.

Fine Tuning

If set AFC Off, press ▲▼ button to select Fine-Tune and then press ◀▶ button to fine tune channel.

Search

Press ▲ ▼ button to choose Search item, than press ◀ ▶ button for start search.

Store

Press Red button to store.

Return

Press MENU button to return from Search mode.

Press OK button to start search channel.

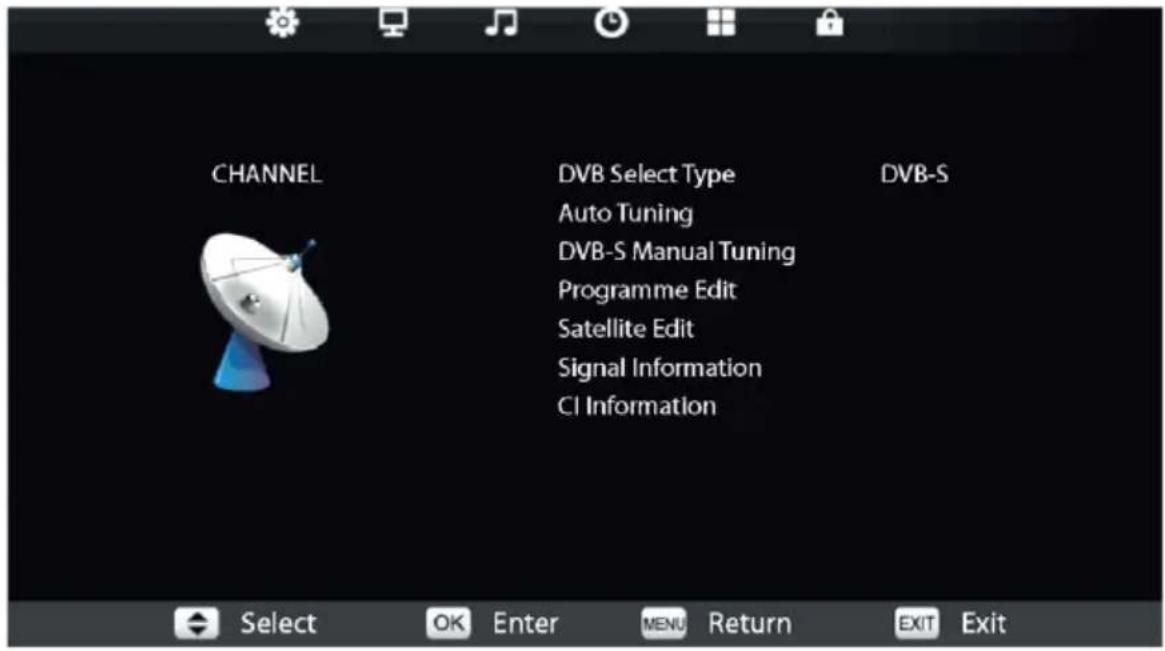

DVB-S Tuning (Option)

To adjust or search Satellite channels, you should select item DVB Select Type into "DVB-S". Press. ◀▶ to adjust item.

You can type the frequency number using keypad on remote.

Auto Tuning

For Automatic Tuning use key ▲▼ on remote and select "Automatic Tuning" setting, than press "OK" buton.

Satellite

To select the satellite press OK button and select the satellite from the list.

Channel type

Select the Channel type and press ◀▶ button to adjust.

Service Type

Select Service type and press ◀▶ button to adjust.

Scan Mode

Select the Scan mode and press ◀▶ button to adjust.

Unicable

Select the Unicable item and press OK.

Search

Priess OK button to start search DVB-S channels.

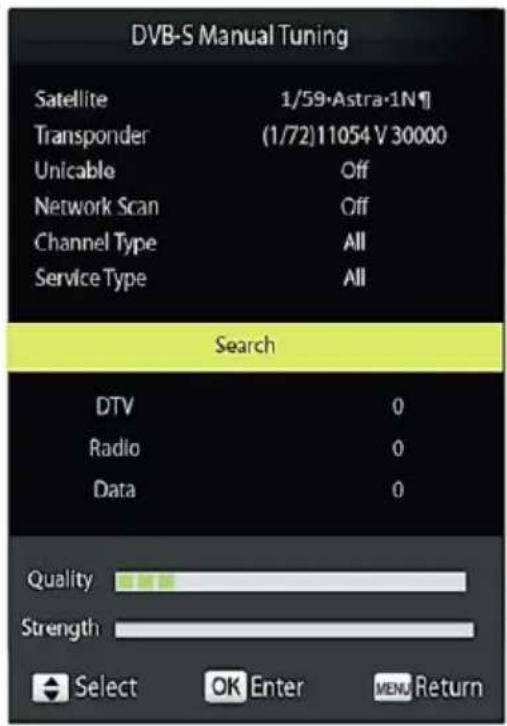

DVB-S Manual Tuning

Odaberite opciju DVB-S Manual Tuning (DVB-S Ručno ugađanje), te zatim pritisnite OK.

Select DVB-S Manual Tuning to manually adjust Satellite channels.

To start search, choose item Search and press OK buton. Press EXIT buton to cancel search.

DVB-C Tuning

Channel Menu

Press ▲ ▼ button to choose Channel menu.

Press OK button to choose Submenu.

Press EXIT button to exit from menu.

To adjust or search Cable channels, you should select item DVB Select Type into "DVB-C". Press ◀▶ to adjust item.

You can type the frequency number using keypad on remote.

Auto Tuning

Press ▲▼ button to select Auto search item, than press OK button to enter into Submenu.

Country

Press ▲ ▼ to select Country item, than press ◀ ▶ button to adjust Country/Region where you install your TV set.

Tune Type

Press ▲▼ button to select Tune Type item, then press ◀▶ to choose DTV / ATV / ATV+DTV (search Digital, Analog or All Cable channels).

Scan Mode

If Tune Type is DTV / ATV+DTV, press ▲▼ button to select Full / Network Scan.

Network ID/Frequency/Symbol Rate (ID mreže/Frekvencija/Razina simbola)

If Scan Mode is Network Scan, press ▲

▼ button to select

Network ID /

Frequency / Symbol

Rate and then press

▶ button to set.

Press OK button to set.

Search

Press OK button to enter Submenu.

Press MENU button to exit.

Press ◀ ▶ buton to set option: Yes / No.

Press MENU to return back from Auto search.

DVB-C Manual Tuning

Frequency

Press ▲▼ button to select Frequency, and then press ◀▶ or digital button to set channel frequency.

Symbol

Press ▲ ▼ button to select Symbol rate, then press ◀▶ button or digital button to set.

QAM Type

Press ▲▼ button to select QAM type, then press ◀▶ button or digital button to set.

Search

Press OK button to start search channel. Press MENU button to exit.

Program Edit

Press ▲▼ button to select Programme Edit and then press OK button to enter

Delete

Press ▲ ▼ button to select channel you want to delete and then press RED button to enter Submenu.

Press ◀▶ button to select Yes / No .

Move

Press ▲▼ to select channel you want to move and then press YELLOW button to enter Submenu.

Press ▲ ▼ button to select position in the list.

Skip

Press ▲▼ button to select channel you want to skip and then press BLUE button to enter Submenu.

Rename

Press ▲ ▼ button to select channel you want to rename and then press GREEN button to set

Delete All

Press 0 button to enter Submenu and then press ◀▶ to select ALL / DTV / ATV.

Press OK to confirm delete.

Select

Press ▲ ▼ button to select channel you want to select, and then press OK button to begin display.

Return

Press MENU button to return.

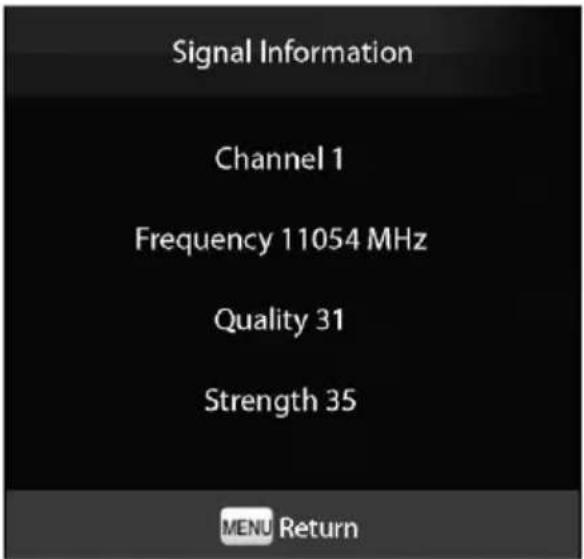

Signal Information

Press ▲ ▼ button to select Signal Information, and then press OK button to enter submenu.

You can see signal information in detail.

Press MENU button to return.

Channel List

If you are watching program, press OK button to enter Submenu and then you can see the Channel List.

Follow instruction from bottom:

Find: Press RED button

Sort: Press GREEN button

Select List: Press YELLOW button

Prog.Edit: Press BLUE button

Select Ch. Press OK button

Sat.List: Press Sat LIST button

Return

Press MENU button to return.

ELECTRONIC PROGRAM GUIDE (EPG)

The EPG Program Guide provides information on programs being broadcast, schedule of the programs, and tuning the Timer to record the program. EPG is only possible in DVB-T and DVB-S source mode.

To open the programme guide, press EPG button.

Press ▲▼ buttons to display the channel information.

To change the channel, press OK button.

Record

Press RED button to create record.

To operate in the drop-down menu, use ▲▼ and ◀▶ buttons.

Display

Press GREEN button for detailed information.

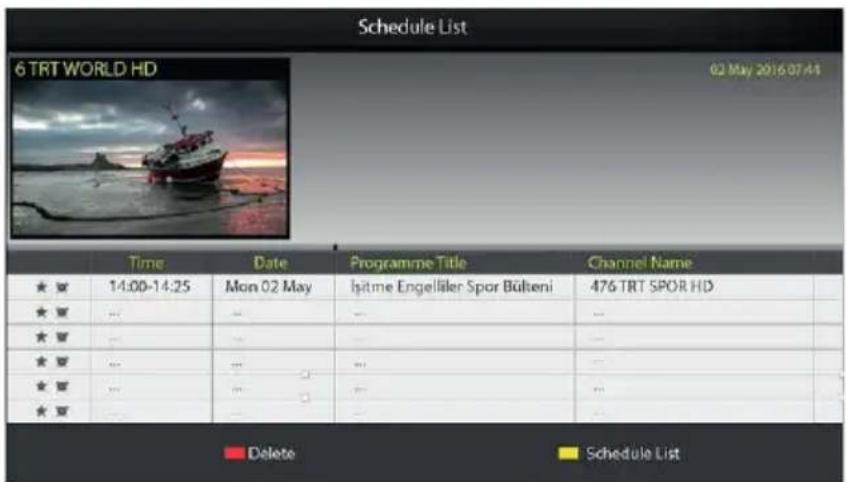

Reminder

To create reminder, press BLUE button.

To operate in the drop-down menu, use ▲▼ and ◀▶ buttons.

Record List

To open the record list menu, press PLAY button.

Delete

Press RED button to delete the record.

Information

For the record information press GREEN button.

Select

To play the record, press OK button.

Index

Press BLUE button to change the sort type.

Picture Menu (Izbornik Slike)

Press MENU button to display main menu. Select the picture option by pressing ◀▶ buttons and press OK button.

To select the submenu which you will operate in picture menu, press ◀▶ buttons, than OK button.

After your operation is completed in the submenu press MENU button to go to the previous menu.

Press EXIT button to exit from the menu.

Picture Mode

Press OK button firstly. By using ▲▼ buttons, select one of the options displayed on the screen and confirm with OK button.

You can use MENU button to go back.

When you select the Picture mode as "User", you can change the Contrast, Brightness, Color and Sharpness settings.

Contrast

You can adjust the Contrast level by using ◀▶-buttons.

Brightness

You can adjust the Brightness level by using ◀▶-buttons.

Saturation

You can adjust the Saturation level by using ◀▶-buttons.

Tint

You can adjust the Tint by using ◀▶-buttons.

Sharpness

You can adjust the Sharpness level by using ◀▶-buttons.

Color Temperature

You can adjust the Color Temperature by selecting Normal, Cold or Warm options with ◀▶-buttons.

Aspect Ratio

You can adjust the Aspect Ratio by using ◀▶-buttons.

Noise Reduction

You can adjust the Noise Reduction by using ◀▶-buttons.

MPEG Noise Reduction

You can adjust the MPEG Noise Reduction filter by using ◀▶-buttons.

Dynamic Backlight (CR)

You can adjust the Dynamic CR by using ◀▶-buttons.

Sound Menu

Press MENU button to display main menu.

Select the sound option by pressing ◀▶-buttons and press OK button.

To select the submenu which you will operate in sound menu, press ◀▶-buttons and then press OK button.

After your operation is completed in the submenu press MENU button to go to the previous menu, press EXIT button to exit from the menu.

Sound Mode

Press OK button firstly. By using ◀▶ buttons, select one of the options displayed on the screen and confirm with OK button. You can use MENU button to go back. When you select the Sound mode as "User", you can change the equalizer settings.

120Hz/500Hz/1.5KHz/5KHz/10KHz

If Sound mode is "User", press ◀▶-buttons to select 120Hz/500Hz/1.5KHz/10KHz and then press OK button to enter the submenu.

Balance

To adjust the Right/Left balance press OK button firstly. Then by using ◀▶-buttons you can make the sound balance adjustment between the right and left speaker.

Auto Volume

Auto Volume function is used for avoiding sound imbalance while zapping between channels which have different sound levels.

Surround Sound

You can adjust the Surround Sound by selecting On or Off options with ◀▶-buttons.

SPDIF Mode

To take coaxial sound output you should adjust SPDIF Mode.

Press OK button to adjust the SPDIF mode firstly. Then select one of the Auto / PCM / Off options by using ◀▶-buttons.

AD Switch

You can adjust the AD Switch by selecting On, Off options with ◀▶-buttons.

AD Volume

You can adjust the AD Volume by using ◀▶-buttons.

Time Menu

Press MENU button to display main menu. Select the time option by pressing ◀▶buttons and press OK button. To select the submenu which you will operate in time menu, press ◀▶buttons and then press OK button.

After your operation is completed in the submenu press MENU button to go to the previous menu, press EXIT button to exit from the menu.

Clock

To adjust the date and clock of the TV, you should select this mode and press OK button. By using buttons, you can enter the date information into the first line, month information into the second line, year information into the third line, clock information into the fourth line and minute information into the fifth line.

Off Time

You can make the Off Time option active by selecting this mode after you adjust the Off Time value.

On Time

You can make the On Time option active by selecting this mode after you adjust the On Time value.

Sleep Timer

To adjust the Sleep Timer press OK button firstly and then select the sleep time by pressing ▲▼ buttons.

Time Zone

It is used to adjust the time zone which you reside. You can adjust the Time Zone by pressing OK button and then ▲▼buttons.

Auto Standby (Auto mirovanje)

It is used for making the device to operate in

Auto Standby mode. You can select the Auto Standby by pressing OK button and then ▲▼buttons.

OSD Timer (OSD prikaz)

It is used to adjust the time in which the menu is active.

Lock menu

Press MENU button to display main menu. Select the lock option by pressing ◀▶buttons and press OK

button. To select the submenu which you will operate in lock menu, press ◀▶buttons and then press OK

button. After your operation is completed in the submenu press MENU button to go to the previous menu, press EXIT button to exit from the menu.

Lock System

When you press the OK button after using ▲▼ buttons, the options below will be active: (The beginning password is set as "0000").

The following items are available:

Set Password

By pressing OK button you can enter the submenu and create a new password.

Block Program

Select the Block Program by using ▲▼buttons and press OK button.

Block Program submenu will be opened.

Select the programme which you want to block by using ▲▼buttons and block the programme by pressing green button on the remote. It is necessary to enter the password which you set before to unlock.

Press OK button to save the settings after you complete the operation.

Parental Guidance

Select the Parental Guidance by using ▲▼buttons and press OK button.

Hotel Mode

Select the Hotel Mode by using ▲▼buttons and press OK button. Follow the on-screen instructions to turn on and off the hotel mode (limit accessing the menus, limiting the volume, switching on the program, etc.).

Option menu

Press MENU button to display main menu. Select the option settings by pressing ◀▶ buttons and press OK

button. To select the submenu which you will operate in option menu, press ◀▶buttons and then press OK button. After your operation is completed in the submenu press MENU button to go to the previous menu, press EXIT button to exit from the menu.

OSD Language

Select OSD Language by using ▲▼buttons and press OK button.

Select the language which you want with ▲▼ or ◀▶ buttons and press OK button.

Audio Language

Select Audio Language by using ▲▼buttons and press OK button.

Select the language which you want with ▲▼ or ◀▶ buttons and press OK button.

Subtitle Language

Select Subtitle Language by using ▲▼buttons and press OK button.

Select the language which you want with ▲▼ or ◀▶ buttons and press OK button.

Hearing Impaired

It is for selecting the subtitles which are prepared for hearing impaired people by using ▲▼buttons.

PVR File System

Select PVR File System option from OPTION Menu by using ▲▼buttons and press OK button to display submenu.

Press ▲▼ button to select options, and then press OK button to confirm operation.

Select Disk

Press ▲▼ button to select Select Disk, and then press OK button to enter Submenu. Press ▲▼ button to select USB/Disk.

Check PVR File System

Press ▲▼ button to select Check PVR File System and then press OK button to begin check.

Free Record Limit

Press ▲▼ button to select Format and then press ◀▶ button to set.

Press MENU button to return.

Format

Press ▲▼ button to select Format, and then press OK button to enter Submenu.

Press ◀▶ button to select PVR File System Type and then press ◀▶ button to set.

Press ◀▶ button to select PVR File System Size and then press ◀▶ button to set.

Press ◀▶ button to select Yes/No.

Note: To adjust USB, Time Shift and other USB functions, plug in the USB device into USB socket

Channel List

Press OK button to load channels from USB or to load channels into USB.

Software Update (USB)

Press OK button to update software from USB storage.

Factory Settings

Select reset by using ▲▼buttons to go to the factory settings and press OK button. To confirm the warning menu press ◀ button.

HDMI CEC

The only one remote control can control the devices connected the TV via HDMI connection. (Satellite receiver, DVD player). To activate this menu, press the OK button.

Advanced Settings

Select the advanced settings by using ▲▼ buttons. When you press the OK button, the password screen is displayed. (This password is same with the system lock password).

After you enter the password, you can select the desired mode by using ▲▼ or ◀▶ and you can change the settings of the mode by selecting OK button in the menu.

Power Mode

When the power mode is set as "On", if you make power off and power on respectively, TV is turned on by itself.

When the power mode is set as "Off", if you make power off and power on respectively, TV goes to standby mode and you should press the "POWER" button to turn on the TV.

When the power mode is set as "Last", if you make power off and power on respectively, TV displays the last screen before it turned off. It means that if the TV is "On" before it turned off, it will be on again and vice versa.

USB MODE

Note: Before using the MEDIA menu, plug in the USB device, then press SOURCE to set the Source of the media input source.

Press mean button to show Photo, Music, Movie, File. Press ◀ / ▶ button to choose specific menu and the adjustable value.

In the submenu, press ▲▼ or button to choose menu item.

PHOTO (SLIKE)

1. Insert USB Port to USB entry.
2. Press ▲▼ or ◀▶ to select photo, and then OK button to enter submenu.
3. Select C:\, press OK button to enter submenu.
4. Select the specific photo, and press OK button to confirm.
5. Press ▶ | | button to play, and OK button to show function menu. Press | ◀◀ button to play the previous one, ▶▶ | to play the next one.
6. Press EXIT button to play.

MUSIC

1. Insert USB Port to USB entry.
2. Press ▲▼ or ◀▶ to select Audio file, and then OK button to enter submenu.
3. Select C:\, press OK button to enter submenu.
4. Select the specific Audio file, and press OK button to confirm.
5. Press ▶ | | button to play, and OK button to show function menu. Press | ◀◀ button to play the previous one, ▶▶ | to play the next one.
6. Press EXIT button to play.

MOVIE

1. Insert USB Port to USB entry.
2. Press ▲▼ or ◀▶ to select Vidio file, and then OK button to enter submenu.
3. Select C:\, press OK button to enter submenu.
4. Select the specific Video file, and press OK button to confirm.
5. Press ▶ | | button to play, and OK button to show function menu. Press |◀◀ button to play the previous one, ▶▶ | to play the next one.
6. Press EXIT button to play.

TEXT (File)

1. Insert USB Port to USB entry.
2. Press ▲▼ or ◀▶ to select Text file, and then OK button to enter submenu.
3. Select C:\, press OK button to enter submenu.
4. Select the specific Text file, and press OK button to confirm.
5. Press ▶ | | button to play, and OK button to show function menu. Press |◀◀ button to play the previous one, ▶▶| to play the next one.
6. Press EXIT button to play

Other Information

Troubleshooting

If the TV does not operate as usual or appears to be faulty please read carefully this section. Many operational issues can be resolved by users.

It is also advisable to unplug the TV from the AC socket on the wall for 60 seconds or more, then reconnect and start again. This simple procedure helps in restoring stable conditions for electric circuits and firmware of the unit.

Please contact Manufacturer Customer Care if the problem is unresolved or you have other concerns.

SYMPTOMS	POSSIBLE SOLUTIONS
No sound or picture.	Check if the power cord is plugged into a powered AC outlet.A power switch on the right side bottom edge of the front panel must be turned on. Press the [POWER] button in the remote control to activate the unit from Standby.Check to see if LED light is either red or blue. If illuminated, power to TV is OK.
I have connected an external source to my TV and I get no picture and/or sound.	Check for the correct output connection on the external source and for the correct input connection on the TV.Make sure you have made the correct selection for the input mode for the incoming signal.
When I turn On my television, there is a few second delay before the picture appears. Is this normal?	Yes, this is normal. That is the TV searching for previous setting information and initializing the TV.
Picture is normal, but no sound.	Check the volume settings.Check if Mute mode is set "on".
Sound but no picture or black and white picture.	If black and white picture first unplug TV from AC outlet and re-plug after 60 seconds.Check that the Colour is set to 50 or higher.Try different TV channels.
Sound and picture distorted or appear wavy.	·An electrical appliance may be affecting TV set. Turn off any appliances, if interference goes away, move appliance farther away from TV.·Insert the power plug of the TV set into another power outlet.
Sound and picture is blurry or cuts out momentarily.	·If using an external antenna, check the direction, position and connection of the antenna.·Adjust the direction of your antenna or reset or fine tune the channel.
Horizontal/vertical stripe on picture or picture is shaking.	·Check if there is interfering source nearby, such as appliance or electric tool.
The plastic cabinet makes a "clicking" type of sound.	·"Click" sound can be caused when the temperature of the television changes. This change causes the television cabinet to expand or contract, which makes the sound. This is normal and the TV is OK..
Remote control does not work.	·Confirm that TV still has power and is operational.·Change the batteries in the remote control.·Check if the batteries are correctly installed.

playable format list

Media File Ext. Codec		Remark
		Video Audio
.mpg MPEG-1, MPEG-2				Max Resolution: 1920x1080
MJPEG				Max Data Rate: 40 Mbps
MOVIE	.avi
		MPEG-4 SP/ASP, H.263/H.264
MPEG-2,.ts H.264,AVS*,AVS+HEVC		MP3, WMA	Max Resolution: 1920x1080 Max Data Rate: 20 Mbps
MOVIE.dat MPEG-MPEG-4 S.mp4MPEG-1, M	.mov.mkv	MPEG-4 SP/ASP,H.263/H.264, H.265 HEVC	AAC,AC3*,PCM
	1
	P/ASP,MPEG-2	H.263/H.264, H.265 HEVC
				Max Resolution:720x576
	.vob	MPEG-2		Max Data Rate: 40 Mbps
	.rm*/.rmvb*	RV30/RV40 COOK, MP2		Max Resolution:1920x1080
MUSIC	.mp3	--	MP3	Sample Rate:8K~48KHz Bit Rate:32K~320Kbps
	.m4a/.aac	--	AAC	Sample Rate:16K~48KHzBit Rate:32K~442KbpsChannel: Mono/Stereo
PHOTO.bmpInterlaced	.jpg/	Progressive JPEG		Max Resolution:1024x768
	.jpeg	Baseline JPEG		Max Resolution:15360x8640
	BMP	Max Resolution:9600x6400
					Pixel Depth:1/4/8/16/24/32 bpp
	.png	Non-interlaced		Max Resolution:9600x6400
		Max Resolution:1280x800
.srt.ssa/.ass.smiSUBTITLE.txt	SubRip
	SubStation Alpha
	SAMI
	.sub	SubViewer MicroDVDVD SubtitleSystemSubldx(VobSub)		SubViewer 1.0 & 2.0 Only
	TMPlayer

If the media codec is not supported by the player, a warning will be given.

REMARK:

It may happen that due to different versions of the 'Codec' version and file format, the device may not support some of above formats. If this happens, convert your record to another compatible format. The manufacturer is not responsible for the incompatibility of the device and your records and the possible loss of the contents of your files.

Technical Specifications

Model	TV-32S61T2 TV-32S61T2S2	TV-32S62T2 TV-32S62T2S2	TV-39S60T2S2 TV-39S61T2S2
Size with stand (mm) 732 x	480 x 206 732 x 487	x 199 732 x 474 x 209
Size without stand (mm) 7	32 x 435 x 85 732 x 4	35 x 85 732 x 435 x 87
Weight with stand (kg) 4,3	4,3 5,7
Weight without stand (kg)	4,1 4,1 5,5
Display Size 32 inches 39 inches
Display resolution 1366 x 768			1366 x 768 (S60) 1920x1080 (S61)
Audio power (RMS)	6 W + 6 W
Rating Power	54 W		74 W
Power supply - Adapter	AC 180-240V ~ 50/60Hz
AV Color System	PAL SECAM
Television System	PAL/SECAM-B/G, D/K, I, L, NICAM/A2DVB-T2 H.264/265.HEVC+C(T2 model)DVB-T2 H.264/265.HEVC+C+S2(T2S2 model)		PAL/SECAM-B/G, D/K, I, L, NICAM/A2DVB-T2H.264/265.HEVC+C+S2
Working conditions	Temperature: 5°C - 45°C Humidity: 20% - 80% RHAtmosfere pressure: 86 kPa - 106 kPa
Component mode	480I / 60Hz, 480P / 60Hz, 576I / 50Hz, 576P / 50Hz, 720P / 50Hz, 720P / 60Hz, 1080I / 50Hz, 1080I / 60Hz, 1080P / 50Hz, 1080P / 60Hz
HDMI mode	480I / 60Hz, 480P / 60Hz, 576I / 50Hz, 576P / 50Hz, 720P / 50Hz, 720P / 60Hz, 1080I / 50Hz, 1080I / 60Hz, 1080P / 60Hz480, 800 x 600, 1024 x 768 60Hz

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

"CI Plus" logo is a trademark and a trademark of CI Plus LLP company.

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the product(s) and / or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge. Alternatively, in some countries you may be able to return your products to your local retailer upon purchase of an equivalent new product. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

Disposal of waste batteries

Check local regulations for disposal of waste batteries or call your local customer service in order to get instructions on the disposal of old and used batteries. The batteries in this product should not be disposed of with household waste. Be sure to dispose of old batteries in special places for disposal of used batteries that are found in all retail shops where you can buy batteries.

EU Declaration of Conformity

Hereby, M SAN Grupa d.d. declares that the radio equipment type TV set is in compliance with Directive 2014/53/EU (RED Directive).

The full text of the EU declaration of conformity is available at the following internet address: www.msan.hr/dokumentacijaartikala

Product Information sheet

Information sheet data entered into the EPREL database".

For more info and Product Fiche, please scan QR code on the Energy label or visit Vivax web site: www.vivax.com

TV-32S61T2

TV-32S62T2

TV-32S61T2S2

TV-32S62T2S2

TV-39S60T2S2

TV-39S61T2S2

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

JAMSTVENI LIST

VIVAX

HR

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

5. JAMSTVO NE OBUHVAĆA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu. Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.
2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore za koje jamstvo traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.
4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
5. Redovnu provjeru, održavanje uz zamjenu dijelova koji se troše normalnom upotrebom, prilagođavanje ili promjene za poboljšanje proizvoda za primjenu koji nisu opisane u tehničkim uputama za korištenje, osim ako je za te preinake predočena suglasnost M SAN GRUPA d.d.
6. Jamstvo se ne priznaje u sljedećim slučajevima:

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:

Garantni rok počinje teći od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija se produljužuje za vrijeme trajanja popravka.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:

POTPIS I PEČAT PRODAVCA

1. Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava u Crnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.
2. USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.
4. Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.
5. Davalac izjave o saobraznosti osigurava servis i rezervne djelove 7 godina od datuma kupovine.
6. PRAVO NA REKLAMACIJU NE OBUHVATA

Kosova Electronic Service Center

Kosova Electronic Service Center

VIVAX Air Conditioners; White Goods and Small Home appliances
