Product Type	Ceramic Fan Heater
Model	GZ 411BD
Brand	Guzzanti
Dimensions (HxWxD)	25 cm x 20 cm x 30 cm
Weight	2.5 kg
Power Source	220-240 V ~ 50 Hz
Power Consumption	2000 W
Heating Elements	Ceramic PTC
Thermostat	Adjustable, 5-35°C
Safety Features	Overheat protection, Tip-over switch, Cool-touch housing
Functions	2 heat settings (1000W / 2000W), Fan-only mode, Oscillation, 24-hour timer, Digital display, Remote control
Control	Touch panel + Remote control
Noise Level	≤ 45 dB
Room Coverage	Up to 25 m²
Energy Efficiency Class	A
Maintenance	Wipe with a soft, dry cloth; do not use water or solvents
Spare Parts / Repairability	Service center available; spare parts (e.g., remote, fan motor) can be ordered
Included Accessories	Remote control, User manual
Color	White / Black

Frequently Asked Questions - GZ 411BD Guzzanti

How do I set the timer on the Guzzanti GZ 411BD heater?

Press the Timer button repeatedly to set the desired time (1-24 hours). The display will show the timer value. After a few seconds, the timer is activated.

What should I do if the remote control stops working?

First, check the batteries (CR2025 type). Replace if necessary. Ensure there are no obstacles between the remote and the heater. Point the remote directly at the receiver.

How often should I clean the heater?

Clean the exterior with a soft, dry cloth every few weeks. Do not use water or cleaning agents. Clean the air inlet and outlet grilles with a vacuum cleaner to prevent dust buildup.

The heater turns off automatically. Why?

This is likely due to overheat protection or the tip-over switch. Ensure the heater is on a flat, stable surface and not covered. Allow it to cool down for 15 minutes before restarting.

Can I use the heater in a bathroom?

No, this heater is not rated for bathroom use. It is designed for dry indoor areas only. Avoid contact with water.

What is the difference between the two heat settings?

The low setting uses 1000W and the high setting uses 2000W. The fan-only mode circulates air without heating.

How do I use the oscillation function?

Press the Oscillation button on the control panel or remote control. The heater will automatically rotate left and right (approx. 70 degrees). Press again to stop.

Is the heater safe to leave unattended?

The heater has built-in safety features like overheat protection and tip-over switch. However, we recommend not leaving it unattended for long periods. Keep children and pets away.

Where can I find spare parts for the GZ 411BD?

Spare parts are available through Guzzanti service centers. Contact customer support or visit the official website. Common parts include the remote control and fan motor.

Why is my heater making noise?

A slight hum or fan noise is normal. If the noise is excessive, check for loose parts or debris in the fan. Clean the grilles. If persists, contact service.

USER MANUAL GZ 411BD Guzzanti

Black and silver portable oil heater with digital display and control panel (no visible text or symbols)

7 TOPNÝCH ŽEBER 1500 W

9 TOPNÝCH ŽEBER 2000 W

11 TOPNÝCH ŽEBER 2500 W

13 TOPNÝCH ŽEBER 2500 W

NEOTÁČEJTE OHŘÍVAČ NAOPAK BĚHEM PROVOZU.

ÚVOD

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

DÜLEŽITÉ INFORMACE PRO SPRÁVNOU LIKVIDACI VÝROBKU V SOULADU SE SMĚRNICÍ ES 2002/96/ES.

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Black and silver portable oil heater with digital display and control panel (no visible text or symbols)

7 VYKUROVACÍCH REBIER 1500 W
9 VYKUROVACÍCH REBIER 2000 W
11 VYKUROVACÍCH REBIER 2500 W
13 VYKUROVACÍCH REBIER 2500 W

NEOTÁČAJTE OHRIEVAČ NAOPAK V PRIEBEHU PREVÁDZKY.

ÚVOD

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

DÔLEŽITÉ INFORMÁCIE PRE SPRÁVNU LIKVIDÁCIU VÝROBKU V SÚLADE S SMERNICOU ES 2002/96/ES.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Black and silver portable oil heater with digital display and control panel (no visible text or symbols)

7 ŻEBER GRZEJNYCH 1500 W
9 ŻEBER GRZEJNYCH 2000 W
11 ŻEBER GRZEJNYCH 2500 W
13 ŻEBER GRZEJNYCH 2500 W

NIE OBRACAĆ GRZEJNIKA PODCZAS PRACY.

WPROWADZENIE

Symbol of a trash bin crossed with a diagonal line and a horizontal line, representing no waste or discharge (no text or labels)

WAŻNE INFORMACJE DOTYCZĄCE PRAWIDŁOWEGO UTYLIZACJI PRODUKTU ZGODNIE Z DYREKTYWĄ WE 2002/96 / WE.

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Electric water heater with black and silver casing, digital display showing 20Ω, no visible text or symbols

7 FÜTÖBORDA 1500 W
9 FÜTÖBORDA 2000 W
11 FÚTÓBORDA 2500 W
13 FÜTÖBORDA 2500 W

NE FORDÍTSA MEG ÜZEMELTETÉS KÖZBEN A RADIÁTORT.

BEVEZETÉS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

A TERMÉK MEGFELELŐ SELEJTEZÉSÉRE VONATKOZÓ FONTOS TUDNIVALÓK AZ ES 2002/96/ES IRÁNYELV ÉRTELMÉBEN.

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Black and silver portable oil heater with digital display and control panel (no visible text or symbols)

7 GRELNIH REBER 1500 W
9 GRELNIH REBER 2000 W
11 GRELNIH REBER 2500 W
13 GRELNIH REBER 2500 W

RADIATORJA MED DELOVANJEM NIKOLI NE OBRAČAJTE NAROBE.

UVOD

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid rectangular block below (no text or labels)

POMEMBNE INFORMACIJE ZA PRAVILNO ODSTRANJEVANJE IZDELKA V SKLADU Z DIREKTIVO ES 2002/96/ES.

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Black and white photo of a 20-inch water heater with digital display and control panel (no visible text or symbols)

Symbol of a trash bin crossed with no text or labels

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Black and silver portable oil heater with digital display and control panel (no visible text or symbols)

7 FINS 1500W

9 FINS 2000W

11 FINS 2500W

13 FINS 2500W

DO NOT TURN HEATER UPSIDE-DOWN DURING OPERATION.

INTRODUCTION

Thank you for purchasing our Oil-Filled Radiator. Each unit has been manufactured to ensure safety and reliability. Before first use, please read the instructions carefully and keep them for further reference.

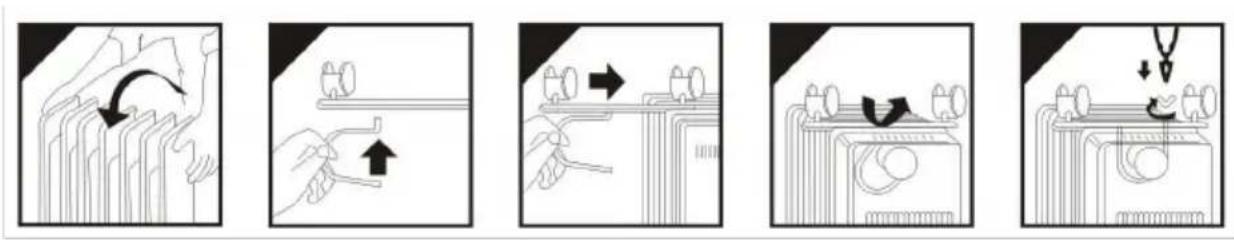

ASSEMBLY

Remove the heater and all the accessories from the carton.

1. Turn the heater upside down.
2. Position the wheel base assemblies between the end fins.
3. Attach them to the heater using the U-bolts and wing nuts supplied.
4. Tighten the wing nuts.
5. Turn the heater the right way up.

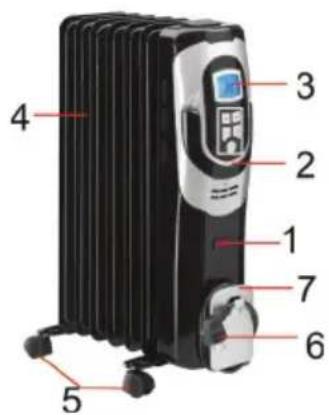

PARTS DESCRIPTION

1 2 3 4 5 6 7

8 MODE CIF 9 10 + - 11 12

1. Power switch
2. Handle
3. LCD Display Screen
4. Oil filled fins
5. Castors
6. Power supply plug

7. Cord storage

8. MODE button

9. °C/°F button
10. • button
11. • button
12. Power button

OPERATE

This heater is equipped with Electronic Digital Controls that provide the ability to set the temperature to the exact degree desired. To operate, simply follow these instructions.

Electrical connection

1. Make sure that the iron voltage and the line voltage match
2. Switch the power switch to 0.
3. Only connect the mains plug to a properly installed earthed socket 220-240V\~,50Hz.

Connected Wattage

The four power levels of the devices are as follows: 7 FINS 1500W / 9 FINS 2000W / 11 FINS 2500W / 13 FINS 2500W

With this connected load a separate supply line protected by a 16A household circuit breaker is recommended.

CAUTION overload:

1. If you use extension leads, these should have a cable cross-section of at least 1.5m^2 .
2. Do not use any multiple sockets, as this device is too powerful.
3. Do not connect other high power appliances to the same circuit.

Safety Switch

Your radiator has a safety switch which tourns off the electricity as soon as the device falls over. The safety seitch prevents dangerous situations caused by overheating.

1. Always place the device in an upright position in order that it is stable and in order to prevent malfunctions.
2. The appliance may still remain hot after it has toppled over.

Wait until it has cooled down.

Switch the appliance on again using the ⏻ button.

1. Switch on the appliance with the power switch.
2. Press the ⏻ button
   1 X for high power ( )
   2 X for medium power ( )
   3 X for low power ()
   4 X and the appliance goes to standby

Note: the heater will run continuously if not setting temperature.

SET TEMPERATURE

Note: you want to take the thermostat working properly, after the button is turned on, must press the MODE setting, and then further action:

1. Temperature setting: If temperatures increase or decrease in temperature, you must first press the MODE button and then press „+“ or „-“ to set. Otherwise, the heater will not work.
2. Switch the appliance on.
3. Press the ⏻ button. The number „88“ flashes on the display.
4. Press the MODE button. The number 24 °C or 75 °F and a thermometer symbol appear on the display. The thermometersymbol flashes.
5. Use the °C/°F button to select the temperature display in degrees Celsius or in degrees Fahrenheit.
6. Use the „+/-” buttons set the desired room temperature. The values can be read off the display.

Note: The radiator will now warm up the room. The thermometer symbol flashes throughout.

When the desired temperature is reached, the thermometer symbol stops flashing and is constantly lit.

The thermometer symbol flashes again as soon as the radiator needs to be heated up again

Use the „+/-” buttons to change the desired room temperature at any time.

SET TIMER (AUTO-OFF)

This function should only be set if you desire that the heater be automatically shut off after a certain period of time(1 to 24 hours from the time the function is set)

1. Press the „MODE“ button until the timer icon blinks. The hour display will appear. The „AUTO OFF“ icon will also appear.
2. Use the + and - buttons to set the heater operation time between 1 and 24 hours. This function will activate once the timer icon stops blinking.
3. The heater will automatically turn-off when time runs out. (If the heater does not set a specific time, from opening the heater to automatically turn off the default time is 10 hours.)

SET TIMER (AUTO-ON)

This function provides a delayed start option and should only be set if you desire that the heater be automatically turned ON after a certain period of time (1 to 24 hours from the time the function is set).

1. Press the „MODE“ button until the timer icon blinks. The hour display will appear. The „AUTO ON“ icon will also appear.

2. Use the + and - buttons to set the heater start time between 1 and 24 hours. This function will activate once the timer icon stops blinking.

3. The heater will automatically turn on when time expires.

4. The heater will automatically turn-on when time runs out.

(If the heater does not set a specific time, from opening the heater to automatically turn off the default time is 10 hours.)

The „AUTO OFF“ and „AUTO ON“ functions cannot be combines.

IMPORTANT SAFEGUARDS

1. Read the instructions carefully before use and save them for future reference.
2. Always disconnect the heater from the main supply when not in use and when cleaning.
3. Do not leave the heater „ON“ unattended.
4. Never cover the heater as this may lead to risk of fire.
5. Keep the heater a distance of at least 90 cm from any combustible material, such as furniture, curtains, bedding cloths or papers.
6. Keep the heater clean. Do not allow objects to enter the ventilation, as this may cause electric shock, fire or damage the heater.
7. Close supervision is required when any appliance is used near or by children.
8. Never allow the cord to touch wet or hot surfaces, become twisted or be within the reach of children.
9. Do not use outdoors.
10. Do not place on or near a hot gas or electric burner.
11. Never use the appliance with a damaged cord or plug or after the appliance has malfunctioned or been damaged in any way.
12. Never attempt to open any part or dismantle the controls.

Responsibility for failure cannot be accepted if these instructions have been ignored.

1. Do not use the appliance for anything other than its intended use.

2. This appliance is intended for household use only.

3. Regulations concerning the disposal of the oil when scraping the appliance have to be followed.

4. Any repairs that need to be done to the heater must be referred to an authorized service agent only.

5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.

6. The heater must not be located immediately below a socket-outlet.

7. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

8. This heater is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer of his service agent who should be contacted if there is an oil leakage. Regulations concerning the disposal of the oil when scrapping the appliance have to be followed.

9. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety
10. Children should be supervised to ensure that they do not play with the appliance.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health, deriving form inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
