USER MANUAL GRS 4520 ECG

Black and white photo of a ECO-branded hairbrush with black body and white body, no visible text or symbols on the brush itself.

GRS 4520

CZ

MULTIFUNKČNÍ ZASTŘIHOVAČ

NAVOD K OBSLUZE

HU

MULTIFUNKCIÓS TESTSZÖRNYÍRÓ

HASZNÁLATI ÚTMUTATO

SK

MULTIFUNKČNÝ ZASTRIHÁVAČ

NÁVOD NA OBSLUHU

GB

GROOMING SET

INSTRUCTION MANUAL

PL

TRYMER WIELOFUNKCYJNY

INSTRUKCJA OBSŁUGI

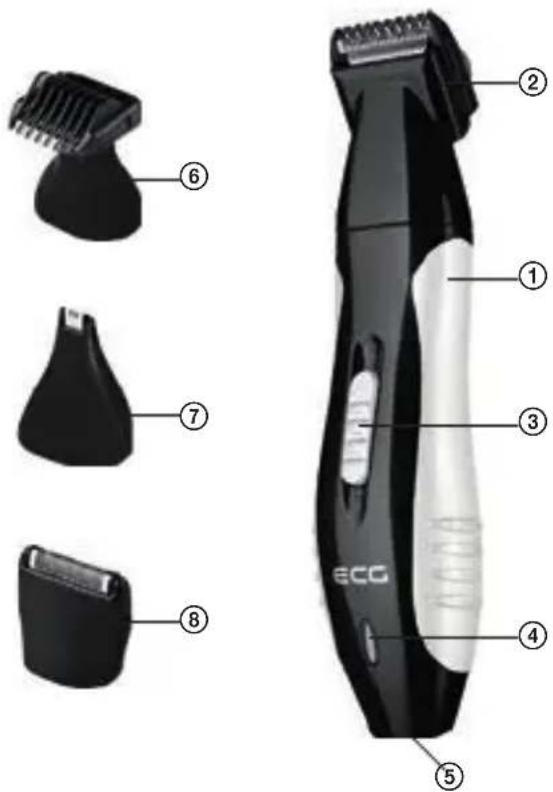

POPIS / POPIS / OPIS / A KÉSZÜLÉK RÉSZEI / DESCRIPTION

CZ

1. Body of the clipper
2. Beard trimmer head with sliding comb extension (2, 4, 7, 10 mm)
3. Slide switch
4. Charging light indicator
5. Adapter connector
6. Head with sliding extension for shaping beard 2, 4 a 6 mm
7. Head with extension for a detailed trim.
8. Head with razor blade

Other not pictured accessories: power adapter, cleaning brush, comb, oil, storage case, user's manual

Close-up of a black, textured object resembling a stylized tool or device with a grid-like top (no visible text or symbols)

Tvarování vousů

Black hairbrush with serrated edge and black base (no text or symbols visible)

Black plastic bag with a small label on the side (no visible text or symbols)

Nástavec na holení

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or symbols)

08/05

Close-up of a black, textured object resembling a tool or device with a spiral top (no visible text or symbols)

Close-up of a black hairpin with serrated edges (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

08/05

Ni-Mh

Close-up of a black mechanical tool with spiral grooves (no text or symbols visible)

Close-up of a black hairpin with serrated bristles (no text or symbols visible)

Black plastic bag with a small label on the side (no visible text or symbols)

Końcówka do golenia

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or symbols)

08/05

Close-up of a black mechanical tool with threaded end (no visible text or symbols)

Close-up of a black hairbrush with serrated edges (no text or symbols visible)

Black plastic bag with a small label on the side (no visible text or symbols)

Black disposable edge lipener (no text or symbols visible)

Please read carefully and keep for future reference.

Warning: The safety measures and instructions contained in this manual do not include all potential conditions and scenarios. The user must understand that common sense, caution and care are factors that cannot be integrated into a product. These factors must therefore be ensured by the user/users using and operating this device. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

Read the operating instructions carefully before using the appliance for the first time and follow the safety instructions!

The device may only be used as described in this manual.

Keep this manual for future reference.

If you pass the device to another person, please pass also this manual.

Warnings in this manual

If necessary, the following warnings will be used in this manual:

DANGER! High risk: Failure to observe this warning may endanger life or health.

DANGER! Medium risk: Failure to observe this warning may cause injury or considerable damage.

NOTICE: Low risk: Failure to observe this warning may cause slight injury or minor damage.

NOTE: Circumstances and specifics to be observed when handling the device.

SAFETY INSTRUCTIONS

Purpose

Multifunctional trimmer is intended solely to cut human hair. Use the device on dry hair only.

The device is intended for home use and must not be used for commercial purposes.

The device may only be used indoors.

Possible ways of incorrect use

Do not use this device to cut artificial hair or animal fur.

Instructions for safe operation

- Use only the supplied original power supply to connect to the electric outlet. This appliance can be used by children aged 8 years and older and people with physical or mental abilities or lack of experience and knowledge, if they are supervised or have been instructed to use the product in a safe manner and understand the potential dangers. Children must not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 must be kept away from the appliance and its power supply.

- Store the device in a dry place.

DANGER for children

Children may not play with the packaging material.

Do not let children play with the play bags.

Risk of suffocation.

DANGER

of electric shock due to moisture (during charging or while using the device when connected directly or via adapter to the electric outlet).

Never place the device in such a v that it could fall in the water while still connected to the adapter.

• Protect he device from moisture, dripping or splashing water.
• Never touch the device with wet hands.
• Do not immerse the device, the cable or the power adapter in water or other liquids, or rinse under running water.
  • If...

...the device fall in water disconnect the power adapter immediately and only then remove the device from water. After that do not use the device, but have it checked by an expert technician.

...liquid enters the device have it checked before using it again.

...If you use the device in the bathroom, the adapter must be disconnected from the outlet after use, because the nearness of water presents a risk even if the device is turned off.

...Before you first connect the trimmer to the electrical outlet, make sure that its voltage matches the operating voltage of the power adapter. The outlet must be installed according to valid electrotechnical EN standard.

DANGER of electric shock

Do not use the trimmer, if the device, adapter or the cable show visible signs of damage or if you dropped it.

• First connect the adapter connector to the device and then plug the adapter into the outlet.
• Connect the adapter only to a properly installed electrical outlet with the voltage corresponding to the voltage on the product

label of the adapter. The electric outlet must be easily accessible after connection.

• Make sure that the cable can not be damaged by sharp edges or hot surfaces.
• Make sure that the cable is not pinched or crushed.
• Unplug the adapter from the electric outlet ...

...after each use when you use the device directly, with connected adapter.

...after each charging.

...in case of malfunction.

...before cleaning the device when you use the device directly with connected adapter.

...during thunderstorms.

• When disconnecting, do not pull on the cable.
• To avoid any risk, do not make any changes to the device or accessories. Repairs must be carried out by a specialized company.

DANGER! When handling the Ni-MH batteries, observe the following guidelines.

- Charge the device only using the original power supply.

• Protect the battery from mechanical damage.
• Do not expose the device to direct sunlight or high temperatures. If the device is heated to more than 125°C, the cells may ignite.

- Do not leave the device near a fire source, as it may cause ignition. Common extinguishers can be used to extinguish fire (powder extinguishers with ABC powder, extinguishers with CO_2 ).

- If liquids leak from the batteries, avoid contact with eyes, mucuous membranes and skin as well as inhalation of vapours. Immediately rinse the affected area with plenty of clean water. In any case, contact your physician.

- Leaked liquids must be absorbed by the absorbent and properly disposed of.

- Open batteries are hazardous waste and must therefore be properly disposed of.

WARNING! Risk of cuts

The blades of the exchangeable cutting heads of hair, beard precise trimmer are very sharp. Handle them carefully.

• Do not use the device with a damaged head or attachment.
• Make sure to turn off the device before inserting or replacing the head and always before cleaning.

WARNING! Danger of injury

Do not insert the attachment for trimming the nose/ear hair too deep into the nostril or ears.

- Do not use the device in open wounds, cutting wounds, sunburns and blisters.

DANGER! Danger of injury from the trimmer oil

Keep the little container with oil out reach of children.

- Avoid contact of the trimmer oil with eyes. If the trimmer oil gets into your eyes, rinse them out immediately with plenty of water and remove the oil completely.

- Never swallow the trimmer oil.

NOTICE: Property damage

Use original accessories only.

• Never place the device on hot surfaces (e.g hot plates) or near sources of heat or naked flames.
• Do not cover the power source to prevent overheating.
• To prevent damage to the razor blade, do not apply excessive pressure to the blade.
• Do not remove the razor blade from the frame.
• Do not use coarse or abrasive cleaners.

CHARGING

GB

Charging

NOTICE: Property damage

Remember that the battery capacity is lower after long periods of storage. Therefore long charging times due to interruption between charging and discharge cycles should be avoided.

WARNING: Use only the PTA-030100EU adapter supplied with the trimmer for charging.

NOTES

1. Connect the charging adapter to the body of the device.
2. Connect the power adapter to an easily accessible electric outlet.

3. Place the device in the charging stand to connect the charging contacts.
   After connecting the adapter to the power supply, the red LED on the trimmer body is constantly on.
   To extend battery life, we recommend the following charging times:
   First charging – charging time about 16 hours
   Each following charging – charging time about 8 hours
   1× in six months – we recommend to extend the charging time to about 16 hours
   Warning: The red LED is lit continuously even after full charge.

4. The operating time with a fully charged battery is about 50 minutes.

Note: You can connect the adapter directly to the body of the device.

OPERATION

NOTES

• Cut beard must be dry.
• The length of the cut depends on the cutting angle.
• First, start with a comb extension set to the longest cut and then in the process use gradually shorter cut lengths.

Regardless of the charge status of the battery you can use the trimmer with the power adapter.

1. To use the power adapter, make sure that the device is switched off.
2. Connect the adapter to the trimmer and to an easily accessible power outlet.
3. Turn the device on by moving the switch to position 1.

Attaching/removing the replaceable heads with extensions

Turn the replaceable head counter-clockwise to release it and remove it. When you attach the head, move it clockwise until it clicks in the body of the trimmer.

WARNING!

Before attaching or removing the replaceable heads, switch off the device by sliding the switch to position 0.

Attaching/removing the comb extensions

When attaching comb extensions, slide the comb into the head so that its edges fit into the grooves at the edges of the head. When removing the extensions proceed in reverse.

Trimming

For trimming, select the head with the comb extension as shown.

Adjust the length of the cut on the extension by moving the combs forward or backward. The numbers on the extension correspond to the following length of cut:

• Nr. 1:2 mm
• Nr. 2: 4 mm
• Nr. 3: 7 mm

• Nr. 4: 10 mm

• Comb the beard well.

• Hold the device so that the level surface of the comb extension is in contact with the skin. Move the device through your beard evenly.

• If it is possible, cut against the growth of the beard.
• To get all facial hair, move the device through the same part of your beard several times.
• Use the device without the comb extension for a very short cut. To achieve a very smooth cut, move the blades by sliding the switch and the cut height is shortest in position 3.
• Comb through your beard repeatedly and thoroughly.

Shaping the beard

Select the head with pictured extension for shaping the beard. The extension allows you to adjust the length of the cut in 3 levels. Numbers 2, 4 and 6 moulded in the trimmer head correspond to the length of the cut in mm.

Moving the comb ext4ension changes the length of

the cut. Actual setting is visible in the window that is in the middle of the extension.

Close-up of a black hairpin with spiral bristles (no text or symbols visible)

Close-up of a black hairbrush with serrated teeth, resting on a smooth black base (no text or symbols visible)

1. Comb the beard in the direction of the growth.
2. Begin by cutting your beard at your ear and move down to your chin on one side, then do the same on the other side.
3. If you want to trim a beard or moustache for a very short length or when trimming the contours, use the beard trimmer head without a comb extension. The beard trimmer blade is directed at the beard at the correct angle.
4. Hold the comb extension with the rounded side by the beard and cut from the bottom upwards against the direction of the beard growth.
5. When cutting your moustache, first comb your moustache straight down. Then use either a beard trimmer extension or a precision

trimming attachment. Start in the middle above the mouth, trim one side then the other.

Head for detailed cut

1. Using the extension trim the shape of the moustache, contours on the cheeks, sideburns and eyebrows.
2. Place the blade of the extension to the desired hairline height and move the device down.

Black conical object resembling a stylized flask or container (no text or symbols visible)

Shaving extension

Note: The skin must be clean and dry.

1. Hold the device at the correct angle to the surface of the skin and carefully move it over your face.

2. Shave against the growth of your beard.

3. At the places of the face that are more difficult to shave like a chin, stretch your skin to get better results.

Black disposable edge lipener (no text or symbols visible)

CLEANING AND MAINTENANCE

DANGER!

Disconnect the power supply from the electrical outlet before cleaning the device.

WARNING!

Always turn off the device before cleaning it.

Do not immerse in the body of the device or the accessories.in water.

NOTICE!

Do not use coarse or abrasive cleaners.

Note: Clean and lubricate the device after each use.

Appliance

- Clean the body of the device with wet cloth.

Comb attachments

- Remove the comb extension. Rinse the comb extension with water and allow it to dry before reuse.

Replaceable heads

1. Detach the head from the device
2. To remove the beard or hair clippings from the extension use the supplied brush.
3. Apply a few drops of oil to the blade edge. Use a soft cloth to wipe any excess oil. Only use acid-free oil, such as sewing machine oil.

Shaving extension

WARNING!

Do not remove the razor blade from the frame.

1. Remove the head with the razor blade from the body of the machine.
2. Press the side buttons on the shaving head and remove the shaving razor frame. Hold the razor blade frame on the sides and do not press on the razor blade.
3. Clean the blade with the supplied cleaning brush.
4. Rinse the razor blade in the shaving frame under running water and allow it to dry completely before reinserting it into the shaving extension.
5. Reattach the razor blade frame to the shaving attachment. When reattaching the razor blade frame, make sure that the fixing tabs fit into the corresponding recesses of the shaving extension, and push it gently until it snaps into place.

Note: Apply several drops of acid-free oil (e.g. sewing machine oils) from time to time. Attach the shaving extension to the device and turn it on for several seconds without using it. Use a soft cloth to wipe any excess oil.

TROUBLESHOOTING

DANGER!

Do not attempt to repair the device yourself.

Whenever a malfunction occurs, pull the plug out of the electric outlet.

Malfunction: Check	the following:
The device does not work	• Is power supplied during charging?• Is the battery empty?
The trimmer heads do not work smoothly	• Are the heads clean and lubricated?

If a malfunction occurs, which is not listed here, contact the service centre. Repairs must be carried out by a specialized company.

TECHNICAL SPECIFICATIONS

Power adapter:Input voltageOutput voltageProtection classOperating conditions	PTA-030100EU100–240 V~, 50/60 Hz, 0,2 A3 V = 1000 mA□ IIDesigned exclusively for use indoors
Multifunctional hair trimmerInput voltageBatteryPermissible ambient temperature	3.0 V = 1000 mA2,4 V NiMh battery, 600 mAhFrom 5 °C to +35 °C

We reserve the right to make technical and visual changes to the device or its accessories for the continuous improvement of the product.

DISPOSAL

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

Dispose of the oil container only when it is empty.

Battery Ni-Mh used in this appliance must not be disposed off in mixed household waste. The battery must be properly disposed off. For more information, check with your battery distributors or collection points for waste disposal.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

08/05

Ni-Mh

The instruction manual is available at website www.ecg-electro.eu. Changes in text and technical parameters reserved.

www.ecg-electro.eu

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany e-mail: [e-mail]
